Forecasting Teletraffic Performance Using Regression Analysis, FNNN, GRNN and CFNN ^†

Abstract

This paper presents an approach for the predictive analysis of teletraffic performance indices through derived analytical and regression structures based on Artificial Intelligence. The systematization of synthesis, testing, and verification processes for simulation-modeled teletraffic ICT infrastructure with queue service organization was carried out. The forecast models for the selected system throughput and system response time indices against the specific complex indicator Service Demand were obtained. Polynomial regression models based on the Coefficient of determination R were achieved. In the course of procedural teletraffic forecasting, we used Feed-Forward Neural Networks (FFNNs), Generalized Regression Neural Networks (GRNNs), and Cascade-Forward Neural Networks. The selection of neural models was performed as the functional minimization of the Mean-Squared Error (MSE) and Mean Absolute Error (MAE).

1. Introduction

One of the main aspects of adequate traffic planning in modern telecommunications systems is associated with the ability to predict optimal levels of basic productivity indices with the optimal allocation of computing resources [1,2,3]. These processes are particularly relevant in queue systems linked to monitoring the speed and reliability of package processing. An essential qualitative indicator that characterizes packet data transmission in strategic and conceptual traffic planning activities in these systems is the Teletraffic Sevice Demand [4,5,6,7,8]. The stated indicator is related to the overall diagnosis and prediction of the behavior of a specific telecommunications system. Its impact on quantitative changes in qualitative parameters of incoming and outgoing traffic, as well as identifying service user requests, is particularly important [9,10]. Classical regression analysis with the STATOSTICA package is an essential tool in predictive procedures regarding the teleraffic load, bottlenecks, and packet losses for various server resources in modern telecommunication systems. Significant traffic indices subject to targeted forecast analysis are the variation times of arrival and release of processed service requests. Minimization procedures based on conventional and non-conventional methods and optimization algorithms can be applied in relation to these specified parameters [11,12,13].

A telecommunication objective system with queue data structures was created by imitation modeling in Java Modeling Tool software (https://www.onworks.net/software/app-java-modelling-tools accessed on 26 June 2023). This paper introduces a synthesis task and an innovative approach for the predictive analysis of system throughput and system response time dependent on the Service Demand indicator, significant for traffic and network planning resources. This approach integrates and combines regression analysis, and Artificial Intelligence categories—FFNN, GRNN, and CFNN techniques.

2. Regression Models for Predicting Performance Indices

Studies on the systematization of the predictive analysis approach were divided into two stages. The first stage is related to the assessment of the adequacy of mathematical regression models of the zero and second degree (1) with the product STATISTICA in terms of the following defined indicators:

• x₁—controllable factor system demand, s;
• y₁ and y₂—system throughput and system response time output parameters.

y = b₀ + b₁x₁ + b₁₁x₁².

(1)

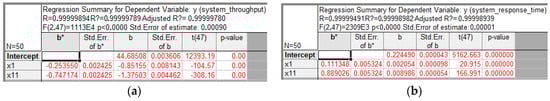

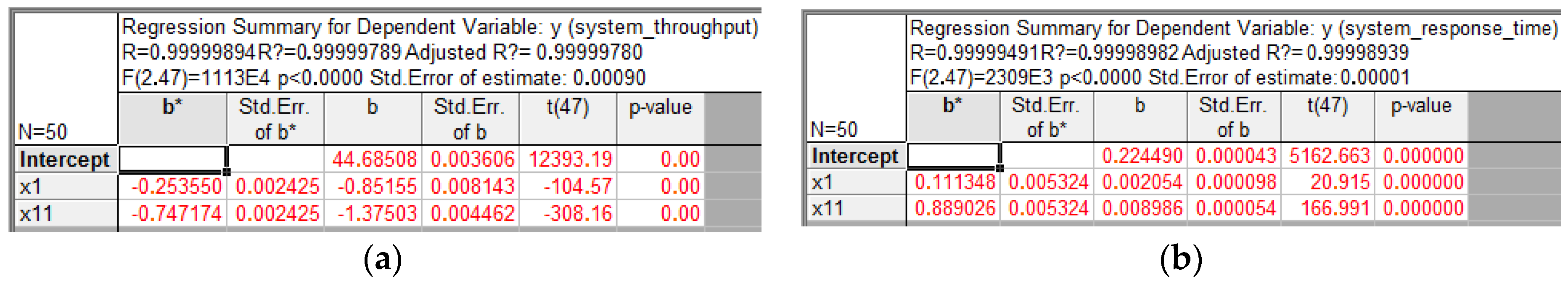

Figure 1 illustrates the obtained output data from the application of the set regression analysis in relation to model (1) selected due to the higher obtained values of the Coefficient of determination R² for the forecasted traffic performance indices. In an analysis against the basic polynomial model (1), very high levels of R² were achieved, respectively, with R² = 0.99999789 at y₁ and R² = 0.99998982 for factor y₂. All experimental regression beta coefficients bi were assessed as significant against an accepted level of significance α = 0.05.

y₁ = 44.68508 − 0.85155x₁ − 1.37503x₁²

(2)

y₂ = 0.224490 + 0.002054x₁ + 0.008986x₁²

(3)

The final regression models (2) and (3) were derived to predict the potential performance indices for the imitation modeled teletraffic system.

3. Neural Apparatus for Predictive Analysis of Traffic Indices

The second stage of the studies is focused on activities to diagnose the effectiveness of FFNNs, GRNNs, and CFNNs neurons versus the assessment of MSE and MAE criteria in procedural traffic prediction in MATLAB. The listed categories of neural structures were analyzed with train, validation, and test data sets as follows:

• Predictors—(1) system demand, s (x₁) and (2) the values of the teletraffic indicator System demand raised to the second power (x₁²);
• Target output indexes—system throughput and system response time, respectively (y₁) and (y₂).

3.1. Feed-Forward Neural Networks Investigation

Table 1. Results of a study of FFNN models for the prediction of the teletraffic indicator system throughput in LM training.

Hidden Neurons	System Throughput
	MSE	MAE
5	0.0294	0.1071
6	6.8843 × 10−4	0.0189
7	0.0038	0.0488
8	8.3449 × 10−4	0.0256
9	0.0048	0.0523
10	0.0053	0.0653
11	0.0039	0.0517
12	0.0040	0.0480
13	0.0093	0.0919
14	0.0028	0.0444
15	0.0048	0.0606

summarizes the resulting levels of the specified quality assessment criteria for the learning process of feed-forward structures with Levenberg–Marquardt (LM) in the system throughput parameter. MSE and MAE indices were examined for a fixed change in computational units in the interlayer of test FFNNs 5 to 15. Maximum errors MSE = 0.0294 and MAE = 0.1071 for neural architecture at five structural hidden neurons were observed. Minimum readings of the 6.8843 × 10⁻⁴ and 0.0189 quality indicators were achieved for FFNN with six hidden neurons.

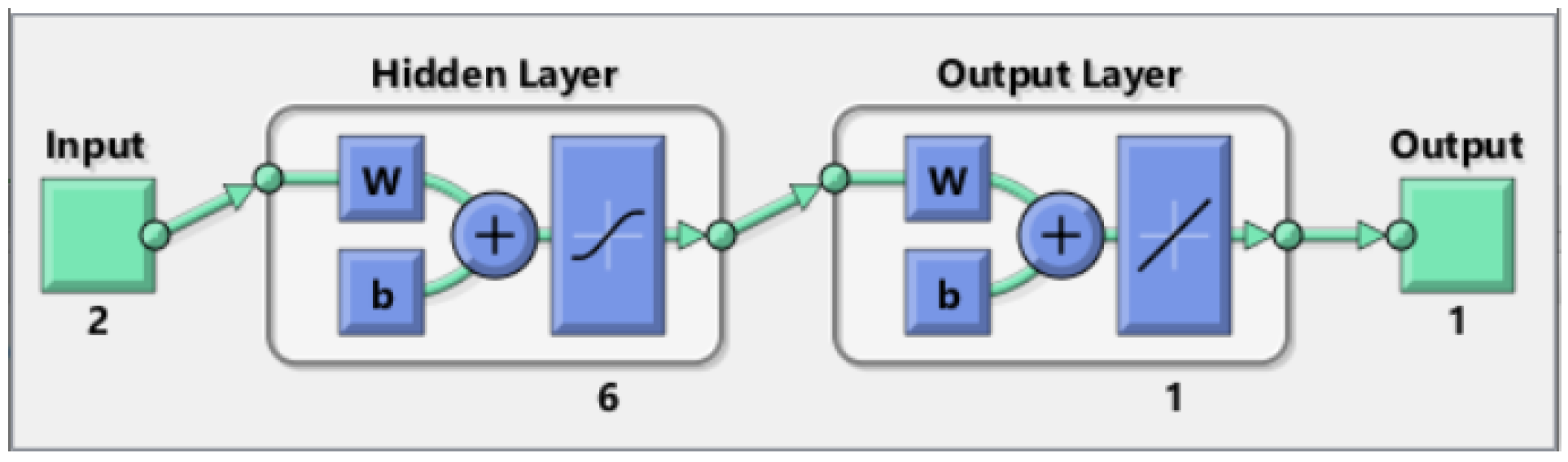

The selected final neural model with direct signal propagation and backpropagation error for the predictive analysis of the system throughput index is given in Figure 2. This model is made of three structural layers with a set of hyperbolic tangent and linear transfer functions in hidden and output layers.

3.2. Generalized Regression Neural Networks Analysis

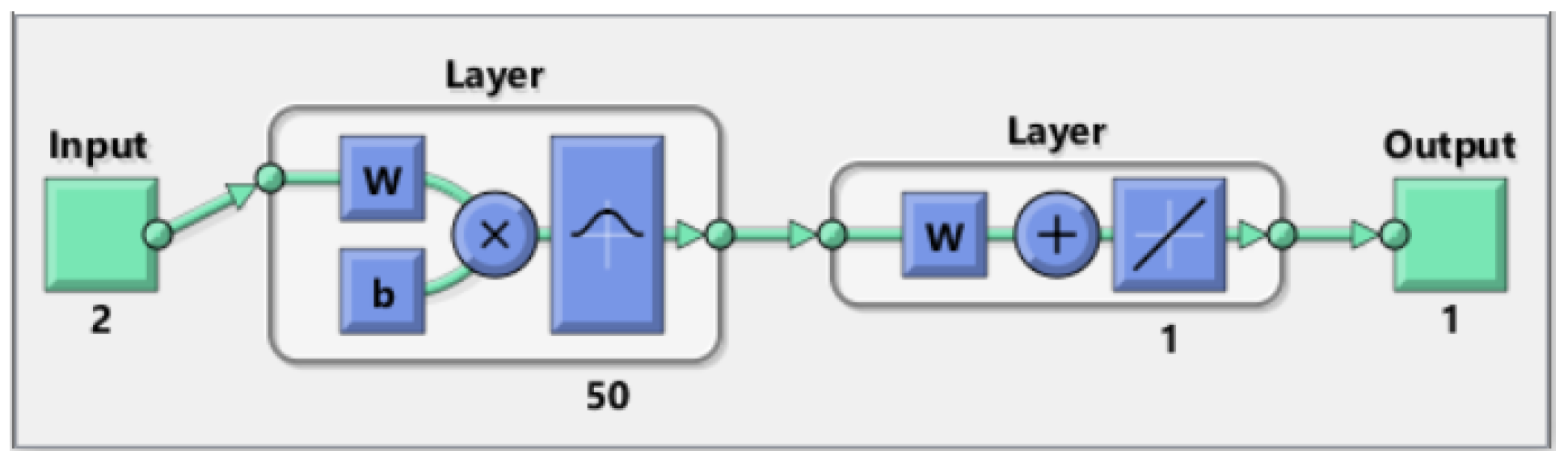

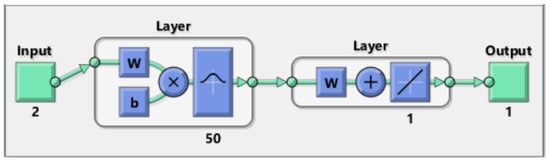

The next phase consists of monitoring the adequacy of the tool of the four-layer Generalized Regression Neural Networks in the task of predictive analysis. A peculiarity of this type of neural architecture is the invariable number of neurons in the second structural layer with the application of the Gaussian activation function, equal to the number of standards in the applied input information set. The basic GRNN architecture is shown in Figure 3.

The selection of GRNN forecast models is based on the MSE and MAE, studying variations in the process of an incremental increase in the value of the specific spread indicator in the radial basis network layer in an experimentally determined range.

Table 2. Quality evaluation results of GRNN models for predicting performance indicator levels.

Spread Indicator	System Throughput		System Response Time
	MSE	MAE	MSE	MAE
0.050	1.0108 × 10−4	0.0042	2.9993 × 10−9	2.2164 × 10−5
0.075	3.4460 × 10−4	0.0091	1.0252 × 10−8	4.8472 × 10−5
0.100	8.1530 × 10−4	0.0156	2.4299 × 10−8	8.3690 × 10−5
0.125	0.0016	0.0236	4.7319 × 10−8	1.2712 × 10−4
0.150	0.0027	0.0331	8.1474 × 10−8	1.7830 × 10−4
0.175	0.0043	0.0438	1.2892 × 10−7	2.3670 × 10−4
0.200	0.0064	0.0558	1.9185 × 10−7	3.0184 × 10−4
0.225	0.0091	0.0689	2.7244 × 10−7	3.7342 × 10−4
0.250	0.0124	0.0831	3.7294 × 10−7	4.5111 × 10−4
0.275	0.0165	0.0983	4.9550 × 10−7	5.3435 × 10−4
0.300	0.0214	0.1144	6.4204 × 10−7	6.2290 × 10−4
0.050	1.0108 × 10−4	0.0042	2.9993 × 10−9	2.2164 × 10−5

shows the data of the registered values of MSE and MAE for the two targeted teletraffic performance indices. A general trend of an exponential error increase was observed with an ascending smooth change in the function parameter spread from 0.050 to 0.300 at the two forecast indicators. The highest levels of criteria for system throughput and system response time were established in spread = 0.300, as follows “MSE = 0.0214 and MAE = 0.1144” and “MSE = 6.4204 × 10⁻⁷ and MAE = 6.2290 × 10⁻⁴”. With the minimum set grade with the greatest degree of suitability spread = 0.050, the functions in the radial basis structural layer of GRNN achieved the lowest levels MSE = 1.01008 × 10⁻⁴, MAE = 0.0042 for system throughput and MSE = 2.9993 × 10⁻⁹, MAE = 2.21640 × 10⁻⁵ at system response time.

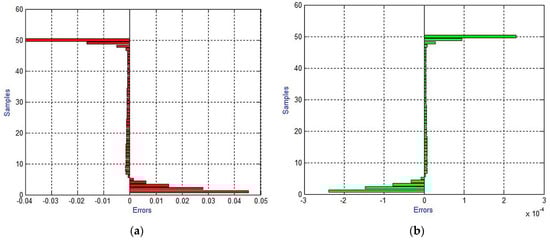

Similarly to the previous category of neural networks, an assessment of the differences between the theoretical and the obtained experimental values of the target teletraffic parameters was conducted using the Residual diagrams of Figure 4.

In connection with the selected GRNNs for regression modeling at spread = 0.050, error variations in the forecast indices system throughput and system response time, falling within the ranges “−0.0400 to 0.0453” and “−2.3781 × 10⁻⁴ to 2.3022 × 10⁻⁴”, were observed. The overall trend for the studied teletraffic indices was the registered peaks at the initial and final benchmarks of the applied test information set. The final assessment at GRNN was associated with a finding to a lesser extent for better advantages compared to the experimental residue values and those of the selected FFNN model for the system throughput index.

3.3. Cascade-Forward Neural Networks Estimation

The final phase of the present research covers the selection activities of Cascade-Forward Neural Networks for the purposes of teletraffic forecasting. This category of neural networks is considered a variety of FFNNs with corresponding structural differences related to the presence of a direct connection between the input and output layer and the inclusion of a second weight matrix to the output layer.

Similar training procedures with an LM approach in the structural alteration of hidden neurons in the known range of 5 to 15 computational units in terms of the complex analysis of MSE and MAE quality indicators have been applied. The results of a CFNN performance study are presented in

Table 3. Examine the quality of CFNN models for predicting traffic performance parameters.

Hidden Neurons	System Throughput		System Response Time
	MSE	MAE	MSE	MAE
5	1.6415 × 10−9	2.0126 × 10−5	7.5662 × 10−10	2.0018 × 10−5
6	1.0022 × 10−9	1.4178 × 10−5	6.0152 × 10−11	5.7154 × 10−6
7	1.0782 × 10−10	8.5520 × 10−6	1.3590 × 10−10	8.1408 × 10−6
8	2.2607 × 10−10	9.8568 × 10−6	2.0148 × 10−12	1.2498 × 10−6
9	1.6997 × 10−10	9.0878 × 10−6	5.3233 × 10−11	5.0956 × 10−6
10	5.8023 × 10−9	5.7095 × 10−5	4.0863 × 10−9	5.3444 × 10−5
11	1.8411 × 10−10	1.1316 × 10−5	6.3765 × 10−12	1.5975 × 10−6
12	1.3511 × 10−10	9.4508 × 10−6	7.2580 × 10−10	2.2891 × 10−5
13	1.7786 × 10−9	1.7127 × 10−5	3.3792 × 10−10	1.5585 × 10−5
14	7.3851 × 10−10	1.8198 × 10−5	1.1041 × 10−12	8.0021 × 10−7
15	3.0354 × 10−9	3.3020 × 10−5	6.6437 × 10−10	2.0675 × 10−5
5	1.6415 × 10−9	2.0126 × 10−5	7.5662 × 10−10	2.0018 × 10−5

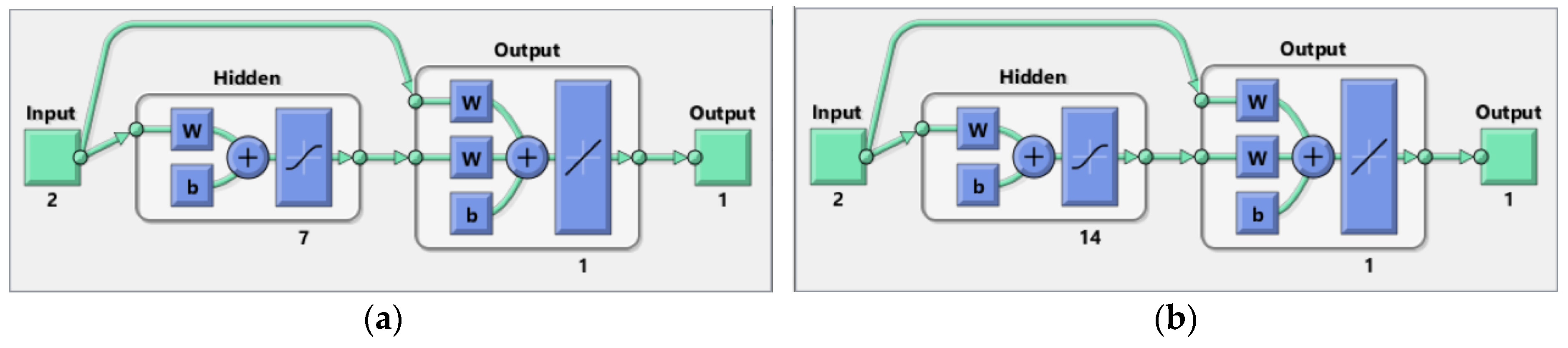

. Neural architectures, achieving the requirements for the minimization of the analyzed indicators, were found with 7 for system throughput and 14 hidden neurons in the system response time index, as shown in Figure 5.

The achieved minimum error levels fall in consecutive orders of magnitude of “1.0782 × 10⁻¹⁰—MSE for y₁”, “8.5520 × 10⁻⁶—MAE at y₁”, “1.1041 × 10⁻¹²—MSE in y₂” and “8.0021 × 10⁻⁷—MAE for y₂”. The following highest values of the quality criteria groups MSE = 5.8023 × 10⁻⁹, MAE = 5.7095 × 10⁻⁵ at system throughput and MSE = 4.0863 × 10⁻⁹, MAE = 5.3444 × 10⁻⁵ for teletraffic system response time were obtained.

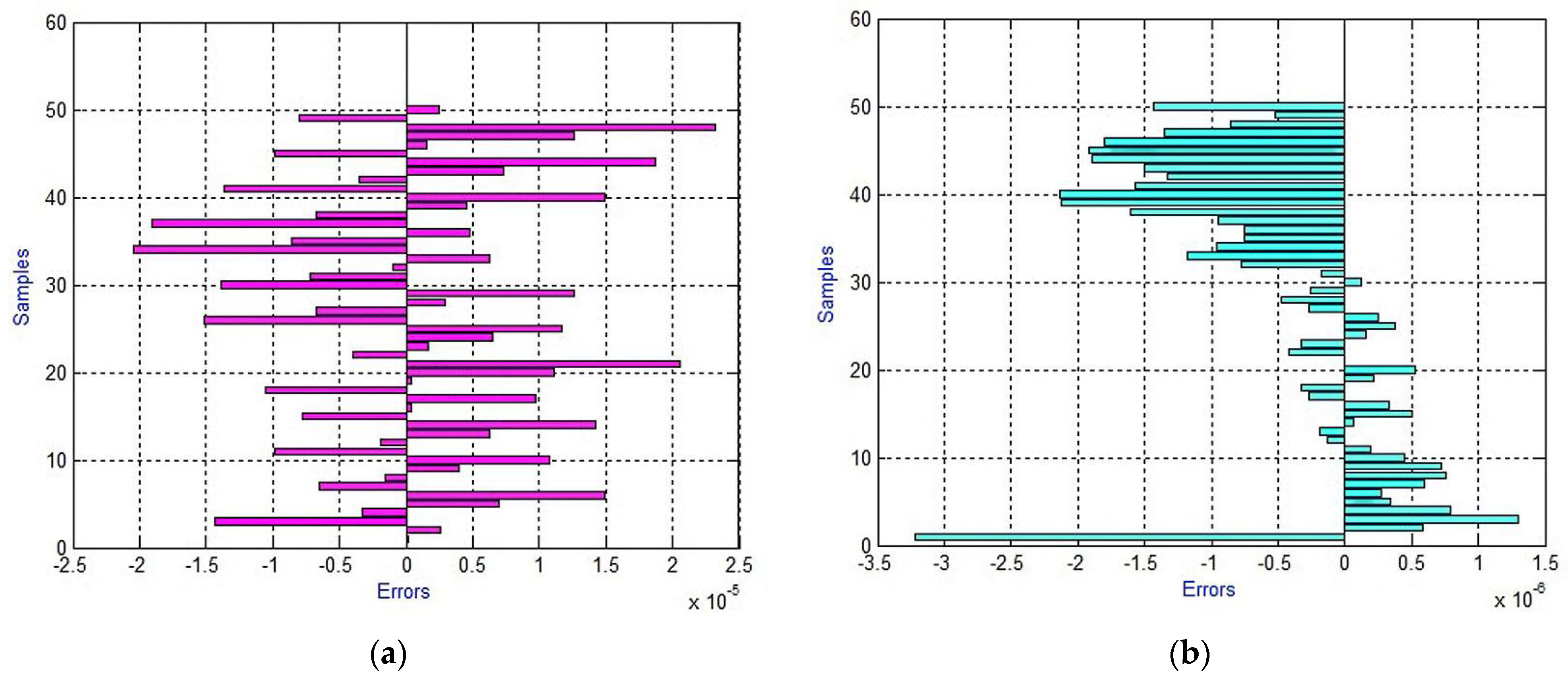

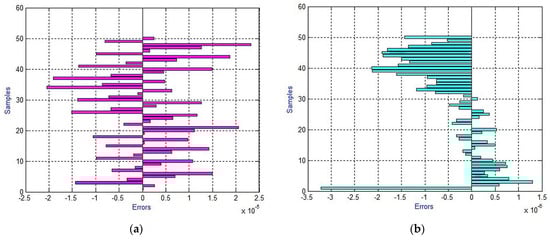

In the research process, it was established that the synthesized Cascade-Forward Models outperformed GRNNs to a significant degree. This is expressed by the Residual plot in Figure 6, where lower residue variation ranges were achieved. Regarding the system throughput and system response time index, the following limit quantitative estimates were observed: “−2.0396 × 10⁻⁵ to 2.3236 × 10⁻⁵” and “−3.2148 × 10⁻⁶ to 1.3014 × 10⁻⁵”.

4. Conclusions

The proposed approach for predictive analysis based on regression modeling and diagnosis via classical regression analysis, FFNN, GRNN, and CFNN, by evaluating a set of complex criteria, shows very good effectiveness.

The projected models from the conducted studies allow conceptual planning and the adaptation of the test imitation modeling teletraffic in accordance with the observance and maintenance of the set configuration parameters to the systems for servicing different types of traffic and categories of packages with good reliability.

The developed approach gives the opportunity for system upgrading with the inclusion of additional analytical tools and implementation in systems for monitoring and administering network traffic in communications.
