Proceeding Paper

Physicochemical and Rheological Characterization and Antioxidant Activity of the Juice of “Puro Puro” (Passiflora pinnatistipula) †

E.P. Ciencia de los Alimentos, Universidad Nacional Mayor de San Marcos, Lima 09001, Peru
E.P. Ingeniería Agroindustrial, Facultad de Ciencias Agraria, Universidad Nacional de Huancavelica, Huancavelica 09000, Peru
Grupo de Bioprocesos y Conversión de la Biomasa, Universidad San Ignacio de Loyola, Lima 15024, Peru
Author to whom correspondence should be addressed.
Presented at the II International Congress on the Technology and Innovation in Engineering and Computing, Online, 21–25 November 2022.
Eng. Proc. 2023, 42(1), 6;
Published: 11 August 2023


The genus Passiflora spp. stands out as an important source of bioactive compounds and health promoters; however, not all its species have been studied in depth, as in the case of Passiflora pinntistipula, or “puro puro”. In this sense, the main objective of this research is to study the antioxidant capacity, physicochemical properties and rheological behavior of “puro puro” juice from the Pamuri Community, Tayacaja Province, Huancavelica. The physicochemical characterization was carried out according to the official methods of international analysis (AOAC). The parameters evaluated were the percentage of humidity (66%), ashes (3%), fat (1.5%), proteins (4.5%), carbohydrates (25%), total energy (100%), pH (4.5), total acidity (1.3%), and soluble solids (18.5%). The color was determined on the CieLab scale and was L* (34.5), a* (1.2), b (4.4), C* (4.5) and h* (74.3). The antioxidant capacity was evaluated with the 2,2′-azino-bis (3-ethylbenziozoline-6)-sulfonic acid (ABTS) method, and the value obtained was 5.2 µmol-Equi. Trolox/g. The rheological parameters of the pure cigar juice were evaluated using a rotary viscometer at temperatures of 15, 20, 25, and 30 °C; and in concentrations of 18.5, 20, 25, 30, and 35 °Brix. The power law model fitted the experimental results and showed non-Newtonian flow behavior. The value of the flow behavior index (n) was less than unity at all temperatures and concentrations, indicating the pseudoplastic nature of the juice. The Arrhenius model was able to relate apparent viscosity to temperature. The consistency index (k) varied in the range between 0.42 and 1.38 Pa sn, and flow behavior index (n) was in the range between 0.26 and 0.55.

1. Introduction

The demand for high-quality health foods is growing today. Consumers are looking for organic foods, such as fruits, that are a source of bioactive phytochemical compounds that contribute to disease prevention. There is research demonstrating the beneficial effects of fruit-rich diets as healthy food [1]. The consumption of tropical fruits is gaining public interest, due to the supply of minerals, vitamins, and carbohydrates required to minimize human health complications [2].
Passiflora is a genus comprising about 520 species distributed in the tropical regions of Africa, America, and Asia, 96% of which are found in South and Central America [3]. Although there is a great diversity of Passiflora species, only some are used in agriculture, mainly to produce fruits, which are directly consumed or processed, such as juices, jams, ice cream, and sweets [4]. Wild and cultivated species of this genus have been shown to be sources of potential bioactive molecules for developing new anti-diabetic, antimicrobial, anti-inflammatory, and antiproliferative drugs, in addition to natural antioxidants for food applications [5].
Passiflora pinnatistipula (family Passifloraceae), is commonly known as “gulupa” (Colombia), “tacso”, and “purupuru” in Ecuador, and, “puro puro” and “tin tin tin” in Peru [6]. P. pinnatistipula is a woody climbing plant that originates from the tropical regions of Peru and Bolivia, but is cultivated from Colombia to central Chile, with a greater presence in northern Bolivia and southern Peru [7,8]. Fruits generally grow between 2500 and 3800 m; however, they can be cultivated up to 4000 m, allowing for production in cold climates [9].
The fruit of P. pinnatistipula is spherical, 4 to 6 cm in diameter, with a thin grayish-green or yellow pericarp and a leathery, but brittle exocarp [6,10]. The pulp is whitish to yellowish, with a sweet or slightly sour taste, and the seeds are relatively large, round and hard [6,9]. It can be consumed as a fruit or used to prepare juices [6].
The fruits of P. pinnatistipula are harvested at various times of the year in small quantities and traded at fairs and local markets due to low productivity [11,12]. P. pinnatistipula fruits are of great interest to the villagers, as they depend on these resources for subsistence; however, the fruit has a low monetary value (PEN 0.50 (USD 0.15) per unit), despite its high nutritional value and scarcity in the market [13]. Therefore, the processing of these fruits is of great relevance to develop new products with high added value, such as juices and beverages, capable of providing a wide range of nutrients to human health, which stand out as a new source of economic income for producers. The present study aims to increase the scarce knowledge on the physicochemical composition, antioxidant capacity, and rheological behavior of “puro puro” (P. pinnatistipula) juice to promote the revaluation and production of the fruit, developing new proposals for its processing.

2. Materials and Methods

2.1. Materials

The puro puro fruits were collected from the Community of Pamuri, District of Acraquia, Tayacaja–Huancavelica.

2.2. Preparation of the Puro Puro Juice

The puro puro ripe fruits were selected (free of mechanical damage), washed, and disinfected with sodium hypochlorite solution (0.75 mL/L of water). Then, they were cut longitudinally in halves, peeled, destemmed, and filtered manually. The yield of the puro puro juice obtained was 71%. The samples (puro puro juice) were refrigerated (4 °C) until the day of rheological analysis.

2.3. Determination of Physicochemical Properties

Acidity was determined with titration, with the addition of phenolphthalein as an indicator; the results were expressed as a percentage of ascorbic acid. The pH was measured by means of a digital potentiometer (SCHOTT, PH11). Total soluble solids were measured with a digital refractometer (SCHMIDT-HAENSCH, DHR-60) and expressed as Brix. Proximate chemical composition was determined using the A.O.A.C. method [14]: moisture, ash, fat by using the Soxhlet system; hexane and protein using the Kjeldahl method, and carbohydrate by using difference. Color was measured using the CIE lab scale (L*, a*, b*) with a Konica colorimeter (Minolta, CR-10).
Antioxidant activity was determined using ABTS+ radicals, following the methodology of [15]. The results were expressed as μmol Equi. Trolox/g sample.

2.4. Rheological Behavior

The puro puro juice (18.5 °Brix) was concentrated to 20, 25, 30, and 35 °Brix using vacuum evaporation. Rheological measurements of the samples were carried out in a Brookfield viscometer (model DV III Plus) with a CV N°2 spindle, at seven rotation speeds (0.5, 1, 1, 4, 10, 20, 20, 50, and 100 rpm) with a torque of 10%. Measurements of the different levels of concentrations were carried out at temperatures of 15, 20, 25, and 30 °C, in a shear rate range of 0.1–100 s−1.
Rheological parameters were determined according to the conversion method of Mitschka (1982). The rheograms (shear stress versus shear rate plots) were fitted to the Ostwald de Waele model to predict the rheological behavior of the juice. They were calculated with:
τ = k γ n
where τ is the shear stress or shear strain (Pa), k is the flow consistency index (Pa sn), γ is the shear rate or strain rate (s−1), and n is the flow behavior index (dimensionless).
The apparent viscosity was determined using the following equation:
η ap = k γ n γ
where η ap is the apparent viscosity (Pa s).
To determine the effect of juice temperature on rheological properties, the Arrhenius model was used:
k = k 0 · exp ( Ea / RT )
where η ap is the apparent viscosity (Pa s), k0 is the so-called infinite deformation viscosity constant, Ea is the activation energy at flow (J mol−1), R is the universal gas constant (8.3143 J K−1 mol−1), and T is the absolute temperature (K).

3. Results and Discussions

3.1. Physicochemical Characterization, Color and Antioxidant Activity of Cigars

The puro puro is a fruit that has not yet been investigated, but passion fruit and granadilla are part of the Passiflora genus and have similar physical characteristics. The soluble solids have a sweet taste, due to their total sugar content and low acidity, both percentages being higher than those of passion fruit and granadilla, and the pH is in the range of the genus Passiflora. In addition, the results (Table 1) indicate that the pure juice has excellent chemical characteristics in terms of total ash, total fat, crude protein, and carbohydrates (including fiber), all above the values of passion fruit (Passiflora ligularis and Passiflora edulis).
From Table 1, the puro puro pulp presented colorimetric parameters of lightness (L*: 34.5, indicating a light yellow, low lightness for being close to 0; 4.4 for b*, and 1.2 for a*, expressing a dull yellow color). These data are very similar to those reported by [16], who reported that the color of fresh passion fruit (Passiflora edulis) pulp was mainly due to the yellow contribution (positive value of b*) and in smaller proportion to the red contribution (positive value of a*), and the combination of both resulted in an intense yellow color with orange hues, mainly due to the presence of carotenoid and flavonoid pigments that are generally yellow in color. The total difference ΔE was 20.8, which indicates that the color can be observed with the human eye, since ΔE > ±5 is perceptible by the human eye.
The puro puro juice possesses 5.2 µmol of Equi. Trolox/g of antioxidant capacity (Table 1), lower in comparison with other species of the genus Passiflora. The differences may be due to different chemical components (such as flavonoids), degree of fruit ripening, and the influence of external environmental conditions (temperature, humidity, and exposure to sunlight) [4,17].

3.2. Rheological Characterization

The rheological parameters of the flow behavior index (n) and consistency coefficient (k) obtained at different concentrations and temperatures were satisfactorily fitted to the Power Law equation and resulted in correlation coefficients of r2 ≥ 0.955 (Table 2), indicating that this model adequately describes the flow behavior of “puro puro” juice. This model has been successfully used by several authors [13,18] in the rheological study of various foods; for example, [19] in guava (Psidium guajava) pulp, [20] in mango (Mangifera indica) pulp, [18] in guabirá (Campomanesia xanthocarpa) jams, and [21] in fruit drinks (“mango” Mangifera indica, “apple” Pyrus malus, “melon” Citrullus lanatus, “banana” Musa acuminata, “pear” Pyrus communis) [22].
Figure 1 shows the rheograms of puro puro juice at different concentrations and temperatures. The ascending curves show that the samples show non-Newtonian behavior of a pseudoplastic type, because the value of the flow behavior index in all cases is lower than unity (n < 1) [5,23]. According to the results, the consistency index decreases as the temperature rises and the flow behavior index increases, while, as the concentration increases, the consistency index shows an increasing trend and the flow behavior index decreases. This behavior is reported in other juices, such as in totapuri mango juice [1,17,24].
The influence of different temperatures and concentrations on the apparent viscosity is shown in Table 3, and the relationship between apparent viscosities and strain rate is shown in Figure 2. Under a fixed temperature and strain rate, the apparent viscosity increases as the concentration increases. This is explained by the fact that, at low concentrations, the puro puro juice molecules are separated from each other. In contrast, as the concentration increases, the molecules remain bound together, eventually forming an entangled network [6,25]. Viscosity tends to increase with concentration, especially during the entanglement stage and, at the same time, viscosity becomes more dependent on the shear rate [16,20,26].
The results indicate (Figure 2) that, at a given concentration, the apparent viscosity decreases with increasing temperature because, at elevated temperatures, liquids flow easily [21,27].
The puro puro juice has excellent physicochemical properties. The content of total ash, total fat, crude protein, and carbohydrates (including fiber) are higher than the values of other species of the genus Passiflora. However, its antioxidant activity is low, being its value lower than the antioxidant activity of other species of the same genus. The rheological characterization of the pure juice was developed in the range of temperatures (15, 20, 25, and 30 °C) and concentrations (18.5, 20, 25, 30, and 35 °Brix). The puro puro juice was considered as a pseudoplastic fluid, and is described according to the Power Law model. The results also reported that, as the temperature increases, the consistency index decreases and the flow behavior index increases, while, as the concentration increases, the consistency index increases and the flow behavior index decreases. Apparent viscosity is proportional to concentration and inversely proportional to temperature.

Author Contributions

Conceptualization, J.S.C.-R. and L.O.-M.; methodology, J.S.C.-R., S.P. and A.R.; writing—original draft preparation, J.S.C.-R., F.O., L.A. and L.O.-M.; writing—review and editing, J.S.C.-R. and F.O.; visualization, J.S.C.-R. and F.O.; supervision, J.S.C.-R. and F.O.; project administration, A.R., S.P. and L.O.-M.; funding acquisition, J.S.C.-R., A.R. and L.O.-M. All authors have read and agreed to the published version of the manuscript.


This research was funded by Universidad Nacional Mayor de San Marcos, grant number 05753-R-21.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Denardin, C.C.; Hirsch, G.E.; Da Rocha, R.F.; Vizzotto, M.; Henriques, A.T.; Moreira, J.C.F.; Guma, F.T.C.R.; Emanuelli, T. Antioxidant Capacity and Bioactive Compounds of Four Brazilian Native Fruits. J. Food Drug Anal. 2015, 23, 387–398. [Google Scholar] [CrossRef] [PubMed]
  2. Duque, A.; Giraldo, G.; Quintero, V. Caracterización de La Fruta, Pulpa y Concentrado de Uchuva (Physalis peruviana L.). Temas Agrar. 2011, 16, 75–83. [Google Scholar] [CrossRef] [Green Version]
  3. Cerqueira-Silva, C.; Jesus, O.; Santos, E.; Corrêa, R.; Souza, A. Genetic Breeding and Diversity of the Genus Passiflora: Progress and Perspectives in Molecular and Genetic Studies. Int. J. Mol. Sci. 2014, 15, 14122–14152. [Google Scholar] [CrossRef] [Green Version]
  4. Araya, S.; Martins, A.M.; Junqueira, N.T.V.; Costa, A.M.; Faleiro, F.G.; Ferreira, M.E. Microsatellite Marker Development by Partial Sequencing of the Sour Passion Fruit Genome (Passiflora edulis Sims). BMC Genom. 2017, 18, 549. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Corrêa, R.C.G.; Peralta, R.M.; Haminiuk, C.W.I.; Maciel, G.M.; Bracht, A.; Ferreira, I.C.F.R. The Past Decade Findings Related with Nutritional Composition, Bioactive Molecules and Biotechnological Applications of Passiflora spp. (Passion Fruit). Trends Food Sci. Technol. 2016, 58, 79–95. [Google Scholar] [CrossRef]
  6. Ocampo, J.; d’Eeckenbrugge, G.C.; Morales, G. Genetic Resources of Colombian Tacsonias (Passiflora Supersection Tacsonia): A Biological Treasure Still to Discover, Use and Conserve. Passiflora Online J. 2017, 10, 24–53. [Google Scholar]
  7. Møller Jørgensen, P.; Vásquez, R. A Revision of Passiflora Sections Insignes and ×Inkea (Passifloraceae). An. Jardín Botánico Madr. 2009, 66, 35–53. [Google Scholar] [CrossRef] [Green Version]
  8. Checa Coral, O.; Rosero Álvarez, E.; Eraso Cultid, I. Colección y Caracterización Morfoagronómica Del Subgénero Tacsonia En La Zona Andina Del Departamento de Nariño, Colombia. Rev. Factultad Nac. Agron. Medellín 2011, 64, 5893–5907. [Google Scholar]
  9. Yockteng, R.; d’Eeckenbrugge, G.C.; Souza-Chies, T.T. Passiflora. In Wild Crop Relatives: Genomic and Breeding Resources; Kole, C., Ed.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 129–171. ISBN 978-3-642-20446-3. [Google Scholar]
  10. Martin, F.W.; Nakasone, H.Y. The Edible Species of Passiflora. Econ. Bot. 1970, 24, 333–343. [Google Scholar] [CrossRef]
  11. González-Benito, M.E.; Aguilar, N.; Ávila, T. Germination and Embryo Rescue from Passiflora spp. Seeds Post-Cryopreservation. CryoLetters 2009, 30, 142–147. [Google Scholar]
  12. Albert, L. Experimentos Preliminares En La Hibridación de Especies Comestibles de Passiflora. Actual. Biológicas 1981, 10, 103–111. [Google Scholar] [CrossRef]
  13. Castañeda, R.; Gutiérrez, H.; Chávez, G.; Villanueva, R. Etnobotánica de Las Flores de La Pasión (Passiflora) En La Provincia Andina de Angaraes (Huancavelica, Perú). Bol. Latinoam. Caribe Plantas Med. Aromáticas 2019, 18, 27–41. [Google Scholar] [CrossRef]
  14. AOAC. Official Methods of Analysis of the Association of Official Analytical Chemist, 16th ed.; Sidney, W., Ed.; AOAC: Arlington, VA, USA, 1998. [Google Scholar]
  15. Arnao, M.; Cano, A.; Acosta, M. The Hydrophilic and Lipophilic Contribution to Total Antioxidat Activity. Food Chem. 2001, 73, 239–244. [Google Scholar] [CrossRef]
  16. Pardo-Jumbo, A.; Matute, N.L.; Echevarria, A.P. Determinación de Compuestos Bioactivos y Actividad Antioxidante de La Pulpa de Maracuyá (Passiflora edulis). FACSalud 2017, 1, 5–11. [Google Scholar] [CrossRef]
  17. De Carvalho, M.V.O.; De Oliveira, L.D.L.; Costa, A.M. Effect of Training System and Climate Conditions on Phytochemicals of Passiflora Setacea, a Wild Passiflora from Brazilian Savannah. Food Chem. 2018, 266, 350–358. [Google Scholar] [CrossRef] [PubMed]
  18. Barbieri, S.F.; De Oliveira Petkowicz, C.L.; De Godoy, R.C.B.; De Azeredo, H.C.M.; Franco, C.R.C.; Silveira, J.L.M. Pulp and Jam of Gabiroba (Campomanesia xanthocarpa Berg): Characterization and Rheological Properties. Food Chem. 2018, 263, 292–299. [Google Scholar] [CrossRef]
  19. Andrade, R.D.; Ortega, F.A.; Montes, E.J.; Torres, R.; Pérez, O.A.; Castro, M.; Gutiérrez, L.A. Caracterización Fisicoquímica y Reológica de La Pulpa de Guayaba (Psidium Guajava L.) Varidades Híbrido de Klom Sali, Puerto Rico, D14 y Red. Rev. Fac. Quím. Farm. 2009, 16, 13–18. [Google Scholar]
  20. Ortega Quintana, F.A.; Galvan, E.S.; Arrieta Rivero, R.; Torres Gallo, R. Efecto de La Temperatura y Concentración Sobre Las Propiedades Reológicas de La Pulpa de Mango Variedad Tommy Atkins. Rev. ION 2015, 28, 79–92. [Google Scholar] [CrossRef]
  21. Rubio-Merino, J.; Rubio-Hernández, F.J. Activation Energy for the Viscoelastic Flow: Analysis of the Microstructure-at-Rest of (Water- and Milk-Based) Fruit Beverages. Food Chem. 2019, 293, 486–490. [Google Scholar] [CrossRef]
  22. Uekane, T.M.; Nicolotti, L.; Griglione, A.; Bizzo, H.R.; Rubiolo, P.; Bicchi, C.; Rocha-Leão, M.H.M.; Rezende, C.M. Studies on the Volatile Fraction Composition of Three Native Amazonian-Brazilian Fruits: Murici (Byrsonima crassifolia L., Malpighiaceae), Bacuri (Platonia insignis M., Clusiaceae), and Sapodilla (Manilkara sapota L., Sapotaceae). Food Chem. 2017, 219, 13–22. [Google Scholar] [CrossRef]
  23. Fischer, P.; Pollard, M.; Erni, P.; Marti, I.; Padar, S. Rheological Approaches to Food Systems. Comptes Rendus Phys. 2009, 10, 740–750. [Google Scholar] [CrossRef]
  24. Dak, M.; Verma, R.C.; Sharma, G.P. Flow Characteristics of Juice of “Totapuri” Mangoes. J. Food Eng. 2006, 76, 557–561. [Google Scholar] [CrossRef]
  25. Melgar, B.; Pereira, E.; Oliveira, M.B.P.P.; Garcia-Castello, E.M.; Rodriguez-Lopez, A.D.; Sokovic, M.; Barros, L.; Ferreira, I.C.F.R. Extensive Profiling of Three Varieties of Opuntia spp. Fruit for Innovative Food Ingredients. Food Res. Int. 2017, 101, 259–265. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Cepeda, E.; Collado, I. Rheology of Tomato and Wheat Dietary Fibers in Water and in Suspensions of Pimento Purée. J. Food Eng. 2014, 134, 67–73. [Google Scholar] [CrossRef]
  27. Karaman, S.; Kayacier, A. Effect of Temperature on Rheological Characteristics of Molasses: Modeling of Apparent Viscosity Using Adaptive Neuro—Fuzzy Inference System (ANFIS). LWT-Food Sci. Technol. 2011, 44, 1717–1725. [Google Scholar] [CrossRef]

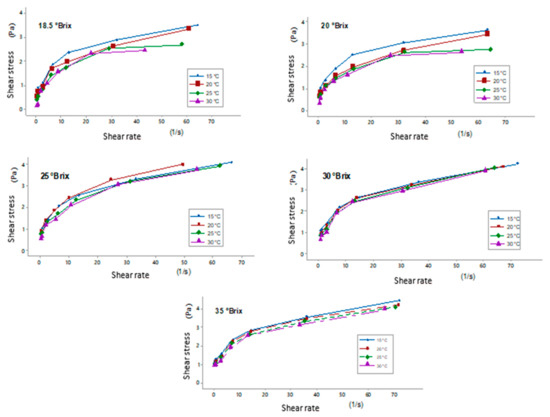

Figure 1. Rheogram for puro puro pulps at different concentrations (18.5, 20, 25, 30, and 35 °Brix) and temperatures (15, 20, 25, and 30 °C).
Figure 1. Rheogram for puro puro pulps at different concentrations (18.5, 20, 25, 30, and 35 °Brix) and temperatures (15, 20, 25, and 30 °C).
Engproc 42 00006 g001
Figure 2. Apparent viscosity vs. shear rate of “puro puro” juice at different concentrations (18.5, 20, 25, 30, and 35 °Brix) and temperatures (15, 20, 25, and 30 °C).
Figure 2. Apparent viscosity vs. shear rate of “puro puro” juice at different concentrations (18.5, 20, 25, 30, and 35 °Brix) and temperatures (15, 20, 25, and 30 °C).
Engproc 42 00006 g002
Table 1. Physicochemical characterization and antioxidant capacity of puro puro juice.
Table 1. Physicochemical characterization and antioxidant capacity of puro puro juice.
Physicochemical CharacterizationValue
Acidity (% ascorbic acid)4.48
Total Soluble Solids (Brix)18.50
Humidity (%)66.00
Total ash (% d.b.)8.82
Total fat (% d.b.)4.41
Crude protein (% d.b.)13.24
Carbohydrates (by difference, % d.b.)73.53
Antioxidant Activity
Antioxidant activity of the “puro puro” juice (µmol Equi. Trolox/g)5.20
Table 2. Variation in flow behavior index (n) and consistency coefficient (K) of puro puro juice at different temperatures and concentrations.
Table 2. Variation in flow behavior index (n) and consistency coefficient (K) of puro puro juice at different temperatures and concentrations.
Temperature (°C)Rheological ParametersConcentration (°Brix)
Table 3. Variation in apparent viscosity of puro puro juice with rotational speed at different temperatures and concentrations.
Table 3. Variation in apparent viscosity of puro puro juice with rotational speed at different temperatures and concentrations.
Temperature (°C)Rotation Speed (rpm)Concentration (°Brix)
