Proceeding Paper

Effects of Guanidinium and Cesium Addition to CH3NH3PbI3 Perovskite Photovoltaic Devices †

by
Takeo Oku
1,*,
Iori Ono
1,
Shoma Uchiya
1,
Atsushi Suzuki
1,
Masanobu Okita
2,
Sakiko Fukunishi
2,
Tomoharu Tachikawa
2 and
Tomoya Hasegawa
2
1
Department of Materials Science, The University of Shiga Prefecture, 2500 Hassaka, Hikone 522-8533, Shiga, Japan
2
Osaka Gas Chemicals Co., Ltd., 5-11-61 Torishima, Konohana-ku, Osaka Shi 554-0051, Osaka Fu, Japan
*
Author to whom correspondence should be addressed.
†
Presented at the 3rd International Electronic Conference on Applied Sciences, 1–15 December 2022; Available online: https://asec2022.sciforum.net/.
Eng. Proc. 2023, 31(1), 35; https://doi.org/10.3390/ASEC2022-13769
Published: 1 December 2022
(This article belongs to the Proceedings of The 3rd International Electronic Conference on Applied Sciences)
Browse Figure
Versions Notes

Abstract

:
CH3NH3PbI3 perovskite compounds are unstable in air due to the migration of CH3NH3. The purpose of the present work is to investigate the effects of addition of guanidinium C(NH2)3 (GA) and cesium (Cs) on CH3NH3PbI3 perovskite solar cells. The addition of GA/Cs and the insertion of decaphenylpentasilane between the perovskite and hole transport layer improved the external quantum efficiency and short-circuit current density, and the conversion efficiencies were stable. First-principles calculations on the density of states and band structures showed reduction in the total energy by the GA addition.

1. Introduction

Although silicon is the most common solar cell material, the fabrication process is expensive. On the other hand, CH3NH3PbI3 (MAPbI3) compounds have been widely used for perovskite solar cells [1,2,3,4,5], and the MAPbI3 perovskite compound have tunable band gaps and easy fabrication process with low cost. However, the MAPbI3 compounds are unstable in the ordinary air due to the migration and desorption of CH3NH3 (MA) molecules [6,7,8,9]. In order to stabilize the perovskite structure, various kinds of cations such as formamidinium (HC(NH2)2, FA) [10,11,12,13,14,15,16], ethylammonium (CH3CH2NH3, EA) [17,18], or guanidinium (C(NH2)3, GA) [19,20], which have larger ionic radii than methylammonium (CH3NH3, MA), have been introduced at the MA site, and the fabricated cells were stable to some extent. Introducing alkali metals such as cesium (Cs) [21,22,23], rubidium (Rb) [24,25,26], potassium (K) [27,28,29,30], and sodium (Na) [31,32,33,34], could also be effective because these metal elements do not desorb from the perovskite crystal.
Another approach to improve the stability of the perovskite solar cells is introducing polymeric materials such as polysilane [35,36,37,38,39]. Polysilanes have two important features that are p-type semiconductors and are stable at elevated temperatures above 300 °C.
The purpose of the present work is to fabricate MAPbI3 perovskite solar cells added with GA and Cs, and to characterize the devices from experiments and first-principle calculation. In the present work, polysilane was also used both for protection of the perovskite layer and for hole transport [35,37].

2. Experimental Procedures

A fabrication process of photovoltaic devices of the present work is same as those of the previous works [40,41,42]. A TiO2 compact layer was formed on the F-doped tin-oxide (FTO) substrates, and a mesoporous TiO2 layer was formed on the compact TiO2 layer. A perovskite layer with desired composition was formed on the mesoporous TiO2 layer, and decaphenylcyclopentasilane (DPPS), which is a one kind of polysilane, was formed on the perovskite layer [35]. A layer of 2,2′,7,7′-tetrakis-(N,N-di(p-methoxyphenyl)amine)-9,9′-spirobifluorene (spiro-OMeTAD) was formed on the DPPS, and then gold (Au) metal electrodes were formed on the spiro-OMeTAD hole transport layer.
The current density voltage characteristics of the fabricated devices were measured under a solar simulating light source operated at 100 mW cm−2. X-ray diffraction was used to investigate the microstructures of the devices, and first-principles calculation was also carried out to estimate the properties of the perovskite crystals [43,44,45].

3. Results and Discussion

In order to estimate the structural stability of perovskite compounds, a tolerance factor (t) is used [5,46,47] using the following equation:
t = r A + r X 2 r B + r X
where rA, rB, and rX are the ionic radii of the A, B, and X ions for ABX3 perovskite structures, respectively [5]. When the t-value is 1, the perovskite compound has a stable crystal structure with cubic symmetry. From the previous experimental studies on perovskite compounds, the perovskite structure could be formed in the range of 0.813 ≤ t ≤ 1.107. Calculated t-factors of perovskite compounds are listed in Table 1. From this calculation, co-addition of GA and Cs could be one of the effective ways to stabilize the MAPbI3 structure.
Figure 1a is a structure model of MA0.75GA0.125 Cs0.125PbI3. MA molecules are substituted by GA and Cs, which are located diagonally. Based on this structure model, the physical properties could be predicted. Figure 1b is an electron diffraction pattern of MA0.75GA0.125 Cs0.125PbI3 calculated along [111]. Although the usual MAPbI3 has 6-fold symmetry from the [111] incidence, the calculated electron diffraction pattern in Figure 1b shows 2-fold symmetry, which is due to the doped Cs and GA. Therefore, the high symmetry dimension of the space group of Pm 3 _ m for MAPbI3 is reduced to lower symmetry.
From the first-principle calculations and experimental evaluations, addition of small amount of GA to MAPbI3 is effective to stabilize the perovskite structure [48,49]. Although the addition of GA expands and distorts the crystal lattice of MAPbI3, Cs would reduce the distortion of the lattice, which could lead to the stability of the perovskite crystal.
For the fabricated device with MA0.845GA0.125Cs0.03PbI3 perovskite compound, the high photoconversion efficiency was obtained, which would be in good agreement with the calculated results. The stability of the device at the room temperature was also good. Although several works on GAPbI3 [50] and CsPbI3 [51,52] compounds have been reported, few works have been reported on the co-addition of GA and Cs to MAPbI3. The present work indicated the effectiveness of the co-addition of GA and Cs to the MAPbI3 on the photovoltaic properties for perovskite solar cells.

4. Conclusions

The effects of addition of guanidinium GA and Cs on MAPbI3 perovskite solar cells were investigated. The co-addition of GA/Cs and the insertion of DPPS between the perovskite and spiro-OMeTAD improved the EQE, and the conversion efficiencies were stable. The calculated electron diffraction pattern of MA0.75GA0.125Cs0.125PbI3 showed reduction in the structural symmetry. First-principles calculations also showed reduction in the total energy by the GA addition, which indicated the stabilization by the addition.

Author Contributions

Conceptualization, T.O., I.O. and S.U.; methodology, T.O., I.O., S.U. and A.S.; formal analysis, T.O., I.O., S.U. and A.S.; investigation, T.O., I.O., S.U. and A.S.; resources, M.O., S.F., T.T. and T.H.; data curation, T.O., I.O. and S.U.; writing—original draft preparation, T.O.; writing—review and editing, T.O., I.O., S.U., A.S., M.O., S.F., T.T. and T.H.; project administration, T.O.; funding acquisition, T.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partly funded by Japan Society for the promotion of Science as a Grant-in-Aid for Scientific Research (C) 21K04809.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bi, E.; Chen, H.; Xie, F.; Wu, Y.; Chen, W.; Su, Y.; Islam, A.; Grätzel, M.; Yang, X.; Han, L. Diffusion engineering of ions and charge carriers for stable efficient perovskite solar cells. Nat. Commun. 2017, 8, 15330. [Google Scholar] [CrossRef] [Green Version]
  2. Tailor, N.K.; Abdi-Jalebi, M.; Gupta, V.; Hu, H.; Dar, M.I.; Li, G.; Satapathi, S. Recent progress in morphology optimization in perovskite solar cell. J. Mater. Chem. A 2020, 8, 21356–21386. [Google Scholar] [CrossRef]
  3. Liu, S.; Guan, Y.; Sheng, Y.; Hu, Y.; Rong, Y.; Mei, A.; Han, H. A review on additives for halide perovskite solar cells. Adv. Energy Mater. 2020, 10, 1902492. [Google Scholar] [CrossRef]
  4. Wang, P.; Zhao, Y.; Wang, T. Recent progress and prospects of integrated perovskite/organic solar cells. Appl. Phys. Rev. 2020, 7, 031303. [Google Scholar] [CrossRef]
  5. Oku, T. Crystal structures of perovskite halide compounds used for solar cells. Rev. Adv. Mater. Sci. 2020, 59, 264–305. [Google Scholar] [CrossRef]
  6. Ono, L.K.; Liu, S.; Qi, Y. Reducing detrimental defects for high-performance metal halide perovskite solar cells. Angew. Chem. Int. Ed. 2020, 59, 6676–6698. [Google Scholar] [CrossRef]
  7. Wang, R.; Mujahid, M.; Duan, Y.; Wang, Z.-K.; Xue, J.; Yang, Y. A review of perovskites solar cell stability. Adv. Funct. Mater. 2019, 29, 1808843. [Google Scholar] [CrossRef]
  8. Berhe, T.A.; Su, W.-N.; Chen, C.-H.; Pan, C.-J.; Cheng, J.-H.; Chen, H.-M.; Tsai, M.-C.; Chen, L.-Y.; Dubale, A.A.; Hwang, B.-J. Organometal halide perovskite solar cells: Degradation and stability. Energy Environ. Sci. 2016, 9, 323–356. [Google Scholar] [CrossRef]
  9. Conings, B.; Drijkoningen, J.; Gauquelin, N.; Babayigit, A.; D’Haen, J.; D’Olieslaeger, L.; Ethirajan, A.; Verbeeck, J.; Manca, J.; Mosconi, E.; et al. Intrinsic thermal instability of methylammonium lead trihalide perovskite. Adv. Energy Mater. 2015, 5, 1500477. [Google Scholar] [CrossRef]
  10. Zhao, H.; Zhao, L.; Li, S.; Chu, Y.; Sun, Y.; Xie, B.; He, J.; Li, J. Recent Advances on the strategies to stabilize the α-phase of formamidinium based perovskite materials. Crystals 2022, 12, 573. [Google Scholar] [CrossRef]
  11. Li, G.; Zhang, T.; Xu, F.; Zhao, Y. A facile deposition of large grain and phase pure α-FAPbI3 for perovskite solar cells via a flash crystallization. Mater. Today Energy 2017, 5, 293–298. [Google Scholar] [CrossRef]
  12. Jiang, Q.; Zhang, L.; Wang, H.; Yang, X.; Meng, J.; Liu, H.; Yin, Z.; Wu, J.; Zhang, X.; You, J. Enhanced electron extraction using SnO2 for high-efficiency planar-structure HC(NH2)2PbI3-based perovskite solar cells. Nat. Energy 2017, 2, 16177. [Google Scholar] [CrossRef]
  13. Yang, W.S.; Park, B.W.; Jung, E.H.; Jeon, N.J.; Kim, Y.C.; Lee, D.U.; Shin, S.S.; Seo, J.; Kim, E.K.; Noh, J.H.; et al. Iodide management in formamidinium-lead-halide-based perovskite layers for efficient solar cells. Science 2017, 356, 1376–1379. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Lee, J.-W.; Dai, Z.; Lee, C.; Lee, H.M.; Han, T.-H.; De Marco, N.; Lin, O.; Choi, C.S.; Dunn, B.; Koh, J.; et al. Tuning molecular interactions for highly reproducible and efficient formamidinium perovskite solar cells via adduct approach. J. Am. Chem. Soc. 2018, 140, 6317–6324. [Google Scholar] [CrossRef] [PubMed]
  15. Suzuki, A.; Taguchi, M.; Oku, T.; Okita, M.; Minami, S.; Fukunishi, S.; Tachikawa, T. Additive effects of methyl ammonium bromide or formamidinium bromide in methylammonium lead iodide perovskite solar cells using decaphenylcyclopentasilane. J. Mater. Sci. Mater. Electron. 2021, 32, 26449–26464. [Google Scholar] [CrossRef]
  16. Suzuki, A.; Kato, M.; Ueoka, N.; Oku, T. Additive effect of formamidinium chloride in methylammonium lead halide compound-based perovskite solar cells. J. Electron. Mater. 2019, 48, 3900–3907. [Google Scholar] [CrossRef]
  17. Wang, Y.; Zhang, T.; Li, G.; Xu, F.; Li, Y.; Yang, Y.; Zhao, Y. A mixed-cation lead iodide MA1-xEAxPbI3 absorber for perovskite solar cells. J. Energy Chem. 2018, 27, 215–218. [Google Scholar] [CrossRef] [Green Version]
  18. Nishi, K.; Oku, T.; Kishimoto, T.; Ueoka, N.; Suzuki, A. Photovoltaic characteristics of CH3NH3PbI3 perovskite solar cells added with ethylammonium bromide and formamidinium iodide. Coatings 2020, 10, 410. [Google Scholar] [CrossRef] [Green Version]
  19. Jodlowski, A.D.; Roldán-Carmona, C.; Grancini, G.; Salado, M.; Ralaiarisoa, M.; Ahmad, S.; Koch, N.; Camacho, L.; Miguel, G.; Nazeeruddin, M. Large guanidinium cation mixed with methylammonium in lead iodide perovskites for 19% efficient solar cells. Nat. Energy 2017, 2, 972–979. [Google Scholar] [CrossRef] [Green Version]
  20. Kishimoto, T.; Suzuki, A.; Ueoka, N.; Oku, T. Effects of guanidinium addition to CH3NH3PbI3-xClx perovskite photovoltaic devices. J. Ceram. Soc. Jpn. 2019, 127, 491–497. [Google Scholar] [CrossRef] [Green Version]
  21. Song, J.; Xie, H.; Lim, E.L.; Hagfeldt, A.; Bi, D. Progress and perspective on inorganic CsPbI2Br perovskite solar cells. Adv. Energy Mater. 2022, 12, 2201854. [Google Scholar] [CrossRef]
  22. Ueoka, N.; Oku, T.; Suzuki, A. Additive effects of alkali metals on Cu-modified CH3NH3PbI3−δClδ photovoltaic devices. RSC Adv. 2019, 9, 24231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Li, N.; Luo, Y.; Chen, Z.; Niu, X.; Zhang, X.; Lu, J.; Kumar, R.; Jiang, J.; Liu, H.; Guo, X.; et al. Microscopic Degradation in Formamidinium-Cesium Lead Iodide Perovskite Solar Cells under Operational Stressors. Joule 2020, 4, 8. [Google Scholar] [CrossRef]
  24. Saliba, M.; Matsui, T.; Domanski, K.; Seo, J.-Y.; Ummadisingu, A.; Zakeeruddin, M.S.; Correa-Baena, J.-P.; Tress, R.W.; Abate, A.; Hagfeldt, A.; et al. Incorporation of rubidium cations into perovskite solar cells improves photovoltaic performance. Science 2016, 354, 206. [Google Scholar] [CrossRef]
  25. Ueoka, N.; Oku, T.; Suzuki, A. Effects of doping with Na, K, Rb, and formamidinium cations on (CH3NH3)0.99Rb0.01Pb0.99Cu0.01I3-x(Cl, Br)x perovskite photovoltaic cells. AIP Adv. 2020, 10, 125023. [Google Scholar] [CrossRef]
  26. Suzuki, A.; Oe, M.; Oku, T. Fabrication and characterization of Ni-, Co-, and Rb-incorporated CH3NH3PbI3 perovskite solar cells. J. Electron. Mater. 2021, 50, 1980–1995. [Google Scholar] [CrossRef]
  27. Machiba, H.; Oku, T.; Kishimoto, T.; Ueoka, N.; Suzuki, A. Fabrication and evaluation of K-doped MA0.8FA0.1K0.1PbI3(Cl) perovskite solar cells. Chem. Phys. Lett. 2019, 730, 117–123. [Google Scholar] [CrossRef]
  28. Kandori, S.; Oku, T.; Nishi, K.; Kishimoto, T.; Ueoka, N.; Suzuki, A. Fabrication and characterization of potassium- and formamidinium-added perovskite solar cells. J. Ceram. Soc. Jpn. 2020, 128, 805–811. [Google Scholar] [CrossRef]
  29. Oku, T.; Kandori, S.; Taguchi, M.; Suzuki, A.; Okita, M.; Minami, S.; Fukunishi, S.; Tachikawa, T. Polysilane-inserted methylammonium lead iodide perovskite solar cells doped with formamidinium and potassium. Energies 2020, 13, 4776. [Google Scholar] [CrossRef]
  30. Enomoto, A.; Suzuki, A.; Oku, T.; Okita, M.; Fukunishi, S.; Tachikawa, T.; Hasegawa, T. Effects of Cu, K and guanidinium addition to CH3NH3PbI3 perovskite solar cells. J. Electron. Mater. 2022, 51, 4317–4328. [Google Scholar] [CrossRef]
  31. Ueoka, N.; Oku, T. Effects of co-addition of sodium chloride and copper (II) bromide to mixed-cation mixed-halide perovskite photovoltaic devices. ACS Appl. Energy Mater. 2020, 3, 7272–7283. [Google Scholar] [CrossRef]
  32. Suzuki, A.; Kitagawa, K.; Oku, T.; Okita, M.; Fukunishi, S.; Tachikawa, T. Additive effects of copper and alkali metal halides into methylammonium lead iodide perovskite solar cells. Electron. Mater. Lett. 2022, 18, 176–186. [Google Scholar] [CrossRef]
  33. Okumura, R.; Oku, T.; Suzuki, A.; Okita, M.; Fukunishi, S.; Tachikawa, T.; Hasegawa, T. Effects of adding alkali metals and organic cations to Cu-based perovskite solar cells. Appl. Sci. 2022, 12, 1710. [Google Scholar] [CrossRef]
  34. Suzuki, A.; Miyamoto, Y.; Oku, T. Electronic structures, spectroscopic properties, and thermodynamic characterization of sodium- or potassium-incorporated CH3NH3PbI3 by first-principles calculation. J. Mater. Sci. 2020, 55, 9728–9738. [Google Scholar] [CrossRef]
  35. Oku, T.; Taguchi, M.; Suzuki, A.; Kitagawa, K.; Asakawa, Y.; Yoshida, S.; Okita, M.; Minami, S.; Fukunishi, S.; Tachikawa, T. Effects of polysilane addition to chlorobenzene and high temperature annealing on CH3NH3PbI3 perovskite photovoltaic devices. Coatings 2021, 11, 665. [Google Scholar] [CrossRef]
  36. Taguchi, M.; Suzuki, A.; Oku, T.; Fukunishi, S.; Minami, S.; Okita, M. Effects of decaphenylcyclopentasilane addition on photovoltaic properties of perovskite solar cells. Coatings 2018, 8, 461. [Google Scholar] [CrossRef] [Green Version]
  37. Oku, T.; Nakagawa, J.; Iwase, M.; Kawashima, A.; Yoshida, K.; Suzuki, A.; Akiyama, T.; Tokumitsu, K.; Yamada, M.; Nakamura, M. Microstructures and photovoltaic properties of polysilane-based solar cells. Jpn. J. Appl. Phys. 2013, 52, 04CR07. [Google Scholar] [CrossRef] [Green Version]
  38. Oku, T.; Nomura, J.; Suzuki, A.; Tanaka, H.; Fukunishi, S.; Minami, S.; Tsukada, S. Fabrication and characterization of CH3NH3PbI3 perovskite solar cells added with polysilanes. Int. J. Photoenergy 2018, 2018, 8654963. [Google Scholar] [CrossRef] [Green Version]
  39. Taguchi, M.; Suzuki, A.; Oku, T.; Ueoka, N.; Minami, S.; Okita, M. Effects of annealing temperature on decaphenylcyclopentasilane-inserted CH3NH3PbI3 perovskite solar cells. Chem. Phys. Lett. 2019, 737, 136822. [Google Scholar] [CrossRef]
  40. Oku, T.; Zushi, M.; Imanishi, Y.; Suzuki, A.; Suzuki, K. Microstructures and photovoltaic properties of perovskite-type CH3NH3PbI3 compounds. Appl. Phys. Express 2014, 7, 121601. [Google Scholar] [CrossRef]
  41. Ueoka, N.; Oku, T. Stability characterization of PbI2-added CH3NH3PbI3−xClx photovoltaic devices. ACS Appl. Mater. Interfaces 2018, 10, 44443–44451. [Google Scholar] [CrossRef]
  42. Oku, T.; Ohishi, Y.; Ueoka, N. Highly (100)-oriented CH3NH3PbI3(Cl) perovskite solar cells prepared with NH4Cl using an air blow method. RSC Adv. 2018, 8, 10389–10395. [Google Scholar] [CrossRef] [Green Version]
  43. Suzuki, A.; Kishimoto, K.; Oku, T.; Okita, M.; Fukunishi, S.; Tachikawa, T. Additive effect of lanthanide compounds into perovskite layer on photovoltaic properties and electronic structures. Synth. Met. 2022, 287, 117092. [Google Scholar] [CrossRef]
  44. Suzuki, A.; Oku, T. Effects of mixed-valence states of Eu-doped FAPbI3 perovskite crystals studied by first-principles calculation. Mater. Adv. 2021, 2, 2609–2616. [Google Scholar] [CrossRef]
  45. Suzuki, A.; Oku, T. First-principles calculation study of electronic structures of alkali metals (Li, K, Na and Rb)-incorporated formamidinium lead halide perovskite compounds. Appl. Surf. Sci. 2019, 483, 912–921. [Google Scholar] [CrossRef]
  46. Li, Z.; Yang, M.; Park, J.S.; Wei, S.H.; Berry, J.J.; Zhu, K. Perovskite structures by tuning tolerance factor: Formation of formamidinium and cesium lead iodide solid-state alloys. Chem. Mater. 2016, 28, 284–292. [Google Scholar] [CrossRef]
  47. Tanaka, H.; Oku, T.; Ueoka, N. Structural stabilities of organic-inorganic perovskite crystals. Jpn. J. Appl. Phys. 2018, 57, 08RE12. [Google Scholar] [CrossRef]
  48. Kishimoto, T.; Oku, T.; Suzuki, A.; Ueoka, N. Additive effects of guanidinium iodide on CH3NH3PbI3 perovskite solar cells. Phys. Status Solidi A 2021, 218, 2100396. [Google Scholar] [CrossRef]
  49. Ono, I.; Oku, T.; Suzuki, A.; Asakawa, Y.; Terada, S.; Okita, M.; Fukunishi, S.; Tachikawa, T. Fabrication and characterization of CH3NH3PbI3 solar cells with added guanidinium and inserted with decaphenylpentasilane. Jpn. J. Appl. Phys. 2022, 61, SB1024. [Google Scholar] [CrossRef]
  50. Kim, Y.; Nandi, P.; Lee, D.; Shin, H. Stabilization of 3-D trigonal phase in guanidinium (C(NH2)3) lead triiodide (GAPbI3) films. Appl. Surf. Sci. 2021, 542, 148575. [Google Scholar] [CrossRef]
  51. Suzuki, A.; Oku, T. Electronic structures and magnetic properties of transition metal doped CsPbI3 perovskite compounds by first-principles calculation. Phys. Solid State 2019, 61, 1074–1085. [Google Scholar] [CrossRef]
  52. Liu, D.; Shao, Z.; Li, C.; Pang, S.; Yan, Y.; Cui, G. Structural properties and stability of inorganic CsPbI3 perovskites. Small Struct. 2021, 2, 2000089. [Google Scholar] [CrossRef]
Engproc 31 00035 g001 550

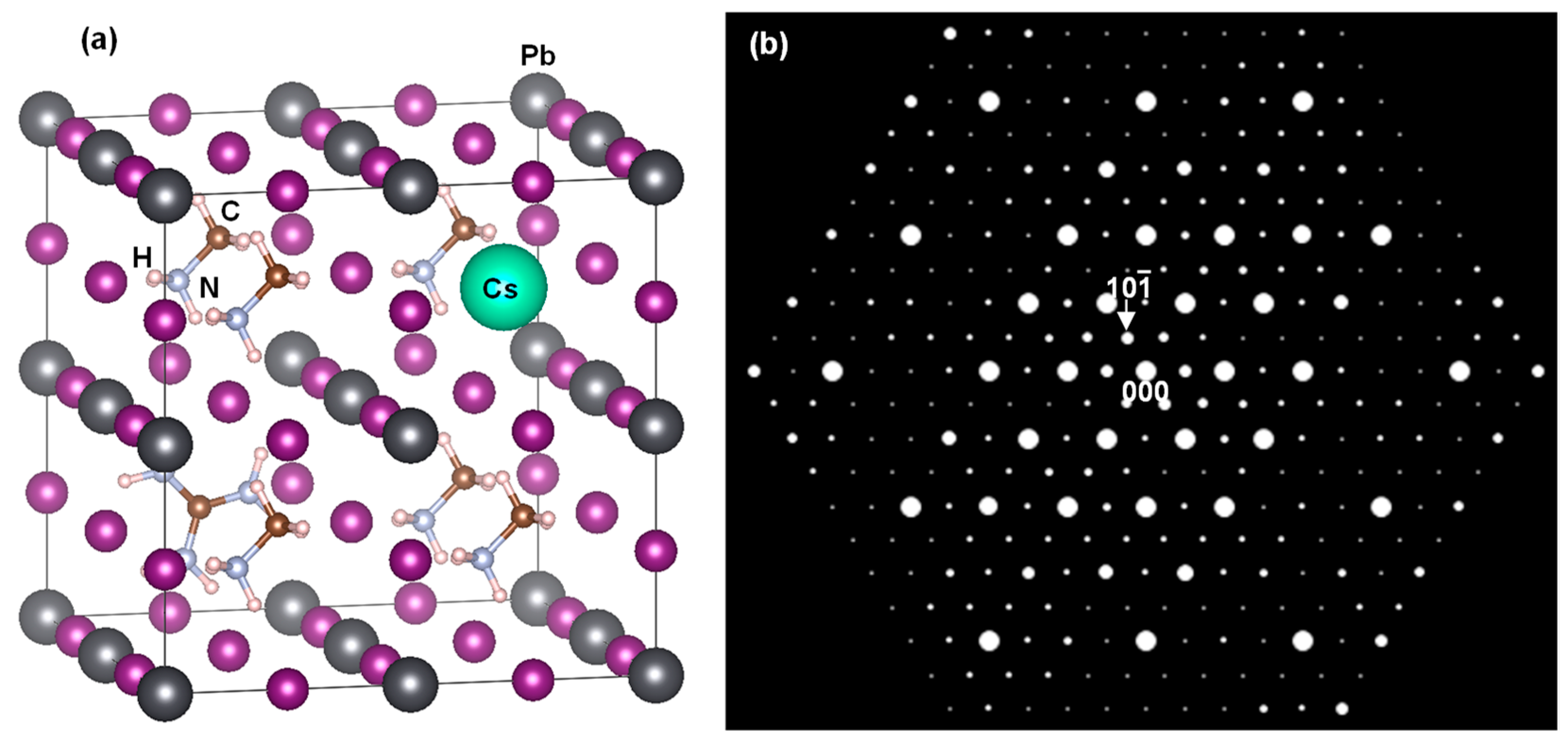

Figure 1. (a) Structure model and (b) calculated electron diffraction pattern along [111] of MA0.75GA0.125 Cs0.125PbI3.
Figure 1. (a) Structure model and (b) calculated electron diffraction pattern along [111] of MA0.75GA0.125 Cs0.125PbI3.
Engproc 31 00035 g001
Table
Table 1. Calculated t-factors of perovskite compounds.
Table 1. Calculated t-factors of perovskite compounds.
Perovskitet
MAPbI30.912
GAPbI31.039
CsPbI30.851
MA0.75GA0.125Cs0.125PbI30.920
MA0.845GA0.125Cs0.03PbI30.926
