Electrode Thickness Optimization in Color-Selective Inkjet-Printed Photosensitive Organic Field-Effect Transistors ^†

Abstract

This work introduces a general solution for printing wavelength-selective bulk-heterojunction photosensitive organic field effect transistors (PS-OFETs) by addressing electrode thickness variation and the feasibility of color selectivity in detecting incident light. The inkjet-printed silver electrode thickness was varied from 125 to $950 \mathrm{n}\mathrm{m}$ by multilayer printing. PIF, IDFBR, and ITIC-4F were chosen as the active semiconductor materials with complementary optical absorption. Results indicate that PS-OFETs exhibit the best functionality at an electrode thickness of approximately $325 \mathrm{n}\mathrm{m}$ and an active material combination with PIF:IDFBR (1:1). For the $540 \mathrm{n}\mathrm{m}$ wavelength, a responsivity of $55 \mathrm{m}\mathrm{A}{\mathrm{W}}^{-1}$ was obtained. This is four-fold higher than the photoresponse obtained at $700 \mathrm{n}\mathrm{m}$.

1. Introduction

One of the cornerstones of modern organic-based technology is light detection, used in state-of-the-art optical communication [1,2,3], imaging and medical sensing systems [4,5,6] and advanced flexible display technology [7,8,9]. Organic Field-Effect Transistors (OFETs) are at the forefront of organic electronics research, and the development of organic semiconductor devices is essential for many optoelectronic applications, including light-emitting diodes and transistors, such as OFET-driven photonics [10]. Recent advancements in OFET technology have focused on improving their performance, stability, and integration into various applications [11,12]. The successful integration of OFETs operating at low voltages, making them suitable for integration with low-power electronics and portable devices with flexible and stretchable substrates [13,14]. This has opened up new possibilities for innovative applications such as electronic skin [15,16], expanding biosensor technology [17] and the new generation of radio-frequency-identification (RFID) tags [18,19]. For an ideal optical sensor, it is necessary that the device be cost-effective and versatile enough to be fabricated on the desired substrate while taking advantage of the benefits of organic semiconductors, such as lightness, transparency and their optical properties [20].

2. Materials and Methods

Active layer preparation: Three different polymer inks were prepared for the active layers. One ink was prepared using the base material pristine polyindenofurorene-8-triarylamine (PIF; Merck, Darmstadt, Germany), acting as a transparent wide-bandgap polymer donor by diluting it in chlorobenzene at a concentration of $20 \mathrm{g}{\mathrm{L}}^{-1}$. Blends were prepared prior to deposition. Both blends were made by dilution of $20 \mathrm{g}{\mathrm{L}}^{-1}$ of PIF and $20 \mathrm{g}{\mathrm{L}}^{-1}$, of the respective complementary polymers IDFBR (NFA012; 1-Material Inc., Dorval, QC, Canada) and ITIC-4F (NFA014; 1-Material Inc., Dorval, QC, Canada) in chlorobenzene. All three inks were subjected to magnetic stirring in a nitrogen-filled glove box for at least 24 h. The materials were spin coated on glass substrates, each cleaned with acetone and isopropanol in an ultrasonic bath for at least 10 min.

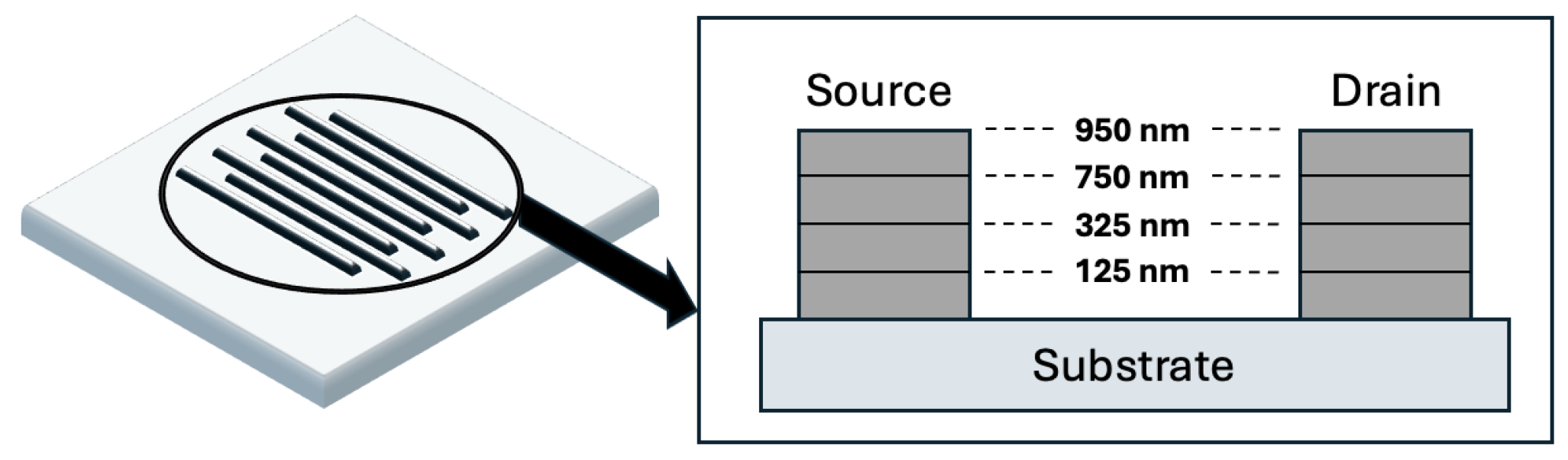

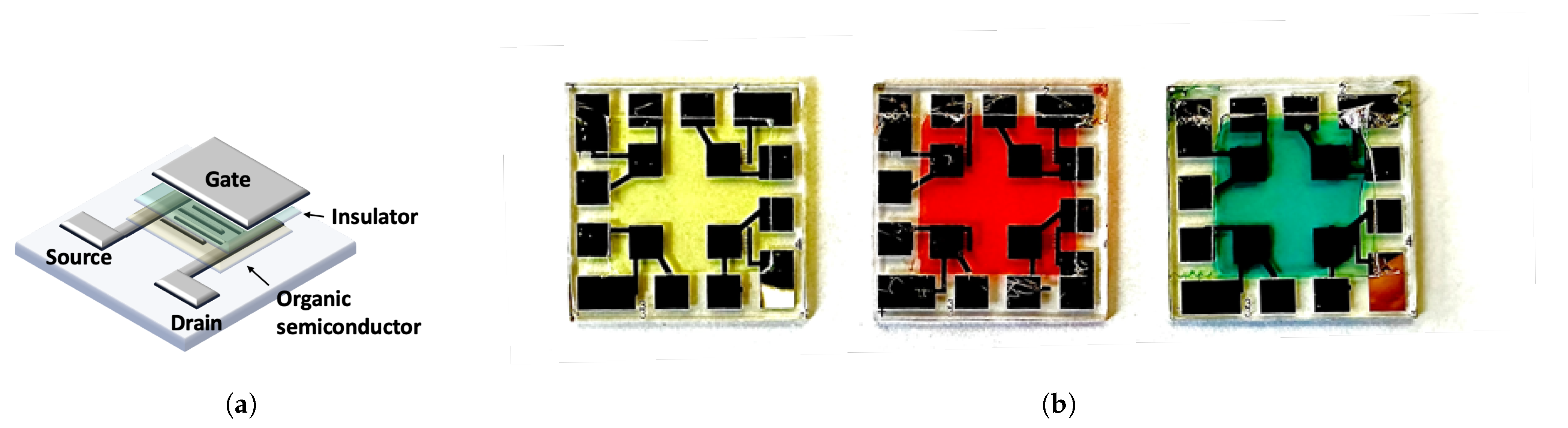

Device preparation: The OFET devices were prepared on glass substrates cut to the size of $25\times 25 \mathrm{m}\mathrm{m}$ and a height of $1.2 \mathrm{m}\mathrm{m}$. They were subjected to a cleaning procedure with acetone, followed by isopropanol in a sonic bath for 10 min. Subsequently, they were treated with Argon (Ar) plasma cleaning for 5 min inside a vacuum plasma oven. Figure 1 shows the variation in thickness as a function of the number of layers printed. 125 and $325 \mathrm{n}\mathrm{m}$ were achieved by single-layer, $750 \mathrm{n}\mathrm{m}$ by double-layer and $950 \mathrm{n}\mathrm{m}$ by triple-layer printing. For the structure shown in Figure 2a, the drain and source electrodes of varying thicknesses were deposited via multilayer inkjet printing with an P50 PiXDRO printer (SÜSS MicroTec SE, Garching, Germany) using silver dispersion ink (Silverjet DGP-40LT-15C; Sigma-Aldrich, St. Louis, MO, USA) and annealed on a hotplate at 120 °C for 30 min. The active layers were deposited via spin coating on top of the electrodes and cured for 30 min at 120 °C on a hotplate inside a nitrogen-filled glovebox. DPX-C (dichloro-di-para-xylylene; SCS, Indianapolis, IN, USA) was deposited as a dielectric with a Labcoater 2, Parylene Deposition Unit Model PDS 2010 (Specialty Coating Systems, Inc., Indianapolis, IN, USA), aiming for a thickness of $750 \mathrm{n}\mathrm{m}$. Figure 2b shows the devices after finalizing them by thermal evaporation of a $100 \mathrm{n}\mathrm{m}$ thick silver layer through a mask to form the gate electrode.

Device characterization: Electrode thicknesses were measured with a profilometer (Veeco Dektak 150; Veeco, Plainview, NY, USA). Current–voltage (I–V) characteristics were measured using a semiconductor parameter analyzer 4155C (Agilent, Santa Clara, CA, USA) under ambient atmosphere. The same parameter analyzer was used to apply bias voltages for measurements of the spectral responsivity. A $450 \mathrm{W}$ Osram XBO Xenon discharge lamp (Osram, Munich, Germany) served as a broad spectrum light source, which was filtered with a monochromator (Acton SP-2150i; Princeton Instruments, Trenton, NJ, USA). The UV–vis measurements were recorded using a AvaSpec-ULS3648 spectrometer (Avantes, Apeldoorn, The Netherlands) and a light source ranging from 300 to $1100 \mathrm{n}\mathrm{m}$.

3. Results

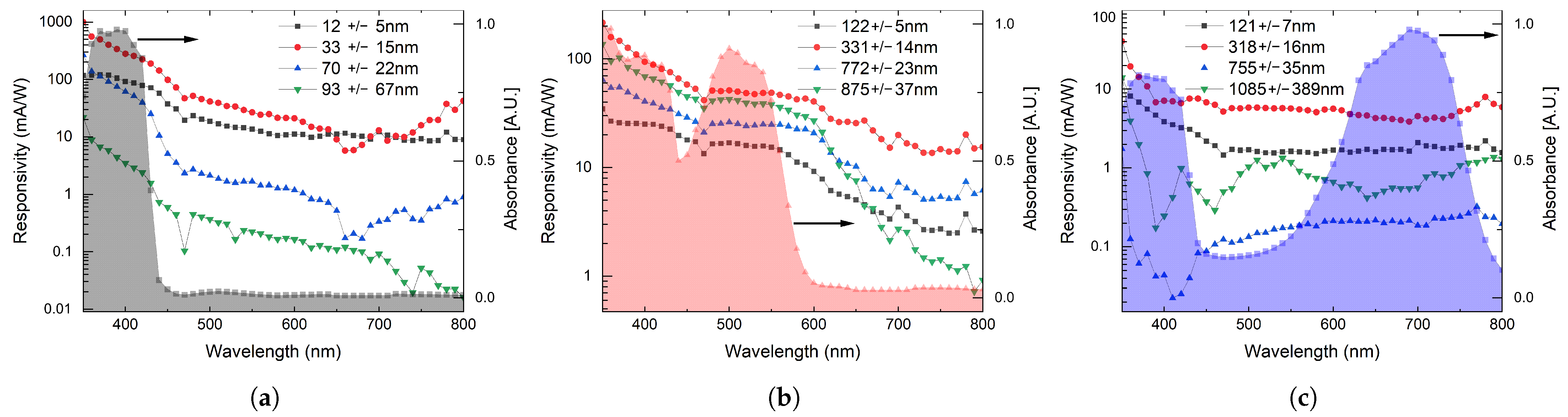

Figure 3 shows the photoelectric properties of the fabricated devices with the mean values over the mentioned variations of electrode thickness: 125, 325, 750, and $950 \mathrm{n}\mathrm{m}$.

4. Discussion

Both PIF and PIF:IDFBR (1:1) materials exhibited the desired current enhancement behavior in the bandwidths where they have their highest absorption values. PIF, which has its absorption peak between 350 and $430 \mathrm{n}\mathrm{m}$, presents a profile of currents and responsivity according to its absorption. As an example, for the $350 \mathrm{n}\mathrm{m}$ thick devices, at the $410 \mathrm{n}\mathrm{m}$ wavelength, the responsivity increases to up to $400 \mathrm{m}\mathrm{A}{\mathrm{W}}^{-1}$, whereas at higher wavelengths, where the absorption goes nearly to zero, the responsivity drops to around $5 \mathrm{m}\mathrm{A}{\mathrm{W}}^{-1}$.

The behavior of the PIF:IDFBR (1:1) follows a similar profile to those with PIF. The peak of interest is the IDFBR material being located between 470 and $550 \mathrm{n}\mathrm{m}$. Within this spectral band, the devices show a noticeable increase in their responsivity, which, also taking the $350 \mathrm{n}\mathrm{m}$ thickness as the best example, is around $55 \mathrm{m}\mathrm{A}{\mathrm{W}}^{-1}$. At higher wavelengths, with the absorbance profile dropping from its peak to almost zero, the responsivity smoothly decreases to around $15 \mathrm{m}\mathrm{A}{\mathrm{W}}^{-1}$. These results seem to indicate that both materials have wavelength bands to which one can refer back based on the analysis of the optoelectronic measurements and therefore have color-selective characteristics.

Unlike the two materials discussed above, PIF:ITIC-4F (1:1) has good electronic output and transfer characteristics as a transistor but does not exhibit the expected optoelectronic behavior. PIF:ITIC-4F (1:1), with the absorption peak of interest being between 650 and $750 \mathrm{n}\mathrm{m}$, shows a much lower photo-response. The responsivity trends towards a constant value of $5 \mathrm{m}\mathrm{A}{\mathrm{W}}^{-1}$ along the whole measured spectrum, which does not allow to differentiate the wavelength of the incident light and therefore does not show color selectivity.

This technology should be explored on flexible substrates and by restricting the deposition of the active layer and gate electrode to inkjet printing in order to advance it toward manufacturing.

5. Conclusions

Electrode thickness of $325 \mathrm{n}\mathrm{m}$ achieves the maximal optoelectronic performance. In order to obtain sensors that can optically distinguish with high resolution, the polymers must have very fine absorption profiles that are ideally only noticeably greater than zero in the spectral bands in which the photosensitive OFET is intended to detect.
