Implementation of Secure End-to-End Encrypted Chat Application Using Diffie–Hellman Key Exchange and AES-256 in a Microservice Architecture ^†

Abstract

Ensuring secure and private digital communication is crucial due to increasing threats like data breaches and unauthorized access. We propose a secure end-to-end encrypted chat application using Diffie–Hellman Key Exchange and AES-256 within a microservice architecture. Our system leverages Diffie–Hellman for secure key exchange and AES-256 for efficient symmetric encryption. The microservice architecture ensures scalability and modularity, reducing single points of failure. Tests confirm secure communication with low latency and high throughput. The key exchange process generates an identical shared key in real-time without transmitting a private key, ensuring encryption integrity. Messages are encrypted before transmission and can only be decrypted by the intended users, maintaining confidentiality. This approach offers a robust and scalable solution for secure messaging systems.

1. Introduction

Diffie and Hellman introduced the concept of public-key cryptography, which allows secure key exchanges over public channels without requiring secure key distribution channels [1]. Furthermore, the RSA algorithm, introduced by Rivest, Shamir, and Adleman, supports the implementation of digital signatures that can be publicly verified, which is crucial for applications such as electronic mail and electronic funds transfer [2].

Maintaining data integrity and privacy is crucial when creating secure communication networks. Concerns about security, data encryption, key sharing, and the application’s scalability and maintenance over time are among the difficulties in this situation. In particular, there are special challenges with encryption and key exchange. The safe exchange of encryption keys between the client and server in client–server architectures or REST APIs can reveal weaknesses that, if left unchecked, could permit unwanted access. Additionally, when these applications expand, their scalability and maintainability may become problematic, necessitating effective strategies to manage growing traffic and guarantee system stability over the long run.

Using a microservice architecture is one of the suggested ways to deal with these problems. Microservices increase scalability by dividing the application into smaller, more manageable services, which facilitates system expansion and maintenance. To improve security and system performance, each service might concentrate on a particular area of the application, such as data management, key exchange, or encryption.

RSA for asymmetric encryption, AES-256 for symmetric encryption, and Diffie–Hellman key exchange for secure key negotiation are used in the implementation of a secure end-to-end encrypted chat application. A microservice architecture is used in the application’s design to solve the issues of scalability, key exchange, and security.

The application is constructed with a microservice architecture to make the system scalable and manageable. This method divides the functionality into more manageable, separate services that may securely communicate while managing various aspects of the application, including chat management, user authentication, and delivery.

The main goal of this article is to design and build a safe chat application by combining popular encryption methods such as AES-256 for high-performance message encryption, RSA for tiny data encryption, and Diffie–Hellman for secure key exchange. By integrating these tried-and-true techniques, we hope to guarantee that communications are safely sent from sender to recipient and cannot be decrypted by an intermediary.

In addition to offering insights for developers working on related projects, this study aims to contribute to the growing need for secure digital communication.

2. Literature Review

2.1. Previous Research

Microservice architecture is an architectural concept designed to decouple solutions by breaking functionality into discrete services [3]. Classically, as revealed by the PRISM program of the NSA, e-mail is sent unencrypted and so the server has full access to the content of email. Thus, there has been a long-standing program to send email via “end-to-end” encryption [4]. In a “public-key cryptosystem” each user places in a public file an encryption procedure E. That is, the public file is a directory giving the encryption procedure of each user [5]. The AES is a symmetric key algorithm, in which both the sender and the receiver use a single key for encryption and decryption. AES defines the data block length to 128 bits, and the key lengths to 128, 192, or 256 bits. It is an iterative algorithm and each iteration is called a round. The total number of rounds, Nr, is 10, 12, or 14 when the key length is 128, 192, or 256 bits, respectively [6]. Cryptosystems are naturally classified into two classes, symmetric or asymmetric, depending only on whether the keys at the transmitter and receiver are easily computed from each other [7].

2.2. Microservice

A microservice is an independently deployable component of bounded scope that supports interoperability through message-based communication. Microservice architecture is a style of engineering highly automated, evolvable software systems made up of capability-aligned microservices [8]. Microservice architecture is an architectural concept designed to decouple solutions by breaking functionality into discrete services. Because microservice designs are more flexible and easier to scale than monolithic applications, they are utilized as an alternative. Because each service component should be straightforward and simple to implement, microservices demand careful design. Another architecture that is more adaptable and scalable is microservice architecture. Information systems built using a microservice architecture are intended to be dispersed and offer services in a more targeted and targeted manner. Large issues will be divided into a number of smaller solutions and combined into a single service, each of which will be responsible for its own tasks. Insulation is a fundamental idea in resilient engineering as seen through the lens of microservices architecture. Some services require high availability but are low volume, and it is the opposite for other services. A microservice approach allows us to tune for both of these situations, whereas in a monolith it is all or nothing [9]. Because of its scalability, microservices technology architecture is one of the technologies that has been utilized a lot lately. One unique feature of microservices architecture is that it uses lightweight techniques to support business objectives; The requirements of the application being utilized determine how the services communicate with one another. Additionally, the costs of creating microservices will be comparatively lower because of their scalability.

2.3. Asymmetric Encryption

We can consider that the delegator, proxy, and delegatee are peers; they have their own encryption public/private keys and sign/verify keys [10]. Public–private key encryption, sometimes referred to as asymmetric encryption, is a clever method of message security. The public key and the private key are two keys that you might imagine possessing. I secure my mails by using my private key, which prevents unauthorized individuals from reading them. Anyone who has my public key can then view and unlock those communications. This method is similar to having a padlock that can only be opened with my private key. The cool thing is that my private key cannot be deduced by reverse engineering, even if someone has my public key. It functions similarly to magic math in protecting the privacy and security of our talks. With this system, I can also use a private key to digitally “sign” messages, proving that they are authentically from me. The public key can be used by others to validate this signature, guaranteeing that the message is authentic and has not been altered. Asymmetric encryption is, therefore, all about this ingenious dance between two keys: one for unlocking and one for locking. Within the realm of online security, it is a major participant. As shown in Figure 1, the process of asymmetric encryption involves the use of a public key for encryption and a private key for decryption.

Asymmetric encryption is a method of encryption that uses two distinct keys for the encryption and decryption processes. These two keys are as follows:

• Public Key: This key can be freely shared with anyone. It is used to encrypt data.
• Private Key: This key is confidential and known only to the recipient. It is used to decrypt data that has been encrypted with the public key.

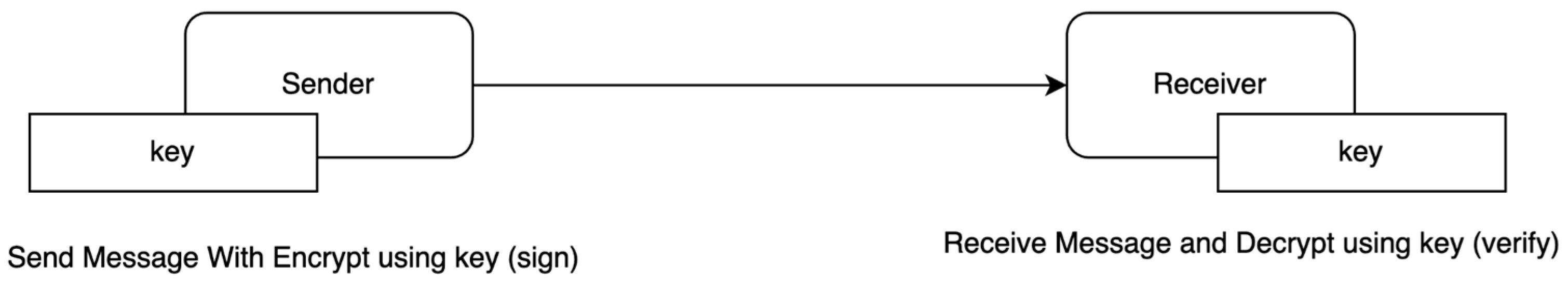

In contrast to symmetric encryption, which employs a single key for both encryption and decryption, asymmetric encryption is based on the fundamental idea that the encryption and decryption processes should be separated using distinct keys [11].

• Symmetric encryption

Performance evaluation for symmetric algorithms DES, 3DES, AES, and Blowfish were implemented in java and used two different hardware platforms. Algorithms were compared with block cipher with different block sizes and different key sizes [12]. Breaking an information security service (which often involves more than simply encryption) implies defeating the objective of the intended service. A passive adversary is an adversary who is capable only of reading information from an unsecured channel. An active adversary is an adversary who may also transmit, alter, or delete information on an unsecured channel [13]. A cryptographic technique called symmetric encryption uses the same key for both encryption and decryption. With this approach, the data is encrypted using a shared key by the sender and decrypted by the recipient using the same key. Since symmetric encryption is quick and effective, it is perfect for encrypting big data sets. In order to avoid unwanted access, the primary difficulty is in safely exchanging the key between the sender and the recipient. The Advanced Encryption Standard (AES), Data Encryption Standard (DES), and 3DES are typical instances of symmetric encryption methods. The following diagram shows how safe data transfer between a sender and a recipient is accomplished via symmetric encryption. The same key is used by the sender and the recipient for encryption and decryption in symmetric encryption. Only those who have the key can decode the data thanks to this shared key. Figure 2 illustrates the symmetric encryption process, where a single key is used for both encryption and decryption:

Symmetric encryption is a method of encryption that uses the same key for both the encryption and decryption processes. A single key is involved in the same key; the same key is used to encrypt data before it is sent and to decrypt the data once it is received. This key must be kept confidential and known only to the sender and the recipient. Symmetric encryption differs from asymmetric encryption in that it employs a single key for both encryption and decryption, whereas asymmetric encryption requires two different public and private keys.

b.

End-to-End Encryption

In end-to-end encryption, the encryption technique ensures that only the authorized sender and receiver may read sent messages or data. This indicates that the communication can only be accessed and decrypted by the receiver, who has the matching decryption key (often a private key) [14]. E2EE, or end-to-end encryption, makes sure that only the people who are communicating can read the communications. The content of the communication cannot be seen by the server hosting the messages or by any third-party interceptor under this encryption approach. This is so because the encryption is not performed on a central server but rather on the client devices (the “endpoints”). E2EE aims to preserve communication privacy by making sure that information is safe while being transmitted. It has grown in popularity as a result of worries about privacy violations and spying, which have been brought to light by incidents like the Snowden disclosures. Standardizing and implementing safe and intuitive protocols across decentralized platforms continue to be a difficulty even though proprietary apps like Facebook Messenger and WhatsApp have used E2EE. All correspondence between the sender and the receiver is encrypted during transmission, making it impossible for other parties—including servers that transmit the messages—to see or view the information.

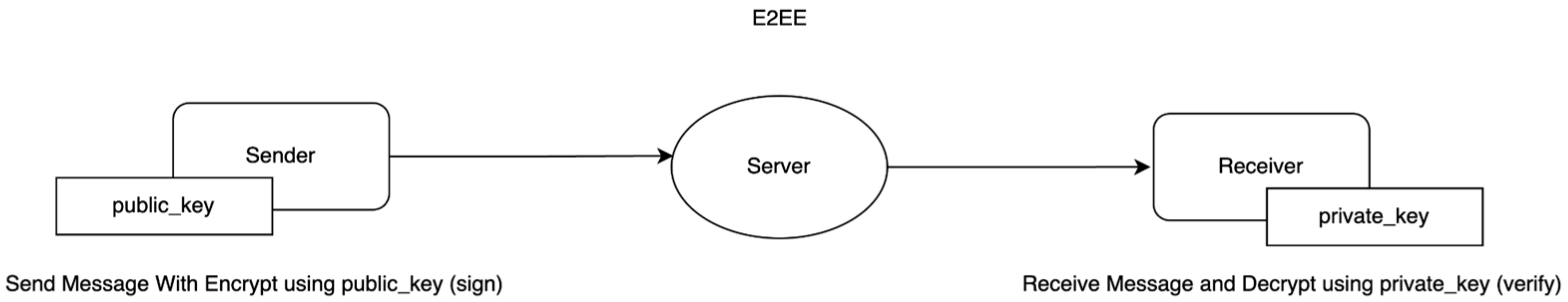

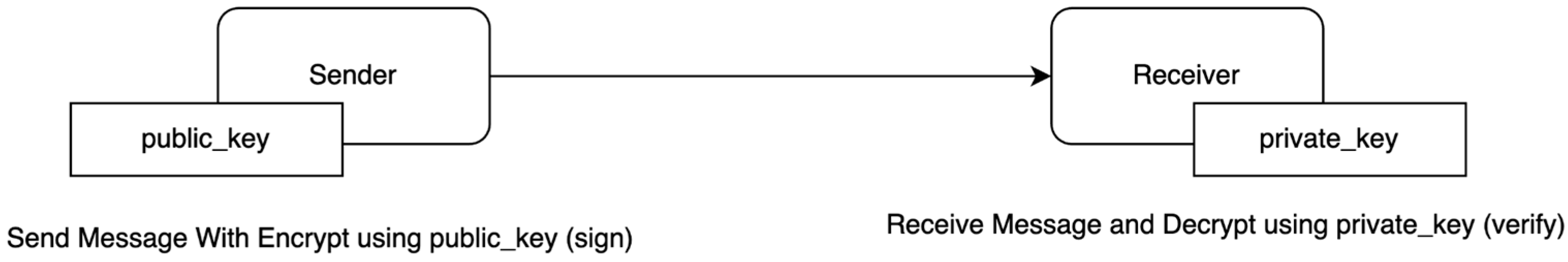

As presented in Figure 3, end-to-end encryption ensures that only the intended recipient can decrypt the transmitted message.

The diagram illustrates the concept of end-to-end encryption (E2EE) in a communication process involving a sender, a server, and a receiver. Here is the explanation:

• Sender:
  • The sender encrypts the message using the receiver’s public key. This ensures that only the intended receiver, who possesses the corresponding private key, can decrypt the message.
  • The encryption process transforms the original message into an encrypted format that is unreadable to unauthorized parties.

2.

Server:

• The encrypted message is transmitted through a server or intermediary.
• The server only acts as a conduit for delivering the encrypted message and does not have the ability to decrypt it. This ensures that the content of the communication remains confidential even if the server is compromised.

3.

Receiver:

• The receiver decrypts the message using their private key. The private key is kept secret and is mathematically linked to the public key used for encryption.
• Upon decryption, the original message is restored and can be read by the receiver.

4.

Key Features:

• Public Key: shared openly and used by the sender to encrypt the message.
• Private Key: kept confidential by the receiver and used to decrypt the message.
• Confidentiality: only the receiver can decrypt and access the message content, ensuring secure communication.

• This system exemplifies the basic ideas of public-key cryptography, which is used in E2EE to protect communications while they are being sent.

c.

AES-256 (Advanced Encryption Standard)

The AES is a symmetric key algorithm in which both the sender and the receiver use a single key for encryption and decryption. The AES defines the data block length to 128 bits, and the key lengths to 128, 192, or 256 bits. It is an iterative algorithm and each iteration is called a round. The total number of rounds, Nr, is 10, 12, or 14 when the key length is 128, 192, or 256 bits, respectively [15]. The RSA algorithm uses a public key and private key. It was developed in 1977 by Ron Rivest, Adi Shamir, and Leonard Adleman. It is a block cipher for digital signatures algorithms or key exchange algorithms. The RSA uses variable length keys and variable length blocks of encryption. A message is encrypted by a cloud service provider (sender), and it is decrypted by a cloud service consumer (receiver). Hence the message is encrypted with a public key; it is decrypted with an appropriate private key that is owned by the receiver. The RSA algorithm consists of three steps: key generation, encryption, and decryption. The process of the RSA encryption algorithm. The main weakness in the RSA is attack by possible brute-force attacks, mathematical attacks, timing attacks, and chosen ciphertext attacks [16].

• Symmetric Encryption Type:

In the area of symmetric encryption, one of the most used algorithms is the AES (Advanced Encryption Standard). The AES is a very effective and safe encryption method that employs key lengths of 128, 192, or 256 bits.

• Advantages:

• High Security: AES-256 offers a very high level of security and is still considered safe against brute-force attacks.
• Speed: the AES is very fast, both in hardware and software implementations.
• Wide Adoption: the AES is used in many secure communication protocols such as HTTPS and VPNs.

d.

Diffie–Hellman (DH)

The Diffie–Hellman algorithm was the first public key algorithm constructed by Witfield Diffie and Martin Hellman in 1976 [17]. A cryptographic technique called Diffie–Hellman is used to safely agree on a key (key exchange) between two untrustworthy parties. In order to create a shared secret key that may be used to encrypt additional communication, the two parties in Diffie–Hellman exchange certain information. This approach focuses on generating a secure key for upcoming conversations rather than immediately encrypting messages. The process of safely creating a shared secret key between Alice and Bob is depicted in the accompanying graphic to help you better understand how the Diffie–Hellman Key Exchange Protocol operates. This protocol, in contrast to encryption, enables both parties to independently compute the same shared key using modular arithmetic rather than exchanging real keys. A primitive root (g) and a publicly known prime integer (P) are used for this, and each party’s private key is kept confidential. Secure symmetric encryption may then be performed using the generated shared key.

The Diffie–Hellman key exchange protocol is depicted in Figure 4, which shows how two parties can generate a shared secret key without directly transmitting their private keys.

Figure 5 illustrates the server-side implementation of the Diffie–Hellman key exchange process.

In the diagram above, the Diffie-–Hellman Key Exchange process proceeds as follows:

• Public Values:
  • A prime number (P = 23) and a primitive root (g = 5) are agreed upon and shared publicly.

2.

Private Keys:

• Alice chooses her private key a = 3
• Bob chooses his private key b = 7

• Both values are kept secret and never shared.

3.

Public Computation:

• Alice computes her public value using:

  $$A=g^a mod P$$
  With a = 3, this results in A = 10.
• Bob computes his public value using:

  $$B=g^b mod P$$
  With b = 7, this results in B = 17.

4.

Public Exchange:

• Alice and Bob exchange their public values over the insecure channel:

A = 10, B = 17

5.

Shared Key Computation:

• Alice computes the shared key using Bob’s public value:

  $$K=B^a mod P$$
• Bob computes the shared key using Alice’s public value:

  $$K=A^b mod P$$
• Because of the properties of modular arithmetic, both results are identical, giving Alice and Bob the same shared secret key. Key = 14.

By using this method, Alice and Bob can create a shared secret key without actually sending it. Without the private keys, the shared key cannot be calculated even if the public values are intercepted. It is now possible to employ symmetric encryption with this shared key to provide safe communication across an unprotected channel.

e.

ECDH (Elliptic Curve Diffie–Hellman)

The Elliptic Curve Diffie–Hellman (ECDH) protocol is a key exchange protocol that is widely used in information technology systems. However, the ECDH protocol still has inherent weaknesses due to the lack of a user authentication mechanism and it is affected by man-in-the-middle attacks. In this paper, we propose two novel variants of the ECDH protocol using the Schnorr Zero-Knowledge Proof (ZKP) for a Client-Server network model [18]. Elliptic Curve Cryptography (ECC) itself has been highlighted as a modern approach to public key cryptography due to its efficiency and strong security guarantees with smaller key sizes [19]. The Elliptic Curve Digital Signature Algorithm (ECDSA) further extends these benefits by ensuring authentication and data integrity in secure exchanges [20]. Similarly, the Elliptic Curve Diffie–Hellman (ECDH) method provides a robust mechanism for generating shared secrets, making it suitable for secure message encoding and transmission [21].

• Key Steps in ECDH

1.

Generate Key Pairs:

⃝

Each party generates the following:

• Private Key: a large random number kept secret.
• Public Key: a point on the elliptic curve derived from the private key using the curve’s generator point GGG.

2.

Exchange Public Keys:

⃝

The two parties exchange their public keys over an insecure channel.

3.

Compute Shared Secret:

⃝

Both parties use their private key and the other party’s public key to compute the same shared secret due to the properties of elliptic curves:

• Shared Secret = $a \times B = b \times A$, where $A = a \times G$ and $B = b \times G$ with G being the generator point of the elliptic curve. This ensures that both Alice and Bob arrive at the identical shared secret: $S=\left(ab\right)\times G$

• Advantages of ECDH
  • High Security with Smaller Keys: a 256-bit key in ECDH offers security equivalent to a 3072-bit key in classic Diffie–Hellman.
  • Efficiency: computations on elliptic curves are faster and require less processing power.
  • Wide Compatibility: ECDH is widely used in protocols like TLS/SSL, IPsec, and SSH.

• Mathematical Foundation
  • Elliptic Curve Equation: ${\mathrm{y}}^2=x^3+ ax+b\left(modp\right)$
  • where $x, y:$ coordinates of a point on the curve. $a, b$: curve parameters that
  • Hard Problem: the Elliptic Curve Discrete Logarithm Problem (ECDLP) ensures security by making it computationally infeasible to derive the private key from the public key.

• Applications
  • Secure Key Exchange in TLS/SSL: used to negotiate shared secrets for encrypted web communications (HTTPS).
  • Symmetric Key Derivation: the shared secret is used to generate keys for symmetric encryption (e.g., AES).

• Security Considerations
  • Confidentiality: private keys are never transmitted, ensuring secrecy.
  • Authentication: to prevent man-in-the-middle attacks, ECDH is often combined with authentication methods like ECDSA.

• Standards and Libraries
  • Standards: NIST P-curves (e.g., P-256, P-384) and RFC 7748 define common elliptic curves and implementation practices.
  • Libraries: popular cryptographic libraries like OpenSSL, libsodium, and WebCrypto API provide ECDH implementations.

• Why ECDH Matters

ECDH is a cornerstone of modern cryptography, offering secure and efficient key exchange critical for protecting sensitive communications across the internet.

In modern distributed applications, the adoption of scalable architectures also plays a key role. Concepts such as modular and microservice-based system designs offer flexibility, scalability, and maintainability in handling secure communication workloads [22]. Monitoring and intelligent management strategies for microservice applications have been proposed to ensure reliability and fault tolerance in distributed environments [23]. From the practitioners’ perspective, design, monitoring, and testing remain critical for maintaining the security and performance of microservices-based systems [24].

Security enhancements have also been made on symmetric encryption methods. For instance, AES-CBC improvements have been evaluated using the avalanche effect, demonstrating stronger resistance against cryptanalytic attacks [25]. In addition, combining the Diffie–Hellman key exchange with AES has been proposed for effective key management, ensuring both secure exchange and efficient symmetric encryption [26]. These approaches demonstrate how hybrid cryptographic models can improve confidentiality and robustness in communication systems.

Finally, the application of microservice architecture in various domains, including e-learning and secure communication, further illustrates its versatility. Implementations of microservices in learning management systems show how modularization and service-oriented designs can improve scalability, integration, and security [27,28]. This combination of cryptographic techniques with microservice-based architectures provides a strong foundation for developing secure end-to-end encrypted chat applications that are both scalable and resistant to modern cyber threats.

3. Research Method

3.1. Implementing in Server

Alice and Bob use asymmetric cryptography techniques to enable safe communication, and the figure below shows how they exchange public keys and generate shared keys.

In this process, there are three main steps:

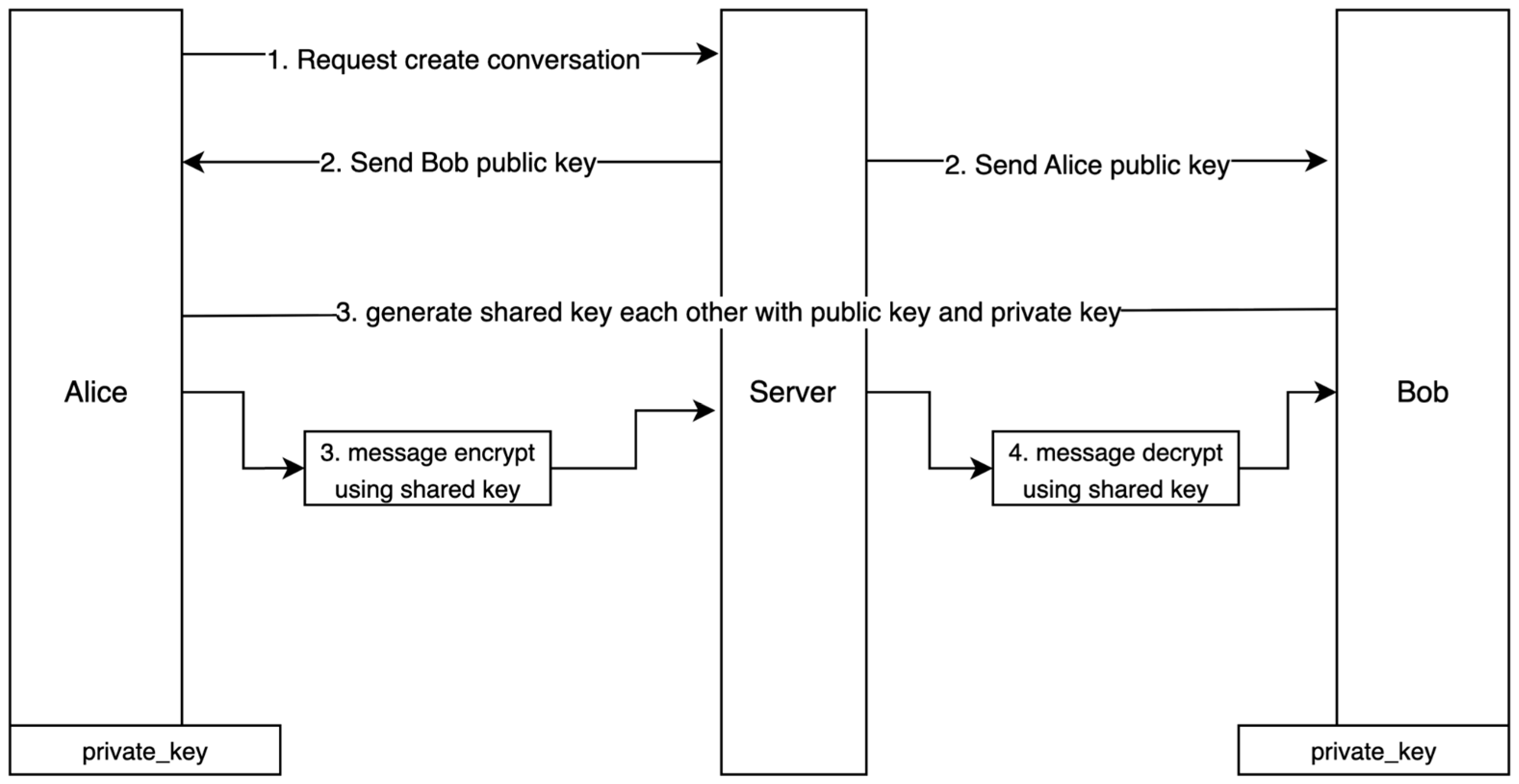

• Alice sends her public key to Bob: Alice shares her public key, allowing Bob to use this key in calculations to generate a shared key.
• Bob sends his public key to Alice: similarly, Bob shares his public key with Alice.
• Alice and Bob generate a shared key: Both parties use a combination of the received public key and their own private key to generate the same shared key. This shared key is then used for secure communication.

Encryption and decryption process:

• Alice encrypts the message using the generated shared key.
• Bob then decrypts the message using the same shared key.

Thus, even with a public network, secure communication is possible. This figure illustrates the fundamental idea behind algorithms such as the Diffie–Hellman Key Exchange or how public and private keys are used in asymmetric cryptography systems.

3.2. Designing Microservice Architecture

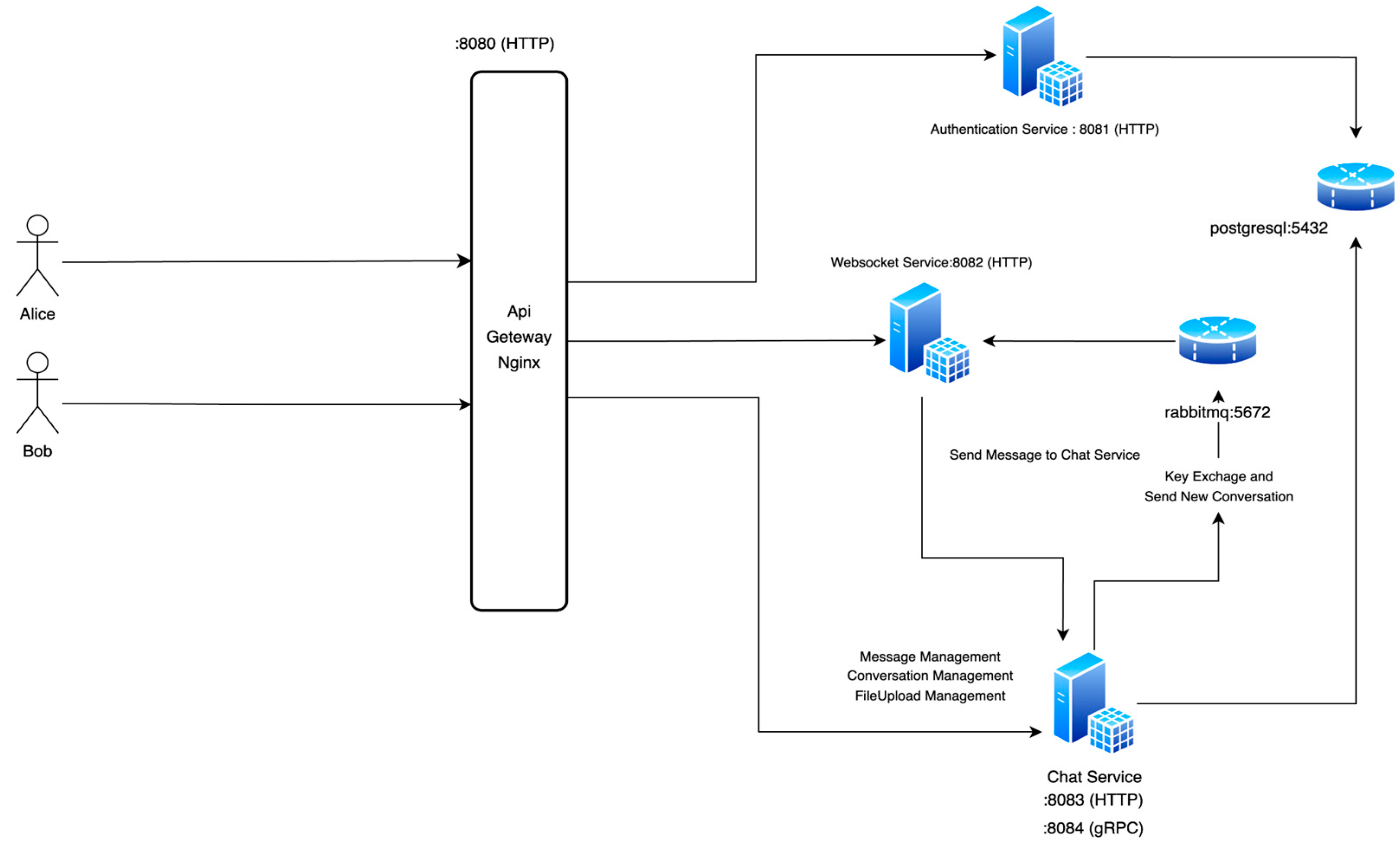

Figure 6 shows the proposed microservice architecture used in the system design.

An application for real-time conversation that is both safe and scalable is depicted in the diagram. There are several parts to the system, and each has a distinct function.

Table 1. Description of designing microservice architecture.

No	Name	Role	Responsibilities
1	Alice and Bob	End-users of the chat application	Alice and Bob interact with the system through a web or mobile client to initiate communication. Their requests are routed to the backend via the API Gateway for further processing.
2	1API Gateway (NGINX)	Acts as the entry point for all user requests.	Routes traffic to the appropriate backend service depending on the type of request (e.g., authentication, WebSocket connections, and chat messages). Real-Time Communication: upgrades HTTP connections to WebSocket for bi-directional communication. Load Balancing and Reverse Proxy: distributes traffic evenly across multiple backend services for high availability and ensures security
3	Authentication Service (Port 8081)	Handles user login, authentication, and authorization processes.	Credential Verification: verifies user credentials against the database (e.g., username and password). JWT Token Issuance: issues a JSON Web Token (JWT) to users upon successful authentication. Data Storage: Manages user credentials securely in the PostgreSQL Database. Tracks user sessions for monitoring and security.
4	WebSocket Service (Port 8082)	Facilitates real-time, bi-directional communication between users (Alice and Bob) using WebSocket connections.	Connection Management: establishes, maintains, and terminates WebSocket connections as required. Message Routing: routes encrypted messages between users in real-time. Intermediary Role: acts as the intermediary between clients (web or mobile) and the Chat Service, ensuring secure and low-latency communication.
5	Chat Service (Ports 8083/8084)	Responsible for managing chat-specific functionalities, such as processing messages, handling conversations, and supporting advanced features like file uploads.	Message Storage: stores encrypted chat messages in the PostgreSQL Database Conversation Management: manages user conversations, including threads and metadata (e.g., timestamps and status). Additional Features: Supports file sharing and uploads. Provides APIs for retrieving chat histories and managing conversations. Scalability: multiple instances (e.g., on ports 8083 and 8084) enable horizontal scaling to handle high traffic.
6	PostgreSQL Database (Port 5432)	Centralized database for storing authentication data, chat messages, and other metadata.	Data Security: securely stores user authentication data and encrypted chat messages Persistence and Reliability: ensures that all chat data and user-related information are durable and retrievable. High Performance: supports high-volume read/write operations for real-time message delivery and user interaction.
7	RabbitMQ Message Broker (Port 5672)	Acts as a message broker to enable asynchronous communication between microservices	Handles queue-based message passing between the API Gateway, WebSocket Service, and Chat Service. Ensures decoupled communication for better system scalability and fault tolerance. Processes and prioritizes background tasks like message delivery confirmations and notifications.

shows explanation of the architecture:

• Key Flowchart Highlights:

• User Request Flow:

  ⃝

  Alice and Bob initiate communication via a web/mobile client. Requests are first routed to the API Gateway.

  ⃝

  The API Gateway processes and routes the requests to the appropriate services:

  ▪

  Authentication Service for user verification.

  ▪

  WebSocket Service for establishing real-time communication.

  ▪

  Chat Service for message storage and retrieval.

2.

Authentication Flow:

⃝

The Authentication Service interacts with the PostgreSQL Database to validate credentials and issue JWT tokens.

⃝

Upon successful authentication, the token is sent back through the API Gateway to the client.

3.

Real-Time Communication Flow:

⃝

The WebSocket Service establishes a persistent connection with clients, routing real-time messages securely between Alice and Bob.

4.

Message Processing Flow:

⃝

Messages sent by users are processed by the Chat Service, encrypted, and stored in the PostgreSQL Database.

⃝

RabbitMQ facilitates communication between services, ensuring efficient delivery and handling of background tasks.

5.

Scalability and Load Balancing:

⃝

Multiple instances of services (e.g., Chat Service on ports 8083 and 8084) allow for load balancing and horizontal scaling to handle increased traffic and high concurrency.

• Key Architectural Features:

• Scalability:

  ⃝

  Modular design enables independent scaling of services to accommodate increased traffic.

• Real-Time Communication:

  ⃝

  The WebSocket Service ensures low-latency interactions between users.

• Security:

  ⃝

  JWT tokens for authentication.

  ⃝

  End-to-end encryption for chat messages.

• Reliability:

  ⃝

  PostgreSQL ensures data persistence, while RabbitMQ enhances communication robustness.

• Extensibility:

  ⃝

  Modular architecture allows the addition of new features, such as advanced analytics, AI–driven chatbots, or integration with third-party services.

3.3. Create User—Generate Asymmetric Key (Generate ECDH Public and Private Key)

The use of JWT (JSON Web Token) is essential to a system’s user authentication and secure communication. The steps involved in user authentication, JWT token creation, and verification are depicted in the accompanying figure. The user, an authentication service, an API gateway, and other services that depend on secure communication are all involved in this process. The sequential process for creating, storing, and verifying JWT tokens is shown below.

The steps for generating RSA keys are detailed in Figure 7.

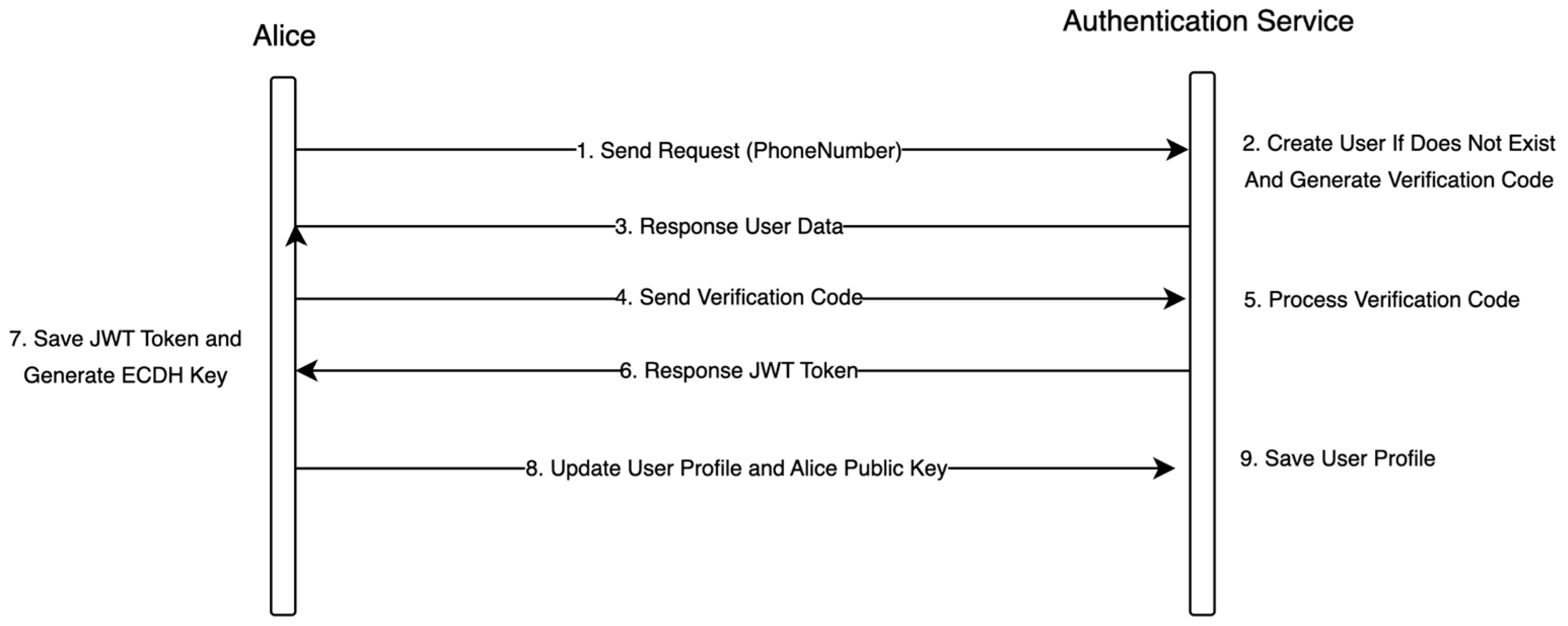

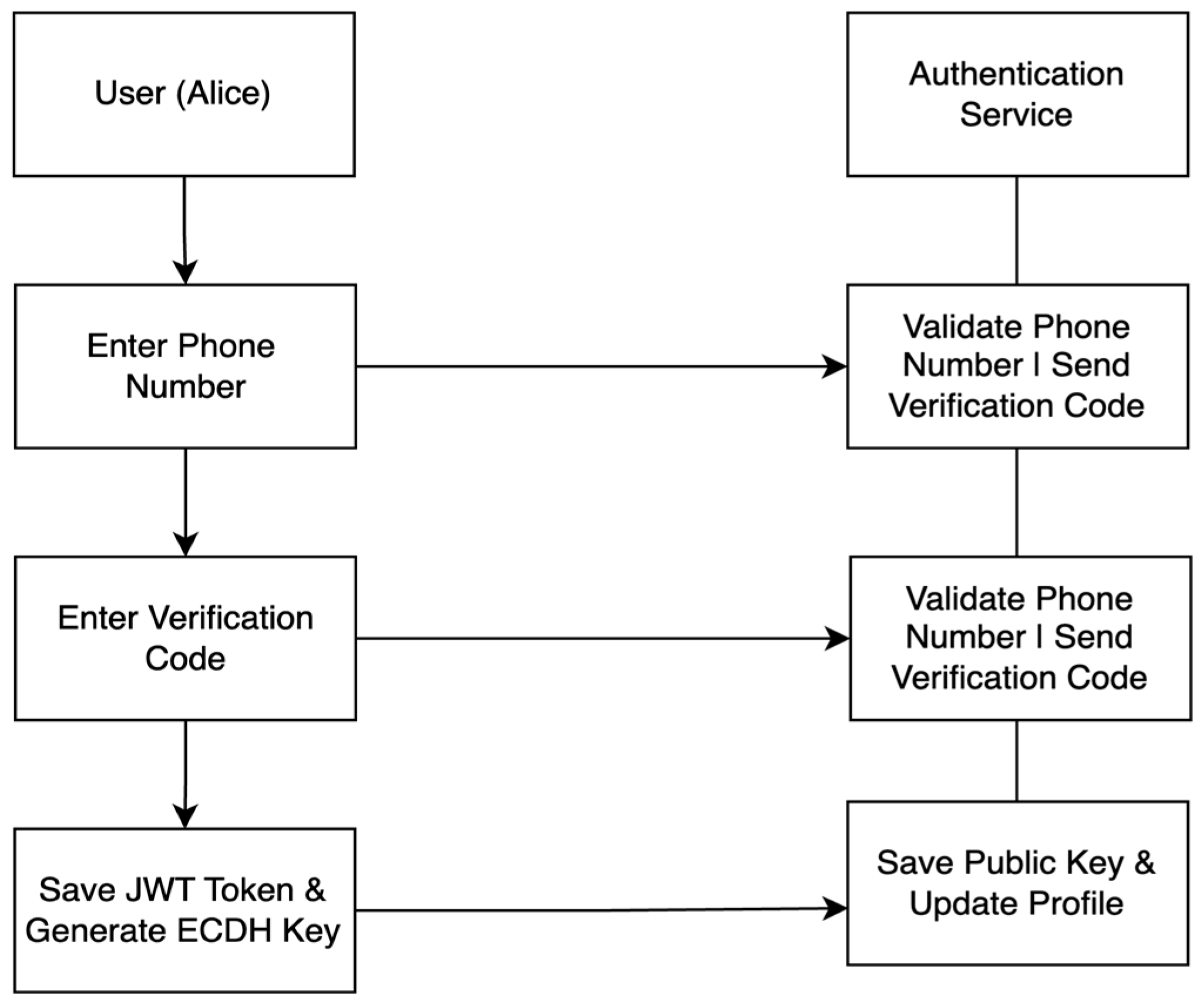

In the diagram above, the authentication flow is described on

Table 2. Description of how to create user.

No	Function	Responsibilities
1	User	Sends a request with a phone number to initiate the authentication process.
2	Authentication Service	Creates a user if they do not exist and generates a verification code for new or existing users.
3	Authentication Service	Sends user-related data as a response to the authentication request.
4	User	Sends the received verification code to verify the phone number.
5	Authentication Service	Processes and validates the verification code sent by the user.
6	Authentication Service	Sends a JWT token to authenticate the user after successful verification.
7	User	Saves the JWT token and generates an ECDH key to ensure secure communication.
8	User	Updates the user profile and sends Alice’s public key for encryption purposes.
9	Authentication Service	Stores the user profile for future authentication purposes.

:

3.4. Create Conversation—Key Exchange

Key exchanges and JWT–based authentication must be handled correctly in order to create secure user communication in a chat system. Alice and Bob, two users, engage over an API Gateway to generate shared keys, publish their public keys, and securely communicate. The series of events is depicted in the following diagram. Along with the storing of pertinent data in PostgreSQL, the procedure also makes use of the API Gateway, WebSocket Service, and Chat Service. The thorough flow is shown below: Figure 8 demonstrates the key exchange process during conversation creation.

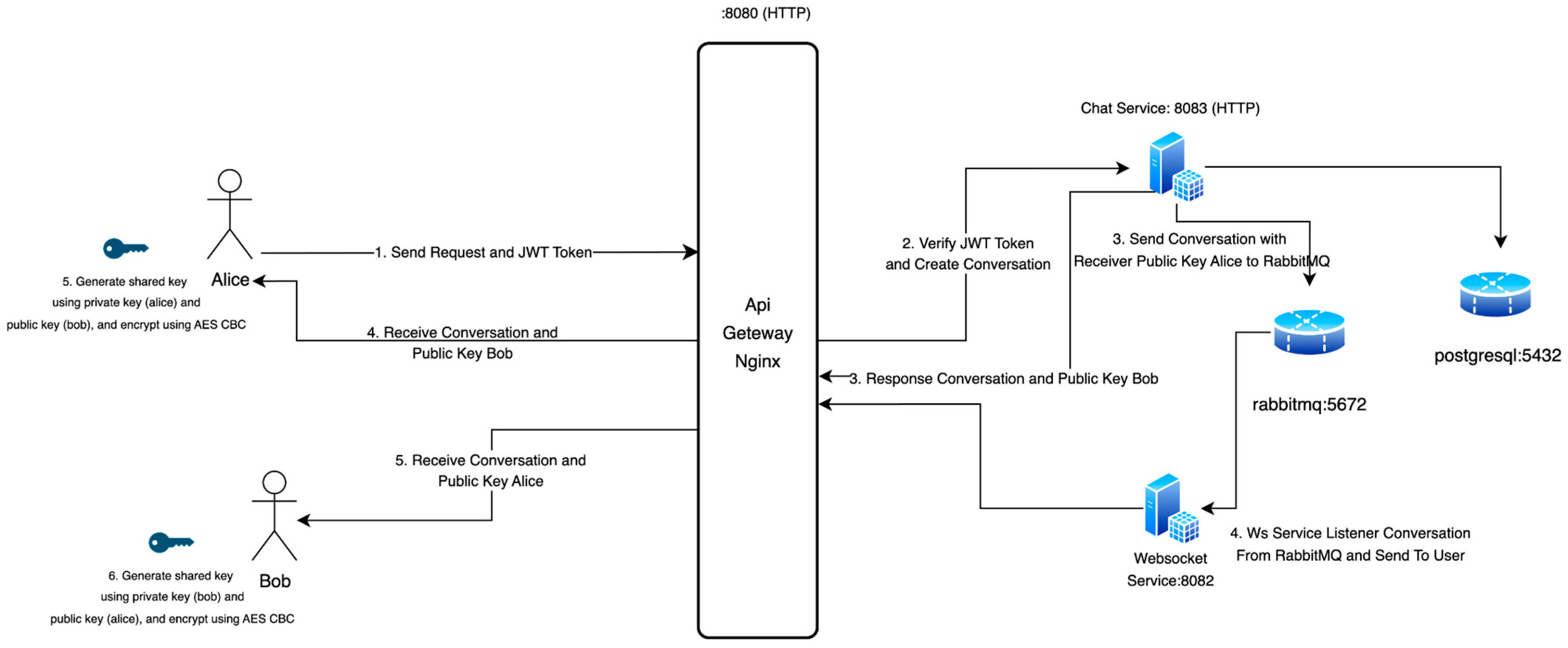

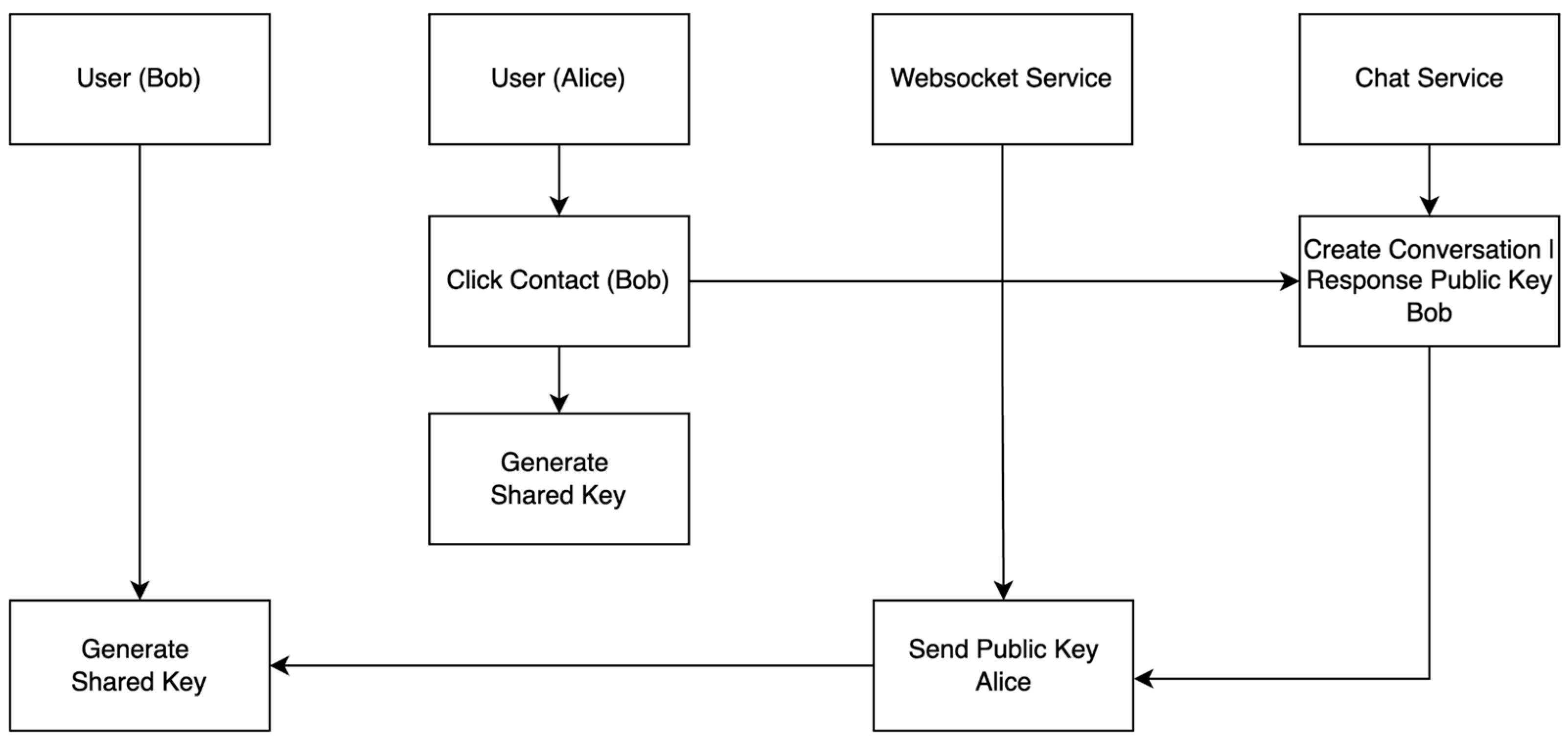

In the diagram above, the secure key exchange and authentication process are depicted in

Table 3. Create conversation.

No	Function	Responsibilities
1	User (Alice)	Sends request and JWT Token
2	Chat Service	Verifies JWT Token and creates conversation
3	Chat Service	Sends conversation and public key (Bob) to Alice

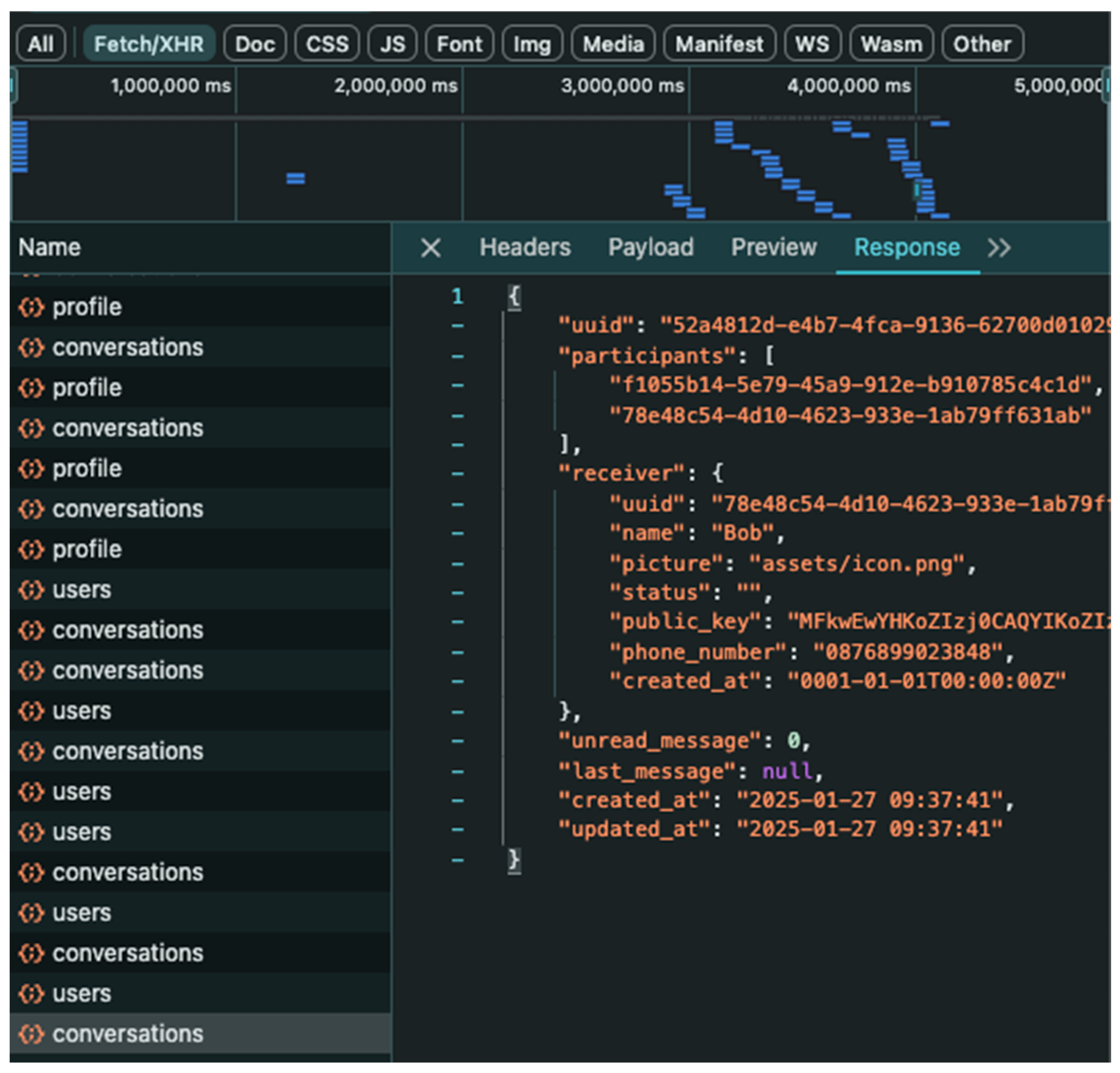

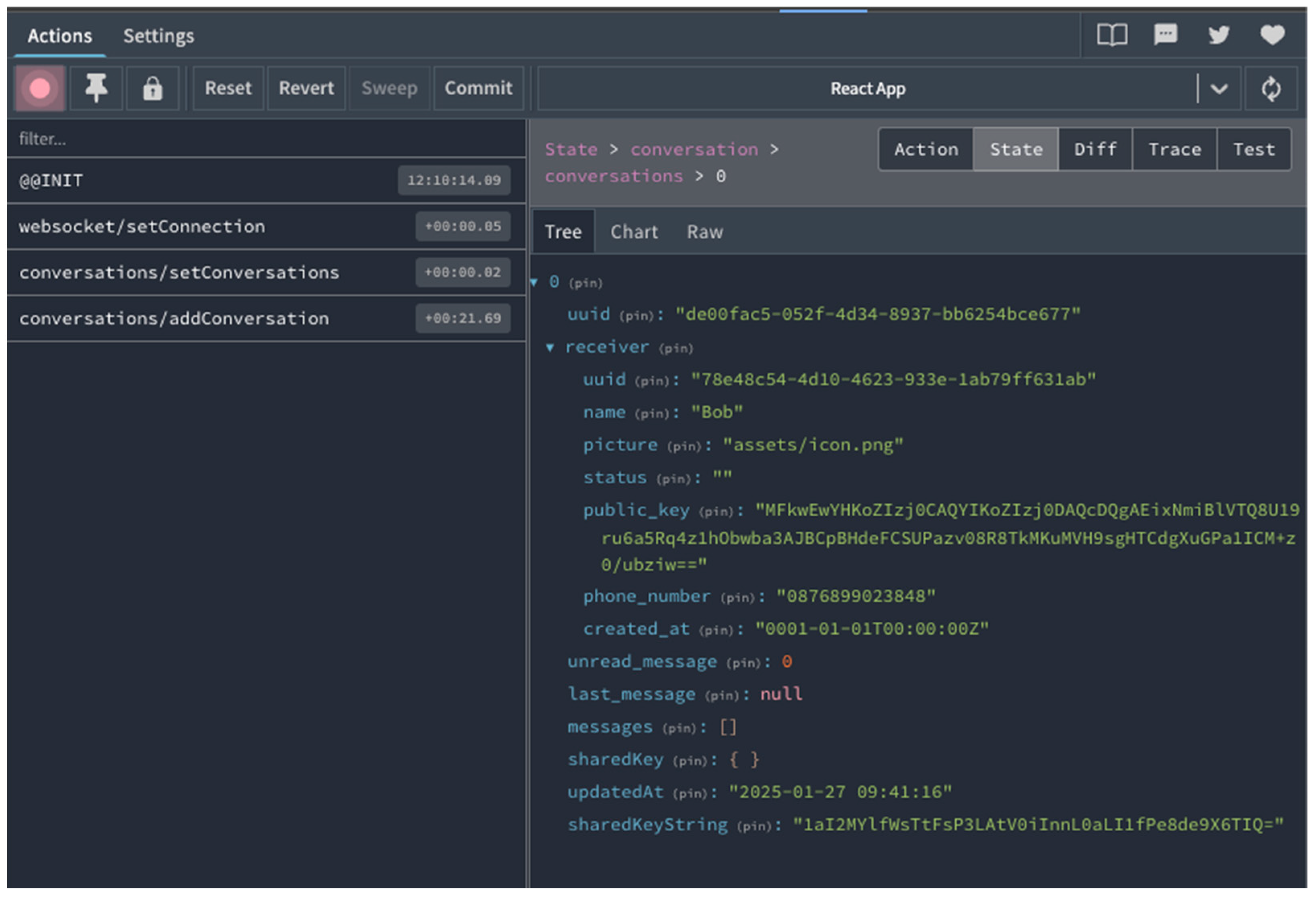

4	User (Alice)	Receives and stores conversation and public key (Bob)
5	User (Alice)	Generates a shared key using private key (Alice) and public key (Bob) and then encrypts using AES CBC
3	Chat Service	Sends conversation with public key (Alice) to RabbitMQ
4	WebSocket Service	WebSocket Service listener for conversation from RabbitMQ and sends to user (Bob)

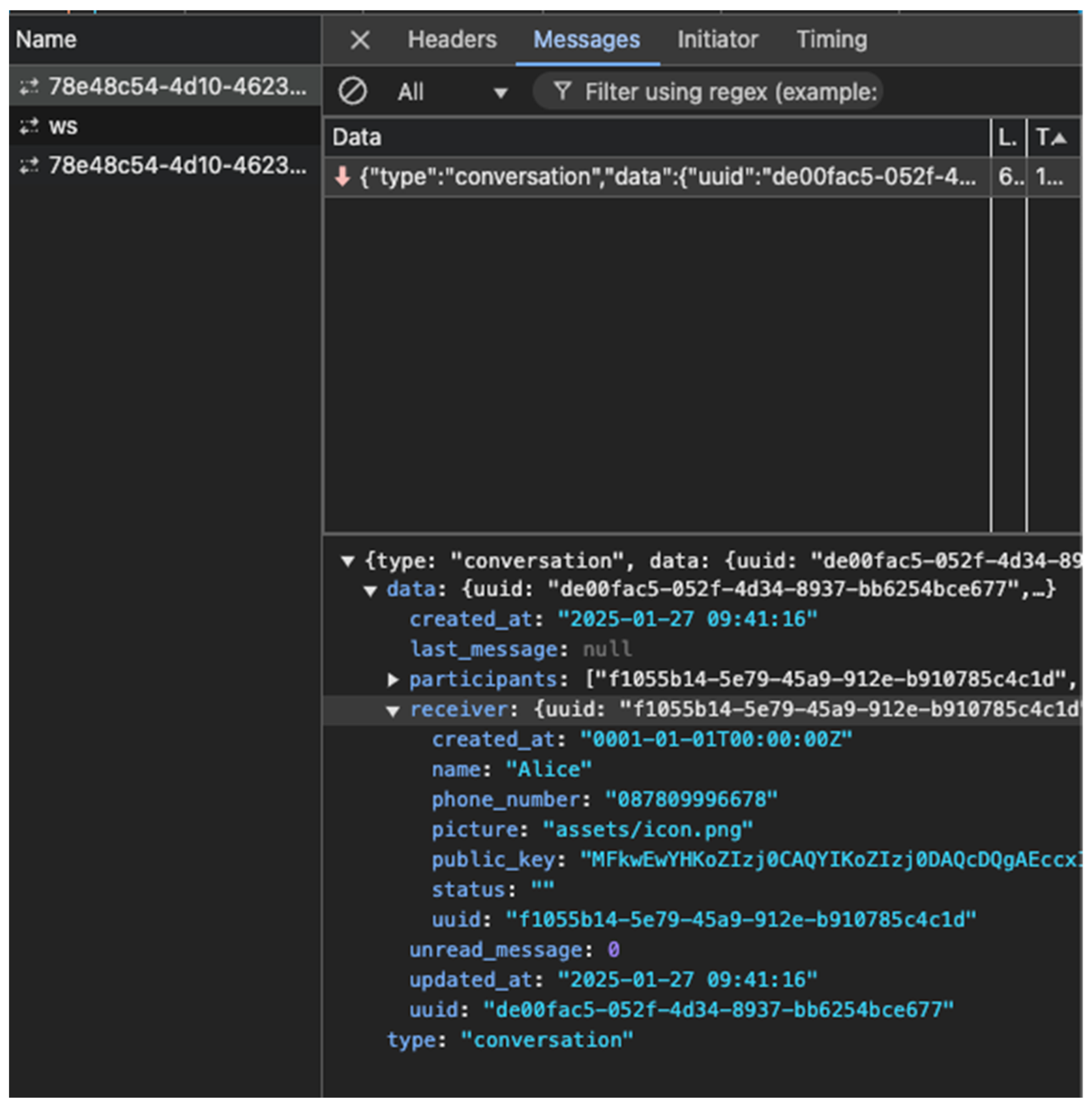

5	User (Bob)	Receives conversation and public key Alice
6	User (Bob)	Generates a shared key using private key (Bob) and public key (Alice) and then encrypts using AES-256 CBC

as follows:

3.5. Send and Receive Message

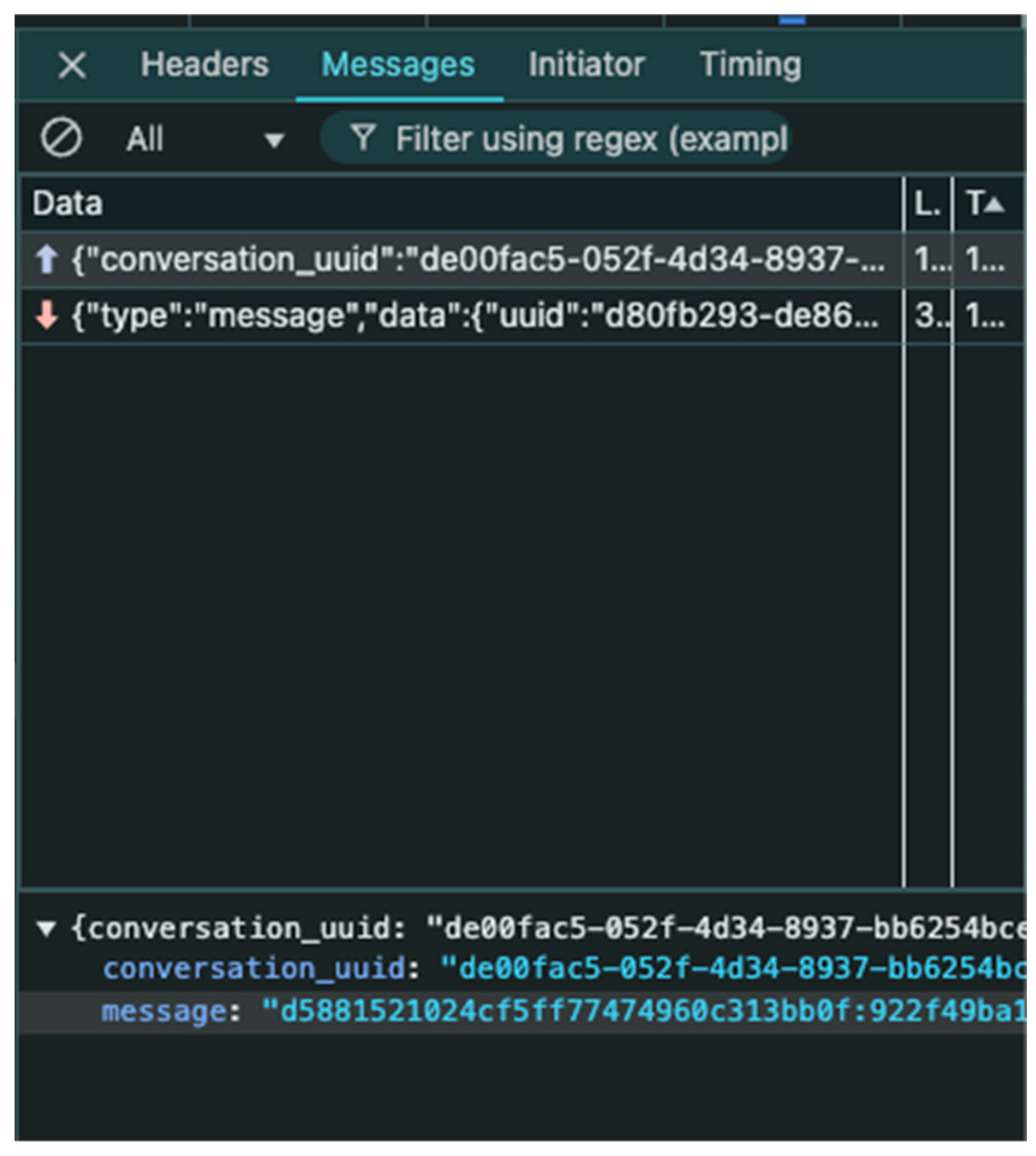

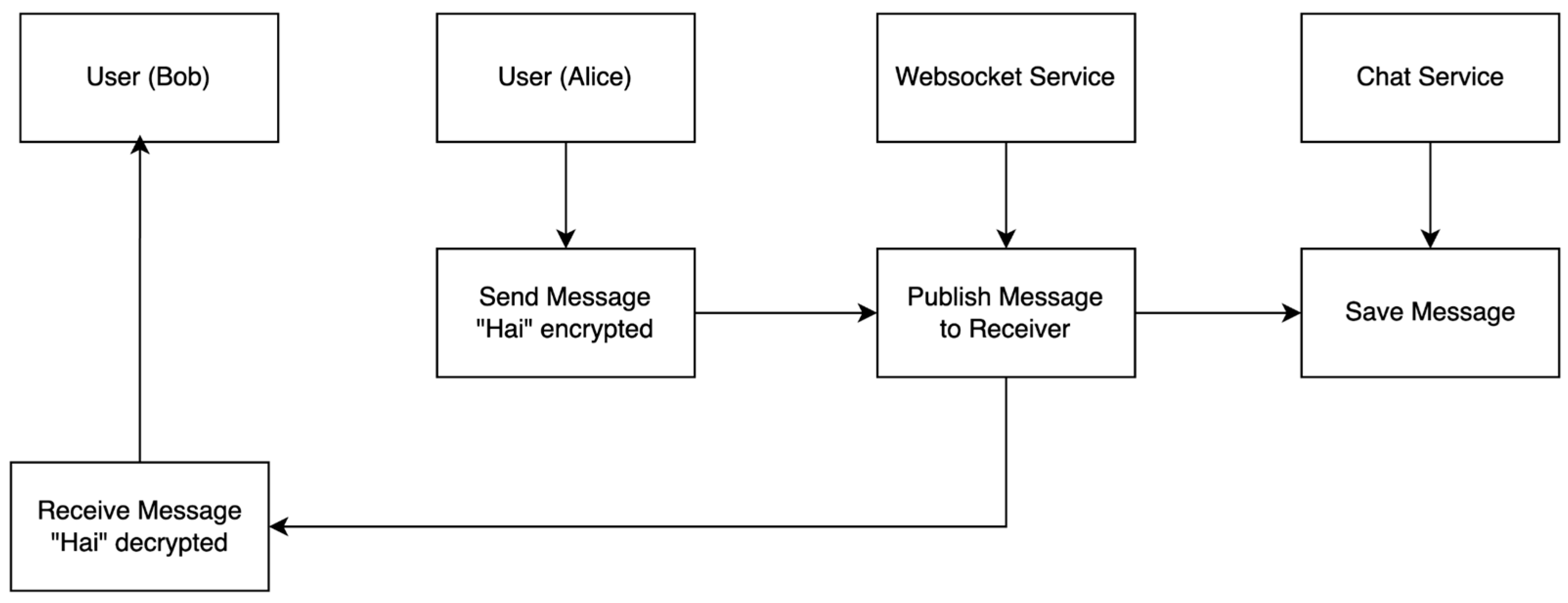

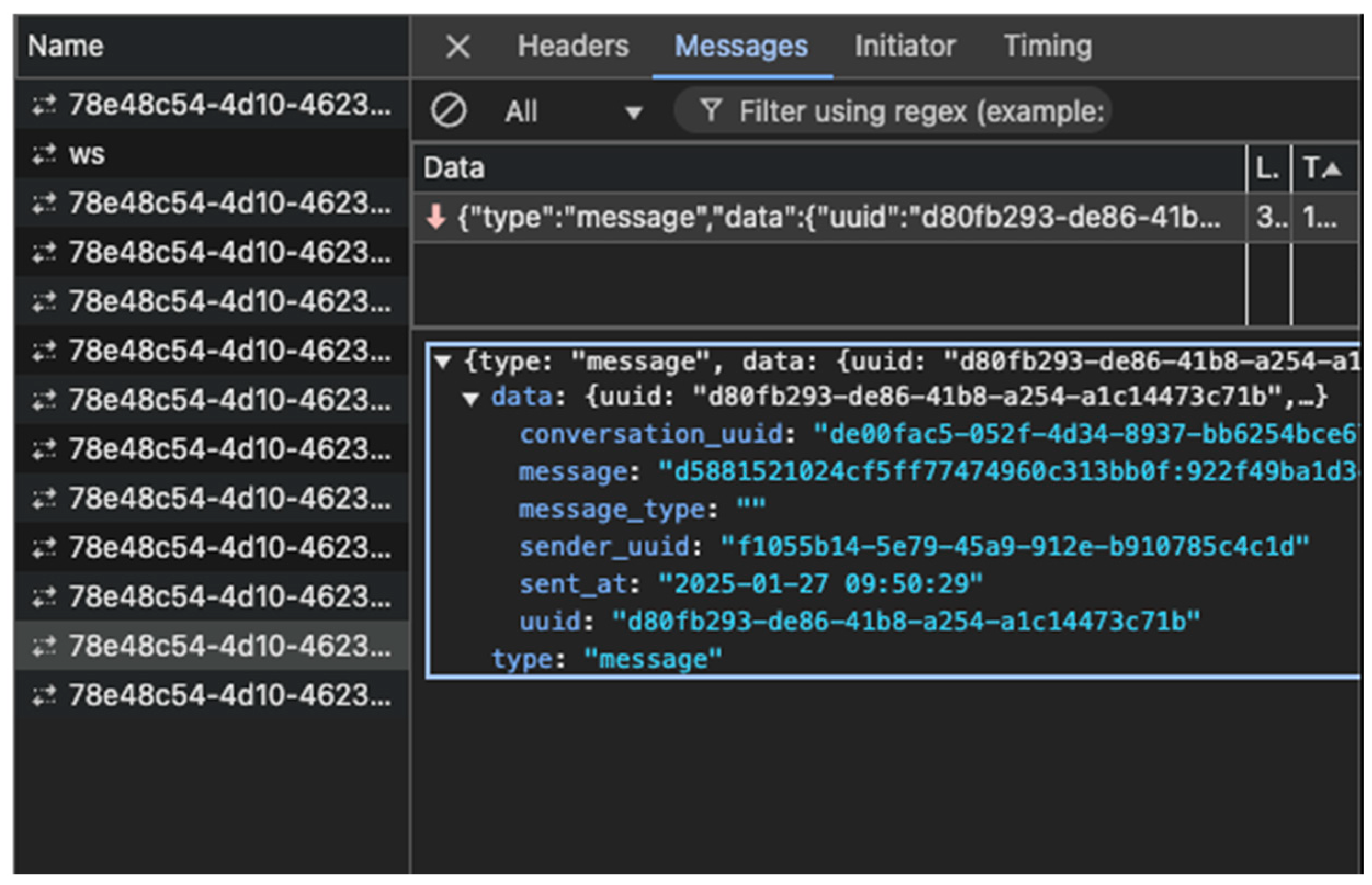

In the diagram above, the secure messaging process using WebSocket and encryption is depicted on

Table 4. Description of how to send and receive message.

No	Function	Responsibilities
1	Users (Alice)	Send JWT Token and user ID to authenticate and connect websocket.
2	WebSocket Service	Verify tokens and improve protocols for WebSocket communications.
3	WebSocket Service	Upgrade protocol to 101 real-time communication status.
4	Users (Alice)	Confirm protocol upgrade with status 101.
5	Users (Alice)	Send an encrypted chat message to user B using the shared key.
6	WebSocket Service	Process text requests and forward messages.
7	Chat Service	Save messages to the database.
8	Chat Service	Confirm that the message was saved successfully.
9	WebSocket Service	Send a message to user B’s connection.

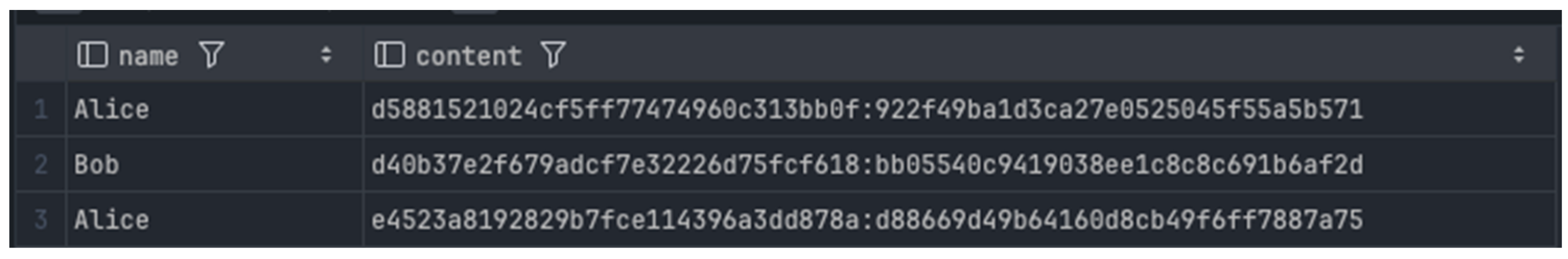

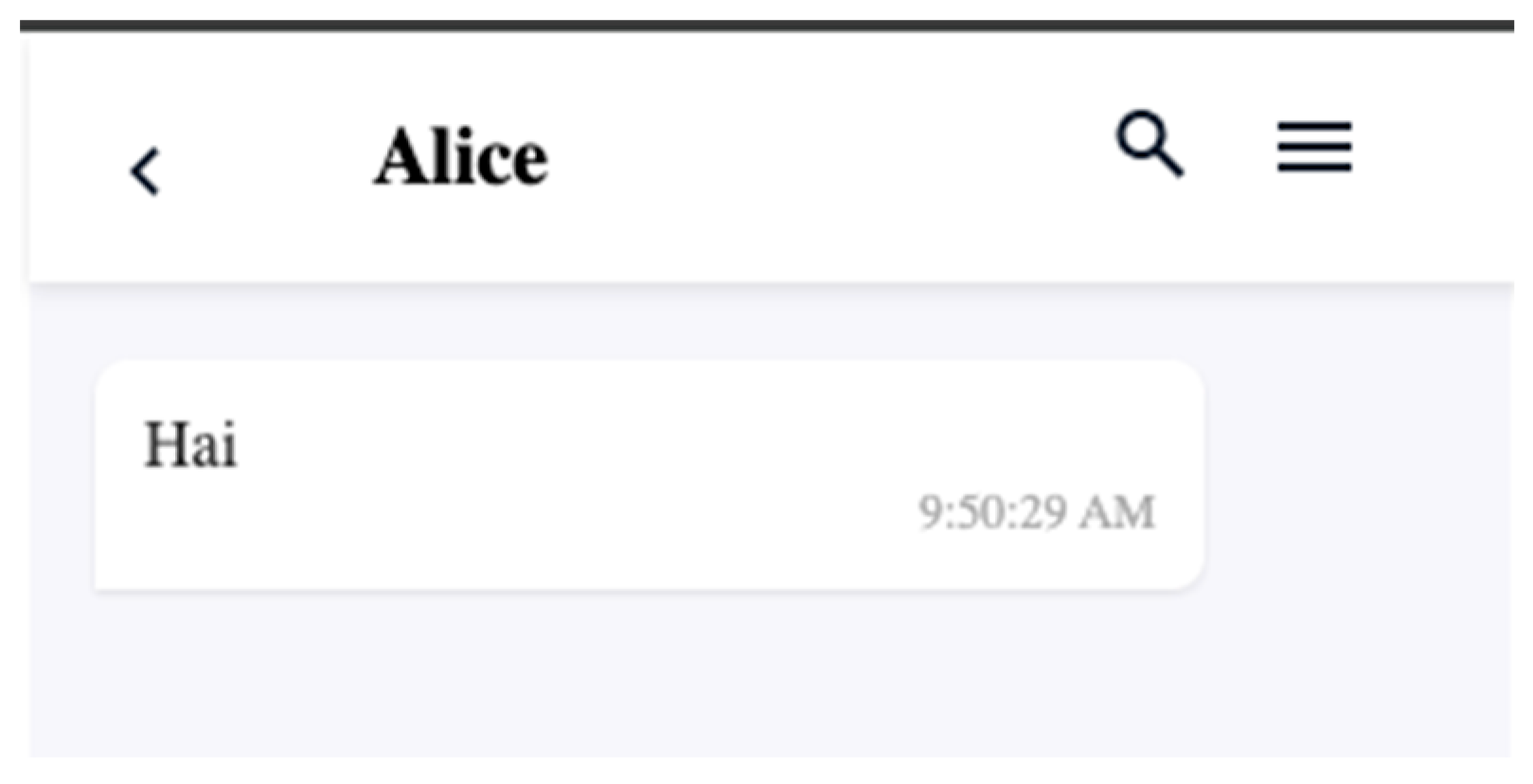

10	Users (Bob)	Receive messages via WebSocket and decrypt them using a shared key.

, as follows:

The following diagram illustrates the overall workflow of a secure chat communication system using an API Gateway. The process begins when a user initiates a connection by sending a JWT token and establishing a WebSocket connection. The API Gateway (Nginx) verifies the token, upgrades the protocol, and forwards the request to the backend services. Messages sent between users are encrypted using a shared key, transmitted through the WebSocket channel, and then stored securely in the chat service database. Finally, the recipient receives the encrypted message, which is decrypted locally using the shared key, ensuring confidentiality and integrity of the communication. Figure 9 presents the workflow of sending and receiving messages in the secure chat system.

4. Result and Discussion

4.1. Create User

As shown in Figure 10, the system test begins with the user creation process.

4.1.1. Login

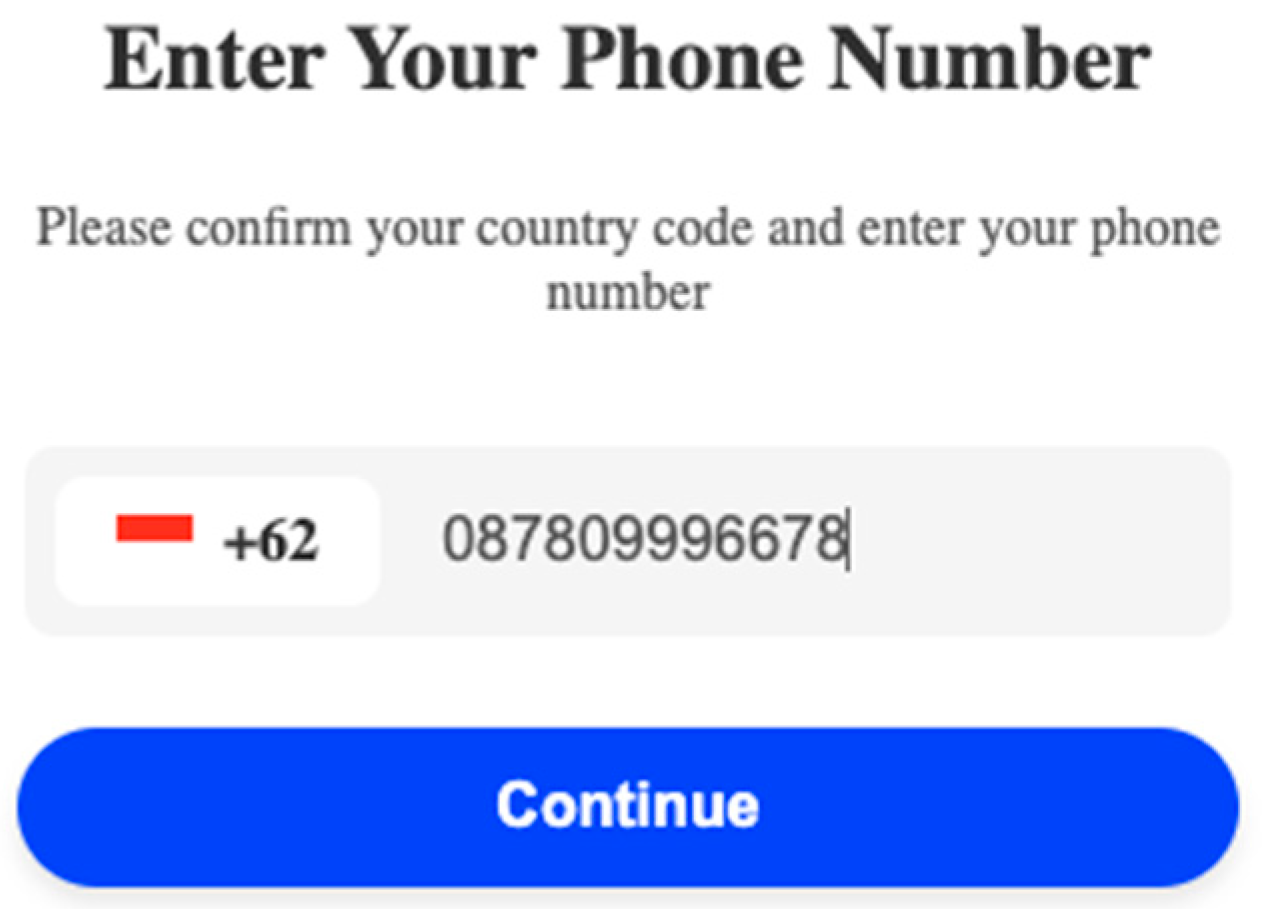

As shown in Figure 11 User enters phone number and chooses to proceed to authentication process.

4.1.2. Verification

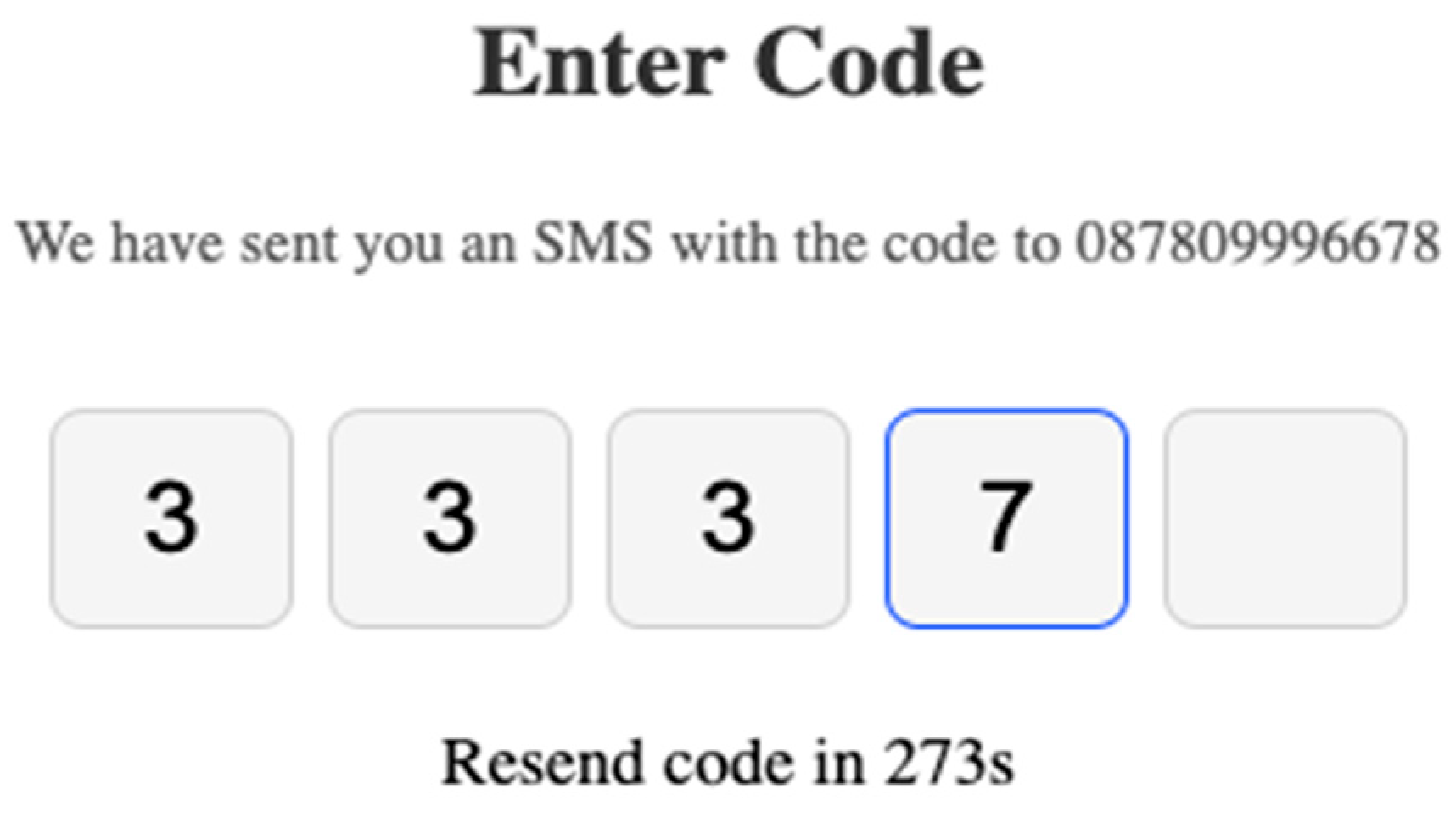

As shown in Figure 12, The system sends a verification code via SMS to verify the phone number. The user enters the received code into the verification page.

4.1.3. JWT Token Generation and ECDH Key Generation

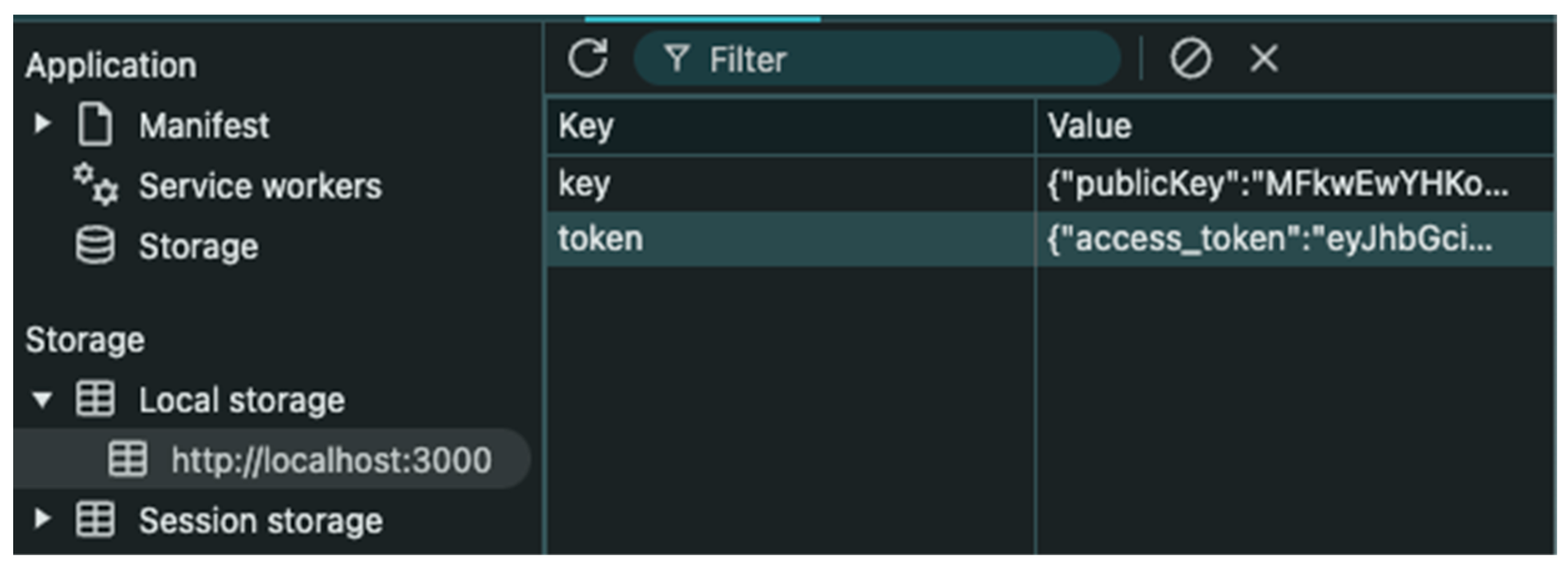

After successfully verifying the code, the server generates a JWT token for authentication. As shown in Figure 13 The user (e.g., Alice) generates a public/private key pair using the Web Crypto API. The public key is sent to the server for storage.

• Log: JWT and Public Key stored in local storage

[INFO]—User entered verification code: 123456 [INFO]—Authentication service verified code and issued JWT token [INFO]—JWT Token generated: { “access_token”:“eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX2lkIjoiZjEwNTViMTQtNWU3OS00NWE5LTkxMmUtYjkxMDc4NWM0YzFkIiwiZXhwIjoxNzM3OTczNTM2fQ.9fjva92mWvMAGmSBhGwLqyuDnN7Qx74r2SYECCCfBOE”, “refresh_token”:“eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX2lkIjoiZjEwNTViMTQtNWU3OS00NWE5LTkxMmUtYjkxMDc4NWM0YzFkXzE3Mzc5Njk5MzYiLCJleHAiOjE3MzgwNTYzMzZ9.iAqN9p9gQ6YgFlFnohtB8hn3_XHF6rYb8bT8r-PF-9E”, “expires_in”:“2025-01-27T17:25:36.368513422+07:00”, “refresh_expires_in”:“2025-01-28T16:25:36.368518506+07:00” } [INFO]—ECDH key generation successful for user Alice [INFO]—Generated ECDH Key Pair: { “publicKey”:“MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEccxI69eSnTngR7PIJjRMCFecdizar8cTGqpH58CWoPBBqAYv3fHRSH/tOSvuqAuUr9RrYeEZEvFEkxN1ItKuuw==“, “privateKey”:“MIGHAgEAMBMGByqGSM49AgEGCCqGSM49AwEHBG0wawIBAQQgxVFHISjq6LF88Yi5VLg7yWeUTg5uOc8VxCxH4GipTfChRANCAARxzEjr15KdOeBHs8gmNEwIV5x2LNqvxxMaqkfnwJag8EGoBi/d8dFIf+05K+6oC5Sv1Gth4RkS8USTE3Ui0q67” }

4.1.4. Send Public Key Chat Service

Send request to chat service for update of public key.

{ “name”: “Alice”, “picture”: “assets/icon.png”, “public_key”: “MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEccxI69eSnTngR7PIJjRMCFecdizar8cTGqpH58CWoPBBqAYv3fHRSH/tOSvuqAuUr9RrYeEZEvFEkxN1ItKuuw==“ }

• Logs Server (Chat Service)

2025-01-29 22:54:37 Payload {“name”:“Alice”,”picture”:“assets/icon.png”,”public_key”:“MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAEccxI69eSnTngR7PIJjRMCFecdizar8cTGqpH58CWoPBBqAYv3fHRSH/tOSvuqAuUr9RrYeEZEvFEkxN1ItKuuw==“} 2025-01-29 22:54:36 2025-01-29 22:54:51 [4.367ms] [rows:1] SELECT * FROM “users” WHERE uuid = ‘df98b75d-6261-442d-970b-caf982c9d4b3’ ORDER BY “users”.”id” LIMIT 1 2025-01-29 22:54:51 2025-01-29 22:54:51 2025/01/29 15:54:51 /usr/src/app/internal/repository/postgresql/user_repository.go:43 2025-01-29 22:54:51 [3.585ms] [rows:1] UPDATE “users” SET “uuid”=‘df98b75d-6261-442d-970b-caf982c9d4b3’,”name”=‘Test’,”picture”=‘assets/icon.png’,”phone_number”=‘0839873543’,”public_key”=‘MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAElg/ueB3TClDdqCwGCjqNcU/bdQiBzeTVwyWmeLYEyefRqeH8rU7TDe2GP7IOJclESXnUtnJhE0/DjH0ukJXfhw==‘,”status”=‘’,”created_at”=‘2025-01-29 15:54:04.142’ WHERE “id” = 8 2025-01-29 22:54:51 15:54:51 | 201 | 13.549375ms | 172.22.0.7 | PUT | /users | -

4.2. Key Exchange and Conversation Creation

The following diagram illustrates the process of public key exchange and shared key generation in a secure communication system. The process begins when a user (Alice) selects another contact (Bob) to start a conversation. The system then facilitates the exchange of public keys through the WebSocket Service and Chat Service.

As shown in Figure 14, both parties generate an identical shared key, enabling the establishment of an end-to-end encrypted communication channel.

• 1. User (Alice)
• Click Contact

⃝

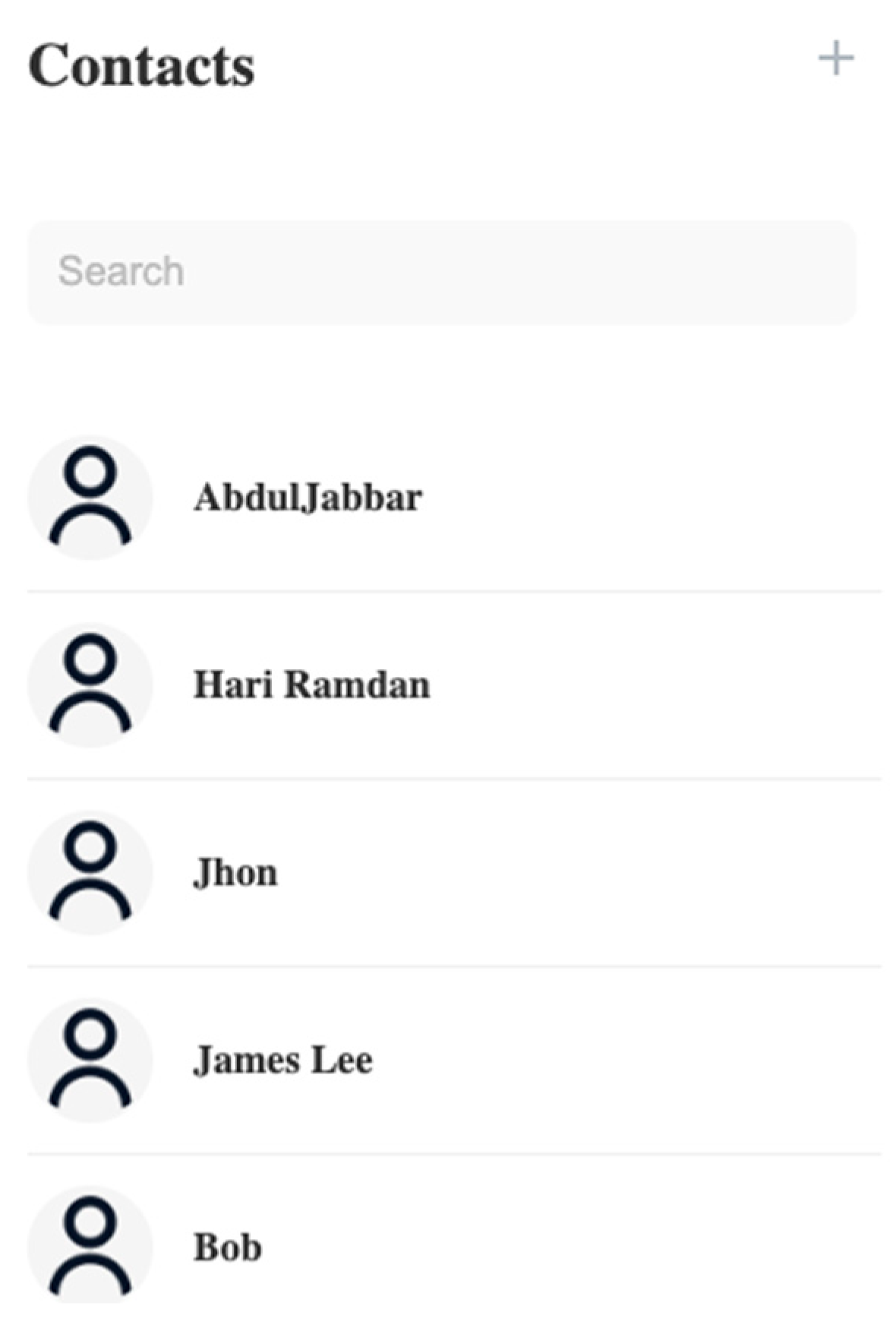

As shown in Figure 15, The user selects a contact (e.g., Bob) to start a conversation.

• Send Request and Key Exchange

⃝

As shown in Figure 16, Conversation and key exchange requests are sent to the server. The server sends Alice public key to be used as a shared key.

• Logs request for conversation creation (Chat Service)

2025-01-29 23:46:18 Payload { “participants”: [“”, “”] } 2025-01-29 23:46:18 [7.317ms] [rows:2] INSERT INTO “conversation_participants” (“conversation_id”,”user_id”) VALUES (27,8),(27,7) ON CONFLICT DO NOTHING 2025-01-29 23:46:18 2025-01-29 23:46:18 2025/01/29 16:46:18 /Users/mochjuang/projects/go/test-chat-telkomsel/chat-service/internal/repository/postgresql/conversation_repository.go:20 2025-01-29 23:46:18 [28.239ms] [rows:1] INSERT INTO “conversations” (“uuid”,”type”,”created_at”) VALUES (‘8c20c29d-396c-4ec3-80c4-f853f2a34e20’,’private’,’2025-01-29 16:46:18.556’) RETURNING “id” 2025-01-29 23:46:18 2025-01-29 23:46:18 16:46:18 | 201 |  59.713ms | 172.22.0.7 | POST | /conversations | -

• Generate Shared Key and Encrypt using AES-CBC

As shown in Figure 17:

⃝

JS uses the public key received from the rest API to generate a shared key using ECDH.

⃝

The shared key is then encrypted using AES-CBC before being used to encrypt subsequent messages.

• 2. Users (Bob)
  • WebSocket Response

As shown in Figure 18 The server sends conversation data and Alice’s public key via WebSocket.

• Logs Server

Chat Service Logs:

2025-01-29 23:46:18 [4.820ms] [rows:0] SELECT “messages”.”id”,”messages”.”uuid”,”messages”.”sender_id”,”messages”.”conversation_id”,”messages”.”content”,”messages”.”is_read”,”messages”.”send_at” FROM “messages” INNER JOIN conversations ON messages.conversation_id = conversations.id WHERE conversations.uuid = ‘8c20c29d-396c-4ec3-80c4-f853f2a34e20’ ORDER BY send_at asc LIMIT 30 2025-01-29 23:46:18 16:46:18 | 200 | 5.47625ms | 172.22.0.7 | GET | /conversations/8c20c29d-396c-4ec3-80c4-f853f2a34e20/messages | - 2025-01-29 23:46:18 2025/01/29 16:46:18 [x] Sent to conversation: {“uuid”:“8c20c29d-396c-4ec3-80c4-f853f2a34e20”,”participants”:[“6a6a700a-0637-4fff-abfd-a278c6a11cc3”,”df98b75d-6261-442d-970b-caf982c9d4b3”],”receiver”:{“uuid”:“df98b75d-6261-442d-970b-caf982c9d4b3”,”name”:“Test”,”picture”:“assets/icon.png”,”status”:“”,”public_key”:“MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAElg/ueB3TClDdqCwGCjqNcU/bdQiBzeTVwyWmeLYEyefRqeH8rU7TDe2GP7IOJclESXnUtnJhE0/DjH0ukJXfhw==“,”phone_number”:“0839873543”,”created_at”:“0001-01-01T00:00:00Z”},”unread_message”:0,”last_message”:null,”created_at”:“2025-01-29 16:46:18”,”updated_at”:“2025-01-29 16:46:18”}

WebSocket Service Logs:

2025-01-29 23:46:18 2025/01/29 16:46:18 Received a message from conversation: {“uuid”:“8c20c29d-396c-4ec3-80c4-f853f2a34e20”,”participants”:[“6a6a700a-0637-4fff-abfd-a278c6a11cc3”,”df98b75d-6261-442d-970b-caf982c9d4b3”],”receiver”:{“uuid”:“df98b75d-6261-442d-970b-caf982c9d4b3”,”name”:“Test”,”picture”:“assets/icon.png”,”status”:“”,”public_key”:“MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAElg/ueB3TClDdqCwGCjqNcU/bdQiBzeTVwyWmeLYEyefRqeH8rU7TDe2GP7IOJclESXnUtnJhE0/DjH0ukJXfhw==“,”phone_number”:“0839873543”,”created_at”:“0001-01-01T00:00:00Z”},”unread_message”:0,”last_message”:null,”created_at”:“2025-01-29 16:46:18”,”updated_at”:“2025-01-29 16:46:18”} 2025-01-29 23:46:18 2025/01/29 16:46:18 jobing message to 1 users: {“type”:“conversation”,”data”:{“uuid”:“8c20c29d-396c-4ec3-80c4-f853f2a34e20”,”participants”:[“6a6a700a-0637-4fff-abfd-a278c6a11cc3”,”df98b75d-6261-442d-970b-caf982c9d4b3”],”receiver”:{“uuid”:“df98b75d-6261-442d-970b-caf982c9d4b3”,”name”:“Test”,”picture”:“assets/icon.png”,”status”:“”,”public_key”:“MFkwEwYHKoZIzj0CAQYIKoZIzj0DAQcDQgAElg/ueB3TClDdqCwGCjqNcU/bdQiBzeTVwyWmeLYEyefRqeH8rU7TDe2GP7IOJclESXnUtnJhE0/DjH0ukJXfhw==“,”phone_number”:“0839873543”,”created_at”:“0001-01-01T00:00:00Z”},”unread_message”:0,”last_message”:null,”created_at”:“2025-01-29 16:46:18”,”updated_at”:“2025-01-29 16:46:18”}}

• Generate Shared Key and Encrypt using AES-CBC

As shown Figure 19:

⃝

JS uses the public key received from the WebSocket to generate a shared key using ECDH.

⃝

The shared key is then encrypted using AES-CBC before being used to encrypt subsequent messages.

Based on the test results, when the key exchange occurs, the server only knows the public key sent by the user. The process of creating a shared key between the sender and recipient is guaranteed to produce an identical and real-time shared key. Key exchange carried out using Diffie–Hellman ensures that both parties (sender and recipient) have the same shared key without ever sending a private key. In this way, the shared key is used for real-time encryption and decryption of messages, ensuring that only the sender and recipient can access the encrypted message.

4.3. Message Encryption and Sending to WebSocket

The following diagram demonstrates the process of sending and receiving encrypted messages within a secure communication system. In this flow, a user (Alice) composes a message and encrypts it before sending. The encrypted message is then transmitted through the WebSocket Service and stored in the Chat Service. Finally, the intended recipient (Bob) receives the message and decrypts it, ensuring that the communication remains private and protected from unauthorized access. As shown in Figure 20, Flow for send message:

• 1. Submit Message (Alice)

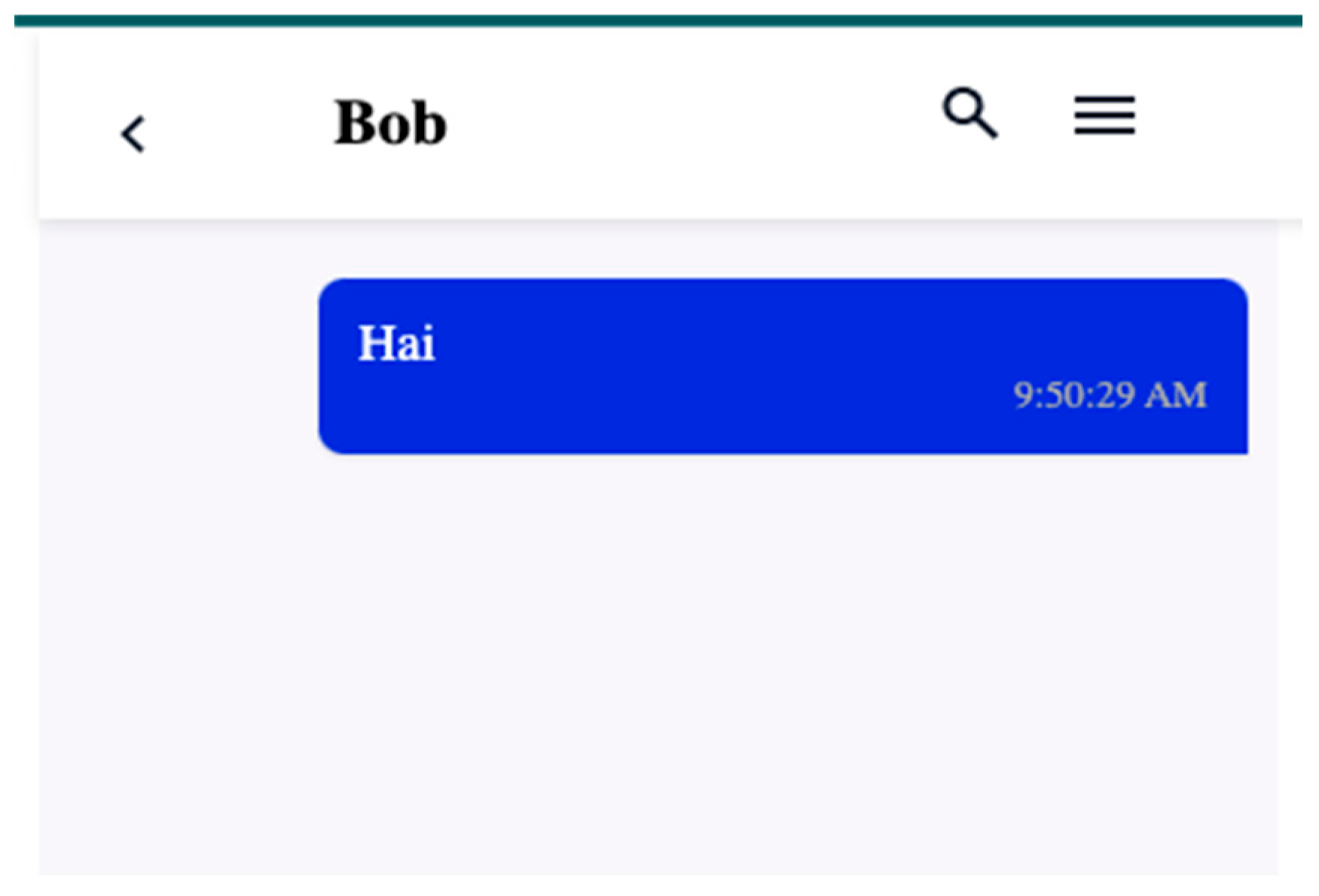

As shown in Figure 21, The user (e.g., Alice) writes a message and presses the Send button.

• 2. Encrypt Message with Shared Key (AES-256 CBC)

Before being sent, the message is encrypted using a previously generated shared key.

2025-01-30 00:15:14 (service) Process message: {e4523a8192829b7fce114396a3dd878a:d88669d49b64160d8cb49f6ff7887a75 de00fac5-052f-4d34-8937-bb6254bce677} 2025-01-30 00:15:14 (service) Send Message: {e4523a8192829b7fce114396a3dd878a:d88669d49b64160d8cb49f6ff7887a75 de00fac5-052f-4d34-8937-bb6254bce677} 2025-01-30 00:15:14 (service) Get conversation: {e4523a8192829b7fce114396a3dd878a:d88669d49b64160d8cb49f6ff7887a75 de00fac5-052f-4d34-8937-bb6254bce677} 2025-01-30 00:15:14 (service) Get conversation: de00fac5-052f-4d34-8937-bb6254bce677

• 3. Send Encrypted Message via WebSocket

As shown in Figure 22, The encrypted message is sent to WebSocket, which is then forwarded to the Chat Service for further distribution.

• 4. Decrypt Message on Receiving Side (Bob)

As shown in Figure 23, Bob receives the encrypted message via WebSocket and decrypts it using the same shared key.

As shown in Figure 24, The encrypted message that Bob received from Alice was successfully decrypted using the same shared key.

• Logs Server (WebSocket Service)

2025-01-30 00:15:14 2025/01/29 17:15:14 Received message from user f1055b14-5e79-45a9-912e-b910785c4c1d: {“conversation_uuid”:“de00fac5-052f-4d34-8937-bb6254bce677”,”message”:“e4523a8192829b7fce114396a3dd878a:d88669d49b64160d8cb49f6ff7887a75”} 2025-01-30 00:15:14 2025/01/29 17:15:14 jobing message to 2 users: {“type”:“message”,”data”:{“uuid”:“39f7ccf8-afdb-46ce-901f-e34aa9ae2ab4”,”conversation_uuid”:“de00fac5-052f-4d34-8937-bb6254bce677”,”sender_uuid”:“f1055b14-5e79-45a9-912e-b910785c4c1d”,”sent_at”:“2025-01-29 17:15:14”,”message_type”:“”,”message”:“e4523a8192829b7fce114396a3dd878a:d88669d49b64160d8cb49f6ff7887a75”}}

As shown in Figure 25, all messages stored in the database are guaranteed to be encrypted.

Based on the test results, messages sent through the system have been guaranteed to be encrypted using a shared key. The encryption process is carried out before the message is sent, and only the sender and recipient who have the identical shared key can decrypt the message. Thus, the security of communication between users is maintained by ensuring that messages remain confidential and cannot be accessed by unauthorized third parties.

4.4. Benchmarking AES Encryption and Decryption Performance on Various Number of Messages

As shown in Figure 26, This test aims to evaluate the performance of AES encryption and decryption on various message counts, using the message “Hello, secure world!”. We measured the time required for encryption, decryption, and encryption + decryption of the message at different message counts, namely 10, 100, 1000, 10,000, and 100,000.
