Covalent Binding of C₆₀ Fullerene to Quadricyclanes A Synthetic Avenue to Hexamethanofullerenes with Promising Antitumor Activity ^†

Abstract

The Bingel–Hirsch reaction was used to synthesize two new hexamethanofullerenes containing six quadricyclane fragments. Preliminary experiments have established that the synthesized compounds have a high antitumor effect in combination with cisplatin on human T-lymphoblastic leukemia cells (Jurkat cells).

1. Introduction

The ability of the quadricyclane molecule to cleave (break) strained C-C bonds in the presence of catalytic amounts of Pd or Pt ions with the release of about 100 kJ/mol [1,2] heat allowed us to put forward an original idea, consisting in the synthesis of derivatives of quadricyclanes, with promise as effective antitumor drugs. We hypothesized [3] that as a result of active metabolism, tumor cells, in contrast to healthy ones, will more intensively accumulate quadricyclane molecules, and upon further introduction of Pd or Pt ions into the human body, for example, in the form of the well-known preparation cisplatin in a much lower concentration, scaffold the molecule, which will be cleaved with the release of heat, thereby exerting an additional thermal effect on tumor cells.

In the development of these studies, and also taking into account the prospects of using fullerenes for targeted delivery of various substances [4], which leads to an increase in the antitumor activity of already well-studied drugs [5], we carried out the covalent binding of C₆₀ to quadricyclanes by the Bingel–Hirsch reaction [6,7,8]. As a result of studying the cytotoxic effect of hybrid molecules in combination with cisplatin [7] or in its absence [8] on human T-lymphoblastic leukemia cells (Jurkat cells), we have shown that water-soluble polyvinylpyrrolidone complexes of methanofullerenes containing quadricyclane addends lead to a significant dose-dependent increase in the number of dead cells in each group, in comparison with the control. In this case, the activity of hybrid molecules is more than 100 times higher than the initial quadricyclanes that do not contain fullerene.

Given the promising potential of fullerene polyadducts for medicine for the treatment of bacterial [9], viral [10,11], tumor [12] and HIV [13] diseases, we assumed that by selectively synthesizing C₆₀ adducts containing six quadricyclane addends, we would be able to increase the solubility of new hybrid molecules, as well as their antitumor activity, due to the greater number of covalently attached quadricyclanes to the C₆₀ carbon backbone.

2. Results and Discussion

To date, one of the most selective methods for the synthesis of poly adducts of fullerenes in preparative quantities can be considered the Bingel–Hirsch reaction, leading to hexamethanofullerenes [14,15,16].

The choice of hexamethanofullerene was due to the possibility of synthesizing a fullerene polyadduct with T_h-symmetry [17], which makes it possible to accurately determine the location of the addend attached to the C₆₀ molecule. By the time our research began, we found out that there was practically no information in the world literature on the synthesis of fullerene derivatives containing norbornadiene or quadricyclane fragments. An exception is one published work [18], which studied the reaction of C₆₀ fullerene with various norbornadiene malonates, which makes such hybrids interesting as molecular switches.

Recently [6,7,8], we synthesized C₆₀ fullerene derivatives containing norbornadiene and quadricyclane substituents. It has been established that in the presence of catalytic amounts of cisplatin, quadricyclane containing fullerenes are quantitatively isomerized into the corresponding norbornadienes with heat release, about 110 kJ/mol [2]. In this regard, we proposed the idea of creating new hybrid molecules based on hexamethanofullerene, assuming that this would allow us to reduce the introduction of cisplatin into a much lower concentration than is used in medicine, and that the presence of six molecules of quadricyclane will give more energy than we used earlier in our work and, therefore, will simultaneously have both chemotherapeutic and thermal effects on cancer cells, which we hope will cause an effective cell death.

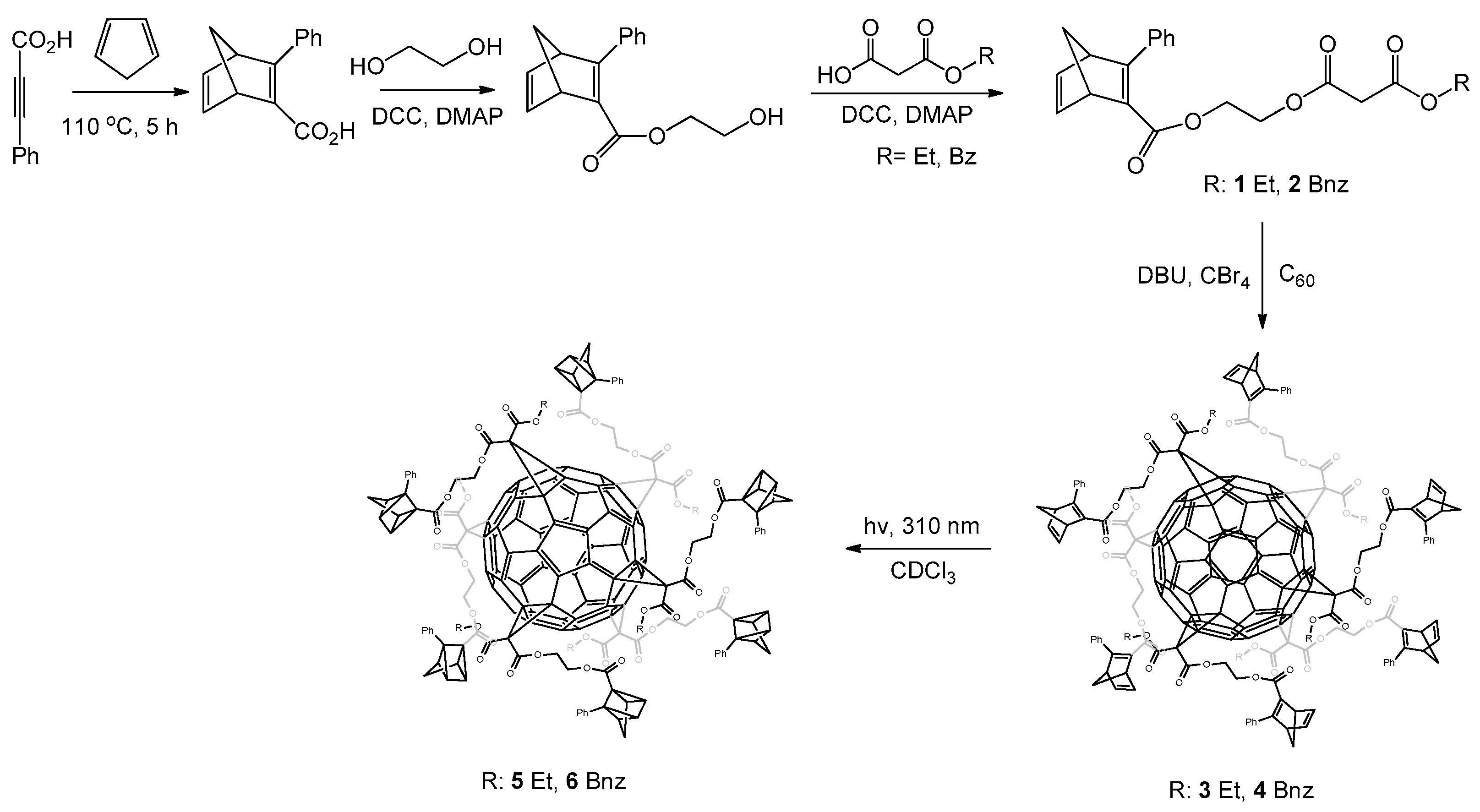

Malonic acid esters 1 and 2 were synthesized as precursors of α-halogencarbanions (Scheme 1). The choice of these monomers is due to several reasons. Thus, disubstituted norbornadiene lends itself more readily to be monosubstituted and isomerized to the corresponding quadricyclanes [19,20]. The presence of the phenyl substituent of said most efficiently promotes isomerization. The use of a diethylene glycol spacer in ethers 1 and 2, as shown in our previous works [6,7], promotes the stabilization of the quadricyclane addend in the hybrid molecule and prevents its spontaneous destruction. The synthesis of hexamethanofullerenes using norbornadiene esters of malonic acid, as well as the isomerization of norbornadiene fragments in methanofullerenes 3 and 4, was carried out according to the method described by Hirsch et al. [18].

Many methods [21,22,23,24] are known in the literature for the preparation of stable aqueous solutions of C₆₀ fullerene and its derivatives, which can be used in medicine for their further study. Thus, water-soluble polyvinylpyrrolidone complexes of methanofullerenes 5 and 6 containing quadricyclane addends were obtained to study antitumor activity; tests on human T-lymphoblastic leukemia cells were carried out according to the method described earlier [6]. The data on the stability of the obtained compounds 5 and 6 are identical to the literature data [6,7].

Preliminary studies of the antitumor activity of the obtained hexamethanofullerenes 5 and 6 in combination with cisplatin on human T-lymphoblastic leukemia cells (Jurkat cells) showed a significant (10-fold) increase in the number of dead cells in comparison with the previously synthesized monomethanofullerenes [6] containing one quadricyclane fragment.

Currently, the Laboratory of Molecular Design and Biological Screening of Candidate Substances for the Pharmaceutical Industry at the Institute of Petrochemistry and Catalysis of RAS is conducting more detailed studies of the antitumor activity of synthesized hexamethanofullerenes using a wide range of cancer cells as an example.

3. Materials and Methods

All reactions were performed under an argon atmosphere and in anhydrous solvent. The solvents and reagents were dried or refined according to the literature procedures. Commercially available [60]fullerene (99.5% pure, Sigma-Aldrich, Saint Louis, MO, USA,) and cisplatin (ABCR) were used. The reaction products were analyzed on a HPLC chromatograph Shimadzu SPD-20A (Kyoto, Japan) equipped with the UV detector at 313 or 340 nm. The mixtures were separated on a preparative column Cosmosil Buckyprep Waters (250 × 10 mm), at ~20 °C. Toluene was used as eluent, and the flow rate was 3.0 mL·min^–1. The ¹H and ¹³C NMR spectra were run on a Bruker Avance-500 spectrometer. A mixture of CDCl₃ and CS₂ (1:5) was used as a solvent. The chemical shifts are reported as δ values in parts per million relative to internal standard Me₄Si. The coupling constants (J) are reported in Hertz. The mass spectra were obtained on an UltraFlex III TOF/TOF (Bruker Daltonik GmbH, Karlsruhe, Germany) operating in linear (TOF) and reflection (TOF/TOF) positive and negative ion modes. S₈ and DCTB (trans-2-[3-(4-tert-butylphenyl)-2-methyl-2-propenyliden]malononitrile) were used as the matrix. For the application on a metal target, toluene solutions of the samples were used. Hamamatsu Lightning cure LC-8 150 W was used for UV irradiation of norbornadienes.

Procedure for the synthesis of hexamethanofullerenes 3 and 4.

Under inert atmosphere and the exclusion of light, C₆₀ (1.0 eq., 8.33 × 10⁻⁵ mol, 60 mg) was dissolved in 20 mL of 1,2-dichlorobenzene. The solution was degassed with argon for 10 min. Afterwards the norbornadiene malonates 1 (10 eq., 8.33 × 10⁻⁴ mol, 307.5 mg) or 2 (10 eq., 8.33 × 10⁻⁴ mol, 358 mg), CBr₄ (100 eq., 8.33 mmol, 2.76 g) and DBU (10 eq., 8.33 × 10⁻⁴ mol, 125 µL) were added. The reaction mixture was stirred overnight and another 25 µL of DBU was added. After another day, the reaction mixture was concentrated and separated by the HPLC, and the eluent was toluene. The product was obtained and the eluent removal in vacuo. The method corresponds to the literature data [18].

Hexamethanofullerene 3

Brown powder. ¹H NMR (500 MHz, CDCl₃): δ (ppm) = 7.50–7.49 (m, 6H, CH (Ph)), 7.33–7.28 (m, 24H, CH (Ph)), 6.98–6.91 (m, 12H, CH), 4.45–4.23 (m, 24H, CH₂), 4.07–4.04 (m, 12H, CH₂), 3.84 (m, 12H, CH), 2.25–2.09 (m, 12H, CH₂), 1.35–1.23 (m, 18H, CH₃). ¹³C NMR (125 MHz, CDCl₃): δ (ppm) = 167.76, 164.27, 163.11, 162.94, 162.80, 162.60, 145.87, 143.92, 141.03, 140.95, 140.54, 138.37, 135.45, 128.90, 127.98, 127.78, 70.63, 69.02, 65.75, 64.20, 62.89, 61.52, 61.11, 58.91, 53.21, 45.09, 14.19. HRMS (MALDI TOF) [M]⁻ calcd. for C₁₈₆H₁₂₀O₃₆ 2928.7559; Found 2928.7557. Yield 42 mg, 70%.

Hexamethanofullerene 4

Brown powder. ¹H NMR (500 MHz, CDCl₃): δ (ppm) = 7.56–7.54 (m, 12H, CH (Ph)), 7.38–7.28 (m, 48H, CH (Ph)), 7.01–6.92 (m, 12H, CH), 5.27–5.21 (m, 12H, CH₂), 4.34–4.07 (m, 24H, CH₂), 3.86 (m, 6H, CH), 2.24–2.07 (m, 12H, CH₂). ¹³C NMR (125 MHz, CDCl₃): δ (ppm) = 168.30, 168.07, 167.96, 164.98, 164.72, 163.44, 163.35, 146.10, 145.56, 143.92, 143.77, 141.04, 140.78, 140.74, 140.65, 138.47, 135.49, 134.52, 129.03, 128.90, 128.65, 128.62, 128.41, 127.84, 127.77, 70.58, 69.82, 68.61, 65.80, 64.41, 61.65, 61.29, 58.72, 53.00, 44.89. HRMS (MALDI TOF) [M]⁻ calcd. for C₂₁₆H₁₃₂O₃₆ 3300.8498; Found 3300.8501. Yield 54 mg, 90%.

Procedure for photoisomerization of norbornadiene moieties to quadricyclane in hexamethanofullerenes 3 and 4.

Quadricyclane 5 and 6 was prepared by photoisomerization of corresponding hexamethanofullerenes 3 and 4. For this purpose, 10 mg of compound 3 or 4 was dissolved in thoroughly degassed CDCl₃ (2.5 mL). The solution was transferred into a quartz cuvette which was sealed under argon atmosphere. Afterwards, the cuvette was irradiated with a Hamamatsu Lightning cure LC-8 150 W of a wavelength of 310 nm. The reaction was followed by ¹H NMR spectroscopy, which indicated full conversion upon six hours for compound 3 and five hours for 4. The method corresponds to the literature data [18].

Hexamethanofullerene 5

Brown powder. ¹H NMR (500 MHz, CDCl₃): δ (ppm) = 7.28–7.20 (m, 24H, CH (Ph)), 7.19 (m, 6H, CH (Ph)), 4.39–4.28 (m, 24H, CH₂), 4.20 (m, 12H, CH₂), 2.63–2.16 (m, 12H, CH), 1.73–1.60 (m, 12H, CH), 1.44–1.28 (m, 18H, CH₃). ¹³C NMR (125 MHz, CDCl₃): δ (ppm) = 171.46, 164.81, 163.45, 145.90, 143.85, 141.17, 141.01, 140.67, 136.71, 128.70, 127.71, 126.30, 70.61, 69.08, 65.84, 64.34, 63.07, 61.10, 58.70, 52.96, 45.10, 37.65, 32.77, 32.19, 31.82, 31.33, 30.01, 20.87, 14.06. HRMS (MALDI TOF) [M]⁻ calcd. for C₁₈₆H₁₂₀O₃₆ 2928.7559; Found 2928.7556.

Hexamethanofullerene 6

Brown powder. ¹H NMR (500 MHz, CDCl₃): δ (ppm) = 7.41–7.24 (m, 48H, CH (Ph)), 7.18 (m, 12H, CH (Ph)), 5.32–5.19 (m, 12H, CH₂), 4.24–4.07 (m, 24H, CH₂), 2.59–2.12 (m, 12H, CH), 1.70–1.60 (m, 12H, CH). ¹³C NMR (125 MHz, CDCl₃): δ (ppm) = 171.40, 163.37, 145.47, 143.89, 141.02, 140.69, 136.75, 134.54, 130.54, 128.86, 128.67, 127.71, 126.28, 70.57, 69.79, 68.98, 68.61, 65.72, 64.44, 60.88, 44.88, 37.69, 32.82, 32.16, 31.79, 31.30, 30.06, 20.91. HRMS (MALDI TOF) [M]⁻ calcd. for C₂₁₆H₁₃₂O₃₆ 3300.8498; Found 3300.8497.

4. Conclusions

The Bingel–Hirsch reaction was used to synthesize two new hexamethanofullerenes containing six quadricyclane fragments. Preliminary studies of the antitumor activity of hexamethanofullerenes in combination with cis-platinum on human T-lymphoblastic leukemia cells (Jurkat cells) revealed a significant (10-fold) increase in the number of dead cells in comparison with previously synthesized monomethanofullerenes containing one quadricyclane fragment.
