Verification and Validation of the SP_{L} Module of the Deterministic Code AZNHEX through the Neutronics Benchmark of the CEFR Start-Up Tests

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

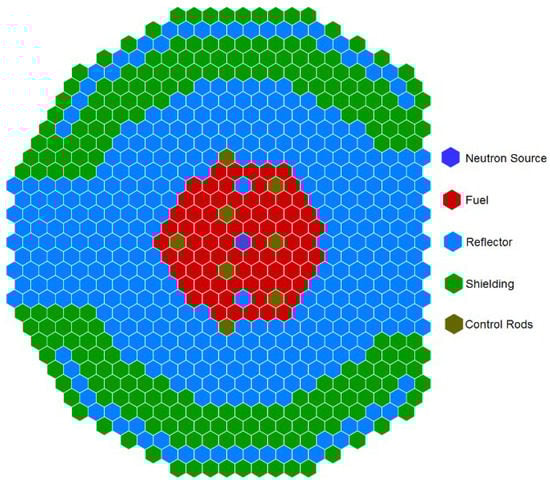

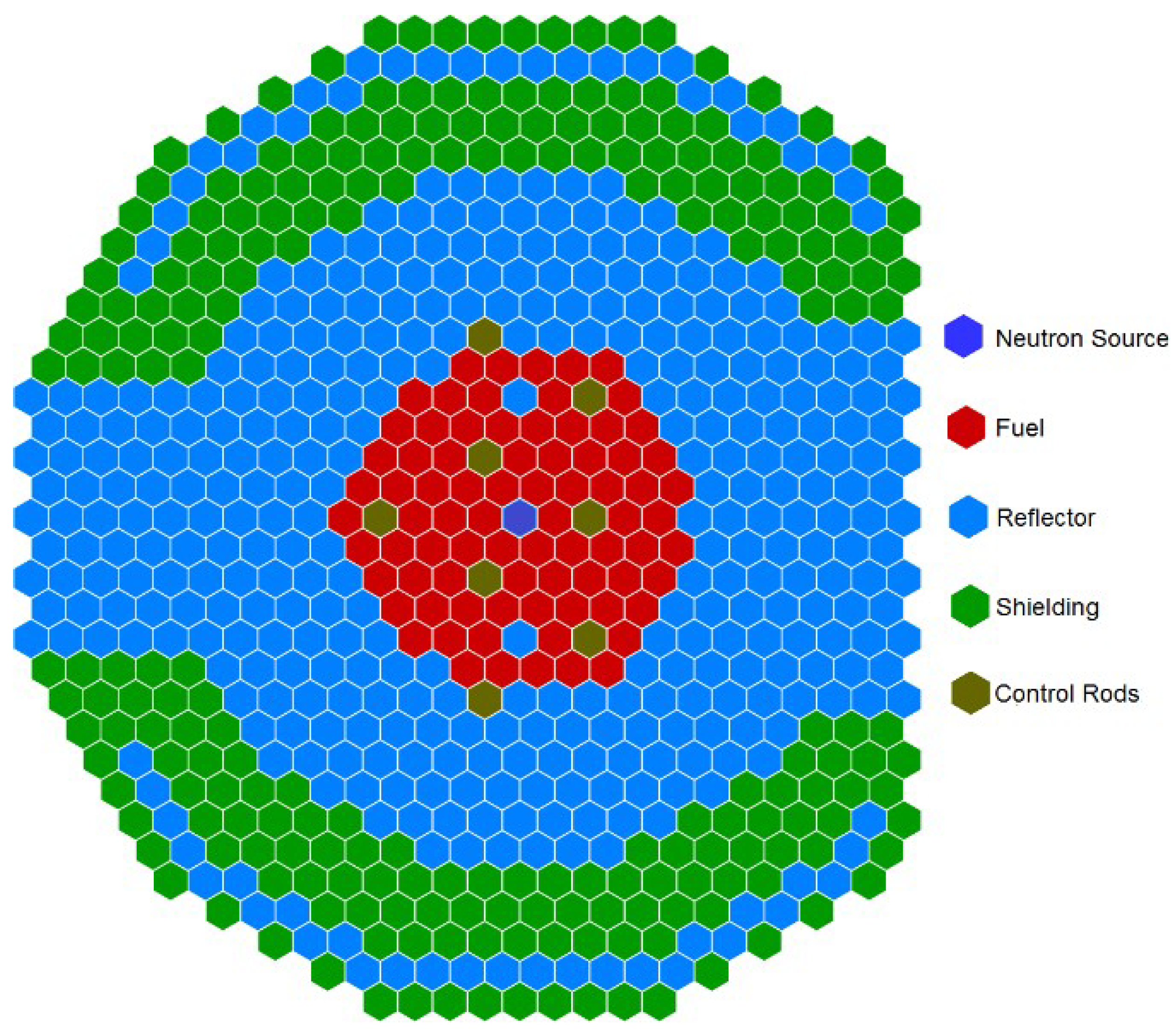

## 2. Description of China Experimental Fast Reactor

## 3. Description of the Codes and Models

#### 3.1. AZNHEX Code Background

#### $S{P}_{L}$ Implementation in AZNHEX

#### 3.2. CEFR Core Modelling

#### 3.2.1. Model for Serpent

#### 3.2.2. Cross-Section (XS) Generation

## 4. Results

#### 4.1. Verification and Validation Exercise

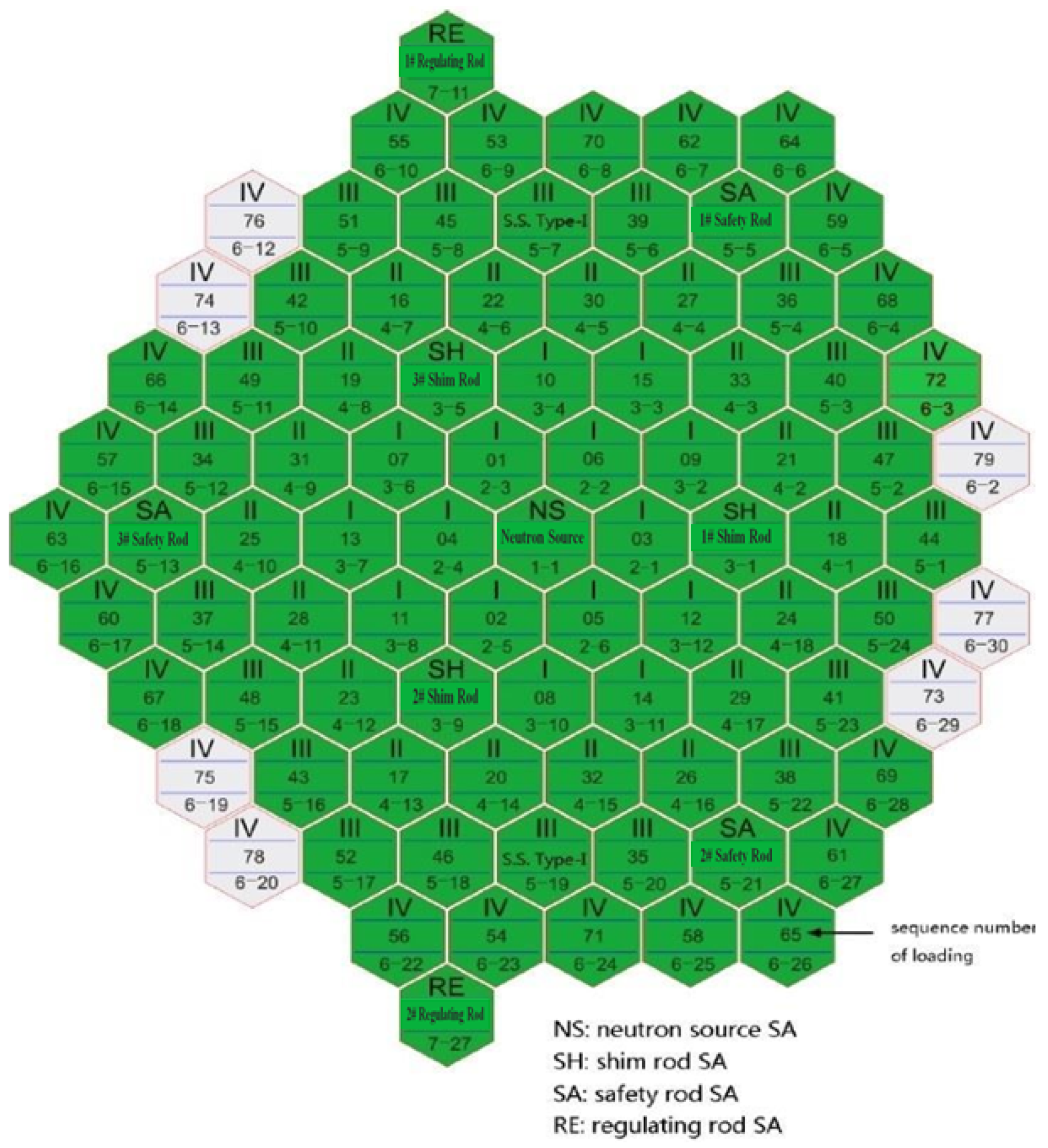

#### Description of Fuel Loading and Criticality Experiment

#### 4.2. Verification and Validation of Serpent Model

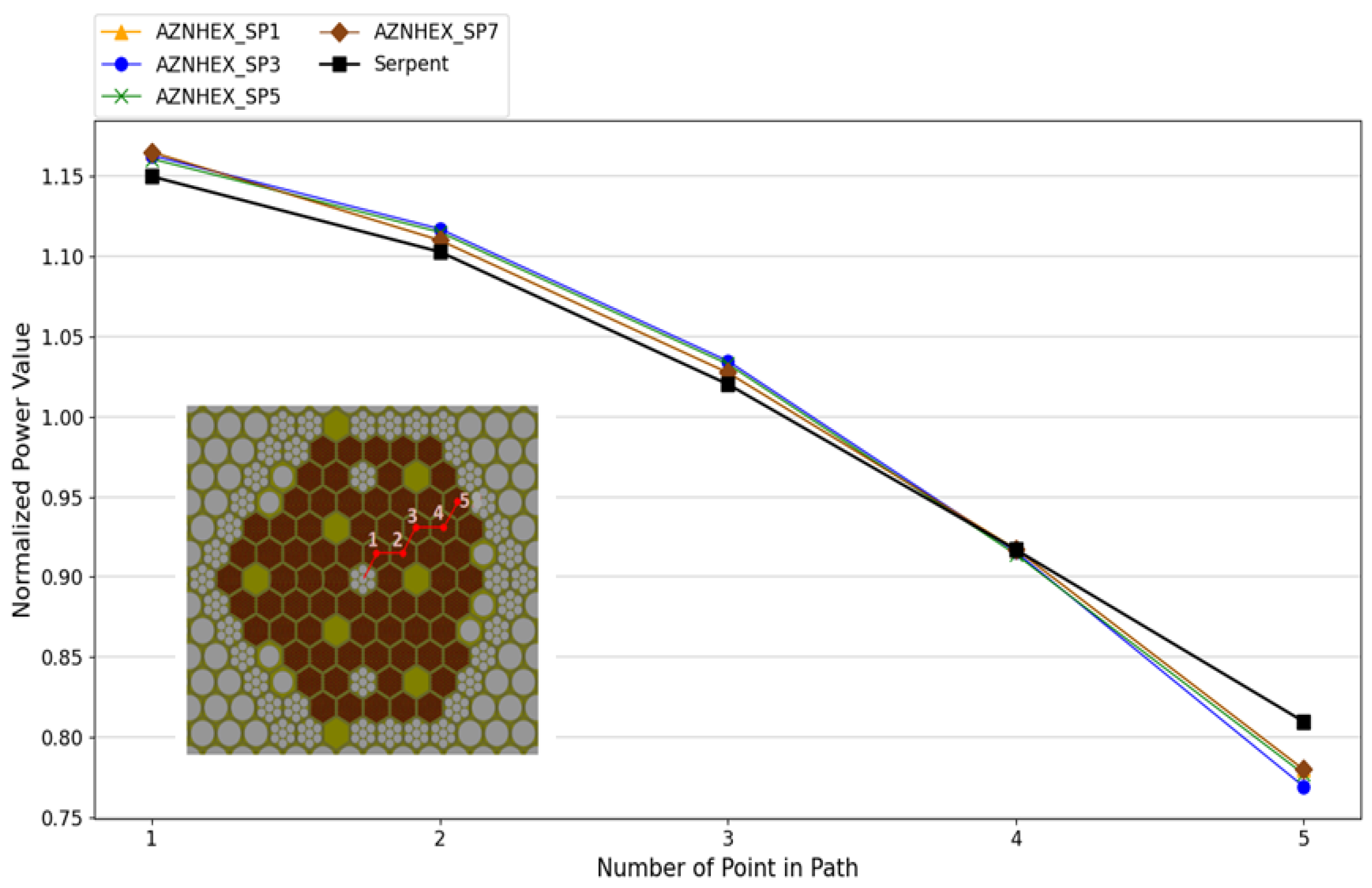

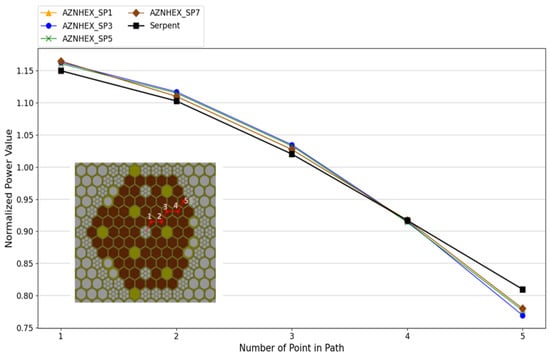

#### 4.3. Verification and Validation of $S{P}_{L}$ Implementation in AZNHEX

#### Mesh Sensitivity Analysis with AZNHEX $S{P}_{L}$

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

AZNHEX | AZtlan Nodal HEXagonal |

AZKIND | AZtlan KInetics in Neutron Diffusion |

AZTHECA | AZtlan THErmohydraulics Core Analysis |

AZTRAN | AZtlan TRANsport |

AZTUSIA | AZtlan Tool for Uncertainty and SensItivity Analysis |

BROND | Library of Recommended Evaluated Neutron Data (in Russian abbreviations) |

CEFR | China Experimental Fast Reactor |

CENDL | Chinese Evaluated Nuclear Data Library |

CIAE | China Institute of Atomic Energy |

CONACYT | National Council for Science and Technology (in Spanish abbreviations) |

ENDF | Evaluated Nuclear Data File |

IAEA | International Atomic Energy Agency |

ININ | National Institute of Nuclear Research (in Spanish abbreviations) |

IPN | National Polytechnic Institute (in Spanish abbreviations) |

JEFF | Joint Evaluated Fission and Fusion File |

JENDL | Japanese Evaluated Nuclear Data Library |

NEA | Nuclear Energy Agency |

OECD | Organisation for Economic Co-operation and Development |

SENER | Secretariat of Energy (in Spanish abbreviations) |

## Nomenclature

Symbols | |

${D}_{g}$ | Diffusion coefficient for energy group g, m |

${\mathtt{D}}_{i}$ | Diffusion coefficient for artificial energy-group i, m |

g | Energy group g |

${g}^{\prime}$ | Energy group ${g}^{\prime}$ |

G | Total number of energy groups considered in a given problem |

i | Integer number that describes the array of the diffusion coefficients and |

cross-sections depending on the energy group g and the order L implemented | |

j | Integer number that describes the array of the diffusion coefficients and |

cross-sections depending on the energy group g and the order L implemented | |

k | Multiplication factor |

${k}_{eff}$ | Effective multiplication factor |

L | Implemented order of the $S{P}_{L}$ approximation |

m | Integer number that identifies the implemented $(L+1)/2$ order of the $S{P}_{L}$ |

approximation | |

N | Order of discrete ordinate |

$NC$ | Number of unknowns per discrete ordinate |

n | Integer number that identifies the implemented $(L+1)/2$ order of the $S{P}_{L}$ |

approximation | |

pcm | percent mili-rho |

$\overrightarrow{r}$ | A vector that indicates the spatial position of a neutron in a three-dimensional space |

${S}_{l}^{{g}^{\prime}}$ | l-th angular moment of the neutron source term for energy group ${g}^{\prime}$, 1/m${}^{3}\xb7$s |

$TNU$ | Total number of unknowns |

${\mu}_{m}$, ${\mu}_{n}$ | $S{P}_{L}$-order dependent constant |

${\nu}_{g}$ | Average number of neutrons released by fissions which are induced by neutrons |

with energies in the energy group g | |

${\nu}_{{g}^{\prime}}$ | Average number of neutrons released by fissions which are induced by |

neutrons with energies in the energy group ${g}^{\prime}$ | |

$\nu {\Sigma}_{\mathtt{f}i}$ | Macroscopic fission cross-section multiplied by the average number of |

neutrons produced per fission, for artificial energy-group i, 1/m | |

$\nu {\Sigma}_{\mathtt{f}j}$ | Macroscopic fission cross-section multiplied by the average number of |

neutrons produced per fission, for artificial energy-group j, 1/m | |

$\rho $ | Reactivity |

${\Sigma}_{{f}_{g}}$ | Macroscopic fission cross-section for energy group g, 1/m |

${\Sigma}_{{f}_{{g}^{\prime}}}$ | Macroscopic fission cross-section for energy group ${g}^{\prime}$, 1/m |

${\Sigma}_{\mathtt{R}i}$ | Macroscopic removal cross-section for artificial energy-group i, 1/m |

${\Sigma}_{{s}_{0}}^{g\to g}$ | 0-th angular moment of the macroscopic scattering cross-section from energy |

group g to energy group g, 1/m | |

${\Sigma}_{{s}_{0}}^{{g}^{\prime}\to g}$ | 0-th angular moment of the macroscopic scattering cross-section from energy |

group ${g}^{\prime}$ to energy group g, 1/m | |

${\Sigma}_{\mathtt{s}j\to i}$ | Macroscopic scattering cross-section from artificial energy-group j to artificial |

energy-group i, 1/m | |

${\Sigma}_{{t}_{g}}$ | Macroscopic total cross-section for energy group g, 1/m |

${\varphi}_{0}^{g}$ | Scalar neutron flux for energy group g, 1/m${}^{2}\xb7$J·s |

${\varphi}_{0}^{{g}^{\prime}}$ | Scalar neutron flux for energy group ${g}^{\prime}$, 1/m${}^{2}\xb7$J·s |

${\mathsf{\Phi}}_{i}$ | Array of neutron flux moments for artificial energy-group i, 1/m${}^{2}\xb7$s |

${\mathsf{\Phi}}_{j}$ | Array of neutron flux moments for artificial energy-group j, 1/m${}^{2}\xb7$s |

${\mathsf{\Phi}}_{m}^{{g}^{\prime}}$ | m-th array of neutron flux moments for energy group ${g}^{\prime}$, 1/m${}^{2}\xb7$s |

${\mathsf{\Phi}}_{n}^{g}$ | n-th array of neutron flux moments for energy group g, 1/m${}^{2}\xb7$s |

${\chi}_{g}$ | Probability that a neutron is born in the energy group g |

${\chi}_{i}$ | Neutron fission spectrum for artificial energy-group i |

${\omega}_{m}$, ${\omega}_{n}$ | $S{P}_{L}$-order dependent constant |

∇ | Gradient |

$\nabla \xb7$ | Divergence |

${\nabla}^{2}$ | Laplace operator |

## References

- Gómez-Torres, A.M.; Puente-Espel, F.; del-Valle-Gallegos, E.; François-Lacouture, J.L.; Martin-del-Campo, C.; Espinosa-Paredes, G. AZTLAN: Mexican Platform for Analysis and Design of Nuclear Reactors. In Proceedings of the International Congress on Advances in Nuclear Power Plants (ICAPP), Nice, France, 3–6 May 2015. [Google Scholar]
- Duran-González, J.; del-Valle-Gallegos, E.; Reyes-Fuentes, M.; Gómez-Torres, A.M.; Xolocostli-Munguía, V. Development, verification, and validation of the parallel transport code AZTRAN. Prog. Nucl. Energy
**2021**, 137, 103792. [Google Scholar] [CrossRef] - Rodríguez-Hernández, A.; Gómez-Torres, A.M.; del-Valle-Gallegos, E. Hpc implementation in the time-dependent neutron diffusion code AZKIND. Ann. Nucl. Energy
**2017**, 99, 174–182. [Google Scholar] [CrossRef] - Del-Valle-Gallegos, E.; Lopez-Solis, R.; Arriaga-Ramirez, L.; Gomez-Torres, A.; Puente-Espel, F. Verification of the multi-group diffusion code AZNHEX using the OECD/NEA UAM Sodium Fast Reactor Benchmark. Ann. Nucl. Energy
**2018**, 114, 592–602. [Google Scholar] [CrossRef] - Reyes-Fuentes, M.; del-Valle-Gallegos, E.; Duran-González, J.; Ortíz-Villafuerte, J.; Castillo-Durán, R.; Gómez-Torres, A.M.; Queral, C. AZTUSIA: A new application software for Uncertainty and Sensitivity analysis for nuclear reactors. Reliab. Eng. Syst.
**2021**, 209, 107441. [Google Scholar] [CrossRef] - Campos-Muñoz, A. Development of a 3-D Neutron Transport Solver for the AZNHEX Code. Master’s Thesis, National Polytechnic Institute, Superior School of Physics and Mathematics, Mexico City, Mexico, 2021. [Google Scholar]
- Muñoz-Peña, G.; del-Valle-Gallegos, E.; Gómez-Torres, A.M. Canonical implementation of Simplified Spherical Harmonics (SP
_{L}) in the neutron diffusion code AZNHEX. ASME J. Nucl. Eng. Radiat. Sci.**2021**, 7, 031502. [Google Scholar] [CrossRef] - Huo, X. Technical Specifications for Neutronics Benchmark of CEFR Start-Up Tests, Version 7.0. KY-IAEA-CEFRCRP-001; China Institute of Atomic Energy: Beijing, China, 2019. [Google Scholar]
- Wan, C.; Qiao, L.; Zheng, Y.; Cao, L.; Wu, H. Validation of SARAX for the China Fast Reactor with the extrapolated experimental data. Ann. Nucl. Energy
**2019**, 127, 188–195. [Google Scholar] [CrossRef] - Du, X.; Choe, J.; Quoc-Tran, T.; Lee, D. Neutronic simulation of China Experimental Fast Reactor start-up tests. Part I: SARAX code deterministic calculation. Ann. Nucl. Energy
**2020**, 136, 107046. [Google Scholar] [CrossRef] - Gordon, W.J.; Hall, C.A. Transfinite element methods: Blending–function interpolation over arbitrary curved element domains. Numer. Math.
**1973**, 21, 109–129. [Google Scholar] [CrossRef] - Gordon, W.J.; Hall, C.A. Construction of curvilinear co-ordinate systems and applications to mesh generation. Int. J. Numer. Methods Eng.
**1973**, 7, 461–477. [Google Scholar] [CrossRef] - Brezzi, F.; Douglas, J.; Marini, L.D. Two Families of Mixed Finite Elements for Second Order Elliptic Problems. Numer. Math.
**1985**, 47, 217–235. [Google Scholar] [CrossRef] - Raviart, P.A.; Thomas, J.M. A mixed finite element method for 2-nd order elliptic problems. In Mathematical Aspects of Finite Element Methods; Galligani, I., Magenes, E., Eds.; Springer: Heidelberg, Germany, 2006; pp. 292–315. [Google Scholar]
- Del-Valle-Gallegos, E. Nodal Methods in Particle Transport and Diffusion. Ph.D. Thesis, National Polytechnic Institute, Superior School of Physics and Mathematics, Mexico City, Mexico, 1998. [Google Scholar]
- Esquivel-Estrada, J. Nodal Methods Applied to the Time-Dependent Neutron Diffusion Equation in Hexagonal-Z Geometry. Master’s Thesis, National Polytechnic Institute, Superior School of Physics and Mathematics, Mexico City, Mexico, 2015. [Google Scholar]
- Gomez Torres, A.; Lopez Solis, R.C.; Puente Espel, F.; Valle Gallegos, E.D.; Arriaga Ramirez, L.; Fridman, E.; Kliem, S. Verification of the neutron diffusion code AZNHEX by means of the Serpent-DYN3D and Serpent-PARCS solution of the OECD/NEA SFR Benchmark. In Proceedings of the International Congress on Advances in Nuclear Power Plants (ICAPP), Yekaterinburg, Russia, 26–29 June 2017. [Google Scholar]
- Blanchet, D.; Buiron, L.; Stauff, N.; Kim, T.K.; Taiwo, T. AEN WPRS Sodium Fast Reactor Core Definitions (Version 1.5 Revision 10); OECD Nuclear Energy Agency: Paris, France, 2017. [Google Scholar]
- Gelbard, E.M. Application of Spherical Harmonics Method to Reactor Problems; Tech. Rep. WAPD-BT-20; Bettis Atomic Power Laboratory: Pittsburgh, PA, USA, 1960. [Google Scholar]
- Gelbard, E.M. Simplified Spherical Harmonics Equations and Their Use in Shielding Problems; Tech. Rep. WAPD-T-1182; Bettis Atomic Power Laboratory: Pittsburgh, PA, USA, February 1961. [Google Scholar]
- Gelbard, E.M. Applications of the Simplified Spherical Harmonics Equations in Spherical Geometry; Tech. Rep. WAPD-TM-294; Bettis Atomic Power Laboratory: Pittsburgh, PA, USA, 1962. [Google Scholar]
- Gelbard, E.M. Spherical harmonics methods: P
_{L}and double-P_{L}approximations. In Computing Methods in Reactor Physics; Greenspan, H., Kelber, C.N., Okrent, D., Eds.; Gordon and Breach Science Publishers: New York, NY, USA, 1968; Chapter 4. [Google Scholar] - Dürigen, S. Neutron Transport in Hexagonal Reactor Cores Modeled by Trigonal-Geometry Diffusion and Simplified P
_{3}Nodal Methods. Ph.D. Thesis, Karlsruhe Institute of Technology, Department of Mechanical Engineering, Karlsruhe, Germany, 2013. [Google Scholar] - Leppänen, J.; Pusa, M.; Viitanen, T.; Valtavirta, V.; Kaltiaisenaho, T. The Serpent Monte Carlo code: Status, development and applications in 2013. Ann. Nucl. Energy
**2015**, 82, 142–150. [Google Scholar] [CrossRef] - Di-Nora, V.A.; Fridman, E.; Nikitin, E.; Bilodid, Y.; Mikityuk, K. Optimization of multi-group energy structures for diffusion analyses of sodium-cooled fast reactors assisted by simulated annealing—Part I: Methodology demonstration. Ann. Nucl. Energy
**2021**, 155, 108183. [Google Scholar] [CrossRef] - Gómez-Torres, A.M.; Lopez-Solis, R.C.; Galicia-Aragon, J.; Huo, X.; Kriventsev, V.; Batra, C.; Kim, T.K.; Jarret, M.; Fridman, E.; Zheng, Y.; et al. Verification and validation of neutronic codes using the start-up fuel load and criticality tests performed in the China Experimental Fast Reactor. In Proceedings of the International Conference on Fast Reactors and Related Fuel Cycles: Sustainable Clean Energy for the Future (FR22), Vienna, Austria, 19–22 April 2022. [Google Scholar]
- Blokhin, A.I.; Gai, E.V.; Ignatyuk, A.V.; Koba, I.I.; Manokhin, V.N.; Pronyaev, V.G. New Version of Neutron Evaluated Data Library Brond-3.1. Probl. At. Sci. Technol. Ser. Nucl. React. Constants
**2016**, 2, 62–93. [Google Scholar] - Zhigang, G.; Hongwei, Y.; Youxiang, Z.; Tingjin, L.; Jingshang, Z.; Ping, L.; Haicheng, W.; Zhixiang, Z.; Haihong, X. The updated version of Chinese Evaluated Nuclear Data Library (CENDL-3.1) and China nuclear data evaluation activities. In Proceedings of the IAEA Technical Meeting in collaboration with NEA on Specific Applications of Research Reactors: Provision of Nuclear Data, Vienna, Austria, 12–16 October 2009. [Google Scholar]
- Brown, D.A. Release of the ENDF/B-VII.1 Evaluated Nuclear Data File. In Proceedings of the 2012 ANS Winter Meeting, San Diego, CA, USA, 11–15 November 2012. [Google Scholar]
- Brown, D.A.; Chadwick, M.B.; Capote, R.; Kahler, A.C.; Trkov, A. ENDF/B-VIII.0: The 8th Major Release of the Nuclear Reaction Data Library with CIELO-project Cross Sections, New Standards and Thermal Scattering Data. Nucl. Data Sheets
**2018**, 148, 1–142. [Google Scholar] [CrossRef] - Koning, A.; Forrest, R.; Kellett, M.; Mills, R.; Henriksson, H.; Rugama, Y. The JEFF-3.1 Nuclear Data Library-JEFF Report 21; NEA-OECD: Paris, France, 2006; ISBN 92-64-02314-3. [Google Scholar]
- Santamarina, A.; Bernard, D.; Blaise, P.; Coste, M.; Courcelle, A.; Huynh, T.D.; Jouanne, C.; Leconte, P.; Litaize, O.; Mengelle, S.; et al. The JEFF-3.1 Nuclear Data Library-JEFF Report 22; NEA-OECD: Paris, France, 2009; ISBN 978-92-64-99074-6. [Google Scholar]
- Glinatsis, G.; Carta, M.; Gugiu, D.; Ikonomopoulos, A.; Visan, I. An investigation of the JEFF 3.2 nuclear data library. Ann. Nucl. Energy
**2022**, 168, 108885. [Google Scholar] [CrossRef] - Shibata, K.; Iwamoto, O.; Nakagawa, T.; Iwamoto, N.; Ichihara, A.; Kunieda, S.; Chiba, S.; Furutaka, K.; Otuka, N.; Ohsaw, T.; et al. JENDL-4.0: A New Library for Nuclear Science and Engineering. J. Nucl. Sci. Technol.
**2011**, 48, 1–30. [Google Scholar] [CrossRef] - Logan, D.L. A First Course in the Finite Element Method, 4th ed.; Thomson: Toronto, ON, Canada, 2007; p. 351. [Google Scholar]
- Adamov, E.O.; Kaplienko, A.V.; Orlov, V.V. Brest Lead-Cooled Fast Reactor: From Concept to Technological Implementation. At. Energy
**2021**, 129, 179–187. [Google Scholar] [CrossRef] - Kim, Y.; Lee, Y.B.; Lee, C.B.; Chang, J.; Choi, C. Design Concept of Advanced Sodium-Cooled Fast Reactor and Related R & D in Korea. Sci. Technol. Nucl. Install.
**2013**, 2013, 290362. [Google Scholar] [CrossRef] [Green Version] - Frogheri, M.; Alemberti, A.; Mansani, L. The Lead Fast Reactor: Demonstrator (ALFRED) and ELFR Design. In Proceedings of the International Conference on Fast Reactors and Related Fuel Cycles: Safe Technologies and Sustainable Scenarios (FR13), Paris, France, 4–7 March 2013. [Google Scholar]
- Muñoz-Peña, G. Development, Verification, and Validation of an Improved Version of the AZNHEX Code of the AZTLAN Platform, Including Feedback. Ph.D. Thesis, National Polytechnic Institute, Superior School of Physics and Mathematics, Mexico City, Mexico, 2022. in preparation. [Google Scholar]

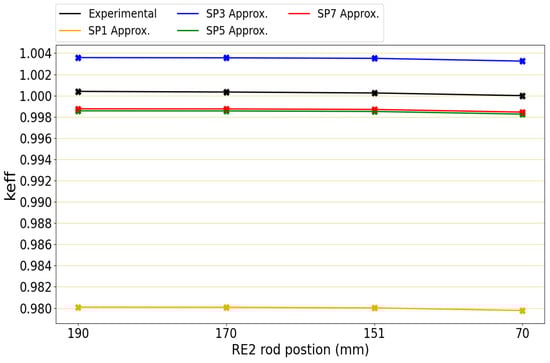

**Figure 5.**${k}_{eff}$ values obtained with AZNHEX-$S{P}_{L}$ and their comparison with the experimental data.

**Figure 7.**Radial (

**a**) $1\times 1$, (

**b**) $2\times 2$, (

**c**) $3\times 3$, and (

**d**) $4\times 4$ refinements made in the AZNHEX code.

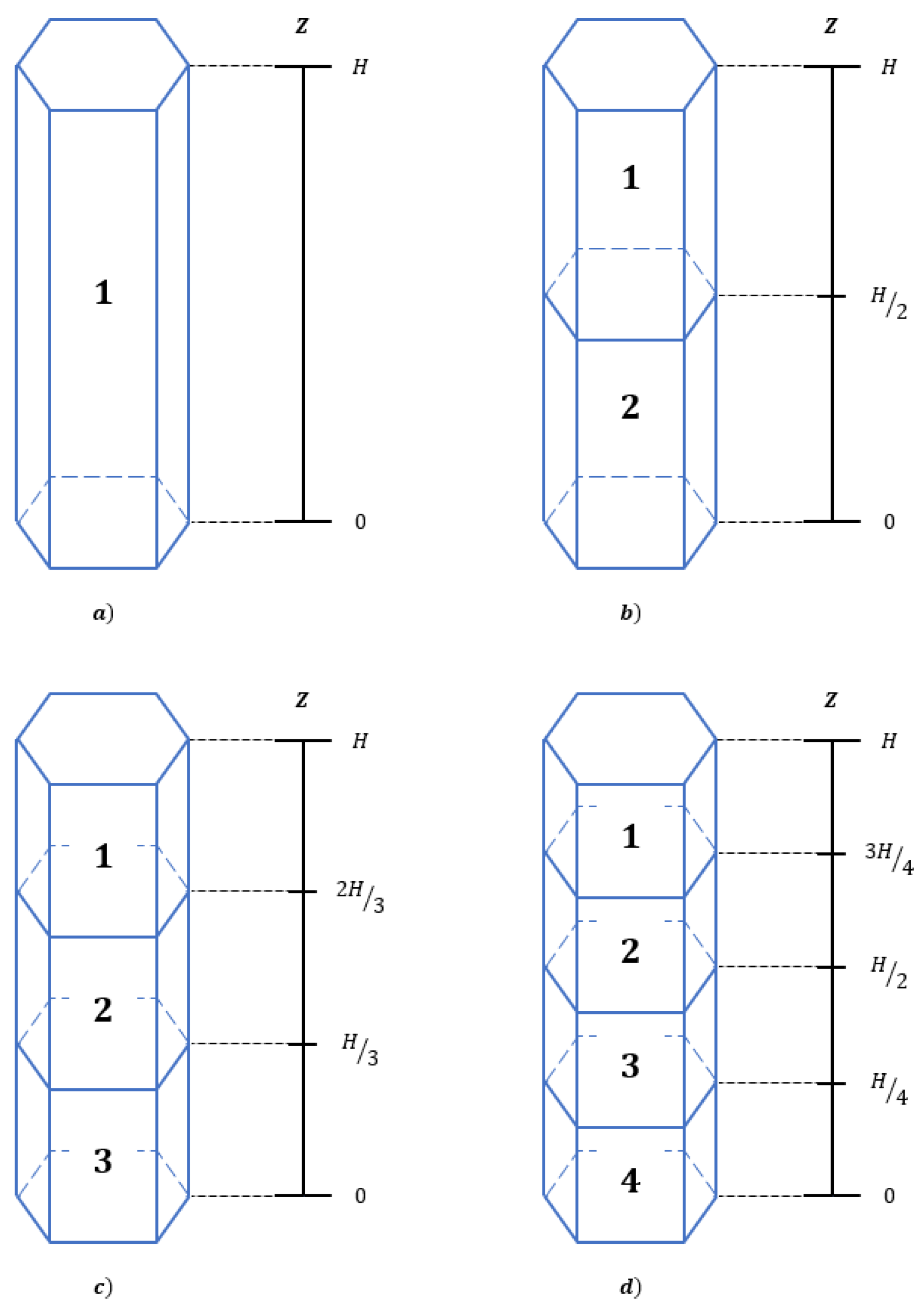

**Figure 8.**Axial (

**a**) $\times 1$, (

**b**) $\times 2$, (

**c**) $\times 3$, and (

**d**) $\times 4$ refinements made in the AZNHEX code.

n = 1,⋯,(L+1)/2 | μ_{n} | ω_{n} |
---|---|---|

$L=1$ | ||

1 | $1/\sqrt{3}$ | 1 |

$L=3$ | ||

1 | 0.339981043584856 | 0.652145154862546 |

2 | 0.861136311594053 | 0.347854845137454 |

$L=5$ | ||

1 | 0.238619186083197 | 0.467913934572691 |

2 | 0.661209386466265 | 0.360761573048139 |

3 | 0.932469514203152 | 0.171324492379170 |

$L=7$ | ||

1 | 0.183434642495650 | 0.362683783378360 |

2 | 0.525532409916329 | 0.313706645877890 |

3 | 0.796666477413627 | 0.222381034453374 |

4 | 0.960289856497536 | 0.101228536290376 |

Group | Upper Limit (MeV) |
---|---|

1 | 2.000000 × 10${}^{1}$ |

2 | 1.353400 × 10${}^{0}$ |

3 | 5.23400 × 10${}^{-1}$ |

4 | 6.73790 × 10${}^{-2}$ |

5 | 3.35460 × 10${}^{-3}$ |

6 | 7.48520 × 10${}^{-4}$ |

Material | Energy Group | Group Constants | |||||||
---|---|---|---|---|---|---|---|---|---|

${\mathit{D}}_{\mathit{g}}$ | ${\mathbf{\Sigma}}_{{\mathit{r}}_{\mathit{g}}}$ | $\mathit{\nu}$∗${\mathbf{\Sigma}}_{{\mathit{f}}_{\mathit{g}}}$ | $\mathit{\kappa}$∗${\mathbf{\Sigma}}_{{\mathit{f}}_{\mathit{g}}}$ | ${\mathit{\chi}}_{\mathit{g}}$ | ${\mathbf{\Sigma}}_{\mathit{s}{\mathit{g}}^{\prime}\to \mathit{g}}$ | ||||

Fuel SA’s (Ring 1) | 1 | 2.968 | 4.290 × 10${}^{-2}$ | 2.205 × 10${}^{-2}$ | 2.031 × 10${}^{2}$ | 5.794 × 10${}^{-1}$ | 1.220 × 10${}^{-1}$ | 2.474 × 10${}^{-2}$ | 8.885 × 10${}^{-3}$ |

3.425 × 10${}^{-4}$ | 2.323 × 10${}^{-6}$ | 4.666 × 10${}^{-7}$ | |||||||

2 | 2.150 | 2.978 × 10${}^{-2}$ | 1.529 × 10${}^{-2}$ | 2.023 × 10${}^{2}$ | 2.825 × 10${}^{-1}$ | 0.00 | 1.739 × 10${}^{-1}$ | 2.223 × 10${}^{-2}$ | |

4.088 × 10${}^{-4}$ | 3.151 × 10${}^{-6}$ | 1.542 × 10${}^{-7}$ | |||||||

3 | 1.527 | 1.407 × 10${}^{-2}$ | 1.747 × 10${}^{-2}$ | 2.022 × 10${}^{2}$ | 1.303 × 10${}^{-1}$ | 0.00 | 0.00 | 2.352 × 10${}^{-1}$ | |

4.892 × 10${}^{-3}$ | 1.206 × 10${}^{-6}$ | 6.873 × 10${}^{-8}$ | |||||||

4 | 1.066 | 1.811 × 10${}^{-2}$ | 2.767 × 10${}^{-2}$ | 2.022 × 10${}^{2}$ | 7.495 × 10${}^{-3}$ | 0.00 | 0.00 | 0.00 | |

3.248 × 10${}^{-1}$ | 1.253 × 10${}^{-3}$ | 8.235 × 10${}^{-7}$ | |||||||

5 | 6.931 × 10${}^{-1}$ | 5.512 × 10${}^{-2}$ | 7.978 × 10${}^{-2}$ | 2.022 × 10${}^{2}$ | 8.053 × 10${}^{-5}$ | 0.00 | 0.00 | 0.00 | |

0.00 | 5.400 × 10${}^{-1}$ | 3.866 × 10${}^{-3}$ | |||||||

6 | 7.796 × 10${}^{-1}$ | 9.172 × 10${}^{-2}$ | 1.488 × 10${}^{-1}$ | 2.022 × 10${}^{2}$ | 9.843 × 10${}^{-6}$ | 0.00 | 0.00 | 0.00 | |

0.00 | 0.00 | 3.634 × 10${}^{-1}$ |

RE2 Position | Exp. Measurement | Serpent | Absolute Dev. |
---|---|---|---|

${\mathit{\rho}}_{\mathit{exp}}$ (pcm) | ${\mathit{\rho}}_{\mathit{Serpent}}$ (pcm) | ${\mathit{\rho}}_{\mathit{exp}}-{\mathit{\rho}}_{\mathit{Serpent}}$ | |

190 mm | 40 | 48.0 | −8.0 |

170 mm | 34 | 41.0 | −7.0 |

151 mm | 25 | 28.0 | −3.0 |

70 mm | 0 | 4.0 | −4.0 |

RE2 Position | Exp. Measurement | AZNHEX (pcm) | |||||||
---|---|---|---|---|---|---|---|---|---|

${\mathit{\rho}}_{\mathit{exp}}$ | ${\mathit{\rho}}_{{\mathit{SP}}_{1}}$ | Dev | ${\mathit{\rho}}_{{\mathit{SP}}_{3}}$ | Dev | ${\mathit{\rho}}_{{\mathit{SP}}_{5}}$ | Dev | ${\mathit{\rho}}_{{\mathit{SP}}_{7}}$ | Dev | |

190 mm | 40 | −2031.34 | 2071.34 | 356.52 | −316.52 | −143.08 | 183.08 | −123.57 | 163.57 |

170 mm | 34 | −2032.81 | 2066.81 | 355.13 | −321.13 | −144.24 | 178.24 | −124.73 | 158.73 |

151 mm | 25 | −2038.18 | 2063.18 | 349.97 | −324.97 | −149.21 | 174.21 | −129.70 | 154.70 |

70 mm | 0 | −2065.01 | 2065.01 | 324.15 | −324.15 | −174.29 | 174.29 | −154.75 | 154.75 |

${\mathit{SP}}_{\mathbf{1}}$ | ${\mathit{SP}}_{\mathbf{3}}$ | ${\mathit{SP}}_{\mathbf{5}}$ | ${\mathit{SP}}_{\mathbf{7}}$ | |
---|---|---|---|---|

Time [s] | 237.7 | 2260.4 | 4244.9 | 6546.5 |

Time factor vs. $S{P}_{1}$ | 1 | 9.5 | 17.8 | 27.5 |

Time factor vs. $S{P}_{3}$ | – | 1 | 1.8 | 2.9 |

**Table 7.**Reactivity values and deviation in pcm from AZNHEX calculations with radial refinement and experimental data.

RE2 Position | 190 mm | Dev | 170 mm | Dev | 151 mm | Dev | 70 mm | Dev | |
---|---|---|---|---|---|---|---|---|---|

Exp. | |||||||||

Measurement | 40 (pcm) | 34 (pcm) | 25 (pcm) | 0 (pcm) | |||||

$S{P}_{1}$_$1\times 1$ | −2031.34 | 2071.34 | −2032.81 | 2066.81 | −2038.18 | 2063.18 | −2065.01 | 2065.01 | |

$S{P}_{1}$_$2\times 1$ | −1649.18 | 1689.18 | −1650.81 | 1684.81 | −1656.31 | 1681.31 | −1683.73 | 1683.73 | |

$S{P}_{1}$_$4\times 1$ | −1508.35 | 1548.35 | −1510.34 | 1544.34 | −1515.89 | 1540.89 | −1543.48 | 1543.48 | |

$S{P}_{3}$_$1\times 1$ | 356.72 | −316.72 | 354.74 | −320.74 | 349.77 | −324.77 | 323.95 | −323.95 | |

$S{P}_{3}$_$2\times 1$ | 702.06 | −662.06 | 700.42 | −666.42 | 695.17 | −670.17 | 668.81 | −668.81 | |

AZNHEX | $S{P}_{3}$_$4\times 1$ | 827.93 | −787.93 | 826.24 | −792.24 | 821.08 | −796.08 | 794.40 | −794.40 |

$S{P}_{5}$_$1\times 1$ | −143.20 | 183.20 | −144.21 | 178.21 | −149.22 | 174.22 | −174.30 | 174.30 | |

$S{P}_{5}$_$2\times 1$ | 202.30 | −162.30 | 201.03 | −167.03 | 195.93 | −170.93 | 170.28 | −170.28 | |

$S{P}_{5}$_$4\times 1$ | 327.31 | −287.31 | 326.01 | −292.01 | 320.88 | −295.88 | 295.01 | −295.01 | |

$S{P}_{7}$_$1\times 1$ | −124.15 | 164.15 | −125.16 | 159.16 | −130.17 | 155.17 | −155.24 | 155.24 | |

$S{P}_{7}$_$2\times 1$ | 221.92 | −181.92 | 220.65 | −186.65 | 215.56 | −190.56 | 189.99 | −189.99 | |

$S{P}_{7}$_$4\times 1$ | 346.73 | −306.73 | 345.43 | −311.43 | 340.30 | −315.30 | 314.57 | −314.57 |

**Table 8.**Reactivity values and deviation in pcm from AZNHEX calculations with axial refinement and experimental data.

RE2 Position | 190 mm | Dev | 170 mm | Dev | 151 mm | Dev | 70 mm | Dev | |
---|---|---|---|---|---|---|---|---|---|

Exp. | |||||||||

Measurement | 40 (pcm) | 34 (pcm) | 25 (pcm) | 0 (pcm) | |||||

$S{P}_{1}$_$1\times 1$ | −2031.34 | 2071.34 | −2032.81 | 2066.81 | −2038.18 | 2063.18 | −2065.01 | 2065.01 | |

$S{P}_{1}$_$1\times 2$ | −2302.14 | 2342.14 | −2303.70 | 2337.70 | −2309.08 | 2334.08 | −2336.42 | 2336.42 | |

$S{P}_{1}$_$1\times 4$ | −2374.52 | 2414.52 | −2376.13 | 2410.13 | −2381.54 | 2406.54 | −2408.99 | 2408.99 | |

$S{P}_{3}$_$1\times 1$ | 356.72 | −316.72 | 354.74 | −320.74 | 349.77 | −324.77 | 323.95 | −323.95 | |

$S{P}_{3}$_$1\times 2$ | 99.90 | −59.90 | 98.90 | −64.90 | 92.91 | −67.91 | 66.96 | −66.96 | |

AZNHEX | $S{P}_{3}$_$1\times 4$ | 28.99 | 11.01 | 27.99 | 6.01 | 22.00 | 3.00 | −4.00 | 4.00 |

$S{P}_{5}$_$1\times 1$ | −143.20 | 183.20 | −144.21 | 178.21 | −149.22 | 174.22 | −174.30 | 174.30 | |

$S{P}_{5}$_$1\times 2$ | −398.58 | 438.58 | −399.59 | 433.59 | −404.63 | 429.63 | −430.85 | 430.85 | |

$S{P}_{5}$_$1\times 4$ | −470.20 | 510.20 | −471.21 | 505.21 | −476.26 | 501.26 | −502.51 | 502.51 | |

$S{P}_{7}$_$1\times 1$ | −124.15 | 164.15 | −125.16 | 159.16 | −130.17 | 155.17 | −155.24 | 155.24 | |

$S{P}_{7}$_$1\times 2$ | −378.43 | 418.43 | −379.43 | 413.43 | −384.47 | 409.47 | −410.68 | 410.68 | |

$S{P}_{7}$_$1\times 4$ | −449.01 | 489.01 | −451.03 | 485.03 | −456.07 | 481.07 | −481.31 | 481.31 |

**Table 9.**Reactivity values and deviation in pcm from AZNHEX calculations with radial and axial refinements and experimental data.

RE2 Position | 190 mm | Dev | 170 mm | Dev | 151 mm | Dev | 70 mm | Dev | |
---|---|---|---|---|---|---|---|---|---|

Exp. | |||||||||

Measurement | 40 (pcm) | 34 (pcm) | 25 (pcm) | 0 (pcm) | |||||

$S{P}_{1}$_$1\times 1$ | −2031.34 | 2071.34 | −2032.81 | 2066.81 | −2038.18 | 2063.18 | −2065.01 | 2065.01 | |

$S{P}_{1}$_$2\times 2$ | −1916.62 | 1956.62 | −1918.37 | 1952.37 | −1923.88 | 1948.88 | −1951.81 | 1951.81 | |

$S{P}_{1}$_$4\times 4$ | −1846.55 | 1886.55 | −1848.37 | 1882.37 | −1853.94 | 1878.94 | −1882.17 | 1882.17 | |

$S{P}_{3}$_$1\times 1$ | 356.72 | −316.72 | 354.74 | −320.74 | 349.77 | −324.77 | 323.95 | −323.95 | |

$S{P}_{3}$_$2\times 2$ | 450.05 | −410.05 | 448.43 | −414.43 | 443.18 | −418.18 | 416.24 | −416.24 | |

AZNHEX | $S{P}_{3}$_$4\times 4$ | 509.14 | −469.14 | 507.44 | −473.44 | 502.13 | −477.13 | 475.00 | −475.00 |

$S{P}_{5}$_$1\times 1$ | −143.20 | 183.20 | −144.21 | 178.21 | −149.22 | 174.22 | −174.30 | 174.30 | |

$S{P}_{5}$_$2\times 2$ | −49.11 | 89.11 | −50.67 | 84.67 | −55.78 | 80.78 | −81.86 | 81.86 | |

$S{P}_{5}$_$4\times 4$ | 9.11 | 30.89 | 7.63 | 26.37 | 2.46 | 22.54 | −23.91 | 23.91 | |

$S{P}_{7}$_$1\times 1$ | −124.15 | 164.15 | −125.16 | 159.16 | −130.17 | 155.17 | −155.24 | 155.24 | |

$S{P}_{7}$_$2\times 2$ | −28.41 | 68.41 | −29.79 | 63.79 | −34.89 | 59.89 | −60.94 | 60.94 | |

$S{P}_{7}$_$4\times 4$ | 29.99 | 10.01 | 28.54 | 5.46 | 23.34 | 1.66 | −3.01 | 3.01 |

Refinement | ${\mathit{SP}}_{\mathbf{1}}$ | ${\mathit{SP}}_{\mathbf{3}}$ | ${\mathit{SP}}_{\mathbf{5}}$ | ${\mathit{SP}}_{\mathbf{7}}$ | ||||
---|---|---|---|---|---|---|---|---|

Time [s] | Factor | Time [s] | Factor | Time [s] | Factor | Time [s] | Factor | |

$1\times 1$ | 237.7 | 1 | 2260.4 | 1 | 4244.9 | 1 | 6546.5 | 1 |

$2\times 2$ | 1764.95 | 7.4 | 18,009.6 | 7.9 | 33,045.0 | 7.8 | 49,684.02 | 7.6 |

$4\times 4$ | 13,454.95 | 56.6 | 138,142.54 | 61.1 | 245,042.81 | 57.7 | 355,767.57 | 54.3 |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Muñoz-Peña, G.; Galicia-Aragon, J.; Lopez-Solis, R.; Gomez-Torres, A.; del Valle-Gallegos, E.
Verification and Validation of the *SP*_{L} Module of the Deterministic Code AZNHEX through the Neutronics Benchmark of the CEFR Start-Up Tests. *J. Nucl. Eng.* **2023**, *4*, 59-76.
https://doi.org/10.3390/jne4010005

**AMA Style**

Muñoz-Peña G, Galicia-Aragon J, Lopez-Solis R, Gomez-Torres A, del Valle-Gallegos E.
Verification and Validation of the *SP*_{L} Module of the Deterministic Code AZNHEX through the Neutronics Benchmark of the CEFR Start-Up Tests. *Journal of Nuclear Engineering*. 2023; 4(1):59-76.
https://doi.org/10.3390/jne4010005

**Chicago/Turabian Style**

Muñoz-Peña, Guillermo, Juan Galicia-Aragon, Roberto Lopez-Solis, Armando Gomez-Torres, and Edmundo del Valle-Gallegos.
2023. "Verification and Validation of the *SP*_{L} Module of the Deterministic Code AZNHEX through the Neutronics Benchmark of the CEFR Start-Up Tests" *Journal of Nuclear Engineering* 4, no. 1: 59-76.
https://doi.org/10.3390/jne4010005
