Impact of Pile Punching on Adjacent Piles: Insights from a 3D Coupled SPH-FEM Analysis

1
Faculty of Science, Technology and Medicine, University of Luxembourg, 4365 Esch-sur-Alzette, Luxembourg
2
Nanyang Centre for Underground Space, School of Civil and Environmental Engineering, Nanyang Technological University, Singapore 639798, Singapore
*
Author to whom correspondence should be addressed.
Appl. Mech. 2020, 1(1), 47-58; https://doi.org/10.3390/applmech1010004
Received: 13 December 2019 / Revised: 14 February 2020 / Accepted: 19 February 2020 / Published: 21 February 2020

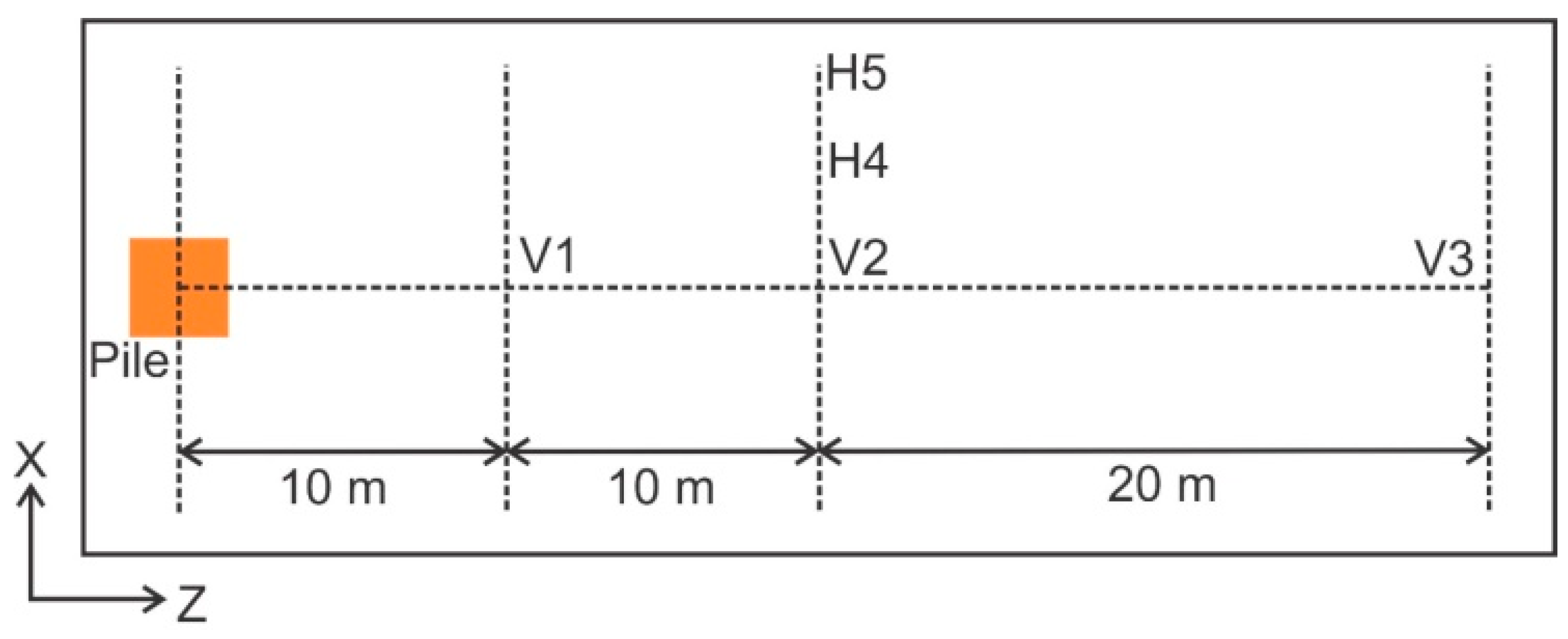

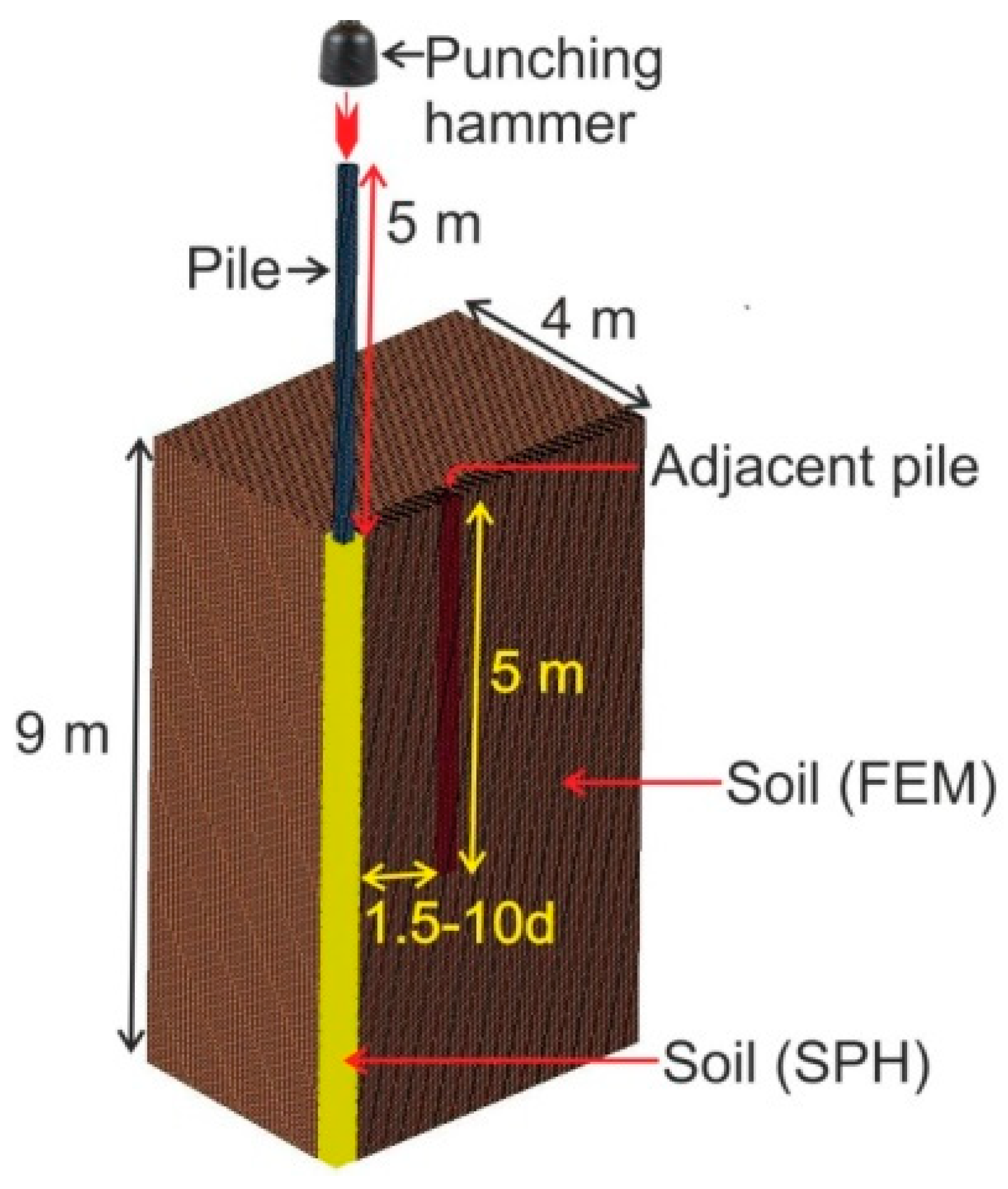

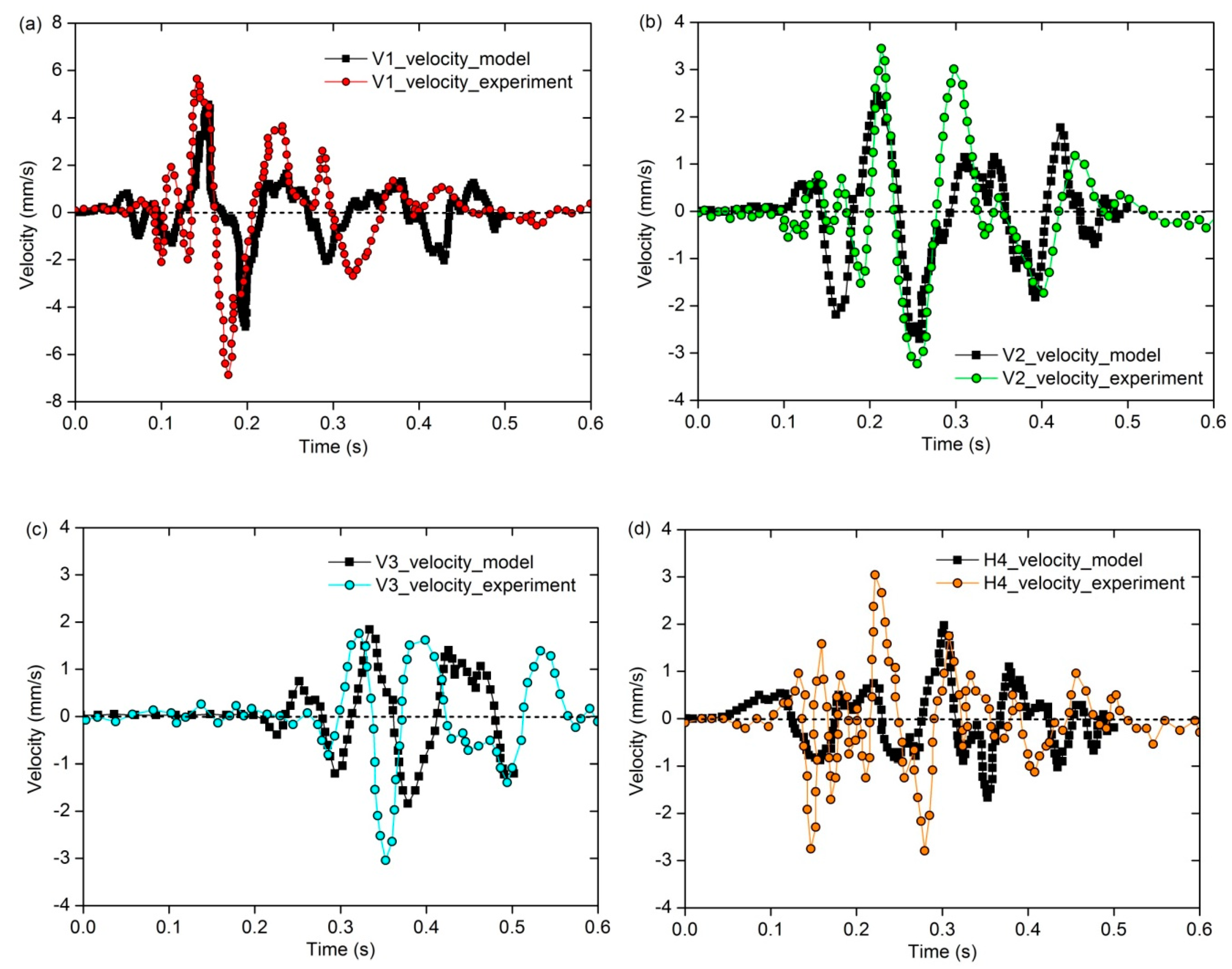

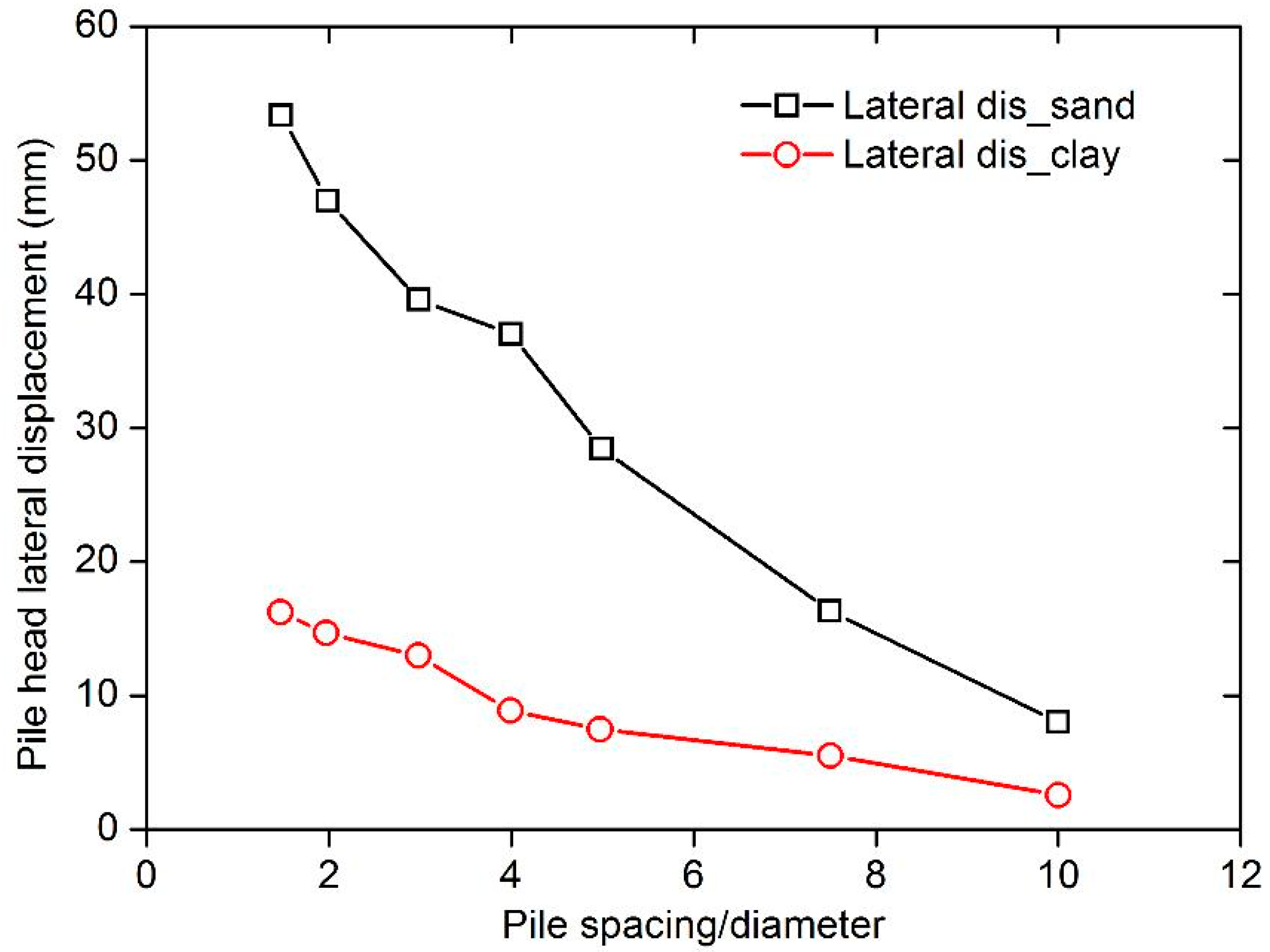

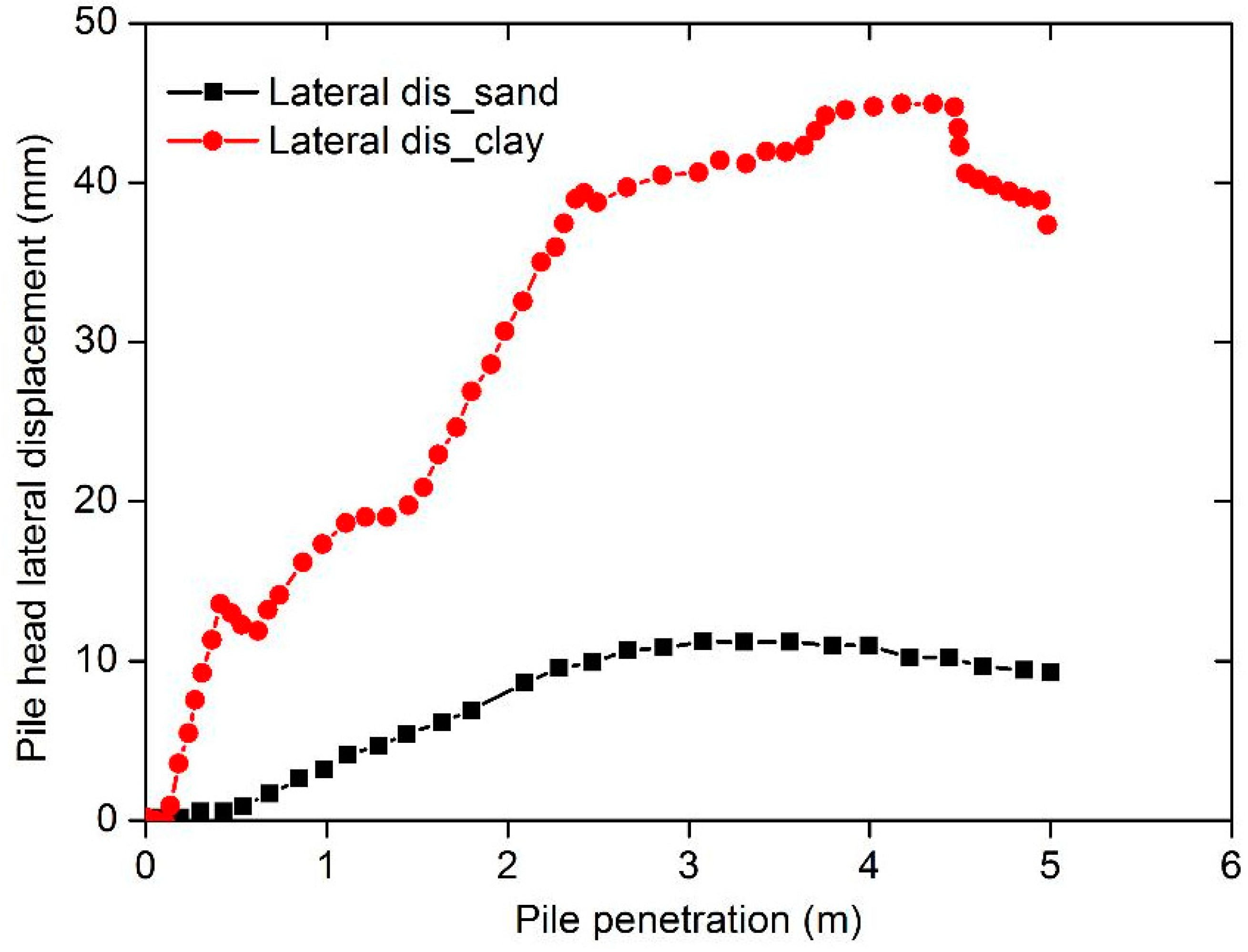

Pile punching (or driving) affects the surrounding area where piles and adjacent piles can be displaced out of their original positions, due to horizontal loads, thereby leading to hazardous outcomes. This paper presents a three-dimensional (3D) coupled Smoothed Particle Hydrodynamics and Finite Element Method (SPH-FEM) model, which was established to investigate pile punching and its impact on adjacent piles subjected to lateral loads. This approach handles the large distortions by avoiding mesh tangling and remeshing, contributing greatly high computational efficiency. The SPH-FEM model was validated against field measurements. The results of this study indicated that the soil type in which piles were embedded affected the interaction between piles during the pile punching. A comprehensive parametric study was carried out to evaluate the impact of soil properties on the displacement of piles due to the punching of an adjacent pile. It was found that the interaction between piles was comparatively weak when the piles were driven in stiff clays; while the pile-soil interactions were much more significant in sandy soils and soft clays. View Full-Text
Keywords: pile punching; field measurement; smoothed particle hydrodynamics; finite element method; lateral displacement pile punching; field measurement; smoothed particle hydrodynamics; finite element method; lateral displacement
Show Figures

Figure 1

MDPI and ACS Style

Jayasinghe, L.B.; Waldmann, D.; Shang, J. Impact of Pile Punching on Adjacent Piles: Insights from a 3D Coupled SPH-FEM Analysis. Appl. Mech. 2020, 1, 47-58.
