Dynamics of Oxygen and the Physicochemical Response in Two Comparative Hypoxia Regions

Abstract

The oxygen depletion in worldwide oceans and inland waters is becoming an increasingly prevalent problem. Here, two comparative study sites, Baltic Proper (BP) and Shuikou Reservoir (SR), were selected to identify the dynamics of dissolved oxygen (DO) and the related physicochemical response by conducting five field investigations over a one-year period. The DO concentrations were 0–9.9 mg L⁻¹ and 0.3–8.7 mg L⁻¹ in BP and SR, with average oxygen change rates of −0.016~0.014 mg L⁻¹ d⁻¹ and −0.022~0.018 mg L⁻¹ d⁻¹, respectively. Such oxygen dynamics were highly related to salinity, temperature, turbidity, and chlorophyll-a than nitrogen and phosphorus. The persistent hypoxia (i.e., DO < 2 mg L⁻¹) emerged below 63 m in BP during all sampling months where the reversal points of Brunt–Väisälä frequency N expressed in the form log₁₀[N² (s⁻²)] were −4. The seasonal hypoxia covered the downstream of SR at depths below 11.5 m in September with the highest log₁₀[N² (s⁻²)] between −3.95 and −3.64. The log₁₀[N² (s⁻²)] ≈ −4 may indicate the occurrence and development of hypoxia in both regions. In the case of the persistent and seasonal hypoxic conditions in BP and SR, the impact of temperature and turbidity on DO was opposite. Low oxygen levels in SR occurred under elevated temperature and turbidity. Additionally, under hypoxic conditions in both regions, NO₃⁻ and NH₄⁺ concentrations significantly depended on DO changes. This study contributes to the understanding of seasonal changes in oxygen dynamics in different water bodies, and highlights different oxygen conditions and physicochemical responses to the oxygen changes.

1. Introduction

Oxygen is vital to sustain the life of aquatic organisms. It affects biogeochemical cycles and constrains the productivity and biodiversity of aquatic habitats, with potentially detrimental consequences for fisheries and economies when the oxygen concentrations are below 2.0 mg L⁻¹ [1,2]. During the past decades, deep oceans and inland lakes have experienced accelerating oxygen depletion (i.e., hypoxia and anoxia) [3,4]; thus, the increasing episodes and areal extent of hypoxia have attracted great scientific and economic interest worldwide. Generally, human-caused eutrophication and global warming [5] have adversely affected the oxygen budgets of aquatic ecosystems. In addition, the behavior of oxygen in different bodies of water is complex, and there is limited understanding of the response of oxygen to changes in environmental conditions [6].

For the concentration limits to describe oxygen-deficiency conditions, Diaz and Rosenberg [7] defined hypoxia at 2.8 mg L⁻¹ and anoxia at 0.0 mg O₂ L⁻¹. Fish mortality occurs at oxygen concentrations below 2.0 mg L⁻¹ [8]. The median lethal oxygen concentration for marine benthic organisms was found to be 2.09 ± 0.20 mg L⁻¹ [9]. When dissolved oxygen (DO) levels fell below 1.7 mg L⁻¹, many fishes resorted to aquatic surface respiration [10]. Often, when oxygen concentrations are below 0.5 mg L⁻¹, sediments become anoxic with the redox-discontinuity layer near the surface [11]. Therefore, 2 mg L⁻¹ and 0.5 mg L⁻¹ were considered in this study as the concentration limits for hypoxia and severe hypoxia, respectively [12]. Hypoxic environments have existed through geological time and occurred in the oceans and inland waters worldwide, including the Baltic Sea [10], the northern coast of the Indian Ocean [13], Maine lakes in America [4], Erhai Lake in China [14], and many other environments [15,16,17,18,19,20]. Global warming and eutrophication in temperate marginal seas are reinforced due to the increase in greenhouse gas emissions and nutrient discharges [5]. Consequently, the extent and severity of hypoxia are more likely to increase in the near future [5,6,21], which may cause additional ecological and economic losses [22]. Diaz and Rosenberg [11] proposed a classification of hypoxia into four distinct categories based on its severity, namely: (1) eutrophication-induced (50% occurrences), (2) periodic (25% occurrences), (3) episodic (17% occurrences), and (4) persistent (8% occurrences).

Due to human-caused eutrophication, nutrient-rich waters exist with a surplus of nitrogen and phosphorus. Excessive nutrient inputs, mainly from human waste and agriculture, stimulate phytoplankton growth, which ultimately leads to oxygen depletion in the water as organic matter decomposes [23]. Recent studies have shown a significant increase in the extent and severity of hypoxia because of anthropogenic nutrient input [24,25]. About 60% of the total oxygen consumption was strongly correlated with elevated nutrient loading, while nutrient imbalances (increasing N:P ratios) enhanced harmful algal bloom proliferation in the central Bohai Sea [26]. Moreover, global warming reduces the solubility of oxygen in water and accelerates oxygen consumption by raising metabolic rates, thereby accelerating hypoxia. In addition, warming enhances both thermal and salinity-driven stratification, leading to increased depletion of dissolved oxygen at depth, particularly near the bottom [27]. In consequence, the anthropogenic nutrient load together with climate change may likely exacerbate low-oxygen conditions and the associated effects on aquatic biogeochemistry [28].

Stratification is one of the main factors involved in the development of hypoxia, as it limits the water exchange and oxygen replenishment in the deep basins. Notably, 85% of global ocean oxygen loss was attributed to the intensified stratification during the past five decades [20]. Reduced ventilation in the deep ocean hindered the transport of oxygen into and within the water column, thereby affecting the supply of nutrients that regulate the production of organic matter and its subsequent sinking from the surface layer [21]. In lakes or reservoirs, thermal stratification has also been considered the primary driving factor of hypoxia [29,30,31]. Under hypoxic conditions, the release of nitrogen and phosphorus from the sediments accelerates, which might seriously affect the quality of the bottom waters and result in eutrophication of the aquatic environments [32]. In addition, the decomposition of organic matter in the bottom water leads to additional consumption of oxygen and ultimately reduces the oxygen levels, which also plays a significant role in the development and persistence of hypoxia.

Various environmental conditions, such as temperature changes, hydrology, and nutrients from anthropogenic activities, influence the dynamics of dissolved oxygen in water. In particular, there is still no universal understanding of the initiation or maintenance of hypoxia. Hence, two regions, encompassing marginal seas and inland waters, experiencing unique low-oxygen conditions, were selected to study the seasonally occurring oxygen changes and elucidate the processes promoting the development of hypoxia. In both water systems, there are marginal areas subject to bottom hypoxia. In the Baltic Sea, hypoxia occurs occasionally in the Arkona Basin, and is more frequent in the Bornholm and Gotland Basins [33]. In the reservoir, hypoxia occurs in the deep area in front of the dam [34]. According to five field investigations that covered one year in each research area, we conducted a systematic analysis of the effects of water level, stratification, and water quality parameters on oxygen changes. Our research aimed to answer the following questions: (1) When and under what circumstances does hypoxia occur most frequently? (2) Which parameters are contributing to the overall oxygen dynamics and the development of hypoxia?

2. Materials and Methods

2.1. Study Sites

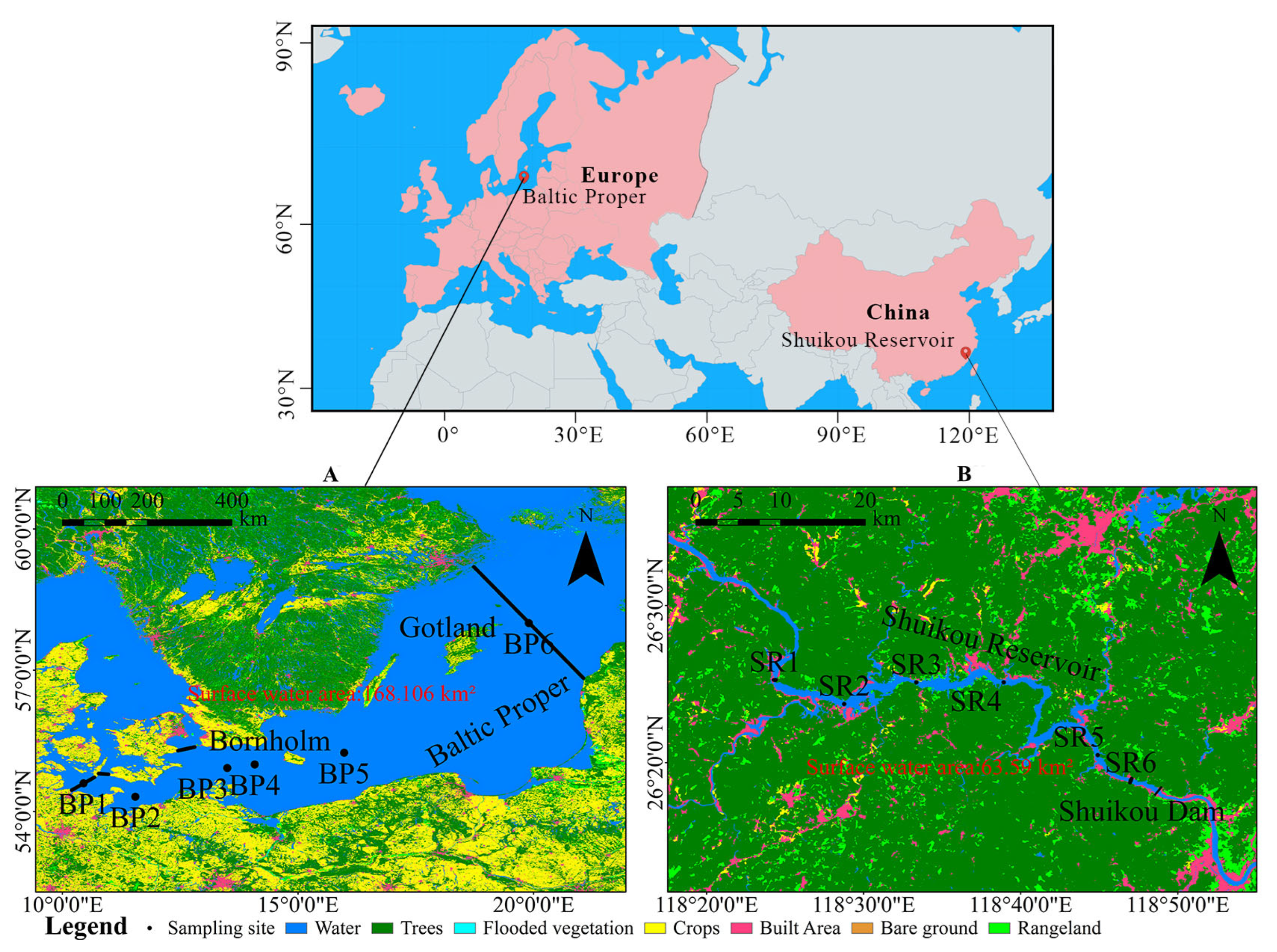

The waterways along the Baltic Proper (BP), Europe (53°51′23″–60°8′26″ N, 9°31′25″–21°41′47″ E), and Shuikou Reservoir (SR), China (26°17′30″–26°26′54″ N, 118°23′11″–118°49′6″ E), located in the maritime climate zone and subtropical monsoon zone of the northern hemisphere, respectively, were selected as research areas (Figure 1). The Baltic Sea is a semi-enclosed sea divided into sub-basins; the BP covers the part of the Baltic Sea between the Danish Straits and Åland Sea. The water column of the Baltic Sea has strong stratification, a permanent halocline located at 60–80 m, and a water residence time of 25–30 years [35]. Different levels of hypoxia and anoxia have been observed throughout the year below 60 m in the BP [36]. Increased hypoxia has been demonstrated to affect the metabolic performance of eastern Baltic cod (Gadus morhua) and to cause habitat compression, leading to crowding and density-dependent processes that affect cod body condition [37]. Since the Baltic Sea has only irregular inflow of water from the North Sea and is classified as a semi-closed system, it can be considered to behave like a reservoir. The total storage capacity of BP is 13 billion m³ of water [38]. The Minjiang River, the longest river in Fujian Province, China, measures 541 km in length, and its drainage basin covers an area of 60,992 km². The SR is a river-type reservoir located in the middle reach of the Minjiang River. It was filled in March 1993 following the construction of Shuikou Dam. The maximum storage capacity and water depth are 2.6 billion m³ and 80 m, respectively [39]. Here hypoxia usually occurs in September. Particularly in September 2011 and 2021, all the economically significant fish species cultivated in SR succumbed to hypoxic conditions, resulting in economic loss amounting to at least 3 million dollars.

2.2. Field Surveys

Sampling procedures: Five field surveys for oxygen and the related physicochemical parameters were conducted from July 2021 to May 2022 in the BP and from September 2021 to July 2022 in the RS. In each research area, six sampling stations were located along the main current pathway (Figure 1). The water depths along the BP transit, covering a longitudinal span of around 800 km, were in a range between 20 m and 200 m. The water level in the BP can be considered stable, showing a twice-per-day oscillation with a maximum amplitude of 0.046 m (Figure S1). In contrast, the longitudinal span in the SR was about 60 km, with the maximum depth varying from approximately 25 m to 70 m. In the SR, the water level showed significant changes; the maximum difference in water level during the whole period reached 8.79 m (Figure S1).

Physicochemical properties: During the cruises in BP, the CTD—“SBE 911plus” (Seabird-Electronics, Bellevue, MA, USA) was used to measure pressure, conductivity (SBE 4), oxygen concentration (SBE 43), temperature (SBE 3), turbidity, and Chlorophyll-a (Chl-a) fluorescence (683 nm) in the water column. The CTD sensors’ measurements were validated during the cruise by comparison with measurements. In detail, salinity was calculated from CTD conductivity using Seabird routines and then compared to salinity measurements on discrete water samples by a salinometer with a limit of detection (LD) of 0.002. The slope and offset of the oxygen sensors SBE 43 were determined through Winkler titration in daily comparisons, with an LD of 0.02 mg L⁻¹. For temperature, a high-precision thermometer SBE RT35 was used with an accuracy of 0.001 °C. The accuracy of turbidity and Chl-a measurements was 0.01 NTU and 0.01 µg L⁻¹, respectively. Ammonium ion (NH₄⁺) was determined manually as indophenol blue [40] from unfiltered water on board. Nitrate (NO₃⁻) and nitrite (NO₂⁻) were analyzed using standard colorimetric methods using an autoanalyzer (FlowSys, Alliance-Instruments, Ainring, Germany). Total phosphorus (TP) samples were prepared and stored deep frozen for digestion and analyzed in the laboratory of the Marine Chemistry Department of the Leibniz Institute for Baltic Sea Research (IOW, Germany). The LD of all nutrients in SP was 0.001 µmol L⁻¹. In the SR, the DO concentration, temperature, turbidity, and Chl-a were determined in situ by a multi-parameter EXO2 probe (YSI, Yellow Springs, OH, USA). All the sensors were checked before measuring according to the manufacturer’s manual guidelines [41]. The accuracy of DO, temperature, turbidity, and Chl-a is 0.1 mg L⁻¹, 0.01 °C, 0.01 NTU, and 0.01 µg L⁻¹, respectively. All water samples for nutrients were taken according to the instructions in ‘Water quality—Technical regulation of the preservation and handling of samples’ [42] and subsequently transported to the laboratory. The NH₄⁺, NO₃⁻, NO₂⁻ and TP concentrations in the water were determined using Nessler’s reagent spectrophotometry [43], ultraviolet spectrophotometry [44], spectrophotometry [45], and ammonium ion molybdate spectrophotometry [46], respectively. The LD of NH₄⁺, NO₃⁻, NO₂⁻ and TP concentrations in the water was 1.79 µmol L⁻¹, 5.71 µmol L⁻¹, 0.21 µmol L⁻¹, and 0.32 µmol L⁻¹, respectively. All nutrient concentration measurements were performed in duplicate. The water samples at a given depth were collected using IOW Standard CTD (SeaBird 911) and rosette sampling systems in BP and the stratified sampler in SR, respectively. The sampling depths at each station are presented in Table S1.

2.3. Hydrological Data Collection

The water level change in the Bornholm Basin (Station SP5) was provided via OSU TPXO Tidal Models (https://www.tpxo.net/, accessed on 5 July 2023). The water level data at the front of Shuikou Dam were collected from the website of the flood information system in Fujian Province (http://27.156.118.74:18800/web/html/index.html?module=sqxx, accessed on 15 July 2023), which provides hourly water level data.

2.4. Data Analysis

The oxygen change rate (σ) was calculated to assess the degree of oxygen consumption and recovery during the field surveys. It was determined by taking the difference of dissolved oxygen between each field survey (∆DO) and the time intervals between them (∆t) at each station, using the following formula (Equation (1)):

$$\sigma ={\displaystyle \frac{∆\mathrm{D}\mathrm{O}}{∆t}}$$

(1)

The Brunt–Väisälä frequency N of natural waters was calculated to understand their convective state and assess the water stratification of the research areas [47], following Equation (2). For seawater, the N was modified based on both vertical temperature and salinity gradients in the density gradient term (Equation (3)).

$$N=\sqrt{-{\displaystyle \frac{g}{\rho }}{\displaystyle \frac{d\rho }{dz}}}$$

(2)

$$N_{modified}=\sqrt{-{\displaystyle \frac{g}{\rho }}\left[\left({\displaystyle \frac{\mathsf{\partial }\rho }{\mathsf{\partial }T}}\right){\displaystyle \frac{dT}{dz}}+\left({\displaystyle \frac{\mathsf{\partial }\rho }{\mathsf{\partial }S}}\right){\displaystyle \frac{dS}{dz}}\right]}$$

(3)

where $g$ is the gravitational acceleration (m s⁻²) and was calculated using latitude and water pressure as inputs in the Gibbs Seawater (GSW) Toolbox in MATLAB, $\rho$ is the density (kg m⁻³) and was calculated based on water pressure, salinity, and temperature, z is the water depth (m), T is the temperature (°C), and S is the salinity. In this study, the Brunt–Väisälä frequency N was expressed in the form of log₁₀[N² (s⁻²)]. The log₁₀[N² (s⁻²)] values describe the degree of stratification, with higher values indicating greater stratification.

2.5. Statistical Analyses and Graphics

The Brunt–Väisälä frequency N was calculated using MATLAB (R2018a, The MathWorks, Natick, MA, USA). The normality test of Shapiro-Wilks and Levene’s variance homogeneity test were applied to all physicochemical variables. The DO data was not normally distributed. Hence, Spearman correlation coefficients were used to examine the relationships between DO and water quality parameters. Statistical analyses were performed with SPSS 27.0 (SPSS Inc., Chicago, IL, USA). Contour diagrams were produced using Origin 2021 software (OriginLab Corporation, Northampton, MA, USA).

3. Results

3.1. Changes of DO and the Dynamics of Hypoxia

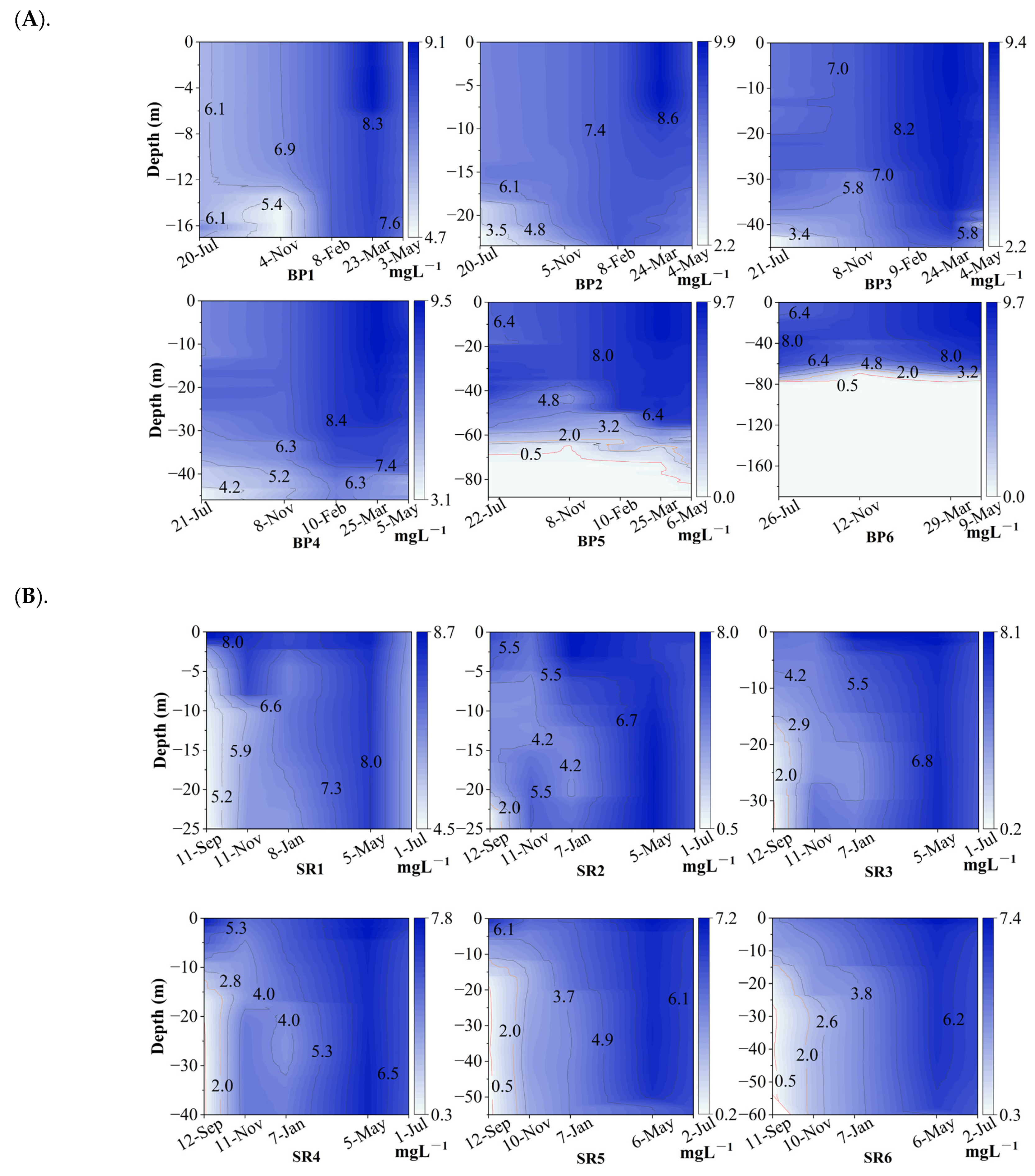

The dissolved oxygen concentrations throughout the entire study were 0–9.9 mg L⁻¹ and 0.3–8.7 mg L⁻¹ in the BP and SR (Figure 2), respectively. During the sampling periods in both regions, the DO increased from summer (i.e., July in BP and September in SR) to winter (i.e., February in BP and January in SR) and then decreased from winter to spring (i.e., May in both regions) following the density and temperature pattern (Figures S2, S3B, and S4A), showing that the DO concentration has a seasonal cycle linked to the temperature cycle. The average rates of oxygen change in BP and SR were −0.016~0.014 mg L⁻¹ d⁻¹ and −0.022~0.018 mg L⁻¹ d⁻¹, respectively (Table S2). The range of the oxygen change rates in BP was lower than that in SR.

In the BP, persistent hypoxia emerged below 63 m in the deeper regions (87–190 m), i.e., BP5-BP6 (see Figure 1), during all sampling periods, in a permanently stratified (Figure 2A). The DO concentrations measured at the entrance of BP (i.e., BP1), ranging from 4.7 mg L⁻¹ to 9.2 mg L⁻¹, indicated favorable oxygen conditions. Nonetheless, the oxygen decreased gradually from station from shallow BP1 (20 m) to slightly deeper BP4 (48 m). Particularly in July, the bottom layer exhibited DO deficiency, with levels decreasing to 2.2 mg L⁻¹, a concentration close to the hypoxia threshold. Furthermore, at the persistently hypoxic stations (BP5 and BP6), the oxygen change rate in the deepest layer remains uniform throughout the year (Table S2, −0.004~0.005 mg L⁻¹ d⁻¹), with oxygen concentrations between 0.0076 and 0.2503 mg L⁻¹ (

Table 1. Variations of water quality parameters in the two comparative research areas. The minimum and maximum values are given. The numbers in bold indicate the number of samples. The sampling depths at each station are indicated in Table S1.

Sampling Station	Salinity	DO/ (mg/L)	T/ (°C)	Turbidity (NTU)	Chl-a/ (μg/L)	NH4+/ (μmol/L)	NO3−/(μmol/L)	NO2−/(μmol/L)	TP/ (μmol/L)
BP1	11.99~23.18, 313	4.69~9.07, 313	4.46~20.90, 313	0.09~1.17, 313	0.59~4.17, 313	0.18~2.50, 15	LD~6.33, 15	0.02~0.73, 15	0.37~1.19, 15
BP2	9.05~25.61, 443	2.21~9.94, 443	4.33~20.04, 443	0.05~2.43, 443	0.43~5.17, 443	0.16~5.21, 20	LD~6.90, 20	0.01~0.60, 20	0.42~1.66, 20
BP3	7.22~18.05, 881	2.20~9.39, 881	3.81~20.04, 881	LD~1.38, 881	0.20~2.24, 881	0.16~5.38, 35	LD~7.01, 35	0.02~0.73, 35	0.54~1.93, 20
BP4	7.32~18.15, 900	3.08~9.50, 900	3.99~19.68, 900	LD~1.59, 900	0.16~2.94, 900	0.16~3.51, 25	LD~8.52, 25	LD~1.02, 25	0.52~1.42, 20
BP5	7.30~16.17, 1726	0.03~9.61, 1726	3.73~20.95, 1726	LD~1.32, 1726	0.15~2.85, 1726	0.10~14.78, 50	LD~10.21, 50	LD~0.36, 50	0.47~9.21, 30
BP6	6.98~12.43, 2992	0.0076~9.65, 2992	3.04~21.26, 2992	LD~2.86, 2992	0.16~4.05, 2992	LD~23.04, 52	LD~5.64, 52	LD~0.63, 52	0.44~5.42, 22
SR1	0.02~0.04	4.54~8.74, 869	14.52~32.58, 869	1.29~26.79, 664	0.00~42.32, 869	0.26~12.86, 29	63.14~107.84, 29	1.77~9.17, 29	0.48~2.74, 29
SR2		0.58~8.00, 927	14.79~32.39, 927	0.86~29.65, 653	0.04~36.57, 927	0.62~24.14, 25	57.44~103.62, 25	0.21~8.58, 25	0.67~3.64, 25
SR3		0.29~8.09, 1032	14.96~31.95, 1032	0.51~19.02, 737	0.03~30.48, 1032	0.82~14.17, 30	63.41~105.66, 30	0.21~8.86, 30	0.32~4.35, 30
SR4		0.31~7.75, 1482	15.15~31.11, 1482	0.24~10.50, 1032	0.08~15.60, 1482	1.02~28.08, 30	64.36~103.90, 30	0.21~10.15, 30	0.41~5.25, 30
SR5		0.23~7.23, 1787	15.74~31.95, 1787	0.05~25.70, 1350	0.04~12.03, 1787	1.20~33.16, 35	59.75~106.07, 35	0.21~6.81, 35	0.34~2.80, 35
SR6		0.27~7.36, 1881	15.98~31.61, 1881	0.20~24.26, 869	0.10~5.78, 1881	1.79~14.36, 39	5.71~118.57, 39	0.21~5.86, 39	0.48~2.15, 39

LD is limit of detection.

).

In the SR, the seasonal hypoxia occurred in September and covered the stations from SR2 to SR6. Unlike hypoxia in the deeper layer below 63 m in BP, the upper layer at 11.5 m depth has already shown low oxygen concentrations. Afterwards, until November, the DO increased gradually, from the lowest DO concentrations of 0.23 mg L⁻¹ in September to 2.33 mg L⁻¹ in November. The highest positive rate of oxygen change for the entire volume and bottom layer was observed from September to November, with values of 0.022 mg L⁻¹ d⁻¹ and 0.048 mg L⁻¹ d⁻¹, respectively (Table S2). Meanwhile, the DO levels at the upstream station SR1 reached concentrations of 4.5~8.7 mg L⁻¹, resembling those at the initial station BP1 in the BP region.

3.2. Contribution of Stratification to the Dynamics of Oxygen

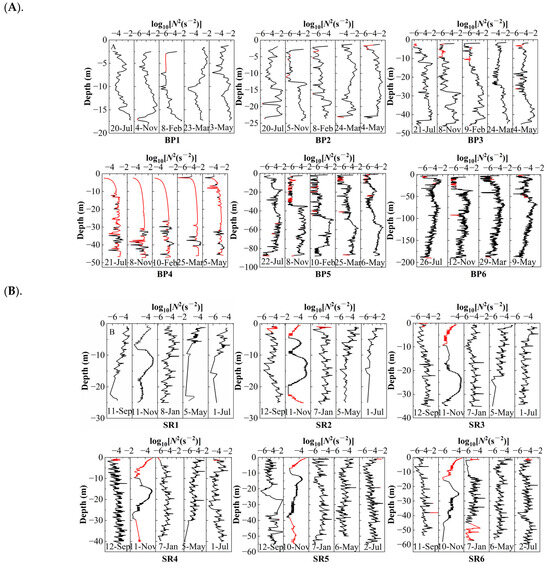

The Brunt–Väisälä frequency was calculated based on the vertical profiles of density (Supplementary Figure S2) and is presented in Figure 3. In the upper part of the profiles at stations BP1-BP4 before Bornholm Island, there was no special reversal point for log₁₀[N² (s⁻²)] when no hypoxia occurred. The reversal points for stronger stratification (log₁₀[N² (s⁻²)] ≈ −4) occurred at stations BP5 and BP6. Using the depth of the Brunt–Väisälä frequency maximum as the measure of the intensity of stratification [48], the thickness of the mixed layer here increased from approximately 20 m in July to 60–80 m in the following May. At BP4, the Brunt–Väisälä frequency differed notably in comparison to the other BP stations, where unstable conditions were observed (red lines in Figure 3). The results indicated that there was more convective mixing here due to the flow being diverted by Bornholm Island [49,50].

In the SR areas, the highest average values of Brunt–Väisälä were observed in September at the stations SR2 to SR6 (−3.95~−3.64), indicating the strongest stratification. This decreased the water exchange between colder hypolimnetic waters and warmer surface water influenced by atmospheric factors [51]. As a result, hypoxia occurred in the hypolimnetic waters during this month. In November, there were fewer fluctuations in the Brunt-Väisälä frequency compared to other months, allowing for seasonal hypoxia to disappear after September. Moreover, the lake overturn occurred when the temperature began to homogenize, as shown in Supplementary Figure S4A. A previous study indicated that lake overturn generally occurs from late October to mid-November [30].

3.3. Changes in Water Quality Parameters

3.3.1. Water Quality Parameters

Salinity differs between the two study regions. On the one hand, the BP has a salinity between 6.98 and 23.18. In the upper water column of the station, i.e., BP1-BP2, salinity-induced stratification was observed. At stations BP3 to BP6, a vertical salinity gradient was evident (Table 1 and Supplementary Figure S3). On the other hand, the salinity in the SR is close to the detection limit of the salinometer (0.02–0.04) and is similar to freshwater. The temperatures were 3.04–21.26 °C and 14.52~32.58 °C in the BP and SR, respectively (Table 1, and Figures S2 and S3). Although the temperature ranges differed, both regions exhibited the same seasonal pattern of an initial temperature decrease, followed by an increase during the sampling periods. During the initial sampling conducted in July in BP and in September in SR, clear vertical changes in temperature in both regions were seen. The follow-up surveys held in November revealed a substantial reduction of the temperature gradients and a decrease in the vertical temperature differences in both regions. The results indicated that the mixed-layer depth increased from July to November in both regions. Moreover, the water quality parameters differed considerably, with the exception of TP. The TP concentration in both regions was similar (0.37–9.21 µmol L⁻¹ in BP and 0.09–12.8 µmol L⁻¹ in SR). Turbidity and Chl-a concentration ranged from the limit of detection to 2.86 NTU and from 0.15 to 5.17 µg L⁻¹ in BP, and from 0.05 to 29.65 NTU and from the limit of detection to 42.32 µg L⁻¹ in SR. The concentrations of the main N species (NH₄⁺, NO₃⁻, and NO₂⁻) in the BP region were 1–2 orders of magnitude lower than those in the SR region.

3.3.2. Contribution of Water Quality Parameters to DO

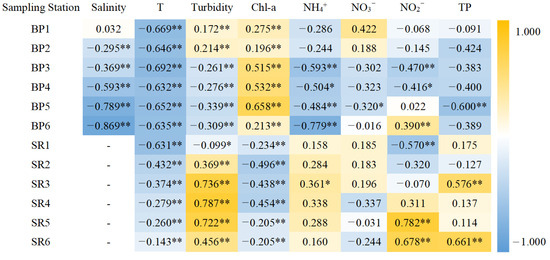

The Spearman’s correlation analysis for DO and water quality metrics is shown in Figure 4. In the two regions, temperature, turbidity, and Chl-a all exerted significant influence on the DO concentration (all p-value < 0.01 except for station SR1, p-value < 0.05 for turbidity, Figure 4). In detail, DO was significantly negatively related to temperature (p-value < 0.01); however, there are notable differences in the impact of turbidity and Chl-a between the two regions. The correlation between turbidity and DO was significantly positive at BP1 and BP2. However, it turned negative from BP3 to BP6. The correlation between the parameters in SR changed from negative to positive from upstream to downstream. Moreover, contradictory conclusions regarding the relationship between Chl-a and DO were also found in the two regions. There was a positive correlation between Chl-a and DO in BP, but a negative correlation in SR. Furthermore, the impact of nutrients (i.e., NH₄⁺, NO₃⁻, NO₂⁻, and TP) on the DO appeared to be insignificant and erratic, with only a few sampling sites showing a significant relationship. The relationship between DO and water quality parameters in different layers is shown in Figure S5. The division of the water body into layers was determined by the overall water depth and the depth of hypoxia occurrence. The surface layer (0–11.5 m), the middle layer (BP: 11.5–63 m, SR: 11.5–30 m), and the bottom layer (BP: >63 m, SR: >30 m) were thus delineated. The findings revealed that the effects of salinity, temperature, turbidity, and Chl-a across different layers were almost consistent with those observed at different sampling stations. In the surface and middle layers of both regions, the nitrogen speciation exhibited a strong correlation with DO changes, and in the bottom layers of BP, a significant relationship was observed between TP and DO.

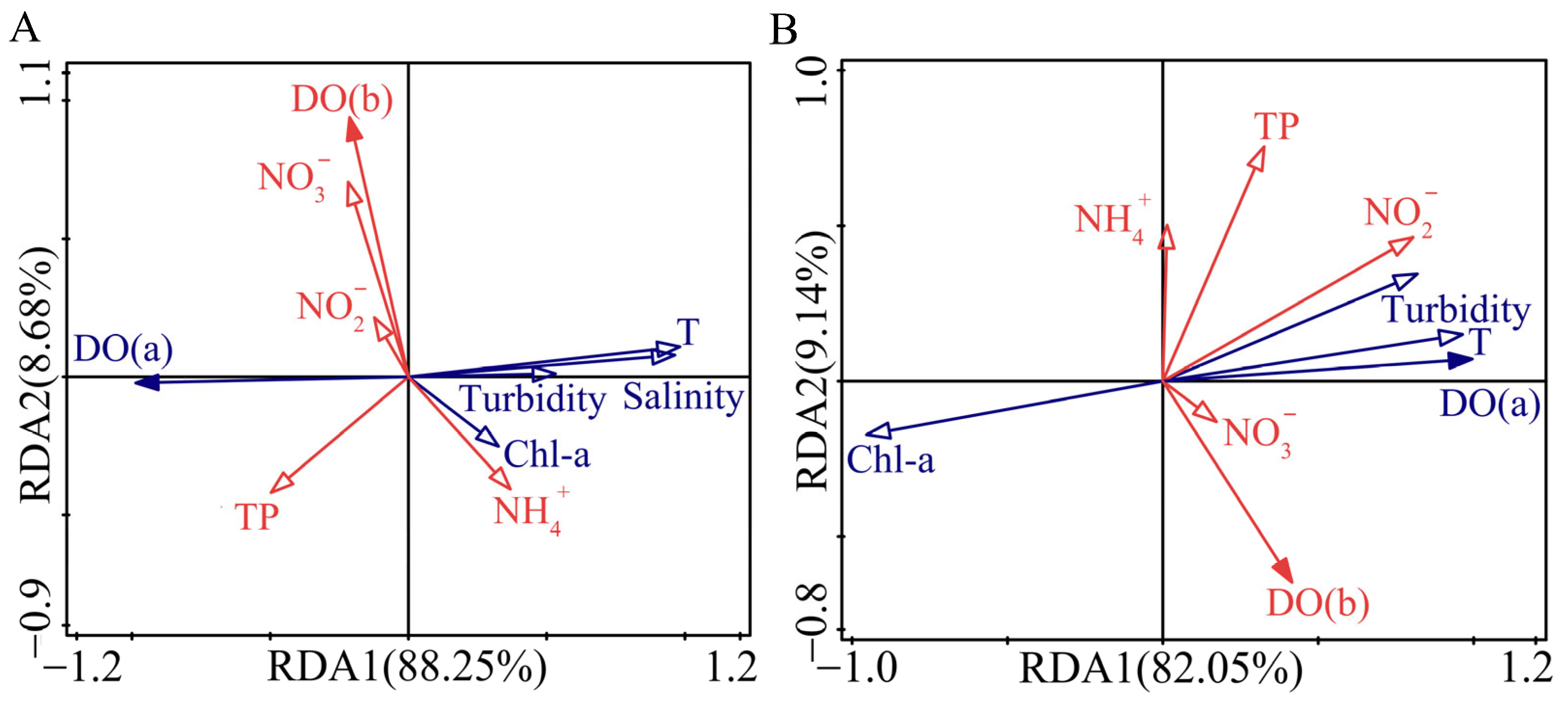

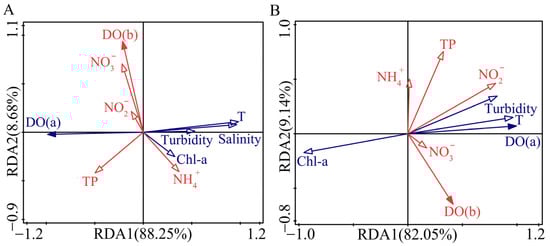

Redundancy analysis (RDA) was used to determine the response of DO to water quality parameters under hypoxic conditions. As illustrated in Figure 5, RDA explained 96.93% and 91.19% of the variation in changes in water quality parameters in the BP and SR, respectively. Under hypoxic conditions, the lower DO impacted the transformations of nitrogen species NH₄⁺ and NO₃⁻ by influencing the oxidation state in the nitrogen cycle. NH₄⁺ was positively related to DO while NO₃⁻ showed a negative relationship. The relationship between DO and TP was not significant. In addition, temperature and turbidity, which exhibited variation between the two research areas (Table S3), were found to exert an influence on DO variations. However, it is noteworthy that the impact of temperature and turbidity on DO changes under hypoxic conditions exhibited a completely opposite effect in BP and SR.

4. Discussion

4.1. Contributing Factors to Seasonal DO Changes

In this study, in both regions, the same seasonal pattern of DO dynamics was found. The results indicated that the oxygenation and deoxygenation of the water column occur naturally. Temperature, turbidity, and Chl-a were found to be more closely associated with the seasonal DO variations than nitrogen and phosphorus. DO was significantly negatively related to water temperature, since high temperatures lead to reduced DO solubility in water [5,52]. Surprisingly, it was found that turbidity and Chl-a in the investigated regions showed opposite effects on the changes in DO. Evidence indicated the presence of elevated levels of turbidity in water bodies that had undergone considerable de-stratification, which also resulted in an improvement in DO levels. Consequently, a positive correlation between turbidity and DO was observed [53]. While in BP3-BP5, the impact of Major Baltic Inflows (MBIs) was limited and turbidity levels were comparatively low due to the sedimentation of suspensions and their deposition, thereby resulting in the observed negative correlation. While in SR1, the highest turbidity has been observed to impede the penetration of sunlight, thereby diminishing photosynthesis and exerting a deleterious influence on dissolved oxygen levels [54]. In fact, the inconsistent effect of Chl-a on DO changes was also observed in the Panjiakou Reservoir [55]. The effect of Chl-a on DO is dependent on the level of Chl-a. In this study, Chl-a concentrations were 0.15–5.17 µg L⁻¹ for BP and LD−42.32 µg L⁻¹ for SR. In BP, phytoplankton photosynthesis is stronger than respiration, resulting in the production of oxygen in the upper water column (≤2 m) [56]. In SR, the relationship between DO and Chl-a is different due to the higher concentration of Chl-a, which revealed the occurrence of hypertrophic conditions in the water [57].

With regard to the oxygen dynamics in different layers, it has been demonstrated that there is a bias in the nitrogen speciation and TP with respect to DO. In both regions, strong correlations were seen between nitrogen speciation and alterations in oxygen levels in the surface and middle layers. These alterations were attributed to algal photosynthesis and the cycling of inorganic nitrogen [58]. A significant correlation has been observed between the competition for nitrogen by algae and the fluctuations in DO [59]. In the bottom layers of BP, in which hypoxia occurred, a significant relationship was observed between TP and DO. This relationship was also confirmed through the analysis of decadal records of both hypoxia intensity and iron-phosphorus cycling [60].

4.2. Contributing Factors for Hypoxia

Persistent hypoxia conditions were found below 63 m depth in the BP (i.e., at stations BP5 and BP6), where the stratification has been increasing since the last half century [61,62]. The stability of the water column in the Baltic Sea [63] results from the combination of salinity and temperature conditions. The elevated salinity levels linked to MBIs in the cooler months of November and February suggested the presence of oxygen-rich water. As it sank into the deeper layers of BP5, there was an enhancement in deepwater oxygenation and a strengthening of the stratification, as evidenced by the increased Brunt–Väisälä frequency. However, the oxygen conditions at depth remain unchanged in BP6, since the MBIs did not extend as far. Löptien et al. also established that the efficacy of MBIs was not directly associated with the re-oxygenation of the deep Baltic Sea [64]. In SR, the seasonal hypoxia occurred in September, coinciding with the typical summer thermal stratification in lakes [29,31]. Although hypoxia varied, the Brunt–Väisälä frequency in both regions consistently displayed the highest values under hypoxic conditions. In November and July in SR, the presence of hypoxia was not detected, and the depth profiles of Brunt–Väisälä frequency indicated well-mixed conditions. This indicated that the reservoir was well-mixed and stratification was the main contributing factor to the development of seasonal hypoxia.

Temperature and turbidity showed the opposite impacts on DO changes under hypoxic conditions in the investigated regions. In BP, the increased temperature exerted a negative effect on DO in the deeper layers, which may be related to the synergistic effect involving solubility and respiration [65]. As the hypoxia in BP occurred in deeper layers, where photosynthesis is reduced due to decreased light penetration, the deoxygenation is controlled by biological respiration [5]. Mineralization of organic matter, both in the water column and sediments, was identified as the primary driver of oxygen consumption in the central Baltic Sea [36]. Moreover, the reduction and oxidation of nitrogen, sulfur, manganese, and iron species have been demonstrated to play a significant role in oxygen equilibrium in such systems [66,67]. While in SR, the solubility losses induced by increasing temperature did not explain the positive relationship between temperature and DO [68,69]. Compared to the low temperature (5.37~10.14 °C) and low turbidity (LD~1.21 NTU) found in the BP hypoxic area, the seasonal temperature and turbidity in SR were 25.52~31.80 °C and 0.07~6.02 NTU at the time of hypoxia, respectively (Table S3). Organisms such as zebra mussels, acclimated to warmer climates, could dramatically reduce oxygen consumption because of increasing turbidity [70], allowing the net photosynthetic oxygen production at high temperature to outweigh the stratification-induced deoxygenation and in the end lead to an increase in dissolved oxygen levels [26,71].

Furthermore, the concentrations of DO played a crucial role in the variations of NO₃⁻ and NH₄⁺ under hypoxic conditions, because denitrification dominates the nitrogen loss pathway under low oxygen, leading to a decrease of NO₃⁻. Additionally, the increase in the dissimilatory nitrate/nitrite reduction to ammonium process also mediated the concentrations of NO₃⁻ and NH₄⁺ [72]. The increase in NH₄⁺ may also be caused by the NH₄⁺ release from sediments under hypoxic conditions, described in earlier studies [36,73]. In addition, over the past 30 years, the increase of hypoxia in the deep water of BP was linked to the oxidation of the remaining NH₄⁺ and H₂S [58]. Under hypoxic conditions, H₂S can be produced through sulfate reduction, subsequently oxidized to sulfur and then to sulfate by either O₂ or NO₃⁻ [36,74].

4.3. Hypoxia Management, Limitations, and Future Research

Hypoxia can occur in various types of water systems and exhibit distinct characteristics. To manage or prevent the occurrence of hypoxia, it is essential to implement a continuous reduction in nutrient load. Furthermore, the implementation of artificial oxygenation has been explored to effectively mitigate the low-oxygen effect in a short time. In the Baltic Deepwater Oxygenation Project, the implementation of pumped injection of winter water into the deeper parts of the Bornholm Sea led to an enhancement in oxygen levels [75]. In reservoirs [76], the implementation of a pump and injection technique to introduce surface oxygen-rich water and air into the hypoxic water layer has been demonstrated to enhance oxygen levels [77,78].

Understanding the oxygen dynamics in aquatic systems, both in the World Ocean and inland waters, is important for comprehending hypoxia worldwide. No direct comparison between these two different aquatic systems is possible even though they have the hypoxia phenomenon in common. Contradictions were found regarding the effect of temperature and turbidity, as well as the importance of NO₃⁻ and NH₄⁺ in response to hypoxia in the two regions. Further exploration is needed to understand these contradictions and the effect of nitrogen to prevent or alleviate hypoxia worldwide. In addition, the shallower water bodies, characterized by a preponderance of anthropogenic activities, usually suffer episodic hypoxia and are of interest.

5. Conclusions

This study revealed the factors contributing to DO changes and the occurrence of hypoxic areas in both investigated regions. The entire dynamics of DO demonstrated a seasonal cycle, exhibiting a negative correlation with temperature in both regions. Differently, in the BP region, persistent hypoxia was observed below 63 m at stations BP5 and BP6, while seasonal hypoxia occurred in the lower part of SR in September, below 11.5 m. The higher Brunt–Väisälä frequency (log₁₀[N² (s⁻²)] ≈ −4) indicated greater stratification in both regions, which was a sign of the development and occurrence of hypoxia. For the seasonal pattern of DO, the relationship of salinity, temperature, turbidity, and Chl-a outweighed that of nitrogen and phosphorus. However, regarding the different hypoxia types occurring in the BP and SR, the impacts of temperature and turbidity on the DO were completely opposite. The low DO in SR occurred under elevated temperature and turbidity. This phenomenon may be attributed to the net photosynthetic oxygen production of organisms in SR. Moreover, the concentrations of NO₃⁻ and NH₄⁺ significantly depended on DO changes. Our findings highlight that the stratification index and water quality parameters are essential to understanding the oxygen dynamics. This knowledge is essential to provide a scientific basis to elucidate seasonal changes in oxygen dynamics across various water bodies and understand physicochemical responses to the oxygen variations, thereby informing management strategies aimed at improving oxygen conditions in both oceans and inland waters.
