Coral Recovery in the Central Mexican Pacific 20 Years after the 1997–1998 El Niño Event

by
Violeta Martínez-Castillo
1,
Alma Paola Rodríguez-Troncoso
1,*,
Anderson B. Mayfield
2,3,
Fabián Alejandro Rodríguez-Zaragoza
4 and
Amílcar Leví Cupul-Magaña
1
1
Laboratorio de Ecología Marina, Centro Universitario de la Costa, Universidad de Guadalajara, Puerto Vallarta 48280, Jalisco, Mexico
2
National Museum of Marine Biology and Aquarium, Township, Pingtung County 944, Taiwan
3
Atlantic Oceanographic and Meteorological Laboratory, National Oceanic and Atmospheric Administration, Biscayne, FL 33149, USA
4
Laboratorio de Ecología Molecular, Microbiología y Taxonomía, Centro Universitario de Ciencias Biológicas y Agropecuarias, Universidad de Guadalajara, Zapopan 44600, Jalisco, Mexico
*
Author to whom correspondence should be addressed.
Oceans 2022, 3(1), 48-59; https://doi.org/10.3390/oceans3010005
Submission received: 8 December 2021 / Revised: 9 February 2022 / Accepted: 11 February 2022 / Published: 17 February 2022
Browse Figures
Versions Notes

Abstract

:
El Niño–Southern Oscillation (ENSO) events are increasing globally in both frequency and strength, and they can elicit coral bleaching events. The 1997–1998 ENSO caused mass coral mortality with a 96% decline in live coral cover along the Central Mexican Pacific. However, in recent years, these sites have shown signs of recovery. We used data collected in 1997 and 2015–2017 to evaluate the coral recovery in this region and coral cover levels have now reached 50% of their pre-1997–1998 El Niño values. Furthermore, a strong 2015–2016 ENSO event did not significantly affect the live coral cover, potentially demonstrating that the local corals have acclimatized or even adapted to higher temperatures. Even though branching species remain the most abundant morphotype, a PERMANOVA revealed significant changes in the coral assemblage. Collectively, this dataset is testament to the fact that corals within this region are capable of resisting or at least partially recovering from thermal anomalies caused by ENSO events.

Graphical Abstract

1. Introduction

Coral reefs, considered to be amongst the most ecologically and economically valuable marine ecosystems [1,2], are declining worldwide due to increasing seawater temperatures brought upon by climate change [3,4,5]; half of the coral reefs of the world have been already lost [6]. When abnormally high temperatures persist for extended periods (days–weeks), coral bleaching can occur. Given the reef coral dependency on their photosynthetically active endosymbionts for food, bleaching can result in a partial or complete coral colony mortality followed by the degradation of the reef [7]. Increases of only +1 °C above the annual summer mean may trigger bleaching [8]. As such, El Niño–Southern Oscillation (ENSO) events, which can feature temperatures of + 2–3 °C above the summer maxima for extended periods (usually six weeks or more), can cause bleaching events, mass coral mortality (and, consequently, reductions in the coral cover), and reef degradation [9]. Since the 1980s, four strong ENSO events have caused a massive global loss of coral, and three of them (1982–1983, 1997–1998, and 2015–2016) have been particularly harmful to coral ecosystems in the Eastern Tropical Pacific (ETP) [4,10,11,12].
ENSO events and, more generally, elevated temperatures, affect corals differently in different regions; certain taxa are notably more tolerant than others [13]. Such differential responses have been attributed to life-history traits, a local acclimatization capacity [14,15], and other factors; this heterogeneity means that many reefs respond to temperature anomalies in ways that are hard to predict [16]. Understanding how coral reefs are recovering from bleaching events is important for assessing their ability to survive future changes in their environments, especially in regions severely affected by ENSO events such as the ETP. Although there are available data on coral recovery after mass bleaching events in the ETP [10,11,17], this region still remains vastly understudied compared with other coral reef systems; only a few sites have been monitored over decadal timescales [17]. In the Central Mexican Pacific (CMP), the intense 1997–1998 bleaching event caused a >95% decrease in the live coral cover [18]. Despite this loss, recent observations suggest that CMP coral ecosystems are not only recovering but also appear to be more resistant to global stressors such as ENSO events [14,15,17,19], pers. observ. As this apparent recovery has not been quantified, we compared the coral composition before the 1997–1998 ENSO event [18,20] with survey data from 2015–2017 and hypothesized that the reef assemblage may have significantly changed over time in response to repeated ENSO and other stress events.

2. Materials and Methods

The coral ecosystem surveyed is located in the northern limits of the ETP; it is a CMP site known as “Punta de Mita” (20.7699° N, 105.5412° W). The CMP is considered to be an oceanographic transition zone as the cold California Current and the southerly flowing warm waters from the Gulf of California converge with the warm coastal Mexican current running north at this location [21] (Figure 1a). This creates a complex dynamic in the region, where water moves north by northwest during summer and fall; during the rest of the year, it flows south by southwest with seasonal upwelling events during spring [22]. A geostrophic current inside the bay generally flows north [23] (Figure 1b) and the sea surface temperature ranges from 18 to 32 °C with an annual mean of ~27 °C [24]. The temperature peaks in summer, albeit with daily drops associated with internal waves [22,25].
The in situ coral cover was determined by scuba diving from eight survey times at depths of ~3 m before the 1997–1998 ENSO event and in 2015, 2016, and 2017. The surveys for each year were carried out during both winter and summer to obtain the mean % live coral cover (LCC) per year using two different approaches. In 1997, before the study site was affected by the 1998 ENSO event, the cover was estimated using 3 permanent line transects of 10 m laid parallel to the coast. The coral cover was assessed within 10 quadrats of 1 m2 positioned along each transect. For the 2015–2017 surveys, 3 transects of 25 m were placed at the same site as in 1997 in both seasons; however, to improve the comparability with studies undertaken elsewhere in the Mexican Pacific, the coral cover was assessed within 6 quadrats of 1 m2 randomly placed along each transect—the new official methodology specifically standardized for this region. The second reason for this shift in methodology was because the prevailing area where the corals were found shifted over the 20-year period (discussed in the Results section), increasing its area.
In each of the 24 transects, the coral cover was documented overall and at the species level, and both the mean LCC and mean relative % of coral cover (RCC) for each species were calculated for each year. All surveys were performed by the same trained divers in order to avoid a bias in the coral identification. The identification of pocilloporid corals at the species level and the validation of the registered species were performed according to the taxonomic criteria described previously [26]. The species LCC was standardized to the transect area and used to estimate the changes in the community structure, as also assessed by the species richness (S), Shannon diversity (H’, log10), Pielou evenness (J’), and Simpson dominance (λ) using PRIMER v.6 and PERMANOVA+ [27]. As the data were neither normally distributed nor homoscedastic [28], a one-way univariate permutational ANOVA based on an Euclidean distance matrix and 10,000 permutations was performed following the criteria of [29] with the survey year as a fixed factor. The goal of this analysis was to quantify the community-scale shifts in the benthos over time.
A PERMANOVA was used to evaluate the LCC of each species vs. time and the data were fourth root-transformed to reduce the influence of the most abundant coral species prior to building a Bray–Curtis similarity matrix (visualized with non-metric multidimensional scaling (nMDS)). The contribution of each coral species was evaluated with a multiple correlation test in PRIMER [27].
Finally, to evaluate the effect of ENSO thermal anomalies on the changes in the coral cover over time, an LCC model using both the historical and current data for the CMP (see Table 1) was constructed with non-linear regressions (Peak, Gaussian, 4 parameter). The model was restricted only to the CMP as the variation in the species composition along the ETP because the differential responses to ENSO events may otherwise have limited our ability to resolve local scale trends. The SST anomaly data were based on the National Oceanic and Atmospheric Administration Oceanic Niño index (ONI) 3.4 (https://origin.cpc.ncep.noaa.gov/products/analysis_monitoring/ensostuff/ONI_v5.php accessed on 1 February 2021) and the analysis was undertaken with Sigma Plot v.11 [30]. For all statistical analyses, an alpha level of 0.05 was set a priori.

3. Results

Seven species of scleractinian coral and three different morphologies were observed at the study site. Specifically, there were four branching species belonging to the genus Pocillopora Lamarck, 1816: Pocillopora verrucosa (Ellis and Solander, 1786), Pocillopora damicornis (Linnaeus, 1758), Pocillopora capitata (Verrill, 1864), and Pocillopora meandrina (Dana, 1846). There were also two massive species, Porites panamensis (Verrill, 1866) and Pavona gigantea (Verrill, 1869) as well as one sub-massive species (Psammocora stellata; Verrill, 1866). At no sampling time were all seven species found on the reef simultaneously (Figure 2). Branching corals represented 80% of the relative cover when pooling the data across the years with massive and sub-massive species collectively comprising the remaining 20%. Prior to the 1997–1998 ENSO event, branching corals comprised 96% upwards of the RCC (Figure 2a). Although branching species remained the most abundant at all sampling times, the cover of massive species has increased in recent years (>12%, 1997 vs. 2017) and changes in the cover of various species were evident (Figure 2b). In 1997, the coral cover was dominated by P. damicornis (70% of the RCC). Since 2015, however, P. verrucosa has been the most abundant species with an RCC of 52% (Figure 2b).
The PERMANOVA showed no significant changes in the richness, diversity, evenness, or dominance of the coral community species (Table 2). However, the overall LCC decreased 3-fold after the 1997–1998 ENSO event (Table 2 and Table 3; Figure 3a). The PERMANOVA revealed temporal differences in the coral assemblage (Pseudo-F = 2.24, P[Perm] = 0.0182; Figure 3b); this was likely due to the aforementioned observation that P. damicornis was the most dominant species prior to the 1997–1998 ENSO event with P. verrucosa becoming relatively more common afterwards. These temporal differences were also observed in the overall LCC across the CMP; the model showed a significant relationship between the changes in the historical records of the LCC and thermal anomalies (R = 0.62, p = 0.02; Figure 4), and the coral cover was tightly linked to high-temperature thermal anomalies driven by the ENSO events (i.e., a lower coral cover after strong ENSO events). However, it is important to emphasize that the same pattern was not recorded at Punta de Mita during the 2015–2016 El Niño event (considered to be the most severe over the last 40 years [4]). The LCC was not affected during this period and the PERMANOVA showed no significant differences in the coral cover among 2015, 2016, and 2017 (Figure 3a). Additionally, the model constructed showed that this site exhibited the highest LCC In the CMP during this ENSO period (~30–35%; Figure 4).

4. Discussion

Coral bleaching and mortality have been observed worldwide over the last three decades [4,17] and the 1997–1998 ENSO resulted in a 96% decrease in the LCC across the CMP. At Punta de Mita, the LCC was <5% after the 1997–1998 ENSO event [18,20]. Between 1998 and 2017 (the most recent survey), the LCC rose to 15% and is on an increasing trend despite the fact that multiple El Niño events have taken place between 1998 and 2015 [4,5], (Figure 3a). Unfortunately, the rate of recovery could not be determined given that surveys were not undertaken between 1998 and 2015; perhaps the increase from <5% to 15% occurred before the survey. Despite this limitation, other studies in the ETP have documented coral recovery or loss over similar periods [10,11] (Table 1) and our results document not only a partial recovery of the coral cover but also the maintenance of coral populations despite more recent ENSO events. Furthermore, they highlight the importance of the continuous monitoring of the sites because although the coral cover may never return to pre-1997 levels, the extant populations appear to now be able to withstand ENSO events and could, therefore, represent important thermal refugia in the region.
The mass mortality event observed following the 1997–1998 El Niño event also caused a change in the structure of the coral community. After the 1997–1998 ENSO event, P. damicornis declined whereas P. verrucosa increased and is now the most abundant species (Figure 2b). In addition, the dominant massive species observed pre-ENSO were P. panamensis and P. stellata; since then, P. gigantea has settled in the area and gradually become more common. The increase in the cover of the massive and sub-massive species recorded (Figure 2) was not a consequence of the reduction of the proportion of branching Pocillopora colonies; instead, it would appear to stem from enhanced larval recruitment in the area. The massive colonies first recorded during the 2015 survey presented a diameter of <20 cm and, considering growth rates of 0.50 cm yr−1 in the region for P. gigantea and 0.33 cm yr−1 for P. panamensis [46], we can assume that the colonies were recruited to the site almost ten years after the 1997–1998 ENSO event. The presence of both species and the evidence of successful sexual reproduction [47] at this site, which was already hypothesized to represent a relatively resilient CMP coral community [14,48], suggests that not only massive but also branching species are being recruited to the reef. A genetic connectivity between the CMP and other regions such as the Southern Mexican Pacific and the Gulf of California has been observed for both massive [49] and branching species [50].
Historical changes in the coral richness and abundance of relative species have also been observed in the western Pacific and Indian Oceans [51,52] but this has not been recorded elsewhere along the eastern Pacific [10,11]. Although branching pocilloporids remain the most abundant coral, the dominant species has shifted from P. damicornis to P. verrucosa and the massive species are increasing in cover over time. As bleaching does not affect all corals equally [13], the changes in the species richness and relative cover seen in this study may be related to the community composition before the 1997–1998 ENSO in which the most abundant species, P. damicornis, also happened to be the least resilient; therefore, it experienced the most severe reduction in abundance with no recovery to date. Indeed, after the 1997–1998 ENSO event, coral recovery in the region was considered to be uncertain or even unlikely [18] given the susceptibility of pocilloporid corals to thermal stress [53]. However, it appears that P. verrucosa is characterized by a higher resilience than P. damicornis, as has been documented by others [54,55]. This has been linked to their high growth rates [19] and potential to recruit locally [56]. Others have found evidence of branching coral acclimatization to ENSO events [14,20,57]. Considering both the historical mortality records, the increase of the coral cover over the years, and the resistance documented during the last ENSO events at both local and regional levels (see Table 1 and Figure 3 and Figure 4), we hypothesized that the coral community at Punta de Mita should resist future ENSO events.
The coral cover rose slowly from 2015 to 2017, a contrasting trend to other CMP (Figure 4) and ETP coral ecosystems (where the LCC declined up to 50% following the severe 2015–2016 ENSO event [58]). Even though the LCC has not returned to pre-1997 levels (~30%), it has recovered 50% of this value over a 20-year period and the coral cover remains higher than that of other competitors such as sponges and macroalgae [15]. The fact that richness, evenness, and diversity have been maintained at pre-1997 levels and that the coral cover has risen from less than 5% after the 1997–1998 ENSO period [18], pers. observ. to 15% in 2017 (this study) is a potential statement to the recovery capacity and resilient nature of the scleractinian corals at the study site. These attributes are particularly important given that ENSO events are likely to become stronger and more frequent in the future.
Previous studies in the ETP have documented the changes in the community composition of scleractinian after ENSO events [10,11]. Post-ENSO/bleaching communities tend to shift toward massive species, especially poritids and faviids, which generally experience lower mortality rates during thermal stress events [13,59]. Models from a previous study [60] suggested that branching species in the ETP will gradually disappear and will be replaced by thermo-tolerant massive corals. If this proves to be the case, the CMP may be among the few regions in the ETP where branching pocilloporids persist in a high abundance. However, shifts in coral communities do not always tend toward massive corals [60] and the proliferation of pocilloporids has been observed in other locations (e.g., French Polynesia, see [56]).
Reef recovery depends on many factors, including the physiology of the resident corals and their associated dinoflagellates; the growth rate, reproductive strategy, acclimatization capacity, and type(s) of endosymbionts of a species can all affect the ability of the coral to recover from a disturbance [61]. Massive species in the ETP have low calcification rates (e.g., only 0.49 g cm−2 yr−1 for poritids [62]). In contrast, pocilloporids are characterized by relatively high growth rates (5.03 g cm−2 yr−1) and many continue to grow relatively rapidly even after El Niño events [19]. Such high post-ENSO growth rates may explain their relative dominance herein as well as the aforementioned capacity for thermo-acclimatization. Larval influx from elsewhere in the CMP is also likely to be important in driving the trends observed although whether the imported larvae have a comparable thermo-tolerance with those released from the potentially stress-hardened colonies of our study remains to be determined. Lastly, pocilloporid corals in other ETP regions are associated with endosymbionts from the genus Durusdinium, a lineage known for its thermo-tolerance [63]; although dinoflagellate genetic analyses were not undertaken herein, if the corals of our field site hosted Durusdinium spp. endosymbionts as seen in nearby sites [14,64], this could also have contributed to their ability to withstand the severe 2015–2016 El Niño event.
Coral communities in the Northeastern Tropical Pacific are resilient in that they have survived repeated bleaching events. Although we hypothesized that they would likely withstand future ENSO events, their ability to do so may become compromised by local anthropogenic threats, particularly an accelerated urban growth and tourist development [1,2,65]. Specifically, declining water quality due to terrestrial runoff, nutrient enrichment, and sedimentation originating from coastal development [16,48] affect coral reproduction, growth, and survival [66,67]. In the study region, urban areas are expected to grow rapidly to meet tourism needs [68]. In the long-term, such stressors may then inhibit the coral recovery [12]. Although the purported resilience to thermal stress arising from ENSO events documented herein is encouraging, it does not necessarily signify that these reefs will persist into the next millennium. At present, they are surviving and strategies to ensure they continue to do so have to be developed.
The Tropical Pacific region was historically characterized as non-optimal for reef development [69] mostly because of the prevailing oceanographic conditions; however, this region as a whole has not suffered in terms of the loss of coral cover as seen in other locales such as the Caribbean and the Indo-Pacific [17]. This dataset is testament to the fact that certain reefs of this region continue to increase in cover of live coral despite a repeated exposure to thermal anomalies caused by ENSO events. Twenty years after the 1997–1998 El Niño event, this resilient reef ecosystem has regained 50% of the pre-ENSO LCC. Furthermore, diversity has been maintained in recent years; once rare species have increased in abundance and, along with the dominant scleractinians, they continue to persist through repeated (and more frequent) ENSO events.

Author Contributions

All authors contributed to the study conception and design. Field work and data collection was performed by A.P.R.-T., F.A.R.-Z. and V.M.-C. Statistical analyses of field and historical data were performed by V.M.-C. and F.A.R.-Z. The description of the results and initial discussion were developed by V.M.-C., A.B.M., A.L.C.-M. and A.P.R.-T. The first draft of the manuscript was written by V.M.-C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by two National Geographic Society grants, W405-15 and NGS-55349R-19 to APRT, and the project PROCER/CCER/DROPC/09/2016 to ALCM.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

The authors kindly thank Diana Morales-de-Anda for the assistance in obtaining recent coral cover data, and Adolfo Tortolero Langarica for his assistance when building this study’s model. Whilst writing the manuscript, V.M.-C. received a PhD scholarship from the Consejo Nacional de Ciencia y Tecnología (CONACyT; I.D. 332939). The authors also thank the organization PROZONA A.C and the Comisión Nacional de Áreas Naturales Protegidas (CONANP) for their assistance with field operations and two anonymous reviewers for their comments that improved our manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Carpenter, K.E.; Abrar, M.; Abey, G.; Aronson, R.B.; Banks, S.; Bruckner, A.; Chiriboga, A.; Cortés, J.; Delbeek, J.C.; DeVantier, L.; et al. One third of reef-building corals face elevated extinction risk from climate change and local impacts. Science 2008, 321, 560–563. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Burke, L.; Reytar, K.; Spalding, M.; Perry, A. Reefs at Risk Revisited; World Resources Institute: Washington, DC, USA, 2011. [Google Scholar]
  3. Hoegh-Guldberg, O. Coral reef sustainability through adaptation: Glimmer of hope or persistent mirage? Curr. Opin. Environ. Sustain. 2014, 7, 127–133. [Google Scholar] [CrossRef] [Green Version]
  4. Hughes, T.P.; Anderson, K.D.; Connolly, S.R.; Heron, S.F.; Kerry, J.T.; Lough, J.M.; Baird, A.H.; Baum, J.K.; Berumen, M.L.; Bridge, T.C.; et al. Spatial and temporal patterns of mass bleaching of corals in the Anthropocene. Science 2018, 359, 80–83. [Google Scholar] [CrossRef] [Green Version]
  5. Skirving, W.J.; Heron, S.F.; Marsh, B.L.; Liu, G.; De La Cour, J.L.; Geiger, E.F.; Eakin, C.M. The relentless march of mass coral bleaching: A global perspective of changing heat stress. Coral Reefs 2019, 38, 547–557. [Google Scholar] [CrossRef] [Green Version]
  6. Souter, D.; Planes, S.; Wicquart, J.; Logan, M.; Obura, D.; Staub, F. Status of coral reefs of the world: 2020. In Global Coral Reef Monitoring Network; International Coral Reef Initiative, Australian Institute of Marine Science: Townsville, Australia, 2020. [Google Scholar]
  7. Hoegh-Guldberg, O. Coral reef ecosystems and anthropogenic climate change. Reg. Environ. Chang. 2011, 11, S215–S227. [Google Scholar] [CrossRef]
  8. Brown, B.E. Coral bleaching: Causes and consequences. Coral Reefs 1997, 16, S129–S138. [Google Scholar] [CrossRef]
  9. Hoegh-Guldberg, O.; Mumby, P.J.; Hooten, A.J.; Steneck, R.S.; Greenfield, P.; Gomez, E.; Harvell, C.D.; Sale, P.F.; Edwards, A.J.; Caldeira, K.; et al. Coral reefs under rapid climate change and ocean acidification. Science 2007, 318, 1737–1742. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Guzmán, H.M.; Cortés, J. Reef recovery 20 years after the 1982–1983 El Niño massive mortality. Mar. Biol. 2007, 151, 401–411. [Google Scholar] [CrossRef]
  11. Glynn, P.W.; Riegl, B.; Purkis, S.; Kerr, J.M.; Smith, T.B. Coral reef recovery in the Galapagos Islands: The northernmost islands (Darwin and Wenman). Coral Reefs 2015, 34, 421–436. [Google Scholar] [CrossRef]
  12. Alvarado, J.J.; Beita-Jiménez, A.; Mena, S.; Fernández-García, C.; Cortés, J.; Sánchez-Noguera, C.; Jiménez, C.; Guzmán-Mora, A.G. Cuando la conservación no puede seguir el ritmo del desarrollo: Estado de salud de los ecosistemas coralinos del Pacífico Norte de Costa Rica. Rev. Biol. Trop. 2018, 66, S280–S308. [Google Scholar] [CrossRef] [Green Version]
  13. Baker, A.C.; Glynn, P.W.; Riegl, B. Climate change and coral reef bleaching: An ecological assessment of long-term impacts, recovery trends and future outlook. Estuar. Coast. Shelf Sci. 2008, 80, 435–471. [Google Scholar] [CrossRef]
  14. Rodríguez-Troncoso, A.P.; Carpizo-Ituarte, E.; Cupul-Magaña, A.L. Physiological response to high temperature in the Eastern Tropical Pacific coral Pocillopora verrucosa. Mar. Ecol. 2016, 37, 1168–1175. [Google Scholar] [CrossRef]
  15. Cruz-García, R.; Rodríguez-Troncoso, A.P.; Rodríguez-Zaragoza, F.A.; Mayfield, A.; Cupul-Magaña, A.L. Ephemeral effects of El Niño southern oscillation events on an eastern tropical Pacific coral community. Mar. Freshw. Res. 2020, 71, 1259–1268. [Google Scholar] [CrossRef]
  16. Graham, N.A.J.; Nash, K.L.; Kool, J.T. Coral reef recovery dynamics in a changing world. Coral Reefs 2011, 30, 283–294. [Google Scholar] [CrossRef]
  17. Romero-Torres, M.; Acosta, A.; Palacio-Castro, A.M.; Treml, E.A.; Capata, F.A.; Paz-García, D.A.; Porter, J.W. Coral reef resilience to thermal stress in the Eastern Tropical Pacific. Glob. Chang. Biol. 2020, 26, 3880–3890. [Google Scholar] [CrossRef] [PubMed]
  18. Carriquiry, J.D.; Cupul-Magaña, A.L.; Rodríguez-Zaragoza, F.; Medina-Rosas, P. Coral bleaching and mortality in the Mexican Pacific during the 1997–1998 El Niño and prediction from a remote sensing approach. B Mar. Sci. 2001, 69, 237–249. [Google Scholar]
  19. Tortolero-Langarica, J.J.A.; Rodríguez-Troncoso, A.P.; Cupul-Magaña, A.L.; Carricart-Ganivet, J.P. Calcification and growth rate recovery of the reef-building Pocillopora species in the northeast tropical Pacific following an ENSO disturbance. PeerJ. 2017, 5, e3191. [Google Scholar] [CrossRef] [Green Version]
  20. Reyes-Bonilla, H.; Carriquiry, J.D.; Leyte-Morales, G.E.; Cupul-Magaña, A.L. Effects of the El Niño-Southern Oscillation and the anti-El Niño event (1997–1999) on coral reefs of the western coast of Mexico. Coral Reefs 2002, 21, 368–372. [Google Scholar] [CrossRef]
  21. Pantoja, D.A.; Marinone, S.G.; Parés-Sierra, A.; Gómez-Valdivia, F. Numerical modeling of seasonal and mesoscale hydrography and circulation in the Mexican Central Pacific. Cienc. Mar. 2012, 38, 363–379. [Google Scholar] [CrossRef]
  22. Portela, E.; Beier, E.; Barton, E.D.; Castro, R.; Godínez, V.; Palacios-Hernández, E.; Fiedler, P.C.; Sánchez-Velasco, L.; Trasviña, A. Water masses and circulation in the Tropical Pacific off Central Mexico and surrounding areas. J. Phys. Oceanogr. 2016, 46, 3069–3081. [Google Scholar] [CrossRef] [Green Version]
  23. Plata, L.; Filonov, A.; Tereshchenko, I.; Nelly, L.; Monzón, C.; Avalos, D.; Vargas, C. Geostrophic currents in the presence of an internal waves field in Bahia de Banderas, Mexico. E-Gnosis 2006, 4, 18. [Google Scholar]
  24. Santiago-Valentín, J.D.; Colley, S.B.; Glynn, P.W.; Cupul-Magaña, A.L.; López-Pérez, R.A.; Rodríguez-Zaragoza, F.A.; Benítez-Villalobos, F.; Bautista-Guerrero, E.; Zavala-Casas, D.A.; Rodríguez-Troncoso, A.P. Regional and species sexual reproductive patterns of three zooxanthellate scleractinian corals across the Eastern Tropical Pacific. Mar. Ecol. 2018, e12497. [Google Scholar] [CrossRef]
  25. Plata, L.; Filonov, A. Marea interna en la parte noroeste de la Bahía de Banderas, México. Cienc. Mar. 2007, 33, 197–215. [Google Scholar]
  26. Veron, J.E.N.; Stafford-Smith, M.G.; Turak, E.; DeVantier, L.M. Corals of the world. 2016 V. 0.01. Available online: http://www.coralsoftheworld.org/page/home/?version=0.01 (accessed on 9 March 2021).
  27. Clarke, K.R.; Gorley, R.N. Primer6: User Manual/Tutorial; Primer-E: Plymouth, UK, 2006. [Google Scholar]
  28. Zar, J.H. Biostatistical Analysis; Prentice Hall: Hoboken, NJ, USA, 2010. [Google Scholar]
  29. Anderson, M.J.; Gorley, R.N.; Clarke, K.R. PERMANOVA+ for PRIMER: Guide to Software and Statistical Methods; Primer-E Press: Plymouth, UK, 2008. [Google Scholar]
  30. Systat Software, Inc. SigmaPlot, version 11.0; Systat Software, Inc.: Chicago, IL, USA, 2008.
  31. Reyes-Bonilla, H. 1987 coral reef bleaching at Cabo Pulmo reef, Gulf of California, Mexico. Bull. Mar. Sci. 1993, 52, 832–837. [Google Scholar]
  32. Iglesias-Prieto, R.; Reyes-Bonilla, H.; Riosmena-Rodríguez, R. Effects of 1997-1998 ENSO on coral reef communities in the Gulf of California, Mexico. Geofis. Int. 2003, 42, 467–471. [Google Scholar]
  33. LaJeunesse, T.C.; Reyes-Bonilla, H.; Warner, M.E. Spring “bleaching” among Pocillopora in the Sea of Cortez, Eastern Pacific. Coral Reefs 2007, 26, 265–270. [Google Scholar] [CrossRef]
  34. López-Pérez, R.A.; Calderón-Aguilera, L.E.; Reyes-Bonilla, H.; Carriquiry, J.D.; Medina-Rosas, P.; Cupul-Magaña, A.L.; Herrero-Pérezrul, M.D.; Hernández-Ramírez, H.A.; Ahumada-Sempoal, Á.; Luna-Salguero, B.M. Coral communities from Guerrero, Southern Mexican Pacific. Mar. Ecol. 2012, 33, 407–416. [Google Scholar] [CrossRef]
  35. López-Pérez, R.A.; Guendulain-García, S.; Granja-Fernández, R.; Hernpandez-Urraca, V.; Galván-Rowland, L.; Zepeta-Vilchis, R.; López-López, D. Reef community changes associated with the 2009–2010 El Niño in the Southern Mexican Pacific. Pac. Sci. 2016, 70, 175–190. [Google Scholar] [CrossRef]
  36. Glynn, P.W. Coral reef bleaching in the 1980s and possible connections with global warming. Trends. Ecol. Evol. 1991, 6, 175–179. [Google Scholar] [CrossRef]
  37. Guzmán, H.M.; Cortés, J.; Richmond, R.H.; Glynn, P.W. Efectos del fenómeno de “El Niño Oscilación Sureña” 1982/1983 en los arrecifes de la Isla del Caño, Costa Rica. Rev. Biol. Trop. 1987, 35, 325–332. [Google Scholar]
  38. Guzmán, H.M.; Cortés, J. Coral reef community structure at Caño Island, Pacific Costa Rica. Mar. Ecol. 1989, 10, 23–41. [Google Scholar] [CrossRef]
  39. Guzmán, H.M.; Cortés, J. Changes in reef community structure after fifteen years of natural disturbances in the Eastern Pacific (Costa Rica). Bull. Mar. Sci. 2001, 69, 133–149. [Google Scholar]
  40. Guzmán, H.M.; Cortés, J. Cocos Island (Pacific of Costa Rica) coral reefs after the 1982–1983 El Niño disturbance. Rev. Biol. Trop. 1992, 40, 309–324. [Google Scholar]
  41. Jiménez, C.; Cortés, J.; León, A.; Ruíz, E. Coral bleaching and mortality associated with the 1997–1998 El Niño in an upwelling environment in the Eastern Pacific (Gulf of Papagayo, Costa Rica). Bull. Mar. Sci. 2001, 69, 151–169. [Google Scholar]
  42. Cortés, J. The coral reefs of Golfo Dulce, Costa Rica: Distribution and community structure. Atoll. Res. Bull. 1990, 344, 1–37. [Google Scholar] [CrossRef]
  43. Glynn, P.W.; Maté, J.L.; Baker, A.C.; Calderón, M.O. Coral bleaching and mortality in Panama and Ecuador during the 1997–1998 El Niño-Southern Oscillation event: Spatial/temporal patterns and comparisons with the 1982–1983 event. Bull. Mar. Sci. 2001, 69, 79–109. [Google Scholar]
  44. Glynn, P.W. Coral mortality and disturbances to coral reefs in the Tropical Eastern Pacific. In Global Ecological Consequences of the 1982~1983 El Niño-Southern Oscillation; Glynn, P.W., Ed.; Elsevier: Amsterdam, The Netherlands, 1990; pp. 55–126. [Google Scholar]
  45. Randall, C.J.; Toth, L.T.; Leichter, J.J.; Maté, J.L.; Aronson., R.B. Upwelling buffers climate change impacts on coral reefs of the eastern tropical Pacific. Ecology 2020, 101, e02918. [Google Scholar] [CrossRef]
  46. Tortolero-Langarica, J.J.A.; Carricart-Ganivet, J.P.; Cupul-Magaña, A.L.; Rodríguez-Troncoso, A.P. Historical insights on growth rates of the reef building corals Pavona gigantea and Porites panamensis from the Northeastern tropical Pacific. Mar. Environ. Res. 2017, 132, 23–32. [Google Scholar] [CrossRef]
  47. Santiago-Valentín, J.D.; Rodríguez-Troncoso, A.P.; Bautista-Guerrero, E.; López-Pérez, A.; Cupul-Magaña, A.L. Successful sexual reproduction of the scleractinian coral Porites panamensis: Evidence of planktonic larvae and recruitment. Invertebr. Biol. 2019, 138, 29–39. [Google Scholar] [CrossRef]
  48. Martínez-Castillo, V.; Rodríguez-Troncoso, A.P.; Santiago-Valentín, J.D.; Cupul-Magaña, A.L. The influence of urban pressures on coral physiology on marginal coral reefs of the Mexican Pacific. Coral Reefs 2020, 39, 625–637. [Google Scholar] [CrossRef]
  49. Saavedra-Sotelo, N.C.; Calderon-Aguilera, L.E.; Reyes-Bonilla, H.; López-Pérez, R.A.; Medina Rosas, P.; Rocha-Olivares, A. Limited genetic connectivity of Pavona gigantea in the Mexican Pacific. Coral Reefs 2011, 30, 677–686. [Google Scholar] [CrossRef]
  50. Paz-García, D.A.; Chávez-Romo, H.E.; Correa-Sandoval, F.; Reyes-Bonilla, H.; López-Pérez, R.A.; Medina-Rosas, P.; Hernández-Cortés, M.P. Genetic connectivity patterns of corals Pocillopora damicornis and Porites panamensis (Anthozoa: Scleractinia) along the west coast of Mexico. Pac. Sci. 2012, 66, 43–61. [Google Scholar] [CrossRef]
  51. Burt, J.; Al-Harthi, S.; Al-Cibahy, A. Long-term impacts of coral bleaching events on the world’s warmest Reefs. Mar. Environ. Res. 2011, 72, 225–229. [Google Scholar]
  52. van Woesik, R.; Sakai, K.; Ganase, A.; Loya, A. Revisiting the winners and the losers a decade after coral bleaching. Mar. Ecol. Prog. Ser. 2011, 434, 67–76. [Google Scholar] [CrossRef] [Green Version]
  53. Loya, Y.; Sakai, K.; Yamazato, K.; Nakano, Y.; Sambali, H.; van Woesik, R. Coral bleaching: The winners and the losers. Ecol. Lett. 2001, 4, 122–131. [Google Scholar] [CrossRef]
  54. Paz-García, D.A.; Balart, E.F.; García-de León, F.J. Cold water bleaching of Pocillopora in the Gulf of California. In Proceedings of the 12th International Coral Reef Symposium, Cairns, Australia, 9–13 July 2012. [Google Scholar]
  55. Al-Sofyani, A.A.; Floos, Y.A.M. Effect of temperature on two reef-building corals Pocillopora damicornis and P. verrucosa in the Red Sea. Oceanologia 2013, 55, 917–935. [Google Scholar] [CrossRef] [Green Version]
  56. Tsounis, G.; Edmunds, P.J. The potential for self-seeding by the coral Pocillopora spp. in Moorea, French Polynesia. PeerJ. 2016, 4, e2544. [Google Scholar] [CrossRef] [Green Version]
  57. Rodríguez-Troncoso, A.P.; Carpizo-Ituarte, E.; Pettay, D.T.; Warner, M.E.; Cupul-Magaña, A.L. The effects of abnormal decrease in temperature on the Eastern Pacific reef-building coral Pocillopora verrucosa. Mar. Biol. 2014, 161, 131–139. [Google Scholar] [CrossRef]
  58. Alvarado, J.J.; Sánchez-Noguera, C.; Arias-Godínez, G.; Araya, T.; Fernández-García, C.; Guzmán, A.G. Impact of El Niño 2015–2016 on the coral reefs of the Pacific of Costa Rica: The potential role of marine protection. Rev. Biol. Trop. 2020, 68, S271–S282. [Google Scholar] [CrossRef]
  59. Pratchett, M.S.; McWilliam, M.J.; Riegl, B. Contrasting shifts in coral assemblages with increasing disturbances. Coral Reefs 2020, 39, 783–793. [Google Scholar] [CrossRef]
  60. Cabral-Tena, R.A.; López-Pérez, A.; Reyes-Bonilla, H.; Calderon-Aguilera, L.E.; Norzagaray-López, C.O.; Rodríguez-Zaragoza, F.A.; Cupul-Magaña, A.; Rodríguez-Troncoso, A.P.; Ayala-Bocos, A. Calcification of coral assemblages in the Eastern Pacific: Rrshuffling calcification scenarios under climate change. Ecol. Indic. 2018, 95, 726–734. [Google Scholar] [CrossRef]
  61. Sweatman, H.; Delean, S.; Syms, C. Assessing loss of coral cover on Australia’s Great Barrier Reef over two decades, with implications for longer-term trends. Coral Reefs 2011, 30, 521–531. [Google Scholar] [CrossRef]
  62. Norzagaray-López, C.O.; Calderon-Aguilera, L.E.; Hernández-Ayón, J.M.; Reyes-Bonilla, H.; Carricart-Ganivet, J.P.; Cabral-Tena, R.A.; Balart, E.F. Low calcification rates and calcium carbonate production in Porites panamensis at its northernmost geographic distribution. Mar. Ecol. 2015, 36, 1244–1255. [Google Scholar] [CrossRef]
  63. LaJeunesse, T.C.; Parkinson, J.E.; Gabrielson, P.W.; Jeong, H.J.; Reimer, J.D.; Voolstra, C.R.; Santos, S.R. Systematic revision of Symbiodiniaceae highlights the antiquity and diversity of coral endosymbionts. Curr. Biol. 2018, 28, 2570–2580. [Google Scholar] [CrossRef] [Green Version]
  64. LaJeunesse, T.C.; Smith, R.; Walther, M.; Pinzón, J.; Pettay, D.T.; McGinley, M.; Aschaffenburg, M.; Medina-Rosas, P.; Cupul-Magaña, A.L.; López-Pérez, A.; et al. Host-symbiont recombination versus natural selection in the response of coral-dinoflagellate symbioses to environmental disturbance. Proc. R. Soc. B 2010, 277, 2925–2934. [Google Scholar] [CrossRef] [Green Version]
  65. Prouty, N.G.; Cohen, A.; Yates, K.K.; Storlazzi, C.D.; Swarzenski, P.W.; White, D. Vulnerability of coral reefs to bioerosion from land-based sources of pollution. J. Geophys. Res. Oceans 2017, 122, 9319–9331. [Google Scholar] [CrossRef]
  66. Fabricius, K.E. Effects of terrestrial runoff on the ecology of corals and coral reefs: Review and synthesis. Mar. Pollut. Bull. 2005, 50, 125–146. [Google Scholar] [CrossRef]
  67. Fabricius, K.E. Factors determining the resilience of coral reefs to eutrophication: A review and conceptual model. In Coral Reefs: An Ecosysztem in Transition; Dubinsky, Z., Stambler, N., Eds.; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2011; pp. 493–505. [Google Scholar]
  68. Merchand-Rojas, M.A. The inter-state development of Puerto Vallarta and Bahia de Banderas: México. Prob. Des. 2012, 43, 147–173. [Google Scholar]
  69. Glynn, P.W.; Ault, J.S. A biogeographic analysis and review of the far eastern Pacific coral reef region. Coral Reefs 2000, 19, 1–23. [Google Scholar] [CrossRef]
Oceans 03 00005 g001 550

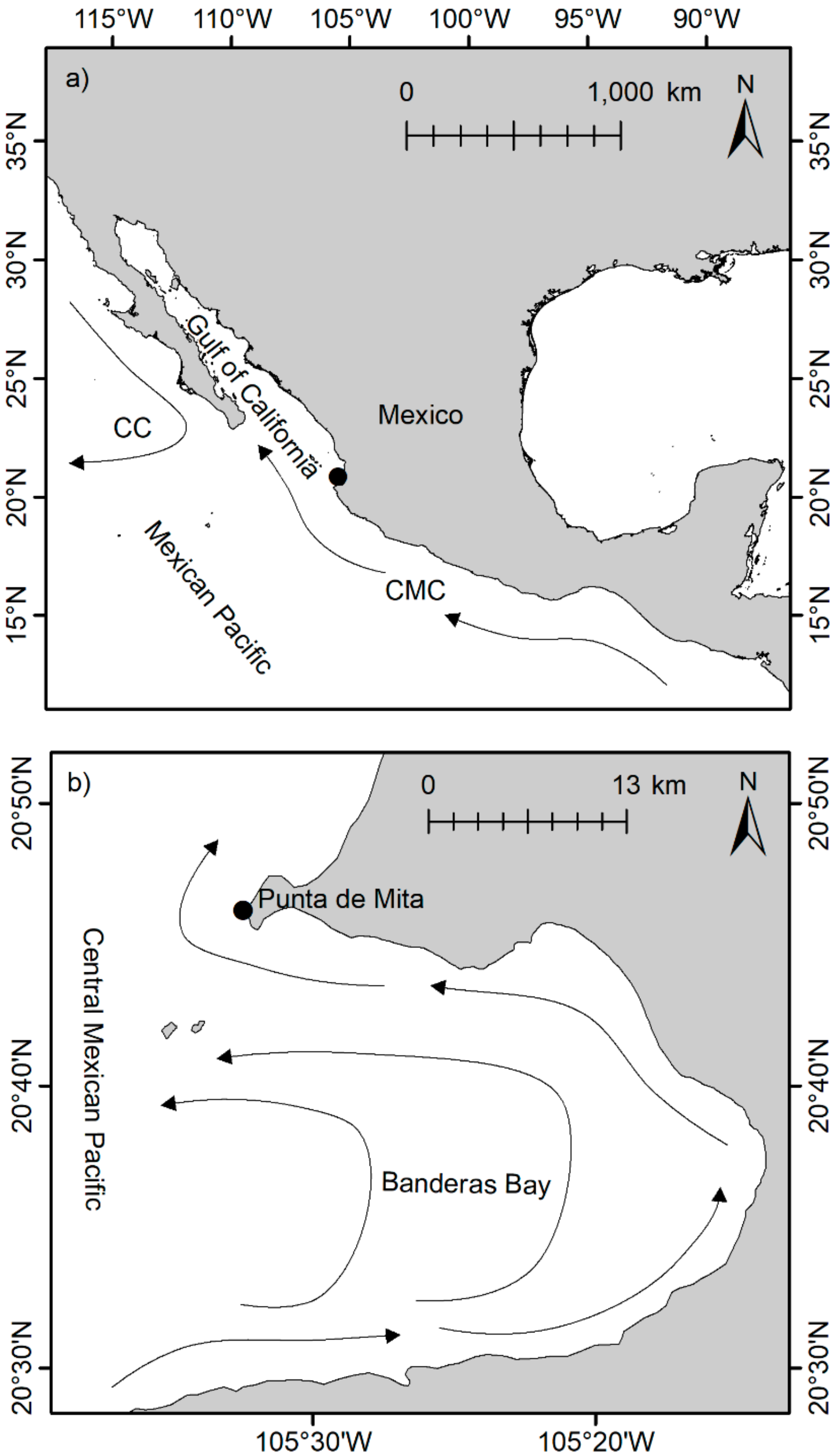

Figure 1. Study area. (a) Central Mexican Pacific (CMP). Arrows depict oceanographic currents. CC = California Current and CMC = Coastal Mexican Current. (b) Study site in the CMP. Arrows show the general geostrophic superficial circulation inside the bay. In both panels, the black dot denotes the study site: Punta de Mita (Nayarit, Mexico).
Figure 1. Study area. (a) Central Mexican Pacific (CMP). Arrows depict oceanographic currents. CC = California Current and CMC = Coastal Mexican Current. (b) Study site in the CMP. Arrows show the general geostrophic superficial circulation inside the bay. In both panels, the black dot denotes the study site: Punta de Mita (Nayarit, Mexico).
Oceans 03 00005 g001
Oceans 03 00005 g002 550

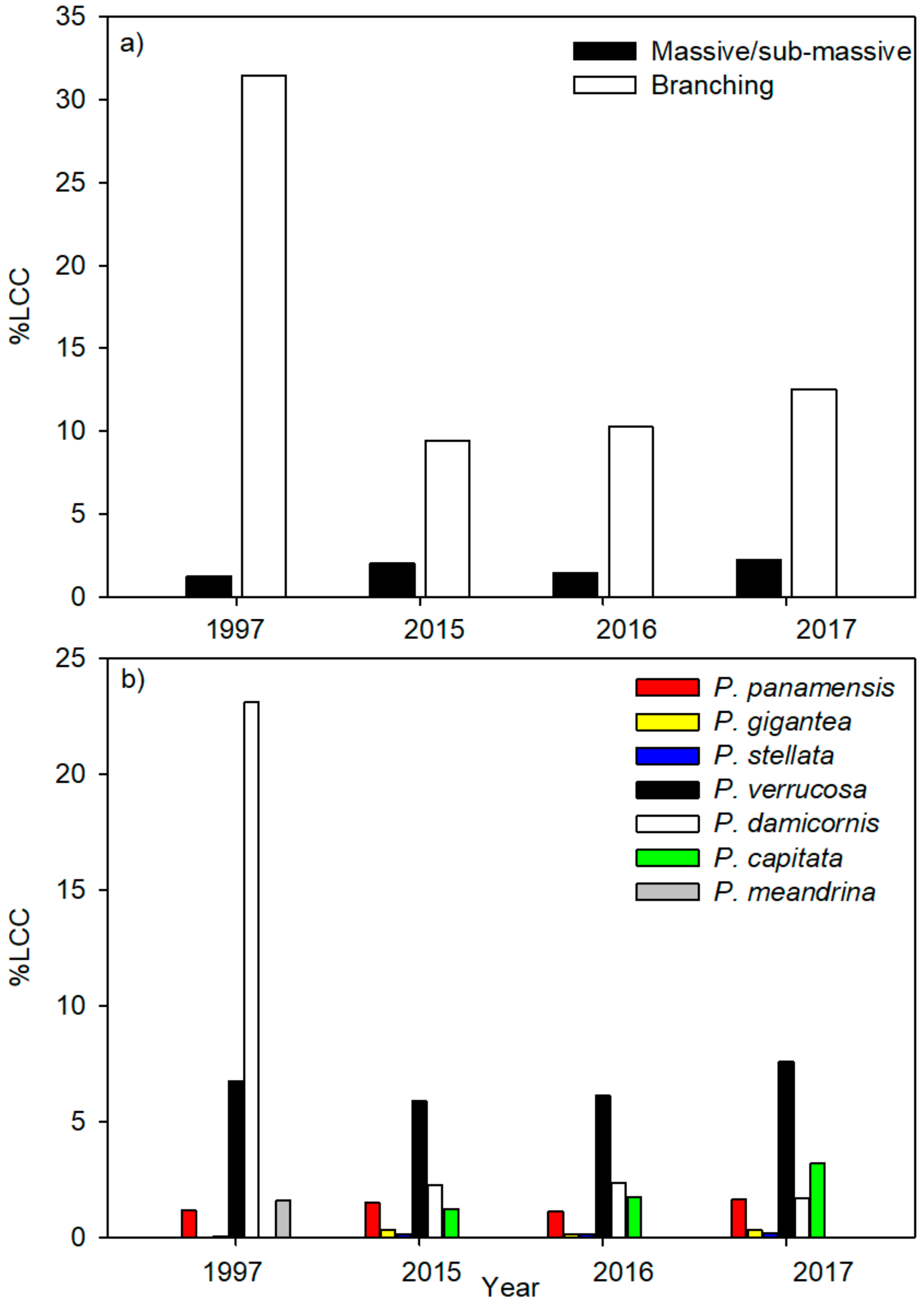

Figure 2. Live coral cover across years by (a) morphology and (b) species.
Figure 2. Live coral cover across years by (a) morphology and (b) species.
Oceans 03 00005 g002
Oceans 03 00005 g003 550

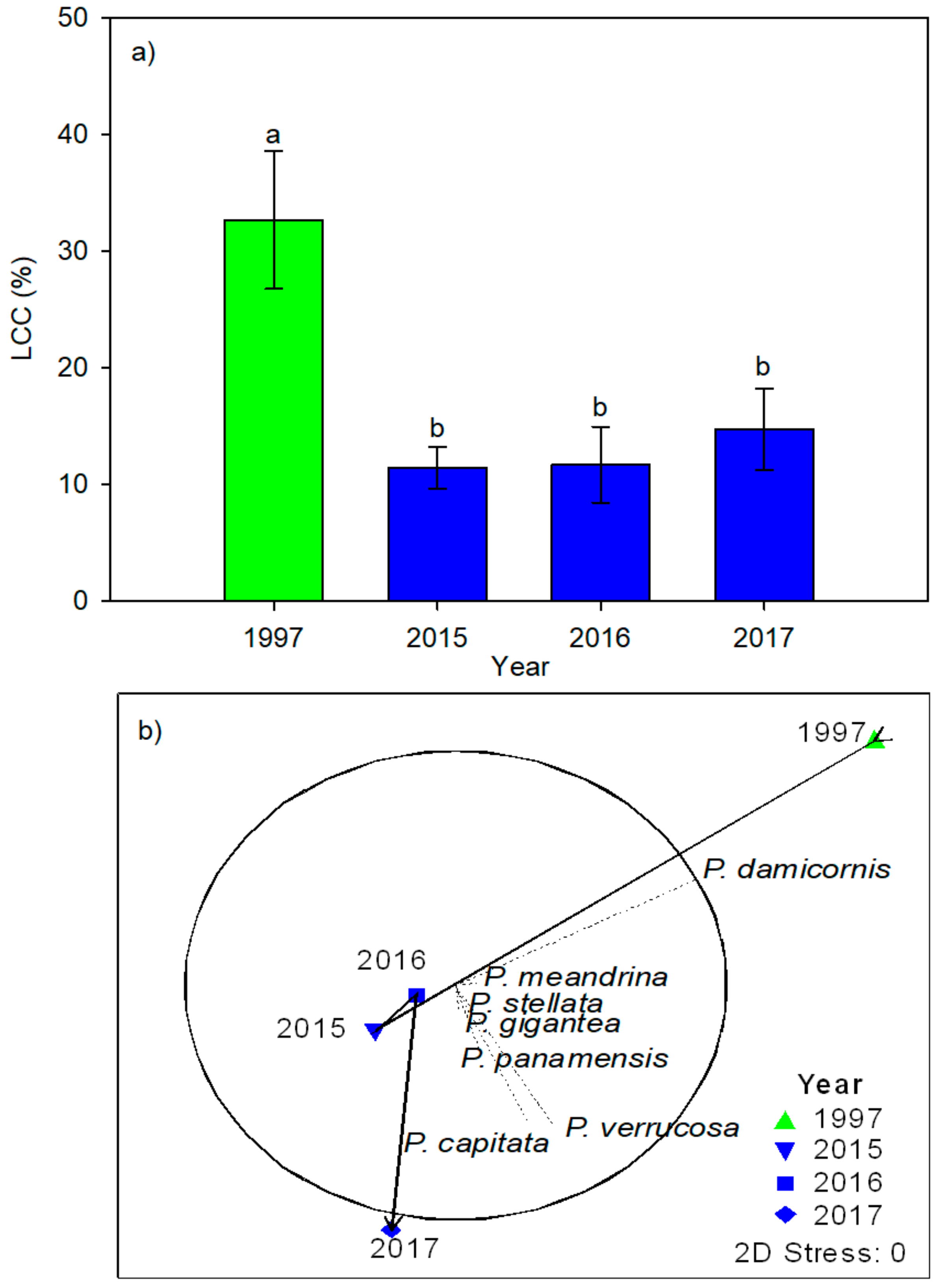

Figure 3. (a) Live coral cover in the study years (mean ± SE; letters represent groups with significant differences) and (b) variation in coral composition and cover over time as represented by the contribution of the coral species to the existing variation (dotted lines) and the succession trajectory over time (black lines).
Figure 3. (a) Live coral cover in the study years (mean ± SE; letters represent groups with significant differences) and (b) variation in coral composition and cover over time as represented by the contribution of the coral species to the existing variation (dotted lines) and the succession trajectory over time (black lines).
Oceans 03 00005 g003
Oceans 03 00005 g004 550

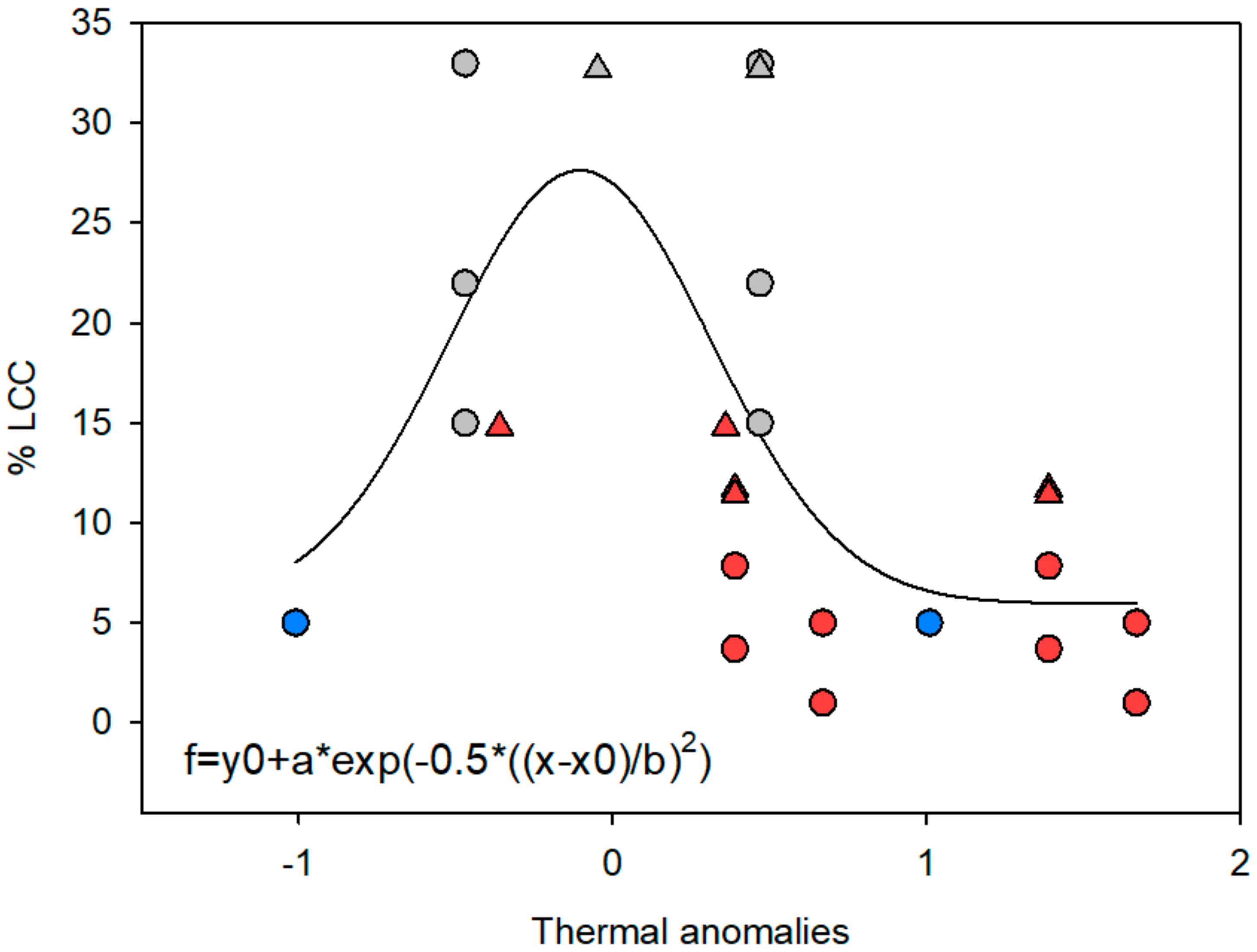

Figure 4. Model describing historical changes in live coral cover (LCC) in the Central Mexican Pacific associated with ENSO thermal anomalies based on the Oceanic El Niño Index of NOAA (x-axis). Gray symbols depict non-ENSO years, red symbols are El Niño years (warm thermal anomalies), and blue dots are La Niña years (cold thermal anomalies). Triangles indicate data from this study.
Figure 4. Model describing historical changes in live coral cover (LCC) in the Central Mexican Pacific associated with ENSO thermal anomalies based on the Oceanic El Niño Index of NOAA (x-axis). Gray symbols depict non-ENSO years, red symbols are El Niño years (warm thermal anomalies), and blue dots are La Niña years (cold thermal anomalies). Triangles indicate data from this study.
Oceans 03 00005 g004
Table
Table 1. Historical live coral cover (LCC) records in the Eastern Tropical Pacific following bleaching and mortality episodes associated with El Niño–Southern Oscillation (ENSO) events. Site abbreviations: GC, Gulf of California; CMP, Central Mexican Pacific; SMP, Southern Mexican Pacific; CR, Costa Rica; PN, Panama; GI, Galapagos Islands; EC, Ecuador; ETP, Eastern Tropical Pacific; NA, data not available.
Table 1. Historical live coral cover (LCC) records in the Eastern Tropical Pacific following bleaching and mortality episodes associated with El Niño–Southern Oscillation (ENSO) events. Site abbreviations: GC, Gulf of California; CMP, Central Mexican Pacific; SMP, Southern Mexican Pacific; CR, Costa Rica; PN, Panama; GI, Galapagos Islands; EC, Ecuador; ETP, Eastern Tropical Pacific; NA, data not available.
ETP SiteYears SurveyedENSO Event *Pre-ENSO % LCCPost-ENSO % LCC (% Mortality)% LCC After
Recovery		Reference
Cabo Pulmo (GC)1987–1988Strong~30(10)NA[31]
GC1997–1999Very Strong~2825 (18)NA[20]
GC1996–1998Very strongNA59.3 (13.6–21.9)NA[32]
GC2006WeakNANo mortality-[33]
Careyeros (CMP)1997–1998Very strong221 (96)NA[18]
Punta de Mita (CMP)1997–1998Very strong33<5 (96)NA[18]
CMP1997–1999Very strong~15<5 (>60)NA[20]
Punta de Mita (CMP)1997–2017Very strong32.7NA14.8This study
Oaxaca (SMP)1997–1999Very strong~57<5NA[20]
SMP2009Moderate18–65NANA[34]
El Chato (SMP)2009Moderate18NANA[35]
Manzanillo (SMP)2009Moderate59NANA[35]
Zacatoso (SMP)2009Moderate65NANA[35]
CR1982–1983Very strongNA(50)NA[36]
Isla del Caño (CR)1980–1984Very strong17.88.55 (46.16)NA[37]
Isla del Caño (CR)1985Weak5.4NA6.94–18.76[38]
Isla del Caño (CR)1984–1999Several events~32~5 (5–52)~ 10[39]
Cocos Island (CR)1978 and 1987Very strongNA(90)2.99[40]
Cocos Islands (CR)1987, 2002Several events2.99NA14.87[9]
Gulf of Papagayo (CR)1996–1998Very strongNA(5.7)NA[41]
Punta El Bajo (CR)1985Weak45.9NANA[42]
PN1982–1983Very strongNA(75–85)NA[36]
PN1997–1999Very strongNA(13.1)NA[43]
Gulf of Chiriqui (PN)Pre-1983 and 1984Very strong60–903.3–63.4NA[44]
Gulf of Chiriquí (PN)2016–2018Very strong5040.8 (9.2)NA[45]
Gulf of Panama (PN)2016–2018Very strong7871.2 (6.8)NA[45]
GI1982–1983Very strongNA(97–100)NA[36,44]
GI1997–1999Very strongNA(26.2)NA[43]
GI2007, 2012Several events19.4NA32.3[11]
Shark Bay, Wenman (GI)1975, 2012Several events14.4NA36.94[11]
EC1975, 1986, 1998Several eventsNA(7)NA[40]
Overall ETP1982–1997Several events32.77.133.9[17]
* Global ENSO intensity classification according to the ONI index of NOAA.
Table
Table 2. One-way permutational ANOVA of coral reef (1) species richness, (2) diversity, (3) evenness, (4) dominance (all as indices), and (5) live coral cover (%).
Table 2. One-way permutational ANOVA of coral reef (1) species richness, (2) diversity, (3) evenness, (4) dominance (all as indices), and (5) live coral cover (%).
IndexPseudo-FP (Perm)
Number of species1.01870.4242
Diversity (H’)1.99030.1438
Evenness (J’)2.7610.0666
Dominance (λ)2.12640.1238
Live coral cover (LCC)6.59540.0026 *
* Result deemed statistically significant (p < 0.05).
Table
Table 3. Post-hoc pairwise t-tests for the permutational ANOVA of live coral cover over time.
Table 3. Post-hoc pairwise t-tests for the permutational ANOVA of live coral cover over time.
TesttP (Perm)
1997 vs. 20154.75040.004 *
1997 vs. 20163.41940.0121 *
1997 vs. 20172.80150.037 *
2015 vs. 20160.0778550.9424
2015 vs. 20170.926310.3741
2016 vs. 20170.642050.5309
* Result deemed statistically significant (p < 0.05).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Martínez-Castillo, V.; Rodríguez-Troncoso, A.P.; Mayfield, A.B.; Rodríguez-Zaragoza, F.A.; Cupul-Magaña, A.L. Coral Recovery in the Central Mexican Pacific 20 Years after the 1997–1998 El Niño Event. Oceans 2022, 3, 48-59. https://doi.org/10.3390/oceans3010005

AMA Style

Martínez-Castillo V, Rodríguez-Troncoso AP, Mayfield AB, Rodríguez-Zaragoza FA, Cupul-Magaña AL. Coral Recovery in the Central Mexican Pacific 20 Years after the 1997–1998 El Niño Event. Oceans. 2022; 3(1):48-59. https://doi.org/10.3390/oceans3010005

Chicago/Turabian Style

Martínez-Castillo, Violeta, Alma Paola Rodríguez-Troncoso, Anderson B. Mayfield, Fabián Alejandro Rodríguez-Zaragoza, and Amílcar Leví Cupul-Magaña. 2022. "Coral Recovery in the Central Mexican Pacific 20 Years after the 1997–1998 El Niño Event" Oceans 3, no. 1: 48-59. https://doi.org/10.3390/oceans3010005

APA Style

Martínez-Castillo, V., Rodríguez-Troncoso, A. P., Mayfield, A. B., Rodríguez-Zaragoza, F. A., & Cupul-Magaña, A. L. (2022). Coral Recovery in the Central Mexican Pacific 20 Years after the 1997–1998 El Niño Event. Oceans, 3(1), 48-59. https://doi.org/10.3390/oceans3010005

Article Metrics

Back to TopTop
