Multicomponent Electrocatalytic Selective Approach to Unsymmetrical Spiro[furo[3,2-c]pyran-2,5′-pyrimidine] Scaffold under a Column Chromatography-Free Protocol at Room Temperature

by
Yuliya E. Ryzhkova
1,*,
Michail N. Elinson
1,
Anatoly N. Vereshchagin
1,
Kirill A. Karpenko
1,
Fedor V. Ryzhkov
1,
Ivan E. Ushakov
2 and
Mikhail P. Egorov
1
1
N.D. Zelinsky Institute of Organic Chemistry Russian Academy of Sciences, 47 Leninsky Prospekt, 119991 Moscow, Russia
2
A.N. Nesmeyanov Institute of Organoelement Compounds Russian Academy of Sciences, 28 Vavilova St., 119991 Moscow, Russia
*
Author to whom correspondence should be addressed.
Chemistry 2022, 4(2), 615-629; https://doi.org/10.3390/chemistry4020044
Submission received: 31 May 2022 / Revised: 16 June 2022 / Accepted: 17 June 2022 / Published: 19 June 2022
(This article belongs to the Section Electrochemistry and Photoredox Processes)
Browse Figures
Versions Notes

Abstract

:
Electrochemical synthesis suggested a mild, green and atom-efficient route to interesting and useful molecules, thus avoiding harsh chemical oxidizing and reducing agents used in traditional synthetic methods. Organic electrochemistry offers an excellent alternative to conventional methods of organic synthesis and creates a modern tool for carrying out organic synthesis, including cascade and multicomponent ones. In this research, a novel electrocatalytic multicomponent transformation was found: the electrochemical multicomponent assembly of arylaldehydes, N,N′-dimethylbarbituric acid and 4-hydroxy-6-methyl-2H-pyran-2-one in one pot reaction was carried out in alcohols in an undivided cell in the presence of alkali metal halides with the selective formation of substituted unsymmetrical 1′,3′,6-trimethyl-3-aryl-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraones in 73–82% yields. This new electrocatalytic process is a selective, facile and efficient way to obtain spiro[furo[3,2-c]pyran-2,5′-pyrimidines]. According to screening molecular docking data using a self-made Python script in Flare, all synthesized compounds may be prominent for different medical applications, such as breast cancer, neurodegenerative diseases and treatments connected with urinary tract, bones and the cardiovascular system.

1. Introduction

The privileged structures or scaffolds have become the most efficient route in the search for pharmaceutical active compounds [1]. Merck researchers have introduced this definition in their study on benzodiazepines [2]. These scaffolds mainly are the rigid heterocyclic compounds, with special orientation of functional substituents for target recognition. The creation of a facile green and efficient method for selective synthesis of privileged scaffolds in the domino or multicomponent processes is now an important goal of modern organic chemistry [3,4].
A multicomponent strategy is now a route to achieve high efficiency and operation simplicity with simultaneous decreasing waste formation [5]. Multicomponent reactions (MCRs) are also characterized by a high bond-forming index (BFI) as several non-hydrogen atom bonds are formed in one-pot transformation [6]. The design of MCRs is a rapidly expanding area of research in the field of organic chemistry [7,8,9]. Thus, MCRs are now a useful strategy for the synthesis of complex heterocyclic structures.
Organic electrosynthesis has emerged in recent decades as a part of modern organic synthesis, which has set the stage for innovative chemical processes using novel mechanistic pathways [10,11,12,13]. Nevertheless, the use of electrochemical methods is still limited by equipment and procedure complexity, as well as long reaction time.
Thus, the most facile and efficient electrochemical strategy is the electrocatalytic transformation of organic compounds in the presence of mediators [14]. Among a variety of mediators, the halide anion/halogen pair is one of the most often used mediators for the selective and complex electro-organic transformations [15]. The use of alkali metal and ammonium halides as mediators has a number of advantages, such as inexpensive cost, environmental friendliness and in situ generation of molecular halogen.
C–H acids are useful reagents for the electrochemical processes with alkali metal halides as mediators in an undivided electrolyzer [16,17,18,19,20]. The electrocatalytic synthesis of substituted cyclopropanes and related spirocyclopropanes is a special and useful part of these electrocatalytic transformations [21,22,23]. Electrocatalytic reactions of heterocyclic C–H acids have also been intensively studied [24], as they afford the synthesis of different classes of heterocyclic compounds with a wide range of bioactivity [25].
The exploration of privileged structures or scaffolds in drug discovery is a rapidly emerging part of the medicinal chemistry [26]. Barbiturates (pyrimidine-2,4,6-triones) are known as privileged medicinal scaffold [27] in different central nervous system drugs, including sedatives, anticonvulsants, and anesthetics [28,29,30]. Nowadays, a renewed interest arose because it was found that the pyrimidinetrione template is an efficient zinc-chelating moiety [31], and thus, various pyrimidine-2,4,6-trione derivatives demonstrated high selectivity toward matrix metalloproteinases responsible for cancer progression. Additionally, barbiturates demonstrated inhibition against protein kinase C (PKC), an isoenzyme that is a target for therapeutic intervention of immunological disorders, human immunodeficiency virus and rheumatoid arthritis as well as inflammatory diseases [32].
2H-Pyran-2-one and its derivatives are also well-known in pharmacology. Derivatives of 4-hydroxy-2H-pyran-2-ones exhibit anti-HIV [33] and anticancer [34] properties. Among natural compounds containing 2H-pyran-2-one fragment, bufalin is a cardiotonic steroid and anti-cancer agent [35]. Other 2H-pyran-2-one derivatives have shown plant growth-regulating [36] antitumor [37] and HIV protease inhibiting activity [38].
Spirocycles have been employed as core structures and are widely used in drug discovery [39]. Owing to their inherent three-dimensionality and structural novelty, spiro scaffolds have been increasingly utilized in drug discovery [40]. Spirocycle compounds have a good balance between conformational rigidity and flexibility, which increase the chances of finding bioactive hits [41]. Barbiturate-incorporated spirocycles constitute a class of chemical entities with a wide range of biological activities and important medical applications [42]. Thus, spirobarbiturates have been established to exhibit neuropharmacological effects [43]. They are inhibitors of matrix metalloproteinase 13 (MMP-13) [44] and dihydroorotate dehydrogenase (DHODase) [45]. Recently, 1-phenyl-5,7-diazaspiro[2.5]octane-4,6,8-trione has been recognized as a tumor necrosis factor-alpha (TNF-α)-converting enzyme and matrix metalloproteinase inhibitor, and thus it could be utilized in the treatment of various inflammatory, infectious, immunological, or malignant diseases [46].
Taking into consideration our experience carrying out electrocatalytic cascade and multicomponent reactions with the formation of different types of spirocyclic compounds [47,48,49,50,51] and sufficient biomedical applications of spirocyclic barbiturates, we planned to design an efficient electrochemical multicomponent methodology for the direct conversion of arylaldehydes 1, N,N′-dimethylbarbituric acid, and 4-hydroxy-6-methyl-2H-pyran-2-one in a one-pot reaction into earlier unknown unsymmetric substituted 3-aryl-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetrones 2.

2. Materials and Methods

2.1. General Information

The solvents and reagents were purchased from commercial sources and used as received.
All melting points were measured with a Stuart SMP30 melting-point apparatus (Stuart Equipment, Cole-Parmer, UK) and were uncorrected. 1H and 13C-NMR spectra were recorded in CDCl3 with Bruker AM300 spectrometer (Bruker Corporation, Billerica, MA, USA) at ambient temperature. Chemical shift values are relative to Me4Si. The IR spectra were recorded with a Bruker ALPHA-T FT-IR spectrometer (Bruker Corporation, Billerica, MA, USA) in a KBr pellet. MS spectra (EI = 70 eV) were obtained directly with a Kratos MS-30 spectrometer (Kratos Analytical Ltd., Manchester, UK).
X-ray diffraction data were collected at 100K on a Bruker Quest D8 diffractometer (Bruker Corporation, Billerica, MA, USA) equipped with a Photon-III area-detector (graphite monochromator, shutterless φ- and ω-scan technique), using Mo Kα-radiation. The intensity data were integrated by the SAINT program [52] and corrected for absorption and decay using SADABS [53]. The structure was solved by direct methods using SHELXT [54] and refined on F [53] using SHELXL-2018 [55]. All non-hydrogen atoms were refined with anisotropic displacement parameters. Hydrogen atoms were placed in ideal calculated positions as riding atoms with relative isotropic displacement parameters; bond distances to H-atoms were refined. A rotating group model was applied for methyl groups. The SHELXTL program suite [52] was used for molecular graphics.

2.2. Electrocatalytic Multicomponent Synthesis of 1′,3′,6-Trimethyl-3-aryl-2′H,3H,4H-spiro-[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraones 2a–i

Arylaldehyde 1 (5 mmol), N,N′-dimethylbarbituric acid (5 mmol, 0.78 g), 4-hydroxy-6-methyl-2H-pyran-2-one (5 mmol, 0.63 g), and sodium iodide (3 mmol, 0.45 g), in methanol (20 mL) was electrolyzed in an undivided cell equipped with a magnetic stirrer, a graphite anode (5 cm2) and an iron cathode (5 cm2) at 20 °C under a constant current density 50 mA/cm2 until the quantity of 2.8 F/mol of electricity was passed. After the electrolysis was finished, the reaction mixture was concentrated to a volume of 4 mL and cooled to 0 °C to crystallize the solid product, which was then filtered out, rinsed twice with an ice-cold ethanol/water solution (1:1, 4 mL) and dried under reduced pressure.
1′,3′,6-Trimethyl-3-phenyl-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2a, (white solid, 1.51 g, 82%), m.p. 249–251 °C (decomp.), FTIR (KBr) cm−1: 3441, 3105, 2958, 2541, 1728, 1694, 1589, 1450, 1385, 1268, 1128, 1041. 1H-NMR (300 MHz, CDCl3) δ 2.38 (s, 3H, CH3), 2.57 (s, 3H, CH3), 3.43 (s, 3H, CH3), 4.88 (s, 1H, CH), 6.28 (s, 1H, CH), 6.99–7.13 (m, 2H, 2 CH Ar), 7.30–7.40 (m, 3H, 3 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.7, 28.3, 29,4, 58.9, 91.1, 95.5, 98.5, 128.4 (2C), 128.9 (2C), 129.4, 132.4, 149.8, 159.8, 163.5, 166.2, 167.8, 172.5 ppm. MS (EI, 70 eV) m/z (%): 368 [M]+ (7), 325 (100), 268 (5), 240 (2), 199 (4), 156 (1), 155 (2), 127 (8), 102 (4), 43 (21). Anal. calcd. for C19H16N2O6: C, 61.96; H, 4.38; N, 7.61%. Found: C, 61.84; H, 4.33; N, 7.54%.
Crystal Data for 2a (M = 368.34 g/mol): monoclinic, space group P21/c (No. 14), a = 7.7339 (4) Å, b = 18.4269 (11) Å, c = 12.0713 (7) Å, β = 97.8430 (10)°, V = 1704.21 (17) Å3, Z = 4, T = 120 °K, μ (MoKα) = 0.109 mm−1, Dcalc = 1.436 g/cm3, 23,459 reflections measured (4.06° ≤ 2Θ ≤ 61.202°), 5239 unique (Rint = 0.0553, Rsigma = 0.0464), which were used in all calculations. The final R1 was 0.0455 (I > 2σ(I)) and wR2 was 0.1146 (all data). CCDC 2,152,149 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via http://www.ccdc.cam.ac.uk (accessed on 1 March 2022).
3-(4-Methyl)-1′,3′,6-trimethyl-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2b, (white solid, 1.53 g, 80%), m.p. 290–291 °C (decomp.), FTIR (KBr) cm−1: 3448, 3099, 2926, 2526, 1739, 1643, 1587, 1380, 1108. 1H-NMR (300 MHz, CDCl3) δ 2.33 (s, 3H, CH3), 2.37 (s, 3H, CH3), 2.60 (s, 3H, CH3), 3.43 (s, 3H, CH3), 4.85 (s, 1H, CH), 6.27 (s, 1H, CH), 6.93 (d, 3J = 8.2 Hz, 2H, 2 CH Ar), 7.14 (d, 3J = 8.2 Hz, 2H, 2 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.7, 21.2, 28.4, 29.5, 58.8, 91.2, 95.5, 98.7, 128.3 (2C), 129.3 (2C), 129.7, 139.5, 149.9, 159.8, 163.7, 166.3, 167.7, 172.4 ppm. MS (EI, 70 eV) m/z (%): 382 [M]+ (3), 339 (100), 282 (7), 267 (2), 169 (5), 156 (11), 141 (8), 115 (17), 85 (7). Anal. calcd. for C20H18N2O6: C, 62.82; H, 4.75; N, 7.33%. Found: C, 62.75; H, 4.66; N, 7.21%.
3-(3-Fluorophenyl)-1′,3′,6-trimethyl-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2c, (white solid, 1.45 g, 75%), m.p. 247–249 °C (decomp.), FTIR (KBr) cm−1: 3434, 3091, 2958, 2388, 1690, 1590, 1447, 1264, 1036. 1H-NMR (300 MHz, CDCl3) δ 2.39 (s, 3H, CH3), 2.67 (s, 3H, CH3), 3.44 (s, 3H, CH3), 4.86 (s, 1H, CH), 6.29 (s, 1H, CH), 6.71 (d, 3JH-F = 11.7 Hz, 1H, 1 CH Ar), 6.81–6.90 (m, 2H, 2 CH Ar), 7.19 (dd, 3JH-F = 14.4 Hz, 3JH-H = 6.5 Hz, 1H, 1 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.7, 28.5, 29.5, 58.1, 90.8, 95.5, 98.3, 115.6 (d, 2JC-F = 22.2 Hz), 116.5 (d, 2JC-F = 22.2 Hz), 124.3 (d, 4JC-F = 2.8 Hz), 130.5 (d, 3JC-F = 7.6 Hz), 135.1 (d, 3JC-F = 7.6 Hz), 149.7, 159.7, 162.9 (d, 1JC-F = 248.2 Hz), 163.3, 165.9, 168.1, 172.7 ppm. MS (EI, 70 eV) m/z (%): 386 [M]+ (3), 344 (19), 343 (100), 286 (5), 217 (5), 189 (2), 160 (8), 145 (6), 132 (2), 125 (4). Anal. calcd. for C19H15FN2O6: C, 59.07; H, 3.91; F, 4.92; N, 7.25%. Found: C, 58.98; H, 3.87; F, 4.85; N, 7.19%.
3-(4-Chlorophenyl)-1′,3′,6-trimethyl-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2d, (white solid, 1.57 g, 78%), m.p. 258–260 °C (decomp.), FTIR (KBr) cm−1: 3435, 3098, 2962, 2361, 1720, 1686, 1587, 1445, 1380, 1044. 1H-NMR (300 MHz, CDCl3) δ 2.38 (s, 3H, CH3), 2.67 (s, 3H, CH3), 3.43 (s, 3H, CH3), 4.85 (s, 1H, CH), 6.28 (s, 1H, CH), 6.99 (d, 3J = 8.4 Hz, 2H, 2 CH Ar), 7.32 (d, 3J = 8.4 Hz, 2H, 2 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.7, 28.5, 29,6, 58.1, 90.8, 95.5, 98.3, 129.2 (2C), 129.9 (2C), 131.1, 135.6, 149.7, 159.7, 163.4, 166.0, 168.1, 172.6 ppm. MS (EI, 70 eV) m/z (%): 404 [M]+ Cl37 (1), 402 [M]+ Cl35 (3), 361 (34), 359 (100), 302 (3), 290 (3), 176 (8), 161 (4), 126 (7), 85 (11). Anal. calcd. for C19H15ClN2O6: C, 56.66; H, 3.75; Cl, 8.80; N, 6.96%. Found: C, 56.58; H, 3.71; Cl, 8.73; N, 6.85%.
1′,3′,6-Trimethyl-3-(4-nitrophenyl)-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2e, (white solid, 1.67 g, 81%), m.p. 262–264 °C (decomp.), FTIR (KBr) cm−1: 3435, 3090, 2963, 1732, 1696, 1590, 1522, 1441, 1352, 1173, 1029. 1H-NMR (300 MHz, CDCl3) δ 2.41 (s, 3H, CH3), 2.67 (s, 3H, CH3), 3.46 (s, 3H, CH3), 4.96 (s, 1H, CH), 6.31 (s, 1H, CH), 7.26 (d, 3J = 8.5 Hz, 2H, 2 CH Ar), 8.21 (d, 3J = 8.5 Hz, 2H, 2 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.8, 28.5, 29,7, 57.7, 90.3, 95.5, 98.1, 124.0 (2C), 129.8 (2C), 139.8, 148.4, 149.5, 159.6, 163.0, 165.6, 168.6, 172.9 ppm. MS (EI, 70 eV) m/z (%): 413 [M]+ (2), 372 (3), 371 (20), 370 (100), 325 (3), 324 (7), 323 (7), 244 (5), 187 (13), 156 (1), 141 (3), 126 (6), 85 (9). Anal. calcd. for C19H15N3O8: C, 55.21; H, 3.66; N, 10.17%. Found: C, 55.14; H, 3.59; N, 10.08%.
Methyl 4-(1′,3′,6-trimethyl-2′,4,4′,6′-tetraoxo-1′,3′,4′,6′-tetrahydro-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidin]-3-yl)benzoate 2f, (white solid, 1.64 g, 77%), m.p. 275–276 °C (decomp.), FTIR (KBr) cm−1: 3435, 3100, 2954, 2846, 2391, 1724, 1592, 1440, 1283, 1113, 1036. 1H-NMR (300 MHz, CDCl3) δ 2.39 (s, 3H, CH3), 2.39 (s, 3H, CH3), 2.60 (s, 3H, CH3), 3.45 (s, 3H, CH3), 3.93 (s, 3H, CO2Me), 4.92 (s, 1H, CH), 6.30 (s, 1H, CH), 7.14 (d, 3J = 8.4 Hz, 2H, 2 CH Ar), 8.01 (d, 3J = 8.4 Hz, 2H, 2 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.7, 28.4, 29.5, 52.3, 58.3, 90.7, 95.5, 98.3, 128.7 (2C), 130.1 (2C), 131.1, 137.5, 149.7, 159.7, 163.3, 165.9, 166.2, 168.1, 172.7 ppm. MS (EI, 70 eV) m/z (%): 426 [M]+ (2), 395 (3), 385 (3), 384 (22), 383 (100), 324 (9), 283 (3), 257 (4), 200 (10), 156 (2), 141 (4), 126 (5), 85 (8), 43 (22). Anal. calcd. for C21H18N2O8: C, 59.16; H, 4.26; N, 6.57%. Found: C, 59.08; H, 4.21; N, 6.45%.
1′,3′,6-Trimethyl-3-(pyridin-3-yl)-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2g, (white solid, 1.35 g, 73%), m.p. 236–240 °C (decomp.), FTIR (KBr) cm−1: 3434, 3090, 2957, 1741, 1685, 1583, 1448, 1281, 1040. 1H-NMR (300 MHz, CDCl3) δ 2.39 (s, 3H, CH3), 2.68 (s, 3H, CH3), 3.45 (s, 3H, CH3), 4.90 (s, 1H, CH), 6.30 (s, 1H, CH), 7.30 (d, 3J = 5.1 Hz 1H, 1 CH Ar), 7.40 (dt, 3J = 7.7 Hz, 4J = 2.1 Hz, 1H, 1 CH Ar), 8.34 (d, 4J = 2.1 Hz 1H, 1 CH Ar), 8.61 (dd, 3J = 4.6 Hz, 2J = 2.1 Hz, 1H, 1 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.8, 28.6, 29,7, 56.2, 90.5, 95.5, 97.8, 123.7 (2C), 128.8, 136.2 (2C), 149.7 (2C), 150.8, 163.3, 165.8, 172.9 ppm. MS (EI, 70 eV) m/z (%): 369 [M]+ (6), 327 (19), 326 (100), 269 (9), 172 (3), 156 (3), 143 (15), 129 (4), 115 (5), 69 (9), 43 (31). Anal. calcd. for C18H15N3O6: C, 58.54; H, 4.09; N, 11.38%. Found: C, 58.41; H, 4.03; N, 11.26%.
1′,3′,6-Trimethyl-3-(pyridin-4-yl)-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2h, (yellowish solid, 1.39 g, 75%), m.p. 190–192 °C (decomp.), FTIR (KBr) cm−1: 3434, 3102, 2960, 1719, 1684, 1584, 1446, 1382, 1289, 1043. 1H-NMR (300 MHz, CDCl3) δ 2.39 (s, 3H, CH3), 2.64 (s, 3H, CH3), 3.43 (s, 3H, CH3), 4.83 (s, 1H, CH), 6.29 (s, 1H, CH), 6.99 (d, 3J = 6.1 Hz, 2H, 2 CH Ar), 8.59 (d, 3J = 6.1 Hz, 2H, 2 CH Ar) ppm. 13C-NMR (75 MHz, CDCl3) δ 20.8, 28.4, 29,6, 57.5, 90.4, 95.5, 97.6, 123.4 (2C), 141.7, 149.6, 150.4 (2C), 159.5, 163.0, 165.7, 168.5, 173.1 ppm. MS (EI, 70 eV) m/z (%): 369 [M]+ (3), 327 (20), 326 (100), 269 (8), 200 (7), 172 (3), 156 (4), 143 (18), 129 (4), 115 (4), 69 (14), 43 (38). Anal. calcd. for C18H15N3O6: C, 58.54; H, 4.09; N, 11.38%. Found: C, 58.50; H, 4.05; N, 11.31%.
1′,3′,6-Trimethyl-3-(naphthalen-1-yl)-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetraone 2i, (yellowish solid, 1.63 g, 78%), m.p. 255–257 °C (decomp.), FTIR (KBr) cm−1: 3436, 3271, 2957, 2658, 2351, 1732, 1588, 1448, 1379, 1127, 1034. 1H-NMR (300 MHz, CDCl3) δ 2.15 (s, 3H, CH3), 2.41 (s, 3H, CH3), 3.35 (s, 3H, CH3), 5.93 (s, 1H, CH), 6.32 (s, 1H, CH), 7.26–7.31 (m, 1H, 1 CH Ar), 7.43–7.57 (m, 3H, 3 CH Ar), 7.65–7.72 (m, 1H, 1 CH Ar), 7.82–7.94 (m, 2H, 2 CH Ar) ppm. 13C-NMR (75 MHz, DMSO-d6) δ 20.7, 28.0, 29,3, 53.7, 90.7, 95.6, 98.9, 121.0, 125.5, 126.1, 126.9, 127.5, 127.8, 129.6, 129.7, 131.4, 133.9, 149.1, 159.8, 163.7, 166.3, 167.8, 172.8 ppm. MS (EI, 70 eV) m/z (%): 418 [M]+ (73), 377 (3), 376 (26), 375 (100), 303 (14), 302 (10), 261 (13), 234 (9), 177 (30), 176 (40), 156 (1), 127 (14), 43 (85). Anal. calcd. for C23H18N2O6: C, 66.03; H, 4.34; N, 6.70%. Found: C, 65.94; H, 4.30; N, 6.63%.

3. Results and Discussion

3.1. Electrocatalytic Multicomponent One-Pot Synthesis of Spiro[furo[3,2-b]pyran-2,5′-pyrimidines] 2a–i

In our research, we report the results on the multicomponent electrochemical one-pot assembly of arylaldehydes 1a–i, N,N′-dimethylbarbituric acid and 4-hydroxy-6-methyl-2H-pyran-2-one into unsymmetrical substituted 3-aryl-2′H,3H,4H-spiro[furo[3,2-c]pyran-2,5′-pyrimidine]-2′,4,4′,6′(1′H,3′H)-tetrones 2a–i in alcohols in an undivided electrolyzer in the presence of alkali halides as mediators (Scheme 1 and Scheme 2, Table 1 and Table 2).

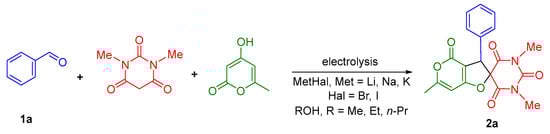

During the first step of our study, to estimate the synthetic potential of the electrochemical method and to carefully estimate the electrolytic conditions, the electrolysis of benzaldehyde 1a, N,N′-dimethylbarbituric acid, and 4-hydroxy-6-methyl-2H-pyran-2-one in alcohols as solvent in an undivided cell in the presence of alkali halides as mediators was specially studied (Scheme 2, Table 1).
At the beginning of this research, methanol was used as solvent and lithium bromide as the mediator. Under this electrolysis condition in an undivided electrolyzer after 2 F/mol of electricity were passed, spiro[furo[3,2-b]pyran-2,5′-pyrimidine] 2a was obtained in 48% yields (Entry 1, Table 1). Similar results, 52 and 50% yields of 2a, were found using sodium and potassium bromides as mediators (Entries 2 and 3, Table 1). Among iodides as mediators (Entries 4–7, Table 1), the best result was in the case of sodium iodide as mediator with 59% yield of spiro[furo[3,2-b]pyran-2,5′-pyrimidine] 2a. Other alcohols-ethanol and n-propanol were found less suitable in this electrochemical multicomponent process (Entries 8 and 9, Table 1). The next improvement was achieved with an increasing quantity of electricity passed through the undivided cell (Entries 10–14, Table 1). When 2.8 F/mol of electricity was used, spiro[furo[3,2-b]pyran-2,5′-pyrimidine] 2a was obtained in best 82% yield.

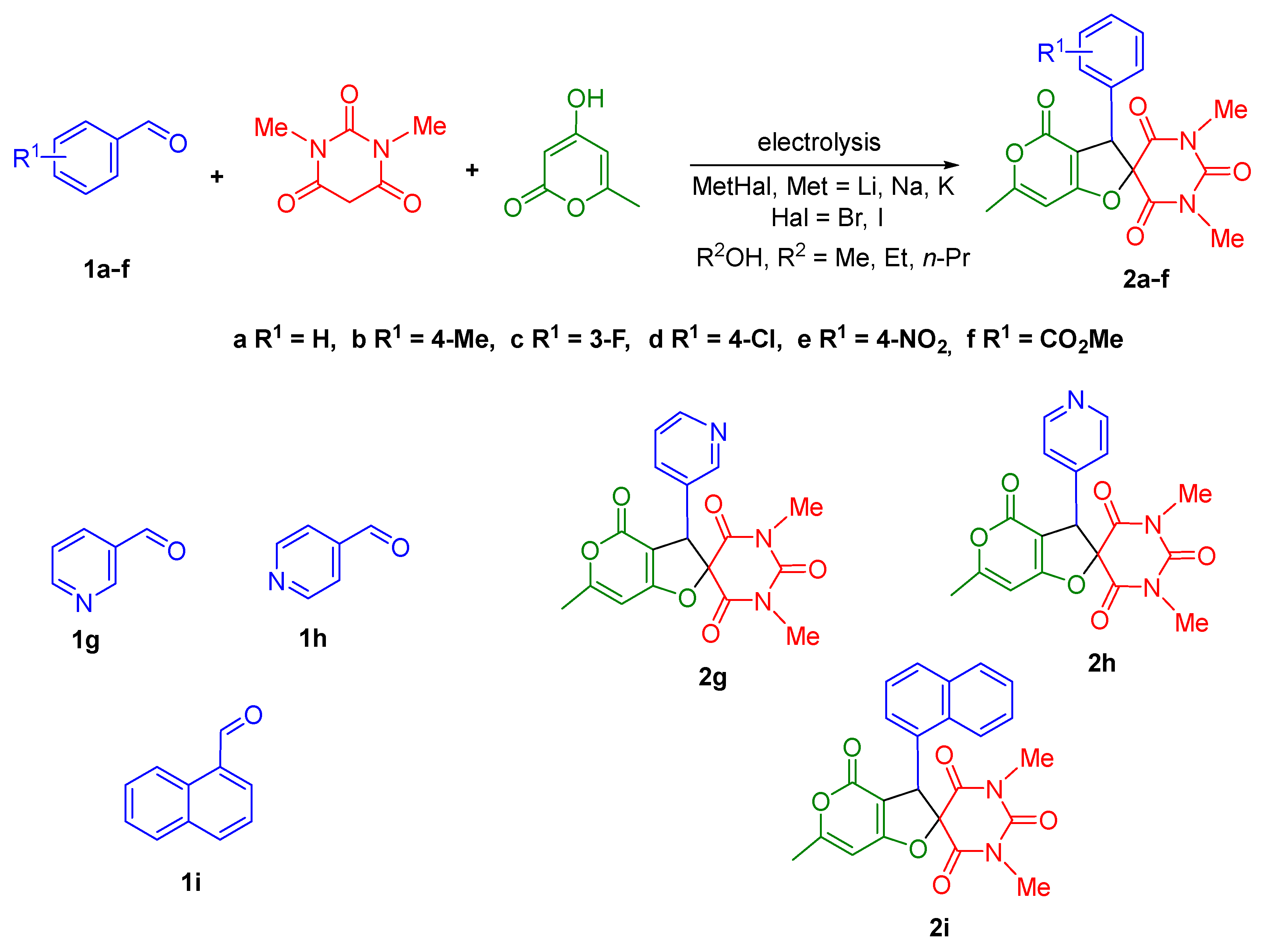

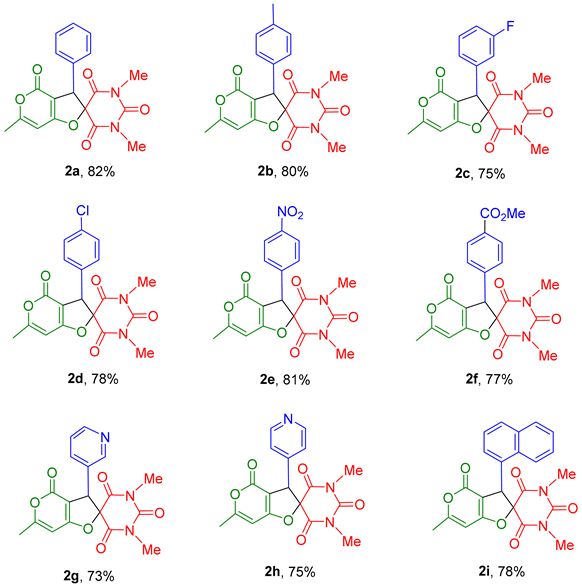

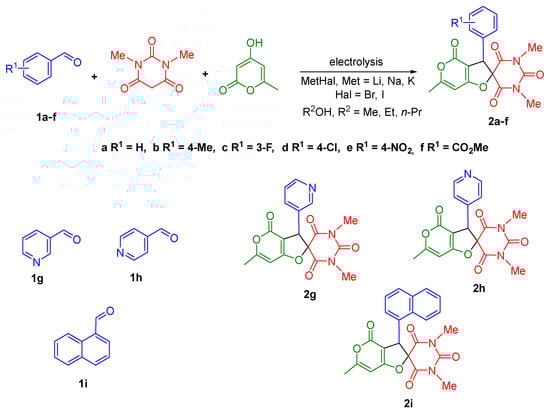

Under these optimal conditions, unsymmetrical spiro[furo[3,2-b]pyran-2,5′-pyrimidines] 2a–i were obtained in 73–82% yields in a one-pot electrocatalytic reaction from aldehydes 1a–i, N,N′-dimethylbarbituric acid and 4-hydroxy-6-methyl-2H-pyran-2-one (Table 2).
When the electrochemical process was finished, the reaction mixture was concentrated by evaporation in vacuo on a rotary evaporator to a volume of 4 mL and chilled to 0 °C. Under these conditions, a solid precipitate formed, which was then filtered out, treated twice with a cold ethanol/water solution (1:1 v/v, 4 mL) and dried under reduced pressure.
The structures of spirobarbituric dihydrofurans 2a–i were proven by 1H, 13C NMR, IR spectroscopy, mass spectrometry data and elemental analysis. For all compounds, only one set of signals was observed in 1H and 13C NMR spectra.

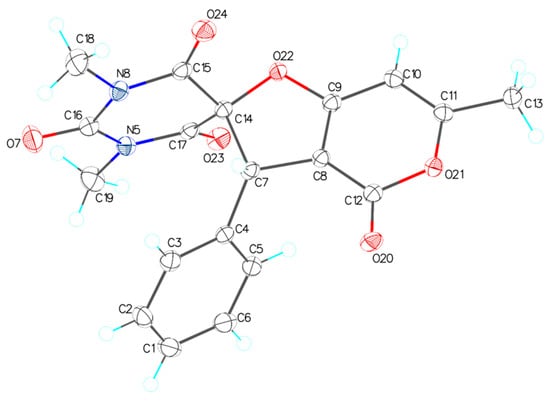

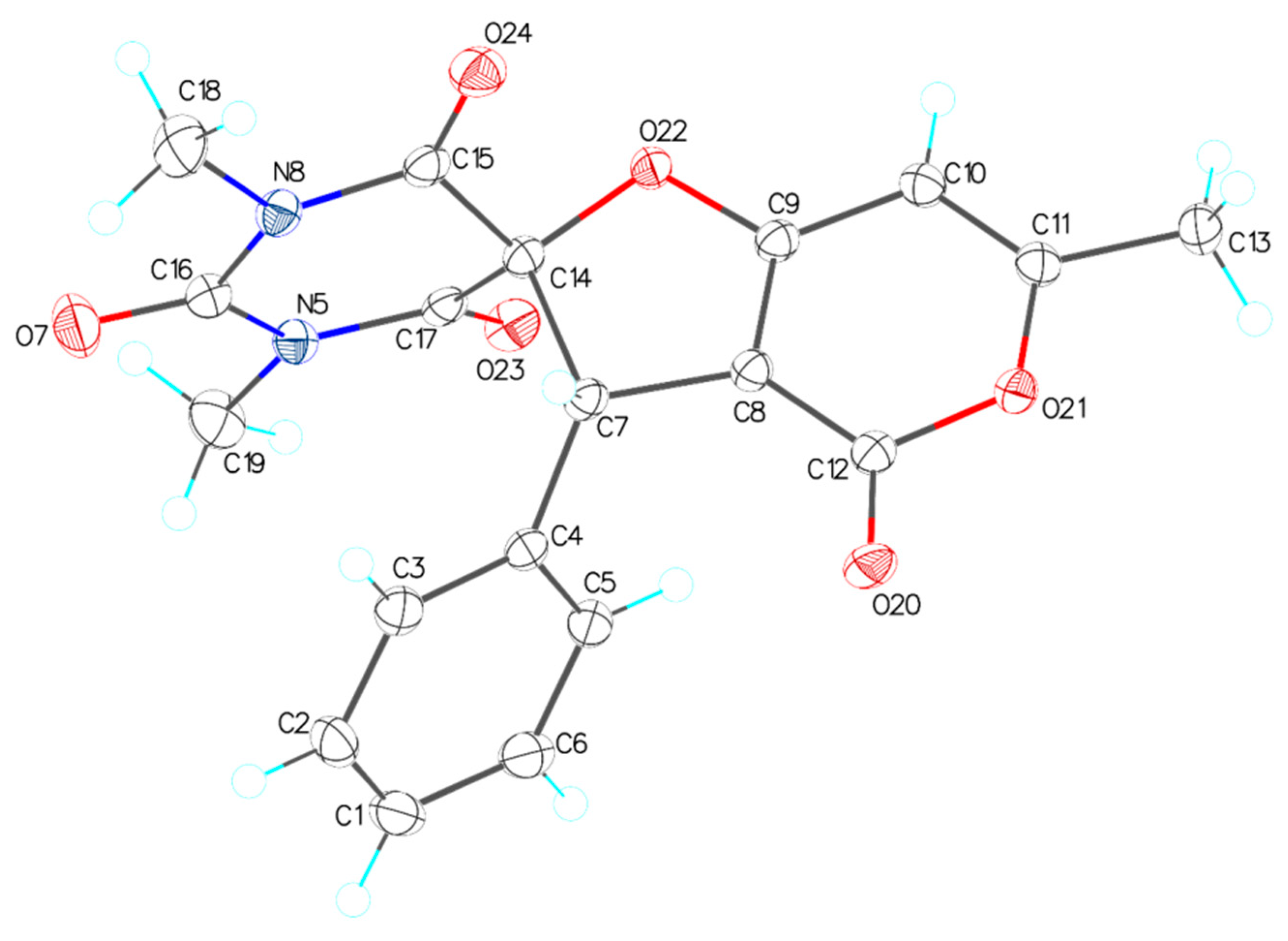

Structure spiro[furo[3,2-b]pyran-2,5′-pyrimidine] 2a was additionally confirmed by an X-ray diffraction study (see Supplementary Materials and Figure 1).

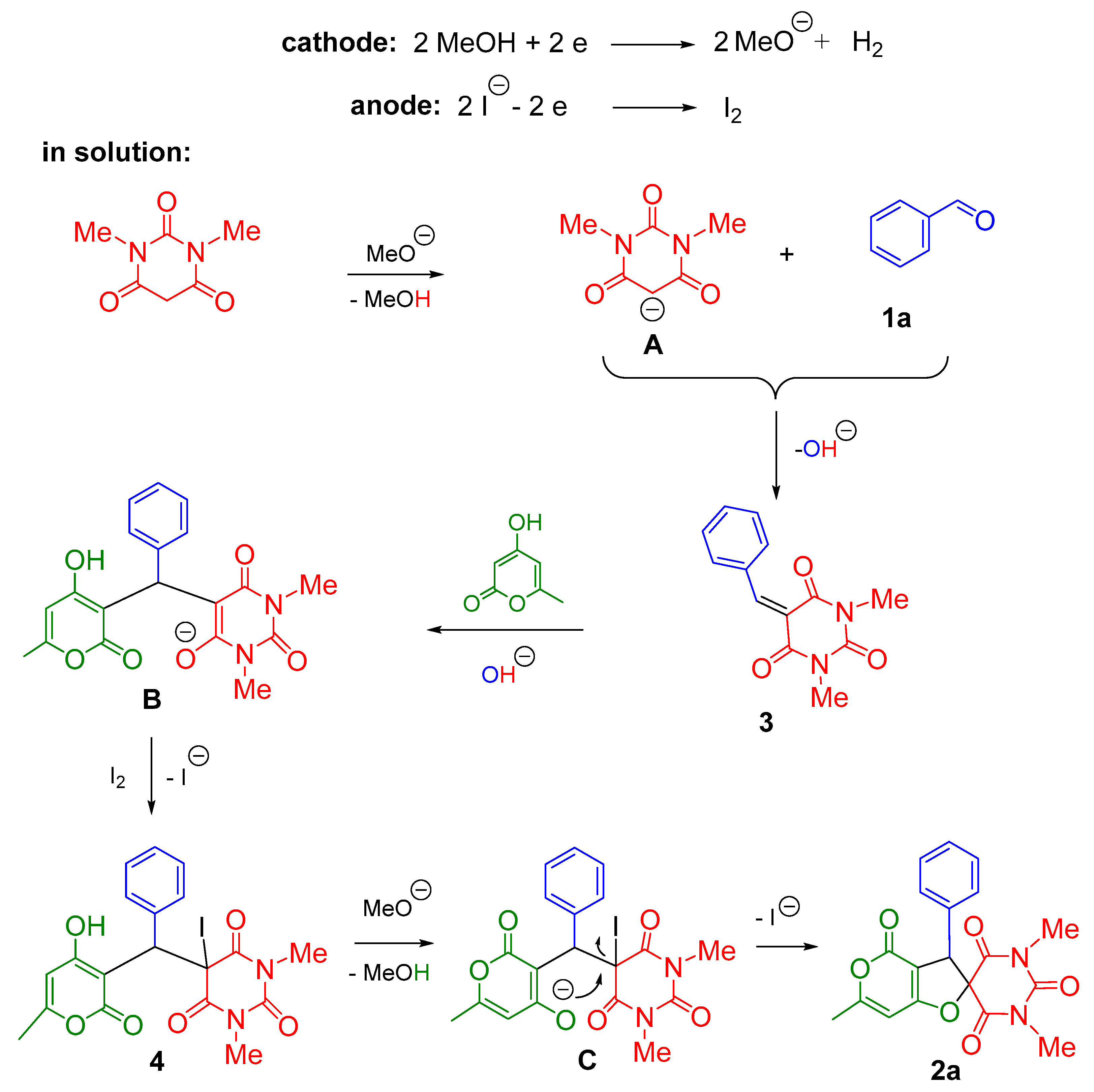

With all above results and taking into consideration the data on electrocatalytic reactions mediated by iodides [56,57,58], the following mechanism for the electrocatalyic multicomponent transformation of benzaldehyde 1a, N,N′-dimethylbarbituric acid and 4-hydroxy-6-methyl-2H-pyran-2-one into unsymmetrical spiro[furo[3,2-b]-pyran-2,5′-pyrimidine] 2a was suggested (Scheme 3).
The formation of hydrogen is the cathodic process. During this process, a methoxide anion is also formed. The generation of iodine is an anodic process and the iodine color was observed at the anode, if the stirring of the reaction mixture is stopped.
Reaction in a solution medium between a methoxide ion and N,N′-dimethylbarbituric acid leads to the anion of N,N′-dimethylbarbituric acid A formation (Scheme 3). Then, Knoevenagel condensation of benzaldehyde 1a with N,N′-dimethylbarbituric acid anion A results in Knoevenagel adduct 3 formation with the elimination of a hydroxide anion. The following hydroxide anion induced Michael addition of 4-hydroxy-6-methyl-2H-pyran-2-one to the electron-deficient Knoevenagel adduct 3 leads to the formation of corresponding anion B. The subsequent iodination of anion B by generated-at-anode iodine, affords 5-iodo-5-[(4-hydroxy-6-methyl-2-oxo-2H-pyran-3-yl)(phenyl)methyl]-1,3-dimethylpyrimidine-2,4,6(1H,3H,5H)-trione 4, which in the next step is cyclized by the action of the second methoxide anion into the unsymmetrical spiro[furo[3,2-b]pyran-2,5′-pyrimidine] 2a with the regeneration of the bromide ion.

3.2. Docking Study

To propose a potential application of synthesized compounds, they were subjected to docking procedure. Then, 169 Entries from rcsb.org were selected for the procedure and synthesized compounds were docked into them. To embrace all the proposed proteins, the docking procedure was performed in automated regime using self-made Python script (see information in Appendix A). Utilization of Python scripts for docking is available in Flare, which was used for this study [59,60,61,62,63].
PDB structures of each target were automatically downloaded from the PDB-bank (rcsb.org). To download all entries, the python script “downloader.py” was used. This script handles each PDB entry from the text file in the same directory, and then downloads the appropriate PDB structure.
The downloaded PDB structures were prepared for the docking procedure. This included capping chains, extracting ligand and removing waters outside the active site (out of range of 6A). To handle that, the python script “proteinprep.py” (available as a Flare extension) was used. The synthesized compounds (ligands) were subjected to a docking procedure into prepared PDB structures. The docking was performed in “Exhaustive” mode. To automate this procedure, the python-script “docking.py” (available Flare as extension) was used.
As long as this routine was demanded for each protein–ligand pair, the whole computation (all 169 PDB-entries) was performed using python script “script.py”. This subprogram sequentially calls commands of protein preparation, extraction of reference ligand, docking of synthesized ligands and outputs the results into separate text files. It utilizes the scripts described above (“proteinprep.py”, “docking.py”). The output from the docking procedure (text files) was converted into an Excel table by another script (“outpt_prep.py”). The result is presented in Table 3. The average energies of protein–ligand interactions were calculated (in Excel file, see archive attached to the article) to define the most prominent target to the whole synthesized class of ligands. The results of the docking procedure are shown in Table 3.
The calculation of docking modes was accomplished for 146 proteins from all 169 proposed entries. The docking procedure was interrupted for 23 proteins because of program termination (the list of proteins for calculation that were not accomplished can be found in the supporting information).
For the proposed proteins, the most favorable interactions were given by para-chloro substituted compound 2d. The average energy of protein–ligand interaction for 2d with proposed proteins is close to −9.7 kcal/mol. According to docking results, carbomethoxy substituted 2f (para-substituent) and 1-naphthyl substituted 2i were slightly less active, the energies of protein–ligand interaction were close to −9.5 and −9.4 kcal/mol on average.
At the same time, among calculated protein–ligand interactions the most favorable result was given by 4iw8 [64], the average interaction energy of substituted compounds with this structure is of −9.2 kcal/mol. There is also 5tlt structure [65] with the average binding energy of −9.0 kcal/mol. Both 4iw8 and 5tlt are proteins, estrogen receptor α subtype, with modulators (removed during the docking procedure). The estrogen receptor α is an effective target in breast cancer therapies [66], It is distributed among reproductive, central nervous, skeletal, and cardiovascular systems and has important actions in the urinary tract, mucous, skin, and eating behavior [67,68,69,70,71,72].
There is also 6kbp structure [73] that has an average interaction energy of −9.1 kcal/mol. It is a modified human D-amino acid oxidase complexed with benzoate (removed during the docking procedure). The enzyme oxidizes D-amino acids, and in particular D-serine, which is connected with the increase in synaptic NMDA receptor activity [74]. Thus, it plays an important role in neurodegenerative diseases [75,76], and schizophrenia is among them [77].
Proteins 2axa, 3vng and 5i6x are presented as examples of structures for which docking did not show good results. The other proteins showed less prominent, but also good results (see supporting information). The calculated energies of protein–ligand interactions are within the range of −4 to −9 kcal/mol.

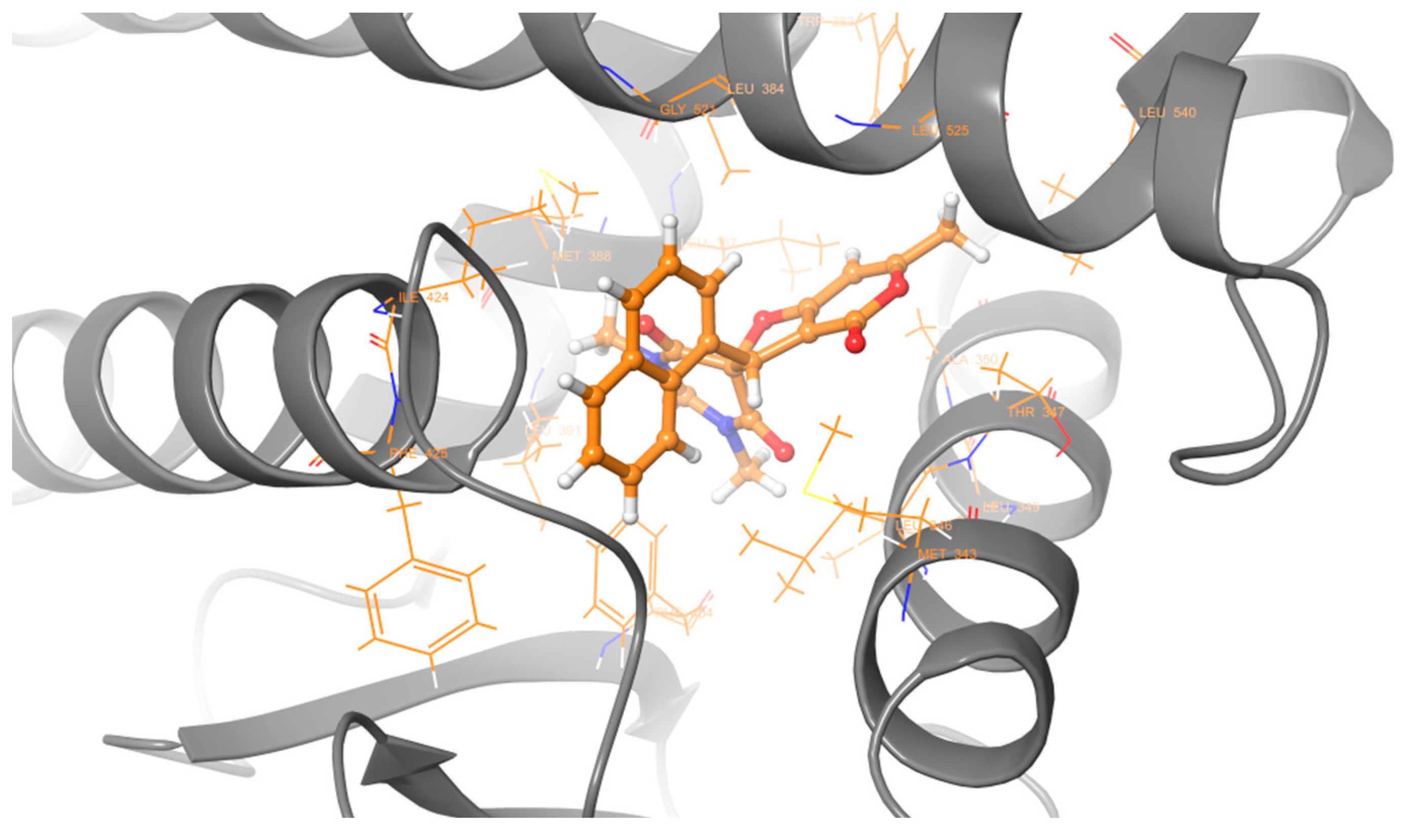

Synthesized compound 2i docked into estrogen receptor (4iw8) is shown in Figure 2.

4. Conclusions

The new electrocatalytic and efficient assembly of arylaldehydes, N,N′-dimethylbarbituric acid and 4-hydroxy-6-methyl-2H-pyran-2-one in methanol with sodium iodide as mediator in the diaphragmless electrolyzer leads to the formation of the novel spiro[furo[3,2-c]pyran-2,5′-pyrimidines] in 73–82% yields.
This earlier unknown electrochemical multicomponent reaction makes it easy to obtain new compounds containing pyrimidine and 2H-pyran-2-one cycles, which are promising substances for various biomedical applications.
This electrocatalytic efficient procedure utilizes simple equipment, an undivided cell, an easily available and cheap mediator—sodium iodide—and it is easily carried out and the isolation procedure is very simple.
The automated method was proposed and performed in automated docking procedure. It is distinct from screening by higher accuracy, and it is much more scalable than a classic docking procedure. As it follows from the results, the energies of interaction of many protein–ligands pairs are quite high. 4iw8, 6kbp and 5tlt are the most favourable targets (among 169 proposed targets) from a thermodynamic point of view. Other targets also showed good results. Thus, all synthesized compounds may be prominent for different medical applications, such as breast cancer, neurodegenerative diseases and treatments connected with urinary tract, bones, the cardiovascular system and others.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/chemistry4020044/s1, 1H and 13C Spectra of synthesized compounds 2a–i (Figures S1–S18), Single-crystal X-ray Diffraction Data for Compound 2a (Figure S19, Tables S1–S6). Citation of ref [78,79].

Author Contributions

Conceptualization, M.P.E.; methodology, M.N.E. and F.V.R.; software, F.V.R.; validation, M.N.E., Y.E.R. and A.N.V.; investigation, K.A.K. and I.E.U.; writing—original draft preparation, M.N.E. and K.A.K.; writing—review and editing, Y.E.R.; visualization, F.V.R.; supervision, M.P.E.; project administration, M.N.E. and Y.E.R.; funding acquisition, M.N.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by RFBR, grant number 19-29-08013.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 2a-i are available from the authors.

Appendix A

An archive with the results of molecular docking, as well as scripts for it in the Python programming language, is attached to the article.
