Chloropentaphenyldisiloxane—Model Study on Intermolecular Interactions in the Crystal Structure of a Monofunctionalized Disiloxane †

Institut für Anorganische Chemie, Fakultät für Chemie und Pharmazie, Universität Regensburg, Universitätsstraße 31, D-93053 Regensburg, Germany
*
Author to whom correspondence should be addressed.
Dedicated to Dr. Howard Flack (1943–2017).
Chemistry 2021, 3(2), 444-453; https://doi.org/10.3390/chemistry3020033
Received: 14 March 2021 / Revised: 24 March 2021 / Accepted: 25 March 2021 / Published: 29 March 2021

Abstract

:
Small functional siloxane units have gained great interest as molecular model systems for mimicking more complex silicate structures both in nature and in materials chemistry. The crystal structure of chloropentaphenyldisiloxane, which was synthesized for the first time, was elucidated by single-crystal X-ray diffraction analysis. The molecular crystal packing was studied in detail using state-of-the-art Hirshfeld surface analysis together with a two-dimensional fingerprint mapping of the intermolecular interactions. It was found that the phenyl C–H bonds act as donors for both weak C–H···π and C–H···Cl hydrogen bond interactions. The influence of intramolecular Si–O–Si bond parameters on the acceptor capability of functional groups in intermolecular hydrogen bond interactions is discussed.

1. Introduction

Siloxanes are known to be quite resistant towards thermal and chemical decomposition [1]. Their structural motif, the Si–O–Si bond, therefore, not only forms the basis for silicate minerals in nature, which are built from both geological [2] and biosilicification processes [3], but also the backbone for technologically important organic–inorganic hybrid polymers (silicones) [4] and for new synthetic silicate materials [5,6]. Studies on small and defined molecular siloxane models can provide very useful information on structure and reactivity of more complex siloxane-based materials and surfaces [7,8,9,10,11,12,13,14,15,16,17]. Silica-based biomimetic model systems [18] have also gained much interest in order to understand natural coral shapes [19] and shell formation of unicellular organisms such as diatoms [20]. We recently reported on monofunctionalized disiloxane units that served as simplified molecular model systems for investigating the reactivity and chemoselectivity in targeted further transformations [15].
The identification of weak intermolecular interactions in molecular crystals is an interesting undertaking with the aim of gaining knowledge about structure-forming forces and making it usable for the targeted formation of functional crystalline networks [21,22]. Siloxanes are of particular interest, since a large number of three-dimensional architectures can be formed through Si–O bond formation [23]. The assembly of several siloxane units to form complex framework structures therefore requires a more detailed study of intermolecular interactions.
As part of our studies on weak intermolecular interactions in molecular crystals [24,25,26], we were now interested in taking a closer look at monofunctionalized disiloxanes with regard to their crystal packing and intermolecular contacts. Disiloxanes as the smallest units of oligo- and polysiloxanes are a fascinating class of substances, ideal for model studies [27]. Unymmetrically substituted crystalline disiloxanes with only one heterofunction are extremely rare [15,28,29,30,31,32,33], but they shed light on the influence of single substituents on the Si–O–Si unit [15]. Chlorosilanes in general are important precursors for the synthesis of other functional silanes [34] and used as silylation reagents for surface modifications [35]. We therefore chose a chlorodisiloxane (2) as an appropriate model system, which is only equipped with aryl groups as additional substituents in order to examine the role of C–H···π and C–H···Cl–Si interactions in the crystalline state more closely by using state-of-the-art analytical methods, Hirshfeld surface analysis [36] along with two-dimensional (2D) fingerprint plots [37]. As already successfully applied in previous work [15,38,39,40], we took advantage of the good crystallization properties that result when compounds are equipped with triphenylsiloxy groups.

2. Experimental Details

2.1. General Remarks

All experiments were performed under an inert atmosphere of purified nitrogen by using standard Schlenk techniques. Glassware was heated at 140 °C prior to use. Dichloromethane, pentane, tetrahydrofuran, and toluene were dried and degassed with an MBraun SP800 solvent purification system. n-Butyllithium (2.5 M solution in hexane, Merck KGaA, Darmstadt, Germany), dichlorodiphenylsilane (98%, Merck KGaA, Darmstadt, Germany), and triphenylsilanol (98%, Merck KGaA, Darmstadt, Germany) were used without further purification. [D6]-Benzene used for NMR spectroscopy was dried over Na/K amalgam. NMR spectra were recorded on a Bruker Avance 300 (300.13 MHz, Bruker Corporation, Billerica, MA, USA) and a Bruker Avance III HD 400 (400.13 MHz) spectrometer at 25 °C. Chemical shifts (δ) are reported in parts per million (ppm). 1H and 13C{1H} NMR spectra are referenced to tetramethylsilane (SiMe4, δ = 0.0 ppm) as external standard, with the deuterium signal of the solvent serving as internal lock and the residual solvent signal as an additional reference. The 29Si NMR spectrum is referenced to SiMe4 (δ = 0.0 ppm) as the external standard. For the assignment of the multiplicities, the following abbreviations were used: s = singlet, m = multiplet. High resolution mass spectrometry was carried out on a Jeol AccuTOF GCX spectrometer. Elemental analysis was performed on a Vario MICRO cube apparatus. The IR spectrum was recorded on a Bruker ALPHA FT-IR spectrometer equipped with a diamond ATR unit. For the intensities of the bands, the following abbreviations were used: s = strong, m = medium, w = weak.

2.2. Synthesis of Ph2SiCl(OSiPh3) (2)

n-Butyllithium (22.0 mL of a 2.5 M solution in hexane, 55.0 mmol, 1.1 equiv.) was added dropwise to a solution of triphenylsilanol (13.82 g, 50.0 mmol, 1.0 equiv.) in tetrahydrofuran (200 mL) at 0 °C. The clear colorless solution was then allowed to slowly warm to room temperature and stirred for 1 h. Then, the reaction mixture was again cooled to 0 °C, dichlorodiphenylsilane (1) (10.5 mL, 50.0 mmol, 1.0 equiv.) was added and the mixture was allowed to warm to room temperature. The reaction mixture was refluxed for 5 h. After cooling down to room temperature, all volatiles were removed in vacuo and the product was extracted in dichloromethane (100 mL). Again, all volatiles were removed in vacuo and the crude solid material was recrystallized from hot toluene (30 mL). The crystals were isolated via filtration and washed with pentane to obtain compound 2 as a white crystalline solid (15.09 g, 30.6 mmol, 61%). 1H NMR (400.13 MHz, C6D6): δ = 7.00–7.15 (m, 15H, HPh), 7.71–7.79 (m, 10H, HPh). 13C{1H} NMR (75.44 MHz, C6D6): δ = 128.3 (s, CPh), 130.5 (s, CPh), 131.1 (s, CPh), 134.2 (s, CPh), 134.7 (s, CPh), 135.0 (s, CPh), 135.7 (s, CPh). 29Si NMR (79.49 MHz, C6D6): δ = −19.6 (m, SiClPh2), −15.7 (m, SiPh3). HRMS (EI+): C30H25ClOSi2 calcd. m/z for [M+] 492.1127; found 492.1119. CHN analysis: C30H25ClOSi2 calcd. C 73.07%, H 5.11%; found C 73.11%, H 4.97%. FT-IR (cm−1): 3070 (w), 3024 (w), 1590 (w), 1486 (w), 1427 (m), 1116 (s, Si–O–Si), 1096 (s), 1026 (m), 997 (m), 711 (s), 696 (s), 540 (s), 507 (s), 491 (s), 475 (s).

2.3. X-Ray Crystallography

Single-crystal X-ray diffraction analysis of chloropentaphenyldisiloxane (2) was performed on a GV50 diffractometer equipped with a TitanS2 CCD detector at 123(2) K using graphite-monochromated Cu-Kβ radiation (λ = 1.39222 Å). Data collection and reduction was performed using the CrysAlisPro software system, version 1.171.40.14a [41]. The crystal structure was solved with SHELXT 2018/2 [42,43] and a full-matrix least-squares refinement based on F2 was carried out with SHELXL-2018/3 [43,44,45] using Olex2 [46] and the SHELX program package as implemented in WinGX [47]. A multi-scan absorption correction using spherical harmonics as implemented in SCALE3 ABSPACK was employed [41]. The non-hydrogen atoms were refined using anisotropic displacement parameters. The hydrogen atoms were located on the difference Fourier map and refined independently. The Hirshfeld surface was mapped over dnorm ranging from −0.0425 to 1.3719 a.u. di and de in the 2D fingerprint diagrams are the distances from the surface to the nearest atom interior and exterior to the surface, respectively, and are each given in the range of 0.4 to 3.0 Å. Details on crystal data and structure refinement are summarized in Table 1 (see also Supplementary Materials). The Hirshfeld surface and 2D fingerprint plots including Figure 1, Figure 2 and Figure 3 and Appendix A Figure A1 were created using CrystalExplorer 17.5 [48].

3. Results and Discussion

According to a synthetic protocol recently published by us [15], chloropentaphenyldisiloxane (2) was easily obtained in 61% isolated yield for the first time after reacting dichlorodiphenylsilane (1) with lithium triphenylsiloxide (Scheme 1). The use of metallated siloxide reagents for the stepwise and controlled building of organopolysiloxane polymers was impressively shown by Muzavarov and Rebrov [49]. Recrystallization from hot toluene afforded single-crystals of disiloxane 2 suitable for single-crystal X-ray diffraction analysis (Table 1, Figure 1, see also Supplementary Materials). The asymmetric unit of the monoclinic crystal system, space group P21/n, contains one molecule of compound 2. The intramolecular bond parameters of the Si–O–Si backbone show a significantly shortened Si2–O bond [1.6012(10) Å], i.e., the bond that contains the silicon atom attached to the chlorine substituent, in comparison to the Si1–O bond [1.6305(10) Å] (Figure 1). It has already been noticed earlier that the Si–O–Si bond angle in chloro-substituted disiloxanes is remarkably larger than in the respective methoxy- and aminodisiloxanes [15]. In compound 2, the Si1–O–Si2 bond angle of 165.08(8)° is even larger than in the previously described [15] chlorodisiloxane MesPhSiCl(OSiPh3) and, together with the short Si2–O bond, may be indicative for a pronounced negative hyperconjugation of the type LP(O)→σ*(Si–R) [50,51]. However, neither the Si2–Cl bond [2.0700(5) Å] nor the Si–C bonds show any appreciable elongation when compared to other aryl-substituted chlorosilanes [52,53,54]. A thorough analysis of the Si–O–Si bonding parameters is not only important for organosiloxanes, but also in the crystal chemistry of minerals and has contributed significantly to a deeper understanding of mineral properties [55].
Figure 2 shows the 2D fingerprint diagrams of intermolecular interactions in the crystal structure of disiloxane 2, all contributions (plot a) and subdivided into the individual contributions between atoms inside and outside the Hirshfeld surfaces (plots b and c). As expected, isotropic H···H contacts (52.9%) make the largest percentage contribution to the intermolecular interactions. The point on the Hirshfeld surface where di = de ≈ 1.2 Å belongs to the shortest intermolecular H···H contact, i.e., H5···H14 (2.455 Å), which is not unusually short for H···H contacts between phenyl groups [25,37,38,56] and almost as long as the shortest intramolecular H···H contact (H2···H8 2.423 Å) (Figure 1 and Figure 2, plot a). Two types of short C–H···π (i.e., H···C) contacts can be found in the crystal structure of compound 2 (Figure 2, plot b). The closest H···C contact amounts to 2.822 Å (di ≈ 1.65 Å, de ≈ 1.15 Å), is represented by the spikes, and contains a C–H bond directed towards a single carbon atom (C15–H15···C22) (Figure 3). The other of these shortest C–H···π contacts, located at di ≈ 1.8 Å and de ≈ 1.1 Å, within the only faintly indicated but typical wing at the lower right of the C···H/H···C contact plot points almost directly to the center of a phenyl ring and can be identified as the C21–H21···π(Ph) interaction with the π-bonded acceptor group containing the carbon atoms C13 to C18 (shortest contact: H21···C18 2.901 Å) (Table 2 and Figure 3).
The designation of a C–H···π contact as a hydrogen bond [57,58] applies at least to the most acidic C–H donors such as alkynyl C≡C–H groups [59,60]. C–H···π(Ph) interactions, even with weak C(sp2)–H or even C(sp3)–H donors, generally still have important structure-determining and directing abilities, although they are borderline cases at the weak end of the hydrogen bond classification [26,59]. It was impressively shown by Nishio et al. [61] that C–H···π interactions can play a crucial role in molecular recognition, for the formation of inclusion compounds, and in controlling specificities in organic reactions. Furthermore, due to their weak but still orienting character, they should also play an important role in the dynamic formation of supramolecular structures of biopolymers during the processes in living cells. Recently, the importance of anisotropic C–H···π interactions in the crystal structure formation of arylmethoxysilanes has also been pointed out [26].
There are no intermolecular C–H···O contacts to be found, which, on the one hand, can be explained by the difficult steric accessibility of the effectively shielded siloxane oxygen atom as a consequence of the large Si–O–Si angle of 165.08(8)°. On the other hand, this might also have an electronic reason, as recently pointed out by theoretical investigations on the hydrogen bond interaction energy as a function of the Si–O–Si angle [51]. In this picture, the decreased accessibility of oxygen lone electron pairs due to increased negative hyperconjugation may be the reason for the low basicity of the Si–O–Si linkage in compound 2. This could be interesting with regard to a siloxane—functional group cooperation and lead to the design of precisely defined functional units in which intramolecular Si–O–Si-specific bond parameters can influence the acceptor capabilities of functional groups or vice versa.
The fingerprint plot for the Cl···H/H···Cl contacts shows distinct spikes that closely resemble that of typical hydrogen bonding pattern (Figure 2, plot c) [26,37]. In the meanwhile, the existence of C–H···Cl hydrogen bonds has been well documented and evidenced [62,63,64,65]. The H···Cl contact in disiloxane 2 is represented by the spike where di ≈ 1.7 Å and de ≈ 1.1 Å (actually found in the crystal structure: 2.913 Å) and belongs to the C9–H9···Cl–Si2 hydrogen bond (C9···Cl 3.669 Å, C9–H9···Cl 140.61°) (Figure 3). It is in the range of the sum of the van der Waals radii for hydrogen (1.2 Å) and chlorine (1.75 Å) [66] and is quite the same as found for H···Cl contacts in chloroform at around 2.95 Å [37]. Since the H9···Cl distance is also in the typical range for chloro-substituted hydrocarbons [63], we therefore anticipate an essentially anisotropic contribution of the C–H···Cl–Si hydrogen bond with a directional influence on the crystal packing. The essential directing structure-forming interactions that were identified from the Hirshfeld surface analysis are also clearly reflected in the crystal packing of disiloxane 2 (Figure A1).
For comparison: In MesPhSiCl(OSiPh3) [15], the C···H/H···C and Cl···H/H···Cl contacts with 29.8% and 6.4%, respectively, contribute less to the intermolecular interactions. Although, the directionality of these contacts seems to be less pronounced in MesPhSiCl(OSiPh3), the mesityl CH3 groups can also participate in intermolecular interactions.

4. Conclusions

Monofunctional disiloxanes are scarce, but helpful model systems in order to provide information on substituent effects on the Si–O–Si structural motif and on the packing in the molecular crystalline state. The present investigation on intermolecular interactions in the crystal structure of a chlorodisiloxane (2) was carried out using Hirshfeld surface analysis and 2D fingerprint plots. Two major types of anisotropic short C–H···π contacts and a C–H···Cl–Si hydrogen bond-like interaction were identified to have the strongest directional influence on the packing within the molecular crystal. Although the siloxane unit does not appear to have a pronounced effect on the chlorine substituent in this molecule, it seems worthwhile to address the influence of the siloxane motif on the acceptor capabilities of functional groups directly connected to the Si–O–Si unit in future investigations. The information on intermolecular interactions provided herein may be of particular interest with regard to the design of supramolecular functional polysiloxane architectures.

Supplementary Materials

CCDC-2068445 (compound 2) contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre, CCDC, 12 Union Road, Cambridge CB21EZ, UK (Fax: + 44-1223-336-033; E-mail: [email protected]; https://www.ccdc.cam.ac.uk/structures/).

Author Contributions

Conceptualization, J.O.B.; methodology, J.O.B. and T.G.; validation, J.O.B. and T.G.; formal analysis, J.O.B.; investigation, J.O.B. and T.G.; resources, J.O.B.; data curation, J.O.B. and T.G.; writing—original draft preparation, J.O.B.; writing—review and editing, J.O.B. and T.G.; visualization, J.O.B.; supervision, J.O.B.; project administration, J.O.B.; funding acquisition, J.O.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Regensburg, the Elite Network of Bavaria (ENB), and the Bavarian State Ministry of Science and the Arts (StMWK), grant number N-LW-NW-2016-366.

Data Availability Statement

The data presented in this study are available in Supplementary Materials.

Acknowledgments

The authors would like to thank Manfred Scheer and Jörg Heilmann for continuous support and providing laboratory facilities.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

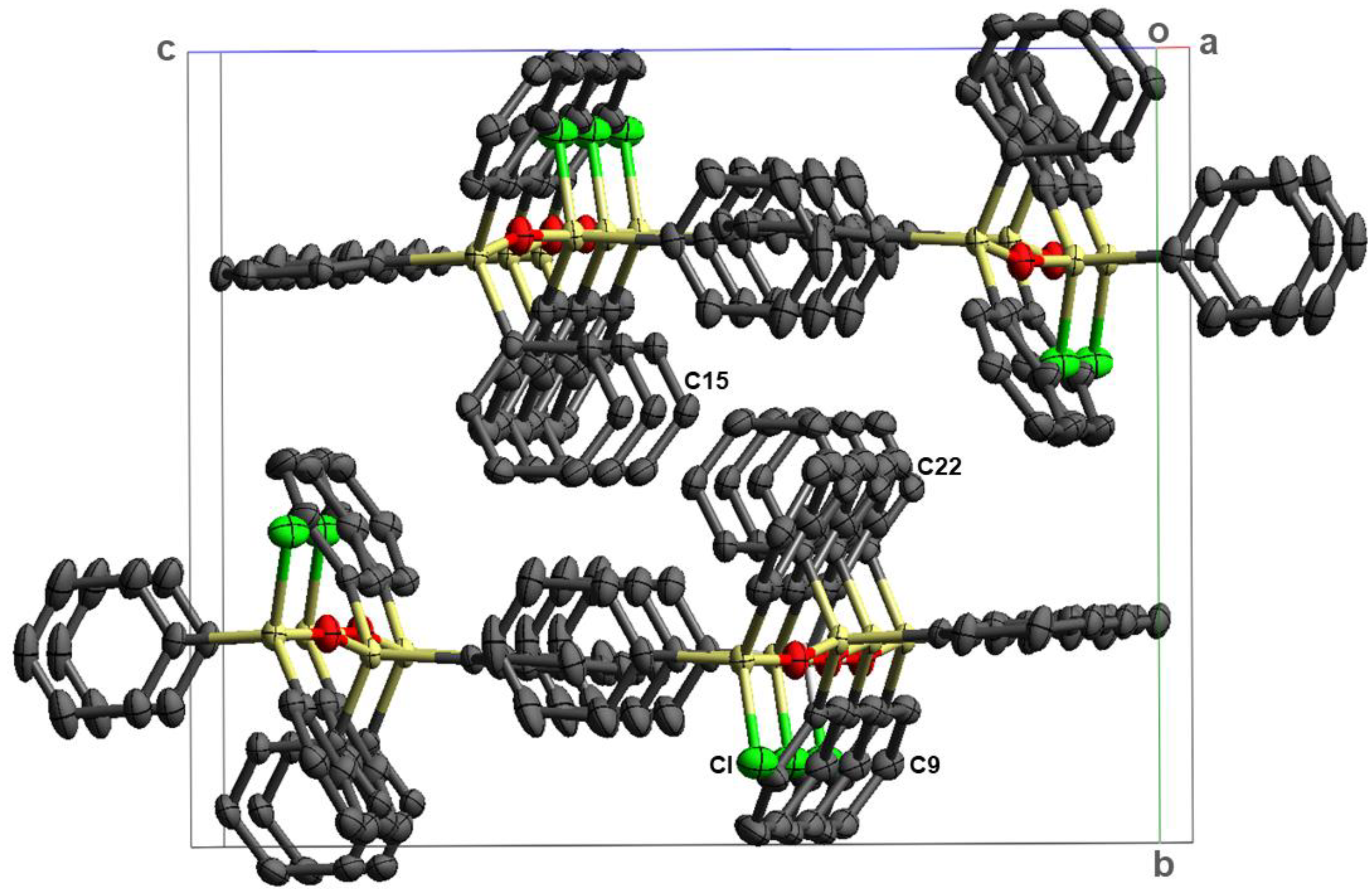

Figure A1. Crystal packing of chloropentaphenyldisiloxane (2) along the a axis. Hydrogen atoms are omitted for clarity.
Figure A1. Crystal packing of chloropentaphenyldisiloxane (2) along the a axis. Hydrogen atoms are omitted for clarity.
Chemistry 03 00033 g0a1

References

  1. Liebau, F. Structural Chemistry of Silicates: Structure, Bonding, and Classification; Springer: Berlin/Heidelberg, Germany, 1985. [Google Scholar]
  2. Swaddle, T.W.; Salerno, J.; Tregloan, P.A. Aqueous aluminates, silicates, and aluminosilicates. Chem. Soc. Rev. 1994, 23, 319–325. [Google Scholar] [CrossRef]
  3. Perry, C.C.; Keeling-Tucker, T. Biosilicification: The role of the organic matrix in structure control. J. Biol. Inorg. Chem. 2000, 5, 537–550. [Google Scholar] [CrossRef]
  4. Ganachaud, S.; Boileau, S.; Boury, B. Silicon Based Polymers: Advances in Synthesis and Supramolecular Organization; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
  5. Schubert, U.; Hüsing, N. Synthesis of Inorganic Materials, 4th ed.; Wiley-VCH: Weinheim, Germany, 2019. [Google Scholar]
  6. Höppe, H.A.; Stadler, F.; Oeckler, O.; Schnick, W. Ca[Si2O2N2]—A Novel Layer Silicate. Angew. Chem. Int. Ed. 2004, 43, 5540–5542. [Google Scholar] [CrossRef] [PubMed]
  7. Däschlein, C.; Bauer, J.O.; Strohmann, C. From the Selective Cleavage of the Si–O–Si Bond in Disiloxanes to Zwitterionic, Water-Stable Zinc Silanolates. Angew. Chem. Int. Ed. 2009, 48, 8074–8077. [Google Scholar] [CrossRef]
  8. Spirk, S.; Nieger, M.; Belaj, F.; Pietschnig, R. Formation and hydrogen bonding of a novel POSS-trisilanol. Dalton Trans. 2008, 163–167. [Google Scholar] [CrossRef]
  9. Hurkes, N.; Bruhn, C.; Belaj, F.; Pietschnig, R. Silanetriols as Powerful Starting Materials for Selective Condensation to Bulky POSS Cages. Organometallics 2014, 33, 7299–7306. [Google Scholar] [CrossRef]
  10. Čas, D.; Hurkes, N.; Spirk, S.; Belaj, F.; Bruhn, C.; Rechberger, G.N.; Pietschnig, R. Dimer formation upon deprotonation: Synthesis and structure of a m-terphenyl substituted (R,S)-dilithium disiloxanolate disilanol. Dalton Trans. 2015, 44, 12818–12823. [Google Scholar] [CrossRef][Green Version]
  11. Oguri, N.; Egawa, Y.; Takeda, N.; Unno, M. Janus-Cube Octasilsesquioxane: Facile Synthesis and Structure Elucidation. Angew. Chem. Int. Ed. 2016, 55, 9336–9339. [Google Scholar] [CrossRef] [PubMed]
  12. Lokare, K.S.; Frank, N.; Braun-Cula, B.; Goikoetxea, I.; Sauer, J.; Limberg, C. Trapping Aluminum Hydroxide Clusters with Trisilanols during Speciation in Aluminum(III)–Water Systems: Reproducible, Large Scale Access to Molecular Aluminate Models. Angew. Chem. Int. Ed. 2016, 55, 12325–12329. [Google Scholar] [CrossRef]
  13. Bauer, J.O.; Strohmann, C. Synthesis and molecular structure of a zwitterionic ZnI2 silanolate. Inorg. Chim. Acta 2018, 469, 133–135. [Google Scholar] [CrossRef]
  14. Lokare, K.S.; Braun-Cula, B.; Limberg, C.; Jorewitz, M.; Kelly, J.T.; Asmis, K.R.; Leach, S.; Baldauf, C.; Goikoetxea, I.; Sauer, J. Structure and Reactivity of Al−O(H)−Al Moieties in Siloxide Frameworks: Solution and Gas-Phase Model Studies. Angew. Chem. Int. Ed. 2019, 58, 902–906. [Google Scholar] [CrossRef]
  15. Espinosa-Jalapa, N.A.; Bauer, J.O. Controlled Synthesis and Molecular Structures of Methoxy-, Amino-, and Chloro-Functionalized Disiloxane Building Blocks. Z. Anorg. Allg. Chem. 2020, 646, 828–834. [Google Scholar] [CrossRef][Green Version]
  16. Weitkamp, R.F.; Neumann, B.; Stammler, H.; Hoge, B. Synthesis and Reactivity of the First Isolated Hydrogen-Bridged Silanol–Silanolate Anions. Angew. Chem. Int. Ed. 2020, 59, 5494–5499. [Google Scholar] [CrossRef] [PubMed]
  17. Weitkamp, R.F.; Neumann, B.; Stammler, H.-G.; Hoge, B. The Influence of Weakly Coordinating Cations on the O–H···O Hydrogen Bond of Silanol–Silanolate Anions. Chem. Eur. J. 2021, 27, 915–920. [Google Scholar] [CrossRef] [PubMed]
  18. Tacke, R. Milestones in the Biochemistry of Silicon: From Basic Research to Biotechnological Applications. Angew. Chem. Int. Ed. 1999, 38, 3015–3018. [Google Scholar] [CrossRef]
  19. Voinescu, A.E.; Kellermeier, M.; Bartel, B.; Carnerup, A.M.; Larsson, A.-K.; Touraud, D.; Kunz, W.; Kienle, L.; Pfitzner, A.; Hyde, S.T. Inorganic Self-Organized Silica Aragonite Biomorphic Composites. Cryst. Growth Des. 2008, 8, 1515–1521. [Google Scholar] [CrossRef]
  20. Volkmer, D.; Tugulu, S.; Fricke, M.; Nielsen, T. Morphosynthesis of Star-Shaped Titania–Silica Shells. Angew. Chem. Int. Ed. 2003, 42, 58–61. [Google Scholar] [CrossRef][Green Version]
  21. Desiraju, G.R. Supramolecular Synthons in Crystal Engineering—A New Organic Synthesis. Angew. Chem. Int. Ed. Engl. 1995, 34, 2311–2327. [Google Scholar] [CrossRef]
  22. Desiraju, G.R. Hydrogen Bridges in Crystal Engineering: Interactions without Borders. Acc. Chem. Res. 2002, 35, 565–573. [Google Scholar] [CrossRef]
  23. Thompson, D.B.; Brook, M.A. Rapid Assembly of Complex 3D Siloxane Architectures. J. Am. Chem. Soc. 2008, 130, 32–33. [Google Scholar] [CrossRef]
  24. Bauer, J.O. The crystal structure of the triclinic polymorph of hexameric (trimethylsilyl)methyllithium, C24H66Li6Si6. Z. Kristallogr. NCS 2020, 235, 353–356. [Google Scholar] [CrossRef]
  25. Bauer, J.O. The crystal structure of the first ether solvate of hexaphenyldistannane [(Ph3Sn)2 · 2 THF]. Main Group Met. Chem. 2020, 43, 1–6. [Google Scholar] [CrossRef][Green Version]
  26. Bauer, J.O. Crystal Structure and Hirshfeld Surface Analysis of Trimethoxy(1-naphthyl)silane—Intermolecular Interactions in a One-Component Single-Crystalline Trimethoxysilane. Z. Anorg. Allg. Chem. 2021, 647, 1053–1057. [Google Scholar] [CrossRef]
  27. Pietschnig, R.; Merz, K. Selective Formation of Functionalized Disiloxanes from Terphenylfluorosilanes. Organometallics 2004, 23, 1373–1377. [Google Scholar] [CrossRef]
  28. Wojnowski, W.; Becker, B.; Peters, K.; Peters, E.-M.; von Schnering, H.G. Beiträge zur Chemie der Silicium-Schwefel-Verbindungen. 53. Die Struktur des 1,3-Dimethyl-1,1,3,3-Tetraphenyldisilthians. Z. Anorg. Allg. Chem. 1988, 563, 48–52. [Google Scholar] [CrossRef]
  29. Coelho, A.C.; Amarante, T.R.; Klinowski, J.; Gonçalves, I.S.; Almeida Paz, F.A. 1-Hydroxy-1,1,3,3,3-pentaphenyldisiloxane, [Si2O(OH)(Ph)5], at 100 K. Acta Crystallogr. Sect. E 2008, 64, o237–o238. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Amarante, T.R.; Coelho, A.C.; Klinowski, J.; Gonçalves, I.S.; Almeida Paz, F.A. 1-Hydroxy-1,1,3,3,3-pentaphenyldisiloxane, [Si2O(OH)(Ph)5], at 150 K. Acta Crystallogr. Sect. E 2008, 64, o239. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Bauer, J.O.; Strohmann, C. One-step conversion of methoxysilanes to aminosilanes: A convenient synthetic strategy to N,O-functionalised organosilanes. Chem. Commun. 2012, 48, 7212–7214. [Google Scholar] [CrossRef]
  32. Bauer, J.O.; Strohmann, C. Stereoselective Synthesis of Silicon-Stereogenic Aminomethoxysilanes: Easy Access to Highly Enantiomerically Enriched Siloxanes. Angew. Chem. Int. Ed. 2013, 53, 720–724. [Google Scholar] [CrossRef]
  33. Woińska, M.; Grabowsky, S.; Dominiak, P.M.; Woźniak, K.; Jayatilaka, D. Hydrogen atoms can be located accurately and precisely by x-ray crystallography. Sci. Adv. 2016, 2, e1600192. [Google Scholar] [CrossRef][Green Version]
  34. Wakabayashi, R.; Sugiura, Y.; Shibue, T.; Kuroda, K. Practical Conversion of Chlorosilanes into Alkoxysilanes without Generating HCl. Angew. Chem. Int. Ed. 2011, 50, 10708–10711. [Google Scholar] [CrossRef]
  35. Deschner, T.; Liang, Y.; Anwander, R. Silylation Efficiency of Chorosilanes, Alkoxysilanes, and Monosilazanes on Periodic Mesoporous Silica. J. Phys. Chem. C 2010, 114, 22603–22609. [Google Scholar] [CrossRef]
  36. Spackman, M.A.; Jayatilaka, D. Hirshfeld surface analysis. CrystEngComm 2009, 11, 19–32. [Google Scholar] [CrossRef]
  37. Spackman, M.A.; McKinnon, J.J. Fingerprinting intermolecular interactions in molecular crystals. CrystEngComm 2002, 4, 378–392. [Google Scholar] [CrossRef]
  38. Bauer, J.O.; Strohmann, C. tert-Butoxytriphenylsilane. Acta Crystallogr. Sect. E 2010, 66, o461–o462. [Google Scholar] [CrossRef]
  39. Bauer, J.O.; Strohmann, C. Hydrogen bonding principles in inclusion compounds of triphenylsilanol and pyrrolidine: Synthesis and structural features of [(Ph3SiOH)4·HN(CH2)4] and [Ph3SiOH·HN(CH2)4·CH3CO2H]. J. Organomet. Chem. 2015, 797, 52–56. [Google Scholar] [CrossRef]
  40. Lokare, K.S.; Wittwer, P.; Braun-Cula, B.; Frank, N.; Hoof, S.; Braun, T.; Limberg, C. Mimicking Base Interaction with Acidic Sites [Si–O(H)–Al] of Zeolites in Molecular Models. Z. Anorg. Allg. Chem. 2017, 643, 1581–1588. [Google Scholar] [CrossRef][Green Version]
  41. Rigaku Oxford Diffraction. CrysAlisPro Software System; Rigaku Corporation: Oxford, UK, 2018. [Google Scholar]
  42. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef][Green Version]
  43. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef]
  45. Sheldrick, G.M. SHELXL-2018; Universität Göttingen: Göttingen, Germany, 2018. [Google Scholar]
  46. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  47. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  48. Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Spackman, P.R.; Jayatilaka, D.; Spackman, M.A. CrystalExplorer17; University of Western Australia: Perth, Australia, 2017. [Google Scholar]
  49. Muzafarov, A.M.; Rebrov, E.A. From the Discovery of Sodiumoxyorganoalkoxysilanes to the Organosilicon Dendrimers and Back. J. Polym. Sci. Part A: Polym. Chem. 2008, 46, 4935–4948. [Google Scholar] [CrossRef]
  50. Weinhold, F.; West, R. Hyperconjugative Interactions in Permethylated Siloxanes and Ethers: The Nature of the SiO Bond. J. Am. Chem. Soc. 2013, 135, 5762–5767. [Google Scholar] [CrossRef]
  51. Fugel, M.; Hesse, M.F.; Pal, R.; Beckmann, J.; Jayatilaka, D.; Turner, M.J.; Karton, A.; Bultinck, P.; Chandler, G.S.; Grabowsky, S. Covalency and Ionicity Do Not Oppose Each Other—Relationship Between Si–O Bond Character and Basicity of Siloxanes. Chem. Eur. J. 2018, 24, 15275–15286. [Google Scholar] [CrossRef] [PubMed]
  52. Liew, S.K.; Al-Rafia, S.M.I.; Goettel, J.T.; Lummis, P.A.; McDonald, S.M.; Miedema, L.J.; Ferguson, M.J.; McDonald, R.; Rivard, E. Expanding the Steric Coverage Offered by Bis(amidosilyl) Chelates: Isolation of Low-Coordinate N-Heterocyclic Germylene Complexes. Inorg. Chem. 2012, 51, 5471–5480. [Google Scholar] [CrossRef] [PubMed]
  53. Reuter, K.; Maas, R.G.M.; Reuter, A.; Kilgenstein, F.; Asfaha, Y.; von Hänisch, C. Synthesis of heteroatomic bridged paracyclophanes. Dalton Trans. 2017, 46, 4530–4541. [Google Scholar] [CrossRef]
  54. Marin-Luna, M.; Pölloth, B.; Zott, F.; Zipse, H. Size-dependent rate acceleration in the silylation of secondary alcohols: The bigger the faster. Chem. Sci. 2018, 9, 6509–6515. [Google Scholar] [CrossRef][Green Version]
  55. Gibbs, G.V.; Downs, R.T.; Cox, D.F.; Ross, N.L.; Prewitt, C.T.; Rosso, K.M.; Lippmann, T.; Kirfel, A. Bonded interactions and the crystal chemistry of minerals: A review. Z. Kristallogr. 2008, 223, 1–40. [Google Scholar] [CrossRef]
  56. Brendler, E.; Heine, T.; Seichter, W.; Wagler, J.; Witter, R. 29Si NMR Shielding Tensors in Triphenylsilanes—29Si Solid State NMR Experiments and DFT-IGLO Calculations. Z. Anorg. Allg. Chem. 2012, 638, 935–944. [Google Scholar] [CrossRef]
  57. Arunan, E.; Desiraju, G.R.; Klein, R.A.; Sadlej, J.; Scheiner, S.; Alkorta, I.; Clary, D.C.; Crabtree, R.H.; Dannenberg, J.J.; Hobza, P.; et al. Defining the hydrogen bond: An account (IUPAC Technical Report). Pure Appl. Chem. 2011, 83, 1619–1636. [Google Scholar] [CrossRef]
  58. Arunan, E.; Desiraju, G.R.; Klein, R.A.; Sadlej, J.; Scheiner, S.; Alkorta, I.; Clary, D.C.; Crabtree, R.H.; Dannenberg, J.J.; Hobza, P.; et al. Definition of the hydrogen bond (IUPAC Recommendations 2011). Pure Appl. Chem. 2011, 83, 1637–1641. [Google Scholar] [CrossRef]
  59. Steiner, T. The Hydrogen Bond in the Solid State. Angew. Chem. Int. Ed. 2002, 41, 48–76. [Google Scholar] [CrossRef]
  60. Steiner, T.; Starikov, E.B.; Amado, A.M.; Teixeira-Dias, J.J.C. Weak hydrogen bonding. Part 2. The hydrogen bonding nature of short C–H⋯π contacts: Crystallographic, spectroscopic and quantum mechanical studies of some terminal alkynes. J. Chem. Soc. Perkin Trans. 2 1995, 1321–1326. [Google Scholar] [CrossRef]
  61. Nishio, M.; Umezawa, Y.; Hirota, M.; Takeuchi, Y. The CH/π Interaction: Significance in Molecular Recognition. Tetrahedron 1995, 51, 8665–8701. [Google Scholar] [CrossRef]
  62. Taylor, R.; Kennard, O. Crystallographic Evidence for the Existence of C–H···O, C–H···N, and C–H···Cl Hydrogen Bonds. J. Am. Chem. Soc. 1982, 104, 5063–5070. [Google Scholar] [CrossRef]
  63. Desiraju, G.R.; Parthasarathy, R. The Nature of Halogen···Halogen Interactions: Are Short Halogen Contacts Due to Specific Attractive Forces or Due to Close Packing of Nonspherical Atoms? J. Am. Chem. Soc. 1989, 111, 8725–8726. [Google Scholar] [CrossRef]
  64. Aakeröy, C.B.; Evans, T.A.; Seddon, K.R.; Pálinkó, I. The C–H···Cl hydrogen bond: Does it exist? New J. Chem. 1999, 23, 145–152. [Google Scholar] [CrossRef][Green Version]
  65. Liu, M.; Yin, C.; Chen, P.; Zhang, M.; Parkin, S.; Zhou, P.; Li, T.; Yu, F.; Long, S. sp2CH⋯Cl hydrogen bond in the conformational polymorphism of 4-chloro-phenylanthranilic acid. CrystEngComm 2017, 19, 4345–4354. [Google Scholar] [CrossRef]
  66. Bondi, A. van der Waals Volumes and Radii. J. Phys. Chem. 1964, 68, 441–451. [Google Scholar] [CrossRef]

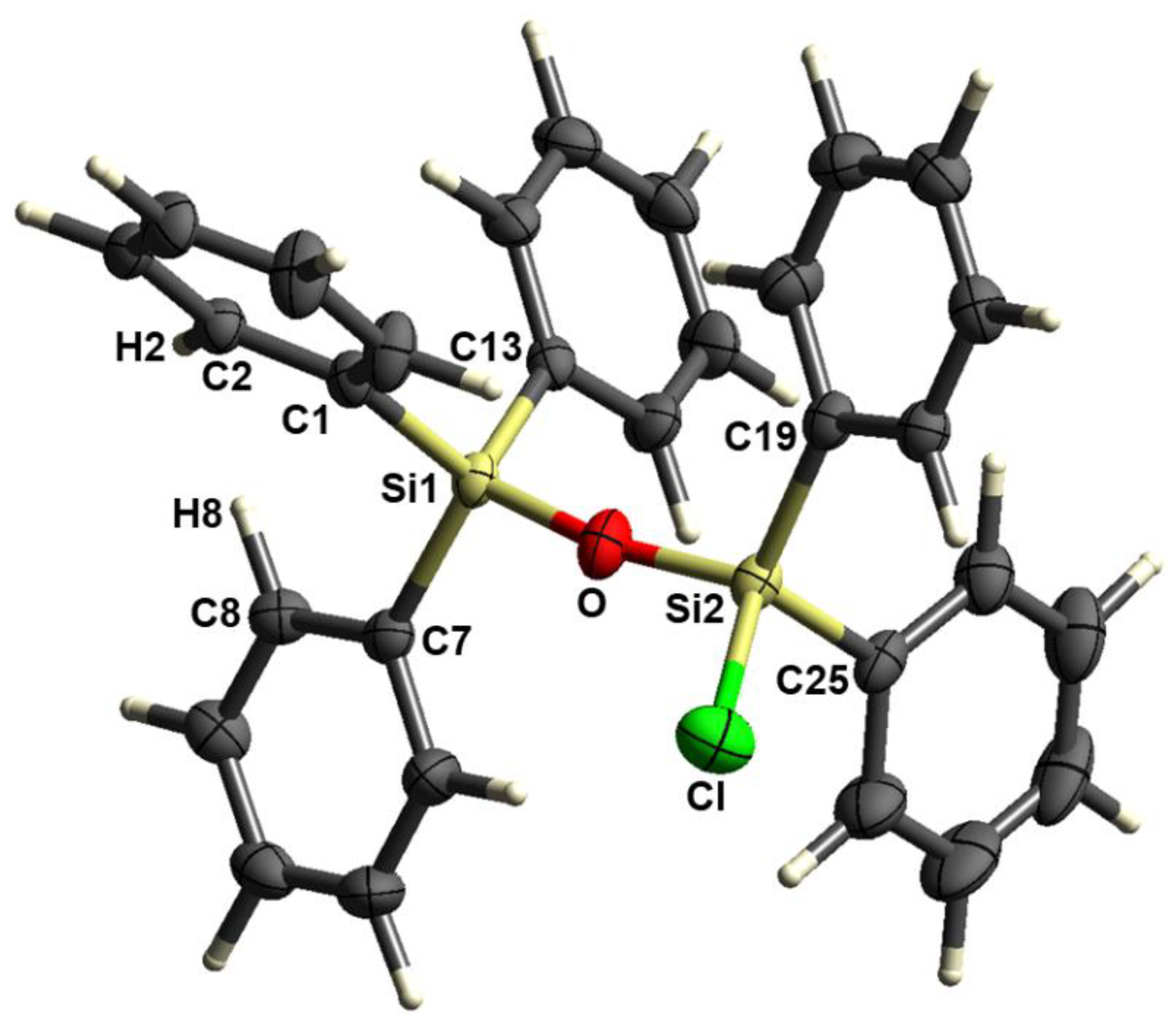

Figure 1. Molecular structure of chloropentaphenyldisiloxane (2) (displacement ellipsoids set at the 50% probability level). Selected bond lengths (Å) and angles (°): Si1–C1 1.8649(12), Si1–C7 1.8636(13), Si1–C13 1.8595(13), Si2–C19 1.8543(14), Si2–C25 1.8516(13), Si2–Cl 2.0700(5), Si1–O 1.6305(10), Si2–O 1.6012(10), Si1–O–Si2 165.08(8), O–Si2–C19 109.26(6), O–Si2–C25 111.83(6), O–Si2–Cl 105.62(4). Shortest intramolecular H···H contact: H2···H8 2.423 Å.
Figure 1. Molecular structure of chloropentaphenyldisiloxane (2) (displacement ellipsoids set at the 50% probability level). Selected bond lengths (Å) and angles (°): Si1–C1 1.8649(12), Si1–C7 1.8636(13), Si1–C13 1.8595(13), Si2–C19 1.8543(14), Si2–C25 1.8516(13), Si2–Cl 2.0700(5), Si1–O 1.6305(10), Si2–O 1.6012(10), Si1–O–Si2 165.08(8), O–Si2–C19 109.26(6), O–Si2–C25 111.83(6), O–Si2–Cl 105.62(4). Shortest intramolecular H···H contact: H2···H8 2.423 Å.
Chemistry 03 00033 g001

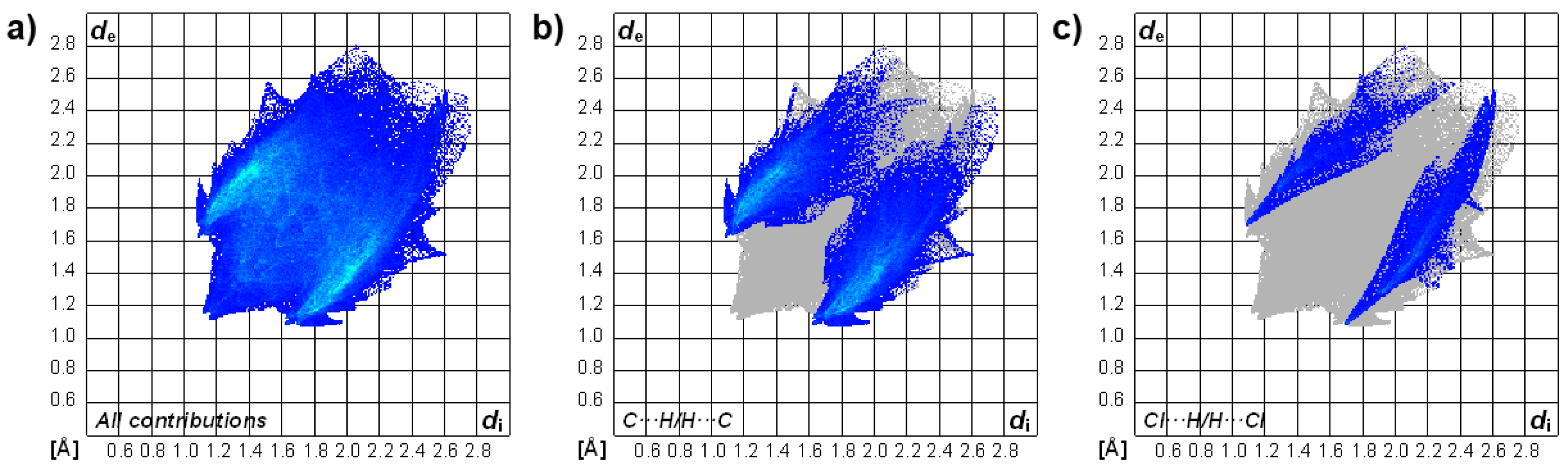

Figure 2. 2D fingerprint plots of chloropentaphenyldisiloxane (2) showing (a) all contributions of intermolecular contacts, (b) C···H/H···C (37.9%), and (c) Cl···H/H···Cl (8.9%) contacts.
Figure 2. 2D fingerprint plots of chloropentaphenyldisiloxane (2) showing (a) all contributions of intermolecular contacts, (b) C···H/H···C (37.9%), and (c) Cl···H/H···Cl (8.9%) contacts.
Chemistry 03 00033 g002

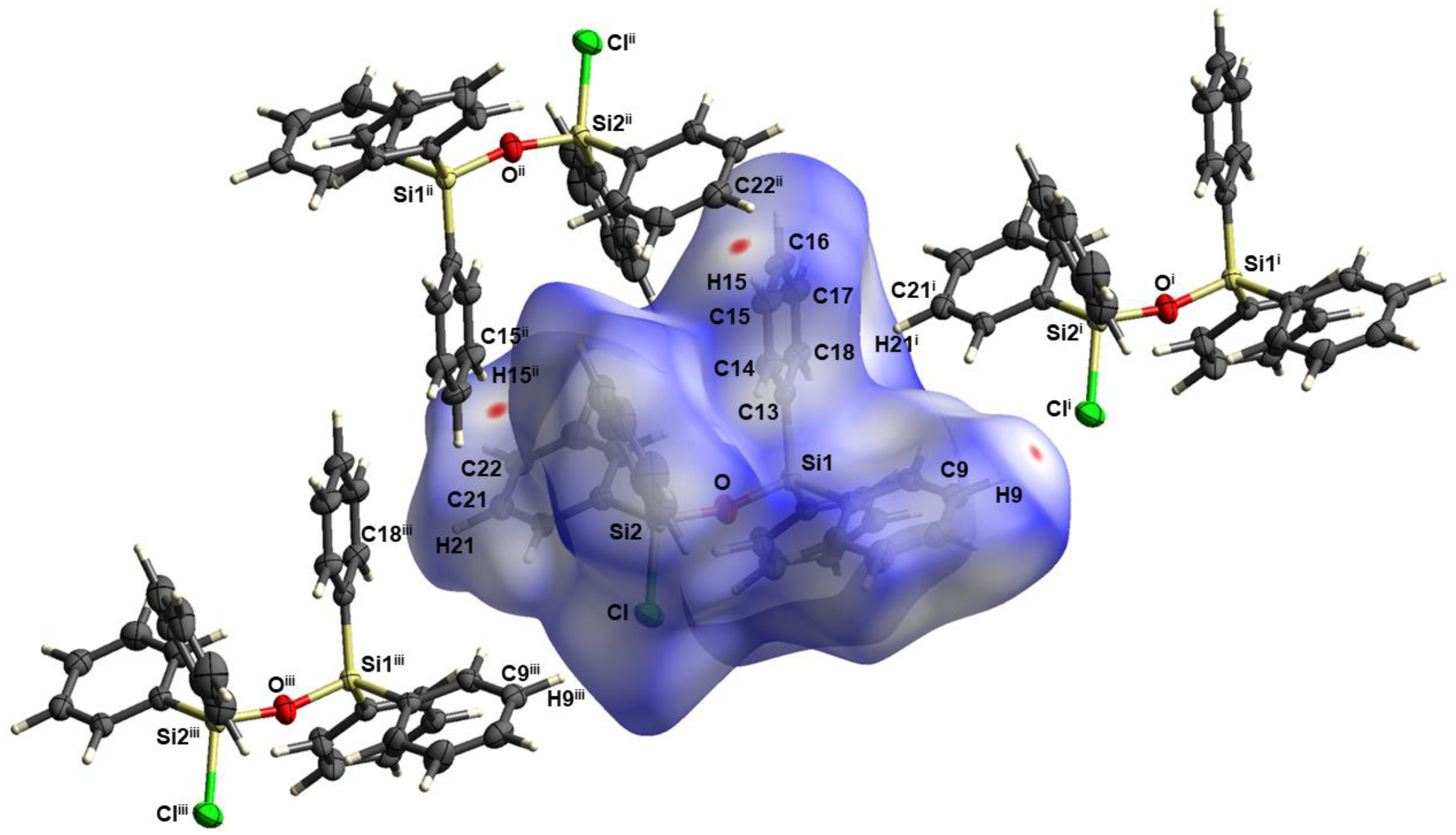

Figure 3. Hirshfeld surface analysis of chloropentaphenyldisiloxane (2) highlighting C–H···Cl and C–H···π hydrogen bonds (displacement ellipsoids set at the 50% probability level). Distances (Å) and angle (°) of the C9–H9···Cl contact: C9–H9 0.917, H9···Cl 2.913, C9···Cl 3.669, C9–H9···Cl 140.61. Distances (Å) and angle (°) of the C15–H15···C22 contact: C15–H15 0.973, H15···C22 2.822, C15···C22 3.748, C15–H15···C22 159.46. Symmetry transformations used to generate equivalent atoms: (i) –1 + x, y, z; (ii) 1–x, 1–y, 1–z; (iii) 1 + x, y, z.
Figure 3. Hirshfeld surface analysis of chloropentaphenyldisiloxane (2) highlighting C–H···Cl and C–H···π hydrogen bonds (displacement ellipsoids set at the 50% probability level). Distances (Å) and angle (°) of the C9–H9···Cl contact: C9–H9 0.917, H9···Cl 2.913, C9···Cl 3.669, C9–H9···Cl 140.61. Distances (Å) and angle (°) of the C15–H15···C22 contact: C15–H15 0.973, H15···C22 2.822, C15···C22 3.748, C15–H15···C22 159.46. Symmetry transformations used to generate equivalent atoms: (i) –1 + x, y, z; (ii) 1–x, 1–y, 1–z; (iii) 1 + x, y, z.
Chemistry 03 00033 g003

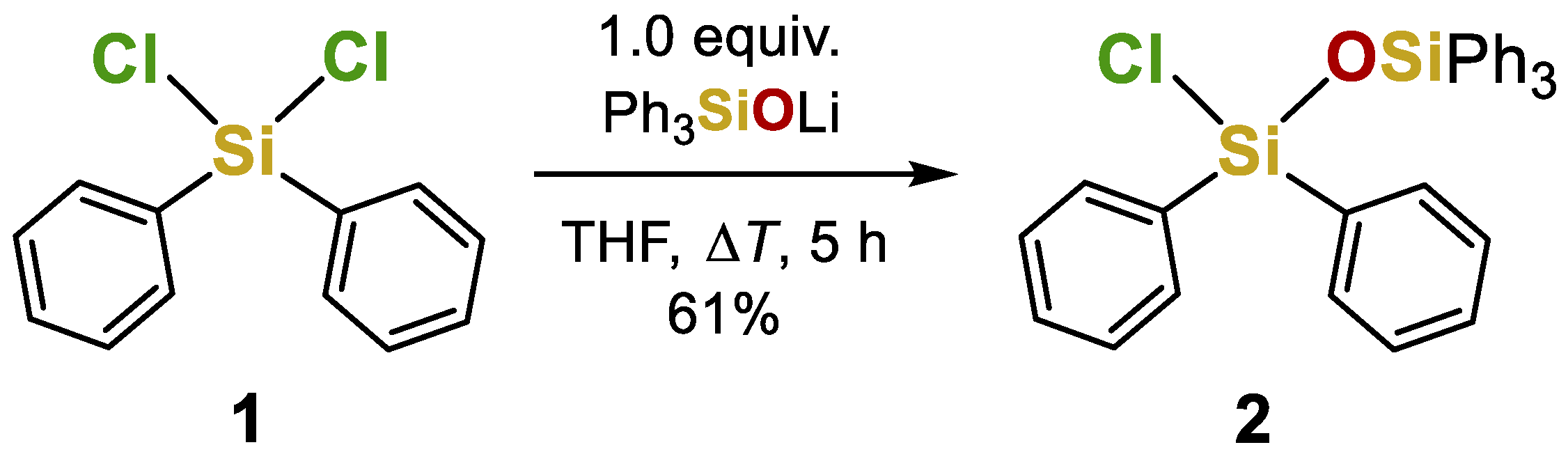

Scheme 1. Synthesis of chloropentaphenyldisiloxane (2).
Scheme 1. Synthesis of chloropentaphenyldisiloxane (2).
Chemistry 03 00033 sch001
Table 1. Crystal data and structure refinement of chloropentaphenyldisiloxane (2).
Table 1. Crystal data and structure refinement of chloropentaphenyldisiloxane (2).
Empirical formulaC30H25ClOSi2
Formula weight [g·mol−1]493.13
Crystal systemMonoclinic
Space groupP21/n
a [Å]10.6741(2)
b [Å]14.2858(2)
c [Å]17.5012(3)
α [°]90
β [°]99.597(2)
γ [°]90
Volume [Å3]2631.37(8)
Z4
Density (calculated) ρ [g·cm−3]1.245
Absorption coefficient μ [mm−1]1.690
F(000)1032
Crystal size [mm3]0.161 × 0.100 × 0.084
Theta range for data collection θ [°]3.627–69.661
Index ranges−12 ≤ h ≤ 14
−18 ≤ k ≤ 19
−22 ≤ l ≤ 23
Reflections collected22059
Independent reflections6570 (Rint = 0.0209)
Completeness to θ = 56.650°99.9%
Max. and min. transmission1.000 and 0.795
Data/restraints/parameters6570/0/407
Goodness-of-fit on F21.045
Final R indices [I > 2σ(I)]R1 = 0.0347, wR2 = 0.0954
R indices (all data)R1 = 0.0397, wR2 = 0.0994
Largest diff. peak and hole [e·Å−3]0.393 and −0.548
Table 2. H21···C distances of the almost centered C21–H21···π(Ph) contact in compound 2.
Table 2. H21···C distances of the almost centered C21–H21···π(Ph) contact in compound 2.
ContactDistance (Å)
H21···C132.997
H21···C143.083
H21···C153.093
H21···C163.001
H21···C172.908
H21···C182.901
