Article

Towards a Modern and Sustainable Sediment Management Plan in Mountain Catchment

by
Alessio Cislaghi
1,2,*,
Emanuele Morlotti
1,
Vito Giuseppe Sacchetti
3,
Dario Bellingeri
3 and
Gian Battista Bischetti
1,2
1
Department of Agricultural and Environmental Sciences (DiSAA), University of Milan, Via Celoria 2, 20133 Milan, Italy
2
Centre of Applied Studies for the Sustainable Management and Protection of Mountain Areas (Ge.S.Di.Mont), University of Milan, Via Morino 8, Edolo, 25048 Brescia, Italy
3
Earth Observation Center—Environmental Protection Agency of Lombardy (ARPA), 20124 Milan, Italy
*
Author to whom correspondence should be addressed.
GeoHazards 2024, 5(4), 1125-1151; https://doi.org/10.3390/geohazards5040053
Submission received: 22 August 2024 / Revised: 13 October 2024 / Accepted: 16 October 2024 / Published: 17 October 2024

Abstract

:
Sediment management is fundamental for managing mountain watercourses and their upslope catchment. A multidisciplinary approach—not limited to the discipline of hydraulics—is necessary for investigating the alterations in sediment transport along the watercourse by detecting those reaches dominated by erosion and deposition processes, by quantifying the sediment volume change, by assessing the functionality of the existing torrent control structures, and by delimitating the riparian vegetation patches. To pursue these goals, specific continuous monitoring is essential, despite being extremely rare in mountain catchments. The present study proposed an integrated approach to determine the hydro-morphological–sedimentological–ecological state of a mountain watercourse though field- and desk-based analyses. Such an integral approach includes a rainfall–runoff model, a morphological change analysis and the application of empirical formulations for estimating peak discharge, mobilizable sediment/large wood volume and watercourse hydraulic capacity, at reach and catchment scales. The procedure was tested on the Upper Adda River catchment (North Italy). The results identified where and with what priority maintenance and monitoring activities must be carried out, considering sediment regime, torrent control structures and vegetation. This study is an example of how it is possible to enhance all existing information through successive qualitative and quantitative approximations and to concentrate new resources (human and economic) on specific gaps, for drafting a scientifically robust and practical sediment management plan.

1. Introduction

Sediments represent the most important element in the dynamics of mountain streams. They determine all the physical processes associated with their mobility, and influence water level, channel evolution, habitat changes and landscape value [1]. Moreover, mountain catchments are the first landscape elements that are facing an epochal challenge. In particular, the European Alpine space is a vulnerable ecosystem that is extremely exposed to climate change, due to the climate amplification of the dynamics of high-altitude snow cover, albedo, and heat budget [2]. Measuring from the late 19th century onward, the average temperature over the Alps has risen approximately 2 °C between 1880 and 2010, two times more than the global warning [3,4]. This rate of warming is affecting seasonal weather patterns, glacier retreat, permafrost thawing, and snow cover persistence, leading to an acceleration in the sedimentological and hydrological regime changes in mountains ecosystems [5]. At high altitudes, sources of sediments increase the production of huge amounts of materials, exacerbated by the increase in intense rainfall frequency [6], by the past excessive artificial modification of the watercourse [7], and by the abandonment of the territory (i.e., the daily monitoring and maintenance of the mountain catchment) [8]. The consequences, in practice, can vary significantly, from the streambed incision involving streambanks’ failure and a straightening watercourse [9,10,11], to the streambed aggradation that increases the flood hazard for the surrounding areas [12]. Despite this evidence, quantifying the sediment flux (especially the bedload rate) is extremely complex and depends on the intrinsic local features of the mountain catchments [13,14,15,16,17].
For this reason, sediment management (SM)—which represents one of the human strategies for conserving, preserving, and restoring the river environment, and for undertaking countermeasures to mitigate the flood risk—remains an arduous challenge. SM attracts more stakeholders, such as (i) regional and local authorities that control waterways, torrent control structures, the mining of materials, fisheries, etc.; (ii) researchers that investigate the torrent dynamics over the time; (iii) sediment miners that legally exploit the economy of the sediment as building materials; (iv) the policy makers that must regulate and comply with regulations of supranational organizations; and (v) the citizens that who live or own private properties in proximity of the watercourse. Despite or precisely because of this, SM is generally fragmented [18] and is rarely based upon scientific knowledge [19]. In this context, SM must be an essential human activity focused on controlling the entire sediment cycle at catchment scale and not only a unit of sediment at a time, and must integrate various different goals to be more shared and maintainable as possible [20]. Thus, a different approach is desirable and must begin from drafting a modern and sustainable sediment management plan (SMP), incorporating knowledge (past and present), scientific advances (prediction), multidisciplinary actions, and the ability to propose different scenarios of intervention at catchment scale. In addition, SMP avoids the error of focusing on the hydraulic aspect, favoring the construction of transverse and longitudinal torrent control structures and the massive extraction of sediment from the streambed [20,21], worsening the morphological quality [22]. Thus, the present study aims to propose a generalizable procedure for identifying and prioritizing ordinary and extraordinary maintenance interventions through the scientific investigation of the elements constituting the watercourse (sediment, vegetation, streamflow and existing torrent control structures) and through leveraging the set of information and analyses already present in the databases of local, regional, and national authorities. Such an approach would have the advantage of reducing the time of the technical decision-making process, allocating funds to address specific deficiencies in the diagnostic framework, conducting additional monitoring activities, and/or increasing the necessary interventions.

2. Materials and Methods

2.1. Case Study

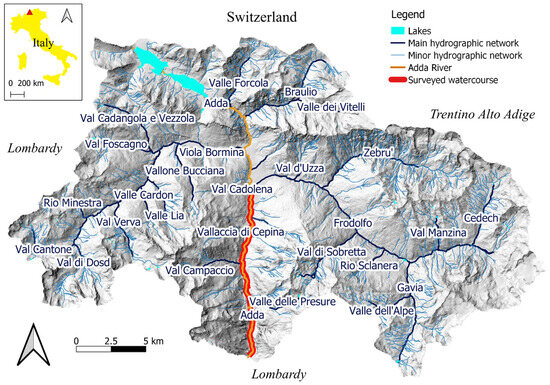

The case study is approximately 12 km of the Adda River (Figure 1) flowing north to south, from the municipality of Bormio to the village of Le Prese in Sondalo, located in the Upper Valtellina (Lombardy, North Italy). The enclosing perimeter of the surveyed watercourse encompasses a catchment of about 563 km2 with a range of altitude from 946 to 3829 m asl. The catchment area is predominantly covered by periglacial landforms (41%) with scarce presence of vegetation, forests (22%) and pasture (13%), while urbanized areas (1%) are concentrated along the main watercourse. The forests are mainly conifers, detailed as follows: Norway spruce (34%) and European larch (40%) are the dominant species, whereas mountain pine (17%) is the secondary species. The glaciers and perennial snowpack covered approximately 21.6 km2, concentrated in the Forni glacier in the western part. The lithology of the study area is homogeneous, with Leptosols and Podzols over the hillslopes, and Cambisols along the valley bottom.
Concerning the watercourse, the Adda River shows a torrential regime that exacerbates the flood and debris flood events. To mitigate the potential damages caused by these hydro-sedimentological processes, flood protections were built along the watercourse, including longitudinal structures to reinforce the streambank and raise the levees, and a transverse torrent control structure to reduce the longitudinal streambed slope and, as a consequence, the sediment transport. In addition, the local authorities ordered emergency interventions to reduce the streambed aggradation of the watercourse, and listed them in a specific dataset including information on location, date, extracted/removed sediment volume, costs, etc. The case study was extensively investigated from several points of view using many technical maps at the following detailed scales: geological map (1:10,000), soil map (1:50,000), land use map (1:10,000), forestry map (1:10,000), an inventory of landslide events (date, polygon, etc.), and a time series of Digital Elevation Models (DEMs) surveyed in 2008, 2014, and 2022.

2.2. Hydro–Geo-Morphological, Sedimentological and Ecological Integrated Analysis

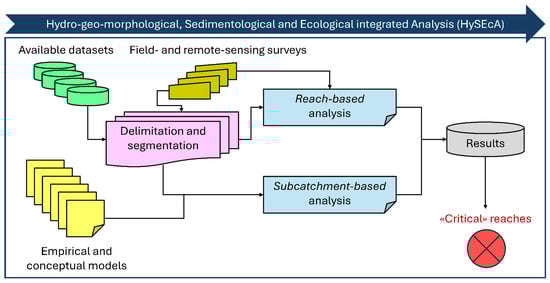

Hydro–geo-morphological, sedimentological and ecological integrated analysis (HySEcA, hereafter) is the proposed methodology for providing an overall characterization of the watercourse and its catchment, based on the assessment of the hydrological and sedimentological processes occurring on the hillslopes and along the river network. HySEcA is subdivided into the following three phases (Figure 2): (i) the segmentation of river network and the delineation of the tributaries and subcatchments, (ii) the completion of the available data through specific activities of field campaign, and (iii) the application of qualitative and quantitative approaches to estimate the watercourse dynamics and the magnitude of ordinary and extreme events that can potentially occur, associated with the sediment transport into the river network.

2.2.1. Delimitation of Reaches and Subcatchments

The delimitation of reaches is based on an expert judgment on the fluvial dynamics that lead to the adjustments of the channel form, and follows the procedure of the Morphological Quality Index proposed by Rinaldi et al. (2013, 2015) [23,24]. The first phase consisted of subdividing the watercourse into relatively homogeneous reaches, delimited by boundary conditions. Key factors commonly investigated to identify the homogeneous spatial units include the absence of significant changes in valley setting and in channel slope, as well as the lack of substantial flow and sediment loads. Alternatively, all the confluences with the tributaries and the sudden changes in geological and geomorphological characteristics of the watercourse can be detected as boundaries of homogeneous reaches. More details are given in Brierley and Fryirs (2013) [25]. The delimitation in subcatchments is a part of the terrain analysis in Geographical Information System (GIS) research [26,27] and is obtained by an accurate mapping of the river network and the alluvial fans. The river network is a fundamental element of the mountain landscape that can significantly improve the quality of hydrological and sedimentological modeling [28], because its characteristics affect sediment storage, sediment connectivity, sediment flux, and flow velocities [29,30]. The river network starts in source cells called channel heads, which is the upstream-most point of concentrated water flow and sediment transport between definable streambanks [31], with a longitudinally continuous channel downstream. The identification of the channel heads can be carried out (i) directly in the field (excessively time-consuming), (ii) through a geostatistical-based terrain analysis, and (iii) with remote sensing-derived approach [32,33,34]. From a geomorphological point of view, the river network begins where a threshold of the drainage area (As in m2) is exceeded. In the present study, As was calculated for all the cell of DEM according to the longitudinal streambed slope [35,36,37] and within the range between 500 and 4000 m2 [38], as follows:
A s x = A 0 · s x α
where s (in m m−1) is the slope of the generic cell (x), whereas A0 (in m2) and α (-) are constant values. In the present study, they were set to 1000 m2 and 2, respectively.
On the other hand, alluvial fans could be recognized as conspicuous sediment deposits transported by upstream tributaries from a mountainous drainage basin [39]. Typically, they assume a semi-conical shape with a fan apex, located at the change in slope from the mountain catchment to a contiguous valley or alluvial plain. These points were considered as the outlet of the subcatchment [40,41]. Both the procedures include a topographical analysis on the DEM using a set of topographic and hydrological functions, implemented into the library TopoToolbox for the software MATLAB (R2023b) [42].

2.2.2. Data Collection

The second phase consisted of filling or updating the database integrating with (i) high-resolution DEM derived by Structure-from-Motion (SfM) techniques processing Unmanned Aerial System (UAS) images or Light Detection and Ranging (LiDAR) point clouds; (ii) the in-channel grain size distribution; and (iii) the identification and classification of vegetation communities in riparian zone.

2.2.3. Subcatchment-Based Analysis

The subcatchment-based analysis is part of the third phase of HySEcA, aiming to assess the magnitude of peak discharge, and the sediment/large wood volume mobilized by surface erosion and debris flow, associated with ordinary or extreme events.

Design Peak Discharge

The peak runoff in ungauged subcatchment areas was established through a rainfall–runoff model [43,44]. This quantitative analysis includes the prediction of an effective hyetograph and of the flood hydrograph, and is composed by several steps.
  • Calculating of the total precipitation (P in mm) using the Intensity–Duration–Frequency (IDF) curves provided by the Environmental Protection Agency of Lombardy (ARPA; https://idro.arpalombardia.it/). A common approach to express IDF curves for the high-altitude areas where the contribution of snowpack melting is significant [45,46] is as a power law:
P d r , R P = a 1 · w 1 · d r n
where a 1 , w 1 and n (-) are the parameters of the power law estimated locally, RP is the return period (in years), and d r is the precipitation duration (in hours). The parameter w 1 (-) represents the generalized extreme value (GEV) with the following formula:
w 1 = ε + α κ · 1 ln R P R P 1 κ
where ε , α and κ (-) are the parameters of GEV distribution. Seven different return periods were considered (i.e., 2, 10, 30, 50, 100, 200, 500 years).
  • Calculating the rainfall excess (Q in mm) using the Soil Conservation Service Curve Number (SCS-CN) method [47,48,49]. SCS-CN is based on the water balance equation and calculated the direct runoff (in mm) as follows:
Q = P λ · S 2 P λ · S + S   ,   P > λ · S
where S is the potential maximum retention or infiltration (in mm), and λ (-) is the initial abstraction coefficient. In this case, λ assumes an original value of 0.2; however, some studies verified that for small catchments, its value is considerably lower [50,51]. In this case, λ was set equal to 0.1.
S = 25.4 · 1000 C N 10
where C N (-) is a dimensionless number ranging from 0 to 100. The C N parameter was estimated over the overall subcatchment according to several features such as hydrologic soil group, land cover type, hydrologic condition, and antecedent runoff condition [52,53,54], as reported in Supplementary Materials A.
  • Designing the effective hyetograph through the distribution of the rainfall excess, i.e., the effective precipitation depth is temporally spatially distributed using Huff’s hyetograph shape [55].
  • Designing the flood hydrograph (i.e., the rainfall excess was transformed into surface runoff until the outlet cross-section) and modeling the hydrological propagation within the catchment. This step consisted of the application of WFIUH-1par, a combined approach between the instantaneous unit hydrograph (IUH) concept and the width function (WF) [56]. This model predicted the travel time distribution using a single parameter, i.e., the flow velocity, over the time (t) as follows:
W F I U H t = l c x v c x + l h x v h x
where l c and l h (in m) are the channel and hillslope flow path for the generic cell ( x ) among the raster of catchment, and v c and v h (in m s−1) are the channel and hillslope flow velocities in the single cell x . The channel velocity is empirically estimated according to the catchment area ( A in km2) [57,58,59,60,61], as follows:
v c x = 0.33 · A x 0.12
Conversely, the hillslope velocities were defined using spatially distributed empirical formulas based on hillslope inclination and land use information extrapolated from digital topographic data, as follows:
v h x = k u · s x 0.5
where k u (-) is a coefficient related to soil use [62,63]. The resulting velocities were restricted within the 0.02–2 m s−1 range to avoid unrealistic values, as suggested by Grimaldi et al. (2010) [64]. The values of k u parameter according to land cover are available in the Supplementary Materials B.

Sediment and Large Wood Mobilizable Budget

The assessment of sediment volume mobilized by debris flows is generally obtained using empirical formulations [65,66,67,68,69]. Among the wide spectrum of experience, a recent statistical analysis was conducted on a 537 debris flow event which occurred in the Italian Northeastern Alps and developed a linear regression between A and debris flow volumes ( G s in m3) [70], as follows:
G s 50 % = 2620 ± 60 · A 0.67 ± 0.02
G s 99 % = 77000 ± 7000 · A 1.01 ± 0.06
Equation (9) provides the magnitude of an ordinary event, whereas Equation (10) represents an envelope curve that predicted very large volumes up to approximately 10 Mm3 for the largest drainage areas, often responsible for severe damage.
The estimation of average annual sediment volume produced by surface erosion processes ( G in m3 year−1) was obtained by a modified version of an Erosion Potential Model (EPM), originally developed by Gavrilović (1959) [71], and modified by Milanesi et al. (2016) [72] for the Alpine region. The model is based on the relationship between G and several factors describing the main features of the catchments as follows:
G = T · h · π · Z 1.5 · A · B
where T (-) is the temperature coefficient, h (in mm) is the mean annual cumulative rainfall, π (-) is the mathematical constant equal to 3.14, Z (-) represents the potential erosivity coefficient, whereas B (-) is the percentage of sediments that reaches the outlet. The parameter T is defined as follows:
T = t m 10 + 0.1 0.5
where t m is the mean annual temperature (in °C). In a cold climate, this value is calculated only for the sediment yield period excluding the winter [72].
The parameter Z is defined as
Z = X · Y · ϕ + S b 0.5
where X (-) describes the protection against the erosion processes given by the land cover, Y (-) is the soil resistance against the surface runoff, ϕ (-) indicates the intensity of the active erosion processes, and S b is the mean slope of the catchment (in m m−1). The values of the parameters X , Y and ϕ are reported in Supplementary Materials C.
The parameter B is defined as
B = min 4 · O · D 0.5 L c + 10 ;   L · O · D 0.5 L c + 10 · A
where O (in km) is the perimeter of the catchment, D (in km) is the mean geodetic relief, L c (in km) is the linear dimension of the catchment along the main channel, and L (in km) is the longest hydrological path.
Furthermore, the estimation of the potential maximum large wood volume, recruited during an extreme event, was provided by an envelope curve based on dataset collected in Switzerland, France and Italy [73]. The formula is
V L W = 1170 · A 0.4
where V L W (in m3) represents the specific large wood volume (solid, no pores) transported during a flood.

Sediment Connectivity Analysis

Quantifying the mobilizable sediment is only a relative part of the complex process that also includes sediment redistribution and movement [74]. Thus, it is necessary to introduce the concept of sediment connectivity, which is the degree of linkage controlling sediment fluxes throughout the landscape, describing the physical transfer from a source to a sink [75,76,77,78,79]. An indicator useful to estimate this catchment predisposition is the index of connectivity ( I C ), developed by Borselli et al. (2008) [80] and further adjusted by Cavalli et al. (2013) [81]. I C (-) is the logarithm of the ratio between an upslope and a downslope component expressing the potential for the downward routing of the sediment-produced upslope and the sediment flux path length to the nearest sink along a flow line, respectively, for each grid cell (x) of a catchment, expressed as follows:
I C x = log 10 W ¯ x · s ¯ x · a x i d x W x · s x
where x is the generic cell of the raster, a (in m2) is the upslope area, d (in m) is the length of the steepest flow line between the grid cell (x) and the target area, s (in m m−1) is the slope of the steepest flow in the grid cell (x) and W (-) is the weighting factor computed from the standard deviation of the residual topography, i.e., the difference between the point elevation and the mean average taken on a moving square window of a side measuring 5 pixels. Note that W ¯ and s ¯ are the average weighting factor for the average slope gradient of the upslope contributing area with respect to the generic cell (x).

2.2.4. Reach-Based Analysis

The reach-based analysis included (i) the measurements of volumetric variations within the streambed through the calculation of the Difference of DEMs over time (DoDs), (ii) the assessment of functionality/performance of the existing transverse torrent control structures, and (iii) the detection and classification of riparian vegetation patches.

Sediment Volume Change

The main output of the reach-based analysis was the sediment volume change along the watercourse. The sediment volume change was obtained by summing the time series of DoDs. The DEMs were collected into a dataset including details on survey accuracy, sampling strategy, topographic roughness, and interpolation procedure that can strongly influence the measurement errors [82,83,84,85]. Using such data, DoDs were calculated though different procedures [86,87,88]. The first and simplest approach (M.0) was the calculation of DoD by subtracting raw successive DEMs without correction. The second procedure (M.1) consisted of summing the raw volumetric change exclusively upon a critical threshold error U c (in mm), also called Level of Detection, which was fixed equal to the 84th percentile of grain size distribution d 84 (in mm). The last alternative methodology (M.2) expressed the critical threshold as follows:
U c = δ · S D E 1 + S D E 2
where S D E (in mm2) is the standard deviation of the errors (differences) between the elevation of the Ground Control Points (GCPs) and those of the reconstructed DEM, whereas the subscripts (1 and 2) indicate the two successive raw DEMs. The parameter δ (-) represents the critical t-distribution values at the selected confidence level, under the assumption that the errors follow a normal distribution. In the present case, the confidence limit was 95% and the δ 1.96 [89]. To apply the procedure M1, a campaign of granulometric surveys was conducted using the traditional methodology of Wolman Pebble counting [90,91] for each reach.

Monitoring Torrent Control Structures

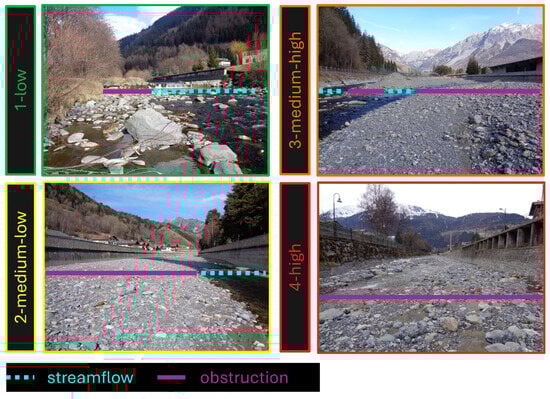

The torrent control structures play a significant role in controlling sediment transport [92]. Monitoring their functionality is essential and can be exclusively conducted through the first-level inspections, as described in Cislaghi et al. (2024) [93]. The first-level inspection is a meticulous scrutiny of the overall structure that allows us to assess the performance or, better, the loss of functionality, of the existing torrent control structures using a qualitative indicator. This metric is the Loss of Functionality Index (LoFI), ranging from 1 low (unaltered functionality) to 4 high (no residual functionality). The causes of deteriorated functionality can be detailed as (i) sediment deposition that can modify the streamflow concentration and can alter energy dissipation; (ii) the deposition of coarse or large wood materials that can obstruct the cross-section or can deviate the streamflow only on a side of the channel; (iii) erosion of the foundations or a specific side of the torrent control structures; and (iv) the uncontrolled colonization of riparian vegetation around and over the structure that can increase flow resistance, hydraulic roughness, and hydraulic depth, as well as reducing hydraulic velocity and impeding the adjusted (or “designed”) direction of streamflow. In the present study, the inspectors focused on the first case, assessing the LoFI according to the obstruction due to the sediment deposition (Figure 3).

Monitoring Riparian Vegetation

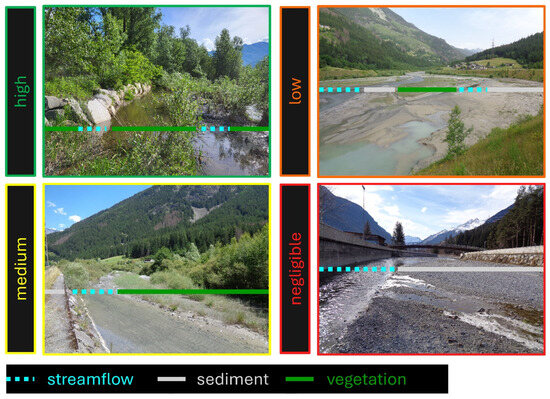

Monitoring the vegetation dynamics of the riparian and in-channel colonization is extremely important. The procedure consisted of observing and mapping the riparian vegetation patches over bars, islands, and banks, identifying the dominant species, and identifying their forest management approach, as conducted by Fogliata et al. (2021) [94]. Then, the riparian vegetation community was classified according to its density (negligible, low, medium, or high), as shown in Figure 4.

3. Results

3.1. Delimitation of Reaches and Subcatchments

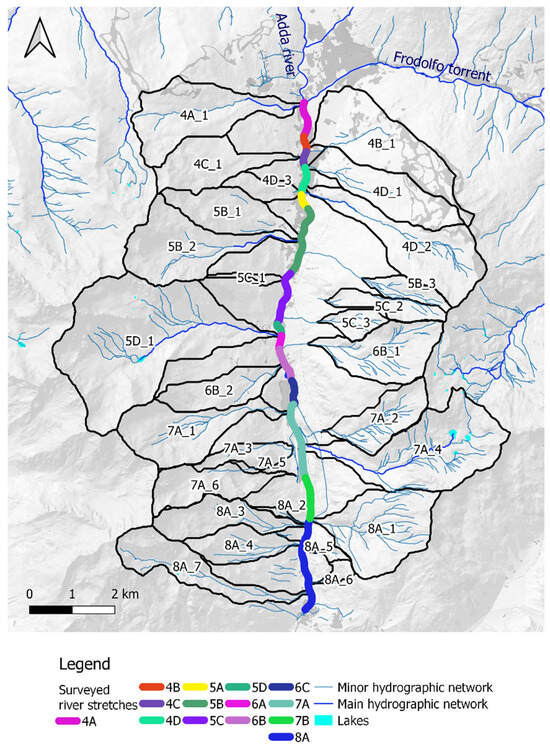

The first phase of HySEcA distinguished 14 reaches of the surveyed watercourse and 28 subcatchments (Figure 5). These reaches had a length ( L c ) of 0.855 km ± 0.586 km with a streambed slope ( S c ) of 0.017 m m−1 ± 0.020 m m−1. The channel slope is strongly influenced by the presence of more than 50 transverse torrent control structures, approximately 1 every 250 m. The bankfull width ( W c ) along the watercourse was 45.52 m on average, varying from 26.71 m to 84.88 m. Table 1 summarizes the hydraulic characteristics of each reach along the watercourse. The subcatchments were delineated considering a minimum threshold area of 0.1 km2. Their area was 2.35 km2 ± 2.06 km2 and ranged from 0.11 km2 (8A_2) to 9.76 km2 (5D_1). The confluences with the tributaries were located at an altitude ranging from 952 m asl (8A_7) and 1163 m asl (4A_1), from downstream to upstream, respectively. The subcatchments had a wide range of hillslope inclination from 0.339 to 0.781 m m−1. This discrepancy was obviously influenced by the topography and was evaluated using the Melton Ratio (MR) [95], i.e., the ration between the basin relief and the square root of the basin area. MR varied from 0.73 (4A_1) to 2.76 (8A_2). Table 2 reports the hydrographic and topographic features of the delineated sub-catchments.

3.2. Subcatchment-Based Analysis

The subcatchment-based analysis provided quantitative estimates based on a reliable rainfall–runoff approach and empirical relationships. The rainfall–runoff model requested the estimation of CN parameter that, although the dominant land cover was the forest, ranged from 59 to 80, because of different soil properties (hydrologic soli group and land cover). The rainfall–runoff model assessed the design discharge according to the different return periods (Table 3). On average, the design peak discharge per unit catchment area largely varied from 0.34 m3 s−1 km−2 for a 10-year return period to 3.23 m3 s−1 km−2 for a 200-year return period. Only one subcatchment revealed a significant larger design discharge per unit of area (7A_5).

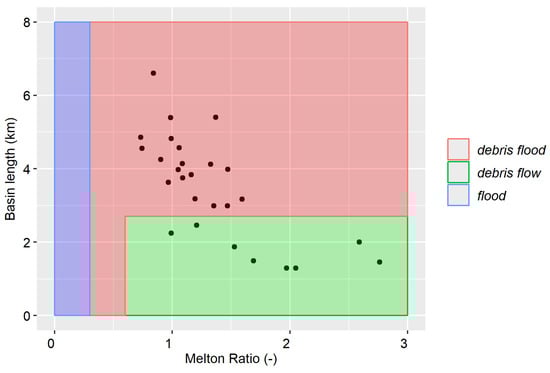

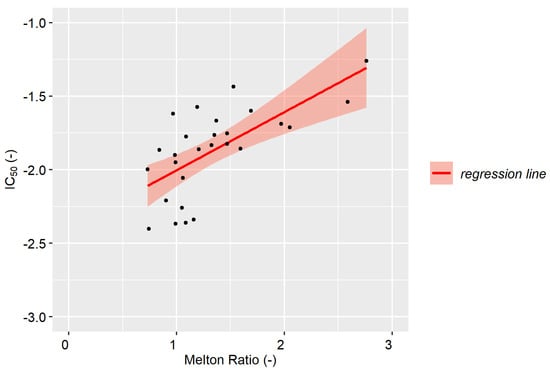

The empirical approaches predicted the potential mobilizable volume of sediment and large wood from the hillslope to the outlet (Table 4). EPM estimated the sediment annual yield from around 50 m3 year−1 for the smallest subcatchments to more than 10,000 m3 year−1 for the largest one (5D_1). Such variability was also evident when weighting the EPM’s results on the subcatchment area. The sediment annual yield per unit of area ranged from 62 m3 km−2 year−1 (4C_1) to 3168 m3 km−2 year−1 (5B_3). The empirical approaches proposed by Marchi et al. (2019) [70] provided potential sediment production from 602 m3 to 12,058 m3 for frequent debris flow events (Equation (9)), and from 8384 m3 to 768,974 m3 for extreme events (Equation (10)). Moreover, the formula proposed by Comiti et al. (2016) [73] predicted a mobilization of large wood materials ranging from 486 m3 to 2911 m3. The results showed that the ratio between large wood and sediment volume ranged from 0.38% to 5.80%. Grouping these results by the reach where the confluences with the tributaries are located, the downstream reaches 7A and 8A were prone to a high production of sediment and large wood volumes, followed by the reaches 4D, 5B, and 5D in the middle of the surveyed watercourse. Such quantification, however, is not enough to design appropriate countermeasures, since the sediment connectivity plays an important role in sediment transport. In fact, the calculation of IC showed how the downstream subcatchments (from 7A to 8A), although the source of the most sediment, had some areas that were disconnected from the sediment compared to the upstream subcatchments (from 4A to 4D).

3.3. Reach-Based Analysis

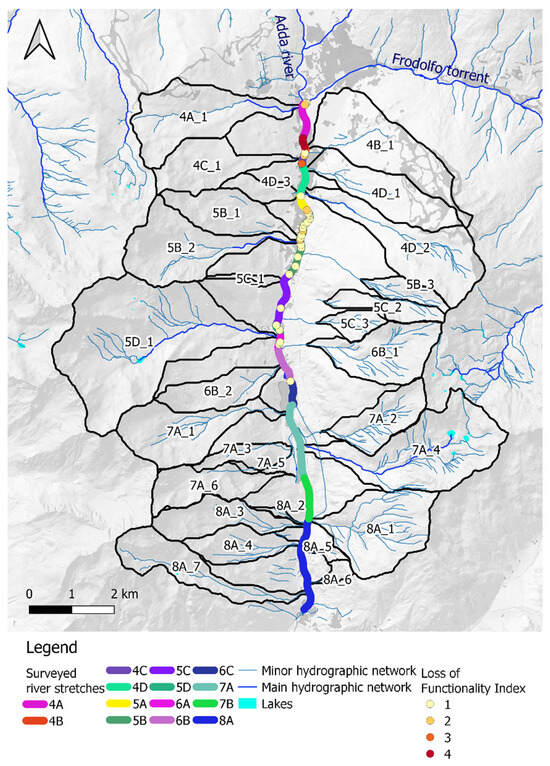

The reach-based analysis achieved observations of the hydraulic and morphological dynamics over time. First, the assessment of the sediment change was obtained by calculating the two DoDs to two timespans, 2014–2008 and 2022–2014. The available DEMs (2008, 2014, 2022) were homogenized in terms of spatial resolution. In fact, the resolutions of the DEMs were quite different; the more recent DEM had the highest resolution, around 0.05 m pixel−1, whereas the others had a resolution of moderate quality of 0.50 m pixel−1. To apply the procedures M.1 and M.2, U c was estimated; considering d 84 as the representative diameter, each reach was measured and the errors were calculated on more than 200 GCPs, with 2 for every 100 m of the reach on average. Furthermore, to accurately assess the sediment change, applying the proposed procedure is not enough, since the local authorities arranged for the sediment removal to reduce the risk to the resident population. Such operations reduced the streambed aggradation and emptied the active channel from deposited materials that caused obstruction for the discharge. Then, the calculated Δ V s were summed to the removed sediment volumes recorded by the local authorities. The spatial distribution of elevation changes revealed a generalized tendency of streambed aggradation, especially along some reaches (Table 5). Over both temporal periods (2022–2008), 10 of the 14 reaches showed a trend towards moderate to significant deposition on the active streambed, and the elevation change ranged from 0.04 m m−2 to 2.31 m m−2. Only 4 reaches were exceptions, listed as follows: the reach 5B was probably affected by local extractions (−11,000 m3 in 2008–2014), whereas the reach 5D revealed a slight tendency to be eroded along the streambed (−1797 m3 in 2008–2022).

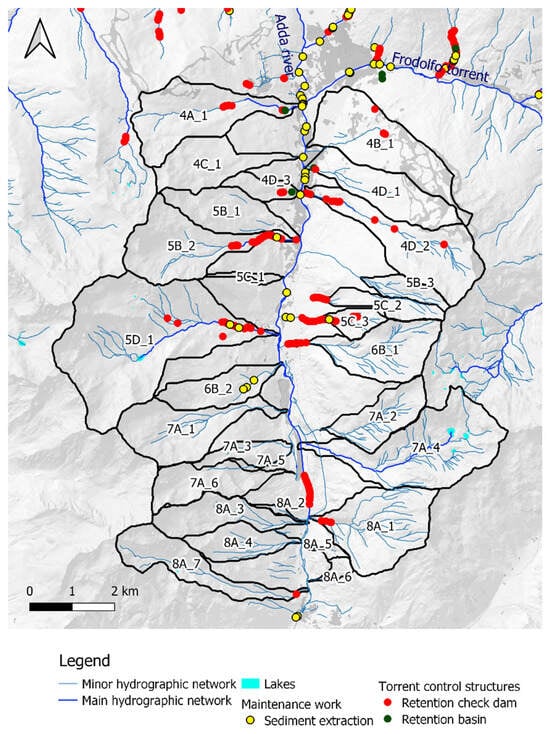

Second, the reach-based analysis focused on the torrent control structures and their functionality, especially. In the present study, the first-level inspections were conducted on 87 torrent control structures, such as streambank protection, check dams, and submerged sills. These structures were built exclusively with concrete and steel–concrete within the last 30 years. The field observations revealed that approximately 90% showed good or excellent performance (LoFI = 1 or 2). Selecting only the transverse torrent control structures (n = 36), only five indicated a complete loss of functionality ( L o F I = 4) due to being inundated by sediment. These structures with deteriorated functionality were in the upper reaches (4A, 4B and 4C), as shown in Figure 6.
Third, the field monitoring observed a low density of riparian vegetation along the entire surveyed watercourse. The in-channel vegetation was almost absent, except for a few more stable bars or islands (Table 6). Along the streambanks, the colonization of the riparian vegetation was more evident. In terms of biodiversity, most of the riparian vegetation was composed of native species, e.g., some species of willows. Only in some reaches (from 6B to 8A) did the butterfly bush (Buddleja davidii) colonize the empty space created with deposited sediments or by mitigation interventions.

4. Discussion

4.1. A Diagnostic Approach

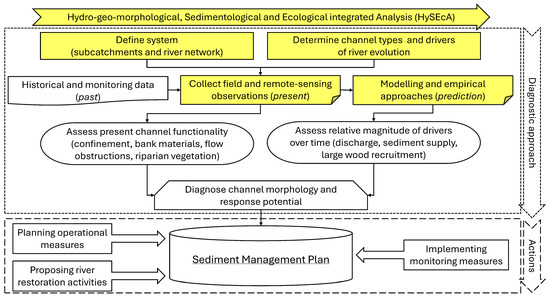

The integrated approach of HySEcA can be included in a more general diagnostic approach, drafting the SMP (Figure 7). As proposed by Montgomery and MacDonald (2002) [96], the diagnosis for a watercourse is a careful examination of the hydrological, morphological and sedimentological features, to attempt to understand the river processes and to predict the river dynamics. The diagnosis assesses the channel conditions through the present and past observations, and forecasts the potential future channel condition, through (i) the definition of the system (reaches and subcatchments) and of the drivers influencing the river dynamics; and (ii) the application of models and empirical approaches in terms of qualitative and quantitative outcomes. HySEcA can partially cover the first two steps that can be completed by collecting historical data and by investigating the landscape and the land cover evolution of the surrounding area.
For example, in the present study, the urban development (mainly liked to the touristic sector) and the consequences of climate change strongly influenced the landscape. Indeed, over the last 70 years (1954–2018), there has been a significant increase in urbanization along the main watercourse (+4.5 km2) and a substantial forest conservation. Conversely, the areas of pastures and agricultural field decreased by more than 10 km2. Meanwhile, climate change has led to a glacier melting (−31.6 km2) and a reduction in permafrost areas (difficult to quantify) resulting in an increase in sediment transport. In addition, the catchment area has always been prone to slope instabilities (shallow landslides, rockfalls, and debris flows), streambank erosion, and significant, dangerous sedimentological–hydrological processes such as debris flood. These areas have been increasing over the time and correspond to approximately 20% of the study case. To contrast this susceptibility, many countermeasures were built to control sediment transport, trapping sediment along the steep tributaries (with more than 450 check dams) and reducing the streambed longitudinal slope along the valley bottom (with more than 200 ground sills). This extensive use of torrent control structures and the delay in designing alternative structures for filtering and dosing sediments, such as the open check dams, indicates a significant limitation of sediment dynamics. In particular, the increase in sediment transport from the proglacial system accelerated the complete filling of sedimentary wedges upstream of each check dam, forcing the movement downstream. Such an amount of sediment, once it reaches the alluvial or colluvial fan, tends to deposit along those reaches where the streambed gradient is relatively low (where there are many ground sills) or where the sediment transport capacity is already saturated. This triggers the streambed aggradation, exacerbating some hydraulic discontinuities, and forcing the local authorities to arrange for the removal of material in the main watercourse, amounting to about 900,000 m3 from 1997 to 2022, and approximately 250,000 m3 along the tributaries (Figure 8).
All these additional observations strongly agreed with the outcomes of the HySEcA procedure. For example, the construction of many retention check dams underlines that the river network of the subcatchments are prone to debris flood and especially to debris flows with a high sediment transport. This evidence was confirmed by examining the catchment predisposition in terms of sediment supply through the simplest method of Wilford et al. (2004) [97], drafting a scattergram using MR and basin length (i.e., the planimetric straight-line length from the fan apex to the most distant point within the subcatchment) with class limits for the hydrogeomorphic processes such as flood, debris flood, and debris flow.
Although uncertainties exist, most subcatchments fell into the class of debris flow predisposition, whereas the remaining ones fell into that of debris flood predisposition (Figure 9). In addition, the intrinsic predisposition can be integrated by the degree of sediment connectivity of the subcatchments. In the present study, as expected, the impacts of sediment disconnected areas (i.e., higher values of I C 50 ) were significantly evident for those subcatchments with higher values of MR. The fitted linear regression model confirmed a reasonable relationship ( I C 50 = 0.396 · M R 2.399 ; R2 = 0.430, p-value < 0.001) as shown in Figure 10. The reach-based analysis completed the diagnostic framework by providing estimates and details on sediment dynamics, torrent control structures, and riparian vegetation. The sediment changes at the reach scale reveal the surplus or the deficit of sediment supply, through quantifying and localizing. The surveys on torrent control structures and riparian vegetation characterized the morphological state of each reach. In the present study, an evident surplus of materials, the presence of transverse torrent control structures completely covered by sediment, and the absence of in-channel riparian vegetation revealed a significant tendency of sediment production and further deposition within the channel, and a limited transport capacity of the mountain river. Finally, the diagnostic framework also highlighted data gaps, as follows: (i) an updated delimitation and evaluation of the Morphological Quality Index for the homogeneous reaches of the watercourse (in the present study, all the reaches were evaluated in poor morphological condition); (ii) surveys on the in-channel granulometry, essential for predicting the magnitude of sediment transport and for designing appropriate countermeasures; and (iii) a periodic measure of topography (i.e., DEMs) for estimating the volume changes and a potential trend.

4.2. Identification of Critical Areas

The diagnostic approach, including the integrated procedure HySEcA, provided qualitative and quantitative results that described the present conditions of the reaches (sediment, torrent control structures), and predicted the potential mobilized materials (water, sediment, and wood), a source of potential alterations along the watercourse. In the present study, the most evident morphological process was the estimation of high sediment production from the tributaries, and the aggradation of the gravel streambed. The deposition of gravel materials and the presence of several transverse torrent control structures that alter the slope of the streambed increased the level of flood risk and limited the watercourse dynamics. In addition to an overall assessment of the surveyed watercourse, the HySEcA included a more detailed assessment at reach scale. Such results can be simplified through discrete metrics (low, medium, and high) that evaluate the impacts of the main processes on the flood hazard (Table 7) inflow from the tributaries, erosion/deposition, and presence of obstacles. The upstream reach (4A), in proximity of the confluence between Adda River and Frodolfo Torrent, was identified as the most critical stretch of the watercourse, due to the observed significant aggradation of the streambed, the high input of sediment and large wood materials from the tributaries, and the limited sediment transport capacity. Other critical reaches were 4C, 4D and 6B, which showed an excess of deposited materials inside the channel and a relevant presence of obstacles.

4.3. Advantages and Disadvantages

The HySEcA application, as a diagnostic approach, offers several advantages. First, the method aims to overcome the fragmentation and incompleteness of databases, organized and updated by local and regional authorities. The step-by-step procedure provides a sort of comprehensive list of variables (i.e., landscape elements) to monitor, such as streamflows, sediments, riparian vegetation, and torrent control structures. This approach promotes the reorganization and standardization of data, effectively forcing the unification and merging of databases essential for managing mountain fluvial environments. Second, HySEcA mainly focuses on the role of sediment transport in mountain catchments by providing both qualitative and quantitative estimates of its present impact of sediment transport on flood risk management. The methodology is a compromise between the availability of accessible data and the use of recent scientific approaches. The purpose is to obtain valid results on the active processes along the watercourse and across the surrounding upslope areas. Thus, these representative and clear results, obtained without compromising scientific rigor, are useful for a wide spectrum of professionals (fluvial manager, engineers, ecologists, etc.) for proposing, designing, and evaluating appropriate and alternative countermeasures to reduce flood risk according to different hazard scenarios.
However, the methodology has some drawbacks. The accuracy of predictive models depends heavily on the quality and resolution of available data. Furthermore, although HySEcA is based on several empirical formulations widely used in scientific literature and practice, these models were primarily developed for specific environmental conditions (mainly Alpine regions) and could be not generalized worldwide. Moreover, the approaches include uncertainties and significant margins of error. To ensure reliable accuracy, it is crucial to leverage all collected data and establish a procedure for continuously updating the diagnosis as new data from monitoring activities become available.

4.4. Management Prescriptions

The comprehensive diagnosis of the surveyed watercourse integrated with the supplementary field campaigns was the starting point for developing the SMP and for proposing and/or programming maintenance and monitoring actions. In the present study, the diagnostic framework verified the aggradation of riverbed in several reaches of the surveyed watercourse, and therefore the increase in the flood risk, and predicted a significant contribution of sediment and large wood from the tributaries, well connected with the main watercourse. In this context, the mitigation of flood risk could be pursued through multiple and complementary management prescriptions that aim to create appropriate conditions for restoring or rehabilitating morphological processes (e.g., sediment transport from upstream to downstream). Such actions are generally difficult to implement because the altimetric and planimetric watercourse evolution has been constrained by urbanization (longitudinal and transverse torrent control structures, bridges, bike path, etc.) and the natural dynamics have almost disappeared, significantly interrupting the hydro-sedimentological processes. For this reason, the diagnostic approach provides useful data to qualitatively investigate (and predict) the morphological dynamic equilibrium, well described by the Lane’s theory or Lane’s balance [98]. Lane stated that, under simplified assumptions, the channel equilibrium is reached when the sediment transport capacity, described by the product between Q (in m3 s−1) and S c (m m−1), is comparable to the sediment load represented by the product between sediment discharge per unit cross-section width ( Q s in m3 s−1 m−1) and a representative sediment size d s (in m) as follows:
Q · S c Q s · d s
Lane’s balance demonstrates how the channel may respond to a change in various parameters such as sediment load, channel geometry, channel slope, erosion resistance, and discharges, and which solutions could be more appropriate to reduce the lack of equilibrium. Then, the purpose of the channel equilibrium could be determined by calculating the longitudinal slope of the watercourse, by comparing it with the present condition, and by implementing a catchment-based strategy over the time. Indeed, the management prescriptions must integrate many approaches, because none of them individually can solve a complex problem. For example, in the present case study, the SMP must include the following:
  • Rehabilitate sediment transport capacity: the increase in the longitudinal slope of the main watercourse along specific reach, the reduction in the flow resistance, and/or the removal of transverse torrent control structures can contribute to the sediment transport reducing the streambed aggradation.
  • Control of sediment supply: a reduction in the sediment supply entering the watercourse from the contributing subcatchments could be useful in impeding the deposition. Several measures can be implemented at the catchment scale, such as erosion control approaches (e.g., reforestation, soil bioengineering techniques on the hillslope) or solutions to trap sediment upstream of the confluences with the tributaries (e.g., construction retention check dams, retention basin).
  • Trapping sediment in specific reservoirs: the detection of accessible and already altered areas, where the settling and accumulation of the sediment can balance the surplus of sediment.
  • Redistributing or removing excessive sediments: where necessary, mechanical excavations are a practical solution for reducing the streambed aggradation; however, they are be associated with measures of reactivation of morphological dynamics (creating bars and islands, reactivation of secondary streams).

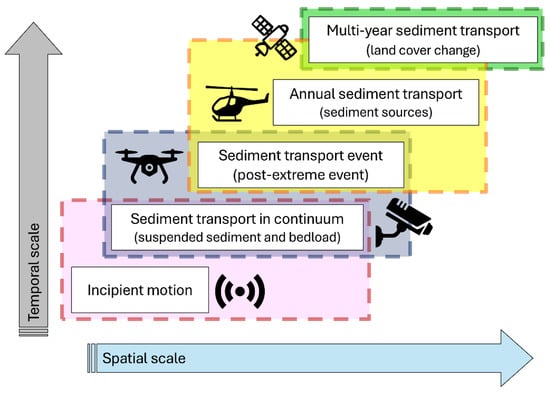

Another aspect of the SMP relates to improving the efficiency and the effectiveness of the monitoring activities. In fact, a well-organized and systematic monitoring of the watercourse and of its main variables is indispensable due to the complexity of the phenomenon and the potential effects of both natural and anthropogenic disturbances that can exacerbate the geohazards. Thus, the SMP must include a sort of monitoring plan at different temporal and spatial scale (Figure 11):
  • Periodic monitoring: updating the DEM, the Morphological Quality Index, and the inventories of maintenance and excavation operations arranged by the hydraulic authority, assessing the functionality of existing defense works, and surveying surface granulometry and riparian vegetation.
  • Post-event monitoring: collecting details that are as accurate as possible on the triggering meteorological events and the associated consequences along the main watercourse including flooded areas, damaged infrastructures, removed riparian vegetation, presence of obstructions, etc. This kind of monitoring is crucial not only to update the state of the watercourse and any river changes, but also to provide valuable information on the watercourse’s dynamics during flood, debris flood or debris flow events.
  • Continuous monitoring: for the sediment management, collecting data on source areas extension (the detection of unstable areas) over the hillslope and on sediment movement (suspended sediment and bedload) within the river network is necessary. Moreover, this monitoring could be associated with early warning system for the inhabitants.

5. Conclusions

The present study analyzed a mountain area, representative of the Alpine environment and subject to the impacts of tourism development and climate change. These territories showed a more frequent predisposition to flood, debris flood and debris flow events, and urgently require a robust strategy for controlling and handling the sediment transport within the catchment. The SMP is a crucial tool for planning and programming all those actions useful to improve the hydro-morphological efficiency, to conserve the riparian habitats, and to guarantee hydraulic safety for houses and infrastructures along the watercourse. Drafting a sustainable and modern SMP is a complex operation for the hydraulic authorities, as it requires a clear understanding (often holistic) of the present state of the catchment and of the watercourse, which is the result of collaboration between multiple skilled professionals and stakeholders. The procedure presented in this study aims to facilitate this work by ensuring scientific rigor and practical use, and by exploiting all the data already available to territorial authorities. The integrated HySEcA investigates all the key components of a mountain watercourse following the flux of sediments from the source, with a detailed approach to evaluating the inflows from the tributary subcatchments to the main hydrographic network, where erosion, transport, and deposition processes occur, and the interaction with existing torrent control structures and riparian vegetation is more significant. The proposed method was an innovative attempt to combine the scientific rigor and the availability of data and allowed us to reorganize the fragmented databases, to harmonize them across their different domains (topographic, geological, remote sensing, etc.), to integrate them with the field- and desk-based monitoring of the torrent control structures and of the riparian vegetation, and to provide (more than one) alternative future scenario(s) for effectively supporting the decision-making process. This analysis represents an example of how research experience from theory to practice can provide a robust and accurate evaluation considering the complexity of a mountain area.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/geohazards5040053/s1, Table A: Values of CN parameter, Table B: Values of k parameter, Table C: Values of X parameter, Table D: Values of Y parameter, and Table E: Values of ɸ parameter.

Author Contributions

Conceptualization, A.C. and G.B.B.; methodology, A.C., E.M. and G.B.B.; software, A.C., V.G.S. and D.B.; resources, G.B.B.; data curation, A.C., E.M., V.G.S. and D.B.; writing—original draft preparation, A.C. and E.M.; writing—review and editing, A.C., E.M. and G.B.B.; supervision, D.B.; project administration, G.B.B.; funding acquisition, G.B.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the project RETURN-PB (PNRR_BAC24ACISL_01), and by the scientific collaboration with Lombardy Region and Po River Basin Authority.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

This research was granted by the Local Authorities, Mountains, Energy Resources, Use of Water Resources Directorate of Lombardy Region (Italy) and by Po River Basin Authority. The authors wish to thank Mauro Visconti, Mario Domenico Zaffaroni, Nadia Chinaglia, Mauro Orlandi (Lombardy Region), Tommaso Simonelli, Margherita Agostini, Ginevra Mantovani (Po River Basin Authority), and Alessandro Loda (Regional Environmental Protection Agency) for their support.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
