Polyphenol Extraction from Humulus lupulus (Hop) Using a Neoteric Glycerol/L-Alanine Deep Eutectic Solvent: Optimisation, Kinetics and the Effect of Ultrasound-Assisted Pretreatment

Abstract

The investigation presented herein had as its scope the development of an integrated process for the efficient extraction of polyphenols from hop. For this purpose, a novel, natural deep eutectic solvent (DES) was synthesised, composed of glycerol and L-alanine, and the process was optimised by deploying a response surface methodology based on a Box–Behnken design. The variables considered were the DES/water proportion, the liquid-to-solid ratio and the stirring speed. Under the optimised conditions, the yield in total polyphenols achieved was 118.97 ± 8.27 mg gallic acid equivalents per g of dry mass. Ultrasonication, incorporated into the process as a pretreatment step, was shown to significantly change the kinetic pattern of polyphenol extraction and contributed to attaining higher yields only at 80 °C, whereas at lower temperatures a supressing effect was observed. Furthermore, increasing temperature was negatively correlated with the second-order extraction rates, evidencing a slow-down of the extraction rate at elevated temperatures.

1. Introduction

Hop (Humulus lupulus L.) is a plant well-known for its use in brewing, where the female inflorescences (hop cones or “hops”), which are rich in essential oils, resins and various polyphenolic substances, are widely used as a beer flavouring and preservative [1]. However, hop cones have long been used in folk medicine for various disorders, as hop constituents may possess mild sedative, estrogenic and antimicrobial activities, as well as a series of other bioactivities [2,3]. Hop polyphenols comprise almost 4% of the total hop cone dry mass, and they belong to a wide range of classes, including flavonols, flavanols, prenylated chalcones and flavanones, but also phenolic acids, stilbenes and phloroglucinol derivatives [3,4]. It has been reported that more than 100 different compounds may occur in hop extracts, their profile depending mainly on varietal parameters, lending hop an important prospect as a medicinal plant [5,6].

Polyphenols are a highly versatile group of natural substances, divided into several subclasses, and by virtue of their abundance in a vast spectrum of edible plant materials, they have been a subject of intense research [7]. Some of the major properties of polyphenols associated with their pharmacological potency and biological effects are their antioxidant, anti-inflammatory, cardioprotective and chemopreventive activities [8,9]. There is currently an ever-growing interest in the generation of polyphenol-containing extracts, which possess specific bioactivities and could be used as functional ingredients in foods and/or cosmetics. For this reason, numerous technologies have been developed, aimed at a sustainable production of extracts with minimum requirements in solvent and energy, high productivity and low cost [10].

The selection of an appropriate solvent for the development of an efficient extraction process is a dare necessity for the industry, and in the framework of Green Chemistry, the need for designing new eco-friendly processes largely relies on the use of novel, non-toxic and recyclable solvents [11,12]. Deep eutectic solvents (DES), some also referred to as low-transition temperature mixtures (LTTMs), are designer liquids composed usually of a constituent serving as a hydrogen bond donor (HBD) and another one serving as a hydrogen bond acceptor (HBA). These neoteric materials have an assortment of peculiar properties, such as low or no volatility and flammability, absence of toxicity, tunability, stability, low cost, recyclability and biodegradability, that make them ideal for the development of green extraction methodologies [13]. Indeed, over the last 3 years, a number of studies demonstrated the efficacy of DES as solvents for task-specific extractions, offering new potential pathways in polyphenol extraction [14].

This being the case, in the study presented herein a task-specific extraction was established offering a green process for the effective extraction of polyphenols from hop, using a newly synthesised deep eutectic solvent, based on glycerol and L-alanine. Response surface methodology was employed to carry out process optimisation, and the effect of temperature was appraised by performing kinetics. To the best of the authors’ knowledge, this is the first report on hop polyphenol extraction using DES.

2. Materials and Methods

2.1. Chemicals

Glycerol anhydrous (99.5%), L-alanine, ascorbic acid (99.5%), sodium carbonate anhydrous (99%), and aluminium chloride anhydrous (98%) were from Penta (Praha, Czechia). Gallic acid hydrate was from Panreac (Barcelona, Spain). Rutin (quercetin 3-O-rutinoside) hydrate, 2,4,6-tris(2-pyridyl)-s-triazine (TPTZ) and Folin–Ciocalteu reagent were from Sigma-Aldrich (St. Louis, MO, USA). Iron chloride hexahydrate was from Merck (Darmstadt, Germany).

2.2. Plant Material and Treatments

The hop (Humulus lupulus) was a kind donation from Pineios Brewery Ltd. (Larisa, Greece), and it was received in the form of pellets, in air-tight plastic packaging. Upon receipt, the plant material was dried at 55 °C for 24 h in a laboratory oven (Binder BD56, Bohemia, NY, USA). The dried hop was then ground in a ball-mill to give a powder with an average particle diameter of 0.161 mm, and stored in sealed dark-glass containers, at −40 °C, until use.

2.3. Synthesis of DES

The solvent was prepared according to a methodology reported elsewhere [15]. Precisely weighted amounts of glycerol (hydrogen bond donor) and L-alanine (hydrogen bond acceptor) were introduced into a 500-mL duran bottle and heated at approximately 80–85 °C under continuous stirring at 400 rpm, for a period of 6–7 h, to ensure the formation of a perfectly transparent liquid. After reaching room temperature, the DES, with HBD:HBA ratios varying from 5:1 to 13:1, was stored in a dark and dry chamber, and it was periodically observed for the appearance of crystals by visual inspection, over a period of several weeks, to ascertain its stability.

2.4. Batch Stirred-Tank Extraction

A lot of 0.570 g of dried plant material was transferred into a 50-mL round-bottom flask and 20 mL of solvent was added, to give a liquid-to-solid ratio (R_L/S) of 35 mL g⁻¹. The extraction was accomplished under continuous agitation at 500 rpm for 150 min, at 50 °C, in an oil bath heated by an accurately thermostated hotplate (Witeg, Wertheim, Germany). The extract was centrifuged for 10 min at 10,000× g prior to analysis. DES used for the extractions were 70% (w/w) aqueous mixtures. Control extractions were performed with deionised water, 60% (v/v) methanol and 60% (v/v) ethanol.

2.5. Ultrasound-Assisted Pretreatment

The pretreatment consisted of ultrasonicating the mixture of solvent with the solid material prior to batch stirred-tank extractions. Ultrasonication was performed in an Elma D-78224 Singen HTW heated ultrasonic bath (Elma Schmidbauer GmbH, Singen, Germany), operated at a frequency of 50 Hz, a power of 550 W and an acoustic energy density of 78.6 W L⁻¹. All utrasonication pretreatments were accomplished at ambient temperature (22 ± 2 °C).

2.6. Extraction Optimisation by Response Surface Methodology

The procedure implemented had as its objective to optimise polyphenol recovery from the hop, taking into account three principal process parameters: the concentration of DES in aqueous mixtures (C_DES), the liquid-to-solid ratio (R_L/S) and the speed of stirring (S_S). To accomplish this, an experimental design was set up using a Box–Behnken mode with three central points. The three process variables were assigned as X₁ (C_DES), X₂ (R_L/S) and X₃ (S_S), and coded to three levels, from −1 (lower limit) to 1 (upper limit) (

Table 1. Process variables, their codification and actual and coded levels used for the experimental design implemented.

Independent Variables	Code Units	Coded Variable Level
		−1	0	1
Concentration of DES in aqueous mixtures, CDES (%, w/v)	X1	55	70	85
Liquid-to-solid ratio, RL/S (mL g−1)	X2	20	40	60
Speed of stirring, SS (rpm)	X3	200	500	800

). For the codification, the following equation was used [16]:

$${\mathrm{X}}_{\mathrm{i}}=(\frac{z_i-z_1^0}{\Delta z_i})\times {\beta }_{\mathrm{d}}$$

(1)

Δz_i represents the distance between the real value at the central point and the real value in the upper or lower limit of a variable, β_d corresponds to the major coded limit value in the matrix for each variable, and z⁰ is the real value at the central point. The polynomial equation (mathematical model), derived by fitting the function to the experimental data, was assessed by analysis of variance (ANOVA) and lack-of-fit. The portrayal of the predicted model equation was obtained by 3D surface response plots.

2.7. Total Polyphenol (TP) Determination

A methodology reported elsewhere was used [17]. All samples were diluted 1:50 with 0.5% formic acid in water prior to determinations. Then, 0.1 mL of diluted sample was transferred along with 0.1 mL of Folin–Ciocalteu reagent in a 1.5-mL Eppendorf tube, and the reaction was left to proceed for 2 min. Following this, 0.8 mL of Na₂CO₃ solution (5% w/v) was added, and the mixture was heated in a thermostated water bath (Heidolph HB digital, Schwabach, Germany), at 40 °C, for 20 min. The absorbance was recorded at 740 nm in a Shimadzu UV-1700 PharmaSpec spectrophotometer (Shimadzu, Kyoto, Japan), and the determination of total polyphenol concentration (C_TP) was accomplished with a gallic acid calibration curve (10–80 mg L⁻¹). Results were expressed as mg gallic acid equivalents (GAE) L⁻¹. The extraction yield in total polyphenols was expressed as mg GAE g⁻¹ dry mass (dm) [18].

2.8. Total Flavonoid (TFn) Determination

A previously published protocol was applied [19]. Briefly, a volume of 0.1 mL of sample was mixed with 0.86 mL of aqueous ethanol (35% v/v) and 0.04 mL of a reagent containing 0.5 M sodium acetate and 5% (w/v) aluminium chloride. The mixture was allowed to react for 30 min at room temperature, and then the absorbance was obtained at 415 nm. Total flavonoid concentration (C_TFn) was calculated with a rutin (quercetin 3-O-rutinoside) calibration curve (15–300 mg L⁻¹). Total flavonoid yield (Y_TFn) was estimated as mg rutin equivalents (RtE) per g dm.

2.9. Total Flavanol (TF) Determination

Total flavanols were determined using the p-dimethylaminocinnamaldehyde (DMACA) assay [20], with some modifications. Each sample was first diluted 1:50 with methanol. An aliquot of 0.02 mL of diluted sample was placed in a 1.5-mL Eppendorf tube with 0.88 mL HCl (2 M in methanol) and 0.1 mL DMACA (0.1% w/v in methanol). The mixture was allowed to react for 15 min before reading the absorbance at 640 nm. The concentration of total flavanols (C_TF) was estimated from a catechin calibration curve (1–80 mg L⁻¹) and expressed as catechin equivalents (CtE). Extraction yield in TF (Y_TF) was given as mg CtE g⁻¹ dm.

2.10. Determination of the Antiradical Activity (A_AR)

A stoichiometric methodology previously published was used [21], using DPPH. The extract was diluted 1:50 with methanol, and 0.025 mL of the diluted sample was mixed with 0.975 mL DPPH (100 μM in methanol) and incubated at ambient temperature. The absorbance at 515 nm was measured at t = 0 min (A_515(i)) and at t = 30 min (A_515(f)). The A_AR of the extract was determined as follows:

$${\mathrm{A}}_{\mathrm{AR}}=\frac{\Delta \mathrm{A}}{\epsilon \times l\times C}\times {\mathrm{Y}}_{\mathrm{TCn}}$$

(2)

where ΔA = A_515(i) − A_515(f), ε (DPPH) = 11,126 × 10⁶ μM⁻¹ cm⁻¹, C = C_TP × 0.025 × dilution (1/50), Y_TP is the extraction yield (mg g⁻¹) in TP of the extract, and l is the path length (1 cm). A_AR was expressed as μmol DPPH g⁻¹ dm.

2.11. Determination of the Reducing Power (P_R)

P_R was estimated according to a published methodology [22]. Volumes of 0.05 mL of extract and 0.05 mL of FeCl₃ (4 mM in 0.05 M HCl) were placed in a 1.5-mL Eppendorf tube, and the reaction was carried out for 30 min at 37 °C, in a water bath. Then, 0.9 mL of TPTZ solution (1 mM in 0.05 M HCl) was added, and after 10 min the absorbance was recorded at 620 nm. P_R was determined as μM ascorbic acid equivalents (AAE) per g dry mass, using an ascorbic acid calibration curve (50–300 μM).

2.12. Statistical Analyses

Extractions were performed at least twice, and determinations were performed in triplicate. Values are reported are means ± standard deviation. Statistical analyses for the Box–Behnken design, response surface methodology and distributions were performed with JMP™ Pro 13 (SAS, Cary, NC, USA), at a 95% significance level. Kinetics was traced with SigmaPlot 12.5 (Systat Software Inc., San Jose, CA, USA).

3. Results and Discussion

3.1. DES Synthesis and HBD:HBA Molar Ratio ($R_{mol}^{D/A}$) Assay

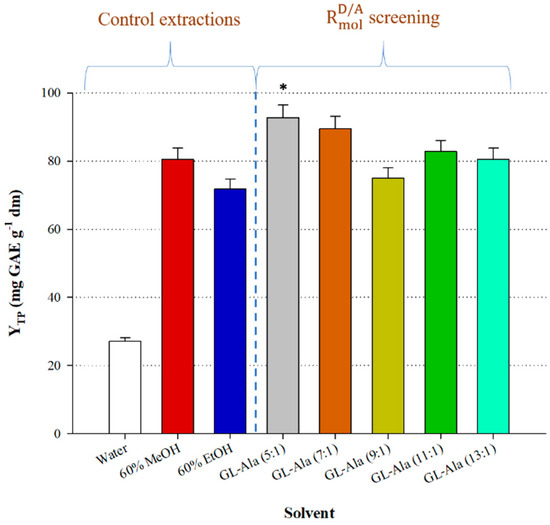

L-Alanine is a natural amino acid that has been poorly investigated as a HBA for DES synthesis. L-Lactic acid/L-alanine-based DES have been reported for the extraction of antioxidant phenolics from various industrial cereal solid wastes [14], but to the best of the authors’ knowledge, there is only one report on glycerol/L-alanine-based DES, used for the extraction of rutin (quercetin 3-O-rutinoside) from tartary buckwheat hulls [23]. In the latter study, the synthesis of a DES composed of glycerol/L-alanine with a molar ratio (${\mathrm{R}}_{\mathrm{mol}}^{\mathrm{D}/\mathrm{A}}$) of 3 was claimed, but in this examination, no stable DES could be prepared below a ${\mathrm{R}}_{\mathrm{mol}}^{\mathrm{D}/\mathrm{A}}$ of 5. Thus, the DES screened for polyphenol extraction efficiency were glycerol/L-alanine with ${\mathrm{R}}_{\mathrm{mol}}^{\mathrm{D}/\mathrm{A}}$ of 5, 7, 9, 11 and 13.

The importance of ${\mathrm{R}}_{\mathrm{mol}}^{\mathrm{D}/\mathrm{A}}$ has been well documented in earlier investigations, which stressed that polyphenol extraction yield may vary largely, depending on the relevant amounts of HBD and HBA [15,24,25,26]. This is because switching ${\mathrm{R}}_{\mathrm{mol}}^{\mathrm{D}/\mathrm{A}}$ causes changes in crucial physicochemical properties of DES, such as viscosity and polarity, which in turn may greatly affect extraction performance. However, there has been no consistent pattern established between ${\mathrm{R}}_{\mathrm{mol}}^{\mathrm{D}/\mathrm{A}}$ and extraction yield. Indeed, it can be seen in Figure 1 that from ${\mathrm{R}}_{\mathrm{mol}}^{\mathrm{D}/\mathrm{A}}$ 5 to 9, a gradual decline in Y_TP was observed, but extraction with the DES glycerol:alanine (GL-Ala) (11:1) gave higher Y_TP than GL-Ala (9:1), which was again reduced when GL-Ala (13:1) was used. GL-Ala (5:1) displayed outstanding extraction capacity, as it provided extracts with a 13% higher yield than that of 60% methanol and a 22.4% higher yield than that of 60% ethanol. Among all DES tested, GL-Ala gave significantly higher Y_TP (p < 0.05), amounting to 92.75 ± 3.71 mg GAE g⁻¹ dm.

To obtain a wider picture of the potency of GL-Ala (5:1) for polyphenol extraction, four additional indices were considered; yield in total flavonoids (Y_TFn) and total flavanols (Y_TF), as well as the antiradical activity (A_AR) and the ferric-reducing power (P_R) of the extracts. Compared with 60% ethanol, which was the most efficient control solvent, the extraction with GL-Ala (5:1) gave a 52.6% lower flavonoid yield, a 23.7% lower flavanol yield and a 38% lower A_AR. However, GL-Ala (5:1) produced an extract with a 29.2% higher P_R (Figure 2).

3.2. Optimisation of Extraction Performance

The scope of the response surface implementation was the building of a predictive mathematical tool describing the effect of the process variables considered, namely, C_DES, R_L/S and S_S, on the total polyphenol yield (Y_TP), which was chosen as the response. The influence exerted by each of the variables and the response surface adequacy were appraised by ANOVA and lack-of-fit (Figure 3), and non-significant terms were omitted accordingly. Regarding the model (2nd degree mathematical equation), the square correlation coefficient (R²) was the indication of the total variability around the mean estimated by the model:

$${\mathrm{Y}}_{\mathrm{TP}}=102.49+15.76{\mathrm{X}}_1+10.15{\mathrm{X}}_2+4.68{\mathrm{X}}_1{\mathrm{X}}_3-6.05{\mathrm{X}}_1^2-5.69{\mathrm{X}}_2^2\hspace{1em}({\mathrm{R}}^2=0.98,p=0.0009)$$

(3)

Considering R² and the p-value, and a confidence interval of 95%, the model derived was highly significant, suggesting that Equation (3) gave excellent adjustment to the experimental data.

Table 2. Points of the experimental design and the corresponding measured and predicted response values.

Design Point	Independent Variables			Response
	CDES (X1)	RL/S (X2)	SS (X3)	Yield in Total Polyphenols, YTP (mg Gallic Acid Equivalents (GAE) g−1 Dry Mass (dm))
				Measured	Predicted
1	−1	−1	0	64.57	66.11
2	−1	1	0	86.98	83.88
3	1	−1	0	92.00	95.10
4	1	1	0	119.47	117.93
5	0	−1	−1	85.54	82.67
6	0	−1	1	86.97	85.20
7	0	1	−1	103.83	105.60
8	0	1	1	100.01	102.88
9	−1	0	−1	81.37	82.70
10	1	0	−1	105.09	104.86
11	−1	0	1	73.02	73.25
12	1	0	1	115.45	114.12
13	0	0	0	102.08	102.49
14	0	0	0	105.00	102.49
15	0	0	0	100.39	102.49

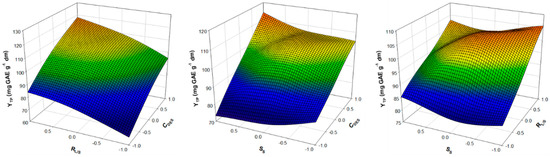

presents analytically the design points of the model, the measured and predicted Y_TP values. The 3D plots constructed on the basis of the model (Figure 4) depict the effect of the experimental variables on the response (Y_TP). The maximisation of desirability (Figure 3) enabled the prediction of a recommended setting to achieve the highest response: C_DES = 85% (w/w), R_L/S = 59 mL g⁻¹ and S_S = 688 rpm. At those inputs, the theoretically optimal yield was estimated to be 118.97±8.27 mg GAE g⁻¹ dm, predicted with a 95% confidence interval.

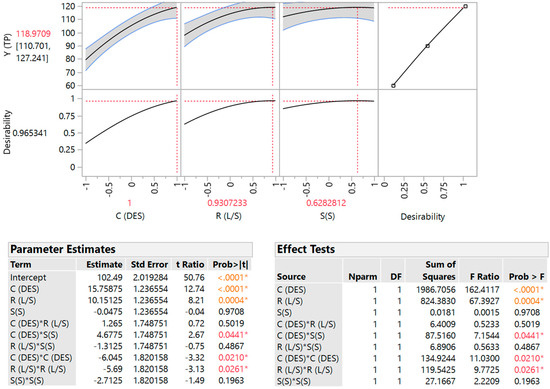

C_DES (X₁) was found to profoundly affect Y_TP (Figure 3), and the optimal level determined was in line with several previous investigations on polyphenol extraction with DES, which suggested 80% (w/w) to be the most effective DES/water proportion [23,25,26,27,28]. Mixing DES with water at an appropriate molar ratio is considered essential in achieving high extraction yields, because water may effectively regulate solvent properties pertaining to solid-liquid extraction, such as polarity and viscosity [29]. Polyphenol extraction is a diffusion-controlled process and may be greatly facilitated by low viscosity [18]. Since DES usually possess high viscosities, the addition of water contributes to decreasing viscosity and increasing diffusivity. Likewise, R_L/S (X₂), which was also a highly significant variable (Figure 3), may affect Y_TP through the modification of diffusivity. The concentration gradient between the solid particles and the liquid phase is the driving force of polyphenol diffusion. The higher the solid/liquid ratio, the higher the concentration gradient, hence the increased rate of diffusion [30,31]. Such a phenomenon has recently been well documented, by correlating R_L/S with diffusivity [32]. Previously published examinations showed that optimal R_L/S levels for polyphenol extraction with DES may vary within 29–50 mL g⁻¹ [33,34,35]. The optimal value reported in this study (59 mL g⁻¹) is of similar magnitude.

S_S (X₃) was not statistically significant (Figure 3), but cross effects between C_DES (X₁) and S_S (X₃) were statistically significant with positive contribution to Y_TP. This outcome indicated a combined effect of C_DES and S_S on Y_TP. Based on the model derived (Equation (3)), increases in either C_DES or S_S, within the pre-set limits, would provoke significant increases in the response (Y_TP). A sufficient level of S_S could induce turbulence in the extraction vessel, which in turn could entail increased mass transfer rate. This is the most probable reason for the increased polyphenol diffusivity as a response to rising S_S [32]. A suitable S_S adjustment was found to play a key role in polyphenol extraction processes, providing significantly higher yields [32,36].

3.3. Ultrasound-Assisted Pretreatment: Effect on Extraction Kinetics

Despite its wide applicability as a green means of polyphenol extraction, there is substantial evidence that ultrasonication may not be as effective as stirred-tank mode or microwave-assisted extraction [37]. However, it was recently demonstrated that ultrasonication may be very effectively incorporated into a batch stirred-tank extraction process as a pretreatment step, provoking significantly increased polyphenol recovery [38].

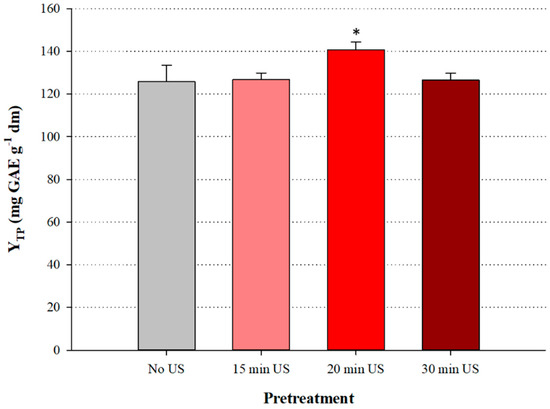

Thus, in order to investigate whether an ultrasound-assisted pretreatment step could have an important impact on Y_TP, the ultrasonication time was first examined. Samples were ultrasonicated under constant operating settings (power 550 W, frequency 50 Hz, acoustic energy density 78.6 W L⁻¹) for various periods, prior to stirred-tank extraction under optimised conditions, as described in paragraph 3.3. A 15-min regime was shown to afford a Y_TP result comparable to control (no ultrasonication pretreatment), but a 20-min ultrasonication gave statistically higher values (Figure 5).

A further prolongation up to 30 min caused a decrease in Y_TP to levels similar to control. Therefore, 20 min was chosen as the most efficacious ultrasonication time. Following this, a kinetic study was undertaken to examine the effect of ultrasonication on polyphenol extraction. Irrespective of the pretreatment, the model best fitted to the experimental data was a modified double reciprocal model, as described previously [39]:

$${\mathrm{Y}}_{\mathrm{TP}\left(t\right)}={\mathrm{Y}}_{\mathrm{TP}\left(0\right)}+\frac{{\mathrm{Y}}_{\mathrm{TP}\left(\mathrm{s}\right)}t}{t_{0.5}+t}$$

(4)

where Y_TP(0) is a fitting parameter, and Y_TP(s) and Y_TP(t) are the Y_TP at saturation (equilibrium) and at any time, t, respectively. Since t_0.5 corresponds to the time where 50% of the Y_TP(s) has been attained, then 2t_0.5 can be considered as the time required for the extraction to enter the regular regime (t_R), which may be regarded as the second, slow phase of the extraction. During this regime, small increases in the extraction rate are recorded within a large period [40]. Y_TP(s) and t_0.5 were given by SigmaPlot^™ 12.5 software. Then, the initial rate of the extraction, h, and the second-order extraction rate, k, were determined as follows:

$$h=\frac{{\mathrm{Y}}_{\mathrm{TP}\left(\mathrm{s}\right)}}{t_{0.5}}$$

(5)

$$k=\frac{1}{{\mathrm{Y}}_{\mathrm{TP}\left(\mathrm{s}\right)}{t}_{0.5}}$$

(6)

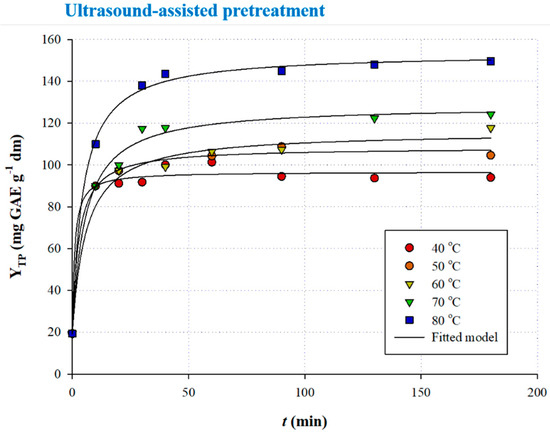

Kinetics was determined within a temperature range of 40 to 80 °C (Figure 6) in order to investigate the effect of temperature, and the data obtained are analytically presented in

Table 3. Parameters estimated using extraction kinetics to assess the effect of temperature on hop polyphenol extraction.

Temperature, T (°C)	Kinetic Parameters
	Second-Order Extraction Rate, k (×10−3) (g mg−1 min−1)	Initial Extraction Rate, h (mg g−1 min−1)	YTP(s) (mg GAE g−1)	Half Time, t0.5 (min)
No pretreatment
40	2.40	30.80	112.41	3.65
50	1.88	26.38	118.44	4.49
60	1.17	17.77	123.13	6.93
70	1.00	15.27	128.91	8.44
80	0.92	16.19	131.17	8.10
Ultrasound-assisted pretreatment
40	13.19	79.25	96.78	0.98
50	4.10	32.51	108.37	2.74
60	1.78	16.55	115.86	5.83
70	1.69	20.11	128.49	5.43
80	1.66	29.96	153.51	4.48

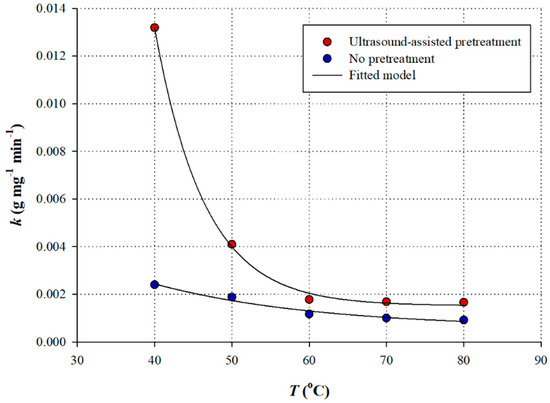

. Surprisingly, extraction rate constants for ultrasound-pretreated and non-pretreated extractions displayed a progressive decrease as a response to increases in temperature (Figure 7), which could be effectively described by an exponential model [41]:

$$k=k_0+\mathrm{a}{e}^{-\mathrm{b}T}$$

(7)

where k and k₀ correspond to the second-order extraction rate and temperature-independent factor, respectively. For the non-pretreated extractions, parameters a and b were 0.0124 and 0.0475, and the corresponding values for the ultrasound-pretreated extractions were 5.768 and 0.155. This finding suggested the ultrasound-pretreated extraction to be more sensitive to temperature changes.

The decline in the extraction rate, k, as temperature increased was a rather paradox phenomenon, since a number of earlier studies demonstrated that polyphenol extraction obeyed the Arrhenius model [35,42,43]. However, a recent examination showed that polyphenol extraction with certain glycerol-based DES may display anti-Arrhenius behaviour [33]. The authors attributed this effect to a partial disintegration of DES through hydrogen bond rupture between HBD and HBA, because of the increasing temperature. This would lead to the abolishment of the DES properties, leading to a lower solubilisation capacity of the solute (polyphenols), hence the decreased extraction rate.

It is to be noted that for any temperature tested, ultrasound-pretreated samples exhibited higher k, evidence that ultrasonication pretreatment may favour higher extraction rates. This argument was further corroborated by the values of the initial extraction rate, h, which showed a similar pattern, up to 70 °C. This would eventually lead to faster extraction, as indicated by the t_0.5 values determined (Table 3). For temperatures up to 70 °C, the non-pretreated extractions afforded higher Y_TP(s), which indicated that ultrasonication pretreatment did not contribute to increasing the extraction yield, but rather suppressed polyphenol extraction. By contrast, Y_TP(s) for the ultrasound-pretreated sample at 80 °C was 17% higher than that of the non-pretreated one. Such a finding pointed to a temperature-dependent efficiency of the ultrasound-assisted pretreatment. This outcome contrasted previous results, which showed that ultrasound-pretreated grape pomace extraction with aqueous ethanol was more efficient than the non-pretreated one, irrespective of the temperature [38]. Presumably, differentiations in the extraction pattern may be ascribed to the nature of the solute (polyphenol structures and composition), as well as to the nature of the solvents used.

To explain such an effect, the impact of ultrasonication should be considered. Ultrasonic power provokes voids in a liquid, known as cavitation bubbles, which are responsive to the ultrasonic effect. During ultrasonication, cavitation bubbles grow up to a critical point and then collapse, releasing large amounts of energy. The combination of high temperature and high pressure might cause significant disruption to the solid particle integrity, and thus solute may be released in the liquid phase [44]. As evidence for the peculiar extraction properties of DES accumulates, a deeper insight is imminent to clarify DES behaviour in similar processes.

4. Conclusions

A green extraction process was developed, using a newly designed deep eutectic solvent, to obtain hop extracts enriched in polyphenolic compounds. The process was optimised by implementing a Box–Behnken experimental design, and the effect of ultrasonication as a pretreatment step was further assessed by a kinetic study. The results obtained showed that the solvent used was an efficient extraction medium and the optimisation of the process contributed significantly to achieving high polyphenol extraction yields. All experimental variables considered, that is, the DES/water proportion, the liquid-to-solid ratio and the stirring speed, were demonstrated to be statistically significant. Ultrasonication pretreatment was shown to supress polyphenol extraction yield up to 70 °C, but at 80 °C ultrasonication boosted polyphenol recovery. The second-order extraction rates exhibited a declining trend in response to increasing temperature, and this is a phenomenon that merits a profounder investigation. Along with the recommendation of the novel deep eutectic solvent, the estimated optimised conditions under which it was developed and a pretreatment involving ultrasonication are recommended as a set of process variables that could enable the production of hop extracts highly enriched in polyphenolic substances.
