Switchable Interfaces: Redox Monolayers on Si(100) by Electrochemical Trapping of Alcohol Nucleophiles

Abstract

Organic electrosynthesis is going through its renaissance but its scope in surface science as a tool to introduce specific molecular signatures at an electrode/electrolyte interface is under explored. Here, we have investigated an electrochemical approach to generate in situ surface-tethered and highly-reactive carbocations. We have covalently attached an alkoxyamine derivative on an Si(100) electrode and used an anodic bias stimulus to trigger its fragmentation into a diffusive nitroxide (TEMPO) and a surface-confined carbocation. As a proof-of-principle we have used this reactive intermediate to trap a nucleophile dissolved in the electrolyte. The nucleophile was ferrocenemethanol and its presence and surface concentration after its reaction with the carbocation were assessed by cyclic voltammetry. The work expands the repertoire of available electrosynthetic methods and could in principle lay the foundation for a new form of electrochemical lithography.

1. Introduction

Synthetic organic electrochemistry traces its origin back to the work of Faraday and Kolbe and its green credentials are currently prompting a renaissance [1,2,3]. Chemical reactions that are coupled to the flow of electricity allow, for instance, chemists to generate unstable intermediates in situ, to control very precisely and accurately the supply of reactants and to monitor reaction processes in real-time [4]. While the large majority of the work on synthetic electrochemistry has focused on bulk synthesis [5,6], there is also a strong motivation to expand electrochemical synthetic methods toward the chemical modification of interfaces [7,8,9,10]. Addressing the molecular details of a surface [11], especially those of semiconductors, has been central to the development of fields such as molecular electronics [12], sensing [13], energy conversion [14] and cell biology [15]. Semiconductor electrodes and in particular silicon electrodes, have the advantage of being readily available in a crystalline form, they have unique photo-electrochemical properties and can form covalently-bound monolayers [16]. Silicon like all non-oxide semiconductors is thermodynamically unstable and especially under anodic polarization in aqueous environments tends to grow an electrically-insulating silica layer [17,18]. A common laboratory approach to attach covalently organic molecules on silicon substrates is a three-step wet chemical process. Removal of the native silica layer with fluoride-containing solutions is followed by chemical passivation [19] of the hydrogen-terminated silicon surface by means of hydrosilylation of terminal alkenes or alkynes [20,21,22] and finally chemical derivatization of the aliphatic monolayer [16]. In this work we seek to expand the chemical repertoires of this last step and explore the synthetic scope of reactive carbocations in the context of surface chemistry.

There are several methods to generate carbocations in solution [23] but only few examples are available for electrochemical generation of carbocations at electrodes. We have recently reported on the putative generation of carbocations at metallic electrodes after the fragmentation of anodic intermediates of alkoxyamines. Alkoxyamines are heat-labile molecules, widely used as an in situ source of nitroxides in polymer and materials sciences. We have shown that the one-electron oxidation of an alkoxyamine leads to an anodic intermediate that rapidly fragments releasing a nitroxide species at room temperature [24].

In the current work we have developed a surface model system to explore the feasibility of using surface-tethered carbocations to trap solution nucleophiles. The carbocation is electro-generated in situ from an alkoxyamine molecule that is exposed at the distal end of an organic monolayer grown on a Si(100) electrode. By way of applying a positive bias to the Si(100) electrode, the alkoxyamine is anodically cleaved to release a 2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPO) molecule and generate a surface-confined carbocation species. The latter is attacked by electron donors via nucleophilic substitutions. As proof-of-principle we have prepared redox-active monolayers by generating the surface carbocations in the presence of ferrocenemethanol (2) molecules.

2. Materials and Methods

2.1. Chemicals

All chemicals, unless specified otherwise, were of analytical grade and used as received. Milli-Q™ water (>18 MΩ cm, Millipore Corporation, Burlington, MA, USA) was used to prepare solutions and to clean all glassware. Anhydrous solvents used in chemical reactions were purified under nitrogen by a solvent drying system from LC Technology Solutions Inc. Dichloromethane (DCM), methanol (MeOH) and 2-propanol were redistilled prior to use. Hydrogen peroxide (30 wt % in water), ammonium fluoride (Puranal^TM, 40 wt % in water) and sulfuric acid (Puranal^TM, 95–97%) were used to clean the wafers and were of semiconductor grade. 1,8-nonadiyne (Sigma-Aldrich, 98%) was redistilled from sodium borohydride (Sigma-Aldrich, 99+%) under reduced pressure (80 °C, 10−12 Torr) and stored under a high purity argon atmosphere prior to use. Tetrabutylammonium hexafluorophosphate salt (Bu₄NPF₆, Sigma-Aldrich, ≥98%) was used as a supporting electrolyte. 4-Vinylbenzyl chloride (90%), ammonium sulphite, ferrocene (98%), ferrocenemethanol (2, 97%) and 2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPO hereafter, 98%) were purchased from Sigma-Aldrich. The surface reactive (azide-tagged) alkoxyamine 1-(1-(4-azidomethyl)phenyl)ethoxy-2,2,6,6-tetramethylpiperidine (1) was synthesized according to minor modification of previously reported procedure (see Scheme 1) [25]. Prime grade, single-side polished silicon wafers of 100-orientation (<100> ± 0.5°), p-type (boron-doped) of 100 mm diameter, 500–550 µm thickness and of a nominal resistivity of 0.001–0.003 Ω cm were obtained from Siltronix, S.A.S. (Archamps, France).

2.2. Synthetic Methods

Thin-layer chromatography (TLC) was performed on silica gel Merck aluminium sheets (60 F₂₅₄). Merck 60 Å silica gel (220–400 mesh particle size) was used for column chromatography. Nuclear magnetic resonance (NMR) spectra were recorded on a Bruker Avance 400 spectrometer in deuterated dimethyl sulfoxide (d-DMSO) using the residual solvent signal as internal reference. High-resolution mass spectral data (HRMS, mass accuracy 2–4 ppm) of alkoxyamine 1 were obtained using a Waters Xevo QTof MS via ESI experiments and infusing the sample at 8 μL/min.

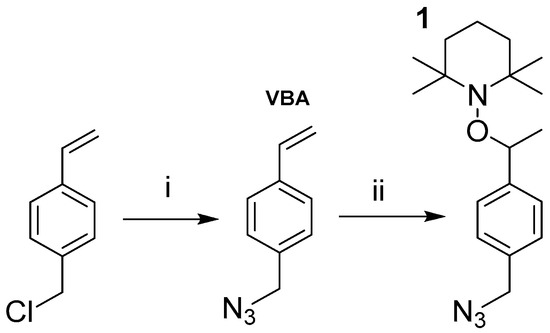

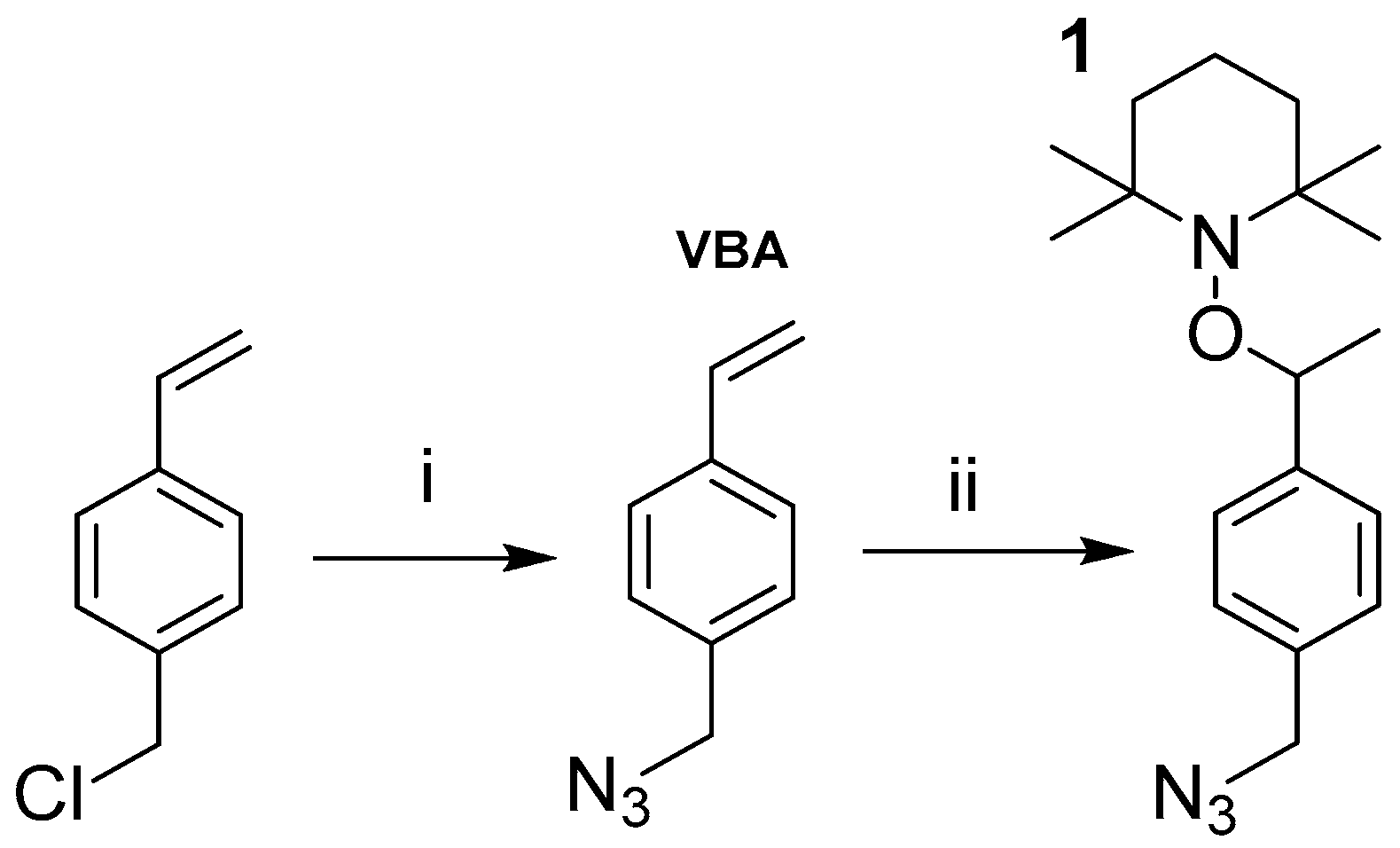

Synthesis of 4-Vinylbenzyl azide (VBA). Sodium azide (1.30 g, 20 mmol) was added in one portion to a stirred solution of 4-vinylbenzyl chloride (1.53 g, 10 mmol) in N,N-dimethylformamide (DMF, 20 mL). The reaction mixture was stirred at room temperature for 12 h under argon then poured into a large excess water (100 mL). The mixture was extracted with DCM (3 × 50 mL). The combined organic layers were then washed with brine (2 × 100 mL), dried over MgSO₄, filtered and dried under vacuum to afford the crude title compound as a brown oily residue. The crude material was purified by silica gel column chromatography (hexane) to give VBA as a light yellow oil (1.31 g, 82%). ¹H NMR (400 MHz, d-DMSO): δ 7.50 p.p.m. (d, Ar-H, J = 8.12 Hz, 2H), 7.35 (d, Ar-H, J = 8.04 Hz, 2H), 6.74 (dd, Ar-CH=CH₂, J = 17.66 Hz, 1H), 5.85 (dd, Ar-CH=CH₂, J = 17.68 Hz, 0.96 Hz, 1H), 5.28 (dd, Ar-CH=CH₂, J = 11.84 Hz, 0.92 Hz, 1H), 4.43 (s, Ar-CH₂-N₃, 2H); ¹³C NMR (100 MHz, d-DMSO): δ 136.96, 136.11, 135.13, 128.69, 126.39, 114.64, 53.32.

Synthesis of 1-(1-(4-Azidomethyl) phenyl)ethoxy-2,2,6,6-tetramethylpiperidine (1). Alkoxyamine 1 was synthesized from VBA via the following procedure. To an ice-cold solution of TEMPO (0.31 g, 2 mmol) in toluene/ethanol (60 mL, 1:1, v/v) VBA (3.20 g, 20 mmol) and Mn(OAc)₃·2H₂O (5.36 g, 20 mmol) were added in one portion while stirring in air. Stirring was continued for one min and then a 15-fold molar excess (with respect to TEMPO) of NaBH₄ was added in portions over 15 min. After stirring overnight under nitrogen atmosphere, the residue was isolated by filtration, the filtrate was suspended in water and the aqueous solution was then extracted three times with DCM. The combined organic layers were evaporated under vacuum and the crude material was purified by silica gel column chromatography (ethyl acetate/hexane, 1:40, v/v) to yield alkoxyamine 1 as a colourless oil liquid (0.32 g, 50%).

¹H NMR (400 MHz, d-DMSO): δ 7.36–7.29 p.p.m. (m, Ar-H, 4H), 4.75 (q, NO-CH-Ar, J = 13.50 Hz, 1H), 4.42 (s, N₃-CH₂-Ar, 2H), 1.54–1.38 (m, 6H), 1.37–1.19 (m, 6H), 1.12 (s, 3H), 0.97 (s, 3H), 0.57 (s, 3H); ¹³C NMR (100 MHz, d-DMSO): δ 145.08, 134.08, 128.21, 126.76, 82.09, 59.22, 58.98, 53.40, 33.99, 33.76, 23.00, 20.04, 16.66; HRMS (1, m/z): [M + H]⁺ calcd for C₁₈H₂₉N₄O 317.2336, found 317.2335.

2.3. Surface Modification

2.3.1. Light-Assisted Hydrosilylation of 1,8-Nonadiyne on Si(100) (S-1)

The assembly of the acetylenylated Si(100) surface by covalent attachment of 1,8-nonadiyne on hydrogen-terminated silicon is based on a photochemical hydrosilylation method [26]. In brief, silicon wafers were mechanically cut into pieces (approximately 10 × 10 mm in size), rinsed several times with small portions of DCM, MeOH and Milli-Q™ water. The samples were then immersed in hot Piranha solution (100 °C, a 3:1 (v/v) mixture of concentrated sulfuric acid to 30% hydrogen peroxide, Caution: piranha solution reacts violently with organic substances) for 20 min. The samples were then rinsed with water and immediately etched with a deoxygenated 40% aqueous ammonium fluoride solution for 5 min under a stream of argon. A small amount (ca. 5 mg) of ammonium sulphite was added to the etching bath for building an anaerobic environment and hence avoiding the in situ oxidation of the hydrogen-terminated silicon. The freshly etched samples were washed sequentially with Milli-Q™ water and DCM and blown dry with argon before dropping a small deoxygenated sample of 1,8-nonadiyne (approximate 50 μL) on the hydrogen-terminated wafer and covering it with a quartz slide to minimize evaporation. The wafer was then rapidly transferred to an air-tight UV reaction chamber and kept under positive argon pressure. A collimated LED source (λ = 365 nm, nominal power output >190 mW, Thorlabs part M365L2 coupled to a SM1P25-A collimator adapter) was fixed over the sample at a distance of about 10 cm. After illumination for a 2 h period, the resulting acetylene-functionalized sample (S-1, Scheme 2) was removed from the reaction chamber, rinsed several times with DCM and rested for 12 h in a sealed vial at +4 °C under DCM before being further reacted with alkoxyamine 1.

2.3.2. Click Immobilization of Alkoxyamine 1 (S-2)

Surface S-1 was reacted with molecule 1 to yield the alkoxyamine monolayers (S-2) via a copper(I)-catalysed “click” alkyne-azide cycloaddition (CuAAC) reaction. In brief, to a reaction vial containing the alkyne-functionalized silicon surface (S-1) was added (i) the azide (alkoxyamine 1, 0.5 × 10⁻³ M, 2-propanol/water, 1:1, v/v), (ii) copper(II) sulphate pentahydrate (1.0 × 10⁻⁴ M) and (iii) sodium ascorbate (5 mg/mL). The reaction was carried out without excluding air from the reaction environment, at room temperature and under ambient light. The samples were removed from the reaction vessel after a reaction time of 2 h and were rinsed thoroughly with copious amounts of 2-propanol, water, 2-propanol and DCM and blown dry with argon before being analysed or further reacted (Scheme 2).

2.4. Surface Characterization

2.4.1. X-ray Photoelectron Spectroscopy

X-ray photoelectron spectroscopy (XPS) characterization was performed on an ESCALab 250 Xi (Thermo Scientific, Waltham, MA, USA) spectrometer with a monochromated Al Kα source to characterize the formation of an alkoxyamine 1 monolayer on silicon. The pressure in the analysis chamber during measurement was <10⁻⁸ mbar. The pass energy and step size for narrow scans were 20 eV and 0.1 eV respectively, with a take-off angle normal to the sample surface. Spectral analysis was performed using Avantage 4.73 software and curve fitting was carried out with a mixture of Gaussian–Lorentzian functions after background subtraction. Peaks were calibrated to C–C at 284.8 eV.

2.4.2. Electrochemical Measurements

Electrochemical experiments were performed in a single-compartment, three-electrode PTFE cell with the modified silicon surface as the working electrode, a platinum mesh (ca. 200 mm²) as the counter electrode and silver/silver chloride “leakless” electrode in 3 M sodium chloride as the reference electrode. A rectilinear cross-section gasket defined the geometric area of the working electrode to 28 mm². Electrical contact between the silicon substrate and a copper plate was ensured by rapidly rubbing a gallium indium eutectic onto the back of the silicon electrode. Cyclic voltammetry (CV) measurements were performed using a CHI 910B electrochemical analyser. All potentials are reported versus the reference electrode. Tetrabutylammonium hexafluorophosphate (Bu₄NPF₆, Sigma-Aldrich, ≥98%) was recrystallized twice from 2-propanol and used at the concentration of 1.0 × 10⁻¹ M as the supporting electrolyte in DCM solutions. The reaction between the anodically-cleaved S-2 samples and ferrocenemethanol (2), as well as control experiments were 2 is replaced by ferrocene, were performed under argon and at room temperature. S-3 samples (Scheme 2) were thoroughly washed with DCM prior to analysis. Cyclic voltammetry of S-3 samples was performed under ambient conditions in aqueous 1.0 M HClO₄ electrolytes.

3. Results and Discussion

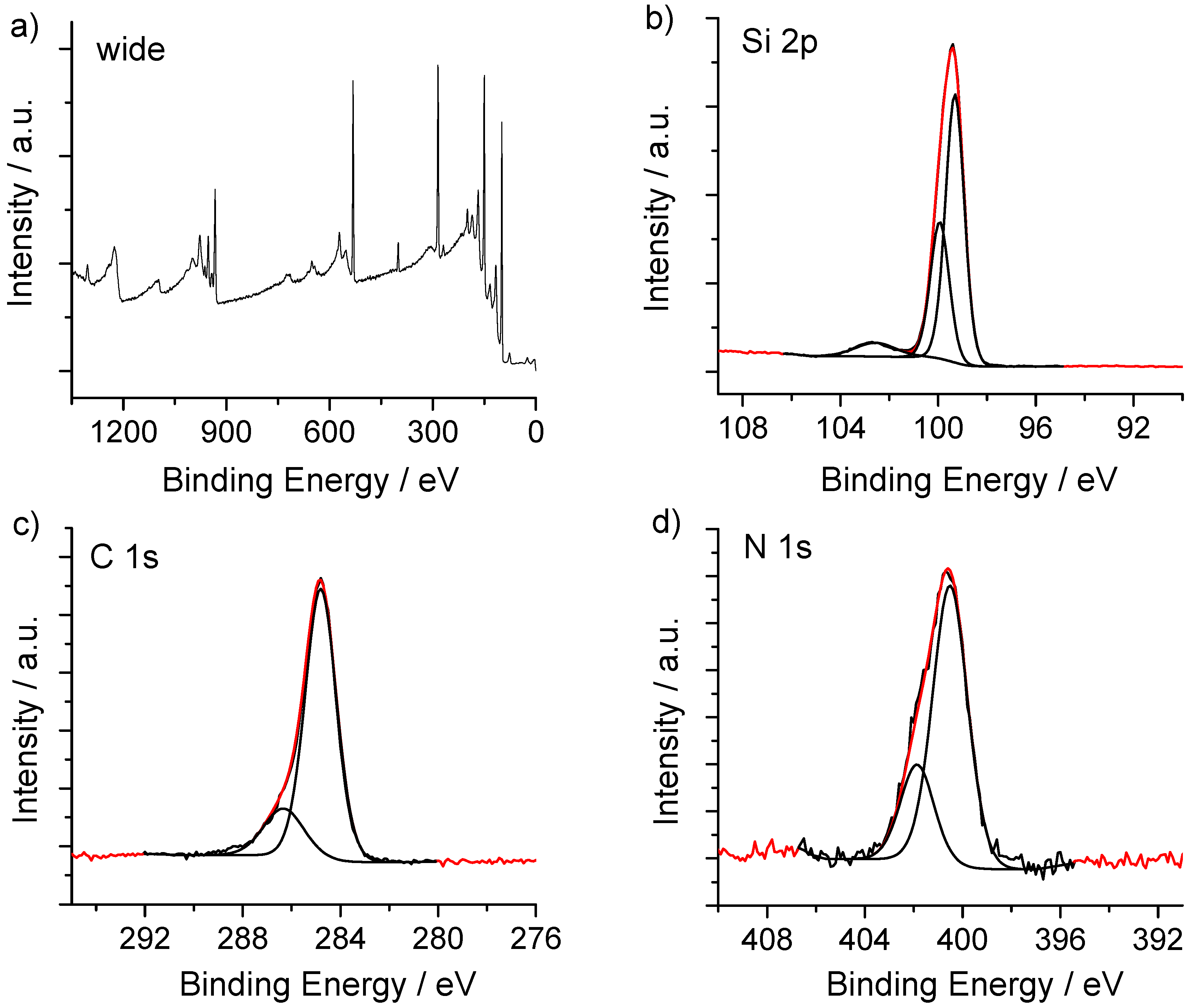

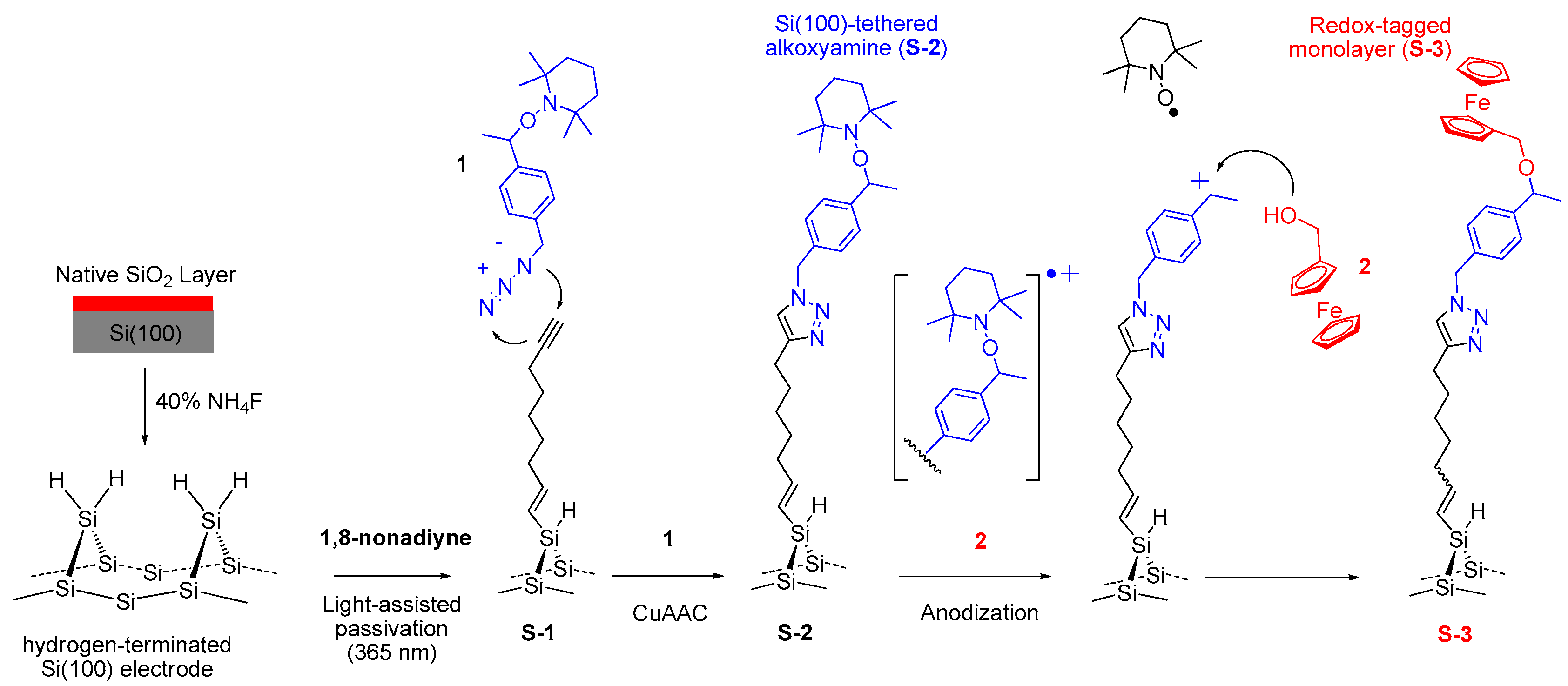

As a proof-of-principle, we have devised “trapping” experiments on an electrode surface modified by alkoxyamine 1 (S-2, Scheme 2). The anodization of the S-2 monolayers is expected to generate benzylic cations tethered on the electrode surface while the nitroxide fragment is released into the electrolyte. The covalent attachment of alkoxyamine 1 to the silicon surface was first verified by the XPS (Figure 1). Peaks at 99.3 and 100.0 eV for S-2 samples were respectively ascribed to the Si 2p_3/2 and Si 2p_1/2 emissions (Figure 1b). The presence of a band at 101.1‒104.3 eV is due to SiO_x formed during the hydrosilylation and/or CuAAC processes. Two signals in the carbon envelope that are centred at 284.6 and 286.3 eV indicates the formation of C‒C and C‒O/‒N, respectively [27], as expected for the putative structure of S-2 samples (Figure 1c). As shown in Figure 1d, refinement of the N 1s emission gives two fitted peaks with binding energies of 400.5 and 401.7 eV in an approximate 3:1 ratio. The position of the low binding energy line in the S-2 samples is in agreement with the 400.6 eV previously assigned to nitroxide nitrogen atoms in thin films [22]. Electrons from the triazole heterocycle also contributed to the 400.5 and 401.7 emissions with an expected 2:1 ratio.

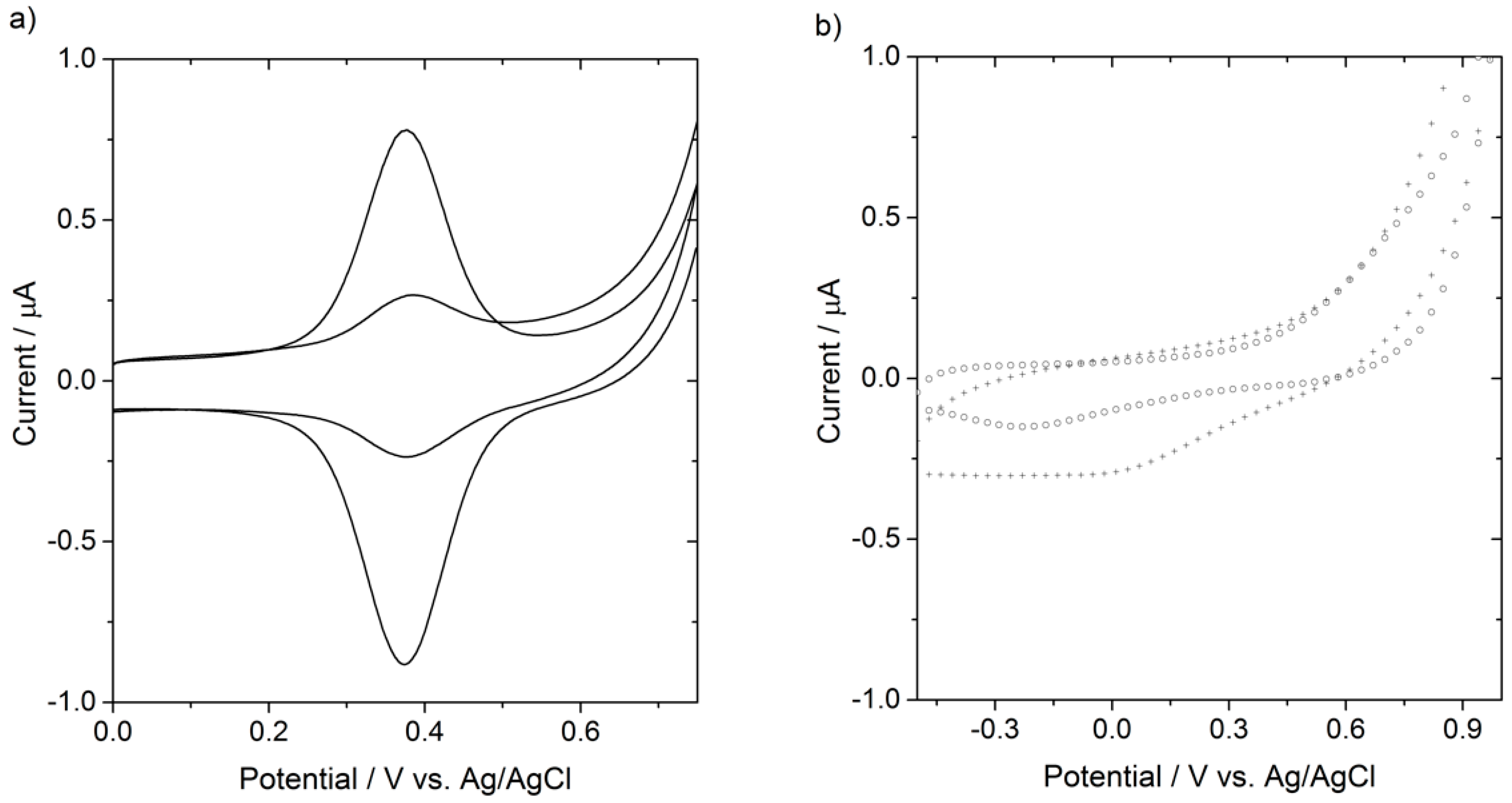

As shown Figure 2, the anodization of the alkoxyamine monolayer (S-2) via a potentiostatic experiment (electrode held at 1.0 V versus reference for 30 s) in 1.0 × 10⁻¹ M DCM/Bu₄NPF₆ in the presence of an excess of 2 is effective in trapping the alcohol at the distal end of the monolayer. The newly-formed redox-active surface (S-3) is washed with copious DCM and then analysed by cyclic voltammetry in an electrolyte that does not contain a redox-active species. Figure 2a shows the well-defined pair of redox waves (solid red lines) which are ascribed to the surface-confined redox tag (S-3). The surface coverage of ferrocenyl units, derived from integration of the anodic wave, ranges over almost on order of magnitude from 5.5 × 10⁻¹² mol cm⁻², as the low end, up to the value of 3.1 × 10⁻¹¹ mol cm⁻² for our highest current yield. Our best result is still only about 10% of close-packed packed layer of redox ferrocenes; defining the exact nature of any competitive side-reactions is beyond the scope of this work. Two control experiments were carried out as follows. We used ferrocene, which lacks the hydroxyl function, to rule out non-specific adsorption of the redox probe as well as trying to remove the anodic step. That is, the working electrode modified bearing the alkoxyamine 1 is rested at open circuit potential (OCP) conditions in the presence of the nucleophile (2). In both controls (Figure 2b) we found no evidence of redox peaks when either the nucleophile is removed from the system (+, Figure 2b) or when the S-2 surface is not anodized to trigger the switch masked alkoxyamine/reactive carbocation (○, Figure 2b).

4. Conclusions

We have demonstrated a method to achieve a switchable interface—from unreactive to electrophilic—and used it to attach alcohol species as monolayers on Si(100) electrodes. Unlike conventional esterification approaches on surfaces (e.g., DCC/DMAP), here we show an electrochemical alternative that involves a surface carbocation. This reactive intermediate is generated in situ under an external potential stimulus that switches a stable alkoxyamine into a reactive surface trap for nucleophiles. This proof-of-principle expands to the realm of surfaces some of the recent advances made in synthetic organic electrochemistry. This knowledge may aid the development of cationic polymerization on surfaces and this surface chemistry platform can in principle be coupled to photo-electrochemical reactions on semiconductors and photoconductors [26] in order to control electron transfer, hence chemical reactivity, in two dimensions [28,29].
