Projected Future Flooding Pattern of Wabash River in Indiana and Fountain Creek in Colorado: An Assessment Utilizing Bias-Corrected CMIP6 Climate Data

Abstract

Climate change is considered one of the biggest challenges around the globe as it has been causing alterations in hydrological extremes. Climate change and variability have an impact on future streamflow conditions, water quality, and ecological balance, which are further aggravated by anthropogenic activities such as changes in land use. This study intends to provide insight into potential changes in future streamflow conditions leading to changes in flooding patterns. Flooding is an inevitable, frequently occurring natural event that affects the environment and the socio-economic structure of its surroundings. This study evaluates the flooding pattern and inundation mapping of two different rivers, Wabash River in Indiana and Fountain Creek in Colorado, using the observed gage data and different climate models. The Coupled Model Intercomparison Project Phase 6 (CMIP6) streamflow data are considered for the future forecast of the flood. The cumulative distribution function transformation (CDF-t) method is used to correct bias in the CMIP6 streamflow data. The Generalized Extreme Value (L-Moment) method is used for the estimation of the frequency of flooding for 100-year and 500-year return periods. Civil GeoHECRAS is used for each flood event to map flood extent and examine flood patterns. The findings from this study show that there will be a rapid increase in flooding events even in small creeks soon in the upcoming years. This study seeks to assist floodplain managers in strategic planning to adopt state-of-the-art information and provide a sustainable strategy to regions with similar difficulties for floodplain management, to improve socioeconomic life, and to promote environmental sustainability.

1. Introduction

An important long-term shift in the weather and temperatures is referred to as climate change [1,2]. In recent years, mean surface temperatures have been observed to be higher than that in previous decades [3]. If the rate of temperature rise remains constant, the current temperature will rise from 1.5 to 2 °C by 2052 [3]. Scientists have corroborated that extreme events are amplified by anthropogenic activities [4]. These increasing temperatures have led to increased evaporation and evapotranspiration resulting in increased precipitation. This change alters the hydrological cycle and has affected the surface and subsurface runoff [5]. The changes in ocean currents and wind patterns also influence the precipitation shift, which changes the runoff patterns. This may cause an increase in the frequency and intensity of both floods and droughts [6,7,8]. The high and low variations in streamflow are extremely sensitive to the changing climate [9]. It is crucial to predict the future streamflow to prevent flooding disasters by tracking the continuation of such extreme events and increased flood frequency. Flooding, droughts, and heat waves are some of the most prevalent natural disasters in the world [7,8]. Floods, tropical cyclones, and droughts are the most frequently observed disasters in the United States. Additionally, according to research by the United Nations World Water Assessment Programme, almost 30% of the world’s population is impacted by water-related natural disasters, such as floods and droughts [9]. The frequencies and intensities of extreme rainfall events are changing and increasing. Extreme or large flooding is more frequent with loss of both life and property [10]. Many researchers have provided the probable effects of the change in climate and its impact on the flood risk globally [11]. Many studies have demonstrated the change in the pattern of streamflow is due to changes and variability in climate. Extreme unexpected events are being observed frequently with great loss in many parts of the world. Hence, for the detailed study of such events and to study their pattern, two different study reaches were selected, i.e., Wabash River in Indiana and Fountain Creek in Colorado.

The Wabash River is known as a state river with a drainage area of 85,237 km² and has an increasing trend of streamflow [12]. According to a study on the effect of climate change on yearly runoff in the Wabash River watershed, there will be a 1.5–2.5% fluctuation in streamflow for every 1% variation in precipitation [12,13]. This change may be caused due to storage for the nonlinear precipitation runoff [14]. The streamflow of the Wabash River is extremely sensitive to the change in temperature and hence the study of its changing flow patterns is important for the quantification of probable impacts of future climate change and variability [12]. The quantification of changing streamflow patterns will be useful for water managers and policymakers for future watershed planning and management [12].

Fountain Creek watershed in Colorado experiences chronic flooding [13]. Numerous flooding incidents in historically sensitive areas during the previous century indicate the necessity of a long-term strategy to reduce floods in the future. Pervasive flooding, as exemplified in the current study reach, is rooted in a changing climate, urbanization, and improper flood-control infrastructure. Urban development thus often results in increased surface runoff due to deteriorated pervious surfaces. Moreover, the risks of urban flooding are exacerbated due to destructive runoff flow velocity along with extreme peak flows [15]. The other factors leading to flash flood events near Fountain Creek are topographic relief and narrow canyons. One of the larger municipalities in the watershed is Pueblo, which is mainly impacted by flooding along Fountain Creek. Due to extreme events and a lack of proper stormwater network and management, several lives and properties are at risk. This study can be helpful to evaluate the future extent of the flood for better planning and implementation.

The Federal Emergency Management Agency (FEMA), established in 1968 in the US, is managing the national flood insurance program for an immediate response, which aims in decreasing the impacts of flooding disasters. FEMA has been conducting flood mapping on the areas prone to flooding. FEMA uses HEC-RAS to generate flood inundation maps using one-dimensional (1D) hydraulic modeling, which is helpful for programs that analyze flood risk and provide flood insurance [16]. For flood inundation mapping and additional inundation analysis, this study makes use of Civil GeoHECRAS. Many studies have utilized Civil GeoHECRAS for hazard, vulnerability, and risk assessment of flood zones with a conclusion that flood inundation mapping is a crucial step for flood risk management [17,18,19,20].

CMIP6 proposes a scenario model intercomparison project based on the Shared Socioeconomic Pathways (SSPs), and Representative Concentration Pathways (RCPs). It provides a database for relevant water resources questions and integrating multiple SSP scenarios into hydrological models allows a better understanding of climate and social influences on the physical processes of hydrological systems [9]. The main goal of this study is to forecast potential future flood scenarios and analyze flood inundation extents utilizing the CMIP6 streamflow projection dataset for two different rivers, i.e., Wabash River and Fountain Creek. By examining the floodplain mapping and computing the severity of the inundation in both cases, the current flooding scenarios for various return times are contrasted with the future projected scenarios. By utilizing hydraulic modeling, a 100-year streamflow projection from CMIP6 was adopted as a design discharge. The novelty of the study is to forecast the extent of the floodplain in current and future climates using streamflow projection data from CMIP6. This study also provides an extensive analysis of the importance of flood forecast data. The major outcomes of this research work will be beneficial for offering responses to the inquiries as follows:

• What effect will climate change have on streamflow in the future, and how would that modify the frequency of flooding?
• What changes in flood size and pattern can be expected in the future under the estimated design discharge?
• What are the changes in the future flood extent utilizing the CMIP6 climate model and how does it compare with the FEMA floodplain?
• What changes in estimated inundation extent correspond to different land uses?

This study anticipates the significance of planning appropriate responses by utilizing projected future datasets to compare the extent of historical flooding. The region affected by extreme events is massively understated by current climate indicators. This study assesses the possibilities for future flooding to determine the extent of agricultural and urban flooding with an increase in river discharge. The findings of this study will allow policymakers to implement better water resource management policies and reduce risk by contemplating the likelihood of potential future flooding escalation.

2. Study Area and Dataset

2.1. Study Area

In the current study, Wabash River in Indiana and Fountain Creek in Colorado are considered to assess the changes in flooding patterns. A brief description of each reach is described below:

2.1.1. Wabash River

In this study, river reach from Wabash to Peru in Indiana was taken into consideration. Wabash River flows westward passing the cities, Huntington, Wabash, Logansport, and Lafayette, then southward to Terre Haute across Indiana. The total length of the study reach is 23.87 km. The study’s upstream portion begins at USGS Gage Station 03325000 in Wabash, which is located at latitude 40.79° N and longitude 85.82° W. The downstream portion of the study reach ends at USGS Gage station 033275000 in Peru, which is located at latitude of 40.75° N and longitude of 86.07° W (Figure 1). The Wabash River drains a total area of 85,860 square kilometers. The Wabash River is slow and muddy. The study region is dominated primarily by agricultural land and residential areas. The summer is warm, wet, and humid, and the winters are bitterly cold and windy. The highest temperature with an average high of 28.3 °C was recorded in June and the lowest temperature with an average low of −10 °C was recorded in January. The maximum rainfall with an annual average of 979.42 mm is observed in June.

2.1.2. Fountain Creek

Fountain Creek flows from Woodland Park in Teller County to the Arkansas River near Pueblo in Pueblo County, Colorado. In this study, the river reach from Pinon to Pueblo was taken into consideration. Fountain Creek is one of the tributaries of the Arkansas River, which is 119.9 km long with a great elevation difference of 1414.27 m to 4302.25 m, whereas the total length of the study reach is 17.03 km. The upstream of the study area is located near USGS Gage Station 07106300 situated at a latitude and longitude of 38.43° N and 104.59° W, respectively (Figure 2). The downstream portion of the study reach is close to USGS Gage Station 07106500, which has coordinates latitude and longitude of 38.28° N and 104.61° W, respectively. Summers are hot and clear, and winters are dry, cold, and cloudy. The highest temperature with an average high of 33.88 °C was recorded in July and the lowest temperature with an average low of −3.33 °C was recorded in December. August is the month that experiences the most precipitation, with an annual average of 330.71 mm of rain and 482.6 mm of snow.

2.2. Dataset

Several research institutes have been assisting in the development of climate datasets because of the connection between climate change and changes in hydrological and meteorological parameters. For the prediction of future flow for the study sites, this study uses river discharge data from the CMIP6 climate models dataset (downloaded from https://esgf-node.llnl.gov/search/cmip6/, retrieved on 10 March 2021). The study used CMIP6 scenarios with a greater number of GCMs for the reduction in uncertainties in the results [21]. The peak discharge for the study reach was determined using daily discharge data. The historical daily discharge data were taken from 1950 to 2014 from the USGS gage station upstream and downstream of the study reach. This current study utilized CMIP6 historical observations with a modeling period from 1950 to 2014. The gridded discharge data from CMIP6 were extracted at USGS gage stations. SSP1-2.6, SSP2-4.5, SSP3-7.0, and SSP5-8.5 were the four scenarios that were taken into consideration for future observation. The scenarios with two or more GCMs from 2015 to 2100 were adopted to evaluate future hydroclimatic change. In the current study, three models were opted for from a total of twelve models, with the remaining nine models being eliminated due to the availability of only one GCM. The preferred future scenarios consider anthropogenic factors in addition to socioeconomic changes. The scenarios and ensemble members used in the current study for each scenario are presented in

Table 1. Modeling institution and number of ensemble members of each climate model.

	Scenarios					Modeling Institution
Models	Historical	SSP1-2.6	SSP2-4.5	SSP3-7.0	SSP5-8.5
CNRM-CM6	24	6	6	6	5	CNRM-CFRFACS
CNRM-ESM2	5	5	5	5	5	CNRM-CFRFACS
CNRM-CM6-HR	1	1	1	1	1	CNRM-CFRFACS

.

In this study, for hydraulic modeling, 10 m resolution DEM was extracted from Geospatial Data Gateway (https://datagateway.nrcs.usda.gov/ accessed on 12 February 2021). The National Land Cover Dataset (NLCD) was utilized to acquire the land-use and land-cover data for Manning’s n value. To calibrate the model, the cross sections of the study reach were carefully selected along and between the cross sections of the FEMA flood extent. No structures such as levees and dams were considered due to the limitation of the detailed data of those structures. The range and assigned values for Manning’s n values are provided in

Table 2. Manning’s n values of flow areas utilized for Wabash River and Fountain Creek.

NLCD Code	Land Cover	Allowable Manning’s Range	Assigned Manning’s n
			Wabash River	Fountain Creek
11	Open Water	0.025–0.050	0.030	0.030
21	Developed, Open Space	0.030–0.050	0.040	0.045
22	Developed, Low Density	0.050–0.120	0.080	0.075
23	Developed, Medium Density	0.060–0.140	0.10	0.120
24	Developed, High Density	0.080–0.200	0.120	0.120
31	Undeveloped, Barren Land	0.025–0.035	0.030	0.035
71	Undeveloped, Grassland	0.025–0.050	0.035	0.045
52	Undeveloped, Shrub/Scrub	0.070–0.160	0.085	0.085
43	Undeveloped, Mixed Forest	0.100–0.160	0.120	0.120
41	Undeveloped, Deciduous Forest	0.100–0.160	0.100	0.100
42	Undeveloped, Evergreen Forest	0.100–0.160	0.140	0.140
82	Agricultural, Cultivated Crops	0.025–0.050	0.035	0.035
81	Agricultural, Pasture/Hay	0.025–0.050	0.040	0.045
90	Wetlands, Forested	0.045–0.150	0.120	0.130

. Different values for Manning’s n were considered for all the bank lines and centerlines. For the centerlines, Manning’s n considered throughout the channels in both study areas is 0.03. FEMA provides the flood map based on a 0.1% chance of flood, i.e., a 100-year flood map, which was utilized in this study for the calibration of the model. Calibration of the hydraulic models was performed with several assignments of Manning’s n value within the range provided by NLCD (Table 2). Manning’s n value of the final calibrated model was utilized for the future flood forecast.

3. Methodology

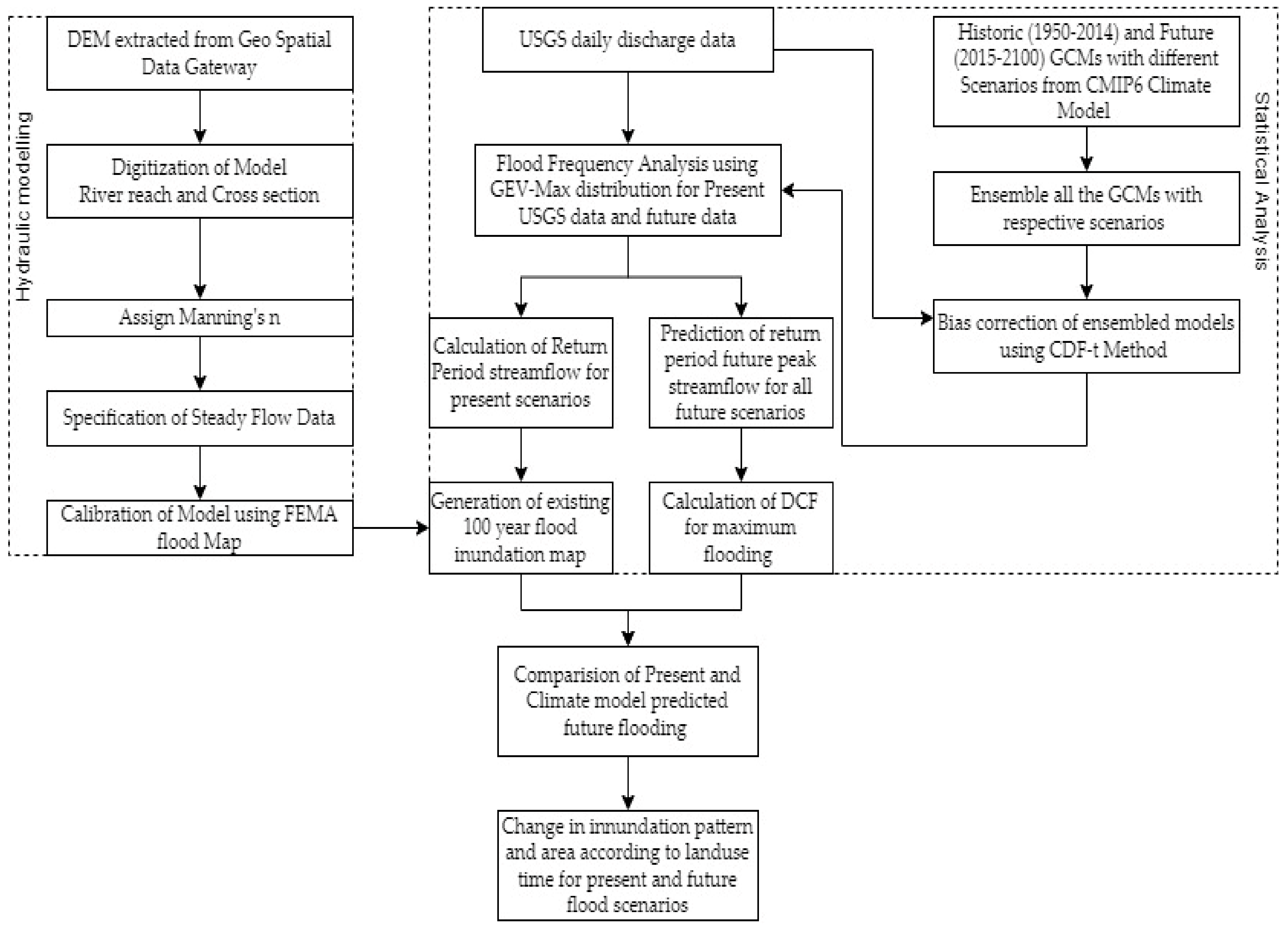

The current study involves (1) hydraulic analysis to generate flood inundation maps and (2) statistical analysis for the prediction of future design floods, which can be further utilized in other studies. Figure 3 shows the schematic diagram to generate existing and future 100-year flood maps.

3.1. Statistical Analysis

3.1.1. Bias Correction

The impact of climate change on hydrological and meteorological parameters has resulted in many research institutes to contribute in the generation of different climate datasets. CMIP6 climate model dataset acquires hydrological induced dataset which can be beneficial for the current study. Global time series datasets are available in Global Climate Model (GCM) datasets. The netCDF file of global time series data for river discharge was retrieved from the CMIP6 data. Using the global dataset, the time series of the river discharge at Wabash River and Fountain Creek were extracted. The purpose of the current study is to comprehend and assess the rise in river flooding caused by climate change; therefore, instead of using other concerning parameters such as precipitation, temperature, and wind speed, the study employs the river discharge data present in the CMIP6 datasets.

The data from the CMIP6 climate model has systematic biases. The bias correction of the CMIP6 models is important to further utilize the data for robust forecasting [22,23,24]. The GCMs for all scenarios were ensembled, and bias correction was performed using the CFD-t statistical technique [25,26,27,28]. The correlation between observed and modeled data was established in bias correction by employing the transformation function “T” as shown in Equation (1) below [26]. The future bias-corrected data (F_sh) were obtained from modeled future (F_gf) and historical climate data (F_gh). A range of bias corrections of F_gh and F_sh was determined. After obtaining the bias-corrected data, the computed CDF was utilized to predict future flows. The bias correction equations used are as follows:

T(F_Gh(x)) = F_sh(x)

(1)

Let us consider, u = F_Gh(x), which provides us x = ${\mathrm{F}}_{Gh}^{-1}$(u) where uƐ [0, 1].

Then, Equation (1) can be modified as

$$\mathrm{T}\left(u\right)={\mathrm{F}}_{sh}\left({\mathrm{F}}_{Gh}^{-1}\left(u\right)\right)$$

(2)

where T denotes the functional relationship that exists between the modeled and observed CDF results for the historical period.

The final CDF-t equation after validating Equation (2) is:

$${\mathrm{F}}_{sf}\left(x\right)={\mathrm{F}}_{sh}\left( {\mathrm{F}}_{Gh}^{-1}\left({\mathrm{F}}_{Gf}\left(x\right)\right)\right)$$

(3)

3.1.2. Flood Frequency Analysis and Future Design Flow

The Generalized Extreme Value (GEV) distribution was determined as being the best-fit among Gumbel distribution, Log Pearson III, and GEV-Max (L-Moments) distribution of the data using “Easyfit” software. Pearson Chi-square and Kolmogorov–Smirnov tests were performed as the fit criteria for fitting the best distribution. GEV obtains a higher ranking in between other approaches while the software itself performs the tests. For flood frequency analysis, (GEV) a parametric distribution was used that calculates the cumulative probability [29]. It is extensively utilized because of its capability to forecast streamflow and future extremes [24,29,30,31,32]. In earlier research, L-moment is used for the calculation of the parameters in the GEV distribution [24,29]. The GEV distribution for annual maxima is calculated using the following equation:

$$\mathrm{GEV} \left(x:\mu ,\sigma ,k\right)=\begin{array}{c}\exp \{-{[1+k\left(\frac{x-\mu }{\sigma }\right)]}^{-\frac{1}{k}}\}\mathrm{if} k \ne o\\ \exp \{-\exp [-(\frac{x-\mu }{\sigma }){]}^{-\frac{1}{k}}\}\mathrm{if} k=o\end{array}$$

(4)

The location, scale, and shape of data are represented in Equation (4) by μ, σ, and k, respectively. For shape parameter k > 0, μ − σ/k < x < ∞; k = 0, −∞_ < x < ∞; k < 0, ∞_ < x < μ − σ/k [29]. L-moments, shape, scale, and locations are used for the GEV distribution parameters.

GEV was implemented in the current study to determine design streamflow at multiple recurrence intervals. The annual peak was determined for the historical data from 1950 to 2014. Annual peak discharge of each multimodel ensemble scenario (SSP1-2.6, SSP2-4.5, SSP3-7.0, SSP4-6.0, and SSP5-8.5) of the bias-corrected data was calculated from 2015 to 2100. The peak flows for various year return periods was used to determine the peak flow in the future. Peak flow was calculated for the CMIP6 climate model as well as observed data for 100-year and 500-year. For the future streamflow forecast, the Delta Change Factor (DCF) was used. The DCF method is a statistical downscaling method that is based on the idea to match the historical gage streamflow data and future streamflow data [33]. A main advantage of the DCF method is that historical patterns of temporal and spatial variability from the gridded observations are maintained, and comparison between future scenarios and historical data is straightforward and can be easily analyzed as shown in Equations (5) and (6). The streamflow estimated by FEMA using the DCF represents a flood under stationary conditions. In the current study, for each scenario and return period, DCF is calculated. In order to leverage the largest possible rise in flood data in the future, a greater value of DCF is taken into consideration for this study.

$$\mathrm{DCF}=\frac{\mathrm{Daily} \mathrm{maximum} \mathrm{from} \mathrm{future} \mathrm{model}}{\mathrm{Daily} \mathrm{maximum} \mathrm{from} \mathrm{the} \mathrm{Historic} \mathrm{model}}= \mathsf{\Delta }\mathrm{Q}=\frac{{\mathrm{Q}}_{f,max}}{\begin{array}{c}{\mathrm{Q}}_{h,max}\\ \end{array}}$$

(5)

where ΔQ is the delta change factor for the peak discharge; Q_f,max is the daily maximum from future model and Q_h is the modeled historical peak discharge.

$$\mathrm{Peak} \mathrm{Future} \mathrm{Flow}=\mathrm{DCF} \times \mathrm{Existing} \mathrm{Peak} \mathrm{Flow}$$

(6)

3.2. Hydraulic Modelling

The flood map obtained from the current study was compared with the 100-year and 500-year FEMA flood scenarios to study how the future climate may affect flooding. In the Civil GeoHECRAS 1D hydraulic modeling simulation, the 100-year streamflow projection from CMIP6 was adopted as a design discharge. Civil GeoHECRAS is used as Hydraulic modelling tool for floodplain inundation mapping. DEM was used for the terrain data in the Civil GeoHECRAS 1D simulation model. The reach of the river with upstream and downstream USGS gage stations was selected for the study. River reach, banks, and cross sections at intervals and bends were drawn utilizing the tools available in GeoHECRAS. Each cross-section, the river channel, and banks were provided the default Manning’s n values based upon the land use on the cross sections. Land use for the Manning’s n was extracted from National Land Cover Data (NLCD). The Manning’s coefficients considered for the simulation vary for bank lines, but 0.03 was taken for the river’s centerline. The calibration of the hydraulic model made utilization of water surface elevations (WSELs) from FEMA. The modeled cross sections were compared with observed WSEL obtained from FEMA. The flood inundation maps are prepared for bias-corrected historical data and future projected data after the calibration of the model. The model’s efficiency was evaluated using a range of statistical indicators, including Nash–Sutcliffe Efficiency (NSE), Root Mean Square Error (RMSE), Coefficient of Determination (R²), and Percent Bias (PBIAS) [34].

Peak streamflow derived from GEV for 100-year and 500-year periods were utilized in Civil GeoHECRAS for 1D steady flow hydraulic modeling. The river network of both study reaches were modeled in Civil GeoHECRAS using geometric data and hydraulic computation. In this study, the ratio of peak flow downstream and upstream was assumed to remain constant. Among all the DCFs, the highest DCF was selected for the highest increase in future flood conditions. Spatial flood extents and depth were obtained using the future peak streamflow.

4. Results

4.1. Hydraulic Modelling and Flood Frequency Analysis

In the current study, data from the USGS gage station, DEM, land use land cover, and CMIP6 streamflow data were utilized to develop future flood maps. The annual peak flows obtained from the USGS station are shown in Figure 4. The annual peak flows from 3-GCMs with 75 different streamflow projections from CMIP6 models was used showing an increasing trend of streamflow in both the Wabash River and Fountain Creek. Historical data were utilized for bias correction of multimodel ensembled GCMs for all CMIP6 future scenarios. The scenarios SSP1-2.6, SSP 2-4.5, SSP3-7.8, and SSP5-8.5 were used in the current study.

For both study reach, the best-fit distribution was established using the Easyfit tool, which was used to compute design peak flows at varied recurrence intervals for all future scenarios. Peak flows at different return periods (2-year, 5-year, 10-year, 50-year, 100-year, and 500-year) with their respective scenarios and observed flow are presented in

Table 3. Comparison of peak discharge (CMIP6 scenarios and observed) of all the recurrence intervals in the Wabash River.

Scenarios	Discharge at Various Return Periods (m3/s)
	2	5	10	25	50	100	500
Observed	318	446	556	732	895	1092	1722
SSP1-2.6	522	730	869	1046	1179	1313	1625
SSP2-4.5	461	677	839	1068	1258	1465	2022
SSP3-7.0	498	726	894	1128	1318	1522	2061
SSP5-8.5	685	995	754	1005	1236	1511	2373

and

Table 4. Comparison of peak discharge (CMIP6 scenarios and observed) of all the recurrence intervals in Fountain Creek.

Scenarios	Discharge at Various Return Periods (m3/s)
	2	5	10	25	50	100	500
Observed	112	222	335	550	785	1111	2444
SSP1-2.6	2632	4044	5360	7640	9927	12,865	23,385
SSP2-4.5	3033	4694	6153	8544	10,819	13,614	22,866
SSP3-7.0	3188	4835	6198	8307	10,211	12,444	19,275
SSP5-8.5	2854	4462	5975	8614	11,281	14,731	27,218

for the Wabash River and Fountain Creek, respectively. In this study, a 100-year return period was considered as design discharge for flood mapping.

The peak discharge for the Wabash River was determined to be 1313 m³/s for SSP1-2.6, 1465 m³/s for SSP2-4.5, 1522 m³/s for SSP3-7.0, and 1511 m³/s for SSP5-8.5. The peak discharge for Fountain Creek was determined to be 12,865 m³/s for SSP1-2.6, 13,614 m³/s for SSP2-4.5, 12,444 m³/s for SSP3-7.0, and 14,731 m³/s for SSP5-8.5. In Figure 5a, we can observe that SSP3-7.0 has higher values for the Wabash River, and in Figure 5b SSP 5-8.5 for Fountain Creek. The DCF was computed for each scenario using the CMIP6 climate model’s varying return period discharge and the FEMA 100-year flood discharge.

Table 5. Comparison of DCF values for future 100-year and 500-year flood scenarios for Wabash River and Fountain Creek.

	Wabash River				Fountain Creek
	SSP1-2.6	SSP2-4.5	SSP3-7.0	SSP5-8.5	SSP1-2.6	SSP2-4.5	SSP3-7.0	SSP5-8.5
100	1.10	1.23	1.28	1.27	11.58	12.25	11.20	13.26
500	1.04	1.29	1.31	1.51	9.57	9.36	7.89	11.14

compares the DCF values of several SSP scenarios for 100-year and 500-year flood occurrences. For each scenario, DCF was computed for future CMIP6 model discharge and FEMA 100-year flood discharge. The DCF values greater than 1 infer a higher risk of flood in the future. The 100-year DCF value is lower for SSP1-2.6 (1.10) and highest for scenario SSP3-7.0 in the Wabash River whereas SSP3-7.0 (11.20) was observed to be lower in Fountain Creek (Table 5). All the scenarios were found to have DCF values greater than 1, suggesting that runoff will increase in the future in both Wabash River and Fountain Creek. It can be observed in Table 5, that Fountain Creek has the highest DCF value in SSP 5-8.5 scenario. Similarly, for the Wabash River, SSP3-7.0 has the highest DCF in 100-year (1.28) than that of SSP 1-2.6, SSP 2-4.5, and SSP5-8.5, suggesting an increase in the future runoffs which may be resulting from future land-use changes, and higher GHG emissions.

4.2. Statistical Performance of Hydraulic Modeling

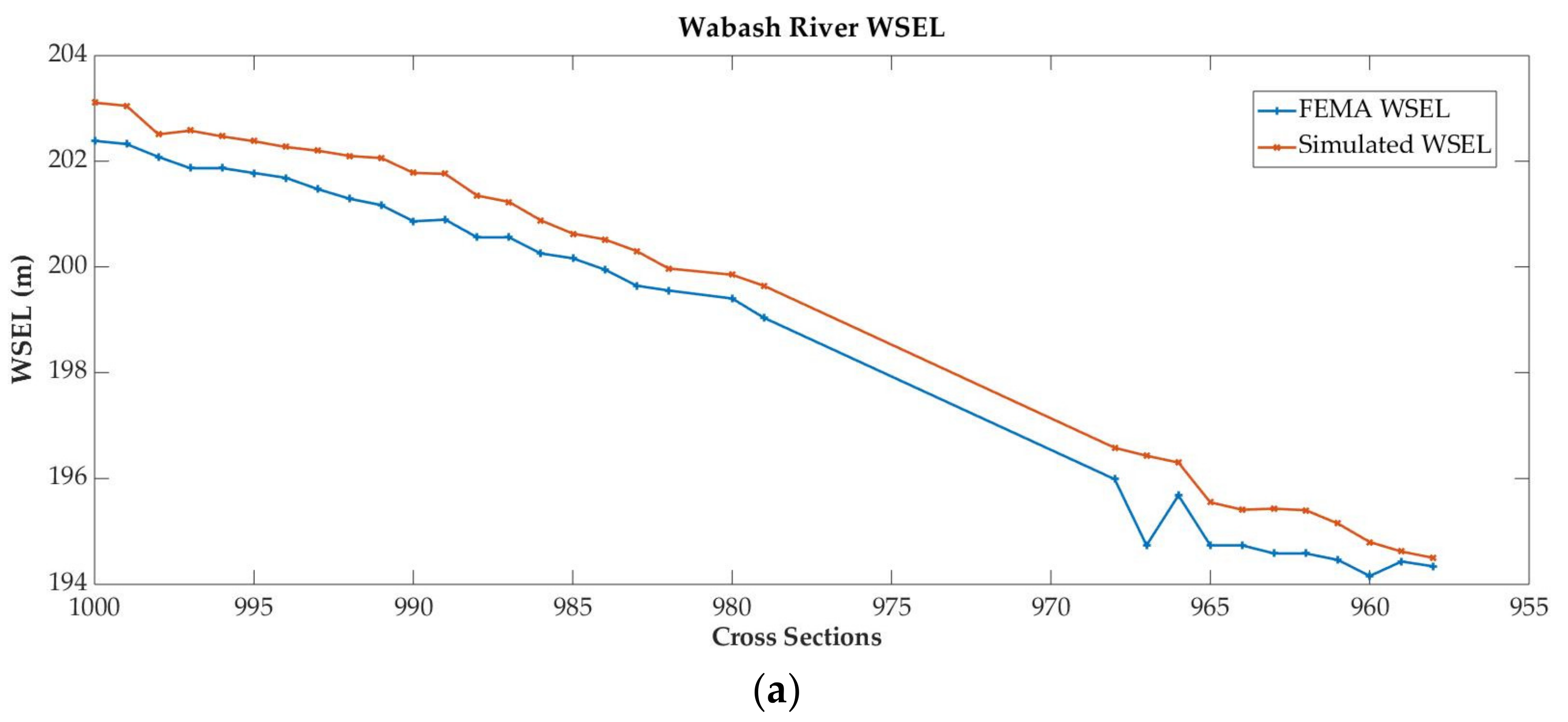

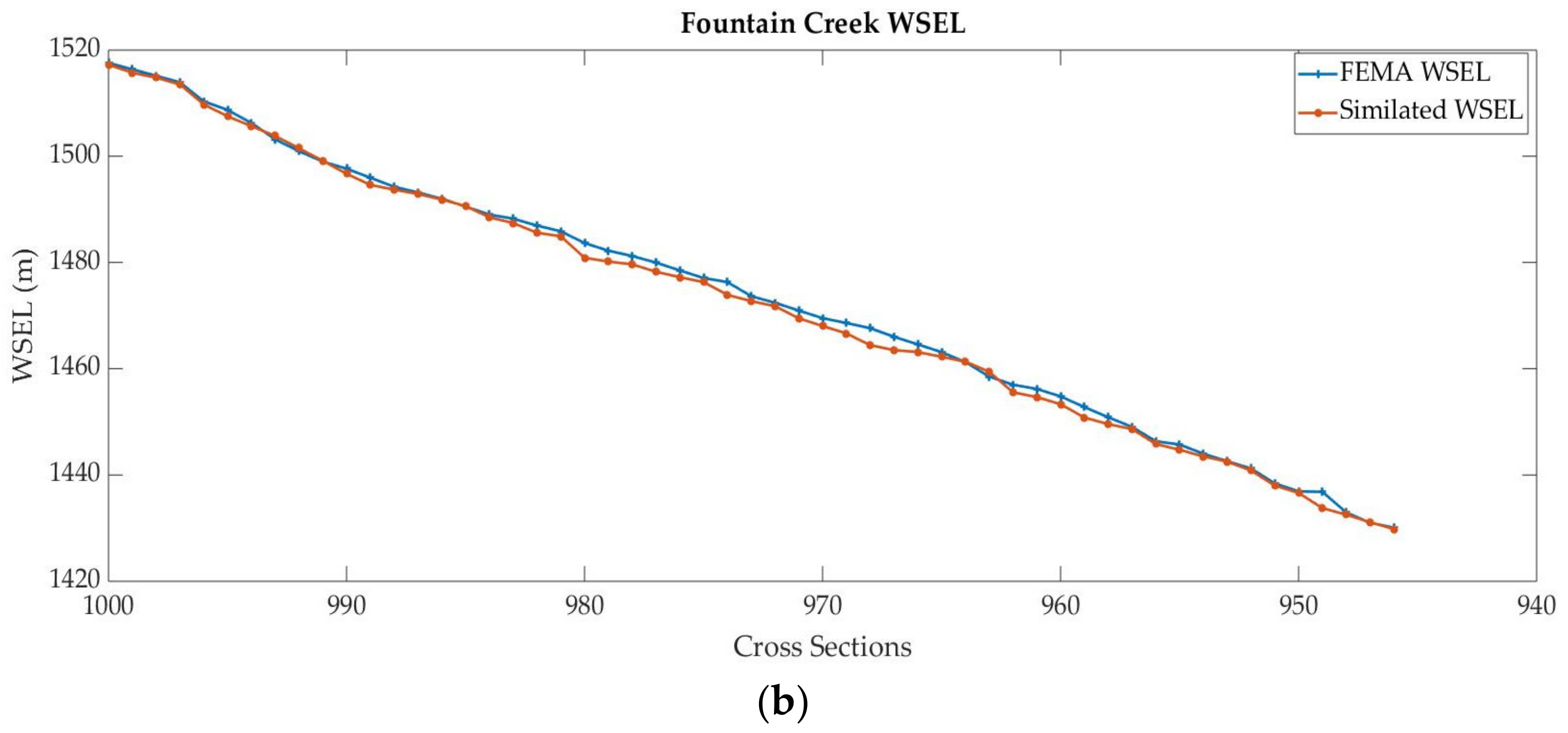

One-dimensional hydraulic modeling in GeoHECRAS was performed after establishing the DCF values and peak discharge for a 100-year and 500-year return period. The WSEL generated from USGS peak flow data in GeoHECRAS was compared with the FEMA WSEL for calibrating the 100-year design flood. Calibration of observed and simulated WSEL was performed to establish a robust hydraulic model using statistical indicators such as NSE, RMSE, R², and PBIAS [35]. The simulated and actual WSEL of Wabash River and Fountain Creek for the chosen cross sections are shown in Figure 6a,b, respectively. Calibration of observed and simulated WSEL was performed to establish a robust hydraulic model using statistical indicators such as NSE, RMSE, R², and PBIAS. The values for NSE, RMSE, R², and PBIAS of the calibrated model were found to be 0.94, 0.12, 0.99, and −0.33, respectively, for Wabash River, and 0.99, 0.17, 0.99, and 0.06 for Fountain Creek. The resulting NSE value is close to one, suggesting that the observed and simulated WSEL nearly match. Furthermore, the RMSE values indicate that the observed and simulated WSEL has a very small error. The R² value found indicates that the observed and simulated WSEL are closely matched with minor dispersion. The negative value of PBIAS indicates that biases are overestimated. The statistical indicators for the robustness of the calibrated hydraulic model were judged to be within an acceptable range. The calibrated model was validated, and a CMIP6 model with a high peak discharge was used to forecast future 100-year and 500-year WSEL, and flood inundation maps were developed.

4.3. Flood Inundation Mapping

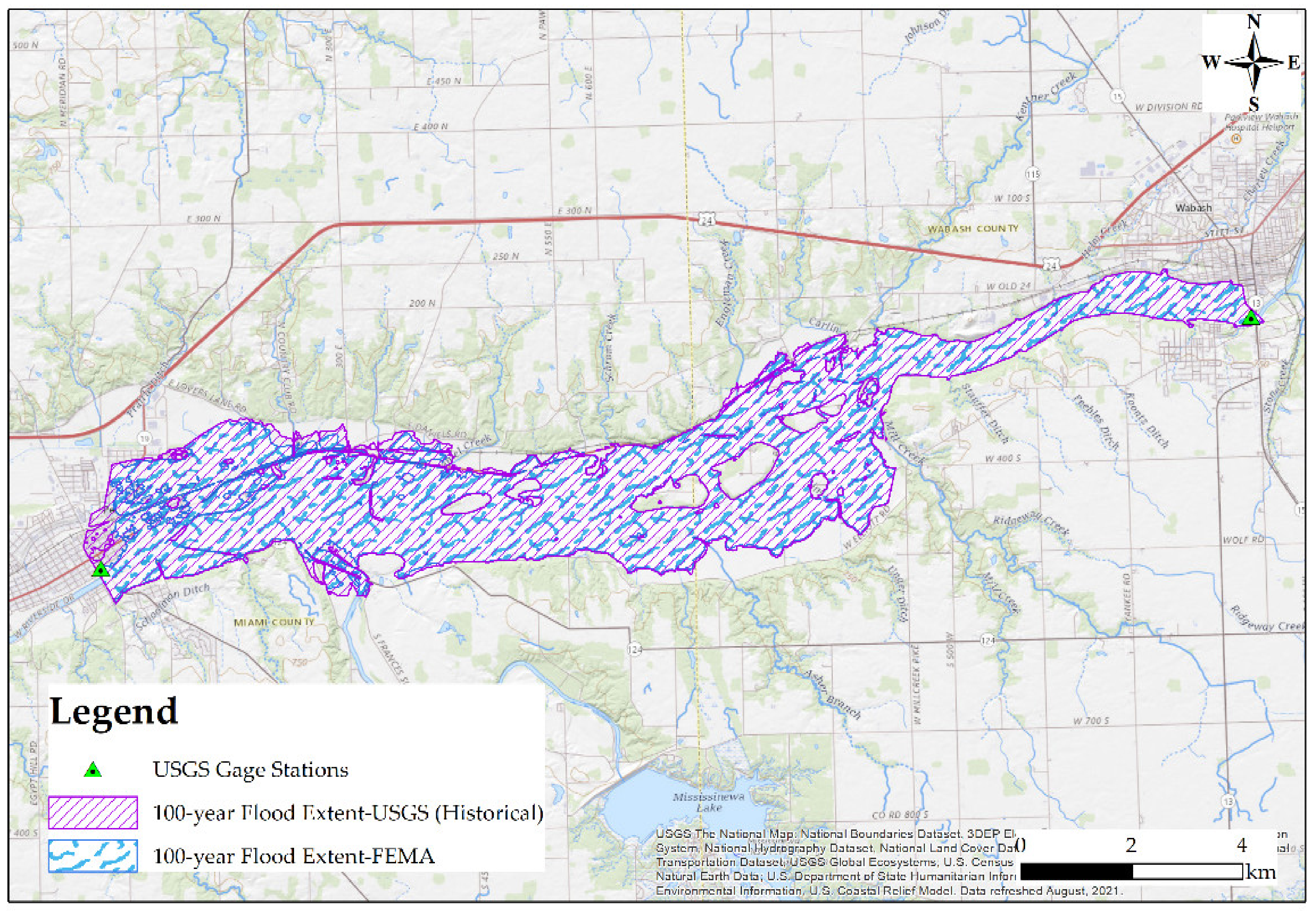

Flood extent maps for the study area of Wabash River and Fountain Creek were prepared using historical USGS gage data which is demonstrated in Figure 7 and Figure 8 below. The maps were calibrated using the FEMA flood map for 100-year return period. It is evident in the flood extent map of Wabash River and Fountain Creek shows the inundation areas are calibrated close to the FEMA flood maps.

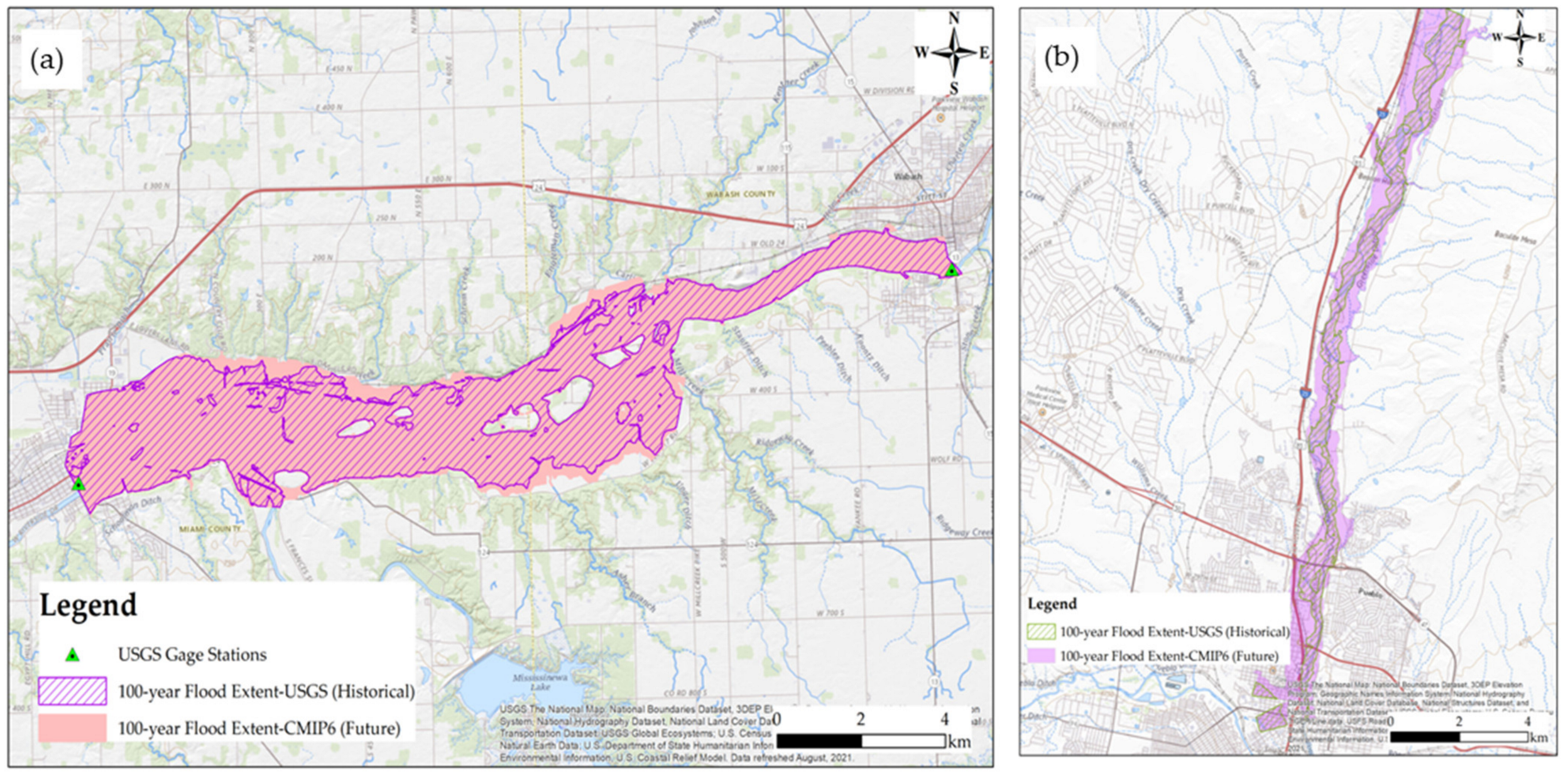

The calibrated and validated GeoHECRAS model was employed for the generation of flood inundation maps. The peak discharge with the highest DCF was utilized for the 100-year future flood inundation mapping. FEMA flood maps were compared with the spatial extent of the flood inundation map derived from the climate model. It was observed in Figure 9a,b that the spatial extent of the future 100-year map has a higher footprint than that of the current 100-year FEMA flood map. The future peak discharge and DCF values were found to be higher than the observed USGS discharge and it can be observed that more land would be inundated by a future 100-year flood than by the FEMA flood footprint. This demonstrates the critical urgency for the appropriate study of both study areas for flood management strategies and future flood studies. Figure 10a,b show the comparison of 100-year return period flood inundation maps provided by USGS data and CMIP6 climate model data for the Wabash River and Fountain Creek.

4.4. Change in Flood Inundation in Different Land Use

From the current study, it is evident that discharge will increase in the future, which will have flooding impacts on different land use. Numerous variables including hydrological parameters, morphological characteristics, land use, and the chosen numerical model, affect the calculation of flooding areas in a basin. Each basin is different, thus it must be carefully analyzed while taking into consideration all of the aforementioned aspects [36]. Land use changes with time, and with increased urban development, more impervious surfaces will increase replacing open space and barren lands. This leads to more surface runoff and flash floods. An increase in inundation extent can be observed in 100-year future predicted floods. In both the study reaches, if the land use remains the same, the increase in the inundation area is very high. Comparatively, the current 100-year flood is less disastrous than the expected future 100-year design flood.

The changes in the area according to the land use for both study areas, Wabash River and Fountain Creek, are demonstrated in

Table 6. Table demonstrating increase in flooding areas of different land use for the Wabash River.

Landcover	USGS (m2)	CMIP100 (m2)	Increased Area Inundation (m2)	Increased Area in %
Open water	2,018,309	2,055,998	37,689	2
Developed, Open Space	848,607	1,564,773	716,166	84
Developed, Low intensity	1,215,620	2,511,186	1,295,566	107
Developed, Medium Intensity	717,037	1,694,066	977,029	136
Developed, High Intensity	317,210	662,397	345,187	109
Barren Land	143,231	245,720	102,489	72
Deciduous Forest	2,291,621	2,998,358	706,737	31
Evergreen Forest	8212	8353	141	2
Mixed Forest	87,684	112,572	24,888	28
Shrub	26,019	26,372	353	1
Grass Land	60,005	100,019	40,014	67
Pasture land	484,971	803,936	318,965	66
Cultivated land	21,868,034	27,952,907	6,084,873	28
Woody Wetlands	86,984	91,802	4818	6
Herbaceous Wetlands	220,566	227,493	6927	3

and

Table 7. Table demonstrating increase in flooding areas of different land use for Fountain Creek.

Landcover	USGS (m2)	CMIP100 (m2)	Increased Area Inundation (m2)	Increased Area in %
Open water	193,720	228,412	34692	18
Developed, Open Space	11,778	227,038	215,260	1828
Developed, Low Intensity	98,767	741,759	642,992	651
Developed, Medium Intensity	298,917	1,629,601	1,330,684	445
Developed, High Intensity	700,020	1,652,178	952,158	136
Barren land	4581	4584	3	0
Shrub	635,661	2,187,830	1,552,169	244
Grassland	744,647	4,938,172	4,193,525	563
Cultivated land	86,263	527,411	441,148	511
Woody wetlands	359,852	502,750	142,898	40
Herbaceous Wetlands	5,101,881	6,459,130	1,357,249	27

, respectively. In both cases, developed land is more at risk than open space or cultivated land. This can have a direct impact on property, human life, and the environment. The increased percentage is significantly higher for the developed area, which demonstrates the requirement of strategic planning by considering climate change and anthropogenic activities.

5. Discussion

A river’s surge over its typical flow depth is seen to have an impact on human habitation areas. Rivers are becoming narrower and settlement areas are growing as a consequence of increased human activity. Increased civilization has led to urbanization and industrialization, which have altered the environment and contributed to flooding in various parts of the world. Flooding has been a recurring natural disaster in many areas which has been causing loss of human life, and destruction of habitat, environment, and economical status. With the increasing population density near water bodies and changing climate, flood vulnerability can be expected soon in the upcoming years. Future floodplain management is essential to protect life and property for which future flood mapping can be an effective tool. In this study, two different rivers, i.e., one slow-moving large Wabash River and one fast-moving small fountain creek were considered. As observed from the findings of the current study, populations residing near the water bodies are vulnerable to changes in streamflow causing severe damage to their day-to-day activities.

For the determination of a suitable probability distribution method, the Easyfit tool was utilized. Kolmogorov–Smirnov and Pearson Chi-Square tests were used to determine the distribution that well-suited the data. The best-fit distribution data were determined by GEV Max (L-Moment). The proper distribution of the data for the flood frequency analysis must be determined to avoid possible errors [37].

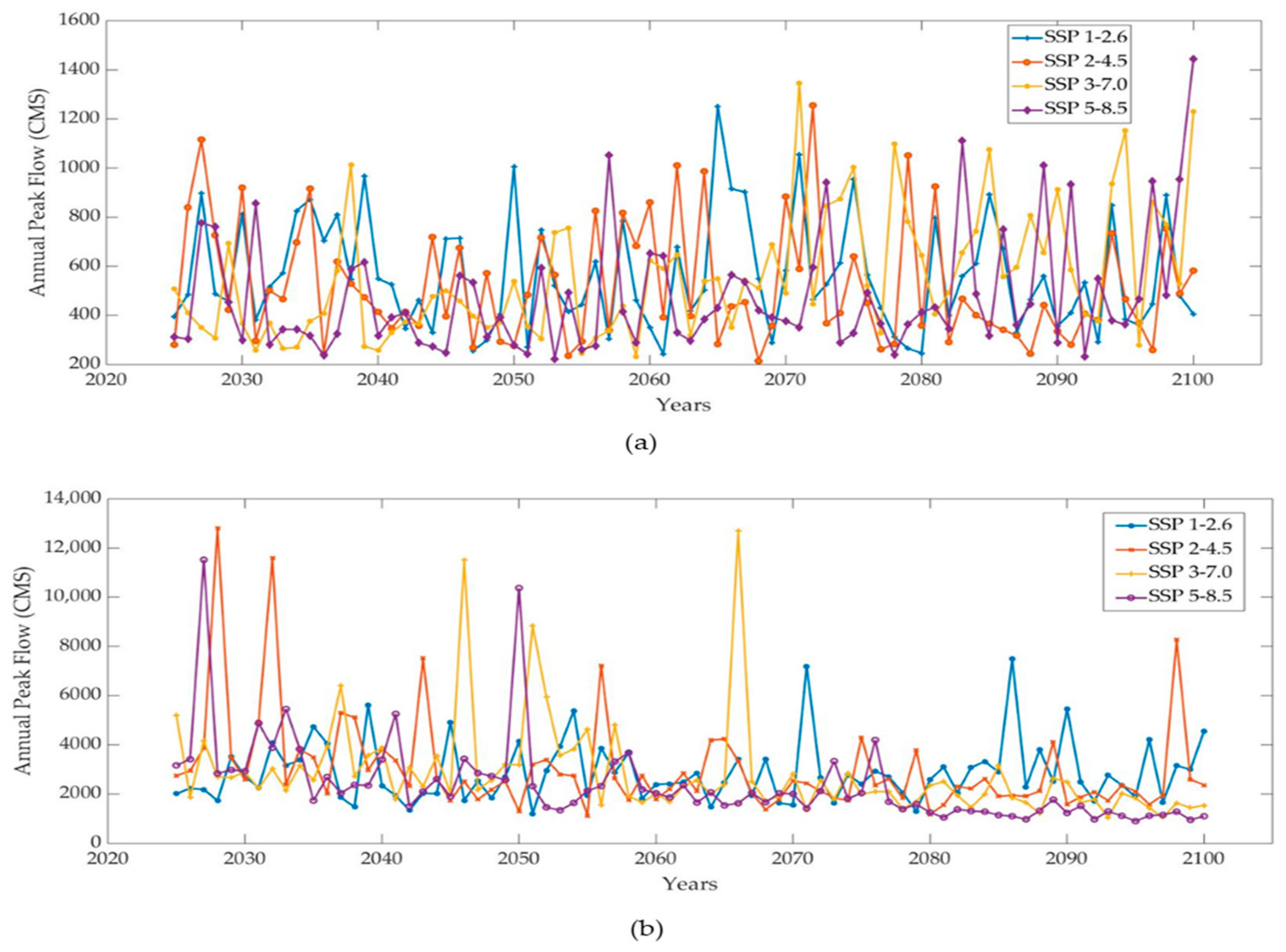

This study utilizes the CMIP6 model for the streamflow future projection. Future streamflow was evaluated using the different emission scenarios of CMIP6 streamflow projection with their different SSPs and forcing levels. This will help us in the study of climatic and societal change with an extensive array of streamflow [38]. After bias correction and downscaling, the CMIP6 climate model dataset reveals an increase in the flood flow regime in the future (2015–2100) compared with the historical period (1950–2014). Increases in the values were seen for both the annual peak discharge and the monthly peak discharge. This outcome is consistent with earlier studies, which also included an examination of flood change based on precipitation and temperature datasets. There is evidence for an ascending tendency for the yearly peak flow in the near term and a little descending trend for the long term [39]. In the current study, we can observe an increase in peak flow in the future aligning with the studies and always showcasing the increasing trend on future peak flow.

In the current study, it can be observed that all the DCF values that are greater than 1 suggest that there is an increment in the future design flow in all scenarios. The highest DCF was used to predict the maximum flooding extent in both the study reaches [40,41]. In past literature on climate science, max DCF was used. An increased DCF in the future results in an increased design flood for both the study reaches. The maximum DCF value with the highest probability of a rise in the future design flood is shown in Scenario SSP 5-8.5; therefore, the highest DCF was considered for the estimation of the future design flood. DCF was calculated and floodplain maps were prepared for the selected future scenarios using the Civil GeoHECRAS 1D model. Higher values for future floods were observed in both the study reaches than that of FEMA. A very large increase in streamflow is observed for Fountain Creek in comparison to the Wabash River. This demonstrates that the regular flash floods that happen in the Fountain Creek watershed can result in significant flooding events with significantly increased hazards. There is a significant human population in the study reach the region, which puts it at risk of flooding [15,42,43].

Researchers have previously found that climate change impacts and changes in land use may alter the risk of the extent of the floodplain [21,24]. Comparatively, the increase in streamflow for the Wabash River is less than that of Fountain Creek. However, this does not imply that the streamflow will not rise in the future. The agricultural region is more vulnerable to flooding in the future than it is today along the Wabash River. Local authorities can utilize the current study’s findings of projected future flood inundation maps to help them plan for probable future flood dangers. The massive change in flood inundation areas from present and future forecasted floods can be observed. To reduce the flood hazards due to the changing climate, planners and engineers should take projected streamflow into account. This demands the requirement of proper management of floods to minimize future hazardous situations. Policymakers, engineers, climatologists, and managers of water resources can consider the area underwater in the future when planning and building infrastructure that will help mitigate the unanticipated risk of floods and floodplains caused by climate change.

6. Conclusions

Changing climate in the current and future conditions have a great risk of hydrological extremes which are increasing and are predicted to increase continuously in the coming future. Different agencies are applying multiple approaches designed for the mitigation of hydrological extremes but climate change as the key factor is being missed while developing strategies. To maximize the performance of hydraulic structures built for a certain life span of the design period, future streamflow forecasts were used. This will help in the minimization of the casualties that may occur in life, and environmental and financial sectors due to the failure of hydraulic structures. The results may not be similar for all the watersheds, but this kind of study can be beneficial for the study in other watersheds as well.

The following significant points serve as a summary of this study:

• The best-fit distribution was found as GEV-Max (L-Moments) using the simple fit program, which conducts both Pearson Chi-square and Kolmogorov–Smirnov tests;
• The peak flow was calculated using GEV-Max (L-Moments) for a 100-year return period;
• Different multimodal climate scenarios were ensembled and compared with historical data for bias correction;
• All the calculated DCFs were more than 1 suggesting an increase in future design flow with non-stationary behavior in both the study areas;
• Future scenario SSP 5-8.5 is predicted as a maximum increase in peak flow for a 100-year return period;
• GeoHECRAS 1D steady modeling was utilized for floodplain mapping simulation, demonstrating that the projected 100-year scenario exceeds the FEMA 100-year peak flow;
• The urban settlements along the creek are at higher risk than other land use.

A design flood is considered for the design of hydraulic structures. This study highlights the significance of climate data and flood design patterns in the future. This study demonstrates how past and future CMIP6 climate data may be used to look forward to streamflow in the future. Thus, observed streamflow was used for developing floodplain inundation maps. The design of the structures considering the forecasted streamflow will help reduce the risk of future flooding. The results from this study can be useful to policymakers in the future when a climate change factor is needed for flood extent analysis. The framework applied in this study of Wabash River and Fountain Creek for the future flood forecasting can be used for other research as per the requirements.
