Mathematical Functions to Model the Depth Distribution of Soil Organic Carbon in a Range of Soils from New South Wales, Australia under Different Land Uses
Abstract
:1. Introduction
1.1. Mathematical Depth Functions

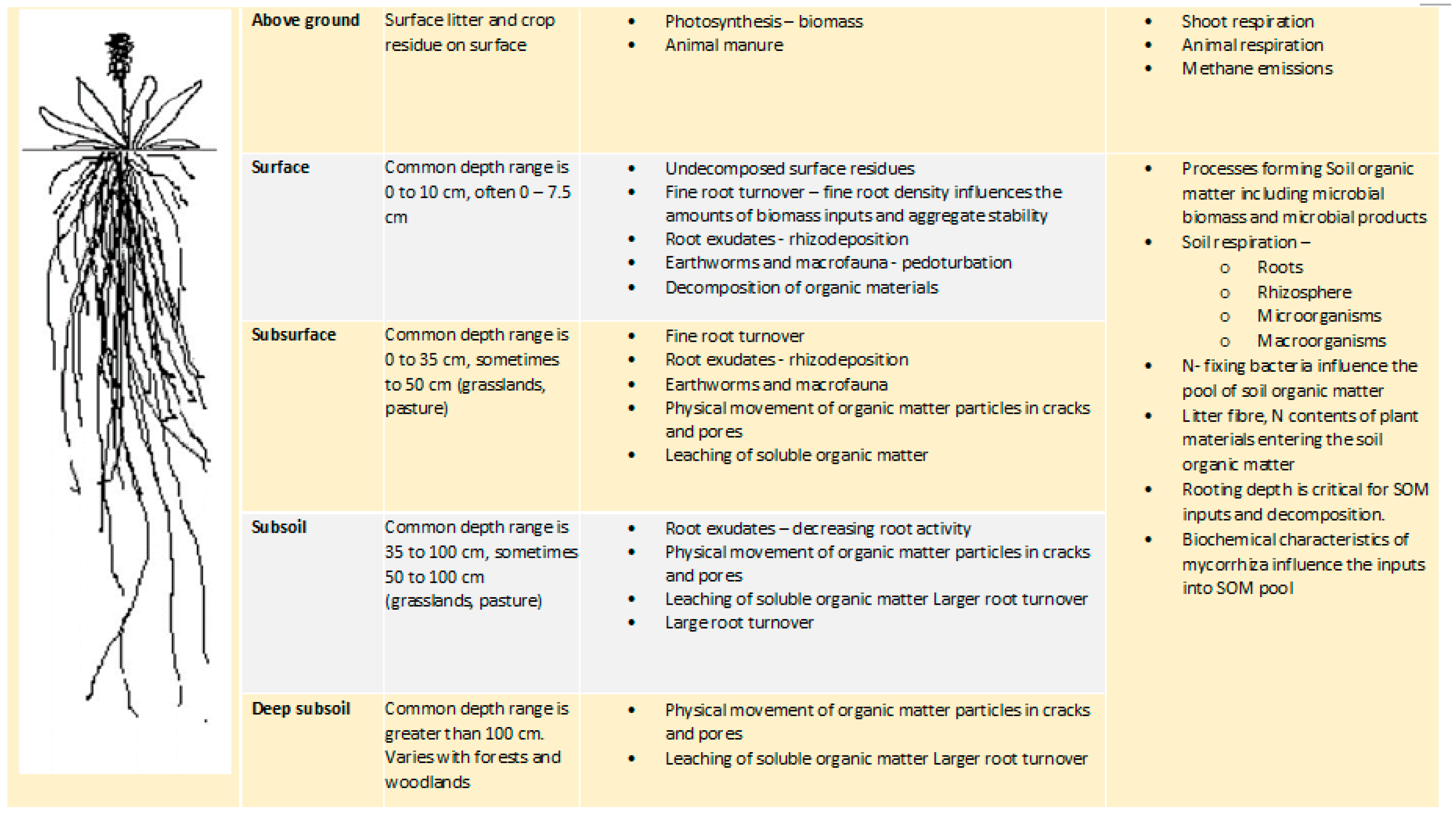

1.2. Conceptual Basis for Different Depth Zones in the Depth Distribution of Soil Organic Carbon
1.2.1. Phase A—Surface Soil
1.2.2. Phase B—Subsurface, Upper Subsoil
1.2.3. Phase C—Subsoil
1.2.4. Phase D—Deep Subsoil
1.3. Aims
2. Methods
2.1. Site Descriptions
2.2. Statistical Analysis
2.2.1. Fitting Curves to Depth Distributions
2.2.2. Evaluating SOC Distributions within Depth Segments Using Semi-Log Plots
3. Results
3.1. Statistical Fitting of Functions
3.2. Interpretation of the Two-Phase Exponential Function
3.3. Semi-Log Plots of SOC v’s Depth
3.4. Comparison of Results from Two-Phase Exponential Functions and Semi-Log Plots
4. Discussion
4.1. General
4.2. Effects of Land Use
4.3. Modelling SOC Profiles
4.4. Implications for Management and Policy
- At least two phases and sets of processes operating at different depths in the soil, and these are influenced by land use and soil type. A general implication of this is that it suggests a single measurement of SOC over a depth of 30 cm is going to contain soil materials with a wide range of SOC concentrations. Effective homogenization of the bulked sample before subsampling is an essential step in the measurement of SOC content and SOC stocks.
- Surface input of carbon is important under some land uses, especially woodlands, but less important under cropping, although stubble retention may provide limited amounts of biomass to the surface soils. The apparent failure of many stubble retention trials with direct drilling to increase SOC can be partially explained by the low level of shoot inputs provided by stubble retention and the lack of mechanisms to transport organic materials deeper into the profile [86]. The use of semi-log plots and a finer scale of SOC measurements with depth may provide a better understanding of the effects of direct drilling and stubble retention on the dynamics of SOC.
- SOC deeper in the subsoil can be subject to several inputs, but roots are probably the major source, even in Vertosols. Advection can transport dissolved SOC in liquid flow into the deeper subsoil [34], but given the drier climate associated with many of the soils, the amount of flow into the deeper soils is limited.
- At least three phases have been identified in the SOC profiles, near surface, mid depth and deep or baseline SOC. These have been identified by the nature of the SOC profiles [see Figure 5 and Figure 6]. In promoting land management practices to sequester carbon, an understanding of these phases is helpful. Woodland or native vegetation increases SOC in near surface layers, pasture in subsurface layers and the baseline or deep carbon is more difficult to influence. Cropping does not promote increases in SOC near surface. This is potentially a method to investigate the effects of different land management practices on SOC profiles.
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Baldock, J.A.; Skjemstad, J.O. Soil organic carbon/Soil organic matter. In Soil Analysis—An Interpretation Manual; Peverill, K.I., Sparrow, L.A., Reuter, D.J., Eds.; CSIRO Publishing Collingwood Australia: Collingwood, Australia, 1999. [Google Scholar]
- Lal, R. Soil carbon sequestration to mitigate climate change. Geoderma 2004, 123, 1–22. [Google Scholar] [CrossRef]
- Department of Environment. Carbon Credits (Carbon Farming Initiative) Sequestering Carbon in Soils in Grazing Systems Methodology Determination 2014. Methodology Determination under subsection 106(1) Carbon Credits (Carbon Farming Initiative Act 2011, Department of Environment. Australian Government. 2014; Available online: http://www.environment.gov.au/node/37951 or http://www.comlaw.gov.au/Details/F2014L00987; (accessed on 29 May 2019). [Google Scholar]
- Batjes, N. Total carbon and nitrogen in the soils of the world. Eur. J. Soil Sci. 1996, 47, 151–163. [Google Scholar] [CrossRef]
- Minasny, B.; Malone, B.P.; McBratney, A.B.; Angers, D.A.; Arrouays, D.; Chambers, A.; Chaplot, V.; Zueng-Chen, S.; Chengg, K.; Das, B.S.; et al. Soil carbon 4 per mille. Geoderma 2017, 292, 59–86. [Google Scholar] [CrossRef]
- Luo, Z.; Wang, E.; Sun, O.J. Soil carbon change and its responses to agricultural practices in Australian agro-ecosystems: A review and synthesis. Geoderma 2010, 155, 211–223. [Google Scholar] [CrossRef]
- Sombroek, W.G.; Nachtergaele, F.O.; Hebel, A. Amounts, dynamics and sequestering of carbon in tropical and subtropical soils. Ambio. Stockh. 1993, 22, 417–426. [Google Scholar]
- IPCC. Chapter 5 Land Use Change and Forestry. Revised 1996 Guidelines for National Greenhouse Gas Inventories. International Panel on Climate Change. 1996. Available online: https://www.ipcc-nggip.iges.or.jp/public/gl/invs4.html (accessed on 29 May 2019).
- Wendt, J.W.; Hauser, S. An equivalent soil mass procedure for monitoring soil organic carbon in multiple soil layers. Eur. J. Soil Sci. 2013, 64, 58–65. [Google Scholar] [CrossRef]
- Bonfatti, B.R.; Hartemink, A.E.; Giasson, E. Comparing Soil C Stocks from Soil Profile Data Using Four Different Methods. In Progress in Soil Science; Springer Science and Business Media LLC: Cham, Switzerland, 2016; pp. 315–329. [Google Scholar]
- Russell, J.; Moore, A. Comparison of different depth weightings in the numerical analysis of anisotropic soil profile data. In Proceedings of the Transactions of the 9th International Congress of Soil Science, 5–15 August 1968; pp. 205–213. [Google Scholar]
- Kirkby, M.J. Soil development models as a component of slope development models. Earth Surf. Process. 1977, 2, 203–230. [Google Scholar] [CrossRef]
- Dalal, R.C.; Chan, K.Y. Soil organic matter in rainfed cropping systems of the Australian cereal belt. Soil Res. 2001, 39, 435. [Google Scholar] [CrossRef]
- Kempen, B.; Brus, D.; Stoorvogel, J.; Stoorvogel, J. Three-dimensional mapping of soil organic matter content using soil type–specific depth functions. Geoderma 2011, 162, 107–123. [Google Scholar] [CrossRef]
- Meersmans, J.; Van Wesemael, B.; De Ridder, F.; Van Molle, M. Modelling the three-dimensional spatial distribution of soil organic carbon (SOC) at the regional scale (Flanders, Belgium). Geoderma 2009, 152, 43–52. [Google Scholar] [CrossRef]
- Wiese, L.; Ros, I.; Rozanov, A.; Boshoff, A.; De Clercq, W.; Seifert, T. An approach to soil carbon accounting and mapping using vertical distribution functions for known soil types. Geoderma 2016, 263, 264–273. [Google Scholar] [CrossRef]
- Lorenz, K.; Lal, R. The Depth Distribution of Soil Organic Carbon in Relation to Land Use and Management and the Potential of Carbon Sequestration in Subsoil Horizons. Adv. Agron. 2005, 88, 35–66. [Google Scholar]
- Bolinder, M.A.; Janzen, H.H.; Gregorich, E.G.; Angers, D.A.; Vandern Bygaart, A.J. An approach for estimating net primary productivity and annual soil carbon inputs to soil for common agricultural crops in Canada. Agric. Ecosyst. Environ. 2007, 118, 29–42. [Google Scholar] [CrossRef]
- Newey, A. Decomposition of Plant Litter and Carbon Turnover as a Function of Soil Depth. Ph.D. Thesis, Australian National University, Canberra, Australia, 2005. [Google Scholar]
- Don, A.; Rödenbeck, C.; Gleixner, G. Unexpected control of soil carbon turnover by soil carbon concentration. Environ. Chem. Lett. 2013, 11, 407–413. [Google Scholar] [CrossRef]
- Wordell-Dietrich, P.; Don, A.; Helfrich, M. Controlling factors for the stability of subsoil carbon in a Dystric Cambisol. Geoderma 2017, 304, 40–48. [Google Scholar] [CrossRef]
- Minasny, B.; Stockmann, U.; Hartemink, A.E.; McBratney, A.B. Chapter 14. Measuring and Modelling Soil Depth Functions. In Digital Soil Morphometrics; Progress in Soil, Science; Hartemink, A.E., Minasny, B., Eds.; Springer International Publishing: Cham, Switzerland, 2016. [Google Scholar]
- Mikhailova, E.; Bryant, R.; Vassenev, I.; Schwager, S.; Post, C. Cultivation Effects on Soil Carbon and Nitrogen Contents at Depth in the Russian Chernozem. Soil Sci. Soc. Am. J. 2000, 64, 738. [Google Scholar] [CrossRef]
- Grauer-Gray, J.; Hartemink, A.E. Raster sampling of soil profiles. Geoderma 2018, 318, 99–108. [Google Scholar] [CrossRef]
- Wong, V.N.L.; Murphy, B.W.; Koen, T.B.; Greene, R.S.B.; Dalal, R.C. Soil organic carbon stocks in saline and sodic landscapes. Soil Res. 2008, 46, 378–389. [Google Scholar] [CrossRef]
- Hobley, E.U.; Wilson, B. The depth distribution of organic carbon in the soils of eastern Australia. Ecosphere 2016, 7, e01214. [Google Scholar] [CrossRef] [Green Version]
- International Union of Soil Science Working Group WRB [IUSS]. World Reference Base for Soil Resources 2014, Update 2015: International Soil Classification System for Naming Soils and Creating Legends for Soil Maps; World Soil Resources Reports No. 106; FAO: Rome, Italy, 2015. [Google Scholar]
- Gerwitz, A.; Page, E.R. An Empirical Mathematical Model to Describe Plant Root Systems. J. Appl. Ecol. 1974, 11, 773. [Google Scholar] [CrossRef]
- King, J.; Gay, A.; Sylvester-Bradley, R.; Bingham, I.; Foulkes, J.; Gregory, P.; Robinson, D. Modelling cereal root systems for water and nitrogen uptake: Towards an economic optimum. Ann. Bot. 2003, 91, 383–390. [Google Scholar] [CrossRef] [PubMed]
- Zuo, O.; Fie, F.; Zhang, R.; Meng, L. A Generalized Function of Wheat’s Root Length Density Distributions. Vadose Zone J. 2004, 3, 271–277. [Google Scholar] [CrossRef]
- Porter, J.R.; Klepper, B.; Belford, R.K. A model (WHTROOT) that synchronises root growth and development with shoot development in winter wheat. Plant Soil 1986, 92, 133–145. [Google Scholar] [CrossRef]
- Jobbágy, E.G.; Jackson, R.B. The vertical distribution of soil organic carbon and its relation to climate and vegetation. Ecol. Appl. 2000, 10, 423–436. [Google Scholar]
- Neff, J.C.; Asner, G.P. Dissolved Organic Carbon in Terrestrial Ecosystems: Synthesis and a Model. Ecosystems 2001, 4, 29–48. [Google Scholar] [CrossRef] [Green Version]
- Braakhekke, M.C.; Wutzler, T.; Beer, C.; Kattge, J.; Schrumpf, M.; Ahrens, B.; Schöning, I.; Hoosbeek, M.R.; Kruijt, B.; Kabat, P.; et al. Modeling the vertical soil organic matter profile using Bayesian parameter estimation. Biogeosciences 2013, 10, 399–420. [Google Scholar] [CrossRef] [Green Version]
- Bishop, T.; McBratney, A.; Laslett, G. Modelling soil attribute depth functions with equal-area quadratic smoothing splines. Geoderma 1999, 91, 27–45. [Google Scholar] [CrossRef]
- Bernoux, M.; Arrouays, D.; Cerri, C.C.; Bourennane, H. Modeling vertical distribution of carbon in oxisols of the western brazilian amazon (rondonia). Soil Sci. 1998, 163, 941–951. [Google Scholar] [CrossRef]
- Barson, M.M.; Malafant, K.; Skjemstad, J.O.; Royle, S.; Janik, L.J.; Spouncer, L.R.; Merry, R.H. Estimating the size of Australia’s soil carbon sinks. In Proceedings of the SuperSoil, 3rd Australia New Zealand Soil Conference, Sydney, Australia, 5–9 December 2004. [Google Scholar]
- Van Cleemput, O.; Carlier, L.; Mestdagh, I.; Lootens, P. Soil organic carbon stocks in Flemish grasslands: How accurate are they? Grass Forage Sci. 2004, 59, 310–317. [Google Scholar]
- Minasny, B.; McBratney, A.B.; Mendonça-Santos, M.L.; Odeh, I.O.A.; Guyon, B. Prediction and digital mapping of soil carbon storage in the Lower Namoi Valley. Soil Res. 2006, 44, 233–244. [Google Scholar] [CrossRef]
- Cook, F.J.; Kelliher, F.M. Determining Vertical Root and Microbial Biomass Distributions from Soil Samples. Soil Sci. Soc. Am. J. 2006, 70, 728. [Google Scholar] [CrossRef]
- Fang, C.; Moncrieff, J.B. The variation of soil microbial respiration with depth in relation to soil carbon composition. Plant Soil 2005, 268, 243–253. [Google Scholar] [CrossRef]
- Melillo, J.M.; Aber, J.D.; Linkins, A.E.; Ricca, A.; Fry, B.; Nadelhoffer, K.J. Carbon and nitrogen dynamics along the decay continuum: Plant litter to soil organic matter. Plant Soil 1989, 115, 189–198. [Google Scholar] [CrossRef]
- Whitmore, A.P.; Coleman, K. Use of Rothamsted Carbon model, RothC, in deriving the UK Carbon inventory. In UK Emissions by Sources and Removals by Sinks due to Land Use, Land Use Change and Forestry Activities; DEFRA Contract EPG 1/1/160, CEH No. C02275; Milne, R., Mobbs, D.C., Eds.; Department for the Environment, Food and Rural Affairs, Global Atmosphere Division: London, UK, 2005. [Google Scholar]
- Minasny, B.; McBratney, A.B.; Malone, B.; Sulaeman, Y. Digital mapping of soil carbon. In Proceedings of the 19th World Congress of Soil Science, Soil Solutions for a Changing World, Brisbane, Australia, 1–6 August 2010. [Google Scholar]
- Wilson, B.R.; Barnes, P.; Koen, T.; Gosh, S.; King, D. Measurement and estimation of land use effects on soil carbon and related properties on a basalt landscape of northern NSW. Aust. J. Soil Res. 2010, 48, 421–433. [Google Scholar] [CrossRef]
- Watt, M.; Kirkegaard, J.A.; Passioura, J.B. Rhizosphere biology and crop productivity—A review. Soil Res. 2006, 44, 299. [Google Scholar] [CrossRef]
- Gross, C.D.; Harrison, R.B. The Case for Digging Deeper: Soil Organic Carbon Storage, Dynamics, and Controls in Our Changing World. Soil Syst. 2019, 3, 28. [Google Scholar] [CrossRef]
- Gill, R.A.; Burke, I.C. Influence of soil depth on the decomposition of Bouteloua gracilis roots in the shortgrass steppe. Plant Soil 2002, 241, 233–242. [Google Scholar] [CrossRef]
- Gill, R.; Burke, I.C.; Milchunas, D.G.; Lauenroth, W.K. Original Articles: Relationship Between Root Biomass and Soil Organic Matter Pools in the Shortgrass Steppe of Eastern Colorado. Ecosystems 1999, 2, 226–236. [Google Scholar]
- Eyles, A.; Coghlan, G.; Hardie, M.; Hovenden, M.; Bridle, K. Soil carbon sequestration in cool-temperate dryland pastures: mechanisms and management options. Soil Res. 2015, 53, 349. [Google Scholar] [CrossRef]
- Dignac, M.-F.; Derrien, D.; Barré, P.; Barot, S.; Cécillon, L.; Chenu, C.; Chevallier, T.; Freschet, G.T.; Garnier, P.; Guenet, B.; et al. Increasing soil carbon storage: mechanisms, effects of agricultural practices and proxies. A review. Agron. Sustain. Dev. 2017, 37, 351. [Google Scholar] [CrossRef]
- Leff, J.W.; Wieder, W.R.; Taylor, P.G.; Townsend, A.R.; Nemergut, D.R.; Grandy, A.S.; Cleveland, C.C. Experimental litterfall manipulation drives large and rapid changes in soil carbon cycling in a wet tropical forest. Glob. Chang. Boil. 2012, 18, 2969–2979. [Google Scholar] [CrossRef] [PubMed]
- Jabiol, B.; Zanella, A.; Ponge, J.-F.; Sartori, G.; Englisch, M.; Van Delft, B.; De Waal, R.; Le Bayon, R.-C. A proposal for including humus forms in the World Reference Base for Soil Resources (WRB-FAO). Geoderma 2013, 192, 286–294. [Google Scholar] [CrossRef]
- Baker, J.M.; Achsner, T.E.; Venterea, R.T.; Griffis, T.J. Tillage and soil carbon sequestration. What do we really know? Agric. Ecosyst. Environ. Environ. 2007, 118, 1–5. [Google Scholar] [CrossRef]
- Hermle, S.; Anken, T.; Leifeld, J.; Weisskopf, P. The effect of the tillage system on soil organic carbon content under moist, cold-temperate conditions. Soil Tillage Res. 2008, 98, 94–105. [Google Scholar] [CrossRef]
- Murphy, B.W.; Packer, I.J.; Cowie, A.L.; Singh, B.P. Tillage and Crop Stubble Management and Soil Health in a Changing Climate. Soil Biol. 2011, 29, 181–206. [Google Scholar]
- Keyvanshokouhi, S.; Cornu, S.; Lafolie, F.; Balesdent, J.; Guenet, B.; Moitrier, N.; Moitrier, N.; Nougier, C.; Finke, P. Effects of soil process formalisms and forcing factors on simulated organic carbon depth-distributions in soils. Soil Biol. Biochem. 2018, 652, 523–537. [Google Scholar] [CrossRef] [PubMed]
- Hobley, E.; Steffens, M.; Bauke, S.L.; Kögel-Knabner, I. Hotspots of soil organic carbon storage revealed by laboratory hyperspectral imaging. Sci. Rep. 2018, 8, 13900. [Google Scholar] [CrossRef] [PubMed]
- Chan, K.Y.; Conyers, M.K.; Li, G.D.; Helyar, K.R.; Poile, G.; Oates, A.; Barchia, I.M. Soil carbon dynamics under different cropping and pasture management in temperate Australia: Results of three long-term experiments. Soil Res. 2011, 49, 320–328. [Google Scholar] [CrossRef]
- Chan, K. Impact of tillage practices and burrows of a native Australian anecic earthworm on soil hydrology. Appl. Soil Ecol. 2004, 27, 89–96. [Google Scholar] [CrossRef]
- Chan, K.Y.; Heenan, D.P. Earthworm population dynamics under conservation tillage systems in south-eastern Australia. Soil Res. 2006, 44, 425. [Google Scholar] [CrossRef]
- Schon, N.L.; Mackay, A.D.; Gray, R.A.; Dodd, M.B.; van Koten, C. Quantifying dung carbon incorporation by earthworms in pasture soils. Eur. J. Soil Sci. 2015, 66, 348–358. [Google Scholar] [CrossRef]
- Kuzyakov, Y.; Schneckenberger, K. Review of estimation of plant rhizodeposition and their contribution to soil organic matter formation. Arch. Agron. Soil Sci. 2004, 50, 115–132. [Google Scholar] [CrossRef]
- Finzi, A.C.; Abramoff, R.Z.; Spiller, K.S.; Brzostek, E.R.; Darby, B.A.; Kramer, M.A.; Phillips, R.P. Rhizosphere processes are quantitatively important components of terrestrial carbon and nutrient cycles. Glob. Chang. Boil. 2015, 21, 2082–2094. [Google Scholar] [CrossRef] [PubMed]
- Orgill, S.E.; Condon, J.R.; Conyers, M.K.; Mossis, S.G.; Alcock, D.J.; Murphy, B.W.; Greene, R.S.B. Removing grazing pressure from a native pasture decreases soil organic carbon in southern New South Wales, Australia. Land Degrad. Dev. 2018, 29, 274–283. [Google Scholar] [CrossRef]
- Mathew, I.; Shimelis, H.; Mutema, M.; Chaplot, V. What crop type for atmospheric carbon sequestration: Results from a global data analysis. Agric. Ecosyst. Environ. 2017, 243, 34–46. [Google Scholar] [CrossRef]
- Balesdent, J.; Basile-Doelsch, I.; Chadoeuf, J.; Cornu, S.; Derrien, D.; Fekiacova, Z.; Hatté, C. Atmosphere–soil carbon transfer as a function of soil depth. Nature 2018, 559, 599–602. [Google Scholar] [CrossRef]
- Ewing, S.A.; Sanderman, J.; Baisden, W.T.; Wang, Y.; Amundson, R. Role of large-scale soil structure in organic carbon turnover: Evidence from California grassland soils. J. Geophys. Res. Space Phys. 2006, 111. [Google Scholar] [CrossRef]
- BOM. Australian Bureau of Meteorology, Commonwealth of Australia. Available online: http://www.bom.gov.au/jsp/ncc/climate_averages/rainfall/index.jsp (accessed on 27 May 2019).
- Isbell, R.F. The Australian Soil Classification, 2nd ed.; CSIRO Publishing: Melbourne, Australia, 2016. [Google Scholar]
- Baldock, J.; Macdonald, L.; Sanderman, J. Foreword. Special Issue: Soil carbon in Australia’s agricultural lands. Soil Res. 2013, 51, i–ii. [Google Scholar] [CrossRef]
- Wilson, B.R.; Growns, I.; Lemon, J. Land-use effects on soil properties on the north-western slopes of New South Wales: Implications for soil condition assessment. Soil Res. 2008, 46, 359–367. [Google Scholar] [CrossRef]
- Wilson, B.R.; Koen Barnes, P.; Ghosh, S.; King, D. Soil carbon and related properties along a soil type and land use intensity gradient, New South wales, Australia. Soil Use Manag. 2011, 27, 437–447. [Google Scholar] [CrossRef]
- Wilson, B.R.; Lonergan, V.E. Land-use and historical management effects on soil organic carbon in grazing systems on the Northern Tablelands of New South Wales. Soil Res. 2013, 51, 668–679. [Google Scholar] [CrossRef]
- Wilson, B.R.; King, D.; Growns, I.; Veeragathipillai, M. Climatically driven change in soil carbon across a basalt landscape is restricted to non-agricultural land use systems. Soil Res. 2017, 55, 376–388. [Google Scholar] [CrossRef]
- Murphy, B.; Rawson, A.; Ravenscroft, L.; Rankin, M.; Millard, R. Estimates of Changes in Soil Carbon Density in the Major Areas in Clearing of NSW–Paired Site Comparisons; Technical Report No. 34; Australian Greenhouse Office and the NSW Department of Land and Water Conservation: Canberra, Australia, 2003.
- McKenzie, D. Hydrology properties of the soils of the Little River Catchment. Report for CATSALT Program, New South Wales Department of Environment, Climate Change and Water: Sydney, Australia, 2008. [Google Scholar]
- McKenzie, N.; Ryan, P.; Fogarty, P.; Wood, J. Wood Sampling, Measurement and Analytical Protocols for Carbon Estimation in Soil, Litter and Coarse Woody Debris; National Carbon Accounting System Technical Report No. 14; Australian Greenhouse Office: Canberra, Australia, 2000.
- Wilson, B.R.; Growns, I.; Lemon, J. Scattered native trees and soil patterns in grazing land on the Northern Tablelands of New South Wales, Australia. Soil Res. 2007, 45, 199–205. [Google Scholar] [CrossRef]
- Bowman, G.; Chapman, G.; Murphy, B.; Wilson, B.; Jenkins, B.; Koen, T.; Gray, J.; Morand, D.; Atkinson, G.; Murphy, C.; et al. Protocols for Soil Condition and Land Capability Monitoring; NSW Department of Environment, Climate Change and Water: Sydney, Australia, 2009.
- VSN International. Genstat for Windows, 19th ed.; VSN International: Hemel Hempstead, UK, 2017; Available online: Genstat.co.uk (accessed on 1 July 2019).
- SYSTAT Table Curve 2D. V5.01. 2002. Available online: https://systatsoftware.com/downloads/download-tablecurve-2d/ (accessed on 29 May 2019).
- Steel, R.G.D.; Torrie, J.H. Principles and Procedures of Statistics; McGraw-Hill Book Co.: New York, NY, USA, 1960; p. 169. [Google Scholar]
- Zuur, A.F.; Ieno, E.N.; Smith, G.M. Analysing Ecological Data; Springer: New York, NY, USA, 2007; ISBN 13-978-0-387-45967-7. [Google Scholar]
- Pizzeghello, D.; Francioso, O.; Concheri, G.; Muscolo, A.; Nardi, S. Land use affects the soil C sequestration in an alpine environment, north eastern Italy. Forests 2017, 8, 197. [Google Scholar] [CrossRef]
- Conyers, M.; Liu, D.L.; Kirkegaard, J.; Orgill, S.; Oates, A.; Li, G.; Poile, G.; Kirkby, C. A review of organic carbon accumulation in soils within the agricultural context of southern New South Wales, Australia. Field Crop. Res. 2015, 184, 177–182. [Google Scholar] [CrossRef]
Equation | Name | Mathematical Form |
---|---|---|
5 | Exponential | SOC = B exp (Cz) |
6 | Exponential | SOC = A + B exp (Cz) |
7 | Two phase exponential | SOC = B exp (Cz) + D exp (Ez) |
8 | Two phase exponential | SOC = A + B exp (Cz) + D exp (Ez) |
9 | Power function | SOC = BzC |
10 | Power function | SOC = A + BzC |
11 | Inverse | SOC = B/(1 + BCz) |
12 | Inverse | SOC = A + B/(1 + BCz) |
Parent Material | Location | Grid Reference | Soil Type | Land Use | Sampling Depth [cm] | MAR [mm] | MAT C | Site Number |
---|---|---|---|---|---|---|---|---|
New England Tablelands | ||||||||
Bingara Metasediments BM | Yeral/pinetrees | −29.79, 150.70 | Red Chromosol | Woodland | 100 | 745 | 18.2 | BM1 |
Yeral/pinetrees | −29.79, 150.70 | Red Chromosol | Pasture | 100 | 745 | 18.2 | BM1 | |
Yeral/pinetrees | −29.79, 150.70 | Red Chromosol | Cropping | 100 | 745 | 18.2 | BM1 | |
Dingwall | −29.82, 150.45 | Red Chromosol | Woodland | 100 | 745 | 18.2 | BM2 | |
Dingwall | −29.82, 150.45 | Red Chromosol | Pasture | 100 | 745 | 18.2 | BM2 | |
Dingwall | −29.82, 150.45 | Red Chromosol | Cropping | 100 | 745 | 18.2 | BM2 | |
Rockvale Metasediments RM | Rockvale | −30.48, 151.69 | Yellow Chromosol | Woodland | 80 | 792 | 13.7 | RM-W1 to W5 |
Rockvale | −30.48, 151.69 | Yellow Chromosol | Pasture | 80 | 792 | 13.7 | RM-P1 to P5 | |
Tulimba Metasediments TM | Tullimba | −30.48, 151.19 | Yellow Chromosol | Woodland | 70 | 643 | 14.7 | TM1 |
Tullimba | −30.48, 151.19 | Yellow Chromosol | Pasture | 70 | 643 | 14.7 | TM2 | |
Guyra Basalt Tertiary basalt GB | Kirby | −30.43, 151.63 | Dermosol | Woodland | 85 | 792 | 13.7 | GB1 |
Kirby | −30.43, 151.63 | Dermosol | Native pasture | 85 | 792 | 13.7 | GB1 | |
Glendon | −30.18, 151.62 | Black Ferrosol | Woodland | 95 | 913 | 12.2 | GB2 | |
Glendon | −30.18, 151.62 | Black Ferrosol | Native pasture | 95 | 913 | 12.2 | GB2 | |
Newby Park basalt Tertiary basalt NPB | Armidale | −30.51, 151.63 | Brown Dermosol | Woodland | 100 | 792 | 13.7 | NPB-W1 to W5 |
Armidale | −30.51, 151.63 | Brown Dermosol | Native pasture | 100 | 792 | 13.7 | NPB-P1 to P5 | |
Camerons Granite CG | Kingstown | −30.57, 151.23 | Yellow Chromosol | Woodland | 100 | 640 | 14.3 | CG1 |
Kingstown | −30.57, 151.23 | Yellow Chromosol | Pasture | 100 | 640 | 14.3 | CG1 | |
Central West NSW, Australian Greenhouse Office [AGO]—land clearing | ||||||||
Granite colluvium | Tallebung, NW of Condobolin | −32.91, 146.65 | Red Kandodsol | Woodland | 100 | 407 | 17.3 | AGO1 |
Granite colluvium | Tallebung, NW of Condobolin | −32.91, 146.65 | Red Kandosol | Cropping [cleared 3 years] | 100 | 407 | 17.3 | AGO2 |
Granite colluvium | Tallebung, NW of Condobolin | −32.85, 146.57 | Red Kandosol | Woodland | 100 | 408 | 17.3 | AGO3 |
Granite colluvium | Tallebung, NW of Condobolin | −32.91, 146.65 | Red Kandosol | Cropping [cleared 3 years] | 100 | 408 | 17.3 | AGO4 |
Granite colluvium | Tallebung, NW of Condobolin | −32.66, 146.64 | Red Kandosol | Woodland | 100 | 416 | 17.1 | AGO5 |
Granite colluvium | Tallebung, NW of Condobolin | −32.66, 146.64 | Red Kandosol | Pasture | 100 | 416 | 17.1 | AGO6 |
Granite colluvium | Tallebung, NW of Condobolin | −32.66, 146.64 | Red Kandosol | Cropping [cleared > 25 years] | 100 | 416 | 17.1 | AGO7 |
Central West NSW, Australian Greenhouse Office [AGO]—land clearing [Murphy et al. 2003] | ||||||||
Girilambone Beds | Tottenham | −32.22; 147.33 | Red Kandosol | Woodland | 100 | 475 mm | 17.4 | AGO8 |
Girilambone Beds | Tottenham | −32.22; 147.33 | Red Kandosol | Cropping [cleared > 25 years] | 100 | 475 mm | 17.4 | AGO9 |
Quaternary Alluvium | Dandaloo/ Narromine | −32.20; 147.56 | Grey Vertosol | Woodland | 100 | 481 mm | 17.3 | AGO10 |
Quaternary Alluvium | Dandaloo/ Narromine | −32.20; 147.56 | Grey Vertosol | Cropping [cleared 20 years] | 100 | 481 mm | 17.3 | AGO11 |
Girilambone Beds | Girilambone | −31.24; 146.94 | Red Kandosol | Woodland | 100 | 415 mm | 18.3 | AGO12 |
Girilambone Beds | Girilambone | −31.24; 146.94 | Red Kandosol | Cropping [cleared 9 years] | 100 | 415 mm | 18.3 | AGO13 |
Girilambone Beds | Nyngan | −31.61; 147.11 | Red Kandosol | Woodland | 100 | 437 mm | 17.9 | AGO14 |
Girilambone Beds | Nyngan | −31.61; 147.11 | Red Kandosol | Cropping [cleared 8 years] | 100 | 437 | 17.9 | AGO15 |
Quaternary Alluvium | Coonamble | −31.17; 148.73 | Grey Vertosol | Woodland | 100 | 541 | 17.4 | AGO16 |
Quaternary Alluvium | Coonamble | −31.17; 148.73 | Grey Vertosol | Cropping [cleared > 25 years] | 100 | 541 | 17.4 | AGO17 |
Quaternary Alluvium | Walgett | −30.14; 148.09 | Grey Vertosol | Woodland | 100 | 447 | 19.2 | AGO18 |
Quaternary Alluvium | Walgett | −30.14; 148.09 | Grey Vertosol | Cropping [cleared 6 years] | 100 | 447 | 19.2 | AGO19 |
Quaternary Alluvium | Walgett | −30.14; 148.09 | Grey Vertosol | Cropping [cleared > 25 years] | 100 | 447 | 19.2 | AGO22 |
Quaternary Alluvium | Walgett | −30.04; 147.85 | Grey Vertosol | Cropping [cleared 6 years] | 100 | 436 | 19.3 °C | AGO20 |
Quaternary Alluvium | Walgett | −30.04; 147.85 | Grey Vertosol | Cropping [cleared 6 years] | 100 | 436 | 19.3 | AGO21 |
Central West NSW, Little River Hydrological Study [LR] [McKenzie 2002] | ||||||||
Cowra Trough Metasediments | Yeoval 1; Arthurville | −32.35; 148.45 | Brown Sodosol | Pasture-lucerne | 140 | 583 | 16.6 | LR1 |
Yeoval 7; Cumnock | −32.89; 148.90 | Red Dermosol | Cropping | 140 | 613 | 16.6 | LR7 | |
Yeoval Granite | Yeoval 2; Yeoval | −32.81; 148.61 | Red Kandosol | Pasture-lucerne | 140 | 581 | 16.6 | LR2 |
Yeoval 3; Yeoval | −32.76; 148.61 | Red Chromosol | Pasture | 120 | 581 | 16.6 | LR3 | |
Yeoval 4; Yeoval | −32.79; 148.45 | Rudosol/Tenosol | Pasture | 37 | 581 | 16.6 | LR4 | |
Yeoval 5; Yeoval | −32.79; 148.45 | Yellow Chromosol | Pasture | 130 | 581 | 16.6 | LR5 | |
Dulladerry Rhyolite | Yeoval 6; Cumnock | −32.96; 148.62 | Yellow Chromosol | Cropping | 130 | 613 | 16.6 | LR6 |
Model | Equation Number. (See Table 1) | Land Use | Number of Profiles Fitted | % Profiles Fitted | MeanSEE | Mean adj R2 | 10th Percentile Adj R2 | 90th Percentile Adj R2 | Term Values | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | |||||||||
1 Exponential | 6 | Cropping | 16 | 100 | 0.120 | 0.90 | 0.68 | 0.99 | – | 1.660 | −0.039 | – | – |
SOC = B exp (Cz) | Pasture | 33 | 100 | 0.202 | 0.91 | 0.83 | 0.99 | – | 2.675 | −0.080 | – | – | |
Woodland | 36 | 100 | 0.329 | 0.91 | 0.77 | 0.99 | – | 4.881 | −0.081 | – | – | ||
2 Exponential | 7 | Cropping | 15 | 94 | 0.073 | 0.98 | 0.94 | 0.99 | 0.150 | 1.729 | −0.067 | – | – |
SOC = A + B exp (Cz) | Pasture | 33 | 100 | 0.110 | 0.97 | 0.93 | 0.99 | 0.245 | 2.750 | −0.125 | – | – | |
Woodland | 36 | 100 | 0.155 | 0.97 | 0.77 | 0.99 | 0.402 | 5.108 | −0.128 | – | – | ||
3 Two-phase exponential | 8 | Cropping | 15 | 94 | 0.056 | 0.99 | 0.96 | 0.99 | – | 1.880 | −0.227 | 0.690 | −0.016 |
SOC = B exp (Cz) + D exp (Ez) | Pasture | 31 | 94 | 0.090 | 0.98 | 0.91 | 0.99 | – | 2.815 | −0.192 | 0.690 | −0.013 | |
Woodland | 35 | 97 | 0.118 | 0.99 | 0.95 | 0.99 | – | 5.243 | −0.200 | 0.934 | −0.012 | ||
4 Two-phase exponential | 9 | Cropping | 14 | 88 | 0.065 | 0.98 | 0.94 | 0.99 | 0.047 | 1.706 | −0.273 | 0.937 | −0.025 |
SOC = A + B exp (Cz) + D exp (Ez) | Pasture | 27 | 82 | 0.106 | 0.96 | 0.87 | 0.99 | 0.140 | 5.403 | −0.427 | 0.861 | −0.035 | |
Woodland | 25 | 69 | 0.159 | 0.97 | 0.90 | 0.99 | 0.082 | 5.496 | −0.217 | 2.122 | −0.024 | ||
5 Power | 10 | Cropping | 16 | 100 | 0.151 | 0.87 | 0.62 | 0.96 | – | 2.578 | −0.451 | – | – |
SOC = B zC | Pasture | 33 | 100 | 0.161 | 0.94 | 0.84 | 0.99 | – | 4.024 | −0.603 | – | – | |
Woodland | 36 | 100 | 0.208 | 0.96 | 0.90 | 0.99 | – | 7.914 | −0.661 | – | – | ||
6 Power | 11 | Cropping | 9 | 56 | 0.108 | 0.89 | 0.20 | 0.99 | −1.550 | 4.273 | −0.287 | – | – |
SOC = A + B zC | Pasture | 31 | 94 | 0.114 | 0.97 | 0.90 | 0.99 | −0.301 | 3.802 | −0.424 | – | – | |
Woodland | 34 | 94 | 0.179 | 0.99 | 0.91 | 0.99 | −0.724 | 8.310 | −0.534 | – | – | ||
7 Inverse | 12 | Cropping | 16 | 100 | 0.096 | 0.93 | 0.79 | 0.99 | – | 2.145 | 0.050 | – | – |
SOC = B/(B + Cz) | Pasture | 33 | 100 | 0.123 | 0.96 | 0.93 | 0.99 | – | 4.115 | 0.071 | – | – | |
Woodland | 33 | 92 | 0.176 | 0.97 | 0.91 | 0.99 | – | 6.147 | 0.048 | – | – | ||
8 Inverse | 13 | Cropping | 16 | 100 | 0.070 | 0.96 | 0.85 | 0.99 | −0.233 | 2.835 | 0.058 | – | – |
SOC = A + B/(B + Cz) | Pasture | 33 | 100 | 0.103 | 0.97 | 0.93 | 0.99 | −0.038 | 4.504 | 0.081 | – | – | |
Woodland | 32 | 89 | 0.152 | 0.98 | 0.93 | 0.99 | −0.026 | 8.609 | 0.055 | – | – |
Model | Equation See Text | Land Use | SOC Profile Number | SEE | Adj R2 | Estimated Model Parameters | ||||
---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | ||||||
5 Exponential | 5 | Cropping | AGO 19 | 0.069 | 0.79 | - | 0.636 | −0.0122 | - | - |
SOC = B exp (Cz) | Woodland | AGO 18 | 0.213 | 0.71 | - | 1.290 | −0.0244 | - | - | |
6 Exponential | 6 | Cropping | AGO 19 | 0.012 | 0.99 | 0.282 | 0.518 | −0.0629 | - | - |
SOC = A + B exp (Cz) | Woodland | AGO 18 | 0.095 | 0.94 | 0.382 | 1.837 | −0.1582 | - | - | |
7 Two-phase exponential | 7 | Cropping | AGO 19 | 0.013 | 0.99 | - | 0.518 | −0.0630 | 0.283 | 0.0000 |
SOC = B exp (Cz) + D exp (Ez) | Woodland | AGO 18 | 0.017 | 0.99 | - | 2.069 | −0.3040 | 0.695 | −0.0102 | |
8 Two-phase exponential | 8 | Cropping | AGO 19 | 0.014 | 0.99 | 0.282 | 0.3255 | −0.0624 | 0.1925 | −0.0636 |
SOC = A + B exp (Cz) + D exp (Ez) | Woodland | AGO 18 | 0.013 | 0.99 | −1.243 | 2.047 | −0.2836 | 1.8923 | −0.0025 | |
9 Power | 9 | Cropping | AGO 19 | 0.033 | 0.95 | - | 0.969 | −0.2789 | - | - |
SOC = B zC | Woodland | AGO 18 | 0.052 | 0.98 | - | 2.494 | −0.4821 | - | - | |
10 Power | 10 | Cropping | AGO 19 | 0.032 | 0.96 | −0.550 | 1.443 | −0.1282 | - | - |
SOC = A + B zC | Woodland | AGO 18 | 0.046 | 0.99 | 1.163 | 2.619 | −0.6303 | - | - | |
11 Inverse | 11 | Cropping | AGO 19 | 0.048 | 0.90 | - | 0.717 | 0.0343 | - | - |
SOC = B/(1 + B * Cz) | Woodland | AGO 18 | 0.131 | 0.89 | - | 1.860 | 0.0510 | - | - | |
12 Inverse | 12 | Cropping | AGO 19 | 0.021 | 0.98 | 0.196 | 0.650 | 0.1343 | - | - |
SOC = A + B/(1 + B * Cz) | Woodland | AGO 18 | 0.055 | 0.98 | 0.270 | 3.293 | 0.1709 | - | - |
Semi Log Plot: Segments Fitted as loge(SOC) = b + mz; Backtransformed as G = exp (b) | Two Phase: Fitted as SOC = A + B exp (Cz) + D exp (Ez) | ||||||||
---|---|---|---|---|---|---|---|---|---|
Phase | Depth [cm] | G | m | SEE | R2 | Parameter Estimates | SEE | R2 | |
AGO 18; Land use = woodland; n = 11. Paired site with AGO 19 | |||||||||
a | 0–7.5 | 2.278 | −0.1302 | 0.013 | 0.99 | B = 2.048 | C = −0.2877 | 0.013 | 0.998 |
b | 15–25 | 0.790 | −0.0172 | D = 1.892 | E = −0.0025 | ||||
c | 35–95 | 0.781 | −0.0120 | A = -1.243 | |||||
AGO 19; Land use = cropping; n = 11. Paired site with AGO 18 | |||||||||
a | 0–25 | 0.760 | −0.0279 | 0.025 | 0.99 | B = 0.325 | C = −0.0624 | 0.014 | 0.99 |
b | 35–95 | 0.356 | −0.0027 | D = 0.193 | E = −0.0636 | ||||
A = 0.282 | |||||||||
AGO 14; Land use = woodland; n = 11. Paired site with AGO 15 | |||||||||
a | 0–7.5 | 3.667 | −0.1742 | 0.032 | 0.99 | B = 47.110 | C = −1.4822 | 0.060 | 0.99 |
b | 15–35 | 1.831 | −0.0435 | D = 1.252 | E = −0.0319 | ||||
c | 45–75 | 0.806 | −0.0180 | A = 0.068 | |||||
d | 85–95 | 4.862 | −0.0407 | Front of added SOC | |||||
AGO 15; Land use = cropping; n = 11. Paired site with AGO 14 | |||||||||
a | 0–35 | 1.335 | −0.0397 | 0.033 | 0.99 | B = 1.134 | C = −0.0509 | 0.024 | 0.99 |
b | 35–95 | 0.615 | −0.0176 | D = 0.192 | E = −0.0077 | ||||
A = 0.025 | |||||||||
Bingara–Yeral/Pinetrees–woodland; n = 9 | |||||||||
a | 0–7.5 | 6.416 | −0.1695 | 0.328 | 0.70 | B = 82.436 | C = −1.4947 | 0.234 | 0.94 |
b | 15–35 | 1.656 | −0.0155 | D = 1.715 | E = −0.0687 | ||||
c | 45–55 | 0.506 | 0.0112 | A = 0.789 | |||||
d | 65–75 | 70.142 | −0.0654 | Front of added SOC | |||||
Bingara–Yeral/Pinetrees–pasture; n = 11 | |||||||||
a | 0–7.5 | 2.756 | −0.0904 | 0.346 | 0.84 | B = 13.089 | C = −1.2287 | 0.141 | 0.94 |
b | 15–95 | 1.515 | −0.0229 | D = 1.694 | E = −0.0244 | ||||
A = −0.001 | |||||||||
Bingara–Yeral/Pinetrees–cropping; n = 11 | |||||||||
a | 0–15 | 2.223 | −0.0761 | 0.129 | 0.97 | B = 1.715 | C = −0.1113 | 0.059 | 0.98 |
b | 25–55 | 0.895 | −0.0205 | D = 0.448 | E = −0.0133 | ||||
c | 65–95 | 0.326 | −0.0039 | A = 0.088 | |||||
Guyra Basalt–Woodland; n = 10 | |||||||||
a | 0–7.5 | 10.276 | −0.1342 | 0.111 | 0.99 | B =9.355 | C=−0.3397 | 0.604 | 0.99 |
b | 15–35 | 3.322 | −0.0188 | D=4.978 | E =−0.0145 | ||||
c | 45–65 | 6.741 | −0.0411 | Front of added SOC | A=−1.450 | ||||
d | 75–85 | 271.106 | −0.0967 | Front of added SOC | |||||
Guyra Basalt–Pasture; n = 10 | |||||||||
a | 0–7.5 | 6.329 | −0.0628 | 0.111 | 0.99 | B = 2.433 | C =−0.1637 | 0.197 | 0.99 |
b | 15–35 | 3.987 | −0.0350 | D = 4.248 | E = −0.0400 | ||||
c | 45–85 | 2.276 | −0.0318 | A = −0.023 | |||||
Guyra Basalt–Cropping; n = 10 | |||||||||
a | 0–7.5 | 4.821 | −0.0747 | 0.237 | 0.95 | B = 3.204 | C = −0.1273 | 0.115 | 0.99 |
b | 15–25 | 2.720 | −0.0334 | D = 1.877 | E = −0.0226 | ||||
c | 35–85 | 2.049 | −0.0285 | A = −0.098 | |||||
AGO Site 16–Woodland; n = 11 | |||||||||
a | 0–7.5 | 4.428 | −0.1305 | 0.113 | 0.99 | B = 3.972 | C = −0.2904 | 0.192 | 0.96 |
b | 15–45 | 1.340 | −0.0135 | D = 25.373 | E = −0.0005 | ||||
c | 55–75 | 5.564 | −0.0332 | Front of added SOC | A = −24.069 | ||||
d | 85–95 | >>200 | −0.1837 | Front of added SOC | |||||
AGO Site 17–Cropping; n = 11 | |||||||||
a | 0–7.5 | 1.001 | −0.0498 | 0.043 | 0.99 | No fit | |||
b | 15–45 | 0.731 | −0.0012 | No fit | |||||
c | 55–75 | 5.569 | −0.0361 | Front of added SOC | No fit | ||||
d | 85–95 | >>200 | −0.2680 | Front of added SOC |
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Murphy, B.W.; Wilson, B.R.; Koen, T. Mathematical Functions to Model the Depth Distribution of Soil Organic Carbon in a Range of Soils from New South Wales, Australia under Different Land Uses. Soil Syst. 2019, 3, 46. https://doi.org/10.3390/soilsystems3030046
Murphy BW, Wilson BR, Koen T. Mathematical Functions to Model the Depth Distribution of Soil Organic Carbon in a Range of Soils from New South Wales, Australia under Different Land Uses. Soil Systems. 2019; 3(3):46. https://doi.org/10.3390/soilsystems3030046
Chicago/Turabian StyleMurphy, Brian W., Brian R. Wilson, and Terry Koen. 2019. "Mathematical Functions to Model the Depth Distribution of Soil Organic Carbon in a Range of Soils from New South Wales, Australia under Different Land Uses" Soil Systems 3, no. 3: 46. https://doi.org/10.3390/soilsystems3030046
