The Variation and Driving Factors of Soil Organic Carbon Stocks and Soil CO₂ Emissions in Urban Infrastructure: Case of a University Campus

Abstract

The development of urban green infrastructures (UGI) is considered among the main nature-based solutions for climate mitigation in cities; however, the role of soils in the carbon (C) balance of UGI ecosystems remains largely overlooked. Urban green spaces are typically dominated by constructed Technosols, created by adding organic materials on top of former natural or agricultural subsoils. The combined effects of land-use history and current UGI management result in a high spatial variation of soil organic carbon (SOC) stocks and soil CO₂ emissions. Our study aimed to explore this variation for the case of Wageningen University campus. Developed on a former agricultural land, the campus area includes green spaces dominated by trees, shrubs, lawns, and herbs, with well-documented management practices for each vegetation type. Across the campus area (~32 ha), a random stratified topsoil sampling (n = 90) was conducted to map the spatial variation of topsoil (0–10 cm) SOC stocks. At the key sites (n = 8), representing different vegetation types and time of development (old, intermediate, and recent), SOC profile distribution was analyzed including SOC fractionation in surface and subsequent horizons, as well as the dynamics in soil CO₂ emissions, temperature, and moisture. Topsoil SOC contents on campus ranged from 1.1 to 5.5% (95% confidence interval). On average, SOC stocks under trees and shrubs were 10–15% higher than those under lawns and herbs. The highest CO₂ emissions were observed from soil under lawns and coincided with a high proportion of labile SOC fraction. Temporal dynamics in soil CO₂ emissions were mainly driven by soil temperature, with the strongest relation (R² = 0.71–0.88) observed for lawns. Extrapolating this relationship to the calendar year and across the campus area using high-resolution remote sensing data on surface temperatures resulted in a map of the CO₂ emissions/SOC stocks ratio, used as a spatial proxy for C turnover. Areas dominated by recent and intermediate lawns emerged as hotspots of rapid C turnover, highlighting important differences in the role of various UGI types in the C balance of urban green spaces.

1. Introduction

The recent report by the Intergovernmental Panel on Climate Change (IPCC) highlights the vulnerability of urban areas to climate change [1]. In this regard, city municipalities are motivated to work on climate mitigation strategies, including carbon (C) sequestration. The development of urban-green infrastructures (UGI) is considered an efficient nature-based solution for C sequestration [2,3]. The reported C sequestration potential of UGI ranges from 1 to 20 t C ha⁻¹ year⁻¹ depending on the UGI type (e.g., trees, shrubs or lawns), climatic conditions, and assessment method [4,5]. Many of these assessments are based on aboveground biomass and often overlook the contribution of urban soils to the C balance, which increases the uncertainty of the results and likely overestimates the expected C sequestration [6]. For example, a high net primary production of urban trees and shrubs is considered to determine tree-dominated UGI as C sinks [7,8]. However, high CO₂ emissions from soils of urban green spaces can change some of the UGI from C sinks to C sources [9,10]. A comprehensive estimate of whether a UGI area functions as a C sink or a C source requires either long-term comparative assessments of C-stock dynamics in urban soils and plant biomass [11,12] or net ecosystem exchange monitoring by eddy-covariance in short-term [13]. Although these methods are considered standard for natural or agricultural areas, they are rarely applicable in urban environments due to the heterogeneity of urban green spaces, the high costs of equipment installation and maintenance in densely populated areas, and the limited accessibility of private and public green spaces for regular instrumental measurements [14]. In this regard, a comparative assessment of soil organic carbon (SOC) stocks and soil CO₂ emissions offers an alternative approach to approximating soil C-balance dynamics while accounting for the high spatial heterogeneity of urban areas [15]. Therefore, an improved insight into driving variables explaining spatial variability in SOC stocks and soil CO₂ emissions is important to assess the role of urban soils in the UGI C balance.

Urban soils vary from just affected by humans to fully human-made (i.e., constructed Technosols), and the genesis and land-use history of urban soils influence their SOC stocks considerably. Seminatural soils of urban forests and parks are usually not significantly different in SOC stocks from natural soils at similar lithological and climatic conditions [16]. However, C stocks in constructed Technosols range widely depending on the materials used for construction (e.g., peat, compost, or dredged sediments) and age–time passed after construction [17,18,19]. Land-use history has a stronger impact on subsoils properties of urban green spaces, whereas topsoil SOC stocks are more affected by management and maintenance of UGI [20,21]. The UGI type and corresponding management practices, such as mowing, pruning, and the addition of compost or other organic amendments, influence both the quantity and quality of SOC, including the ratio between stable and labile fractions [22,23,24]. Labile fraction is commonly represented by particulate organic matter (POM). POM is formed through the fragmentation and decomposition of the source material and largely consists of free organic matter particles that still retain identifiable characteristics of the source material. These particles may include above- and belowground plant litter, dead insects, and fungi [25]. During subsequent stages of decomposition, organic matter particles become smaller and eventually become water-soluble, after which they may become adsorbed onto mineral surfaces. This sorbed SOC fraction is referred to as mineral-associated organic matter (MaOM). MaOM is less susceptible to decomposition and is therefore considered to be more stable [26,27]. Soils under lawns usually contain a higher proportion of POM fractions compared to soils in tree-dominated areas [24,28,29].

Soil CO₂ emissions in urban areas are even more variable than SOC stocks, especially at short distances. Local variability of CO₂ emissions can be influenced by heterogeneous microclimatic conditions, anthropogenic disturbances, or UGI maintenance. For example, higher emissions from lawns compared to adjacent plots under trees and shrubs can be explained by a higher soil temperature, moisture, and proportion of POM fractions [29,30]. Pollution, over-compaction, or salinization are the anthropogenic factors hampering microbial activity and therefore decreasing soil CO₂ emissions along the gradient from the disturbance source [31,32]. In contrast, maintenance of UGI, including irrigation and fertilization, stimulate microbial activity and root growth, resulting in higher soil CO₂ emissions from intensively managed lawns compared to unmanaged lawns and herbs [33,34,35]. Temporal dynamics following the seasonal trends in soil temperature and moisture or responding to extreme events such as droughts or rainstorms makes exploring spatial patterns in soil CO₂ emission even more challenging.

The ratio between microbial (heterotrophic) soil CO₂ emission and SOC content/stock is traditionally used to characterize the spatio-temporal variability in C turnover and the degradability of soil organic matter in natural and anthropogenic biomes [36,37,38]. In urban areas, mapping half-life time was used to indicate locations where SOC stocks were the most vulnerable to urban heat island effect at the city scale or within park boundaries [39]. However, field partitioning of soil respiration into autotrophic and heterotrophic components, e.g., by trenching or root exclusion [40,41,42], is time- and labor-consuming which limits the number of monitoring locations. Moreover, these methods can result in disturbance of soil surface, which is usually not feasible in public urban green spaces. As an alternative, the ratio between total CO₂ emissions and topsoil SOC stocks can be used as a proxy indicator of C turnover in soils of urban green spaces [43].

Analysis of factors driving the spatial variation of SOC stocks and soil CO₂ emissions of UGI is necessary to support decisions regarding the planning and management of urban green spaces. This analysis requires precise information UGI management and a thorough soil and vegetation survey, which is hardly feasible to obtain at a city scale. University campuses are unique research polygons, where such information is usually available and well documented; therefore, they are representative to observe diversity in vegetation and various management regimes [44,45,46]. This research aimed to study spatial variation of SOC stocks and soil CO₂ emissions at the Wageningen University campus. We hypothesized that UGI type would affect variation in topsoil SOC stocks and soil CO₂ emissions. We expect that the spatial patterns in SOC stocks, soil CO₂ emissions and SOC decomposition will be informative to support decisions for ‘carbon-friendly’ UGI planning and management.

2. Materials and Methods

2.1. Research Area

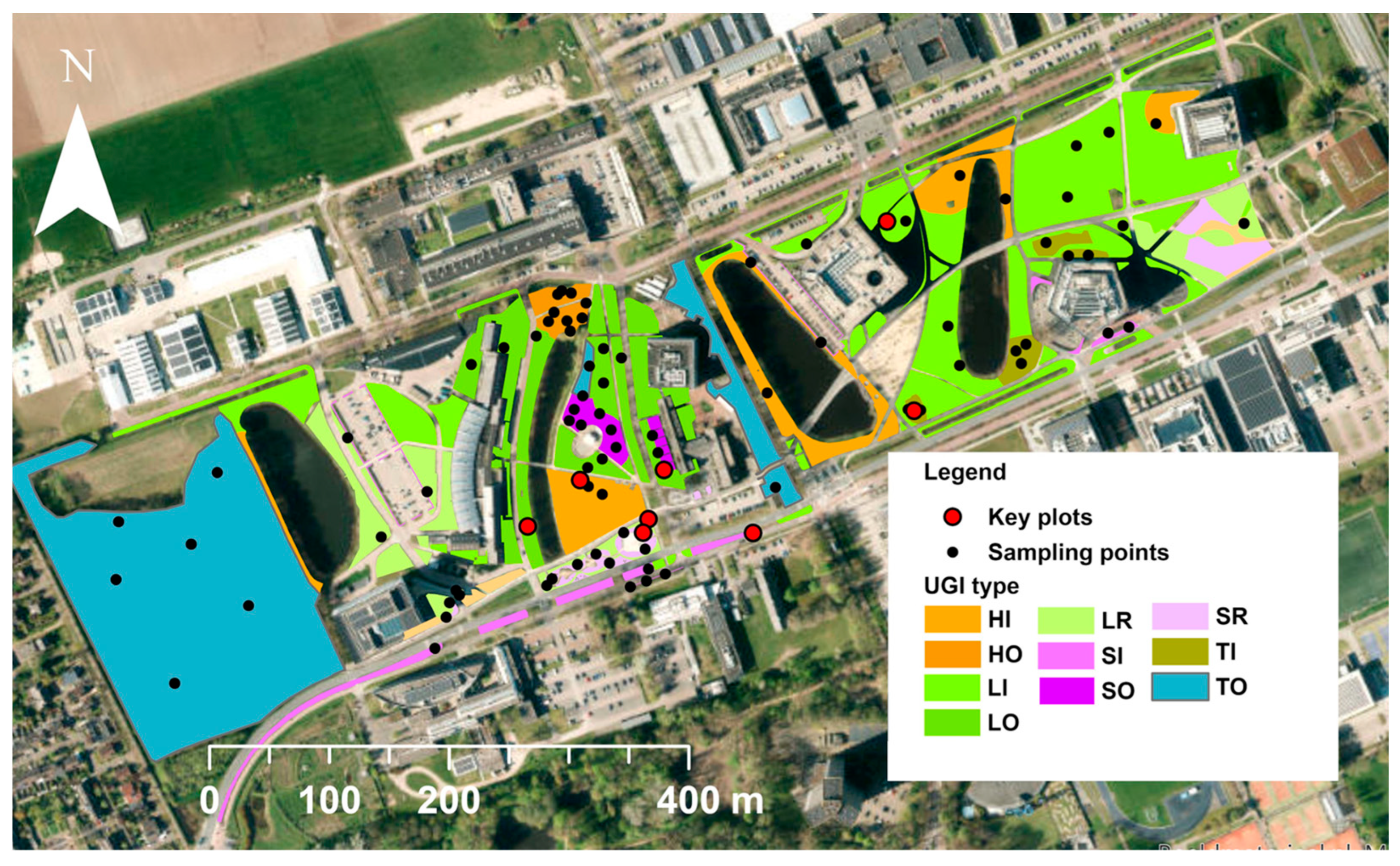

Wageningen (51.9° N; 5.6° E) is located in the central part of the Netherlands. With an area of 32 km² [47] and 40,000-resident population [48], Wageningen is representative for small and middle-size urban areas in northwestern Europe. The Wageningen area is quite diverse in relief, landscapes, and soils. Wageningen University and Research (WUR) campus occupies an area of 50 ha in the northern part of the town. The area belongs to the cover sand landscape formed by eolian sand deposits during the Weichsel ice age. Microrelief with ridges and flats, as well as the high ground water table (<1 m depth), have resulted in heterogeneous soils, including Podzols at the ridges and Gleysols in depressions. After long-term agricultural use, native soils have altered into sandy Anthrosols which dominated the area in 2000, when the university campus development started (Figure S1). Topsoil C contents of Anthrosols were approximately 4%, and the pH was close to neutral [49], which can be considered a baseline.

Campus development between 2000 and 2020 coincided with the creation of blue–green infrastructure, including trees, shrubs, lawns, and herbaceous meadows. The research area (~32 ha) contained patches of all these UGI types, which differed in their time of establishment: old (created before 2000), intermediate (created between 2000 and 2020), and recent (created after 2020). The combination of vegetation type and establishment period resulted in 10 distinct UGI types on campus, as no trees or herbaceous vegetation were planted after 2020. Each UGI type has a specific and well-documented management. For example, lawns are maintained at 7 cm grass height and are more frequently mowed than the herbaceous meadows, which are mowed 1–2 times per year (mowing clips are partly removed from both herbs and lawns). Old trees are unmanaged and leaves under old trees are not removed, whereas younger trees are annually pruned. Shrubs are manually pruned each spring to remove dead plant material. We are not aware of regular irrigation of any of the UGI types (irrigation was not mentioned in the available maintenance schemes), but during the dry summer period, lawns and herbs are likely occasionally irrigated. This UGI typology was used to develop a sampling and monitoring design for the field research (Figure 1).

2.2. Research Approach

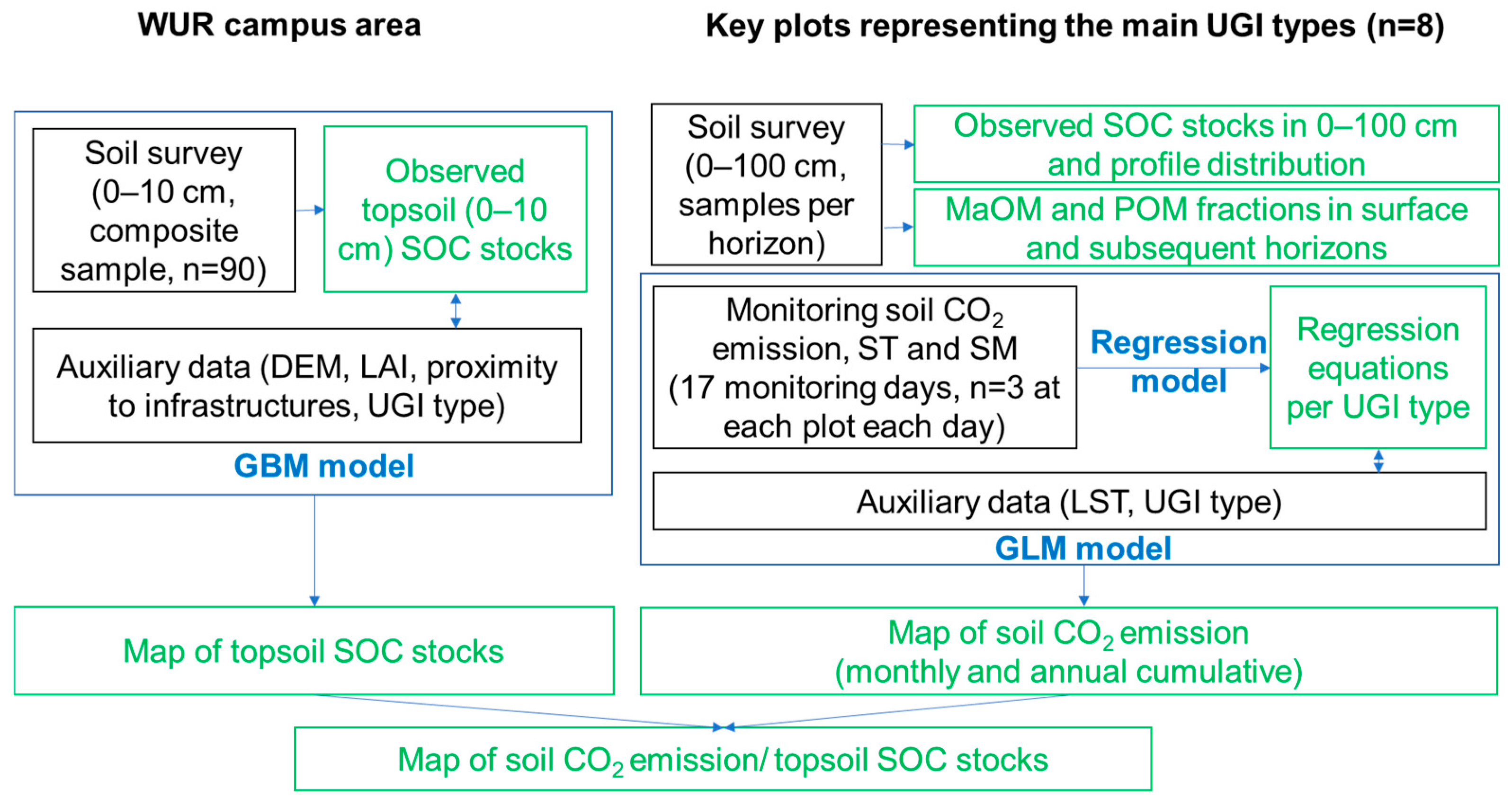

This study aimed to analyze the spatial variation in SOC stocks and soil CO₂ emissions of the campus area and to explore driving factors of this variation. The following research steps were taken: (1) for the campus area, a random stratified topsoil sampling (n = 90) was done to explore spatial variation of topsoil (0–10 cm) SOC stocks; (2) at the key plots (n = 8) representing different UGI types, SOC profile distribution was analyzed; SOC in the surface and subsequent horizons was size-fractionated to particulate organic matter (POM, >50 µm) and mineral-associated organic matter (MaOM, <50 µm); soil CO₂ emissions, temperature, and moisture were observed during September 2022–January 2023 and April 2023–May 2023; (3) topsoil SOC stocks were mapped by the Gradient Boosting Machines (GBM) model; (4) soil CO₂ emissions were mapped by the General Linear Model (GLM); (5) spatial patterns in annual soil C-CO₂ emissions/topsoil SOC stocks ratio were analyzed to characterize C turnover. The overall research workflow is summarized in Figure 2.

2.3. Soil Survey and SOC Stocks’ Spatial Variation on Campus

A soil survey was carried out on campus in autumn of 2022. A total of 90 sampling locations were selected based on the random stratified sampling design with 9 random samples from each of 10 UGI types. At each location, a composite topsoil (0–10 cm) sample was taken with an Eijkelkamp auger and a bulk density sample was taken with a 100 cm³ metal ring. The bulk density rings were closed and stored at <4 °C for no longer than a week before drying at 105 °C. Rock fraction was calculated by sieving at 2 mm and weighing the fraction > 2 mm. The composite samples were air dried and SOC contents were analyzed by loss-on-ignition (LOI) method [50]. In the processed samples, SOC stocks were estimated following Formula (1)

$$\mathit{SOC}\mathit{st}={\displaystyle \frac{SOC}{100}}\times BD\times D\times \left(1-\left({\displaystyle \frac{RF}{100}}\right)\right)\times 10$$

(1)

where

SOC st—SOC stocks (kg C m⁻²);

SOC—SOC content (%);

BD—bulk density (g cm⁻³);

D—depth of horizon (cm);

RF—rock fraction (%).

2.4. SOC Analysis and Monitoring Soil CO₂ Emissions at the Key Plots

From the sampled 90 locations on campus, eight key plots were selected for a more detailed investigation of factors and processes influencing SOC dynamics, including SOC profile distribution, SOC fractionation, and monitoring dynamics in soil CO₂ emissions. The key plots included old, intermediate, and recent lawns and shrubs, as well as intermediate trees and herbs.

At each key plot, a soil profile was augured to 100 cm depth, and the soil color, texture, and structure were described on site. Composite soil samples were taken per horizon (subsamples from different depths within the same horizon were mixed) for further analysis of SOC contents by the LOI method. At each location, the organically rich top horizon A (0–10 cm) and subsequent mineral (B or C) horizons were analyzed for POM and MaOM contents by size fractionation. The POM and MaOM fractions can be quantified through either size or density separation [51]. We used size separation as a less time-consuming and more environmentally friendly approach (toxic chemicals are not used). The collected soil samples were dried at 40 °C and sieved at 2 mm. A subsample of 10 g was taken, and 40 mL of 5.00 g/L NaHMP was added to disperse the samples by shaking at 180 rpm for 17 h. After shaking, the soil samples were wet-sieved to distinguish fractions ≤ 50 µm (MaOM) and >50 µm (POM). The results were expressed as the proportion of each fraction relative to total SOC content and interpreted to explore the potential resistance of SOC to biodegradation. A higher proportion of POM may stimulate microbial activity due to a higher availability of easily decomposable organic matter and therefore increase soil CO₂ emissions, especially under warm and humid conditions that are favorable for soil microorganisms.

Soil CO₂ emissions (including both autotrophic and heterotrophic components) were monitored during September 2022–January 2023 and April–May 2023 at an approximate 10-day interval. At each of the eight key plots, three spatial replicates were measured to account for short-distance variability. An infrared gas analyzer (EGM-5, PP Systems, Amesbury, MA, USA) was used to measure CO₂ fluxes, while soil temperature and moisture were recorded using HH2 and ML3 ThetaProbe sensors (Delta-T Devices, Burwell, UK) to characterize abiotic conditions. All measurements were conducted under rainless conditions between 10:00 a.m. and 2:00 p.m. to better represent average daily CO₂ efflux, following previous studies and methodological recommendations [10,52]. To calculate the total soil CO₂ emissions for the calendar month, the daily values obtained during the month were averaged and multiplied by the number of days.

2.5. Data Analysis and Mapping

SOC stocks for the entire campus area have been predicted by digital soil mapping [53]: a statistical model (GBM) (caret package in R 4.3.1) with a set of predictors: UGI type and age, Leaf Area Index (LAI), elevation, slope, and proximity to roads and buildings. The choice of this approach was based on hypothesized non-linear relationships between SOC stocks and independent variables [54]. Elevation and slope were derived from a 0.5 m resolution Digital Terrain Model (AHN4, [55]). The EO-Browser [56] was used to retrieve LAI data based on 10 m resolution Sentinel-2 satellite image for 14 June 2023, which was the day with the lowest cloudiness for the research period. Building and road shapefiles were obtained from the Open Street Map service and proximity was estimated by Euclidian distance tool. In the modelling, the LAI, elevation, slope, and Euclidian distances to buildings and roads were continuous variables, and UGI type (or vegetation and age) were categorical (dummy) variables. We have tested different tuning parameters for the GBM model where the optimal set (with the lowest RMSE) of parameters were as follows: number of trees: 300, shrinkage: 0.01, minimum observation in node: 5, interaction depth: 7. Model uncertainty was assessed by 10-fold cross-validation (RMSEcv). Mapping (prediction) was performed in R using terra package; all raster predictors were resampled to the resolution (2.6 m) and extent of the UGI type raster.

Analysis of spatial variation in soil CO₂ emissions on campus was constrained by a limited number of observation points (n = 8), which is a typical problem for long-term monitoring studies. To overcome this problem, we (1) analyzed the effect of UGI type (location) and observation period (measurement date) on soil CO₂ emissions by a repeated-measures ANOVA; (2) tested the effect of dynamics in abiotic factors (soil temperature, soil moisture, and their combination) on soil CO₂ emissions during the season by multiple linear and non-linear (exponential and quadratic) regression models separately for each location and for the whole area (when data from each location was merged in a single dataset); (3) approximated relationship between CO₂ emissions, UGI type, and relevant abiotic factors by general linear model (GLM), in which abiotic factors were included as continuous predictors and UGI type (or vegetation and age) as categorical (dummy) variables. Analysis was performed in R using the caret package.

To obtain a continuous map of soil temperature across the campus area, remote sensing data validated by on-ground measurements were used. Brightness temperature (BT) data were obtained from Landsat 8 and 9 imagery for the period from June 2022 to May 2023. Land surface temperature (LST) was retrieved from BT using the Statistical Mono-Window (SMW) algorithm [57], which accounts for atmospheric water vapor content (cm) at the time of satellite overpass through the use of empirical coefficients and incorporates predefined surface emissivity values. Surface emissivity was derived from Sentinel-2–based land cover classification, allowing the final LST product to be generated at a spatial resolution of 10 m.

Emissivity for eight land cover classes (water, urban low albedo, high albedo, urban color, bare soil, trees, shrubs, and lawns) was prescribed for Sentinel-2 median composite over the summer season of 2023: emissivity values were taken from ASTER spectral library [58], as in [59], and were re-calculated from ASTER spectral bands 13 (10.25–10.95 μm) and 14 (10.95–11.65 μm) to be suitable for Landsat-8/9 thermal infra-red band 10 (10.6–11.19 µm) using regression coefficients from [60]. Water vapor coefficients for SMW were retrieved using a specially developed algorithm available on the Google Earth Engine (GEE) cloud computing platform [61]. In total, 24 scenes were selected to characterize dynamics in soil temperature during the research periods. The modelled LST was validated by field data at the observation points, and the resulting regression equation was used to calibrate the model. The resulting soil temperature layers, together with the UGI layer, were used as auxiliary data to map soil CO₂ emissions on campus for the day of each scene based on the best fitted GLM model. In result, the maps of monthly averaged soil CO₂ emissions were developed and aggregated to the map of total annual soil C-CO₂ emissions. Finally, the map of annual soil C-CO₂ emissions was overlaid with the map of SOC stocks in 0–10 cm layer to map the spatial variability in soil C emissions/stocks ratio as a proxy of soil C turnover. Statistical analysis was performed in R Studio 4.3.1 software. ArcGIS Pro 3.0 and QGIS 3.32.3 were used for spatial modelling and mapping.

3. Results

3.1. Spatial Variability in Topsoil SOC Stocks on Campus

Field-based topsoil SOC contents on campus ranged from 1.0 to 9.2% with a 95% confidence interval from 2.7 to 3.4%. Bulk density ranged from 0.4 to 1.5 g cm⁻³ with an average 1.1 ± 0.2 (mean ± standard deviation). Maximal rock fraction reached 14%; however, the 95% confidence interval ranged from 2.5 to 3.6%, and in some locations, rock fraction was not observed in topsoil. Topsoil SOC stocks on campus were normally distributed (p > 0.2, K-S test) with a 3.1 kg m⁻² mean, a 3.0 kg m⁻² median, and a 95% confidence interval from 2.8 to 3.3 kg m⁻².

The GBM model has shown, the partial importance of all the predictors considered, where slope and elevation had the highest relative influence (23.8 and 21.6%), LAI—18.9%, and distances to roads and buildings—11.1 and 11.8%, respectively. Among the categorical variables, the age factor had the highest importance—6.8%. The model RMSEcv was 0.9 kg m⁻², mostly underestimating high stocks (>4 kg m⁻²). Soils under trees had higher SOC stocks compared to herbs, whereas the difference with the other UGI types was not significant due to high spatial variation within UGI types. SOC stocks under recently developed UGI (mainly, lawns, and shrubs) were higher compared to intermediate and old UGI (Figure S2). SOC stocks were negatively related to elevation (higher stocks in local depressions) and positively related with distance to buildings (lower stocks near the buildings compared to the remote areas). The SOC stocks predicted by the GBM model were in good agreement with the observed values (R² = 0.68, RMSE = 0.58).

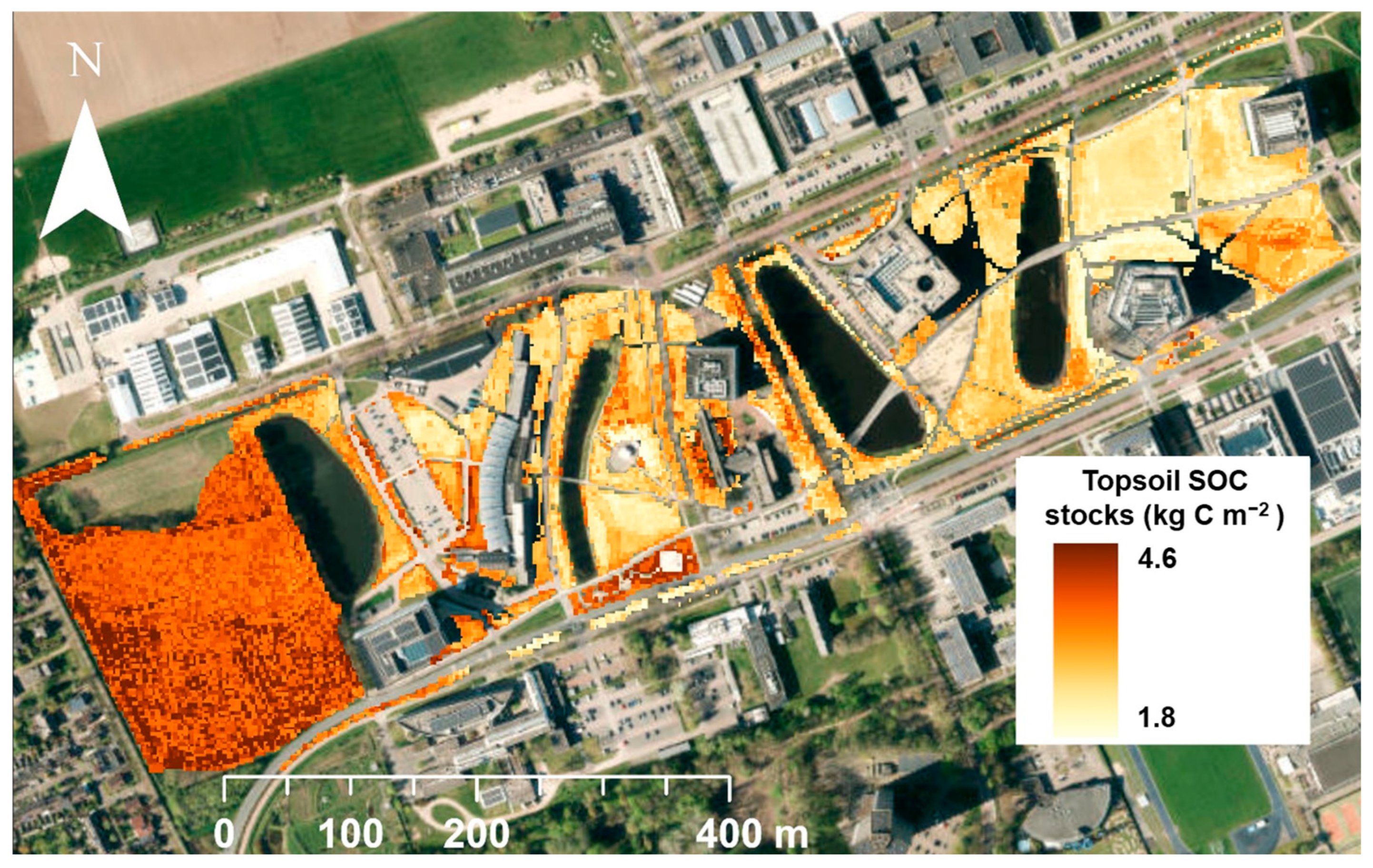

Based on the resulting map, the highest SOC stocks were localized in the western part of the campus, where elevation is 1.5–2.0 m lower compared to the eastern part, and old trees were the dominating UGI type. Several spots with high SOC stocks were also observed in the central part of the campus part where lawns and shrubs were recently planted. The lowest SOC stocks were observed at the eastern part dominated by intermediate lawns and exposed to a higher anthropogenic disturbance (based on proximity to the main educational buildings) than the other parts. Patches with higher SOC stocks in the eastern part of campus coincided with recent lawns and shrubs or local depression in relief near artificial ponds belonging to the intermediate trees UGI type (Figure 3). The predicted topsoil SOC stocks on campus varied between 1.8 and 4.6 kg C m⁻² with an average 3.1 ± 0.3 kg C m⁻² (mean and standard deviation). The total topsoil SOC stocks for the unsealed area of the campus (~26 ha) was 388.5 ± 107.8 ton C (mean ± standard deviation).

3.2. SOC Profile Distribution and Fractionation at the Key Plots

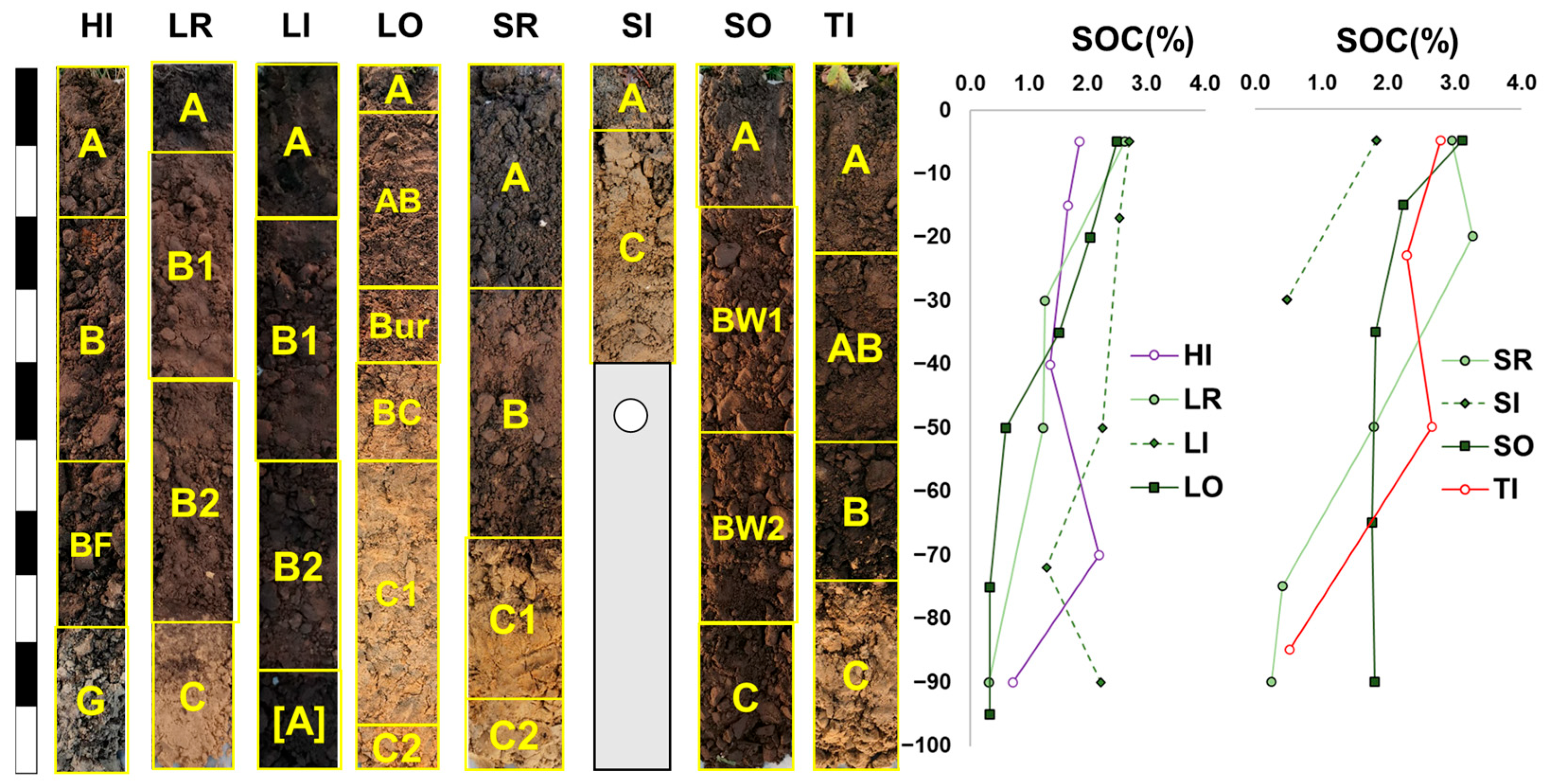

High variability of SOC stocks observed for topsoil became even more evident when the soil profiles excavated at the key plots were compared. Soil profile depth reached 100 cm at all locations except for intermediate shrubs (SI), where a concrete slab was observed at 40 cm depth (Figure 4). This plot was near the bus lane, and the slab was likely a part of the road basement. The depth of A horizon ranged from 7 cm (old lawns, LO) to 30 cm (recent shrubs, SR). Topsoil of recent shrubs (SR) and lawns (LR) was thicker compared to the old ones (LO). The depth and density of fine roots, assessed visually during field description of soil profiles, were considerably higher under lawns compared to the other UGI types. Soil texture was mainly sand and loamy sand throughout all the profiles, excluding loamy Bw horizons in the profile under the old shrubs (SO). This profile appeared to be the most similar to a natural Cambisol (brown forest soil), whereas the other profiles evidenced anthropogenic genesis via abrupt boundaries between the horizons and inclusions of artefacts (e.g., bricks, glass, and concrete fragments) (Figure 4). Most artefacts were observed under lawns, whereas profiles under old shrubs (SO), intermediate trees (TI) and shrubs (SI) were less anthropogenically altered. A buried [A] horizon described at 90–100 cm depth under intermediate lawns (LI) indicates former agricultural use. The presence of a gley horizon in the subsoil under intermediate herbs (HI) indicates seasonal water logging (Figure 4).

The described soil profile characteristics were reflected in the vertical SOC distribution. The least-disturbed soil under old shrubs had a typical accumulative profile with a gradual decrease of SOC contents from top to bottom. The SOC content of the buried A- horizon (LI) was similar to topsoil values and almost double of the overlaying B horizon (Figure 4). The highest SOC stocks of the full 0–100 cm profiles, calculated based on SOC contents, observed bulk densities of A-horizons and literature-based bulk densities of 1.1 g cm⁻³ for subsoil horizons [31], were obtained for intermediate lawns and trees and old shrubs ranging from 16 to 20 kg m⁻², whereas SOC stocks under old and recent lawns were less than 10 kg m⁻². Subsoils (layers below 30 cm) contributed from 35 to 75% of the total SOC stocks.

SOC size-fractionation analysis showed that the <50 µm (MaOM) C-fraction dominated at all locations, but the ratio of the <50 µm (MaOM) and >50 µm (POM) C-fractions differed between the sites and depths. On average, the POM C-fraction in surface A-horizon (0–10 cm) was 30%, which was twice as large as in the subsequent mineral horizon (C for SI and B for all the other locations). The largest POM C-fraction in topsoil SOC was observed under intermediate lawns and herbs; topsoil SOC under recent shrubs and intermediate trees had the largest MaOM C-fractions. The ratio between MaOM and POM C-fractions under trees did not differ between topsoil and subsoil, whereas under lawns, the ratio in subsoil was two to three times higher than in the topsoil (

Table 1. SOC concentration (mg C g⁻¹ soil) in the MaOM (≤50 µm) and POM (>50 µm) C-fractions.

C-Fraction	HI	LR	LI	LO	SR	SI	SO	TI
Topsoil (0–10 cm)
MaOM	6.7	15.5	11.3	11.3	18.4	7.4	8.8	15.9
POM	5.5	4.6	9.2	4.2	4.4	3.2	3.2	4.3
MaOM/POM ratio	1.2	3.3	1.2	2.7	4.2	2.3	2.8	3.7
Subsoil
MaOM	7.7	7.0	13.0	8.6	10.4	1.3	10.6	16.5
POM	1.6	0.9	3.5	1.4	1.6	-	2.1	4.3
MaOM/POM ratio	4.7	7.5	3.7	6.2	6.4	-	5.0	3.8

).

3.3. Spatio-Temporal Variation in Soil CO₂ Emissions at the Key Plots

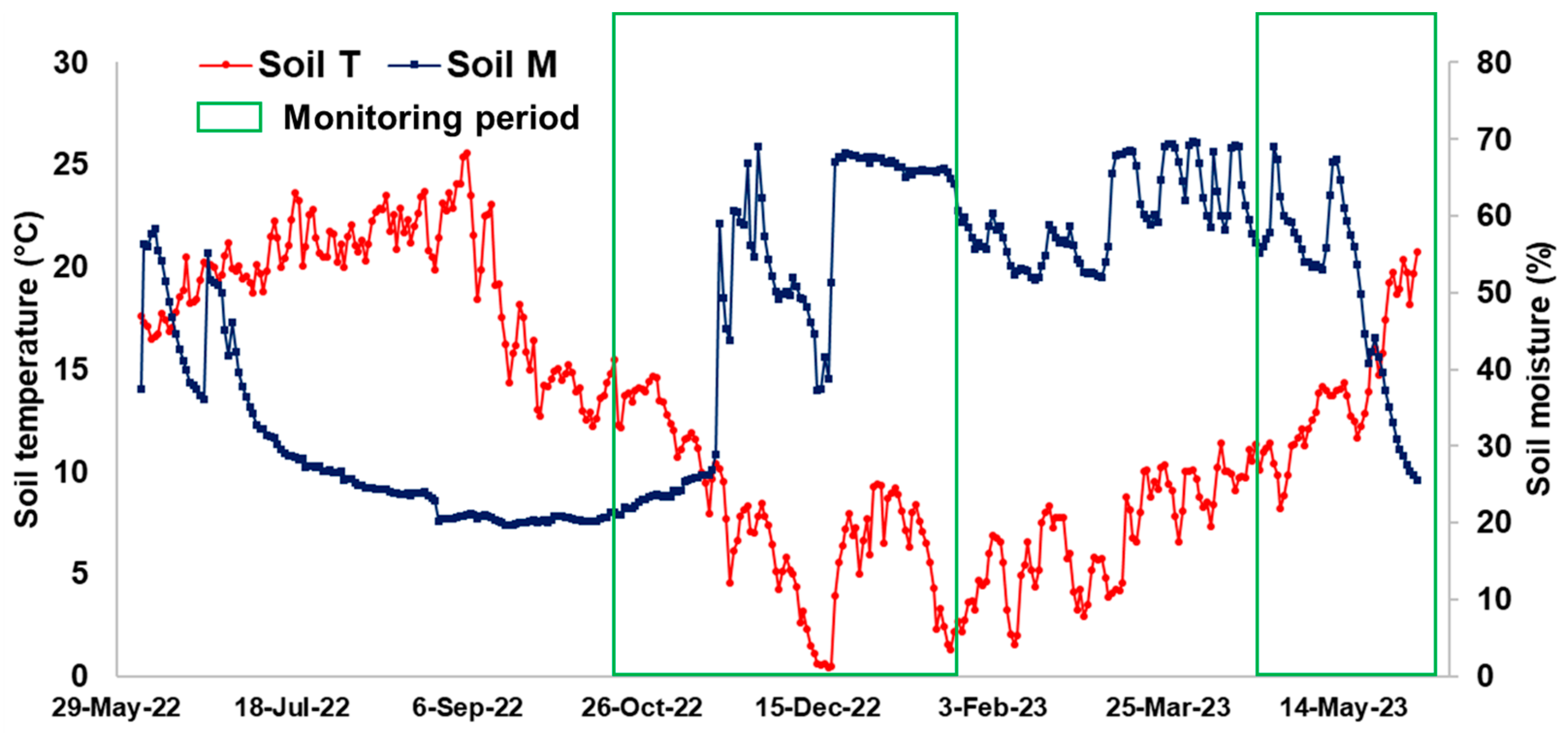

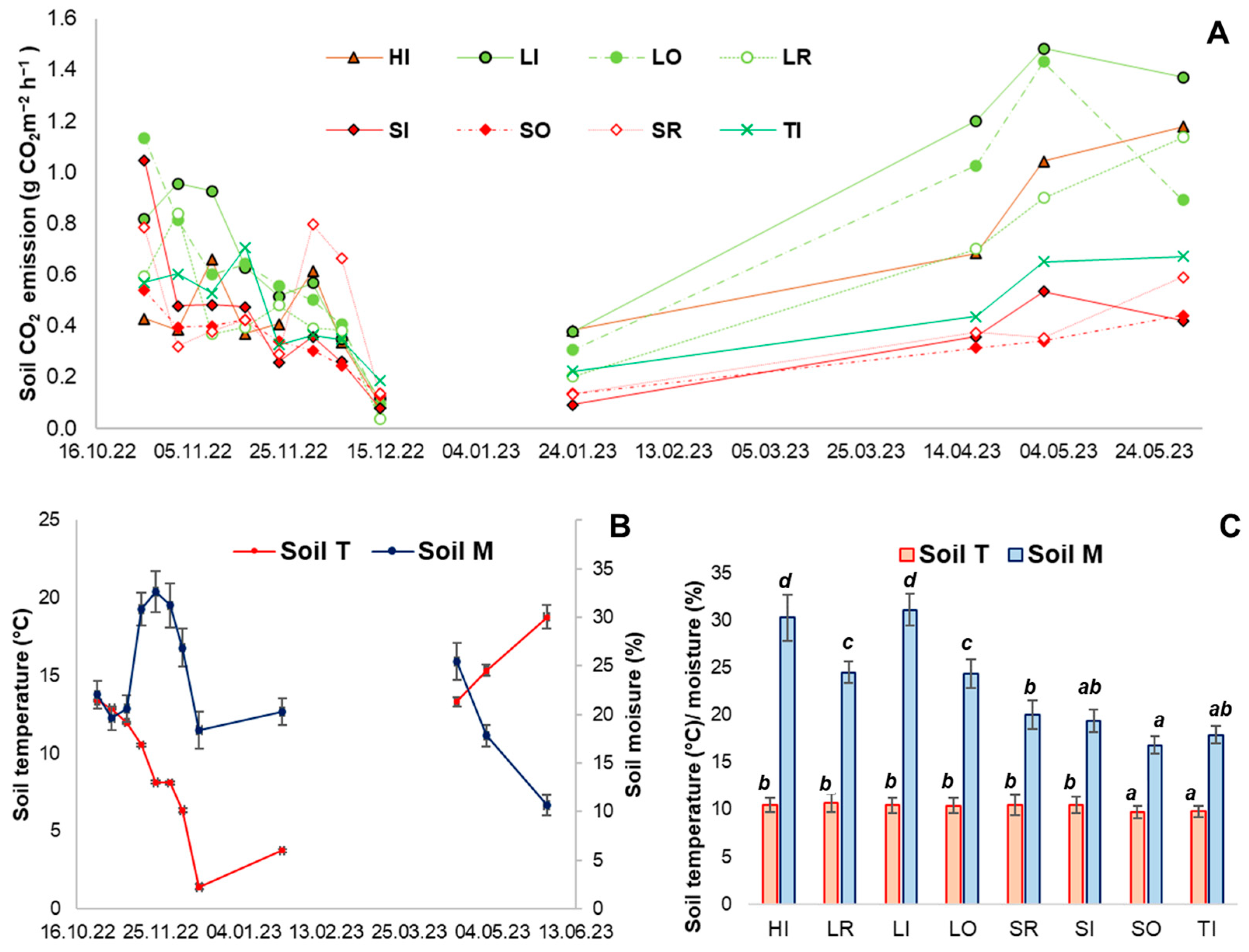

Soil CO₂ emissions, temperature, and moisture at the key plots were monitored during two periods: October 2022–January 2023 and April 2023–May 2023. During these observation periods, soil temperature ranged from 0 to 26.2 °C, and soil moisture ranged from 10 to 58%. The ranges of soil temperature and moisture conditions were similar to those observed for the period June 2022–June 2023 at the nearby Veenkampen meteorological station, which is considered as a reference for the campus area. Therefore, the selected observation period was representative for the annual variation in soil temperature and moisture (Figure 5) and was relevant for estimating annual soil C-CO₂ emissions from different UGI types.

According to the repeated-measures ANOVA, the combined effects of UGI type and observation date explained 68%, 69%, and 98% of the total spatio-temporal variation in soil CO₂ emissions, soil moisture, and soil temperature, respectively. Soil temperature was mainly driven by seasonal dynamics, whereas 26% of variation in soil moisture was explained by UGI type. Lawns and herbs were on average warmer and significantly wetter compared to shrubs and trees. Both factors and their combination (UGI type × observation date) had a significant effect on variation in soil CO₂ emissions (p < 0.05). Over the course of the season, soil CO₂ emissions across all plots showed a gradual decline from October toward winter, followed by an increase from April to the end of May. This pattern is characteristic of temperate climates and mirrors the seasonal variation in soil temperature. Among the UGI types, the highest average soil CO₂ emission was observed in intermediate and old lawns, coinciding with the highest density of root biomass and proportion of the POM fraction in topsoil SOC in these UGI types. Average CO₂ emissions from soils under shrubs and trees were significantly (p < 0.05) lower than those from lawns and herbs (Figure 6). This pattern was also consistent with the topsoil POM fraction, which was, on average, 30–60% lower under trees and shrubs compared to lawns and herbs.

Seasonal variation in soil CO₂ emissions was strongly driven by soil temperature. When results from all plots were analyzed jointly, the exponential model was significant (p < 0.05) but explained only 32% of total variance. Modelled relationships between soil CO₂ emissions and soil temperature for each plot separately explained from 30% (SI, R² = 0.3) to 80% (LI, R² = 0.8) of total variance. The effect of soil moisture as well the combined effect of soil moisture and soil temperature, on soil CO₂ emissions were not significant at any of the sites (based on both linear and quadratic models). Therefore, soil moisture was not included in the further spatial modelling.

3.4. Spatio-Temporal Variation in Soil CO₂ Emissions Extrapolated to the Campus Area

The relationships between soil CO₂ emissions, UGI type and soil temperature were approximated by GLM model, where the natural logarithm of CO₂ emission was a dependent variable, soil temperature was a continuous predictor, and UGI type was a categorical predictor. The resulting model was significant and explained 58% of the total variance (R² = 0.58, p < 0.05). This model was used to extrapolate the point measurements of soil CO₂ emissions in space (for the whole campus area) and time (for a calendar year period—from June 2022 to May 2023). Due to the lack of a spatially explicit soil temperature dataset for the campus area, soil temperature was approximated using remote-sensing–derived LST validated by on-site measurements. The resulting LST patterns were consistent with observational data, with minimum temperatures in the western forested area and maximum temperatures in lawn and herbaceous areas in the central and eastern sections. While most pronounced in summer, these spatial patterns were detectable throughout the year. The seasonal dynamics in LST was also similar to the field observations; however, the absolute values of Landsat-8/9 LST overestimated the real soil temperature. The validation by field measurements showed a significant correlation (R2 = 0.75; p < 0.05), but an error was substantial (ME = 1.7 °C; RMSE = 5.8 °C). To reduce the error, the estimated temperatures were adjusted based on the regression model of relationship between observed temperatures and temperatures derived from LST at the same location. The following equation was obtained: STadj = 5.03 + 0.49 × LST, where STadj—the adjusted estimate of soil temperature (°C) and LST—land surface temperatures based on remote sensing. The final GLM model used STadj and UGI type layers as covariates to map soil CO₂ emissions on campus.

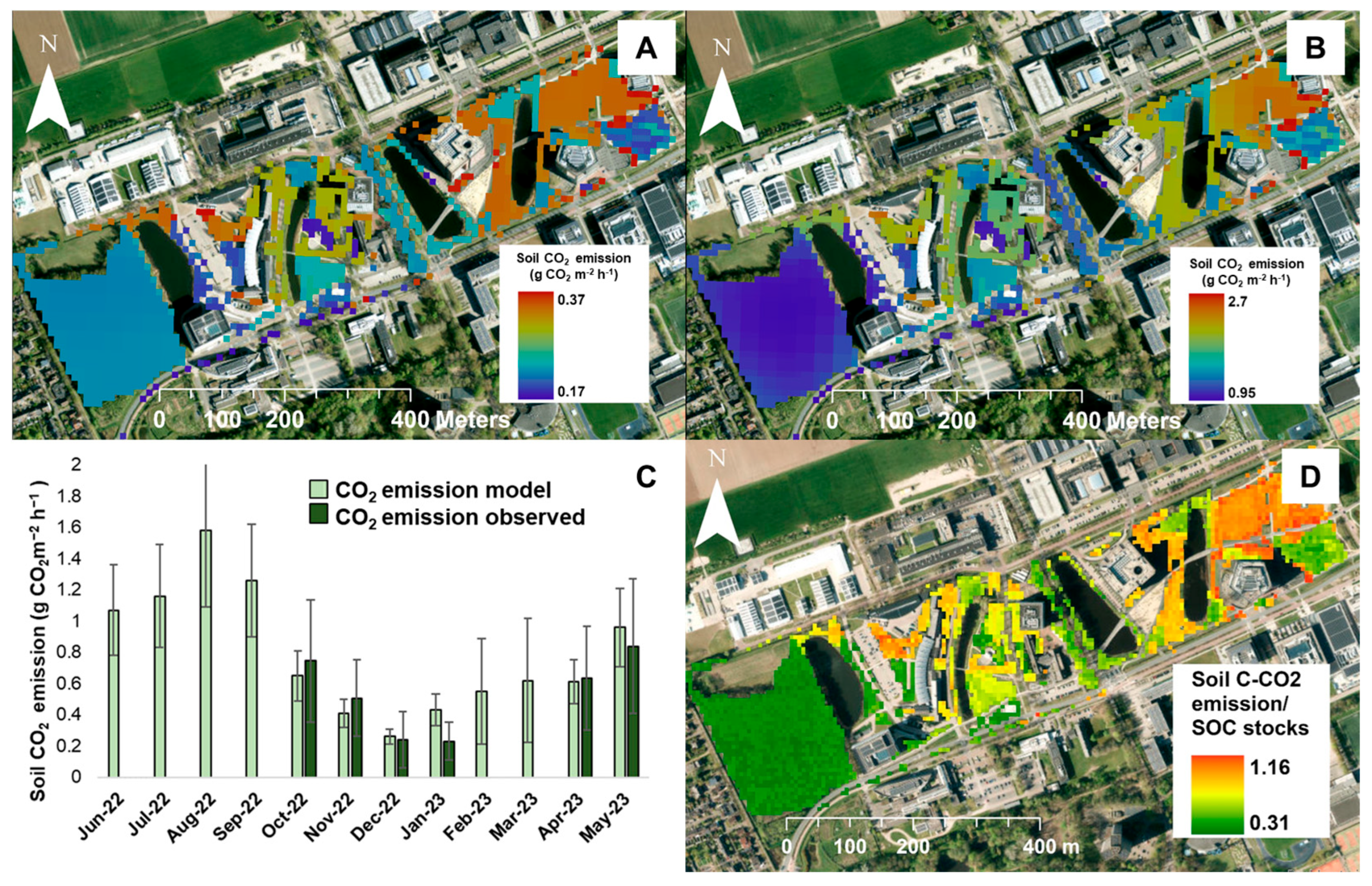

At first, soil CO₂ emission maps were developed for each of 24 days, for which LST scenes were available. Then, average monthly soil CO₂ emission maps were created based on the maps for each calendar month. Finally, the map of total annual soil CO₂ emission was created based on the monthly maps (Figure 7). The lowest monthly soil CO₂ emission was 0.26 ± 0.05 g CO₂ m⁻²h⁻¹ (mean ± standard deviation), obtained for December 2022. The highest values were obtained for August and September 2022, when soil CO₂ emission reached 1.58 ± 0.49 and 1.26 ± 0.36 g CO₂ m⁻²h⁻¹ (mean ± standard deviation), correspondingly. Lawns located close to educational buildings and main road at the eastern part of the campus were the hotspots on the CO₂ emission maps. The forested area was the largest zone with low soil CO₂ emissions in summertime, whereas in winter, the lowest CO₂ emissions were obtained for parcels of old and intermediate shrubs in the central part of the campus (Figure 7A,B). Comparison between the modelled and observed monthly average soil CO₂ emissions at the key plots showed high significant correlation (R² = 0.88, p < 0.05). The model slightly overestimated average soil CO₂ emissions during the cold period (December–January) and underestimated it in autumn and spring (Figure 7C).

Annual soil C-CO₂ emissions per UGI type ranged from 1.3–1.4 kg C m⁻² for old and intermediate shrubs to 2.2–2.4 kg C m⁻² for old and intermediate lawns. Total C-CO₂ emission from the campus area was 49.3 ± 19.5 ton C (mean ± standard deviation), which was approximately one-sixth of the SOC stocks in 0–10 cm in the area. The ratio of annual soil C-CO₂ emission and SOC stocks in 0–10 cm ranged from 0.31 to 1.16. The lowest ratio was shown for the forested area in the western part and tree parcels in the central part of the campus area—here, annual soil C-CO₂ emissions were about one-third of SOC stocks in 0–10 cm. The areas with the highest soil C emission/stocks ratio were obtained for the central and eastern parts and mainly coincided with recent and intermediate lawns located close to buildings and roads. Annual soil C-CO₂ emission here were comparable or even higher to SOC stocks in the 0–10 cm layer (Figure 7D).

4. Discussion

4.1. SOC Stocks on Campus in Comparison to Other Urban Studies

C-smart (low-C) solutions are implemented in planning green infrastructures at the city or district scale, as it was described for Tehran (Iran) [62], Tbilisi (Georgia) [63], and Berlin (Germany) [64]. Soil information in these studies is limited to average SOC stocks per soil group or administrative district and is considered as baseline values.

Diversity of UGI types at the university campus makes it possible to compare the estimated SOC stocks to the results obtained for similar green spaces in other urban areas and to explore the impact of UGI management and maintenance on SOC stocks in and CO₂ emission from urban soils. Average topsoil SOC stocks at the campus area (3.1 ± 0.3 kg m⁻²) were close to 3.3 and 3.8 kg m⁻², obtained, correspondingly, in Paris (France) and in New York (USA) [65], slightly higher than 2.4 kg m⁻² reported for Moscow (Russia) [39,66] but lower than 5.5 kg m⁻² in Berlin (Germany) [64]. Global reviews show a wider range in urban SOC stocks depending on the climatic conditions, land-use history, and management, but a global average 3.0 ± 1.0 kg m⁻² (mean ± standard error), ref. [67] is very close to the obtained results. It may be concluded that the area of Wageningen University campus, with its long history of greening and landscaping, diversity of UGI types, and managements, is representative to study soils of public urban green spaces and factors driving C cycling in these soils, for example, in the format of an Urban Living Lab [68].

4.2. The Effect of UGI Typology on SOC Stocks and CO₂ Emissions

On campus, UGI typology was one of the main factors explaining spatial variation in SOC stocks and CO₂ emissions with the most substantial differences between trees and lawns. Comparative analysis of C stocks and fluxes in woodlands and lawns becomes an emergent topic in urban environmental studies aiming to determine a balance between woody and grassy components of urban vegetation and enhance ecosystem services of green infrastructures [69,70,71]. In recent research of urban soils in Den Haag (The Netherlands) [72], SOC stocks under trees and shrubs were also significantly higher than under lawns and herbs, which confirms our findings. This is the only available research of urban SOC stocks in the Netherlands; however, similar patterns were found for many cities in temperate climate such as Helsinki (Finland) [73], Baltimore (USA) [69], and Rostov-on-Don (Russia) [19]. This pattern is explained by a different ratio between C inputs from aboveground biomass and C effluxes from soil microbial respiration, as well as by different proportion of the POM and MaOM fractions of SOC [74].

Under tree canopies, a litter layer provides a substantial source of organic substrates with different decomposition rates: faster for leaves and slower for needles and branches [7,75]. In lawns, biomass is harvested by regular mowing, and grass clips are usually removed [76,77]. Partly, organic matter is returned to the lawn ecosystem by composting; however, compost is exposed to fast biodegradation due to a high POM fraction and does not increase soil C stocks in the long term [78,79]. This difference in C inputs is reflected in the ratio between labile and more stable fractions of soil organic matter. On campus, POM C-fraction in soils of lawns was, on average, 25% higher compared to trees and shrubs, resulting in higher soil CO₂ emissions from lawns. Similar patterns were observed in the studies in Chengdu (China) by [80], where the fraction of labile soil organic matter under lawns was two times higher than under plantations of deciduous trees of the same age.

The amount of fast-cycling labile carbon (POM) largely determines soil respiration rates [81,82], especially in favorable abiotic conditions. A high content of labile organic matter, combined with elevated surface temperatures, favorable soil moisture, and readily available nutrients, is characteristic of soils under managed lawns [24,83]. These conditions stimulate microbial activity and contribute to soil CO₂ emissions [30,84]. The shading effect of tree canopies reduces the soil surface temperature under trees of 2 °C or more and results in a consequent decrease of soil respiration of 30–50% [4,85]. As a consequence, soils in lawn areas generally release more CO₂ than soils beneath trees and shrubs. Across the campus, average soil CO₂ emissions from lawns exceeded those from tree-dominated areas by approximately 20–30%. The highest difference was shown during the spring–summer period. For example, soil CO₂ emissions from the intermediate lawns in May–August was two to three times higher as compared to the intermediate trees, whereas in December, soil CO₂ emissions at both sites were about the same. Similar or even higher soil respiration under lawns in comparison to nearby trees and shrubs were shown in Angers (France) [27], West Lafayette (USA) [86], and Moscow (Russia) [10]. In all these studies, soil temperature was reported among the main drivers behind spatio-temporal variation in soil CO₂ emissions.

4.3. The Effect of UGI Age on SOC Stocks and CO₂ Emissions

Although UGI typology and management were the main factors explaining variation in soil CO₂ emissions and topsoil SOC stocks, land-use history and UGI age (time passed after UGI construction) can be comparably important, especially when subsoil horizons are taken into consideration. For example, ref. [87] Pataki et al. (2006) showed that SOC stocks in urban lawns decreased during the first years after construction but subsequently increased afterwards and became a sustainable C sink only 50–80 years after creation. A similar approach followed by simulations with the CENTURY model showed that turfgrass lawns can be C sinks but only from 40 to 80 years after establishment [12,27]. In the long term, SOC stocks in urban soils shall be analyzed in the context of their stage of anthropedogenesis—a man-driven pedogenic evolution [88,89]. In a natural, non-anthropogenic setting, soil evolution starts from low-C parent material followed by a gradual increase of SOC stocks by the humification of C inputs from biomass, while the pattern observed for urban soils can be almost opposite. High-SOC stocks artificially created by adding C-rich materials can be depleted rapidly due to microbial decomposition intensified by fertilization, irrigation, and urban heat island effects [18,39]. For example, topsoil SOC stocks in Technosols constructed from peat in Moscow (Russia) reduced by half during the first year after construction, and a considerable amount of CO₂ was released [79,90]. Similarly, Technosols’ C stocks in Lorraine (France) decreased almost 40% during the first three years and stabilized at values similar to natural soils [91].

The effect of UGI age on SOC stocks and CO₂ emissions can be confirmed by our research outcomes. The highest SOC stocks were observed under the old trees where soil was undisturbed and organic amendments were not added for at least several decades. However, for lawns, where soils were mostly artificially constructed from C-rich materials, topsoil SOC stocks in old patches (constructed before 2000) were lower than in the recent ones. In intermediate (created between 2000 and 2020) lawns and shrubs, POM fraction and correspondingly CO₂ emissions were higher compared to the old sites (created before 2000). This pattern can be further illustrated by the MaOM/POM C-ratio in A-horizons in comparison to B or C horizons. Under lawns, the topsoil MaOM/POM C-ratio was three times lower than in the deeper horizons, whereas under trees, the difference between horizons was insignificant.

4.4. Spatial Patterns in Soil C-CO₂ Emissions/SOC Stocks Ratio

The effect of UGI types and age on soil C balance became the most visible when the spatial patterns in soil CO₂ emissions/SOC stocks ratio were analyzed and mapped. Lawns were the hotspots on the map, with soil C-CO₂ emissions/SOC stocks ratio equal or above one with the highest values observed for a large lawn patch created after year 2000 in the eastern part of campus. For trees, the C-CO₂ emissions/SOC stocks ratio was within the range of 0.3–0.5, with the lowest values obtained for the old forest area in the western part of campus. The C-CO₂ emissions/SOC stocks ratio was spatially correlated with surface temperature, which increased following the gradient from old forest in the eastern part to open lawn spaces in the western part. A similar spatial dependency but at a city scale was shown for the SOC decomposition rate (ratio between microbial respiration and SOC contents), increasing along a rural–urban gradient in Nanchang (China) [92] and Moscow (Russia) [39]. At the city scale, the spatial pattern in the SOC decomposition rate was explained by mesoclimatic conditions, and the highest values coincided with urban heat island in the city centers. On campus, a similar effect can be expected from micro-climatic conditions. A substantial part of the WUR campus area (to the east from the pond and between the main educational buildings) is dominated by spacious lawn areas where tree patches are minimal. These areas, where a high proportion of POM fraction in SOC coincided the highest soil temperatures, showed the highest C-CO₂ emissions/SOC stocks ratio. This ratio cannot be considered a direct equivalent of the SOC decomposition rate, which is estimated based on the microbial (basal) respiration measured in standardized laboratory conditions [37,38,93]. In our research, soil CO₂ emissions were estimated in situ and included both root and microbial components. Considering that contribution of microbial component to total soil respiration is approximately 50–60% for grasses and 70–80% for woodlands [40,94], we likely overestimate SOC decomposition. However, high values of the C-CO₂ emissions/SOC stocks ratio can indicate the risk zones where CO₂ emission cannot be compensated by C accumulation in topsoil and additional measures to increase C sequestration should be implemented.

4.5. Uncertainties of the Outcomes and Potential Implementation for Decision-Making

The statistical models used for digital mapping of SOC stocks and soil CO₂ emissions explained 25 and 58% of the total variance correspondingly. These determination coefficients are reasonable compared to other urban soil studies [95,96,97], but the results are still quite uncertain. With a limited dataset of in situ soil CO₂ emission measurements (17 daily measurements within a calendar year), the extrapolation of annual CO₂ emissions relied on several assumptions, which contributed to uncertainty. For example, the lack of observations during the driest period (July and August) may lead to an underestimation of total effluxes and could particularly overlook the effect of soil moisture. Although soil moisture did not show a significant effect on soil CO₂ emissions based on available observations, it is difficult to confirm this assumption without considering the extreme values in the soil moisture distribution. Additional uncertainty was propagated from the experimental and auxiliary data. For example, LST retrieval from thermal infrared images (MODIS, ASTER, Landsat) is always a trade-off between resulting spatial resolution and data accuracy. The highest uncertainty in LST retrieval lies in the prescription of emissivity, which is especially relevant for the urban environment [98]. In our research, we applied a Sentinel-2 classification-based emissivity within the SMW algorithm, with values taken from the ASTER spectral library [58] and adapted to Landsat acquisitions. It helped to increase the resolution to 10 m, but at the same time, it could be the main reason for the overestimations in LST. Indeed, an error of 0.01 in emissivity is propagated into an error of 0.5 °C in LST [59]. In heterogeneous urban environment, a classification-based emissivity algorithm shall be validated against in situ LST for the accurate modelling of soil temperature and respiration. We partly managed to reduce the uncertainty by calibrating the modelled LST based on the in situ soil temperature measurements, but the density of monitoring points and frequency of observations did not perfectly match with the spatial and temporal resolution of the images.

Although the absolute values may be uncertain, the spatial patterns in SOC stocks, soil CO₂ emissions, and C-CO₂ emissions/SOC stocks ratio are relevant and highlight that domination of open lawns can have negative consequences for C balance. It does not mean that the total area of lawns on campus shall be minimized, since they provide multiple environmental, recreational, and aesthetic services that cannot be compensated by other UGI types [5,99,100]. The obtained information can support decision-making in sustainable and ‘C-smart’ management and maintenance of urban green infrastructures. For example, field observations of C stocks and fluxes in several backyard green spaces in Chicago (USA) showed the effects of pruning, moving, irrigation, and fertilization on C balance [101]. The study highlighted that woody areas were C sinks, whereas lawns were C sources, especially when the hidden C costs of gasoline for mowing machines or energy consumption for irrigation were considered. At the same time, introducing trees and shrub patches and making green corridors can be a promising solution which will create additional shading and support biodiversity [102,103]. More specific recommendation, e.g., on the intensity of mowing, fertilization, or composting, shall be supported by a more detailed survey, which was not the aim of our research. However, such a survey could be implemented using the concept of a university campus as an Urban Living Lab [68]. Considering that European Commission regards Living Labs an efficient tool for analyzing and improving soil health, and that the Soil Deal for Europe calls for the establishment of at least 100 living labs by 2030 [104,105], Living Labs focused on urban soil functions could make a valuable contribution.

5. Conclusions

Urban green infrastructure plays a critical role as a nature-based climate mitigation solution; nonetheless, a comprehensive and unbiased evaluation of its carbon sequestration potential requires explicit consideration of urban soil contributions to SOC storage and CO₂ emissions. For the case of Wageningen University campus, representing a wide diversity of UGI types, we explored the main factors driving spatial variation of SOC stocks and soil CO₂ emissions. Considering topsoil SOC stocks, ratios between mineral associated (MaOM) and particulate organic matter (POM) fractions, and the C-CO₂ emissions/SOC stocks ratio, soils under trees were shown as the most efficient in C accumulation, whereas lawns were potential C sources. High POM C-fraction content likely originated from organic amendments and materials added for soil construction. Moreover, lawn maintenance caused high soil CO₂ emissions, which were intensified by favorable microclimatic conditions. As a result, SOC stocks under old lawns were lower compared to the recent ones, which was the opposite trend compared to what can be expected under natural conditions.

Extrapolating point observations of soil CO₂ emissions based on general linear regression model with UGI type and soil temperature (adapted from remote-sensing LST and adjusted by field observations) highlighted that open lawns in the eastern part of campus were hotspots with respect to C-CO₂ emissions/SOC stocks ratios, which were considerably higher than for any other UGI type. These zones shall be given special attention in the context of C balance. The redesign of open lawns by introducing trees and shrub patches may be recommended. Our findings can be further developed to study the long-term effects of UGI maintenance and soil management on C balance in the format of an Urban Living Lab. This format will allow for the collection of high-resolution and high-frequency data on C stocks and fluxes in urban green infrastructures to support the C-smart management of urban soils as a nature-based solution for climate mitigation and sustainable urban development.
