Real-Time Forest Fire Detection Framework Based on Artificial Intelligence Using Color Probability Model and Motion Feature Analysis

Abstract

As part of the early warning system, forest fire detection has a critical role in detecting fire in a forest area to prevent damage to forest ecosystems. In this case, the speed of the detection process is the most critical factor to support a fast response by the authorities. Thus, this article proposes a new framework for fire detection based on combining color-motion-shape features with machine learning technology. The characteristics of the fire are not only red but also from their irregular shape and movement that tends to be constant at specific locations. These characteristics are represented by color probabilities in the segmentation stage, color histograms in the classification stage, and image moments in the verification stage. A frame-based evaluation and an intersection over union (IoU) ratio was applied to evaluate the proposed framework. Frame-based evaluation measures the performance in detecting fires. In contrast, the IoU ratio measures the performance in localizing the fires. The experiment found that the proposed framework produced 89.97% and 10.03% in the true-positive rate and the false-negative rate, respectively, using the VisiFire dataset. Meanwhile, the proposed method can obtain an average of 21.70 FPS in processing time. These results proved that the proposed method is fast in the detection process and can maintain performance accuracy. Thus, the proposed method is suitable and reliable for integrating into the early warning system.

1. Introduction

Indonesia is one of the countries with the largest forest area globally. According to the World Bank, the forest area in Indonesia was reported at 49.1% in 2020 [1]. Therefore, Indonesia always experiences forest fires every year in various regions. The government has taken many strategies to reduce the occurrence of forest fires, especially early fire detection [2]. However, these strategies have not fully utilized artificial intelligence to the best of our knowledge. Therefore, an early warning system based on artificial intelligence is needed to detect fire in a forest area.

Fire detection is one of the essential modules in an early warning system, which is used to identify abnormal events in a monitoring area. Fire detectors are used to provide the earliest possible warning of a fire. Conventional fire detectors currently use smoke and temperature sensors. If the sensor is placed in an open and wide area such as a forest, densely populated settlements, and roads, it will be less effective and cost a significant amount of money. In addition, conventional fire detectors have problems regarding delays and alarm sound errors. In other words, the utilization of camera monitoring is currently increasing to ensure citizens’ safety. Therefore, it is possible for Closed Circuit Television (CCTV) cameras to detect fires using digital image processing and computer vision technology, referred to as image-based fire detection. The advantages of image-based fire detection compared to conventional fire detectors can be placed in an open and wide area so that the costs incurred can be cheaper.

Image-based fire detection is strongly influenced by the features used to distinguish fire from other objects. Two types of features are often used to detect fire: handcrafted features and non-handcrafted features. Handcrafted features are designed with predetermined rules. Examples of these features are motion, shape, color, and texture. Meanwhile, non-handcrafted features are obtained directly from the neural network layers.

Several previous researchers carried out fire detection only by color reference. The characteristic of fire with a reddish-yellow color is considered to distinguish fire from other objects. In [3,4], the Red, Green, Blue (RGB) values of the images were analyzed. The object with the highest R-value component was determined as a fire area candidate. Other color spaces can also be used as a reference for detecting fire. For example, the YCbCr color space is used by [5]. In that study, YCbCr was able to overcome the weakness of RGB. YCbCr can detect fire in images with significant changes in illumination, which is difficult for RGB.

If only referring to color features, objects with a red color can also be detected as fire. Some researchers add motion as a reference for fire detection. In [6,7], background subtraction was used to determine the movement of objects between frames. Objects that move and have a predominant color of red are detected as fire. The addition of motion rules is done by [8,9]. Not all moving and red objects are detected as fire, but objects with specific motions resemble sparkling fire. This method minimizes false positives on ordinary moving objects that are red.

Several other studies combine more than two features to perform fire detection. In [10,11], in addition to color and motion, wavelet domain analysis was also used in detecting fire. In [12], they used color, motion, and shape as features. Some of these combined features then become the input of a classifier model. In [10], they applied a voting system, while [11] used a Support Vector Machine (SVM), and [12] used a Multi Expert System (MES).

Several recent studies have used non-handcrafted features for fire detection. For example, in [13], the deep learning architecture used is a Convolutional Neural Network (CNN), while [14] uses SqueezeNet, and [15] uses You Only Look Once v3 (YOLOv3). Deep learning architecture is also used to overcome the problem of few data, as was done [16] by implementing the Generative Adversarial Network (GAN). The results of fire detection accuracy using non-handcrafted features are relatively better than the fire detection accuracy using handcrafted features. However, non-handcrafted features generally have a longer computational time than handcrafted characteristics.

The other researchers tried to combine handcrafted and non-handcrafted features for fire detection. For example, in [17], they combined motion features with CNN architecture, while [18] combines color features with Faster R-CNN architecture, and [19] combined flicker detection with CNN architecture. Combining two features can achieve high detection accuracy but requires a longer computational time.

Our goal was to integrate the fire detection module into a CCTV-based early warning system (EWS). In the EWS, the speed of the process is crucial in responding quickly to any detected abnormal events. Because of this requirement, the integrated fire detection module must run in real-time but still maintain performance. Therefore, this study proposed a real-time fire detection based on a combination of novel color-motion features and machine learning to achieve real-time processing and high accuracy in performance. Overall, the main contributions of the work are summarized as follows:

• Introducing the use of a color probability model based on the Gaussian Mixture Model for segmenting the fire region, which can handle any illumination condition.
• Proposing simple motion feature analysis of fire detection, which reduces the false-positive rate.
• Integrating classification-based fire verification to make decision steps more effective and efficient in localizing the fire region.
• Introducing the new evaluation protocol and annotation for fire detection evaluation based on the intersection over union (IoU) rate.

2. The Proposed Framework

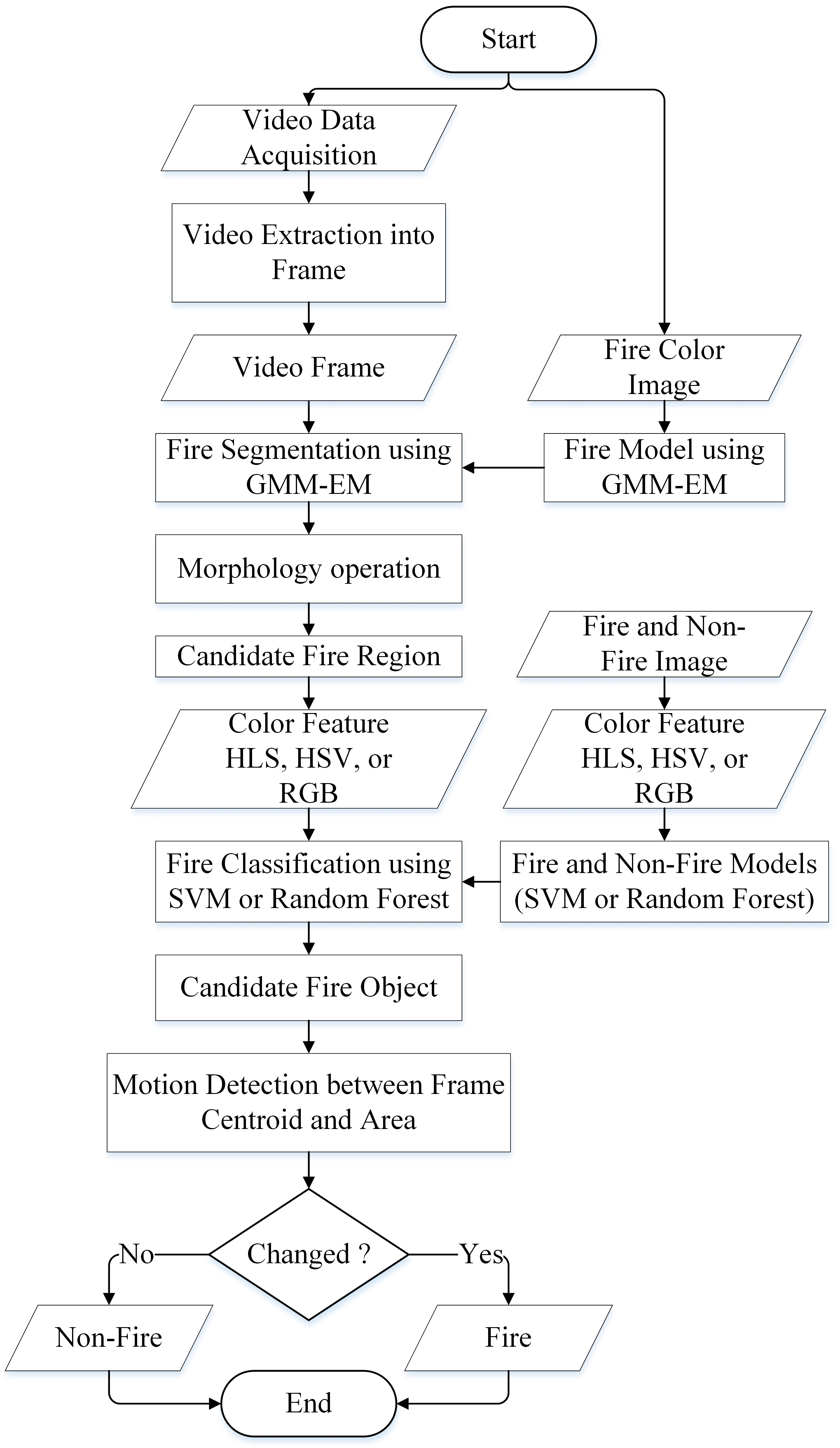

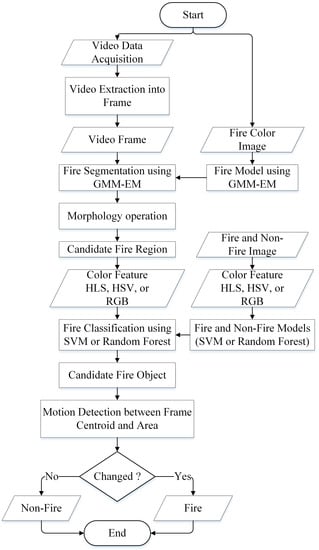

The fire detection system starts by forming a color probability model for the segmenting fire region using the Gaussian Mixture Model and Expectation Maximization (GMM-EM) methods. Then, the model is trained based on a dataset containing varying fire colors. This model would find the fire region candidates in the video frames extracted from the video input. After obtaining the candidates, the machine learning strategies were performed for verifying them based on the color histogram (e.g., HSV, YCbCr, or RGB). This research utilized two machine learning methods: support vector machine (SVM) and random forest (RF). SVM is used because of its ability to classify an object into two classes linearly. On the other hand, RF was chosen because of its ability to combine color and motion features in object classification. However, these two methods will be compared in implementation to obtain the most optimal framework. Lastly, further verification was then conducted by checking the motion of fire regions. The fire motion was measured according to the centroid and the area of the region. If the method detects irregular motion in a fire region, then this region was assigned as a fire object and vice versa. The detailed proposed framework is shown in Figure 1.

2.1. Training Data Acquisition

In this research, two training datasets were used: the dataset for fire segmentation and fire classification. The dataset for segmentation consisted of 30 images of fire regions in various conditions with the size of 100 × 100 pixels. The features were extracted on this dataset based on the RGB color model for representing the variation in fire colors in the color probability model. Figure 2 shows the selected samples of fire color images used for the segmentation stage. On the other hand, the fire classification stage utilized a dataset consisting of 1124 fire images and 1301 non-fire images created by Jadon et al. [20]. It was produced by capturing photographs of fire and non-fire objects in challenging situations, such as the fire image in the forest and non-fire images with fire-like objects in the background. The dataset was then divided into $80\%$ and $20\%$ for training and testing subsets. Figure 3 shows examples of fire and non-fire images in the forest environment.

2.2. Color Probability Modeling

Fire color modeling is the most challenging strategy, as fire usually has various color distributions. Using a single Gaussian and estimating parameters is not optimal for modeling such a dataset. For instance, if we take a dataset with two means numbers of 218 and 250, the average might be around 221, which leads to an accurate estimation. Hence, the color distribution would be represented by multiple clusters [21]. Using the same above instance, a multiple Gaussian with means of 218 and 250 provide a more realistic representation of the color distribution.

Nevertheless, in some scenarios, where multiple datasets with varying numbers of clusters describe the same feature, it is more advisable to use a multivariate Gaussian [22] to model the data across the three sets. It enables us to have a more detailed assessment of how the clusters are distributed over the given data. Equation (1) shows the equation of the multivariate Gaussian.

$$N(x|\mu ,\sum )=\frac{1}{{\left(2\pi \right|\sum \left|\right)}^0.5}exp\{-\frac{1}{2}{(x-\mu )}^T\sum ^{-1}(x-\mu )\}$$

(1)

A multivariate Gaussian [23] was utilized based on three color channels: red, green, and blue. Therefore, fire objects were detected on each color channel according to the number of clusters. Then, the model of the entire image was three-dimensional Gaussian. Finally, the Expectation-Maximization algorithm [24] determined the probability of a pixel belonging to a particular cluster and estimated the means and co-variances.

In addition, the fire object segmentation stage may produce several imperfect regions, i.g., regions with holes. These regions might be challenging to be detected at the classification stage. Therefore, the post-processing step was conducted by applying two morphological operations: closing and dilation operators. The closing operator was used to remove tiny holes in the fire area, while dilation was used to enlarge the size of the fire area. The sample results of these operations can be seen in Figure 4.

2.3. Color-Based Feature Extraction

In this research, three different color models, such as RGB, HSV, and YCbCr, were implemented and compared to determine the optimal model for the fire detection framework. First, the RGB color model consists of red, green, and blue channels. Each channel is a set of pixel intensities with values of 0 to 255. Thus, the number of possible colors for each pixel in the RGB color model is 256 × 256 × 256 = 16,777,216 colors [25]. Second, the HSV model defines color in terms of hue, saturation, and value channels [26]. Hue represents true colors, such as red, violet, and yellow, defining redness, greenness, and others. Saturation represents the purity of a certain color, while value represents the brightness or darkness of the color ranging from between $0\%$ and $100\%$. Third, the YCbCr color model is equivalent to the RGB model. Y is the luma component, describing the brightness. Cb and Cr are the chroma components, representing the ratio of blue and red to green components, respectively. Among these three color models, the HSV model is considered better in representing visual perception by the human sense. In contrast, RGB and YCbCr models are formed by a mixture of primary colors. Therefore, these models are less sensitive to human vision.

Next, a color histogram was generated after extracting the pixel intensity from the image. A color histogram illustrates the distribution of pixel intensities in an image [27]. It can be visualized as a graph (or plot) that depicts the distribution of pixel intensity value. For example, if the RGB color model was used, the histogram of each channel contains 256 bins. We then effectively counted the frequency of each pixel intensity. This color histogram was then utilized as a feature in the classification stage, using a support vector machine or random forest classification as described in the following subsection.

2.4. Fire Object Verification

In the previous stage, the fire region candidates were extracted. However, these regions may not belong to fire objects, which results in misdetection. Hence, the classification stage is required to verify whether the region is a fire or a non-fire object. Two machine learning algorithms were implemented and compared in the experiment, such as support vector machines and random forest.

The support vector machine (SVM) is one of the most popular machine learning algorithms for binary classification [28], as it is relatively straightforward and simple but effective. Technically, the SVM finds the optimal hyperplane that distinguishes the two separated classes by maximizing their distance. This hyperplane is located in the middle of the two classes. For example, in fire detection problems, these two classes are defined as fire and non-fire.

On the other hand, random forest is a widely known technique to develop classification models [29]. The random forest algorithm works by constructing several randomized decision trees, called predictors. First, each predictor is generated by using training sample data. Then, these predictors are aggregated for the final decision based on majority voting [30]. For instance, suppose we generated a Random Forest model with three decision trees and would classify unknown data. The first and the second decision trees classified the data as fire class, while the last decision tree assigned the same data as a non-fire class. Therefore, the data are classified as a fire class in the final decision using majority voting.

2.5. Motion Feature Analysis

Verifying a fire region based solely on the color feature may produce some false positives, e.g., a red-colored non-fire object is classified as a fire object. Besides color, another characteristic of fire is its irregular movement in certain areas. Therefore, a further verification stage was conducted by utilizing the motion feature to reduce false positives. According to [31], the object motion could be represented by image moments. Thus, the image moments, particularly the centroid and the area, were exploited in the experiment. The formula to calculate the centroid and the area is shown in (2).

$$Area=M_{00}andCentroid\{\widehat{x},\widehat{y}\}=\left\{\frac{M_{10}}{M_{00}},\frac{M_{01}}{M_{00}}\right\}$$

(2)

3. Results and Discussion

3.1. Experimental Setting and Protocol Evaluation

The proposed method was tested on several public datasets. The proposed method was implemented using the Python programming language on a Core i3 CPU and 8GB RAM. In the experiment, the true-positive rate (TPR), the true-negative rate (TNR), the false-positive rate (FPR), the false-negative rate (FNR), the intersection over union (IoU) rate, as well as the processing time were evaluated. The TPR is the ratio between the number of correctly detected fire frames and the number of ground truth fire frames. The TNR is the ratio between the number of correctly detected non-fire frames and the number of ground truth non-fire frames. The FPR is the ratio between the number of wrongly detected fire frames and the number of ground truth non-fire frames. Lastly, the FNR is defined as the ratio between the number of improperly detected non-fire frames and the number of ground truth fire frames. The IoU rate evaluated how well the method localizes the fire. TPR and FNR values were used to assess video containing the fire, while TNR and FPR values were used for video without fire. Lastly, the frame rate measures the method’s effectiveness, also referred to as frames per second (FPS).

Our method was evaluated using VisiFire [32], and FireSense [33]. These datasets contain several video sequences of fire and non-fire video.

Table 1. Dataset used for evaluation in the experiment.

Video	Resolution	Frame Rate	Frames	Fire	Notes
Video 1	400 × 256	15	260	yes	Controlled1 [32]
Video 2	400 × 256	15	246	yes	Controlled2 [32]
Video 3	400 × 256	15	208	yes	Controlled3 [32]
Video 4	400 × 256	15	200	yes	Forest1 [32]
Video 5	400 × 256	15	245	yes	Forest2 [32]
Video 6	400 × 256	15	255	yes	Forest3 [32]
Video 7	400 × 256	15	219	yes	Forest4 [32]
Video 8	400 × 256	15	216	yes	Forest5 [32]
Video 9	400 × 256	15	218	yes	ForestFire1 [32]
Video 10	320 × 240	2	241	yes	fBackYardFire [32]
Video 11	320 × 240	5	236	yes	Fire1 [32]
Video 12	320 × 240	29.97	140	yes	40m PanFire 20060824 [32]
Video 13	320 × 240	10	155	no	negsVideo2.859 [33]
Video 14	320 × 240	10	160	no	negsVideo3.860 [33]
Video 15	480 × 368	30	439	no	negsVideo5.862 [33]
Video 16	640 × 368	30	541	no	negsVideo7.864 [33]
Video 17	640 × 480	25	645	no	negsVideo9.866 [33]
Video 18	360 × 288	25	246	no	negsVideo10.1072 [33]
Video 19	320 × 240	25	180	no	negsVideo11.1073 [33]
Video 20	352 × 288	24.46	272	no	negsVideo13.1075 [33]
Video 21	1600 × 1200	18.51	196	no	negsVideo16.1077 [33]

shows the detailed information of the evaluated dataset. In training, we collected the fire images from the Internet to model the color probability. To the best of our knowledge, most annotation datasets are based on the presense of fire on the video or frame without knowing its exact location. Thus, a new annotation was proposed based on the fire region location. In addition, we also compared our proposed method with other methods [10,34,35,36] in terms of accuracy and processing time.

3.2. Optimal Parameter Settings

Both fire object segmentation and classification stages require to set hyperparameter. Thus, this part describes how to obtain the optimal parameter for both stages.

3.2.1. Parameters for Fire Object Segmentation

In the segmentation stage, the most crucial parameter is the value of K in GMM and EM methods. K is defined as the number of clusters used to differentiate fire and non-fire. Therefore, the heuristic approach was used by choosing several values of K and selecting the optimal one.

Table 2. The effect of the value of K in segmentation results.

K	Ground Truth	Fire Segmentation	Fps
2			27.71
3			18.87
4			17.07
5			13.64

shows the results of the variation of the K value on the segmentation results.

As shown in Table 2, it was found that when the value of $K=2$ was used, many non-fire objects were detected as belonging to the fire class, defined as false positives. The false positives were also detected when we set $K=4$ and $K=5$, although the number was reducing. The best results were obtained from the value of $K=3$. However, in terms of the processing speed, the value of $K=2$ was the fastest because it only uses two clusters to perform segmentation. The higher the value of K, the FPS value was getting smaller. Based on these results, we decided to use the $K=3$ because the number of detection results is the same as the ground truth, and the FPS value was not too small.

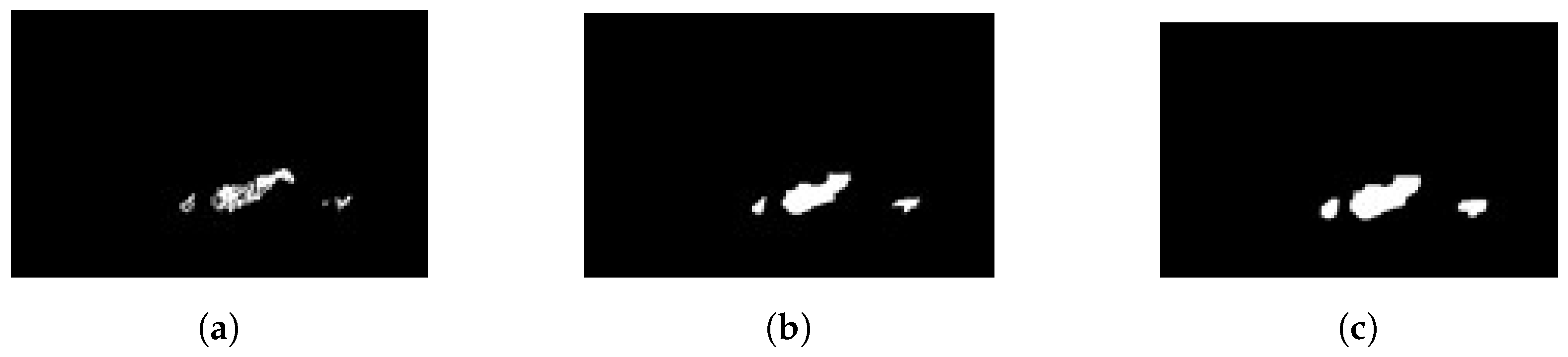

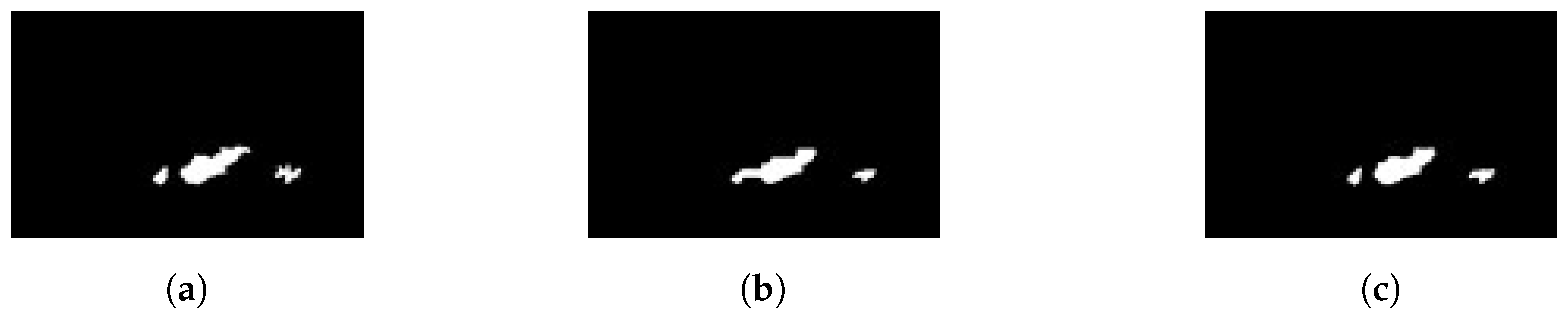

In addition to the K value, morphological operations also affect the accuracy of the segmentation results. In this study, we used closing morphology to close the hole in the fire area and dilation to widen the surface of the fire object. Figure 5 shows the results of using the dilation morphology operation on the IoU rate.

Based on the experiment, without using a dilation operation, the IoU rate was 0.445, while using a dilation operation, the IoU rate increased to 0.794. This improvement was due to the dilation process enlarging the fire region area in the segmentation stage. Thus, the overlapping area between the fire region and the ground truth was getting bigger. In general, dilation operators can handle fire detection in a small size, as it is possible to widen the area of the fire object.

3.2.2. Parameters for Fire Object Classification

Next, an evaluation to determine the optimal machine learning was carried out.

Table 3. Classification result using SVM.

Color Space	Kernel	Accuracy (%)
RGB	RBF	56.08
	Polynomial	52.98
	Linear	83.50
HSV	RBF	65.56
	Polynomial	52.37
	Linear	81.64
YCbCr	RBF	75.05
	Polynomial	52.98
	Linear	81.93

and

Table 4. Classification result using Random Forest.

Color Space	Number of Trees	Accuracy (%)
RGB	10	85.77
	20	86.18
	30	87.21
	40	87.83
	50	88.24
HSV	10	91.75
	20	92.16
	30	91.95
	40	91.13
	50	91.13
YCbCr	10	90.11
	20	90.72
	30	90.92
	40	92.15
	50	91.95

show the evaluation results for support vector machine and random forest, respectively. As shown in Table 3, the utilization of SVM with the linear kernel was more accurate than the RBF and polynomial. Since only two classes were separated, the linear kernel in the form of straight lines was more accurate than RBF kernels and polynomials. Unfortunately, as shown in Table 4, the random forest with 20 trees achieved better results than SVM. In both machine learning methods, the HSV model was slightly better than the YCbCr model due to HSV separating luma (image intensity) from chroma (color information). It is beneficial in various situations, especially in natural objects like trees, fire, etc. Therefore, a random forest with 20 trees on the HSV color model was applied for our fire detection framework in the testing stage. Figure 6 shows an example of the results on each step of fire detection.

3.3. Frame-Based Evaluation

Frame-based evaluation is calculated regarding the presence of fire in a particular frame, which several previous researchers commonly use. It consists of the true-positive rate (TPR), the true-negative rate (TNR), the false-positive rate (FPR), and the false-negative rate (FNR). The evaluation result of fire detection for video containing fire can be seen in

Table 5. Comparison of TPR and FNR Results (in percentage) on VisiFire Dataset [32].

Video	Proposed Method		R-CNN		Torabian [36]		Toreyin [10]		Ko [34]		Truong [35]
	TPR	FNR	TPR	FNR	TPR	FNR	TPR	FNR	TPR	FNR	TPR	FNR
Video 1	100	0	100	0	100	0	34	0	55.2	2	94.98	5.02
Video 2	100	0	100	0	100	0	87.5	4.9	77.7	0	-	-
Video 3	100	0	95.12	4.88	100	0	73.7	10	97.9	0	95	5
Video 4	100	0	95.19	4.81	-	-	-	-	-	-	-	-
Video 5	100	0	97	3	-	-	-	-	-	-	-	-
Video 6	92.17	7.83	99.18	0.82	-	-	-	-	-	-	-	-
Video 7	100	0	63.25	36.75	-	-	-	-	-	-	-	-
Video 8	98.61	1.39	76.26	23.74	-	-	-	-	-	-	-	-
Video 9	26.67	73.33	84.58	15.42	100	0	51.2	44.1	56.3	0	93	7
Video 10	98.62	1.38	100	0	-	-	-	-	-	-	-	-
Video 11	74.75	25.25	60.4	39.6	-	-	-	-	-	-	-	-
Video 12	88.76	11.24	95.51	4.49	-	-	-	-	-	-	-	-
Average	89.97	10.03	88.87	11.13	100	0	61.6	14.75	71.78	0.5	94.33	5.67

, while the evaluation result for video without fire can be seen in

Table 6. Comparison of TNR and FPR Results on FireSense Dataset [33].

Video	Proposed Method		R-CNN
	TNR (%)	FPR (%)	TNR (%)	FPR (%)
Video 13	27.74	72.26	12.26	87.74
Video 14	20.62	79.38	21.88	78.12
Video 15	38.72	61.28	3.42	96.58
Video 16	33.46	66.54	4.99	95.01
Video 17	21.71	78.29	23.1	76.9
Video 18	34.55	65.45	0	100
Video 19	59.44	40.56	97.22	2.78
Video 20	66.42	33.58	2.95	97.05
Video 21	45.92	54.08	2.04	97.96
Average	38.73	61.27	18.65	81.35

.

Unfortunately, because of limited resources and difficulty implementing other research, we could not compare our proposed with other methods for all testing videos. Instead, we compared them based on the video used in their experiment. Around 12 VisiFire videos were used as data testing, and there were four videos used by several previous researchers as data testing, as shown in Table 5. If only referring to the four videos, the proposed method achieved the fourth-best average TPR with $81.67\%$. The highest TPR was achieved by Torebiyan et al. [36] with $100\%$, followed by R-CNN with $94.92\%$ and Truong and Kim [35] with $94.32\%$, respectively.

Furthermore, it is also very important to evaluate the method on videos without containing the fire. Thus, we also evaluated our method on FireSense video, which was then compared with the R-CNN method. As shown in Table 6, the proposed method achieved a TNR value of $38.73\%$. This result is better than the TNR value for the R-CNN method with a TNR of around $18.65\%$. Nevertheless, our method still yielded relatively high false positives. However, this result is still better than R-CNN.

3.4. Location-Based Evaluation

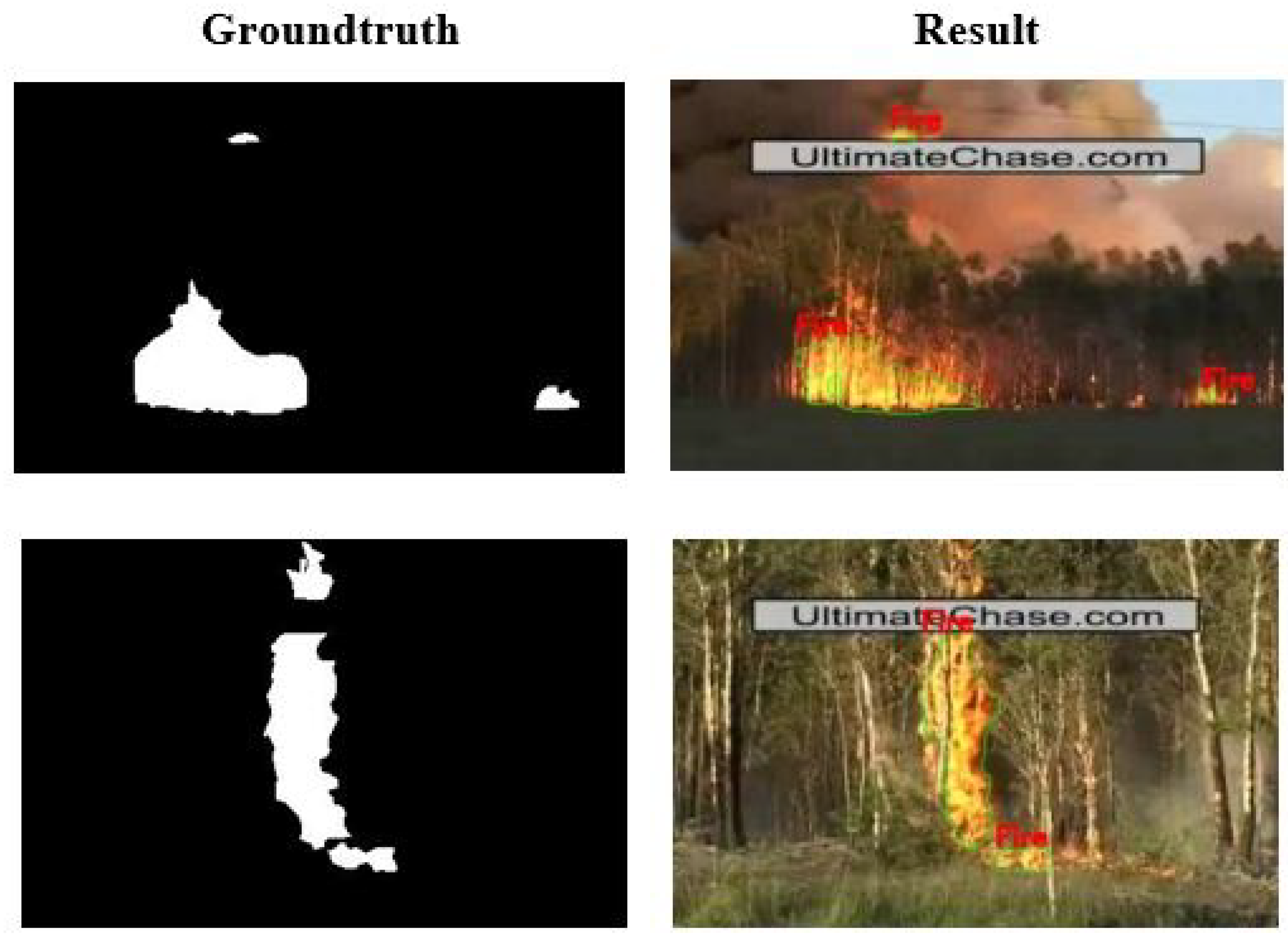

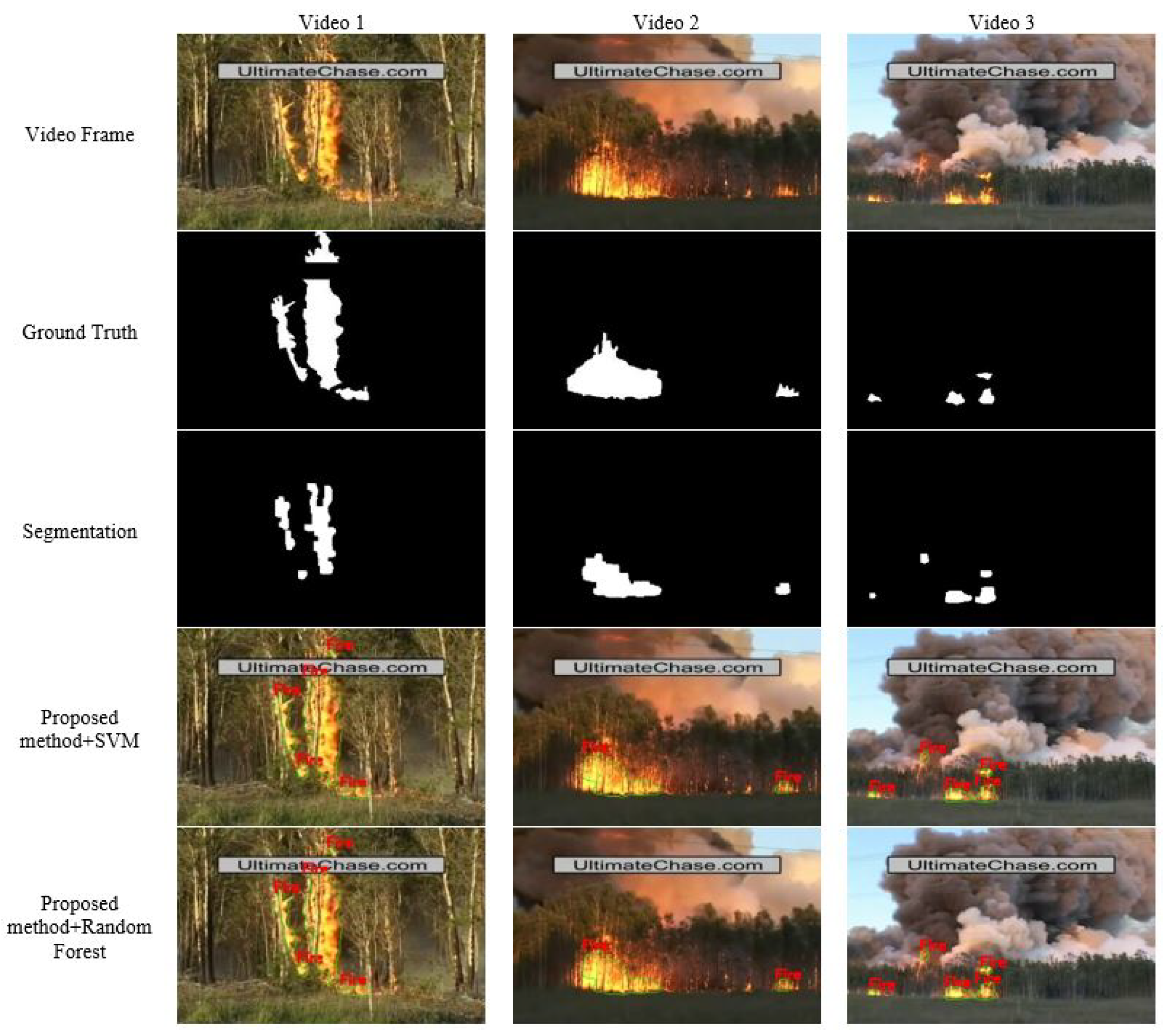

Along with knowing the presence of fire in the frame, information about the exact location of the fire is also very significant. The specific fire location information will speed up the process of extinguishing the fire. Therefore, in addition to the frame-based evaluation, it is also crucial to conduct an intersection over union (IoU)-based evaluation. However, to the best of our knowledge, most of the state of the art methods do not conduct an evaluation based on IoU. The IoU-based evaluation is more challenging than frame-based evaluation because of the large number of annotations required for each video. However, this study proposes a new annotation based on the region to be evaluated on an IoU rate. This evaluation compares the location of the detected fire with the actual location of the fire. The IoU can be calculated as a ratio between the intersection area of the detected fire and the ground truth and the union area of the detected fire and the ground truth.

The proposed method was also evaluated based on the computational time. The faster the computation time used, the more potential the technique is implemented for real-time surveillance. To the best of our knowledge, there was no other research evaluating fire detection based on the IoU rate. Therefore, due to limited resources in implementation, we only compared our proposed method with the R-CNN deep learning method.

Table 7. Evaluation based on IoU Rate and Computation Time.

Video	Proposed Method		R-CNN
	Avg. IoU	FPS	Avg. IoU	FPS
Video 1	0.5	23.63	0.3	1.47
Video 2	0.26	21.75	0.07	2.64
Video 3	0.09	18.42	0.02	2.69
Video 4	0.31	21.84	0.53	2.68
Video 5	0.38	19.60	0.14	2.67
Video 6	0.63	23.36	0.38	2.74
Video 7	0.29	19.6 0	0.16	2.64
Video 8	0.34	22.25	0.31	2.63
Video 9	0.23	26.99	0.31	2.44
Video 10	0.19	19.38	0.16	2.61
Video 11	0.24	22.77	0.26	2.57
Video 12	0.43	20.87	0.41	2.60
Average	0.32	21.7	0.26	2.53

shows the comparison of the proposed method and R-CNN based on the IoU and computation time. The average IoU value in Table 7 refers to the average IoU value for the entire frame of each video. The average IoU rate for the proposed method was 0.32, while for R-CNN it was 0.26. Hence, it proved that the proposed method could detect the location of fire better than R-CNN. In addition, we compared the frames per second (FPS) value for the computation time comparison. The computational time used by the proposed method was much faster than that of R-CNN. The proposed method can detect fire with a speed of 21.70 FPS, while R-CNN only had 2.53 FPS.

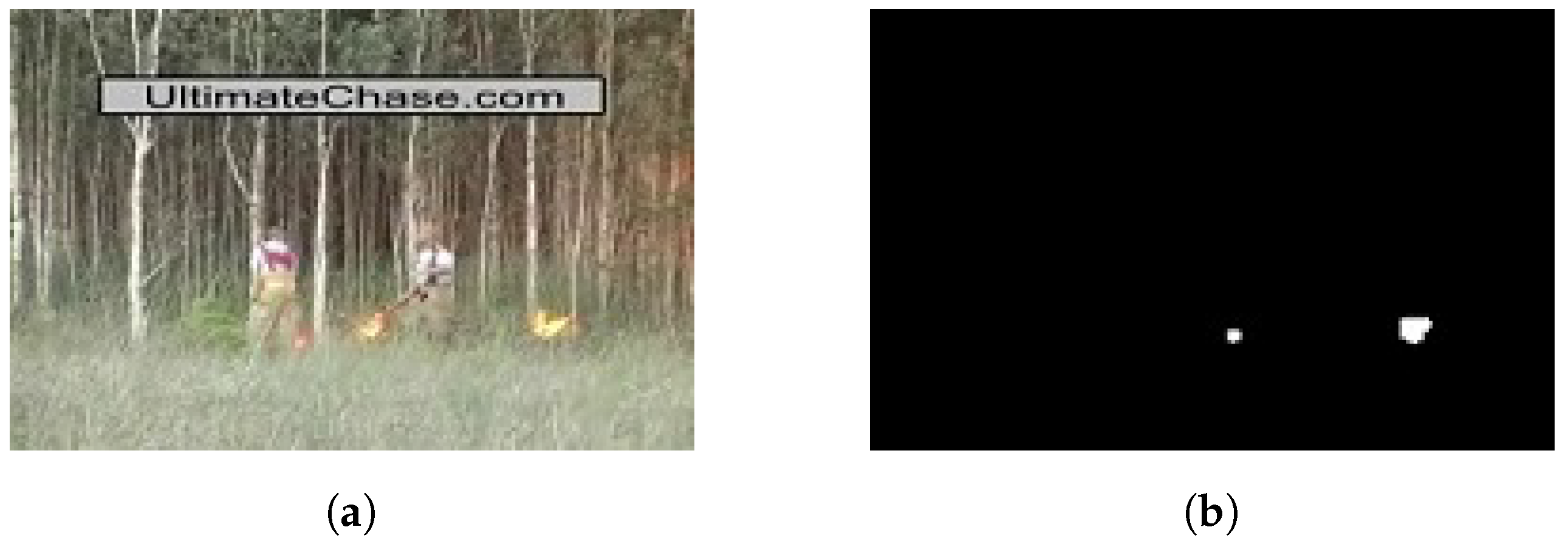

Furthermore, the proposed method can detect relatively small fires with an area size of at least 20 pixels (see Figure 7). It is because the reference used is the color of the object. As long as the object has a color that matches the reference color on the probability model, the object could be detected as fire.

Nevertheless, the proposed method still has limitations. For example, the system may fail to detect potential fire or invisible fire caused by a significant amount of smoke or haze in the forest due to the proposed method depending on the visual appearance of fire. Therefore, utilizing additional sensors (e.g., thermal camera, temperature sensor, humidity sensor, etc.) could be one of the solutions to overcome this problem. Additionally, the proposed method still produces false positives, affecting fire detection handling. Therefore, further research is needed to reduce these false positives. Examples of successful and failed fire detection using the proposed method can be seen in Figure 8.

4. Conclusions

A real-time and reliable fire detection method for an early warning system is required so that an immediate response to an incident can be made effective. In this study, methods based on color probabilities and motion features were successfully implemented to achieve this goal. The proposed method exploits the characteristics of the color of fire by developing a probability model using a multiple Gaussian. On the other hand, other fire characteristics, namely, dynamic fire movement modeled with motion features based on moment invariants, were also applied. The experiment found that the processing time required on average reached 21.70 FPS with a relatively high true positive rate of $89.92\%$. These results indicate that the proposed method is suitable for a real-time early warning system. Nonetheless, one of the greatest challenges in implementing the module is physically installing the camera, which may be very difficult. Therefore, it will remain a challenge for our further research.
