The Effects of Crown Scorch on Post-fire Delayed Mortality Are Modified by Drought Exposure in California (USA)

by
Jason S. Barker
1,*,
Andrew N. Gray
2 and
Jeremy S. Fried
3
1
AltaLarix, Beaverton, OR 97005, USA
2
Pacific Northwest Research Station, US Department of Agriculture Forest Service, Corvallis, OR 97331, USA
3
Pacific Northwest Research Station, US Department of Agriculture Forest Service, Portland, OR 97205, USA
*
Author to whom correspondence should be addressed.
Fire 2022, 5(1), 21; https://doi.org/10.3390/fire5010021
Submission received: 18 December 2021 / Revised: 27 January 2022 / Accepted: 29 January 2022 / Published: 2 February 2022
Browse Figures
Versions Notes

Abstract

:
Accurately predicting the mortality of trees that initially survive a fire event is important for management, such as planning post-fire salvage, planting, and prescribed fires. Although crown scorch has been successfully used to predict post-fire mortality (greater than one-year post-fire), it remains unclear whether other first-order fire effect metrics (e.g., stem char) and information on growing conditions can improve such predictions. Droughts can also elevate mortality and may interact, synergistically, with fire effects to influence post-fire tree survival. We used logistic regression to test whether drought exposure, as indicated by summarized monthly Palmer Drought Severity Index (PDSI) over ten-years could improve predictions of delayed mortality (4–9 years post-fire) at the individual tree level in fire-affected forest inventory and analysis (FIA) plots in California (USA). We included crown scorch, bark thickness, stem char, soil char, slope, and aspect in the model as predictors. We selected the six most prevalent species to include in the model: canyon live oak, Douglas-fir, Jeffrey pine, incense-cedar, ponderosa pine, and white fir. Mean delayed mortality, based on tree count, across all FIA plots across all tree species and plots was 17%, and overall accuracy was good (AUC = 79%). Our model performed well, correctly predicting survivor trees (sensitivity of 0.98) but had difficulty correctly predicting the smaller number of mortality trees (specificity of 0.27) at the standard probability=0.5 mortality threshold. Crown scorch was the most influential predictor of tree mortality. Increasing crown scorch was associated with greater risk of delayed mortality for all six species, with trees exhibiting over 75% crown scorch having a probability of dying that exceeded 0.5. Increasing levels of stem char and soil char (first order indicators) were associated with increasing mortality risk but to less effect than crown scorch. We expected that greater drought exposure would increase delayed post-fire mortality, but we found that increasing drought exposure (median and minimum PDSI) was associated with a modest decrease in post-fire mortality. However, we did find that trees with high levels of crown scorch were less likely to survive with increasing drought exposure (median PDSI). Delayed mortality risk decreased as terrain slope increased. Taken together, our results suggest that trees with substantial crown damage may be more vulnerable to delayed mortality if exposed to drought and that crown scorch is an effective post-fire mortality predictor up to 10 years post-fire.

1. Introduction

The 2012–2016, California drought and associated tree mortality [1] brought renewed urgency to concerns that post-fire tree mortality can be exacerbated by drought [2,3]. Forest managers need tools to account for drought effects on tree mortality in everything from planning fuel hazard reduction treatments to post-fire recovery [4]. Post-fire mortality models typically focus on first-order effects such as crown scorch, not second-order factors such as drought [5]. The commonly used Ryan-Amman model is designed to accurately predict immediate post-fire mortality using two first-order metrics: crown scorch and fire resistance (bark thickness). Though the Ryan-Amman model can predict up to three years post-fire [6], the predictive ability of the model beyond the first year post-fire, so-called delayed mortality, across wildfires is unclear.
Accounting for drought is important when predicting delayed mortality because trees surviving a wild-fire may be more sensitive to fire-caused injury following episodes of drought-stress and associated hydraulic failure [3,7]. The combination of first-order damage and pre-disposing or subsequent stressors, such as drought, may result in substantial delayed mortality. Models that do not incorporate second-order effects such as drought or insect damage might underpredict mortality occurring within the first decade post-fire. Researchers have adjusted the Ryan-Amman model to account for major biotic second-order mortality drivers. For example, a predictive term was added for bark beetle attacks to increase prediction accuracy in areas of active attacks [8]. Some see a need to augment crown scorch with additional first-order factors, such as indicators of root damage, to account for mortality in trees with little to no crown injury [5,9,10].
From an operational point of view, predictors added to the Ryan–Amman model should be easy to measure and obtain [11]. Crown scorch, for example, is easy to visually assess and is likely the most commonly used post-fire mortality predictor for logistic regression models [12]. For drought, the Palmer Drought Severity Index (PDSI) is commonly used in studies examining the link between drought severity and wildfire events [13]. PDSI uses temperature and precipitation data to estimate drought severity relative to historically “normal” precipitation. Using PDSI, researchers have found that increasing drought severity is linked to elevated tree mortality relative to background mortality [14,15,16]. Topographical factors, such as terrain slope, have also been linked to drought-driven mortality [14].
To examine post-fire mortality, we took advantage of the USDA Forest Service (USFS) forest inventory and analysis (FIA). The Fire Effects and Recovery Study (FERS) began as a research study following Oregon’s 2002 Biscuit fire. It provides an opportunity to link observed fire effects to both pre-fire forest inventory measurements and data collected at future FIA remeasurement visits. FERS supplements FIA’s robust standard forest inventory plot remeasurement protocols that, for example, account for tree status (live/dead/harvested/downed) and sample down wood, with assessments of readily observable fire impacts on trees and ground surface substrates. Attributes collected for each previously live tree include crown proportions burned, scorched and unburned, high and low bole char height and direction, and bole base char circumference. Cover by degree of char is estimated for each of ten ground surface substrates. FERS was implemented initially in California under sponsorship from USDA Forest Service Region 5, and later expanded to Oregon and Washington, on all FIA plots within perimeters of 184 fires larger than 400 ha, primarily in years with more robust fire activity and success in obtaining funding to sample off-panel. From 2015–2019, FERS was implemented only on plots sampled on-panel within fire perimeters < 2 years old.
In this study, we used FERS plots on which field crews have measured fire-impacted FIA plots for fire effects within two years (and typically within one year) post-fire [17]. These plots were subsequently measured again within 10 years post-fire, allowing for an assessment of delayed mortality. Our primary objective was to use individual trees from these remeasured plots to test if adding PDSI and soil char along with terrain slope and aspect as explanatory variables could predict post-fire mortality more than one year post-fire better than a model based on only crown scorch and bark thickness. We hypothesized that drought exposure would be a significant driver of post-fire mortality of individual trees, in addition to first-order fire damage (crown scorch, soil char and stem char) and fire resistance (bark thickness). We expected that adding a second-order drought exposure predictor (PSDI) would have at least as much influence on prediction success as some first-order predictors, and that trees occurring on more drought-exposed sites (e.g., SW aspect), would experience greater delayed mortality.

2. Materials and Methods

To examine post-fire mortality, we selected trees from FIA plots [18] that were included in the FERS. We considered only trees occurring on plots that had been assessed at three times: before (pre-fire), one-year following (1st post-fire) and several years following (2nd post-fire) a fire large enough (over 404 hectares) to have been mapped by Monitoring Trends in Burn Severity (MTBS) [19]. The first post-fire visit provided data on several first-order fire effects, including crown scorch and soil char, along with standard FIA attributes [17]. These criteria were met by 97 FERS plots that had been affected by one of 27 fires in California occurring between 2002 and 2009. We built an analysis dataset consisting of 1569 trees that belonged to one of the six tree species with more than 100 trees across these 97 plots (Table 1). Post-fire data were collected within one-year following fire on all of these plots, and a 2nd post-fire assessment was conducted 3 to 8 years after the 1st, with a mean interval of 5 years and median of 4. We sought to predict mortality at the 2nd post-fire assessment for trees that remained alive at the time of the 1st post-fire assessment. We reference this as “delayed mortality” because it accounts only for trees that did not die within one year of fire.
The first post-fire visit provided data for three first-order predictors: crown scorch, soil char and stem char. These metrics rely on visual inspection by field crews. For soil effects, we focused on the degree of char observed on exposed mineral soil because a high incidence of a high degree of char on exposed soil indicates potential for damage to roots resulting from high fire temperatures [20,21] or long-duration heating [22]. Percent cover of bare soil by char class was ocularly estimated on up to four microplots per plot, each containing a 2.07 m horizontal radius (1/750 hectare) sample area [18] without reference to pre-fire conditions, as described by the FERS protocol [23]. Crews assessed percent cover of four mineral soil char classes within the sample area: unburned, light (black), moderate (gray) and deep (orange). We summed the cover estimates for moderate and deep char mineral soil as our soil char indicator of potential damage to roots. Crown scorch was assessed on each sample tree larger than 2.54 cm dbh as a percent of pre-fire compacted crown length for each of three classes: unburned, scorched and consumed. In this study, we defined crown scorch as the sum of the estimated percent assessed for scorched and consumed crown [10]. For stem char, field crews assessed the percentage of the stem base circumference exhibiting char on the bole at the point where the bole intersects the ground. Details on the assessment of these metrics can be found in the FERS manual Sections 1.2, 1.6.3 and 1.6.5 [23]. Bark thickness was calculated as the product of tree diameter observed at the pre-fire visit and a species-specific multiplier (Vsp) derived from FOFEM 6 [24] (Table 1). Aspect and slope were observed at the pre-fire visit; we transformed aspect into a categorical variable as one of four cardinal directions.
We represented drought exposure via the Palmer Drought Severity Index (PDSI), a widely used index that relies on temperature and precipitation data to estimate relative dryness on a standardized scale ranging from very dry (−10) to very wet (10) [25]. We downloaded monthly PDSI data from NOAA’s ClimDiv website (doi:10.7289/V5M32STR). We assigned plots to a NOAA climate division and then, for each plot, we identified the ten-year period ending in the year of the 2nd post-fire assessment. Minimum, mean, median and maximum monthly PDSI were calculated for each plot over these ten- year periods (120 observations per plot). We chose a ten-year period from the 2nd post-fire measurement because it could be expected to cover drought effects during the delayed mortality timeframe and the decadal timeframe is commonly used in studies that examine PDSI trends, for example, [26]. We based our use of regional PDSI to represent drought for assessing tree mortality on [14]. We also checked for high (>0.7) Pearson’s correlation among PDSI summary metrics. We removed mean PDSI given its high correlation with median PDSI (0.82). The highest correlation observed in the other PDSI metrics was 0.53, between minimum PDSI and median PDSI. None of the correlations between predictors variables in the model selection process exceeded 0.7.
We evaluated 10 first and second order predictors of tree mortality predictors with logistic regression (non-categorical variables summarized in Table 2). Four can be thought of as first order predictors: crown scorch, soil char, stem char, and bark thickness, and five as drought exposure predictors: slope and aspect plus minimum, mean, median and maximum monthly mean PDSI over 10 years. To account for differences among species, we added a term for tree species, with canyon live oak as the reference, as is required for categorical variables in logistic regression.
Our final post-fire model equation for the logit of delayed mortality was (Equation (1)):
Mortality at 2nd post-fire assessment ~ crown scorch + bark thickness + stem char + soil char + median PDSI + minimum PDSI + maximum PDSI + slope + aspect + species
We also tested whether two parsimonious model alternatives better predicted delayed mortality. First, we tested a model (Ryan-Amman) with only crown scorch and bark thickness as predictors, resulting in an Akaike information criterion (AIC) of 1135. Second, we tested a model with the additional first order variables (soil char and stem char), resulting an AIC of 1129. The full model (Equation (1)) had an AIC of 1036, so we selected this model for mortality prediction. We also explored if interactions between crown scorch and the other variables might have affected the results but including interactions only slightly worse AIC of 1070. There was the significant interaction between crown scorch and median PDSI (p = 0.0004), which we presented to illustrate the relationship between drought and post-fire mortality. We assessed the influence of predictor variables based on a combination of z scores and p-values. High z scores and low p-values indicate high influence on model predictions. We included some predictors that p-values indicate are not significant because they are a part of the best model as determined by AIC.
We used the R package ROCit 2.1 package [27] to calculate accuracy metrics. Logistic regression models estimate a probability of mortality that ranges from 0 to 1. The models return the logit, which can then be back-transformed into a probability. To classify trees as survivor or mortality, we used decision thresholds at 0.5, 0.25 and 0.75. A threshold of 0.5 is typically used with the Ryan-Amman model, but higher thresholds, 0.75 for example, are used where managers want to minimize the number of trees incorrectly classified as mortality [28]. Table 3 describes the summary statistics used to assess model performance. For performance across all probability thresholds, we calculated the area under curve (AUC) of the receiver operator curve (ROC), which plots sensitivity vs. false positive rate (see Table 3). An AUC above 75% is a minimum for acceptable classification performance [29]. Further, a good mortality model will keep correct predictions (true positives) of tree mortality at a high level while also keeping trees misclassified as mortality (false positives) at a low level [29]. To evaluate the model beyond overall performance (AUC), we reported accuracy, sensitivity, specificity, and false positive rates at our three decision threshold points (see Table 3 for definitions). Model results were visualized using the following R packages: ggplot2 3.3 [30], effects 4.2 [31], and interactions 1.1 [32].

3. Results

3.1. Crown Scorch and Drought Exposure

Increasing first-order fire damage was associated with increased probability of post-fire mortality with crown scorch the predictor with the most explanatory power (i.e., highest Z score) (Table 4). Predicted mortality increased with increasing crown scorch with the 0.5 mortality threshold occurring at 80% crown scorch (Figure 1). Both survivor trees and mortality had low levels of crown scorch. Mean crown scorch for all trees was 18% with a median of 5% (Table 2). For mortality trees, mean and median crown scorch were 43% and 40%, respectively (Figure 2). Survivor trees had a lower mean crown scorch at 14% and a median of 2% (Figure 2).
Ten-year median PDSI modified the effects of crown scorch as evidenced by a significant interaction (p = 0.0014). Mortality risk decreased with increasing drought exposure (Table 4). Median PDSI were all slightly below normal levels < 0) while minimum PDSI indicated exposure to extreme drought (<−4.0) (Table 2). As median PDSI increased (i.e., less drought), the risk of mortality increased (Figure 3). Increasingly negative minimum PDSI and greater drought exposure, was also associated with a significant decreasing mortality probability (Table 4). Max PDSI was not a significant predictor (Table 4). Looking at the interaction between crown scorch and median monthly PDSI, we can see that, at lower crown scorch levels, the mortality risk trend matched the general trend noted above (Figure 4). However, at higher levels of crown scorch, mortality risk increased with increasing drought exposure greater than the mean of the median monthly PDSI (Figure 4).

3.2. Influence of other First-order, Site and Species Predictors

Soil char and stem char were significant predictors of tree mortality (Table 4). Mortality probability increased with increasing soil char (Table 4). Mean soil char was low and stem char was high for most trees (Table 2). Both had similar levels between mortality and survivor trees (Figure 3). Mortality probability increased with bark thickness (BT), but this variable was not a significant predictor (Table 4). Mean bark thickness (BT) was the same in mortality trees and surviving trees (1.1 cm). Mean tree diameter, a variable that drives the calculation of bark thickness, was also similar in surviving and mortality trees, at 20 and 18 cm, respectively. Incense-cedar had the clearest separation between mortality and survivor trees (Figure A1).
Both site factors (slope and aspect) had a modestly significant effect on post-fire mortality, with variable importance similar to the PDSI variables (Table 4). Mortality probability increased with decreasing slope (Table 4). Relative to the NE aspect, NW and SE aspects had lower probability of mortality (Table 4). These predictors had relatively minor effects (Figure 3) compared to crown scorch (Figure 1).
Jeffrey pine, with the highest mortality, had significantly greater odds of mortality compared to canyon live oak (reference species) (Table 4). Mean post-fire mortality across all species was 17%, ranging from lows of 10% in Douglas-fir and 11% (canyon live oak) to a high of 30% in Jeffrey pine. Closer to the overall mean mortality were white fir (19%), ponderosa pine (16%), and incense cedar (14%).

3.3. Logistic Model Performance

Estimated AUC for the post-fire mortality logistic model was 79 % (95 % CI: 77% to 83%). Overall accuracy was 87% at 0.5, and 86% at 0.75 mortality threshold (Table 5). Reflecting the imbalanced dataset (far more survivor trees than mortality trees), the logistic model had better success in predicting surviving trees (high specificity) than mortality trees (low sensitivity), with sensitivity increasing as the decision threshold decreased (Table 5) At the false positive rate of 10%, the correct positive rate (sensitivity) was 0.52, which occurred at the 0.25 decision cut-off (Table 5). The model did not reach a 0.75 sensitivity until an false positive rate of 40%.

4. Discussion

4.1. Drought Exposure Modifies Crown Scorch Mortality Predictions

We confirmed that crown scorch increased the risk of delayed post-fire mortality, a finding consistent with what has been observed for first year mortality [5]. Fire driven mortality does not necessarily occur during or immediately after a wildfire. Trees may not succumb to fire injuries until as long as three years following fire [5,6,34]. Research has suggested that trees with over 70% crown scorch are at the highest risk of dying within three to five years after a wildfire [8]. High levels of crown scorch diminish survival by reducing photosynthetic capacity, depleting stored, nonstructural carbohydrates needed to regenerate foliage, and are indicative of damage to critical plant tissues other than foliage [10,35]. We expected that drought exposure combined with crown scorch would lead to increasing mortality risk. We found that high median drought exposure was associated with elevated mortality risk in trees exhibiting high levels of crown scorch. The trees most at risk were those for which median drought exposure was near or beyond the threshold for a designation of “abnormally dry”, i.e., PDSI < −1.0.
The relationship between mortality risk and drought exposure, however, was not as clear as with crown scorch. We based our initial predictions on studies indicating that increased drought exposure, as measured by PDSI, has been linked to drought-driven mortality [14,15]. We expected increased drought exposure to heighten post-fire mortality risk across the board [3]. Fire damage and drought can both drive mortality by impairing xylem functioning [36]. Drought can also cause depletion of non-structural carbohydrates contributing to mortality [37]. To the contrary, we found that trees with minor crown damage had an elevated risk of mortality at lower levels of drought exposure. Mortality risk was lower where drought exposure was extreme, as indicated by low values of minimum PDSI; however, unlike median PDSI, the interaction between minimum PDSI and crown scorch was not significant.
Changes brought by the fire itself may help explain our counterintuitive finding that increased drought exposure resulted in decreased post-fire tree mortality. Stand density can alter tree responses to drought conditions by altering the water availability, through lower/higher evapotranspiration, for example. Fire-induced reduction in stand density through tree mortality can reduce competition for resources in the surviving trees, possibly offsetting drought impacts in areas experiencing high competition [38,39]. We also note that that expected responses of plants to disturbance are best characterized by context-specific predictors and not generic plant traits [40].
Our mortality model included topographic factors, because they have been reported to be a driver of variability in drought-induced mortality [41]; we found that slope and aspect did impact post-fire mortality. However, their effects did not align with expectations. Typically, more xeric topographical positions, such as SW aspects and ridgetops, can be more vulnerable to drought owing to increased evapotranspiration [14]. However, trees on the driest aspect (SW) in our dataset presented mortality risk similar to those on the wettest (NE), with both of these demonstrating mortality that exceeded other aspects (SE and NW). We also found that tree mortality declined as slope increased, contradicting our expectation that mortality would be greater on steeper, and potentially drier, slopes. Moreover, topographical factors can lead to complex fire effects, which can complicate generalizing their effects on tree mortality [42]. Interactions of slope and aspect with fire-driven changes in stand density, as noted above, might also help explain the mortality effects we observed.
The lack of consistent mortality response to drought is not unique to this study. Others have found the substantial variation in mortality response to drought to be a major challenge [43,44]. Mechanisms behind the interacting influence of drought stress and fire on tree survival are not yet well understood [45]. One potential explanation for the weak relationship found between drought and mortality may be that trees adapt by accessing water available at greater depth in the soil profile or via physiological adaptions [46]. Another possibility is that trees with greater drought exposure and/or growing on drier topographic sites might have better adapted to water stress than trees with less drought exposure [47].
PDSI coupled with our ten-year window may not have sufficiently captured the effects of drought exposure on tree mortality. Alternative drought metrics might perform better, and more directly account for effects driven by temperature or precipitation. For example, normal annual precipitation or standardized precipitation index (SPI) might prove to be more effective predictors of individual tree mortality [48]. Combining complementary drought indices (e.g., PDSI and a fire weather index) has been suggested as a potentially promising approach to capturing effects of drought on forests [49]. All drought metrics have substantial limitations when attempting to assess the full impact of droughts’ impacts on evaporative demand and precipitation deficits in forest ecosystems [50].
Drought can induce second order effects, triggering or amplifying other changes that contribute to post-fire mortality. Trees weakened by drought have increased vulnerability to mortality [51]. For example, drought-stressed trees can produce less resin, leading to greater bark beetle mortality [52]. California’s drought recently contributed to a major bark beetle attack from 2012–2017 [53]. However, effects varied among trees owing to a combination of lags in drought effects, site factors, and host preferences of the beetle species. For example, insect-induced mortality was greater on low elevation sites varied among tree species. In particular, larger diameter ponderosa pines at lower elevation in the Sierra Nevada experienced very high mortality rates [53]. We did not observe this in our analysis. Post-fire mortality in ponderosa pine was 16 percent, but was much greater in Jeffrey pine, at 30 percent. Given reports of large-scale insect outbreaks in California during some of the years covered by this data, we had planned to include bark beetle damage observed at the first post-fire visits as a predictor. However, no cases of obvious beetle attack were attributed for the trees in this study, perhaps because beetle populations driving mortality events don’t necessarily become elevated in the first year following fire [54].

4.2. Limits of First-Order Factors in Predicting Post-Fire Mortality

Despite an acceptable overall model performance (76% AUC), our model had less success in predicting mortality trees (low sensitivity) than survivor trees when relying on exceedance of the 0.5 decision threshold to classify mortality trees. The challenges of predicting mortality outcomes are commonly discussed in post-fire mortality modelling research [55,56]. Ideally, an effective mortality predictor would clearly distinguish survivor trees from mortality trees. Crown scorch was the most effective at this among the predictors we tested. Survivor trees had low levels of crown scorch (median = 2%), but mortality trees did not cluster at the high end of crown scorch (median = 40%) (Figure A1), thereby, producing false negatives that reduced model sensitivity. Longer post-fire surveys, such as FERS or [57], may further clarify long-term fire-caused mortality by revealing how separation in a predictor such as crown scorch might change over time.
We expected that the other first-order predictors (bark thickness, soil char and stem char) would be more influential in predicting post-fire mortality than what our analysis demonstrated. One potential explanation is that there was much less separation in the means of these predictors between survivor and mortality trees for these first-order predictors than there is for crown scorch. The lack of separation confirms that these factors are not decisive predictors of mortality. Because bark thickness was calculated from measurements of tree diameter collected up to 10 years pre-fire (mean = 4 years), it may slightly understate the capacity of the tree to survive fire. We did find that bark thickness was a significant predictor of first order mortality (unpublished results). In a previous study of FERs stands, we did find that smaller-diameter trees were more vulnerable to first order mortality [17]. Others have found bark thickness to be less predictive of mortality than crown scorch [5,33]. It should be noted that difficultly in measuring cambium damage for modelling purposes does not rule out its role in contributing to delayed mortality in the field.
Our first-order metrics may have failed to fully capture mortality effects. There are several factors that can limit the impact of ground fires on root systems. The soil medium itself can limit fire impacts on roots by protecting roots deeper in the soil profile from heat damage [21,58]. For roots closer to the surface, rapid turnover of fine roots facilitates quick post-fire recovery [59]. Wind-driven wildfires often have short residence times and, therefore, cause relatively little damage to root systems compared to slower moving fires [59]. Unexpected mortality from root damage is a major concern in prescribed fires operations, often conducted when winds are light or absent, where longer residence times can increase damage to root systems [22,60].
The capacity of soils to buffer disturbances also has implications for predicting drought-driven mortality. Roots deeper in the soil profile are largely sheltered from direct fire effects and can buffer water stress in the upper surface profile. Subsurface water access can delay or prevent drought-driven mortality. Forests in southern California experienced greater mortality relative to central and northern California because of a combination of depleted subsurface water and increased evapotranspiration [61].

4.3. Moving Forward with Post-Fire Mortality Modelling

Tree mortality forecasters must balance correctly predicting mortality trees while minimizing incorrectly labeling survivor trees as dead (false positives). Our model did a better job of avoiding false positives than it did for correctly predicting mortality trees. One contributing factor was that our dataset was imbalanced in favor of survivor trees. Logistic regression models can have trouble classifying mortality when the sample has a low proportion of dead trees [62], as was the case here, because we focused on delayed, not immediate, mortality. Such class imbalances also occur when conducting research on prescribed fires, leading to underprediction of mortality. One solution would be to lower the mortality decision threshold to increase sensitivity. However, in this case, that would require lowering the threshold below the 50/50 level and would lead to a large false positive rate (e.g., 40% for a 0.25 decision threshold). Alternatively, the random forest algorithm might be used to improve correct classification of dead trees in applications where the goal is retrospective analysis of mortality [62].
The tolerance for error from mortality models depends on the management objectives. The persistence of wildfire effects on forests is a key question facing managers in planning post-fire recovery, such as ensuring suitable seed sources for natural regeneration [63,64]. In the forest recovery context, our crown-scorch dominated model would have reasonable success in correctly predicting living trees, and perhaps stand attributes such as stocking, in the first decade post-fire. Clearly, the opposite is not true for management needs centered on dead trees (e.g., predicting snags [65,66]). In this case, our model would likely underpredict the creation of new snags.
Progress in improving model sensitivity might also come from improved measurement of first-order fire damage beyond the metrics included in the FERS protocol. For example, cambium damage can contribute to mortality but is often assessed indirectly, as was the case in this study. We relied on bark thickness as an indicator of potential cambium damage, but this provides only an indication of a tree’s potential to resist fire effects and not an indication of actual damage [5]. Measuring charcoal reflectance on tree boles can help predict mortality by allowing for a more direct assessment of fire damage [67]. For cases where trees can be invasively sampled, direct assessment of cambium damage (cambium kill rating) can be used to improve predictive accuracy [68].
However, it is not clear that even perfectly captured first-order effects alone would be effective in predicting post-fire mortality. In the absence of major disturbances, such as wildfire, tree mortality is likely the result of multiple accumulating processes rather than a single driver [69]. First-order fire damage mortality drivers will likely diminish in importance as time since fire increases. Nonetheless, fire-injured trees may be more vulnerable to mortality in the medium term (10–30 years post-fire) [57]. Continued monitoring and assessment of fire-affected forest inventory plots may provide vital data in this regard [70].
The feasibility of implementing modelling alternatives to the logistic regression model is an active area of research [5,62]. One approach is taking a non-linear dose-response to heat exposure from wildfire [45,71]. Low to moderate levels of stress on trees, including from fire damage, have been shown to benefit tree survival and growth [35]. If trees can benefit from moderate levels of first order damage, then this would help explain some of the limitations of relying on damage metrics to predict post-fire mortality.
Our attempt to incorporate PDSI highlight the challenges of incorporating second-order factors into the Ryan–Amman mortality model. The lack of consistent patterns in tree responses to drought likely precludes simply adding a drought term to the RA model, even within ecoregions. Further, our results suggest that a range of drought outcomes need to be addressed for effective mortality prediction. Currently, the commonly used FVS model incorporates drought by assuming that fire mortality, as predicted by the RA model, increases background mortality beyond user-adjustable mortality multipliers [72]. Drought driven mortality has been shown to exhibit threshold responses, where mortality increases rapidly after reaching a level of drought [73]. Regional drought thresholds could be established and used to create scenarios of potential drought impacts. A range of scenarios is needed, however, as these results demonstrate that drought does not automatically increase mortality risk.
Given the long-term dynamics of drought, fully understanding the interaction between wildfire and drought requires long-term monitoring. A major challenge in post-fire vegetation monitoring is obtaining relatively balanced samples across forest types and initial conditions. Many research studies used for post-fire mortality model development and validation largely consist of special one-off studies, with notable exceptions such as the National Park Services’ long- term post-fire monitoring studies [12]. The paucity of long-term monitoring hinders managers needing to plan and execute post-fire management. Managers have used standard FIA data to manage post-fire forest recovery [74]. One advantage of using FERS data for post-fire monitoring is that it enables long term monitoring across ownership types and different initial pre-fire conditions. Continued post-fire monitoring will provide long records of tree outcomes as the plots go through remeasurements at regular intervals (currently ten years, typically, in the western U.S.). FERS also offers a basis for bridging the gap between short- and long-term assessment of post-fire vegetative dynamics [75].

5. Conclusions

We confirmed that crown scorch is the most effective predictor of post-fire delayed mortality. Including additional first-order metrics, such as soil char, led to only modest improvements in model performance compared to crown scorch alone. Drought exposure can increase mortality risk as median drought exposure increases. However, high drought exposure did not correspond to elevated mortality in all cases. The opposite trend was found when considering maximum values of PDSI. We also found that slope and aspect influenced delayed mortality, but to a lesser degree than crown scorch. Species was, largely, not a significant factor, except for incense-cedar. Given the potential non-linear effects of drought on mortality, PDSI might be an early warning signal of future drought-driven mortality. Regardless, predicting delayed post-fire mortality will likely be more challenging than predicting first-order mortality, as successful second-order predictors will likely not be as universally effective as crown scorch. A combination of improved first-order metrics to add to the Ryan–Amman equation coupled with improved post-fire monitoring could help improve model performance

Author Contributions

Original study conceptualization, J.S.F.; study conceptualization for current paper: J.S.B., A.N.G. and J.S.F.; data curation: J.S.F., J.S.B. and A.N.G.; formal analyses, J.S.B.; writing—original draft preparation, J.S.B.; writing—review and editing, J.S.F. and A.N.G.; funding acquisition, A.N.G. and J.S.F. All authors have read and agreed to the published version of the manuscript.

Funding

This projected was funded by Joint Fire Sciences Program grant 16-1-04-7 and by the USDA Forest Service Pacific Northwest Research Station.

Data Availability Statement

USFS Forest Inventory data is publicly available at https://apps.fs.usda.gov/fia/datamart/ (accessed on 17 December 2021).

Acknowledgments

The authors would like to extend their thanks to field crews for gathering fire effects data. Thanks to Terrie Jain for protocol development assistance. We appreciate the comments and insights provided by the reviewers and associate editor, which improved this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Fire 05 00021 g0a1 550

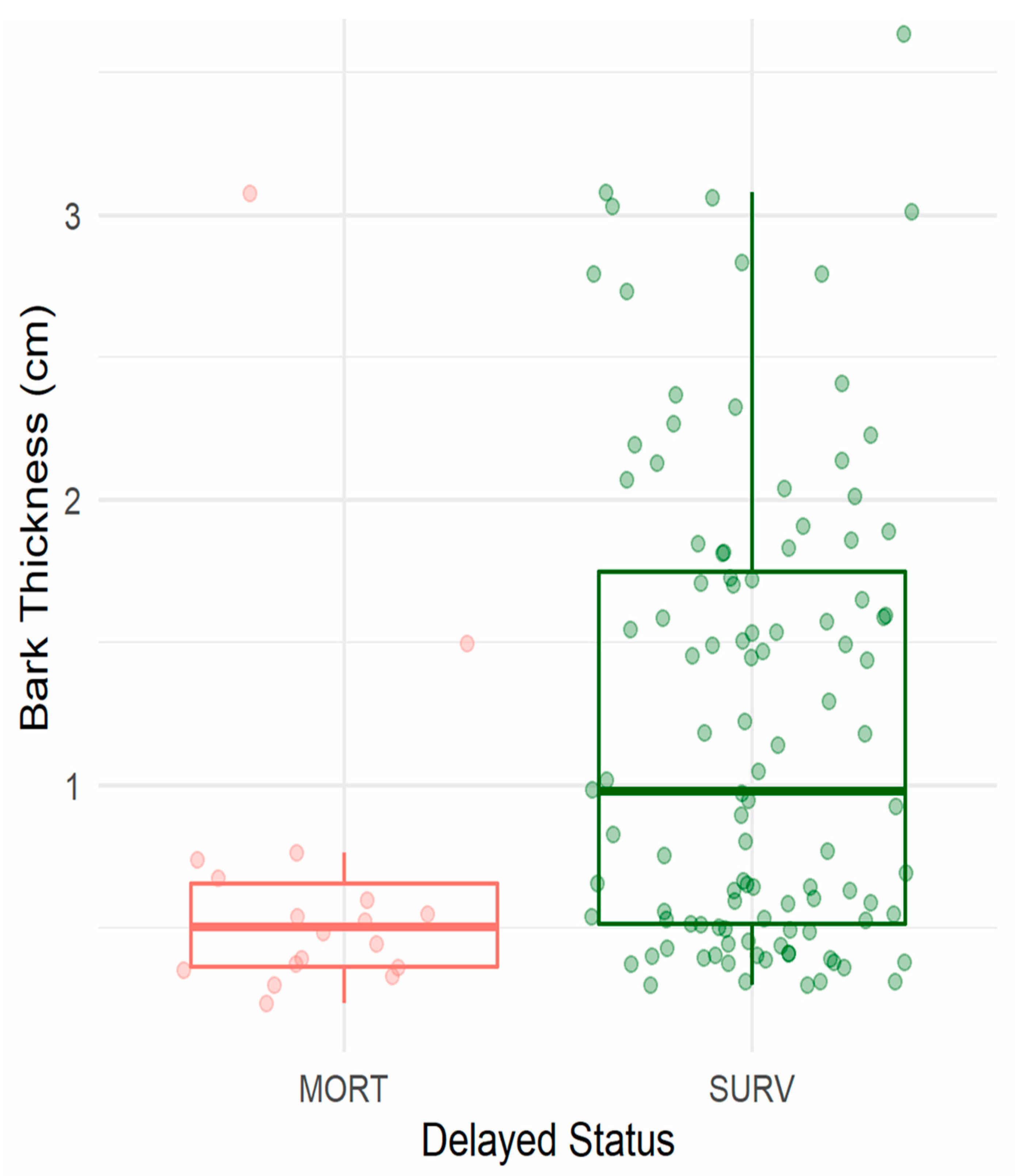

Figure A1. Boxplot of bark thickness for incense-cedar (CADE) by mortality(mort) and survivor trees.
Figure A1. Boxplot of bark thickness for incense-cedar (CADE) by mortality(mort) and survivor trees.
Fire 05 00021 g0a1

References

  1. Asner, G.P.; Brodrick, P.G.; Anderson, C.B.; Vaughn, N.; Knapp, D.E.; Martin, R.E. Progressive forest canopy water loss during the 2012–2015 California drought. Proc. Natl. Acad. Sci. USA 2015, 113, E249–E255. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Savage, M. Anthropogenic and natural disturbance and patterns of mortality in a mixed conifer forest in California. Can. J. For. Res. 1994, 24, 1149–1159. [Google Scholar] [CrossRef]
  3. van Mantgem, P.J.; Nesmith, J.C.B.; Keifer, M.; Knapp, E.E.; Flint, A.; Flint, L. Climatic stress increases forest fire severity across the western United States. Ecol. Lett. 2013, 16, 1151–1156. [Google Scholar] [CrossRef] [PubMed]
  4. Reinhardt, E.D.; Dickinson, M.B. First-Order Fire Effects Models for Land Management: Overview and Issues. Fire Ecol. 2010, 6, 131–142. [Google Scholar] [CrossRef]
  5. Hood, S.M.; Varner, J.M.; Van Mantgem, P.; Cansler, C.A. Fire and tree death: Understanding and improving modeling of fire-induced tree mortality. Environ. Res. Lett. 2018, 13, 113004. [Google Scholar] [CrossRef]
  6. Hood, S.M.; Smith, S.L.; Cluck, D.R. Delayed Conifer Tree Mortality following Fire in California. Gen. Tech. Rep. 2007, PSW-GTR-20, 261–283. [Google Scholar]
  7. Hood, S.M.; Cluck, D.R.; Jones, B.E.; Pinnell, S. Radial and stand-level thinning treatments: 15-year growth response of legacy ponderosa and Jeffrey pine trees. Restor. Ecol. 2017, 26, 813–819. [Google Scholar] [CrossRef]
  8. Grayson, L.; Progar, R.A.; Hood, S.M. Predicting post-fire tree mortality for 14 conifers in the Pacific Northwest, USA: Model evaluation, development, and thresholds. For. Ecol. Manag. 2017, 399, 213–226. [Google Scholar] [CrossRef]
  9. O’Brien, J.J.; Hiers, J.K.; Mitchell, R.J.; Varner, J.M.; Mordecai, K.; Iii, J.M.V. Acute Physiological Stress and Mortality Following Fire in a Long-Unburned Longleaf Pine Ecosystem. Fire Ecol. 2010, 6, 1–12. [Google Scholar] [CrossRef]
  10. Varner, J.M.; Hood, S.M.; Aubrey, D.P.; Yedinak, K.; Hiers, J.K.; Jolly, W.M.; Shearman, T.M.; McDaniel, J.K.; O’Brien, J.J.; Rowell, E.M. Tree crown injury from wildland fires: Causes, measurement and ecological and physiological consequences. New Phytol. 2021, 231, 1676–1685. [Google Scholar] [CrossRef]
  11. Thies, W.G.; Westlind, D.; Loewen, M.; Brenner, G. A field guide to predict delayed mortality of fire-damaged ponderosa pine: Application and validation of the Malheur model. Gen. Tech. Rep. 769. 2008, 16, 769. [Google Scholar] [CrossRef] [Green Version]
  12. Cansler, C.A.; Hood, S.M.; Varner, J.M.; Van Mantgem, P.J.; Agne, M.C.; Andrus, R.A.; Ayres, M.P.; Ayres, B.D.; Bakker, J.D.; Battaglia, M.A.; et al. The Fire and Tree Mortality Database, for empirical modeling of individual tree mortality after fire. Sci. Data 2020, 7, 1–14. [Google Scholar] [CrossRef]
  13. Littell, J.S.; McKenzie, D.; Peterson, D.L.; Westerling, A.L. Climate and wildfire area burned in western U.S. ecoprovinces, 1916–2003. Ecol. Appl. 2009, 19, 1003–1021. [Google Scholar] [CrossRef] [PubMed]
  14. Guarín, A.; Taylor, A.H. Drought triggered tree mortality in mixed conifer forests in Yosemite National Park, California, USA. For. Ecol. Manag. 2005, 218, 229–244. [Google Scholar] [CrossRef]
  15. Klos, R.J.; Wang, G.G.; Bauerle, W.L.; Rieck, J.R. Drought impact on forest growth and mortality in the southeast USA: An analysis using Forest Health and Monitoring data. Ecol. Appl. 2009, 19, 699–708. [Google Scholar] [CrossRef]
  16. Gustafson, E.J.; Sturtevant, B.R. Modeling Forest Mortality Caused by Drought Stress: Implications for Climate Change. Ecosystems 2012, 16, 60–74. [Google Scholar] [CrossRef]
  17. Barker, J.S.; Fried, J.S.; Gray, A.N. Evaluating Model Predictions of Fire Induced Tree Mortality Using Wildfire-Affected Forest Inventory Measurements. Forests 2019, 10, 958. [Google Scholar] [CrossRef] [Green Version]
  18. Bechtold, W.A.; Patterson, P.L. The Enhanced Forest Inventory and Analysis Program—National Sampling Design and Estimation Procedures. USDA Gen. Tech. Rep. 2005, 80, 85. [Google Scholar]
  19. Picotte, J.J.; Bhattarai, K.; Howard, D.; Lecker, J.; Epting, J.; Quayle, B.; Benson, N.; Nelson, K. Changes to the Monitoring Trends in Burn Severity program mapping production procedures and data products. Fire Ecol. 2020, 16, 1–12. [Google Scholar] [CrossRef]
  20. Jain, T.B.; Pilliod, D.S.; Graham, R.T.; Lentile, L.B.; Sandquist, J.E. Index for Characterizing Post-Fire Soil Environments in Temperate Coniferous Forests. Forests 2012, 3, 445–466. [Google Scholar] [CrossRef] [Green Version]
  21. Swezy, D.M.; Agee, J.K. Prescribed-fire effects on fine-root and tree mortality in old-growth ponderosa pine. Can. J. For. Res. 1991, 21, 626–634. [Google Scholar] [CrossRef]
  22. Kreye, J.K.; Varner, J.M.; Kobziar, L.N. Long-Duration Soil Heating Resulting from Forest Floor Duff Smoldering in Longleaf Pine Ecosystems. For. Sci. 2020, 66, 291–303. [Google Scholar] [CrossRef]
  23. USDA Forest Service. Fire Effects and Recovery Study. U.S. Department of Agriculture Forest Service, Pacific Northwest Research Station, Portland, OR. FIA Field Manual 44. 2019. Available online: https://www.fs.usda.gov/pnw/documents-and-media/2019-pnw-fia-ca-or-wa-fire-effects-and-recovery-field-manual-0 (accessed on 17 December 2021).
  24. Lutes, D.; Keane, R.E.; Reinhardt, E.D. FOFEM 6.0 User Guide.USDA Forest Service, Rocky Mountain Research Station: Fort Collins, CO), USDA For. Serv. Rocky Mt. Res. Stn. Fort Collins, CO), 2012. Available online: https://www.frames.gov/catalog/15530 (accessed on 17 December 2021).
  25. Dai, A. The climate data guide: Palmer drought severity index (PDSI). 2017. Available online: https://climatedataguide.ucar.edu/climate-data/palmer-drought-severity-index-pdsi (accessed on 6 October 2021).
  26. Dai, A. Characteristics and trends in various forms of the Palmer Drought Severity Index during 1900–2008. J. Geophys. Res. Earth Surf. 2011, 116, 537. [Google Scholar] [CrossRef] [Green Version]
  27. Khan, R.; Brandenburger, T.A. ROCit: Performance Assessment of Binary Classifier with Visualization. 2019. Available online: https://cran.r-project.org/web/packages/ROCit/index.html (accessed on 17 December 2021).
  28. Hood, S.M.; Smith, S.L.; Cluck, D.R. Predicting mortality for five California conifers following wildfire. For. Ecol. Manag. 2010, 260, 750–762. [Google Scholar] [CrossRef]
  29. Ganio, L.M.; Woolley, T.; Shaw, D.C.; Fitzgerald, S.A. The Discriminatory Ability of Postfire Tree Mortality Logistic Regression Models. For. Sci. 2015, 61, 344–352. [Google Scholar] [CrossRef]
  30. Wickham, H. ggplot2: Elegant Graphics for Data Analysis; Springer: New York, NY, USA, 2016. [Google Scholar]
  31. Fox, J. Effect Displays in R for Generalised Linear Models. J. Stat. Softw. 2003, 8, 1–27. Available online: https://www.jstatsoft.org/article/view/v008i15 (accessed on 17 December 2021). [CrossRef] [Green Version]
  32. Long, J.A.; Interactions: Comprehensive, User-Friendly Toolkit for Probing Interactions. R package version 1.1.0. 2019. Available online: https://cran.r-project.org/package=interactions (accessed on 17 December 2021).
  33. Cansler, C.A.; Hood, S.M.; van Mantgem, P.J.; Varner, J.M. A large database supports the use of simple models of post-fire tree mortality for thick-barked conifers, with less support for other species. Fire Ecol. 2020, 16, 25. [Google Scholar] [CrossRef]
  34. Ryan, K.C.; Reinhardt, E.D. Predicting postfire mortality of seven western conifers. Can. J. For. Res. 1988, 18, 1291–1297. [Google Scholar] [CrossRef]
  35. Bär, A.; Michaletz, S.T.; Mayr, S. Fire effects on tree physiology. New Phytol. 2019, 223, 1728–1741. [Google Scholar] [CrossRef] [Green Version]
  36. McDowell, N.G. Mechanisms Linking Drought, Hydraulics, Carbon Metabolism, and Vegetation Mortality. Plant Physiol. 2011, 155, 1051–1059. [Google Scholar] [CrossRef] [Green Version]
  37. Adams, H.D.; Zeppel, M.; Anderegg, W.R.L.; Hartmann, H.; Landhäusser, S.M.; Tissue, D.; Huxman, T.E.; Hudson, P.J.; Franz, T.E.; Allen, C.D.; et al. A multi-species synthesis of physiological mechanisms in drought-induced tree mortality. Nat. Ecol. Evol. 2017, 1, 1285–1291. [Google Scholar] [CrossRef] [PubMed]
  38. Knapp, E.E.; Bernal, A.A.; Kane, J.M.; Fettig, C.J.; North, M.P. Variable thinning and prescribed fire influence tree mortality and growth during and after a severe drought. For. Ecol. Manag. 2020, 479, 118595. [Google Scholar] [CrossRef]
  39. Van Mantgem, P.J.; Caprio, A.C.; Stephenson, N.L.; Das, A.J. Does Prescribed Fire Promote Resistance to Drought in Low Elevation Forests of the Sierra Nevada, California, USA? Fire Ecol. 2016, 12, 13–25. [Google Scholar] [CrossRef]
  40. van der Plas, F.; Schröder-Georgi, T.; Weigelt, A.; Barry, K.; Meyer, S.; Alzate, A.; Barnard, R.L.; Buchmann, N.; de Kroon, H.; Ebeling, A.; et al. Plant traits alone are poor predictors of ecosystem properties and long-term ecosystem functioning. Nat. Ecol. Evol. 2020, 4, 1602–1611. [Google Scholar] [CrossRef]
  41. Schwartz, N.B.; Feng, X.; Muscarella, R.; Swenson, N.G.; Umaña, M.N.; Zimmerman, J.K.; Uriarte, M. Topography and Traits Modulate Tree Performance and Drought Response in a Tropical Forest. Front. For. Glob. Chang. 2020, 3, 596256. [Google Scholar] [CrossRef]
  42. Stephens, S.L.; Maier, L.; Gonen, L.; York, J.D.; Collins, B.M.; Fry, D.L. Variation in fire scar phenology from mixed conifer trees in the Sierra Nevada. Can. J. For. Res. 2018, 48, 101–104. [Google Scholar] [CrossRef]
  43. Reed, C.C.; Hood, S.M. Few generalizable patterns of tree-level mortality during extreme drought and concurrent bark beetle outbreaks. Sci. Total Environ. 2020, 750, 141306. [Google Scholar] [CrossRef]
  44. Trugman, A.T.; Anderegg, L.D.; Anderegg, W.R.; Das, A.J.; Stephenson, N.L. Why is Tree Drought Mortality so Hard to Predict? Trends Ecol. Evol. 2021, 36, 520–532. [Google Scholar] [CrossRef]
  45. Partelli-Feltrin, R.; Johnson, D.M.; Sparks, A.M.; Adams, H.D.; Kolden, C.A.; Nelson, A.S.; Smith, A.M.S. Drought Increases Vulnerability of Pinus ponderosa Saplings to Fire-Induced Mortality. Fire 2020, 3, 56. [Google Scholar] [CrossRef]
  46. Goulden, M.L.; Bales, R.C. California forest die-off linked to multi-year deep soil drying in 2012–2015 drought. Nat. Geosci. 2019, 12, 632–637. [Google Scholar] [CrossRef]
  47. Aubin, I.; Boisvert-Marsh, L.; Kebli, H.; McKenney, D.; Pedlar, J.; Lawrence, K.; Hogg, E.H.; Boulanger, Y.; Gauthier, S.; Ste-Marie, C. Tree vulnerability to climate change: Improving exposure-based assessments using traits as indicators of sensitivity. Ecosphere 2018, 9, e02108. [Google Scholar] [CrossRef]
  48. Madakumbura, G.D.; Goulden, M.L.; Hall, A.; Fu, R.; Moritz, M.A.; Koven, C.D.; Kueppers, L.M.; Norlen, C.A.; Randerson, J.T. Recent California tree mortality portends future increase in drought-driven forest die-off. Environ. Res. Lett. 2020, 15, 124040. [Google Scholar] [CrossRef]
  49. Chavardès, R.D.; Daniels, L.D.; Eskelson, B.N.I.; Gedalof, Z. Using Complementary Drought Proxies Improves Interpretations of Fire Histories in Montane Forests. Tree-Ring Res. 2020, 76, 74–88. [Google Scholar] [CrossRef]
  50. Long, A.L. “Drought,” Disturb. Sustain. For. West. United States. Disturbance and sustainability in forests of the Western United States. USFS Gen. Tech. Rep. PNW-GTR-992, 2021. Available online: https://www.fs.fed.us/pnw/pubs/pnw_gtr992.pdf (accessed on 17 December 2021).
  51. Parker, T.J.; Clancy, K.M.; Mathiasen, R.L. Interactions among fire, insects and pathogens in coniferous forests of the interior western United States and Canada. Agric. For. Èntomol. 2006, 8, 167–189. [Google Scholar] [CrossRef]
  52. Kolb, T.; Keefover-Ring, K.; Burr, S.J.; Hofstetter, R.; Gaylord, M.; Raffa, K.F. Drought-Mediated Changes in Tree Physiological Processes Weaken Tree Defenses to Bark Beetle Attack. J. Chem. Ecol. 2019, 45, 888–900. [Google Scholar] [CrossRef]
  53. Fettig, C.J.; Mortenson, L.A.; Bulaon, B.M.; Foulk, P.B. Tree mortality following drought in the central and southern Sierra Nevada, California, USA. Ecol. Manag. 2018, 432, 164–178. [Google Scholar] [CrossRef]
  54. Carlson, A.R.; Sibold, J.S.; Assal, T.J.; Negrón, J.F. Evidence of compounded disturbance effects on vegetation recovery following high-severity wildfire and spruce beetle outbreak. PLoS ONE 2017, 12, e0181778. [Google Scholar] [CrossRef] [Green Version]
  55. Ganio, L.M.; Progar, R.A. Mortality predictions of fire-injured large Douglas-fir and ponderosa pine in Oregon and Washington, USA. For. Ecol. Manag. 2017, 390, 47–67. [Google Scholar] [CrossRef] [Green Version]
  56. Kane, J.M.; Van Mantgem, P.J.; Lalemand, L.B.; Keifer, M. Higher sensitivity and lower specificity in post-fire mortality model validation of 11 western US tree species. Int. J. Wildland Fire 2017, 26, 444–454. [Google Scholar] [CrossRef]
  57. Agee, J.K. Monitoring postfire tree mortality in mixed-conifer forests of Crater Lake, Oregon, USA. Nat. Areas J. 2003, 23, 114–120. [Google Scholar]
  58. Varner, J.M.; Putz, F.E.; O’Brien, J.J.; Hiers, J.K.; Mitchell, R.J.; Gordon, D.R. Post-fire tree stress and growth following smoldering duff fires. For. Ecol. Manag. 2009, 258, 2467–2474. [Google Scholar] [CrossRef]
  59. Neary, D.G.; Ryan, K.C.; DeBano, L.F. Wildland Fire in Ecosystems: Effects of Fire on Soils and Water, General Technical Report RMRSGTR-42-Vol.4; USDA, Forest Service, Rocky Mountain Research Station: Ogden, UT, USA, 2005; p. 250. [Google Scholar]
  60. Stephens, S.L.; Finney, M.A. Prescribed fire mortality of Sierra Nevada mixed conifer tree species: Effects of crown damage and forest floor combustion. For. Ecol. Manag. 2002, 162, 261–271. [Google Scholar] [CrossRef]
  61. Goulden, M.L.; Bales, R.C. Mountain runoff vulnerability to increased evapotranspiration with vegetation expansion. Proc. Natl. Acad. Sci. USA 2014, 111, 14071–14075. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Shearman, T.M.; Varner, J.M.; Hood, S.M.; Cansler, C.A.; Hiers, J.K. Modelling post-fire tree mortality: Can random forest improve discrimination of imbalanced data? Ecol. Model. 2019, 414, 108855. [Google Scholar] [CrossRef]
  63. Kemp, K.B.; Higuera, P.; Morgan, P. Fire legacies impact conifer regeneration across environmental gradients in the U.S. northern Rockies. Landsc. Ecol. 2015, 31, 619–636. [Google Scholar] [CrossRef]
  64. Korb, J.E.; Fornwalt, P.J.; Stevens-Rumann, C.S. What drives ponderosa pine regeneration following wildfire in the western United States? For. Ecol. Manag. 2019, 454, 117663. [Google Scholar] [CrossRef]
  65. Hutto, R.L. Toward Meaningful Snag-Management Guidelines for Postfire Salvage Logging in North American Conifer Forests. Conserv. Biol. 2006, 20, 984–993. [Google Scholar] [CrossRef]
  66. Dunn, C.J.; O’Connor, C.D.; Reilly, M.J.; Calkin, D.E.; Thompson, M.P. Spatial and temporal assessment of responder exposure to snag hazards in post-fire environments. For. Ecol. Manag. 2019, 441, 202–214. [Google Scholar] [CrossRef]
  67. Belcher, C.M.; New, S.L.; Gallagher, M.R.; Grosvenor, C.; Mark; Kenneth, J.; Skowronsk, N.S. Bark charcoal reflectance may have the potential to estimate the heat delivered to tree boles by wildland fires. Int. J. Wildl. Fire 2021, 30, 391–397. [Google Scholar] [CrossRef]
  68. Hood, S.; Lutes, D. Predicting Post-Fire Tree Mortality for 12 Western US Conifers Using the First Order Fire Effects Model (FOFEM). Fire Ecol. 2017, 13, 66–84. [Google Scholar] [CrossRef]
  69. Harmon, M.E.; Bell, D.M. Mortality in Forested Ecosystems: Suggested Conceptual Advances. Forests 2020, 11, 572. [Google Scholar] [CrossRef]
  70. Keane, R.E.; Ryan, K.C.; Veblen, T.T.; Allen, C.D.; Logan, J.; Hawkes, B. Cascading effects of fire exclusion in the Rocky Mountain ecosystems: A literature review. RMRS-GTR-91. 2002, 91. [Google Scholar] [CrossRef] [Green Version]
  71. Hood, S.M. Physiological responses to fire that drive tree mortality. Plant, Cell Environ. 2021, 44, 692–695. [Google Scholar] [CrossRef] [PubMed]
  72. Rebain, S.A. The Fire and Fuels Extension to the Forest Vegetation Simulator: Updated Model Documentation. USDA For. Serv. Int. Rep. 2010, 408, 403. [Google Scholar]
  73. Senf, C.; Buras, A.; Zang, C.S.; Rammig, A.; Seidl, R. Excess forest mortality is consistently linked to drought across Europe. Nat. Commun. 2020, 11, 1–8. [Google Scholar] [CrossRef] [PubMed]
  74. Hoover, C.M.; Bush, R.; Palmer, M.; Treasure, E. Using Forest Inventory and Analysis Data to Support National Forest Management: Regional Case Studies. J. For. 2020, 118, 313–323. [Google Scholar] [CrossRef]
  75. Hessburg, P.F.; Spies, T.A.; Perry, D.A.; Skinner, C.N.; Taylor, A.H.; Brown, P.M.; Stephens, S.L.; Larson, A.J.; Churchill, D.J.; Povak, N.A.; et al. Tamm Review: Management of mixed-severity fire regime forests in Oregon, Washington, and Northern California. For. Ecol. Manag. 2016, 366, 221–250. [Google Scholar] [CrossRef] [Green Version]
Fire 05 00021 g001 550

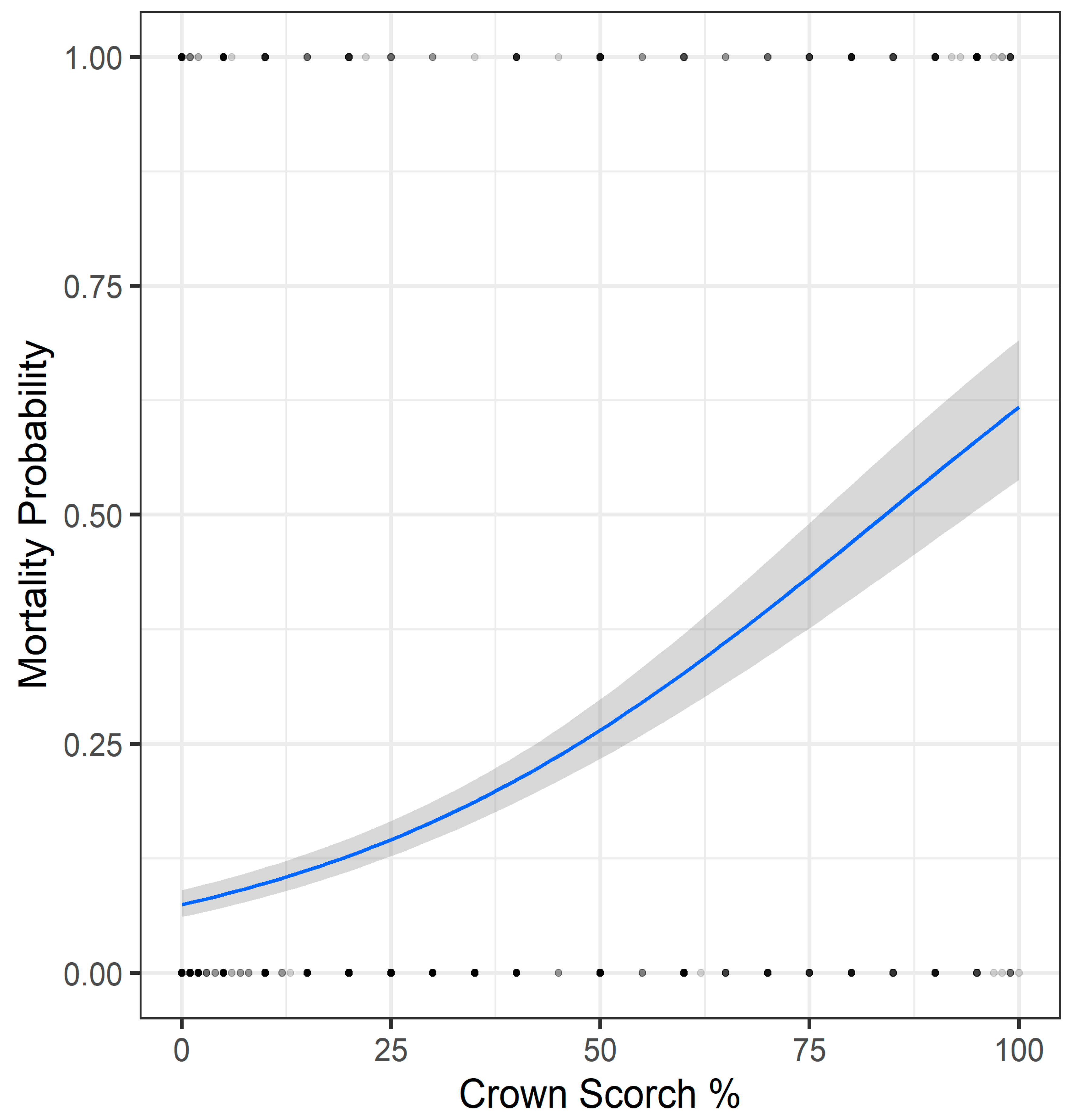

Figure 1. Probability of delayed mortality predicted by logistic model based only on crown scorch (percent), for all six species. Dots on the probability = 1.0 line represent observed delayed mortality trees and dots on the probability = 0, represent survivor trees. Shaded area depicts 95% confidence intervals. Plot generated by ggplot2 [30].
Figure 1. Probability of delayed mortality predicted by logistic model based only on crown scorch (percent), for all six species. Dots on the probability = 1.0 line represent observed delayed mortality trees and dots on the probability = 0, represent survivor trees. Shaded area depicts 95% confidence intervals. Plot generated by ggplot2 [30].
Fire 05 00021 g001
Fire 05 00021 g002 550

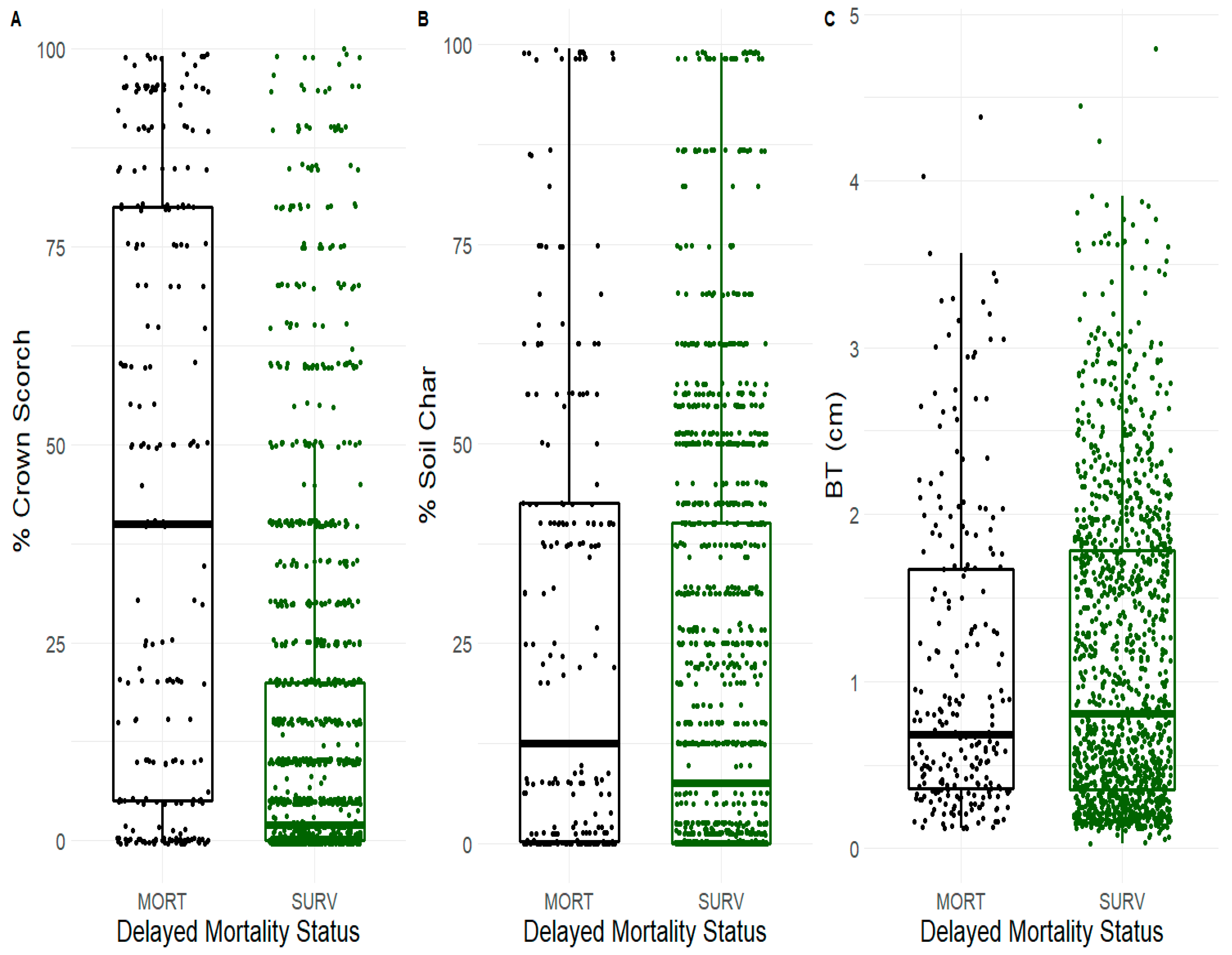

Figure 2. Boxplots showing wide separation between mortality and survivor trees in crown scorch percent (A) relative to soil char (B) and bark thickness (C). Points are randomly jittered for display purposes. N = 1569 trees.
Figure 2. Boxplots showing wide separation between mortality and survivor trees in crown scorch percent (A) relative to soil char (B) and bark thickness (C). Points are randomly jittered for display purposes. N = 1569 trees.
Fire 05 00021 g002
Fire 05 00021 g003 550

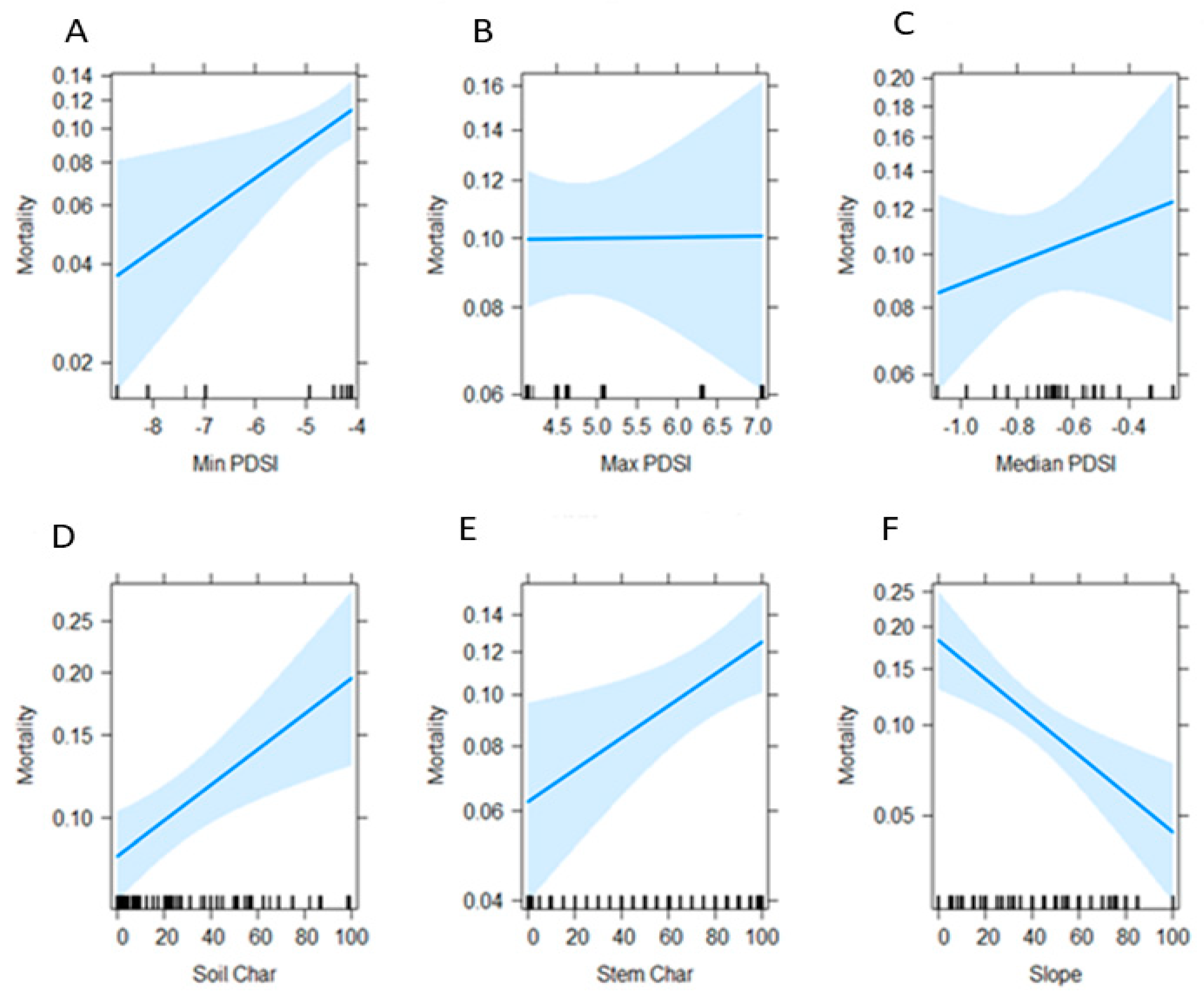

Figure 3. Effects plots showing probability of delayed mortality from logistic model for minimum PDSI (A), maximum PDSI (B), median PDSI (C), soil char (D), stem char (E), and slope (F). These plots hold other model terms constant at zero using R Effects package [31].
Figure 3. Effects plots showing probability of delayed mortality from logistic model for minimum PDSI (A), maximum PDSI (B), median PDSI (C), soil char (D), stem char (E), and slope (F). These plots hold other model terms constant at zero using R Effects package [31].
Fire 05 00021 g003
Fire 05 00021 g004 550

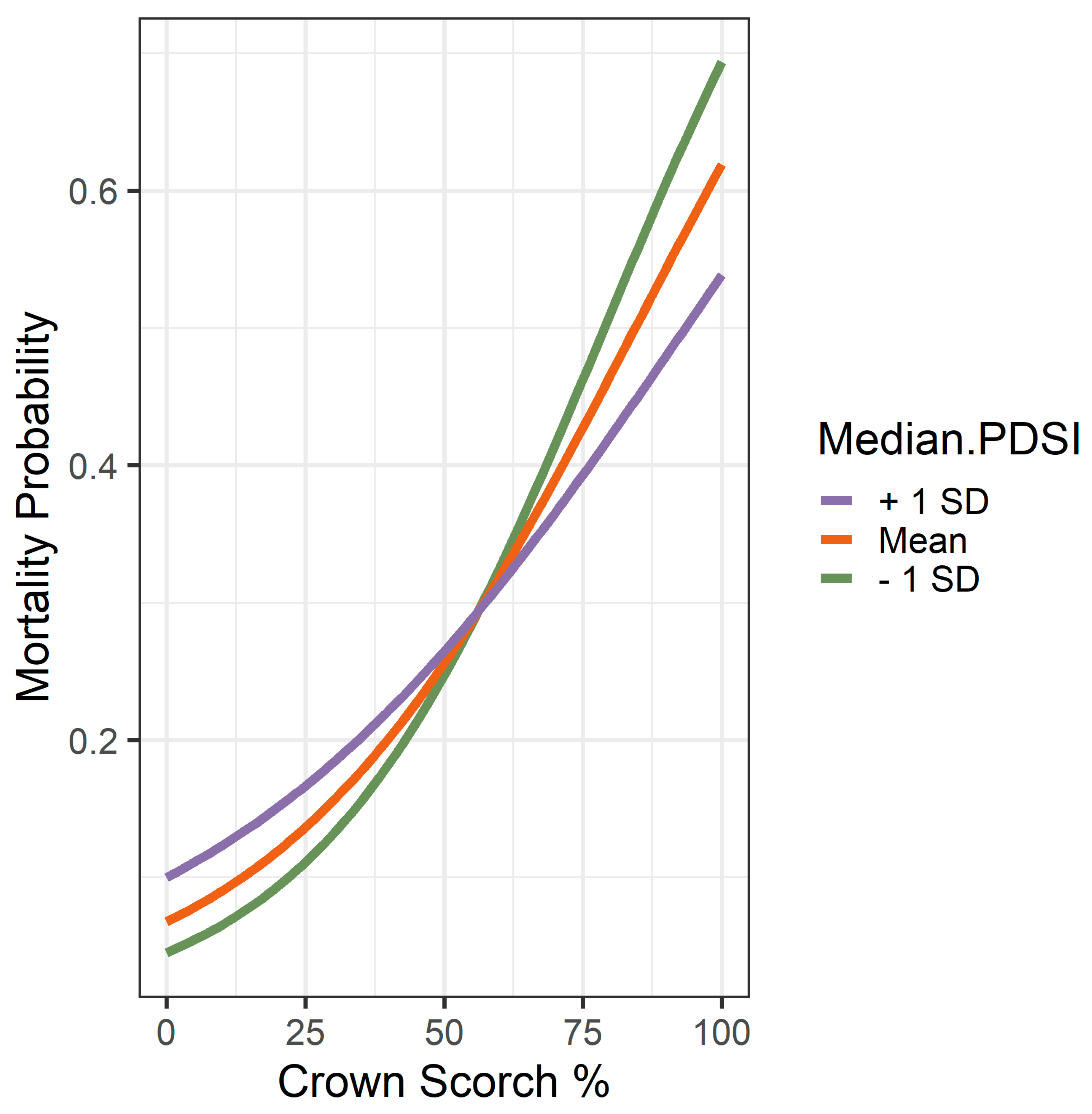

Figure 4. Interaction plot showing mortality risk at mean (+/− sd) of median monthly PDSI across the range of crown scorch using R interactions package [32]. Median PDSI was-0.73 (0.2 sd) (see Table 2). Positive sd (+1 sd) indicates less drought exposure and negative sd (−1 sd) indicates increased drought exposure.
Figure 4. Interaction plot showing mortality risk at mean (+/− sd) of median monthly PDSI across the range of crown scorch using R interactions package [32]. Median PDSI was-0.73 (0.2 sd) (see Table 2). Positive sd (+1 sd) indicates less drought exposure and negative sd (−1 sd) indicates increased drought exposure.
Fire 05 00021 g004
Table
Table 1. Species common and scientific names and numbers of trees(n) and species-specific bark coefficient (Vsp) from fire-affected FIA plots used to test the post-fire delayed logistic mortality model.
Table 1. Species common and scientific names and numbers of trees(n) and species-specific bark coefficient (Vsp) from fire-affected FIA plots used to test the post-fire delayed logistic mortality model.
Common NameScientific NamenBark Coefficient (Vsp)
canyon live oak
(QUCH)		Quercus chrysolepis Liebm. 3190.024
Douglas-fir
(PSME)		Pseudotsuga menziesii
(Mirb.) Franco		4210.063
incense-cedar
(CADE)		Calocedrus decurrens (Torr.) Florin1260.06
Jeffrey pine
(PIJE)		Pinus jeffreyi Grev. & Balf. 1290.068
ponderosa pine
(PIPO)		Pinus ponderosa Lawson & C. Lawson2570.062
white fir
(ABCO)		Abies concolor (Gord. & Glend.) Lindl. ex Hildebr. 3170.048
Table
Table 2. Descriptive statistics for continuous variables used in logistic mortality model.
Table 2. Descriptive statistics for continuous variables used in logistic mortality model.
VariableUnitsMeanStandard
Deviation		MedianMinMax
Crown Scorchpercent of compacted crown length182850100
Soil Charpercent cover22277.5099.5
Stem char percent of circumference6639850100
Bark Thickness cm1.10.90.80.035
Slope percent4440450100
Minimum PDSIDeparture from normal−4.61.1−4.31−8.7−4.11
Median PDSIDeparture from normal−0.730.2−0.68−1.09−0.25
Maximum PDSIDeparture from normal4.810.84.634.147.06
Table
Table 3. Classification table and model performance statistics used to evaluate delayed mortality model. Adapted from [33].
Table 3. Classification table and model performance statistics used to evaluate delayed mortality model. Adapted from [33].
TRUE CONDITION
Dead = PositiveLive = NegativeModel Performance
Predicted Condition
Dead True Positive (TP)False Positive (FP)Positive Predictive Rate
TP/(TP + FP)
LiveFalse Negative (FN)True Negative (TN)Negative Predictive Rate
TN/(TN + FN)
Sensitivity =
TP/(TP + FN)
True Negative Rate
(TNR) =
TN/(FP + TN)		False positive rate (FPR) =
FP/(FP +TN)
Specificity =
TN/(TN + FP)		Accuracy =
(TP + TN)/ (TP +TN + FP + FN)
Table
Table 4. Model coefficients (standard error), z score, and p-values for variables used in the delayed mortality logistic regression model by bark thickness, percent crown scorch, tree species (Canyon Live Oak as reference), soil char, stem char, min/max/median monthly ten-year PDSI, slope, aspect (NE as reference), and interaction between crown scorch and median monthly ten-year PDSI and soil char. After intercept, variables are ordered by p-value (significant predictors below p-value of 0.05 in italics). NS = non-significant at p-value of 0.05.
Table 4. Model coefficients (standard error), z score, and p-values for variables used in the delayed mortality logistic regression model by bark thickness, percent crown scorch, tree species (Canyon Live Oak as reference), soil char, stem char, min/max/median monthly ten-year PDSI, slope, aspect (NE as reference), and interaction between crown scorch and median monthly ten-year PDSI and soil char. After intercept, variables are ordered by p-value (significant predictors below p-value of 0.05 in italics). NS = non-significant at p-value of 0.05.
VariableCoefficient(se)Z Scorep. Value
Intercept2.53 (1.5)1.80.080
Crown Scorch0.03 (0.02)11p < 0.0001
Min PDSI1 (0.26)3.80.00016
Slope−0.02 (0.04)−3.70.00030
Crown Scorch × Median PDSI−0.03 (.010)−3.30.0010
Min PDSI1 (0.26)3.770.00016
Stem Char0.01 (0.030)2.90.0040
Median PDSI0.51(0.63)2.80.0014
Aspect NW−0.63 (0.24)−2.60.010
CADE−1.01 (0.41)−2.50.013
Soil char0.01 (0.03)2.270.023
Aspect SE−0.59 (0.26)−2.20.029
Bark Thickness0.2 (0.11)1.80.080 NS
Max PDSI−0.25 (0.14)1.740.081 NS
PIJE0.42 (0.39)1.10.28 NS
PSME−0.29 (0.35)−0.820.41 NS
PIPO−0.24 (0.34)−0.710.47 NS
Aspect SW−0.15 (0.25)−0.250.52 NS
ABMA−0.05 (0.33)−0.150.88 NS
Table
Table 5. Model accuracy, sensitivity, specificity, and false positive rate for predicting delayed mortality at three thresholds for the delayed mortality logistic regression by bark thickness (Vsp), % crown scorch, median ten-year PDSI, % moderate/severe ground char, and tree species (Canyon Live Oak as reference). Bold indicates best score for each column.
Table 5. Model accuracy, sensitivity, specificity, and false positive rate for predicting delayed mortality at three thresholds for the delayed mortality logistic regression by bark thickness (Vsp), % crown scorch, median ten-year PDSI, % moderate/severe ground char, and tree species (Canyon Live Oak as reference). Bold indicates best score for each column.
ThresholdsAccuracy Sensitivity Specificity False Positive Rate
0.75 0.86 0.05 1.000.0
0.50 0.870.27 0.98 0.02
0.250.830.520.880.10
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Barker, J.S.; Gray, A.N.; Fried, J.S. The Effects of Crown Scorch on Post-fire Delayed Mortality Are Modified by Drought Exposure in California (USA). Fire 2022, 5, 21. https://doi.org/10.3390/fire5010021

AMA Style

Barker JS, Gray AN, Fried JS. The Effects of Crown Scorch on Post-fire Delayed Mortality Are Modified by Drought Exposure in California (USA). Fire. 2022; 5(1):21. https://doi.org/10.3390/fire5010021

Chicago/Turabian Style

Barker, Jason S., Andrew N. Gray, and Jeremy S. Fried. 2022. "The Effects of Crown Scorch on Post-fire Delayed Mortality Are Modified by Drought Exposure in California (USA)" Fire 5, no. 1: 21. https://doi.org/10.3390/fire5010021

APA Style

Barker, J. S., Gray, A. N., & Fried, J. S. (2022). The Effects of Crown Scorch on Post-fire Delayed Mortality Are Modified by Drought Exposure in California (USA). Fire, 5(1), 21. https://doi.org/10.3390/fire5010021

Article Metrics

Back to TopTop
