Savannas, in which grasses coexist with scattered trees, are fire-dependent ecosystems: Recurrent fires suppress tree density and maintain high light environments favorable to grasses. Grasses provide fine, dead biomass that feeds recurrent fires, which are characterized by rapid rate of spread and short residence time [1
]. Such fires often result in little soil heating and therefore allow high survival of surface and below-ground grass meristems [3
]. However, such fires limit woody plants, because they can kill or top kill woody plants. Although the role of fine grass fuels in suppressing woody savanna plants has been well established [5
], there has been less attention paid to how variation in grass flammability traits may alter fire behavior, which in turn can affect damage to grasses themselves, as well as change the ecological impact of grass fire on trees.
Plants vary in flammability through variation in their functional traits, but identification of such traits has been better developed for woody fuels than for grass fuels. Identified flammability traits include biomass, fuel moisture content, leaf dimensions, and chemical composition, and traits that characterize plant canopy architecture such as biomass density and retention of dead biomass [8
]. Whether grasses vary in flammability in response to trait variation, however, is still in dispute. Some argue that grass fires are largely driven by total above-ground biomass [17
]. Plant above-ground biomass, however, is hugely plastic and, although there are species differences, biomass is largely determined by environmental factors such as precipitation and herbivory. Such plasticity implies potentially weak species or ecotypic flammability effects. On the other hand, some grass flammability studies found that although total biomass had a strong effect on flammability, plant traits including leaf surface area to volume ratio and canopy architecture (biomass density) also influenced grass flammability [20
]. However, canopy architecture has only been examined on partial plant canopies [21
], which may not fully represent species variation in architectural traits.
Fire induced tree mortality is a complex process that involves both biotic and abiotic factors, but an important effect of fire is tissue necrosis caused by exposure of plant cells to lethal temperature, which can eventually lead to tree mortality through killing vegetative buds, the vascular meristem, or roots and rhizomes [22
]. Another direct impact of fire is xylem dysfunction and cavitation, which also can cause tree mortality by reducing xylem conductivity [27
]. Tree-killing fire characteristics include fire intensity (measured by proxies such as maximum flame height and mass loss rate, which predict canopy scorch [30
]), total heat release near lower tree canopy (measured by fire duration or an integration of temperature or heat flux over time which predict canopy and bole tissue necrosis [32
]), and heating near the soil surface (measured by integrated temperature or organic matter loss, which predicts root, stolon, and rhizome injury [22
]). Therefore, interspecies variations in grass flammability traits that could influence below-ground and/or above-ground heating have the potential to alter fire effects on trees.
Flammability is not a single axis of variation but is multidimensional [35
]. Thus far, evidence suggests that most variation occurs along two axes, a total heat release or duration of heating axis, and an axis representing the rate of heat release. This view, however, is most strongly supported by leaf litter flammability studies in which fuel load was standardized [37
]. Each axis potentially has distinct effects on tree mortality: “total heat release” (rarely measured directly but often inferred from proxies such as biomass consumption or temperature integration over time) at different heights relative to ground determines temperature exposure in important tree organs, while the rate of heat release (usually measured as flame spread rate) influences fire extent and tree crown damage in part due to its effect on flame heights. Biomass density can influence aeration and heat transfer during fire. However, the direction of biomass density effect on flammability is fuel type dependent [35
]: It positively influenced fire intensity (measured as either rate of spread or maximum biomass-loss rate) in canopy fuel and grass fuel and negatively influenced the rate of spread in litter fuel [21
]. Another potentially important architectural trait is the relative distribution of biomass in relation to height above the soil surface: Grass species vary in where biomass is held, and this could influence relative heating near the surface versus heating at greater heights above the soil. Surface heating can damage grass meristems at and below the soil surface, as well as damage tree roots. Heat release at higher locations above soil surface should have a greater impact on shrub and tree crown damage.
We assessed the flammability of eight grass species of the short-grass steppes in northeastern New Mexico and in northern Texas, USA and examined how canopy architecture influenced putative tree-killing flammability measurements after accounting for any effect of total above-ground biomass. Our overall interest is tree-grass interaction via fires in savannas, therefore, in addition to consumability [42
] (the amount of fuel combusted which represents total heat release in a single experiment if we assume heat content of plant tissue remained constant), we also measured putative tree-killing fire characteristics including maximum flame height, duration of heating, and temperature integration above 100 °C near canopy (at 10 cm, 20 cm, and 40 cm height relative to the ground, the mean temperature of these three above-ground temperature measurements was used to summarize canopy temperatures) and at the soil surface. In addition to examining grass biomass density as a canopy trait, we defined another simple canopy architectural trait: the biomass-height ratio (the ratio of biomass above 10 cm plant height to the biomass below 10 cm plant height).
We asked two questions: (1) How does total biomass influence flammability? (2) Does grass canopy architecture influence putative tree-killing flammability measurements after we account for an effect of total biomass? Given the importance of fuel load found in previous studies [17
], we expect that total above-ground biomass should have positive effects on all flammability components, especially on total heat release. We then tested for additional effects of canopy architecture on flammability measurements. We expected biomass-height ratio to decrease the surface cumulative temperature and heating duration, because less biomass is available near the ground, but to increase these measures in the canopy. We expected biomass density to positively influence fire intensity measures, because porous grass fuel is well aerated; therefore, heat transfer will be faster when biomass is more densely packed.
2. Materials and Methods
All species studied are found in the southern Great Plains and were collected from short grass steppe of Kiowa National Grassland; northeastern New Mexico between 1400~1900 m elevation; and Lyndon B. Johnson National Grassland, northern Texas between 270~310 m elevation, USA. The study areas are dominated by C4 grasses with scattered trees. Juniperus monosperma (Engelm.) Sargent, Pinus edulis Engelm, and Pinus ponderosa Lawson & C. Lawson are the most common tree species in the Kiowa National Grassland. Woody species in the Lyndon B. Johnson National Grassland are more diverse with the dominant families including the Fagaceae, Cupressaceae, and Salicaceae.
Plant samples were collected during summer (early June–early August) 2016 from eight grass species: Aristida purpurea Nutt., Bromus inermis Leyss., Chasmanthium latifolium (Michx.) Yates, Eragrostis curvula (Schrad.) Nees, Elymus elymoides (Raf.) Swezey, Hesperostipa neomexicana (Thurb. ex J.M. Coult.) Barkworth, and Panicum anceps Michx., Pascopyrum smithii (Rydb.) Á. Löve. We chose these species at random from all species present at the study region with typical canopy cover rates greater than 10%. All but Eragrostis curvula are native species. Most are tussock grasses (i.e., bunchgrasses), but Bromus inermis and Pascopyrum smithii are more sod-forming species. Because biomass-height ratio is a destructive measurement, we collected samples in pairs so that both measurement groups had a balanced and wide range of plant sizes within each species. Within a pair, the two plants were within 3 m of one another and distinct pairs (samples) were separated by a minimum distance of 30 m. For sod-forming grasses, we increased this distance to 100 m to avoid multiple pairs from the same clone. We collected 8–15 pairs for each species. Plants were unearthed carefully to minimize damage of plant architecture, labeled, and stored in collection bags. Geographic location was logged for each sample using a GPS device. We then transported samples back to Texas Tech University and dried them at 32 °C for 3 days in a sample drying room to standardize fuel moisture.
Before the burning experiment, we measured plant height, the number of tillers, and width at the base and top of each plant including inflorescences. We measured biomass-height ratio for the member of each pair designated not to be burned by cutting plants into two sections at 10 cm plant height and weighing each section (soil surface to 10 cm section and above 10 cm section). To obtain biomass-height ratio for the burned individuals, we built a linear model with data collected from the unburned individuals. This model included the biomass above 10 cm as a dependent factor and species, tiller number, and total biomass as predictors. We then predicted biomass above 10 cm for the burned individuals. With total biomass and predicted biomass above 10 cm, we were able to estimate biomass below 10 cm for the burned plants. Adjusted R2 was 0.98 for the above 10 cm biomass prediction model. Biomass-height ratio was expressed as the ratio of biomass above 10 cm plant height to biomass below 10 cm. Biomass density was calculated by dividing total above-ground biomass by plant volume, and we treated the grass canopy as a truncated cone for the volume calculation.
We performed indoor burning experiments at the Lubbock Fire Department in a cement building. This structure allowed full control of wind and partial control of temperature and relative humidity. Due to constraints on sample collection (we had to collect different species at different times to avoid collecting immature plants) and limited sample storage space, our flammability experiments were not fully blocked by day, but we maximized the number of species on each burning day and each species was burned on 2–3 different days except A. purpurea
(in total we had 7 different trial dates across June through early August). Before each burn, we recorded air temperature and relative humidity with a Kestrel 3000 pocket weather meter (Nielsen–Kellerman, Co., Chester, PA, USA). Because most burning trials did not last longer than 10 minutes, we assumed that there was little fluctuation in temperature or relative humidity during a single trial. Means and standard deviations of measured air temperature and relative humidity before each burning trial across experiment dates were 31.0 °C, 2.1 °C and 42.5%, 5.6%. We sampled 3–5 burned individuals of each species by taking a 5 g subsample from each including both leaf and culm to measure fuel moisture content and recorded initial weight of the sample (including the pot and soil) immediately before the burn trial. Figure 1

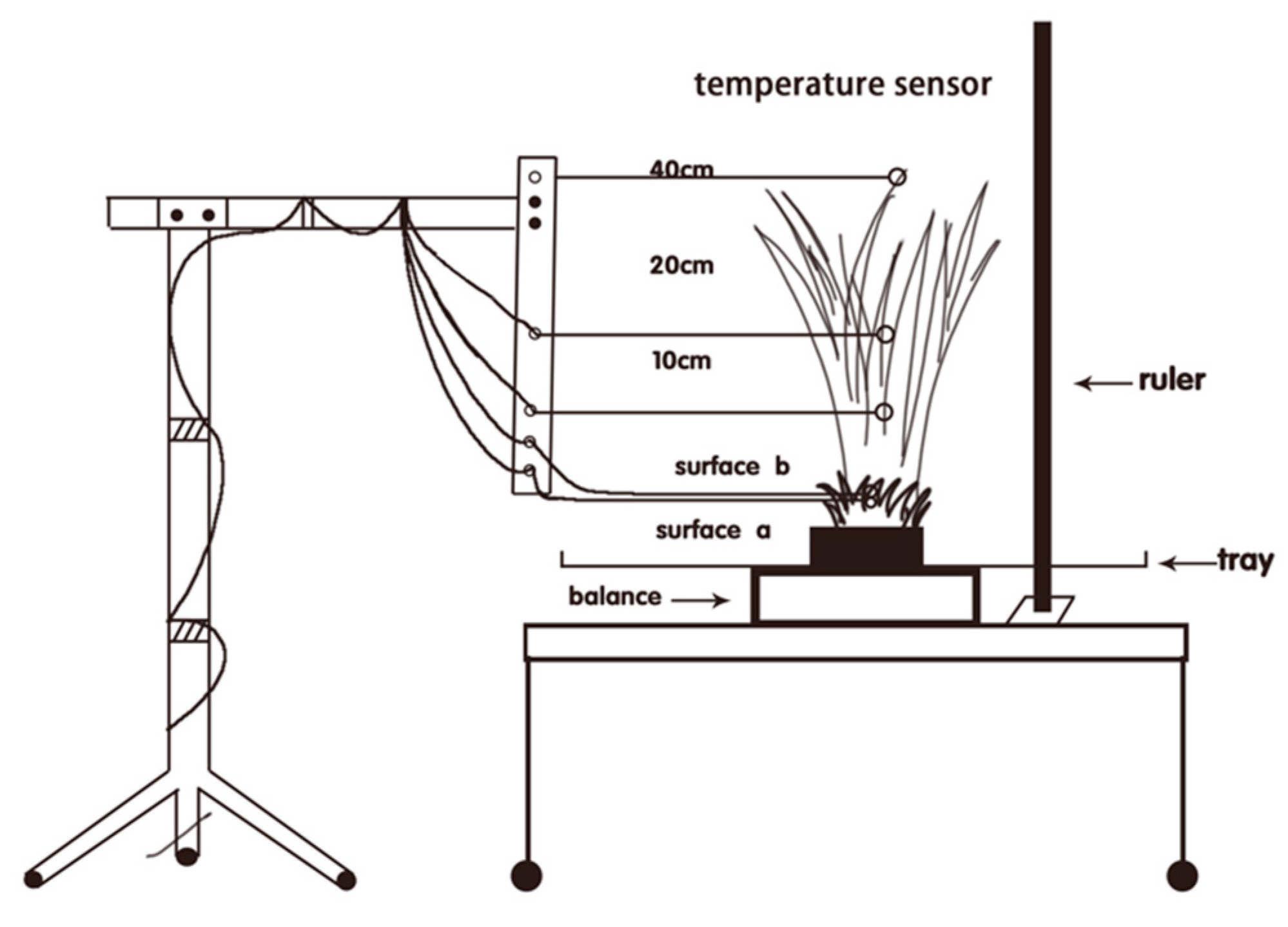

depicts the instrumentation for the burning trials. We ignited each plant at the base by first igniting a cotton ball (about 0.6 g each) to which 1 mL of 50% ethanol solution was added and then placing the burning cotton ball at the plant base. We removed the cotton ball immediately once ignition occurred. To characterize flammability, we measured maximum flame height (cm, visually assessed by using a ruler as a reference). We also measured flame temperature every second at four heights: the soil surface (two replicates of each reading), at 10 cm, at 20 cm, and at 40 cm above the soil surface (°C, read by K type thermocouple temperature sensors with 0.8 mm diameter, Omega Engineering, INC, Norwalk CT). We measured combustion over time by recording the sample biomass every second (g) on a balance (with 0.01 g readability) via a connected laptop. After each burn, the final weight of the pot, soil, and residual plant material was recorded before the residual biomass (charred material, ash, and any unburned biomass) was removed. Then, we removed the residual above-ground biomass and weighed the pot again (pot, soil, and below-ground biomass).
All data analysis was conducted in R [44
]. We fit a negative exponential model predicting remaining biomass as a function of time for each trial and extracted the coefficient, λ, as maximum biomass-loss rate when p
-value for fitted coefficient was less than 0.01. This parameter represents the rate of heat release (fire intensity) if we assume similar tissue specific heat content across all species [45
]. Duration of heating at soil surface was calculated as the period during which mean temperature of soil surface was above 100 °C. Cumulative temperature to which plant tissues were exposed at the soil surface was calculated as “temperature integration”, which corresponded to the sum of the mean temperatures over every second during the same period (°C∙s). Past studies have shown that this measurement correlates well with the “heat release” axis of flammability and is generally independent of flame-spread rate [37
]. We calculated duration of heating and temperature integration for the canopy-height temperature sensors as well. Because we measured temperature at multiple locations above the soil (10 cm, 20 cm, and 40 cm) and these measurements were highly correlated, to control experiment-wide error rates, we averaged all above-ground temperature measurements at each second when summarizing temperature at canopy level. We labeled the canopy measurements according to their average height and refer to “duration of heating at 25 cm” and “temperature integration at 25 cm” hereafter for simplicity. We used total mass consumed to represent total heat release during a single flammability experiment (based on the assumption that tissue-specific heat content is similar across all grass species [45

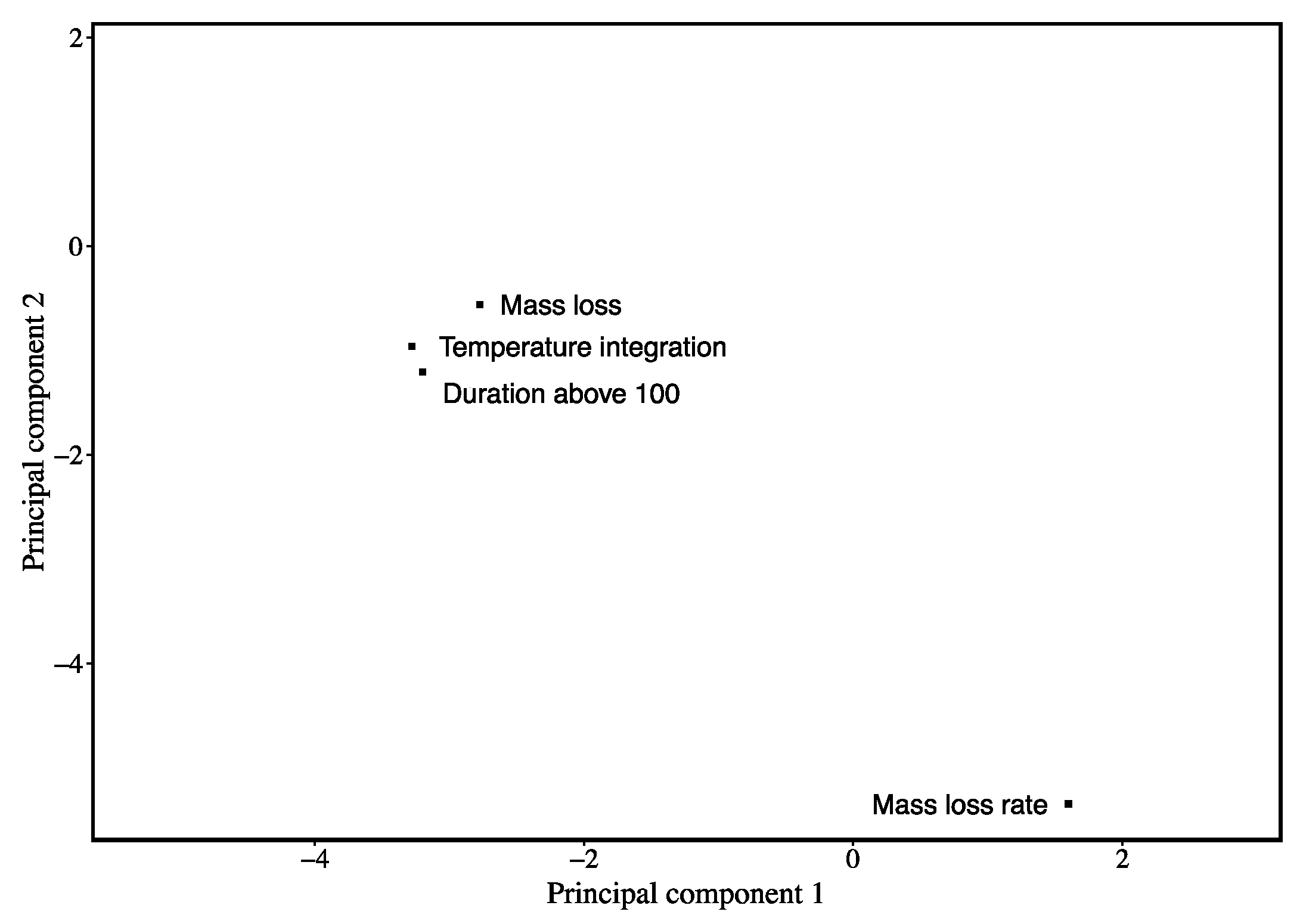

Although results from litter flammability studies suggested that total heat release and rate of heat release, which are our putative tree-killing fire characteristics, are two independent axes of flammability variation [37
], it is not clear if and how they covary in grasses, especially when prior experiments controlled for fuel load while we specifically did not in order to examine direct effects of above-ground biomass. To deal with collinearity, we conducted principal component analysis (PCA) on four tree-killing flammability measurements (duration of heating, temperature integration, maximum mass-loss rate, and total mass combusted) to guide data selection for further analysis. We did not include maximum flame height in our PCA, because this measurement showed a strong non-linear saturation relationship when compared with other proxies for fire intensity.
The fuel load effect on fire behavior is better established than are architectural effects [17
] but is of less interest to us; therefore, we used a residuals-based approach to preserve power to investigate potential architectural effects. First, we built linear models with total biomass as the only predictor for each of the flammability measurements. One observation of E. curvula
had extreme high total biomass. To avoid bias, we conducted analyses with and without this observation and obtained the same conclusion. We then used the resulting biomass-corrected flammability (residuals of first model) for further analysis investigating canopy architecture effects on flammability. To explore whether and how biomass density and biomass-height ratio influenced flammability, we built linear mixed models based on first principles with R package “lme4” [47
]. We standardized all predictors to be mean-centered with unit standard deviation to make the effect sizes of each predictor comparable. We included both canopy traits and their interaction as predictors and biomass-corrected flammability as the dependent variable. We included relative humidity as a main effect covariate but not air temperature, because these two predictors were tightly correlated, and daily variation in relative humidity was larger than variation in that across different trial dates. In addition, including either air temperature or humidity did not change our conclusion. Species was a random effect in our models. To choose between random intercept-only models and those with a random slope term by species as well, we did a single selection step as recommended by Zuur [48
]. We included species as a random intercept term and then compared the resulting model fit to a model, which included the same fixed effects but with a term for random slopes by species for each architecture trait and chose the model that had the lowest Akaike Information Criterion [49
]. We examined the significance of fixed effects using the “mixed” function from the “afex” package in R [50
]. To avoid unacceptable Type 1 error rates during the calculation of approximate degrees of freedom and p
-values, we used the Kenward-Roger approximation [51
], which is suggested by Luke [52
]. Data and code are available at https://github.com/XiulinGao/Grass-Flammability

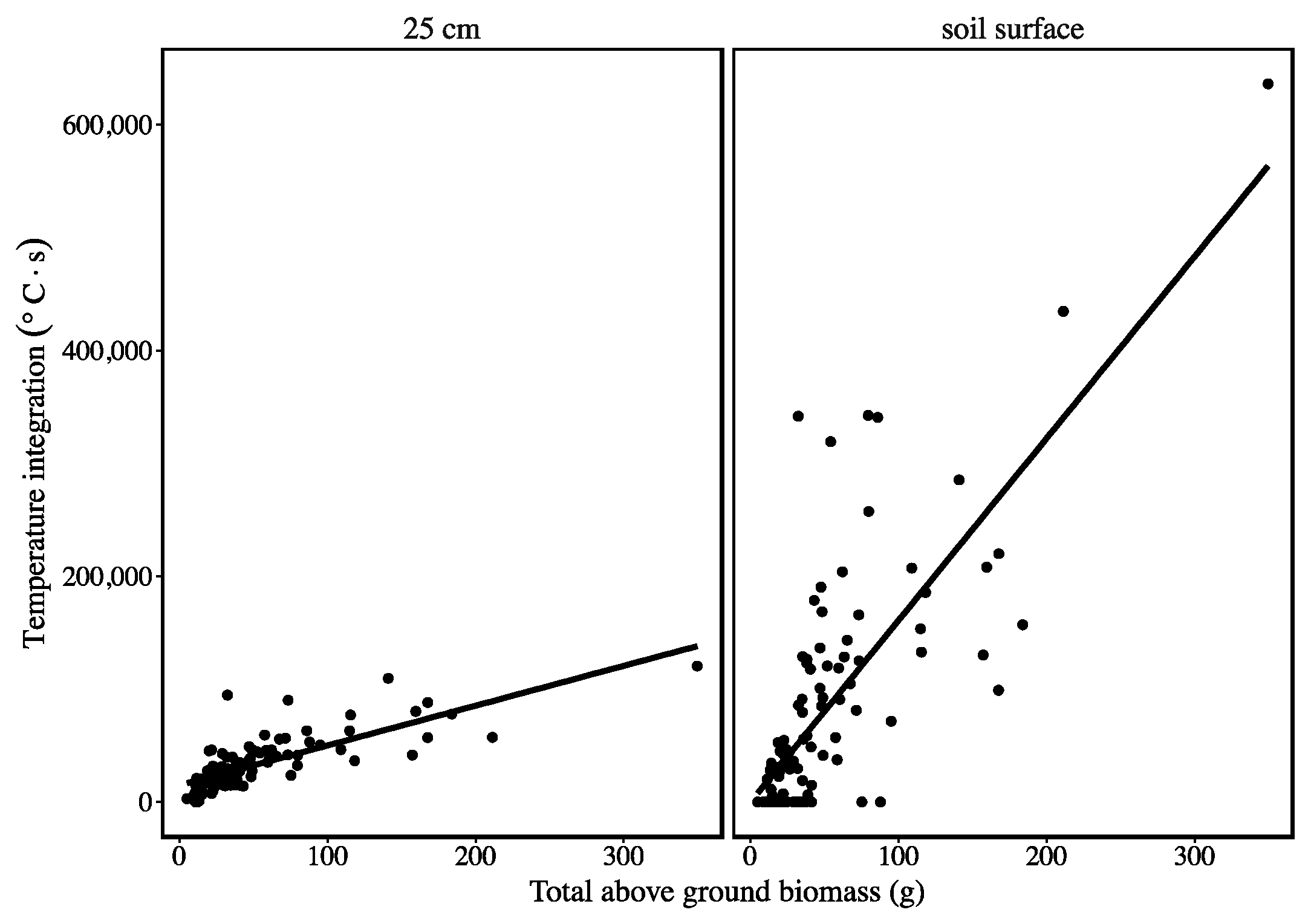

Total above-ground biomass positively influenced temperature exposure, which is consistent with previous grass flammability studies [17
]. At identical low-fuel moisture content (average fuel moisture content: 5 ± 0.005%), grasses that accumulate more above-ground biomass will result in higher temperature exposure in plant tissues at both soil surface and at 25 cm above the ground.

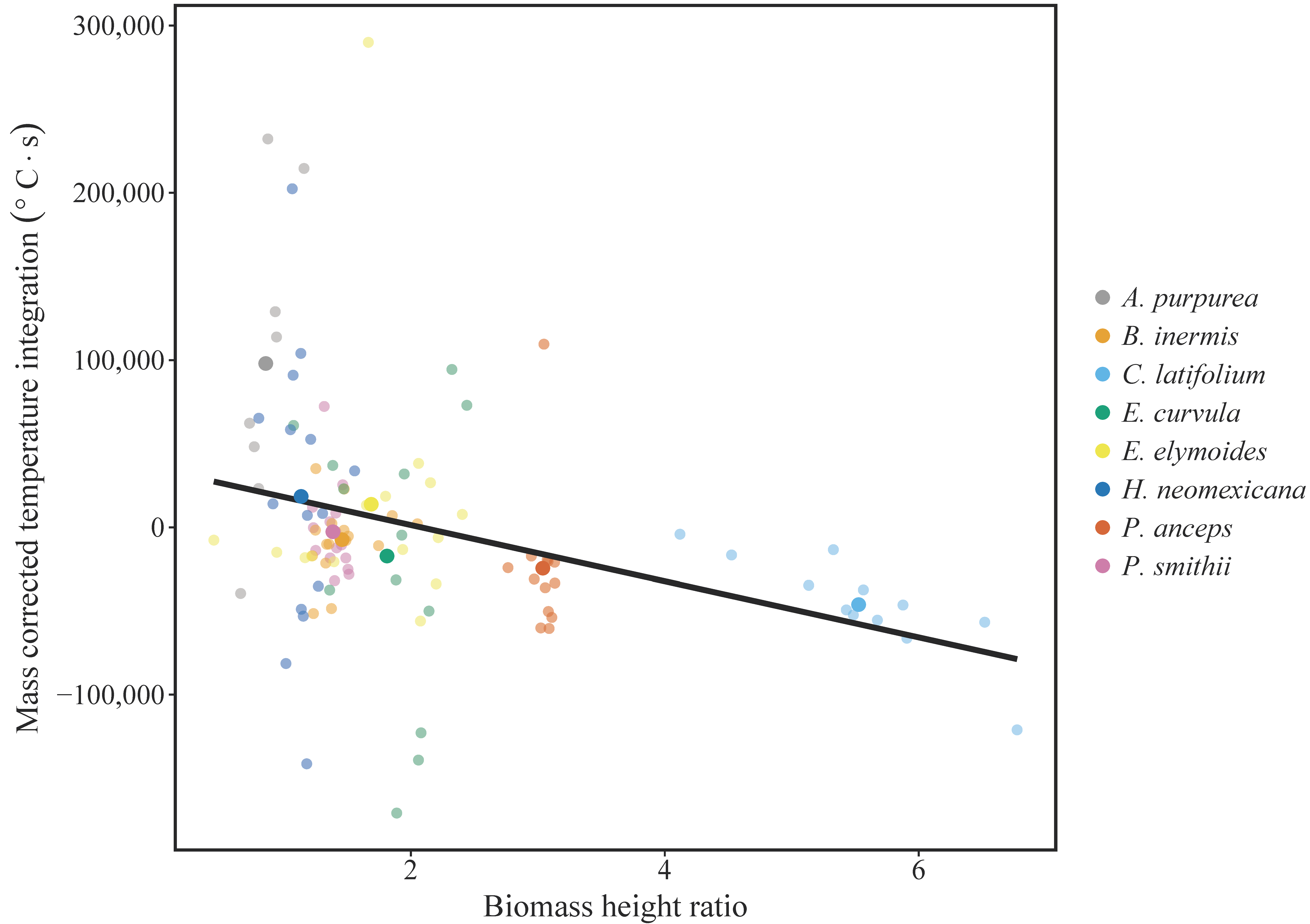

Although total above-ground biomass had strong positive effects on cumulative temperature at different locations, biomass-height ratio had an additional negative effect on temperature integration at the soil surface. Larger biomass-height ratios indicated relatively less fuel near ground level and therefore less heat release at the soil surface, causing lower temperature integration above 100 °C. Much of the variation we observe occurs at the species level—biomass-height ratio is relatively consistent within a species (Table 2
). One species is an exception, however. C. califolium
was variable in biomass-height ratio (range of 4–7), and the within-species pattern supports the overall pattern. Surface cumulative temperature predicts soil heating and meristem survival [53
]. Biomass-height ratio has the potential to influence the ecological effects of fire. Vegetative recruitment via surface or below-ground meristems is an important reproduction method that contributes to the maintenance and dynamic of grasslands. Recurrent grass fires can stimulate vegetative reproduction in grasses by changing soil physical and chemical characteristics and increasing light availability while protecting meristems via a relatively low soil surface temperature [3
]. However, increased temperature exposure in plant tissues at the soil surface, which is usually due to prolonged smoldering combustion, because this type of surface fire moves slowly yet with relatively high total heat release, still can suppress post-fire resprouting in grasses [53
]. Grass-driven fire usually has a lower surface temperature and shorter fire residence time compared to other fuels [3
], but grass mortality can occur at accumulated temperatures lower than many measured in our study. For example, mortality of Hesperostipa comata
can occur after 3.4 min at 72 °C (equivalent to 14,688 °C·s) [57
]. Increased fuel load, especially fuel load near ground, may push heat penetration into soil to surpass the lethal thermal threshold of surface and below-ground meristems in some species. The architectural effect we report demonstrates that even relatively low biomass species such as A. purpurea
may cause tissue-killing soil heating if they have low biomass-height ratios.
Cumulative temperature at 25 cm was driven by total above-ground biomass alone. We expected that biomass-height ratio would increase canopy level heat release to cause higher temperature exposure, but we did not find any such effect. Canopy heating predicts post-fire woody species mortality by causing vascular cambium necrosis in bole and vegetative buds necrosis in the crown [25
]. Although plant responses to crown or bole heating also depend on bark thickness and distribution of vegetative buds [59
], with more heat release resulting in higher temperature exposure in plant tissues, fires usually result in higher mortality rate [61
]. Canopy heating may also contribute to xylem dysfunction, and this is another pathway of fire-induced tree mortality [29
]. Although fuel load alone does positively affect cumulative temperature at 25 cm, an increase in fuel load did not always lead to increased canopy temperature exposure in some species. We observed homogeneity in temperature exposure at 25 cm in our two largest studied species: E. curvula
(mean total above-ground biomass 132.5 g) and H. neomexicana
(mean total above-ground biomass 74.1 g) resulted in similar mean temperature integration and duration of heating above 100 °C at 25 cm despite the difference in fuel load (Table 2
). Such homogeneity also occurred in small-sized plants, for example, A. purpurea
and E. elymoides
. Because we did not find any weather effect on this flammability measurement, it is possible that some unexamined plant traits such as leaf chemistry had influence on temperature exposure at the canopy level. Canopy heating is largely determined by flaming combustion [33
]. Flaming time, however, is negatively correlated with leaf nitrogen and phosphate concentration [66
]. Tissue phosphate content also has a direct negative effect on total heat release during combustion by favoring char formation [12
]. In addition, although leaf effective heat of combustion was a weaker predictor for grass flammability compared to fuel load, it negatively influenced flaming time at plant level [21

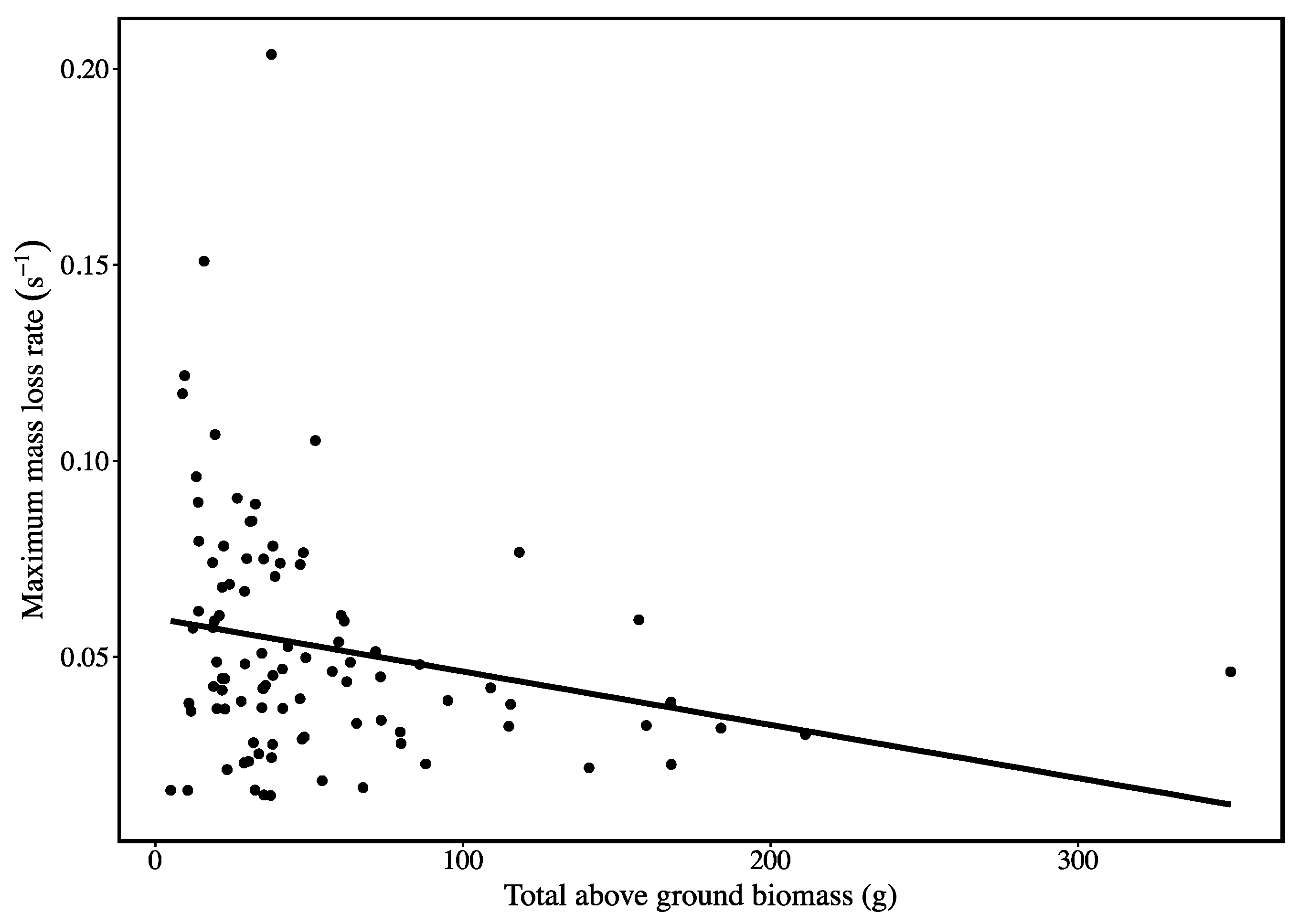

We found a negative effect of fuel load on the rate of heat release without detecting any additional canopy architecture or humidity effects. In prior grass flammability studies, fuel load positively affected fire intensity, which was measured either by maximum combustion rate or by flame length [21
]. The negative effect of fuel load on maximum biomass-loss rate, however, was mainly driven by the two largest species in our study and fuel load only explained 4% of the total variation (Figure 5
). Most of the variation in maximum biomass-loss rate occurred across individuals and was pronounced among small plants (total mass < 50 g, fuel density range: 0.0001 g cm−3
–0.002 g cm−3
). The lack of relationship between rate of heat release and the measured traits, therefore, could result from the mass-loss readings of small-sized plants being more easily affected by air currents. Future improvement in measuring maximum biomass-loss rate is required.
In contrast with previous grass flammability studies, we examined canopy architecture effects by burning whole individuals rather than partial canopies. However, there are two shortcomings in our experiment. First, the two plant traits by which we characterized canopy architecture were correlated with one another with a correlation coefficient of −0.51. Therefore, it is impossible to isolate the effects of biomass density and biomass-height ratio. Fill et al [43
] found a positive effect of biomass density on smoldering time in Aristida stricta
, which suggested that increase in biomass density could also lead to prolonged soil heating. Thus, the observed canopy architecture effect on temperature exposure at soil surface could result at least in part from interspecies variation in biomass density despite our model results favoring biomass-height ratio. The second potential shortcoming in our work is that we burned air-dried grasses to standardize fuel moisture content in order to better isolate canopy architecture affects. However, as one of the most important fuel traits, fuel moisture content dampens combustion by increasing the amount of energy required to preheat and dehydrate fuels [8
]. Therefore, grasses with higher fuel moisture content will combust inefficiently, which would lead to prolonged smoldering combustion and produce smoke that can modify biomass density effects on aeration. Future work needs to determine what grass traits can affect fuel moisture content, which in turn will influence grass fire behavior. Some candidate grass traits include leaf dimension (which influences water absorption and loss [67
]) , fuel structure at the dormant stage (which influences water retention [68
]), and phenology [69
A hypothesis to test in future work is that grass flammability varies between shade-tolerant and shade-intolerant species. Although fires can favor grasses by decreasing competition for light, in many woodlands and savannas, grass species show local habitat differentiation, with some species being restricted to open habitats and others persisting under tree canopies [70
]. If enhanced flammability is beneficial to grasses because it leads to reduced tree-cover and decreases competition for light, we would expect the greatest benefit to shade-intolerant species. Thus, it is possible that shade tolerance and enhanced flammability are evolutionary correlated or that enhanced flammability is selected against in tree-associated grasses. Anecdotal evidence in support of this is that the two shade-tolerant species (data from USDA plants database) in our study were the two least flammable species (Table 2
). In addition, top-heavy canopy architecture is associated with low light habitats: Elongated internodes place photosynthetic leaves higher into canopy to reach more light [72
]. Moreover, grasses growing underneath tree canopies tend to have higher fuel moisture content relative to those persisting in open areas because of reduced solar radiation.
In fire-dependent savannas, hot and rapidly spreading grass fires suppress trees and favor grasses. Therefore, grass-fueled fire is a positive feedback that can lead to alternative stable states (either prairies or closed-canopy woodlands [74
]). Researchers trying to understand such fire-mediated tree-grass interactions usually tend to treat grasses as homogenous fuels, and less attention has been paid to such interactions between different grasses and their woody competitors [7
]. The observation that the tree-grass mix in savannas appears to be unstable due to positive feedback has prevented the explanation of long-term species composition stability [75
]. The positive effect on soil heating by bottom-heavy biomass allocation pattern in grasses, however, may influence this positive vegetation-fire feedback on a fine scale depending on both post-fire recovery traits in trees and meristem allocation in grasses. For example, increased temperature exposure at soil surface could have greater impact on trees with thin bark and have a lesser impact on grasses with meristems protected underground. For such cases, low biomass-height ratio would strengthen the positive grass-fire feedback. On the other hand, for trees that survive fires mainly through aerial resprouting and are mostly susceptible to canopy heating, the effect we describe would have less impact. Our study highlights the need to include species-specific variation in flammability traits in the understanding of this process.
