Article

Development of Intelligent Drone Battery Charging System Based on Wireless Power Transmission Using Hill Climbing Algorithm

1
Department of Electrical, Electronics and Information Engineering, Kunsan National University, Gunsan-Si 573-360, Korea
2
Department of Control and Robotics Engineering, Kunsan National University, Gunsan-Si 573-360, Korea
*
Author to whom correspondence should be addressed.
Appl. Syst. Innov. 2018, 1(4), 44; https://doi.org/10.3390/asi1040044
Received: 13 September 2018 / Revised: 31 October 2018 / Accepted: 5 November 2018 / Published: 7 November 2018

Abstract

:
In this work, an advanced drone battery charging system is developed. The system is composed of a drone charging station with multiple power transmitters and a receiver to charge the battery of a drone. A resonance inductive coupling-based wireless power transmission technique is used. With limits of wireless power transmission in inductive coupling, it is necessary that the coupling between a transmitter and receiver be strong for efficient power transmission; however, for a drone, it is normally hard to land it properly on a charging station or a charging device to get maximum coupling for efficient wireless power transmission. Normally, some physical sensors such as ultrasonic sensors and infrared sensors are used to align the transmitter and receiver for proper coupling and wireless power transmission; however, in this system, a novel method based on the hill climbing algorithm is proposed to control the coupling between the transmitter and a receiver without using any physical sensor. The feasibility of the proposed algorithm was checked using MATLAB. A practical test bench was developed for the system and several experiments were conducted under different scenarios. The system is fully automatic and gives 98.8% accuracy (achieved under different test scenarios) for mitigating the poor landing effect. Also, the efficiency η of 85% is achieved for wireless power transmission. The test results show that the proposed drone battery charging system is efficient enough to mitigate the coupling effect caused by the poor landing of the drone, with the possibility to land freely on the charging station without the worry of power transmission loss.

1. Introduction

1.1. Introduction and Motivation

The quadcopter, also known as a quadrotor, is a type of unmanned aerial vehicle (UAV), lifted and propelled by four rotors [2,3]. Quadcopters use two pairs of identical fixed pitched propellers: two clockwise and two counter-clockwise. The quadcopter has high maneuverability, as it can hover, take off, cruise, and land in narrow areas. It also has a simpler control mechanism compared to other UAVs [4] and is equipped with different components such as an inertial measurement unit (IMU), a global positioning system (GPS), an electronic speed control (ESC), a standard radio control (RC), a radio-frequency module (RF) used to transmit live videos to a personal computer (PC), and a flight controller [5,6].
The quadcopter is used for applications such as surveillance, search and rescue, and object detection [7,8,9]. As mentioned earlier, a quadcopter with two pairs of fixed pitched propellers has a very short operation time because it has to generate lift force all the time to move around, which requires high electrical power. Batteries are used as an electrical power source in quadcopters; however, because of the high electrical power requirement, the normal operation time of a quadcopter is just 20 to 30 min [10]. This limits the quadcopter flight range and operation time drastically, and accordingly, the quadcopter might not be able to fulfill the purpose of its use in a specific application. Generally, to continuously operate quadcopters, the batteries are changed or recharged after the normal operation time.
These batteries can be recharged using wired power transmission which requires some physical connection or via wireless power transmission which does not require any physical connection. Even though wired power transmission is more efficient than wireless power transmission, the wireless power transmission technique is currently utilized for its lower maintenance and increased safety (due to no physical connection of wires) for the delivery of power [11,12]. In order to charge the battery using wireless power transmission, the quadcopter is equipped with electromagnetic coils. These coils can be single or multiple depending upon the size and design of the charging system. Generally, a wireless power transmission system is composed of a transmitting and a receiving side. Both the transmitting and receiving sides are equipped with coils to transfer the power from the source to load. The battery with the receiving coil is installed on the quadcopter and the transmitting side is normally a ground station composed of a transmitting coil. For efficient power transmission, it is necessary that the quadcopter land on the ground station in such a way that the receiving and transmitting coils are aligned properly; however, due to the poor landing effect of quadcopters, there is always a chance of misalignment. This misalignment causes power loss and affects the efficiency of the charging system. To eliminate this misalignment issue, there is a need to develop a system which can easily mitigate the poor landing effect. For that, a charging system is proposed in this work which can cope with such issues and increase the power transmission efficiency.

1.2. Related Works

Previously, there were different researches on wireless power transmission. In References [13,14], continuous inductive coupling in radio-frequency identification (RFID) tags were implemented. In References [15,16], a wireless power technique based on an inductive coupling mechanism was used for medical implants. Few wireless power systems for robotic applications were developed using a large array of smaller coils driven by microelectromechanical systems (MEMS) switches and organic field effect transistors to selectively transmit wireless power [17]. Some researchers developed efficient wireless power transmission systems by designing a switched-mode direct current/alternating current (DC/AC) inverter based on Class E topology [17,18,19,20,21]. Recently, there were many researches on power control in wireless power transmission. In References [22,23,24,25], the authors proposed a microcontroller-based power control method. In Reference [26], the authors developed a power control scheme using analog feedback circuits. Some researchers used the closed-loop power control technique using a commercial off-the-shelf (COTS) chipset [27,28,29].
For wireless charging of drones, some authors proposed laser beam systems which deliver the power directly to the drone [30]. Solar energy to support a drone’s long flight time was proposed in Reference [31]. Charging docking stations to recharge the drone battery were proposed in Reference [32]. Some authors applied smart contact arrays [33], whereas some proposed a drone charging station [34]. In Reference [35], the authors presented an approach based on optimal designing of the transmitting and receiving coil with the goal of becoming less sensitive to the misalignment of coils. The system was composed of a charging station with multiple arrays of primary or transmitting coils with a specifically designed secondary or receiving coil. The receiving coil was designed to perfectly fit in the landing skid of the drone. The authors proposed a transmitting coil overlapping scheme to entirely cover the charging area on the charging station. By calculating the impedance of the multiple transmitting coils and choosing the transmitting coil with maximum impedance, power transmission between the transmitting and receiving coil was achieved. In Reference [36], the authors presented a target detection technique based on image processing. After landing, the center of the coil was aligned with the transmitting coil using a specific color detection and image-processing scheme. The image-processing algorithm worked by taking the images using a drone camera and converted red/green.blue (RGB) color space to hue/saturation/value (HSV) color space. After applying some filters, the red color was detected and considered as a target. In References [37], the authors presented a positioning system using a binary distance laser sensor and ultrasonic sensors. The system was composed of a charging station comprising a single transmitting coil and a drone equipped with a single receiving coil. The system worked by detecting the position of the receiving coil and aligning the transmitting coil with it for wireless power transmission. The positioning system took almost 5 s to detect and align with the receiving coil. Using sensors, the system complexity increased; it required specific places and areas for installation on the drone and the charging station.

1.3. Contribution of the Paper and Road Map

To solve the problem of misalignment of coils caused by the drone’s imperfect landing, a battery charging system based on wireless power transmission was developed in this work. The system is composed of a ground charging station and a receiving coil with the load. The charging station is equipped with multiple transmitting coils, whereas, on the receiver side, just one receiving coil is used. Multiple transmitting coils are placed on a movable bed which can move in four directions (positive X-direction, negative X-direction, positive Y-direction, and negative Y-direction). A control technique based on the hill climbing algorithm was implemented to control the alignment between the transmitting and receiving coil. The system was developed in a way allowing the drone to land freely on the charging station without the worry of alignment between the receiving and transmitting coil. The drone can land freely on charging station and the coils will adjust automatically in proper alignment to start the power transmission. Previously, the misalignment issues were solved using different methods, such as the design of a charging station with overlapped coils [35], using a target detection technique based on image processing [36], and using a positioning system based on physical sensors [37]. The proposed system is based on a novel method which uses the hill climbing algorithm on backscattered voltage signals of the transmitting coils. It improves the accuracy of the system and eliminates the flaws found in previous techniques such as the image-processing technique, where there are chances of missing the target. Also, it gives the freedom for the drone to land freely on a charging station and makes the system more adoptable by avoiding the use of physical sensors. The configuration of the proposed system is discussed in detail in Section 2.

2. Configuration of the Proposed Wireless Battery Charging System for a Quadcopter

Figure 1 shows the proposed wireless battery charging system for a quadcopter. The system is composed of the following three parts:
  • Wireless power transmitter, comprising transmitting coil array which can move in four directions.
  • Wireless power receiver, a receiving coil, and battery charger.
  • Control unit which can measure the terminal voltage of each transmitting coil, and align the centroid of the transmitting and receiving coil using the hill climbing algorithm.
The proposed wireless battery charging system consists of multiple transmitting coils which can be moved in four directions (positive X-direction, negative X-direction, positive Y-direction, and negative Y-direction). The use of multiple coils can potentially allow the system to efficiently adapt to magnetic field propagation conditions, similar to the way multiple antennas are used to adapt to channel conditions in wireless communication systems [38]. Also, multiple transmitting coils decrease the time for coil alignment, providing a chance for the design of big charging stations for large drones, where coil size and design are limited due to power transmission characteristics. In this proposed system, if a drone with a receiving coil lands at any position on the multiple transmitting coils, the voltages across the transmitting coils decrease depending on the coupling of each transmitting coil with the receiver coil, and the controller knows where the drone lands by observing the change in terminal voltages of the multiple coils. When the power is transferred from the transmitting coil to the receiving coil, the terminal voltage of the transmitting coil tends to decrease due to the phenomenon called signal backscattering. By observing the backscattered signal from each transmitting coil, the controller automatically knows which transmitting coil is nearest to the receiving coil. If the controller pinpoints the nearest transmitting coil, the multiple transmitting coil array is moved to automatically align the centroid of the detected transmitting coil with that of the receiving coil using the hill climbing algorithm. The practical system used to implement the proposed system comprises a receiver circuit for battery recharging and a power transmission station.

2.1. Transmitter and Receiver Circuit Design and Description

Figure 2 shows a simple wireless power transmission circuit. The circuit comprises a transmitter circuit, a receiving circuit, and the control part (voltage divider and analog-to-digital converter (ADC) of the microcontroller). The power amplifier drives the transmitting coil L t . When the receiving coil is brought near to the transmitting coil, the voltage at receiving coil L r is induced and it is processed by a bridge rectifier to convert AC to DC voltage. To achieve the optimum performance, values of C t ,   L o ,   C o , and C r are calculated using Equations (1) to (4).
C r = R 0 L r ± 1 2 ω M 2 R 0 ω 2 L r 2 ;
C 0 = ω 1 ω L t ( 1 K 2 ) + R 0 ( Q + 1 sec ( φ ) ) ;
C t = ( 2 ω 1 ) 1 + π 2 4 R ;
L 0 = ω 1 Q R 0 .
In the above equations, M is the mutual inductance, K is the coupling factor, Q is the quality factor between the transmitting and receiving coils, and φ is the phase angle ranging from 40° to 70°. The derivation of the equations for a Class-E amplifier can be found in Reference [39]. Transmitting coils and the receiving coil are made of copper wire with 15 and 40 turns, respectively (Table 1 and Table 2). According to the power transmission range capabilities, wireless power transmission can be categorized into three types [40,41]. First is the inductive power transmission (IPT) and capacitive power transmission (CPT), used for short-range distances; second is the resonant inductive coupling power transmission, widely used for medium-range distances; and third is the laser beam or microwave power transmission, used for long-range distances. In order to achieve high efficiency, inductive coupling requires very close coupling between the transmitting and receiving coil. Whereas, in resonant inductive coupling, efficient power transmission can be achieved with some distance between the transmitting and receiving coil via the use of resonant circuits. Also, resonant inductive coupling has better tolerance than inductive coupling. Therefore, the resonant inductive coupling is considered an effective technique for coping with the coil misalignment issues, and for drone battery charging systems. Therefore, in this work, a resonance inductive coupling-based wireless power transmission technique was used for charging the drone battery. The detailed block diagram of the circuit for wireless power transmission is shown in Figure 3. At the transmitter side, Class-E power amplifiers are used to generate amplified AC voltages with a resonance frequency of 240 kHz for each coil.
These amplifiers are driven by a high-frequency clock signal. The clock signal is provided to the gate driver of each amplifier of the respective transmitting coil simultaneously. A microcontroller is used for generating a high-frequency clock signal and it keeps measuring the output voltages of each transmitting coil using an ADC, and performs envelop detection of the measured voltages to identify which excitation coil is the closest to the receiving coil of the drone.
At the receiving side, the receiving coil is installed on the drone and it is connected to a full bridge rectifier, which is used to convert the AC to DC. Finally, a battery charger (DC to DC converter) is used for battery charging. The system works by detecting the change in the voltage of any of the envelope-detected voltage signals of the transmitting coils, which (changes in voltage) refer to the presence of the receiving coil on the charging station. After detecting the receiving coil, a control algorithm is activated to align the coils and start wireless power transmission.

2.2. Four-Way Directional XY Table

A four-way directional XY table was constructed to control the position of the transmitting coil array, as shown in Figure 4. The XY table is controlled by two stepper motors that are driven by two stepper motor drivers. Motor 1 is responsible for moving the transmitting coil array in the Y-direction, while motor 2 is responsible for moving it in the X-direction. When the quadcopter approaches the charging station, the transmitting coil, already excited having a constant voltage, experiences a change in voltage. This change in voltage refers to the presence of the receiving coil and load (battery). By measuring the voltage change from each transmitting coil, the charging station is moved in a direction where one of the transmitting coils is aligned to the receiving coil. The controller sends the required pulse width modulation (PWM) signals to the stepper motor driver to move the transmitting coil array to the proper position to initiate the wireless power transmission and battery charging.

2.3. Control Part

The control part of the proposed system performs specific tasks such as generating the clock signal for driving transmitting coils, monitoring each coil’s terminal voltage, and controlling the four-way XY table to align the centroids of the transmitting and receiving coils.
Generally, it is not easy to land a drone at a specific point on the drone station precisely. In most cases, the centroids of the transmitting and receiving coil are misaligned, as shown in Figure 5.
When the misalignment between the coils happens, the efficiency of the wireless power transmission deteriorates. In order to solve this problem, an intelligent automatic alignment algorithm based on the hill climbing algorithm is proposed and implemented.
The automatic alignment algorithm was implemented inside a microcontroller. The microcontroller keeps measuring the terminal voltages of each transmitting coil simultaneously, and finds out which transmitting coil has the lowest voltage. Generally, when the receiving coil of the drone is near to a certain transmitting coil, the corresponding transmitting coil’s terminal voltage tends to decrease. Therefore, the microcontroller can detect the transmitting coil with a voltage difference and, from this moment on, the microcontroller tries to align the centroid of the transmitting coil with the receiving coil by moving the four-way directional XY table.

2.3.1. Signal Backscattering

Signal backscattering is a phenomenon basically used in wireless communication for RFID (radio-frequency identification). The transmitting side voltage tends to decrease by increasing the coupling between the transmitting and receiving coils. When the drone lands on the charging station, the XY table starts the aligning process and, during the time of movement, the voltage at the transmitting side decreases rapidly. This change in voltage produces a natural backscattered signal. This backscattered signal at a very high sampling frequency of 84 MHz is continuously read by the ADC of the microcontroller. Figure 6 shows the sampling process of the voltage signal during one period of time for aligned (transmitting coil voltage at load) and misaligned (transmitting coil voltage at no load) coils. Inside of the microcontroller, an envelope detection algorithm is used to detect the envelope of the backscattered signal. After the detection of an envelope, the peak value of the voltage signal is selected and this peak value is observed continuously to provide the information about aligned or misaligned coils. In the case of aligned coils, the peak value will be very low (almost 25 V; Figure 6) and, in the case of misalignment, the peak value will be high (almost 70 V; Figure 6). The hill climbing algorithm processes this voltage information data and finds the optimum solution by moving the XY table in a specific direction and aligning the transmitting and receiving coils.

2.3.2. Hill Climbing Algorithm

Hill climbing is an optimization technique that is used to find an optimum solution to a computational problem. It starts off with a solution that is normally very poor compared to the optimal solution and then iteratively improves from there. It does this by generating other solutions which are better than the current solution. It repeats the process until it finds the optimal solution where it can no longer find any improvements.
Generally, drones tend to land at any place upon the drone’s wireless battery charging station. That means the centroid of the receiving coil on the drone may not be aligned with any of the transmitting coils. In this case, transmitting coils are moved using the XY table in an arbitrary direction to get closer to the receiving coil. By measuring terminal voltages of each transmitting coil, the controller can detect whether the receiving coil gets closer to one of the transmitting coils. This kind of arbitrary movement of the XY table continues until it detects the decrease in terminal voltages of the transmitting coils, as shown in Figure 7. When one transmitting coil, which corresponds to transmitting coil 2 in Figure 7, is chosen, the hill climbing algorithm is activated to move the transmitting coil to the proper position where the voltage measured from that transmitting coil reaches its minimum.
Figure 8 shows the overall flowchart of the proposed method. Figure 9 shows the flowchart of the hill climbing algorithm used in this system. Previously, authors tried to solve a different kinds of control problems using the hill climbing algorithm [42,43]. In this work, the hill climbing algorithm starts by sending the required PWM value to the stepper motor driver to move the XY table. At the start, when there is no change in the voltage, i.e., the drone is not on the charging station, there is no movement and the voltage of the transmitting coil is constant. When the drone lands on the charging station, there is a change in the voltage value, and the voltage decreases in the presence of a drone with a receiving coil. The hill climbing algorithm is activated and one transmitting coil with the maximum change in the voltage value is selected. The current terminal voltage V n of the selected coil is measured and compared with the previous measured voltage V n 1 . The minimum value is stored as V m i n . After that, the controller sends the required PWM to move the XY table to the position of the minimum value. This kind of process keeps repeating until it reaches the minimum voltage. In Figure 9, n = 1   to   4 is the number of transmitting coils, and k is the number of the sample.

3. Explanation of the Test Bench

In order to verify the feasibility of the proposed algorithm, we made a test bench of a wireless power transmission and battery charging station for the drone. The developed test bench is shown in Figure 10. The test bench was composed of four transmitting coils which are mounted on the four-way XY table, one receiving coil connected to an electrical load, and a controller which performs the measurement and hill climbing algorithm.

3.1. Battery Charging Station

The battery charging station was built using an XY table. The XY table is used to move the transmitting coil array to the position where the centroid of the transmitting coil is aligned with the centroid of the receiving coil using the hill climbing algorithm. The dimensions of the XY table were 394   mm × 414   mm × 93.6   mm   ( l × w × h ) . The main frame of the XY table was made of aluminum and the rectangular plate, where the coils are placed, was made of a plastic sheet with a thickness of 2.5 mm. Four transmitting coils were placed on top of the rectangular plate within the XY table and they were controlled by two stepper motors for positioning.
In this work, four excitation circuits for the four transmitting coils were developed. Each transmitting coil was connected to the excitation circuit. A gate voltage of 15 V and a supply voltage of 12 V were applied to the IRF510 metal-oxide-semiconductor field-effect transistor (MOSFET), and it was driven by a low-power 240 kHz clock signal, generated by the microcontroller. A voltage divider circuit was also built to decrease the output voltage into a voltage that was readable by the controller. Based on the proposed method and the equations presented in Reference [40], the optimum values of the electrical components for the excitation circuits were calculated. Table 1 shows the component values used in the excitation circuit, and Figure 11 shows a closer view of the excitation circuits and controller.

3.2. Receiving Coil and Electric Load

When the drone lands on the battery charging station and the XY table starts moving the transmitting coil array to the proper position using the hill climbing algorithm, the transmitting coil starts to couple inductively with the receiving coil. This inductive coupling between the coils induces voltage in the receiving coil. The receiving coil is connected to the receiving circuit as shown in Figure 3. The induced voltage at L r is processed by a full-wave bridge rectifier to convert AC to DC. In this system, rectification is achieved via four insulated-gate bipolar transistors (IGBTs), designed to work on high-frequency AC input signals. The output voltage is obtained across the load resistor R L o a d . Table 2 shows the component values used in the receiving circuit, and Figure 12 shows a closer view of the receiving circuit and receiving coil.

3.3. Controller

In order to perform the control tasks, an STM32f4 discovery kit featuring a 32-bit ARM Cortex-M4 was used. It can generate up to a 168-MHz clock signal. It also supports ADC with 19 channels and 12-bit resolution. The controller was used to generate 240-kHz clock signals for the four excitation circuits and it read the terminal voltage of transmitting coils simultaneously.
When the drone lands on the battery charging station, the controller sends different PWM values to the two stepper motor drivers to move the XY table in random directions. At the same time, the controller keeps measuring the output voltage of the four transmitting coils. Once there is a drop in the voltage across one of the transmitting coils, the controller triggers the hill climbing algorithm and sends the required PWM to the stepper motor drivers until it measures the minimum voltage value where both the centroids of the transmitting and receiving coils are aligned; then, the hill climbing algorithm stops working, and the wireless power transmission begins until the drone is fully charged.

4. Experiments and Results

Several experiments are conducted with a test bench in order to verify the feasibility of the proposed scheme. The system was tested under different test scenarios depending on the drone landing position on the charging station. The receiving coil attached with load was placed at different positions on the charging station and the response of the system was observed. In one test scenario, the system was tested for the misalignment of x = 100 mm and y = 50 mm, whereas in other test scenarios, the misalignment was x = 75 mm, y = 30 mm and x = 50 mm, y = 10 mm. Regardless of the position of the receiving coil, the charging station was able to perfectly align the centroid of the transmitting and receiving coil with an accuracy of 98.8%. Figure 13 shows one of the test scenarios. Initially, we assumed that the receiving coil and four transmitting coils were positioned as shown in Figure 13a. At the start, the XY table was moved randomly until the receiving coil got closer to one of the four transmitting coils. During this process, the microcontroller kept measuring the four terminal voltages simultaneously. By detecting the voltage drop between all four transmitting coils, the microcontroller activated the hill climbing algorithm and the XY table was moved to align the nearest transmitting coil with a receiving coil. The distance and position of the nearest transmitting coil were judged on the basis of the voltage drop. The closer the transmitting and receiving coil, the larger the voltage drop would be due to power transmission between the two coils. As shown in Figure 13b,c, after the random movement of the XY table, transmitting coil 1 was found as the nearest coil to the receiving coil. Then, the hill climbing algorithm was activated by the microcontroller and the XY table moved to align transmitting coil 1 with the receiving coil. Figure 14 shows the recorded voltage waveforms for the scenario shown in Figure 13. It can be seen clearly that the voltage of transmitting coil 1 decreased, red in the case of Figure 13a, green in the case of Figure 13b, and blue in in the case of Figure 13c. Figure 15 shows the voltage of other transmitting coils under load (wireless power transmission) and no load (normal) condition.
The system was designed for the transmission power of P t x = 60   W . Figure 16 shows the output power at the load resistance R L under different test scenarios. The misalignment distance between the coils was changed and the load power P L response was observed. The maximum load power P L was measured to be 52 W, which gives an efficiency η of 85%. It can be observed in Figure 16 that, as the distance of misalignment between the transmitting and receiving coils increased, the time taken by the charging station (XY table) to properly align to the nearest possible coil also increased. In the case of a misalignment of x = 100 mm, y = 50 mm, it took almost 1.85 s to properly align the coils and transfer the power with designed efficiency. For misalignments of x = 75 mm, y = 30 mm and x = 50 mm, y = 10 mm, the time to align the coils was almost 1.58 s and 1.5 s, respectively. In a time ranging between 1.5 s and 1.9 s, the misalignment caused by the imperfect drone landing was eliminated and the power transmission was increased to the maximum power.
In order to validate the hill climbing algorithm, the data obtained from the practical test bench was used in MATLAB and simulations were carried out to assure the feasibility of the algorithm. Figure 17 shows the trajectory of the XY position for one transmitting coil in a three-dimensional space. It can be seen that, at the start, there is no voltage drop and the XY table is moved to a random position. After two random movements, the position with the minimum possible voltage value is selected and, from that position, the hill climbing algorithm is activated and it keeps finding the best possible positions to align the transmitting and receiving coils until the minimum level is achieved. Once the minimum level is achieved, the transmitting and receiving coils are aligned properly and wireless power transmission starts with full efficiency.
The results obtained from the test bench shows that the proposed system is quite efficient in resolving the misalignment issue. The power transmission efficiency of 85% is reasonable for resonant inductive-based wireless power transmission, while also reducing the need for the implementation of complex tracking and landing algorithms for the drone. The time to align the centroid is also minimized due to the use of the hill climbing algorithm. The drone is free to land anywhere on charging station and, within a time of just 2 s, the centroid of the coils are aligned properly and the power transmission loss is mitigated.

Comparative Study

A comparative study of the proposed and previously presented solutions for drone imperfect landing (misalignment issues) is presented in this section. The system is compared with three solutions presented in Reference [37,38,39].
In Reference [37], the authors presented an approach based on the optimal design of the transmitting and receiving coils with the goal of becoming less sensitive to the misalignment of coils. The system was composed of a charging station with multiple arrays of primary or transmitting coils with a specifically designed secondary or receiving coil. The receiving coil was designed to perfectly fit in the landing skid of the drone. The authors proposed a transmitting coil overlapping scheme to entirely cover the charging area on the charging station. By calculating the impedance of the multiple transmitting coils and choosing the transmitting coil with maximum impedance, power transmission between the transmitting and receiving coils was achieved.
This system works well for a specific type of drone with some specific dimensions; however, if the size and dimension of the drone (physical size) changes, a whole new design of the charging station is required, and the transmitting coils will need to be readjusted again with some proper overlapping to cover the charging area properly.
On the other hand, our proposed system has non-overlapped multiple transmitting coils which can be moved in four directions. Furthermore, the proposed system utilizes the feature of backscattering which generally happens in wireless communication in order to identify the most closely coupled receiving coil among them. Even though the closely coupled receiving coil is detected, a further fine alignment of the centroids of the transmitting coil and the receiving coil is required to obtain efficient wireless power transmission by moving multiple transmitting coils. The proposed system is autonomous and totally free from the physical dimensions of the drone; it just needs to detect a receiving coil. This coil could be placed at any part of the drone where it can come in contact with any of the multiple transmitting coils placed on the charging station. The drone can land at any part of the charging station and, within just 1 to 2 s (min to max, depending on the distance of misalignment), the coils would be properly aligned with a strong coupling factor.
In Reference [33], the impedance of the transmitting coils was monitored, which requires some current and voltage sensors to provide the measured value at every instance of charging operation. It increases the complexity of the charging station and requires more electronic components. On the other hand, in our case, the voltages of the transmitting coils are enough to ensure proper alignment between coils. Regarding power transfer capabilities and efficiency, in Reference [37], the authors presented results based on the efficiency of wireless power transmission. The results showed that the efficiency of the system changed and decreased when there was misalignment between the coils. The efficiency met the minimum level requirement of 75% in all cases; however, upon misalignment, there was a reduction in efficiency from 88% (normal; no misalignment) to 83% (100-mm misalignment) and 78% (200-mm misalignment). In our system, the efficiency will always be the same (normal; no misalignment) because there is no misalignment and power transmission is done after ensuring this.
In Reference [38], the authors presented a target detection technique based on image processing. After landing, the center of the coil was aligned with the transmitting coil using some specific color detection and image-processing scheme. The image-processing algorithm worked by taking the images using a drone camera and converted RGB color space to HSV color space. After applying some filters, the red color was detected and considered as a target.
There is always a chance of a failure in such a scheme contingent upon the outer environment and weather conditions; research work is still being pursued to improve such image-processing techniques. In our work, the drone is independent of such outer environmental uncertainties and the system works autonomously with the use of the hill climbing algorithm.
In Reference [39], the authors presented a positioning system using a binary distance laser sensor and ultrasonic sensors. The system was composed of a charging station comprising a single transmitting coil and a drone equipped with a single receiving coil. The system worked by detecting the position of the receiving coil and aligning the transmitting coil with it for wireless power transmission. The positioning system took almost 5 s to detect and align with the receiving coil. Using sensors, the system complexity increases; it requires some specific areas for installation of the drone and the charging station. There is the possibility of errors in installing these sensors properly at the proper position so that the alignment between coils is always perfect. In our system, there is no physical sensor that needs to be installed on the drone or charging station. The time it takes to get the best possible solution is 1 to 2 s (min to max, depending on the distance of misalignment). The algorithm used in our system is much faster and much more robust, giving accurate results. Moreover, in Reference [35], there is just a single transmitting coil used to transfer the power. In our case, the charging station is composed of multiple transmitting coils because using multiple transmitting coils gives the possibility of designing large charging stations for big drones. If the drone size is big, it will require more space for landing on the charging station. Using multiple transmitting coils decreases the time required to align the coils. Generally, the drone lands at any point on the charging station. In Reference [35], it was made sure that the drone lands in the range of the sensors to initiate the alignment process; however, it would be almost impossible to initiate this process of alignment if the drone landed on the charging station and was out of range of the sensors. For this, in our charging station, multiple arrays of transmitting coils were installed to allow the drone to land freely anywhere on the charging station without the possibility of getting out of range.

5. Conclusions

In this work, an efficient wireless power transmission system for drone battery charging was developed. A charging station with multiple transmission coils was used to transfer power to the receiving side (drone) to charge the battery. This study aimed to solve the problem caused by uneven drone landing on a charging station which leads to inefficient wireless power transmission due to the poor alignment between the transmitting and receiving coils. To solve this problem, a control mechanism based on the hill climbing algorithm was proposed. The control mechanism was used to mitigate the uneven landing effect of the drone on a charging station by carefully moving the charging station to a point where wireless power transmission was maximum. A practical test bench was developed to test the system feasibility. The power transmission efficiency was 85% and the test accuracy of the system was 98.8%. It can be observed from the results that the proposed system performed well compared to previously used techniques, without any need of a physical sensor such as a position sensor. Also, the use of the hill climbing algorithm gives the system a much faster response compared to any image-based target detection scheme. It also eliminates the possibility of getting affected by environmental conditions. The drone simply needs to land on the charging station, and, within 2 s, wireless power transmission starts at its maximum designed efficiency without any misalignment.

Future Work

We are working on the real-time implementation of the system. For that, there are several things which need to be improved and addressed carefully. These include the battery charging issues such as charging time and the capacity of the battery. Additionally, the wireless power transmission system will be improved in the future. The efficiency of the system can be improved by looking into some design parameters. The distance between the transmitting and receiving coils will be improved and medium-range transmission will be introduced into the system.

Author Contributions

Conceptualization, A.R.; Data curation, M.R.; Formal analysis, M.R.; Investigation, A.R., M.T. and S.-H.K.; Project administration, A.R.; Resources, M.T.; Software, A.R., M.T.; Supervision, S.-H.K.; Validation, A.R. and S.-H.K.; Visualization, S.-H.K.; Writing–review & editing, A.R.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, G.; Liu, W.; Sivaprakasam, M.; Humayun, M.; Weiland, J. Power supply topologies for biphasic stimulation in inductively powered implants. In Proceedings of the IEEE International Symposium on Circuits and Systems (ISCAS), Kobe, Japan, 23–26 May 2005; Volume 3, pp. 2743–2746. [Google Scholar]
  2. Hoffmann, G.M.; Rajnarayan, D.G.; Waslander, S.L.; Dostal, D.; Jang, J.S.; Tomlin, C.J. The Stanford Testbed of Autonomous Rotorcraft for Multi-Agent Control (STARMAC). In Proceedings of the 23rd Digital Avionics System Conference, Salt Lake City, UT, USA, 28 October 2004. [Google Scholar]
  3. Available online: https://www.icao.int/Meetings/UAS/Documents/Circular%20328_en.pdf (accessed on 22 May 2018).
  4. Stafford, J. How a Quadcopter Works | Clay Allen; University of Alaska: Fairbanks, AK, USA, 2014. [Google Scholar]
  5. Luukkonen, T. Modelling and Control of Quadcopter; Independent Research Project in Applied Mathematics; Aalto University: Helsinki, Finnland, 2011. [Google Scholar]
  6. Lange, S.; Sunderhauf, N.; Protzel, P. A vision based onboard approach for landing and position control of an autonomous multirotor UAV in GPS-denied environments. In Proceedings of the International Conference on Advanced Robotics, Munich, Germany, 22–26 June 2009; pp. 1–6. [Google Scholar]
  7. Bhaskaranand, M.; Gibson, J.D. Low-complexity video encoding for UAV reconnaissance and surveillance. In Proceedings of the IEEE Military Communications Conference (MILCOM), Baltimore, MD, USA, 7–10 November 2011; pp. 1633–1638. [Google Scholar]
  8. Doherty, P.; Rudol, P. A UAV search and rescue scenario with human body detection and geolocalization. In Advances in Artificial Intelligence; Springer: Berlin/Heidelberg, Germany, 2007; pp. 1–13. [Google Scholar]
  9. Tomic, T.; Schmid, K.; Lutz, P.; Domel, A.; Kassecker, M.; Mair, E.; Grixa, I.L.; Ruess, F.; Suppa, M.; Burschka, D. Toward a fully autonomous UAV: Research platform for indoor and outdoor urban search and rescue. IEEE Robot. Autom. Mag. 2012, 19, 46–56. [Google Scholar] [CrossRef]
  10. DIJ. Available online: https://www.dji.com/ (accessed on 15 June 2018).
  11. Mostafa, T.M.; Muharam, A.; Hattori, R. Wireless battery charging system for drones via capacitive power transfer. In Proceedings of the IEEE PELS Workshop on Emerging Technologies: Wireless Power Transfer, Chongqing, China, 20–22 May 2017; pp. 1–6. [Google Scholar]
  12. Campi, T.; Cruciani, S.; Feliziani, M.; Maradei, F. High efficiency and lightweight wireless charging system for drone batteries. In Proceedings of the AEIT International Annual Conference, Cagliari, Italy, 20–22 September 2017; pp. 1–6. [Google Scholar]
  13. Shoki, H. Issues and Initiatives for Practical Deployment of Wireless Power Transfer Technologies in Japan. Proc. IEEE 2013, 101, 1312–1320. [Google Scholar] [CrossRef]
  14. Finkenzeller, K. RFID Handbook: Fundamentals and Applications in Contactless Smart Cards and Identification; Wiley: Hoboken, NJ, USA, 2003. [Google Scholar]
  15. Jiang, B.; Smith, J.R.; Philipose, M.; Roy, S.; Rajan, K.S.; Mamishev, A.V. Energy scavenging for inductively coupled passive rfid systems. IEEE Trans. Instrum. Meas. 2007, 56, 118–125. [Google Scholar] [CrossRef]
  16. Li, P.; Principe, J.; Bashirullah, R. A wireless power interface for rechargeable battery operated neural recording implants. In Proceedings of the 28th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBS), New York, NY, USA, 30 August–3 September 2006; pp. 6253–6256. [Google Scholar]
  17. Aldhaher, S.; Yates, D.C.; Mitcheson, P.D. Design and development of a Class EF2 inverter and rectifier for multi megahertz wireless power transfer systems. IEEE Trans. Power Electron. 2016, 31, 8138–8150. [Google Scholar] [CrossRef]
  18. Sekitani, T.; Takamiya, M.; Noguchi, Y.; Nakano, S.; Kato, Y.; Hizu, K.; Kawaguchi, H.; Sakurai, T.; Someya, T. A large-area flexible wireless power transmission sheet using printed plastic mems switches and organic field-effect transistors. In Proceedings of the International Electron Devices Meeting (IEDM), San Francisco, CA, USA, 11–13 December 2006; pp. 1–4. [Google Scholar]
  19. Aldhaher, S.; Mitcheson, P.D.; Yates, D.C. Load-independent Class EF inverters for inductive wireless power transfer. In Proceedings of the IEEE Wireless Power Transfer Conference (WPTC), Aveiro, Portugal, 5–6 May 2016; pp. 1–4. [Google Scholar]
  20. Aldhaher, S.; Luk, P.C.-K.; Whidborne, J.F. Tuning Class E inverters applied in inductive links using saturable reactors. IEEE Trans. Power Electron. 2014, 29, 2969–2978. [Google Scholar] [CrossRef][Green Version]
  21. Choi, J.; Tsukiyama, D.; Tsuruda, Y.; Rivas, J. 13.56 MHz 1.3 kW resonant converter with GaN FET for wireless power transfer. In Proceedings of the IEEE Wireless Power Transfer Conference (WPTC), Boulder, CO, USA, 13–15 May 2015; pp. 1–4. [Google Scholar]
  22. Pinuela, M.; Yates, D.C.; Lucyszyn, S.; Mitcheson, P.D. Maximizing dc-to-load efficiency for inductive power transfer. IEEE Trans. Power Electron. 2013, 28, 2437–2447. [Google Scholar] [CrossRef][Green Version]
  23. Low, Z.N.; Casanova, J.J.; Maier, P.H.; Lin, J. Method of load/fault detection for loosely coupled planar wireless power system with power delivery tracking. IEEE Trans. Ind. Electron. 2010, 57, 1478–1486. [Google Scholar]
  24. Zhong, W.X.; Hui, S.Y.R. Maximum energy efficiency tracking for wireless power transfer systems. IEEE Trans. Power Electron. 2015, 30, 4025–4034. [Google Scholar] [CrossRef]
  25. Fu, M.; Yin, H.; Zhu, X.; Ma, C. Analysis and tracking of optimal load in wireless power transfer systems. IEEE Trans. Power Electron. 2015, 30, 3952–3963. [Google Scholar] [CrossRef]
  26. Yin, J.; Lin, D.; Lee, C.K.; Hui, S.Y.R. A systematic approach for load monitoring and power control in wireless power transfer systems without any direct output measurement. IEEE Trans. Power Electron. 2015, 30, 1657–1667. [Google Scholar] [CrossRef]
  27. Jang, B.J.; Lee, S.; Yoon, H. HF-band wireless power transfer system: Concept, issues, and design. Prog. Electromagn. Res. 2012, 124, 211–231. [Google Scholar] [CrossRef]
  28. Si, P.; Hu, A.P.; Hsu, J.W.; Chiang, M.; Wang, Y.; Malpas, S.; Budgett, D. Wireless power supply for implantable biomedical device based on primary input voltage regulation. In Proceedings of the 2nd IEEE Conference on Industrial Electronics and Applications, Harbin, China, 23–25 May 2007; pp. 235–239. [Google Scholar]
  29. Low, Z.N.; Chinga, R.A.; Tseng, R.; Lin, J. Design and test of a high-power high-efficiency loosely coupled planar wireless power transfer system. IEEE Trans. Ind. Electron. 2008, 56, 1801–1812. [Google Scholar]
  30. Available online: http://lasermotive.com/category/uavs/ Video of Laser-Powered Quadrocopter Endurance Flight (accessed on 20 July 2018).
  31. Available online: http://www.koreaittimes.com/story/6601/unmanned-aerialvehiclesdeveloped- solely-korean technologies (accessed on 20 July 2018).
  32. Uri, K.; Stern, H.; Edan, Y.; Feied, C.; Handler, J.; Smith, M.; Gillam, M. Vision-based autonomous robot self-docking and recharging. In Proceedings of the IEEE World Automation Congress, Budapest, Hungary, 24–26 July 2006; pp. 1–8. [Google Scholar]
  33. Fetisov, V.; Dmitriyev, O.; Neugodnikova, L.; Bersenyov, S.; Sakayev, I. Continuous monitoring of terrestrial objects by means of duty group of multicopters. In Proceedings of the XX IMEKO World Congress, Busan, Korea, 9–10 September 2012. [Google Scholar]
  34. Heeseo, C.; Park, J.; Song, H.; Kim, Y.; Jeong, H. The IoT based automate landing system of a drone for the round-the-clock surveillance solution. In Proceedings of the IEEE International Conference on Advanced Intelligent Mechatronics (AIM), Busan, Korea, 7–11 July 2015; pp. 1575–1580. [Google Scholar]
  35. Campi, T.; Cruciani, S.; Feliziani, M. Wireless Power Transfer Technology Applied to an Autonomous Electric UAV with a Small Secondary Coil. Energies 2018, 11, 352. [Google Scholar] [CrossRef]
  36. Junaid, A.B.; Konoiko, A.; Zweiri, Y.; Sahinkaya, M.N.; Seneviratne, L. Autonomous Wireless Self-Charging for Multi-Rotor Unmanned Aerial Vehicles. Energies 2017, 10, 803. [Google Scholar] [CrossRef]
  37. Choi, C.H.; Jang, H.J.; Lim, S.G.; Lim, H.C.; Cho, S.H.; Gaponov, I. Automatic wireless drone charging station creating essential environment for continuous drone operation. In Proceedings of the 2016 International Conference on Control, Automation and Information Sciences (ICCAIS), Ansan, Korea, 27–29 October 2016; pp. 132–136. [Google Scholar]
  38. Arakawa, T.; Goguri, S.; Krogmeier, J.V.; Kruger, A.; Love, D.J.; Mudumbai, R.; Swabey, M.A. Optimizing Wireless Power Transfer from Multi Transmit Coils. IEEE Access 2018. [Google Scholar] [CrossRef]
  39. Casanova, J.J.; Low, Z.N.; Lin, J. Design and optimization of a Class-E amplifier for a loosely coupled planar wireless power system. IEEE Trans. Circuits Syst. II Express Briefs 2009, 56, 830–834. [Google Scholar] [CrossRef]
  40. Bolaji, A.L.; Femi, B.A.; Shola, P.B. Hill Climbing Algorithm for Solving Patient Admission Scheduling Problem. Knowl.-Based Syst. 2018. [Google Scholar] [CrossRef]
  41. Merino, L.; Caballero, F.; Martínez-de Dios, J.R.; Ferruz, J.; Ollero, A. A cooperative perception system for multiple UAVs: Application to automatic detection of forest fires. J. Field Robot. 2006, 23, 165–184. [Google Scholar] [CrossRef]
  42. Choudhary, V.; Singh, S.P.; Kumar, V.; Prashar, D. Wireless Power Transmission: An Innovative Idea. Int. J. Educ. Plan. Adm. 2011, 1, 203–210. [Google Scholar]
  43. Bao, D.; Gu, J.; Di, Z.; Zhang, T. Optimization of Airport Shuttle Bus Routes Based on Travel Time Reliability. Math. Prob. Eng. 2018. [Google Scholar] [CrossRef]

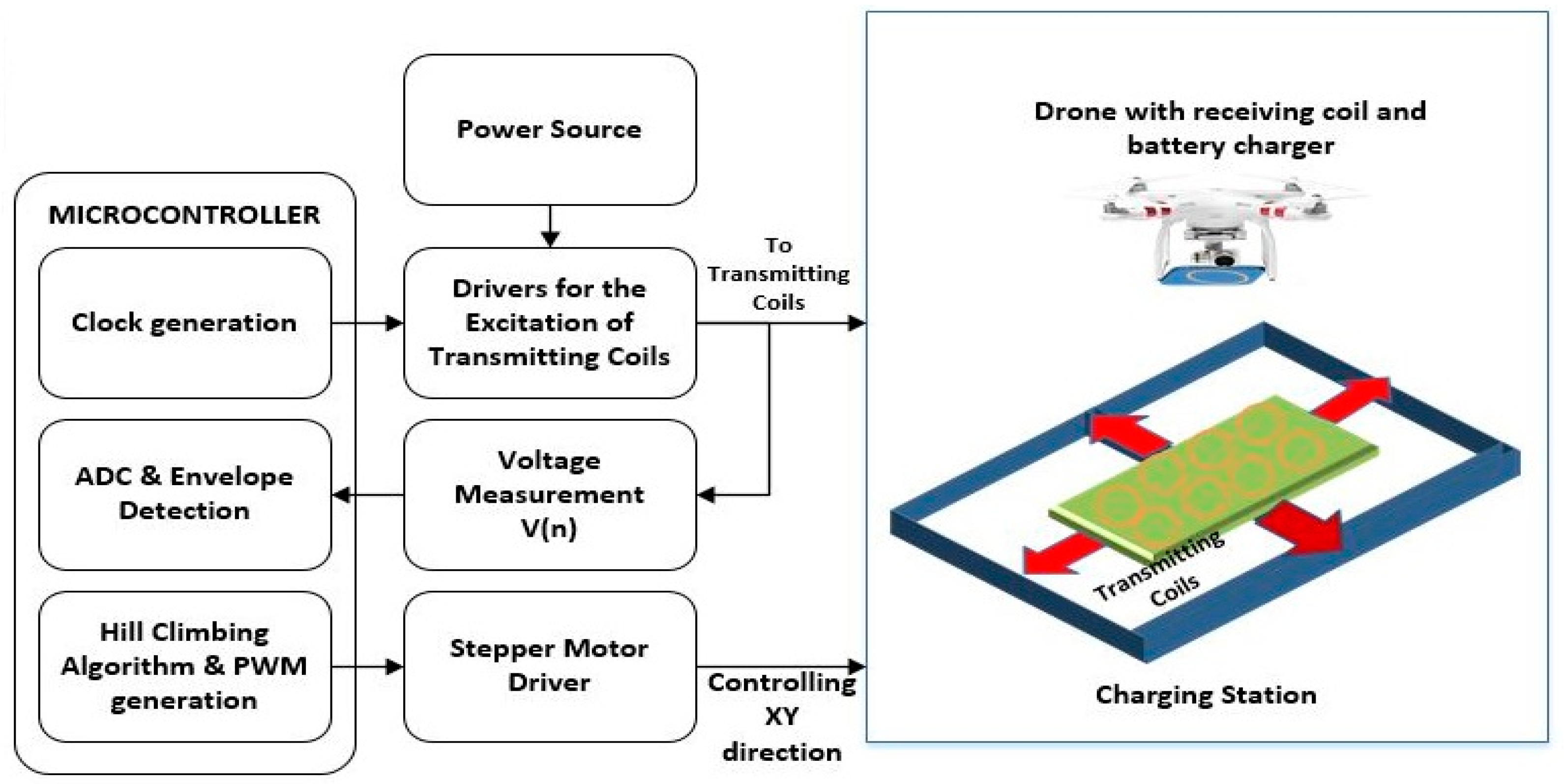

Figure 1. Block diagram of the proposed wireless battery charging system for a quadcopter.
Figure 1. Block diagram of the proposed wireless battery charging system for a quadcopter.
Asi 01 00044 g001

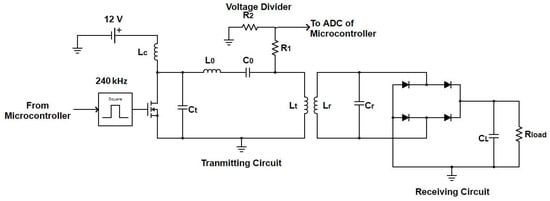

Figure 2. Basic circuit diagram for wireless power transmission.
Figure 2. Basic circuit diagram for wireless power transmission.
Asi 01 00044 g002

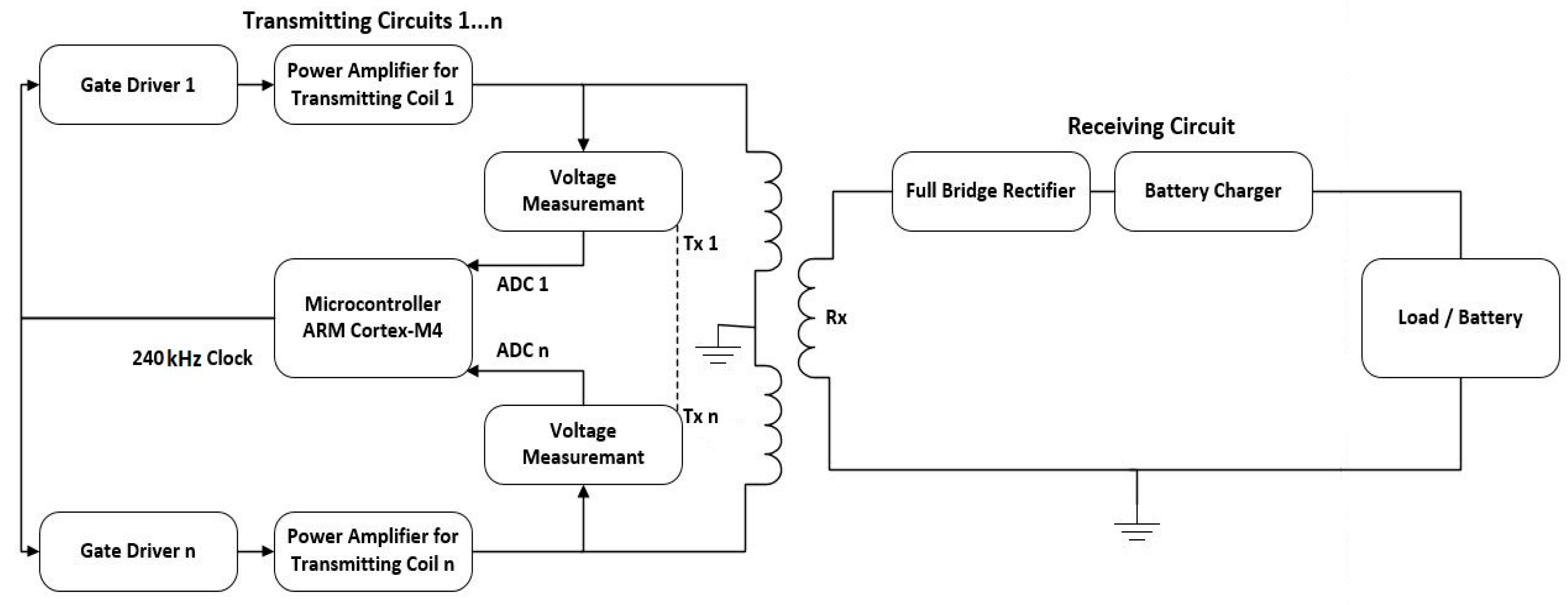

Figure 3. Block diagram of the circuit for wireless power transmission with multiple transmitting coils and a receiving coil.
Figure 3. Block diagram of the circuit for wireless power transmission with multiple transmitting coils and a receiving coil.
Asi 01 00044 g003

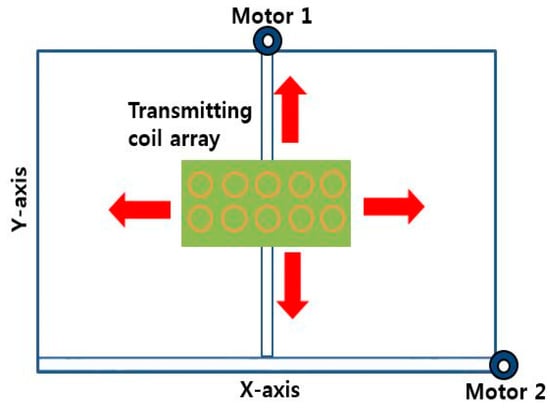

Figure 4. Four-way directional XY table.
Figure 4. Four-way directional XY table.
Asi 01 00044 g004

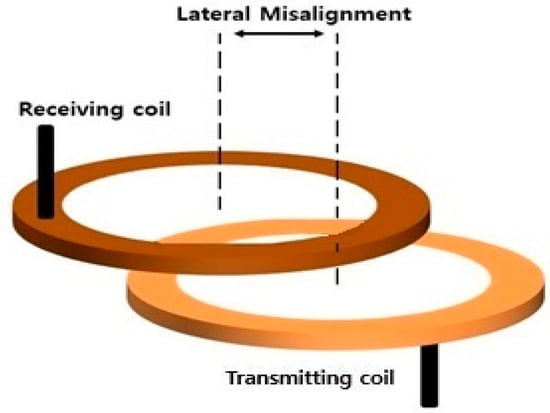

Figure 5. Misalignment of coils for wireless power transmission.
Figure 5. Misalignment of coils for wireless power transmission.
Asi 01 00044 g005
Figure 6. Sampling of voltage signal during one time period.
Figure 6. Sampling of voltage signal during one time period.
Asi 01 00044 g006

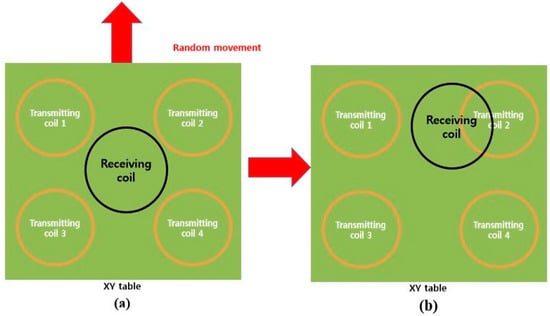

Figure 7. (a) Receiving coil’s initial position. (b) Receiving coil gets close to a transmitting coil after arbitrary movement.
Figure 7. (a) Receiving coil’s initial position. (b) Receiving coil gets close to a transmitting coil after arbitrary movement.
Asi 01 00044 g007

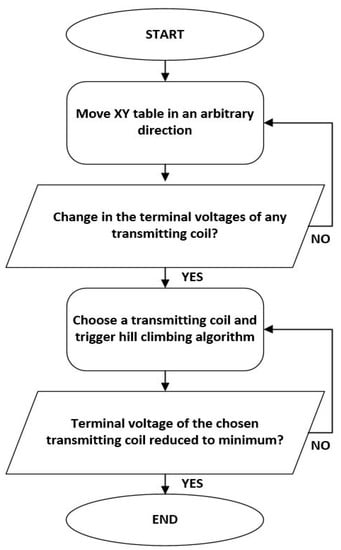

Figure 8. Overall flowchart of the proposed method.
Figure 8. Overall flowchart of the proposed method.
Asi 01 00044 g008

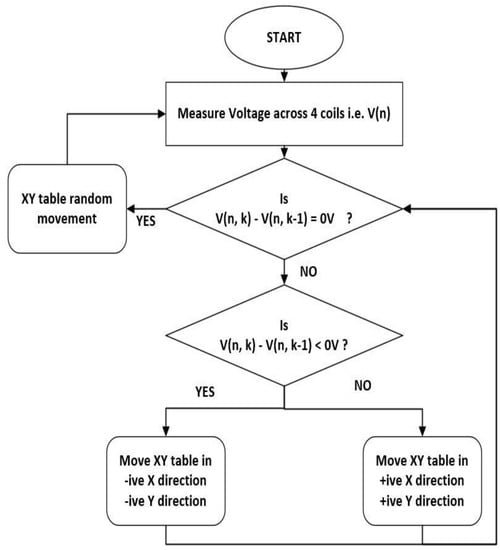

Figure 9. Flowchart of the hill climbing algorithm.
Figure 9. Flowchart of the hill climbing algorithm.
Asi 01 00044 g009

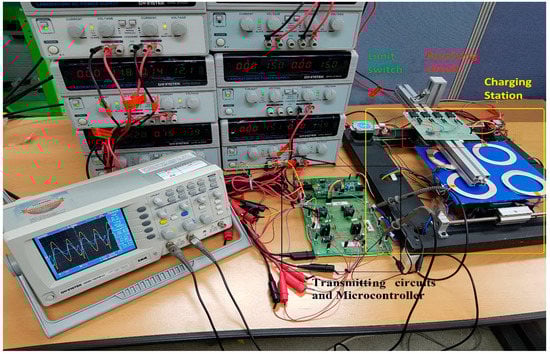

Figure 10. Practical test bench for drone battery charging station.
Figure 10. Practical test bench for drone battery charging station.
Asi 01 00044 g010

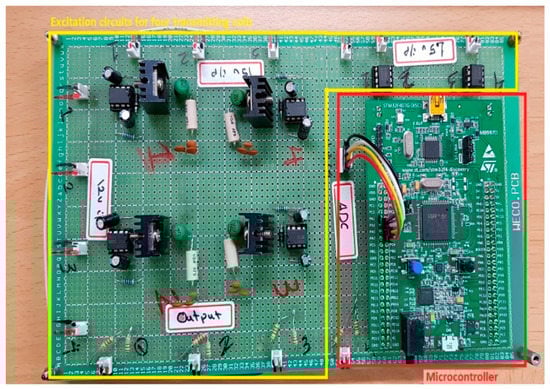

Figure 11. Closer view of the excitation circuits and controller.
Figure 11. Closer view of the excitation circuits and controller.
Asi 01 00044 g011

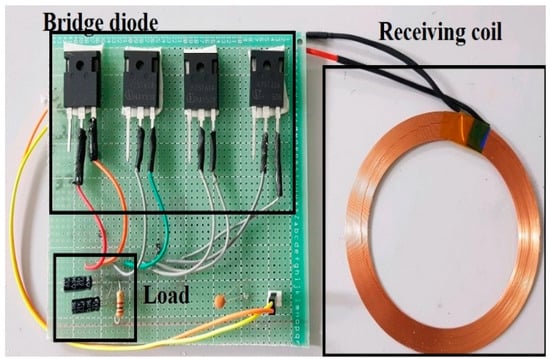

Figure 12. Closer view of the receiving circuit and receiving coil.
Figure 12. Closer view of the receiving circuit and receiving coil.
Asi 01 00044 g012

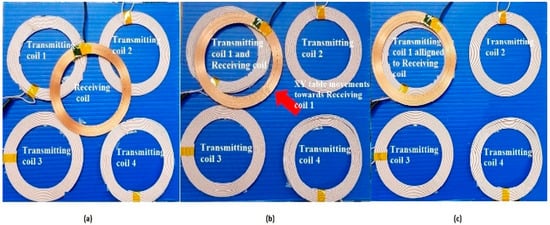

Figure 13. (a) Initial position of the coils. (b) XY table movement toward nearest transmitting coil. (c) Transmitting and receiving coil aligned for wireless power transmission.
Figure 13. (a) Initial position of the coils. (b) XY table movement toward nearest transmitting coil. (c) Transmitting and receiving coil aligned for wireless power transmission.
Asi 01 00044 g013

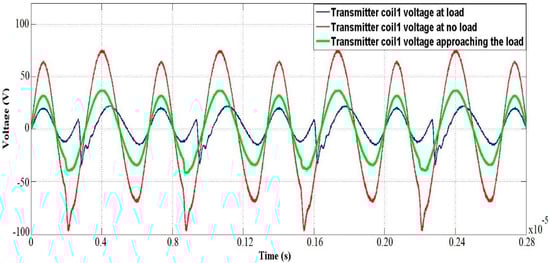

Figure 14. Transmitting coil 1 voltage under wireless power transmission. (For case scenario in Figure 13).
Figure 14. Transmitting coil 1 voltage under wireless power transmission. (For case scenario in Figure 13).
Asi 01 00044 g014

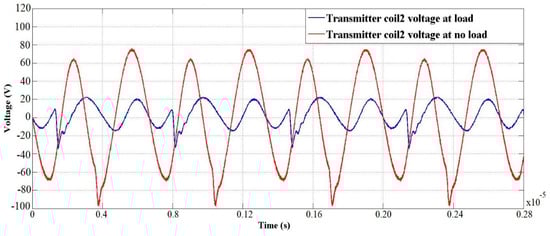

Figure 15. Voltage under no load (normal) and load (wireless power transmission) for transmitting coil 2.
Figure 15. Voltage under no load (normal) and load (wireless power transmission) for transmitting coil 2.
Asi 01 00044 g015

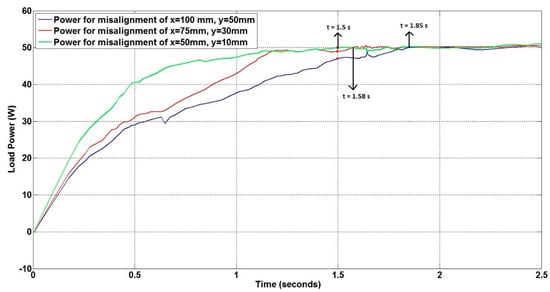

Figure 16. Load power response for different misalignment cases.
Figure 16. Load power response for different misalignment cases.
Asi 01 00044 g016

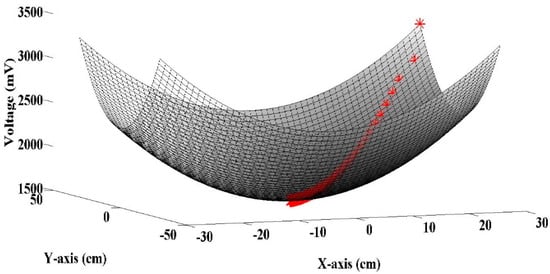

Figure 17. Trajectories of hill climbing algorithm.
Figure 17. Trajectories of hill climbing algorithm.
Asi 01 00044 g017
Table 1. Excitation circuit component values.
Table 1. Excitation circuit component values.
ComponentValue
Number of Turns15
L t 14.5   µ H
L c 1   mH
L o 9.9   µ H
C t 15   nF
C o 28   nF
R 1 100   Ω
R 2 30   Ω
Table 2. Receiver circuit component values.
Table 2. Receiver circuit component values.
ComponentValue
Number of Turns40
L r 733.39   µ H
C r 680   pf
C L 0.05   µ F
R Load 2   k Ω
