Scalable Carbon Nanotube/Platinum Nanoparticle Composite Inks from Salt Templates for Oxygen Reduction Reaction Electrocatalysis for PEM Fuel Cells

Abstract

Platinum nanoparticles supported on multi-walled carbon nanotubes (CNTs) were synthesized by the chemical reduction of Magnus’s salt templates formed by the electrostatic stacking of oppositely charged platinum coordinated ions. The Magnus’s salt templated synthesis of platinum macrotubes, previously demonstrated, results in sidewalls made up of individual textured nanoparticles 100 nm in diameter and comprised of 5 nm diameter fibrils. Here we demonstrate a new platform method that utilizes the individual nanoparticles that make up the platinum macrotubes formed from salt templates and subsequently disperse them through a CNT network by ultrasonication to develop an electrocatalyst nanocomposite for the oxygen reduction reaction (ORR) critical for the development of proton exchange membrane (PEM) fuel cell applications. The structural morphology and composition of the nanocomposite catalysts was characterized using scanning electron microscopy (SEM), X-ray diffractometry (XRD), and Raman spectroscopy to confirm the presence of platinum nanoparticles throughout the CNT network of the nanocomposite. The electrocatalytic activity of the nanocomposite inks was verified with cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and linear sweep voltammetry (LSV) for ORR. Furthermore, this all aqueous-based and scalable approach for the synthesis and dispersion of platinum nanoparticles with CNTs can lead to a new formulation process for the production of electrocatalytic nanocomposite inks for PEM fuel cells using the nanoparticles that form within salt templates after chemical reduction.

1. Introduction

Proton exchange membrane (PEM) fuel cells are an environmentally-friendly and cost-effective renewable energy source [1]. The limiting factor for extensive implementation of PEM fuel cells is its dependence on expensive noble metals such as platinum-based electrocatalyst inks used in the oxygen reduction reaction (ORR) at the cathode [2,3]. Extensive research has gone into developing a scalable, high performance, and cost-effective catalyst for ORR [4,5,6,7]. Optimizing the catalyst ink formulation for brush painting, spray painting, sputter deposition, or inkjet printing of membrane electrode assemblies (MEAs) is important to the performance of PEM fuel cells [8,9]. Carbon black is often used as a conductive support for Pt-based electrocatalyst inks due to its high surface area and high conductivity [10,11,12]. Catalyst supports require properties, such as high surface area and high electronic conductivity, to maintain high catalytic activity [13]. While platinum remains an efficient electrocatalyst [14], carbon black degrades over time decreasing durability and increasing the cost of the catalyst due to the need for regeneration [15]. Possible replacements for carbon black are carbon tubule membranes [16], ordered porous carbon [17], graphite nanofibers [18], films of C60 clusters [19], hard carbon spherules [20], and carbon nanotubes [21]. In general, incorporating a high surface area electrocatalyst layer to serve as electrodes in PEM fuel cells increases performance and durability [22]. It also helps overcome the sluggish kinetics for the reduction of oxygen at the cathode [23].

Recent efforts have demonstrated various carbon-based binders in composite inks to include carbon-coating shells [24,25], graphene [26,27], mesoporous carbon [28], colloid-imprinted carbon supports [29], and single-walled CNTs [30]. However, the integration of carbon binders with Pt to manufacture nanocomposite inks from all aqueous processes is still a challenge, particularly with nanoparticle agglomeration in extended performance cycling [31]. Many efforts focus on chemical functionalization of CNTs to increase effective reaction sites for the integration of metal nanoparticles [10]. To replace carbon black, we utilize pristine CNTs—manufactured in industry without any surface modification or functionalization—to be combined with Pt nanoparticles from a chemically reduced salt template and dispersed in an aqueous solution. CNTs are insoluble in most solvents thus Pt nanoparticles in general do not easily bind [32]; however, catalyst inks contain an ionomer binder, Nafion™, to aid in nanoparticle dispersion and proton transport. The synthesized nanocomposite ink is an all aqueous mixture of Nafion™, CNTs, and platinum nanoparticles, which act as a carbon-supported MEA electrocatalyst [9]. The high surface area-to-volume ratio of platinum nanoparticles allows for greater electrochemical active surface area through the dispersed high aspect ratio CNT network of the cathode [33]. The synergistic properties of CNTs and platinum nanoparticles (PtNP/CNT) facilitate high activity, chemical stability, mechanical strength and modulus, and integrability [3,34]. Moreover, this resulting nanocomposite suspension decreases the size of agglomerates that can form during the casting process. Electrodes with large catalyst agglomerates due to insufficient dispersion have low mass specific performance in comparison to well dispersed catalysts [22]. The formulation of a catalyst ink from aqueous solutions with the rapid formation of uniformly dispersed catalyst nanoparticles from the reduction of salt templates enables a composite ink structure with surface accessible active sites for scalable fuel cell electrode fabrication [35].

Here we demonstrate a scalable method to use the aqueous Magnus’s salt structure as a sacrificial template [36,37,38,39,40] to create nanocomposite inks with platinum nanostructures dispersed in a CNT network to maximize the catalytically active surface area. This entirely aqueous scalable approach to an electrocatalyst ink uses the primary platinum nanoparticles of the sacrificial Magnus’s salt templates to disperse with CNTs. The ultrasonication of the resulting Pt macrotubes after chemical reduction of the salt templates is a unique and rapid way to form nanocomposites of Pt nanoparticles and CNTs without the need of surfactants or capping agents. The chemically reduced Magnus’s salts result in Pt macrotubes that are comprised of primary nanoparticles [36,37,38,39,40]. This technique utilizes ultrasonication to break apart the macrostructure of the Pt macrotubes and disperse the high surface area primary Pt nanoparticles throughout the CNTs to form an electrocatalyst nanocomposite. Utilizing the chemical reduction and dispersion of noble metal salt templates with carbon nanomaterials such as CNTs, can lead to improved composite electrode designs for fuel cell electrocatalysis. The PtNP/CNT nanocomposites provide high surface area for high catalytic activity for ORR [19]. Material characterization was performed with scanning electron microscopy (SEM), X-ray diffractometry (XRD), and Raman spectroscopy. Electrochemical characterization and performance were conducted on the resulting PtNP/CNT nanocomposite inks with electrochemical impedance spectroscopy, cyclic voltammetry, and linear sweep voltammetry in 0.5 M H₂SO₄ electrolyte.

2. Materials and Methods

2.1. Pt Nanoparticle/CNT Nanocomposite Ink Synthesis

To form Magnus’s salt needle templates, 100 mM and 25 mM salt solutions of Na₂PtCl₄∙xH₂O (Sigma Aldrich, St. Louis, USA) and Pt(NH₃)₄Cl₂∙H₂O (Sigma Aldrich, St. Louis, USA) were prepared. Upon addition of equal volume and molarity solutions, [PtCl₄]²⁻ and [Pt(NH₃)₄]²⁺ ions rapidly self-assemble linearly into high aspect ratio Magnus’s salt needles [36,41,42]. The Magnus’s salt crystals prepared with 100 mM and 25 mM platinum salt solutions were each reduced in 0.1 M sodium borohydride, NaBH₄, at 1:50 (v/v) platinum salt to reducing agent solution to form porous macrotubes [36]. The reduced platinum macrotubes were rinsed with deionized water and centrifuged (Thermo Scientific Pico 17 17,000× g, Microcentrifuge, 120 V 60 Hz, Waltham, MA, USA) at 14,800 rpm for 20 min in a 1:1 deionized water:ethanol solvent several times. Platinum macrotubes were collected and dried overnight at 60 °C in an open-air oven.

In order to prepare the composite inks, the platinum macrotubes were mixed with varying amounts of carbon nanotubes. Composites were prepared by adding the dry Pt macrotubes to varying weight wt % (relative to the mass of Pt) of pristine 8–15 nm diameter multi-walled CNTs (Cheap Tubes Inc., Grafton, VT, USA), 30 μL of 5 wt % Nafion™ solution, 1 mL of isopropyl alcohol (IPA), and 12 mL deionized (DI) water were added together to make an ink solution. Approximately 0.056 g of 25 mM porous platinum macrotubes were combined with 10 wt % carbon nanotubes, 30 μL Nafion™, 1 mL of isopropyl alcohol (IPA), and 12 mL deionized water. This process was repeated with 20 wt % and 30 wt % carbon nanotubes with respect to the mass of platinum macrotubes. In addition, approximately 0.054 g of 100 mM platinum macrotubes were used to create 10 wt %, 20 wt %, and 30 wt % carbon nanotube inks. All of the resulting ink solutions were placed into an ultrasonic bath (VWR Ultrasonic Cleaners, Radnor, PA, USA) filled with water (20 °C) and sonicated (35 kHz, 160 Watt) for 45 min and stored at room temperature to form PtNP/CNT nanocomposite inks. The catalytic performance of the PtNP/CNT inks were compared to a standard Pt Black ink (Pt/C) produced by mixing 7.2 mg of Pt Black catalyst powder (Sigma Aldrich, St. Louis, MO, USA) with 10.8 mg of graphite flakes (99% carbon basis, Sigma Aldrich, St. Louis, MO, USA), 30 μL of 5 wt % Nafion solution, 1 mL IPA, and 6 mL of DI water to make 40 wt % Pt/C ink [8,9,43,44]. The Pt/C ink was placed in an ultrasonic bath filled with water (20 °C) and sonicated (35 kHz, 160 Watt) for 45 min.

2.2. Scanning Electron Microscopy (SEM)

Scanning electron microscopy and energy dispersive x-ray spectroscopy were used to characterize the morphology and composition of the PtNP/CNT nanocomposites using a JEOL IT500HRLA SEM (JEOL USA, Peabody, MA, USA). A 20 kV beam voltage was used for imaging. SEM image analysis was conducted using ImageJ [45,46].

2.3. X-ray Diffractometry (XRD)

X-ray diffractometry (XRD) spectra were collected using a Malvern Panalytical Empyrean diffractometer (Malvern Panalytical, Almelo, Netherlands) using Cu K_α radiation (1.54060 Å), 45 kV and 40 mA, with a diffraction angle (2θ) range from 5° to 90°. Step size was 0.0130 at 20 s per step. XRD spectra analysis was performed using High Score Plus software (Panalytical). Crystallite size (D) was calculated using the Debye–Scherrer formula, D = Kλ/(Bcosθ), where a shape factor of K = 0.9 was used. The remaining variables are full width at half maxima (B), radiation wave length (λ), and Bragg angle (θ).

2.4. Raman Spectroscopy

Raman Spectroscopy was performed on the PtNP/CNT composites using a Horiba XploRA Plus Raman Microscope spectrometer (XploRA, HORIBA Scientific, France). A 532 nm excitation laser was focused on the sample using a 50× magnification, 0.55 NA, 20 mm long working distance objective lens.

2.5. Electrochemical Characterization

A Bio-Logic VMP-3 potentiostat (Bio-Logic, Knoxville, TN, USA) was used to perform electrochemical impedence spectroscopy (EIS), cyclic voltammetry (CV), and linear sweep voltammetry (LSV) of the PtNP/CNT composite inks. PtNP/CNT composite inks were transferred onto a glassy carbon (GC) stationary working electrode (3 mm OD LowProfile E1B, Pine Research Instrumentation, Durham, NC USA) for all EIS and CV tests and a rotating disk electrode (RDE) for all LSV tests (5.0 mm disk OD E2M FastSpeed RDE, Pine Research Instrumentation, Durham, NC USA). The GC and RDE were polished with fine alumina slurry, rinsed with DI water, and dried at 60 °C in an open-air oven. 100 µL of each PtNP/CNT ink was drop casted onto an electrode and dried in a vacuum oven (60 °C, 10 kPa) for 1 h to gradually dry the ink suspension onto the GC electrode. All electrochemical tests were conducted with a KCl saturated Ag/AgCl reference electrode (MF-2052 3 M NaCl), BASi, West Lafayette, IN, USA), a 6 cm long platinum wire counter-electrode (MW4130 Platinum Auxiliary Electrode, BASi, West Lafayette, IN, USA) in a three electrode cell configuration in 0.5 M H₂SO₄ electrolyte. All potential measurements in Volts (V) vs an Ag/AgCl reference electrode can be evaluated vs the standard hydrogen electrode (SHE) by adding 0.197 V to the measured potentials reported. EIS was performed at 0 V (vs Ag/AgCl) with a 10 mV sine wave and a frequency range of 500 kHz to 0.1 Hz in N₂ purged 0.5 M H₂SO₄ electrolyte. CV was performed with scan rates of 5, 10, 25, 50, 75, and 100 mV/s in the potential range of −0.2 to +1.2 V (vs. Ag/AgCl) in N₂ purged 0.5 M H₂SO₄ electrolyte. LSV from +1.2 to 0 V (vs. Ag/AgCl) was performed at 300, 500, 700, 900, and 1100 rotations per minute in O₂ purged 0.5 M H₂SO₄ electrolyte.

3. Results and Discussion

3.1. Pt Nanoparticle/CNT Ink Sythesis Scheme

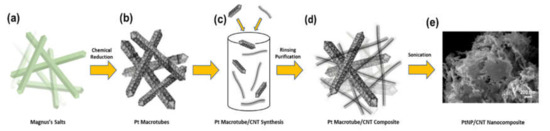

As shown in the scheme in Figure 1a,b, Magnus’s salt needle templates were prepared by adding salt solutions with oppositely charged square planar platinum ions, and then chemically reduced with NaBH₄ to form the Pt macrotubes with a square cross section [36]. After rinsing and drying, the platinum macrotubes were then combined with carbon nanotubes to form a composite as shown in Figure 1c. To break the macrotubes apart and to disperse the Pt nanoparticles comprised within, the composite inks were sonicated for 45 min each and stored at room temperature to achieve the final Pt/CNT nanocomposite ink (Figure 1d,e).

In Figure 1d, the CNTs formed a network for the Pt nanoparticles to disperse within. The dispersion of Pt macrotubes increases as the concentration of CNTs increases and the molarity of Pt increases. The aqueous-based approach results in the same synthesis and dispersion method for each ratio of Pt macrotubes and CNTs. The SEM image in Figure 1e shows the dispersion of Pt throughout the CNT network. This process develops a scalable, all aqueous, and facile approach to form an electrocatalyst nanocomposite for the oxygen reduction reaction (ORR).

3.2. Structural Characterization of PtNP/CNT Nanocomposite

3.2.1. Scanning Electron Microscopy (SEM)

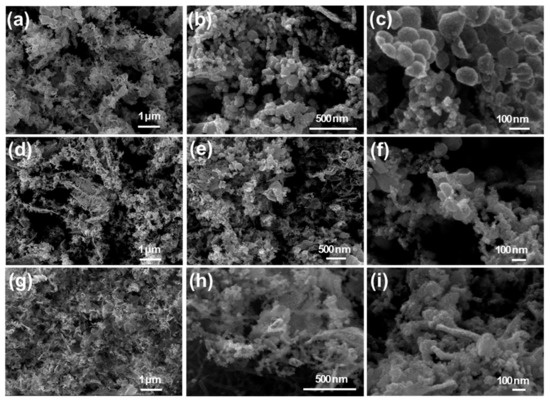

PtNP/CNT nanocomposites were analyzed with SEM to gain insight into the structure of the platinum nanoparticles dispersed in the CNT network. Figure 2a–i shows the distribution of the Pt nanoparticle aggregates of varying size embedded with CNTs. The SEM images confirm the presence of fused and fragmented Pt nanoparticles broken apart from the sidewalls of the macrotubes from sonication. As shown in Figure 2a–f, the 25 mM PtNP/CNT nanocomposites with 10 wt % and 20 wt % clearly show the presence of a connected network of CNTs with interfused platelets and spherical aggregates of primary nanoparticles and clusters of aggregates broken up from the Pt macrotube sidewalls. Moreover, Figure 2g–i show the SEM images of 100 mM PtNP/CNT nanocomposites with 20 wt % CNTs with aggregates of primary of Pt nanoparticles encapsulated with interconnected CNTs. Image analysis of the platinum particle sizes indicated a range of 4.4–18.3 nm and average diameter of 8.5 ± 2.0 nm across all of the samples with no significant differences between platinum salt concentrations and CNT percentages (Figure S1, Table S1). As observed by SEM, the aggregates of Pt nanoparticles in the 25 mM PtNP/CNT nanocomposites are larger than those of the 100 mM PtNP/CNT nanocomposites (Figures S2 and S3). This variation in size of the Pt nanoparticles in the 25 and 100 mM PtNP/CNT nanocomposites is due to the differences in the primary nanoparticles that make up the sidewall of the macrotube after chemical reduction of the Magnus’s salt templates [36]. The high aspect ratio and van der Waals force within framework of the CNTs increases the surface area for contact and adhesion between the Pt nanoparticles and the sidewalls of the CNTs. This inter-fused PtNP/CNT nanocomposite structure could help mitigate the challenge of degradation and removal of Pt particles from support materials thus leading to agglomeration effecting the catalytic activity and fuel cell performance [47,48,49]. In addition, the integration of the Pt nanoparticles fused into the CNT network can potentially minimize the corrosion of the carbon support and degrading the performance of PEM fuel cells [50,51].

3.2.2. X-ray Diffractometry

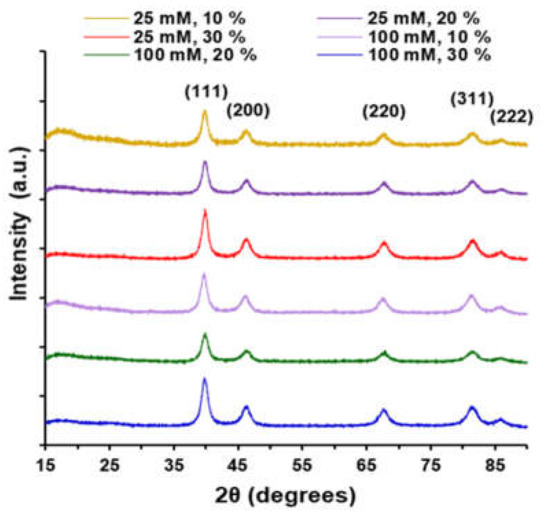

XRD spectra for the 25 mM and 100 mM with increasing wt % CNTs shown in Figure 3 were indexed to Joint Committee on Powder Diffraction Standards (JCPDS) reference number 01-071-6560 for the fcc, Fm-3m space group, platinum phase, and 00-041-1487 for the graphitic carbon phase comprised of CNTs. For platinum, the peaks for Miller indices (111), (200), (220), (311), and (222) were observed at 39.84°, 45.98°, 67.70°, 81.66°, and 85.95°, respectively. Using the Debeye–Scherrer equation to analyze the full-width-at-half-maximum (FWHM) of the platinum (111) peaks indicated crystallite sizes of 12 nm and 10 nm for the 25 mM PtNP/30 wt % CNT and 100 mM PtNP/30 wt % CNT samples, respectively (Figure S4). The XRD-determined crystallite sizes closely correspond to the nanoparticle diameters determined from SEM image analysis. The broad, low-intensity graphitic carbon peak observed at approximately 25° is convoluted with the glass substrate background signal but indicates the presence of CNTs in the nanocomposite ink mixture.

3.2.3. Raman Spectroscopy

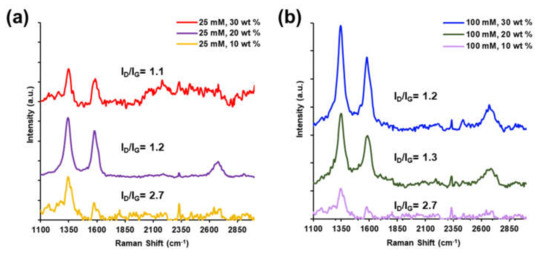

Raman spectra in Figure 4 for the 25 mM and 100 mM PtNP/CNT nanocomposites show the typical spectrum of multi-walled CNTs with characteristic doublet peaks of the D-band and G-band at approximately 1330 cm⁻¹ and 1550 cm⁻¹, respectively. The D-band is a result of vibrations of sp³ bonded carbon atoms and dangling bonds, the G-band originates from the sp² bonded carbon atoms within the structure of the CNTs, and the third prominent 2D-band arises from the second order electron-phonon intensity. The relative height of each peak determines the level of disorder within the graphitic CNT structure [52,53,54]. As shown in Figure 4a,b, the Raman spectra of the PtNP/CNT composites show the D (1347 to 1352 cm⁻¹), G (1578 to 1586 cm⁻¹), and 2D (2679 to 2697 cm⁻¹) bands, respectively. The I_D/I_G ratio for 25 mM and 100 mM PtNP/CNT composites decreased with increasing the amount of CNTs in the PtNP/CNT nanocomposite due to the increase in the degree of graphitization from the presence of a larger amount of CNTs with respect to the amount of platinum nanoparticles to interact and introduce structural defects along the CNT structure [52,53]. Figure 4a depicts the Raman spectrum with the I_D/I_G ratios of 25 mM/20 wt % and 25 mM/30 wt % PtNP/CNT nanocomposites to be 1.2 and 1.1, respectively, whereas it is 2.7 for the 25 mM/10 wt %. Moreover, Figure 4b shows the Raman spectrum with the I_D/I_G ratios of the 100 mM Pt/CNT nanocomposites at 10 wt %, 20 wt %, and 30 wt % were 2.7, 1.3, and 1.2, respectively. The I_D/I_G ratio of both the 25 mM and 100 mM PtNP/CNT nanocomposites with higher wt % CNTs is closer in magnitude to that of the I_D/I_G ratio of pristine CNTs of 1.45 (Figure S5). Both of the PtNP/CNT nanocomposites from 25 mM and 100 mM with 10 wt % CNTs have the highest I_D/I_G ratio of 2.7. This is an indication of the presence of a more fused nanocomposite structure with Pt nanoparticles directly interacting with sp² hybridized structure of the CNTs interfering with the innate graphitic structure of CNTs as evidenced from the change of I_D/I_G ratio (1.45) of pristine CNTs (Figure S5) [54]. The noise in the 25 and 100 mM spectra towards higher than 1900 cm⁻¹ Raman shift is attributed to defects in the electronic and vibrational structure related to disorder of the local nanotube lattice [55].

3.3. Electrochemical Characterization and Performance of the PtNP/CNT Nanocomposite Inks

3.3.1. Electrochemical Impedance Spectroscopy

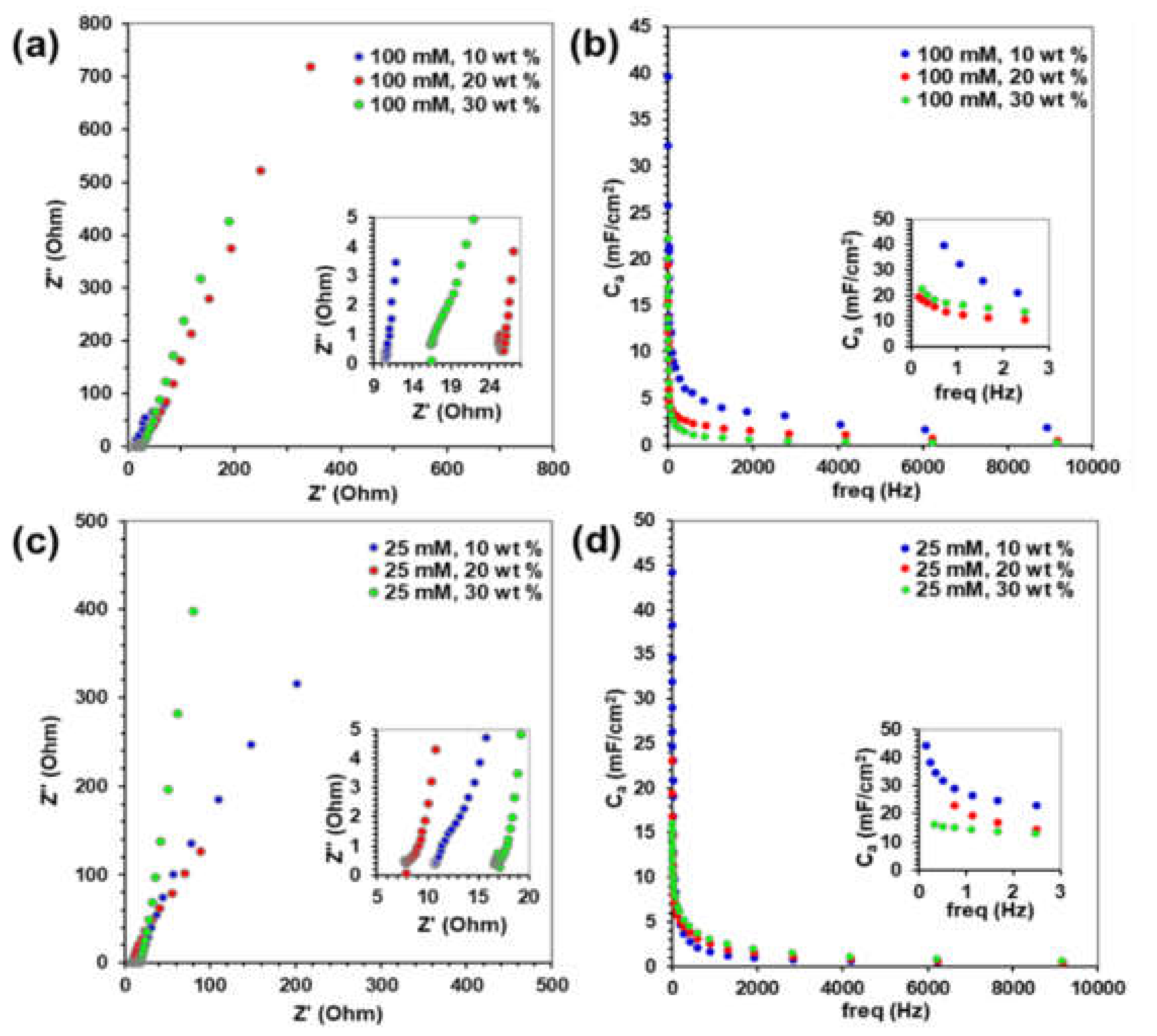

Electrochemical impedance spectroscopy was performed in 0.5 M H₂SO₄ in a frequency range of 500 kHz to 0.1 Hz, with the resulting Nyquist plots shown in Figure 5a,c. The 25 and 100 mM PtNP/CNT nanocomposites exhibit a characteristic porous electrode response with an arch in the high frequency region accompanied by a greater than 45° slope at low frequencies [56,57]. The Warburg impedance in the low frequency region of the Nyquist plots is a straight line with a slope larger than 45° associated with the mass transport resistance for the semi-infinite diffusion of electrolyte ions through PtNP/CNT nanocomposite [56,57]. However, as shown in both of the insets of Figure 5a,c, the high frequency region shows an inconspicuous arch with a nearly vertical line signifying a low charge transfer resistance for electrolyte diffusion into the porous PtNP/CNT nanocomposite ink network [56]. The high frequency resistance (HFR) intercept with the real (Z’) axis includes the total ohmic resistance, the ionic solution resistance, and the charge transfer resistance at the electrolyte interface [58]. The 25 mM PtNP/20 wt % CNT and 100 mM PtNP/10 wt % CNT composite inks have the lowest HFR and thus low ionic resistance to electrolyte transport and lower electronic resistance through the nanocomposite structure. The ohmic area-specific resistance (ASR_ohmic) of the composite inks was calculated from the HFR intercepts from the Nyquist plots [59]. As shown in

Table 1. Electrochemical Properties of PtNP/CNT Nanocomposite Inks.

Composite Ink		ASRohmic [Ωcm2]	Ca from EIS 1 [mF/ cm2]	Ca from CV 2 [mF/ cm2]	QEDLC from CV 3 [mC/ cm2]	ECSAEDLC 4 [cm2/mgPt]	QH from CV 5 [mC/ cm2]	ECSAH 6 [cm2/mgPt]
25 mM Platinum	10 wt % CNT	0.761	29.0	17.7	71.2	18.5	8.77	6.86
	20 wt % CNT	0.554	23.1	11.3	26.8	6.95	0.631	2.53
	30 wt % CNT	1.21	14.9	2.14	26.6	6.90	3.33	0.863
100 mM Platinum	10 wt % CNT	0.748	39.7	2.68	63.8	51.9	9.19	7.46
	20 wt % CNT	1.78	13.7	0.92	22.9	18.6	3.17	2.58
	30 wt % CNT	1.17	16.9	0.81	45.7	37.1	48.9	39.7

¹ C_a from EIS at 0.7 Hz., ² C_a from CV within the potential range of −0.2 to 1.2 V(vs Ag/AgCl) at 25 mV/s. ³ Q_ELDC from CV within the potential range from −0.2 to 0 V(Ag/AgCl) at 25 mV/s from the charge attributed to electrochemical double layer current (ELDC). ⁴ Electrochemical active surface area (ECSA) from Q_ELDC using the mass of the Pt macrotubes used in the ink synthesis and the average charge density is 210 µC/cm² for hydrogen adsorption for polycrystalline Pt. ⁵ Q_H from CV within the potential range from −0.2 to 0 V(Ag/AgCl) at 25 mV/s from the charge attributed to the average coulombic charge from the electro-adsorption and desorption of hydrogen. ⁶ ECSA from Q_H using the mass of the Pt macrotubes used in the ink synthesis and the average charge density is 210 µC/cm² for hydrogen adsorption for polycrystalline Pt.

, the ASR_ohmic of the 25 mM PtNP inks with 20 wt % CNTs and the 100 mM PtNP with 10 wt % CNTs were the lowest which is an indication of enhanced ionic conductivity through the composite ink structure.

Moreover, areal capacitances of the inks were determined from the complete range of frequencies of the Nyquist plot using the relation,

$${\mathrm{C}}_{\mathrm{a}}= 1/\left(2\mathsf{\pi }{\mathrm{fZ}}^{″}\mathrm{A}\right)$$

(1)

where f is the frequency, Z” is the imaginary component of impedance, and A is the geometric area of the PtNP/CNT on the GC electrode [60,61]. Areal capacitance as a function of frequency for the 25 mM PtNP/CNT composite ink is plotted in Figure 5b and for the 100 mM PtNP/CNT composite ink in Figure 5d. At low frequencies, the C_a of the 25 mM PtNP/CNT composite ink was inversely proportional to the amount of CNTs. As shown in the inset of Figure 5d, at 0.7 Hz, the C_a of 25 mM PtNP/CNT composite inks was 29 mF/cm² with 10 wt % CNTs, 23 mF/cm² with 20 wt % CNTs, and 15 mF/cm² with 30 wt% CNTs. The C_a for 100 mM PtNP and 10 wt % CNT composite ink was the largest at 39 mF/cm² but increasing the wt % of CNTs to combine with 100 mM PtNP lowered the C_a of the composite inks (Figure 5d). Moreover, increasing the mass of CNTs can lead to a loss of an open networks from the presence of more entanglements in CNTs effecting the overall surface area available for electrolyte transport through the composite ink thus lowering the capacitance.

3.3.2. Cyclic Voltammetry

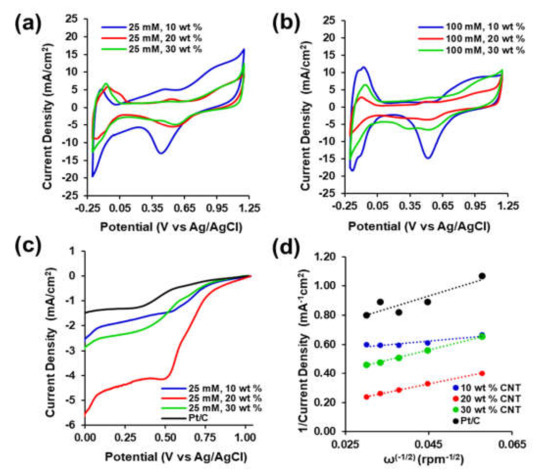

Cyclic voltammetry was performed in N₂-purged 0.5 M H₂SO₄ electrolyte in the potential range from −0.2 to 1.2 V (vs Ag/Ag/Cl). Each PtNP/CNT composite ink was tested at 5, 10, 25, 50, 75, and 100 mV/s scan rates. The CVs in Figure 6a,b for both PtNP/CNT composite inks from 25 mM and 100 mM Magnus’s salts show characteristic hydrogen adsorption and desorption peaks associated with the catalytic surface of platinum nanoparticles between −0.2 and 0 V (vs Ag/AgCl). The prominent reduction peak at +0.45 V (vs Ag/AgCl) is attributed to the surface accessible catalytic crystal structure on the surface of platinum. The oxidation of Pt-H to Pt-OH and Pt-OH to Pt-O is evident from the resulting broad increase in oxidation current at +0.96 V (vs Ag/AgCl) and +1.1 V (vs Ag/AgCl), respectively [40]. The CV for 25 mM PtNP/20 wt % CNT (Figure S6a), 100 mM PtNP/10 wt % CNT (Figure S6b) at the lowest scan rate of 5 mV/s, and both 25 mM and 100 mM PtNP nanocomposite inks with increasing wt % CNTs at 25 mV/s (Figures S6c,d and S7) show the same prominent reduction and oxidation peaks with electrocatalytic activity for hydrogen on crystalline Pt.

The CVs of the 25 mM PtNP in Figure 6a and 100 mM PtNP in Figure 6b with 10 wt % of CNTs have the highest oxidation and reduction current densities between −0.2 and 0 V (vs. Ag/AgCl) from the electrochemical active surface area for the catalytic activity of hydrogen. The total charge corresponding to the catalytic activity can be evaluated from the area under the CV of each PtNP/CNT nanocomposite ink between −0.2 and 0 V (vs. Ag/AgCl) where the hydrogen atoms are adsorbed and desorbed. Moreover, in this same region the total charge from the double layer current from both Pt nanoparticles and CNTs is also present. The average amount of charge exchanged during the adsorption and desorption of hydrogen (Q_H) and the amount of charge attributed to the non-Faradaic capacitive current from the electrochemical double layer current (Q_ELDC) is evaluated from the following expression:

$$\mathrm{Q}=\frac{1}{{\mathsf{\upsilon }}_{\mathrm{b}}}{{\displaystyle \int }}_{{\mathrm{E}}_1}^{{\mathrm{E}}_2}\mathrm{IdE}$$

(2)

where Q is the charge in coulombs C, ${\mathsf{\upsilon }}_{\mathrm{b}}$ is the CV scan rate in volts per second (V/s), I is for current in amperes (A), and E is the voltage in volts (V) in the CV range from −0.2 V to 0 V (vs Ag/AgCl) [62,63].

As shown in Table 1, the 25 mM PtNP and 100 mM with 10 wt % CNTs had the highest Q_ELDC with 71.2 mC/cm² and 63.8 mC/cm², respectively. This high charge density is due to the presence of a more exposed PtNP/CNT nanocomposite for ionic diffusion and double layer current through the ink structure consistent with the more open network present in the SEM images in Figure 2a and Figure S3a. The 25 mM and 100 mM PtNP/CNT nanocomposites also had the highest I_D/I_G ratios in Figure 4a,b indicative of a more fused PtNP/CNT nanocomposite due to the interaction of Pt nanoparticles on the sidewalls of the graphitic CNTs with synergistic contribution to the higher charge density from non-Faradaic current. The Q_ELDC of the 25 mM PtNP with 20 wt % and 30 wt % CNTs was commensurate with the Q_ELDC of 100 mM with 20 wt %. However, the charge density from the electrochemical double layer of the 100 mM PtNP with 30 wt % CNTs was one and a half times higher (45.7 mC/cm²) than that of the 25 mM PtNP with 20 wt % and 30 wt % CNTs. In addition, the Q_ELDC for the 100 mM PtNP with 30 wt % CNT was two times higher than with 20 wt % CNTs. The differences in the double layer charge density can be attributed to the presence of more fused fragments of Pt macrotube sidewalls from 100 mM Pt salt templates as opposed to 25 mM. The SEM images of the 100 mM PtNP/CNT nanocomposite inks in Figure S3 show the dispersed fragments of Pt microtube sidewalls made up of smaller Pt nanoparticles fused with CNTs. As seen in Figure S3g–i, the 100 mM PtNP with 30 wt % CNTs has an overall more densely packed nanocomposite ink structure made up of smaller primary Pt nanoparticles dispersed in a more compact CNT network thus, increasing the overall double layer charge density in the negative potential region of the CV where catalytic activity for hydrogen occurs. In addition, the charge density from the catalytic oxidation of hydrogen (Q_H) for all the PtNP/CNT nanocomposite inks was evaluated from the anodic desorption of hydrogen in the CV region from −0.2 to 0 V (vs Ag/AgCl).

The 100 mM PtNP and 30 wt % CNT nanocomposite ink had the highest Q_H of 48.9 mC/cm². Meanwhile, of the remaining nanocomposite inks both the 25 mM and 100 mM PtNP with 10 wt % CNTs had lower charge density for the desorption of hydrogen at 8.77 mC/cm² and 9.17 mC/cm², respectively. The main difference in 100 mM PtNP with 30 wt % CNT structure is the exposure for electrolyte of the fragments consisting of the small primary Pt nanoparticles in the nanocomposite ink structure. The disparity in Q_H amongst the PtNP/CNT nanocomposite inks could be a result of the electrolyte accessibility to the crystal surface of the Pt nanoparticles from a difference in the distribution of these nanoparticles and their aggregates throughout the CNT network.

In addition, Table 1 shows the electrochemical active surface areas correlating with the electrochemical double layer current (ECSA_ELDC) and the catalytic activity of hydrogen desorption (ECSA_H) are determined from the calculated Q_ELDC and Q_H, respectively. The ECSA was evaluated using the subsequent equation [62,63]:

$$\mathrm{ECSA}=\frac{\mathrm{Q}}{\mathsf{\Gamma } \ast \left({\mathrm{Pt} \mathrm{Loading}}_{\mathrm{electrode}}\right)}$$

(3)

where ECSA is the electrochemical active surface area in cm²/mg_Pt, Q is the charge density from the CV from −0.2 V to 0 V (vs Ag/AgCl) in mC/cm²_electrode, Pt loading is the mass of the reduced macrotubes in the PtNP/CNT nanocomposite ink on the GC electrode in mg_Pt/cm²_electrode, and Γ is the charge for hydrogen adsorption/desorption on polycrystalline Pt being 210 µC/cm²_Pt [62,63]. Overall, the 100 mM PtNP nanocomposite inks had higher ECSA_ELDC than the 25 mM PtNP nanocomposite inks. The 100 mM PtNP with 30 wt % nanocomposite ink exhibited the highest Q_H leading to the highest ECSA_H. The high surface area and the sp² hybridized network of CNTs combined with ion accessible crystalline PtNP surfaces in the nanocomposite ink allows for transport and rapid reduction of surface adsorbed protons and subsequent oxidation of the surface-bound protons to then desorb into the H₂SO₄ electrolyte. The ECSA_H of 39.7 cm²/mg_Pt for 100 mM PtNP/30 wt % CNT nanocomposite ink is the highest achieved for catalytic activity for hydrogen in the current study. However, the 100 mM PtNP/30 wt % CNT ink only performed with 31% of the active surface area of the reported 124.8 cm²/mg_Pt for a Pt black-based electrocatalyst [64] and 27% of the reported 147.1 cm²/mg_Pt for a commercial Pt/C electrocatalyst [64]. The lower ECSA_H of the 25 mM PtNP/CNT and 100 mM PtNP/CNT nanocomposite inks is attributed to the larger salt template macrostructure [36] and traces of unreduced platinum salts in the chemical reduction process. Figure 6a,b demonstrate the oxidation and reduction of the highest ratio of CNTs with the lowest concentration of Pt and a lower ratio of CNTs with the highest concentration of Pt. As in the CVs in Figure 4, the strong pronounced reduction peak at approximately +0.45 V (vs. Ag/AgCl) is from the reduction of Pt. The coupled oxidation peak at approximately +1.2 V (vs. Ag/AgCl) is from the oxidation of Pt. As previously reported, the oxidation peak observed at +0.45 V (vs Ag/AgCl) in the CV curves for both inks Figure 6a,b is attributed to residual unreduced platinum salt, with the following half-cell reduction reaction of [36,37,40]:

$${\left[{\mathrm{PtCl}}_6\right]}^{2-}\left(\mathrm{aq}\right) + 2 {\mathrm{e}}^{-}\to {\left[{\mathrm{PtCl}}_4\right]}^{2-}\left(\mathrm{aq}\right) + 2 {\mathrm{Cl}}^{-} \left(\mathrm{aq}\right),\hspace{1em}\mathrm{E}° = +0.483 \mathrm{V} \left(\mathrm{vs} \mathrm{Ag}/\mathrm{AgCl}\right)$$

(4)

The CVs in Figure 6a,b of the 25 mM and 100 mM PtNP with increasing wt % of CNTs show the current density profile as a result of electrochemical double layer capacitance from the presence of CNTs and the redox current from Pt nanoparticles. Both 25 mM and 100 mM PtNP nanocomposites with 10 wt % CNTs exhibited higher oxidation and reduction current density throughout the potential range. The area under each CV represents the areal capacitance of each PtNP/CNT nanocomposite. As shown in Table 1, the areal capacitance (C_a) from CV between −0.2 and +1.2 V (vs Ag/AgCl) which includes both the double layer and faradaic current contributions was the highest for the PtNP/CNT nanocomposites with the lowest percent of CNTs. As shown from the SEM images in Figure 2, this could be attributed to the more dispersed and open nanocomposite structure to facilitate electrolyte diffusion. The higher the wt % of CNTs the more aggregation of particles in the ink after being dispersed. The C_a values from CV was the highest for the 25 mM PtNP/10 wt % CNT and 25 mM PtNP/20 wt % CNT inks with 17.7 mF/cm² and 11.3 mF/cm², respectively. Compared to that of composite inks from 100 mM Pt, the 25 mM PtNP inks had higher overall areal capacitance due to higher electrochemical double layer current through the electrolyte accessible sp² hybridized graphitic CNT network. As previously shown in the Raman spectra in Figure 4a, the 25 mM PtNP/CNT composites had less defect density for the CNTs in the composite which is an indication of a more electrolyte-accessible CNT network for the diffusion of ions. This is due to the presence of surface-accessible catalytic sites for hydrogen binding within the potential range from −0.2 (vs Ag/AgCl) to 0 V (vs Ag/AgCl). The reduction peaks are due to accessibility of adsorption sites for hydrogen gas on the crystalline surface of Pt. The peaks are a result of the oxidation of adsorbed hydrogen, reflecting the desorption of hydrogen on the crystalline surface of Pt. Moreover, the initial electrochemical durability of the 25 mM PtNP CNT nanocomposite inks was evaluated with extending cycling experiments by performing CV for 100 cycles at 25 mV/s (Figure S8) and EIS Nyquist plot and areal capacitance vs frequency upon completion of the 100th cycle (Figure S9). The electrochemical properties of ASR, Ca, Q_H, and ECSA_H after long term duration cycling are shown in Table S2.

3.3.3. Linear Sweep Voltammetry

In order to investigate the electrocatalytic activity of the PtNP/CNT composite inks, LSV measurements for ORR performance were conducted in 0.5 M H₂SO₄ electrolyte purged and saturated with oxygen for 30 min before all tests and was purged for 10 min between each experiment. The RDE used in all LSV experiments was polished, rinsed, and dried using the same method as the GC electrode for CV experiments. Each PtNP/CNT nanocomposite ink was prepared on the RDE in the same manner as CV tests. LSV experiments on all nanocomposite inks were conducted at 300, 500, 700, 900, and 1100 rpm in O₂-saturated 0.5 M H₂SO₄ at a scan rate of 10 mV/s. Each LSV experiment was conducted by performing a cathodic sweep from +1.2 V (vs. Ag/AgCl) which is more positive than the onset potential for ORR towards more negative potentials and the mass transport limited current density plateau region. The ORR catalytic performance of the 25 mM PtNP/CNT nanocomposites inks were compared to 40 wt % Pt Black/Graphite (Pt/C) ink.

Figure 6c shows LSV performance of the 25 mM PtNP with 10 wt % CNT, 20 wt % CNT, 30 wt % CNT composite inks against Pt/C at 1100 rpm. The Pt/C ink exhibited a initial gradual increase in reduction current at +1.01 V (vs Ag/AgCl), similarly all three of the 25 mM PtNP nanocomposite inks showed the same initial gradual increase in reduction current density but the 10 wt % and 20 wt % inks exhibited this increase at a more positive potential +1.03 V(vs Ag/AgCl). There is a 20 mV difference in the initial onset potential difference for ORR between the 25 mM PtNP nanocomposite inks with 10 wt % and 20 wt % CNTs and Pt/C attributed to the difference in the homogeneity of the ink to enable electrolyte access to the surface catalytic sites [65,66,67,68]. As shown in the LSV in Figure 6c, the reduction current density of the 25 mM PtNP/20 wt % CNT nanocomposite ink showed a sharp linear increase from +0.75 V (vs Ag/AgCl) until it reaches a plateau at +0.5 V (vs Ag/AgCl) whereas the 25 mM PtNP with 10 wt % and 30 wt % exhibited a slower and gradual increase in reduction current density. The onset potential where the sharp increase in reduction current density for ORR occurs at +0.83 V (vs Ag/AgCl) for the 25 mM PtNP/10 wt% CNT, at +0.84 V (vs Ag/AgCl) for the 25 mM PtNP/30 wt % CNT, and at +0.98 V (vs Ag/AgCl) for the 25 mM PtNP/20 wt % CNT nanocomposite ink. The onset potential for the sharpest increase of reduction current density for ORR for the 25 mM PtNP/20 wt % CNT nanocomposite ink was 33 mV more positive of that of Pt/C ink (+0.947 V vs Ag/AgCl). Overall, the 25 mM PtNP/20 wt % CNT nanocomposite ink exhibited the largest limiting current density for ORR amongst all the inks and had 3.5 times the limiting current density of the Pt/C ink.

Furthermore, Tafel plots analyzing the applied potential vs the logarithm of the current density can be used to assess the kinetics for ORR and O₂ adsorption mechanism onto the 25 mM PtNP/CNT nanocomposite inks. As shown in Figure S10, the Tafel plots of the PtNP/CNT nanocomposite inks and the benchmark Pt/C ink exhibited classical Tafel behavior. After fitting the linear high potential region of the Tafel plots, the Tafel slopes of the 25 mM PtNP/10 wt % CNT, 25 mM PtNP/20 wt % CNT, 25 mM PtNP/30 wt % CNT, and Pt/C inks were determined to be 375, 235, 485, and 488 mV/decade, respectively. The lowest value of the Tafel slope was achieved in the 25 mM PtNP/20 wt % CNT nanocomposite ink and was 253 mV/decade lower in magnitude than the synthesized Pt/C ink. The Tafel slope of the 25 mM PtNP/20 wt % CNT nanocomposite ink is the closest in agreement with that of the commercial Pt/C catalyst of approximately 120 mV/ decade in PEM fuel cell conditions [69,70]. The differences in performance can be attributed to the overpotentials present in the PtNP/CNT inks. Moreover, the linear regions at low and high current densities observed in the corresponding Tafel studies are an indication of performance for ORR activity of the 25 mM PtNP/CNT nanocomposite inks (Figure S11). The 25 mM PtNP/20 wt % CNT nanocomposite ink had a Tafel slope of the smallest in magnitude compared to the 10 wt %, 20 wt %, and Pt/C inks due to the higher catalytic activity for ORR [71,72].

Amongst the 25 mM PtNP/CNT nanocomposite inks, the electrochemical performance of the 25 mM PtNP/20 wt % CNTs in Figure 7 shows the most active performance of all the 25 mM PtNP/CNT nanocomposite inks for ORR. The electron transfer number per oxygen molecule involved in the ORR at each of the PtNP/CNT nanocomposite inks was determined by the Koutecky–Levich (K–L) equation given below [73]:

$$\frac{1}{\mathrm{j}} = \frac{1}{{\mathrm{j}}_{\mathrm{k}}} + \frac{1}{{\mathrm{B}\mathsf{\omega }}^{0.5}}$$

(5)

where j is the current density, j_k is the kinetic current density, and ω is the electrode rotating rate. B is determined from the slope of K–L plots (Figure 6d and Figure 7d,f) based on the Levich equation as follows [73]:

$$\mathrm{B}=0.2\mathrm{nF}{\left({\mathrm{D}}_{{\mathrm{O}}_2}\right)}^{\frac{2}{3}}{ \mathsf{\upsilon }}^{\frac{-1}{6 }}{\mathrm{C}}_{{\mathrm{O}}_2}$$

(6)

where n represents the number of electrons transferred per oxygen molecule, F is the Faraday constant (F = 96,485,000 mC mol⁻¹), D_O2 is the diffusion coefficient of O₂ in 0.5 M H₂SO₄ (1.93 × 10⁻⁵ cm² s⁻¹), ν is the kinematic viscosity (9.50 × 10⁻³ cm² s⁻¹), and C_O2 is the bulk concentration of O₂ (1.13 × 10⁻⁶ mol cm⁻³) [74,75]. The constant 0.2 is adopted when the rotation speed is expressed in rpm [76].

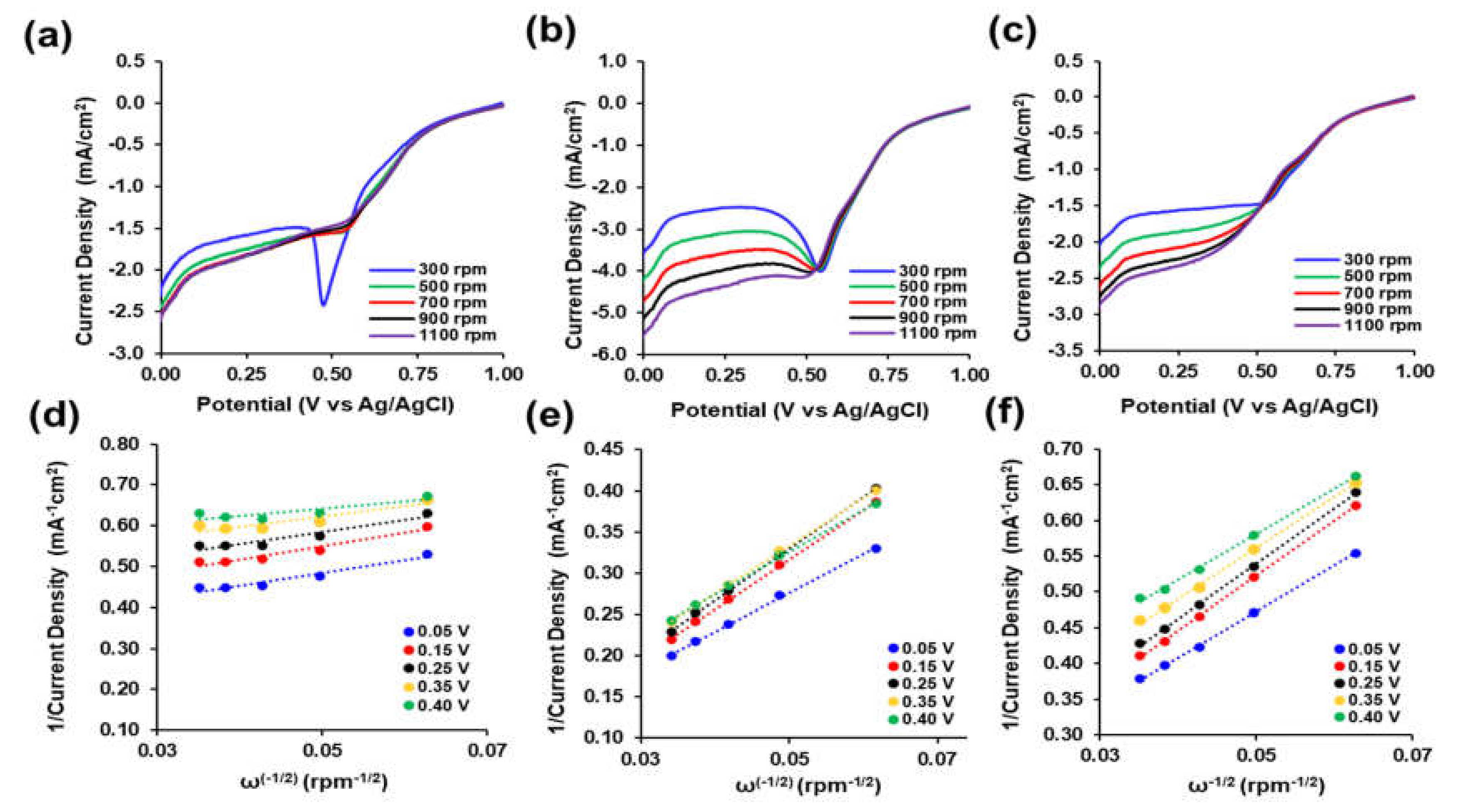

Figure 7a–c shows the LSV of the 25 mM PtNP/CNT at 10 mV/s in O₂ saturated 0.5 M H₂SO₄ electrolyte from +1.0 V to 0 V (vs Ag/AgCl) at 300, 500, 700 rpm, 900, and 1100 rpm. The LSV for all three 25 mM PtNP with increasing wt % of CNTs shows a steady increase followed by a rapid linear increase in reduction current density until achieving the limiting current density region plateau. Figure 7a depicts the gradual steady increase in reduction current density from +1.0 V (vs Ag/AgCl) until +0.73 V (vs Ag/AgCl) before a rapid steep linear increase until +0.55 V (vs Ag/AgCl) where it reaches another steady gradual increase until +0.08 V (vs Ag/AgCl) followed by a sharper increase to 0 V (vs Ag/AgCl). In addition, the LSV for 25 mM PtNP with 20 wt % CNTs in Figure 7b, shows a similar slow increase in reduction current density until +0.78 V (vs Ag/AgCl) before a sharp linear increase until +0.6 V (vs Ag/AgCl) before an even more rapid increase to approximately +0.54 V (vs Ag/AgCl) followed by a decrease in reduction current density occurs until +0.4 V (vs Ag/AgCl) to ultimately achieving the limiting current density plateau region to +0.07 V (vs Ag/AgCl) where there is a rapid increase in reduction current density until 0 V (vs Ag/AgCl). Furthermore, the LSV of the 25 mM PtNP/CNT with 30 wt % CNTs shown in Figure 7c shows the same slow gradual increase in reduction current density until +0.76 V (vs Ag/AgCl) followed by a sharp linear increase in reduction current density to +0.51 V (vs Ag/AgCl) to reach the limiting current density plateau region until, finally, there is a sharp increase in reduction current density +0.08 V (vs Ag/AgCl) to 0 V (Ag/AgCl). This LSV performance indicates the ability of the 25 mM PtNP/CNT as a catalyst for ORR through a multiple electron transfer reaction. The difference in onset potential between all the nanocomposite inks is due to the catalytic ability for ORR. The onset potentials of the nanocomposite inks are +0.805 V (vs Ag/AgCl), +0.825 V (vs Ag/AgCl), and +0.819 V (vs Ag/AgCl) for the 10 wt %, 20 wt %, and 30 wt %, respectively. This difference in the onset potentials is attributed to the morphology and dispersion of the Pt nanoparticles through the CNT network. The inks with the lower percent of CNTs reached the limiting current density plateau region phase more quickly and exhibited more prominent reduction peaks. This is due to reaction rate and accessibility of hydrogen adsorption sites on the surface of the Pt electrode consistent with the results of the CV.

As shown in Figure 6d and Figure 7d,e, a linear relationship between j⁻¹ (1/current density) and ω^0.5 was observed for all the three 25 mM PtNP/CNT nanocomposite inks. The electron transfer numbers per O₂ molecule (n) were determined from the slope of the K-L plots at 0.35 V (vs Ag/AgCl) in Figure 6d to be 1.16, 5.08, and 4.12 for the 25 mM PtNP with 10 wt % CNT, 20 wt % CNT, and 30 wt % CNT, respectively. The electron transfer number at the Pt/C nanocomposite ink is close to the two-electron reduction reaction process [73,75]. Moreover, an electron transfer number of 4.12 for the 25 mM PtNP with 30 wt % CNT nanocomposite ink correlates with the direct four electron ORR mechanism [75]. As shown in

Table 2. Electron Transfer Number of 25 mM PtNP/CNT Nanocomposite Inks with varying CNT wt %.

Electron Transfer Number (n) Per Oxygen Molecule
25 mM Platinum		V (vs Ag/AgCl)
		0.05 V	0.15 V	0.25 V	0.35 V
% CNT	10 wt %	9.49	8.99	9.68	1.16
	20 wt %	6.26	4.88	4.68	5.08
	30 wt %	4.55	3.83	3.80	4.12

, the electron transfer numbers that are higher than 4 at potentials below +0.35 V (vs Ag/AgCl) for the 25 mM PtNP/CNT nanocomposite ink with 10 wt % CNT is an indication of surface passivation and the possible decrease in accessible surface catalytic sites leading to other reactions [76]. This is also consistent with the presence of pronounced reduction peaks in the LSVs in both Figure 7a,b at approximately +0.50 V (vs Ag/AgCl). The 25 mM PtNP/CNT nanocomposite inks with 20 wt % and 30 wt % CNTs consisted of electron transfer numbers between 3 and 5 which is an indication that the ORR of the PtNP/CNT nanocomposite inks could likely proceed through a four-electron transfer process.

4. Conclusions

In summary, we have demonstrated the use of salt templates as sacrificial structures for the reduction and incorporation of Pt nanoparticles with CNTs to form electrocatalyst nanocomposite inks. Overall, the 100 mM PtNP/CNT nanocomposite inks had the higher ECSA for catalytic activity for hydrogen and electrochemical double layer current. It is notable that the 100 mM PtNP nanocomposite ink with 10 wt % CNT had the highest ECSA_ELDC with 51.9 cm²/mg_Pt and the 30 wt % CNT ink exhibited the highest overall ECSA_H with 37.9 cm²/mg_Pt. Furthermore, the 25 mM PtNP nanocomposite inks with both 20 wt% and 30 wt % exhibited the best overall electrocatalytic activity for ORR and comparable to the synthesized Pt/C ink electrode. The electron transfer numbers for both of the 25 mM PtNP/CNT inks performed through a four-electron process for ORR. Moreover, the 25 mM PtNP with 20 wt % CNT nanocomposite ink achieved 3.5 times the maximum limiting current density achieved by the synthesized Pt black-based Pt/C ink for ORR. The low Tafel plot slope indicates the 25 mM PtNP/20 wt % nanocomposite ink outperformed the synthesized Pt Black-based Pt/C ink for ORR in the high potential region and was closest in magnitude to the commercial Pt/C catalyst. In general, this all-aqueous and scalable methodology could serve a general approach for the production of electrocatalyst nanocomposite inks for the oxygen reduction reaction in a PEM fuel cell. Synthesis methods must be scalable and feasible to incorporate high surface area nanocomposites into electrocatalyst inks comprised of platinum nanoparticles with carbon nanomaterial to serve as fuel cell electrodes. To address this need, the salt template reduction approach and subsequent dispersion of the nanoparticles that make up the platinum macrotubes formed, can be applied with other carbon nanomaterials to produce various catalysts for applications beyond fuel cells. Therefore, this platform electrocatalyst composite design process of using salt templates for the rapid synthesis of noble metal nanoparticles to incorporate with carbon nanomaterials could serve as a general synthesis technique for the development of new electrocatalyst materials.
