Next Article in Journal
pH-Triggered Interfacial Interaction of Kaolinite/Chitosan Nanocomposites with Anionic Azo Dye
Next Article in Special Issue
Production and Mechanical Characterization of Graphene Micro-Ribbons
Previous Article in Journal / Special Issue
Preparation of Piezo-Resistive Materials by Combination of PP, SEBS and Graphene
Article Menu

Export Article

Open AccessArticle

Nucleation of the β-polymorph in Composites of Poly(propylene) and Graphene Nanoplatelets

International Institute for Nanocomposites Manufacturing (IINM), WMG, University of Warwick, Coventry CV4 7AL, UK
Author to whom correspondence should be addressed.
J. Compos. Sci. 2019, 3(2), 38;
Received: 12 March 2019 / Revised: 2 April 2019 / Accepted: 3 April 2019 / Published: 8 April 2019
(This article belongs to the Special Issue Recent Advances in Graphene-based Nanocomposites)
PDF [1953 KB, uploaded 8 April 2019]

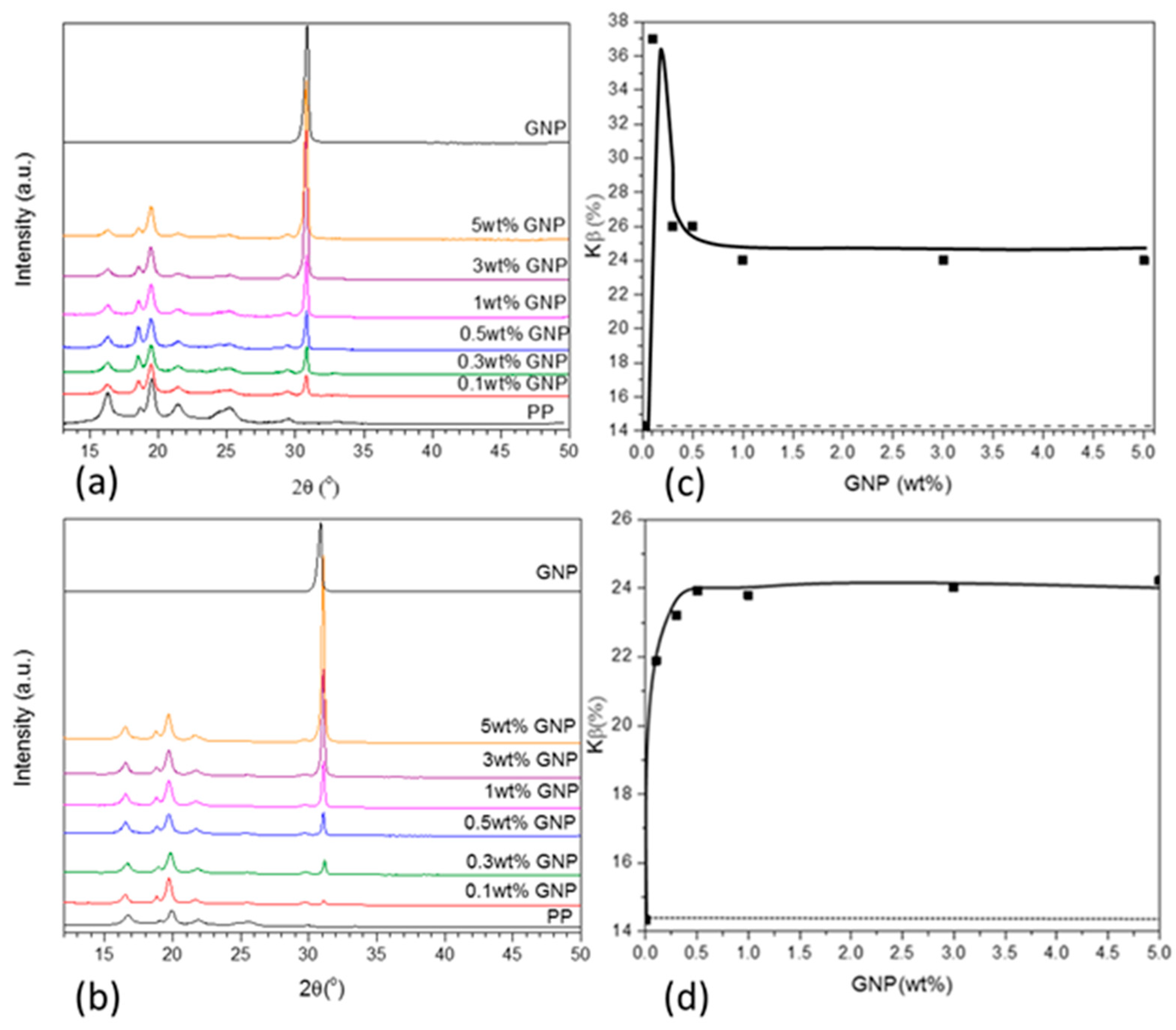

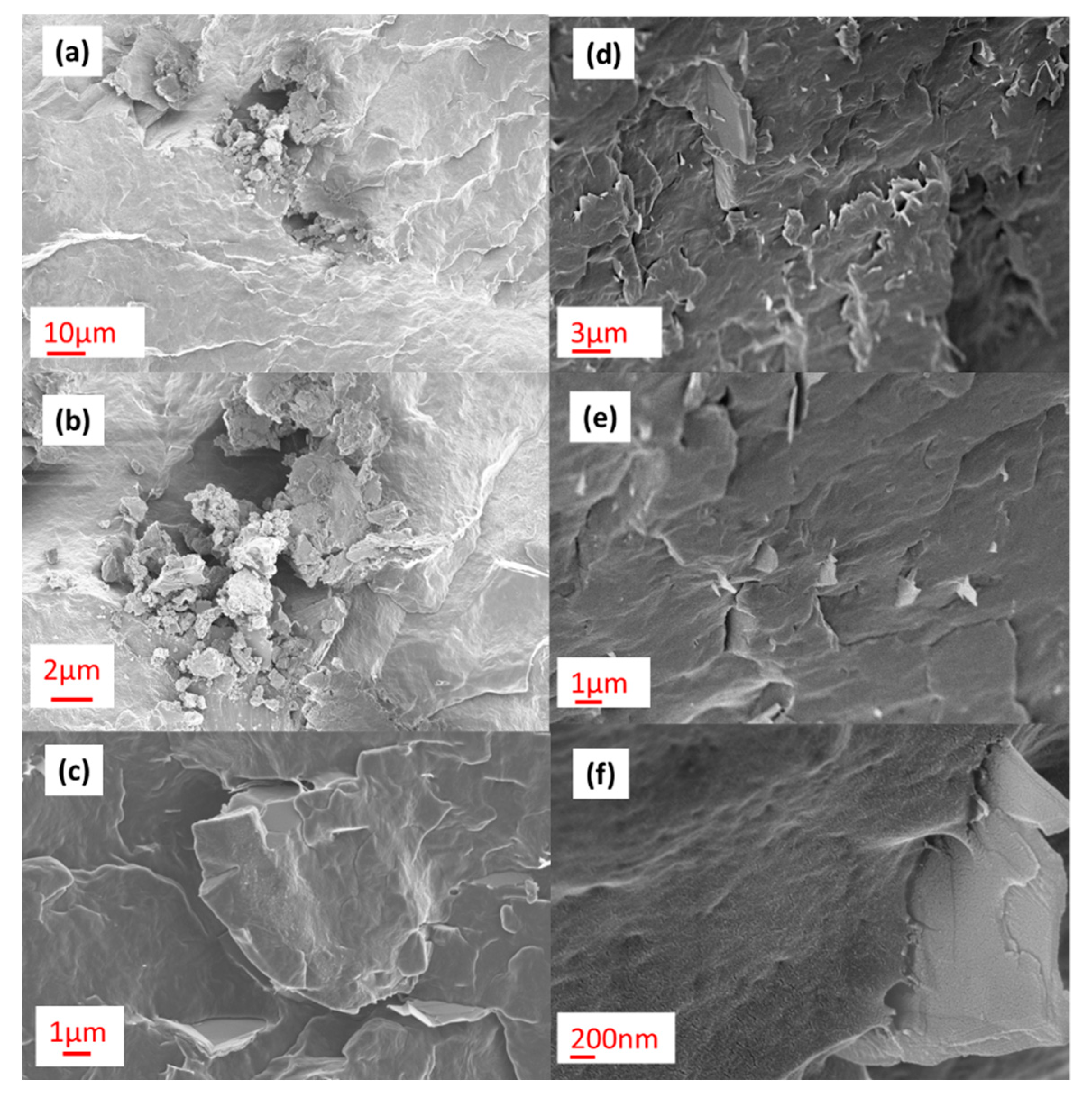

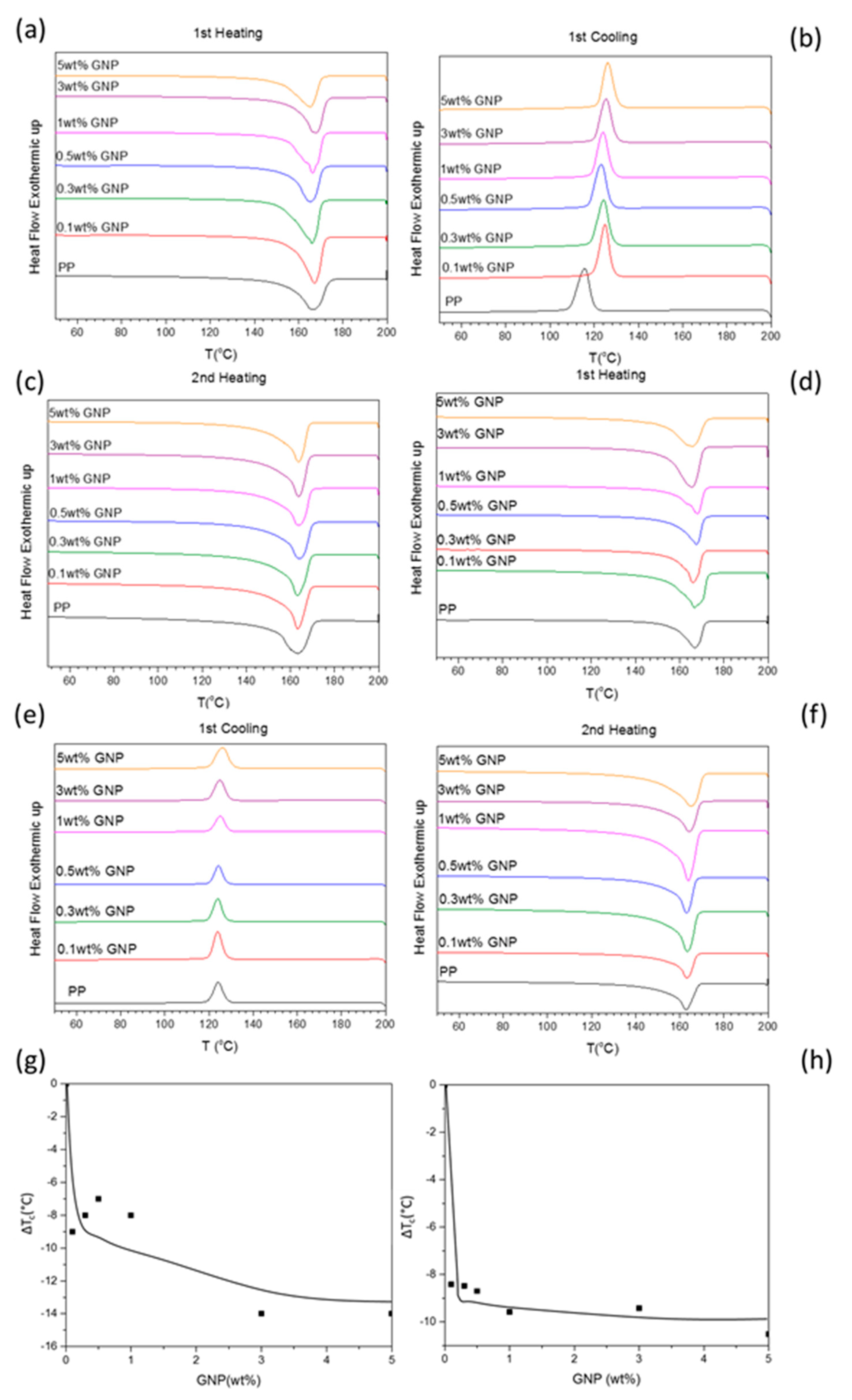

The effects of graphene nanoplatelets (GNPs) on the nucleation of the β-polymorph of polypropylene (PP) were studied when melt-mixed at loadings of 0.1–5 wt % using a laboratory scale twin-screw (conical) extruder and a twin-screw (parallel) extruder with L/D = 40. At low GNP loadings (i.e., ≤0.3 wt %), the mixing efficiency of the extruder used correlated with the β-nucleating activity of GNPs for PP. GNP agglomeration at low loadings (<0.5 wt %) resulted in an increase in the β-phase fraction (Kβ) of PP, as determined from X-ray diffraction measurements, up to 37% at 0.1 wt % GNPs for composites prepared using a laboratory scale twin-screw (conical) extruder. The level of GNP dispersion and distribution was better when the composites were prepared using a 16-mm twin-screw (parallel) extruder, giving a Kβ increase of 24% upon addition of 0.1 wt % GNPs to PP. For GNP loadings >0.5 wt %, the level of GNP dispersion in PP did not influence the growth of β-crystals, where Kβ reached a value of 24%, regardless of the type of extruder used. From differential scanning calorimetry (DSC) measurements, the addition of GNPs to PP increased the crystallization temperature (Tc) of PP by 14 °C and 10 °C for the laboratory scale extruder and 16-mm extruder, respectively, confirming the nucleation of PP by GNPs. The degree of crystallinity (Xc%) of PP increased slightly at low GNP additions (≤0.3 wt %), but then decreased with increasing GNP content. View Full-Text
Keywords: poly(propylene); graphene nanoplatelets (GNPs); nucleation; β-polymorph poly(propylene); graphene nanoplatelets (GNPs); nucleation; β-polymorph

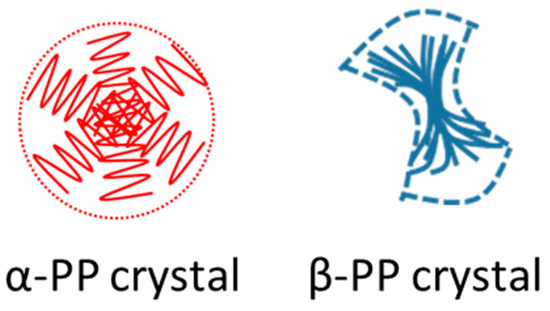

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Guerra, V.; Wan, C.; McNally, T. Nucleation of the β-polymorph in Composites of Poly(propylene) and Graphene Nanoplatelets. J. Compos. Sci. 2019, 3, 38.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Article Access Statistics



[Return to top]
J. Compos. Sci. EISSN 2504-477X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
