Comparison of Outdoor Compost Pile Detection Using Unmanned Aerial Vehicle Images and Various Machine Learning Techniques

by
Bonggeun Song
1 and
Kyunghun Park
2,*
1
Institute of Industrial Technology, Changwon National University, 20 Changwondaehak-ro Uichang-gu Changwon-si 641-773, Gyeongsangnam-do, Korea
2
School of Civil, Environmental and Chemical Engineering, Changwon National University, 20 Changwondaehak-ro Uichang-gu, Changwon-si 641-773, Gyeongsangnam-do, Korea
*
Author to whom correspondence should be addressed.
Drones 2021, 5(2), 31; https://doi.org/10.3390/drones5020031
Submission received: 26 March 2021 / Revised: 23 April 2021 / Accepted: 23 April 2021 / Published: 26 April 2021
Browse Figures
Versions Notes

Abstract

:
Since outdoor compost piles (OCPs) contain large amounts of nitrogen and phosphorus, they act as a major pollutant that deteriorates water quality, such as eutrophication and green algae, when the OCPs enter the river during rainfall. In South Korea, OCPs are frequently used, but there is a limitation that a lot of manpower and budget are consumed to investigate the current situation, so it is necessary to efficiently investigate the OCPs. This study compared the accuracy of various machine learning techniques for the efficient detection and management of outdoor compost piles (OCPs), a non-point pollution source in agricultural areas in South Korea, using unmanned aerial vehicle (UAV) images. RGB, multispectral, and thermal infrared UAV images were taken in August and October 2019. Additionally, vegetation indices (NDVI, NDRE, ENDVI, and GNDVI) and surface temperature were also considered. Four machine learning techniques, including support vector machine (SVM), decision tree (DT), random forest (RF), and k-NN, were implemented, and the machine learning technique with the highest accuracy was identified by adjusting several variables. The accuracy of all machine learning techniques was very high, reaching values of up to 0.96. Particularly, the accuracy of the RF method with the number of estimators set to 10 was highest, reaching 0.989 in August and 0.987 in October. The proposed method allows for the prediction of OCP location and area over large regions, thereby foregoing the need for OCP field measurements. Therefore, our findings provide highly useful data for the improvement of OCP management strategies and water quality.

1. Introduction

Eutrophication and water pollution in rivers caused by non-point pollution sources have recently become a serious worldwide problem [1,2,3]. Particularly, in agricultural areas, several pollutants such as high-nutrient composts and waste materials containing large amounts of nitrogen and phosphorus readily flow into nearby rivers via surface runoff, which leads to eutrophication and algal blooms [4,5,6,7]. River contamination not only affects aquatic ecosystems but also urban residents who depend on these water bodies as drinking water sources [8]. Therefore, non-point pollution management is critical to minimize water pollution. The large-scale development of agricultural areas into farmlands in South Korea has resulted in an increased demand for fertilizers and pesticides. Due to the occurrence of torrential rains in the summer season (i.e., from June to August) [9], water pollution caused by non-point sources is becoming a serious problem [10]. Non-point sources of water pollution are of particular concern in agricultural areas, as these regions lack the degree of management and oversight of urban areas where water supply and sewage infrastructure are relatively well established.
Among the many non-point pollution sources, outdoor compost piles (OCPs) are becoming a serious problem in agricultural areas in South Korea. Given that compost contains large amounts of nitrogen and phosphorus, it is used to increase the growth of crops by supplying nutrients to the soil. However, excessive compost use is a major cause of eutrophication, as these nutrient-rich materials often reach nearby rivers due to surface runoff [11,12]. Compost is mainly applied outdoors in agricultural areas in South Korea, thus raising concerns about water pollution [13]. Therefore, central and local government officials must conduct regular OCP site monitoring and conduct a thorough assessment of OCP pollution to improve OCP management strategies. However, there are severe limitations regarding the human labor, cost, and time required to conduct a full OCP survey in large areas, thus highlighting the need for more efficient OCP monitoring and management tools.
Many studies have explored the use of images captured from unmanned aerial vehicles (UAVs) and satellites to efficiently characterize specific objects on the earth’s surface. Particularly, UAVs are being used in various fields [14,15,16,17,18] because they can easily acquire high-resolution (i.e., centimeter-level resolution) images as well as various spectral images, while flying at low altitudes [19]. UAVs are highly useful for categorizing or detecting specific objects via object-based supervised and unsupervised classification [20,21,22,23,24,25]. Additionally, technologies for more accurate object detection have been recently developed by applying various machine learning and deep learning techniques, such as support vector machines (SVM), random forest (RF), decision tree (DT), and k-NN [26,27,28,29,30,31,32,33]. Nonetheless, a technology for OCP detection using UAV images coupled with machine learning techniques has not yet been developed.
Therefore, our study sought to develop a machine learning technique to efficiently detect OCP using UAV images and various machine learning techniques in targeted areas of Samga-myeon, Hapcheon-gun, where large-scale agricultural lands with a high occurrence of OCPs have been established. To achieve this, (i) RGB, multispectral image, and thermal infrared imaging data were acquired in August and October 2019 using UAVs, (ii) vegetation index images were analyzed using multispectral imaging, (iii) OCPs were classified and spectral characteristics were analyzed, and finally, (iv) the OCP classification accuracy of various machine learning techniques was compared.

2. Materials and Methods

2.1. Study Area

This study was conducted in areas known for the occurrence of OCPs (35°24′48″ N, 128°6′17″ E) in the region of Samga-myeon, Hapcheon-gun, located in the south of South Korea (Figure 1). The study area was 200 m in width and 150 m in length. The OCPs distributed in the study area were located in an area near the river, where cropland and greenhouses were also located. On cultivated land, rice is grown from June to October, whereas field crops are grown from November to May. During the rice cultivation period, the OCPs are stacked around the cultivated area and covered with plastic, after which they are scattered on the cultivated land once the harvest ends in November.
Korea exhibits four distinct seasons, with rain and torrential rain events occurring primarily during the summer period (i.e., from June to August). Therefore, if OCPs are not properly managed, they may be washed away by the rainfall and flow into nearby rivers. Therefore, it is necessary to effectively investigate and manage OCPs to proactively prevent water pollution.

2.2. Production of UAV Orthoimages and Vegetation Indices

In this study, RGB, multispectral, and thermal infrared images were collected from UAVs. The images were taken in August and October 2019 when the weather conditions allowed for UAV operation. Images were acquired from 11 am to 2 pm, when the sun’s altitude was highest. RGB and thermal infrared images were obtained by mounting both a Zenmuse X3 camera and a FLIR Vue pro R infrared camera (spectral band: 7.5–13.5 μm, accuracy: ±5 °C, emissivity: 0.98) on a DJI Inspire 1 UAV, respectively. For multispectral images, image data for five spectral bands (blue, green, red, NIR, and red-edge) were acquired by mounting a Red Edge-M multispectral camera on a 3DR-solo UAV. Table 1 details the equipment used for UAV photography.
The flight path employed for each UAV imaging method was established based on the range of the study area, and Inspire 1 and 3DR-solo UAVs were alternately operated. The image acquisition altitude was set to 150 m, and the image overlap was set to 85%. The UAV images were collected as orthoimages using the Pix4D Mapper software. The final orthoimages were obtained by submitting the multispectral images and the thermal infrared images to geometric correction based on the RGB images.
Various vegetation indices were analyzed to understand the spectral characteristics of OCP using five spectral images taken with a multispectral camera. Four vegetation indices, including the widely-used normalized difference vegetation index (NDVI), the enhanced normalized difference vegetation index (ENDVI), the normalized difference RedEdge index (NDRE), and the green NDVI (GNDVI) were used. The formulas for these vegetation indices are summarized in Table 2.

2.3. OCP Boundary Division and Spectral Characteristic Analysis

The boundary of OCPs were separated through vectorizing using RGB images and the ArcGIS 10.2 programs (Figure 2). Moreover, to account for current OCP management practices, polygons were divided into those that were covered with plastic (vinyl) and those that were not. Therefore, OCPs were classified into three types: OCP, plastic-covered OCP, and others.
Four vegetation index images produced from multispectral images and surface temperature extracted from thermal infrared images were used to understand the spectral characteristics of OCPs. First, due to the differences in spatial resolution between the data associated with each of the acquired images, all images were adjusted to the spatial resolution of the surface temperature image with the lowest resolution (50 cm × 50 cm). OCP classification data were also set to the same spatial resolution (50 cm × 50 cm), and polygon vector data were converted into raster data. All image data (400 × 300 pixels) were resized to the boundary of the study area and the data for each image (four vegetation indices, surface temperature, OCP classification data) were reshaped to one column (1 × 12,000) using Python 3.7. A database was constructed by concatenating each column, and the characteristics of the vegetation index and surface temperature were analyzed according to the classified OCP type (Figure 3).

2.4. Prediction of OCP Classification Using Machine Learning

Using the database shown in Figure 4, the accuracy of the OCP classification prediction was compared among various machine learning techniques, including SVM, decision tree (DT), random forest (RF), and k-NN using the ski-learn package in Python 3.7. The training data to test data ratio was 60% to 40%, and the data were randomly selected.
Regarding the SVM analysis, we also compared the performances between linear SVM and nonlinear SVM, and their accuracy was compared by adjusting the C parameter from 10−4 to 108. The C parameter establishes how many data samples are allowed to be placed in different classes. The smaller the C parameter, the higher the likelihood of outliers, creating a general decision boundary. In contrast, a larger C parameter results in a lower likelihood of outliers, which favors the identification of the decision boundary. The accuracy of the DT analysis was assessed by adjusting the maximum depth and random state values from 0 to 10 and 0 to 100, respectively. Max depth is a parameter representing the maximum depth of a tree to train a model. However, overfitting may occur as the depth increases. Therefore, an appropriate maximum depth setting is required for accurate model prediction. A random state is used to divide the data by finding values of elements that can accurately explain the data classification at the time of decision tree division. The RF adjusted n estimator and random state values, in which the n estimator is a variable that adjusts the number of trees to be created, were set from 0 to 20. As in the decision tree, the random state is used for dividing the data of the tree, and the accuracy was compared by inputting the highest accuracy value in the n estimator and setting it from 0 to 100. For k-NN, the accuracy was compared by setting n neighbors from 0 to 10. The n neighbor is a variable that determines the number of similar data used to predict results. When the number of n neighbors increases, the degree of similarity of the data selected as similar data increases. Therefore, it is necessary to set appropriate n neighbors because the classification range is narrow and classification errors occur.
As described above, accuracy was compared by adjusting the four machine learning techniques and variables, after which the machine learning technique with the highest accuracy and the corresponding variable values were obtained. The OCP classification prediction results were then analyzed based on the derived model, after which its applicability and accuracy for field OCP were evaluated.

3. Results

3.1. Spectral Characteristics by OCP Type

Figure 4 shows the results of analyzing the characteristics of various vegetation indices using the OCP classification type. In August, the number of uncovered OCPs was higher than the covered OCPs according to all vegetation index values assessed herein. Particularly, the difference between the average value of OCPs and covered OCPs according to the NDRE was 0.328, followed by the GNDVI (0.269) and NDVI (0.206). The ENDVI was 0.078, and the difference between OCPs and covered OCPs was negligible. However, the difference in the vegetation index from other types was largest, and it did not overlap with other types, even within the 25–75% range of the boxplot. The NDVI, NDRE, and GNDVI, OCP overlapped with some of the other types. The surface temperature was 2.855 °C lower in OCPs (46.393 °C) than in covered OCPs (49.248 °C). The difference in surface temperature from other types was also very large at approximately 10 °C. In October, the difference between the vegetation index and the surface temperature by type was lower than that of August, but the vegetation indices of OCPs and covered OCPs did not overlap within the 25–75% range of the boxplot. As observed in August, the vegetation indexes for OCPs were slightly higher than that of covered OCPs. The surface temperature was lower in OCPs (28.860 °C) than in covered OCPs (32.250 °C). Upon comparing the characteristics of various vegetation indices and surface temperature according to the OCP type by period, the vegetation indices were clearly classified according to whether the OCP was wrapped in plastic, and the GNDVI was the most distinct among them in August compared to October. However, other types were not clearly distinguished from OCPs except for the ENDVI and surface temperature in August.
Figure 5 shows the results of scatterplot analysis comparing various vegetation indices and surface temperatures by period. Upon comparing the August vegetation indices, it was confirmed that the distributions of OCPs (red dotted line) and covered OCPs (yellow dotted line) were clearly distinguishable. However, when comparing the surface temperature and vegetation indices, OCPs and covered OCPs were classified only in the NDRE, and not in the remaining vegetation indices. When comparing the vegetation indices in October, OCPs and covered OCPs were divided between the NDRE and GNDVI, NDRE and ENDVI, and GNDVI and ENDVI, and the surface temperature was clearly divided into the ENDVI and GNDVI groups. Therefore, the GNDVI and ENDVI are useful for OCP classification in October.
After analyzing the characteristics of various vegetation indices and surface temperatures according to the OCP type through boxplot and scatter plot analyses, we found that the types of vegetation indices that can classify OCP types varied. In August, for example, all vegetation indices could be classified into OCP and covered OCP types, but vegetation index values overlapped with other types. The same phenomenon occurred in October. In contrast, it was difficult to clearly classify the OCP type, as demonstrated by the scatterplot results. Nonetheless, we confirmed that the OCP type could be distinguished when compared with certain vegetation indices. Therefore, because the classification characteristics of OCPs may vary depending on which data is used for vegetation indices and surface temperature, various vegetation indices and surface temperatures were applied as variables to classify OCP types using machine learning, thus rendering more accurate classification results.

3.2. Comparison of Machine Learning Accuracy

Figure 6 shows the results of the comparison of accuracy by adjusting various machine learning techniques and variables for OCP classification. In the August linear SVM, when the C parameter was 103, the accuracy was lowest at 0.96, and when the C parameter was 100, the best accuracy was 0.982. Moreover, the accuracy of the non-linear SVM increased as the C parameter increased, and then remained constant starting from 104. In the October linear SVM, the accuracy remained constant at approximately 0.98, even if the C parameter changed. In the non-linear SVM, as in August, the accuracy increased as the C parameter increased, but the difference was not significant. The non-linear SVM had a slightly higher accuracy than the linear SVM, and when the C parameter was 1010, the highest accuracy was 0.986 in August and 0.985 in October.
Upon comparing the accuracy by adjusting the maximum depth and random state of the decision tree, the maximum depth was set from 1 to 10, whereas the random state was set from 0 to 100 by inputting the highest accuracy value in the maximum depth to compare the accuracy. As the maximum depth value increased, the accuracy of the test value increased. When the maximum depth was 8, the highest accuracy was 0.987 in August and 0.985 in October. Even if the value of the random state changed, the accuracy was constant at 0.987 in August and 0.985 in October. Regarding the random forest analysis results, the accuracy of the test value increased as the n estimator value increased, while the accuracy of the test value at 10 was confirmed to be 0.989 in August and 0.987 in October. The random state did not change the accuracy, even when the value increased. Lastly, k-NN’s accuracy decreased as n neighbors increased. The test data exhibited the highest accuracy at 0.987 in August and 0.984 in October when the n neighbor’s value was set to 3.
When the n estimator was set to 10 in the random forest, the accuracy of the OCP classification in August and October was highest. However, when the optimal variable values were implemented in all machine learning techniques, except for the linear SVM, the difference in accuracy was minimal (approximately 0.003). Therefore, we sought to compare the OCP detection results predicted by each machine learning technique to determine the most appropriate technique for OCP detection.

3.3. Comparison of Predicted OCP Detection Results

Figure 7 shows the results of classifying OCPs using various machine learning techniques. In August, some greenhouses and spaces between greenhouses and roads were falsely detected as OCPs. The results were identical once all machine learning techniques were applied, albeit with different areas. DT and k-NN had frequent false detections. In October, the spaces between greenhouses or areas where roads were falsely detected as OCPs were fewer than in August; however, the overall OCP detection performance was inferior compared to that of August. Additionally, other falsely detected areas were identified as the upper surface of greenhouses instead of the space between the greenhouses. False detection is believed to be due to vegetation index and surface temperature values similar to those of OCPs.
Figure 8 shows the results of different machine learning techniques for OCP detection. In August, OCPs can be found to be well-predicted for all machine learning techniques. However, M5 was not detected compared to original, and in non-linear SVM, the difference between original and predicted OPCs was the greatest. In October, it can be seen that the difference between original and predicted OPCs in all machine learning techniques except RF is large. Table 3 shows the results of analyzing the difference between the area of the OCP type predicted for each machine learning technique and the area of the original OCP type. In August, OCPs exhibited the smallest difference in area (5.25 m2) when RT was applied, and the largest difference of 15.75 m2 in DT. However, when covered OCPs were detected, DT exhibited the smallest area difference of 28.25 m2, followed by the RF with 49.50 m2. For the other types, the area difference of DT was 12.50 m2 and that of RF was 54.75 m2. It was also confirmed that the non-linear SVM had a very large area difference compared to the other machine learning techniques. This may be the result of false detection of spaces and roads between greenhouses, as illustrated in Figure 6. Therefore, the DT and RF techniques were very effective for OCP detection, with RF having a particularly good performance.
We also found that the area difference was larger in October than in August when detected by machine learning. When RF was applied, OCPs and covered OCPs exhibited the smallest area differences of 33.75 and 69.75 m2, respectively. Unlike August, the area difference for k-NN was the second lowest (OCPs: 89.00 m2, covered OCPs: 172.00 m2). As mentioned above, there were fewer falsely detected areas in October than in August, but there were many cases where OCPs were not detected, thus resulting in a significant difference in the OCP area. RF was found to be particularly suitable for OCP detection in October, as it rendered the lowest area differences.
Therefore, the most effective method for OCP detection among the various machine learning techniques assessed herein was RF. Moreover, setting the n estimator to 10 produced a predictive model with the highest accuracy. However, although a prediction model with an accuracy of approximately 0.990 was obtained, some areas were falsely detected, and therefore, a strategy to overcome this problem is still needed.

4. Discussion

Our study compared the ability of various machine learning techniques to detect OCPs using UAV images. All machine learning techniques studied herein exceeded a 0.96 accuracy; however, instances of false detection were identified in some areas. This was likely due to variations in the spectral characteristics of OCP regions. For example, as shown in Figure 8, some OCPs could not be detected due to shadows or because a tire was placed on the vinyl to prevent it from being blown away by the wind. As confirmed by the results in Figure 4 and Figure 5, the vegetation indices and the surface temperature varied depending on the type of OCP, which appeared to be the cause of false OCP detection. Therefore, it is judged that it is possible to determine the location of OCPs through the results of this study, but it is judged that there is a limit to analyzing the exact area and boundary of OCPs. If the area and boundary of OCPs can be accurately analyzed, it will be possible to predict the amount of OCPs. As UAV can analyze digital surface models (DSM) through point clouds, it can also analyze volume [11]. In order to utilize the results of this study more usefully, it is judged that it is necessary to supplement these data and technologies additionally.
Previous studies have also sought to detect specific objects using different machine learning approaches. For instance, Hassanijalilian et al. [32] compared the DT, RF, and adaptive boosting (AdaBoost) models using image data to detect iron deficiency in soybeans. The results showed that DT, RF, and AdaBoost exhibited precision ranges of 0.54–0.65, 0.66–0.74, and 0.72–0.79, respectively. Feng et al. [38] attempted urban forest mapping through RF and texture analysis using UAV orthoimages and achieved an accuracy of 73%–90%. Herrero-Huerta et al. [39] predicted soybean detection and harvesting rates using RF and eXtreme gradient boosting (XGBoost), and the accuracies of RF and XGBoost were 90.72% and 91.36%, respectively. Most previous studies achieved less accurate results than the results obtained herein. Particularly, when the same RF technique was applied, the accuracy of this study was significantly higher. Due to the differences in the characteristics of the study area, the type of image data used, and the type of object to be detected, the accuracy of these studies cannot be directly compared. However, it is considered an achievement that the results of applying the machine learning technologies in this study for the detection of OCPs have higher accuracy than previous studies. In particular, the fact that we were able to know which technology is most effective and how accurate is the level of accuracy for the detection of OCPs will lead to further improvement of the investigation method of OCPs and the use of UAV in the future for the management of non-point pollutants and improvement of water quality. It is judged to be a possible research result.
Several recent studies have recently implemented various machine learning and deep learning techniques for the detection of specific objects, including convolutional neural networks (CNNs) and deep neural networks (DNNs); however, a vast amount of training data is required for accurate object detection [40,41]. This study used the pixel values of spectral images captured by drones as training data, and applied various machine learning techniques to derive results with very high accuracy. However, additional input data may be required to improve accuracy and minimize errors or undetected areas. Therefore, the procedures described herein could be utilized for the effective management of OCPs in the future as well as to improve the management of non-point pollution sources and aquatic environments.

5. Conclusions

This study compared the accuracy of different machine learning techniques for the detection of OCPs, which are important non-point pollution sources in agricultural areas of South Korea, using UAV image data. The accuracies of all four machine learning techniques studied herein were found to be very high, exceeding 0.96. In this study, UAV and machine learning techniques were jointly implemented for the efficient detection of OCPs, and extremely promising prediction results were obtained. Importantly, the proposed approach provides an efficient means to predict the location and area of OCPs over a large region of interest based solely on photographs obtained with UAVs, thus eliminating or greatly minimizing the need to conduct inefficient OCP site assessments. Additionally, given that UAV images also provide location information, the predicted results can be effectively utilized for non-point pollution source and water quality management by linking the data with spatial information. However, it is not possible to analyze the uncertainty when applied to other areas because the accuracy of the detection of OCPs was analyzed only in this study area. In the future, it is judged that there is a need to compensate for this uncertainty, and will be conducted to efficiently detect not only OCPs, but also various other difficult-to-detect non-point sources of water pollution using UAV images, machine learning, and deep learning techniques.

Author Contributions

B.S. and K.P. conceived and designed the study; B.S. performed the field measurements; K.P. and B.S. analyzed the spatial data and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (no. NRF-2019R1F1A1063921) and the Korea Ministry of Environment via the Waste to Energy Recycling Human Resource Development Project (YL-WE-19–001).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. García-Nieto, P.K.; García-Gonzalo, E.; Alonso Fernández, J.R.; Díaz Muñiz, C. Using evolutionary multivariate adaptive regression splines approach to evaluate the eutrophication in the Pozón de la Dolores lake (Northern Spain). Ecol. Eng. 2016, 94, 135–151. [Google Scholar] [CrossRef]
  2. Sinha, E.; Michalak, A.M.; Balaji, V. Eutrophication will increase during the 21st century as a result of precipitation changes. Science 2017, 357, 405–408. [Google Scholar] [CrossRef] [Green Version]
  3. Sun, S.; Zhang, J.; Cai, C.; Cai, Z.; Li, X.; Wang, R. Coupling of non-point source pollution and soil characteristics covered by Phyllostachys edulis stands in hilly water source area. J. Environ. Manag. 2020, 268, 110657. [Google Scholar] [CrossRef]
  4. Yang, S.; Chen, X.; Lu, J.; Hou, X.; Li, W.; Xu, Q. Impacts of agricultural topdressing practices on cyanobacterial bloom phenology in an early eutrophic plateau Lake, China. J. Hydrol. 2021, 594, 125952. [Google Scholar] [CrossRef]
  5. Guan, Q.; Feng, L.; Hou, X.; Schurgers, G.; Zheng, Y.; Tang, J. Eutrophication changes in fifty large lakes on the Yangtze Plain of China derived from MERIS and OLCI observation. Remote Sens. Environ. 2020, 246, 111890. [Google Scholar] [CrossRef]
  6. O’Neil, J.M.; Davis, T.W.; Burford, M.A.; Gobler, C.J. The rise of harmful cyanobacteria blooms: The potential roles of eutrophication and climate change. Harmful Algae 2012, 14, 313–334. [Google Scholar] [CrossRef]
  7. Jung, E.S.; Kim, G.B.; Kim, H.J.; Jang, K.M.; Park, J.S.; Kim, Y.J.; Hong, S.C. A preliminary study on livestock wastewater treatment by electrolysis and electro-coagulation processes using renewable energy. J. Korean Soc. Urban Environ. 2017, 17, 4350. [Google Scholar]
  8. Huisman, J.; Codd, G.A.; Paerl, H.W.; Ibelings, B.W.; Verspagen, J.M.H.; Visser, P.M. Cyanobacterial blooms. Nat. Rev. Microbiol. 2018, 16, 471–483. [Google Scholar] [CrossRef] [PubMed]
  9. Jang, M.; Jee, J.B.; Min, J.S.; Lee, Y.H.; Chung, J.S.; You, C.H. Studies on the predictability of heavy rainfall using prognostic variables in numerical model. Atmosphere 2016, 26, 495–508. [Google Scholar] [CrossRef] [Green Version]
  10. Joo, J.H.; Jung, Y.S.; Yang, J.E.; Ok, Y.S.; Oh, S.; Yoo, K.Y.; Yang, S.C. Assessment of pollutant loads from alpine agricultural practices in Nakdong River Basin. Korean J. Environ. Agric. 2007, 26, 233–238. [Google Scholar] [CrossRef] [Green Version]
  11. Park, G.; Park, K.; Song, B. Spatio-temporal change monitoring of outside manure piles using unmanned aerial vehicle images. Drones 2020, 5, 1. [Google Scholar] [CrossRef]
  12. Hong, S.G.; Kim, J.T. Assessment of leachate characteristics of manure compost under rainfall simulation. J. Korean Soc. Rural Plan. 2001, 7, 65–73. [Google Scholar]
  13. Park, G.U.; Park, K.H.; Moon, B.H.; Song, B.G. Monitoring of non-point pollutant sources management status and load changes of compositing in a rural area based on UAV. J. Korean Assoc. Geogr. Inf. Stud. 2019, 22, 1–14. [Google Scholar]
  14. Grussenmeyer, P.; Landes, T.; Voegtle, T.; Ringle, K. Comparison methods of terrestrial laser scanning, photogrammetry and tacheometry data for recording of cultural heritage buildings. ISPRS 2008, 37, 213–218. [Google Scholar]
  15. Nex, F.; Remondino, F. UAV for 3D mapping applications: A review. Appl. Geomat. 2014, 6, 115. [Google Scholar] [CrossRef]
  16. Reshetyuk, Y.; Mårtensson, S. Generation of Highly Accurate Digital Elevation Models with Unmanned Aerial Vehicle. Phtogramm. Rec. 2016, 31, 113–256. [Google Scholar] [CrossRef]
  17. Dall’Asta, E.; Forlani, G.; Roncella, R.; Santise, M.; Diotri, F.; Morra di Cella, U. Unmanned aerial systems and DSM matching for rock glacier monitoring. ISPRS J. Photogramm. Remote Sens. 2017, 127, 102114. [Google Scholar] [CrossRef]
  18. Martinez-Carricondo, P.; Agra-Vega, F.; Carvajal-Ramirez, F.; Mesas-Carrascosa, F.J.; Garcia-Ferrer, A.; Perez-Porras, F.J. Assessment of UAV-photogrammetric mapping accuracy based on variation of ground control points. Int. J. Appl. Earth Obs. Geoinf. 2018, 72, 110. [Google Scholar] [CrossRef]
  19. Song, B.; Park, K. Verification of accuracy of unmanned aerial vehicle (UAV) land surface temperature images using in-situ data. Remote Sens. 2020, 12, 288. [Google Scholar] [CrossRef] [Green Version]
  20. Zhao, F.; Wu, X.; Wang, S. Object-oriented vegetation classification method based on UAV and satellite image fusion. Procedia Comput. Sci. 2020, 174, 609–615. [Google Scholar] [CrossRef]
  21. Miranda, V.; Pina, P.; Heleno, S.; Vieira, G.; Mora, C.; Schaefer, C.E.G.R. Monitoring recent changes of vegetation in Fildes Peninsula (King George Island, Antarctica) through satellite imagery guided by UAV surveys. Sci. Total Environ. 2020, 704, 135295. [Google Scholar] [CrossRef]
  22. Andrade, A.M.; Michel, R.F.M.; Bremer, U.F.; Schaefer, C.E.G.R.; Simões, J.C. Relationship between solar radiation and surface distribution of vegetation in Fildes Peninsula and Ardley Island, Maritime Antarctica. Int. J. Remote Sens. 2018, 39, 2238–2254. [Google Scholar] [CrossRef]
  23. Lu, B.; He, Y. Species classification using Unmanned Aerial Vehicle (UAV)-acquired high spatial resolution imagery in a heterogeneous grassland. ISPRS J. Photogramm. 2017, 128, 73–85. [Google Scholar] [CrossRef]
  24. Ventura, D.; Bonifazi, A.; Gravian, M.F.; Belluscio, A.; Ardizzone, G. Mapping and classification of ecologically sensitive marine habitats using unmanned aerial vehicle (UAV) imagery and object-based image analysis (OBIA). Remote Sens. 2018, 10, 1331. [Google Scholar] [CrossRef] [Green Version]
  25. Peña, J.M.; Torres-Sánchez, J.; de Castro, A.I.; Kelly, M.; López-Granados, F. Weed mapping in early-season maize fields using object-based analysis of unmanned aerial vehicle (UAV) images. PLoS ONE 2013, 8, e77151. [Google Scholar] [CrossRef] [Green Version]
  26. Rodriguez-Galiano, V.F.; Ghimire, B.; Rogan, J.; Chica-Olmo, M.; Rigol-Sanchez, J.P. An assessment of the effectiveness of a random forest classifier for land-cover classification. ISPRS J. Photogramm. 2012, 67, 93–104. [Google Scholar] [CrossRef]
  27. Janiec, P.; Gadal, S. A comparison of two machine learning classification methods for remote sensing predictive modeling of the forest fire in the North-Eastern Siberia. Remote Sens. 2020, 12, 4157. [Google Scholar] [CrossRef]
  28. Oliveira, S.; Oehler, F.; San-Miguel-Ayanz, J.; Camia, A.; Pereira, J.M.C. Modeling spatial patterns of fire occurrence in Mediterranean Europe using multiple regression and random forest. Ecol. Manag. 2012, 275, 117–129. [Google Scholar] [CrossRef]
  29. Emanuele, P.; Nives, G.; Andrea, C.; Paolo, C.C.D.; Maria, L.A. Bathymetric detection of fluvial environments through UASs and machine learning systems. Remote Sens. 2020, 12, 4148. [Google Scholar] [CrossRef]
  30. Kerf, T.D.; Gladines, J.; Sels, S.; Vanlanduit, S. Oil spill detecting using machine learning and infrared images. Remote Sens. 2020, 12, 4090. [Google Scholar] [CrossRef]
  31. Culman, M.; Delalieux, S.; Tricht, K.V. Individual palm tree detection using deep learning on RGB imagery to support tree inventory. Remote Sens. 2020, 12, 3476. [Google Scholar] [CrossRef]
  32. Hassanijalilian, O.; Igathinathane, C.; Bajwa, S.; Nowatzki, J. Rating iron deficiency in soybean using image processing and Decision-Tree based models. Remote Sens. 2020, 12, 4143. [Google Scholar] [CrossRef]
  33. Hamylton, S.M.; Morris, R.H.; Carvalho, R.C.; Roder, N.; Barlow, P.; Mills, K.; Wang, L. Evaluating techniques for mapping island vegetation from unmanned aerial vehicle (UAV) images: Pixel classification, visual interpretation and machine learning approaches. Int. J. Appl. Earth Obs. Geoinf. 2020, 89, 102085. [Google Scholar] [CrossRef]
  34. Rouse, J.W.; Haas, R.H.; Schell, J.A.; Deering, D.W. Monitoring vegetation systems in the great plains with ERTS. In Proceedings of the Third Earth Resources Technology Satellite-1 Symposium; NASA: Washington, DC, USA, 1974; pp. 301–317. [Google Scholar]
  35. Drone Aerial Mapping and Survey. Available online: http://www.aeroeye.com.au (accessed on 12 October 2020).
  36. Gitelson, A.; Merzlyak, M.N. Quantitative estimation of chlorophyll-a using reflectance spectra: Experiments with autumn chestnut and maple leaves. J. Photochem. Photobiol. B. 1994, 22, 247–252. [Google Scholar] [CrossRef]
  37. Gitelson, A.; Kaufman, Y.J.; Merzlyak, M.N. Use of a green channel in remote sensing of global vegetation from EOS-MODIS. Remote Sens. Environ. 1996, 58, 289–298. [Google Scholar] [CrossRef]
  38. Feng, Q.; Liu, J.; Gong, J. UAV remote sensing for urban vegetation mapping using random forest and texture analysis. Remote Sens. 2015, 7, 1074. [Google Scholar] [CrossRef] [Green Version]
  39. Herrero-Huerta, M.; Rodriguez-Gonzalvez, P.; Rainey, K.M. Yield prediction by machine learning from UAS-based multi-sensor data fusion in soybean. Plant Methods 2020, 17, 78. [Google Scholar] [CrossRef] [PubMed]
  40. Carrio, A.; Sampedro, C.; Rodriquez-Ramos, A.; Campoy, P. A Review of Deep Learning Methods and Applications for Unmanned Aerial Vehicles. J. Sens. 2017, 2017. [Google Scholar] [CrossRef]
  41. Yuan, Q.; Shen, H.; Li, T.; Li, Z.; Li, S.; Jiang, Y.; Xu, H.; Tan, W.; Yag, Q.; Wang, J.; et al. Deep learning in environmental remote sensing: Achievements and challenges. Remote Sens. Envrion. 2020, 241, 111716. [Google Scholar] [CrossRef]
Drones 05 00031 g001 550
Figure 1. Study area.
Figure 1. Study area.
Drones 05 00031 g001
Drones 05 00031 g002 550
Figure 2. OCP classification using vectorization.
Figure 2. OCP classification using vectorization.
Drones 05 00031 g002
Drones 05 00031 g003 550

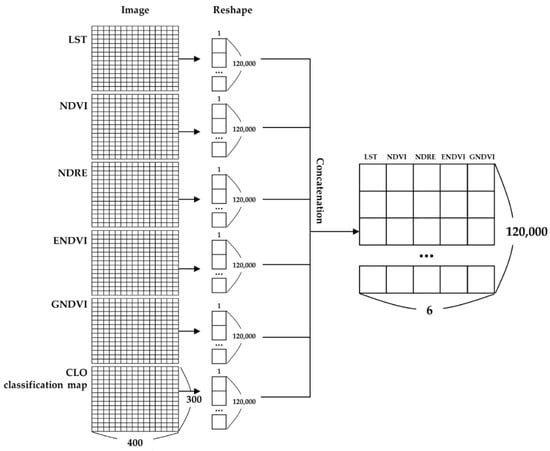

Figure 3. Synthesis process of UAV vegetation indices, surface temperature, and OCP-type classification data.
Figure 3. Synthesis process of UAV vegetation indices, surface temperature, and OCP-type classification data.
Drones 05 00031 g003
Drones 05 00031 g004 550

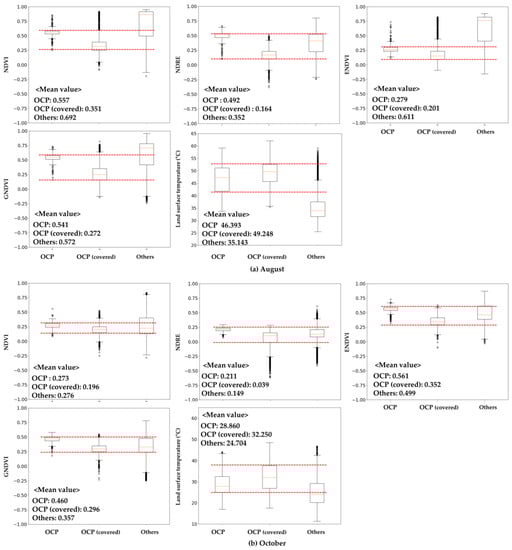

Figure 4. Vegetation index and surface temperature characteristics by OCP type.
Figure 4. Vegetation index and surface temperature characteristics by OCP type.
Drones 05 00031 g004
Drones 05 00031 g005 550

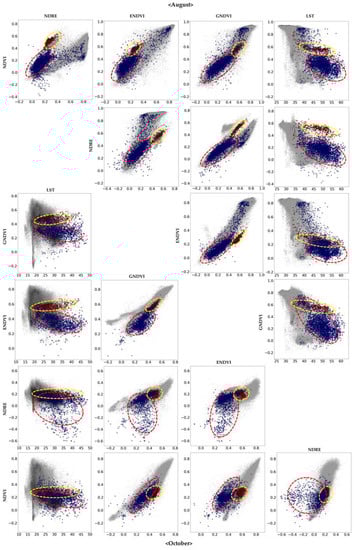

Figure 5. Results of scatter plot analysis between vegetation indices and surface temperature (red: OCP, blue: covered OCP).
Figure 5. Results of scatter plot analysis between vegetation indices and surface temperature (red: OCP, blue: covered OCP).
Drones 05 00031 g005
Drones 05 00031 g006 550

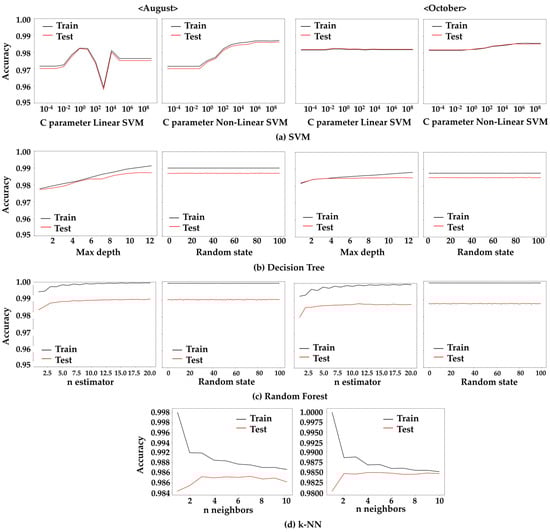

Figure 6. Accuracy trend graphs according to machine learning technique and variables.
Figure 6. Accuracy trend graphs according to machine learning technique and variables.
Drones 05 00031 g006
Drones 05 00031 g007 550
Figure 7. OCP distribution results predicted by machine learning techniques.
Figure 7. OCP distribution results predicted by machine learning techniques.
Drones 05 00031 g007
Drones 05 00031 g008 550
Figure 8. Comparison of the existing OCP and predicted OCP by machine learning techniques.
Figure 8. Comparison of the existing OCP and predicted OCP by machine learning techniques.
Drones 05 00031 g008
Table
Table 1. Detailed specifications of UAV camera.
Table 1. Detailed specifications of UAV camera.
UAV AircraftCamera SensorSpecifications
Inspire 1Zenmuse X34K Video and 12 MP still image capture
Sony EXMOR 1/2.3″ CMOS sensor
3-Axis gimbal camera stabilization
Wide 94° field of view (FOV) Lens
FLIR Vue pro RSize: 58 × 45 mm
Spectral range: 7.5~13.5 μm
Accuracy: ±5 °C
Weight: 92~113 g
Operating temp. range: −55~+95 °C
Field of View(FOV): 6.8 mm, 45° × 35°
Resolution: 336 × 256
3DR-soloRedEdge-MWeight: 150 g
Dimensions: 12.1 cm × 6.6 cm × 4.6 cm
Ground sample distance: 8.2 cm/pixel (per band) at 120 m
Capture speed: 1 capture per second (all bands), 12-bit RAW
Table
Table 2. Vegetation index calculation formulas using multispectral images.
Table 2. Vegetation index calculation formulas using multispectral images.
NameAbbreviationFormulaRef.
BlueRbRb
GreenRgRg
RedRrRr
RedEdgeRreRre
Near-infraredRnirRnir
Normalized Difference Vegetation IndexNDVI(Rnir − Rr)/(Rnir + Rr)(1)
Enhance Normalized Difference Vegetation IndexENDVI[(Rnir + Rg) − (2 × Rb)]/[(Rnir + Rg) + (2 × Rb)](2)
Normalized Difference RedEdge IndexNDRE(Rnir − Rre)/(Rnir + Rre)(3)
Green NDVIGNDVI(Rnir − Rg)/(Rnir + Rg)(4)
(1) Rouse et al. [34]. (2) Drone Aerial Mapping and Survey (http://www.aeroeye.com.au) [35]. (3) Gitelson and Merzlyak [36]. (4) Gitelson et al. [37].
Table
Table 3. Comparison of predicted OCP area among machine learning techniques (unit: m2).
Table 3. Comparison of predicted OCP area among machine learning techniques (unit: m2).
Month OCPOCP (covered)Others
AugustOriginal117.50655.7528,873.75
Predictednon SVM104.70426.0529,116.25
Decision tree101.75684.0028,861.25
Random forest112.25606.2528,928.50
k-NN106.20575.0528,965.75
Differencenon SVM12.80229.70−242.50
Decision tree15.75−28.2512.50
Random forest5.2549.50−54.75
k-NN11.3080.70−92.00
OctoberOriginal181.50368.5029,450.00
Predictednon SVM18.75164.5029,816.75
Decision tree35.00204.2529,760.75
Random forest147.75298.7529,553.50
k-NN92.50196.5029,711.00
Differencenon SVM162.75204.00−366.75
Decision tree146.50164.25−310.75
Random forest33.7569.75−103.50
k-NN89.00172.00−261.00
