Reduced Graphene Oxide Fibre Electrodes for Drug Sensing ^†

Abstract

Reduced graphene oxide (rGO) fibre electrodes and their ability to sense paracetamol (as model drug) were studied. rGO was electrodeposited onto carbon fibre by two different approaches: potentiostatic deposition and cyclic voltammetry (CV) in the presence of graphene oxide solution. Carbon fibre electrodes coated with rGO (after five CV cycles) could sense paracetamol with an oxidation peak at 0.62 V (vs. Ag/AgCl). The limit of detection of this fibre sensor was found to be 36.3 µM with a linear range of 50–500 µM of paracetamol (R² = 0.9901).

1. Introduction

Reduced graphene oxide (rGO) is widely studied as a potential electrode material for electrochemical sensors and biosensors due to its high electrical conductivity, large surface area, good biocompatibility and high electrocatalytic activity [1,2]. The oxygen-containing groups of GO are reduced leading to more sp² hybridised carbon atoms with small amounts of hydroxyl (-OH), carboxy (-COOH), or epoxide (-O-) groups remaining [3,4]. To demonstrate the ability of rGO-coated fibre electrodes to sense drugs, the monitoring of model drug paracetamol was explored using cyclic voltammetry (CV). Additionally, the surface morphology and electrochemical surface areas of the fibre electrodes were analysed. Figure 1 illustrates the oxidation of paracetamol, an antipyretic drug, widely used to treat fever and relieve mild to moderate pain [5].

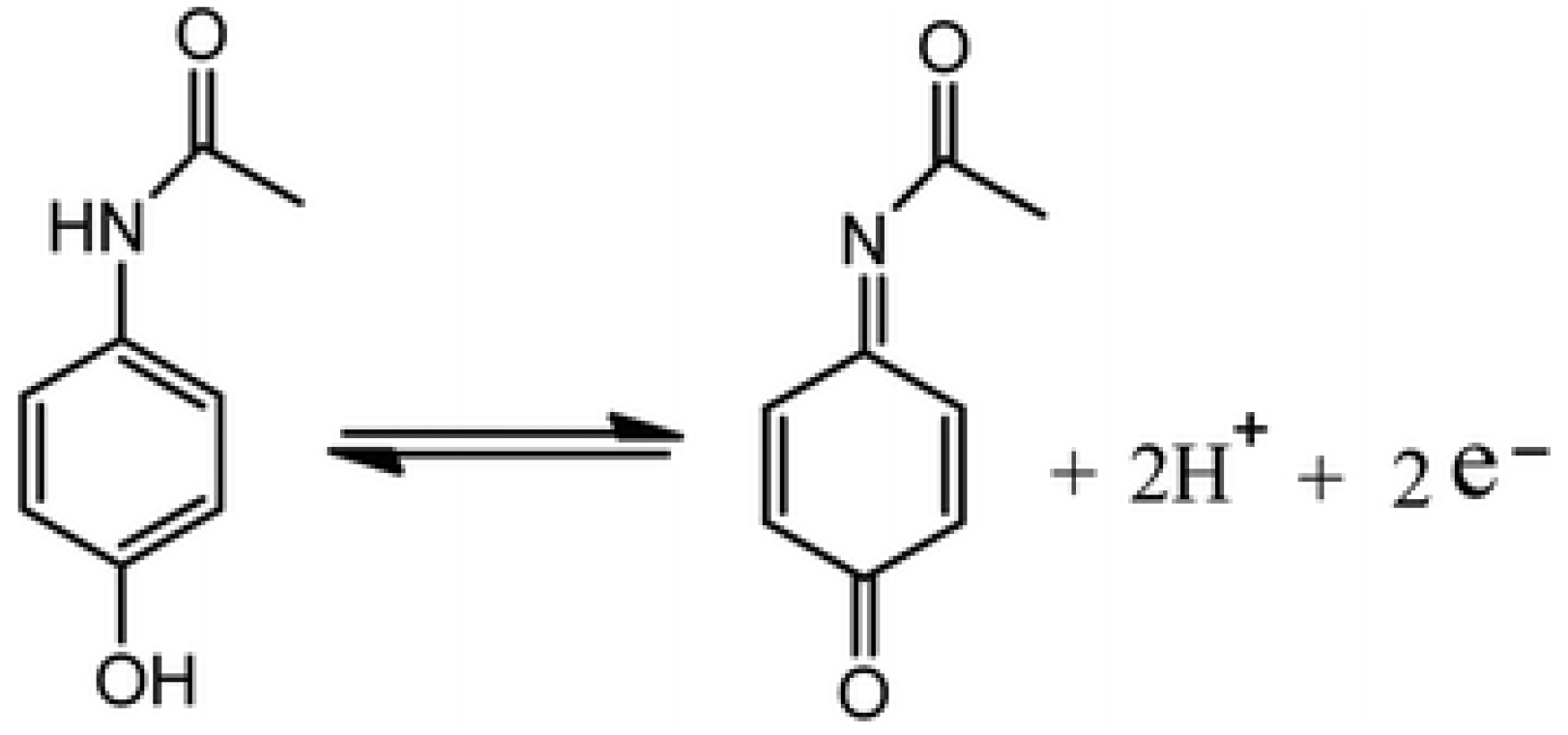

Figure 1. Schematic of the oxidation of paracetamol [5].

2. Materials and Methods

2.1. Reagents

Potassium ferricyanide (K₃[Fe(CN)₆]), potassium chloride (KCl), and paracetamol were also purchased from Sigma-Aldrich (UK). Phosphate buffered saline (PBS) tablets were purchased from Fisher Scientific (UK). Carbon fibre was purchased from Alfa Aesar (UK).

2.2. Apparatus

All cyclic voltammetry (CV) was performed using an eDAQ EA161 potentiostat with eDAQ e-corder 401 supported by EChem V2.1.16 software. A Basi^® Ag/AgCl in 3.0 M NaCl was used as a reference electrode and a platinum mesh was used as a counter electrode. Raman spectroscopy was performed using a Renishaw inVia confocal Raman microscope with a 785 nm laser. Scanning electron microscopy (SEM) images were obtained using a JEOL USA JSM-7100 F field emission electron microscope.

2.3. Procedure

Graphene oxide (0.5 mg ml⁻¹) was ultrasonically dissolved in 0.1 M phosphate buffer solution. rGO was deposited onto carbon fibre using two different approaches: potentiostatic deposition and CV. For potentiostatic deposition, rGO was deposited by applying −1.2 V (vs. Ag/AgCl) for 5 min onto carbon fibre. For deposition by CV, a potential range of −1.4 to +1.4 V (vs. Ag/AgCl) was used at a scan rate of 50 mV s⁻¹; the number of cycles was varied from 3 to 5 to optimize the rGO sensing layer. The performance of the sensors with respect to paracetamol was tested. The three-electrode system was used for analysis by CV at a potential range of −0.6 to +0.9 V (vs. Ag/AgCl) at a scan rate of 50 mV s⁻¹ in the presence of paracetamol (0–500 µM).

3. Results and Discussion

3.1. Characterisation

rGO was electrodeposited onto carbon fibre by potentiostatic deposition and cyclic voltammetry (CV) in the presence of graphene oxide solution. Figure 2 shows the Raman spectrum of uncoated carbon fibre (black line) with peaks of weak intensity at 1330 and 1599 cm⁻¹ corresponding to the D and G bands of carbonaceous material. The D band is attributed to sp³ hybridised carbon and disorder in the carbon lattice, while, the G band is assigned to the stretching of the C=C bond [2]. Potentiostatic deposition of rGO (red line) and rGO deposited using three CV cycles onto carbon fibre (blue line) exhibits D and G band peaks at 1337 and 1592 cm⁻¹, and 1325 and 1598 cm⁻¹, respectively, that are shifted compared to those of the underlying carbon fiber.

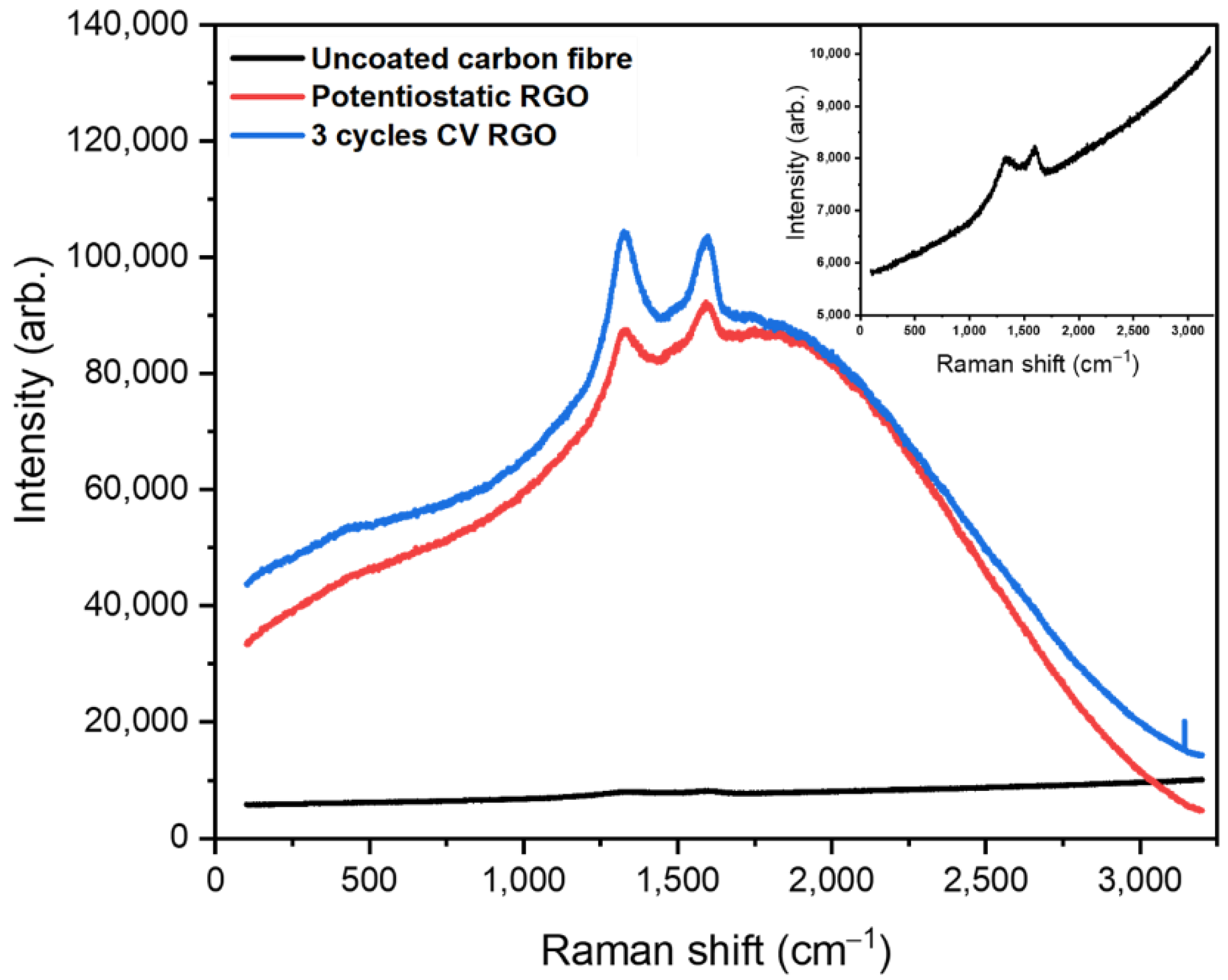

Figure 2. Raman spectrum (obtained using a 785 nm laser) of uncoated carbon fibre (black), carbon fibre coated with rGO by potentiostatic deposition (red) and carbon fibre coated with rGO using 3 CV cycles (blue).

Scanning electron microscope images of uncoated carbon fibre (Figure 3a) shows a smooth surface, while carbon fibre coated with rGO using 3 CV cycles (Figure 3b) displays a sponge-like morphology coating parts of the carbon fibre. Energy-dispersive X-ray spectroscopy (EDS) results clearly show that the rGO coated on carbon fibre by three CV cycles was successful (Figure 3d), as the chemical composition of Carbon and Oxygen (table gives values for areas not coated (area 1) and coated with rGO (area 2)) confirms the existence of functionality consistent with rGO on the carbon fibre surface.

Figure 3. Scanning electron microscope image (a) uncoated carbon fibre; (b) carbon fibre coated with rGO using 3 CV cycles (table gives values for areas not coated (area 1) and coated with rGO (area 2); (c) bundle of bare carbon fibre; (d) Energy-dispersive X-ray spectroscopy (EDS)—mapping images of the 3 CV cycles rGO showing chemical composition of Carbon and Oxygen.

3.2. Surface Area of the Fibre Electrode

The electrochemical surface area of the fibre electrodes was calculated using the Randles–Sevcik equation, and cyclic voltammetry at different scan rates in 10 mM K₃Fe(CN)₆ containing 0.1 M KCl as supporting electrolyte. Table 1 shows how the carbon fibre coated from 5 CV cycles gave a 2-fold increase in electrochemical surface area compared to the uncoated carbon fibre, whereas the potentiostatic coating led to only a slight increase in the electrochemical surface area of the fibre electrode.

Table 1. Surface area of uncoated carbon fibre and rGO coated carbon fibre.

	Uncoated Carbon Fibre	Potentiostatic	CV 3	CV 5
Area of electrode (cm2)	0.09	0.11	0.19	0.20

3.3. Drug Sensing

Figure 4a shows the sensing ability of rGO coated on a carbon fibre electrode using 5 CV cycles, in various concentrations of paracetamol (0–500 µM) at a scan rate of 50 mVs⁻¹. Paracetamol was found to have an oxidation peak at 0.62 V (vs. Ag/AgCl) and a reduction peak at -0.086 V (vs. Ag/AgCl). This oxidation peak potential is similar to that previously observed with rGO coated on a glassy carbon electrode at 0.63 V (vs. Ag/AgCl) [1]. A calibration curve for paracetamol sensing measured with this rGO-coated carbon fibre is shown in Figure 4b, where the peak current was plotted versus concentration. The limit of detection of this rGO-coated fibre sensor was found to be 36.3 µM with a linear range of 50–500 µM of paracetamol (R² = 0.9901). In control experiments, the oxidation of paracetamol was not evidenced at the uncoated carbon fibre electrode.

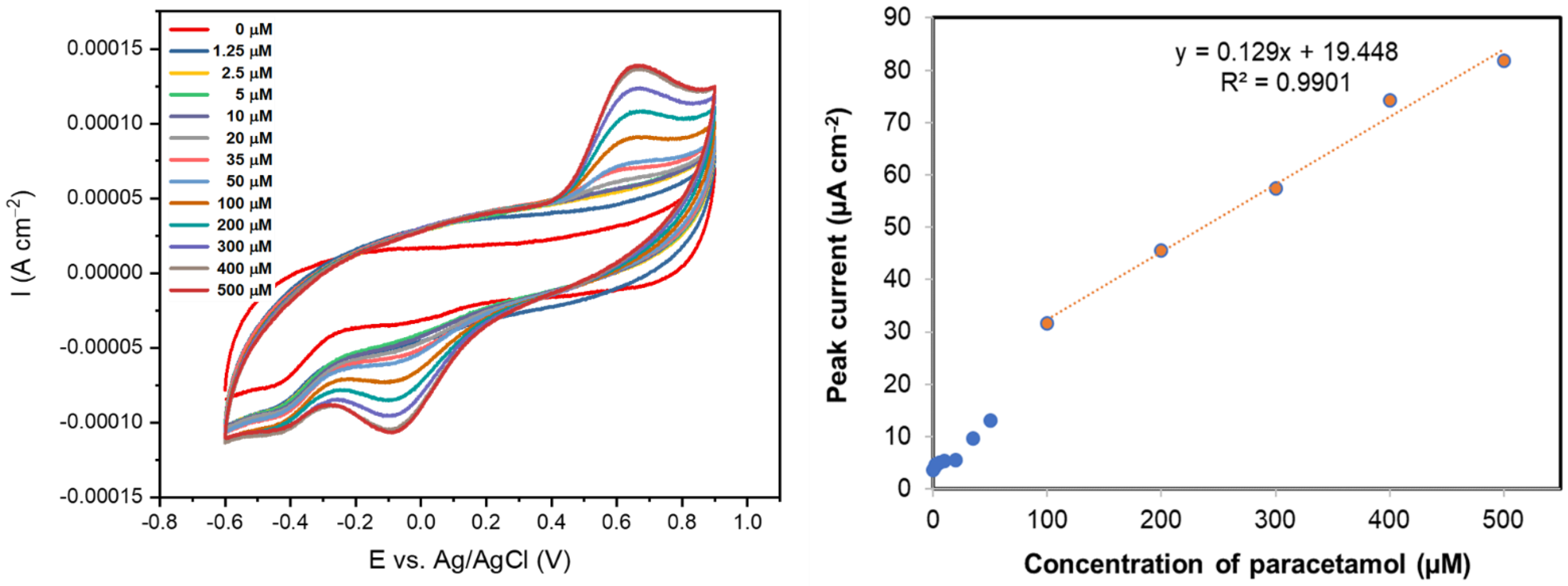

Figure 4. (left) Cyclic voltammograms (50 mV s⁻¹) of paracetamol (0–500 µM) in 0.1 M PBS solution using a carbon fibre coated with rGO deposited using 5 CV cycles; (right) Calibration curve for the same rGO-coated carbon fibre in solutions of paracetamol (0–500 µM) in 0.1 M PBS solution.

4. Conclusions

The electrodeposition of rGO on a carbon fibre electrode via potentiostatic deposition and cyclic voltammetry improved the sensor’s ability to detect paracetamol. The electrochemical signal of the rGO-coated fibre deposited using five CV cycles increased with the concentration of paracetamol, resulting in an enhanced sensitivity of the sensor to paracetamol. Further work is underway to sense a broader range of drug molecules and to improve the fibre sensor response with further surface modification.
