Novel Biodegradable Polyanhydrides Based on Betulin Disuccinate and Sebacic Acid for Medical Purpose ^†

Abstract

The paper describes synthesis and the characterization of novel biodegradable betulin-based polyanhydrides, exhibiting anti-cancer activity. Polyanhydrides were obtained by a melt polycondensation of a disuccinate betulin (3,28-di-O-succinyl betulin) and sebacic acid with the use of acetic anhydride. Mentioned polyanhydrides were then thoroughly characterized by ¹H NMR and ¹³C NMR, size exclusion chromatography, differential scanning calorimetry and FT-IR spectroscopy. The content of sebacic acid in obtained copolymers was from 20 to 80 wt%. The use of sebacic acid as a comonomer increases the crystallinity of polymers. Under physiological conditions copolymers undergo hydrolytic degradation to betulin disuccinate, whose biological activity is known and confirmed and to sebacic acid approved by the US Food and Drug Administration (FDA) for use in drug delivery systems. Polyanhydrides were also tested for cytostatic activity against a wide range of cancer cell lines (HeLa, A-549, U-87MG, KB and HepG2), proving its efficiency in inhibiting the growth of selected cell lines. Obtained polymers can be used as carriers in drug delivery system, in form of microspheres. Microspheres with diameter within the range of D_n = 15–30 µm were prepared by using emulsion (O/W) solvent evaporation method.

Published: 9 November 2020

1. Introduction

Polymers obtained from renewable raw materials are a valuable group of compounds that are used in many industries, including the pharmaceutical ones. With the growing interest in biopolymers, there is a need to find new natural monomers that can replace petroleum-based raw materials. Natural monomers used for polymerization include furans, terpenes and lactic acid [1]. Compared to polymers based on furan and lactic acid, much less attention is paid to the polymerization of terpenes. Terpenes are compounds widely occurring in nature, produced by a variety of plants and animals. They show a broad spectrum of biological activity [2]. One of these natural triterpenes is betulin. Betulin, a pentacyclic triterpene, occurs in nature, e.g., in the outer layer of birch bark. Both betulin and its derivatives, e.g., betulin disuccinate, exhibit a broad spectrum of biological activity, including anticancer activity, while being non-toxic to normal cells [3]. Due to the presence of functional groups, betulin is an ideal substrate for the preparation of polymers. Polymeric betulin derivatives described so far in the literature include polyesters [1], polyurethanes [4] and polyethylene oxide conjugates [5]. Recently, we have obtained a polyanhydride of betulin disuccinate (DBB), exhibiting anti-cancer activity, that can be used in drug delivery systems [6].

Polyanhydrides, a biodegradable polymers, easily undergo hydrolytic degradation to their respective diacid which are completely eliminated from the body within a short period of time. They are mainly used in medicine, both as drug carriers and as biomaterials [7]. Due to the fact that DBB has biological activity, e.g., antitumor activity, the polyanhydride obtained therefrom can be used as a polymeric prodrug that releases the active substance (DBB) as a result of polymer hydrolysis under physiological conditions, or as a non-toxic carriers of other biologically active substances. The rate of polymer hydrolysis, and thus DBB release, can be controlled by copolymerization with other diacids. Copolymerization also allows the modification of the physicochemical properties of the polymers. The aim of this work was the synthesis and characterization of polyanhydrides composed of betulin disuccinate and sebacic acid. In our case, the use of sebacic acid as a comonomer increases the crystallinity of the polyanhydrides and influences the rate of hydrolytic degradation. Depending on the composition of polyanhydrides, the difference of degradation behavior can be used to influence release profiles of therapeutic molecules. In order to determine the anti-cancer activity of copolymers, these materials were tested for cytotoxicity against a wide range of cancer cell lines, including HeLa, A-549, U-87MG, KB and HepG2.

2. Materials and Methods

2.1. Materials

Betulin disuccinate (obtained in the laboratory according to the procedure described in the article [7]), acetic anhydride (POCh S.A.), sebacic acid (ACROS Organics), dimethyl sulfoxide (DMSO) (Chempur), trichloroacetic acid (Chempur), acetic acid (Chempur), Tris buffer, sulforhodamine, poly(vinyl alcohol) (M_w = 88,000 g/mol, 88% hydrolyzed) (ACROS Organics), methylene chloride (Chempur) were used as supplied.

KB, HeLa and Hep-G2 cells were obtained from the European Collection of Cell Culture (ECACC) supplied by Sigma Aldrich. A-549, U-87 and HDF cells were purchased from the American Type Culture Collection (ATCC) through LGC Standards (Lomianki). KB, Hep-G2 and U-87 cells were cultured in EMEM medium while HeLa cells were grown in RPMI 1640 medium, A-549 cells in F-12K medium and HDF cells in Fibroblasts Growth Medium. Each medium was supplemented with 10% fetal bovine serum, 1% L-glutamine and 1% penicillin/streptomycin solution. All cultures were maintained at 37 °C in a humidified atmosphere containing 5% CO₂.

2.2. Prepolymer and Polymer Synthesis

Copolymers were obtained by two-step melt polycondensation of betulin disuccinate and sebacic acid (SA) according to the procedure described earlier [6]. Betulin disuccinate and sebacic acid mixed in defined ratios (sebacic acid content in copolymers was 20, 40, 60 and 80 wt%, respectively) were refluxed in acetic anhydride (1:10, w/v) under nitrogen flow for 40 min. After this time, the excess of acetic anhydride and acetic acid formed in reaction were removed under vacuum. The remaining diacyl derivative of disuccinate betulin and SA (prepolymer) was heated at 150 °C for 2 h with constant stirring under vacuum (0.1 mm Hg) and nitrogen. Copolymers (polyDBB_SEB) in form of a solid materials were obtained with a yield of over 90%. The obtained polymers were stored in a freezer.

FT-IR: v = 2941cm⁻¹ (m, v_C-H), 2844 cm⁻¹ (w, v_C-H), 1827 cm⁻¹ (m, v_C=O), 1724 cm⁻¹ (s, v_C=O), 1034 cm⁻¹ (v_C-O).

¹H NMR (600 MHz, CDCl₃, δ): 4.68 (1H, d, C₂₉-H_a); 4.59 (1H, d, C₂₉-H_b), 4.50 (1H, t, C₃-H_α); 4.30 (1H, d, C₂₈-H_a); 3.88 (1H, d, C₂₈-H_b); 2.82–2.78 (4H, m, -OCOOC-CH₂-CH₂-COO-); 2.71–2.64 (4H, m, -OCOOC-CH₂-CH₂-COO-); 2.52–2.40 (1H, C₁₉-H and 4H in SA); 2.18 (end groups); 1.96 (1H, m, C₂₁-H_a); 1.82 (1H, d, C₁₆-H_a); 1.76 (1H, t, C₂₂-H_a); 1.68 (3H, s, C₃₀-H₃); 1.67–1.54 (7H, m, C₁₅-H_a, C₁-H_a, C₁₂-H_a, C₁₃-H_a, C₂-H_a,b, C₁₈-H); 1.51(1H, m, C₆-H_a); 1.45–1.35 (5H, m, C₆-H_b, C₁₁-H_a, C₂₁-H_b, C₇-H_a,b; 8H in SA); 1.29 (1H, d, C₉-H); 1.26–1.17 (2H, m,C₁₁-H_b, C₁₆-H_b); 1.13–1.04 (3H, m, C₂₂-H_b, C₁₂-H_b, C₁₅-H_b); 1.02 (3H, s, C₂₅-H₃); 0.97 (3H, s, C₂₇-H₃); 0.94–0.92 (1H, m, C₁-H_b); 0.88–0.80 (9H, s, C₂₆-H₃, C₂₃-H₃, C₂₄-H₃₎; 0.78 (1H, d, C₅-H).

¹³C NMR (150 MHz, CDCl₃, δ): 171.95 (C_q, C(O)O); 167.94 (C_q, C(O)OC(O)); 150.03 (C_q, C-20); 110,0 (CH_2, C-29); 81.73 (CH, C-3); 63.32 (CH_2, C-28), 55.36 (CH,C-5); 50.25 (CH, C-9); 48.78 (CH, C-18), 47.68 (CH, C-19); 46.40 (C_q, C-17); 42.68 (C_q, C-14); 40.88 (C_q, C-8); 38.33 (CH₂, C-1); 37.84 (C_q, C-10); 37.58 (CH, C-13); 37.03 (C_q, C-4); 34.48 (CH₂, C-22); 34.07 (CH₂, C-7); 30.35–30.18 (CH₂C(O)OC(O)); 29.70 (CH₂, C-21); 29.54 (CH₂, C-16); 28,89 and 28.60 (CH₂C(O)O); 27.95 (CH₃, C-23); 27.0 (CH₂, C-15); 25.13 (CH₂, C-12); 23.62 (CH₂, C-2); 20.78 (CH₂, C-11); 19.12 (CH₃, C-30); 18.13 (CH₂, C-6); 16.51 (CH₃, C-25); 16.13 (CH₃, C-26); 16.0 (CH₃, C-24); 14.74 (CH₃, C-27).

2.3. Characterization of Polyanhydrides

¹H NMR and ¹³C NMR spectra of polymers in CDCl₃ were recorded on a Varian 600 MHz spectrometer with TMS as an internal standard. Infrared (FT-IR) spectra were recorded by means of a PerkinElmer Spectrum Two Spectrometer. Molecular weights of polyanhydrides were determined in methylene chloride by gel-permeation chromatography (GPC) using Agilent Technologies Infinity 1260 chromatograph equipped with a refractive index detector and calibrated with polystyrene standards. Molecular weights were also calculated from ¹H NMR spectra. Thermal analyses were performed using an 822^e DSC Mettler Toledo differential scanning calorimeter. Samples were tested in temperature range from –60 °C to 250 °C at a heating rate of 10 °C/min.

2.4. Hydrolytic Degradation of Copolymers

Hydrolytic degradation experiments were performed in a phosphate buffer solution of pH 7.4 (PBS) at 37 °C. The hydrolytic degradation was monitored by the content of anhydride groups in test samples. Copolymers solid samples (approximately 0.1 g) were placed in the weighed filters. Then, the filters with copolymers were placed in glass vials containing 15 mL of PBS. The vials were incubated at 37 °C for various time (from 1 h to 14 days). After incubation, the buffer were decanted. The remaining samples were rinsed with distilled water, dried to constant weight in vacuum oven, weighted to the nearest 0.0001 g and tested by ¹H NMR to calculate the content of anhydride groups.

The ratio of anhydride groups to the sum of anhydride and ester groups in the polyanhydride (A/A + E) was calculated using the formula:

A/A + E = I_Sac/(I_Sac + I_E),

(1)

where I_SAc represents the intensity of proton signals of the methylene group in the anhydride moiety with a chemical shift (δ) of 2.82–2.77 ppm, I_E represents the intensity of the proton signals of the methylene group in the ester moiety with a chemical shift (δ) of 2.74–2.64 ppm.

2.5. Cytostatic Activity of Polyanhydrides

For the determination of the cytotoxic activity of test compounds, the protein-staining sulforhodamine B (SRB) assay was employed. The SRB method has been assessed by the National Cancer Institute (USA) as suitable for the in vitro anti-tumoral screening [8]. The SRB assay estimates cell densities based on the measurement of cellular protein content. For the SRB assay, 100 µL of diluted cell suspension containing approximately 10⁴ cells was added to the wells of 96-well plates. After 24 h, when a partial monolayer was formed, the supernatant was aspirated and 100 µL medium containing test compounds (copolymers) at six different concentrations (0.1, 0.2, 1, 2, 10 and 20 µg/mL) was added to the cells. Stock solutions of test compounds were prepared in DMSO and the concentration of DMSO in the assay did not exceed 0.1% which was found to be nontoxic to applied cell lines. After incubation for 72 h, 25 µL of 50% trichloroacetic acid was added to each well and the plates were incubated for 1 h at 4 °C. After that, the plates were washed with distilled water to remove traces of medium and were air-dried. Then, the dried plates were stained with 100 µL 0.4% SRB (prepared in 1% acetic acid) for 30 min at room temperature. Unbound dye was removed by rapid washing with 1% acetic acid and the plates were air-dried overnight. Finally, the protein-bound dye was dissolved in 100 µL of 10 mM unbuffered Tris and the absorbance was read at 490 nm.

2.6. Preparation and Characterization of Microspheres

Polyanhydrides based on DBB and SA were used to obtain polymer microspheres. Microspheres were prepared by solvent evaporation from polymer solution dispersed in aqueous phase, according to previous reports [6]. The polymer solution in methylene chloride (20 mL, concentration 50 mg/mL) was emulsified in 400 mL of aqueous solution (1% w/w) of poly(vinyl alcohol) (PVAl 88% hydrolyzed, MW = 88,000 g/mol), using ULTRA-TURRAX T18 homogenizer, for 30 s. The speed of homogenizer was 3000 rpm. The emulsion was stirred with a magnetic stirrer at 1100 rpm at room temperature for 2.5 h to evaporate the organic solvent. After that microspheres were collected by centrifugation at 5000 rpm for 5 min, washed 3 times with distilled water, lyophilized and stored in freezer. Size and size distribution of particles were estimated using optical microscope. The morphological characterization of microspheres was carried out using a Phenom ProX scanning electron microscope.

3. Results and Discussion

3.1. Synthesis and Characterization of Betulin-Based Polyanhydrides

Polyanhydrides were obtained by melt polycondensation of betulin disuccinate and sebacic acid with the use of acetic anhydride. Sebacic acid was selected as comonomer. The content of SA in copolymers ranged from 20 to 80 wt%. The use of DBB was intended to obtain polyanhydrides with potential antitumor activity and the use of SA as a comonomer was intended to increase the crystallinity. The obtained polymers were solid materials, amorphous when containing more DBB, and crystalline when containing more sebacic acid. To determine the structure of polyanhydrides, FT-IR, ¹H NMR and ¹³C NMR spectra were made. A successful synthesis of polyanhydrides was confirmed by the formation an anhydride bond. Two characteristic peaks in the carbonyl region of the FT-IR spectra at 1724 cm⁻¹ and 1827 cm⁻¹ confirmed the formation of anhydride bonds.

In ¹H NMR spectra the signals at δ = 2.82–2.78 ppm and at δ = 2.48–2.40 ppm are visible, which could be assigned to methylene protons close to anhydride groups in DBB and SA part, respectively. The presence of this signals in ¹H NMR spectrum confirmed the formation of the polyanhydride. The ¹³C NMR spectra of copolymers showed signals assigned to carbonyl carbon atoms in anhydride (δ = 167.94 ppm) and ester groups (δ = 171.95 ppm) as well as two different signals of methylene carbon atoms next to ester (δ = 28.89 ppm and δ = 28.89 ppm) and anhydride (δ = 30.35–30.18 ppm) groups respectively. The rest of ¹H NMR and ¹³C NMR signals were assigned to the relevant polyDBB_PEG protons and carbons based on our previous work [6]. Molecular weight of copolymers were calculated from ¹H NMR and determined by GPC. The molecular weights values obtained from NMR spectra and GPC were similar and ranged from 7000 to 20,000.

3.2. Hydrolytic Degradation of Polymers

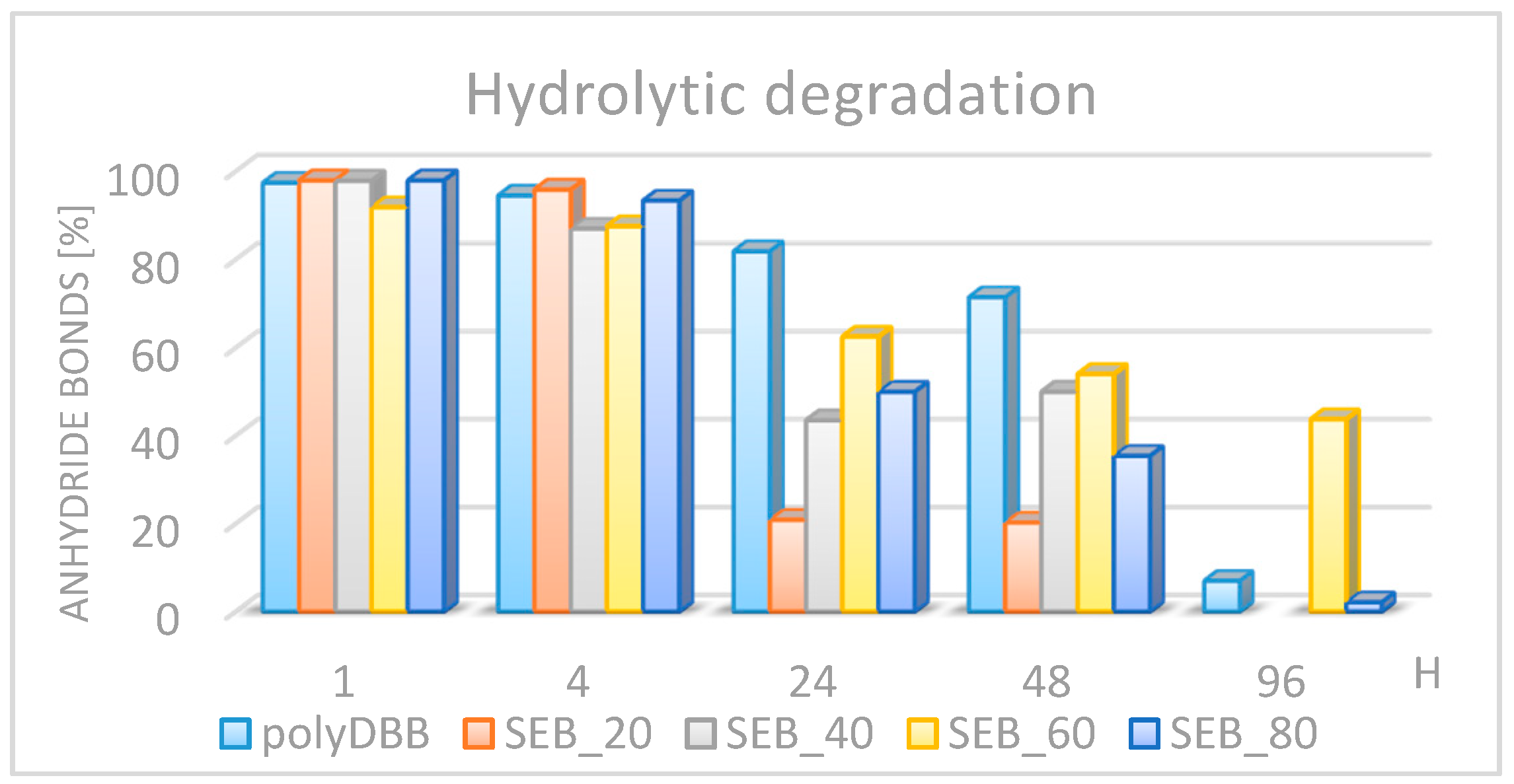

Hydrolytic degradation was carried out in PBS (pH 7.4) at 37 °C, in order to determine the disappearance of anhydride bonds. The results are show in Figure 1.

¹H NMR spectra of samples remaining after different degradation times revealed the presence of betulin disuccinate and sebacic acid among the degradation products. No hydrolysis of ester bonds in DBB was observed, similar to the degradation of polyDBB [6]. In the ¹H NMR spectra of the degradation products, the signals at δ = 3.18 ppm, δ = 3.33 ppm and δ = 3.79 ppm assigned to methylene and methine protons next to hydroxyl groups were not observed. For obtained copolymers degradation rate is strongly depended on the content of the comonomer (SA).

Homopolymer from betulin disuccinate, obtained in our previous work [6], due to the strong hydrophobicity, degrade relatively slowly. Under physiological conditions degrades completely in about 14 days. During this time, complete disappearance of anhydride bonds in the sample was observed. Copolymers based on DBB and SA, degrades faster in compare to polyDBB. The results shows that the degradation rate increase with the increase of content of comonomer (SA) in polyanhydrides. Almost all copolymers degrades completely within five days.

3.3. Cytostatic Activity of Polyanhydrides

Polyanhydrides containing DBB and SA were studied to determine their cytostatic activity against selected cancer cell lines. Cell lines representing cervix, breast, lung, liver, central nervous system and nasopharynx tumors were used in these studies to find concentrations causing inhibition of cell growth in culture by 50% (IC₅₀). The IC₅₀ values obtained for DBB, polyDBB and copolymers are listed in

Table 1. Cytostatic activity of polyanhydrides against various cancer cell lines as well as a normal control (HDF), expressed as IC₅₀ ^a.

Compound	Cytostatic Activity IC50 [µg/mL]
	HeLa	A-549	U-87 MG	KB	HepG2	HDF
DBB	8.25 ± 0.81	7.09 ± 0.01	7.37 ± 0.26	7.17 ± 0.93	8.02 ± 0.04	14.80 ± 0.06
polyDBB	16.23 ± 0.72	16.19 ± 0.31	16.07 ± 0.02	17.81 ± 0.03	15.93 ± 0.12	27.13 ± 0.01
SEB_20	4.61 ± 0.03	4.15 ± 0.24	4.99 ± 0.05	4.28 ± 0.01	4.15 ± 0.01	7.31 ± 1.92
SEB_40	8.22 ± 0.09	8.15 ± 0.01	8.12 ± 0.91	8.04 ± 0.03	8.77 ± 0.23	13.55 ± 0.22
SEB_60	8.10 ± 0.74	8.29 ± 0.55	8.41 ± 0.01	8.28 ± 0.01	8.39 ± 0.16	8,22 ± 1.17
SEB_80	11.48 ± 0.22	11.29 ± 0.18	11.06 ± 0.37	11.39 ± 0.51	11.12 ± 0.46	18.01 ± 0.02

^a N = 3 (t-test), p < 0.05.

. HDF cells lines were used as non-proliferative cells, to compare results from human cancer cell lines and to establish selectivity between cancer and non-cancer cells. Table 1 also includes the results obtained for monomer (DBB) and polyDBB, described earlier [6].

Cytostatic tests indicated the effectiveness of obtained copolymers in inhibition of growth of cancer cells (IC₅₀ < 12 µg ml⁻¹), with limited cytotoxicity towards normal cells. IC₅₀ values calculated for copolymers were lower than these determined for polyDBB, which is associated with faster hydrolytic degradation and release of more betulin disuccinate during the experiment. The results shows that cytostatic activity of polyanhydrides based on betulin disuccinate can be modified by changing the kind of comonomer and its content, allowing to optimize the degradation rate and tailor the period of cytotoxicity. Copolymers based on betulin disuccinate, just like polyDBB, can be used as a degradation-based delivery systems for DBB or combined with other chemotherapeutic agents can lead to a synergistic therapeutic effect in cancer treatment.

3.4. Microspheres Preparation and Characterization

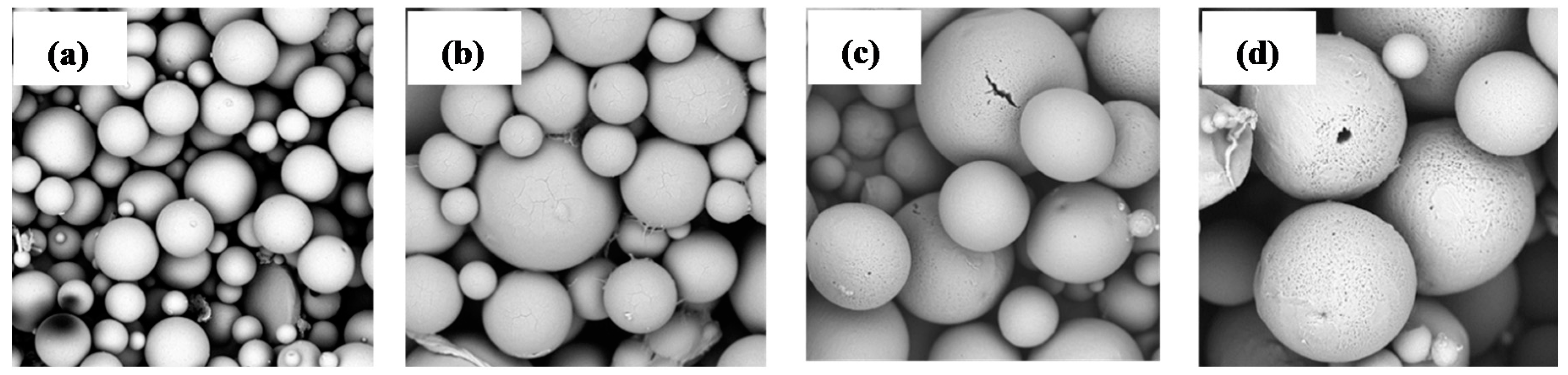

In order to use copolymers based on DBB and SA in controlled drug delivery systems, attempts were made to obtain polymer microspheres. Microspheres were prepared by an emulsion (O/W) solvent evaporation technique using poly(vinyl alcohol) as stabilizing agent. Obtained particles are spherical and have smooth surface (Figure 2). The diameter of the microspheres were within the range from 15 to 30 µm.

Obtained microspheres may be considered as vehicles for biologically active compound. They can be used to encapsulate, protect and control release of a wide range of drugs, and they can be easily injected into the body.
