Origami-Inspired Shape Memory Folding Microactuator ^†

Abstract

This paper presents the design, fabrication and performance of origami-based folding microactuators based on NiTi films showing the one-way shape memory effect. Freestanding NiTi films are micromachined by laser cutting or photolithography to achieve double-beam structures allowing for direct Joule heating with an electrical current. The NiTi microactuators are interconnected to rigid sections (tiles) forming an initial planar system that self-folds into a predetermined 3D shape upon heating. A thermo-mechanical treatment is used for shape setting of as-received specimens to approach a maximum folding angle of 180°. The bending moments, bending radii and load-dependent folding angles upon Joule heating are evaluated. The shape setting process is particularly effective for small bending radii, which, however, generates residual plastic strain. After shape setting, unloaded beam structures show recoverable bending deflection between 0° and 140° for a maximum heating power of 900 mW. By introducing additional loads to account for the effect of the tiles, the smooth folding characteristic evolves into a sharp transition, whereby full deflection up to 180° is reached.

1. Introduction

Origami is the widely known art of paper folding, by which flat sheets of paper are transformed into three-dimensional shapes. These ancient techniques provide the inspiration for promising future applications in science and engineering, e.g., assembly and robotics. Particular advantages are, for example, the compact setup of deployable structures (e.g., airbags [1,2], wings [3] or biomedical devices), as well as a reduced complexity of the fabrication process where 2D structures can be assigned their actual function after the fabrication.

The use of smart materials can enable folding under the influence of a non-mechanical field. Attractive candidates are shape memory alloys (SMAs) that exhibit high bending moments, low corrosion and low fatigue. The special feature of SMAs is their thermally activated solid-state phase transition. The crystal realignment from the low temperature phase, called martensite, to the high temperature phase (austenite) is diffusionless and reversible. If the SMA film used in this work is deformed in its martensite state, it can be restored to its memory form by heating above the phase transition temperature (austenite finish temperature Af) by using the one-way shape memory effect.

Previous concepts for origami-inspired self-folding SMA sheets have been published in [4] and [5]. Further relevant research has been performed, e.g., in the field of robogami [6,7,8]. Alternative mechanisms for satellite deployment mechanisms using SMA hinges were presented in [9]. While previous developments focused on the macro scale, we intend to transfer the concept of origami-inspired SMA folding actuation to the micro scale by combining state-of-the art methods of SMA film engineering and micromachining. The aim of this study is to design, fabricate and analyze the performance of the SMA folding microactuators. For this, we present first results on the growth of 1 µm thin films and detailed experiments on 20 µm thick films, where we demonstrate shape setting and bending actuation.

2. Materials and Fabrication

Here, we use NiTi films as active material which serve as interconnecting hinges between single triangular tiles. The material undergoes a two step solid-to-solid phase transformation while cooling down. Instead of directly transforming into martensite, it undergoes an intermediate R-phase transformation. The relevant phase transformation temperatures of the NiTi material (depicted in

Table 1. Simulation Parameters.

Parameter	Abb.	Value
Martensite Start Temperature	Ms	19 °C
Martensite Finish Temperature	Mf	9 °C
Austenite Start Temperature	As	52 °C
Austenite Finish Temperature	Af	62 °C
R-phase peak Temperature	Rp	45 °C
Young’s Modulus (Martensite)	EM	25 GPa
Youngs’s Modulus (Austenite)	EA	30 GPa
Clausius–Clapeyron coefficient	c	8.1 MPa/K
Transformation Strain	${\epsilon }^t$	0.035

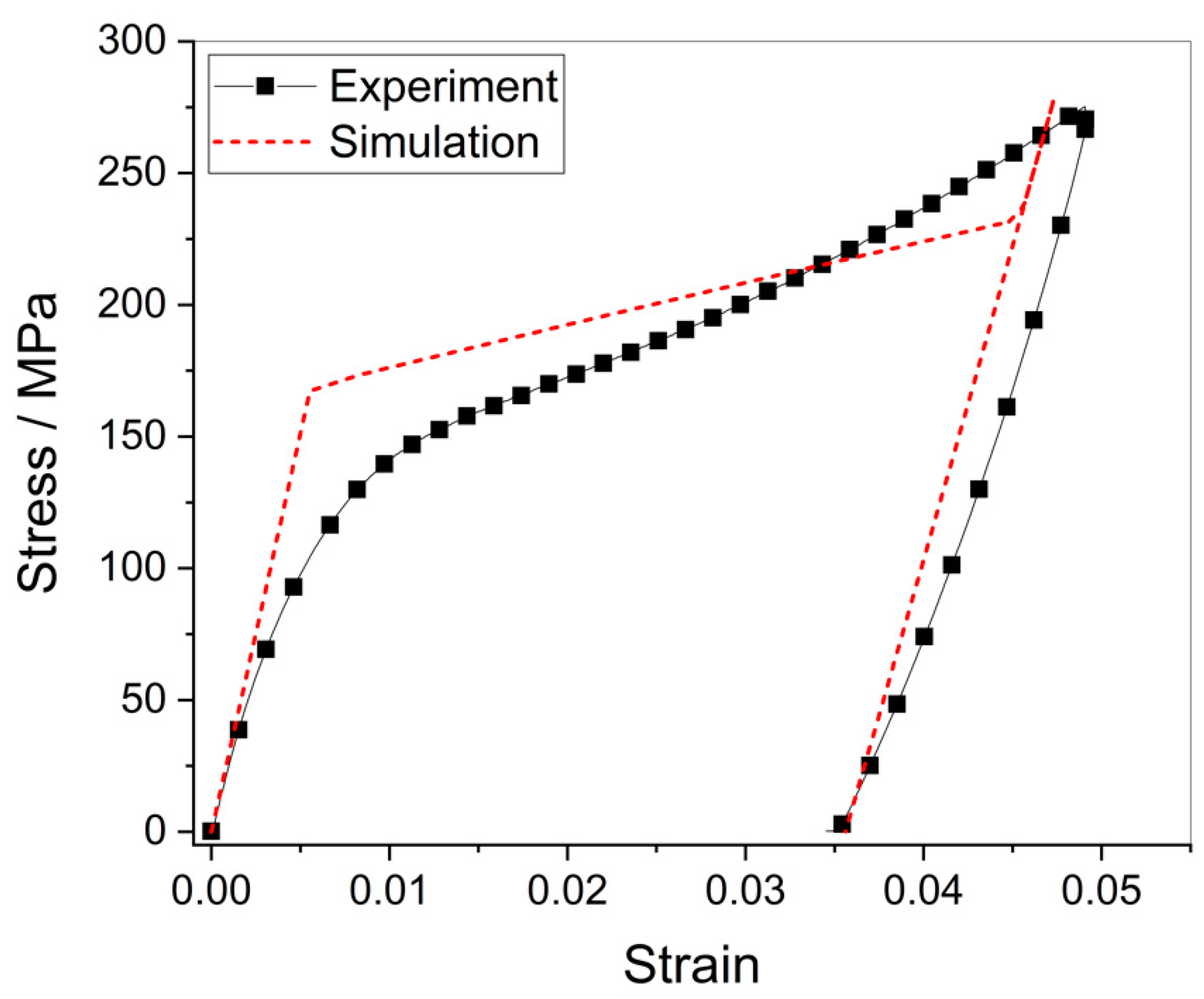

) are obtained by differential scanning calorimetry and temperature-dependent electrical resistance measurements. At room temperature, the SMA material is in R-phase condition. By folding, the stress-induced martensitic transformation is initiated and by heating above 62 °C the reoriented martensite transforms into austenite. Cooling back to room temperature in stress-free state leads to the formation of R-phase again. Finite element (FE) simulations are performed to describe the thermo-mechanical performance of NiTi test devices. In order to evaluate the selected material model (Lagoudas model [10]) describing the SMA material behavior, tensile test simulations were conducted. Material parameters from our tensile experiments shown in Table 1 were provided as input. Figure 1 shows both the experimental and simulation data of the stress-strain behavior. It can be stated that the simulation allows one to approximate the macroscopic material behavior under tensile loading. It shows a higher critical stress for the intermartensitic transformation by around 25% and underestimates the slope of the stress plateau. By assuming an ideal material, the simulations cannot accurately represent the actual transformation slopes obtained from experiments. We attribute this to microscopic material imperfections such as internal defects introduced by the fabrication process.

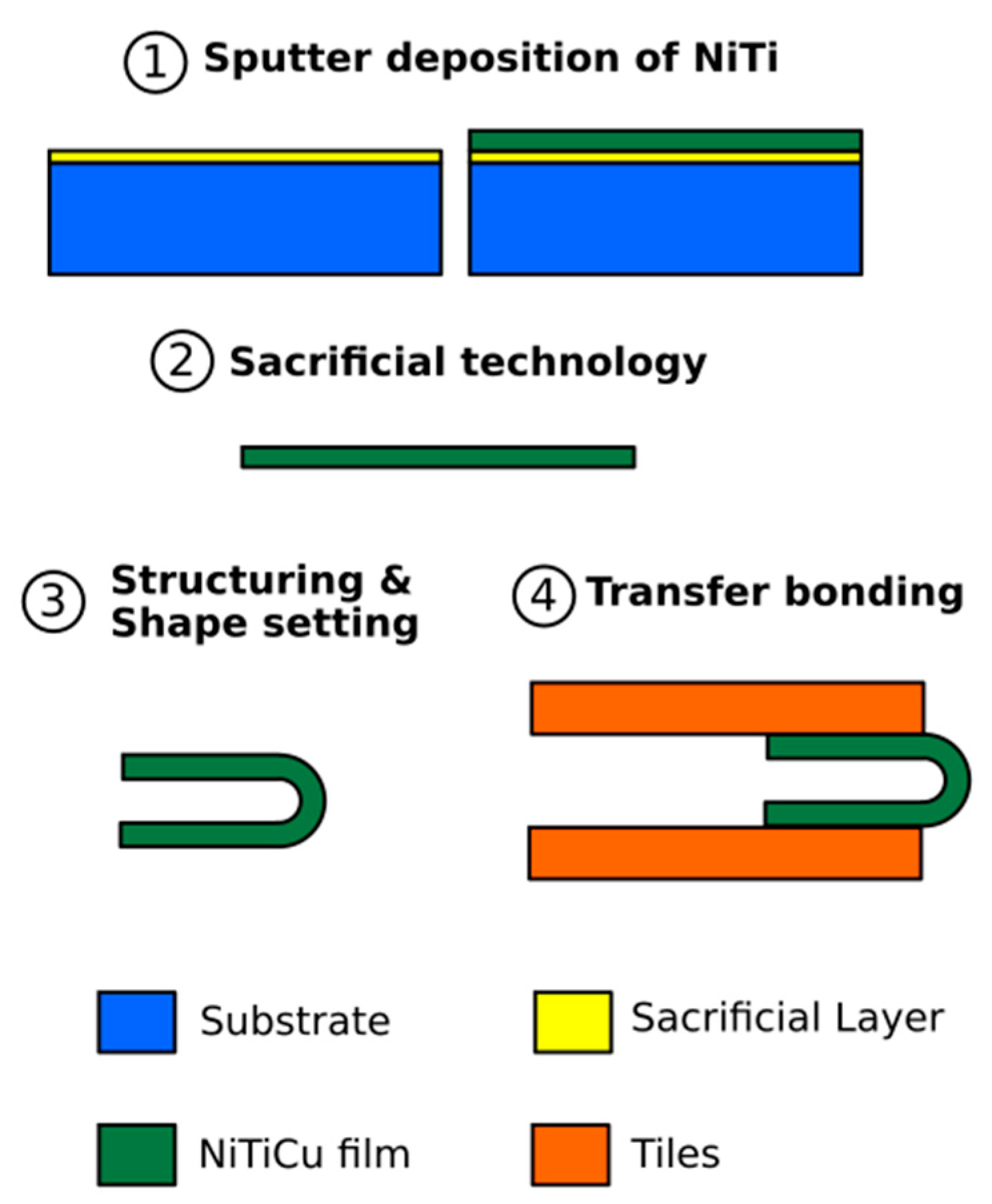

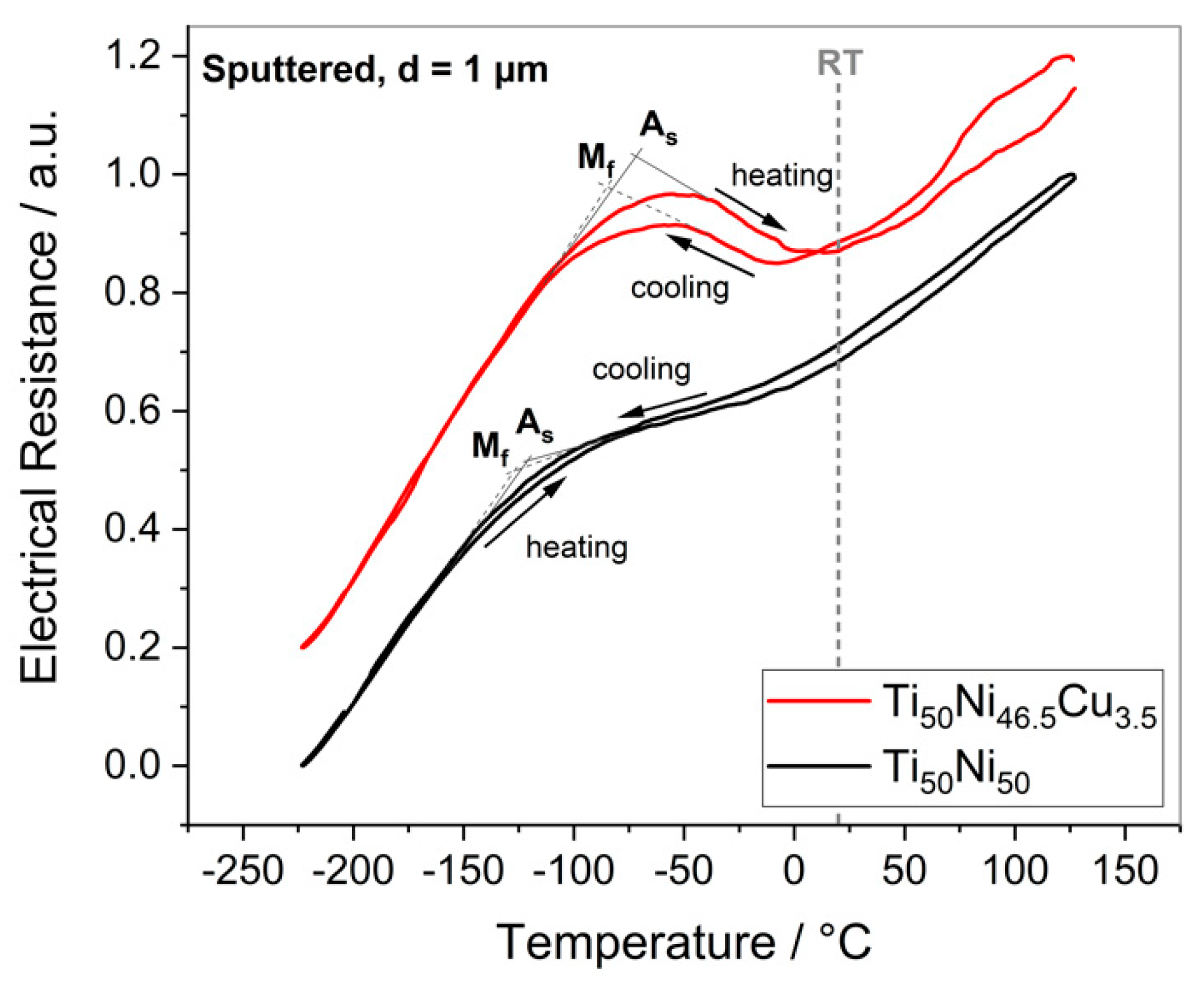

The intended fabrication process can be divided into four main steps (see Figure 2). The first two steps comprise magnetron sputtering of NiTi films onto a silicon substrate as well as the sacrificial layer technology to release the SMA films from the substrate. The minitaturization of the folding actuators requires thin film technology. Therefore, the increase in martensite to austenite transformation temperature by addition of Cu is investigated, motivated by [11]. The transformation is shifted towards higher temperatures (see Figure 3). The finish temperature of direct transformation (M_f) increased from $-126 °\mathrm{C}$ to $-85 °\mathrm{C}$, the corresponding temperature of the reverse transformation to austenite (A_s) increased from $-121 °\mathrm{C}$ to $-72 °\mathrm{C}$. Steps 3 and 4 include film structuring, shape setting and bonding to tiles. So far, we used freestanding NiTi films of 20 µm thickness as the currently sputtered films still have transformation temperatures below room temperature. The SMA microactuators are micromachined by laser cutting which has the advantage of cost-effectiveness and speed. Alternatively, we investigated micro structuring by photolithography which will prove to be more precise with further downscaling of the design. The chosen design of a double beam structure allows us to apply an electric current across the two ends to actuate the SMA microactuators by direct Joule heating. The layout parameters of each beam are $4 \mathrm{mm}\times 1 \mathrm{mm}\times 20 \mu \mathrm{m}$. The separation between the two beams is $4 \mathrm{mm}$. The memory shape is the folded state at 180° and is imprinted by an annealing process in a vacuum furnace at $460 °\mathrm{C}$ for $30 \min$. In order to set the memory shape, the specimens are placed and folded by 180° in an annealing jig and covered by thin Ti foils to avoid surface oxidation during the shape setting process. Two different folding radii are realized ($0.5$ and $1 \mathrm{mm}$). The structure is then glued between two Kapton tiles and electrically contacted by gap welding.

3. Results

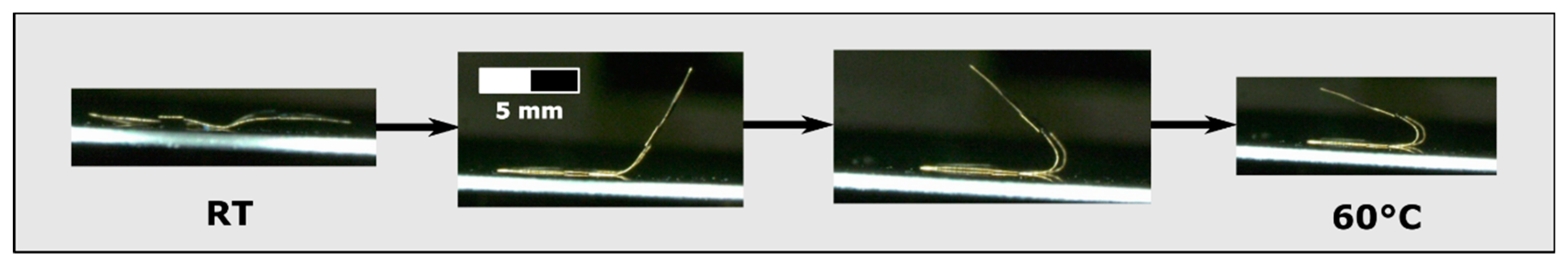

Figure 4 shows the active folding of an SMA microactuator consisting of a 20 µm thick NiTi double-beam cantilever after the shape setting process. The microactuator has been mechanically unfolded at room temperature and subsequently heated above austenite finish temperature. The microscope images show that the SMA hinge almost completely recovers its memory shape.

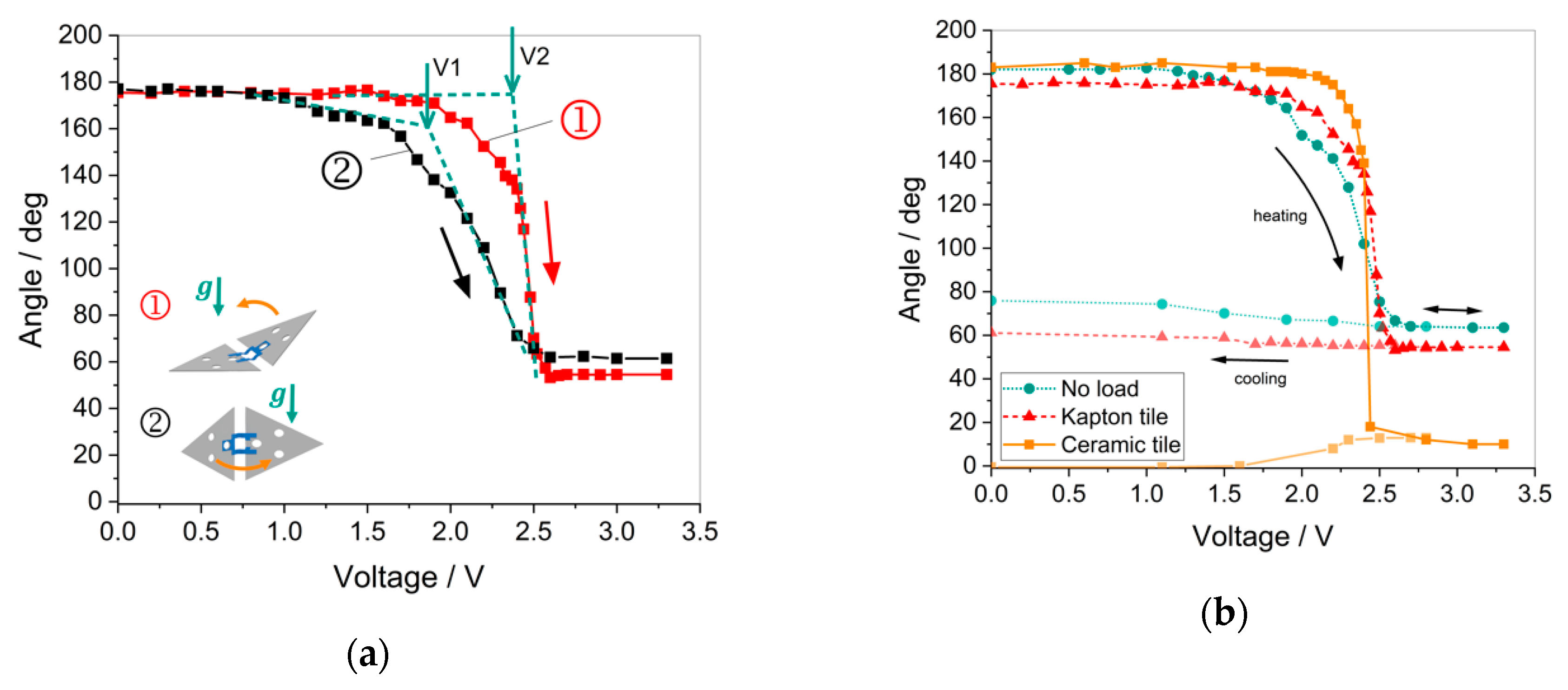

In the following, we present results on two different Origami devices consisting of an SMA microactuator and two tiles of either Kapton or ceramic. Investigations include IR thermography and camera tracking of the bending angle during direct Joule heating of the microactuator. Figure 5 shows two characteristics of folding angles as a function of applied voltage for Joule heating, which correlates with the temperature of the microactuator. The folding radius of the specimen is $0.5 \mathrm{mm}$. Here, the state “no load” refers to the pure microactuator without tiles. When the folding axis of the Origami device is aligned perpendicular to the gravitational field (see Figure 5a), the starting voltage for folding is shifted to higher voltages (from around $1.8 \mathrm{V}$ to $2.4 \mathrm{V}$) and the characteristic shows a steeper behavior compared to the case where the folding axis is aligned along the gravitational field. This behavior can be attributed to stress-induced increase in SMA transformation temperatures. A similar trend can be observed by adding additional weight as shown in Figure 5b. In the unloaded case, the microactuator folds back to around 65° and while cooling down it reopens slightly. By adding the load of the Kapton tile, the folding angle remains constant at room temperature. In the case of a ceramic tile causing a gravitational load of 3.8 mN, the microactuator folds down to 10° upon heating and by subsequent cooling to room temperature it reaches the maximum total folding angle of 180°.

These measurements show that the performance of Origami devices is tunable by suitable loading. However, at a small load, the microactuator only folds back to 60°. This incomplete shape recovery is a consequence of residual plastic deformation. Samples with an increased folding radius of $1 \mathrm{mm}$ show less residual strain but the shape setting process is less effective and samples with higher bending radii show larger opening angles after heat treatment.

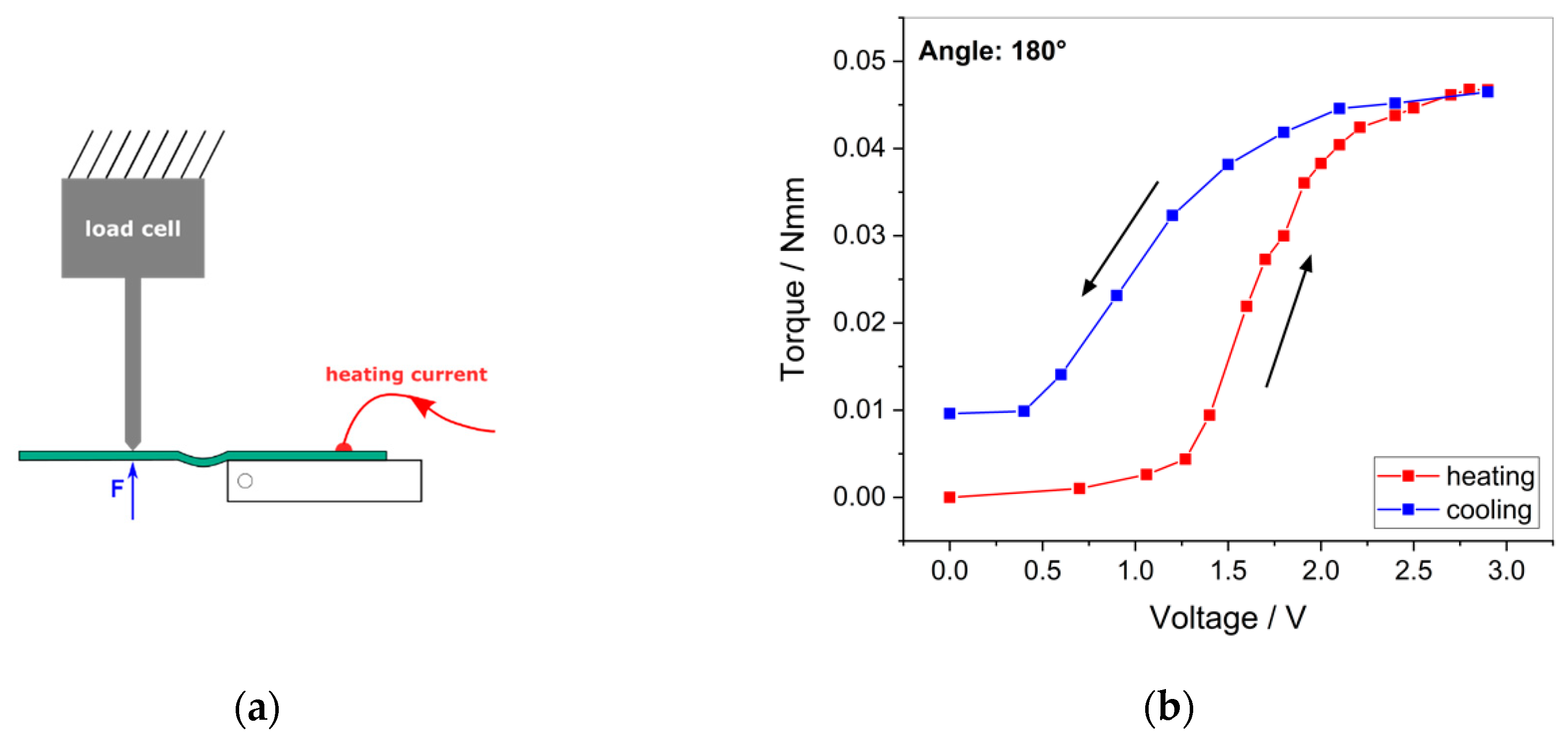

Additionally, we investigate the torque generated by the restoring movement of the unfolded SMA microactuator back to its memory shape. Here, the SMA microactuator is unfolded by 180° and positioned below a load cell with one end fixed on a platform (see Figure 6a). Upon Joule heating, shape recovery of the microactuator is blocked and a restoring force acts on the load cell. The resulting torque is subsequently calculated by taking into account the distance to the fixation. Figure 6b shows the heating and cooling curves of the torque generated by the microactuator. A maximum torque of $0.047 \mathrm{Nmm}$ is reached at a voltage of $2.8 \mathrm{V}$ which corresponds to a heating power of $900 \mathrm{mW}$. When cooling down, we can observe a hysteresis due to the difference in forward and backward phase transformation temperatures of the SMA. The remaining torque of $0.01 \mathrm{Nmm}$ corresponds to the torque required to unfold the actuator to 180° which is four times smaller than the folding torque generated upon heating. Thus, by combining two counteracting antagonistic microactuators, reversible folding in the range of $\pm 180°$ is feasible.

4. Conclusions

We present the design, fabrication and characterization of a shape memory microactuator for active folding based on the concept of origami. Double-beam cantilever structures are designed and shape-set for 180° folding using Joule heating. Different loading conditions have been investigated that allow for the tuning of the actuator system in terms of actuation time, heating power and folding angles. The maximum folding torque of 0.047 Nmm should be sufficient to actuate an Origami device with antagonistic SMA microactuators for reversible folding. Further improvement of folding performance is expected by design optimization and improvements in the shape-setting process. Ongoing investigations include Origami devices with decreasing film thickness and tailored phase transformation temperatures.
