Novel Skin-Electrode Conductive Adhesives to Improve the Quality of Recorded Body Signals in Smart Medical Garments †
1
Department of Textile Technology, Faculty of Textiles, Engineering and Business, University of Boras, 501 90 Boras, Sweden
2
Swedish Centre for Resource Recovery, Faculty of Textiles, Engineering and Business, University of Boras, 501 90 Boras, Sweden
*
Author to whom correspondence should be addressed.
†
Presented at the International Conference on the Challenges, Opportunities, Innovations and Applications
in Electronic Textiles (E-Textiles 2019), London, UK, 12 November 2019.
Proceedings 2019, 32(1), 9; https://doi.org/10.3390/proceedings2019032009
Published: 4 December 2019
(This article belongs to the Proceedings of International Conference on the Challenges, Opportunities, Innovations and Applications in Electronic Textiles)
Abstract
:A main barrier to widespread use of electrocardiography garments for long term heart monitoring of elderly and patients is a poor skin-electrode signal transfer because of a high contact impedance and sensitivity to movement. This leads to unwanted disturbances and errors in recorded signals when the patient moves or even breathe, affecting the reliability and quality of the signals especially for patients with dry/old skin. In two different projects at the University of Borås, we have developed two novel products to solve the above problem; (1) an ongoing project that has fabricated a reusable and sustainable electro-conductive adhesive applicable between the skin and high-porous textile electrodes, and (2) a patent-pending skin-electrode glue (BioEl Glue®) which is a biocompatible electro-conductive water-soluble glue used between skin and low-porous textile electrodes.
1. Introduction
Wearable health monitoring garments can reduce hospital costs and increase life standards, thus contribute to sustainability. However, the main challenges limiting the commercialisation of wearable monitoring systems such as ECG (electrocardiography) garments are the improper electrode-skin interface and motion artefact, affecting the reliability and quality of the bio-signals [1,2,3]. Although humidity [4] and increased pressure on textile electrodes [5,6,7,8] can improve the quality of recorded signal, however dry/old skin cannot create enough humidity, and even if water is added to the electrode, it will evaporate after a few hours resulting in noises. Furthermore, constantly applying water is inconvenient for long-term monitoring. On the other hand, although pressure can improve skin-electrode contact and also reduce motion artefacts, however can create discomfort for the wearer especially under long-term monitoring.
We have developed two different products within two different projects at the University of Borås to solve the above problem; (1) an ongoing project which has fabricated a reusable and sustainable electro-conductive adhesive to be used between skin and high- porous textile electrodes; and (2) a previous project which has developed a skin-electrode glue [9], BioEl Glue®, that is a biocompatible electro-conductive water soluble glue used between skin and low-porous textile electrodes. The prepared adhesive and glue have been characterised regarding electrode-skin contact impedance, ECG signal recording and skin reaction after different periods of exposure.
2. Materials and Methods
To perform the projects, proper and safe polymers, electro-conductive particles and additives are blended together using IKA-mixer, and under selected processing conditions so that a homogeneous electro-conductive mixture with good adhesion properties to both the skin and the textile electrodes is achieved. Both reusable conductive adhesive, and water-soluble conductive glue, have been formulated to be biocompatible, anti-irritation and non-diffusible through the targeted textile electrode over a long period of time.
3. Results and Discussions
Both developed electro-conductive adhesive and glue have been applied between skin and textile electrode to act as an active interface between two surfaces as shown in Figure 1b.
3.1. Reusable Conductive Adhesive
A reusable electro-conductive adhesive is developed with the aim to be used between skin and high-porous textile electrodes. To predict the performance of the electrode adhesive in ECG garments for long-term monitoring, the skin-electrode contact impedance, skin irritation and both functionalities up to three days are studied so far.
Measuring the skin-electrode contact impedance is a method to give valuable information about the quality of signal transfer between skin and the electrode; low skin-electrode impedance shows a good skin-electrode interface, thus good quality bio-signals can be recorded, while high impedance means high distortion and noises in recorded signals; furthermore, continuous measurement of electrode impedance can be used for the estimation of motion artefacts [11,12,13].
Table 1 presents the measured skin-electrode contact impedance for textile electrode with/without applied pressure as well as with/without using adhesive as the middle layer. A clear observation is that adding a layer of developed conductive adhesive between skin and the electrode has greatly decreased the contact impedance, which is an indication of the ability to deliver higher quality ECG signal recording, furthermore, it is comparable with our previous product, BioEl Glue® [9]. The decreased contact impedance when using the reusable conductive adhesive is even more than applying 28 mmHg pressure on the textile electrode for promoting better contact; furthermore, 28 mmHg pressure is not comfortable for the wearer specially under a long-term measurement. The prolonged contact impedance measurement up to 72 h, adhesion to the skin and skin reactions in contact with the adhesive under the same period of time are presented in Table 2, all showing desired results.
3.2. Water Soluble Conductive Skin Glue
During our previous project, we have developed a patent-pending product [9], BioEl Glue®, which is a non-drying, anti-irritation, electro-conductive and biocompatible glue-like paste, used between low porous textile electrode and the skin. The ability of this electrode glue to decrease the skin-electrode impedance is shown in Table 1. Figure 2 presents how using this glue between the skin and electrode has improved the recorded ECG signal quality through decreasing the amount of noises and motion artefacts in recorded signals in a wearable ECG garment, called WearItMed [10,14].
4. Conclusions
To decrease the motion artefacts and record medical quality signals by wearable ECG garments, applying developed electro-conductive and biocompatible adhesive /glue between the skin and electrodes is a practical, safe, user friendly and low-cost solution.
Author Contributions
Conceptualization, methodology, validation, formal analysis and allinvestigation projects 1,2, funding acquisition project 1, and writing—original draft preparation, A.S.; resources project 1, writing—review and editing, M.S.; supervision and funding acquisition project 2, writing—review and editing, V.N.
Funding
Project 1 was funded by Sparbanksstiftelsen Sjuhärad, Dnr 20191071, and Project 2 by Swedish Foundation for Strategic Research, Dnr 13-0086.009.
Acknowledgments
We thank all of the members in the WearItMed consortium and specially thank Niina Hernández and Jan Wipenmyr; we acknowledge the support of our colleagues at Högskolan I Borås.
References
- Vashist, S.K.; Luong, J.H.T. Chapter 12—Wearable Technologies for Personalized Mobile Healthcare Monitoring and Management. In Wearable Technology in Medicine and Health Care; Tong, R.K.-Y., Ed.; Academic Press: Cambridge, MA, USA, 2018; pp. 235–259. [Google Scholar] [CrossRef]
- Victorino, M.N.; Jiang, X.; Menon, C. Chapter 7—Wearable Technologies and Force Myography for Healthcare. In Wearable Technology in Medicine and Health Care; Tong, R.K.-Y., Ed.; Academic Press: Cambridge, MA, USA, 2018; pp. 135–152. [Google Scholar] [CrossRef]
- Dunne, L. Smart Clothing in Practice: Key Design Barriers to Commercialization. Fash. Pract. 2010, 2, 41–65. [Google Scholar] [CrossRef]
- Weder, M.; Hegemann, D.; Amberg, M.; Hess, M.; Boesel, L.F.; Abächerli, R.; Meyer, V.R.; Rossi, R.M. Embroidered electrode with silver/titanium coating for long-term ECG monitoring. Sensors 2015, 15, 1750–1759. [Google Scholar] [CrossRef] [PubMed]
- Grozea, C.; Nolte, G.; Popescu, F. Performance of novel dry electrode EEG cap for evoked potential and band-power activity detection. In Proceedings of the World Congress on Medical Physics and Biomedical Engineering, Munich, Germany, 7–12 September 2009; Springer: Berlin/Heidelberg, Germany, 2009; pp. 510–513. [Google Scholar]
- Popescu, F.; Fazli, S.; Badower, Y.; Blankertz, B.; Müller, K.R. Single trial classification of motor imagination using 6 dry EEG electrodes. PLoS ONE 2007, 2. [Google Scholar] [CrossRef] [PubMed]
- Das, P.S.; Hossain, M.F.; Park, J.Y. Chemically reduced graphene oxide-based dry electrodes as touch sensor for electrocardiograph measurement. Microelectron. Eng. 2017, 180, 45–51. [Google Scholar] [CrossRef]
- Soroudi, A.; Hernández, N.; Berglin, L.; Nierstrasz, V. Electrode placement in electrocardiography smart garments: A review. J. Electrocardiol. 2019, 57, 27–30. [Google Scholar] [CrossRef] [PubMed]
- Soroudi, A. Conductive Paste for Contact between Electrode and Skin Patent application filed at PRV. Sweden. App. 2018, 1851186-5. [Google Scholar]
- Soroudi, A.; Hernández, N.; Wipenmyr, J.; Nierstrasz, V. Surface modification of textile electrodes to improve electrocardiography signals in wearable smart garment. J. Mater. Sci. Mater. Electron. 2019, 30, 16666–16675. [Google Scholar] [CrossRef]
- Casal, L.; Mura, G.L. Skin-electrode impedance measurement during ECG acquisition: Method’s validation. J. Phys. Conf. Ser. 2016, 705, 012006. [Google Scholar] [CrossRef]
- Kim, S.; Yazicioglu, R.F.; Torfs, T.; Dilpreet, B.; Julien, P.; Hoof, C.V. continuous-time electrode-skin impedance measurement circuit for motion artifact monitoring in ECG acquisition systems. In Proceedings of the Symposium on VLSI Circuits, Honolulu, HI, USA, 16–18 June 2010; pp. 219–220. [Google Scholar]
- Assambo, C.; Baba, A.; Dozio, R.; Burke, M.J. Determination of the parameters of the skin-electrode impedance model for ECG measurement. In Proceedings of the 6th WSEAS International Conference on Electronics, Hardware, Wireless and Optical Communications, Corfu Island, Greece, 16–19 February 2007; pp. 90–95. [Google Scholar]
- Alt Murphy, M.; Bergquist, F.; Hagström, B.; Hernández, N.; Johansson, D.; Ohlsson, F.; Sandsjö, L.; Wipenmyr, J.; Malmgren, K. An upper body garment with integrated sensors for people with neurological disorders—Early development and evaluation. BMC Biomed. Eng. 2019, 1, 3. [Google Scholar] [CrossRef] [PubMed]

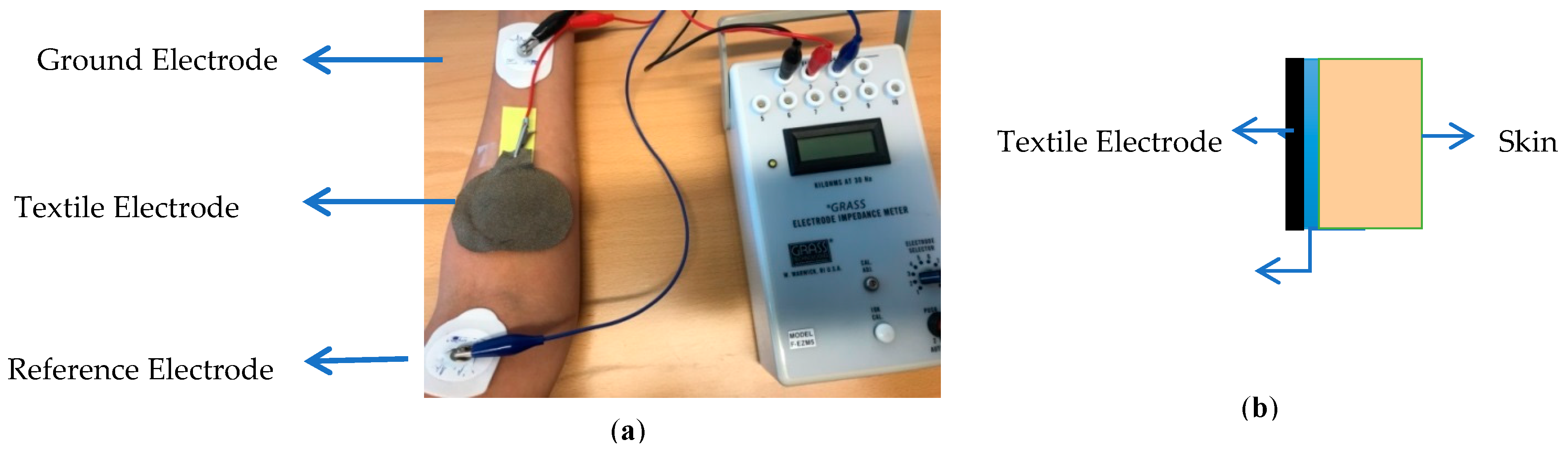

Figure 1.
(a) Skin-electrode contact impedance measurement, using three electrodes on hand. (b) The schematic of using conductive adhesive/glue between the skin and electrode.

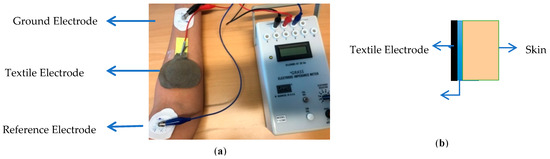

Figure 1.
(a) Skin-electrode contact impedance measurement, using three electrodes on hand. (b) The schematic of using conductive adhesive/glue between the skin and electrode.

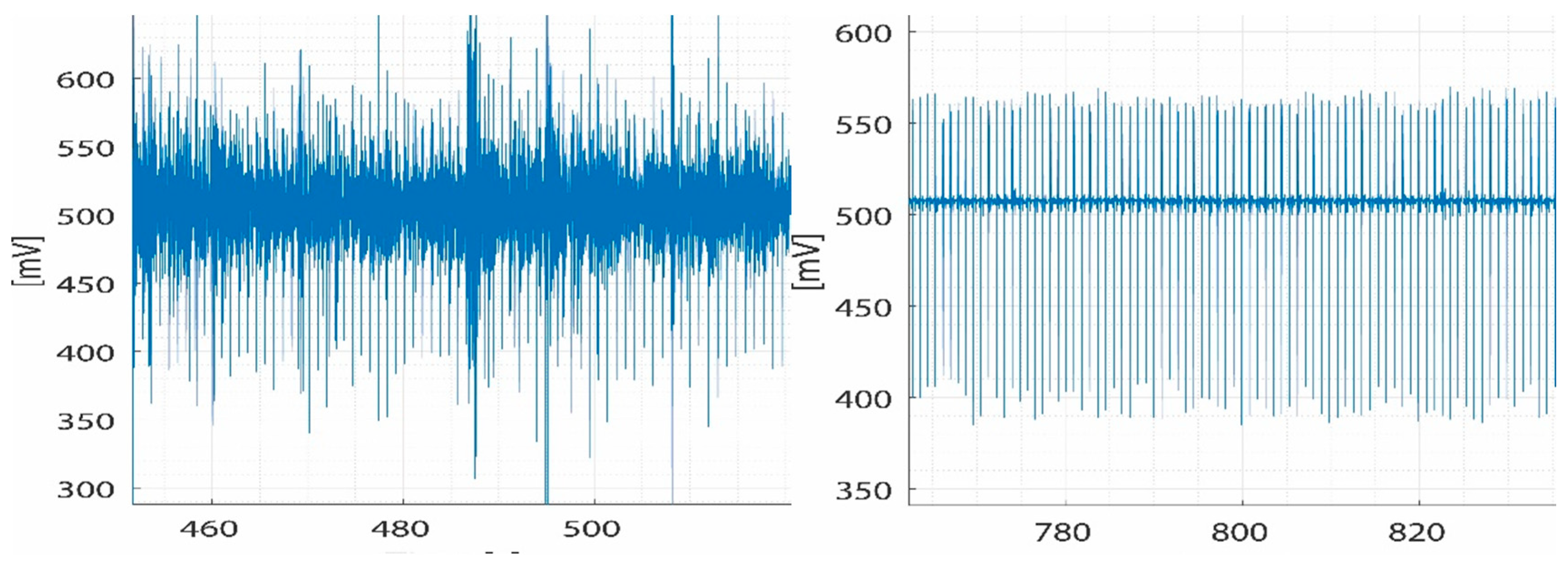

Figure 2.
Recorded ECG signals for dry skin; left: textile electrode on skin; right: electro-conductive BioEl Glue® between skin and the same textile electrode. Low pressure of 2 mmHg was applied on electrodes.
Figure 2.
Recorded ECG signals for dry skin; left: textile electrode on skin; right: electro-conductive BioEl Glue® between skin and the same textile electrode. Low pressure of 2 mmHg was applied on electrodes.
Table 1.
Measuring the contact impedance between textile electrode (Shieldex) and skin with and without applying pressure, as well as with and without using conductive adhesive/glue.
Table 1.
Measuring the contact impedance between textile electrode (Shieldex) and skin with and without applying pressure, as well as with and without using conductive adhesive/glue.
| Test Condition | Pressure, mmHg | Contact Impedance, kΩ |
|---|---|---|
| Textile electrode/skin | 0 | >200 thus not measurable |
| Textile electrode/skin | 28 | 164 |
| Textile electrode/conductive adhesive/skin | 0 | 75 |
| Textile electrode/BioEl Glue®/skin | 0 | 65 |
Table 2.
Measuring the contact impedance for reusable conductive skin adhesive when used between skin and electrode up to 3 days.
Table 2.
Measuring the contact impedance for reusable conductive skin adhesive when used between skin and electrode up to 3 days.
| Duration; Adhesive on Skin | Adhesion | Skin Irritation | Itchy | Contact Impedance, kΩ |
|---|---|---|---|---|
| 0 h | Good | - | - | 101 |
| 24 h | Good | No | No | 95 |
| 48 h | Good | No | No | 85 |
| 72 h | Good | No | No | 82 |
