Proceedings 2018, 2(8), 456; https://doi.org/10.3390/ICEM18-05341

Twisted Fibers Can Have an Adjustable Thermal Expansion

Institute of Systems Engineering, China Academy of Engineering Physics, Mianyang 621999, China
Presented at the 18th International Conference on Experimental Mechanics (ICEM18), Brussels, Belgium, 1–5 July 2018.
*
Author to whom correspondence should be addressed.
Published: 13 June 2018
PDF [692 KB, uploaded 26 July 2018]

Abstract

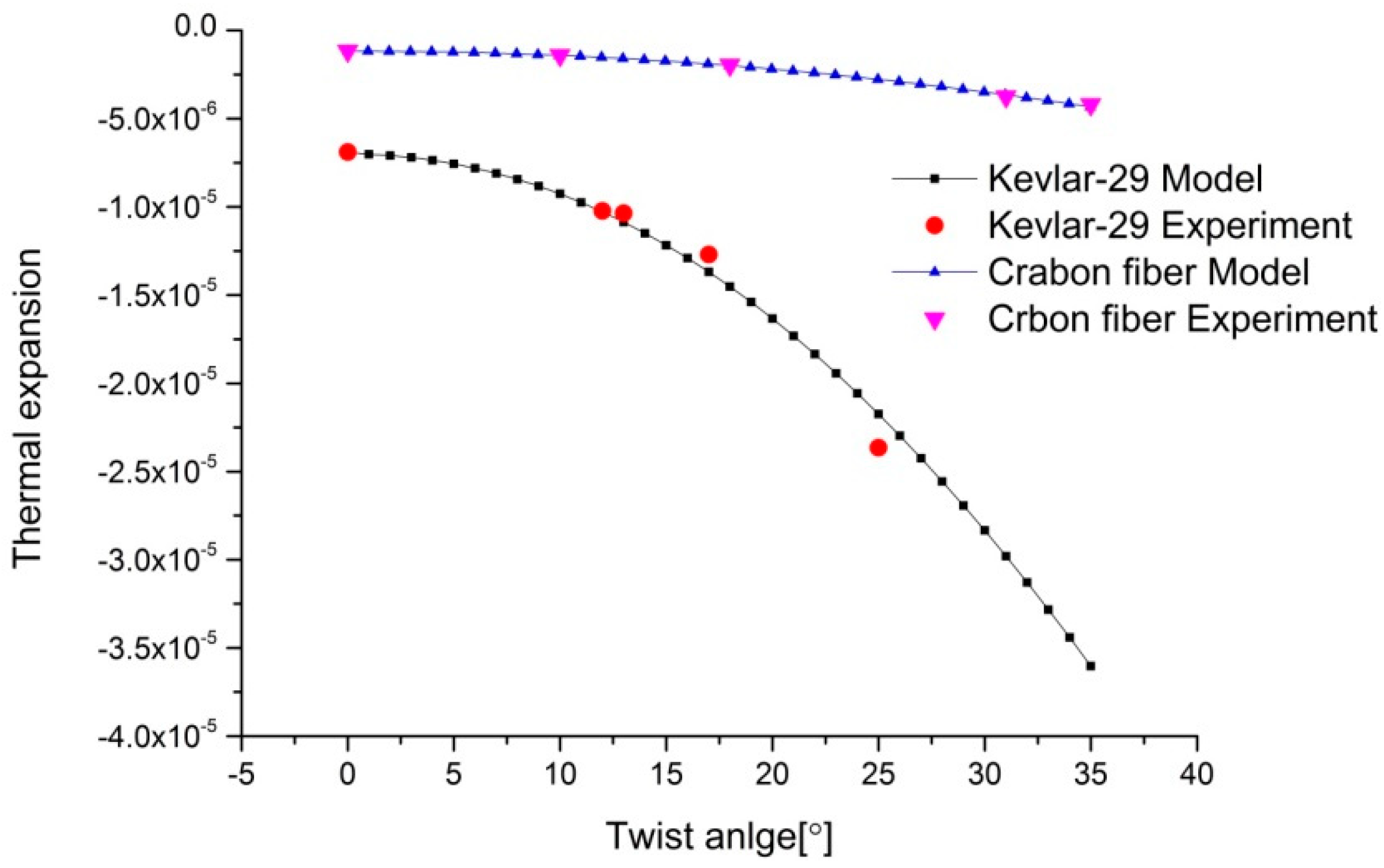

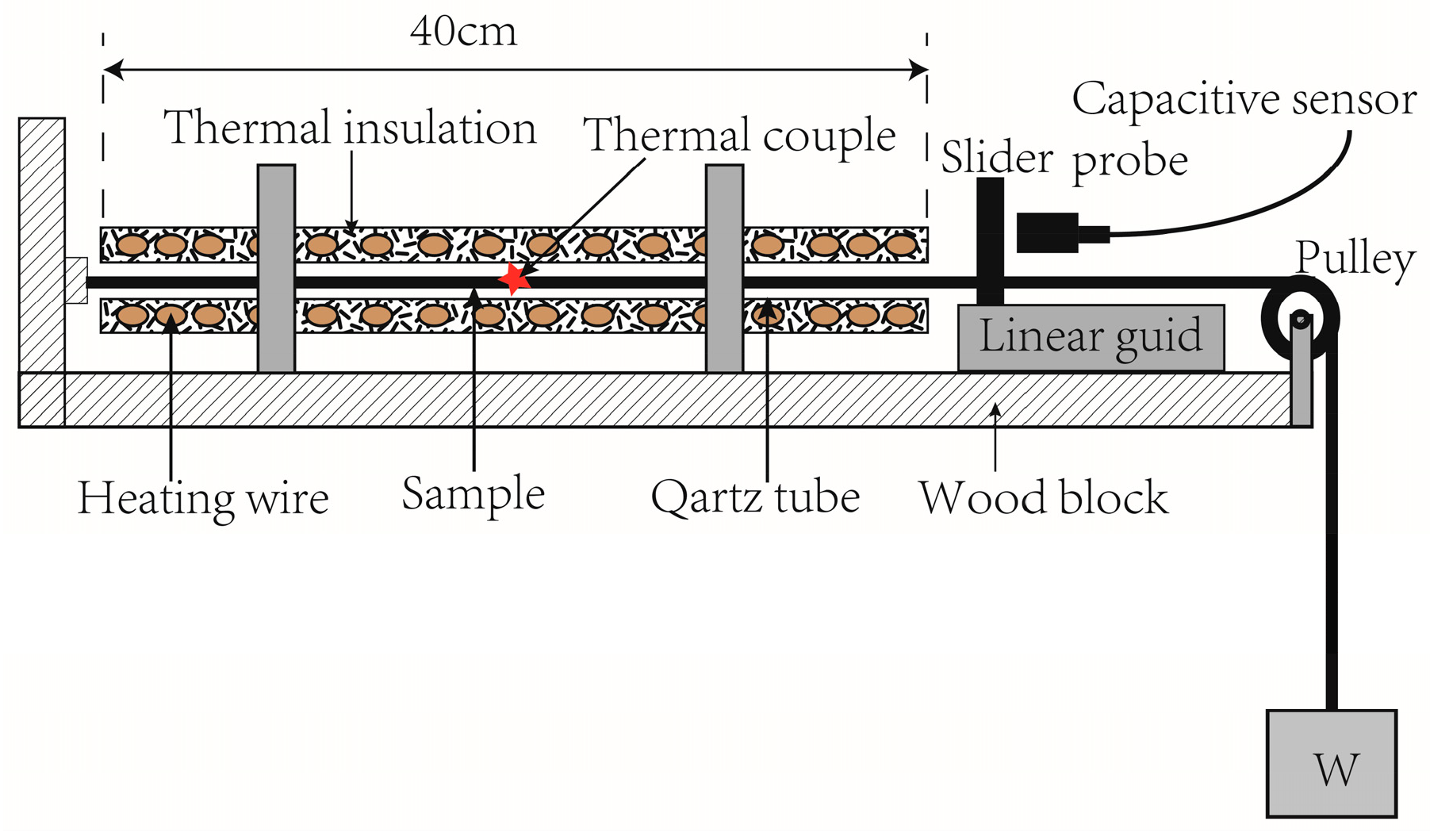

In this paper, a device with high accuracy capacitive sensor (with the error of 0.1 micrometer) is constructed to measure the axial thermal expansion coefficent of the twisted carbon fibers and yarns of Kevlar. A theoretical model based on the thermal elasticity and the geometrical features of the twisted structure is also presented to predict the axial expansion coefficient. It is found that the twist angle, diameter and pitch have remarkable influences on the axial thermal expansion coefficients of the twisted carbon fibers and Kevlar strands, and the calculated results are in good agreement with experimental data. We found that, with the increase of the twist angle, the absolute value of the axial thermal expansion coefficient increases. For the Kevlar samples, the expansion coefficient will grow by about 46% when the twist angle increases from 0 to 25 degrees, while the carbon fiber samples will grow by about 72% when the twist angle increases from 0 to 35 degrees. The experimental measurements and the model calculations reveal important properties of the thermal expansion in the twisted structures. Most notably, the expansion of the strand during heating or cooling can be zero when the twist angle is around β = arcsin(αL/αT)^1/2, where β denotes twist angle of the strand and αL, αT are the longitute and the transverse thermal expansion coefficient of the strand, respectively. According to the present experiments and analyses, a method to control the axial thermal expansion coefficient of this new kind of twisted structure is proposed. Moreover, the mechanism of this tunable thermal expansion is discussed. Based on the model, a method that can be used to rectify the thermal expansion properties of the twist structures is established. This may be a new way of fabricating zero expansion composite materials in the future.
Keywords: twisted structure; carbon fibre; tunable thermal expansion coefficient twisted structure; carbon fibre; tunable thermal expansion coefficient
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
