A Novel Strategy to Achieve Enhanced Reinforcement and Decreased Damping in CNT-Nanocomposites ^†

Abstract

In recent decades, polymer-carbon nanotube (CNTs) composite materials have drawn much attention for their potential applications as nanofiller in unique lightweight materials with superior mechanical properties. For structural engineering applications, high strength and stiffness can be delivered and conveniently tuned in nanocomposites by ensuring and effective load-transfer at the CNT/polymer interfaces. To achieve such an improvement, conventional approaches are based on complex chemical functionalization processes. In this work, the mechanical properties of nickel-coated carbon nanotube (Ni-CNT) reinforced polyamic acid-nanocomposites (Ni-CNTs /PAA) are presented and compared to those of pristine CNT nanocomposites (CNTs/PAA) in terms of stiffness, strength and damping capacity. The Ni nanoparticles decorating the CNTs outer walls induce an interlocking mechanism at the CNTs/matrix interface. A significant increase in the elastic modulus is thus observed for this kind of materials. On the other hand, the Ni-CNTs/PAA nanocomposite, decreases its damping capacity when compared with pristine CNTs/PAA nanocomposite. It is worth noting that the two investigated nanocomposites were conceived with the same total weight fraction of nanofiller, by assuming as nanofiller the pristine CNTs and the Ni-coated CNTs, respectively. The recorded stiffness enhancement and damping reduction are reached despite the significantly smaller amount of CNTs contained in the Ni-coated CNT nanocomposite samples. Indeed, for these nanocomposites, Ni nanoparticles, with their higher mass density, represent the 60 wt% of the total nanofiller weight. The results proved the concept that when metal nanoparticles coat the CNTs outer walls, better CNTs/matrix adhesion can be achieved without the need to undergo complex CNTs functionalization procedures. This is an advantage since chemical functionalization typically shows the drawback of damaging the CNTs, by introducing defects on their outer walls.

1. Introduction

The unique mechanical, electrical, and optical properties [1,2,3,4] of multiwall carbon nanotubes (MWNTs) made them very attractive for the fabrication of new advanced materials, particularly nanofiller/polymer composites with improved and tailored properties. Several investigations on the mechanical properties of the MWNT nanocomposites showed that an effective beneficial utilization of carbon nanotubes (CNTs) in composite applications strongly depends on the ability to disperse homogeneously the CNTs throughout the matrix [5,6,7]. Good interfacial bonding and/or interaction forces between nanotubes and polymers are the necessary conditions for improving the mechanical response of composites. A significant number of different surface treatments and functionalization techniques have been devised for improving the dispersion and interfacial adhesion between the CNTs and polymer matrices. As a result, the treated composites were proved to exhibit higher stiffness and strength than those without treatment due to the formation of stronger interfacial bonds and more homogeneous dispersion of CNTs [8].

In this work, a magnetic metal coating of the carbon nanotubes is employed as a novel interface engineering approach to improve the CNT/matrix adhesion. In particular, carbon nanotubes decorated with 10 nm-diameter nickel nanoparticles are dispersed in a polyamic acid (PAA) hosting matrix.

Recently, researchers have attempted to deposit metals or metal compounds onto the CNTs surface aiming at improving the magnetic properties of nanocomposites. This kind of nanocomposites have potential applications in various engineering fields, such as magnetic recording, magnetic data storage devices, toners and inks for xerography, and magnetic resonance imaging. Therefore, studies on magnetic nanocomposites, especially on magnetic CNTs composites, are rapidly expanding.

Despite several studies on the metal-coated CNT nanocomposites [9,10,11,12] were carried out, there is a lack of the mechanical response investigations for Ni-coated CNTs in polymer matrices [13]. In this study, we investigate the mechanical response of polyamic acid (PAA) nanocomposites that are reinforced with nickel coated MWNTs. Pristine CNT/PAA and Ni-CNT/PAA nanocomposites are prepared by solvent casting technique and their stiffness, strength and damping capacity are experimentally estimated.

2. Fabrication Process

The following materials were used: MWNTs and Nickel-coated MWCNTs (60 wt% Nickel; 38 wt% MWCNTs) with an outer diameter of 50–80 nm; N-Methyl-2-pyrrolidinone (NMP) solvent; and polyamic acid (PAA).

A 12 wt% of nanofiller (MWCNTs and Ni-MWCNTs, respectively) was dispersed in the NMP solvent and the resulting suspension sonicated for 45 min, while polyamic acid and NMP were mixed through magnetic stirring. The PAA solution was added to the MWCNT/NMP suspension and sonicated for 20 min. The obtained MWCNT/PAA/NMP dispersion was cast onto glass slides and dried in vacuum oven at 95 °C for 1.5 h to remove the solvent.

3. Mechanical Characterization

Thin nanocomposite rectangular specimens were obtained by cutting the nanocomposite films in stripes of 3.5 mm in width and 15 mm in length, while their thickness was measured to be between 35 and 50 μm. A dynamic mechanical analyzer DMAQ800 was employed to perform monotonic and cyclic tensile tests by using the tension film clamp. A preload of 0.1 N was first applied, then a force rate of 2 N/min was set for both the monotonic and cyclic tensile tests. In the monotonic tensile tests, useful to characterize the materials elastic regions, a maximum strain of 5% was reached. The loading/unloading tensile tests were performed in the elastic region and, two cycles at the maximum stress amplitudes of 15 MPa and 20 MPa, respectively, were obtained. The tests were repeated on 5 specimens for each nanocomposite material.

4. Results and Discussion

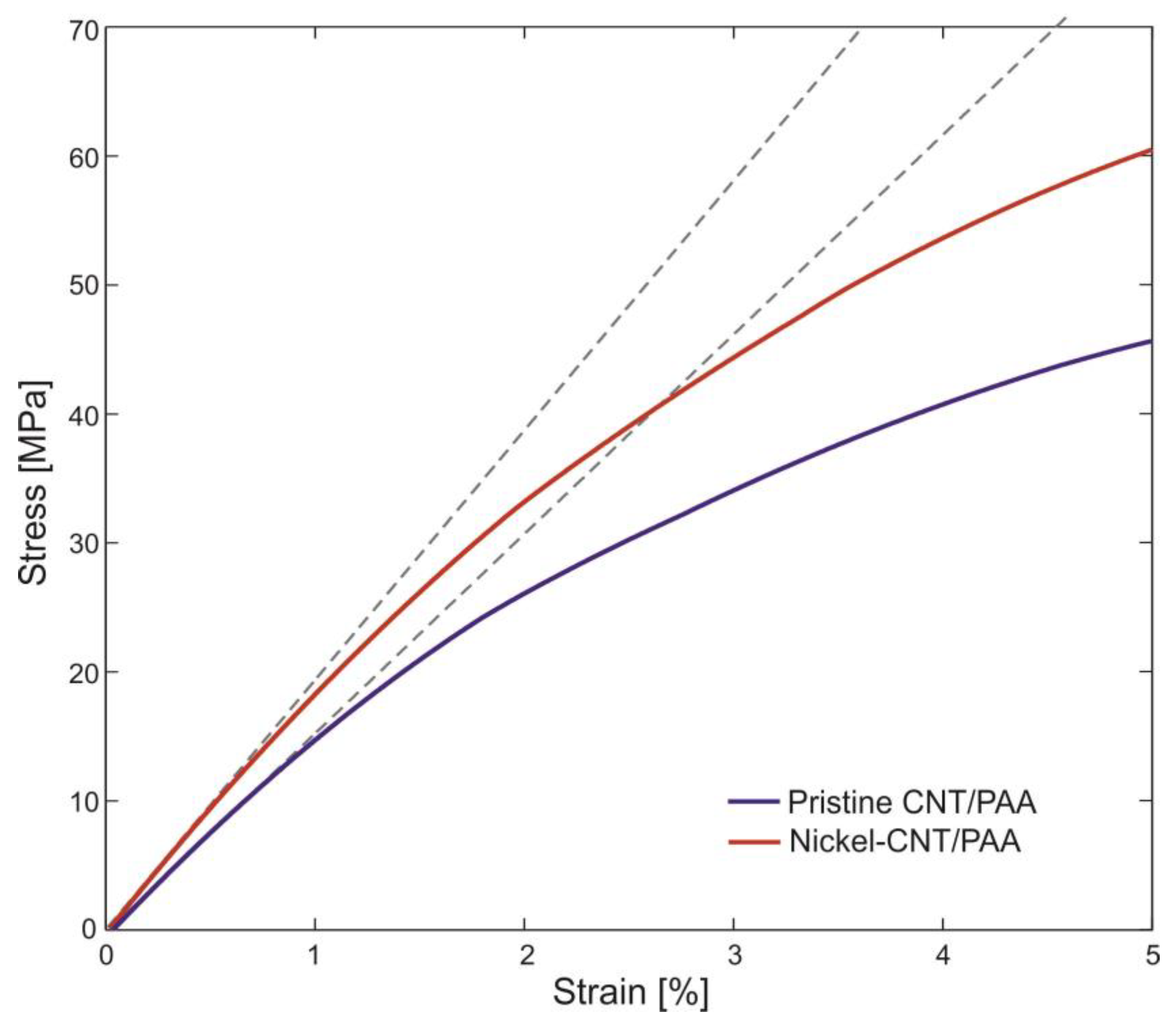

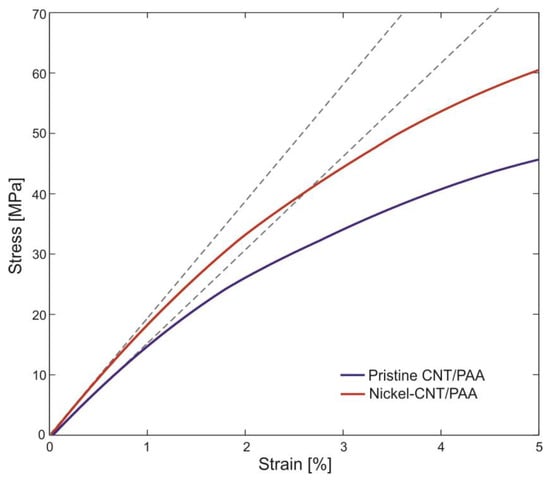

The representative stress–strain curves are reported in Figure 1. As expected, the nanocomposite with nickel-coated CNTs shows a significantly enhanced mechanical response with respect to the pristine CNT/PAA nanocomposite. When the two nanocomposite materials are loaded, they exhibit an elastic behavior up to a strain of 1%. A Young modulus of 1.497 GPa and 1.936 GPa are observed for the pristine CNT/PAA and Ni-CNT/PAA nanocomposites, respectively. Such outcome proves the effectiveness of the nickel nanoparticles which increase the density of the van der Waals interaction forces at the CNT/matrix interfaces. A 29% improvement of the elastic modulus is delivered in the interface-engineered nanocomposite with respect to the nanocomposite with unmodified interfaces.

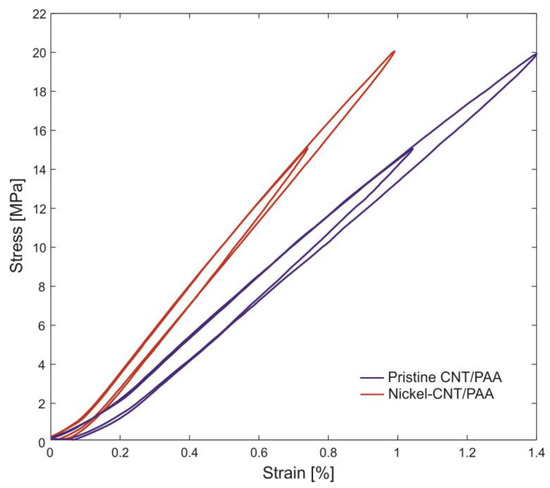

The loading/unloading stress-strain curves are reported in Figure 2, performed in the materials elastic region (below 1.5% strain). Besides the reinforcing effect provided by the nickel coating of the CNTs, an additional effect on the nanocomposite damping capacity is also observed. The nickel-CNT/PAA nanocomposites show narrower hysteretic cycles with respect to the pristine CNT/PAA nanocomposites. The hysteresis, arising in nanocomposites with nickel nanoparticles interface modification, is mainly due to the viscoelastic behavior of the PAA matrix characterized by free and short oligomer chains. Indeed, PAA chains show high mobility and are kept together by weak interaction forces. The PAA chains easily slide each other and adjust their configuration once loads are applied. On the other hand, the PAA chains near to the nickel-coated CNTs must interact with the nickel nanoparticles and transfer the load to the CNT nanofiller through them. Due to the stronger electrostatic interaction forces between the polar PAA oligomer chains and the metallic nanoparticles, the nickel-CNT/PAA nanocomposite is characterized by strong interfaces with good adhesion between matrix and nanofiller.

The hysteresis in the pristine CNT/PAA nanocomposites is instead the result of two contributions, i.e., (i) the contribution of the PAA matrix inter-chains sliding, and (ii) the contribution of the interfacial frictional sliding between the CNTs and the PAA chains, a phenomenon well known as stick-slip [14]. This energy dissipation phenomenon observed in pristine CNT/PAA nanocomposites is easily activated due to the weak adhesion at the unmodified CNT/matrix interfaces. Low interfacial shear stress levels are required to overcome the weak interfacial interaction forces and trigger the slippage of the PAA chains with respect to the CNTs.

In particular, the equivalent damping ratio of the two nanocomposite materials is computed by directly measuring the dissipated energy as the area enclosed by the loading/unloading cycle, and the elastic strain energy as the area under the loading branch. The equivalent damping ratios are found to be 1.418% and 1.064% for the pristine CNT/PAA and nickel-CNT/PAA nanocomposites, respectively. Therefore, the interface-engineered nanocomposites have a reduced damping capacity of 33% compared to the pristine nanocomposites. Such a response is due to the strengthening effect of the nickel nanoparticles which increase the interfacial shear stresses needed to activate the stick-slip energy dissipation phenomenon.

The carried out mechanical tests proved the effectiveness of the selected interface engineering approach. By exploiting nickel nanoparticles, a significant enhancement in the nanocomposite elastic response is observed. The nickel nanoparticles CNTs coating has the advantage of not damaging the CNTs outer walls structure, in contrast to other interface treatments, such as covalent functionalization. Covalent functionalization in fact requires the use of acids to create defects sites on the CNT surface and attach functional groups [15]. Furthermore, it is worth to point out that the CNT weight fraction in the nickel-CNT/PAA nanocomposites is only the 40% of the weight fraction of CNTs employed in the pristine CNT/PAA nanocomposites. Indeed, the interface modified nanocomposites were fabricated by replacing the weight of pristine filler with the same weight of modified filler. Therefore, the weight of the modified filler is in part given by the heavy nickel nanoparticles (i.e., 60% of the weight is due to nickel). This strategy was employed in order to compare two ultra-lightweight nanocomposite materials with the same total weight. Although Ni-CNT/PAA nanocomposite contain less carbon nanotubes, thus, there is less interfacial surface area available for the load transfer mechanism, excellent enhancements in the material mechanical properties are obtained.

5. Conclusions

In this paper, it is shown that metal (Ni) nanoparticles can successfully be used as an alternative method to improve the effectiveness of the load transfer mechanism between the CNTs and a hosting matrix. In this case study, the matrix is constituted of short oligomer chains, that, together with the Ni nanoparticles, create an interlocking mechanism enhancing the nanocomposite mechanical response. The improvement in CNT-matrix interfacial properties provides a stiffness increase and a damping capacity decrease. In particular, Ni-CNTs nanocomposites show a 29% improvement in elastic modulus and a 33% decrease in damping. The advantage of this approach is that the CNTs can express their reinforcement effect without being subject to harsh treatments that damage their structure, as in chemical functionalization.
