Promotion of Circular Economy: Steelwork Dusts as Secondary Raw Material in Conventional Mortars ^†

Abstract

Among the actions proposed by the European Union for the implementation of Circular Economy is the use of waste as a secondary raw material (SRM). During the fusion of the scrap, a steel dust is generated, named Electric Arc Furnace Dust (EAFD). The EAFD is composed mainly of potentially leachable heavy metals, so is classified as “hazardous” waste. Around the world, approximately 70% of this waste is deposited in landfills, with a previous treatment through cement-based materials to prevent the metals’ mobility. However, this action is not in accordance with the Circular Economy concept due to the greater use of resources and the loss of deposited metals. The present investigation analyses the use of EAFD as SRM in conventional mortar production for its use as a construction material. Different substitution percentages (25%, 50% and 100%) were used replacing siliceous filler by EAFD. The investigation analysed the behaviour of conventional mortars by tests of workability, compressive strength, water absorption by capillarity and leaching behaviour in granular and monolithic state. The results obtained indicate a slight improvement in mechanical behaviour with the incorporation of EAFD, the reason why its use as SRM in conventional mortars would benefit the construction industry and would encourage the Circular Economy. From an environmental point of view, the mechanisms of Pb fixation should be improved in granular state.

1. Introduction

One of the actions proposed by the European Union for implantation of Circular Economy [1] underlines the use of waste as secondary raw material (SRMs). This initiative will give a second life to waste that is initially destined for landfills. During the production of steel, the fusion of the scrap causes the volatilisation of metals, such as Zn, Pb, Fe or Cd, that subsequently react with oxygen condensed into solid particles [2]. These particles are steelwork dust waste and they are commonly named Electric Arc Furnace Dust (EAFD). Due to the leachability of the metals contained in EAFD, approximately 70% of this waste, worldwide, is deposited in landfills, with a previous treatment through cement-based materials for avoiding metal mobility [3]. Stabilization/Solidification (S/S) techniques through cement-based materials have been proven to be especially suitable for heavy metal immobilisation [4]. Therefore, S/S is the most common technique in EAFD management. However, this action is not in accordance with the Circular Economy concept due the higher use and cost of resources associated with the treatment and the loss of deposited metals. The evaluation of EAFD through construction materials has been widely studied [2,5,6]. The EAFD addition to cement pastes causes a hydration delay, which incurs an increase in the setting time and the workability of the mixture [5]. Despite this delay, there are cases in which the compressive strength improves with EAFD with respect to the reference monolith [7]. From an environmental point of view, the metal leaching contained in EAFD should be evaluated, whether the waste is managed by landfill [8] or incorporated into a construction material [6]. The present investigation analyses the viability of using a steelwork dust (EAFD) as secondary raw material in conventional mortar production studying mechanical properties and leaching behaviour of mortars.

2. Experimental

Mortar production was carried out using cement CEMI/52.5 R (CEM), siliceous filler (SF) and siliceous natural sand (NS). The design of these mixtures consisted of substituting the SF by EAFD in different percentages of weight (0%, 25%, 50% and 100%). The control mortar was named M0 and mortars with EAFD content were referred to as M25, M50 and M100. For each mix, cylindrical specimens (80 mm in high and 40 mm in diameter) were manufactured and cured in a climatic chamber at 20 ± 2 °C and 95 ± 5% until tested time (28 days). The experimental programme on mortars was as follows: 3 repetitions were used to analyse the workability (UNE-EN 1015-9:2000), 3 specimens were used to determine the compressive strength (X31-212:2011), 3 specimens were used to evaluation of water absorption by capillarity (UNE-EN 1015-18) and 6 specimens were used to develop the environmental assessment of the EAFD. Three specimens were used according to the compliance test (UNE-EN 12457-4:2003) for analysing the leaching behaviour of mortars with EAFD in granular state, and 3 specimens were studied according to the tank leaching test (XP X31-211:2012) for evaluating the leaching release of monoliths after the treatment of waste in a cementitious material. The leaching results, in granular and monolithic state, were compared with the “Non-Hazardous” limit of the EU Decision [9] (

Table 1. Legal limit “Non-Hazardous” of EU Council Decision [9] to classify a waste as hazardous.

Components Concentration	Cr	Ni	Cu	Zn	As	Se	Mo	Cd	Sb	Ba	Hg	Pb
(mg/kg dry matter)	10	10	50	50	2	0.5	10	1	0.7	100	0.2	10

).

3. Results and Discussion

The mortar characterization results are shown in

Table 2. Mortar characterization results.

Mortar	Workability (min)	Compressive Strength (MPa)	Water Absorption by Capillarity (Kg/m2·min0.5)
M0	105.2	33.91	0.17
M25	251.4 ↑	38.21 ↑	0.08 ↓
M50	2333.6 ↑	38.87 ↑	0.08 ↓
M100	5748.1 ↑	35.65 ↑	0.13 ↓

.

Workability increases with greater EAFD content. The increase in workability showed a delay in hydration setting time which is generally caused by the Zn content of EAFD, exactly for the formation of a coating on the cement particles [5]. The compressive strength results show an improvement in the mechanical behaviour when EAFD is incorporated into the mortars. Balderas et al. [5] observed that the cement mixed with 2% and 5% of EAFD had greater compressive strengths than cement not mixed with waste. This phenomenon was explained by the nanometric size of particles of EAFD that reinforced the matrix. In the present investigation, the improvement of the mechanical behaviour of mortars with EAFD with respect to M0, indicates that the substitution of 100% of SF is viable in mechanical terms. The smaller particle size of EAFD (with maximum size in 0.3 and 3 µm) compared to SF (with maximum size in 20 µm) favours the filling of internal voids, increasing the compressive strengths of mortars. When EAFD was incorporated in mortars a decrease in water absorption by capillarity was observed. This trend was related to mechanical behaviour of mortars. Mortars with better compressive strengths recorded the lowest values of water absorption by capillarity. Regarding to the leaching behaviour, in monolithic state (Figure 1), all elements kept below the limit in all mortars except for Pb in M100 with a value slightly above the limit of 11.66 mg/kg. Due to this the mortars M25 and M50 were classified as “Non-Hazardous” and the M100 as “Hazardous”. The monoliths formed by the cement-based materials kept the element levels below the limit by up to 50%, although the leaching is chemically favourable. Authors such as Laforest et al. [10] detected that the alkaline pH environment of monolithic cement-based samples favours Pb solubility. Pb showed a release higher than the limit for all mortars in granular state (Figure 2). Because of the Pb release, all mortars in granular state were classified as “Hazardous”. The values reached by the mortars during the compliance test favour greater Pb leaching compared to the tank leaching test. In addition, the larger contact surface in the compliance test encourages higher releases. The results are in accordance with the data recorded by authors such as Ledesma et al. [8], where all the mortars in granular state were classified as “Hazardous” due to the Pb release.

4. Conclusions

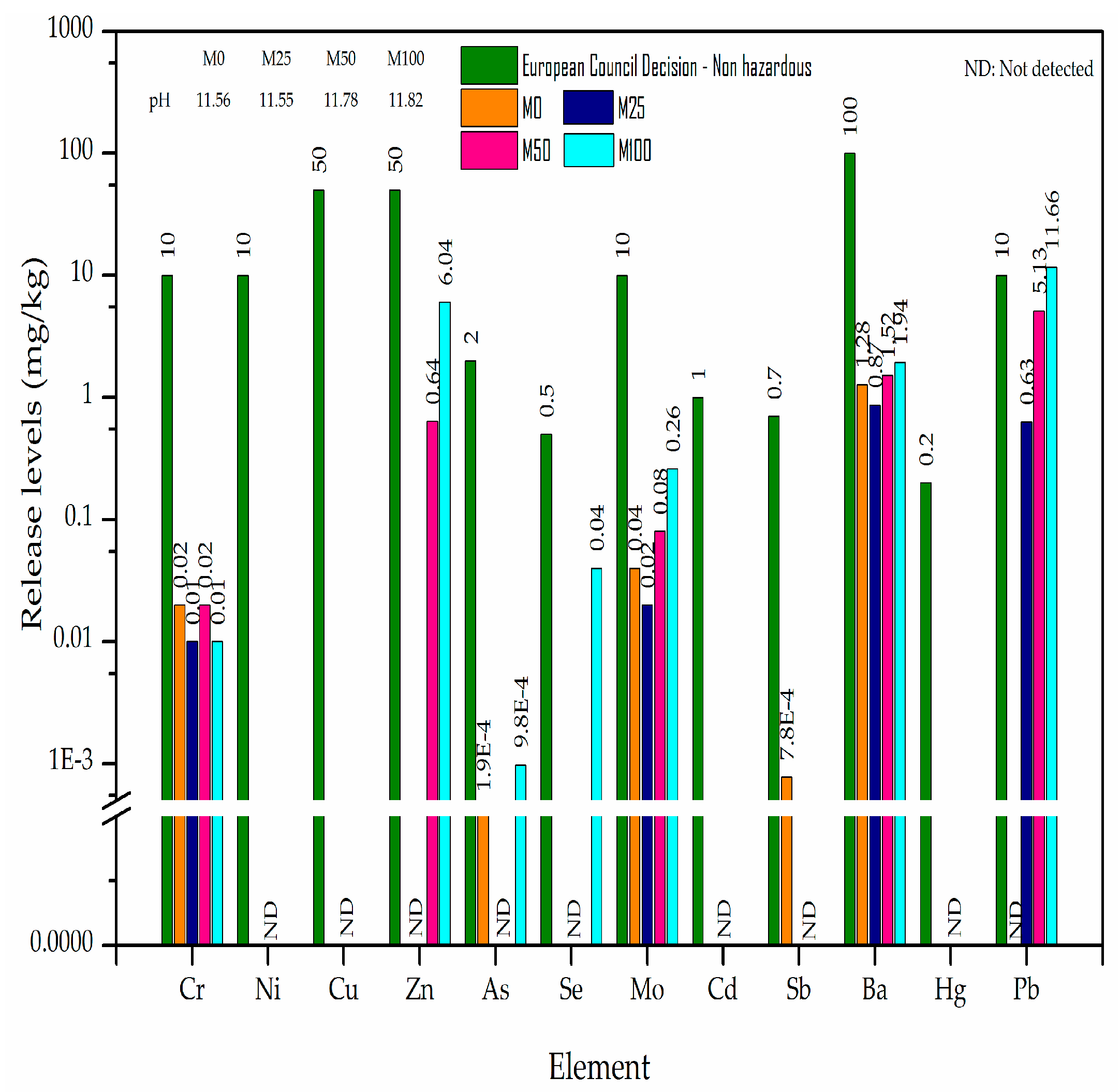

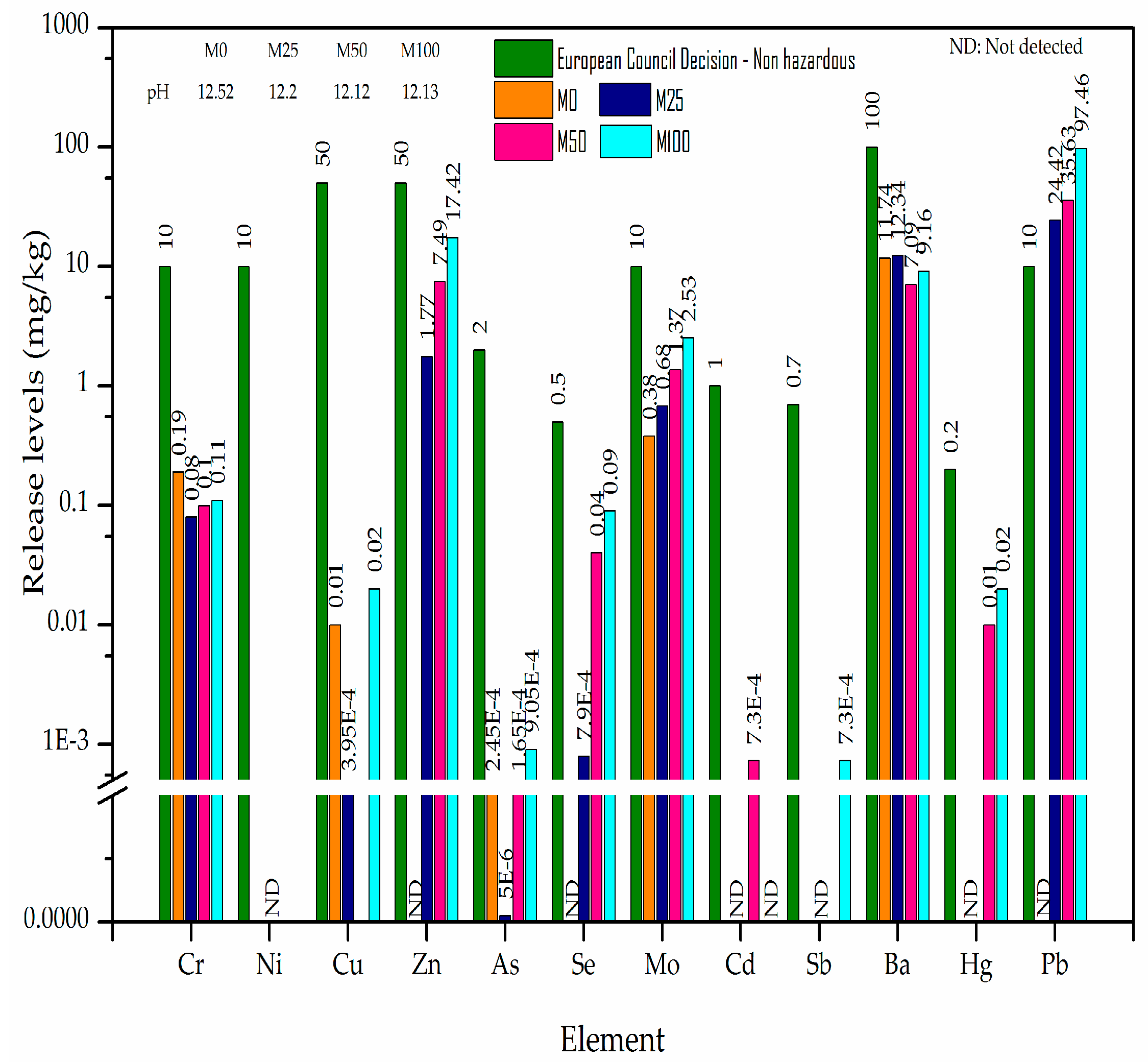

This investigation analyses the feasibility of using a steel dust (EAFD) as a secondary raw material (SRM) in the conventional production of mortar. The workability of mortars augmented as the EAFD content increased. This delay did not adversely affect the compressive strengths, since all mortars experienced higher compressive strengths than the control mortar at 28 days of curing time. The improvement of mechanical behaviour was related to a filler effect that caused the EAFD, due to a smaller size of particles capable of filling voids. This fact was also observed in the water absorption by capillarity of mortars. According to the environmental assessment, EAFD can be incorporated into mortars up to 50% in a monolithic state. From this percentage, the Pb release registered did not lead to the classification of the mortars as “Non-Hazardous”. In a granular state, all mortars were classified as “Hazardous” due to the content of Pb released. The results of the present investigation indicate viability of the use of EAFD as SRM, facilitating implementation of the Circular Economy concept, although Pb control tools in granular mortars should be investigated and improved.
