Proceeding Paper

Silver Growth on Tungsten Oxide Nanowires for Nitrogen Dioxide Sensing at Low Temperature †

1
Aix Marseille Univ, UMR CNRS 7325, CINaM, 13284 Marseille, France
2
Aix Marseille Univ, Univ Toulon, CNRS, IM2NP, 13284 Marseille, France
*
Author to whom correspondence should be addressed.
Presented at the Eurosensors 2018 Conference, Graz, Austria, 9–12 September 2018.
Proceedings 2018, 2(13), 946; https://doi.org/10.3390/proceedings2130946
Published: 11 December 2018
(This article belongs to the Proceedings of EUROSENSORS 2018)

Abstract

:
Gas sensors produced and working at low temperatures are particularly interesting for their compatibility with temperature sensitive substrates such as flexible ones or for their use in specific environments. In this work, we present the chemical synthesis of silver nano-islands grown on ultrathin tungsten oxide nanowires (Ag/WO3 NWs) in order to obtain sensing materials for nitrogen dioxide (NO2) detection at temperatures below 150 °C. We compare the efficiencies of NO2 gas sensing, for WO3 NWs both before and after the silver growth, by drop-casting the nanomaterials from colloidal solutions onto substrates. Interestingly, the working temperature is reduced down to 130 °C even for NO2 concentrations as low as 0.2 ppm, with a clear improvement in sensitivity in the case of the Ag/WO3 NWs. Additionally, continuous UV irradiation reduced greatly the recovery time.

1. Introduction

Nitrogen dioxide (NO2) is a toxic oxidizing gas considered as one of the main pollutants found in the atmosphere, harmful to human health and environment [1]. It takes its origin mostly from the burning of fuel from cars. For decades, metal oxide semiconductors have been applied increasingly as sensing materials as (i) the gas absorption/desorption on the surface changes its conductivity [2] and (ii) they present high sensitivity and relatively low cost [3]. Great efforts have been made to further improve the performances of n-type semiconductors such as SnO2, ZnO or WO3. However, their best gas sensing performances were observed at temperatures higher than 200 °C, which require higher consumption. Recently, scientific researches have been focused on the use of novel nano-materials, especially metal/metal oxide nano-composites, and UV-light excitation as an efficient and inexpensive way for gas sensing performance improvements [4]. Following these directions, we focus on ultrathin and highly reactive tungsten oxide nanowires (WO3 NWs) and study the potential to chemically reduce silver salts directly on top of their surface to obtain silver nano-islands grown on the nanowires (Ag/WO3 NWs). Gas sensing experiments were performed using this material and revealed that Ag/WO3 NWs present higher response to NO2 than WO3 NWs even for NO2 concentrations as low as 0.2 ppm. A recovery time improvement could also be observed under continuous UV excitation.

2. Materials and Methods

-
Synthesis of WO3-x NWs: Ultrathin WO3-x NWs were synthesized by a solvothermal method using slight modifications from our previous work [5]. Typically, 110 mg of Na2WO4 were dissolved in 3 mL of deionized water and 3 mL of 7% HNO3 aqueous solution were then added. A light-yellow deposition of H2WO4 was formed immediately and centrifuged to get a solid which was washed twice with isopropanol. Then, 16 mL of oleylamine was added and the mixture was sonicated for 20 min to get clear solution. The solution was then transferred into a 45 mL autoclave, purged with argon and put into an oven at 220 °C for 12 h. The blue WO3-x NWs products were then washed by three centrifugation steps using absolute ethanol. The prepared WO3-x NWs were then redispersed in toluene and kept in an argon-filled glovebox for further use.
-
Synthesis of Ag/WO3 NWs: The original synthesis of Ag/WO3 NWs is based on a controlled reduction of silver ions directly onto preformed WO3-x NWs. This silver growth on the WO3-x NWs was realized following a modified approach from G. Xi et al. [6] A first step involved the creation of silver seeds onto the nanowires by injecting, under argon, 350 µL of AgNO3 (0.3 mg/mL). The solution turned from blue to green and was kept under stirring for 4 h. Then, the growth of silver islands on the preformed seeds could be obtained by adding drop-by-drop each hour 300 µL of AgNO3 (3 mg/mL) until precipitation of the Ag/WO3 NWs. The nanowire precipitate was finally dispersed as a nice brown solution in toluene by adding a minimum of oleylamine (see Figure 1a for color evolution).
-
Sensor fabrication: The gas-sensing performances were then studied using Ti/Pt thin interdigitated electrodes (5/100 nm respectively) deposited on Si/SiO2 by magnetron sputtering. All materials were deposited by drop- casting 10 µL of the solutions (about 1 mg/mL) onto the electrodes followed by drying on a hot plate at 80 °C for 5 min. The films were then exposed to UV-ozone treatment for 15 min before being finally annealed at 150° for 30 min and then used in sensing experiments.
-
Gas measurements procedures and characterizations: Gas sensing experiments were performed at various working temperature (from 25 to 130 °C) under obscurity or continuous UV-light-emitting-diode excitation (LED, λexc.= 390 nm; 60 mW) for four NO2 concentrations (0.2, 0.5, 1 and 2 ppm) using dry air as gas vector. High-Resolution Transmission Electron Microscopy (HR-TEM) was realized on a JEOL 3010 microscope. UV-vis spectroscopy was recorded using a Varian CARY 50 spectrophotometer.

3. Results and Discussion

In this study, tungsten oxide material was chosen for NO2 detection as this material is known to be very efficient regarding this gas [7]. Concerning the shape, we focus on nanowires with high aspect ratio as they possess high surface-to-volume ratio which is a parameter known to improve gas sensing properties [8]. As we could synthesize in previous studies ultrathin WO3-x NWs with high aspect ratio and good photocatalytic activity, we chose this material as a good candidate. The main interest of this study was to explore the ability of these ultrathin WO3-x NWs to reduce silver in order to realize Ag/WO3 nanocomposites formed by silver island grown on the WO3 NWs surface. This is extremely interesting regarding the potential improvements in gas detection of metal/metal oxides nanostructures, as proven already with Ag/WO3 materials of higher dimensions [9]. In the present case, we start with monoclinic WO3-x NWs having 2 nm diameter and 120 nm length, as shown on the TEM image on Figure 1b. The blue color of the WO3-x NWs solution is directly connected to the oxygen defects of the materials and appears on the UV-visible absorption spectra as a wide absorption band starting at 500 nm with an increasing intensity towards higher wavelengths (Figure 2a, red line). This reduced form of tungsten oxide is easily oxidized, for instance after air exposure during a day, giving the transparent material referred as WO3 NWs, which doesn’t possess the visible absorption anymore (Figure 2a, blue line) and will be used as a reference for sensing materials. The WO3-x NWs can also be oxidized through the reduction of a metal salt, such as silver nitrate in the present study. The reduction of silver ions into metallic silver can occur directly onto the surface of the NWs, by a classical two-step seed-growth mechanism. Indeed, under the present specific synthesis conditions, homogeneous nucleation of silver nanocrystals is avoided, allowing a controlled heterogeneous growth of islands on the NWs’ surface. We thus obtain a control of the size and the density of silver islands on the oxidized tungsten oxide NWs. Figure 1c,d show typical TEM images of these metal/metal oxide nanocomposites during silver growth. In the final stage of the growth (Figure 1d), the material referred as Ag/WO3 NWs present homogeneous distribution of spherical silver islands having ca. 5 nm diameter. As expected, the brown Ag/WO3 NWs don’t possess the visible absorption due to oxygen defects as it is an oxidized form of tungsten oxide, similarly to the air-exposed WO3 NWs (Figure 2a, black line). However, Ag/WO3 NWs have the classical feature of silver plasmon resonance at 450 nm, corresponding well to 5 nm spherical silver particles close to WO3 environment. Interestingly, it is possible to follow the silver island growth directly on the UV-visible absorption spectra, as shown on Figure 2b, where the plasmon resonance peak intensity increases and slightly shifts (yellow arrow) while the absorption band attributed to oxygen defects decreases (blue arrow).
Gas-sensing performances were then studied using these materials. UV-light assisted detection was used as it greatly enhances the detection of gas with metal oxides in general [4] and more specifically in the case of WO3 [10]. The mechanism involves the conversion of NO2 molecules from NO2 to NO under light wavelength below 420 nm, as shown also with ab initio calculations [11]. This leads to the resistance increase observed on Figure 3 when the NO2 gas is introduced in the chamber. The best amplitude and time responses were obtained at 130 °C. At this temperature, as seen on Figure 3a, the DC electrical measurements using the reduced form WO3-x NWs is weak and not stable. However, the oxidized WO3 NWs show still weak but much more stable response (Figure 3b). This material could detect NO2 even at concentration as low as 0.2 ppm. Importantly, sensitivity was increased by two orders of magnitude when using the Ag/WO3 NWs. Indeed, these Ag/WO3 NWs present higher response to NO2 than WO3 NWs even for NO2 concentrations as low as 0.2 ppm (Figure 3c). A recovery time improvement is also observed.
Additionally, the UV-ozone post treatment of the sensing layer appears to be critical for the high sensitivity. In the case of Ag/WO3 NWs, a comparison of the sensing properties was done on layers being exposed or not to this post-treatment. Responses of the sensors at 130 °C under UV light in the presence of 2 ppm of NO2 revealed that an increase of R(NO2)/R(dry air) from 7.2 to 472 in average was obtained thanks to this post-treatment (Figure 3d). This is related to the use of surfactants, namely oleylamine, to redisperse the NWs in toluene and that needs to be removed from the NWs surface before use. The UV-ozone treatment is efficient for this purpose and mandatory before any use.

4. Conclusions

In this study, ultrathin WO3-x NWs were used for their ability to reduce silver in order to realize Ag/WO3 nanocomposites formed by silver islands grown on the WO3 NWs surface. Homogeneous nucleation of silver nanocrystals was avoided, allowing only a controlled heterogeneous growth on the NWs surface. UV-light assisted gas-sensing performances were performed and showed an increase in sensitivity by two orders of magnitude when using the Ag/WO3 NWs. This study provides an interesting approach to fabricate nitrogen dioxide sensors on conformable substrate with significant properties for applications in environmental monitoring devices.

Acknowledgments

The authors thank: Serge Nitsche and Damien Chaudanson from CINaM for their assistance in the use of the TEM and SEM facilities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, F.; Jacobs, D.; Mitchell, C.; Miller, D.; Karol, M.H. Improving indoor environmental quality for public health: Impediments and policy recommendations. Environ. Health Perspect. 2007, 115, 953–957. [Google Scholar] [CrossRef] [PubMed]
  2. Seiyama, T.; Kato, A.; Fujiishi, K.; Nagatani, M. A New Detector for Gaseous Components Using Semiconductive Thin Films. Anal. Chem. 1962, 34, 1502–1503. [Google Scholar] [CrossRef]
  3. Fine, G.F.; Cavanagh, L.M.; Afonja, A.; Binions, R. Metal Oxide Semi-Conductor Gas Sensors in Environmental Monitoring. Sensors 2010, 10, 5469–5502. [Google Scholar] [CrossRef] [PubMed]
  4. Xu, F.; Ho, H.-P. Light-Activated Metal Oxide Gas Sensors: A Review. Micromachines 2017, 8, 333. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, J.; Margeat, O.; Dachraoui, W.; Liu, X.; Fahlman, M.; Ackermann, J. Gram-Scale Synthesis of Ultrathin Tungsten Oxide Nanowires and their Aspect Ratio-Dependent Photocatalytic Activity. Adv. Funct. Mater. 2014, 24, 6029–6037. [Google Scholar] [CrossRef]
  6. Xi, G.; Ye, J.; Ma, Q.; Su, N.; Bai, H.; Wang, C. In Situ Growth of Metal Particles on 3D Urchin-like WO3 Nanostructures. J. Am. Chem. Soc. 2012, 134, 6508–6511. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, C.; Debliquy, M.; Boudiba, A.; Liao, H.; Coddet, C. Sensing properties of atmospheric plasma-sprayed WO3 coating for sub-ppm NO2 detection. Sens. Actuators B Chem. 2010, 144, 280–288. [Google Scholar] [CrossRef]
  8. Varghese, S.; Varghese, S.; Swaminathan, S.; Singh, K.; Mittal, V. Two-dimensional materials for sensing: Graphene and beyond. Electronics 2015, 4, 651–687. [Google Scholar] [CrossRef]
  9. Chen, D.; Yin, L.; Ge, L.; Fan, B.; Zhang, R.; Sun, J.; Shao, G. Low-temperature and highly selective NO-sensing performance of WO3 nanoplates decorated with silver nanoparticles. Sens. Actuators B Chem. 2013, 185, 445–455. [Google Scholar] [CrossRef]
  10. Zhang, C.; Boudiba, A.; de Marco, P.; Snyders, R.; Olivier, M.-G.; Debliquy, M. Room temperature responses of visible-light illuminated WO3 sensors to NO2 in sub-ppm range. Sens. Actuators B Chem. 2013, 181, 395–401. [Google Scholar] [CrossRef]
  11. Saadi, L.; Lambert-Mauriat, C.; Oison, V.; Ouali, H.; Hayn, R. Mechanism of NOx sensing on WO3 surface: First principle calculations. Appl. Surf. Sci. 2014, 293, 76–79. [Google Scholar] [CrossRef]
Figure 1. (a) Control of the silver island density from WO3-x NWs (left) to Ag/WO3 NWs (right) as a function of time. TEM images for WO3-x NWs (b), intermediate density of silver islands on NWs (c) and final Ag/WO3 NWs (d).
Figure 1. (a) Control of the silver island density from WO3-x NWs (left) to Ag/WO3 NWs (right) as a function of time. TEM images for WO3-x NWs (b), intermediate density of silver islands on NWs (c) and final Ag/WO3 NWs (d).
Proceedings 02 00946 g001

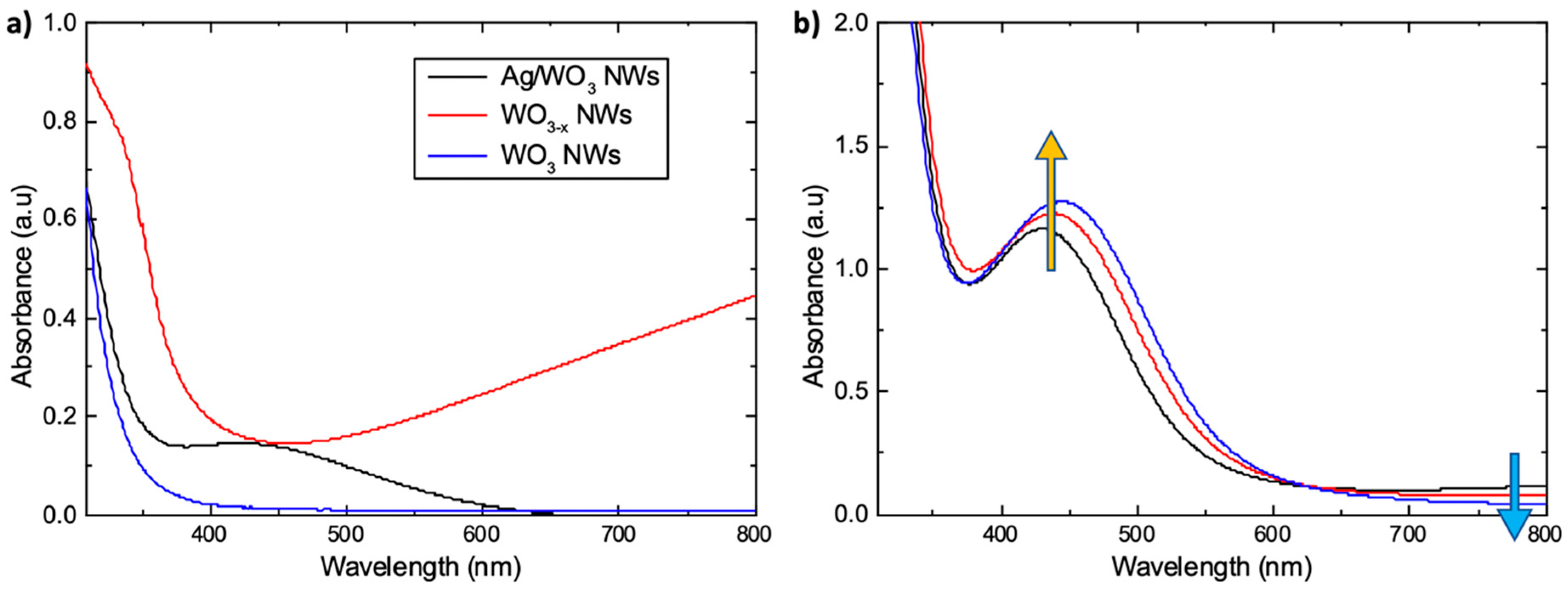

Figure 2. UV-visible absorption spectra for the three forms of tungsten oxide NWs (a) and evolution of the absorption spectra with silver growth for Ag/WO3 NWs (b).
Figure 2. UV-visible absorption spectra for the three forms of tungsten oxide NWs (a) and evolution of the absorption spectra with silver growth for Ag/WO3 NWs (b).
Proceedings 02 00946 g002

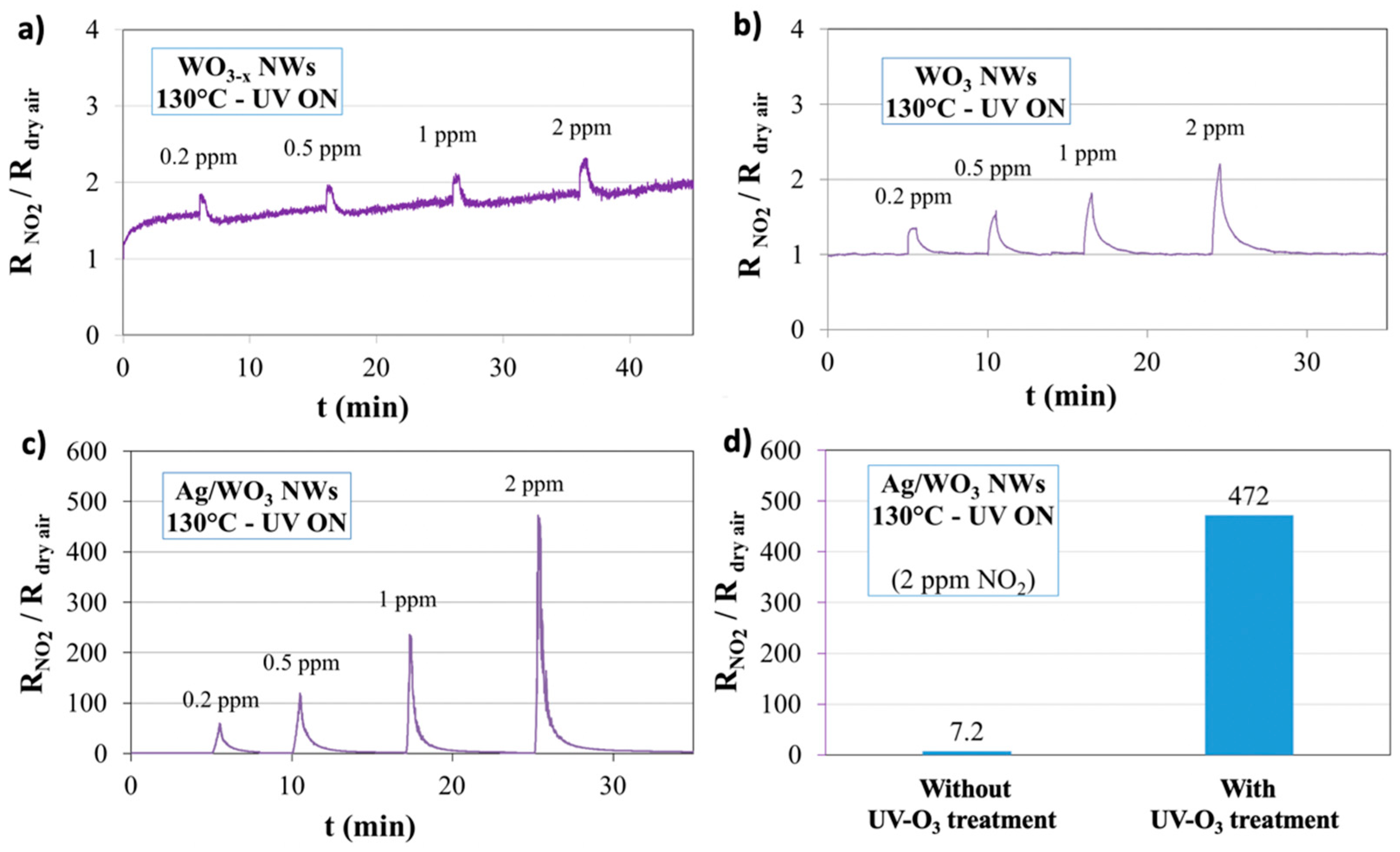

Figure 3. Sensor responses at 130 °C under UV illumination for WO3-x NWs (a), WO3 NWs (b) and Ag/WO3 NWs (c). Comparison of the sensor responses for Ag/WO3 NWs with or without the UV-O3 post-treatment (d).
Figure 3. Sensor responses at 130 °C under UV illumination for WO3-x NWs (a), WO3 NWs (b) and Ag/WO3 NWs (c). Comparison of the sensor responses for Ag/WO3 NWs with or without the UV-O3 post-treatment (d).
Proceedings 02 00946 g003
