Detection of Ethanol in Human Breath Using Optical Fiber Long Period Grating Coated with Metal-Organic Frameworks ^†

Abstract

An optical fiber sensor for ethanol detection in exhaled breath has been developed. It has been fabricated by functionalizing a Long Period Grating with a metal-organic framework, ZIF-8. The sensor’s response was tested by exposure to exhaled breath of a person before and after the ingestion of alcoholic drinks, showing a higher wavelength difference between the resonance bands in the second case. Further work will analyze cross-sensitivity towards temperature, relative humidity and carbon dioxide.

1. Introduction

In recent years, there has been an increasing interest in monitoring Volatile Organic Compounds (VOCs) in exhaled breath [1], since they can be used as indicators of different illnesses [2,3]; in the specific case of ethanol, its measurement in breath is at high interest in traffic safety [4].

The most commonly employed technique for the quantitative analysis of these compounds is gas chromatography—mass spectroscopy (GC-MS) [5], which is expensive, time consuming and requires high experienced personnel. A wide variety of electronic sensors, most of them based on semiconductor technology is under development for VOCs detection [6], however, they present many drawbacks, such as their high response time [7], low selectivity, non-immunity to electromagnetic interferences [8] or the need of biasing [9]. Thus, there is a need for the development of more accurate, less expensive and short response time sensors. These requirements can be met by employing optical fiber as the sensing platform: it presents many advantages, such as the possibility of multiplexing more sensors using one interrogation unit, being used in hazardous environments [10] or its immunity towards electromagnetic interferences [11].

Long Period Gratings (LPG) are devices based on periodic perturbations of the refractive index of the fiber core that promote the coupling of the core mode to the co-propagating cladding ones [12]. This coupling can be observed in the transmission spectrum as a series a loss bands, whose central wavelength is sensitive to external conditions, such as temperature, bending or refractive index. In order to develop a VOC sensor based on LPG, this structure must be functionalized with a coating that is sensitive to the target VOC [13]. In this work, the LPG has been coated with a ZIF-8 sensing coating, which is a metal-organic framework that exhibits cavities for gas storage [14].

2. Materials and Methods

2.1. Sensing Material

Zeolitic Imidazolate Framework (ZIF-8) was chosen as sensing material. The structure of this metal-organic framework is made by zinc ions coordinated by four imidazolate rings, exhibiting large cavities that allow gas molecules storage [14]. It is also well-known due to its chemical robustness and its thermal stability [15] and it has been previously demonstrated that it can be used as sensitive material towards organic vapors [16].

2.2. Long Period Grating

A Long Period Grating consists of a periodic modification of the refractive index of the fiber core that promotes the coupling of the core mode to the co-propagating cladding modes [12]. Because of this coupling, different resonance bands can be observed in the transmission spectrum, whose central wavelength can be obtained by equation:

$${\lambda }_X=\left(n_{core}-n_{clad\left(X\right)}\right)\Delta$$

(1)

where ${\lambda }_X$ is the wavelength at which light is coupled to the mode LP0X, $n_{core}$ is the effective refractive index of the core mode, $n_{clad\left(X\right)}$ is the effective refractive index of the LP0X cladding mode and $\Delta$ is the period of the LPG.

2.3. Sensor Construction Process

An LPG with grating period of 109 μm and length of 30 mm was fabricated onto boron–germanium co-doped optical fiber (Fibercore PS750) with a cut-off wavelength 670 nm, using custom made amplitude mask. The optical fiber was side-illuminated by the output from a frequency-quadrupled Nd:YAG laser operating at 266 nm [17].

ZIF-8 was deposited onto the LPG by means of the in situ crystallization technique: the LPG was immersed for 30 min in a mixture of 15 mL of 2.5 mM zinc nitrate hexahydrate and 15 mL of 25 mM 2-metyl-imidazole. After that, it was washed with methanol and exposed to a nitrogen flow in order to be dried [18]. This process was repeated five times.

2.4. Sensor Characterization

Sensor’s performance was analyzed by exposing it to the exhaled breath of a person before and after the ingestion of alcoholic drinks. Transmission spectra of the LPG were recorded every 500 ms, and the central wavelengths of their resonance bands were monitored to evaluate the effect of the presence of ethanol in human breath. Temperature was also recorded using a thermocouple from PicoTechnology.

3. Results and Discussion

3.1. Sensor Fabrication

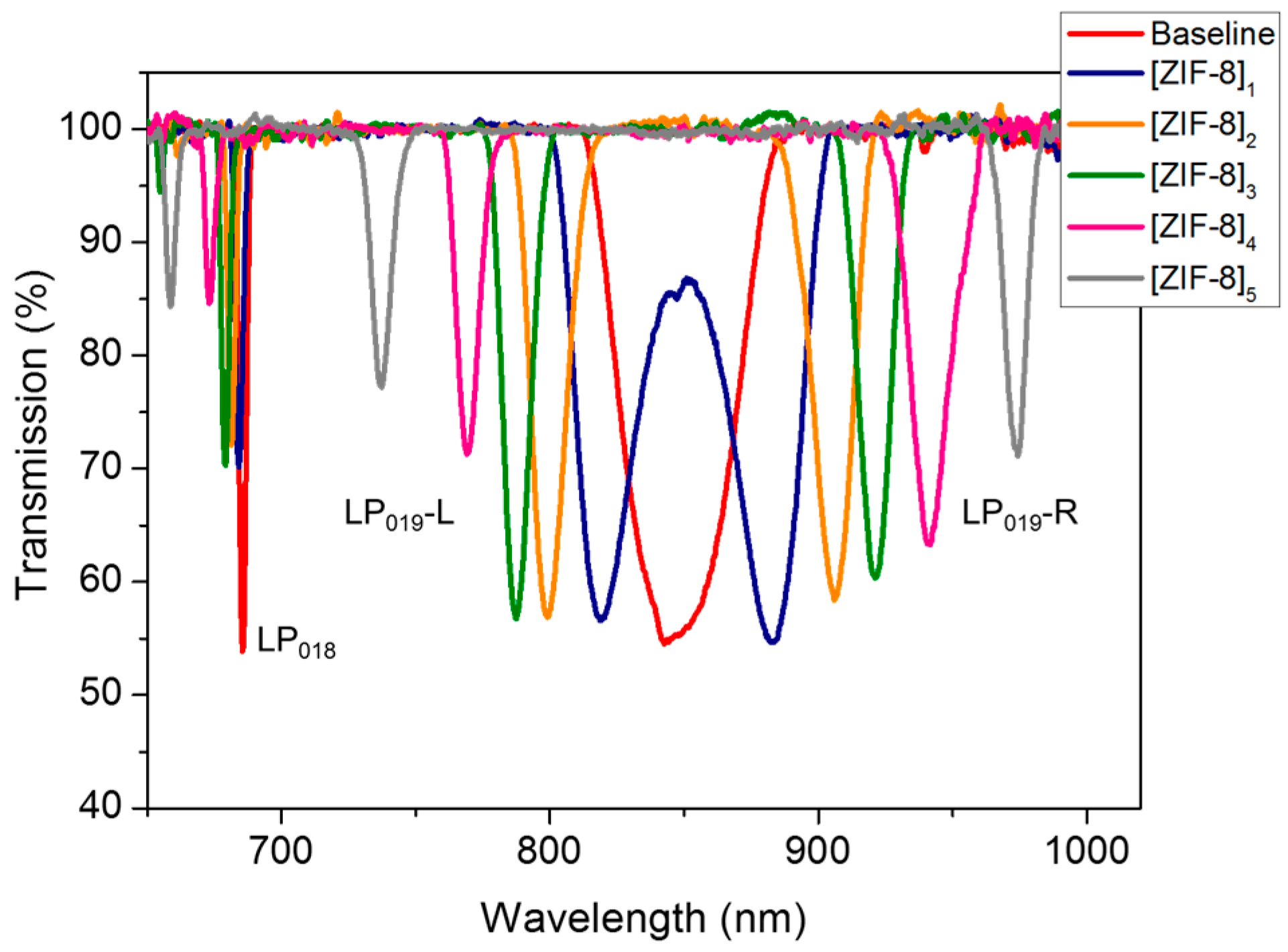

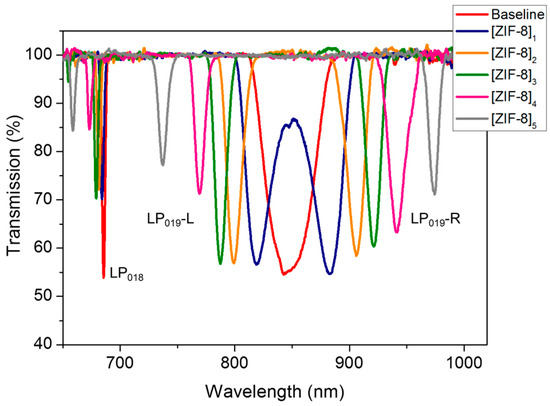

The changes in the transmission spectrum during the ZIF-8 in-situ crystallization on the surface of the LPG were monitored: results are displayed in Figure 1. The transmission spectra show the shift of the resonance bands corresponding to LP018 and LP019 cladding modes after the deposition of each growth cycle of ZIF-8, when the LPG was still immersed in the solution. The central wavelengths difference between the LP019 resonance bands linearly increases as the number of growth cycles increases, indicating the uniform deposition of ZIF-8 thin film.

3.2. Sensor Characterization

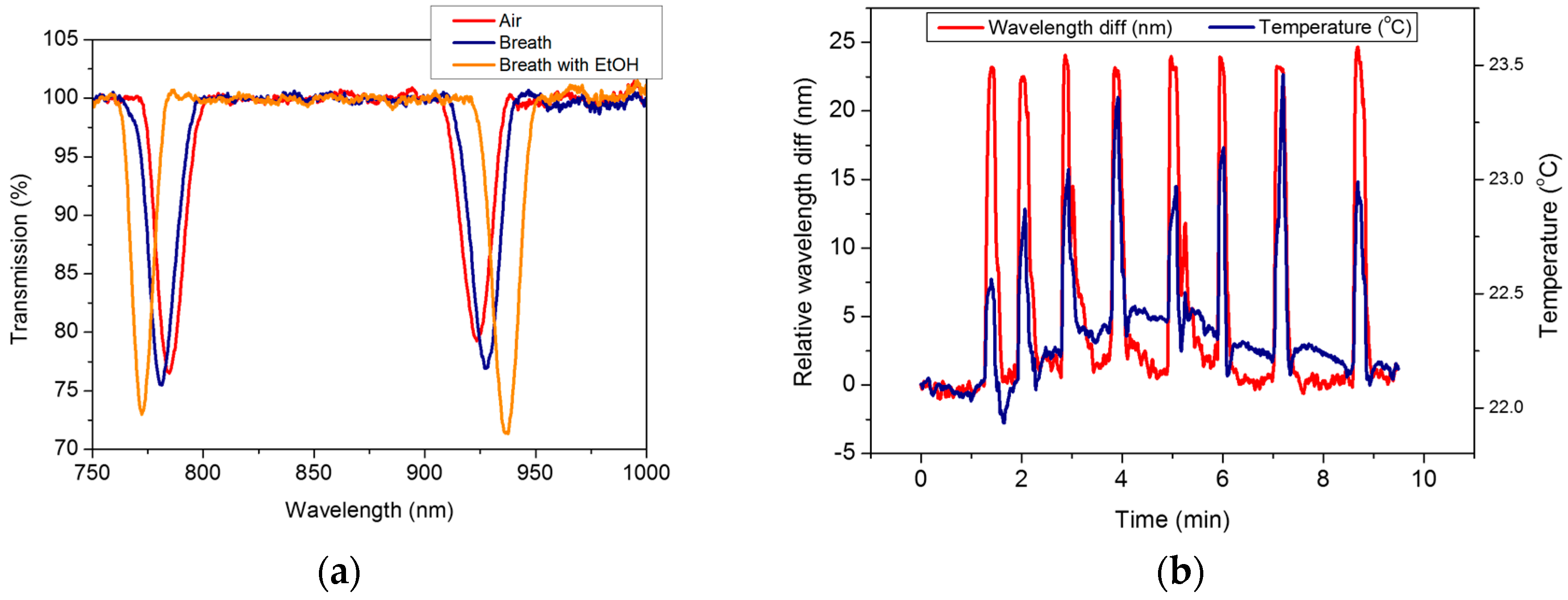

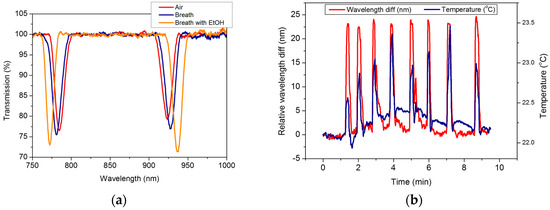

The sensor´s performance to detect ethanol in exhaled breath was analyzed by exposure to human breath before and after consuming alcoholic drinks. As it can be observed in Figure 2a, exhaled breath induced an increase on the spectral distance between resonance bands due the changes in temperature and relative humidity, which was further increased by the presence of ethanol, demonstrating the capability of the sensor to detect the presence of ethanol in exhaled breath.

4. Conclusions

A sensor fabricated by depositing five growth cycles of metal-organic framework ZIF-8 onto a LPG with grating period of 109 μm and length of 30 mm has been demonstrated to detect ethanol in exhaled breath. Wavelength separation between the resonance bands is higher when ethanol is present in exhaled breath than in its absence, independently on temperature. Further work will also analyze the effect of other parameters related to exhaled breath that could affect the performance of the sensor, such as relative humidity or the presence of other gases, for instance, carbon dioxide.
