Trailing Edge Loss of Choked Organic Vapor Turbine Blades ^†

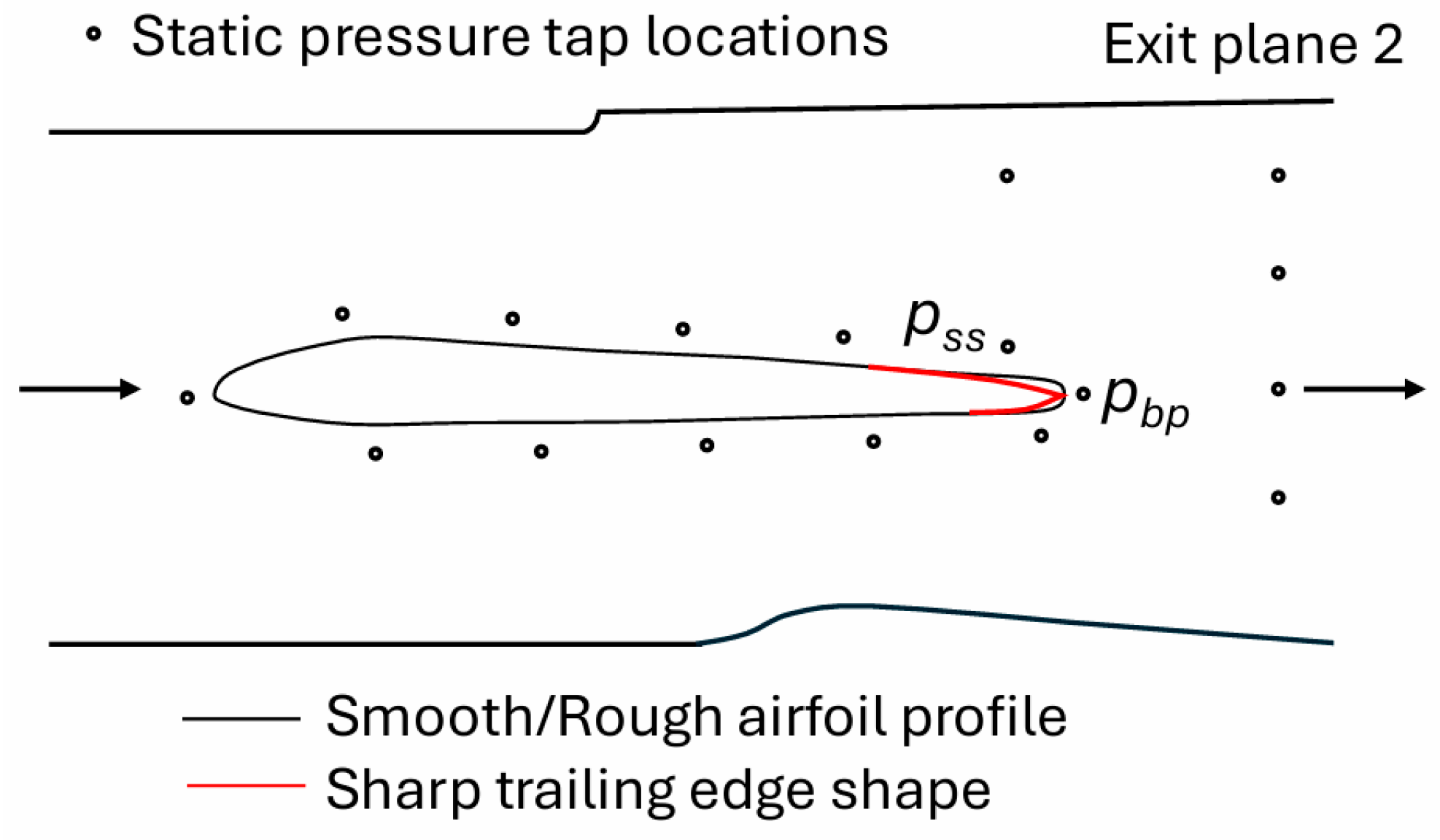

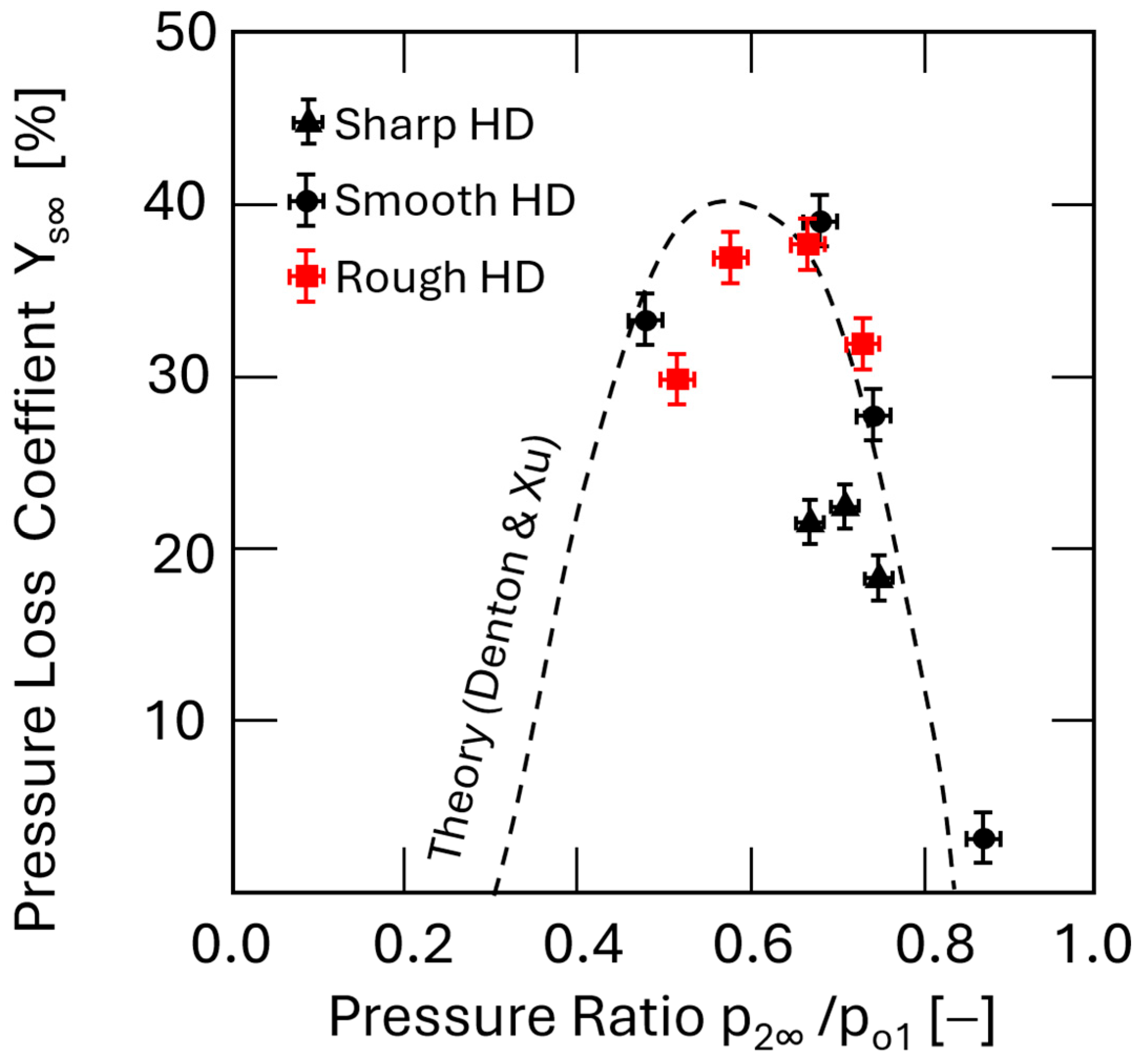

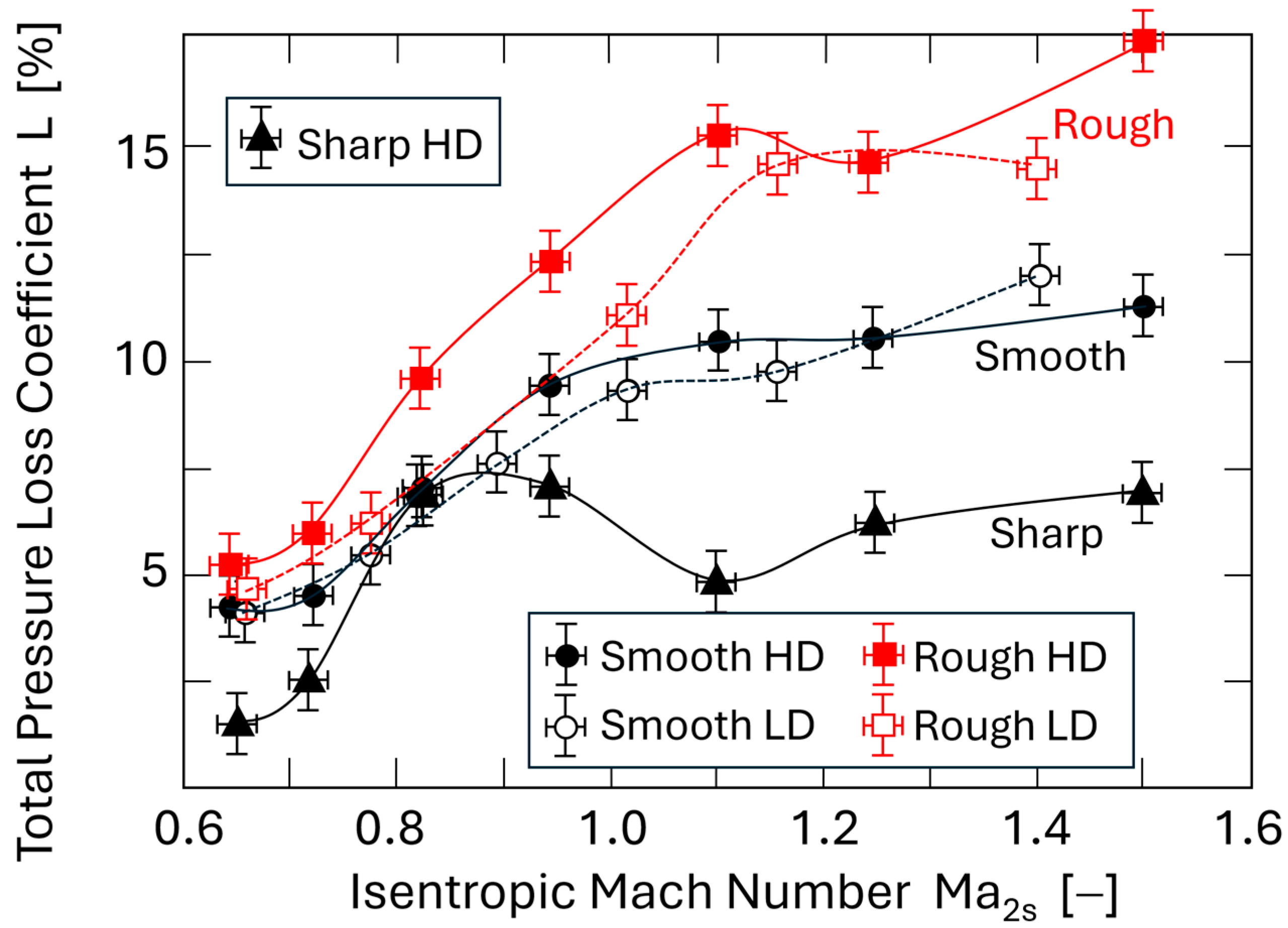

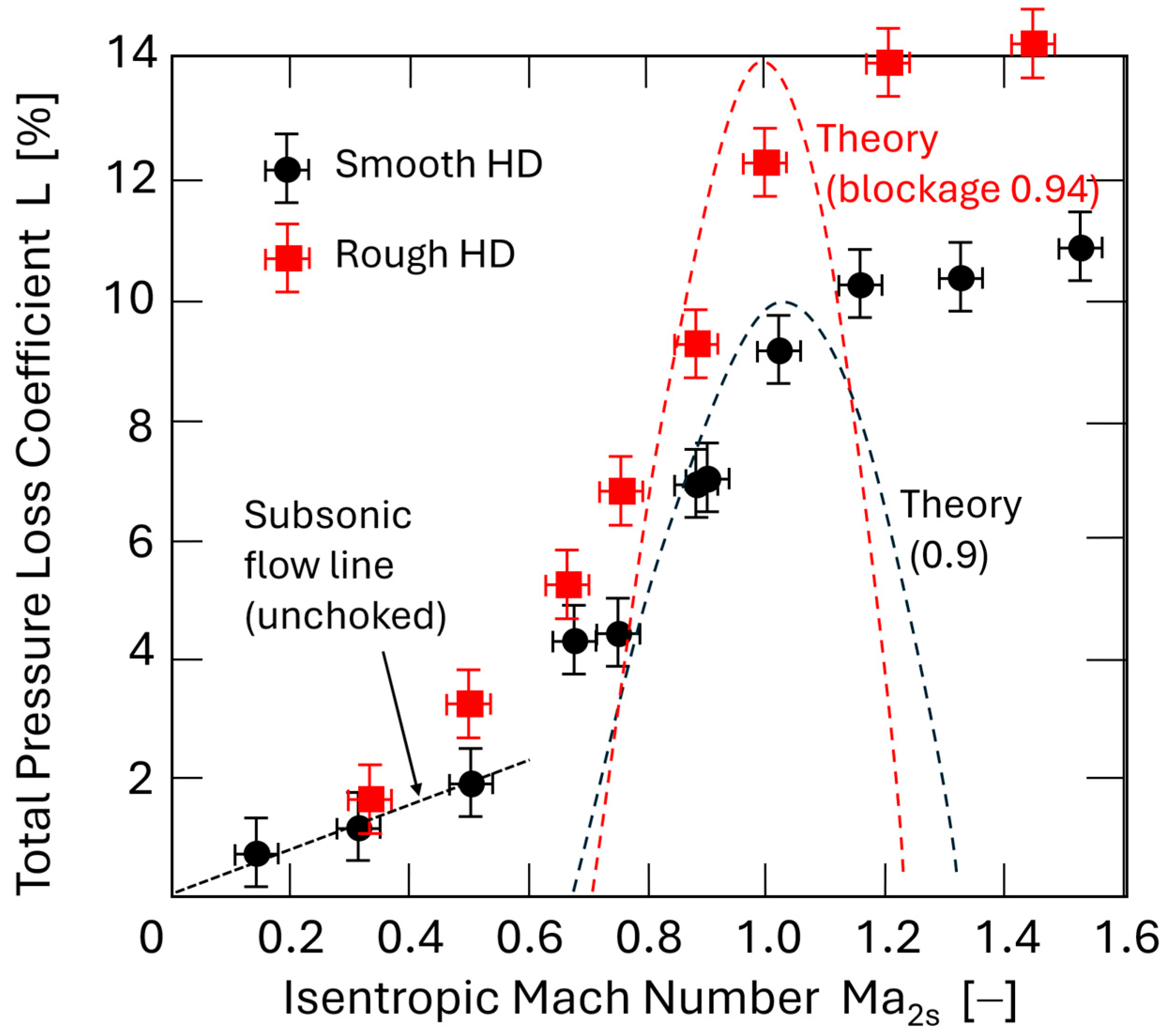

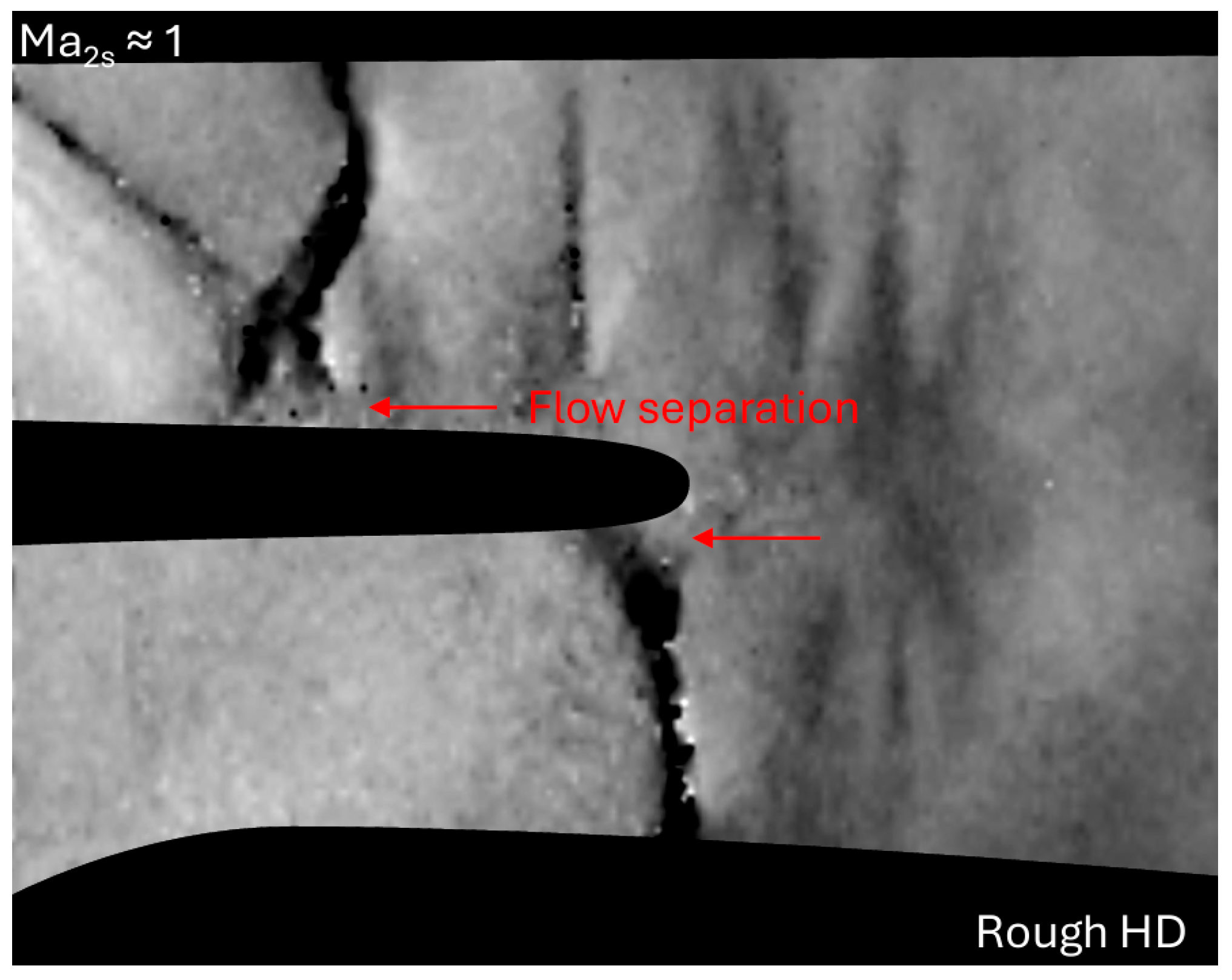

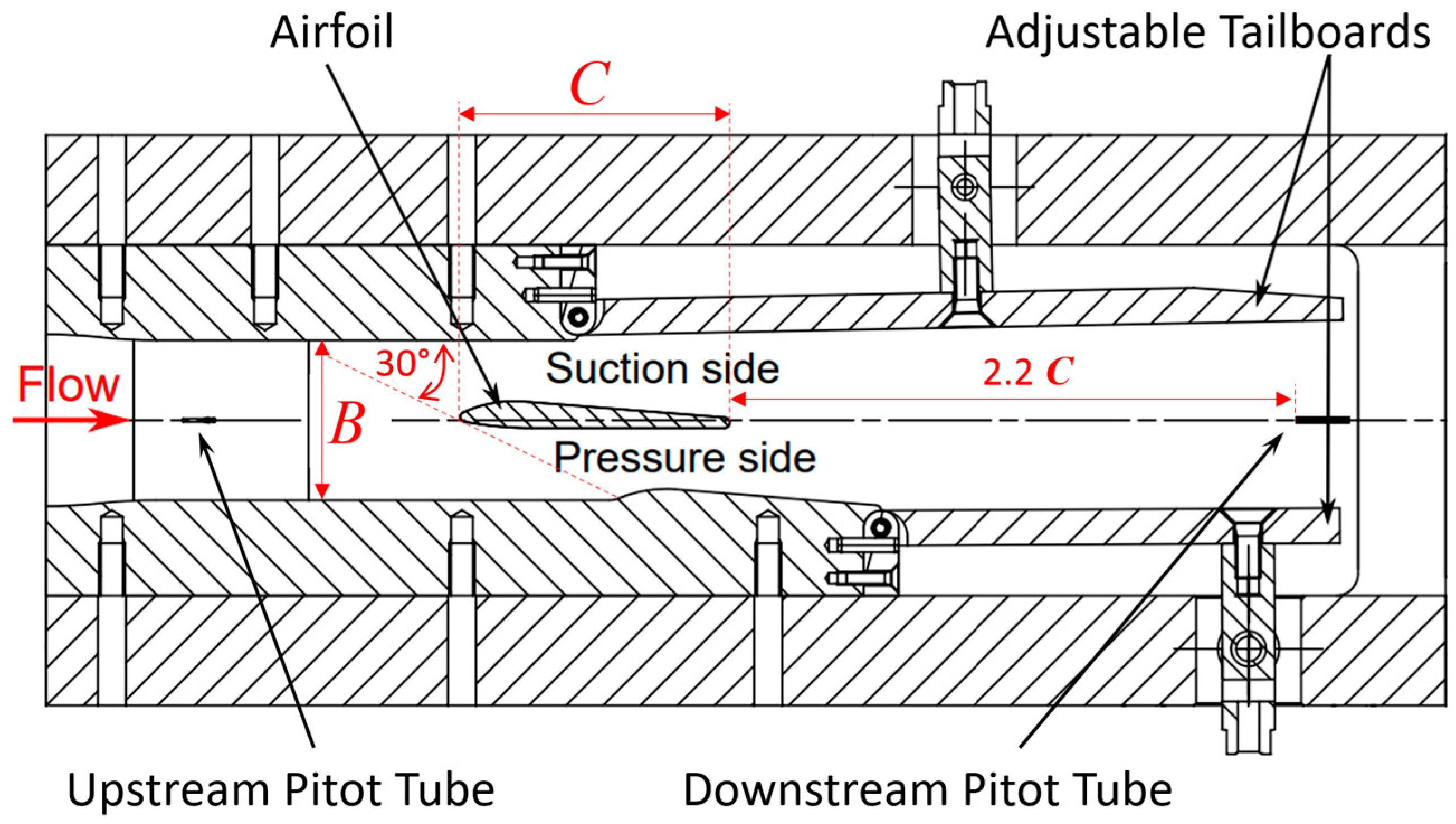

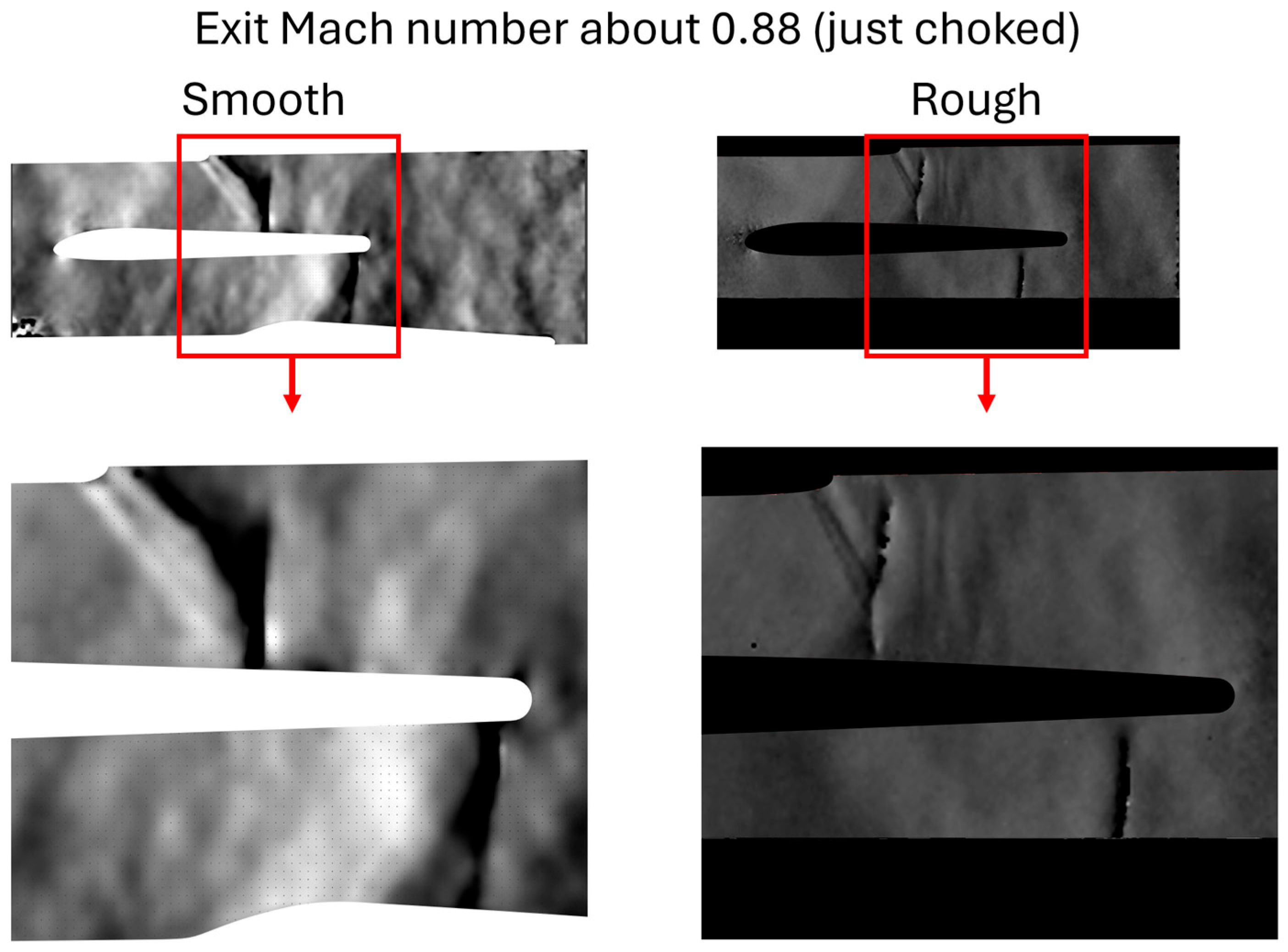

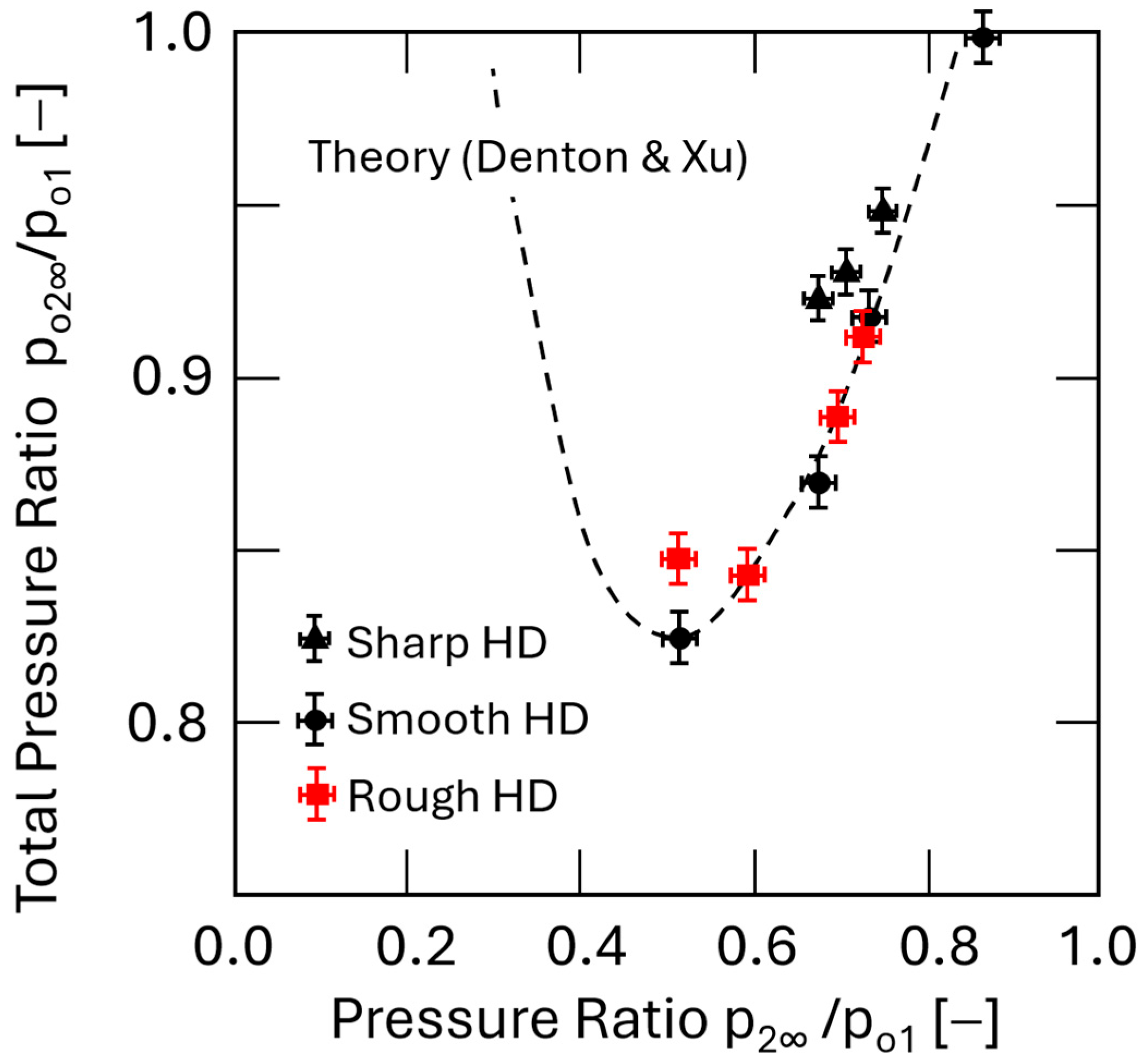

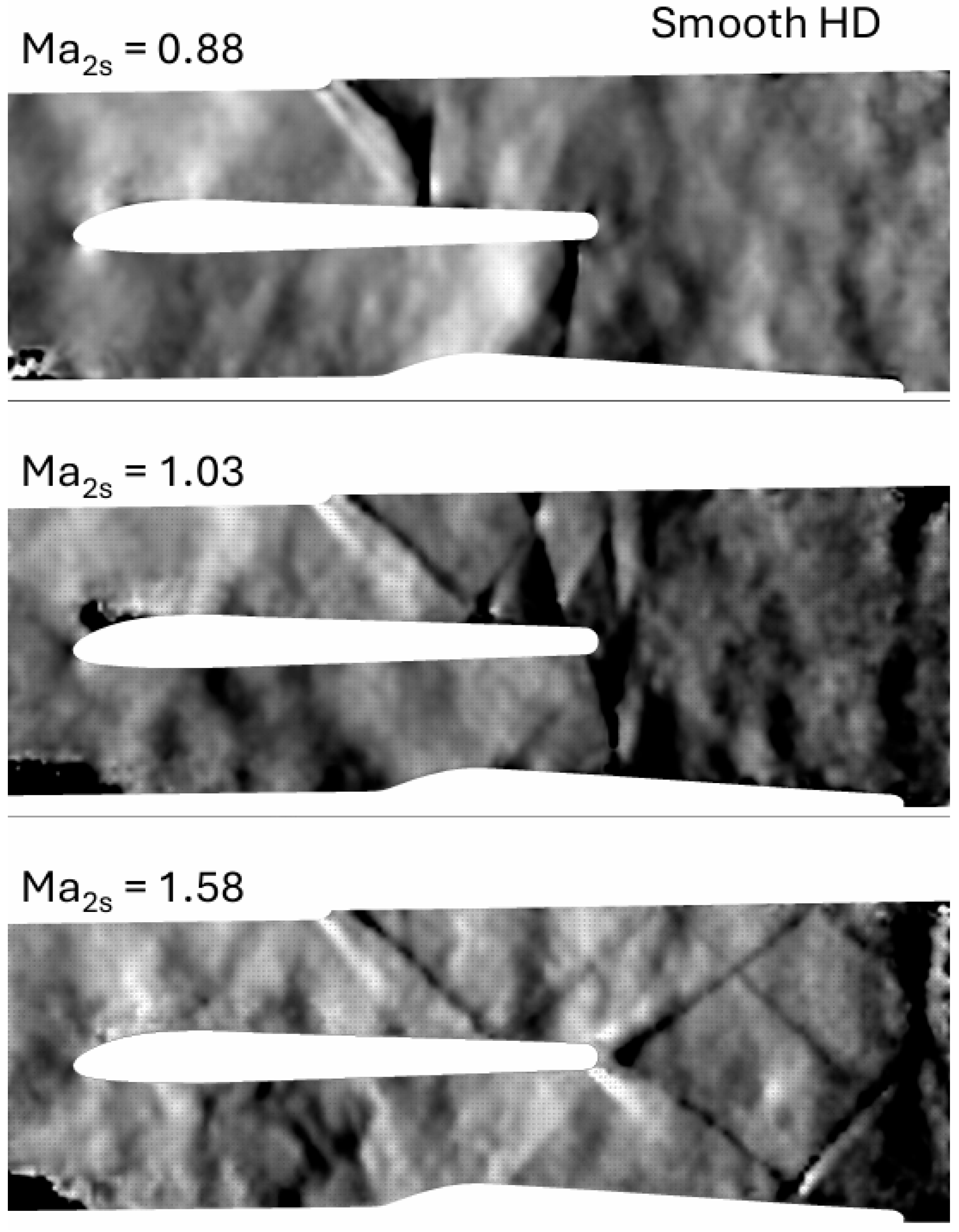

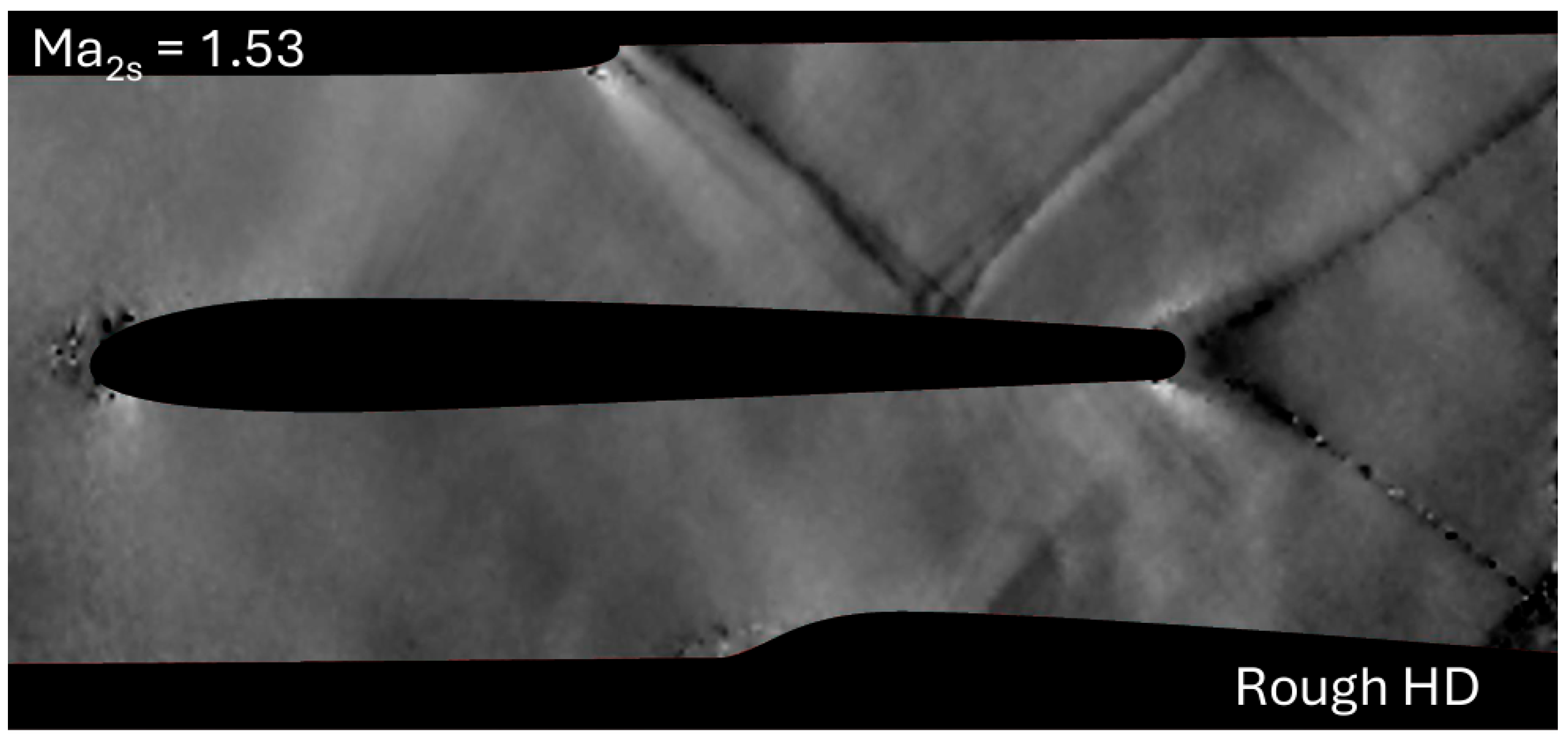

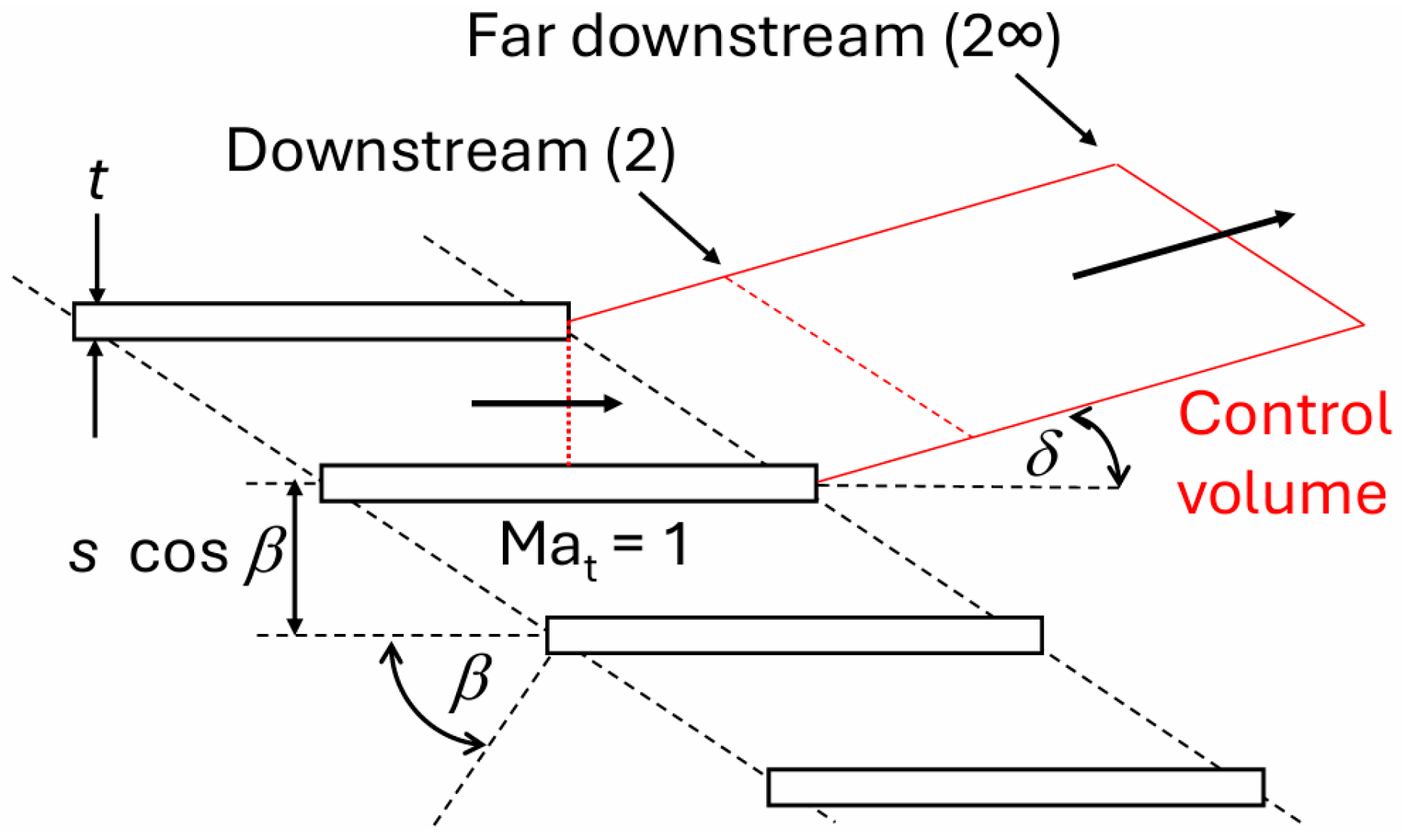

The present study reports the outcome of an experimental study of organic vapor trailing edge flows. As a working fluid, the organic vapor Novec 649 was used under representative pressure and temperature conditions for organic Rankine cycle (ORC) turbine applications characterized by values of the fundamental derivative of gas dynamics below unity. An idealized vane configuration was placed in the test section of a closed-loop organic vapor wind tunnel. The effect of the Reynolds number was assessed independently from the Mach number by charging the closed wind tunnel. The airfoil surface roughness and the trailing edge shape were evaluated by experimenting with different test blades. The flow and the loss behavior were obtained using Pitot probes, static wall pressure taps, and background-oriented schlieren (BOS) optics. Isentropic exit Mach numbers up to 1.5 were investigated. Features predicted via a simple flow model proposed by Denton and Xu in 1989 were observed for organic vapor flows. Still, roughness affected the downstream loss behavior significantly due to shockwave boundary-layer interactions and flow separation. The new experimental results obtained for this organic vapor are compared with correlations from the literature and available loss data.
