Article

Hadron-Induced Radiation Damage in Fast Heavy Inorganic Scintillators

1
High Energy Physics, California Institute of Technology, Pasadena, CA 91125, USA
2
School of Physics, Nankai University, Tianjin 300071, China
3
Los Alamos National Laboratory, Los Alamos, NM 87545, USA
*
Author to whom correspondence should be addressed.
Instruments 2022, 6(4), 57; https://doi.org/10.3390/instruments6040057
Received: 10 August 2022 / Revised: 6 September 2022 / Accepted: 15 September 2022 / Published: 5 October 2022

Abstract

:
Fast and heavy inorganic scintillators with suitable radiation tolerance are required to face the challenges presented at future hadron colliders of high energy and intensity. Up to 5 GGy and 5 × 1018 neq/cm2 of one-MeV-equivalent neutron fluence is expected by the forward calorimeter at the Future Hadron Circular Collider. This paper reports the results of an investigation of proton- and neutron-induced radiation damage in various fast and heavy inorganic scintillators, such as LYSO:Ce crystals, LuAG:Ce ceramics, and BaF2 crystals. The experiments were carried out at the Blue Room with 800 MeV proton fluence up to 3.0 × 1015 p/cm2 and at the East Port with one MeV equivalent neutron fluence up to 9.2 × 1015 neq/cm2, respectively, at the Los Alamos Neutron Science Center. Experiments were also carried out at the CERN PS-IRRAD proton facility with 24 GeV proton fluence up to 8.2 × 1015 p/cm2. Research and development will continue to develop LuAG:Ce ceramics and BaF2:Y crystals with improved optical quality, F/T ratio, and radiation hardness.

1. Introduction

Future high-energy physics (HEP) experiments face an unprecedented challenge of a harsh radiation environment against ionization dose charged hadrons as well as neutral hadrons. The radiation environment expected by the forward calorimeter in the proposed Future Hadron Circular Collider (FCC-hh) reaches an ionization dose up to 5 GGy and a neutron fluence up to 5 × 1018 one-MeV-equivalent neq/cm2 [1]. Bright and fast cerium-doped lutetium yttrium oxyorthosilicate (Lu2(1−x)Y2xSiO5:Ce or LYSO:Ce) features high stopping power and suitable radiation tolerance against both ionization dose and hadrons. Under construction is the barrel timing layer (BTL) [2] using LYSO crystals for the compact muon solenoid (CMS) upgrade at the high-luminosity large hadron collider (HL-LHC). LYSO crystals were also proposed for the Mu2e experiment at Fermilab [3]. In addition, a total absorption LYSO calorimeter for the coherent muon to electron transition (COMET) experiment at the High-Energy Accelerator Research Organization (KEK) [4] and a 3D imaging calorimeter for the high-energy cosmic-radiation detection (HERD) experiment in space [5] are being built. Under investigation are cost-effective cerium-doped lutetium aluminum garnet (Lu3Al5O12:Ce or LuAG:Ce) ceramics for the precision-timing, ultracompact, radiation-hard electromagnetic calorimetry (RADiCAL) concept for future HEP experiments [6]. BaF2 crystals also attract attention due to their ultrafast light with 0.5 ns decay time, which is considered for the Mu2e-II upgrade [7]. While radiation damage in fast and heavy inorganic scintillators against ionization dose is well understood [8,9,10,11,12,13,14], investigations are still ongoing to understand radiation damage against hadrons, including both charged hadrons [8,10,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28] and neutrons [29,30,31,32,33].
Starting in 2014, a series of experiments was performed to study radiation damage in fast and heavy inorganic scintillators against hadrons by using 800 MeV protons at the Blue Room and neutrons at the East Port, respectively, at the Los Alamos Neutron Science Center (LANSCE). Inorganic scintillators were irradiated up to 3.0 × 1015 p/cm2 and 9.2 × 1015 one MeV equivalent neq/cm2. LYSO:Ce crystals and LuAG:Ce ceramics were also irradiated at the European Organization for Nuclear Research (CERN) PS-IRRAD proton facility by 24 GeV protons up to 8.2 × 1015 p/cm2. In this paper, we summarize our results obtained for LYSO:Ce crystals, LuAG:Ce ceramics, and BaF2 crystals. The result of this work is of great importance for the CMS phase-II upgrade of the BTL detector [2] at the HL-LHC, as well as an ultra-radiation-hard RADiCAL calorimetry [6] for the proposed FCC-hh.

2. Materials and Methods

The samples were produced at the Beijing Glass Research Institute (BGRI), the Beijing Opto-Electronics Technology Company Ltd. (BOET or OET), the Shanghai Institute of Ceramics (SIC), the Shanghai Institute of Optics and Fine Mechanics (SIOM), the Chongqing Shengpu Electronics Co. LTD (SIPAT), and the Sichuan Tianle Photonics Company (Tianle). Four proton irradiation experiments 6501 [25,26,27], 6990 [25,26,27], 7324 [28,33] and 8051 [33] were conducted in 2014, 2015, 2016, and 2018, respectively. Three neutron irradiation experiments 6991 [31,32], 7332 [31,32] and 7638 [31,32,33] were conducted in 2015, 2016, and 2017, respectively. Some LYSO:Ce and LuAG:Ce samples were also irradiated at the CERN PS-IRRAD facility. The details of these experiments and samples are listed in Table 1.
The LANSCE 800 MeV and the CERN PS-IRRAD 24-GeV proton beam show a Gaussian shape with a full width at half-maximum (FWHM) of about 25 and 12 mm, respectively. Dosimeters with a cross-section of 10 × 10 and 20 × 20 mm2 were used to measure the proton fluence at CERN PS-IRRAD. The proton fluence at LANSCE was calculated by measuring the proton current. The systematic uncertainties of the proton fluence at CERN and LANSCE are 7% and 10%, respectively. In the neutron irradiation experiments, half of the samples used in experiments 7332 and 7638 were irradiated with a 5 mm lead shielding, the other half without lead shielding. The error for the neutron fluence is about 10%.
To avoid optical bleaching and thermal annealing, all samples were wrapped with aluminum foil during and after irradiation and were kept at room temperature after irradiation. Transmittance was measured by using a Hitachi U3210 spectrophotometer with a precision of 0.2%. The emission-weighted longitudinal transmittance (EWLT) was calculated by using the equation
E W L T = T ( λ ) E m ( λ ) d λ E m ( λ ) d λ   ,
where T(λ) and Em(λ) are the transmittance and emission spectra, respectively. The EWLT is a numerical value of transmittance over the entire emission spectrum. The radiation-induced absorption coefficient (RIAC) was obtained from
R I A C = 1 l ln ( T 0 T 1 )   ,
where l is the crystal length and T0 and T1 are the transmittances before and after irradiation, respectively.
The errors for the RIAC value depend on the light path length and the initial transmittance of the sample. For samples with suitable initial transparency, the errors are about 1, 3.5, and 5 m−1 for the thickness of 5, 1.5, and 1 mm, respectively. The RIAC errors for some LuAG:Ce ceramic samples could be larger than 5 m−1 because of poor initial transparency due to rough surfaces or scattering centers in the ceramic bulk [33]. A Hamamatsu R2059 PMT was used to measure the light output (LO) before and after irradiation with a grease coupling for 0.511-MeV γ-rays from a 22Na source with a coincidence trigger. The uncertainty for the light output measurements is about 1%.

3. Results and Discussion

Figure 1 shows transmittance spectra for LYSO (top), BaF2 (middle) and PWO crystals (bottom) measured before (black lines) and after (red lines) (a) proton irradiation with a proton fluence of 9.7 × 1014 p/cm2 and (b) neutron irradiation [31,32] with a one-MeV-equivalent neutron fluence of 8.3 × 1015 neq/cm2, respectively. Also shown in the figure are the emission spectra (blue dash lines), the numerical values of the EWLT, and the theoretical limit of transmittance (black dots) calculated according to the refractive index, assuming multiple bounces without internal absorption [34]. The results demonstrate that the radiation hardness of LYSO and BaF2 crystals is much better than PWO crystals against both protons and neutrons.
Figure 2 shows LO as a function of integration time for LYSO (top), BaF2 (middle), and PWO crystals (bottom) measured before (black) and after (red) (a) a proton fluence of up to 9.7 × 1014 p/cm2 [28] and (b) a one MeV equivalent neutron fluence of up to 8.3 × 1015 neq/cm2 [31,32], respectively. Also shown in the figure are the numerical values of LO (200), LO (2500), A0, A1, and τ, which represent the light output integrated into the time gate of 200 ns and 2500 ns, the fast component (if applicable), the slow component, and the decay time from the exponential fit. Since the light output of PWO crystals is too low after 9.7 × 1014 p/cm2 and 8.3 × 1015 neq/cm2, the data after 1.6 × 1014 p/cm2 and 3.7 × 1015 neq/cm2 are shown for PWO samples. We note that more than 91% and 77% LO remain for LYSO and BaF2 crystals after 9.7 × 1014 p/cm2 and 8.3 × 1015 neq/cm2, respectively. This indicates that LYSO and BaF2 crystals survive up to these hadron fluences but not PWO.
Figure 3 shows the normalized LO integrated in 50 ns gate as a function of the emission-weighted RIAC (EWRIAC) of the 220-nm peak for BaF2 samples used in (a) the proton experiment 7324 and the neutron experiment 7332 and (b) the neutron experiment 7332 and 7638, respectively. Correlation coefficients of 0.91, 0.95, and 0.95 were observed for 18 BaF2 plates of 5 mm in Figure 3a, and 12 BaF2 plates of 15 × 15 × 5 mm3 and 16 BaF2 plates of 10 × 10 × 2 mm3 in Figure 3b. It is interesting to note that the relative LO loss can be ascribed to the radiation-induced absorption for both proton and neutron irradiation. It is also interesting to note that the mean light path length, which is L, shown in these figures, depends on the sample thickness.
Figure 4 shows the RIAC values as a function of (a) the proton fluence [25,26,27,35] and (b) the one MeV equivalent neutron fluence [32] for LYSO/LFS crystals from different vendors irradiated in the proton experiments 6990 and 7324 up to 3.0 × 1015 p/cm2 and the proton experiment at CERN PS-IRRAD up to 8.2 × 1015 p/cm2 and the neutron experiments 6991, 7332, and 7638 up to 9.2 × 1015 neq/cm2.
Also shown in the figure are the corresponding fits and the uncertainties of the fittings, which depend on the uncertainties of the data points. The result also shows a consistent linear relation between the RIAC values at 430 nm and the proton fluence for LYSO crystals from different vendors with a correlation coefficient (CC) of 0.95. The corresponding value is 0.71 for one MeV equivalent neutron fluence. The radiation hardness specification for the CMS BTL LYSO crystals of 3.12 × 3.12 × 57 mm3 is: RIAC should be less than 3 m−1 after 48 kGy, 2.5 × 1013 p/cm2 and 3 × 1014 neq/cm2. It is clear that LYSO crystals from different vendors meet the CMS BTL specification.
We also notice that the numerical RIAC values for LYSO against neutrons are a factor of ten less than that against 800 MeV protons at LANSCE and 24 GeV at CERN. This difference can be ascribed to damage by ionization energy loss from protons as compared to damage by displacement and nuclear breakup only from neutrons.
Figure 5 shows RIAC values as a function of (a) proton fluence [33] and (b) and one MeV equivalent neutron fluence [33] for LuAG:Ce ceramics, LYSO:Ce, and BaF2 crystals irradiated in the proton experiment at CERN PS-IRRAD up to 8.2 × 1015 p/cm2 and the neutron experiment 7638 up to 6.7 × 1015 neq/cm2, respectively. Also shown are the corresponding fits. It is interesting to note that the RIAC values for LuAG:Ce ceramics are a factor of two smaller than that of LYSO:Ce crystals. This material thus is promising for future colliders with harsh radiation environments, such as the proposed FCC-hh. We also note that large systematic uncertainties were observed for LuAG:Ce ceramics with poor initial transparency. The surface condition of and the scattering centers inside the ceramic bulk may degrade measured transmission and thus introduce a large systematic uncertainty in the RIAC values. The EWLT values of two ceramic samples shown in Figure 5a, for example, are 67.6% and 32.1% before irradiation and 67.5% and 31.9% after 7.1 × 1013 p/cm2 and 1.2 × 1015 p/cm2, respectively, corresponding to RIAC values of 0.5 and 7.1 m−1. Further improvement in optical quality, fast-total ratio (F/T), and radiation hardness of LuAG:Ce ceramics are important for such investigation.
Figure 6 shows the LO normalized to before irradiation as a function of (a) proton fluence [28] and (b) one MeV equivalent neutron fluence [32] for LYSO, BaF2, and PWO plates irradiated in the proton experiment 7324 up to 9.7 × 1014 p/cm2 and the neutron experiment 7332 up to 8.3 × 1015 neq/cm2, respectively. It is interesting to note that both LYSO:Ce and BaF2 plates maintain more than 85% and 75% of light output after a proton fluence of 9.7 × 1014 p/cm2 and a one-MeV-equivalent neutron fluence of 8.3 × 1015 neq/cm2. This result indicates that the radiation hardness of BaF2 is similar to LYSO:Ce under high hadron fluence. BaF2 crystals, however, have an issue of slow component with a decay time of 600 ns. Yttrium doping in BaF2 suppresses the slow component effectively while maintaining the ultrafast light [30,36,37,38,39,40]. An investigation is ongoing to understand hadron-induced radiation damage in BaF2:Y crystals.

4. Conclusions

Radiation damage was measured before and after proton and neutron irradiation conducted at LANSCE and CERN for LYSO, BaF2, and PWO crystals and LuAG ceramics. Both LYSO and BaF2 plates maintain more than 85% and 75% of light output after proton and neutron irradiation up to 3.0 × 1014 p/cm2 and 9.2 × 1015 neq/cm2, respectively. LYSO:Ce and LFS crystals from different vendors show consistent damage against protons of 800 MeV and 24 GeV. The RIAC values for LuAG:Ce ceramics are a factor of two smaller than that of LYSO:Ce crystals against both neutrons and protons. The radiation hardness of BaF2 is similar to that of LYSO:Ce at high hadron fluence. We plan to improve optical quality, F/T ratio, and radiation hardness for LuAG:Ce and BaF2:Y crystals. We also plan to investigate radiation damage in various fast and heavy inorganic scintillators against ionization dose, protons, and neutrons.

Author Contributions

Conceptualization, R.-Y.Z.; methodology, R.-Y.Z., L.Z. and R.N.; software, C.H., F.Y., L.Z., R.-Y.Z. and M.M.; investigation, C.H., F.Y., L.Z., R.-Y.Z., X.L. and Z.W.; resources, R.-Y.Z., J.K., R.N., M.M., S.W. and Z.W.; writing—original draft preparation, C.H.; writing—review and editing, L.Z. and R.-Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Department of Energy, Office of Science, Office of High Energy Physics, under award number DE-SC0011925 and DE-AC52-06NA25396.

Data Availability Statement

All data are available on the Web. The data presented in this paper are openly available in: http://www.hep.caltech.edu/~zhu/ accessed on 9 August 2022.

Acknowledgments

Samples used in this investigation are provided by SIC, BGRI, BOET, SIPAT, SIOM, and Tianle. The authors would like to thank the CERN PS-IRRAD proton facility for providing the 24 GeV proton beams used in this investigation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Aleksa, M.; Allport, P.; Bosley, R.; Faltova, J.; Gentil, J.; Goncalo, R.; Helsens, C.; Henriques, A.; Karyukhin, A.; Kieseler, J.; et al. Calorimeters for the FCC-Hh. arXiv 2019, arXiv:1912.09962. [Google Scholar]
  2. Butler, J.N.; Tabarelli de Fatis, T. A MIP Timing Detector for the CMS Phase-2 Upgrade; CMS Collaboration: Geneva, Switzerland, 2019. [Google Scholar]
  3. Pezzullo, G.; Budagov, J.; Carosi, R.; Cervelli, F.; Cheng, C.; Cordelli, M.; Corradi, G.; Davydov, Y.; Echenard, B.; Giovannella, S.; et al. The LYSO Crystal Calorimeter for the Mu2e Experiment. J. Instrum. 2014, 9, C03018. [Google Scholar] [CrossRef]
  4. Oishi, K. An LYSO Electromagnetic Calorimeter for COMET at J-Park. In Paper O47-4 Presented in IEEE NSS 2014; IEEE: Seattle, WA, USA, 2014. [Google Scholar]
  5. Zhang, S.N.; Adriani, O.; Albergo, S.; Ambrosi, G.; An, Q.; Bao, T.W.; Battiston, R.; Bi, X.J.; Cao, Z.; Chai, J.Y.; et al. The High Energy Cosmic-Radiation Detection (HERD) Facility Onboard China’s Space Station; Takahashi, T., den Herder, J.-W.A., Bautz, M., Eds.; SPIE: Montreal, QC, Canada, 2014; p. 91440X. [Google Scholar]
  6. Anderson, T.; Barbera, T.; Blend, D.; Chigurupati, N.; Cox, B.; Debbins, P.; Dubnowski, M.; Herrmann, M.; Hu, C.; Ford, K.; et al. RADiCAL: Precision-Timing, Ultracompact, Radiation-Hard Electromagnetic Calorimetry. arXiv 2022, arXiv:2203.12806. [Google Scholar] [CrossRef]
  7. Abusalma, F.; Ambrose, D.; Artikov, A.; Bernstein, R.; Blazey, G.C.; Bloise, C.; Boi, S.; Bolton, T.; Bono, J.; Bonventre, R.; et al. Expression of Interest for Evolution of the Mu2e Experiment. arXiv 2018, arXiv:1802.02599. [Google Scholar]
  8. Auffray, E.; Barysevich, A.; Fedorov, A.; Korjik, M.; Koschan, M.; Lucchini, M.; Mechinski, V.; Melcher, C.L.; Voitovich, A. Radiation Damage of LSO Crystals under γ- and 24GeV Protons Irradiation. Nucl. Instrum. Methods Phys. Res. A 2013, 721, 76–82. [Google Scholar] [CrossRef]
  9. Derdzyan, M.V.; Ovanesyan, K.L.; Petrosyan, A.G.; Belsky, A.; Dujardin, C.; Pedrini, C.; Auffray, E.; Lecoq, P.; Lucchini, M.; Pauwels, K. Radiation Hardness of LuAG:Ce and LuAG:Pr Scintillator Crystals. J. Cryst. Growth 2012, 361, 212–216. [Google Scholar] [CrossRef]
  10. Petrosyan, A.G.; Ovanesyan, K.L.; Derdzyan, M.V.; Ghambaryan, I.; Patton, G.; Moretti, F.; Auffray, E.; Lecoq, P.; Lucchini, M.; Pauwels, K.; et al. A Study of Radiation Effects on LuAG:Ce(Pr) Co-Activated with Ca. J. Cryst. Growth 2015, 430, 46–51. [Google Scholar] [CrossRef]
  11. Shen, Y.; Feng, X.; Shi, Y.; Vedda, A.; Moretti, F.; Hu, C.; Liu, S.; Pan, Y.; Kou, H.; Wu, L. The Radiation Hardness of Pr:LuAG Scintillating Ceramics. Ceram. Int. 2014, 40, 3715–3719. [Google Scholar] [CrossRef]
  12. Dissertori, G.; Luckey, D.; Nessi-Tedaldi, F.; Pauss, F.; Wallny, R. Performance Studies of Scintillating Ceramic Samples Exposed to Ionizing Radiation. In Proceedings of the 2012 IEEE Nuclear Science Symposium and Medical Imaging Conference Record (NSS/MIC), Anaheim, CA, USA, 29 October–3 November 2012; pp. 305–307. [Google Scholar]
  13. Dormenev, V.; Korjik, M.; Kuske, T.; Mechinski, V.; Novotny, R.W. Comparison of Radiation Damage Effects in PWO Crystals Under 150 MeV and 24 GeV High Fluence Proton Irradiation. IEEE Trans. Nucl. Sci. 2014, 61, 501–506. [Google Scholar] [CrossRef]
  14. The CMS Electromagnetic Calorimeter Group; Adzic, P.; Almeida, N.; Andelin, D.; Anicin, I.; Antunovic, Z.; Arcidiacono, R.; Arenton, M.W.; Auffray, E.; Argiro, S.; et al. Radiation Hardness Qualification of PbWO4 Scintillation Crystals for the CMS Electromagnetic Calorimeter. J. Instrum. 2010, 5, P03010. [Google Scholar] [CrossRef]
  15. Dissertori, G.; Perez, C.M.; Nessi-Tedaldi, F. A FLUKA Study towards Predicting Hadron-Specific Damage Due to High-Energy Hadrons in Inorganic Crystals for Calorimetry. J. Instrum. 2020, 15, P06006. [Google Scholar] [CrossRef]
  16. Dissertori, G.; Luckey, D.; Nessi-Tedaldi, F.; Pauss, F.; Quittnat, M.; Wallny, R.; Glaser, M. Results on Damage Induced by High-Energy Protons in LYSO Calorimeter Crystals. Nucl. Instrum. Methods Phys. Res. A 2014, 745, 1–6. [Google Scholar] [CrossRef]
  17. Dissertori, G.; Lecomte, P.; Luckey, D.; Nessi-Tedaldi, F.; Pauss, F.; Otto, Th.; Roesler, S.; Urscheler, Ch. A Study of High-Energy Proton Induced Damage in Cerium Fluoride in Comparison with Measurements in Lead Tungstate Calorimeter Crystals. Nucl. Instrum. Methods Phys. Res. A 2010, 622, 41–48. [Google Scholar] [CrossRef]
  18. Lucchini, M.T.; Pauwels, K.; Blazek, K.; Ochesanu, S.; Auffray, E. Radiation Tolerance of LuAG:Ce and YAG:Ce Crystals Under High Levels of Gamma- and Proton-Irradiation. IEEE Trans. Nucl. Sci. 2016, 63, 586–590. [Google Scholar] [CrossRef]
  19. Nessi-Tedaldi, F. Studies of the Effect of Charged Hadrons on Lead Tungstate Crystals. J. Phys. Conf. Ser. 2009, 160, 012013. [Google Scholar] [CrossRef]
  20. Dissertori, G.; Luckey, D.; Nessi-Tedaldi, F.; Pauss, F.; Wallny, R.; Spikings, R.; van der Lelij, R.; Arnau Izquierdo, G. A Visualization of the Damage in Lead Tungstate Calorimeter Crystals after Exposure to High-Energy Hadrons. Nucl. Instrum. Methods Phys. Res. A 2012, 684, 57–62. [Google Scholar] [CrossRef]
  21. Lecomte, P.; Luckey, D.; Nessi-Tedaldi, F.; Pauss, F. High-Energy Proton Induced Damage Study of Scintillation Light Output from Calorimeter Crystals. Nucl. Instrum. Methods Phys. Res. A 2006, 564, 164–168. [Google Scholar] [CrossRef]
  22. Huhtinen, M.; Lecomte, P.; Luckey, D.; Nessi-Tedaldi, F.; Pauss, F. High-Energy Proton Induced Damage in PbWO4 Calorimeter Crystals. Nucl. Instrum. Methods Phys. Res. A 2005, 545, 63–87. [Google Scholar] [CrossRef]
  23. Auffray, E.; Korjik, M.; Singovski, A. Experimental Study of Lead Tungstate Scintillator Proton-Induced Damage and Recovery. IEEE Trans. Nucl. Sci. 2012, 59, 2219–2223. [Google Scholar] [CrossRef]
  24. Batarin, V.A.; Brennan, T.; Butler, J.; Cheung, H.; Datsko, V.S.; Davidenko, A.M.; Derevschikov, A.A.; Dzhelyadin, R.I.; Fomin, Y.V.; Frolov, V.; et al. Study of Radiation Damage in Lead Tungstate Crystals Using Intense High-Energy Beams. Nucl. Instrum. Methods Phys. Res. A 2003, 512, 488–505. [Google Scholar] [CrossRef]
  25. Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Nelson, R.; Wang, Z. Proton Induced Radiation Damage in Fast Crystal Scintillators. Nucl. Instrum. Methods Phys. Res. A 2016, 824, 726–728. [Google Scholar] [CrossRef]
  26. Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Nelson, R.; Wang, Z. Proton-Induced Radiation Damage in Fast Crystal Scintillators. IEEE Trans. Nucl. Sci. 2017, 64, 665–672. [Google Scholar] [CrossRef]
  27. Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Nelson, R.; Wang, Z. Proton-Induced Radiation Damage in BGO, LFS, PWO and a LFS/W/Quartz Capillary Shashlik Cell. In Proceedings of the 2016 IEEE Nuclear Science Symposium, Medical Imaging Conference and Room-Temperature Semiconductor Detector Workshop (NSS/MIC/RTSD), Strasbourg, France, 29 October–6 November 2016; pp. 1–4. [Google Scholar]
  28. Hu, C.; Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Nelson, R.; Wang, Z. Proton-Induced Radiation Damage in BaF2, LYSO, and PWO Crystal Scintillators. IEEE Trans. Nucl. Sci. 2018, 65, 1018–1024. [Google Scholar] [CrossRef]
  29. Chipaux, R.; Borizevich, A.; Dujardin, C.; Lecocq, P.; Korzhik, M.V. Behaviour of PWO Scintillators after High Fluence Neutron Irradiation. In Proceedings of the 8th International Conference on Inorganic Scintillators and Their Applications, Alushta, Ukraine, 19–23 September 2005; pp. 369–371. [Google Scholar]
  30. Baranov, V.; Davydov, Y.I.; Vasilyev, I.I. Light Outputs of Yttrium Doped BaF2 Crystals Irradiated with Neutrons. J. Instrum. 2022, 17, P01036. [Google Scholar] [CrossRef]
  31. Hu, C.; Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Mocko, M.; Nelson, R.; Wang, Z. Neutron-Induced Radiation Damage in BaF2, LYSO/LFS and PWO Crystals. J. Phys. Conf. Ser. 2019, 1162, 012020. [Google Scholar] [CrossRef]
  32. Hu, C.; Yang, F.; Zhang, L.; Zhu, R.-Y.; Kapustinsky, J.; Mocko, M.; Nelson, R.; Wang, Z. Neutron-Induced Radiation Damage in LYSO, BaF2, and PWO Crystals. IEEE Trans. Nucl. Sci. 2020, 67, 1086–1092. [Google Scholar] [CrossRef]
  33. Hu, C.; Zhang, L.; Zhu, R.-Y.; Li, J.; Jiang, B.; Kapustinsky, J.; Mocko, M.; Nelson, R.; Li, X.; Wang, Z. Hadron-Induced Radiation Damage in LuAG:Ce Scintillating Ceramics. IEEE Trans. Nucl. Sci. 2022, 69, 181–186. [Google Scholar] [CrossRef]
  34. Ma, D.; Zhu, R. Light Attenuation Length of Barium Fluoride Crystals. Nucl. Instrum. Methods Phys. Res. A 1993, 333, 422–424. [Google Scholar] [CrossRef]
  35. Yang, F.; Zhang, L.; Zhu, R.-Y. Gamma-Ray Induced Radiation Damage Up to 340 Mrad in Various Scintillation Crystals. IEEE Trans. Nucl. Sci. 2016, 63, 612–619. [Google Scholar] [CrossRef]
  36. Sobolev, B.P.; Krivandina, E.A.; Derenzo, S.E.; Moses, W.W.; West, A.C. Suppression of BaF2 Slow Component of X-RAY Luminescence in Non-Stoichiometric Ba0.9R0.1F2.1 Crystals (R = Rare Earth Element). MRS Proc. 1994, 348, 277. [Google Scholar] [CrossRef]
  37. Radzhabov, E.; Istomin, A.; Nepomnyashikh, A.; Egranov, A.; Ivashechkin, V. Exciton Interaction with Impurity in Barium Fluoride Crystals. Nucl. Instrum. Methods Phys. Res. A 2005, 537, 71–75. [Google Scholar] [CrossRef]
  38. Myasnikova, A.S.; Radzhabov, E.A.; Egranov, A.v. Extrinsic Luminescence of BaF2:R3+ Crystals (R3+ = La3+, Y3+, Yb3+). Phys. Solid State 2008, 50, 1644–1647. [Google Scholar] [CrossRef]
  39. Chen, J.; Yang, F.; Zhang, L.; Zhu, R.-Y.; Du, Y.; Wang, S.; Sun, S.; Li, X. Slow Scintillation Suppression in Yttrium Doped BaF2 Crystals. IEEE Trans. Nucl. Sci. 2018, 65, 2147–2151. [Google Scholar] [CrossRef]
  40. Gundacker, S.; Pots, R.H.; Nepomnyashchikh, A.; Radzhabov, E.; Shendrik, R.; Omelkov, S.; Kirm, M.; Acerbi, F.; Capasso, M.; Paternoster, G.; et al. Vacuum Ultraviolet Silicon Photomultipliers Applied to BaF2 Cross-Luminescence Detection for High-Rate Ultrafast Timing Applications. Phys. Med. Biol. 2021, 66, 114002. [Google Scholar] [CrossRef] [PubMed]

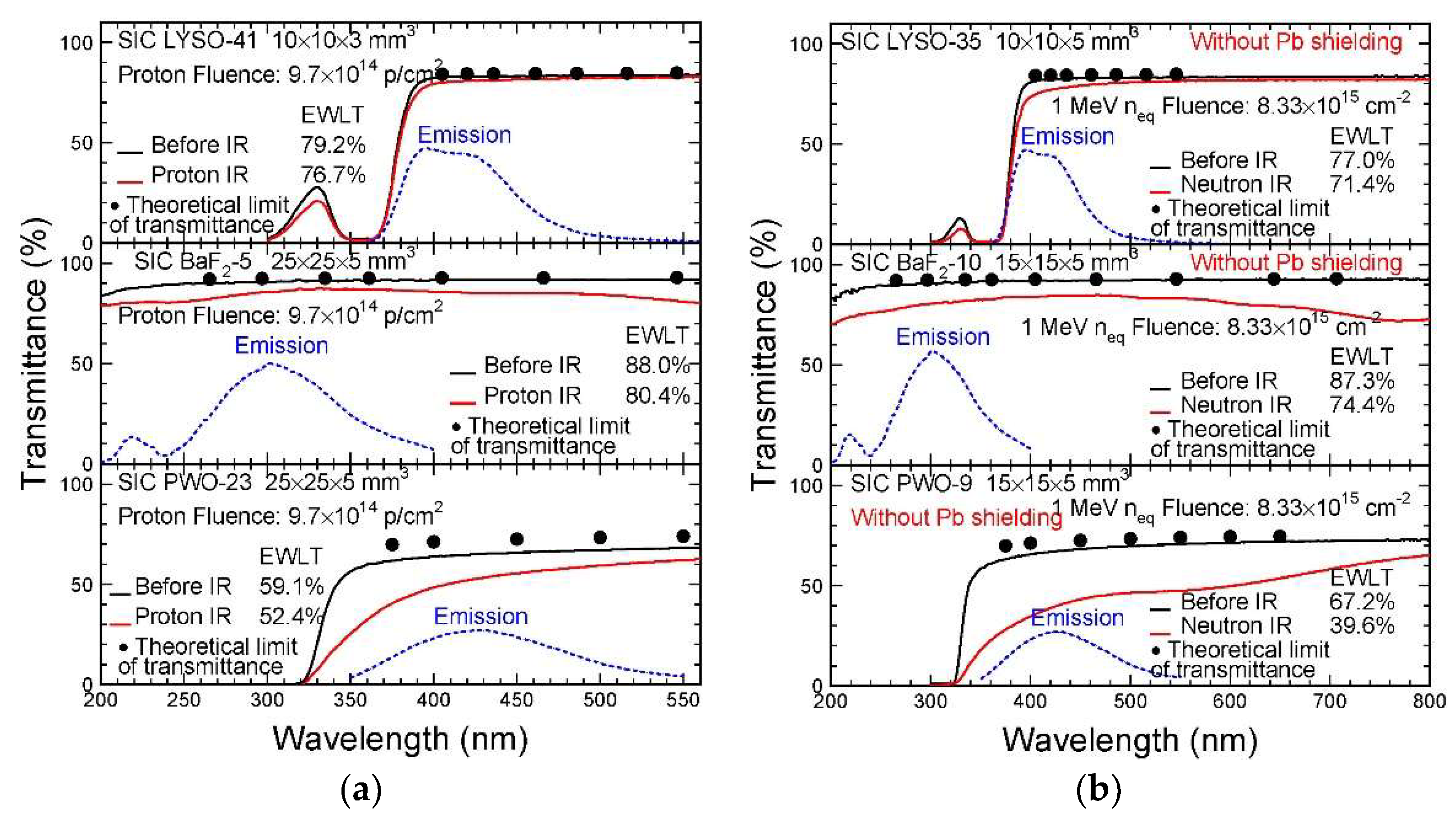

Figure 1. The transmittance spectra measured before (black lines) and after (red lines) irradiation in (a) the proton experiment 7324 and (b) the neutron experiment 7332 [31,32] are shown for LYSO (top), BaF2 (middle), and PWO crystals (bottom).
Figure 1. The transmittance spectra measured before (black lines) and after (red lines) irradiation in (a) the proton experiment 7324 and (b) the neutron experiment 7332 [31,32] are shown for LYSO (top), BaF2 (middle), and PWO crystals (bottom).
Instruments 06 00057 g001
Figure 2. LO measured before (black) and after (red) irradiation in (a) the proton experiment 7324 and (b) the neutron experiment 7332 [31,32] is shown as a function of the integration time for LYSO (top), BaF2 (middle), and PWO crystals (bottom).
Figure 2. LO measured before (black) and after (red) irradiation in (a) the proton experiment 7324 and (b) the neutron experiment 7332 [31,32] is shown as a function of the integration time for LYSO (top), BaF2 (middle), and PWO crystals (bottom).
Instruments 06 00057 g002
Figure 3. The normalized LO integrated in 50 ns gate is shown as a function of EWRIAC of the 220nm peak for the BaF2 samples used in (a) the proton experiment 7324 and the neutron experiment 7332 [28], and (b) the neutron experiment 7332 and 7638, respectively.
Figure 3. The normalized LO integrated in 50 ns gate is shown as a function of EWRIAC of the 220nm peak for the BaF2 samples used in (a) the proton experiment 7324 and the neutron experiment 7332 [28], and (b) the neutron experiment 7332 and 7638, respectively.
Instruments 06 00057 g003

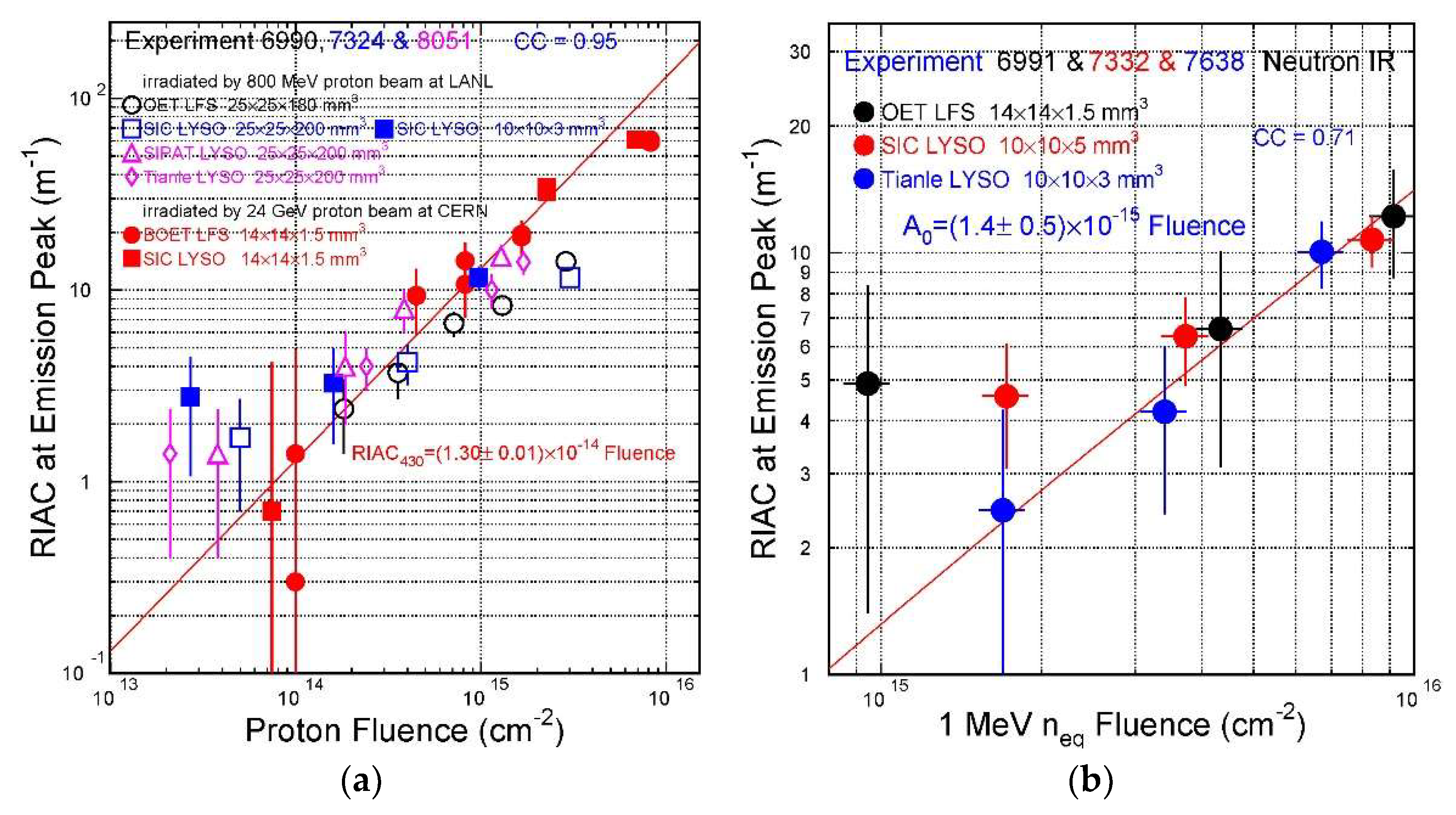

Figure 4. The RIAC values are shown as a function of (a) the proton fluence [25,26,27,35] and (b) the one MeV equivalent neutron fluence [32] for LYSO/LFS crystals from different vendors irradiated in the proton experiment 6990, 7324 and at the CERN PS-IRRAD experiment and the neutron experiment 6991, 7332, and 7638, respectively.
Figure 4. The RIAC values are shown as a function of (a) the proton fluence [25,26,27,35] and (b) the one MeV equivalent neutron fluence [32] for LYSO/LFS crystals from different vendors irradiated in the proton experiment 6990, 7324 and at the CERN PS-IRRAD experiment and the neutron experiment 6991, 7332, and 7638, respectively.
Instruments 06 00057 g004

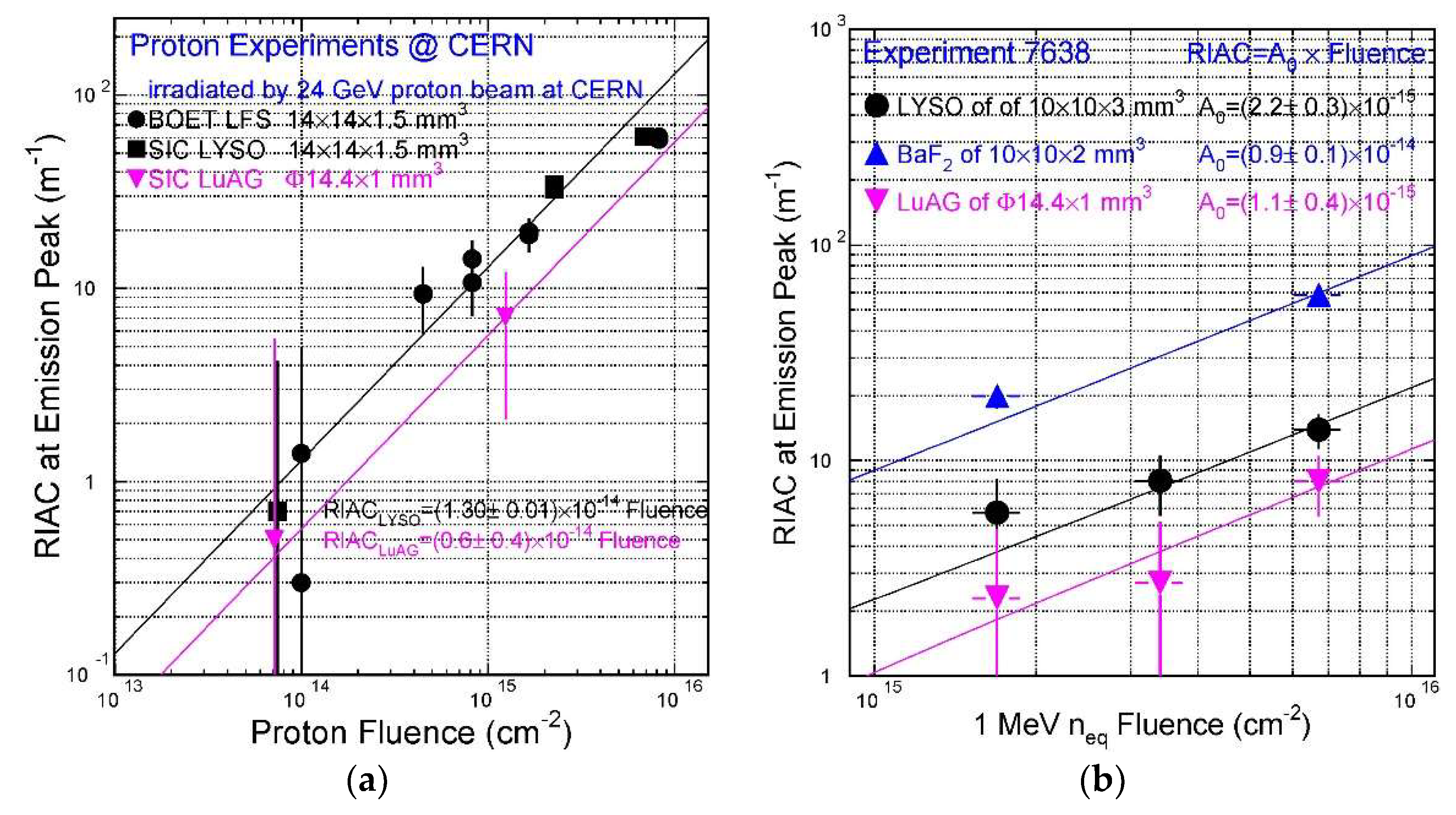

Figure 5. The RIAC values are shown as a function of (a) proton fluence [33] and (b) one MeV equivalent neutron fluence [33] for LuAG:Ce ceramics, LYSO:Ce, and BaF2 crystals irradiated in the proton experiment at CERN PS-IRRAD and the neutron experiment 7638 at LANSCE, respectively.
Figure 5. The RIAC values are shown as a function of (a) proton fluence [33] and (b) one MeV equivalent neutron fluence [33] for LuAG:Ce ceramics, LYSO:Ce, and BaF2 crystals irradiated in the proton experiment at CERN PS-IRRAD and the neutron experiment 7638 at LANSCE, respectively.
Instruments 06 00057 g005
Figure 6. The LO values normalized before irradiation are shown as a function of (a) the proton fluence [28] and (b) the one MeV equivalent neutron fluence [32] for LYSO, BaF2, and PWO plates irradiated in the proton experiment 7324 and the neutron experiment 7332, respectively.
Figure 6. The LO values normalized before irradiation are shown as a function of (a) the proton fluence [28] and (b) the one MeV equivalent neutron fluence [32] for LYSO, BaF2, and PWO plates irradiated in the proton experiment 7324 and the neutron experiment 7332, respectively.
Instruments 06 00057 g006
Table 1. Samples used in various proton and neutron irradiation experiments.
Table 1. Samples used in various proton and neutron irradiation experiments.
ExperimentSamplesDimension (mm3)Fluence (cm−2)
CERN PS-IRRAD4 × SIC LYSO14 × 14 × 1.57.4 × 1013–6.9 × 1015
10 × BOET LFS14 × 14 × 1.51.0 × 1014–8.2 × 1015
2 × SIC LuAGΦ14.4 × 17.1 × 1013–1.2 × 1015
LANSCE-p-6990OET LFS25 × 25 × 1801.8 × 1014–2.9 × 1015
LANSCE-p-7324SIC LYSO25 × 25 × 2005.0 × 1013–3.0 × 1015
9 × SIC LYSO10 × 10 × 32.7 × 1013–9.7 × 1014
6 × SIC BaF225 × 25 × 52.7 × 1013–9.7 × 1014
6 × SIC PWO25 × 25 × 52.7 × 1013–9.7 × 1014
LANSCE-p-8051SIPAT LYSO25 × 25 × 2003.8 × 1013–1.6 × 1015
Tianle LYSO25 × 25 × 2002.2 × 1013–1.8 × 1015
LANSCE-n-699118 × OET LFS14 × 14 × 1.59.4 × 1014–9.2 × 1015
LANSCE-n-733212 × SIC LYSO10 × 10 × 51.7 × 1015–8.3 × 1015
12 × SIC BaF215 × 15 × 51.7 × 1015–8.3 × 1015
12 × SIC PWO15 × 15 × 51.7 × 1015–8.3 × 1015
LANSCE-n-76386 × SIC LYSO10 × 10 × 31.7 × 1015–6.7 × 1015
6 × Tianle LYSO10 × 10 × 31.7 × 1015–6.7 × 1015
8 × BGRI BaF210 × 10 × 21.7 × 1015–6.7 × 1015
8 × SIC BaF210 × 10 × 21.7 × 1015–6.7 × 1015
3 × SIC LuAGΦ14.4 × 11.7 × 1015–6.7 × 1015
