Comparative Study of the Reactivity of the Tungsten Oxides WO2 and WO3 with Beryllium at Temperatures up to 1273 K
Independent Researcher, Gabelsbergerstr. 9, 94032 Passau, Germany
Received: 30 June 2019 / Accepted: 1 September 2019 / Published: 11 September 2019

Abstract

:
Tungsten oxides play a pivotal role in a variety of modern technologies, e.g., switchable glasses, wastewater treatment, and modern gas sensors. Metallic tungsten is used as armor material, for example in gas turbines as well as future fusion power devices. In the first case, oxides are desired as functional materials; while in the second case, oxides can lead to catastrophic failures, so avoiding the oxidation of tungsten is desired. In both cases, it is crucial to understand the reactivity of tungsten oxides with other chemicals. In this study, the different reactivities of tungsten oxides with the highly-oxophilic beryllium are studied and compared. Tungsten-(IV)-oxide and tungsten-(VI)-oxide layers are prepared on a tungsten substrate. In the next step, a thin film of beryllium is evaporated on the samples. In consecutive steps, the sample is heated in steps of 100 K from room temperature (r. t.) to 1273 K. The chemical composition is investigated after each experimental step by high-resolution X-ray photoelectron spectroscopy (XPS) for all involved core levels as well as the valence band. A model is developed to analyze the chemical reactions after each step. In this study, we find that tungsten trioxide was already reduced by beryllium at r. t. and started to react to form the ternary compounds BeWO3 and BeWO4 at temperatures starting from 673 K. However, tungsten dioxide is resistant to reduction at temperatures of up to 1173 K. In conclusion, we find WO2 to be much more chemically resistant to the reduction agent Be than WO3.
Keywords:
X-ray photoelectron spectroscopy; physical vapor deposition; X-ray diffraction; tungsten oxide; tungsten dioxide; tungsten trioxide; beryllium; tungstate; tungsten bronze

1. Introduction

Tungsten and its oxides play a pivotal role for the solution of current problems in material science. Tungsten oxides have recently received much attention. In consumer electronics, they are used in switchable glass due to their electrochromic properties [1,2,3]. In wastewater treatment, tungsten oxides are used as catalysts [4]. Modern gas sensors also rely on tungsten oxides [5,6,7]. In all of these applications, tungsten oxides are the functional material, and a long lifetime of the oxides is desired.
The classical applications of tungsten are in environments with a high heat load, as in turbines or reactors. In these environments, the oxidation of tungsten results in catastrophic events. The reduction of the melting point from approximately 3600 K to approximately 1700 K is severe and eventually leads to the failure of the respective components.
In material research for future fusion reactors, tungsten oxides are adverse in a second way: The formation of tungsten oxide is a severe safety issue. Tungsten trioxide is volatile under the conditions in a fusion reactor. Due to the neutron radiation from the D-T fusion reaction, tungsten can be transmutated into its radioactive isotopes. The formation of volatile tungsten oxides therefore leads to mobilized radioactivity, which is unfavorable.
In all these applications, it is crucial to understand the reactivity and stability of the different tungsten oxides. This study aims to investigate the stability of thin layers of ceramic tungsten trioxide as well as a thin layer of its metallic counter part, tungsten dioxide. In this study, we use the highly-oxophilic beryllium to probe the thermal stability of tungsten oxide surfaces. To do so, we evaporate thin layers of beryllium on the two oxide samples and investigate their composition by X-ray photoelectron spectroscopy (XPS).
XPS is chosen because high-resolution XPS not only reveals the elemental composition, but also shows their chemical binding state. This allows for evaluation of the chemical composition and reactions. The temperature is increased in 100 K steps up to a final temperature of 1273 K. After each step, the composition is investigated. This approach allows us to make predictions about the thermochemical stability of the compounds. The temperature reactivity study is conducted in situ under UHV (ultra-high vacuum) conditions to avoid the influence of atmospheric gases on the results.

2. Experimental

All XPS-measurements are carried out with a PHI 5600 ESCA X-ray photoelectron spectroscopy system equipped with a monochromatic Al Kα X-ray source and a hemispherical energy analyzer. The analysis chamber is directly connected to a preparation chamber with an electron beam evaporator equipped with beryllium and a sample heater. Base pressures in both chambers is in the range of 1 × 10 10 hPa. For the complete experimental setup, see References [8,9,10].
The tungsten trioxide is synthesized in an external oven under air. A tungsten plate ( 1 cm2) is heated for one hour at 773 K. The XP-spectrum shows signal contributions of 88.2% WO3 and 11.8% of its surface compound WO2(OH)2.
As a precursor for the tungsten dioxide, a tungsten plate of the same size is heated in the same oven flushed with nitrogen at 1000 hPa overpressure under air. The educt is heated for 15 min at 673 K, resulting in a thin WO3-layer. The precursor is introduced into the analysis chamber. It is converted into WO2 in a comproportionation reaction at 973 K for one hour. The XP-spectrum shows a signal contribution of 41.41% WO2. The rest of the signal consists of 30.81% WO3−x, 25.44% WO3, and 2.33% W as byproducts. This results in a yield of 27.61% and a selectivity of 28.27% regarding WO2. In the X-ray diffractogram, the only visible crystalline phases are WO2 and W (see Figure 1).
The binding energy scale was calibrated using gold, silver, and copper samples, which are stored in vacuo. Before and after each temperature series, the three core levels—Au 4 f 7 2 core level at 84.0 eV, the Cu 2 p 3 2 core level at 932.7 eV, and the Ag 3 d 5 2 core level at 368.3 eV [8,11,12]—are measured. By measuring these three binding energies, the accuracy of the measured binding energies and the linearity of the binding energy scale is ensured. During the temperature series, the Au 4 f 7 2 core level is measured after each step to guarantee, that the measured binding energies are correct.
The acquired XP-spectra are analyzed with the MultiPak software solution [13]. For peaks in the W 4f-spectra a Doniach–Šunjić-Function [14] is applied after subtracting a linear background. Peaks in the Be 1s and the O 1s binding energy region are analyzed with a Gauss-Lorentz-Function and a Shirley-type background [15]. The pass energy of the analyzer for the high-resolution spectra is set to 2.95 eV and for the spectra of the valence band region to 29.35 eV, resulting in energy resolutions of the hemispherical analyzer of 0.04 eV, respectively 0.44 eV. Taking the apparatus-function into account, a maximum resolution of 0.1 eV is achievable for the high-resolution spectra.

3. Data Analysis

In this section, the model for the chemical reaction analysis is explained in detail. The model allows for analysis of the chemical reactions at each temperature step. First, a chemical equation, which describes all reactions at the given temperature step, is derived from the spectra. In the following, these equations will be called the main equation. In the final step, the main equation is stripped down to the reaction equations.
Starting with the recorded spectra of the different core levels, the involved compounds can already be identified. If an element is bound in a chemical compound, the signal of this element exhibits a chemical shift. These shifts depend on the chemical surroundings of the element. The different compounds can be identified from these chemical shifts. Unfortunately, the signals of different chemical compounds can overlap. Thus, the spectra must be deconvoluted using fit-functions. The amounts of the specific compounds are directly proportional to the integrals of these fit-functions. Two examples for the deconvolution are shown in Figure 2 and Figure 3.
The signal contribution is heavily influenced by the depth distribution, so only signals originating from the same depth can be compared quantitatively. At the very beginning of the experiment, the samples consist of three layers on top of each other. Beryllium and its oxide form the upper layer. The middle layer is made out of tungsten and its compounds, while the deepest layer is the tungsten substrate, which is beyond the information depth of the used XPS setup. Therefore, we can neglect the substrate for the further analysis. For quantitative analysis, the tungsten oxide layer and the beryllium layer have to be considered.
Only signals originating from one of these layers are used to avoid the influence of depth distribution. For this study, I focus on the spectra of the W 4f-core level. Since only the relative signal contributions in one core level will be used, it does not matter if the tungsten oxide layer is covered by beryllium at the beginning. The spectra of the W 4f-core levels reveal only information about the middle layer. Additionally, tungsten is very mobile, thus, a homogeneous distribution of its compounds within this layer can be assumed [16]. Furthermore, all chemical compounds in this study have a signal contribution in this spectral region, except for one, BeO. So, the W 4f-spectra is perfectly suited for the requirements for quantitative analysis.
With this assumption, the intensity of the W 4f-spectra only changes with the amount of the compounds and the thickness of the beryllium layer. The beryllium layer attenuates the whole tungsten signal. In order to eliminate the influence of the thickness of the beryllium layer, only the relative composition of the complete signal is taken into account and not the absolute values. Since only signals from the same core level and the same element are used, even the element-specific cross sections can be neglected.
In addition, the diffusion of beryllium and its oxide does not influence data analysis as long as one can assume that the beryllium compounds are distributed homogeneously throughout the beryllium layer. Even the tungsten oxide layer only gets diluted by a homogeneous contamination of beryllium compounds. This results in a weaker intensity of the signal but not in a change of the fractions of the specific signal contributions.
The spectra of the Be 1s and the O 1s binding energy region provide valuable qualitative information, which is used to verify the results of the analysis of the tungsten spectra.
Only the change of the concentrations of the compounds is important to determine the chemical reaction equations. Therefore, the difference of the signal contribution of the current and the preceding temperature step is calculated. The results are used as stoichiometric factors in the main equation. Negative values mean a decrease of the specific compounds; positive values mean an increase of the specific compounds. With the information from the qualitative analysis of the beryllium spectra the element balance can be agreed. With this step, the main reaction equation is complete.
In the next step, the main reaction equation I is decomposed in the individual reaction equations II , III , . Therefore, all chemical sensible equations are set up in a system of equations. The result is the main equation:
I = a · II + b · III +
When solving these systems, prefactors a , b , for each chemical reaction are obtained. These prefactors are a measure for the reaction rate at the specific temperature. The ratios of the prefactors are the same as the ratios of the rate constants.
In the following, we will show the evaluation of the temperature step at 573 K of the Be-coated WO3-sample in detail as an example of how to extract quantitative information about the chemical reactions from the XPS spectra of the W 4f core level.
At first, the signal contributions from the preceding heating step, here 273 K, have to be subtracted from the signal contributions of the current heating step. As stated above (see Section 3) these values give the alteration of the concentrations of each compound. The result can be written as
1.4 W + 16.3 WO 3 17.7 W , 48.9 O 5.4 WO 2 + 9.9 BeWO 3 + 2.4 BeWO 4 17.7 W , 50.1 O , 12.3 Be .
Next, the elemental balances have to be agreed. For this, it is only allowed to consider compounds without tungsten, since Equation (2) is already based on the W 4f-signal. In the Be 1s-spectrum, Be and BeO can be seen as additional to the tungstate and the bronze (see Figure 5). These compounds are used to agree the balance and we get
I : 1.4 W + 16.3 WO 3 + 1.2 BeO + 11.1 Be 17.7 W , 50.1 O , 12.3 Be 5.4 WO 2 + 9.9 BeWO 3 + 2.4 BeWO 4 17.7 W , 50.1 O , 12.3 Be .
Now, the reactions for the system of equation are set up:
II : 2 WO 2 + W 3 WO 3 ,
III : WO 3 + Be WO 2 + BeO ,
IV : WO 3 + BeO BeWO 4 ,
V : WO 2 + BeO BeWO 3 ,
VI : WO 3 + Be BeWO 3 .
As shown in Equation (1), the overall equation is now decomposed:
I = a · II + b · III + c · IV + d · V + e · VI .
After solving Equation (9), the following prefactors are achieved:
a = 1.4 b = 1.2 c = 2.4 d = 0.0 e = 9.9 .
The obtained prefactors comply with the weighting of each single reaction at the current heating step. While reaction V does not take place, the formation of beryllium tungsten bronze is by far the most important reaction at this temperature.
This procedure is used for the evaluation of every temperature step of the experiment. The model is a good tool to determine reactions that take place and find the predominant reaction.
For the sake of clarity, only the results will be described in the following section. The experimental procedure and the subsequent data analysis can be summarized as follows:
  • Heating the sample to the desired temperature;
  • Recording high resolution spectra of the Be 1s, O 1s, and W 4f and valence band spectra;
  • Spectral deconvolution of the spectra to identify and quantify elements and compounds;
  • Compare the results to the previous temperature step and set up the main chemical equation;
  • Identify possible chemical reactions;
  • Solve the linear equation system to obtain the prefactors for the single reaction equations.

4. Results

Both oxidic tungsten specimens are coated with a thin beryllium layer by physical vapor deposition. Each sample is heated in 100 K-steps from 573 K to 1273 K. Each heating step takes 30 min. After each heating step, the sample is cooled down and the spectra are taken with sample temperatures below 373 K. Below, the binding energies of the W 4 f 7 2 -peak are given. The corresponding W 4 f 5 2 -peak is at 2.18 eV higher binding energies. For an example of the fitting procedure, please see Figure 2 and Figure 3.

4.1. Be on WO3

Analysis of the Spectra

In this section, the analysis of the spectra of the Be-coated tungsten trioxide sample is described. The core level spectra of the W 4f-region are shown in Figure 4, the Be 1s-spectra in Figure 5, the O 1s-spectra in Figure 6, and the valence band spectra in Figure 7. The results of the spectral deconvolution are discussed in detail. All results of the deconvolution of the W 4f -spectra are compiled in Table 1. A graphical representation of the sample composition at each temperature step is shown in Figure 8. In the following, the spectra analysis is described in detail and the results from the quantitative analysis are given.
Six different compounds can be identified in the W 4f-spectrum (see Figure 4) of the Be-coated WO3-sample at r. t. The peaks at 32.9 eV, 34.5 eV, and 35.7 eV originate from the three oxidic species WO2, WO3−x, and WO3, respectively [17,18,19,20,21,22,23,24,25]. The peak of elemental tungsten is visible at a binding energy of 31.3 eV. The two remaining peaks at 31.7 eV and 35.7 eV originate from the tungsten bronze BeWO3 and from the beryllium tungstate BeWO4 [26,27]. The tungsten oxides are immediately reduced by the evaporated beryllium, and the tungstate and the tungsten bronze are also formed. In the Be 1s-spectrum (see Figure 5), four peaks can be identified. The two peaks with the highest intensity at 118.8 eV and 114.7 eV originate from elemental beryllium and its oxide BeO [21,28,29,30,31,32,33]. The two smaller peaks at 114.2 eV and 113.3 eV originate from the tungstate and the bronze, respectively. The ratios of the signal intensities of these two compounds in the W 4f- and the Be 1s-spectra match. A new peak emerges in the spectrum of the valence shell (see Figure 7) at 2.6 eV, which is assigned to the beryllium compounds. The broad peak at 7.2 eV belonging to WO3 slightly looses intensity as WO3 is consumed.
At 573 K, the oxidation of beryllium is completed because no elemental Be is visible anymore. The signal contributions of WO3, WO3−x, and tungsten decrease. Out of these three compounds, the tungstates and tungsten dioxide are formed. The signal contribution of BeWO3 reaches its maximum, while the contributions of WO3 and WO3−x reach their minimum. Nearly half of the signal originates from the tungsten bronze. In the valence shell spectrum, the peak at 7.2 eV gets more shallow. The quantitative analysis reveals that the formation of the beryllium tungsten bronze BeWO3 from WO3 is by far the most prominent reaction here.
In the next temperature step, at 673 K, the signal of metallic tungsten decreases even more. The signal contributions of the oxidic tungsten compounds increase. The signal contribution of the beryllium tungstate increases, while the contribution of the tungsten bronze decreases. From the quantitative analysis, we learn that the tungsten bronze BeWO3 is oxidized and decomposes to BeO and WO3 while they partially react further to form beryllium tungstate BeWO4.
At 773 K, the signal contributions of the compounds WO2 and BeWO3 decrease, while all other contributions increase. Here, the oxidation and subsequent decomposition of the tungsten bronze is the most prominent reaction, but also the oxidation of tungsten compounds towards WO3 and BeWO4 takes place.
The contributions of metallic tungsten and BeWO3 vanish at a temperature of 873 K. The signal of WO3 reaches its maximum. The other peak areas nearly stay constant. The oxidation and decomposition of BeWO3 is further ongoing.
At 973 K all oxidic tungsten compounds decrease, while the signal contribution of BeWO4 nearly doubles from 24.9% to 46.5% and reaches its maximum. This coincides with the reaction analysis since the formation of the tungstate is the most prominent reaction. The only other two reactions are the oxidation of WO2 to WO3 at this temperature step.
At 1073 K, the substoichiometric oxides increase their fraction from 21.5% to 41.6%, while WO3 reaches its local minimum of 18.5%. The signal contribution of the tungstate drops by 6.6%. In the spectrum of the valence shell, a new peak evolves at 0.4 eV. This peak is assigned to the W 5d-Orbitals of tungsten [17]. In the spectrum of the pure substrate, this peak has a much lower intensity. A small part of the increase is caused by the higher order of the tungsten trioxide and the substoichiometric oxide, but most of the gain is assigned to the tungstate.
Tungsten dioxide completely vanishes at a temperature of 1173 K. The decomposition of BeWO4 proceeds. Accordingly, the contributions of the oxides WO3 and WO3−x increase.
In the final temperature step at 1273 K, the contribution of BeWO4 further shrinks. WO2 is formed again and has a share of the overall signal of 7.3%. Here, WO2 is only a decay intermediate, since, at 1273 K, it is not stable. The substoichiometric oxides slightly decrease while the contribution of WO3 slightly increases. In the spectrum of the valence shell, a new peak evolves at 2.8 eV, which is assigned to WO2.

4.2. Be on WO2

Analysis of the Spectra

In this section, the analysis of the spectra and reaction analysis of the tungsten-dioxide-based sample is described. The core level spectra of the W 4f-region are shown in Figure 9, the Be 1s-spectra in Figure 10, the O 1s–spectra in Figure 11, and the valence band spectra in Figure 12. All results of the deconvolution of the W 4f-spectra of the WO2-sample are compiled in Table 2. A graphical representation of the sample composition at each temperature step is shown in Figure 13. The spectra analysis is described in detail in the following section.
After coating of the substrate, six compounds can be identified. The peak pairs of the oxidic tungsten compounds are at 32.9 eV (WO2), 34.7 eV (WO3−x), and 35.8 eV (WO3). The peak at 31.4 eV originates from metallic tungsten. The beryllium tungsten bronze has a binding energy of 31.7 eV, and the tungstate has a binding energy of 36.6 eV (see Figure 9). The tungsten dioxide is not reduced by metallic beryllium. In the Be 1s-spectrum, four compounds can be identified: Beryllium at 111.8 eV; BeWO3 at 113.4 eV; BeWO4 at 114.2 eV; and beryllium oxide at 114.7 eV (see Figure 10). The peak relation of the bronze and the tungstate in the W 4f- and the Be 1s-spectrum are the same. In the valence shell region, the intensity of the broad peak between 6.8 eV and 9.2 eV decreases. The clearly defined peak at 0.8 eV assigned to WO2 loses intensity and becomes a shoulder of the peak at 2.1 eV (see Figure 12).
The oxidation of beryllium is finished at a temperature of 573 K. The signal contribution of the bronze increases and reaches its maximum. Accordingly, the peak in the Be 1s-spectrum shifts to lower binding energies. The signal contributions of all other compounds in the W 4f-spectrum decrease. This is what we also see in the reaction analysis: The most prominent reaction at this temperature step is the formation of BeWO3.
In the next temperature step, the contribution of WO2 increases by 9.8%. The contributions of WO3 and BeWO4 also increase. The peaks of all other species decrease. The bronze BeWO3 decomposes to BeO and WO2.
At 773 K, the contributions do not change significantly. A closer look with the quantitative model however reveals some reactivity at this step: The tungsten bronze dissociates to WO2 and BeO. W and WO3 is formed by disproportionation. BeO and WO3 form the tungstate.
In the next step, only the signal of elementary tungsten shows a decline. There is no change in the Be 1s and the valence shell spectrum. After analysis, we can identify some reactions: At these temperature steps, the tungsten bronze is synthesized via the tungstate as seen above. As there is no metallic beryllium to be seen in the Be 1s-spectrum, tungsten instead of beryllium acts as the reduction agent here.
At 973 K, the signal contribution of BeWO4 increases while the signal of BeWO3 decreases. The signal of metallic tungsten still decreases. The peaks of the oxidic compounds WO2 and WO3 rise. The contribution of the substoichiometric oxides stay constant. In the other spectra, no change is to be seen. At this step, the tungsten bronze essentially decays or is converted to tungstate.
The signal contribution of the tungstate reaches its maximum at 1073 K. The share of the signal contribution of the bronze decreases by 9.7%, and the share of the metallic tungsten by 8.7%. The signal contribution of WO3 decreases while the contributions of the other compounds increase. The shoulder in the valence shell spectrum at 0.8 eV becomes a discrete peak.
In the last temperature step, the complete WO2 and the beryllium tungsten compounds are decomposed. The metallic tungsten makes 85.3% of the W 4f-peak. This is also backed by the reaction analysis. The rest of the signal originates from WO3 and WO3−x. In the Be 1s-spectrum, there are also no beryllium tungsten compounds. The signal of the Be 1s-region consists of 49.8% beryllium oxide. The remaining Be 1s-signal is also assigned to beryllium oxide since there are no beryllium tungstate species anymore and no other compounds containing beryllium can be found in this sample.

5. Discussion

5.1. The System Beryllium-Oxygen-Tungsten

In the preceding sections, the reactions of the two investigated ternary systems are determined. To enable these reactions, beryllium and beryllium oxide have to diffuse into the tungsten oxide layer.
Tungsten trioxide and the substoichiometric tungsten oxide show a high diffusivity due to their structure. In these two compounds, tungsten atoms are coordinated octahedrally by oxygen atoms. These coordination octahedrons are linked by their corners. This structure has channels in all three spatial directions through the whole crystal. This structure makes the diffusion possible.
Another point is the structure of tungsten bronze. In this compound, the beryllium ions are embedded in these channels. So, the size of the channels is big enough for the beryllium ions.
On the contrary, tungsten dioxide is surprisingly inert. It shows no reaction until it dissociates at 1273 K. Tungsten dioxide has rutile structure. The rutile structure does not form any channels, so no diffusion into the bulk is possible. Therefore, reactions can only take place at the surface of the crystallites and are negligibly slow.
Nevertheless, in the survey spectra, diffusion can be seen. The diffusion can take place along the grain boundaries.
In the binary system beryllium–tungsten, the formation of alloys takes place [8,28,29]. Here, alloy formation cannot be observed in the ternary system Be-O-W. So, the ternary system shows a completely different chemistry.
However, experiments dedicated to reveal the influence of the different structures of WO2 and WO3 should be the subject of further investigations. X-ray diffraction (XRD) can help to understand the different structures. Experiments using XANES (X-ray absorption near edge structure) spectroscopy will elucidate the evolution and influence of the local geometry of the tungsten atoms [34,35,36,37,38].

5.2. The Model

As mentioned above (see Section 3), a homogeneous distribution of the chemically different species is assumed. The model cannot cope with diffusive processes. For the Be-coated tungsten trioxide specimen, an approximately homogeneous distribution can be assumed due to the high mobility of the Be-ions in a WO3-lattice. Additionally, the various chemical reactions in this specimen do their share for a homogenous mixing. Finally, the model delivers results for each temperature step, which are consistent with the observed spectra. For these reasons, the assumption of a homogeneous distribution in the oxide layer is permissible.
Even for the tungsten dioxide layer, a homogeneous distribution can be assumed. At the beginning, the oxide layer of this sample can be divided into two parts—on the one hand, there is the product WO2; on the other hand is the byproduct WO3. For the byproduct, the same is true as for the tungsten trioxide layer. However, the WO2 is nearly inert and does not participate in any chemical reaction until it finally dissociates at a temperature of 1273 K. It can be assumed that the distribution of WO2 at the beginning is homogeneous. Since there is actually no change in the tungsten dioxide, the distribution can be considered as static throughout the experiment until it dissociates.
The results achieved by this model are all chemically sensible, so this is also an indication for its validity.
One of the model’s weaknesses is that there is no proof of the uniqueness of the obtained solution. However, the number of results can be decreased significantly by using the information from the Be 1s-spectra and the survey-spectra.
The presented model can be improved by taking into account the different information depths throughout the experiment. For example, the information depth of a WO3 sample is higher than the information depth of a pure elemental tungsten. Thus, the information depth changes. The information depth is directly dependent on the inelastic mean free path of photoelectrons (IMFP), which is a function of the sample composition.
In conclusion, the model is well suited to gain chemical information from the XPS experiments and is a valuable tool for the investigation of highly complex systems and for identification of the predominant chemical reactions.

Funding

This research received no external funding.

Acknowledgments

All experiments are conducted at the Max-Planck-Institut für Plasmaphysik, Boltzmannstr. 2, 85748 Garching, Germany. This study is an excerpt of the master thesis “Investigation of the Ternary System Tungsten-Oxygen-Beryllium” [39] by Martin Köppen at the Technical University of Munich, Department of Chemistry, 85748 Garching, Germany. The author gratefully thanks Michael Fußeder and Florian Kost for the introduction to the XPS experimental setup and for their help in the laboratory; Christian Linsmeier for hosting me in his group; Ulrich Heiz for academic supervision; Stefan Elgeti for his help with the XRD measurements; and Maren Hellwig for proof-reading.

Conflicts of Interest

The author declares no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
r. t.room temperature
UHVultra-high vacuum
XPSx-ray photoelectron spectroscopy
XRDx-ray diffraction

References

  1. Patel, K.J.; Desai, M.S.; Panchal, C.J.; Deota, H.N.; Trivedi, U.B. All-Solid-Thin Film Electrochromic Devices Consisting of Layers ITO/NiO/ZrO2/WO3/ITO. J. Nano-Electron. Phys. 2013, 5, 02023. [Google Scholar]
  2. Granqvist, C.G. Electrochromic tungsten oxide films: Review of progress 1993–1998. Sol. Energ. Mater. Sol. Cells 2000, 60, 201. [Google Scholar] [CrossRef]
  3. Lee, W.; Fang, Y.; Ho, J.J.; Hsieh, W.; Ting, S.; Huang, D.; Ho, F.C. Effects of surface porosity on tungsten trioxide(WO3) films’ electrochromic performance. J. Electron. Mater. 2000, 29, 183–187. [Google Scholar] [CrossRef]
  4. Habazaki, H.; Hayashi, Y.; Konno, H. Characterization of electrodeposited WO3 films and its application to electrochemical wastewater treatment. Elektrochim. Acta 2002, 47, 4181. [Google Scholar] [CrossRef]
  5. Williams, D.E.; Aliwell, S.R.; Pratt, K.F.E.; Caruana, D.J.; Jones, R.L.; Cox, R.A.; Hansford, G.M.; Halsall, J. Modelling the response of a tungsten oxide semiconductor as a gas sensor for the measurement of ozone. Meas. Sci. Technol. 2002, 13, 923–931. [Google Scholar] [CrossRef]
  6. Cantalini, C.; Sun, H.T.; Faccio, M.; Pelino, M.; Santucci, S.; Lozzi, L.; Passacantando, M. NO2 sensitivity of WO3 thin film obtained by high vacuum thermal evaporation. Sens. Actuators B 1996, 31, 81. [Google Scholar] [CrossRef]
  7. Berak, J.M.; Sienko, M.J. Effect of oxygen-deficiency on electrical transport properties of tungsten trioxide crystals. J. Solid State Chem. 1970, 2, 109–133. [Google Scholar] [CrossRef]
  8. Wiltner, A. Untersuchungen zur Diffusion und Reaktion von Kohlenstoff auf Nickel- und Eisenoberflächen sowie von Beryllium auf Wolfram. Ph.D. Thesis, Universität Bayreuth, Bayreuth, Germany, 2005. [Google Scholar]
  9. Miller, S.; Berning, G.L.P.; Plank, H.; Roth, J. X-ray photoelectron spectroscopy study of TiC films grown by annealing thin Ti films on graphite. J. Vac. Sci. Technol. A 1997, 15, 2029–2034. [Google Scholar] [CrossRef]
  10. Miller, S. Untersuchung der chemischen Wechselwirkung von Titan und Kohlenstoff mittels Röntgen- Photoelektronen-Spektroskopie. Ph.D. Thesis, Universität Bayreuth, Bayreuth, Germany, 1997. [Google Scholar]
  11. Briggs, D.; Grant, J.T. Surface Analysis by Auger and X-Ray Photoelectron Spectroscopy; IM Publications and Chichester and SurfaceSpectra Limited: Manchester, UK, 2003. [Google Scholar]
  12. Briggs, D.; Seah, M.P. Practical Surface Analysis—Volume 1: Auger and X-Ray Photoelectron Spectroscopy; John Wiley & Sons: Chichester, UK, 1990. [Google Scholar]
  13. MultiPak Software Release Notes, version 6.1A; Physical Electronics, Inc.: EdenPrairie, MN, USA, 1999.
  14. Doniach, S.; Šunjić, M. Many-electron singularity in X-ray photoemission and X-ray line spectra from metals. J. Phys. C Solid State 1970, 3, 285–291. [Google Scholar] [CrossRef]
  15. Shirley, D.A. High-Resolution X-Ray Photoemission Spectrum of the Valence Bands of Gold. Phys. Rev. B 1972, 5, 4709–4714. [Google Scholar] [CrossRef]
  16. Mundy, J.N.; Rothman, S.J.; Lam, N.Q.; Hoff, H.A.; Nowicki, L.J. Self-diffusion in tungsten. Phys. Rev. B 1978, 18, 6566–6575. [Google Scholar] [CrossRef]
  17. Bussolotti, F.; Lozzi, L.; Passacantando, M.; La Rosa, S.; Santucci, S.; Ottaviano, L. Surface electronic properties of polycrystalline WO3 thin films: A study by core level and valence band photoemission. Surf. Sci. 2003, 538, 113–123. [Google Scholar] [CrossRef]
  18. Khyzhun, O. XPS, XES and XAS studies of the electronic structure of tungsten oxides. J. Alloys Compd. 2000, 305, 1–6. [Google Scholar] [CrossRef]
  19. Jeong, J.I.; Hong, J.H.; Moon, J.H.; Kang, J.S.; Fukuda, Y. X-ray photoemission studies of W 4f core levels of electrochromic HxWO3 films. J. Appl. Phys. 1996, 79, 9343–9348. [Google Scholar] [CrossRef]
  20. Katrib, A.; Hemming, F.; Wehrer, P.; Hilaire, L.; Maire, G. The multi-surface structure and catalytic properties of partially reduced WO3, WO2 and WC + O2 or W + O2 as characterized by XPS. J. Electron Spectrosc. Relat. Phenom. 1995, 76, 195–200. [Google Scholar] [CrossRef]
  21. Moulder, J.F.; Stickle, W.F.; Bomben, K.D. Handbook of X-Ray Photoelectron Spectroscopy; Perkin-Elmer Corporation: Waltham, MA, USA, 1992. [Google Scholar]
  22. Fleisch, T.H.; Zajac, G.W.; Schreiner, J.O.; Mains, G.J. An XPS study of the UV photoreduction of transition and noble metal oxides. Appl. Surf. Sci. 1986, 26, 488–497. [Google Scholar] [CrossRef]
  23. Salvati, L.; Makovsky, L.E.; Stencel, J.M.; Brown, F.R.; Hercules, D.M. Surface spectroscopic study of tungsten-alumina catalysts using x-ray photoelectron, ion scattering, and Raman spectroscopies. J. Phys. Chem. 1981, 85, 3700–3707. [Google Scholar] [CrossRef]
  24. Wagner, C.D. X-ray photoelectron spectroscopy with X-ray photons of higher energy. J. Vac. Sci. Technol. 1978, 15, 518–523. [Google Scholar] [CrossRef]
  25. Nefedov, V.I.; Salyn, Y.V. A comparison of different spectrometers and charge corrections used in X-ray photoelectron spectroscopy. J. Electron Spectrosc. Relat. Phenom. 1977, 10, 121–124. [Google Scholar] [CrossRef]
  26. Lopatin, S.I.; Semenov, G.A. Thermochemical Study of Gaseous Salts of Oxygen-containing Acids: VIII. Beryllium Molybdate and Tungstates. Russ. J. Gen. Chem. 2001, 71, 1220–1224. [Google Scholar] [CrossRef]
  27. Chupka, W.; Berkowitz, J.; Giese, C. Vaporization of Beryllium Oxide and Its Reaction with Tungsten. J. Chem. Phys. 1959, 30, 827–834. [Google Scholar] [CrossRef]
  28. Linsmeier, C.; Ertl, K.; Roth, J.; Wiltner, A.; Schmid, K.; Kost, F.; Bhattacharyya, S.; Baldwin, M.; Doerner, R. Binary beryllium-tungsten mixed materials. J. Nucl. Mater. 2007, 363–365, 1129–1137. [Google Scholar] [CrossRef]
  29. Wiltner, A.; Kost, F.; Lindig, S.; Linsmeier, C. Structural investigation of the Be-W intermetallic system. Phys. Scr. 2007, T128, 133–136. [Google Scholar] [CrossRef]
  30. Wiltner, A.; Linsmeier, C. Surface alloying of thin beryllium films on tungsten. New J. Phys. 2006, 8, 1–11. [Google Scholar] [CrossRef]
  31. Wiltner, A.; Linsmeier, C. Formation of a surface alloy in the beryllium-tungsten system. J. Nucl. Mater. 2005, 337–339, 951–955. [Google Scholar] [CrossRef]
  32. Goldstraß, P.; Klages, K.U.; Linsmeier, C. Surface reactions on beryllium after carbon vapour deposition and thermal treatment. J. Nucl. Mater. 2001, 290–293, 76–79. [Google Scholar] [CrossRef]
  33. Linsmeier, C.; Wanner, J. Reactions of oxygen atoms and molecules with Au, Be, and W surfaces. Surf. Sci. 2000, 454–456, 305–309. [Google Scholar] [CrossRef]
  34. Wu, Y.; Fan, L.; Huang, W.; Chen, S.; Chen, S.; Chen, F.; Zou, C.; Wu, Z. Depressed transition temperature of WxV1-xO2: Mechanistic insights from the X-ray absorption fine structure (XAFS) spectroscopy. Phys. Chem. Chem. Phys. 2014, 16, 17705. [Google Scholar] [CrossRef]
  35. Stizza, S.; Mancini, G.; Benfatto, M.; Natoli, C.; Garcia, J.; Bianconi, A. Structure of oriented V2O5 gel studied by polarized x-ray-absorption spectroscopy at the vanadium K edge. Phys. Rev. B 1989, 40, 12229. [Google Scholar] [CrossRef]
  36. Bianconi, A.; Giovannelli, A.; Dovoli, I.; Stizza, S.; Palladino, L.; Gzowski, O.; Murawski, L. Xanes (X-ray absorption near edge structure) of V in vanadium-iron phosphate glasses. Solid State Commun. 1982, 42, 547–551. [Google Scholar] [CrossRef]
  37. Bianconi, A. Multiplet splitting of final-state configurations in x-ray-absorption spectrum of metal VO2: Effect of core-hole-screening, electron correlation, and metal-insulator transition. Phys. Rev. B 1982, 26, 274. [Google Scholar] [CrossRef]
  38. Longa, S.; Soldatov, A.; Pompa, M.; Bianconi, A. Atomic and electronic structure probed by X-ray absorption spectroscopy: Full multiple scattering analysis with the G4XANES package. Comput. Mater. Sci. 1995, 4, 199–210. [Google Scholar] [CrossRef]
  39. Köppen, M. Untersuchung des ternären Systems Wolfram-Sauerstoff-Beryllium/Investigation of the Ternary System Tungsten-Oxygen-Beryllium (in German). Master’s Thesis, Technical University of Munich, Munich, Germany, 2008. [Google Scholar] [CrossRef]

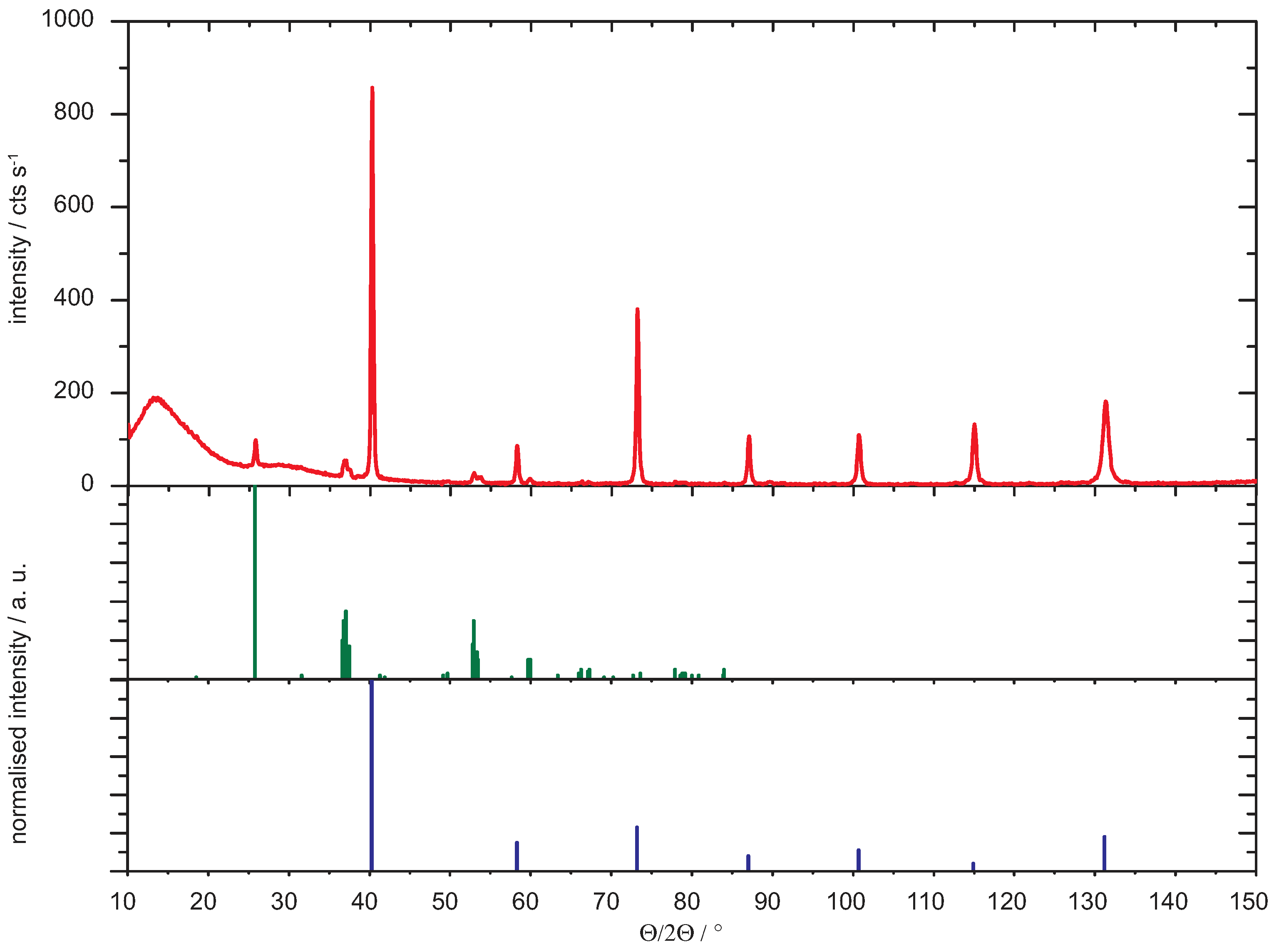

Figure 1. X-ray diffractogram of the synthesized WO2-substrate: The diffractogram of the substrate (red) is compared to the reference data of the PDF-database of WO2 (green) and W (blue).
Figure 1. X-ray diffractogram of the synthesized WO2-substrate: The diffractogram of the substrate (red) is compared to the reference data of the PDF-database of WO2 (green) and W (blue).
Condensedmatter 04 00082 g001

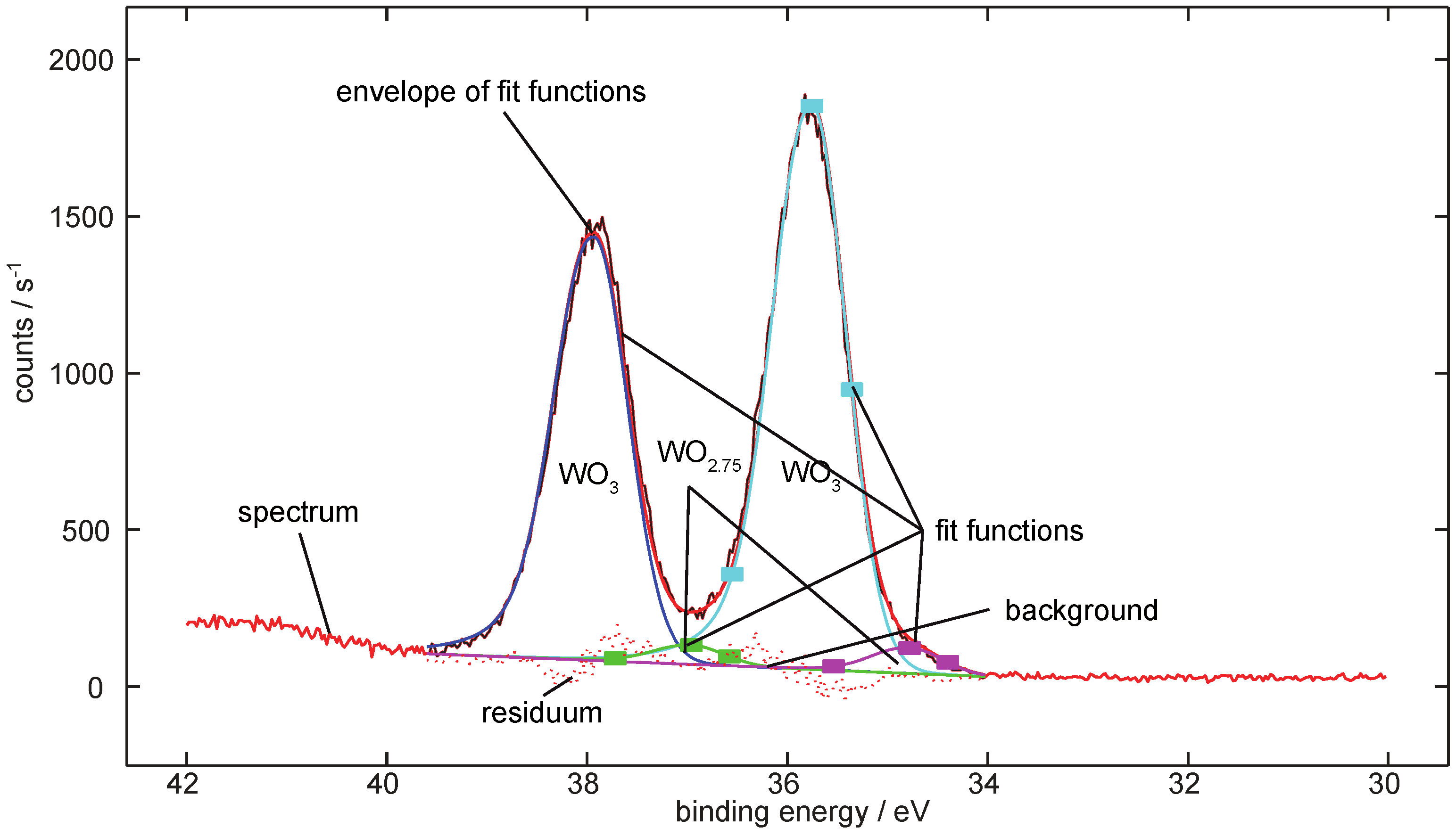

Figure 2. A simple example of a spectral deconvolution of a W 4f-spectrum of tungsten trioxide with its surface oxide WO2.75.
Figure 2. A simple example of a spectral deconvolution of a W 4f-spectrum of tungsten trioxide with its surface oxide WO2.75.
Condensedmatter 04 00082 g002

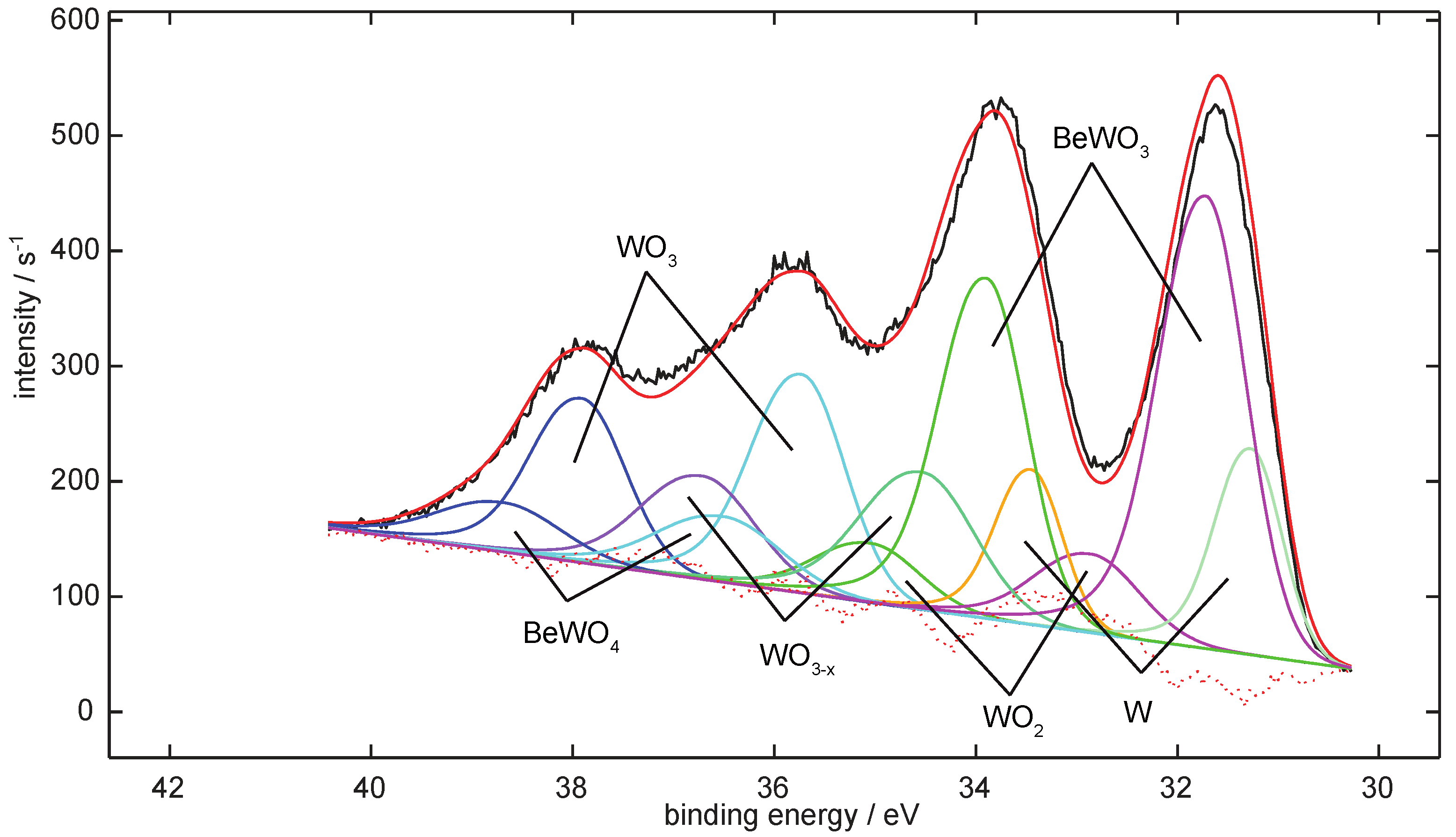

Figure 3. A more complex example of the spectral deconvolution procedure. This is the W 4f-spectrum of the tungsten trioxide sample after being coated with beryllium.
Figure 3. A more complex example of the spectral deconvolution procedure. This is the W 4f-spectrum of the tungsten trioxide sample after being coated with beryllium.
Condensedmatter 04 00082 g003

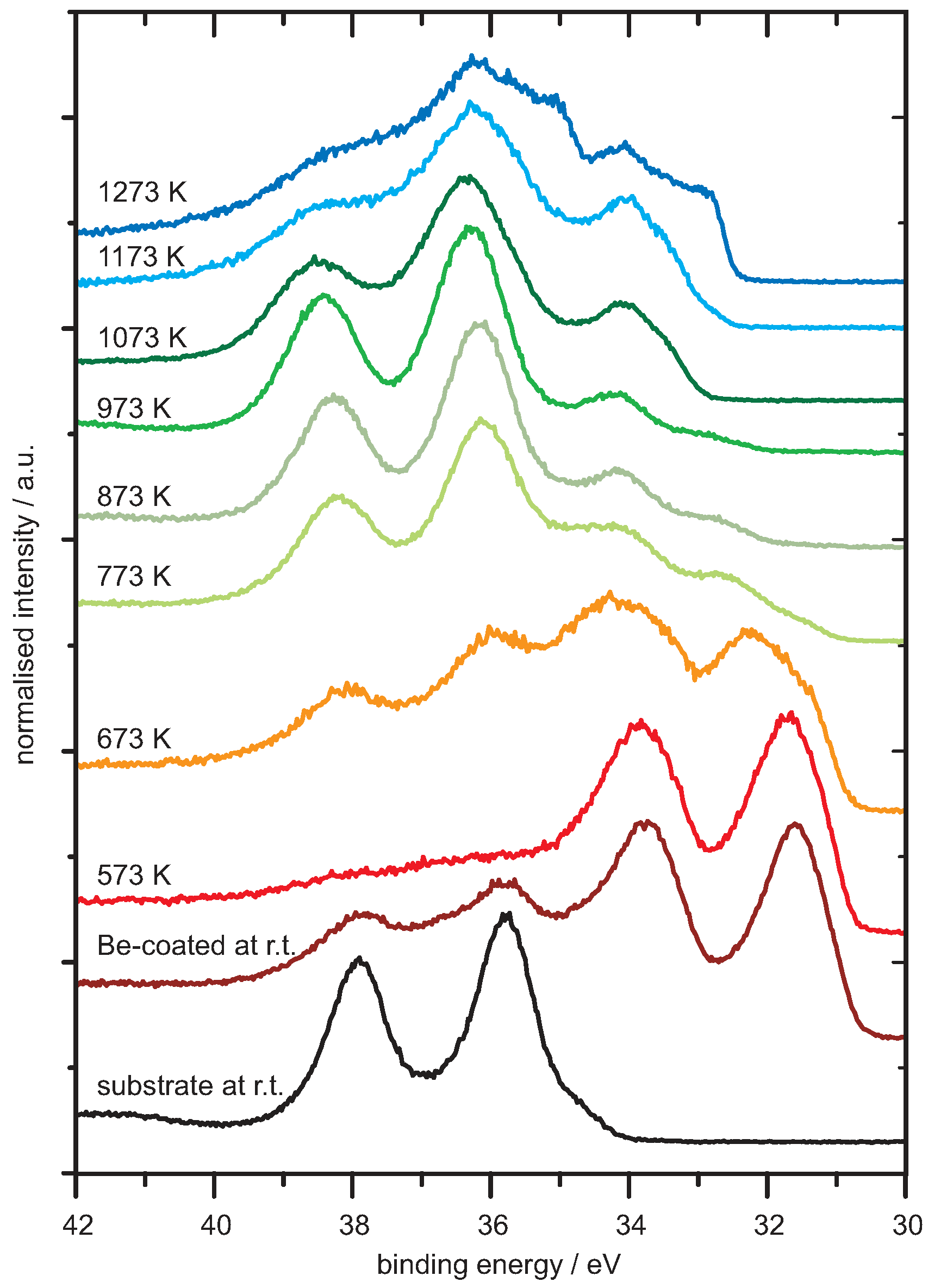

Figure 4. W 4f-spectra of the coated tungsten trioxide sample.
Figure 4. W 4f-spectra of the coated tungsten trioxide sample.
Condensedmatter 04 00082 g004

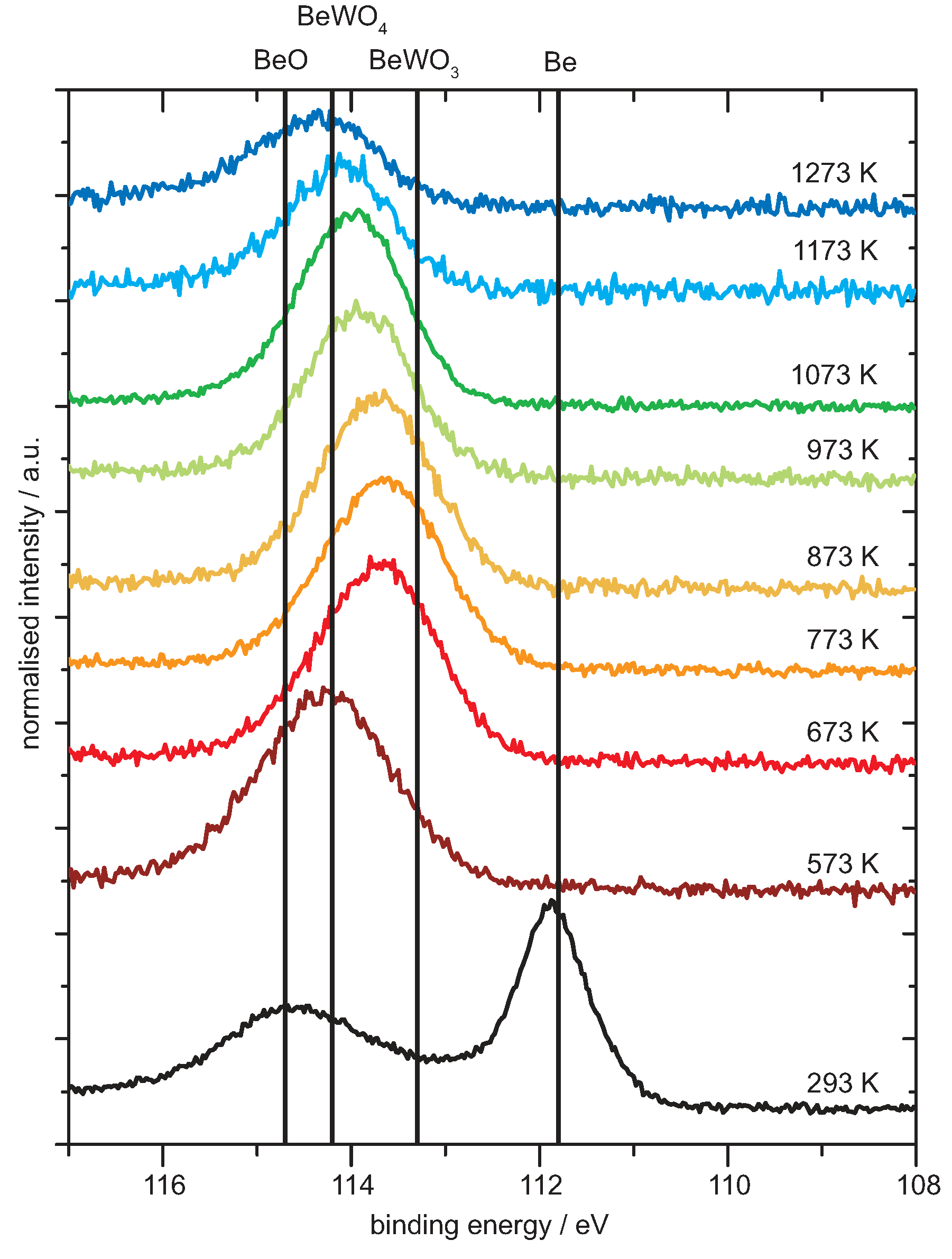

Figure 5. Be 1s-spectra of the coated tungsten trioxide sample.
Figure 5. Be 1s-spectra of the coated tungsten trioxide sample.
Condensedmatter 04 00082 g005

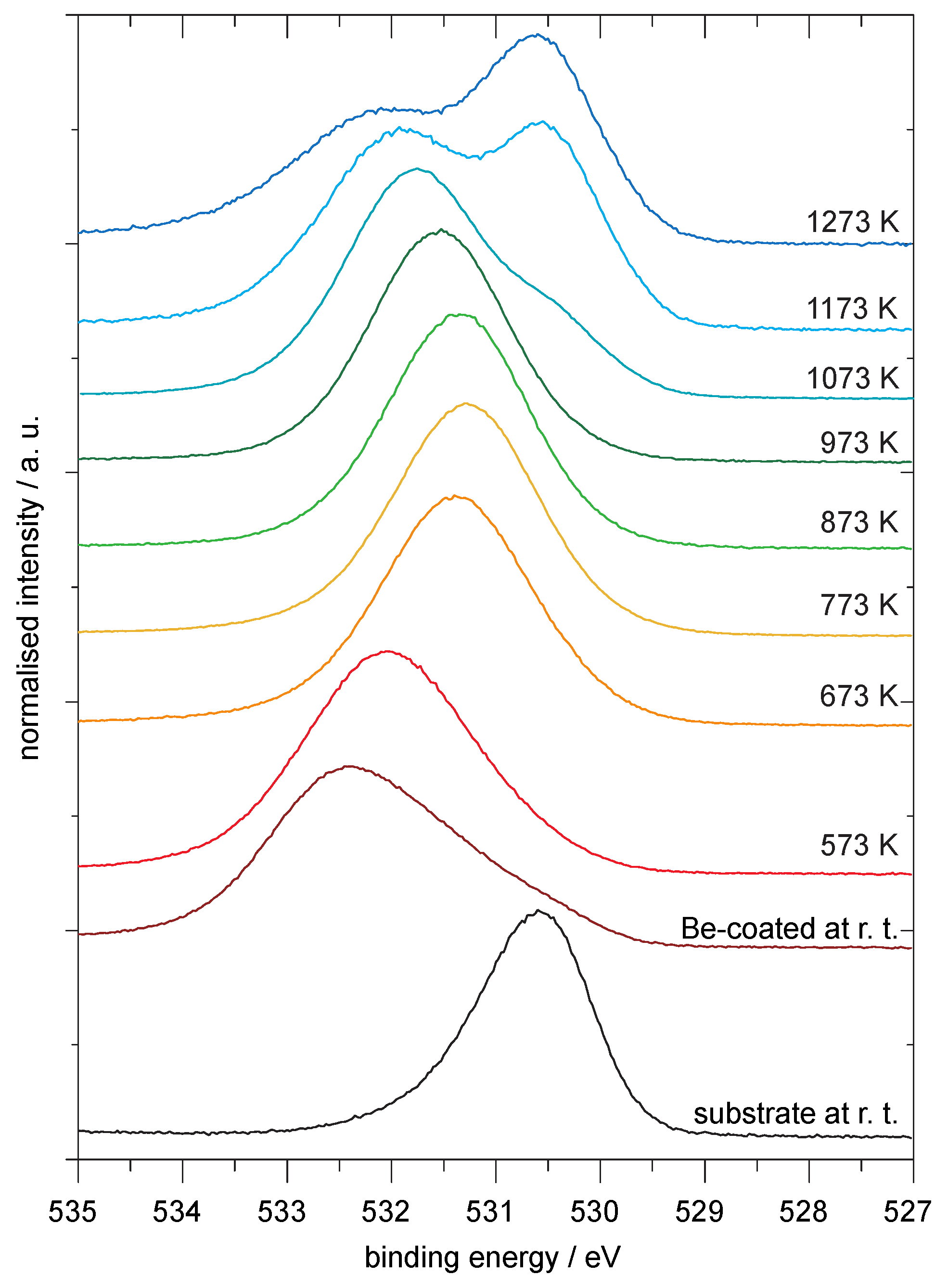

Figure 6. O 1s-spectra of the coated tungsten trioxide sample.
Figure 6. O 1s-spectra of the coated tungsten trioxide sample.
Condensedmatter 04 00082 g006

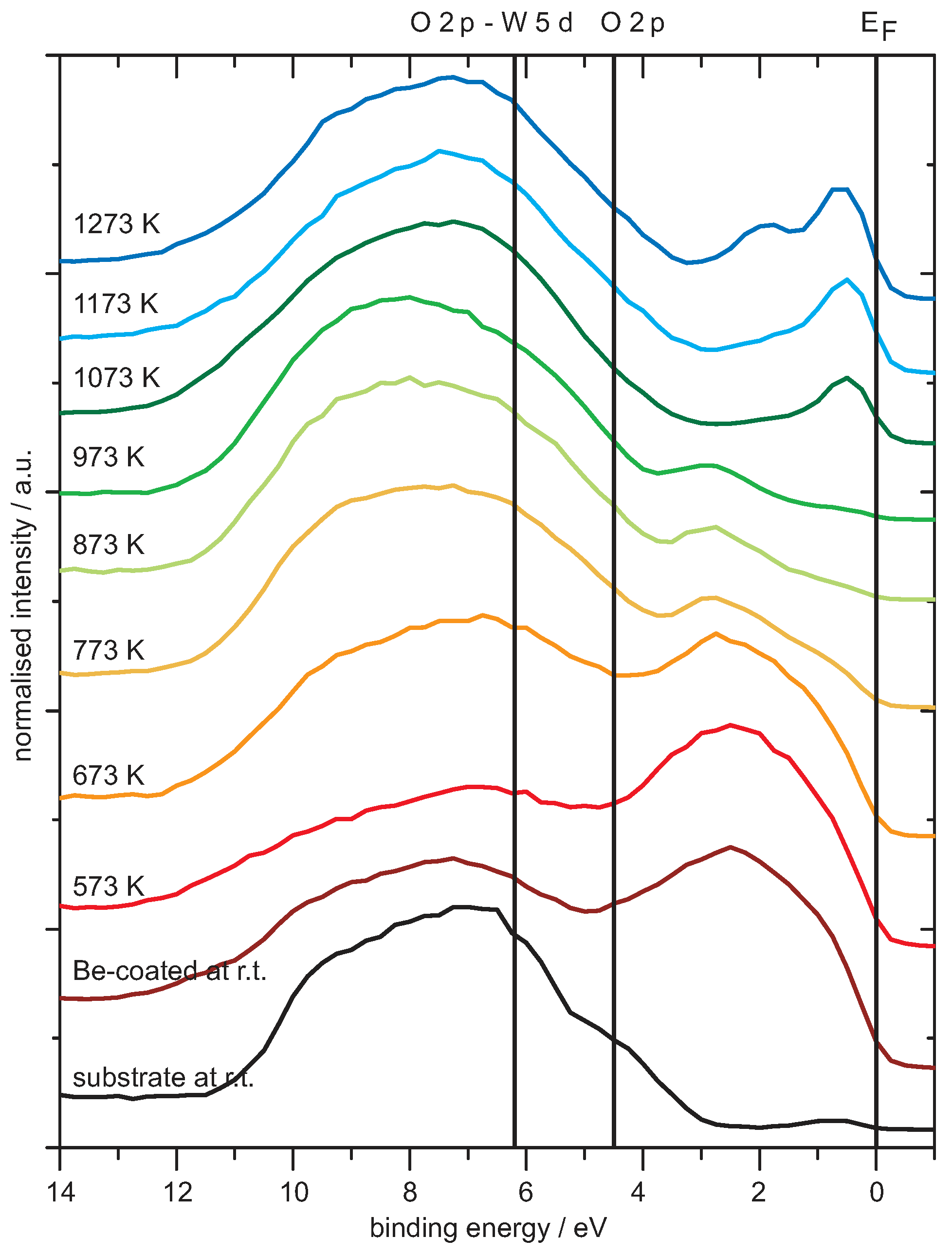

Figure 7. Valence band spectra of the coated tungsten trioxide sample.
Figure 7. Valence band spectra of the coated tungsten trioxide sample.
Condensedmatter 04 00082 g007
Figure 8. Composition of the Be-coated tungsten trioxide sample.
Figure 8. Composition of the Be-coated tungsten trioxide sample.
Condensedmatter 04 00082 g008

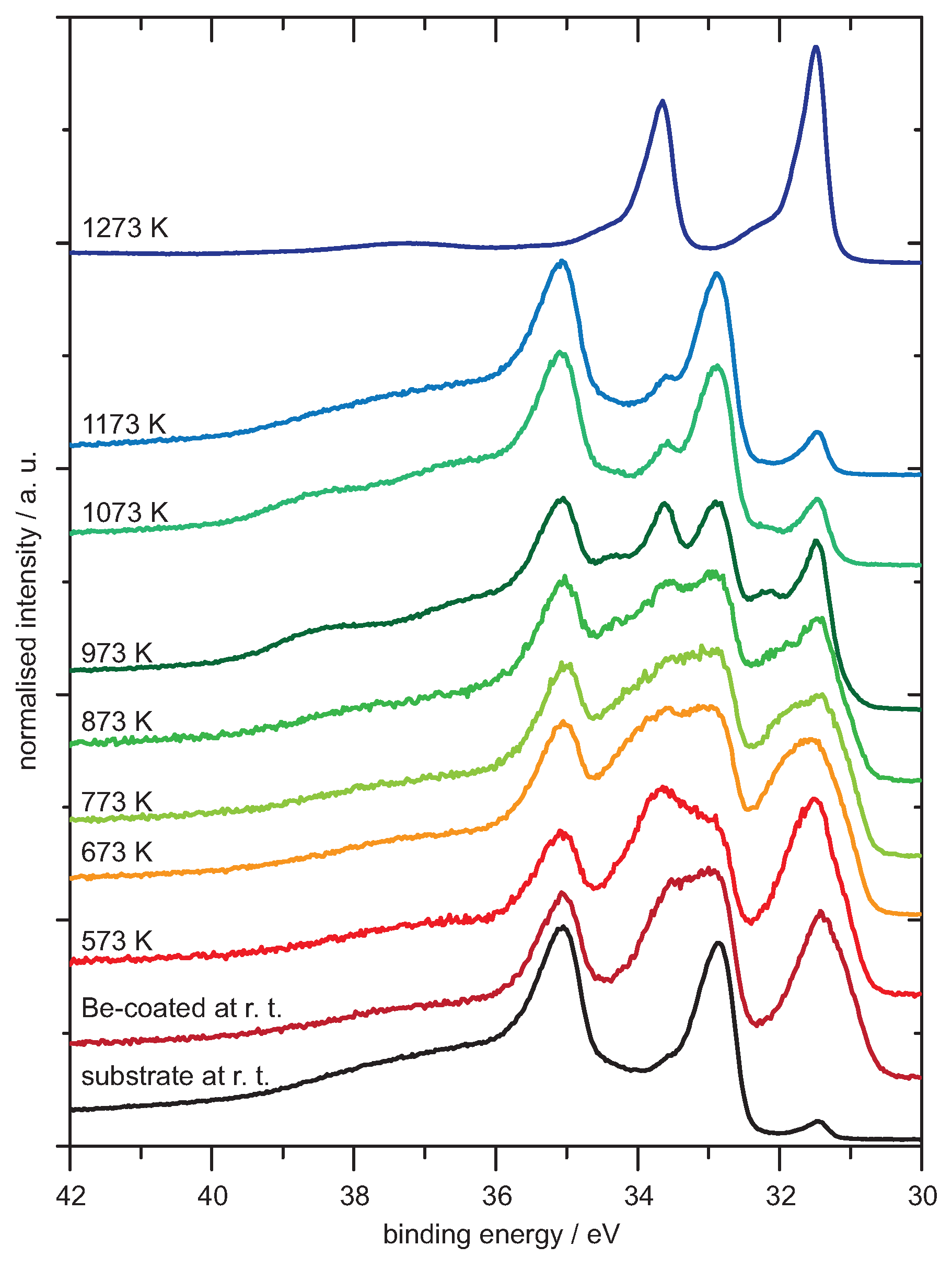

Figure 9. W 4f-spectra of the coated tungsten dioxide sample.
Figure 9. W 4f-spectra of the coated tungsten dioxide sample.
Condensedmatter 04 00082 g009

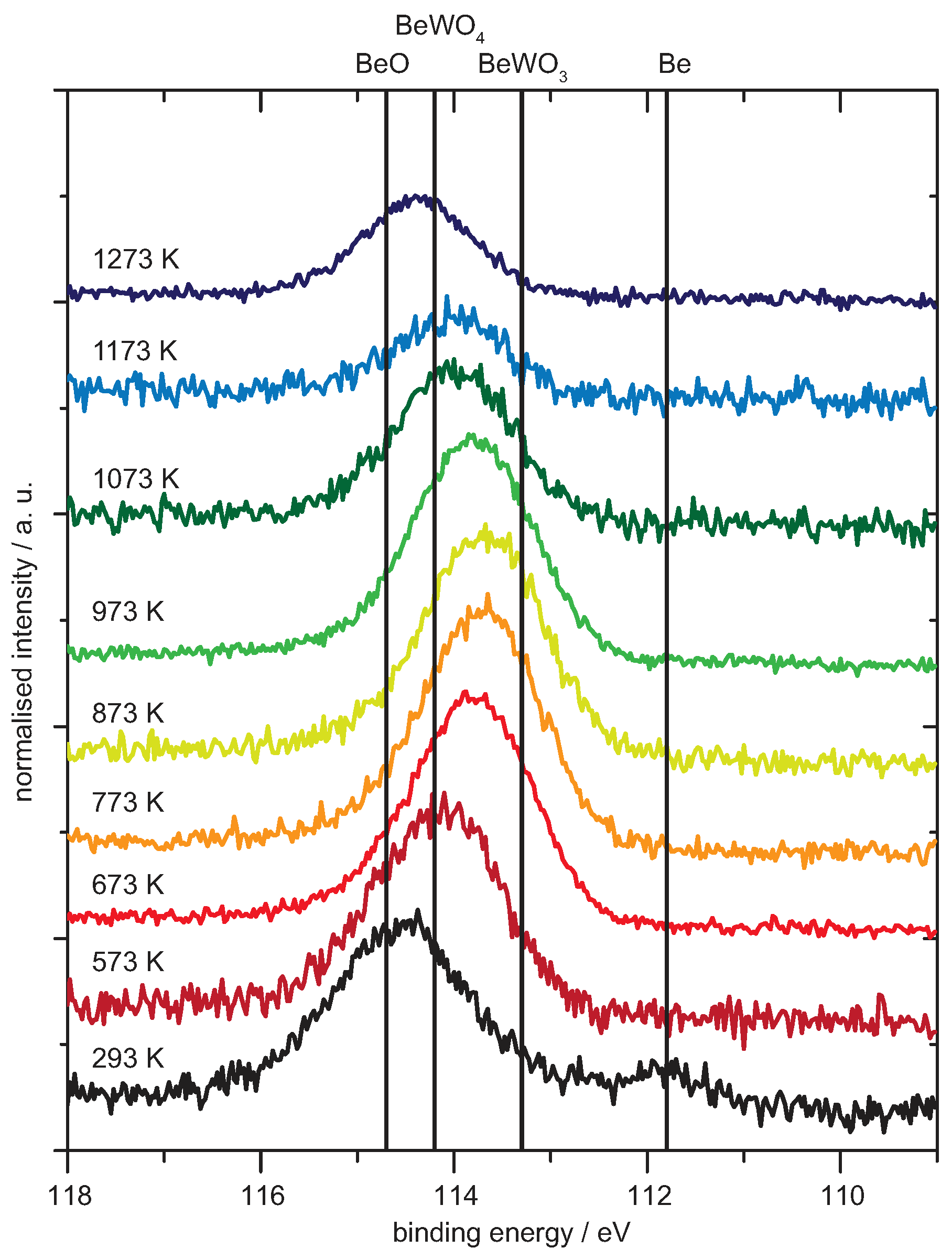

Figure 10. Be 1s-spectra of the coated tungsten dioxide sample.
Figure 10. Be 1s-spectra of the coated tungsten dioxide sample.
Condensedmatter 04 00082 g010

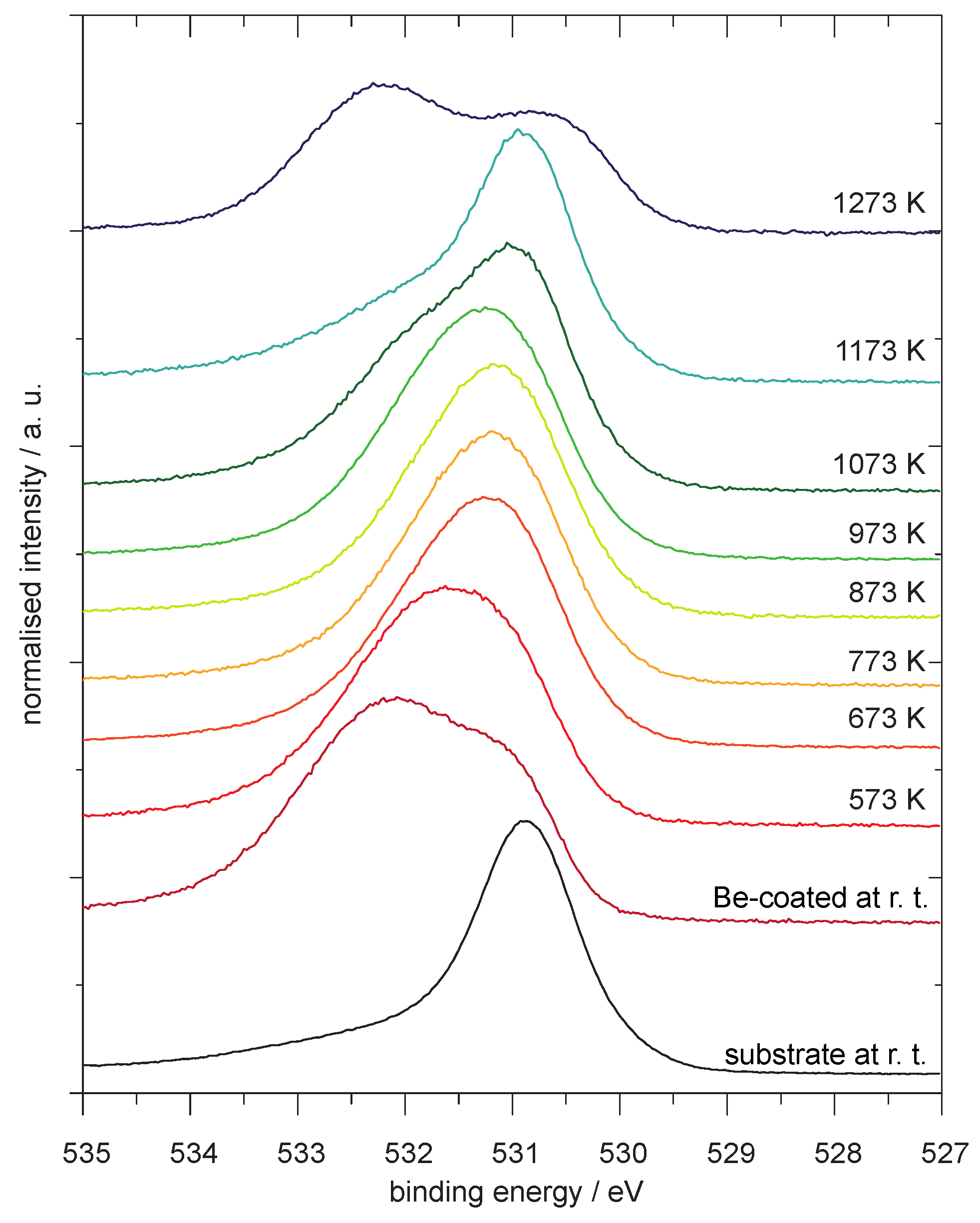

Figure 11. O 1s-spectra of the coated tungsten dioxide sample.
Figure 11. O 1s-spectra of the coated tungsten dioxide sample.
Condensedmatter 04 00082 g011

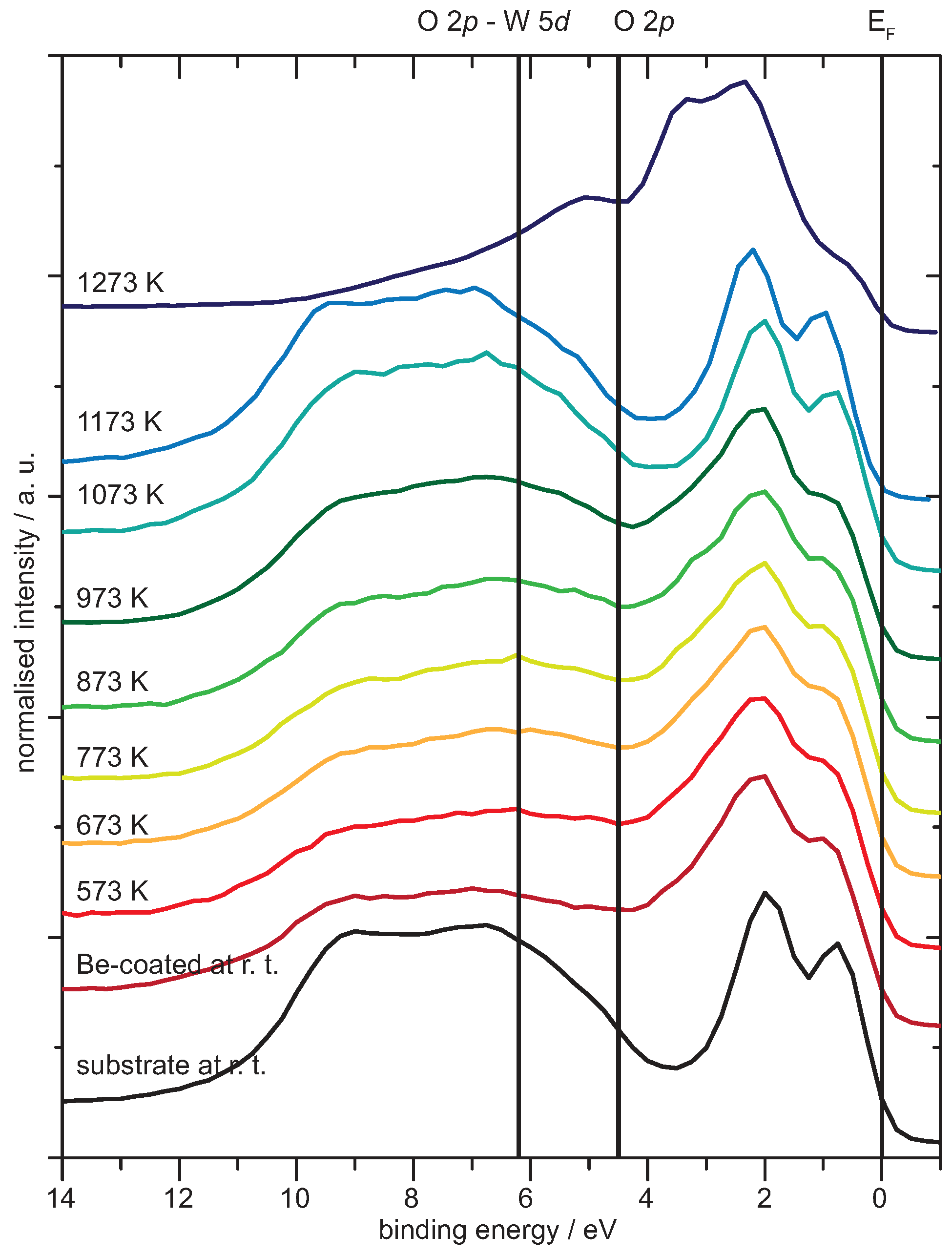

Figure 12. Valence band spectra of the coated tungsten dioxide sample.
Figure 12. Valence band spectra of the coated tungsten dioxide sample.
Condensedmatter 04 00082 g012

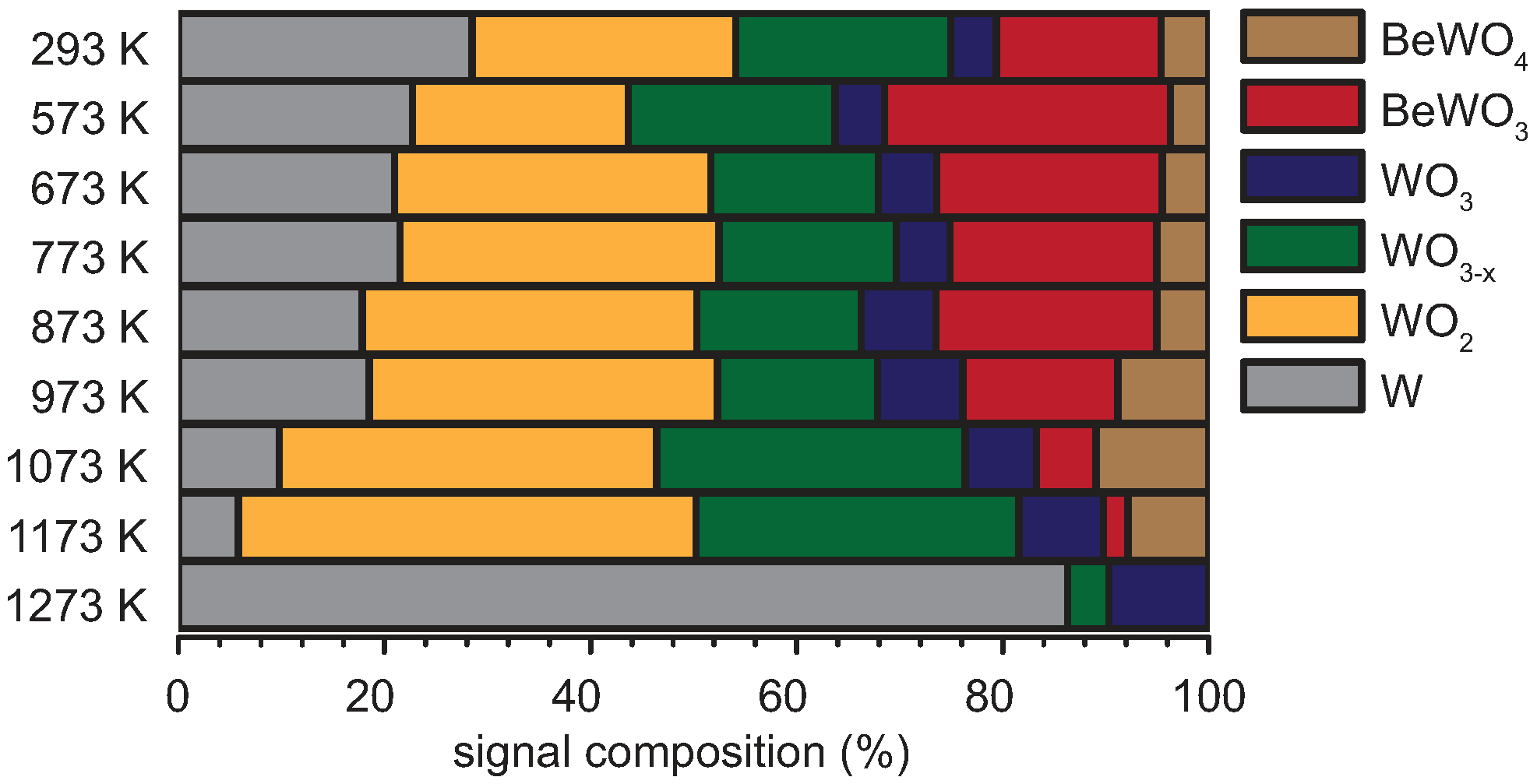

Figure 13. Composition of the Be-coated tungsten dioxide sample.
Figure 13. Composition of the Be-coated tungsten dioxide sample.
Condensedmatter 04 00082 g013
Table 1. Signal contributions obtained from the spectral deconvolution of the W 4f-spectra for the Be-coated tungsten trioxide specimen at the different temperature T steps.
Table 1. Signal contributions obtained from the spectral deconvolution of the W 4f-spectra for the Be-coated tungsten trioxide specimen at the different temperature T steps.
T [K]Signal Contributions of the W 4f-Region [%]
WWO2WO3−xWO3BeWO3BeWO4
29313.07.814.819.637.27.6
57311.613.210.57.547.210.0
6739.414.715.315.030.615.1
7732.69.422.330.811.922.9
8730.09.823.445.30.021.6
9730.04.720.228.60.046.5
10730.00.341.618.30.039.9
11730.00.043.334.30.022.4
12730.07.340.835.20.016.7
Table 2. Signal contributions obtained from the spectral deconvolution of the W 4f-spectra for the Be-coated tungsten dioxide specimen at the different temperature steps.
Table 2. Signal contributions obtained from the spectral deconvolution of the W 4f-spectra for the Be-coated tungsten dioxide specimen at the different temperature steps.
Temperature [K]Signal Contributions of the W 4f-Region [%]
WWO2WO3−xWO3BeWO3BeWO4
29328.525.620.84.516.04.7
57322.721.020.14.827.83.7
67321.030.716.25.721.94.5
77321.531.017.25.220.15.0
87317.832.516.07.221.55.0
97318.533.815.58.315.18.8
10739.836.729.96.95.810.9
11735.844.431.48.22.47.8
127385.30.04.09.70.00.0

© 2019 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
