Direct Visualization of Spatial Inhomogeneity of Spin Stripes Order in La_1.72Sr_0.28NiO₄

Abstract

In several strongly correlated electron systems, the short range ordering of defects, charge and local lattice distortions are found to show complex inhomogeneous spatial distributions. There is growing evidence that such inhomogeneity plays a fundamental role in unique functionality of quantum complex materials. La_1.72Sr_0.28NiO₄ is a prototypical strongly correlated perovskite showing spin stripes order. In this work we present the spatial distribution of the spin order inhomogeneity by applying micro X-ray diffraction to La_1.72Sr_0.28NiO₄, mapping the spin-density-wave order below the 120 K onset temperature. We find that the spin-density-wave order shows the formation of nanoscale puddles with large spatial fluctuations. The nano-puddle density changes on the microscopic scale forming a multiscale phase separation extending from nanoscale to micron scale with scale-free distribution. Indeed spin-density-wave striped puddles are disconnected by spatial regions with negligible spin-density-wave order. The present work highlights the complex spatial nanoscale phase separation of spin stripes in nickelate perovskites and opens new perspectives of local spin order control by strain.

1. Introduction

The complex organization of different orders seems to have a fundamental role in the mechanism governing the emergence of unique functionalities in quantum materials [1]. In cuprate perovskites, the stripes phases have been the object of interest for decades [1,2,3], while in this last decade new scanning X-ray diffraction methods have been developed due to the ability to focus X-ray synchrotron radiation to micron and sub-micron spots. These methods have made it possible to obtain visualization of spatial topological inhomogeneity of charge density wave order in doped cuprate perovskites [4,5]. Short range generalized Wigner charge density waves have been found to be spatially inhomogeneous with the formation of “striped charge puddles” anti-correlated with competing puddles of “striped dopants rich clusters” [4,5,6]. These experimental results have opened a new era in the long-standing research of complexity in doped strongly correlated perovskites, since they have falsified popular stripes theories which for decades have assumed a homogeneous spatial distribution of spin stripes and charge-stripes. In this work we focus on the spin stripes phase in doped nickelate perovskites. In order to determine the role that the spatial distribution of ordered phases in cuprates plays for the superconductivity, it is instructive to study a non-superconducting reference system like the layered nickelates [7]. Keeping this idea in mind, we push forward the investigation of the spatial distribution of spin-density-wave stripes ordering (SDW-stripes) in La_2-xSr_xNiO₄ nickelates.

It is well known that spin stripes appear in layered nickelates [7] in the doping interval 0.15 ≤ x ≤ 0.5 [7]. In the doping range 0.25 < x < 0.3 magnetic stripes and charge stripes can be easily investigated separately. In La_2-xSr_xNiO₄ the spin-order scattering exhibits peaks in the k-space for (1−ε; 0; l) with odd and even l, whereas charge-order scattering always peaks at (2ε; 0; l) with odd l, [7,8] where the notation refers to the commonly used orthorhombic unit cell. We have investigated a nominal single crystal La_1.72Sr_0.28NiO₄ to get direct visualization of the inhomogeneity of spin stripes incommensurate order in the bulk structure from nano to micro scale.

A large number of studies on the spin stripe order in La_2-xSr_xNiO₄ were performed by traditional neutron scattering [9,10,11,12,13] probing the spin ordering with low energy neutrons, which have been confirmed by muon spectroscopy [14]. Several authors have focused on both magnetic and charge order [15,16,17,18,19,20] phenomena in nickelates. Resonant elastic X-ray scattering REXS [16,17,18] has been used to detect spin order directly via magnetic contrast but it has no spatial resolution. Electron diffraction and hard X-ray diffraction (XRD), or non-resonant-X-ray-magnetic-scattering (NXMS) of nickelates and related magnetic materials [20,21,22,23,24,25] have been used to probe the associated tiny lattice distortions related with polaron ordering or generalized Wigner CDW and magneto-elastic strain effects [26,27,28]. These last methods could have spatial resolution, therefore, they open new perspectives to unveil open puzzles on the complexity of the nature of stripes in La_2-xSr_xNiO₄ nickelates. These experiments are needed to test theories i) proposing spin stripes in strongly correlated systems including orbital and polaronic degree of freedom [26,27,28] and ii) the theory predicting a frustrated phase separation controlled by strain, in a strongly correlated multiband system tuned to a Lifshitz transition, in the frame of the multiband Hubbard model [29].

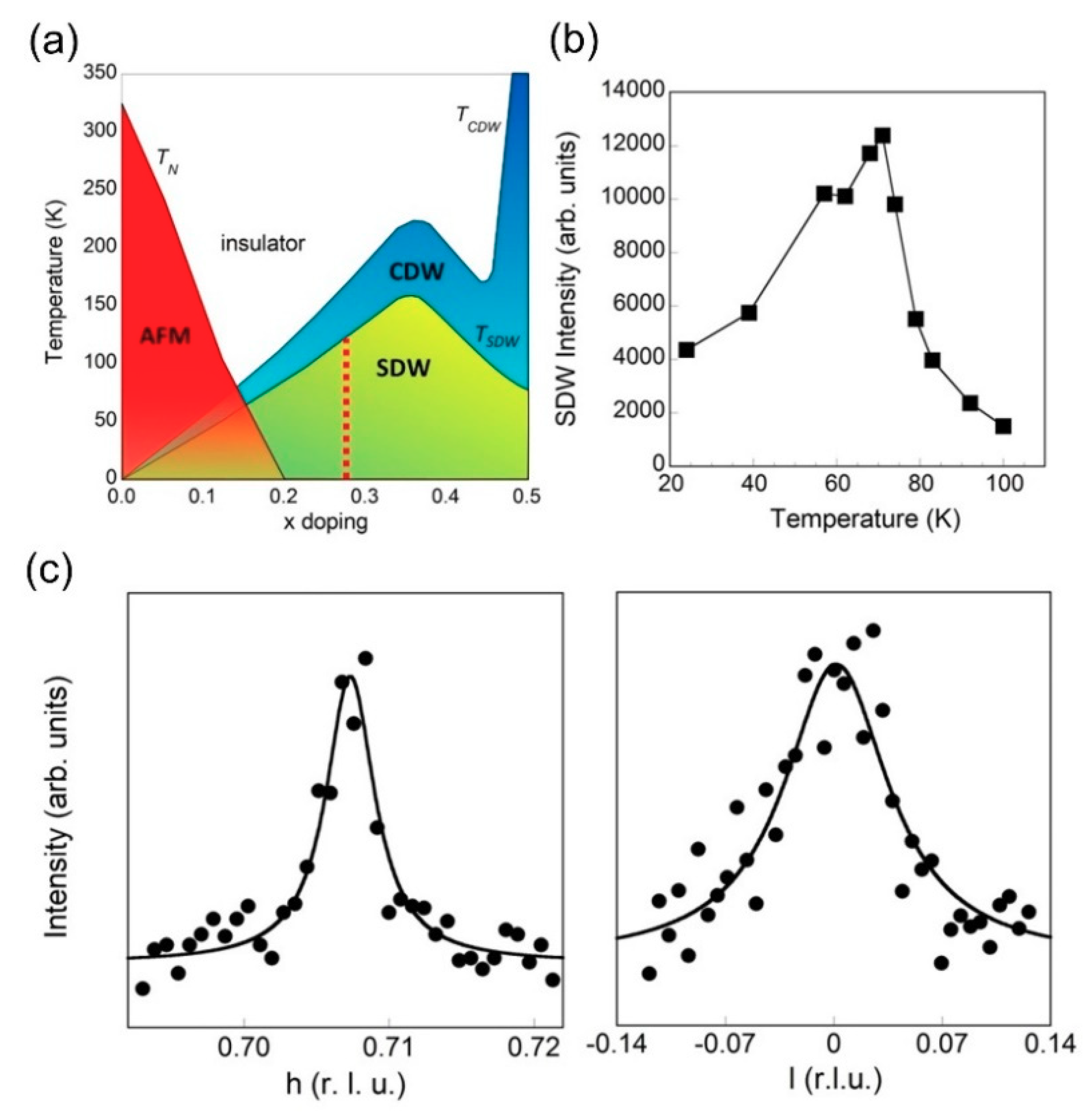

The accumulated data on the La_2-xSr_xNiO₄ system [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21] enable us to present a temperature doping phase diagram of this nickelate system in panel (a) of Figure 1. The red area indicates the antiferromagnetic order (AFM) dominating the lower Sr-doping x given by the percentage of Sr for La substitutions in the La₂O₂ plane, which is assumed to give the number of injected doped electronic holes per Ni atom in the NiO₂ plane [7]. The blue and the green areas correspond to the observation of charge-density-wave order (CDW-stripes) and magnetic spin-density-wave order (SDW-stripes), respectively. The SDW-stripes modulation wave-vector direction for 0.15 < x < 0.5 extends in real space diagonally to the Ni-O bond direction along the b-direction of the orthorhombic unit cell. For samples with tetragonal crystal symmetry, as the one studied here, the stripe order itself breaks the rotational symmetry of the ab-plane and therefore spin stripes were assumed to show two different orientations with a 90-degree rotation around the c-axis with equal probability. The spin stripes lead to superstructure peaks either in the neutron diffraction pattern [9,10,11,12,13] and X-ray diffraction [16,17,18,19,20,21]. Those at the lowest momentum transfer occur at wave-vectors (1−ε, 0, 0) in the orthorhombic lattice for SDW-stripes order, where ε is a temperature dependent incommensurability value, which is well separated from different charge stripe wave-vectors in the k-space.

While neutron scattering has provided for decades k-space information on spin ordering averaged over large crystal area, the present X-ray investigation reported here provides spin ordering information on illuminated spots in micron sized samples using a focused X-ray synchrotron radiation beam which allows us for the first time to detect spatial inhomogeneous spin order in a nickelate single perovskite micro-crystal. The results show large spatial fluctuations of the spin order with fractal structure indicated by power-law distribution of the spin order parameter. The particular fractal distribution is assigned to quantum criticality near an electronic topological transition or Lifshitz transition as predicted by multiband Hubbard model for strongly correlated two band systems where the strain controls the energy shift between the two bands [29].

2. Materials and Methods

Single-crystalline La_1.72Sr_0.28NiO₄ was grown by floating zone technique. The seed and feed rods were prepared from polycrystalline powder obtained by solid state reaction of La₂O₃, SrCO₃ and NiO with an excess of NiO. The reaction was performed at 1200 °C for 20 h with intermediate grinding. The rods were densified at 1500 °C for 5 h in air.

Micro X-ray diffraction measurements of SDW-stripes order in the sample were carried out at beamline P10 of PETRA III (DESY, Hamburg, Germany) using an energy of 8 KeV. The scattering signal was detected at a sample to detector distance of 5 m using the large horizontal scattering set-up of beamline P10 including an evacuated flight path. A PILATUS 300K detector (DECTRIS, Baden-Daettwil, Switzerland) was used to record the X-rays scattered by the sample. By employing a focused beam with a diameter of about 1 μm and translating the sample, we mapped the spatial distribution of the (1−ε,0,0) peak intensity over different areas of about 40 × 80 μm² in steps of 1 μm in both directions resulting in 3321 diffraction images. The scanning was performed translating the sample along the 80 horizontal lines. The exposure time for each X ray diffraction frame was of 5 s providing a X ray flux on each spot on the sample of about 10⁹ count per second (cps). The time needed to collected a map was around 5 hours.

3. Results and Discussion

Scanning micro X-ray Diffraction (SµXRD) has been demonstrated to be a powerful tool in unraveling material inhomogeneity in superconductors at the micro and nanoscale, and has been successfully applied to the cuprate systems doped by oxygen interstitials: HgBa₂CuO_6+y, known as Hg1201 [4], La₂CuO_4+y, known as La124, [5,6] Bi₂Sr₂CaCu₂O_8+y, known as Bi2212 [30], YBa₂Cu₃O_6+y known as Y123 [31,32,33], to iron-based superconductors [34] and to cobaltates materials opening a new era for our knowledge of quantum complex materials at nanoscale [35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79]. Here we have investigated a single crystal La_2-xSr_xNiO₄ with Sr doping x = 0.28 with the spin modulation wave-vector ε = 0.29 consistent with the empirical relation for spin stripes wave-vector ε close to the percentage of the number of holes x per Ni sites. The red dotted line in Figure 1a represents the temperature range where the sample of this work has been studied.

In order to probe the spatial evolution of the SDW-stripes order in real space we used a micron-size X-ray beam probing the local SDW-stripes via the corresponding intensity of the magnetic so-called SDW-stripe superlattice peak at (0.71,0) in the orthorhombic (h,k) plane which is well separated from the so-called CDW-stripe superlattice reflection at (0.56,0).

The temperature variation of the intensity of the SDW-stripes reflection peak as a function of temperature is shown in panel (b) of Figure 1. The SDW-stripes peak is identifiable for temperatures below T_SDW = 120 K in agreement with previous works [7]. On further cooling, its integrated intensity increases, reaches a maximum around T* = 65 K, followed by an intensity reduction when the temperature is further decreased as shown in Figure 1b which confirms the previous X-ray scattering results [16]. The determined temperature dependence of the SDW-stripes intensity is similar to the one reported for nickelates of different doping levels [16]. Thus, we can assume the observed behavior to be a general characteristic for SDW-stripes order. This behavior resembles what has been predicted for incommensurate cuprate stripes to occur at low temperatures, when a freezing to the lattice potential disturbs the long-range order [36,37,38].

The XRD diffraction peak profile of SDW-stripes shows a large anisotropy in the k-space shown in panel (c) of Figure 1. Line cuts through the SDW-stripes peak along the h-direction and l-direction, are presented in the left and right panel of Figure 1c, respectively. The solid lines correspond to results of Lorentzian profiles fitted to the data. The width of the two Lorentzian profiles gives the correlation lengths in the NiO₂ plane direction much larger than in the out-of-plane direction reflecting the quasi two-dimensionality of the magnetic interactions [7,35] in the NiO₂ atomic layer modules. In fact, this system can be described as a hetero-structure at atomic limit made of weakly interacting atomic NiO₂ layers separated by La_2-xSr_xO₂ spacing layers. The NiO₂ layers have a sizeable compressive strain tuned by Sr doping, because of the lattice mismatch between the antiferromagnetic striped layers and the spacer layers which is a key variable controlling spin and charge ordering [51,52].

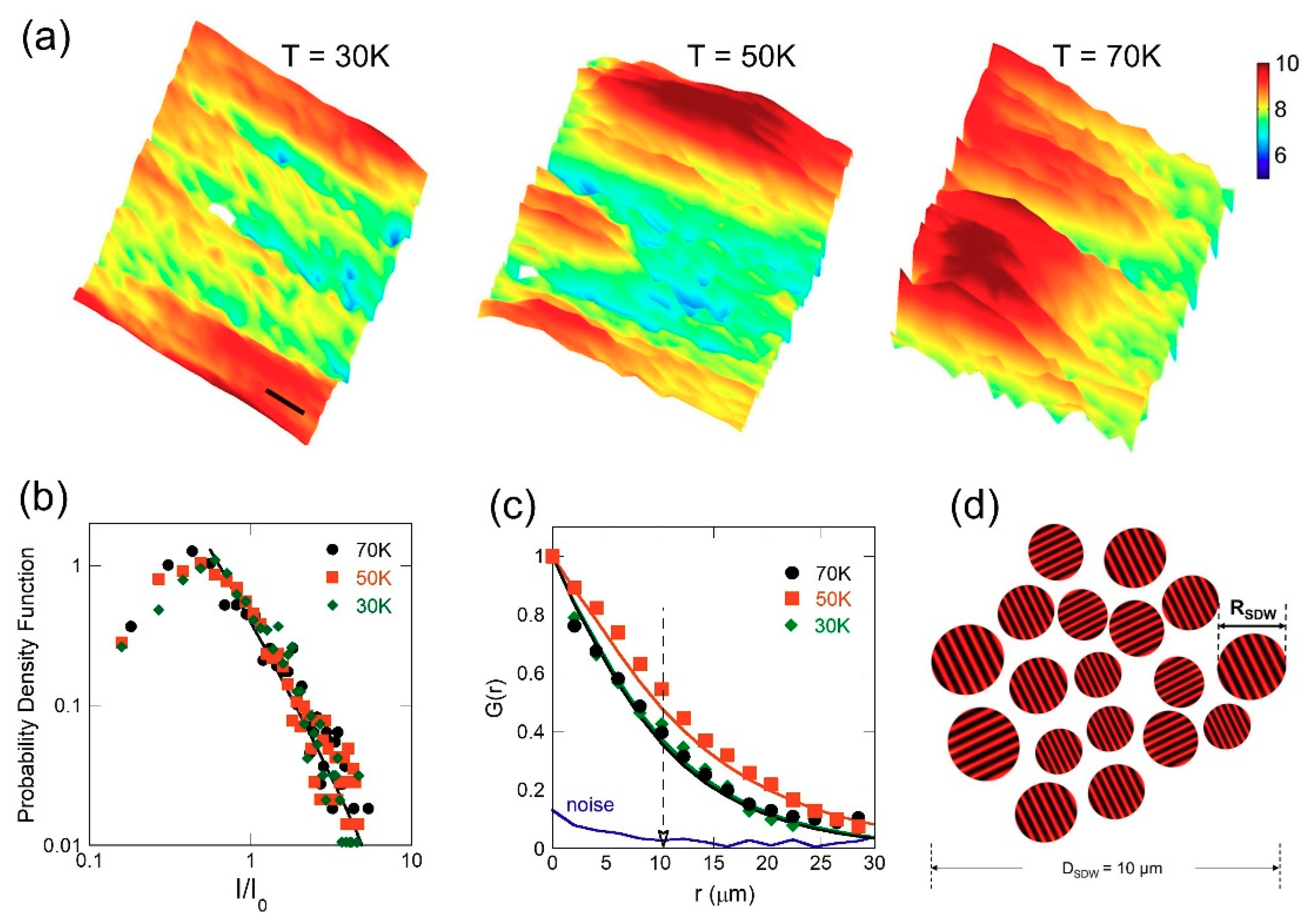

We have found an intrinsic inhomogeneous spatial organization of SDW-stripes forming stripy domains organized in micrometric stripes with different spatial arrangement as a function of temperature. In Figure 2 we report the micro X-ray diffraction maps probing the spatial inhomogeneity of the spin stripes order. Three maps were collected by scanning the same sample area at 30 K, 50 K and T* = 70 K temperatures. In the spatial maps the spin-stripes peak intensity is plotted in a logarithm scale with red color areas. We observe in panels (a, b, c) of Figure 2 the formation of SDW rich regions in the sample corresponding to very high spin-stripes diffraction intensity with the shape of microscale stripes.

The microscale spin rich stripes are separated by blue or green areas where the spin diffraction signal is the noise level. The two regions are separated by the yellow interface domains between red micro-scale stripes with spin modulations, and blue-green regions with no spin stripe modulation. The red spin stripes as a function of temperature shows a maximum density at T* = 70 K and by decreasing the temperature some of the red color spin stripes disappear and are replaced by the increasing blue-green regions with missing SDW.

Panel (b) in Figure 2b shows the statistical analysis of the distribution of the SDW-stripes intensity, I, in terms of the probability density function P(x) where x = I/I₀ and I₀ is the average intensity of the map. The intensity distributions strongly deviate from a Gaussian distribution and show extended fat tails which can be fitted by an exponentially truncated power-law behavior

P(x) = x^−αexp(−x/x_τ)

with a critical exponent α = 2.1 ± 0.2 and cut-off x_τ = 7 ± 0.5 at T* = 70 K shown by a solid line in panel (b). Similar behavior has been reported for the distribution of the oxygen interstitials and the CDW order accompanied by local lattice distortions in the active layers of cuprates and related materials [4,5,6,30,31,32,33,34]. This result underlines a spatial organization of the spin stripes order in “scale-free” or fractal-like geometries showing long-range power-law correlations common to systems showing fractal geometry which are quantified by the experimentally determined critical exponent α and the cut-off x_τ. This physical state appears in systems “tuned” near a quantum critical point which is a feature of striped quantum complex matter phase in perovskite materials [4,5,6,30,31,32,33,34].

For investigating the spatial distribution of the microscale SDW-strip we have calculated the radial distribution function G(r) of the XRD reflection intensity in the spatial maps at the three temperatures reported in panel (c) in Figure 2. All the G(r) curves show a similar exponential decay falling on the noise level at distances with D_SDW = 10 μm. We associate this length to the average size of the microscale SDW-strip domain. The average size R_SDW of the nano-spin-puddles in the ab-plane deduced by the diffraction profile width in Figure 1 is of the order or 20 nm, therefore, each illuminated 1 μm spot in our scanning mode provides the average value over about 2.5 × 103 nano-spin-puddles. A pictorial view of spin-rich domain of radius DSDW = 10 μm hosting about 2.5 × 10⁵ nano-spin-puddles of radius R_SDW is shown in panel (d) of Figure 2.

4. Conclusions

In this paper we have provided experimental evidence for spatial phase separation of magnetic stripes order in nickelates predicted for two bands strongly correlated systems near a Lifshitz transition [29]. In cuprates and related matter the coexistence of spin ordered, charge ordered and lattice ordered puddles [39,40,41] have pointed towards the possibility of quantum complex fluids at the interfaces spanning filamentary hyperbolic spaces [42] as it has been found in functional biological matter [43,44]. Moreover, it is possible that the doped charges in nickelates form polaron [45] anisotropic aggregates [46] with associated tilts [47] making quantum networks [48] of polarons. Therefore, the phase separation reported in this work could be assigned also to the liquid-striped liquid phase separation in liquids of anisotropic polarons similar to the liquid-striped liquid phase separation in water [49,50]. The anisotropy of polaron clusters in nickelates is assigned here to misfit strain [51,52] and orbital degrees of freedom [53,54,55]. The detection of the complex magnetic structures in strongly correlated electron systems by X- ray diffraction [56,57] can be used to support the association of the spin signal to polaronic distortions. The new mesoscopic phase separation with scale free spatial correlation for spin stripes order found here in nickelates is in agreement with previous indications [53,54,55,56,57,58,59] and it provides the experimental smoking gun evidence that the spin ordering in spin stripes phase in nickelates is near a quantum critical point. A similar spatial fractal landscape has been found in cuprates [46,47,48,49,50,51,52] and in other oxides near a quantum phase transition as in VO₂ [60,61,62,63], in ruthenates [64,65], and in diborides [66,67]. The observed scale free phase separation in nickelates is in agreement with the predictions by of the multiband Hubbard model of frustrated phase separation in strongly correlated two bands systems [29,68]. In this regime the strain manipulation provides a key physical variable [51,52] to drive the system near a particular quantum critical point at Lifshitz transitions or topological electronic transitions. Further experimental work is needed to clarify if hyperbolic space correlations predicted by theory [69,70] and observed in correlated metallic cuprates [4,42] are present or not in the stripes spatial landscape in nickelates. Finally, we have reported new information on the quantum complex scenario near criticality in nickelates which opens new venues to applications and developments of new magnetic and electronic devices. In fact, in the proximity of a topological Lifshitz transition it is possible to control novel macroscopic functionalities by a weak external stimulus such as stress [25,26,27,28,29,30,31,32,33,34,35,36,71,72,73,74,75], current density [64,65] or photon illumination dose [5,76,77,78,79].
