Security Proof of Single-Source Shortest Distance Protocols Built on Secure Multiparty Computation Protocols

Abstract

Secure secret-sharing Single-Source Shortest Distance (SSSD) protocols, based on secure multiparty computation (SMC), offer a promising solution for securely distributing and managing sensitive information among multiple parties. However, formal security proofs for these protocols have largely been unexplored. This paper addresses this gap by providing the first security proof for the SSSD protocols using the privacy-preserving Bellman–Ford protocols. These new protocols offer significant enhancements in efficiency, particularly in handling large-scale graphs due to parallel computation. In our previous work, published in MDPI Cryptography, we introduced these protocols and presented extensive experiments on the Sharemind system that demonstrated their efficiency. However, that work did not include security proofs. Building on this foundation, the current paper rigorously proves the security of these protocols, offering valuable insights into their robustness and reliability. Furthermore, we discuss the adversarial model, security definitions, cryptographic assumptions, and sophisticated reduction techniques employed in the proof. This paper not only validates the security of the proposed protocols but also provides a detailed comparison of their performance with existing methods, highlighting their strengths and potential for future research in the field.

1. Introduction

In recent years, the SMC protocol has witnessed significant advancements in its ability to facilitate privacy-preserving computations across distributed networks. Among the various applications of SMC, one particularly compelling area of exploration has been the development of secure protocols for SSSD computations. These protocols hold immense promise for ensuring the confidentiality and integrity of data in scenarios where sensitive information, such as network graphs or distance metrics, needs to be computed collaboratively while preserving individual privacy. Additionally, recent developments in privacy-preserving computations using the Sharemind SMC platform [1,2] have enabled the development of various methods and techniques across diverse fields, including data mining [3], genotyping [4,5], minimum spanning tree [6] and forest [7] problems, logic programming [8,9], and statistical data analysis [10,11]. Aligned with this progress, our proposed protocols, detailed in this paper, are also implemented on the Sharemind SMC platform, contributing to the growing body of research in secure and privacy-preserving computations.

In recent years, there has been substantial growth in research endeavors dedicated to developing pioneering shortest-path protocols designed for use on SMC platforms. These protocols have been intricately designed to cater to a broad spectrum of scenarios, each distinguished by unique graph characteristics, encompassing variations in size and structure. Among these innovative protocols are the Bellman–Ford and Dijkstra protocols [12], renowned for their efficiency in traversing sparse and dense graphs, respectively, and specialized methodologies such as radius stepping [13] and breadth-first search (BFS) [14], meticulously engineered to meet the computational requirements of spatial, dense, and planar graphs. In [15], a parallel algorithm based on algebraic path computation (APC) was proposed, significantly improving the efficiency of privacy-preserving SSSD calculations compared to classical SSSD algorithms. The SSSD protocols are built upon optimized versions of combinatorial and classical algorithms, facilitated by parallel Single-Instruction Multiple-Data (SIMD) frameworks, which have been implemented using the SecreC high-level language [16]. Notably, SecreC is a language designed with a focus on security, specifically tailored for privacy-preserving computations. Furthermore, these protocols benefit from a parallel oblivious reading subroutine developed by Laud [17].

Abstractions play a vital role in advancing complex cryptographic protocols like SMC by allowing for the deduction of both the functional and non-functional properties of the results. An essential abstraction in the context of secure multiparty computation is the Arithmetic Black Box (ABB) [18], which provides a means to describe more intricate privacy-preserving computations without delving into the intricacies of the protocols governing primitive operations involving private data. The ABB functions as an ideal functionality in the framework of universal composability (UC) [19], while its corresponding real functionality comprises concrete protocol implementations for individual operations involving private data [20].

The focus of this paper is on an in-depth examination and analysis of the security and privacy aspects of integrating the SSSD protocols with the ABB. Additionally, we explore the construction of the SSSD protocols on top of SMC within the framework of universal composability. It is imperative to ensure the security of the SSSD protocols when built upon SMC protocols, guaranteeing that the security properties remain robust and unaffected by advancements in SSSD algorithms. The incorporation of the SIMD approach in the development of these algorithms aims to mitigate round complexity in computations implemented atop SMC protocols.

These pioneering advancements represent significant strides in secure computations, offering tailored solutions for diverse real-world scenarios where privacy-preserving shortest-path computations are imperative. This introduction provides an overview of the significance of SMC in preserving privacy, particularly in the context of SSSD computations, and highlights the relevance of this work in the broader landscape of privacy-preserving computations on the Sharemind SMC platform.

2. Materials and Methods

2.1. Secure Multiparty Computation

Secure multiparty computation (SMC/MPC) is a cryptographic protocol that enables a group of n participants, denoted as ${\mathcal{P}}_1$,…, ${\mathcal{P}}_n$, to collaboratively compute a function $(y_1,\dots ,y_n)=\mathcal{F}(x_1,\dots ,x_n)$, where each party ${\mathcal{P}}_i$ submits their respective input $x_i$ and receives their output $y_i$ [21]. Critically, this protocol ensures that the individual party, $\left\{{\mathcal{P}}_i\right\}$, gains no additional knowledge beyond their input $x_i$ and output $y_i$, and any information derivable from them, considering the publicly known description of the function $\mathcal{F}$. To extend this privacy guarantee, the concept of a downward closed set emerges, encompassing subsets of $\{1,\dots ,n\}$. For any such subset I within this set, the coalition of parties ${\left\{{\mathcal{P}}_i\right\}}_{i\in I}$ is precluded from acquiring any supplementary information beyond their respective inputs ${\left(x_i\right)}_{i\in I}$ and outputs ${\left(y_i\right)}_{i\in I}$ while executing the computation of $\mathcal{F}$.

Generic protocols for secure multiparty computation effectively translate a computational task, typically represented as a boolean or arithmetic circuit, into a cryptographic protocol [22,23,24]. Diverse approaches exist for executing the circuit or program representing the function $\mathcal{F}$ while preserving privacy. These methods include garbled circuits [22], homomorphic encryption [25,26], and secret sharing [27,28,29], each offering different security assurances against both passive and active adversaries [30]. The secret-sharing approach, specifically, accommodates adversaries capable of corrupting a fraction of the total n computation parties, denoted as $\left\{{\mathcal{P}}_n\right\}$, with the threshold parameter t varying depending on the adversary’s protocol ${\Pi }^{\prime }$. In cases involving a passive adversary, security is achieved when the number of computation parties corrupted, t, is less than n/2. For an active adversary, security holds when t is less than n/3.

A passive adversary, also known as a semi-honest adversary, corrupts computation parties $\left\{{\mathcal{P}}_i\right\}$ but adheres faithfully to the protocol’s execution steps to gain additional insight into other computation parties’ messages. In the semi-honest model, protocol $\Pi$ is considered secure if the entirety of the computations $(y_1,\dots ,y_n)=\mathcal{F}(x_1,\dots ,x_n)$ performed by a party ${\mathcal{P}}_i$ within $\Pi$ can only be inferred from their input $x_i$ and output $y_i$.

In contrast, a malicious adversary can persuade corrupted parties $\left\{{\mathcal{P}}_i\right\}$ to deviate arbitrarily from the prescribed protocol ${\Pi }^{\prime }$ to compromise the overall security of protocol $\Pi$. This malicious adversary shares certain characteristics with semi-honest adversaries, enabling them to learn information about computation parties’ messages $\left\{{\mathcal{P}}_i\right\}$ and take actions that could jeopardize security. Importantly, malicious adversaries have more advanced capabilities, such as message alteration, manipulation, and the arbitrary creation of messages for computation parties $\left\{{\mathcal{P}}_i\right\}$. The concept of universal composability in SMC is introduced to establish a comprehensive framework for analyzing cryptographic protocols with robust security properties [19,31]. This framework provides a generalized and rigorous approach to assessing the security and integrity of SMC protocols in a broader context.

2.1.1. Universal Composability

The universal composability (UC) framework revolves around interconnected Turing machines operating concurrently and exchanging information among themselves, including the adversarial Turing machines—the adversary $\mathcal{A}$ and the environment $\mathcal{Z}$. According to this framework, secure implementation occurs when one set of Turing machines can securely emulate the behavior of another set, meaning that any possible view (determined by the choice of $\mathcal{A}$) of $\mathcal{Z}$ running in parallel with the first set of machines is also achievable when running in parallel with the second set of machines.

The true strength of this framework lies in its composition theorem. Suppose that in the context of the UC framework, protocol $\Pi$ securely implements an ideal functionality $\mathcal{G}$ in the $\mathcal{F}$-hybrid model, meaning that the Turing machines comprising $\Pi$ have access to an ideal functionality $\mathcal{F}$. Suppose another protocol, $\Xi$, securely implements functionality $\mathcal{F}$. In that case, the composition of $\Pi$ and $\Xi$, achieved by combining each protocol party’s Turing machine from $\Pi$ with their corresponding machine in $\Xi$, securely implements $\mathcal{G}$.

In the ideal world, computation parties ${\mathcal{P}}_i$ confidentially transmit their private inputs $x_i$ to a trusted party, ${\mathcal{T}}_p$, for the computation of functionality $\mathcal{F}$. Each party possesses its private input, $x_i\in \{x_1,x_2,\dots ,x_n\}$, which they send to ${\mathcal{T}}_p$ for the secure computation of $\mathcal{F}$$(x_1,x_2,\dots ,x_n)$. Subsequently, the results $(y_1,y_2,\dots ,y_n)$ are returned to the parties $P_i$. It is important to note that every party knows their own $x_i$, and learns their individual output $y_i$ but does not gain knowledge of other parties’ $x_j$ and $y_j$. When an adversary, $\mathcal{A}$, attempts to breach the ideal world, they can only exert control over the computation parties $\left\{{\mathcal{P}}_i\right\}$, not the trusted party ${\mathcal{T}}_p$.

In the real world, the trusted party ${\mathcal{T}}_p$ is absent, and the ideal world with its trusted party ${\mathcal{T}}_p$ is used solely as a benchmark for evaluating the security of actual protocols. Instead of ${\mathcal{T}}_p$, the real world employs protocol $\Pi$ for parties to communicate with one another while securely computing function $\mathcal{F}$. In this scenario, computation parties execute protocol $\Pi$, transmitting their private inputs $\{x_1,x_2,\dots ,x_n\}$ to function $\mathcal{F}$ and receiving their private outputs $\{y_1,y_2,\dots ,y_n\}$. An adversary $\mathcal{A}$ may corrupt the computation parties $\left\{{\mathcal{P}}_i\right\}$, causing them to either deviate arbitrarily from their expected behavior or adhere to protocol $\Pi$. Protocol $\Pi$ is deemed secure if adversary $\mathcal{A}$ cannot achieve any outcome in the real world that cannot also be achieved by a corresponding adversary ${\mathcal{A}}^{\prime }$ in the ideal world.

2.1.2. Arithmetic Black Box

The Arithmetic Black Box (ABB) represents an ideal functionality, referred to as ${\mathcal{F}}_{\mathcal{ABB}}$, designed for performing computations involving private data. ${\mathcal{F}}_{\mathcal{ABB}}$ enables participants to securely store their confidential information, execute operations based on user instructions, and furnish specific values to users upon request, provided a sufficient number of users make such requests.

For instance, suppose a party initiates a command $\mathbf{store}\left(v\right)$, instructing the ideal functionality to perform a calculation, with v representing a certain value. ${\mathcal{F}}_{\mathcal{ABB}}$ receives and securely stores this value v while assigning it a unique identifier, denoted as h, by creating a pairing of $(h,v)$. Subsequently, ${\mathcal{F}}_{\mathcal{ABB}}$ distributes h to all participating parties. To perform computations without disclosing intermediate results, the ABB awaits a command, such as $(\mathsf{perform},op,h_1,\dots ,h_k$), from all participating computation parties or a sufficient number thereof. It then retrieves the values $v_1,\dots ,v_k$ associated with the respective handles $h_1,\dots ,h_k$ and applies the specified operation $op$ to these values, yielding a result v that it stores under a new handle h. This h is then returned to all participating parties. To access a value stored under a particular handle h, all participating parties must issue the command $\mathbf{declassify}\left(\mathbf{h}\right)$ to the ABB. In response, the ABB looks up the pair $(h,v)$ and provides the value v [18].

It is important to note that the ideal functionality ${\mathcal{F}}_{\mathcal{ABB}}$ forwards commands from parties ${\mathcal{P}}_1$, ⋯, ${\mathcal{P}}_n$ to the adversary, excluding sensitive input values that are part of a command. Additionally, the adversary receives the fresh handles created by the ABB and the results of declassification.

2.1.3. Sharemind Protocols Set

This study is predicated on the premise that the ABB functionality is realized through the Sharemind protocol set [2]. Within this context, we operate under the assumption that the ABB encompasses a spectrum of operations. These operations encompass logical manipulations involving private booleans, arithmetic operations on private n-bit integers across varying bit lengths n, conversions between different data types, the ability to sort private values, the assignment of private values, and the capacity to classify and declassify data between the realms of public and private. Furthermore, this ABB framework accommodates operations related to private read and write for private vectors using private indices, all of which can be efficiently performed in an SIMD fashion. Notably, analogous operations are available in alternative protocol implementations, such as the SPDZ protocol set, characterized by its security provisions against active adversaries.

2.2. Graphs

A graph is a mathematical structure comprising a set of vertices, denoted as V, which are connected in various ways by edges from the set E. These edges can also possess values describing the distance or weight. A graph can take on different forms; it can be directed, meaning that edges have a specific direction between vertices, or it can be undirected, allowing for connections in both directions. Let us denote a directed, weighted graph as $G=(V,E)$, where the vertex set is $V=\{0,1,2,\dots ,n-1\}$ and the set of directed, weighted edges is $E\subseteq V\times V$. Each edge $e\in E$ is assigned a weight $w\left(e\right)$∈ the set of real numbers $\mathbb{R}$.

When it comes to representing a graph $G=(V,E)$ in computer memory, there are two common approaches. The first is the adjacency matrix, which takes the form of a $\left|V\right|\times \left|V\right|$ matrix, where the entry in the u-th row and v-th column represents the weight $w(u,v)$ of the edge between vertices u and v. This representation has ${\left|V\right|}^2$ entries and is often referred to as the dense representation. Conversely, the adjacency list representation provides, for each vertex $u\in V$, a list of pairs $(v_1,w_1),(v_2,w_2),\dots ,(v_k,w_k)$, where $(u,v_1),(u,v_2),\dots ,(u,v_k)$ are all the edges in G that originate from vertex u, and $w_i=w(u,v_i)$. This representation has O(|E|) entries and is called the sparse representation. When the number of edges $\left|E\right|$ is significantly smaller than ${\left|V\right|}^2$, the sparse representation occupies less memory, and algorithms designed for it often exhibit improved efficiency [32].

Graphs, or an infinite family of graphs, can be categorized as sparse if the number of edges is “proportional” to the number of vertices, denoted as $\left|E\right|=O\left(\right|V\left|\right)$. Conversely, a graph is considered dense when $\left|E\right|=\omega \left(\right|V\left|\right)$, signifying a high edge-to-vertex ratio. Furthermore, a graph is planar if it can be represented in a plane without edge crossings outside the vertices. For planar graphs, Euler’s formula relates the numbers of edges, vertices, and faces in its drawing, establishing that $\left|E\right|\le 3\left|V\right|-6$ [33].

Shortest Path

A path, denoted as $\delta (u,v)$, from a source vertex u to a target vertex v within the graph G is defined as a finite sequence of vertices $u=v_0,v_1,\dots ,v_n=v$, where there exists an edge $(v_{i-1},v_i)\in E$ for all $i\in \{1,\dots ,n\}$.

The shortest path between two vertices, $\delta (u,v)$, within a graph G is the path that possesses the minimum total sum of weights, ${\sum }_{i=1}^{n}w(v_{i-1},v_i)$, among all possible paths from the source vertex u to the target vertex v. The shortest distance from u to v is given by [34]

$$w(u,v)=\left\{\begin{array}{cc}mi{n}_p\left\{w\left(p\right)\right\},\hfill & \mathrm{if}\mathrm{there}\mathrm{exists}\mathrm{a}\mathrm{path}p=\delta (u,v)\hfill \\ \infty ,\hfill & \mathrm{otherwise}.\hfill \end{array}\right.$$

The shortest-path problem involves discovering a path between two vertices within a graph, denoted as $G=(V,E)$, where the sum of the edge weights, represented as $w\left(e\right)\in R$, from vertex u to vertex v is minimized. This problem holds significant importance in the realms of combinatorial and algebraic graph theories, as it involves crucial trade-offs between computation and communication costs that make certain algorithms more suitable for specific scenarios.

In the context of small to medium-sized graphs, finding the shortest distances from a single source vertex can be achieved by employing classical sequential algorithms, such as Dijkstra [35], Bellman–Ford [36], or Thorup [37]. Dijkstra’s algorithm operates effectively with non-negative edge weights, whereas Bellman–Ford handles graphs with some negative weights. Bellman–Ford’s time complexity is $\mathcal{O}\left(nm\right)$ for general graphs, where n represents the number of vertices and m denotes the number of weighted edges in the graph G. The time complexity of Dijkstra’s algorithm is $\mathcal{O}\left(n^2\right)$ in the adjacency matrix representation of G, and $\mathcal{O}(mlog n)$ in the adjacency list representation when utilizing a binary heap.

While some sequential algorithms may exhibit poor worst-case performance, they can perform adequately for certain types of graphs. However, processing larger graphs often necessitates the use of parallel algorithms. Notable parallel algorithms for solving the single-source shortest path problem include the $\Delta$-stepping [38] and radius-stepping [39] algorithms. The $\Delta$-stepping algorithm adjusts the tentative distances of vertices multiple times during edge relaxation until all tentative distances are finalized; it is referred to as a label-correcting algorithm. In contrast, the radius-stepping algorithm addresses a limitation of the $\Delta$-stepping approach by providing a provable upper bound on the number of steps. The average time complexity of the $\Delta$-stepping algorithm is $\mathcal{O}(nlog n+m)$, while it is $\mathcal{O}(mlog n)$ for the radius-stepping algorithm.

Shortest paths can also be computed using non-traditional algorithms, such as search algorithms like breadth-first search, and alternative techniques like algebraic path computation. The algebraic path problem employs a distinctive approach based on a specialized algebraic structure known as a closed semiring. Additionally, this problem addresses various graph-related challenges beyond algebraic paths [40].

2.3. Bellman–Ford Protocols on Top of MPC

In [12], two privacy-preserving Bellman–Ford protocols were designed for sparse graphs. Both versions of these protocols share a similar main program structure, with the primary distinction lying in the parallel algorithm used in the PrefixMin2 subroutines. The Bellman–Ford algorithm, which iteratively updates the edges in a graph, can be executed in a privacy-preserving manner using a Sharemind-inspired ABB. This approach is suitable for sparse graph representations involving public values n (vertices) and m (edges), along with the private vectors $〚\overrightarrow{S}〛$, $〚\overrightarrow{T}〛$, and $〚\overrightarrow{W}〛$, containing information about edge start and end vertices and their weights. Importantly, this representation maintains privacy by concealing the graph structure, including vertex degrees, while allowing for efficient computation.

The algorithm described in Algorithm 1 computes the distances from a designated starting vertex s (Algorithm 2). The subroutines in Algorithms 3 and 4 support this process. When the initial requirements specified in Algorithm 1 are not met, a privacy-preserving solution can be achieved by adding extra edges to the graph, increasing the lengths of $〚\overrightarrow{S}〛$, $〚\overrightarrow{T}〛$, and $〚\overrightarrow{W}〛$, and sorting the inputs based on $〚\overrightarrow{T}〛$. This approach introduces challenges in edge relaxation since it involves locating private values such as $D\left(S\right[i\left]\right)$. However, the algorithm can leverage parallel reading subroutines because it relaxes all edges concurrently. To streamline these operations, the prepareRead routine is invoked once at the start, with subsequent iterations utilizing the more efficient performRead routine.

The algorithm then calculates $〚\overrightarrow{b}〛$, representing the sum of the current distance from the starting vertex of an edge and the length of that edge. When computing sums $b\left[i\right]=D\left[S\right[i\left]\right]+W\left[i\right]$, the value $D\left[T\right[i\left]\right]$ must be updated if it is smaller than any other $b\left[j\right]$, where $T\left[i\right]=T\left[j\right]$. Thanks to a loop edge of length 0 at the starting vertex, this process is simplified, as it eliminates the need to consider the old value of $D\left[T\right[i\left]\right]$ during updates. These updates align naturally with parallel writing, where concurrent writes to the same location prioritize the smallest value.

Algorithm 1 focuses on improving the efficiency of parallel reading updates, with particular attention to unchanging indices across iterations. The approach starts by initially calculating the minimum distances for all vertices without considering specific edge endpoints. It utilizes the sorted nature of the vector $〚\overrightarrow{T}〛$ to group edges that end at the same vertex into a single segment within the vector $〚\overrightarrow{b}〛$. For each of these segments, the minimum distance is computed and stored in the vector $〚\overrightarrow{c}〛$, positioned at an index corresponding to the last vertex of that segment. Retrieval of this value is facilitated by employing another performRead operation, with the read indices stored in the vector $〚\overrightarrow{Z}〛$. The process of minimizing distances for segments with private start and end points is accomplished through prefix computation, applying an associative operation similar to determining the minimum value.

Algorithm 1: Privacy-preserving Bellman–Ford algorithm, main program

Algorithm 2: GenIndicesVector
	[41]

This approach combines vectors $\overrightarrow{T}$ and $\overrightarrow{b}$, computes PrefixMin2, and results in pairs where the first components represent $\overrightarrow{T}$, and the second components indicate prefix-minima for the corresponding segments in $\overrightarrow{b}$. Using the efficient Ladner–Fisher parallel prefix computation method [42], Algorithm 3 computes the privacy-preserving PrefixMin2. This process is simplified because the $\overrightarrow{T}$-component remains constant, yielding a list of second components. Our ABB supports all the operations required in Algorithm 3.

The process of computing the vector $〚\overrightarrow{Z}〛$ for marking segment ends in $〚\overrightarrow{T}〛$ (Algorithm 2 focuses on improving the efficiency of parallel reading updates, with particular attention to unchanging indices across iterations. The approach starts by initially calculating the minimum distances for all vertices without considering specific edge endpoints. It utilizes the sorted nature of the vector $〚\overrightarrow{T}〛$ to group edges that end at the same vertex into a single segment within the vector $〚\overrightarrow{b}〛$. For each of these segments, the minimum distance is computed and stored in the vector $〚\overrightarrow{c}〛$, positioned at an index corresponding to the last vertex of that segment. Retrieval of this value is facilitated by employing another performRead operation, with the read indices stored in the vector $〚\overrightarrow{Z}〛$. The process of minimizing distances for segments with private start and end points is accomplished through prefix computation, applying an associative operation similar to determining the minimum value.) follows standard steps. Initially, we create the index vector $〚\overrightarrow{b}〛$ with m elements, where n elements are true. To enhance privacy, we apply a random permutation to $〚\overrightarrow{b}〛$ using the apply routine, associating each element with an index i in the original sorted vector $〚\overrightarrow{v}〛$. After this permutation, we convert the result from private to public using the declassify routine, resulting in a randomized boolean vector of length m with precisely n true elements. This distribution can be predicted based solely on n and m without needing $〚\overrightarrow{b}〛$. Importantly, this declassification step does not compromise the privacy of our SSSD algorithm. Detecting shortest paths becomes challenging when dealing with graphs containing negative-length cycles, as such cycles can make any path appear cheaper. To address this, Algorithm 1 could be modified to identify negative cycles by performing an additional iteration of its main loop and checking for changes in $〚\overrightarrow{D}〛$ during this extra iteration.

Nevertheless, there are various trade-offs available between communication and round complexity. To explore these trade-offs, the authors of [12] also implemented the PrefixMin2 method using the Hillis–Steele parallel prefix computation approach [43]. This alternative implementation is outlined in Algorithm 4. It effectively demonstrates that the second version of the Bellman–Ford protocol is created by replacing the call in Algorithm 1 with a different implementation. Algorithm 4 consists of a single loop executed $\mathcal{O}(log n)$ times. The round complexity for each iteration is the sum of the round complexities for finding the minimum and performing an oblivious choice. The primary contributor to complexity is finding the minimum, while the oblivious choice necessitates only a single round of communication. In comparison to Algorithm 3, this approach reduces round complexity by approximately half. However, it increases data volume usage by around a factor of $\mathcal{O}(log n)$.

Algorithm 3: PrefixMin2 (version 1)

Algorithm 4: PrefixMin2 (version 2)

3. Results

3.1. Security of Protocols Built on Top of an ABB

Recently, novel protocols and related algorithms for privacy-preserving SSSD computations have been introduced. These protocols are designed to handle input data structured in a confidential manner, which can be presented either in the form of an adjacency matrix or through the utilization of three private vectors. Notably, these protocols are grounded in a universally composable ABB framework. It is crucial to highlight that the privacy-preserving nature of protocols built on top of an ABB hinges on the absence of declassification operations. In this context, declassification pertains to converting private data into public data. When no declassification operations are involved, the protocols inherently maintain their privacy-preserving characteristics. Furthermore, when these protocols are combined with an SMC protocol set, serving as a secure implementation of an ABB, the resultant composition inherits the security and privacy properties of the underlying protocol set, as demonstrated in prior research [18].

However, it is imperative to acknowledge that the proposed SSSD protocols contain declassification operations. Consequently, unintended information leakage occurs in certain instances, notably with the inadvertent disclosure of the number of iterations in algorithms such as Algorithm 2 in [13] and Algorithms 1 and 2 in [14]. Additionally, in specific versions of Dijkstra’s protocol, specifically, Algorithm 5 in [12] and Algorithm 9 in [44], unintentional revelation transpires as the identities of source vertices s and start-point edges u become apparent due to masking through permutation. Nonetheless, asserting the following security theorem is prudent despite these inadvertent disclosures. We can formulate the ensuing security theorem as follows:

Theorem 1.

If our SMC protocol set effectively implements an ABB for a group of k computing parties, providing security against an active or passive adversary who can corrupt up to t computing parties, then an active or passive adversary concurrently participating with k parties executing any of the above-mentioned SSSD protocols alongside this SMC protocol set for private computations, with the ability to corrupt a maximum of t parties, will gain no insight into the inputs of the protocol beyond the graph’s number of vertices and edges and the initial vertex s.

Proof of Theorem 1.

It is imperative to devise a simulator capable of emulating the adversary’s perspective in both the ideal and real-world scenarios. Within this simulator, an emulation of the Arithmetic Black Box’s ideal functionality is operational. In the context of the ideal world, the adversary’s access is restricted to solely two pieces of information: n representing the total number of vertices and s designating the source vertex. Conversely, in the real-world context, when multiple computation parties succumb to compromise, the adversary’s purview extends to encompass several additional components, which include the following:

• The input parameters, encompassing n (denoting the number of vertices) and s (indicating the source vertex).
• The handles to private values, identified within variables denoted as $〚·〛$ in the algorithm, regardless of whether these values manifest as individual elements, vectors, or an adjacency matrix.
• Declassified values, which may assume the form of integer values, individual elements, or complete vectors.
• In scenarios where the adversary assumes an active role, they gain insight into the ABB’s responses to efforts by the corrupted parties to deviate from the prescribed SSSD protocols.

The composition theorem within the universal composability framework addresses the observations made by the real-world adversary, which occur through compromised parties during the execution of SMC protocols implementing the ABB. Additionally, it accounts for the ramifications of any deviations from these protocols by the compromised parties.

In the ideal-world scenario, the adversary provides the simulator with the parameters n and s. Notably, the values associated with the handles (in contrast to those they reference within the ABB) are publicly accessible, enabling the simulator to derive these values. Furthermore, the simulator actively monitors and records the instructions transmitted to the ABB by all k parties. It also acquires knowledge regarding any instances of misconduct by corrupted parties deviating from the SSSD protocols and their associated subroutines while also tracking the responses of the ABB.

Within the SSSD protocols, the declassified values can pertain to either the number of iterations n or to the identities of the source vertices s of edges. In algorithms that employ the declassification of source vertices, an initial step involves the random permutation of vertices. This permutation is conducted as an essential preprocessing step while maintaining the privacy of the permutation itself, thereby preventing visibility to potential adversaries. Consequently, the sequence in which vertices are selected for relaxation, specifically their inclusion in the set M within the primary loop, is inherently randomized.

To simulate declassified values for the source vertices, the simulator Sim employs a random permutation technique on the range of integers from 0 to $n-1$. Subsequently, these values can be disclosed either as a single vector during the declassification process, as indicated in line 7 of Algorithm 5 in [12], or divulged individually, one by one, during declassification, as illustrated in line 15 of Algorithm 5. Alternatively, the simulator can release them as vectors, where each vector is disclosed incrementally, such as during the declassification process in line 16 of Algorithm 9 in [44]. □

In an algorithm where the declassification of the number of iterations n is performed, it is noteworthy that the outcomes of the algorithms do not straightforwardly derive from the publicly available graph parameters. A practical approach to mitigate this information leakage involves empirically establishing an upper bound on the iterations. By consistently executing a minimum number of iterations equal to this determined upper bound in such algorithms, it becomes possible to effectively minimize this information disclosure. This approach preserves the benefits of the iteration, ensuring the process continues only as long as significant changes occur while simultaneously enhancing privacy.

The number of iterations n required is contingent upon a multitude of parameters, incorporating the underlying structure of the graph G, the potential influence of radii r considerations within the radius-stepping protocol, and the volumetric composition of edges, particularly relevant in protocols like BFS. A noteworthy illustration lies in the case of the UBFS protocol when applied to a densely interconnected graph. In such scenarios, the algorithm showcases a constant round complexity, culminating in termination after a singular iteration, as extensively expounded upon in the BFS protocol. Consequently, the inadvertent disclosure of the iteration count remains bereft of practical significance, as it fails to endow the adversary with any discernible insights into the intricacies of the computational process.

In this paper, we present the security proofs for two versions of the privacy-preserving Bellman–Ford protocol, which were previously proposed in our earlier work [12]. These versions of the protocol, based on the PrefixMin algorithms, ensure that both the locations and distances between vertices remain private, thus providing complete confidentiality of sensitive data. These versions are suitable for scenarios where both the user’s location and the distances between nodes need to be securely protected. A third version of the Bellman–Ford protocol, on the other hand, maintains public edges while preserving the privacy of the weights between vertices. This version was benchmarked against the privacy-preserving algebraic path computation protocol [15], offering a solution where public edge data are acceptable but private distance information must be preserved.

3.2. Detailed Security Proof for Privacy-Preserving Bellman–Ford

The process of computing the SSSD on the foundation of the SMC protocol inherently upholds privacy, as it refrains from declassifying any private data. Nevertheless, we employ declassification exclusively for permuted private data. Within the realm of the universal composability security definition, composability stands out as a pivotal feature. This attribute empowers developers to construct expansive privacy-preserving applications and allows researchers to introduce novel operations into the ABB. While the fundamental ABB operations encompass arithmetic and logical functions, discussions regarding comparisons and permutations can be found in Section 2.2 of [12]. Notably, other scholars have expanded the ABB’s repertoire to incorporate innovative operations, such as sorting [41,45] and private read/write, as discussed in [17], which predominantly feature in various research contributions within the scope of [12].

Based on these contributions, we postulate the existence of an implementation, denoted as $\Xi$, which securely realizes the ideal functionality ${\mathcal{G}}_{ABB}$ for the ABB, catering to n computation parties. This secure implementation is equipped to facilitate the following operations:

• Arithmetic. The arithmetic operations, encompassing addition and multiplication, necessitate the provision of two handles, each corresponding to integers. Subsequently, these operations yield a handle to an integer, given that both input integers are private.
• Comparison. The comparison operations, encompassing “less than” (<), “less than or equal to” (≤), “equal to” (==), and ”not equal to” (≠), among others, necessitate two handles corresponding to integers (or floating-point values). These operations yield a handle to a boolean value. It is worth noting that for the “equal to” (==) and “not equal to” (≠) operations, the input data may also include boolean values.
• Logic. The logical operation on private vectors is employed using the “choose” function, denoted as $\mathsf{choose}$ ($〚\overrightarrow{a}〛$, $〚\overrightarrow{x}〛$, $〚\overrightarrow{y}〛$). It is imperative to note that $〚\overrightarrow{a}〛$, $〚\overrightarrow{x}〛$, and $〚\overrightarrow{y}〛$ all represent vectors of handles. The outcome of this operation is a vector of handles, pointing to elements within either $〚\overrightarrow{x}〛$ or $〚\overrightarrow{y}〛$, contingent upon the specific values that the elements within $〚\overrightarrow{a}〛$ point to. It is pertinent to mention that the data type of the vectors $〚\overrightarrow{x}〛$ and $〚\overrightarrow{y}〛$ can encompass integers, floating-point values, and booleans, all of which are exclusively accessible via handles. Furthermore, it is noteworthy that the results derived from the choose operation are exclusively of boolean type, similarly accessible solely through handles.
• Declassification. This operation entails declassifying private data and making it publicly accessible. The input data for this operation comprise private integers, denoted as $〚\overrightarrow{y}〛$—a vector of handles. The output, in turn, consists of a public vector of integers, represented as x.
• Sorting. This operation takes private integers as input values, residing within the vector $〚\overrightarrow{x}〛$. The operation’s outcome consists of sorted private integers stored in the private vector $〚\overrightarrow{y}〛$. The sorted vector comprises handles to values, reflecting the result of sorting the vector of values referenced by handles within $〚\overrightarrow{x}〛$.
• Random permutation. This operation is designed to generate a private permutation of n elements randomly. It takes a public integer n as input and yields a private permutation, denoted as $〚\sigma 〛$, via a handle. Subsequently, this permutation can be applied to a private vector $〚\overrightarrow{v}〛$ using the operation $\mathsf{apply}$($〚\sigma 〛$, $〚\overrightarrow{v}〛$), resulting in a private vector $〚\overrightarrow{w}〛$. Specifically, for all i∈$\{1,\dots ,n\}$, $w_i=v_{\sigma }\left(i\right)$. Furthermore, it is feasible to apply the inverse of $\sigma$ to v using the operation $\mathsf{unApply}$($〚\sigma 〛$, $〚\overrightarrow{v}〛$).
• prepareRead and performRead. These operations facilitate the retrieval of data from a vector using a private index. The reading process involves the application of the performRead operation, which takes two arguments: an integer vector $〚\overrightarrow{v}〛$ of length n and a second argument derived from prepareRead (n, $〚\overrightarrow{y}〛$), where $〚\overrightarrow{y}〛$ represents the indices of the m elements intended for retrieval. Subsequently, this operation yields a private vector $〚\overrightarrow{w}〛$ of length m via a handle. The length of $〚\overrightarrow{v}〛$ corresponds to the first argument used in prepareRead, while the second argument of performRead is the output of prepareRead. It is crucial to note that if these conditions are not met, the behavior of ${\mathcal{F}}_{ABB}$ may be arbitrary. The return value of the performRead operation is a handle referencing a private vector of integers. The vector within the return value is denoted as $〚\overrightarrow{w}〛$, and each element is represented by $w_i$ = $v_{y_i}$.

We employ the composition theory, as outlined in [31], to introduce a new operation, SSSD, into the set of supported ABB operations. The implementation of SSSD atop the ABB framework is delineated through four primary protocols and their versions, which are detailed as follows:

• The privacy-preserving Dijkstra protocol (Algorithm 5 in [12]).
• The privacy-preserving Bellman–Ford protocol (Algorithm 1).
• The privacy-preserving radius-stepping protocol (Algorithm 2 in [13]).
• The privacy-preserving breadth-first search protocol (Algorithm 3 in [14]).

These protocols exhibit distinct characteristics concerning the types of graphs they handle, the relaxation procedures, and the structure of private input data. For the sake of a comprehensive security analysis, we have chosen to provide detailed security proof for the Bellman–Ford protocol. This choice is motivated by utilizing the four proposed protocols’ most intriguing privacy-preserving computation subroutines (e.g., PrefixMin2, as presented in Algorithms 3 and 4).

The new operation, SSSD, takes handles that point to the locations of edges and their corresponding weights, following the definition of Bellman–Ford. It then returns handles that point to the distances of vertices from the source vertex s. We now introduce a secure implementation of the ABB framework, denoted as ${\mathcal{F}}_{ABB}$ (for n parties). This ${\mathcal{F}}_{ABB}$ not only supports all the operations of ${\mathcal{G}}_{ABB}$ but also extends its functionality to include the SSSD operation. The intricate details about the inputs and outputs of the SSSD operation are outlined as follows:

• Upon receiving inputs from all honest computing parties (${\mathcal{P}}_i$, for $i\in \{1,\dots ,n\}$), these parties abstain from performing any computations themselves. Instead, their role involves exclusively providing inputs to and receiving outputs from either the machines ${\mathcal{M}}_1$,…,${\mathcal{M}}_n$ or the ideal functionality ${\mathcal{F}}_{ABB}$. In the context of the SSSD operation facilitated by Bellman–Ford and supported by ${\mathcal{F}}_{ABB}$, when all honest parties collectively initiate the SSSD operation, they do so with specified arguments: $〚\overrightarrow{S}〛$, $〚\overrightarrow{T}〛$, $〚\overrightarrow{W}〛$, s, and N. Here, $〚\overrightarrow{S}〛$ and $〚\overrightarrow{T}〛$ represent the locations of the edges, $〚\overrightarrow{W}〛$ signifies the weights of the said edges, s denotes the source vertex, and N corresponds to the total number of vertices. Subsequently, ${\mathcal{F}}_{ABB}$ completes the SSSD computation and furnishes the outcome as a vector of handles to each participating computing party. These handles serve as pointers to the shortest distances from the source vertex s. Notably, the length of the returned vector is equal to N. It is essential to highlight that the ideal functionality ${\mathcal{F}}_{ABB}$ maintains ongoing communication with the adversary $\mathcal{A}$, ensuring that they are apprised of the ongoing computations, as elaborated in Section 2.1.2.
• Upon completion of their computations, each honest computing party ${\mathcal{P}}_i$ transmits their respective SSSD results to the corresponding party ${\mathcal{P}}^{\prime }$. These results manifest as a vector denoting the shortest distances from the single source vertex s to all vertices, represented as $〚\overrightarrow{T}〛$.

Theorem 2.

There exists protocol ${\Pi }^{SSSD}$ that securely implements the functionality ${\mathcal{F}}_{ABB}$ in the ${\mathcal{G}}_{ABB}$ hybrid model. The implementation inherits the security model (number and type of tolerated corruptions among the parties) of any implementation ${\pi }_{ABB}$ of ${\mathcal{G}}_{ABB}$.

Proof of Theorem 2.

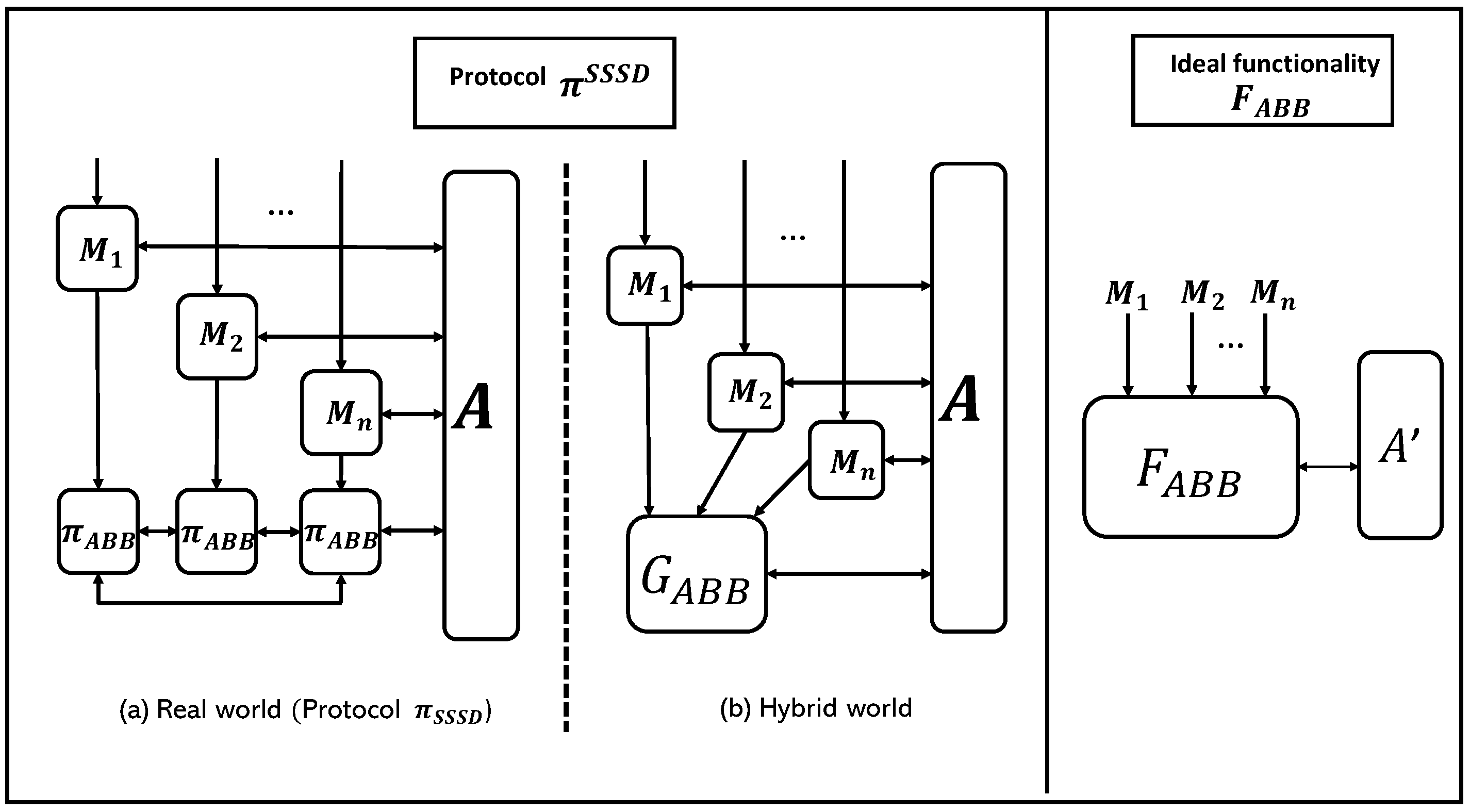

Protocol ${\Pi }^{SSSD}$ is a composition of machines, denoted as ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$. In cases where ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$ receive a command other than SSSD, they transmit this command to ${\mathcal{G}}_{ABB}$ (see Figure 1). However, when ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$ receive an SSSD command, they adhere to the procedures outlined in Algorithm 1, including the subroutines in Algorithms 2 and 3. This entails the invocation of ${\mathcal{G}}_{ABB}$ operations in the sequence prescribed by Algorithms 1–3.

To demonstrate that the security of the composition involving ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$ and ${\mathcal{G}}_{ABB}$ is at least as secure as ${\mathcal{F}}_{ABB}$, we introduce a simulator. This simulator is designed to map any actions taken by an adversary targeting the actual system (in the hybrid world) into actions directed toward ${\mathcal{F}}_{ABB}$ (see Figure 2). This mapping ensures that parties ${\mathcal{P}}_1$ to ${\mathcal{P}}_n$ remain oblivious to any distinctions between the two scenarios.

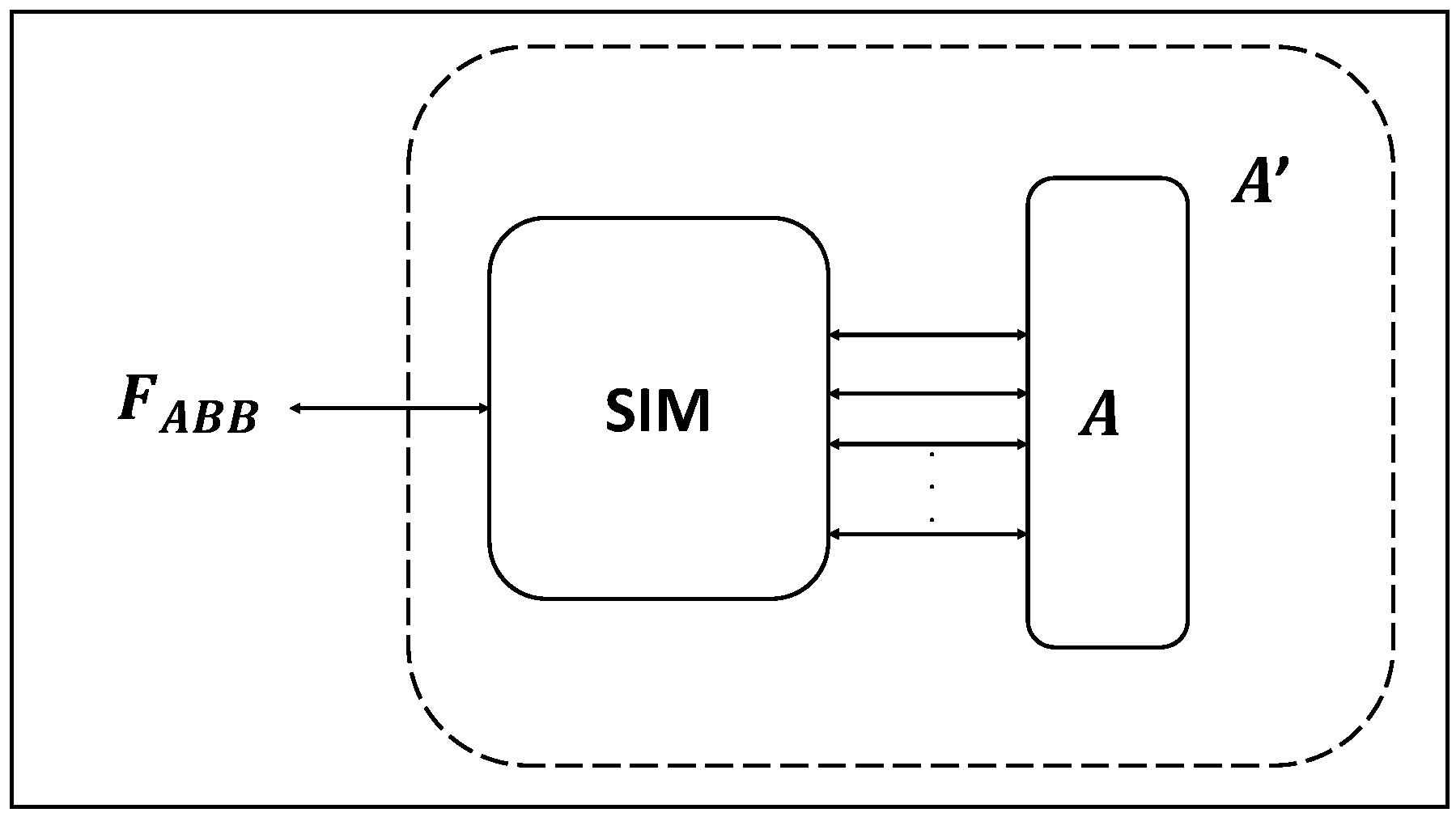

The simulator $Sim$ operates as an intermediary component positioned between the ideal functionality ${\mathcal{F}}_{ABB}$ and a real adversary $\mathcal{A}$, who anticipates interacting with Turing machines ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$ and ${\mathcal{G}}_{ABB}$. $Sim$ receives from ${\mathcal{F}}_{ABB}$ the commands that the computational parties ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$ submitted to it. The simulator translates them for $\mathcal{A}$ as follows:

• If the command is non-SSSD in nature, $Sim$ relays it to $\mathcal{A}$ as a message that came from ${\mathcal{G}}_{ABB}$.
• If the command originates from ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$ and pertains to SSSD, then $Sim$ relays an SSSD command from each machine ${\mathcal{M}}_1$ to ${\mathcal{M}}_n$ to the adversary $\mathcal{A}$. Additionally, $Sim$ sends a series of commands to $\mathcal{A}$ as if they came from ${\mathcal{G}}_{ABB}$. These commands correspond to the commands that ${\mathcal{G}}_{ABB}$ receives in order to run Algorithms 1–3.

This orchestration allows for the seamless translation of commands and maintains the appropriate communication flow within the system.

The simulator is tasked with the simulation of ${\mathcal{G}}_{ABB}$. The primary objective is to create an illusion of an adversary-free environment in which adversary $\mathcal{A}$ believes it interacts with the components of protocol ${\Pi }^{SSSD}$. It is important to note that the simulator is unaware of the actual sensitive input values that ${\mathcal{G}}_{ABB}$ operates on since ${\mathcal{F}}_{ABB}$ does not relay this information to the simulator. Consequently, the simulator operates an internal copy of ${\mathcal{G}}_{ABB}$ with arbitrary placeholder values. However, in scenarios where parties ${\mathcal{P}}_1$ to ${\mathcal{P}}_n$ request the declassification of specific information from ${\mathcal{F}}_{ABB}$, the simulator gains access to these declassified values. At this juncture, the simulator can replace these values with the correct ones and transmit them to adversary $\mathcal{A}$ through the ${\mathcal{G}}_{ABB}$ –> $\mathcal{A}$ channel.

The declassification command serves as a mechanism for parties to access the actual data through the use of a handle. Notably, a declassification command is integrated into step 5 of Algorithm 2. It is imperative to emphasize that ${\mathcal{F}}_{ABB}$’s proper functioning depends on receiving identical instructions from all participating computing parties within the same ${\mathcal{G}}_{ABB}$ context.

We see that step 5 of Algorithm 2 declassifies a vector of booleans that has been constructed in this and previous steps, starting from the private vector $〚\overrightarrow{v}〛$ of length m. The vector $\overrightarrow{v}$ is sorted, and the values occurring in it are all between 0 and $(n-1)$, with each value in this range occurring at least once. Hence it is publicly known that the boolean vector $〚\overrightarrow{b}〛$, constructed in step 3 of Algorithm 2, contains exactly n “true” values among its m entries, while the positions of the “true” values are private. The subsequent random permutation results in a boolean vector $\overrightarrow{c}$ with n “true” values and $(n-m)$ “false” values, where the locations of these values are permuted. Hence, the distribution of the vector $\overrightarrow{c}$ only depends on the public parameters, and $Sim$ is able to simulate its value being made available to $\mathcal{A}$. Indeed, at this point of execution, where $\mathcal{A}$ expects to see the value of $\overrightarrow{c}$, the simulator $Sim$ generates a uniformly randomly distributed boolean vector of length m with exactly n “true” entries, and sends it to $\mathcal{A}$. As the simulation is possible, we have determined that this declassification step within Algorithms 1–3 does not compromise the privacy of our SSSD Bellman–Ford protocol. □

We assessed the efficiency of these protocols through extensive benchmarking tests conducted under real-world conditions. The first two versions, where both the locations and distances were kept private, demonstrated significant performance improvements, achieving a 50× speedup. Notably, the optimizations also led to an extraordinary 2000× speedup for privacy-preserving BFS protocols, both compared to Carter et al.’s work [46] on the US presidential motorcade app scenario. These remarkable speedups highlight the practical potential of these protocols for deployment in real-world applications, such as privacy-preserving navigation, healthcare, and logistics, where maintaining computational efficiency alongside data security is paramount.

4. Discussion

In this research, we delved into the critical realm of SMC and its application in SSSD protocols. Our primary objective was to establish the security and privacy guarantees of SSSD protocols when implemented on top of SMC protocols. To achieve this, we introduced a series of SSSD protocols tailored to diverse scenarios, each designed to tackle the unique challenges of different graph structures and computation scenarios. These protocols formed the foundation of our study, allowing us to thoroughly investigate the security implications of leveraging SMC for private computation.

Our research led to two significant theorems that provide strong assurances of security and privacy in the context of SSSD protocols over SMC. The first theorem establishes that the composition of SMC protocols implementing an ABB with the SSSD operation results in a system that preserves the privacy of private data. This theorem underscores the practicality of utilizing SMC to perform complex computations while safeguarding data confidentiality. The second theorem extends the security guarantees to cover scenarios involving both active and passive adversaries, thereby enhancing the robustness of the SSSD protocols. We meticulously proved these theorems, considering various parameters and potential attacks, ensuring the validity and reliability of our security claims. It is important to note that the Sharemind system is secure against a single passively corrupted party. Furthermore, we introduced a simulator that bridges the gap between the real-world execution of our SSSD protocols and the ideal functionality of an ABB. This simulator is crucial in demonstrating the security of our protocols and ensuring that they meet the rigorous standards set forth by the universal composability framework.

In conclusion, our research not only contributes a set of secure SSSD protocols for various scenarios but also provides comprehensive security proofs and simulations to validate the robustness of our approach. Our findings lay the groundwork for developing privacy-preserving applications in diverse domains, enabling researchers and practitioners to harness the power of secure multiparty computation for complex tasks while maintaining the highest data security standards.

As we move forward, further exploration into this intersection of SMC and SSSD promises to unlock new possibilities for secure and private computation, paving the way for innovative solutions in an increasingly interconnected and data-driven world. We acknowledge the importance of formal verification and plan to pursue this approach in future work to further strengthen and validate the security guarantees of the proposed protocols. This will allow us to ensure the robustness of our security claims and provide additional assurances for real-world deployments.
