SigML++: Supervised Log Anomaly with Probabilistic Polynomial Approximation^{ †}

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

- 1.
- A “log collector” to collect logs from diverse applications operating on a SAS.
- 2.
- A “transmitter” that sends logs to the SIEM, which is usually encrypted to safeguard against eavesdropping in the communication channel.
- 3.
- A “receiver” to amass, store, decrypt, and ascertain the transmitted logs’ integrity.
- 4.
- A “parser” to convert the data into a structured form used by the SIEM vendor to process the decrypted logs for storage and analysis.
- 5.
- An “anomaly detector” that uses proprietary algorithms to render parsed logs and transmit alerts for anomalies.

#### 1.1. Contributions

- First, we formulate a supervised binary classification problem for log anomaly detection and implement it with the CKKS cryptosystem (in Section 4).
- Second, we propose novel ANN-based third-degree sigmoid approximations in the intervals $[-10,10]$ and $[-50,50]$ (in Section 5).
- Third, we evaluated the performance of various sigmoid approximations in the encrypted domain, and our results showed better accuracy and $\mathrm{\Sigma}$-ratio (in Section 6).

#### 1.2. Organization

- First, we describe the building blocks of our protocols in Section 2, where we review FHE in Section 2.1 and present polynomial approximations for the sigmoid $\left(\sigma \right(x\left)\right)$ activation function in Section 5.
- Next, we review the previous work in Section 3.
- Then, we describe our methodology in Section 4.
- Finally, we discuss our experimental results in Section 6.

## 2. Background

#### 2.1. Fully Homomorphic Encryption

- $\mathsf{CKKS}.\mathsf{Keygen}$—generates a key pair.
- $\mathsf{CKKS}.\mathsf{Enc}$—encrypts a plaintext.
- $\mathsf{CKKS}.\mathsf{Dec}$—decrypts a ciphertext.
- $\mathsf{CKKS}.\mathsf{Eval}$—evaluates an arithmetic operation on ciphertexts.

- $(evk,pk,sk)\leftarrow \mathsf{CKKS}.\mathsf{Keygen}({1}^{\lambda},L)$: generates a secret key ($sk$) for decryption, a public key ($pk$) for encryption, and a publicly available evaluation key ($evk$). The secret key ($sk$) is a sample from a random distribution over ${\mathbb{Z}}_{3}\left[X\right]/({X}^{N}+1)$. The public key ($pk$) is computed as$$pk=({[-a\xb7sk+e]}_{{q}_{L}},a)=({p}_{0},{p}_{1})$$
- $c\leftarrow \mathsf{CKKS}.{\mathsf{Enc}}_{pk}\left(m\right)$: encrypts a message m into a ciphertext c utilizing the public key ($pk$). Let v be sampled from a distribution over ${\mathbb{Z}}_{3}\left[X\right]/({X}^{N}+1)$. Let ${e}_{0}$ and ${e}_{1}$ be small errors. Then, the message m is encrypted as$$c={[(v\xb7p{k}_{0},v\xb7p{k}_{1})+(m+{e}_{0},{e}_{1})]}_{qL}=({c}_{0},{c}_{1}).$$
- $m\leftarrow \mathsf{CKKS}.{\mathsf{Dec}}_{sk}\left(c\right)$: decrypts a message c into a plaintext m utilizing the secret key ($sk$). The message m can be recovered from a level l ciphertext thanks to the function $m={[{c}_{0}+{c}_{1}\xb7sk]}_{{q}_{l}}$. Note that with CKKS, the capacity of a ciphertext reduces each time a multiplication is computed.
- ${c}^{\left(f\right)}\leftarrow \mathsf{CKKS}.{\mathsf{Eval}}_{evk}(f,{c}^{\left(1\right)},{c}^{\left(2\right)},\cdots ,{c}^{\left(k\right)})$: estimates the function f on the encrypted inputs $({c}^{\left(1\right)},{c}^{\left(2\right)},\cdots ,{c}^{\left(k\right)})$ using the evaluation key $\mathsf{evk}$.

#### 2.2. Polynomial Approximations

#### 2.2.1. Taylor

#### 2.2.2. Fourier

#### 2.2.3. Pade

#### 2.2.4. Chebyshev

#### 2.2.5. Remez

- 1.
- Solve the system of linear equations$${b}_{0}+{b}_{1}{x}_{i}+\dots +{b}_{n}{x}_{i}^{n}+{(-1)}^{i}E=f\left({x}_{i}\right);i=1,2,\dots ,n+2$$
- 2.
- Use ${b}_{i}$ as coefficients to form a polynomial ${P}_{n}$.
- 3.
- Find the set M of points of local maximum error $|{P}_{n}\left(x\right)-f\left(x\right)|$.
- 4.
- If the errors at every $m\in M$ are alternate in sign (+/−) and of equal magnitude, then ${P}_{n}$ is the minimax approximation polynomial. If not, replace X with M and repeat the abovementioned steps.

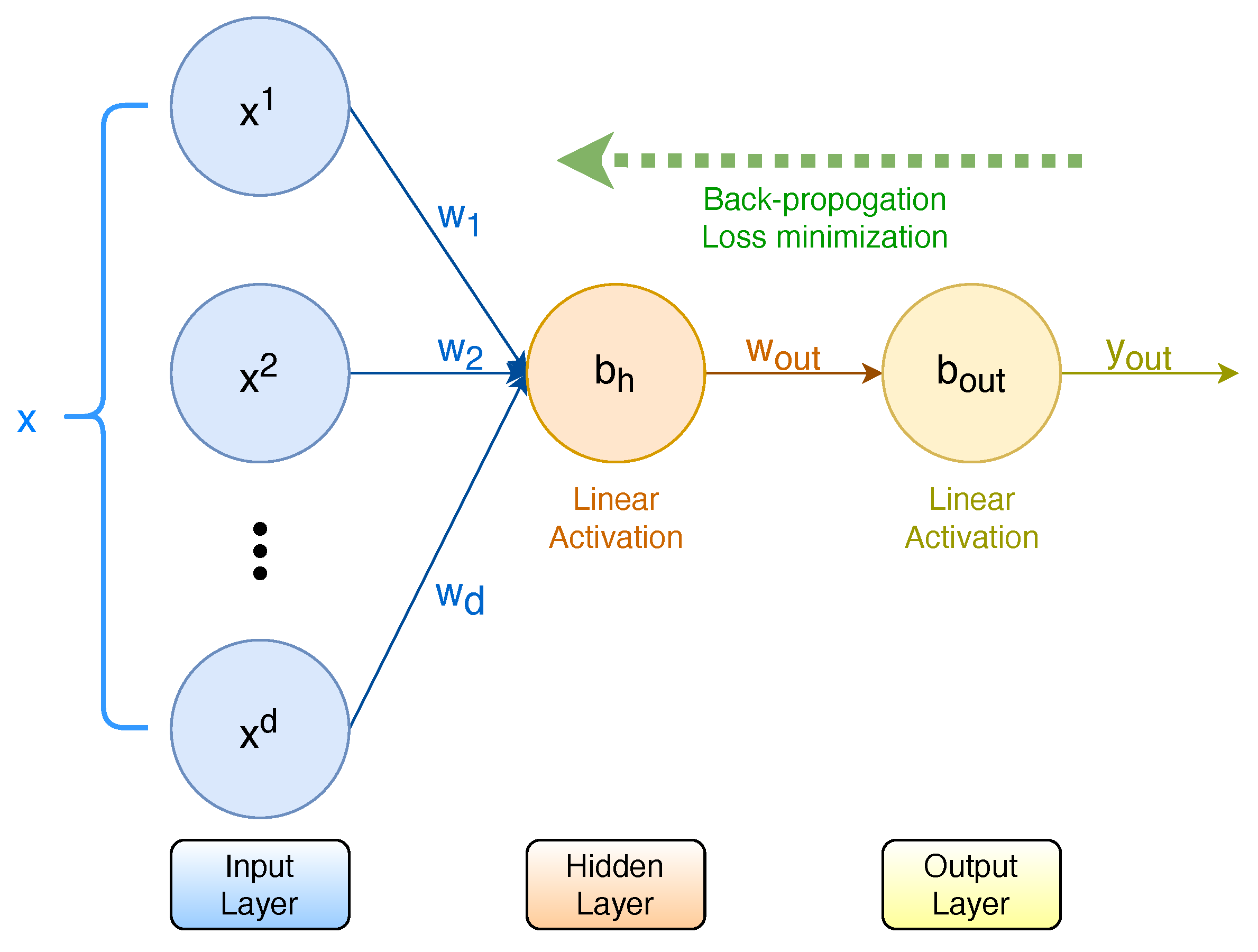

#### 2.2.6. ANN

## 3. Related Work

- 1.
- Encode: The data are encoded to control their scope, granularity, and randomness.
- 2.
- Shuffle: The encoded data are shuffled to break their linkability and guarantee that individual data items become “lost in the crowd” of the batch.
- 3.
- Analyze: The anonymous, shuffled data are analyzed by a specific analysis engine that averts statistical inference attacks on analysis results.

- 1.
- Ubiquitous configuration—This is similar to other works and sends an encrypted result for every log entry.
- 2.
- Aggregate configuration—This reduces communication and computation requirements by sending a single result for a block of log entries.

## 4. Proposed Solution

- 1.
- Ubiquitous—The SIEM sends one encrypted result per user input.
- 2.
- Aggregate—Only one result is sent to the encrypted domain for all the user inputs. This technique helps reduce communication costs and uses much fewer resources on the SAS to decrypt a single encrypted result rather than one encrypted result per encrypted input.

## 5. Sigmoid Approximation

## 6. Experimental Analysis

#### 6.1. Evaluation Criteria

- Precision is the proportion of correctly predicted positive results (true positive, TP) to the total predicted positive results (TP + false positive, FP). It is also known as the positive predictive value.
- Recall is the proportion of correctly predicted positive results (TP) to the total actual positive results (TP + false negative, FN). It is also known as sensitivity or specificity.
- Accuracy is the proportion of all correct predictions (TP + TN) to the total number of predictions made (TP + FP + TN + FN). It can be calculated as precision divided by recall or $1-\frac{FalseNegativeRate\phantom{\rule{3.33333pt}{0ex}}\left(FNR\right)}{FalsePositiveRate\phantom{\rule{3.33333pt}{0ex}}\left(FPR\right)}$.
- The F1-score is a measure that considers both precision and recall. It is calculated as the harmonic mean of the precision and recall.
- The $\mathrm{\Sigma}$-ratio is measured for the sigmoid activation function with binary outcomes and calculated as the ratio of the sum of all predicted labels to the sum of all actual labels.

#### 6.2. Datasets

#### 6.3. Test Results

## 7. Discussion

## 8. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Cloud Object Storage—Amazon S3—Amazon Web Services. Available online: https://aws.amazon.com/s3/ (accessed on 16 October 2023).
- Azure Blob Storage | Microsoft Azure. Available online: https://azure.microsoft.com/en-us/products/storage/blobs/ (accessed on 16 October 2023).
- S.3195—Consumer Online Privacy Rights Act. 2021. Available online: https://www.congress.gov/bill/117th-congress/senate-bill/3195 (accessed on 16 October 2023).
- TITLE 1.81.5. California Consumer Privacy Act of 2018 [1798.100–1798.199.100]. 2018. Available online: https://leginfo.legislature.ca.gov/faces/codes_displayText.xhtml?division=3.&part=4.&lawCode=CIV&title=1.81.5 (accessed on 16 October 2023).
- EUR-Lex—02016R0679-20160504—EN—EUR-Lex. 2016. Available online: https://eur-lex.europa.eu/eli/reg/2016/679/2016-05-04 (accessed on 16 October 2023).
- Durumeric, Z.; Ma, Z.; Springall, D.; Barnes, R.; Sullivan, N.; Bursztein, E.; Bailey, M.; Halderman, J.A.; Paxson, V. The Security Impact of HTTPS Interception. In Proceedings of the 24th Annual Network and Distributed System Security Symposium, NDSS, San Diego, CA, USA, 26 February–1 March 2017. [Google Scholar]
- Principles for the Processing of User Data by Kaspersky Security Solutions and Technologies | Kaspersky. Available online: https://usa.kaspersky.com/about/data-protection (accessed on 16 October 2023).
- Nakashima, E. Israel hacked Kaspersky, then Tipped the NSA That Its Tools Had Been Breached. 2017. Available online: https://www.washingtonpost.com/world/national-security/israel-hacked-kaspersky-then-tipped-the-nsa-that-its-tools-had-been-breached/2017/10/10/d48ce774-aa95-11e7-850e-2bdd1236be5d_story.html (accessed on 16 October 2023).
- Perlroth, N.; Shane, S. How Israel Caught Russian Hackers Scouring the World for U.S. Secrets. 2017. Available online: https://www.nytimes.com/2017/10/10/technology/kaspersky-lab-israel-russia-hacking.html (accessed on 16 October 2023).
- Temperton, J. AVG Can Sell Your Browsing and Search History to Advertisers. 2015. Available online: https://www.wired.co.uk/article/avg-privacy-policy-browser-search-data (accessed on 16 October 2023).
- Taylor, S. Is Your Antivirus Software Spying On You? | Restore Privacy. 2021. Available online: https://restoreprivacy.com/antivirus-privacy/ (accessed on 16 October 2023).
- Karande, V.; Bauman, E.; Lin, Z.; Khan, L. SGX-Log: Securing system logs with SGX. In Proceedings of the 2017 ACM on Asia Conference on Computer and Communications Security, Abu Dhabi, United Arab Emirates, 2–6 April 2017; pp. 19–30. [Google Scholar]
- Paccagnella, R.; Datta, P.; Hassan, W.U.; Bates, A.; Fletcher, C.; Miller, A.; Tian, D. Custos: Practical tamper-evident auditing of operating systems using trusted execution. In Proceedings of the Network and Distributed System Security Symposium, San Diego, CA, USA, 23–26 February 2020. [Google Scholar]
- Chillotti, I.; Gama, N.; Georgieva, M.; Izabachène, M. Faster Fully Homomorphic Encryption: Bootstrapping in Less Than 0. In 1 Seconds. In Proceedings of the Advances in Cryptology—ASIACRYPT 2016, Hanoi, Vietnam, 4–8 December 2016; Cheon, J.H., Takagi, T., Eds.; Springer: Berlin/Heidelberg, Germany, 2016; pp. 3–33. [Google Scholar]
- Brakerski, Z. Fully Homomorphic Encryption Without Modulus Switching from Classical GapSVP. In Proceedings of the 32nd Annual Cryptology Conference on Advances in Cryptology—CRYPTO 2012, Santa Barbara, CA, USA, 19–23 August 2012; Volume 7417, pp. 868–886. [Google Scholar] [CrossRef]
- Fan, J.; Vercauteren, F. Somewhat Practical Fully Homomorphic Encryption. Cryptology ePrint Archive, Report 2012/144. 2012. Available online: https://eprint.iacr.org/2012/144 (accessed on 16 October 2023).
- Cheon, J.H.; Kim, A.; Kim, M.; Song, Y. Homomorphic Encryption for Arithmetic of Approximate Numbers. Cryptology ePrint Archive, Report 2016/421. 2016. Available online: https://eprint.iacr.org/2016/421 (accessed on 16 October 2023).
- Frery, J.; Stoian, A.; Bredehoft, R.; Montero, L.; Kherfallah, C.; Chevallier-Mames, B.; Meyre, A. Privacy-Preserving Tree-Based Inference with Fully Homomorphic Encryption. arXiv
**2023**, arXiv:2303.01254. [Google Scholar] - Boudguiga, A.; Stan, O.; Sedjelmaci, H.; Carpov, S. Homomorphic Encryption at Work for Private Analysis of Security Logs. In Proceedings of the ICISSP, Valletta, Malta, 25–27 February 2020; pp. 515–523. [Google Scholar]
- Trivedi, D.; Boudguiga, A.; Triandopoulos, N. SigML: Supervised Log Anomaly with Fully Homomorphic Encryption. In Proceedings of the International Symposium on Cyber Security, Cryptology, and Machine Learning, Beer Sheva, Israel, 29–30 June 2023; Springer: Berlin/Heidelberg, Germany, 2023; pp. 372–388. [Google Scholar]
- Brakerski, Z.; Gentry, C.; Vaikuntanathan, V. Fully Homomorphic Encryption without Bootstrapping. Cryptology ePrint Archive, Paper 2011/277. 2011. Available online: https://eprint.iacr.org/2011/277 (accessed on 16 October 2023).
- Trivedi, D. Brief Announcement: Efficient Probabilistic Approximations for Sign and Compare. In Proceedings of the 25th International Symposium on Stabilization, Safety, and Security of Distributed Systems, Jersey City, NJ, USA, 2–4 October 2023; pp. 289–296. [Google Scholar]
- Zhao, J.; Mortier, R.; Crowcroft, J.; Wang, L. Privacy-preserving machine learning based data analytics on edge devices. In Proceedings of the 2018 AAAI/ACM Conference on AI, Ethics, and Society, New Orleans, LA, USA, 2–7 February 2018; pp. 341–346. [Google Scholar]
- Wang, L. Owl: A General-Purpose Numerical Library in OCaml. 2017. Available online: http://xxx.lanl.gov/abs/1707.09616 (accessed on 16 October 2023).
- Ray, I.; Belyaev, K.; Strizhov, M.; Mulamba, D.; Rajaram, M. Secure logging as a service—Delegating log management to the cloud. IEEE Syst. J.
**2013**, 7, 323–334. [Google Scholar] [CrossRef] - The Tor Project | Privacy & Freedom Online. Available online: https://www.torproject.org/ (accessed on 16 October 2023).
- Zawoad, S.; Dutta, A.K.; Hasan, R. SecLaaS: Secure logging-as-a-service for cloud forensics. In Proceedings of the 8th ACM SIGSAC Symposium on Information, Computer and Communications Security, Hangzhou, China, 8–10 May 2013; pp. 219–230. [Google Scholar]
- Zawoad, S.; Dutta, A.K.; Hasan, R. Towards building forensics enabled cloud through secure logging-as-a-service. IEEE Trans. Dependable Secur. Comput.
**2015**, 13, 148–162. [Google Scholar] [CrossRef] - Rane, S.; Dixit, A. BlockSLaaS: Blockchain assisted secure logging-as-a-service for cloud forensics. In Proceedings of the International Conference on Security & Privacy, Jaipur, India, 9–11 January 2019; Springer: Berlin/Heidelberg, Germany, 2019; pp. 77–88. [Google Scholar]
- Bittau, A.; Erlingsson, Ú.; Maniatis, P.; Mironov, I.; Raghunathan, A.; Lie, D.; Rudominer, M.; Kode, U.; Tinnes, J.; Seefeld, B. Prochlo: Strong privacy for analytics in the crowd. In Proceedings of the 26th Symposium on Operating Systems Principles, Shanghai, China, 28–31 October 2017; pp. 441–459. [Google Scholar]
- Paul, J.; Annamalai, M.S.M.S.; Ming, W.; Al Badawi, A.; Veeravalli, B.; Aung, K.M.M. Privacy-Preserving Collective Learning With Homomorphic Encryption. IEEE Access
**2021**, 9, 132084–132096. [Google Scholar] [CrossRef] - Pedregosa, F.; Varoquaux, G.; Gramfort, A.; Michel, V.; Thirion, B.; Grisel, O.; Blondel, M.; Prettenhofer, P.; Weiss, R.; Dubourg, V.; et al. Scikit-learn: Machine Learning in Python. J. Mach. Learn. Res.
**2011**, 12, 2825–2830. [Google Scholar] - Remez, E.Y. Sur le calcul effectif des polynomes d’approximation de Tschebyscheff. CR Acad. Sci. Paris
**1934**, 199, 337–340. [Google Scholar] - Chen, H.; Gilad-Bachrach, R.; Han, K.; Huang, Z.; Jalali, A.; Laine, K.; Lauter, K. Logistic regression over encrypted data from fully homomorphic encryption. BMC Med. Genom.
**2018**, 11, 3–12. [Google Scholar] [CrossRef] - Module: tf.keras.losses | TensorFlow v2.13.0. Available online: https://www.tensorflow.org/api_docs/python/tf/keras/losses (accessed on 16 October 2023).
- API Reference. Available online: https://scikit-learn.org/stable/modules/classes.html#module-sklearn.metrics (accessed on 16 October 2023).
- Huelse. Huelse/Seal-Python: Microsoft Seal 4.x for Python. 2022. Available online: https://github.com/Huelse/SEAL-Python (accessed on 9 May 2022).
- Buitinck, L.; Louppe, G.; Blondel, M.; Pedregosa, F.; Mueller, A.; Grisel, O.; Niculae, V.; Prettenhofer, P.; Gramfort, A.; Grobler, J.; et al. API design for machine learning software: Experiences from the scikit-learn project. In Proceedings of the ECML PKDD Workshop: Languages for Data Mining and Machine Learning, Prague, Czech Republic, 23–27 September 2013; pp. 108–122. [Google Scholar]
- Canadian Institute for Cybersecurity. NSL-KDD | Datasets | Research | Canadian Institute for Cybersecurity. 2019. Available online: https://www.unb.ca/cic/datasets/nsl.html (accessed on 16 October 2023).
- Tavallaee, M.; Bagheri, E.; Lu, W.; Ghorbani, A.A. A detailed analysis of the KDD CUP 99 data set. In Proceedings of the 2009 IEEE Symposium on Computational Intelligence for Security and Defense Applications, Ottawa, ON, Canada, 8–10 July 2009; IEEE: New York, NY, USA, 2009; pp. 1–6. [Google Scholar]
- He, S.; Zhu, J.; He, P.; Lyu, M.R. Loghub: A Large Collection of System Log Datasets towards Automated Log Analytics. arXiv
**2008**, arXiv:2008.06448. [Google Scholar] - He, P.; Zhu, J.; Zheng, Z.; Lyu, M.R. Drain: An online log parsing approach with fixed depth tree. In Proceedings of the 2017 IEEE International Conference on Web Services (ICWS), Honolulu, HI, USA, 25–30 June 2017; IEEE: New York, NY, USA, 2017; pp. 33–40. [Google Scholar]
- Trivedi, D. GitHub-Devharsh/Chiku: Polynomial Function Approximation Library in Python. 2023. Available online: https://github.com/devharsh/chiku (accessed on 16 October 2023).
- Cheon, J.H.; Kim, D.; Kim, D.; Lee, H.H.; Lee, K. Numerical method for comparison on homomorphically encrypted numbers. In Proceedings of the International Conference on the Theory and Application of Cryptology and Information Security, Kobe, Japan, 8–12 December 2019; Springer: Berlin/Heidelberg, Germany, 2019; pp. 415–445. [Google Scholar]
- Lee, E.; Lee, J.W.; No, J.S.; Kim, Y.S. Minimax approximation of sign function by composite polynomial for homomorphic comparison. IEEE Trans. Dependable Secur. Comput.
**2021**, 19, 3711–3727. [Google Scholar] [CrossRef] - Boura, C.; Gama, N.; Georgieva, M.; Jetchev, D. CHIMERA: Combining Ring-LWE-Based Fully Homomorphic Encryption Schemes. Cryptology ePrint Archive, Report 2018/758. 2018. Available online: https://eprint.iacr.org/2018/758 (accessed on 16 October 2023).

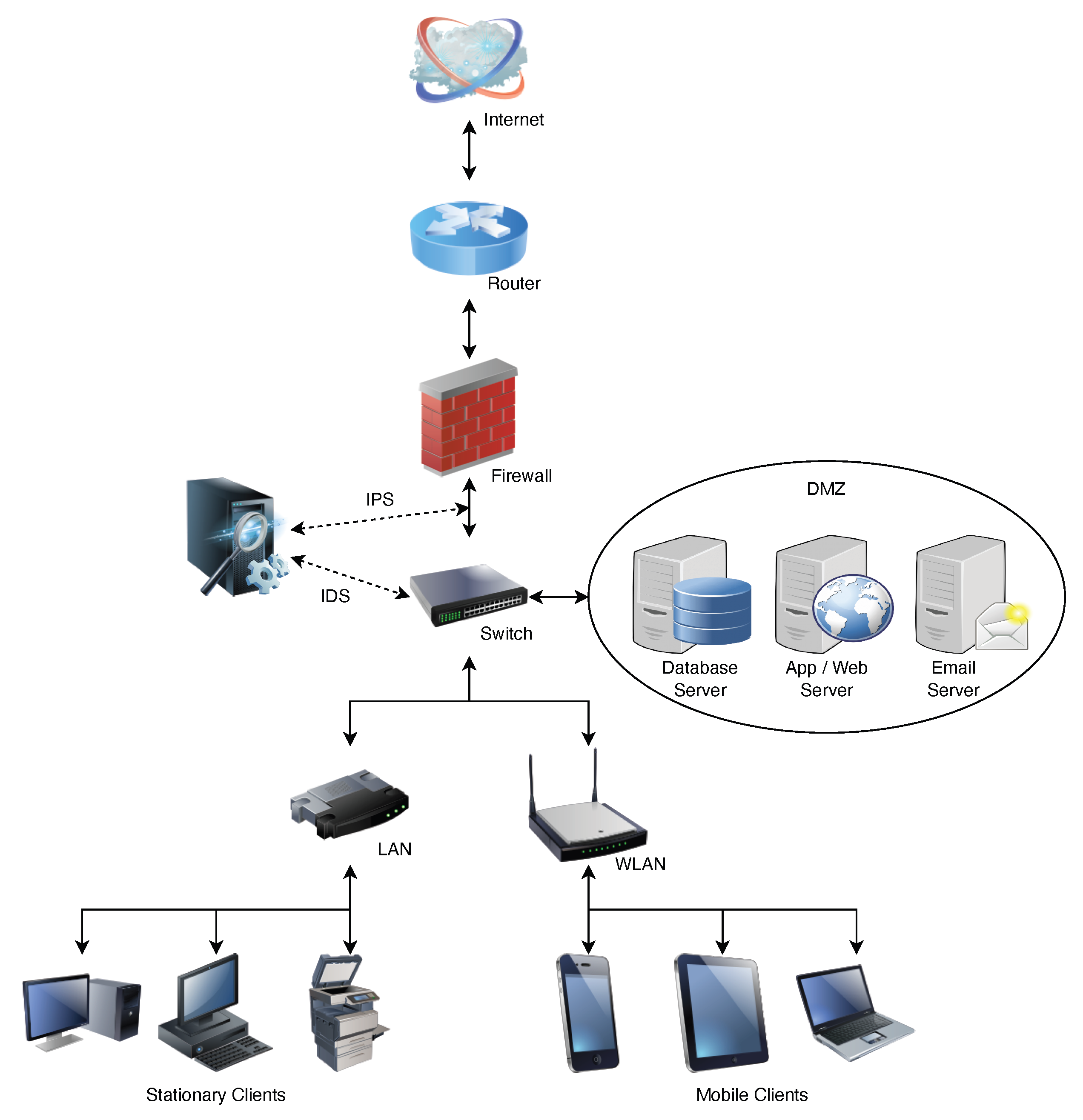

**Figure 1.**In a typical corporate network architecture, an IPS is placed after the Firewall and before the Switch to monitor and block traffic if required actively; alternatively, an IDS is connected to the Switch for passive analysis.

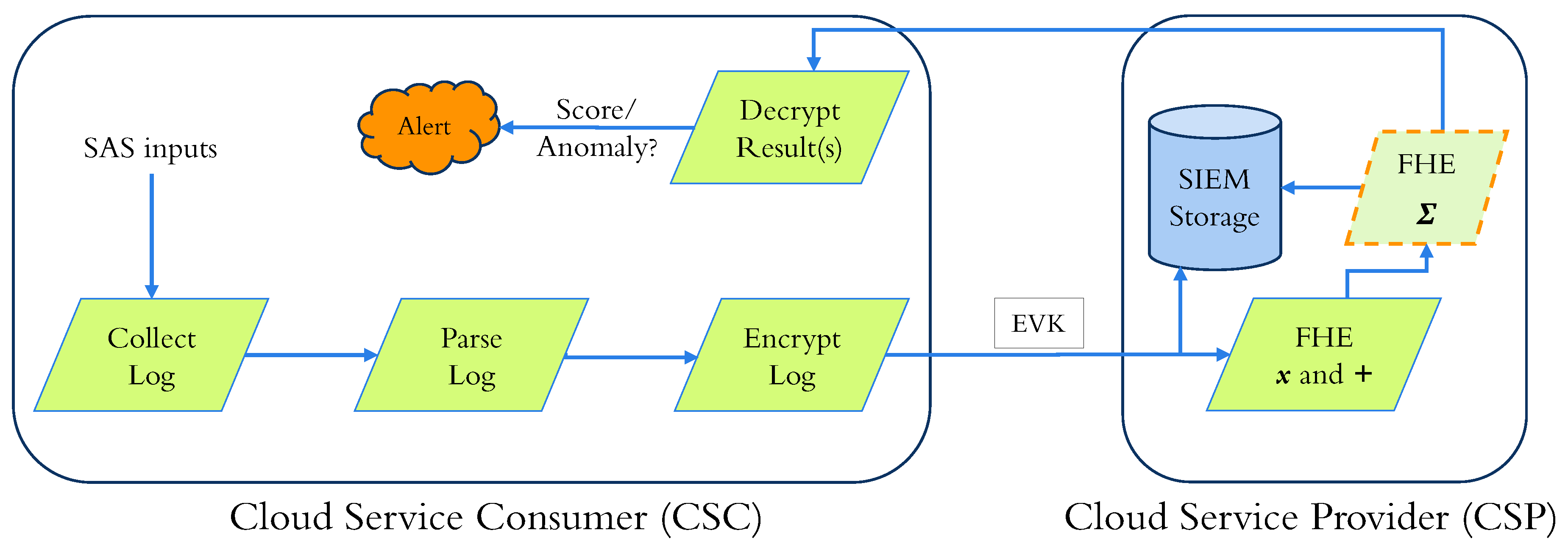

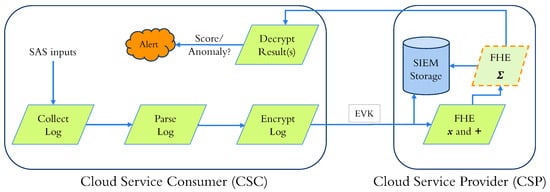

**Figure 6.**Encrypted log anomaly detection in Ubiquitous and Aggregate configurations (the dashed block is an extra component in Aggregate mode for encrypted additions).

Configuration | Encryption | Decryption | ||
---|---|---|---|---|

Time | Size | Time | Size | |

Ubiquitous Aggregate | $n\xb7{T}_{E}\left(p\right)$ | $n\xb7{S}_{E}\left(p\right)$ | $n\xb7{T}_{D}\left(c\right)$ ${T}_{D}\left(c\right)$ | $n\xb7{S}_{D}\left(c\right)$ ${S}_{D}\left(c\right)$ |

Interval | Method | MAE | MSLE | Huber | Hinge | Logcosh |
---|---|---|---|---|---|---|

$[-10,10]$ | ${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.0793 | 0.0020 | 0.0039 | 0.5593 | 0.0039 |

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.0691 | 0.0024 | 0.0031 | 0.5646 | 0.0031 | |

$[-50,50]$ | ${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.1363 | 0.0115 | 0.0138 | 0.5475 | 0.0136 |

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.1255 | 0.0124 | 0.0132 | 0.5534 | 0.0131 |

Dataset | Type | Accuracy | Precision | Recall | F1-Score | $\mathit{\Sigma}$-Ratio |
---|---|---|---|---|---|---|

NSL-KDD | Full (100%) | 0.4811 | 0.4811 | 1.0000 | 0.6497 | 2.0782 |

Test (20%) | 0.4832 | 0.4832 | 1.0000 | 0.6515 | 2.0695 | |

HDFS | Full (100%) | 0.4999 | 0.4999 | 1.0000 | 0.6666 | 2.0000 |

Test (20%) | 0.5016 | 0.5016 | 1.0000 | 0.6681 | 1.9934 |

Dataset | Model | Scale | Method | Accuracy | Precision | Recall | F1-Score | $\mathit{\Sigma}$-Ratio |
---|---|---|---|---|---|---|---|---|

NSL-KDD | LR | Plain | 0.9352 | 0.9502 | 0.9138 | 0.9317 | 0.9966 | |

${\mathbf{R}}_{\mathbf{5}}^{\mathbf{3}}$ | 0.7923 | 0.9272 | 0.6186 | 0.7421 | 0.6336 | |||

${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.3865 | 0.3083 | 0.2167 | 0.2545 | −2.1720 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9330 | 0.9486 | 0.9108 | 0.9293 | 1.0633 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9351 | 0.9498 | 0.9139 | 0.9315 | 1.0753 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9342 | 0.9502 | 0.9116 | 0.9305 | 1.0667 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9120 | 0.9213 | 0.8942 | 0.9076 | 1.0666 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.3870 | 0.3087 | 0.2169 | 0.2548 | −2.1649 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9341 | 0.9501 | 0.9115 | 0.9304 | 1.0634 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9352 | 0.9502 | 0.9138 | 0.9317 | 1.0752 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9341 | 0.9501 | 0.9115 | 0.9304 | 1.0668 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9350 | 0.9537 | 0.9096 | 0.9311 | 1.0660 | |||

SVM | Plain | 0.9330 | 0.9550 | 0.9039 | 0.9287 | 1.0614 | ||

${\mathbf{R}}_{\mathbf{5}}^{\mathbf{3}}$ | 0.9326 | 0.9550 | 0.9031 | 0.9283 | 1.0993 | |||

${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.7743 | 0.9262 | 0.5790 | 0.7126 | 0.7872 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9312 | 0.9522 | 0.9029 | 0.9269 | 1.1190 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.8426 | 0.8194 | 0.8649 | 0.8649 | 1.0569 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9239 | 0.9407 | 0.8993 | 0.9195 | 1.1110 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9311 | 0.9574 | 0.8974 | 0.9264 | 1.0489 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.7762 | 0.9302 | 0.5804 | 0.7148 | 0.7876 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9330 | 0.9550 | 0.9039 | 0.9287 | 1.1189 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9330 | 0.9550 | 0.9039 | 0.9287 | 1.0566 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.9329 | 0.9551 | 0.9036 | 0.9287 | 1.1111 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9318 | 0.9604 | 0.8958 | 0.9270 | 1.0489 | |||

HDFS | LR | Plain | 0.9683 | 0.9412 | 0.9992 | 0.9693 | 1.0001 | |

${\mathbf{R}}_{\mathbf{5}}^{\mathbf{3}}$ | 0.5308 | 0.5167 | 0.9992 | 0.6812 | 292.6803 | |||

${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.3616 | 0.4178 | 0.6928 | 0.5213 | 1545.6206 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.5561 | 0.5306 | 0.9993 | 0.6931 | 71.6765 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.8899 | 0.8203 | 0.9995 | 0.9011 | 0.7862 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.5560 | 0.5305 | 0.9994 | 0.6931 | 62.0974 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.8932 | 0.8249 | 0.9992 | 0.9037 | 0.7784 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.3616 | 0.4178 | 0.6927 | 0.5212 | 1542.8804 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.5564 | 0.5307 | 0.9992 | 0.6932 | 71.5496 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.8908 | 0.8216 | 0.9992 | 0.9018 | 0.7835 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.5565 | 0.5308 | 0.9992 | 0.6933 | 61.9845 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.8930 | 0.8247 | 0.9992 | 0.9036 | 0.7794 | |||

SVM | Plain | 0.9681 | 0.9402 | 1.0000 | 0.9692 | 0.8649 | ||

${\mathbf{R}}_{\mathbf{5}}^{\mathbf{3}}$ | 0.5605 | 0.5330 | 1.0000 | 0.6953 | 36.6039 | |||

${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.5513 | 0.5278 | 1.0000 | 0.6910 | 198.8704 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.6356 | 0.5793 | 0.9988 | 0.7333 | 8.5442 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9263 | 0.9385 | 0.9130 | 0.9256 | 0.6254 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.6397 | 0.5820 | 1.0000 | 0.7358 | 7.4514 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9682 | 0.9406 | 0.9998 | 0.9693 | 0.6478 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 0.5518 | 0.5281 | 1.0000 | 0.6912 | 198.5042 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.6357 | 0.5793 | 1.0000 | 0.7336 | 8.5288 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9681 | 0.9402 | 1.0000 | 0.9692 | 0.6253 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 0.6399 | 0.5821 | 1.0000 | 0.7359 | 7.4376 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 0.9682 | 0.9404 | 1.0000 | 0.9693 | 0.6482 |

Dataset | Model | Scale | Method | Average | Total (CPU) | |||
---|---|---|---|---|---|---|---|---|

Encryption | Decryption | Sigmoid | User | System | ||||

NSL-KDD | LR | ${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 15.9451 | 1.2736 | 25.0283 | 21,229.5304 | 31.1183 |

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 15.8492 | 1.2750 | 24.8478 | 14,151.9965 | 21.6079 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.3591 | 1.3128 | 25.6645 | 57,907.9974 | 192.8575 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 15.9845 | 1.2882 | 25.1456 | 7098.8882 | 12.2847 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.4581 | 1.3294 | 25.8525 | 50,652.5642 | 173.5452 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 16.5453 | 1.3044 | 26.1130 | 21,864.5342 | 86.9118 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.3382 | 1.2872 | 25.6880 | 14,527.2336 | 63.9331 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.2095 | 1.2866 | 25.3791 | 72,326.0694 | 229.5827 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.4056 | 1.2930 | 25.8025 | 7249.1064 | 44.1778 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.2132 | 1.2683 | 25.5183 | 65,122.4439 | 209.3589 | |||

SVM | ${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 15.9461 | 1.2854 | 25.1386 | 21,342.9889 | 37.2623 | |

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.0024 | 1.2769 | 25.1158 | 14,240.9221 | 27.7670 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.3930 | 1.3225 | 25.7013 | 34,780.6294 | 69.3801 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.1102 | 1.2971 | 25.3295 | 7138.4435 | 17.5237 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.0584 | 1.2954 | 25.1713 | 79,472.3131 | 241.1018 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 16.0374 | 1.2567 | 25.0808 | 43,369.0540 | 144.5788 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 15.9906 | 1.2657 | 25.0830 | 36,270.2810 | 133.6592 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.1845 | 1.2751 | 25.3623 | 41,969.1462 | 86.2903 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.4235 | 1.3000 | 25.8985 | 29,143.3392 | 110.3346 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 15.9473 | 1.2531 | 25.1184 | 93,679.2789 | 260.7503 | |||

HDFS | LR | ${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 16.3908 | 1.2578 | 25.4707 | 28,191.8944 | 96.0272 |

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.4117 | 1.2704 | 25.3694 | 56,176.0993 | 249.5097 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.2385 | 1.3113 | 25.1131 | 83,989.0793 | 355.9741 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.1082 | 1.2582 | 24.9673 | 27,724.1933 | 75.9279 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 15.9611 | 1.2891 | 24.7696 | 55,177.6614 | 119.2686 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 16.0785 | 1.1416 | 24.8503 | 27,533.3271 | 43.9969 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.1325 | 1.1467 | 24.6902 | 28,002.8715 | 42.0600 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.1544 | 1.1475 | 24.7477 | 55,939.1609 | 88.9075 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.0655 | 1.1504 | 25.0016 | 82,767.8606 | 171.9368 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.4731 | 1.1875 | 25.5487 | 110,748.7027 | 309.8314 | |||

SVM | ${2}^{30}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 16.3642 | 1.2677 | 25.4733 | 82,902.0987 | 212.2604 | |

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.0238 | 1.2588 | 24.7493 | 27,494.7062 | 61.8813 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 15.9412 | 1.2864 | 24.7108 | 54,953.8687 | 107.4183 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 16.1825 | 1.2757 | 25.0942 | 138,438.5341 | 379.7756 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.3706 | 1.3089 | 25.4166 | 35,159.2336 | 121.3245 | |||

${2}^{40}$ | ${\mathbf{T}}^{\mathbf{3}}$ | 16.6737 | 1.1933 | 25.8361 | 83,201.7236 | 274.1485 | ||

${\mathbf{C}}_{\mathbf{10}}^{\mathbf{3}}$ | 15.9010 | 1.1333 | 24.5346 | 27,335.2857 | 46.0062 | |||

${\mathbf{C}}_{\mathbf{50}}^{\mathbf{3}}$ | 16.0024 | 1.1422 | 24.6981 | 54,971.1042 | 97.4169 | |||

${\mathbf{A}}_{\mathbf{10}}^{\mathbf{3}}$ | 15.9279 | 1.1375 | 24.6168 | 27,384.4133 | 46.0062 | |||

${\mathbf{A}}_{\mathbf{50}}^{\mathbf{3}}$ | 15.9141 | 1.1383 | 24.5868 | 27,388.0323 | 43.6415 |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Trivedi, D.; Boudguiga, A.; Kaaniche, N.; Triandopoulos, N.
SigML++: Supervised Log Anomaly with Probabilistic Polynomial Approximation. *Cryptography* **2023**, *7*, 52.
https://doi.org/10.3390/cryptography7040052

**AMA Style**

Trivedi D, Boudguiga A, Kaaniche N, Triandopoulos N.
SigML++: Supervised Log Anomaly with Probabilistic Polynomial Approximation. *Cryptography*. 2023; 7(4):52.
https://doi.org/10.3390/cryptography7040052

**Chicago/Turabian Style**

Trivedi, Devharsh, Aymen Boudguiga, Nesrine Kaaniche, and Nikos Triandopoulos.
2023. "SigML++: Supervised Log Anomaly with Probabilistic Polynomial Approximation" *Cryptography* 7, no. 4: 52.
https://doi.org/10.3390/cryptography7040052
