1. Introduction
Information security and privacy problems are growing day by day due to the presence of communication nets. There is a need for safe and authentic means of communication and cautiously weighing the issues connected with it. Therefore, network security and data encryption are becoming significant. Images can instantly be reckoned as one of the most functional forms of data. Image encryption has applications in several areas, including multimedia organizations, medical imaging, wireless communications, military communications, and telemedicine, etc. Owing to these wider applications of image encryption, a great deal of research work is devoted to this topic (see for instance [
1,
2,
3,
4,
5]).
The S-box is used in various encryption techniques, and the complexity of encryption basically depends on the strength of S-box. Advanced encryption standard (AES) [
6], affine–power–affine (APA) [
7], Gray [
8], Liu J [
9], residue prime [
10],
AES [
11], SKIPJACK [
12], and Xyi [
13] are some well-known 8 × 8 S-boxes that are usually used in encryption applications. These all are based on the elements of the Galois field
with almost similar algebraic and statistical properties. In the past few years, researchers were trying to reduce the size of S-box by working with a small unit of data to make the techniques compact, fast and elegant [
14,
15,
16]. In [
14], an S-box of size
was constructed on the maximal cyclic subgroup of the multiplicative group of units in a finite Galois ring, instead of on the Galois field. Despite the reduced size, this S-box can replace the data bytes. The suitability of the S-box for image encryption has been proved with the majority logic criterion. Additionally, it has also been used for watermarking of grayscale images with good outcomes.
In this paper, we construct an S-box of the same size on a subgroup of the Galois field
, with the following irreducible polynomial for multiplication:
. We will discuss the algebraic strength of S-box by employing balance property, nonlinearity analysis, linear approximation probability analysis, differential approximation probability analysis, strict avalanche criterion and majority logic criterion, and observe its closeness with the S-box constructed in Reference [
14]. The S-box has also been used for watermarking of grayscale images with good outcomes.
In
Section 2, the construction methodology of S-box on a subgroup of the Galois field is presented.
Section 3 is devoted to examining the security of the proposed S-box with balance property, nonlinearity analysis, linear approximation probability analysis, differential approximation probability analysis, strict avalanche criterion, and majority logic criterion. The results from the contrast analysis, correlation analysis, energy analysis, entropy analysis, homogeneity analysis, and mean of absolute deviation analysis are computed for the proposed S-box and compared with the S-box constructed in [
14].
Section 4 gives an application of the proposed S-box in watermarking of grayscale images with some experimental results and discussion. The whole study is concluded in
Section 5.
2. Construction of S-box on Subgroup of the Galois Field
S-box is the only non-linear transformation involved in almost all block ciphers that creates confusion in data. The size of the S-box can alter according to the scope of its application. In [
14], Shah et al. constructed an S-box structure based on the elements of the maximal cyclic subgroup of the multiplicative group of units in a finite Galois ring. To the best of the author’s knowledge, this was the first time to construct a bijective S-box on a cyclic group instead of Galois field. They have constructed an
-bit S-box based on 16 elements, instead of 256 elements, and found that the new S-box satisfies the majority logic criterion with optimal values. They also justified the application of S-box in watermarking of a grayscale image with good outcomes. Therefore, further study in this area has opened new horizons using a subgroup of the Galois field. The S-box in this research is constructed on a fifteen-order subgroup of the Galois field of order 256. We name the subgroup as
. The procedure is explained below:
Since fifteen linear scalar multiple functions
can be defined on
, therefore fifteen different S-boxes can be obtained by the above procedure. For
, the construction of S-box on
is given in
Table 1 and is arranged in
Table 2, while
Table 3 shows the elements of the S-box in base 10.
3. Analyses
In this section, the strength of the proposed S-box is analyzed and discussed by manipulating balance property, nonlinearity, differential approximation probability, linear approximation probability, strict avalanche criterion, and majority logic criterion.
3.1. Balance Property
A
variables Boolean function
is said to be balanced if
. Balanced functions are considered cryptographically strong because the magnitude of the function’s imbalance represents a weakness in the function in terms of linear cryptanalysis [
17].
S-boxes on
comprise eight Boolean functions containing
binary bits each and in this case, all the Boolean functions are balanced. However, in our case, as we are considering the subgroup of
, it is not evident for all the Boolean functions of the S-box to fulfill the balance property. Additionally, the higher the number of balanced functions, the stronger will be the S-box. In proposed S-box, there are eight Boolean functions with sixteen binary bits each, and among them, seven are balanced.
3.2. Nonlinearity Analysis
The nonlinearity of a Boolean function is defined as the number of bits which must change in its truth table to reach the closest affine function. Computationally, this is half the number of bits in the Boolean function, less the largest absolute value of the unexpected distance. The unexpected distance is computed with the fast Walsh transform (FWT) [
18]. Nonlinearity is always positive, even if we have a balanced function. The optimal
S-boxes exhibit nonlinear behavior with an average value of
. The seven balanced Boolean functions of the proposed S-box attain an optimal value of nonlinearity for sixteen input values. The results of nonlinearity of the Boolean functions
of the proposed S-box are listed in
Table 4.
3.3. Strict Avalanche Criterion
A Boolean function
is said to satisfy SAC if complementing a single bit results in changing the output bit with probability exactly one half, i.e.,
where
denotes any element of
with hamming weight
[
19]. The results of the analysis of the strict avalanche criterion for our S-box are shown in
Table 5. The average value is 0.4688, which is closed to the ideal value 0.5.
3.4. Linear Approximation Probability Analysis
Linear approximation probability analyzes the value of the imbalance of an event. The parity of the input bits selected by the mask
is equal to the parity of the output bits selected by the mask
. Linear approximation probability of a given S-box is defined as:
where
is the set of all possible inputs [
20]. The proposed S-box shows a reasonable resistance against linear attacks by a value
.
3.5. Differential Approximation Probability Analysis
For strong S-boxes, it is desirable that the nonlinear transformation exhibits differential uniformity. Differential approximation probability measures the differential uniformity demonstrated by an S-box. The S-box is immune to the differential attack if differential at the input uniquely maps to an output differential [
21]. The mathematical expression of the differential approximation probability for the S-box is:
The optimal differential bound (maximum of all differentials in an individual S-Box) for
S-Boxes is
. By using the above rule, the outcomes of the differential approximation probability of the most probable output XOR of the proposed S-box by applying the input and output differentials are given in
Table 6. The maximum of the matrix is
, showing that the proposed S-box bears a solid immunity to hold out the differential approach.
3.6. Majority Logic Criterion
S-box is a basic constituent of many encryption schemes, which performs substitution. Generally, an S-box substitutes an input pixel of
bits with an output pixel of
bits, where
and
may or may not be equal. In our case, the pixels of an image are altered according to the above lookup
Table 3. The pixels of the plain image are transformed in the following two simple steps to get the distorted image:
The standard grayscale images of size
pixels each, consisting of ‘Lena’, ‘Baboon’, ‘Pepper’ and ‘Airplane’ were chosen as test images for experimental results, as depicted in
Figure 1. The distortions produced in these images by using the proposed S-box are shown in
Figure 2. The amount of distortion can be seen from histograms displayed in
Figure 3, that show the distribution of the intensities of the picture elements after application of S-box. While the histograms of the original images are shown in
Figure 4.
The suitability of the proposed S-box in image encryption applications is determined by majority logic criterion. This criterion uses the results from contrast analysis, correlation analysis, energy analysis, entropy analysis, homogeneity analysis, and mean of absolute deviation analysis [
22]. These analyses are applied to the distorted images by using proposed S-box and then the majority logic criterion is used to determine the appropriateness of the S-box to image encryption applications. The results of these analyses for the proposed S-box and the S-box in Reference [
14] are listed in
Table 7. According to MLC, small values of correlation, energy and homogeneity while the greater values of entropy, contrast and MAD are better.
4. Application of Proposed S-box in Image Watermarking
A pixel is a picture element that composes an image. Images can be classified into three primary types: Full color or 24-bit color images, grayscale images, and black and white images. In this segment, we present an application of proposed S-box for watermarking a grayscale image. Each picture element in a grayscale image consists of eight bits and it may have possible levels of gray running from zero (black) to 255 (white). Interestingly, the contribution of every bit of a picture element in the amount of information is not the same. The leftmost bit named as the most significant bit (MSB) contributes of the information, while the rightmost bit named as the least significant bit (LSB) contributes of the information. Therefore, changing that LSB only affects of the intensity and humans simply cannot detect the difference. In fact, it is difficult to perceive a difference in of an intensity change, so we can alter the 4 LSB’s with little or no perceptible difference.
In the proposed watermarking algorithm, proposed S-box over subgroup of
was used to transform the LSB’s of each pixel of the grayscale image. We will insert watermark in images based on modifications to the LSB’s of the pixel values which will not affect the quality of the image.
Figure 5 gives a description of the watermark embedding algorithm, while the watermark extraction algorithm remains the same.
Experimental Results and Discussion
The standard grayscale images of size
pixels each, consisting of ‘Lena’, ‘Baboon’, ‘Pepper’ and ‘Airplane’ were chosen as cover images for experimental results, as depicted in
Figure 1. A watermark was embedded in these images by the transformation of the proposed S-box by the described algorithm and the watermarked images are listed in
Figure 6. The experimental work was performed using MATLAB R2015a. One can note that there is no detectable difference between the corresponding images before and after embedding the watermark.
The histograms of watermarked images are revealed in
Figure 7. There is only a little difference between the histograms of corresponding images (see
Figure 4). The reason is that the S-box transformation is applied to the LSB’s of pixels of the cover image. Hence, the histogram analysis is justifying the accuracy of the algorithm.
The performance of the algorithm was evaluated based on mean square error (MSE), peak signal to noise ratio (PSNR) and structural similarity index measure (SSIM).
measures the quality of the reconstructed image. The numerical value of
of image
can be calculated by the expression:
, for grayscale images the value of
is taken as 255.
of images
and
is defined as:
, where
is the original image and
is the watermarked image [
23]. The similarity between two images can be estimated by the structural similarity index measure (SSIM) [
24]. The closeness of the results in
Table 8 for both S-boxes is indicating the appropriateness of the proposed S-box to watermarking applications.
5. Conclusions and Future Work
In this paper, an S-box construction method on a subgroup of the Galois field is presented. It is S-box of byte values. Some well-known analyses were applied to the proposed S-box and it is concluded that the S-box possesses desirable properties suitable for encryption applications for secure communications. The proposed S-box satisfies the MLC with optimal values and gives a good value as compared to the other ones. We used the proposed S-box in a watermarking scheme which makes the original image robust while the watermarked image is almost the same. MSE, PSNR, and SSIM analyses of watermarking are very reasonable.
The above study sets the grounds for the 16-byte S-boxes in information security applications. This can be extended by modifying and designing the existing cryptography, watermarking, and steganography applications that use and 8 S-boxes by replacing them with these S-boxes. Some other algebraic structures can also be found for the construction of such S-boxes to enhance their strength. Further, there is space for discovering different cryptanalysis techniques for such S-boxes.
Author Contributions
Conceptualization and supervision, T.S.; methodology, software, writing—original draft preparation, A.Q.
Funding
This research received no external funding.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Farwa, S.; Shah, T.; Muhammad, N.; Bibi, N.; Jahangir, A.; Arshad, S. An image encryption technique based on chaotic S-box and Arnold transform. Int. J. Adv. Comput. Sci. Appl. 2017, 8. [Google Scholar] [CrossRef]
- Zhang, Y. The unified image encryption algorithm based on chaos and cubic S-box. Inf. Sci. 2018, 450, 361–377. [Google Scholar] [CrossRef]
- Zhu, C.; Wang, G.; Sun, K. Cryptanalysis and improvement on an image encryption algorithm design using a novel chaos based S-box. Symmetry 2018, 10, 399. [Google Scholar] [CrossRef]
- Zhu, C.; Wang, G.; Sun, K. Improved cryptanalysis and enhancements of an image encryption scheme using combined 1D chaotic maps. Entropy 2018, 20, 843. [Google Scholar] [CrossRef]
- Zhang, X.; Nie, W.; Ma, Y.; Tian, Q. Cryptanalysis and improvement of an image encryption algorithm based on hyper-chaotic system and dynamic S-box. Multimed. Tools Appl. 2017, 76, 15641–15659. [Google Scholar] [CrossRef]
- Daemen, J.; Rijmen, V. The Design of Rijndael: AES-The Advanced Encryption Standard, 2nd ed.; Springer: New York, NY, USA, 2002. [Google Scholar]
- Cui, L.; Cao, Y. A new S-box structure named affine-power-affine. Int. J. Innov. Comput. I. 2007, 3, 751–759. [Google Scholar]
- Tran, M.T.; Bui, D.K.; Doung, A.D. Gray S-box for advanced encryption standard. In Proceedings of the 2008 International Conference on Computational Intelligence and Security, Suzhou, China, 13–17 December 2008; Volume 1. [Google Scholar]
- Liu, J.; Wai, B.; Cheng, X.; Wang, X. An AES S-box to increase complexity and cryptographic analysis. In Proceedings of the 19th International Conference on Advanced Information Networking and Applications, Taipei, Taiwan, 28–30 March 2005; Volume 1. [Google Scholar]
- Abuelyman, E.S.; Alsehibani, A.S. An optimized implementation of the S-box using residue of prime numbers. Int. J. Comput. Sci. Netw. Secur. 2008, 8, 304–309. [Google Scholar]
- Hussain, I.; Shah, T.; Mehmood, H. A new algorithm to construct secure keys for AES. Int. J. Contemp. Math. Sci. 2010, 5, 1263–1270. [Google Scholar]
- SKIPJACK and KEA Algorithm Specifications. Available online: https://cryptome.org/jya/skipjack-spec.htm (accessed on 29 May 1998).
- Yi, X.; Cheng, S.X.; You, X.H.; Lam, K.Y. A method for obtaining cryptographically strong 8 × 8 S-boxes. In Proceedings of the Global Telecommunications Conference, Phoenix, AZ, USA, 3–8 November 1997. [Google Scholar]
- Shah, T.; Qamar, A.; Hussain, I. Substitution box on maximal cyclic subgroup of units of a Galois ring. Z. Naturforsch A 2014, 68, 479–482. [Google Scholar] [CrossRef]
- Shah, T.; Jahangir, S.; Andrade, A.A. Design of new 4 × 4 S-box from finite commutative chain rings. Comput. Appl. Math. 2015, 36, 843–857. [Google Scholar] [CrossRef]
- Qureshi, A.; Shah, T. S-box on subgroup of Galois field based on linear fractional transformation. Electron. Lett. 2017, 53, 604–606. [Google Scholar] [CrossRef]
- Hussain, I.; Shah, T. Literature survey on nonlinear components and chaotic nonlinear components of block ciphers. Nonlinear Dyn. 2013, 74, 869–904. [Google Scholar] [CrossRef]
- Ritter, T. Measuring Boolean Function Nonlinearity by Walsh Transform. Available online: http://www.ciphersbyritter.com/ARTS/MEASNONL.HTM (accessed on 15 January 1998).
- Matsui, M. Linear cryptanalysis method of DES cipher. In Proceedings of the Workshop on the Theory and Application of Cryptographic Techniques on Advances in Cryptology, Lofthus, Norway, 23–27 May 1993. [Google Scholar]
- Biham, E.; Shamir, A. Differential cryptanalysis of DES-like cryptosystems. J. Cryptology. 1991, 4, 3–72. [Google Scholar] [CrossRef]
- Webster, A.F.; Tavares, S.E. Advances in Cryptology, CRYPTO’85; Williams, H.C., Ed.; Springer: Berlin/Heidelberg, Germany, 1986; pp. 523–534. [Google Scholar]
- Shah, T.; Hussain, I.; Gondal, M.A.; Mahmood, H. Statistical analysis of S-box in image encryption applications based on majority logic criterion. Int. J. Phys. Sci. 2011, 6, 4110–4127. [Google Scholar]
- Huynh-Thu, Q.; Ghanbari, M. Scope of validity of PSNR in image/video quality assessment. Electron. Lett. 2008, 44, 800–801. [Google Scholar] [CrossRef]
- Wang, Z.; Bovik, A.C.; Sheikh, H.R.; Simoncelli, E.P. Image quality assessment: From error visibility to structural similarity. IEEE Trans. Image Process. 2004, 13, 600–612. [Google Scholar] [CrossRef] [PubMed]
Figure 1.
Original image of: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Figure 1.
Original image of: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Figure 2.
Distorted image of: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Figure 2.
Distorted image of: (a) Lena, (b) baboon, (c) pepper, (d) airplane.

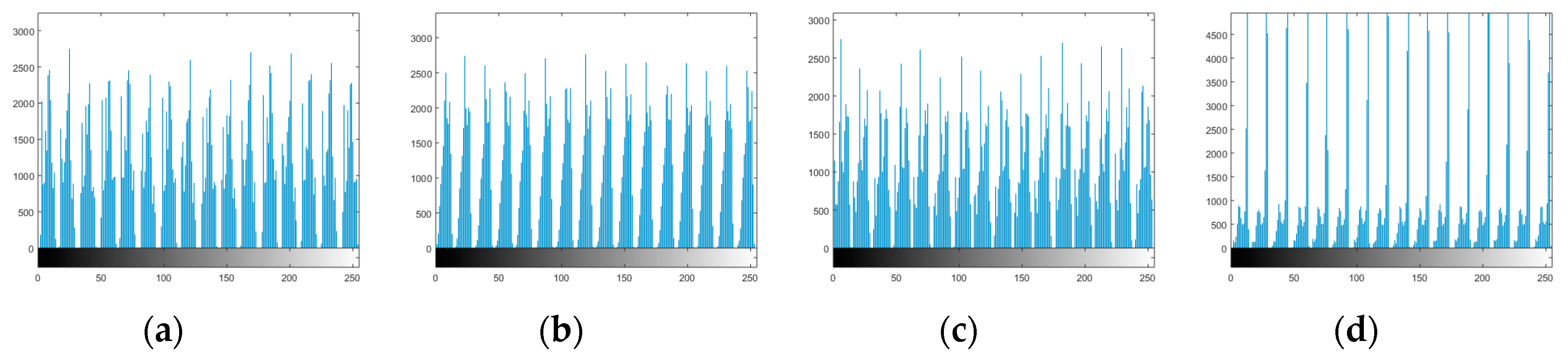

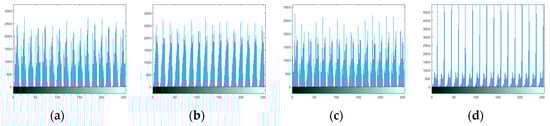

Figure 3.
Histograms of distorted images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Figure 3.
Histograms of distorted images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.

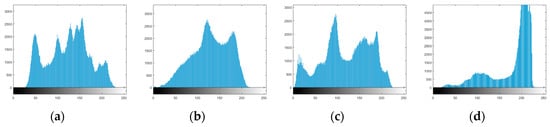

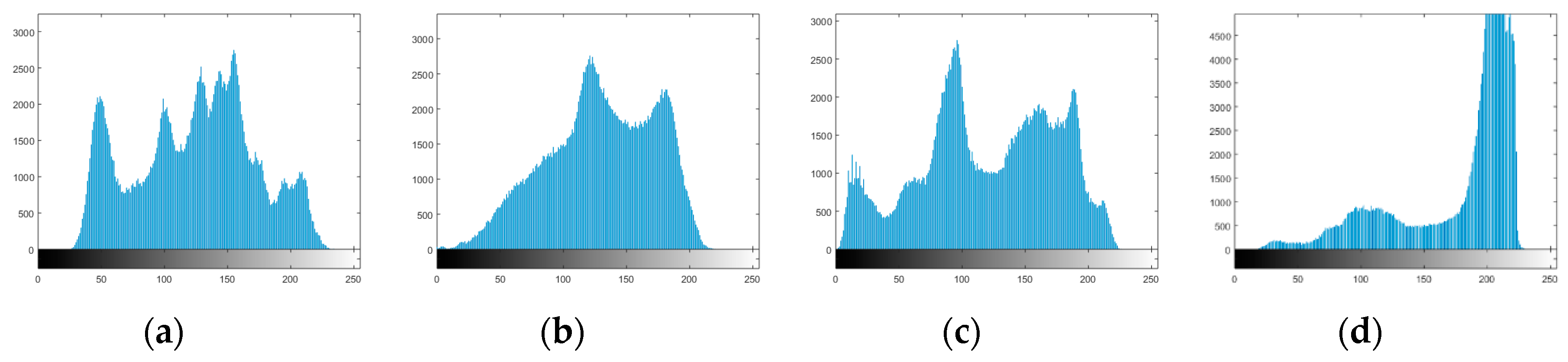

Figure 4.
Histograms of original images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Figure 4.
Histograms of original images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.

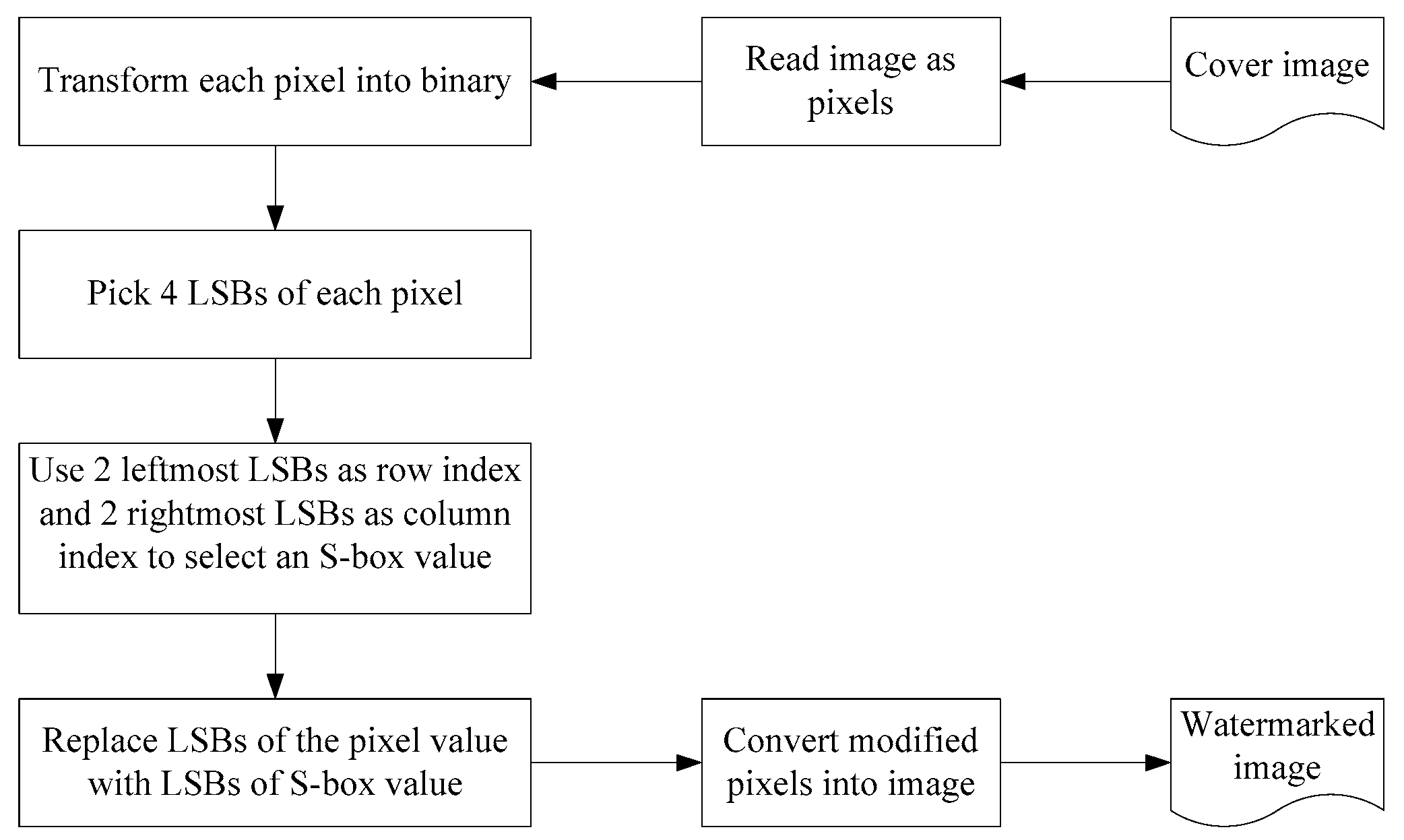

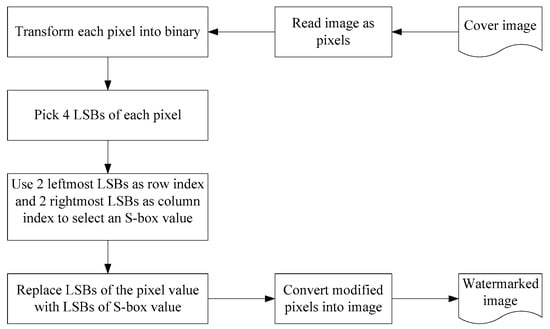

Figure 5.
The watermark embedding algorithm.
Figure 5.
The watermark embedding algorithm.
Figure 6.
Watermarked images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Figure 6.
Watermarked images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.

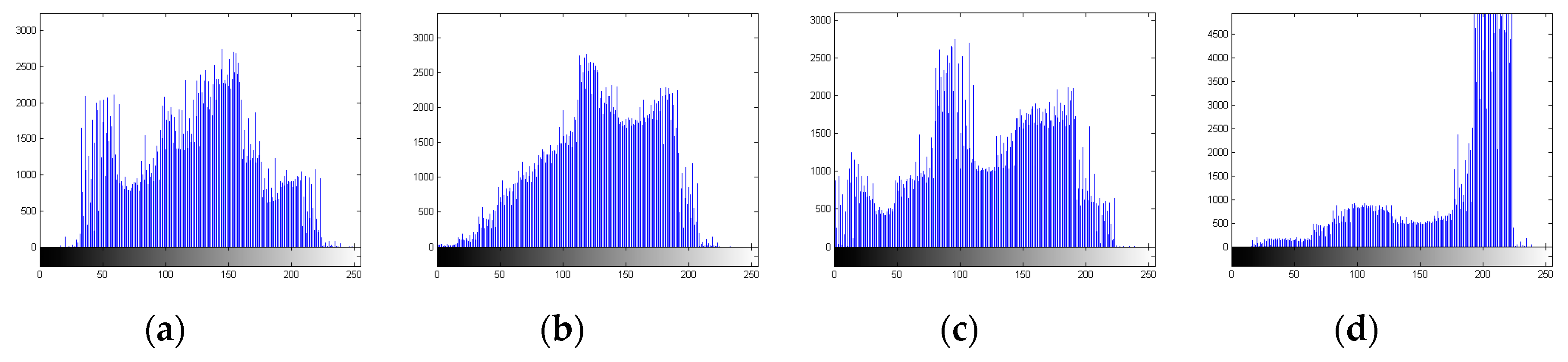

Figure 7.

Histogram of watermarked images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Figure 7.
Histogram of watermarked images: (a) Lena, (b) baboon, (c) pepper, (d) airplane.
Table 1.
Construction of S-box on .
Table 1.
Construction of S-box on .
|
| |
---|
00000000 | 00000000 | 00000000 |
10011000 | 01001110 | 01000101 |
01001110 | 00001010 | 11011101 |
00001010 | 10011001 | 11011100 |
10011001 | 11010110 | 11010111 |
11010110 | 01000100 | 10010010 |
01000100 | 10010011 | 01001111 |
10010011 | 01001111 | 10010011 |
01001111 | 10010010 | 01000100 |
10010010 | 11010111 | 11010110 |
11010111 | 11011100 | 10011001 |
11011100 | 11011101 | 00001010 |
11011101 | 01000101 | 01001110 |
01000101 | 00001011 | 10011000 |
00001011 | 00000001 | 00000001 |
00000001 | 10011000 | 00001011 |
Table 2.
S-box on (in base 2).
Table 2.
S-box on (in base 2).
LSB’s | 00 | 01 | 10 | 11 |
---|
00 | 00000000 | 00001011 | 11010110 | 10010011 |
01 | 01001111 | 10011000 | 10010010 | 10011001 |
10 | 01000101 | 11010111 | 11011100 | 00000001 |
11 | 00001010 | 01001110 | 11011101 | 01000100 |
Table 3.
S-box on (in base 10).
Table 3.
S-box on (in base 10).
LSB’s | 0 | 1 | 2 | 3 |
---|
0 | 0 | 11 | 214 | 147 |
1 | 79 | 152 | 146 | 153 |
2 | 69 | 215 | 220 | 1 |
3 | 10 | 78 | 221 | 68 |
Table 4.
Results of nonlinearity analysis.
Table 4.
Results of nonlinearity analysis.
Boolean function | | | | | | | | | Average |
Nonlinearity | 4 | 4 | 0 | 4 | 4 | 4 | 4 | 4 | 3.5 |
Table 5.
Strict avalanche criterion of proposed S-box.
Table 5.
Strict avalanche criterion of proposed S-box.
Boolean function | | | | | | | | | Average |
SAC | 0.5 | 0.5 | 0 | 0.5 | 0.5 | 0 | 0.5 | 0.75 | 0.4688 |
Table 6.
Differential approximation probabilities of the proposed S-box.
Table 6.
Differential approximation probabilities of the proposed S-box.
0 | 1 | 2 | 3 |
---|
--- | 0.25 | 0.25 | 0.25 |
0.25 | 0.25 | 0.25 | 0.25 |
0.25 | 0.25 | 0.25 | 0.25 |
0.25 | 0.25 | 0.25 | 0.25 |
Table 7.
Results of majority logic criterion.
Table 7.
Results of majority logic criterion.
Attribute | Ref. [14] | Proposed S-Box |
---|
Lena | Baboon | Pepper | Airplane |
---|
Contrast | 3.3220 | 10.4474 | 10.5164 | 10.6092 | 9.8911 |
Correlation | 0.0879 | 0.0127 | −0.0015 | 0.0004 | 0.0664 |
Energy | 0.0244 | 0.0159 | 0.0156 | 0.0157 | 0.0172 |
Entropy | 4.7301 | 7.4451 | 7.3583 | 7.5937 | 6.7025 |
Homogeneity | 0.4835 | 0.4045 | 0.3900 | 0.3949 | 0.4376 |
MAD | 36.3631 | 32.3756 | 31.8342 | 32.4054 | 32.2973 |
Table 8.
Analysis of the proposed algorithm.
Table 8.
Analysis of the proposed algorithm.
Grayscale-Images/Analysis | Proposed S-Box | Ref. [14] |
---|
Airplane | Baboon | Lena | Pepper |
---|
MSE | 16.0383 | 15.9333 | 16.2827 | 15.8937 | 11.7755 |
PSNR | 83.1537 | 83.2194 | 83.0025 | 83.2443 | 86.1651 |
SSIM | 0.8280 | 0.9317 | 0.8198 | 0.8250 | 0.9145 |
