Abstract

Zinc complexes were synthesized as catalysts that mimic the ability of carbonic anhydrase (CA) for the CO2 hydration reaction (H2O + CO2 → H+ + HCO3). For these complexes, a tris(2-pyridylmethyl)amine (TPA) ligand mimicking only the active site, and a 6-((bis(pyridin-2-ylmethyl)amino)methyl)pyridin-2-ol (TPA-OH) ligand mimicking the hydrogen-bonding network of the secondary coordination sphere of CA were used. Potentiometric pH titration was used to determine the deprotonation ability of the Zn complexes, and their pKa values were found to be 8.0 and 6.8, respectively. Stopped-flow spectrophotometry was used to confirm the CO2 hydration rate. The rate constants were measured to be 648.4 and 730.6 M−1s−1, respectively. The low pKa value was attributed to the hydrogen-bonding network of the secondary coordination sphere of the catalyst that mimics the behavior of CA, and this was found to increase the CO2 hydration rate of the catalyst.
Keywords: carbonic anhydrase; CO2 hydration; Thr-199; kinetics; stopped-flow spectrophotometer carbonic anhydrase; CO2 hydration; Thr-199; kinetics; stopped-flow spectrophotometer

1. Introduction

CO2, which is the main cause of global warming, is being actively studied so as to find more economical ways to capture and store this gas stably [1,2,3]. For capturing CO2, amine-based chemosorbents, which are expected to be the first material to be commercialized, are currently under investigation [3,4,5,6,7]. However, these chemosorbents have certain drawbacks, in that they require a high amount of heat for regeneration, are corrosive, and undergo deterioration [8,9,10]. Therefore, it is necessary to investigate CO2 capture and storage technologies in order to explore new concepts capable of overcoming the limitations of the existing absorbent. Among the various alternative technologies, a newly emerging biomimetic technology that uses the enzyme, carbonic anhydrase (CA), is gaining popularity, because of the rapid reactivity of the enzyme and the environmentally-friendly nature of the process. CA is involved in CO2 conversion in living organisms [11,12,13]. The biomimetic technology is a breakthrough, and it is a new concept rather than being an extension of the existing technology. In particular, mineral carbonation using CA is being studied at length for its utilization in the biomineralization of CO2 in flue gas, and it has already been undertaken to demonstrate the feasibility of the process in some pilot-scale studies [14,15,16].
CA is a bioinorganic enzyme that contains Zn and catalyzes the reversible hydration of CO2 and the dehydration of HCO3. The observed rate constant of CA is 106 M−1s−1, because of which, it is the fastest enzyme known to date [11,17,18]. The structure of CA was determined by X-ray diffraction [19,20,21]. CA has a Zn2+ ion at the center of its active site, and is coordinated to the imidazole groups of three different histidine residues (His 96, 94, and 119) and a water molecule or hydroxide ion. The Zn-bound water or hydroxide forms a network with Thr-199 via hydrogen bonding, and Thr-199 forms a hydrogen bond with Glu-106 (Figure 1). X-ray crystallography also revealed the effect of site-specific mutations on the local and global structure of CA. The mutant structures have been used to explain the mechanism of binding and catalysis of the wild-type enzyme [22,23]. Mutations of Thr-199 alter the coordination sphere of zinc, thereby allowing the protein to bind more strongly or more weakly with zinc, as compared with the wild-type enzyme. These substitutions nearly obliterate the CO2 hydrase activity, which is consistent with the role of Zn-bound hydroxide as a catalytic nucleophile [23].
The use of CA in the process of capturing CO2 is costly, and because of the nature of the enzyme, long-term operation is impossible, thereby complicating the realization of the technology. Therefore, a variety of efforts have been devoted to mimic the structure of CA in order to use it as a CO2 hydration catalyst [17,24]. To date, the rate at which CA-model catalysts have been able to achieve the hydration of CO2 is 3300 M−1s−1, which is significantly lower than that of CA. This suggests that it is difficult to obtain a catalyst with a CA-like rate by mimicking only the first coordination sphere of CA. The network of hydrogen bonds in the second coordination sphere is well known to have a great influence on the hydration of CO2; thus, it is necessary to develop a CA model catalyst that mimics the second coordination sphere of CA.
The most common assay for CA-mimicking complexes is to measure the esterase activity of model compounds by monitoring the catalyzed hydrolysis of p-nitrophenyl acetate (p-NPA) [25]. However, this method has a fundamental problem, in that it does not directly measure CO2 hydration. We must preserve as many features of the protein as possible in order to successfully mimic the active sites of CA, and to try to synthesize water-soluble molecules to directly measure the activity of CO2 hydration [26]. A Zn catalyst with a structure mimicking CA was synthesized; Zn catalyst (1) had 4-coordinated tris(2-pyridylmethyl)amine (TPA) as the ligand [27,28,29]. In addition, the ligand 6-((bis(pyridin-2-ylmethyl)amino)methyl)pyridin-2-ol (TPA-OH) was used to synthesize Zn catalyst (2), considering the second coordination sphere, including Thr-199 in CA (Figure 2). In this study, we compared the rates of CO2 hydration obtained using catalysts (1) and (2). These catalysts mimic the first coordination sphere of CA and the participation of Thr-199 in the second coordination sphere, respectively. In addition, the pKa, that is, the intrinsic proton donating ability, and the CO2 hydration rate were measured by stopped-flow spectrophotometry, and the results are discussed in detail.

2. Materials and Methods

2.1. General Consideration

All of the reagents and solvents were purchased from Sigma-Aldrich, and were used without further purification. All of the aqueous solutions were prepared using deionized and distilled water. 1H NMR (400 MHz) spectra were recorded on a Bruker AVANCE III instrument. The elemental analyses were measured by a Thermo EA flash 1112, and the mass spectra were obtained with an Agilent 6130. The FT-IR spectra were recorded on a Thermo iS50 FT-IR spectrophotometer, and the potentiometric study was carried out in pKa mode using Tiamo 2.3 software, with a Metrohm 808 dosimeter and pH electrode PT1000. The kinetic study was carried out in monochromator mode using an Applied Photophysics SX20 stopped-flow spectrometer equipped with a thermoelectric temperature controller (±0.5 °C).

2.2. Materials Synthesis

[(TPA)Zn(OH2)](ClO4)2 (1)

A solution of Zn(ClO4)2·6H2O (2.0 mmol, 0.74 g) in acetone (20 mL) was added to a solution of TPA (2.0 mmol, 0.58 g) in acetone (10 mL) under nitrogen. A white precipitate was obtained upon the evaporation of the solution, and consequential washing with diethylether (Yield: ca. 60%). 1H NMR (CD3OD, 400 MHz) δ = 8.68 (3H, d, pyH), 8.05 (3H, t, pyH), 7.63 (3H, d, pyH), 7.60 (3H, t, pyH; Figure S1). MS(ESI): m/z 372 ((TPA)Zn-OH2), 354 ((TPA)Zn), 471 ((TPA)Zn-OH2 + ClO4), Anal. Calcd for C18H20Cl2N4O9Zn: C, 37.75; H, 3.52; N, 9.78. Found: C, 37.66; H, 3.42; N, 9.79.

[(TPA-OH)Zn(OH2)](ClO4)2 (2)

The synthesis of 6-methylpyridine-2-yl pivalate (5) was as follows: Pivaloyl chloride (3) (36 mmol, 4.34 g, 4.43 mL) was added to a solution of 2-hydroxy-6-methylpyridine (4) (33 mmol, 3.60 g) in acetonitrile (300 mL), and stirred at room temperature for 2 min. Triethylamine (50 mmol, 6.97 mL) was added and the reaction mixture was stirred at room temperature for 24 h. The mixture was evaporated to dryness, and the resulting slurry was extracted with CH2Cl2. The organic phase was washed with water, dried over magnesium sulfate, and the solvent was removed by rotary evaporation. The mixture was purified by chromatography on silica gel with CH2Cl2 as the eluent. (Yellowish oil; Rf value 0.3) 1H NMR (CDCl3, 400 MHz) δ =7.62 (H, t, pyH), 7.02 (H, d, pyH), 6.80 (H, d, pyH), 2.51 (3H, s, CH3), 1.38 (9H, s, CH3), 13C NMR (CDCl3, 400 MHz) δ = 176.77, 158.01, 157.70, 139.39, 121.24, 113.01, 39.05, 27.03, and 24.01 (Figure 3, Figure S2).
The synthesis of 6-(Bromomethyl)pyridine-2-yl pivalate (6) was as follows: 6-Methylpyridine-2-yl pivalate (5) (2.00 g, 10.20 mol) was dissolved in benzene (450 mL), to which azobisisobutyronitrile (AIBN; 90 mg, approximately 7.5%) was added. The reaction mixture was heated to reflux, and N-bromosuccinimide (NBS; 1.85 g, 10.20 mol) was added in ten fractions every 15 min over 150 min. The reaction mixture was heated under reflux for 7 h, after which it was concentrated to one third of its initial volume and filtered. The solution was collected and evaporated in CH2Cl2. The desired compound was obtained after chromatography on silica gel with CH2Cl2 as the eluent, two times. (White solid; Rf value 0.4) 1H NMR (CDCl3, 400 MHz) δ = 7.78 (H, t, pyH), 7.38 (H, d, pyH), 6.96 (H, d, pyH), 4.51 (2H, s, CH2), 1.39 (9H, s, CH3), 13C NMR (CDCl3, 400 MHz) δ = 176.75, 157.78, 156.19, 140.41, 121.55, 115.78, 39.20, 32.89, and 27.06 (Figure 3 and Figure S3).
The synthesis of mono(α-pivalesteropyridylmethyl)bis(2-pyridylmethyl)amine (8) was as follows: Bis(2-aminomethylpyridine) (7) (0.21 g, 2.06 mmol) was dissolved in acetonitrile (50 mL) and added to a solution of 6-(bromomethyl)pyridine-2yl pivalate (0.29 g, 2.06 mmol) in acetonitrile (100 mL). Sodium carbonate (0.25 g) was added to this mixture, which was heated under reflux for 24 h. The solution was evaporated to dryness. The slurry was extracted with CH2Cl2 and washed with water (oily solid; Figure 3).
The synthesis of 6-(((pyridin-2-ylmethyl)(pyridin-3-ylmethyl)amino)methyl)pyridin-2-ol (9) (TPA-OH) was as follows: mono(α-pivalesteropyridylmethyl)bis(2-pyridylmethyl)amine (8) (1.95 g, 5.00 mmol) was placed in a 100-mL round-bottomed flask. To this, 30 mL of 1 M KOH solution (water/methanol, 1/1) was added at room temperature and stirred for 10 h. The reaction was quenched by the addition of water, and the mixture was extracted with CH2Cl2. The combined organic layers were washed with brine, dried over sodium sulfate, and then concentrated. 1H NMR (CD3OD, 400 MHz) δ = 11.77 (H, s, OH), 8.66 (2H, d, pyH), 7.67 (2H, t, pyH), 7.35 (2H, d, pyH), 7.25 (2H, t, pyH), 7.21 (1H, t, OH-pyH), 6.44 (1H, d, OH-pyH), 5.95 (1H, d, OH-pyH), 3.95 (4H, s, CH2), 3.66 (2H, s, CH2), 13C NMR (CD3OD, 400 MHz) δ = 164.75, 158.06, 148.41, 146.58, 141.98, 137.32, 123.66, 122.56, 117.71, 106.47, 59.81, and 55.58 (Figure 3, Figure S4).
The synthesis of [(TPA-OH)Zn(OH2)](ClO4)2 (2) was as follows: TPA-OH (1.46 g, 4.77 mmol) and Zn(ClO4)2·6H2O (1.78 g, 4.77 mmol) were dissolved in methanol (100 mL) and stirred overnight. The desired complex was evaporated to dryness (Supplementary Materials 1). 1H NMR (CD3OD, 500 MHz) δ =8.87 (2H, d, pyH), 8.08 (2H, t, pyH), 7.83 (1H, t, OH-pyH), 7.64 (2H, t, pyH), 7.60 (2H, d, pyH), 7.00 (1H, d, OH-pyH), 6.81 (1H, t, OH-pyH), 4.35 (4H, s, CH2), 4.20 (2H, s, CH2), 13C NMR (CD3OD, 400 MHz) δ = 164.88, 155.10, 151.80, 147.89, 143.48, 141.12, 124.94, 124.59, 115.37, 111.46, 57.95, and 57.72, (Figure S5). MS(ESI): m/z 388 ((TPA-OH)Zn-OH2), 370 ((TPA-OH)Zn).

2.3. Potentiometric pH Titration

The electrode system was calibrated with a Metrohm standard buffer solution with a pH of 4.00, 7.00, and 9.00, before titration. An aqueous solution of each of the complexes (1.0 mM) was dissolved in 2.0 mM of HNO3 (I = 0.1 M NaNO3) and stirred at 25 °C. Titrations were performed with standardized 0.1 M NaOH solutions, while the pH was monitored to identify the half-equivalence points using Tiamo 2.3 software.

2.4. Kinetic Measurements (Stopped-Flow Spectrophotometer)

The measurements of the CO2 hydration rate were carried out by a pH indicator method using a stopped-flow spectrophotometer, similar to those previously described [30,31,32]. The pH time dependence by CO2 hydration was observed as the change in the absorbance of the indicator In to HIn, and the CO2 hydration rate constant, kobs, was determined by Equation (1). The Zn-bound HCO3 was rapidly replaced by H2O to regenerate L-Zn-OH2.
[ L - Zn - OH 2 ] 2 +   +   CO 2   +   In   k o b s   [ L - Zn - OCO 2 H ] +   +   HIn
Prior to the experiment, a solution of CO2 saturated water was prepared by purging deionized water with 100% CO2 gas at 25 °C for at least 1 h. Using Henry’s constant, this solution was calculated to contain 33.8 mM CO2. Additionally, a solution containing 0.2 M NaClO4; 0.1 M N-(1,1-dimethyl-2-hydroxyethyl)-3-amino-2-hydroxypropanesulfonic acid (AMPSO) buffer; and 5 × 10−5 M thymol blue indicator, pH 9.0 (adjusted using NaOH), was evacuated under a vacuum for 1 h, followed by purging with nitrogen for 30 min to remove dissolved CO2. The baseline uncatalyzed rate was found by rapidly mixing the dissolved CO2 solution and the buffer solution (1:1) in the stopped-flow spectrophotometer, while recording the time-dependent absorbance at λ = 596 nm. Twenty milliliters of 1 mM solutions of (1) and (2) in the AMPSO buffer solution were prepared by stirring under nitrogen. The catalyst concentration-dependent initial rates were found by diluting the 1.0 mM solutions with the AMPSO buffer solution. The initial rates for each catalyst concentration were calculated by fitting the first 10% of the time-dependent absorbance data with a single exponential decay function. All of the kinetic runs were performed for 100 s in order to ensure that equilibrium was reached and that the final absorbance value was indicative of reaction completion. Therefore, the time period for fitting the initial rates could be accurately defined for each reaction. Each concentration of catalyst was measured four times, and the standard deviation was determined. The initial rate of CO2 hydration is defined by Equation (2), where x indicates the concentration of In in Equation (1). The change in absorbance with time by In can be represented by Equation (2).
V init   =   ( dx dt ) t 0   =   Q ( dA dt ) t 0 =   Q ( A 0 A e ) [ d ( ln ( A A e ) ) dt ] t 0
where Q is the buffer factor, which was determined experimentally by titrating the AMPSO buffer solution with three concentrations of HCl in the stopped-flow spectrophotometer, and A0 and Ae are the initial and final absorbance values, respectively. The measured HCl concentrations were 7.6, 15.3, and 31.0 mM, and were chosen to represent a range of [H+], similar to the [H+] generated in the CO2 hydration reaction [30]. The second-order rate constant, kobs, for Equation (1) is defined by Equation (3), and the error is calculated as the deviation of the curve from linearity.
V i n i t =   k o b s [ Zn tot ] [ CO 2 ]

3. Results and Discussion

3.1. General Consideration

Designing an effective catalyst structure requires an in-depth understanding of the mechanism and the factors responsible for controlling the target reaction. The mechanism of action of CA involves three stages. The first stage is a CO2 addition reaction, wherein the Zn-bound hydroxide reacts with CO2 to form a Zn-bound bicarbonate [11,33]. The bicarbonate formed in the second step is released by the substitution reaction of the solvent water and bicarbonate. The final step entails the regeneration of the catalyst in its active form, that is, the deprotonation of the Zn-bound water to form the Zn-bound hydroxide (pKa = 7; Figure 4). Among these steps, deprotonation is known to be the rate-determining step (RDS) [30,34,35,36].
The structure of natural CA includes a tridentate N3 ligand coordinated to and surrounding the Zn ion. However, studies of catalysts mimicking CA reported thus far show that the complex with the tetradentate N4 ligand has a higher activity than that with the tridentate N3 ligand [24,30]. According to Koziol et al., tetradentate N4 ligands form weaker bonds with the Zn-bound hydroxide ion than do tridentate N3 ligands. Furthermore, N3 ligands prefer a bidentate mode for the binding of Zn-bound bicarbonate, while N4 ligands prefer a monodentate mode [30]. This is because the Zn-bound bicarbonate of the N4 ligand forms weaker bonds than the N3 ligand, so that the substitution reaction of the water molecules proceeds easily. In this study, the catalyst we designed to mimic CA was synthesized using TPA, which contains pyridine, as the N4 coordinating ligand. In addition, the water molecule or hydroxide ion coordinated to the Zn ion in CA was designed to form part of an intermolecular hydrogen-bonded network, such as that containing Thr-199. The proton at position two of the pyridine unit of TPA was substituted with a hydroxyl group, which formed a hydrogen bond with the Zn-bound water, to ultimately form a network of hydrogen bonds (Figure 2). The formation of hexagonal rings as a result of intramolecular hydrogen bonding would be expected to stabilize the structure. The substitution of the proton at position three of the pyridine unit with a hydroxyl substituent would make it impossible for the hydrogen-bonded network to form, because the distance between this substituent and the hydroxide ion or water molecule coordinated to Zn would be too large. Therefore, a Zn complex was synthesized by substituting the hydroxyl group at position two of the pyridine unit of TPA. The environment surrounding the water molecules bound to (1) and (2) was investigated by studying the O–H vibration using FTIR spectroscopy. (Supplementary Materials 3). All of the complexes exhibited a sharp band corresponding to the O–H bending vibration at approximately 1610 cm−1 [37]. In particular, (1) showed bands at 3254 and 3336 cm−1, corresponding to the O–H stretching mode, while (2) showed a broad peak around 3488 cm−1, attributable to hydrogen bonding [38,39]

3.2. pKa Measurement

The deprotonation of the Zn-bound water in the CO2 hydration reaction of CA is a crucial step in determining the reaction rate, as it is the rate-determining step [30,34,40]. Therefore, the deprotonation ability (i.e., the acidity of water molecules) in CA-mimicking catalysts is a fundamental parameter for determining the ease with which the nucleophilic hydroxide ions can be generated at a neutral pH. The acidity of compounds (1) and (2) was measured using potentiometric pH titration, and the results are provided in Table 1.
The pKa of (1) was found to be 8.0 (8.03), as previously reported, while that of (2) was found to be 6.8 (6.80), which is same as the CA value [28,41]. In the case of (2), the introduction of the hydroxyl substituent onto the pyridine unit can be expected to have both an electronic and a structural effect. The 1H NMR spectra in Figures S5 and S6 reveal that the peaks due to pyridine with hydroxyl groups shifted upfield, as compared to those of the pyridine. In particular, the peaks attributed to N-CH2- showed a chemical shift from 4.35 ppm to 4.20 ppm upon the introduction of a hydroxyl group (Figure S5). These results indicated that the introduction of hydroxyl groups donates a sufficient number of electrons to the Zn ions. This is expected to reduce the acidity of the metal and consequently increase the pKa of the coordinated water molecule [40]. However, our experimental results were contradictory to this expectation, and the pKa was found to decrease. Therefore, it was concluded that the structural effect had a more significant impact on the pKa. The deprotonated structure of (2) can be deduced from that of CA [42,43]. It can be deduced that the O atom of the hydroxyl substituent at position two of the pyridine unit and the H atom of the Zn-bound hydroxide ion form a hydrogen bond to stabilize the structure. The formation of this hydrogen bond creates a six-membered ring that includes the Zn-bound hydroxide, such that the deprotonated water is stabilized (Figure 2). Juan et al. reported the crystal structure of Zn-bound hydroxide, using a ligand that introduced an amino group at the two-position of TPA [28]. The amino group and Zn-bound hydroxide formed a hydrogen bond network and stabilized through the distorted hexagonal ring structure. They also observed that pKa was lowered up to 6.0 upon the introduction of amino groups.
Krebs et al. investigated the importance of a conserved hydrogen bonding network through amino acid substitutions (Ser, Ala, Val, and Pro) at Thr-199 of CA [44]. Mutation of Thr-199 -> Ser, which is capable of forming a hydrogen bond with Zn-bound water, showed little increase in pKa. However, mutations to Ala, Val, and Pro, which have aliphatic side chains, increased the pKa by 1.5 to 2.5 units. Therefore, as in the case of (2), the hydrogen bond network of Zn-bound water is a very important factor in controlling the pKa, and it is necessary to consider the structure of the secondary coordination sphere in the designing of CA-mimicking complexes.

3.3. Kinetic Measurements

As the deprotonation step in the CO2 hydration reaction of CA is known as the rate-determining step, the catalyst was designed to lower the pKa value [30,40]. To summarize the aforementioned results, it was experimentally confirmed that the lower the pKa, the faster the CO2 hydration reaction occurs. Our experimental results show that (2) has a pKa value similar to that of CA. In addition, it is necessary to further investigate the rate changes caused by the hydrogen-bonding network, including Thr-199.
To understand the activity of the CO2 hydration reaction of (1) and (2), the rate constant (kobs) of the reaction was measured using a stopped-flow spectrophotometer (Supplementary Materials 2). The fast-kinetic measurement method was used, because the CO2 hydration reaction catalyzed by the CA mimic was expected to be very fast. Thus, kobs was determined from the initial value obtained by the single exponential decay fitting of the absorbance change, corresponding to 10% of the total reaction. The results are listed in Table 2. As expected, the catalytic activity of (2), with a lower pKa value, is 13% faster than that of (1).
The species that are directly active in the CO2 hydration reaction are deprotonated, [(TPA)Zn(OH)] and [(TPA-OH)Zn(OH)]. The distribution ratio of the deprotonated species in (1) and (2) is obtained by the acid–base equilibrium determined by the pKa value, and kobs can be expressed as kind (pH-independent form; Equations (4) and (5), Supplementary Materials 3).

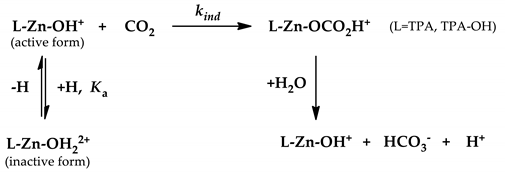

Biomimetics 04 00066 i001
V i n d =   k i n d [ LZnOH ] [ CO 2 ]
Interestingly, kind also showed a rate constant of (2) greater than (1). This result indicates that (2) is more efficient than (1) in the hydration reaction through the nucleophilic attack of Zn-bound hydroxide (active form) on CO2. Many researchers have attempted to lower the pKa of Zn-bound water by increasing the Lewis acidity of Zn2+, using ligands that attract more electrons [17,28,30,36]. However, increasing the acidity of Zn2+ increases the binding force for the Zn-bound bicarbonate, which is not effective for the release of bicarbonate. According to Koziol et al., ligands that donate more electrons form weak Lewis acids in Zn2+, thus producing a greater amount of free hydroxide and bicarbonate ions [30]. The rate of substitution of water molecules is expected to increase, because bicarbonate ions weakly bound to Zn can be replaced by water more easily. Indeed, in many studies that mimic CA, N4 ligands have bene demonstrated to show a higher activity than N3 ligands, because the binding of bicarbonate is weakened by the donation of more electrons. In our recent study, mimic CAs were synthesized using Ni2+ and Cu2+ instead of Zn2+, to increase their acidity, and the pKa values were measured to be 6.0 and 7.6, respectively [32]. Despite the low pKa values, the kind values of the Ni2+ and Cu2+ compounds were 542.3 and 526.4 M−1s−1, respectively, and the rate constant was significantly lower than that of the Zn2+ complex (710.3 M−1s−1). That is, in the Ni and Cu compounds, the central metal has a higher acidity than that of the Zn complex, and thus, they form strong bonds with bicarbonate, making it difficult to substitute water molecules. Looking closely at the formation mechanism of the bicarbonate intermediate of CA, as reported by Lindskog, Zn2+ is capable of monodentate as well as bidentate bonding with bicarbonate (Figure 5) [33,45]. Increasing the acidity of Zn increases the binding force between Zn and the bicarbonate, and makes the conversion of bidentate to monodetate bonds difficult. Compound (2) will lower the acidity of Zn2+ upon the introduction of the hydroxyl group as the electron donating group in pyridine. Thus, Zn2 + of (2) rather than (1) shows that weak bonds with bicarbonate are formed, increasing the substitution rate of water molecules.
Juan et al. reported that the pKa was lowered to 6.0 upon replacing up to three amino groups at the two-position of TPA [28]. Their argument was that the hydrogen bonding network around the Zn-bound water can stabilize the Zn-bound hydroxide. Through crystal structure analysis, they demonstrated that the hydrogen bonding network increases the bond length of the Zn-bound hydroxide, and this also increases the nucleophilicity of hydroxide. Our study also revealed that the pKa was lowered by the formation of a hydrogen bonding network through the introduction of hydroxyl groups. The hydroxyl group introduced into TPA can lower the acidity of Zn2+; this is an interesting result, in that the bond between Zn2+ and the hydroxide is weakened, and the bicarbonate produced through nucleophilic attack at CO2 is easily released (Figure 6).

4. Conclusions

We synthesized a Zn catalyst that mimics the role of Thr-199 in the second coordination sphere of CA as well as its active site. For the mimicking Thr-199, a hydroxyl group was introduced at the two-position of PTA, which showed that the pKa value was lowered by forming a hydrogen bonding network around the Zn-bound water. Unlike the conventional strategy of decreasing the pKa value by increasing the acidity of Zn, the acidity of Zn could be decreased through the hydrogen bond network, and the pKa value could also be lowered. The decrease in Zn acidity was observed to reduce the affinity between the Zn ions and bicarbonate, resulting in the effective release of bicarbonate, increasing the catalyst cycle rate. We successfully synthesized a mimic catalyst with better conversion efficiency by introducing hydrogen bonds into the second coordination sphere as well as the active site of CA. This result suggests that catalysts with a better conversion efficiency can be synthesized by designing various functions for the second coordination sphere in CA.

Supplementary Materials

The following are available online at https://www.mdpi.com/2313-7673/4/4/66/s1. Supplementary Materials 1: Materials synthesis; (1) Synthesis of [(TPA-OH)Zn(OH2)](ClO4)2; (2) Stop-flow pH indicator technique; (3) FT-IR spectra of (1) and (2); (4) Absorbance change of (1) and (2); (5) Conversion between observed and pH-independent rates. Supplementary Materials 2: Absorbance change of (1) and (2). Supplementary Materials 3: Conversion between observed and pH-independent rates.

Author Contributions

data curation, D.P.; formal analysis, D.P.; investigation, D.P.; writing (original draft), D.P. and M.S.L.; writing (review and editing), D.P. and M.S.L; funding acquisition, M.S.L.

Funding

This study has been conducted with support from the Korea Institute of Industrial Technology as “Development of eco-friendly chemical materials and processing for casting, JA-18-0001”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bui, M.; Adjiman, C.S.; Bardow, A.; Anthony, E.J.; Boston, A.; Brown, S.; Fennell, P.S.; Fuss, S.; Galindo, A.; Hackett, L.A. Carbon capture and storage (CCS): The way forward. Energy Environ. Sci. 2018, 11, 1062–1176. [Google Scholar] [CrossRef]
  2. Wu, Z.; Liu, S.; Gao, H.; Yin, Q.; Liang, Z. A study of structure-activity relationships of aqueous diamine solutions with low heat of regeneration for post-combustion CO2 capture. Energy 2019, 167, 359–368. [Google Scholar] [CrossRef]
  3. Xiao, M.; Liu, H.; Gao, H.; Olson, W.; Liang, Z. CO2 capture with hybrid absorbents of low viscosity imidazolium-based ionic liquids and amine. Appl. Energy 2019, 235, 311–319. [Google Scholar] [CrossRef]
  4. Wang, J.; Sun, T.; Zhao, J.; Deng, S.; Li, K.; Xu, Y.; Fu, J. Thermodynamic considerations on MEA absorption: Whether thermodynamic cycle could be used as a tool for energy efficiency analysis. Energy 2019, 168, 380–392. [Google Scholar] [CrossRef]
  5. Oexmann, J.; Kather, A.; Linnenberg, S.; Liebenthal, U. Post-combustion CO2 capture: Chemical absorption processes in coal-fired steam power plants. Greenh. Gases Sci. Technol. 2012, 2, 80–98. [Google Scholar] [CrossRef]
  6. Wang, T.; Yu, W.; Liu, F.; Fang, M.; Farooq, M.; Luo, Z. Enhanced CO2 Absorption and Desorption by Monoethanolamine (MEA)-Based Nanoparticle Suspensions. Ind. Eng. Chem. Res. 2016, 55, 7830–7838. [Google Scholar] [CrossRef]
  7. Li, K.; Cousins, A.; Yu, H.; Feron, P.; Tade, M.; Luo, W.; Chen, J. Systematic study of aqueous monoethanolamine-based CO2 capture process: Model development and process improvement. Energy Sci. Eng. 2016, 4, 23–39. [Google Scholar] [CrossRef]
  8. Liu, Y.; Fan, W.; Wang, K.; Wang, J. Studies of CO2 absorption/regeneration performances of novel aqueous monothanlamine (MEA)-based solutions. J. Clean. Prod. 2016, 112, 4012–4021. [Google Scholar] [CrossRef]
  9. Gupta, M.; da Silva, E.F.; Hartono, A.; Svendsen, H.F. Theoretical Study of Differential Enthalpy of Absorption of CO2 with MEA and MDEA as a Function of Temperature. J. Phys. Chem. B 2013, 117, 9457–9468. [Google Scholar] [CrossRef]
  10. Wang, M.; Wang, M.; Rao, N.; Li, J.; Li, J. Enhancement of CO2 capture performance of aqueous MEA by mixing with [NH2e-mim][BF4]. RSC Adv. 2018, 8, 1987–1992. [Google Scholar] [CrossRef]
  11. Yong, J.K.J.; Stevens, G.W.; Caruso, F.; Kentish, S.E. The use of carbonic anhydrase to accelerate carbon dioxide capture processes. J. Chem. Technol. Biotechnol. 2015, 90, 3–10. [Google Scholar] [CrossRef]
  12. Power, I.M.; Harrison, A.L.; Dipple, G.M. Accelerating Mineral Carbonation Using Carbonic Anhydrase. Environ. Sci. Technol. 2016, 50, 2610–2618. [Google Scholar] [CrossRef] [PubMed]
  13. Merle, G.; Fradette, S.; Madore, E.; Barralet, J.E. Electropolymerized Carbonic Anhydrase Immobilization for Carbon Dioxide Capture. Langmuir 2014, 30, 6915–6919. [Google Scholar] [CrossRef] [PubMed]
  14. Reddy, K.J.; Weber, H.; Bhattacharyya, P.; Argyle, M.; Taylor, D.; Christensen, M.; Foulke, T.; Fahlsing, P. Instantaneous Capture and Mineralization of Flue Gas Carbon Dioxide: Pilot Scale Study. Nat. Proc. 2010. [Google Scholar] [CrossRef]
  15. Alvizo, O.; Nguyen, L.J.; Savile, C.K.; Bresson, J.A.; Lakhapatri, S.L.; Solis, E.O.P.; Fox, R.J.; Broering, J.M.; Benoit, M.R.; Zimmerman, S.A.; et al. Directed evolution of an ultrastable carbonic anhydrase for highly efficient carbon capture from flue gas. Proc. Natl. Acad. Sci. USA 2014, 111, 16436–16441. [Google Scholar] [CrossRef]
  16. Bose, H.; Satyanarayana, T. Microbial Carbonic Anhydrases in Biomimetic Carbon Sequestration for Mitigating Global Warming: Prospects and Perspectives. Front. Microbiol. 2017, 8, 1615. [Google Scholar] [CrossRef]
  17. Kelsey, R.A.; Miller, D.A.; Parkin, S.R.; Liu, K.; Remias, J.E.; Yang, Y.; Lightstone, F.C.; Liu, K.; Lippert, C.A.; Odom, S.A. Carbonic anhydrase mimics for enhanced CO2 absorption in an amine-based capture solvent. Dalton Trans. 2016, 45, 324–333. [Google Scholar] [CrossRef]
  18. Larachi, F. Kinetic Model for the Reversible Hydration of Carbon Dioxide Catalyzed by Human Carbonic Anhydrase II. Ind. Eng. Chem. Res. 2010, 49, 9095–9104. [Google Scholar] [CrossRef]
  19. Eriksson, A.E.; Jones, T.A.; Liljas, A. Refined structure of human carbonic anhydrase II at 2.0 Å resolution. Proteins Struct. Funct. Bioinform. 1988, 4, 274–282. [Google Scholar] [CrossRef]
  20. Xue, Y.; Liljas, A.; Jonsson, B.-H.; Lindskog, S. Structural analysis of the zinc hydroxide–Thr-199–Glu-106 hydrogen-bond network in human carbonic anhydrase II. Proteins Struct. Funct. Bioinform. 1993, 17, 93–106. [Google Scholar] [CrossRef]
  21. Ferraroni, M.; Tilli, S.; Briganti, F.; Chegwidden, W.R.; Supuran, C.T.; Wiebauer, K.E.; Tashian, R.E.; Scozzafava, A. Crystal Structure of a Zinc-Activated Variant of Human Carbonic Anhydrase I, CA I Michigan 1:  Evidence for a Second Zinc Binding Site Involving Arginine Coordination. Biochemistry 2002, 41, 6237–6244. [Google Scholar] [CrossRef] [PubMed]
  22. Ippolito, J.A.; Christianson, D.W. Structure of an engineered His3 Cys zinc binding site in human carbonic anhydrase II. Biochemistry 1993, 32, 9901–9905. [Google Scholar] [CrossRef] [PubMed]
  23. Ippolito, J.A.; Baird, T.T.; McGee, S.A.; Christianson, D.W.; Fierke, C.A. Structure-assisted redesign of a protein-zinc-binding site with femtomolar affinity. Proc. Natl. Acad. Sci. USA 1995, 92, 5017–5021. [Google Scholar] [CrossRef] [PubMed]
  24. Floyd, W.C.; Baker, S.E.; Valdez, C.A.; Stolaroff, J.K.; Bearinger, J.P.; Satcher, J.H.; Aines, R.D. Evaluation of a Carbonic Anhydrase Mimic for Industrial Carbon Capture. Environ. Sci. Technol. 2013, 47, 10049–10055. [Google Scholar] [CrossRef]
  25. Krishnamurthy, V.M.; Kaufman, G.K.; Urbach, A.R.; Gitlin, I.; Gudiksen, K.L.; Weibel, D.B.; Whitesides, G.M. Carbonic anhydrase as a model for biophysical and physical-organic studies of proteins and protein-ligand binding. Chem. Rev. 2008, 108, 946–1051. [Google Scholar] [CrossRef]
  26. Galardon, E.; Tomas, A.; Roussel, P.; Artaud, I. Synthesis, Stability, and Reactivity of [(TPA)Zn(SH)]+ in Aqueous and Organic Solutions. Eur. J. Inorg. Chem. 2011, 2011, 3797–3801. [Google Scholar] [CrossRef]
  27. Liang, J.; Zhang, J.; Zhu, L.; Duarandin, A.; G, Y.V.; Geacintov, N.; Canary, J.W. Structures, Metal Ion Affinities, and Fluorescence Properties of Soluble Derivatives of Tris((6-phenyl-2-pyridyl)methyl)amine. Inorg. Chem. 2009, 48, 11196–11208. [Google Scholar] [CrossRef]
  28. Mareque-Rivas, J.C.; Prabaharan, R.; Parsons, S. Quantifying the relative contribution of hydrogen bonding and hydrophobic environments, and coordinating groups, in the zinc(II)–water acidity by synthetic modelling chemistry. Dalton Trans. 2004, 1648–1655. [Google Scholar] [CrossRef]
  29. Spiropulos, N.G.; Standley, E.A.; Shaw, I.R.; Ingalls, B.L.; Diebels, B.; Krawczyk, S.V.; Gherman, B.F.; Arif, A.M.; Brown, E.C. Synthesis of zinc and cadmium O-alkyl thiocarbonate and dithiocarbonate complexes and a cationic zinc hydrosulfide complex. Inorg. Chim. Acta 2012, 386, 83–92. [Google Scholar] [CrossRef]
  30. Koziol, L.; Valdez, C.A.; Baker, S.E.; Lau, E.Y.; Floyd, W.C.; Wong, S.E.; Satcher, J.H.; Lightstone, F.C.; Aines, R.D. Toward a Small Molecule, Biomimetic Carbonic Anhydrase Model: Theoretical and Experimental Investigations of a Panel of Zinc(II) Aza-Macrocyclic Catalysts. Inorg. Chem. 2012, 51, 6803–6812. [Google Scholar] [CrossRef]
  31. Nakata, K.; Shimomura, N.; Shiina, N.; Izumi, M.; Ichikawa, K.; Shiro, M. Kinetic study of catalytic CO2 hydration by water-soluble model compound of carbonic anhydrase and anion inhibition effect on CO2 hydration. J. Inorg. Biochem. 2002, 89, 255–266. [Google Scholar] [CrossRef]
  32. Park, D.; Lee, M.S. Kinetic study of catalytic CO2 hydration by metal-substituted biomimetic carbonic anhydrase model complexes. R. Soc. Open Sci. 2019, 6, 190407. [Google Scholar] [CrossRef] [PubMed]
  33. Lindskog, S. Structure and mechanism of carbonic anhydrase. Pharmacol. Ther. 1997, 74, 1–20. [Google Scholar] [CrossRef]
  34. Maupin, C.M.; McKenna, R.; Silverman, D.N.; Voth, G.A. Elucidation of the Proton Transport Mechanism in Human Carbonic Anhydrase II. J. Am. Chem. Soc. 2009, 131, 7598–7608. [Google Scholar] [CrossRef]
  35. Silverman, D.N.; Lindskog, S. The catalytic mechanism of carbonic anhydrase: Implications of a rate-limiting protolysis of water. Acc. Chem. Res. 1988, 21, 30–36. [Google Scholar] [CrossRef]
  36. Rains, J.G.D.; O’Donnelly, K.; Oliver, T.; Woscholski, R.; Long, N.J.; Barter, L.M.C. Bicarbonate Inhibition of Carbonic Anhydrase Mimics Hinders Catalytic Efficiency: Elucidating the Mechanism and Gaining Insight toward Improving Speed and Efficiency. ACS Catal. 2019, 9, 1353–1365. [Google Scholar] [CrossRef]
  37. Roque-Malherbe, R.; Lugo, F.; Polanco, R. Synthesis, structural elucidation and carbon dioxide adsorption on Zn (II) hexacyanoferrate (II) Prussian blue analogue. Appl. Surf. Sci. 2016, 385, 360–367. [Google Scholar] [CrossRef]
  38. Kanari, N.; Mishra, D.; Gaballah, I.; Dupré, B. Thermal decomposition of zinc carbonate hydroxide. Thermochim. Acta 2004, 410, 93–100. [Google Scholar] [CrossRef]
  39. Berreau, L.M.; Makowska-Grzyska, M.M.; Arif, A.M. Modeling the Active Site Chemistry of Liver Alcohol Dehydrogenase:  Mononuclear Zinc Methanol and N,N-Dimethylformamide Complexes of a Nitrogen/Sulfur Ligand Possessing an Internal Hydrogen Bond Donor. Inorg. Chem. 2001, 40, 2212–2213. [Google Scholar] [CrossRef]
  40. Koziol, L.; Essiz, S.G.; Wong, S.E.; Lau, E.Y.; Valdez, C.A.; Satcher, J.H.; Aines, R.D.; Lightstone, F.C. Computational Analysis of a Zn-Bound Tris(imidazolyl) Calix[6]arene Aqua Complex: Toward Incorporating Second-Coordination Sphere Effects into Carbonic Anhydrase Biomimetics. J. Chem. Theory Comput. 2013, 9, 1320–1327. [Google Scholar] [CrossRef]
  41. Kiefer, L.L.; Paterno, S.A.; Fierke, C.A. Hydrogen bond network in the metal binding site of carbonic anhydrase enhances zinc affinity and catalytic efficiency. J. Am. Chem. Soc. 1995, 117, 6831–6837. [Google Scholar] [CrossRef]
  42. Singh, S.; Lomelino, L.C.; Mboge, Y.M.; Frost, C.S.; McKenna, R. Cancer Drug Development of Carbonic Anhydrase Inhibitors beyond the Active Site. Molecules 2018, 23, 1045. [Google Scholar] [CrossRef] [PubMed]
  43. Genis, C.; Sippel, K.H.; Case, N.; Cao, W.; Avvaru, B.S.; Tartaglia, L.J.; Govindasamy, L.; Tu, C.; Agbandje-McKenna, M.; Silverman, D.N.; et al. Design of a Carbonic Anhydrase IX Active-Site Mimic to Screen Inhibitors for Possible Anticancer Properties. Biochemistry 2009, 48, 1322–1331. [Google Scholar] [CrossRef] [PubMed]
  44. Krebs, J.F.; Ippolito, J.A.; Christianson, D.W.; Fierke, C.A. Structural and functional importance of a conserved hydrogen bond network in human carbonic anhydrase II. J. Biol. Chem. 1993, 268, 27458–27466. [Google Scholar]
  45. Ma, R.; Schuette, G.F.; Broadbelt, L.J. Insights into the Relationship of Catalytic Activity and Structure: A Comparison Study of Three Carbonic Anhydrase Mimics. Int. J. Chem. Kinet. 2014, 46, 683–700. [Google Scholar] [CrossRef]
Figure 1. Zn-bound water and nonbonded interactions of Thr-199 and Glu-106 residues.
Figure 1. Zn-bound water and nonbonded interactions of Thr-199 and Glu-106 residues.
Biomimetics 04 00066 g001

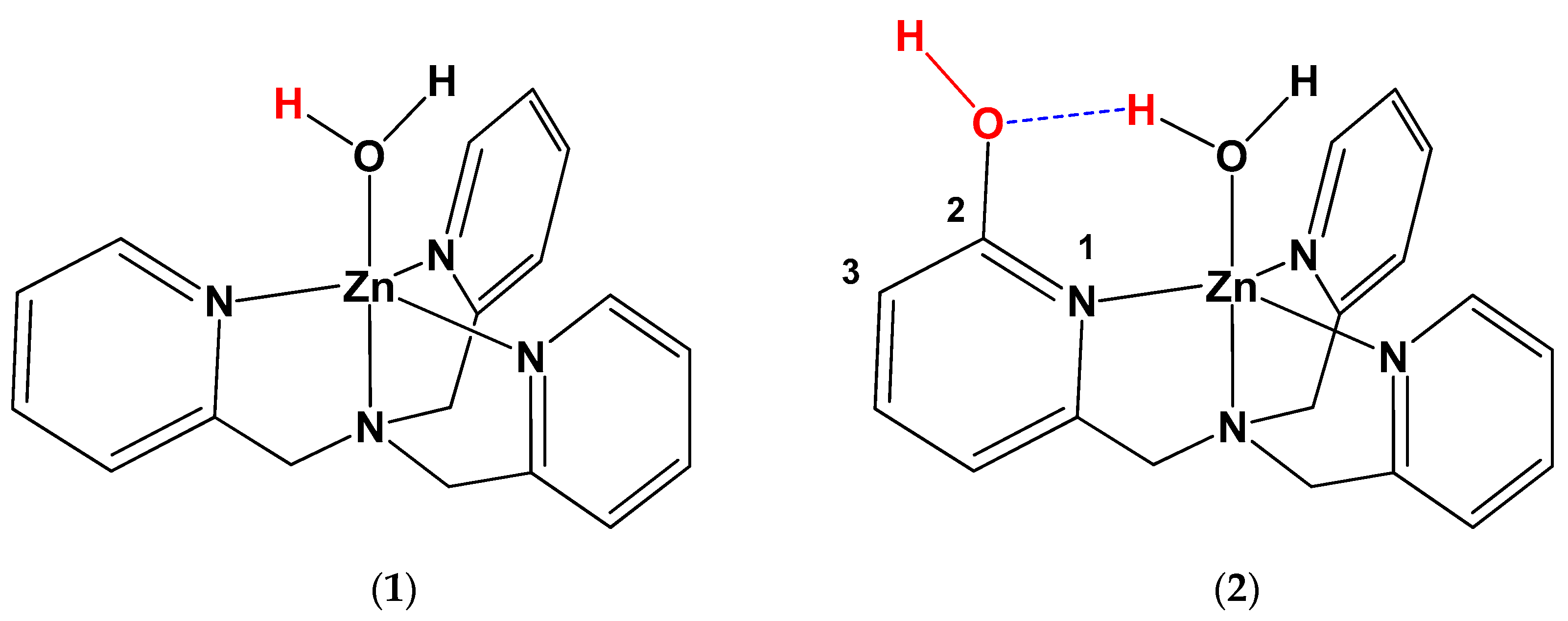

Figure 2. Structures of the two carbonic anhydrase (CA)-mimicking Zn catalysts, namely: (1) (tris(2-pyridylmethyl)amine)Zn(OH2) complex and (2) (6-((bis(pyridin-2-ylmethyl)amino)methyl)pyridin-2-ol)Zn(OH2) complex.
Figure 2. Structures of the two carbonic anhydrase (CA)-mimicking Zn catalysts, namely: (1) (tris(2-pyridylmethyl)amine)Zn(OH2) complex and (2) (6-((bis(pyridin-2-ylmethyl)amino)methyl)pyridin-2-ol)Zn(OH2) complex.
Biomimetics 04 00066 g002

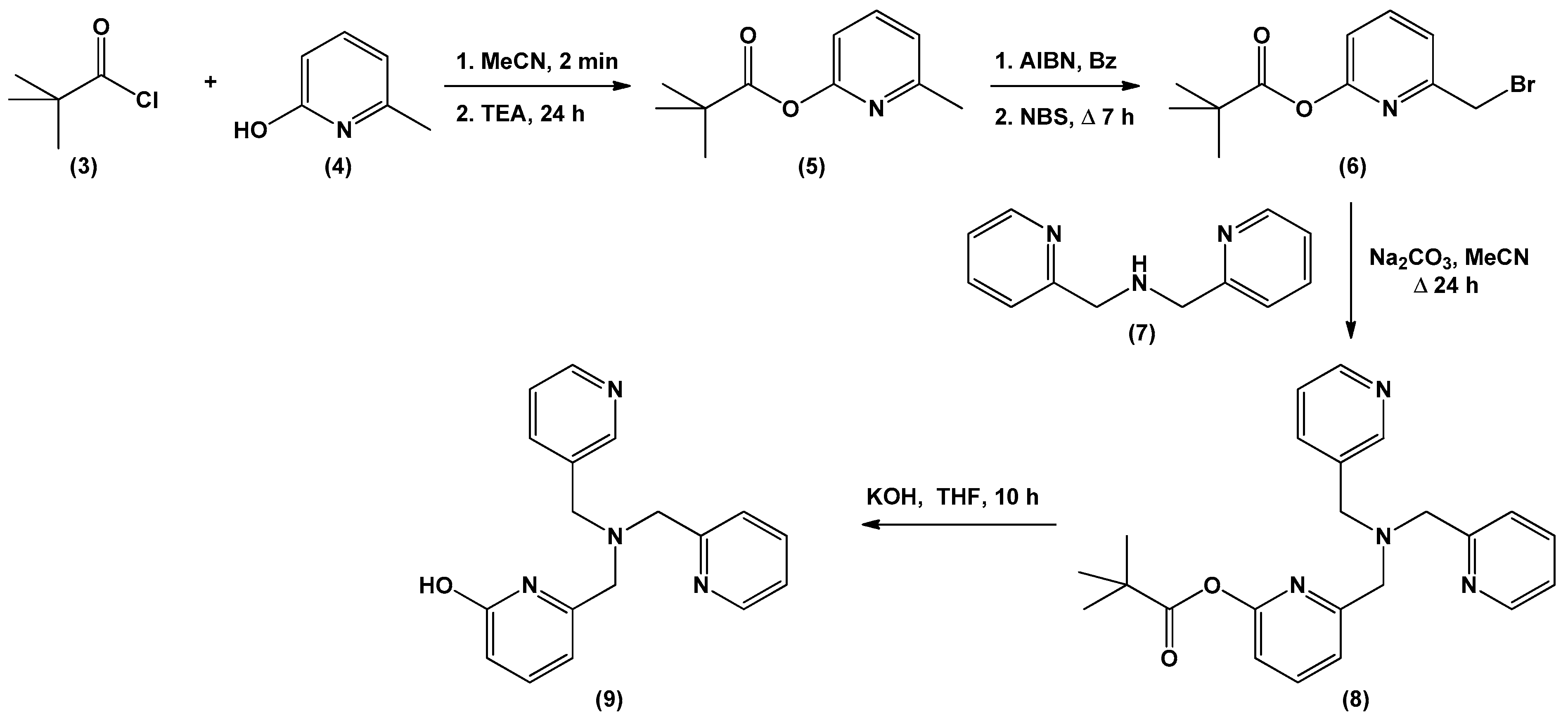

Figure 3. Synthesis of 6-(((pyridin-2-ylmethyl)(pyridin-3-ylmethyl)amino)methyl)pyridin-2-ol (9).
Figure 3. Synthesis of 6-(((pyridin-2-ylmethyl)(pyridin-3-ylmethyl)amino)methyl)pyridin-2-ol (9).
Biomimetics 04 00066 g003
Figure 4. Proposed mechanistic processes for the catalytic cycle of CA.
Figure 4. Proposed mechanistic processes for the catalytic cycle of CA.
Biomimetics 04 00066 g004
Figure 5. Mechanism for the formation of the bicarbonate intermediate, proposed by Lindskog.
Figure 5. Mechanism for the formation of the bicarbonate intermediate, proposed by Lindskog.
Biomimetics 04 00066 g005
Figure 6. Schematic illustration of various effects by hydrogen bond mimicking.
Figure 6. Schematic illustration of various effects by hydrogen bond mimicking.
Biomimetics 04 00066 g006
Table 1. Observed pKa of complexes (1) and (2).
Table 1. Observed pKa of complexes (1) and (2).
Complexes(1)(2)
pKa8.06.8
Table 2. Experimentally observed rate constants kobs, pH-independent kind rate constants, and standard deviations.
Table 2. Experimentally observed rate constants kobs, pH-independent kind rate constants, and standard deviations.
Complexeskobskindσobs
(1)648.4717.8823.7
(2)730.6735.2153.7
units are M−1s−1.
