Biomimetics 2017, 2(3), 14; doi:10.3390/biomimetics2030014

Review
Protein-Mediated Biotemplating on the Nanoscale
Department of Molecular Microbiology and Biotechnology, Faculty of Life Sciences, Tel Aviv University, Tel Aviv 69978, Israel
Academic Editor: Ille C. Gebeshuber
Received: 22 May 2017 / Accepted: 1 August 2017 / Published: 8 August 2017

Abstract

:
Purified proteins offer a homogeneous population of biological nanoparticles, equipped in many cases with specific binding sites enabling the directed self-assembly of envisaged one-, two- or three-dimensional arrays. These arrays may serve as nanoscale biotemplates for the preparation of novel functional composite materials, which exhibit potential applications, especially in the fields of nanoelectronics and optical devices. This review provides an overview of the field of protein-mediated biotemplating, focussing on achievements made throughout the past decade. It is comprised of seven sections designed according to the size and configuration of the protein-made biotemplate. Each section describes the design and size of the biotemplate, the resulting hybrid structures, the fabrication methodology, the analytical tools employed for the structural analysis of the hybrids obtained, and, finally, their claimed/intended applications and a feasibility demonstration (whenever available). In conclusion, a short assessment of the overall status of the achievements already made vs. the future challenges of this field is provided.
Keywords:
protein; biotemplate; nanoscale; array; nanoparticle

1. Introduction

Purified proteins offer a homogeneous population of biological nanoparticles, equipped in many cases with specific binding sites enabling directed self-assembly into one-, two- or three-dimensional arrays. These arrays may serve as biotemplates for the preparation of novel functional composite materials on the nanoscale, using either specific or site-directed chemical binding, with the potential for expansion by genetic or chemical manipulations.
The potential inherent in protein-mediated biotemplating has attracted much attention throughout the past two decades (for a review, see [1]). Several other reviews dedicated to specific categories of nanocomposites obtained by protein-mediated biotemplating were later published throughout the past decade, including electronic and optical materials [2], inorganic nanoparticles [3], or metal and metal oxide nanoparticles [4]. For an appropriate comprehension of the extent of this field, it should be noted that biomimetic applications of protein-mediated biotemplating represent only a fraction of the potential applications inherent to bioinspired templating systems (e.g., those inspired by natural inorganic structures or biotemplating by polysaccharides [5,6]).
This review provides an overview of the field of protein-mediated nanoscale biotemplating, focused on the achievements made throughout the past decade. The review is organized into sections according to the size and configuration of the protein-made biotemplate ranging from single protein soluble molecules and supramolecular protein “cages” to two-dimensional (2D) protein arrays, protein fibers and tubes, viral envelopes, three-dimensional (3D) protein crystals, and fragments of microbial cells.
Each section describes the structure and size of the biotemplates employed, the fabrication methodology, the analytical tools used for its structural analysis, its claimed/intended applications and a feasibility demonstration (whenever available).

2. Single Soluble Protein Molecules Biotemplating

Dagan-Moscovich et al. [7] initiated a series of studies on single soluble protein molecules as biotemplates for the fabrication and application of protein–metal hybrids comprised of biologically active protein molecule cores coated with a porous, thin metallic layer. The methodology developed was based first on the nucleation/enlargement mechanism of the electroless deposition of silver, directed to the surface of a protein by pre-decoration with a silver-reducing polymer (short polymeric glutaraldehyde linear chains displaying Schiff bases with β-alanine groups) and exposure to silver ions. Following this nucleation step, the atomic silver nuclei thus formed were gradually enlarged by the controlled addition of a solution containing an additional amount of the reducing polymer and silver ions (non-bound reagents were removed by ultrafiltration following each step), resulting in the process schematically described in Figure 1.

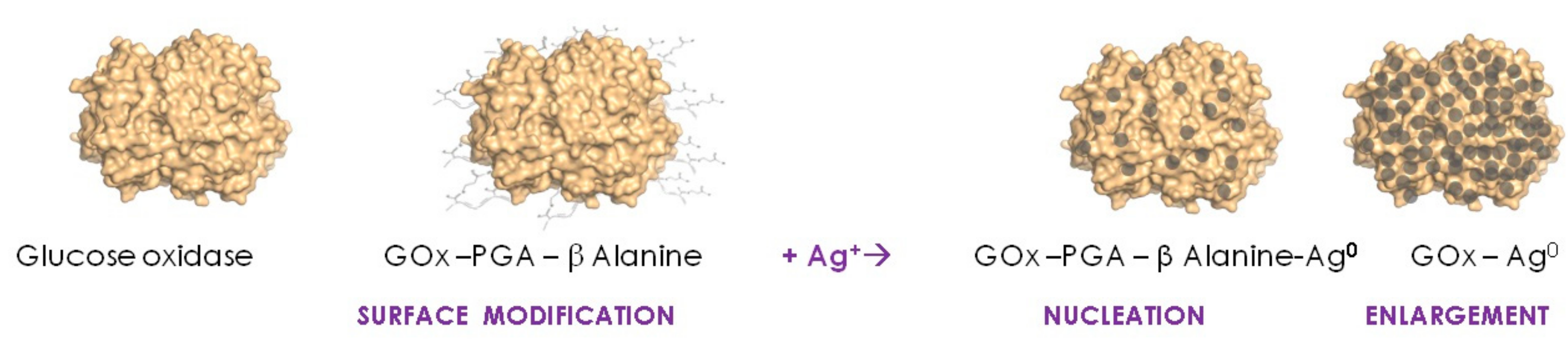

The construction of a conducting metallic silver coating on the surface of the oxidoreductase enzyme glucose oxidase (GOx), a 5 × 8 nm ‘peanut-like’ dimer, enabled the nanowiring of its active site to platinum electrodes, resulting in the oxygen-independent direct determination of glucose by electrochemical biosensors [7], as schematically described in Figure 2. The structural and functional analyses were performed using high-resolution transmission electron microscopy (HRTEM) and electrochemical biosensing.

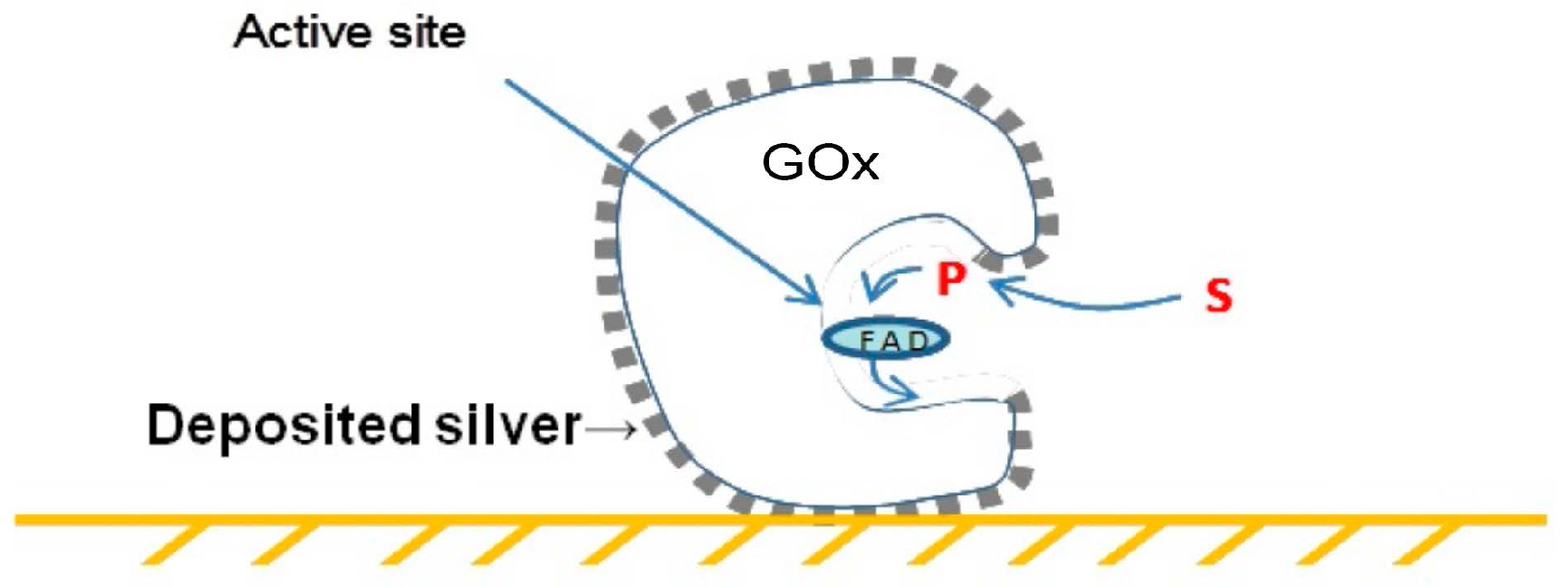

The biotemplating approach for electroless metal deposition directed to the surface of single soluble protein molecules was readily expanded from silver deposition to the deposition of other metals [8]. Glucose oxidase molecules were first modified with an excess of short polyglutaraldehyde (PGA) polymeric chains. Following the removal of the unbound polymer, the wide-spectrum metal ion complexing agent (iminodiacetate) was chemically attached to the PGA chains displayed on the surface to introduce the subsequently metallic nucleation sites. The nucleation/enlargement of the electroless deposition of metals was subsequently carried out by using hypophosphite as a soluble, wide-spectrum, metal ion reducing agent and by the removal of the non-bound excess of reagents by ultrafiltration following each step. The construction of a porous conducting palladium layer was thus readily demonstrated, enabling the nanowiring of the GOx binding site to platinum electrodes. The structural and functional analyses were performed using HRTEM and electrochemical biosensing.

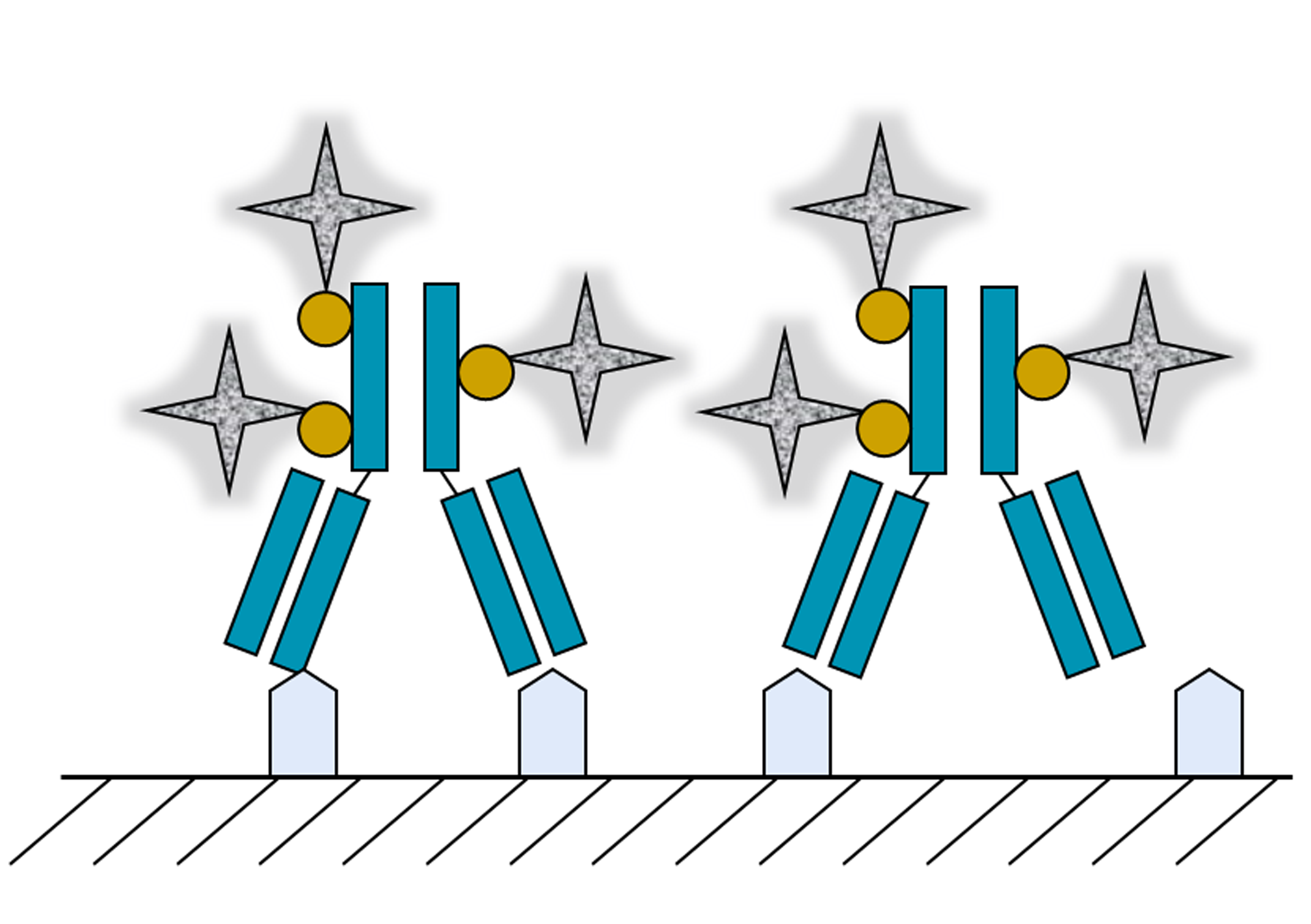

By changing the biologically active protein core from GOx to the binding protein avidin, which is capable of specifically binding the vitamin biotin, additional applications of metallic silver-coated soluble protein molecules became available: imaging by HRTEM without staining. Mor et al. [9] demonstrated the feasibility of using a silver–avidin hybrid for the molecular imaging of markers overexpressed on the surface of cancer cells, pre-labeled with biotinylated monoclonal antibodies, as illustrated in Figure 3.
The range of applications of silver–enzyme hybrids was expanded further to antimicrobial applications aiming at the prevention of microbial biofilm formation, by affecting the on-site enzymatically attenuated release of silver ions, generating in situ antimicrobial activity. ‘Zone of inhibition’ antimicrobial studies demonstrated the feasibility of using these hybrids as wide-spectrum antimicrobial agents, especially as potential antifungal agents against skin and hair fungal contaminations [10].
Veelders and Essen [11] demonstrated ‘on-site’ biotemplating on single protein molecules by the formation of complex polynuclear gadolinium clusters on an acidic site displayed on the surface of fungal cell adhesion domain of Flo5A protein (a C-type lectin). This site mediated the formation of ‘site-templated’ heptanuclear, or larger, gadolinium-oxo clusters in a soaking-time dependent manner. These findings appear to pave the way for the future preparation of improved biocompatible magnetic resonance imaging (MRI) contrasting agents. The structural analysis information was collected from X-ray diffraction data obtained from protein complex crystals.
Kong et al. [12] described protein-mediated biotemplating based on protein molecules acting as a capping agent for the preparation of CdTe quantum dots (QDs) by using the enzyme ribonuclease A. The conjugation of RGD (arginine–glycine–aspartic acid) to the protein’s surface yielded a series of QDs associated with RGD-decorated ribonucleases (RNases), emitting different colors and applicable as a diagnostic tool. The labeling of gastric cancer cells was successfully demonstrated using confocal microscopy. In a subsequent study, Chen et al. [13] demonstrated the controlled preparation of Ag2S nanoparticles (NPs) ~20 nm in diameter, enabled by RNase A capping, as hollow or full spheres with a claimed potential application as a drug delivery vehicle. The structural characterization of the QDs and Ag2S NPs thus obtained was carried out by high-resolution electron microscopy and spectral analysis.
Three recent reports have described biomineralization processes directed by protein molecules and designed for biomedical applications, including (i) the formation of albumin-mediated platinum nanocrystals for tomography imaging [14]; (ii) silk fibroin-based template mediating silica-coated protein assembly for anticancer drug carriers [15]; and (iii) recombinant collagen-directed biotemplating of hematite nanocrystals [16].

3. Protein “Cages” as Biotemplates

Ferritin—a natural, spherical, protein-made nanoscale “cage”—serves as an iron storage protein in bacteria, plants, animals and humans. In eukaryotic cells, ferritin is comprised of 24 subunits forming a hollow spherical shell with an inner diameter of 8 nm [17,18]). The hollow spherical ferritin shell is decorated on the inside with negatively charged acidic amino acid residues, triggering the internal accumulation of iron ions or other related biomineralization processes.
The currently available biochemical data on the molecular mechanisms involved in these processes has inspired an exploration of the potential biomedical applications of a series of ferritin and mutated ferritin as protein cages for the preparation of hybrids by biotemplating. The templating of metals, alloys and metal ion salts, including iron, silver, gold, palladium, cadmium, cobalt, platinum and copper, were described (for comprehensive reviews summing up ferritin biochemical characteristics, its mediated biotemplating and their biomedical applications, see [17,18]). It is pertinent to note that the use of the ferritin cage for the encapsulation of bioactive nutrients has also recently been reviewed [19]; see also [20]. In addition to the use of ferritin in solution, potential immobilized ferritin-mediated biotemplated hybrids have also been suggested, by the construction of 2D arrays of ferritin molecules on electrodes [21] as well as the directed construction of a 3D array enabled by ferritin ornamentation with Ti-binding peptide [22].
The demonstrated feasibility of using the cavity, 7 nm in diameter, of natural ferritin for biotemplating has triggered efforts to develop analogous, smaller protein cages made of other proteins, resulting in CdS and CdSe NPs biotemplated inside the 4.5 nm diameter cavity of a cage-shaped protein derived from Listeria innocua [23,24], as well as their self-assembly into 2D arrays (characterized by HRTEM).
The use of the cage-forming protein clathrin as a biotemplate for the synthesis of metallic NPs was also described, enabling the preparation of either homogeneous or bimetallic silver–gold or silver–copper NPs, albeit in sizes larger than those available by ferritin-mediated biotemplating (characterized by HRTEM) [25].
Voet et al. [26] demonstrated the feasibility of biotemplating the nanocrystal formation of 7·CdCl2 molecules by using a small de novo designed protein, self-assembled as a “nanoreactor” for biomineralization. Behrens et al. [27] described the use of an aspen plant protein which was self-assembled into a ring-shaped template, providing a cavity of 2–3 nm (internal diameter), enabling the biotemplating of palladium NPs of ~3 nm in diameter (characterized by HRTEM).
Zhou et al. [28] described the growth mechanism and kinetics of semiconducting CdS nanocrystals of 2.5 to 5.8 nm in diameter grown inside a genetically engineered virus-like particle (characterized by transmission electron microscopy (TEM) and spectrophotometric analysis). Gold sub-nanocluster nucleation within a crystalline protein cage was recently described by Maity et al. [29]. Directing gold nucleation to the outer surface of a protein cage, made of the bacteriophage P22 protein, was also recently demonstrated [30].

4. Two-Dimensional Protein Arrays as Biotemplates

The pioneering work of Slytr et al. [31] on the in vitro reconstitution of self-assembled 2D bacterial S-layers paved the way for a series of studies on 2D protein array-mediated biotemplating. Throughout the period covered in this review, a series of studies were carried out on 2D bacterial surface (S)-layer biotemplating, including a preliminary study by Mark et al. [32] describing the bionanofabrication of silicon nanopillar structures using gold NPs pre-templated onto a 2D bacterial S-layer. In a subsequent study from this group, germanium nanowires were also grown from pre-synthesized gold NPs biotemplated on the surface of a bacterial S-layer, verified by scanning electron microscopy (SEM) structural analysis [33].
The elucidation of the mechanism underlying the biotemplating of FePt NPs from the gas phase into a 2D array on the surface of a bacterial S-layer was presented by Queitsch et al. [34] and verified by TEM structural analysis. Varga et al. [35] reported the capability of the recombinant S-layer to display streptavidin 2D arrays in a defined order and orientation, exhibiting the biotemplating of biotinylated QDs for biosensing applications (verified by TEM).
Valero et al. [36] demonstrated the biotemplating of CrNi NPs as 2D layers, reflecting the same pattern of its parent bacterial S-layer template, as verified by HRTEM, energy-dispersive X-ray spectroscopy (EDXS) and infrared radiation (IR) structural analysis, with a potential application for molecular spintronics.
Two-dimensional protein arrays other than bacterial S-layers were also used as biotemplates: Shindel and coworkers [37,38,39] explored the use of 2D streptavidin arrays as biotemplates for the directed 2D positioning of biotinylated, pre-prepared gold NPs. Gold nanoparticle arrays thus obtained were characterized by atomic force microscopy (AFM), spectrophotometry and fluorescence analysis.
Bovine serum albumin adsorbed as a 2D monolayer on the surface of TiO2 nanotubes enabled directed gold deposition, resulting in a hybrid exhibiting enhanced electron transfer between heme proteins and electrodes [40].
Galloway et al. [41] and Bird et al. [42] explored the use of a 2D self-assembled monolayer (SAM) array of the magnetosome membrane specific 6 (Mms6) protein derived from the magnetotactic bacterium Magnetospirillum magneticum for biotemplating of magnetic nanoparticle arrays; characterized by TEM, SEM and AFM, with potential applications in the manufacture of electric circuits.

5. Protein-Made Fibers and Tubes as Biotemplates

The data available in the literature on self-assembly of proteins into fibers and tubes has paved the way for the exploitation of the inherent potential of using a series of readily available self-assembled protein fibers as biotemplates.
Colby et al. [43] described the use of α-synuclein fibrils as a template for coatings made of palladium, gold or copper nanoparticle chains. The resulting nanoparticle chains exhibited diameter sizes within the range of 50–200 nm (as verified by TEM, EDXS and electron energy loss spectroscopy (EELS) structural analysis), leading to potential applications in nanophotonic devices, storage media or quantum dot assays.
Malisauskas et al. [44] described the use of amyloid fibers obtained by the self-assembly of lysozyme into tubular templates for the synthesis of silver wires—1 nm in diameter—enabled by the presence of 2,2,2-trifluroethanol affecting the simultaneous fibril assembly of the protein template and in situ ionic silver reduction within the biotemplate’s hollow channels (characterized by AFM, spectrophotometry and fluorescence measurements) into nanowires obtained following the enzymatic proteolytic digestion of the protein-made template.
Slocik et al. [45] described the use of filaments made of the γ-pre-folding protein derived from the hyperthermophile Methanocaldococcus jannaschii as a biotemplate decorated with silver, gold, palladium or platinum NPs, by electroless deposition using NaBH4 as a reducer of pre-adsorbed metal ions. The coated protein filaments thus obtained were characterized by TEM, spectral and electrical analysis, with the intended application of metal nanowires of defined length.
Ionov et al. [46] described the preparation of nanostructured stimuli-thermoresponsive polymer brushes grown via atom transfer radical polymerization initiated from the surface of microtubules made of bovine tubulin. The product obtained was characterized by AFM and fluorescence studies, and the feasibility of its response to temperature changes was demonstrated, indicating a potential application as biomolecular switch.
Juarez et al. [47] described the preparation of gold nanowires biotemplated onto the surface of lysozyme fibrils as catalysts for the chemical reduction of p-nitrophenol to p-aminophenol by NaBH4. The gold nanoparticle-decorated lysozyme fibrils obtained were subjected to structural analysis by TEM and X-ray diffraction (XRD) analysis, and the feasibility of their use as a catalyst was demonstrated by kinetic spectrophotometric analysis.
Leroux et al. [48] demonstrated the use of bovine insulin derived helical fibrils as a biotemplate for the helically arranged, 4–6 nm in diameter chains of silver NPs obtained by electroless deposition, which exhibit optical activity within the visible range. The product obtained was subjected to AFM, TEM and circular dichroism spectra structural analysis.
The preparation of magnetic nanowires was also described by Juarez et al. [49]. The coating of pre-assembled human serum albumin or lysozyme fibrils was readily carried out by the controlled addition of iron salts and ammonium hydroxide, leading to preferred precipitation on the fibrils acting as a biotemplate. The Fe3O4–protein hybrids thus obtained were characterized by HRTEM, XRD and Fourier transform infrared spectroscopy (FTIR) analysis, and the feasibility of their magnetization demonstrated, leading towards potential applications as MRI contrast agents.
Korkmaz et al. [50] described the calcium-dependent self-assembly of the recombinant S-layer protein SbsC derived from Geobacillus stearothermophilus into tubular structures serving as biotemplates for the chemical deposition of platinum. The resulting hybrid was characterized by HRTEM, SEM and fluorescence analysis, in preparation for an intended application as nanowires.
Padalkar et al. [51] described the use of a fibrilar protein (α-synuclein) template for the growth of silica and titania nanowires for biosensing applications. SiO2 and TiO2 nanowires were grown on the biotemplate by monomer polymerization. The structures obtained were characterized by TEM and field-emission scanning electron microscopy (FESEM), and the feasibility of their use for biosensors based on the enzymatic activity of acetylcholine esterase was demonstrated and characterized.
Insulin fibers were coated with palladium by electroless deposition. The nanostructure and electrical properties of the palladium hybrids thus obtained were characterized by AFM, TEM, X-ray photoelectron spectroscopy (XPS) and scanning capacitance microscopy (SCM) analysis [52]. The use of insulin fibrils as biotemplates for the deposition of platinum and their application as a catalyst for the reduction of p-nitrophenol by NaBH4 to 4-aminophenol was described by Batzli and Love [53]; see also Juarez et al. [47].
A recent contribution by Clark et al. [54] offers a promising “ultrastable biomolecular construction kit for the assembly of filamentous proteins into geometrically defined templates of controllable size and symmetry”. The kit is based on the filamentous protein γ-prefoldin derived from the hyperthermophile Methanocaldococcus jannaschii, and its use as the major component of a biotemplate has been constructed in combination with other protein-made connecting units (see also Slocik et al. [45]).

6. Viral Envelopes as Biotemplates

The highly-ordered 3D protein envelopes of viruses, especially of plant viruses and bacteriophages, offer a ‘natural’ biotemplating tool, which is available in several geometrical shapes and sizes (for related reviews, see [55,56,57,58]).
Tsukamoto et al. [59] described the synthesis of CoPt and FePt3 nanowires inside the central channel of tobacco mosaic virus (TMV), used as a biotemplate for electroless deposition mediated by reduction with NaBH4 of cobalt and platinum ions within the channel. Nanowires ranging from 50 to 100 nm were identified by HRTEM analysis, as well as by EDXS and magnetometry measurements.
Neltner et al. [60] described the catalytic production of hydrogen gas from ethanol using Rh–Ni–CeO2 nanocrystals biotemplated onto the surface of M13 bacteriophages, significantly improving parameters such as operational and storage stability.
Lim et al. [61] described the formation of thin palladium nanowires, formed as a coating without the addition of an external reducer, on the surface of TMV. The wires obtained, tens of nanometers in thickness and hundreds of nanometers in length, were characterized by X-ray Raman scattering (XRS).
The production of 3 nm aligned magnetic NPs within the central channel of mutated tobamovirus was described by Kobayashi et al. [62]. Energy-dispersive X-ray spectroscopy and superconducting quantum interference analysis indicated that the nanoparticles obtained consisted of a Co–Pt alloy.
Nuraje et al. [63] demonstrated the photocatalytic and photovoltaic activity of a chemically modified envelope of M13 bacteriophage-templated crystalline perovskite nanomaterials (characterized by TEM, HRTEM and XRD), with potential applications in solar energy conversion.
The controlled preparation of a 3D super lattice of metallic nanocrystals was demonstrated by Alloyeau et al. [64], combining self-assembled tomato bushy stunt virus (TBSV) and streptavidin 2D crystals as interwoven biotemplates for the controlled 3D growth of a silver nanoparticle array (characterized by TEM).
Zhou et al. [65] described the preparation of copper nanorods and nanowires, 24–26 nm in diameter (characterized by TEM, SEM and XPS), by the electroless deposition of copper on palladium ion pre-activated TMV and M13 bacteriophage surfaces.
Flexible electroactive nanomaterials were prepared by Vera-Robles et al. [66] by biotemplating, using chemically modified pVIII protein of M13 viral envelopes, affecting nucleation and the enlargement of gold or platinum NPs. Transmission electron microscopy, SEM and electrochemical analysis demonstrated the feasibility of using the structures obtained as electrodes.
Piezoelectric nanowires were biotemplated on a genetically engineered M13 bacteriophage coating protein surface, displaying triglutamate residues for the periodical positioning of Pb2+ cations [67]. A lattice with an accurate spacing of 0.4 nm was readily prepared, its structure characterized by HRTEM and SEM, and the feasibility of its functionality as a lead zirconate titanate (PZT) device demonstrated. Gold dendrites were co-deposited with M13 virus as a biosensor platform for nitrite ions by Seo et al. [68] and tunable core-shell barley stripe mosaic virus (BMMV)–palladium nanowires were readily obtained, as described by Adigum et al. [69].
As the structural complexity degree of biotemplated arrays grows, it should be mentioned that new characterization tools are also gradually becoming available for the biotemplating arena, as demonstrated by the recent report by Carreno-Fuentes et al. [70] on the combination of molecular docking and advanced electron microscopy, providing imaging through ultrahigh-resolution FESEM and spherical aberration-corrected scanning transmission electron microscopy (STEM) at a low voltage.

7. Protein Crystal-Mediated Biotemplating

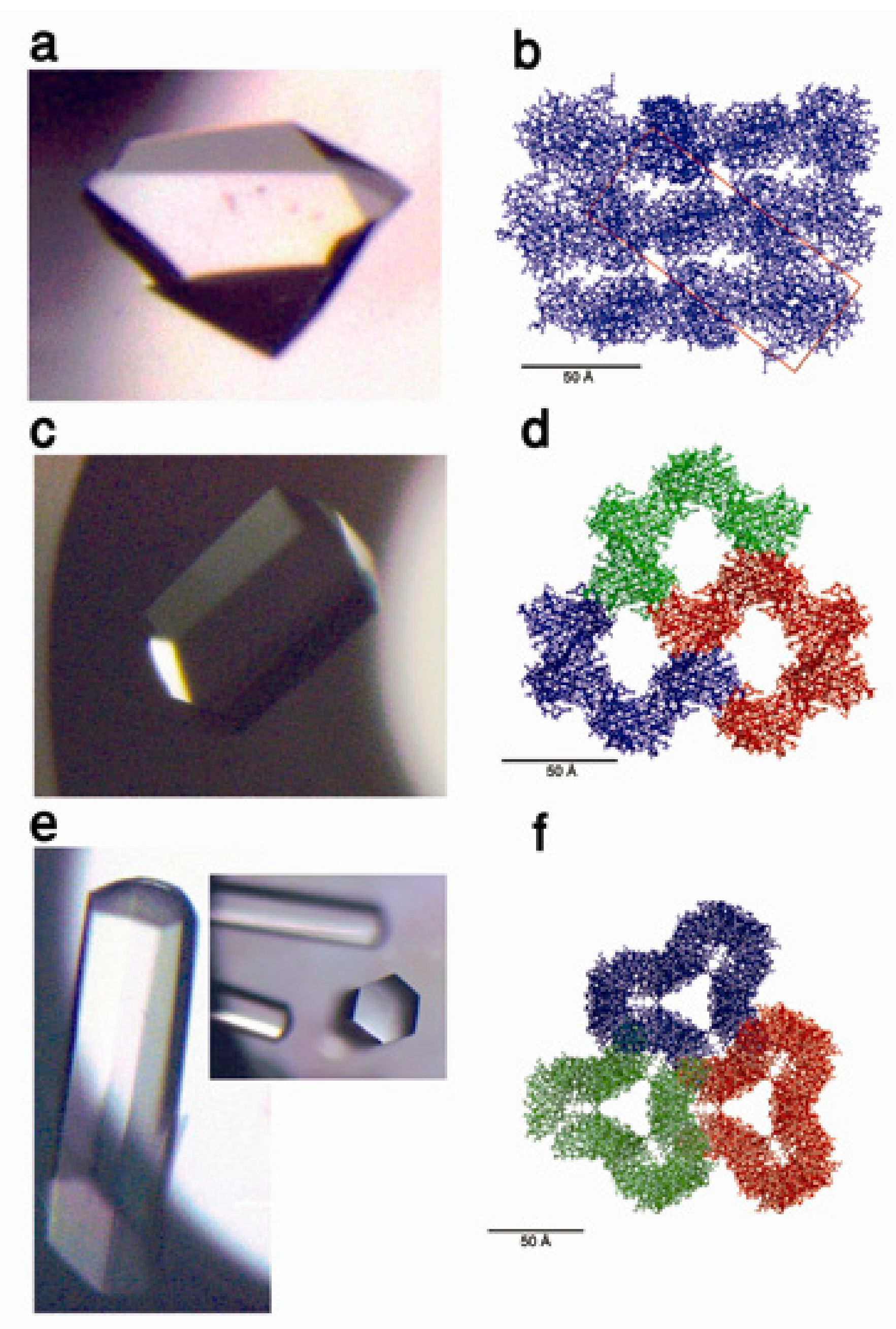

Protein crystals, routinely prepared for the elucidation of protein 3D structures by X-ray crystallography, present a highly ordered 3D array of protein molecules. Along with the formation of this array, a complementary 3D array of nanosize voids is also formed; with patterns, geometry and dimensions depending on the protein ‘building block’ and its mode of ‘packaging’ within the crystal (Figure 4).
The composites obtained by ‘filling’ these voids of protein crystals as biotemplates have potential in providing nanostructured, 3D, highly accurate arrays of hybrid materials for applications in fields such as electronic devices (for a review of potential applications, see [72]) and spectroscopy (for related reviews, see [73,74,75,76]).
The exploitation of the potential inherent to 3D protein crystal biotemplating calls for the availability of complex infrastructures, including the means, know-how, and the control of protein crystallization and protein crystal stabilization to prevent crystal dissolution; as well as structural analysis by XRD and related advanced spectrophotometric methods in order to monitor the preservation of the parent 3D crystalline structure throughout the templating procedure, and the prevention of distortion resulting from the impact on the template array by the templated material.
The feasibility of using such an infrastructure for the monitoring of the stability of a crosslinked lysozyme crystal throughout biotemplating of a crosslinked hydrogel inside its internal voids array was successfully demonstrated in our laboratory [77]. Following the stabilization of the crystals by glutaradehyde, crosslinking the crystals was equilibrated with a monomer/crosslinker mixture (acrylamide/ethyleneglycol-dimethacrylate solution), with subsequent in situ polymerization. The monitoring of possible protein crystal structural changes taking place throughout the process of the biotemplating of the formed hydrogel was enabled by the combination of step-by-step comparative analysis of the data obtained from X-ray crystallography and the fluorescence decay analysis of ultrafast laser activated soluble dye indicator, confirming the preservation of the 3D structure of the parent protein crystal biotemplate throughout this process.
Stabilization of protein crystals by chemical crosslinking is a pre-requisite to controlled 3D biotemplating, as the stability of the crystalline protein template should be preserved throughout the process. This stabilization is mostly affected by glutaraldehyde crosslinking (for a review on glutaraldehyde crosslinked protein crystals and their applications, see [78]). In view of the efficacy described above in the stabilization and preservation of the lysozyme crystal template throughout the biotemplating process, we used our structural analysis infrastructure, especially the X-ray crystallography capabilities, to elucidate the mechanism of protein crystal chemical crosslinking by glutaraldehyde, identifying a leading role for polymeric forms of glutaraldehyde in the process (for details, see [79]). The preservation provided by glutaraldehyde crosslinking, enabled the 3D biotemplating of silver grains grown within the voids array of concanavalin A crystal pre-stabilized by glutaraldehyde crosslinking as was demonstrated by Cohen-Hadar et al. [71].
The elucidation of the glutaraldehyde crosslinking mechanism and an understanding of its progress throughout the protein crystal structure paved the way for the potential inherent to site-preferred partial crosslinking, enabling the isolation of the homogeneous population of protein products (e.g., protein dimmers) “liberated” from partially crosslinked crystals by re-dissolution, as demonstrated in our laboratory [80].

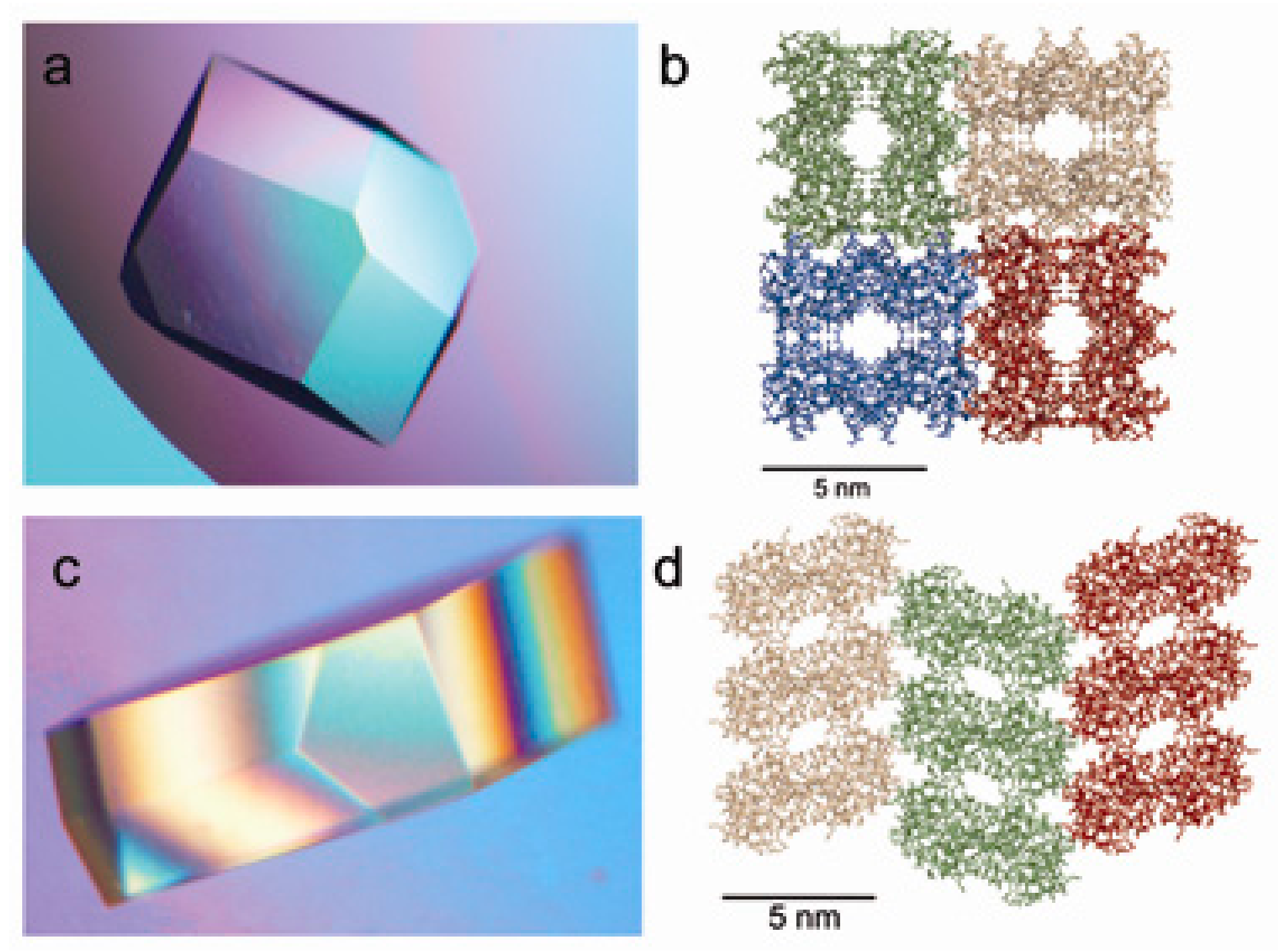

A large spectrum of 3D void arrays, exhibiting different shapes and sizes, is available for exploitation from the Protein Data Bank (PDB). Their use is, however, often limited by the commercial availability of an envisaged protein or tedious crystallization procedures and their structural analysis. An alternative route for fishing data out from the PDB might be the use of a “parent” protein building block for the preparation of a series of protein crystals, each exhibiting a different 3D void array. This approach may be materialized by affecting different crystallization conditions: (i) modification of salt and alcohol concentrations, (ii) “directing” the crosslinking of binding proteins by bi-ligand as demonstrated by crosslinking of concanavalin A, yielding ‘diamond-like’ crystals by crosslinking with monosaccharide bi-ligands [81]; or (iii) parent protein surface modifications of amino acids involved in protein–protein interactions leading to the ‘parent’ crystal, selected from X-ray crystallography data derived from the “parent crystal”.
To illustrate the feasibility of the latter approach, Wine and coworkers [82,83] used protein engineering tools to modify the packing of a selected protein (cohesin from Acetivibrio cellulolyticus) as illustrated in Figure 5.
An alternative route to affect parent protein–protein molecular interactions affecting crystal “packing” was demonstrated by Cohen-Hadar et al. [84], using the chemical modifications of the lysine amino groups of the parent protein, as shown in Figure 6 for lysozyme crystals.
Takeda et al. [85] suggested and demonstrated the feasibility of biotemplating pre-prepared gold NPs by a co-crystallization from lysozyme solution, admixed with a gold NPs suspension (the product was characterized by spectroscopy, light and electron microscopy).
He and colleagues [86,87] demonstrated the preparation and use of lysozyme crosslinked crystal-embedded silver NPs as catalysts for the chemical reduction of 4-nitrophenol to 4-aminophenol by NaBH4, indicating the superiority of smaller crystals for this application.

8. Protein-Mediated Biotemplating by Cell Fragments

The feasibility of using bacterial flagella, either extracted from bacterial cells or re-assembled from purified flagellin, was demonstrated by several groups.
Mao and colleagues [88] demonstrated the controlled synthesis of hollow double layered core-shell titania–silica nanotubes using flagella detached from Salmonella typhimurium (confirmed by HRTEM and EDXS structural analysis). Oxide formation on the surface of a series of biological templates, including flagella mechanically detached from S. typhimurium was also demonstrated by this laboratory [89], using chemical surface modification enabled the subsequent nucleation and growth of biotemplated silica (confirmed by SEM, TEM and nuclear magnetic resonance (NMR) structural analysis). The potential removal of the biotemplate from the final hybrid thus obtained offered potential applications in nanoelectronics.
Gopinathan et al. [90] demonstrated the feasibility of biotemplating silver NPs by electroless deposition on the surface of S. typhimurium flagella reconstructed from isolated and purified flagellin. The hybrid obtained was characterized by HRTEM, X-ray and Raman spectroscopy, followed by electrochemical I-V measurements, indicating that electrical conductivity of the hybrid prepared from reconstructed flagella was superior to the conductivity exhibited by directly extracted flagella.

9. Conclusions and Future Perspectives

Protein-mediated biotemplating has attracted much attention throughout the past decade, culminating in data proving the feasibility of a wide spectrum of biotemplating systems demonstrated in one, two and three dimensions. All these data are supported by advanced, state-of the-art characterization technologies.
The preliminary feasibility demonstrations of several applications made available by protein-mediated biotemplating was also demonstrated with an emphasis on nanoelectronics and biosensing. It appears, however, that most protein-mediated biotemplating systems described so far did not culminate in feasibility demonstrations for their potential applications. Therefore, it appears that protein-mediated biotemplating-related research and development (R+D) efforts should address the challenges of the identification and demonstration of new applications, and focus on further developing the already described initiations.
Future advancement of such a technology should also aim to solve important practical aspects as bringing results from bench to practice, including the provision of the means of contact or connection of the hybrids thus obtained to working/detecting systems, as well as data on storage and operational stability. The process of coping with future R+D challenges may benefit from further exploitation of the potential inherent to the incorporation of additional protein engineering and chemical modification-based methods for the manipulation and performance improvement of protein templates.
