Fast Electrochemical Method for Organic Dye Decolorization Using Recycled Li-Ion Batteries
Department of Exact and Biological Sciences (DECEB), University of São João Del Rei—Sete Lagoas Campus, Sete Lagoas-MG 35701-970, Brazil
*
Author to whom correspondence should be addressed.
Received: 2 August 2018 / Accepted: 9 August 2018 / Published: 14 August 2018

Abstract

:
In this paper, the application of recycled Li-ion battery spent cathodes (LIB-SC) combined with a NaHCO3/H2O2 system is presented for the first time in the literature as an alternative for the degradation of potentially toxic organic molecules. The model pollutant choice was methylene blue molecule. The spent cathode composition corresponds to LiCoO2, which was proved by the XRD and EDX. Regarding the decolorization of methylene blue solution, the addition of NaHCO3, in comparison with only H2O2, reduces the complete decolorization time by 96%. This reduction occurs because the radical CO 3 . is more stable than OH. In this way, the application of the system proposed in this article is aimed at solving two major global problems: the disposal of cell phone batteries and the pollution of liquid effluents.
Keywords:
rcycling; Li-ion; methylene blue; LiCoO2

1. Introduction

One of the first papers reporting the Li-ion battery (LIB) is dated 1962 [1]. Approximately 30 years passed before its introduction to the commercial market by Sony® [2]. The LIB rapidly replaced NiCd and NiMH batteries, generating a revolution in the production of electronic portable devices [3]. LIBs currently account for 37% of all batteries consumed in the world [4]. In order to give a sense of the dimensions of LIB presence in the market, in 2012, world sales of LIBs were estimated at $12 billion, and this number was more than double that in 2015 ($30 billion) [5].
Another application that has increased is hybrid devices between supercapacitors and Li-ion batteries. In these devices, the batteries’ faradaic processes are combined with the capacitive processes of the supercapacitors, generating a new class of energy source. This new prospect for application is mainly related to the advent of electric vehicles [6,7,8].
Due to the current need for self-sustaining technologies, the recycling of Li-ion batteries (LIB) is a research topic that is growing stronger with each passing year. In LIB, the current density is generated by transport of Li+ between the cathode (composed of intercalation oxides such as LiCoO2 or LiCoxMnyNiwO2, with x + y + w = 1) and the lithiated graphitic carbon anode [9]. The electrolyte is typically LiPF6 dissolved in organic carbonates [5]. The cathode is the most abundant (around 25–30% in mass) and valuable component in LIBs [3]. In the literature, there is a considerable number of articles about the recycling of Li-ion battery spent cathodes (LIB/SC) composed of LiCoO2. At laboratory scale, the first step of hydrometallurgical recycling is the detachment of the cathode from the Al current collector, followed by acid dissolution [9]. After dissolution, the metal cations are separated by application of a cationic resin [10]. Components such as Co and Li are recovered in forms such as Co(OH)2 and Li2CO3, and even the resynthesis of cathodic material has been proposed [9]. Although there are many studies on LIB/SC recycling, very few studies focus on the direct application of LIB/SC [11].
The recent literature describes the decolorization of methylene blue (MB) solution using LIB/SC (with LiCoO2) in the presence of H2O2 [11]. In this case, the OH· radical formation occurs through LiCoO2 delitiation promoted by the hydrogen peroxide reduction in (Equation (2)) [11]. The formation of the hydroxyl radical (OH·) was confirmed utilizing isopropanol (i-PrOH) as a scavenger [11].
H 2 O 2 ( aq ) + e OH ( aq ) . + OH ( aq )
LiCoO 2 ( s ) + Li ( 1 x ) CoO 2 ( s ) + x Li ( aq ) + + x e
The literature shows that NaHCO3 can increase the rate of methylene blue decolorization promoted by OH· radicals. This is expected when the bicarbonate anion is radical scavenger (Equation (3)) [12]. The radical CO 3 . is much more stable than OH·, which can be explained by the difference in its recombination constant. For the radical OH, the recombination constant is around 109 M−1s−1 against 4.25 × 106 M−1s−1 for the CO 3 . [12].
OH ( aq ) . + HCO 3 ( aq ) H 2 O + CO 3 ( aq ) . k = 1.0 × 10 7   M 1 s 1
Thus, the objective of this paper is to study the methylene blue (model pollutant) decolorization using the Li-ion batteries spent cathode (LIB/SC) combined with NaHCO3/H2O2 system. The composition of LIB/SC was obtained using the XDR and EDX techniques. An electrochemical study was also performed using linear voltammetry to evaluate OH· formation.

2. Material and Methods

2.1. Obtaining and Characterization of Li-Ion Battery Spent Cathodes (LIB/SC)

The Li-ion battery was manually dismantled and the spent cathode in tape form was separated. The cathode tape was heated at 200 °C for 5 h to remove organic solvents. A schematic showing the main parts of the Li-ion battery is shown in Figure 1. The spent Li-ion battery cathode (LIB-SC) tape was washed in distilled water to eliminate possible lithium salts (such as LiPF6) present in the electrolyte [11]. The crystalline structure of the spent Li-ion battery cathode tape was characterized by X-ray diffraction on a 200 B Rotaflex-Rigaku with Cu Kα irradiation, a Co filter, and a scanning speed of 0.02 min−1. The morphology of the spent Li-ion battery cathode tape was observed by Field-Emission Scanning Electron Microscopy on a JEOL JXA model 8900 RL equipped with an energy dispersive X-ray (EDX) detector.

2.2. Methylene Blue Decolorization Analysis

To study the MB decolorization kinetic, a 100 mL jacketed glass reactor containing 50 mL of MB solution was stirred magnetically (10 rpm) in a temperature-controlled bath (25 °C). Before the addition of H2O2 and NaHCO3, the MB solution was put in contact with LIB-SC for 2 h to establish the adsorption equilibrium. The decolorization process was monitored by analyzing aliquots at 659 nm using a UV-Spectrophotometer FEMTO Cirrus 80 PR. All measurements were made in the absence of visible light to avoid the possible electron excitation of the cobalt lithium oxide conduction band to the valence band generating the electron (BC) and hole (BV) pair [11].

2.3. Linear Voltammetry Measurements

Linear voltammetry was performed using an AUTOLAB PGSTAT 30 power supply. The working electrode was made of Li-ion battery spent cathodes (LIB/SC). The samples were prepared as rectangular pieces (1 cm−2). The auxiliary electrode, with an area of 3.75 cm2, was made of platinum. A saturated Ag/AgCl reference electrode was used. All the electrochemical measurements were performed at 25 °C. After the experiment, the resultant solution was analyzed with AAS, aiming to determine the possible lixiviation of Co and Li.

3. Results and Discussion

3.1. Characterization of Li-Ion Battery Spent Cathodes (LIB-SC)

The characterization of Li-ion battery spent cathodes (LIB-SC) is very important, since composition varies with the make, and even with the model [11]. Figure 2 shows the X-ray diffraction of Li-ion battery spent cathodes (LIB-SC). According to comparison with the JCPDS card number 50–653, the main phase identified was in the LiCoO2. The presence of graphite is justified because its addition increases cathode conductivity. Through SEM (Figure 3a) it is possible to observe a very porous material, which may contribute to the rapid reaching of adsorption equilibrium. The porosity was calculated using the imagej® software, and the value was found to be 42%, with an average grain size of 32 μm2. The presence of fluorine is due to the binder polyvinylidene-fluoride (PVDF) (Figure 3b) [11].

3.2. Decolorization of MB Solution Using LIB-SC+H2O2/NaHCO3 System

Figure 4a shows the variation of [MB]/[MB0] vs. time (where [MB]0 is the initial MB concentration) using H2O2 and LIB-SC. From Figure 4, the great influence of LIB-SC on the MB decolorization reaction can be clearly observed, as already described in the literature [11]. In this reaction, the H2O2 electrochemical reduction promoted by LiCoO2 delitiation is related to the first step [11]. The subsequent step is the attachment of OH· onto the MB molecule. In the literature, this step is commonly described as the reaction-determinant step (rds) and is dependent on OH and MB concentrations [12]. In consideration of the fact that the electrochemical step maintains a practically fixed concentration of OH, the most appropriate kinetic model is the pseudo first-order reaction, as represented by Equation (4) (where kapp is the apparent velocity constant) [12]. Figure 4b shows the linearity of ln[MB]/[MB]0 versus time as predicted for a first-order reaction (Equation (5)).
d [ MB ] d t = k [ OH . ] [ MB ] k a p p [ MB ]
[ MB ] [ MB ] 0 = exp ( k a p p t )
Figure 5 shows the decolorization of MB solution using H2O2 and LIB spent cathode and HCO3. From Figure 5, one can see that the addition of HCO3 significantly increased the kinetics of MB decolorization when the bicarbonate anion was the radical scavenger (Equation (3)) [12]. The addition of NaHCO3 reduces the time for complete decolorization from 150 min to 6 min. Thus, to better understand the role of each component in the MB decolorization reaction, of the following parameters were varied: [MB]0, [HCO3], [H2O2] and LIB-SC area.

3.2.1. Variation of [MB]0 and LIB-SC Area in Decolorization of MB Using LIB-SC+H2O2/NaHCO3 System

Figure 6 shows that [MB]0 variation promotes a modification in the [MB]/[MB]0 vs. time profile. However, this behavior is not expected for a first-order reaction (or pseudo first-order reaction), since the [MB]/[MB]0 vs. time curve must be an exponential curve that is dependent only on kapp, such as that shown in Equation (5). The influence of dye initial concentration is reported in the literature for heterogeneous Fenton-like catalyst [13]. Considering that adsorption equilibrium is reached quickly, initially, the catalyst surface is saturated with MB molecules, causing the reaction to initially follow zero-order kinetics (Equation (6)) [13]. Thus, under zero-order kinetics, the [MB]/[MB]0 vs. time curve (represented in the Equation (7)) has a [MB]0-dependent angular coefficient (kapp/zero). The linear fit in the early moments of the reaction reveal that the kapp/zero changes from 0.32 to 0.10 min−1 when the initial concentration of methylene blue changes from 12 to 6 ppm, respectively.
d [ MB ] d t k a p p [ MB ] k a p p / z e r o
[ MB ] [ MB ] 0 = 1 k a p p t [ MB ] 0
It is important to note that Fe3O4 is a very popular catalyst for dye organic pollutants and other toxic substances due to its high efficiency, as well as its magnetic separation from the reaction medium [13]. In the literature, Fe3O4 nanoparticles are used for 10 ppm MB degradation using only H2O2 (without the use of NaHCO3) [13]. The time required for total decolorization was 120 min. In our work, a solution of 12 ppm was completely discolored in 36 min (0.5% of color—highlighted in Figure 6).
Figure 7 shows the variation of the LIB-SC area in the methylene blue decolorization process. Since hydroxyl radicals are formed by H2O2 and LIB-SC electrochemical reaction, it is natural that the LIB-SC area is directly proportional to the hydroxyl initial concentration. The linear fit in the early moments of the reaction reveal that the kapp/zero decreases by a factor of 8 when the area undergoes a reduction of 16 cm2 to 2 cm2.

3.2.2. Variation of [H2O2]0 and [NaHCO3]0 in Decolorization of MB Using LIB-SC+H2O2/NaHCO3 System

Figure 8a,b shows the variation of NaHCO3 and H2O2 concentration in MB decolorization, respectively. It would be expected that with an increase in NaHCO3 concentration, there would be an increase in CO 3 . concentration, which would lead to an increase in MB decolorization rate. However, what is observed is that with NaHCO3 increase from 0.01 to 0.03 mol·L−1, there is a subtle decrease in the MB decolorization rate. This effect is probably linked to the recombination of CO 3 . Radicals, as shown in Equation (3).
The increase in peroxide concentration has a negligible influence on the reaction rate of MB decolorization (Figure 8b). On the other hand, the peroxide concentration should influence the reaction rate, since it is a reagent of the electrochemical step, as shown in Equation (1). However, peroxide is also a scavenger of OH· radicals, producing hydroperoxyl radicals ( HO 2 . ) (Equation (8)).
OH ( aq ) . + H 2 O 2 ( aq ) H 2 O + HO 2 ( aq ) . k = 3.3 × 10 7   M 1 s 1
As described in the literature, the HO 2 . generated in Equation [10] contributes very little to the process of organic molecule degradation [14].

3.3. Linear Polarization Analyses and Co and Li Lixiviation

In order to better investigate the electrochemical step of MB decolorization, Figure 9 shows the linear voltammetry of LIB-SC (area = 1 cm−2) in a solution with MB and the H2O2/NaHCO3 system. Table 1 shows some parameters obtained from linear voltammetry (Figure 9). The anodic branch refers to LiCoO2 delitiation (Equation (2)) and the cathodic branch corresponds to the reduction of H2O2 (Equation (1)). Considering the one electron charge transfer process as the limiting step, the Tafel coefficient must be near 118 mV/dec. In this work, the deviations of this value can be attributed to an asymmetry in the charge transfer barrier, which could be caused by adsorption of MB [11]. The equilibrium potential (E) found is within the range expected for LiCoO2 in aqueous medium [15]. Considering one electron transfer (n = 1), an exchange current (i) of 19 × 10−2 Am−2, a reaction system volume (V) of 5 × 10−2 L, and an F (Faraday constant) equal to 96,500 C·mol−1, we can use Faraday’s law (Equation (9)) to obtain the production rate of Li+ ions in solution.
d [ Li + ] d t = i V n F
The value found was 4 × 10−4 mol·m−3s−1 (in the SI), or 4 × 10−8 Ms−1. Thus, after 5 min, we should have a Li (7 g·mol−1) concentration of around 0.084 ppm. Figure 10 shows the determination of lithium and cobalt after 5 and 60 min of reaction. The time of 5 min was chosen because this is the time interval necessary to degrade 6 ppm of methylene blue. It can be observed that for the complete decolorization of the solution (approximately 5 min), the cobalt leaching is below 0.015 ppm, and the corresponding value for lithium is 0.055 ppm. Despite the high efficiency, a disadvantage of the method is the leaching of Li and Co into the reaction medium.
To evaluate the cyclability of the spent cathode, Figure 11 shows the successive cycles in the discoloration of MB solution using the H2O2/NaHCO3 system. It is clear that the material used in this work is not catalytic, as it wears out throughout the process. This occurs because the OH· radical formation occurs through LiCoO2 delitiation promoted by hydrogen peroxide reduction, and the subsequent formation of CO 3 . occurs due to the reaction between OH· radical and bicarbonate molecules.

4. Conclusions

In this work, the application of recycled Li-ion battery spent cathodes (LIB-SC) combined with the NaHCO3/H2O2 system is presented for the first time in the literature as an alternative for the degradation of potentially toxic organic molecules. The model pollutant choice was methylene blue molecules. The studied cathode has the composition LiCoO2. The porosity was calculated, and the value found was 42%, with an average grain size of 32 μm2. Regarding the decolorization of methylene blue solution, the addition of NaHCO3 reduces the time for complete decolorization from 150 to 6 min. This reduction in time occurs due to the CO 3 . radical being much more stable than OH·. In this way, the application of the system proposed in this article is aimed at solving two major global problems: the disposal of cell phone batteries and the pollution of liquid effluents.

Author Contributions

R.G.T. performed the experiments; H.A.T. and E.M.G. analyzed the data and prepared the manuscript.

Funding

This work was supported by CNPq, Federal University of São João Del Rei UFSJ/Sete Lagoas/DECEB, UFSJ/DCNAT, Programa de Pós-Graduação Multicêntrico em Química (PPGMQ) and Rede Mineira de Química.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brousselya, M.; Biensan, P.; Simon, B. Lithium insertion into host materials: The key to success for Li ion batteries. Electrochim. Acta 1999, 45, 3–22. [Google Scholar] [CrossRef]
  2. Garcia, E.M.; Taroco, H.A.; Matencio, T.; Domingues, R.Z.; Santos, J.A.F.; Freitas, M.B.J.G. Electrochemical recycling of cobalt from spent cathodes of lithium-ion batteries: Its application as coating on SOFC interconnects. J. Appl. Electrochem. 2011, 41, 1373–1379. [Google Scholar] [CrossRef]
  3. Georgi, M.T.; Friedrich, B.; Weyhe, R.; Heegn, H.; Rutz, M. Development of a recycling process for Li-ion batteries. J. Power Sources 2012, 207, 173–182. [Google Scholar] [CrossRef]
  4. Swain, B. Recovery and recycling of lithium: A review. Sep. Purif. Technol. 2017, 172, 388–403. [Google Scholar] [CrossRef]
  5. Alessandro, P.; Raana, K.S.; Sajad, Y.; Michael, P.; William, E.M. High performance bi-metallic manganese cobalt oxide/carbon nanotube li-ion battery anodes. Electrochim. Acta 2016, 213, 620–625. [Google Scholar]
  6. Repp, S.; Harputlu, E.; Gurgen, S.; Castellano, M.; Kremer, N.; Pompe, N.; Worner, J.; Hoffmann, A.; Thomann, R.; Emen, F.M.; et al. Synergetic effects of Fe3+ doped spinel Li4Ti5O12 nanoparticles on reduced graphene oxide for high surface electrode hybrid supercapacitors. Nanoscale 2018, 10, 1877–1884. [Google Scholar] [CrossRef] [PubMed]
  7. Genc, R.; Alas, M.O.; Harputlu, E.; Repp, S.; Kremer, N.; Castellano, M.; Colak, S.G.; Ocakoglu, K.; Emre, E. High-Capacitance Hybrid Supercapacitor Based on Multi-Colored Fluorescent Carbon-Dots. Sci. Rep. 2017. [Google Scholar] [CrossRef] [PubMed]
  8. Xiao, P.; Quan, S.H.; Xie, C.J. A new supercapacitor and li-ion battery hybrid system for electric vehicle in ADVISOR. J. Phys.Conf. Ser. 2017. [Google Scholar] [CrossRef]
  9. Jelena, S.; Danica, B.B.; Divna, M.; Elena, T.; Jelena, P.; Milica, V. The synthesis of Li(Co-Mn-Ni)O2 cathode material from spent-Li ion batteries and the proof of its functionality in aqueous lithium and sodium electrolytic solutions. J. Power Sources 2017, 342, 690–703. [Google Scholar]
  10. Sami, V.M.F.F.; Antero, L.T.S. Solvent extraction fractionation of Li-ion battery leachate containing Li, Ni, and Co. Sep. Purif. Technol. 2017, 179, 274–282. [Google Scholar]
  11. Eric, M.G.; Hosane, A.T.; Ana, P.C.M.; Amauri, G.S.; Rafael, R.A.S.; Júlio, O.F.M.; Cristiane, G.T.; Quele, C.P.T. Application of spent Li-ion batteries cathode in methylene blue dye discoloration. J. Chem. 2017, 2017. [Google Scholar] [CrossRef]
  12. Kyle, S.H.; Timothy, W.M.; Ireneusz, J.; Kotchaphan, K.; Christopher, M.S.; David, M.B. Carbonate radical formation in radiolysis of sodium carbonate and bicarbonate solutions up to 250 °C and the mechanism of its second order decay. J. Phys. Chem. A 2010, 114, 2142–2150. [Google Scholar]
  13. Liu, W.; Qian, J.; Wang, K.; Xu, H.; Jiang, D.; Liu, Q.; Yang, X.W.; Li, H.; Huaming, L. Magnetically Separable Fe3O4 Nanoparticles-Decorated Reduced Graphene Oxide Nanocomposite for Catalytic Wet Hydrogen Peroxide Oxidation. J. Inorg. Organomet. Polym. 2013, 23, 907–916. [Google Scholar] [CrossRef]
  14. Keisuke, I.; Mohamed, G.E.-D. Aqueous pesticide degradation by hydrogen peroxide/ultraviolet irradiation and Fenton-type advanced oxidation processes: A review. J. Environ. Eng. Sci. 2006, 5, 81–135. [Google Scholar]
  15. Riccardo, R.; Fabio, L.M.; Colin, W.; Robert, A.H.; Yi, C. Electrochemical characterization of LiCoO2 as rechargeable electrode in aqueous LiNO3 electrolyte. Solid State Ion. 2011, 192, 289–292. [Google Scholar]

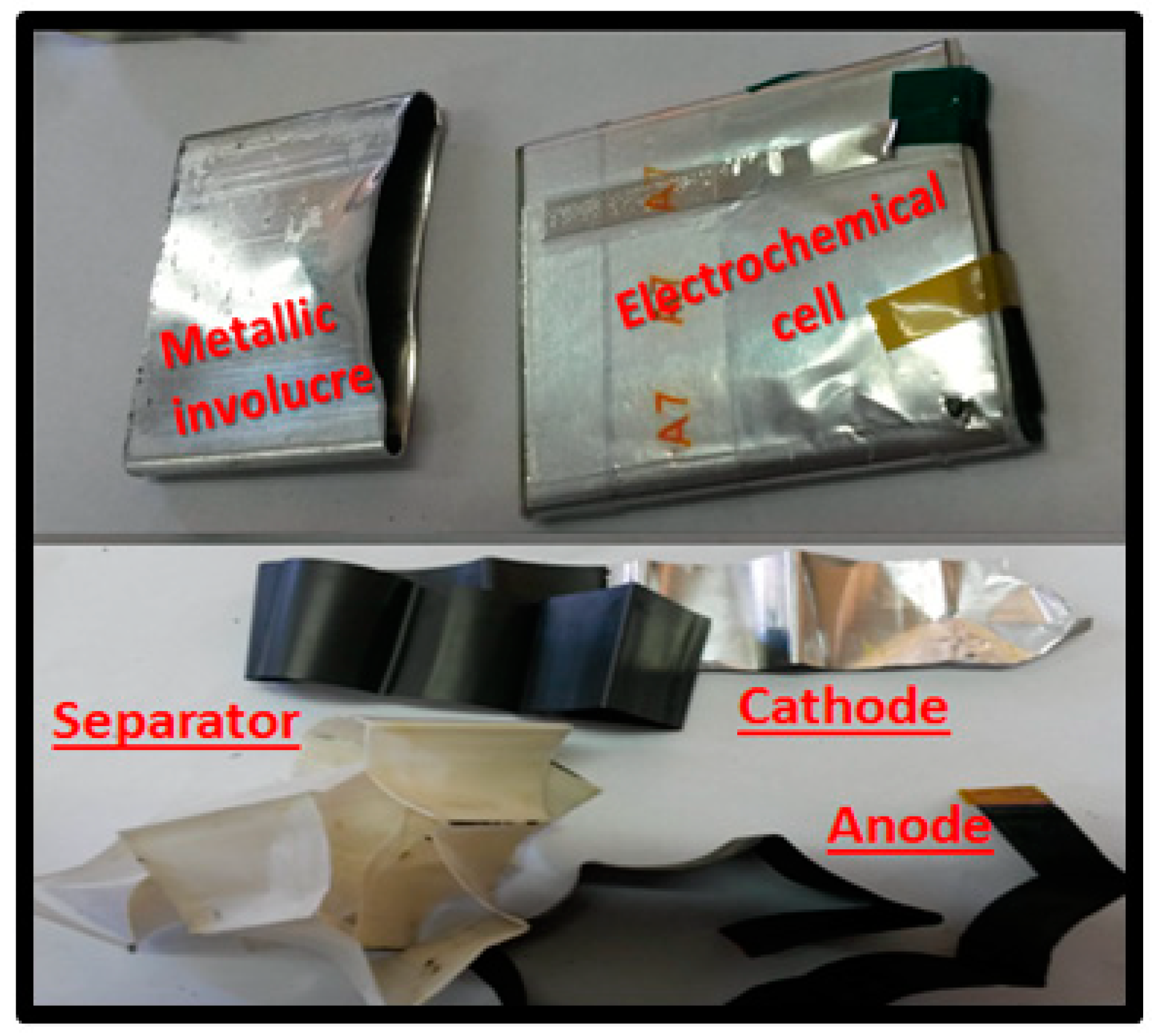

Figure 1. Dismantling scheme and obtaining of Li-ion battery spent cathodes (LIB/SC).
Figure 1. Dismantling scheme and obtaining of Li-ion battery spent cathodes (LIB/SC).
Recycling 03 00035 g001

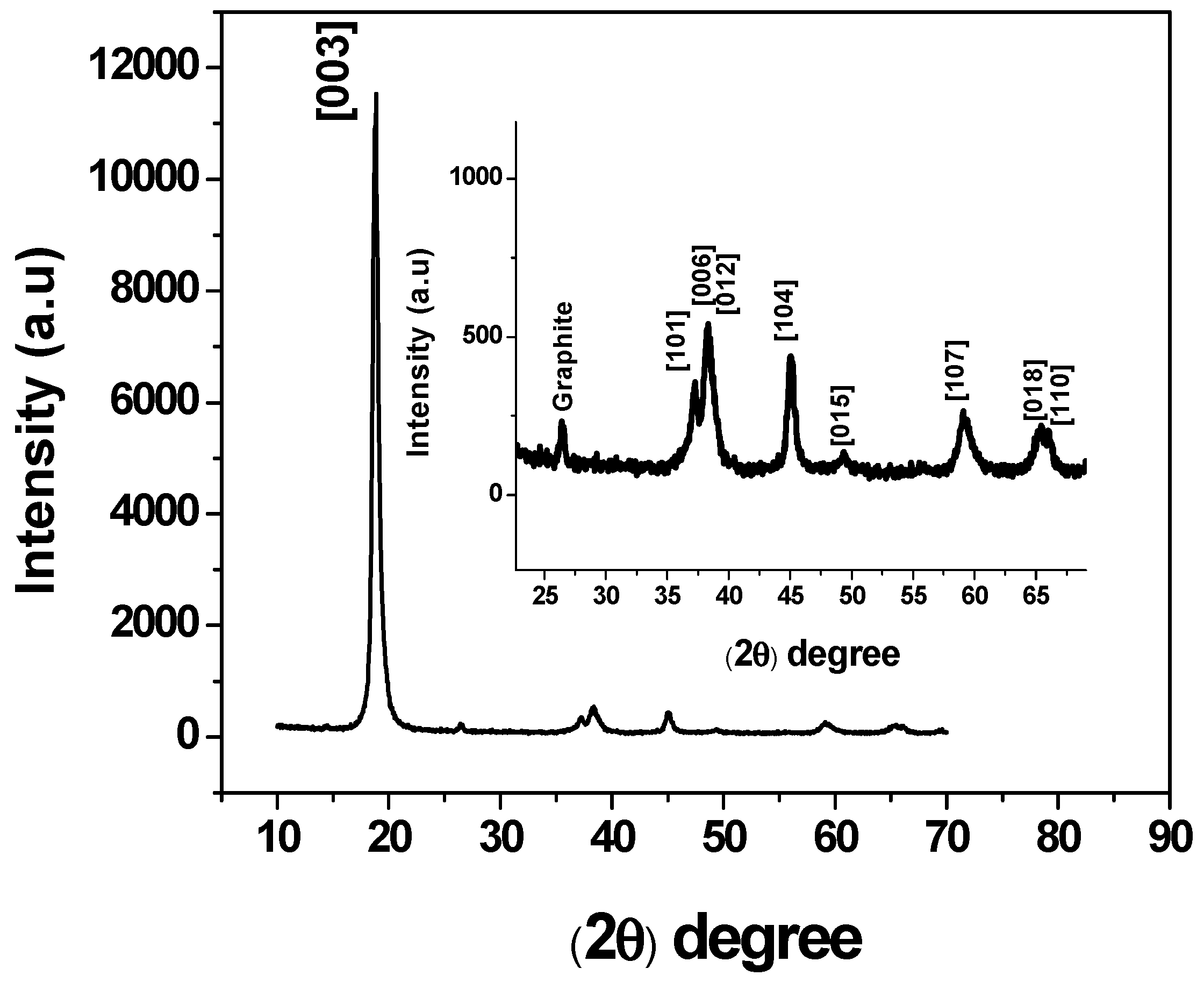

Figure 2. X-ray diffraction of Li-ion battery spent cathodes (LIB/SC) after heating at 200 °C for 5 h.
Figure 2. X-ray diffraction of Li-ion battery spent cathodes (LIB/SC) after heating at 200 °C for 5 h.
Recycling 03 00035 g002

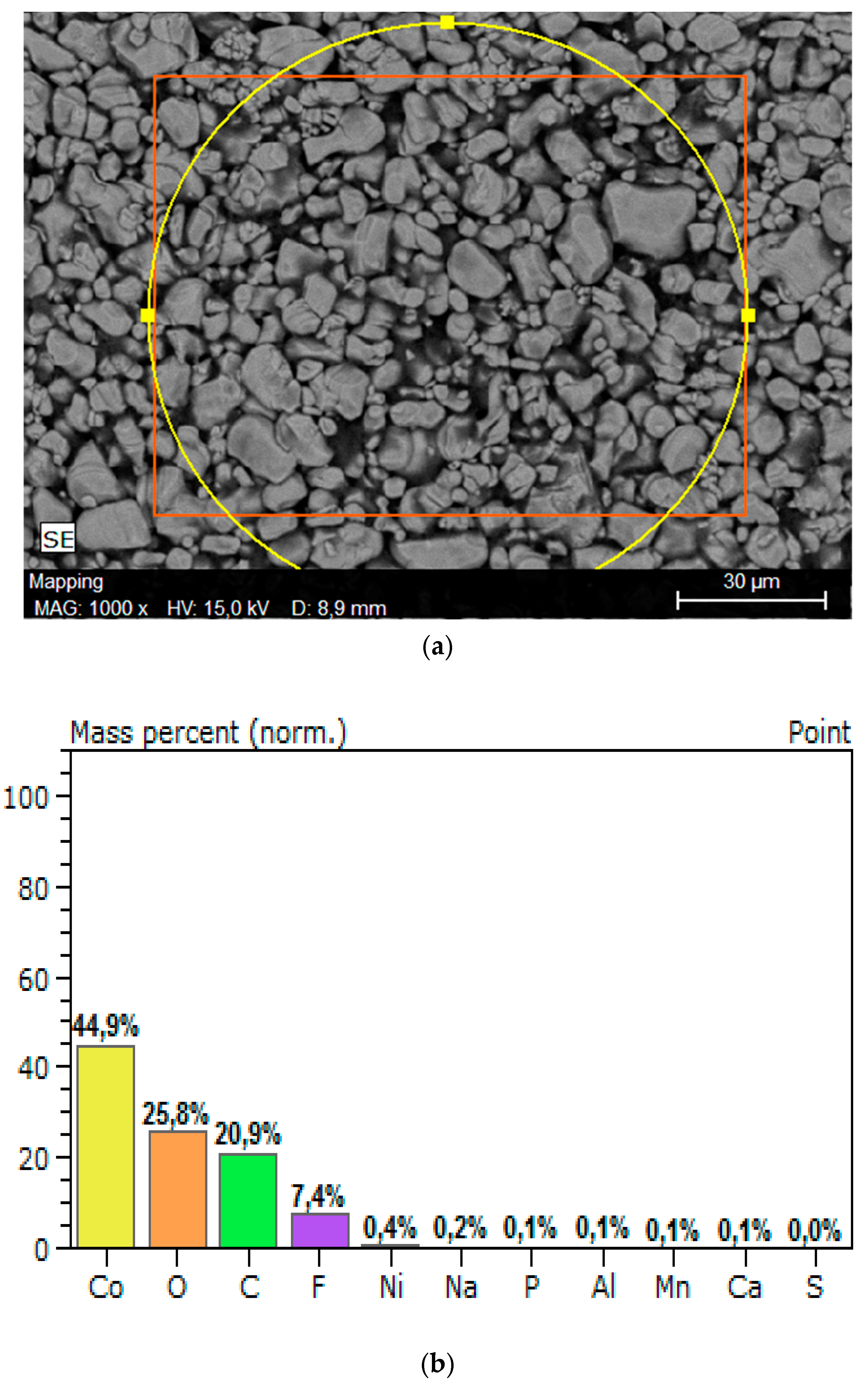

Figure 3. (a) Scan electronic microscopy (SEM) and (b) the average chemical composition obtained by energy dispersive X-ray (EDX) analyses of LIB/SC after heating at 200 °C for 5 h.
Figure 3. (a) Scan electronic microscopy (SEM) and (b) the average chemical composition obtained by energy dispersive X-ray (EDX) analyses of LIB/SC after heating at 200 °C for 5 h.
Recycling 03 00035 g003

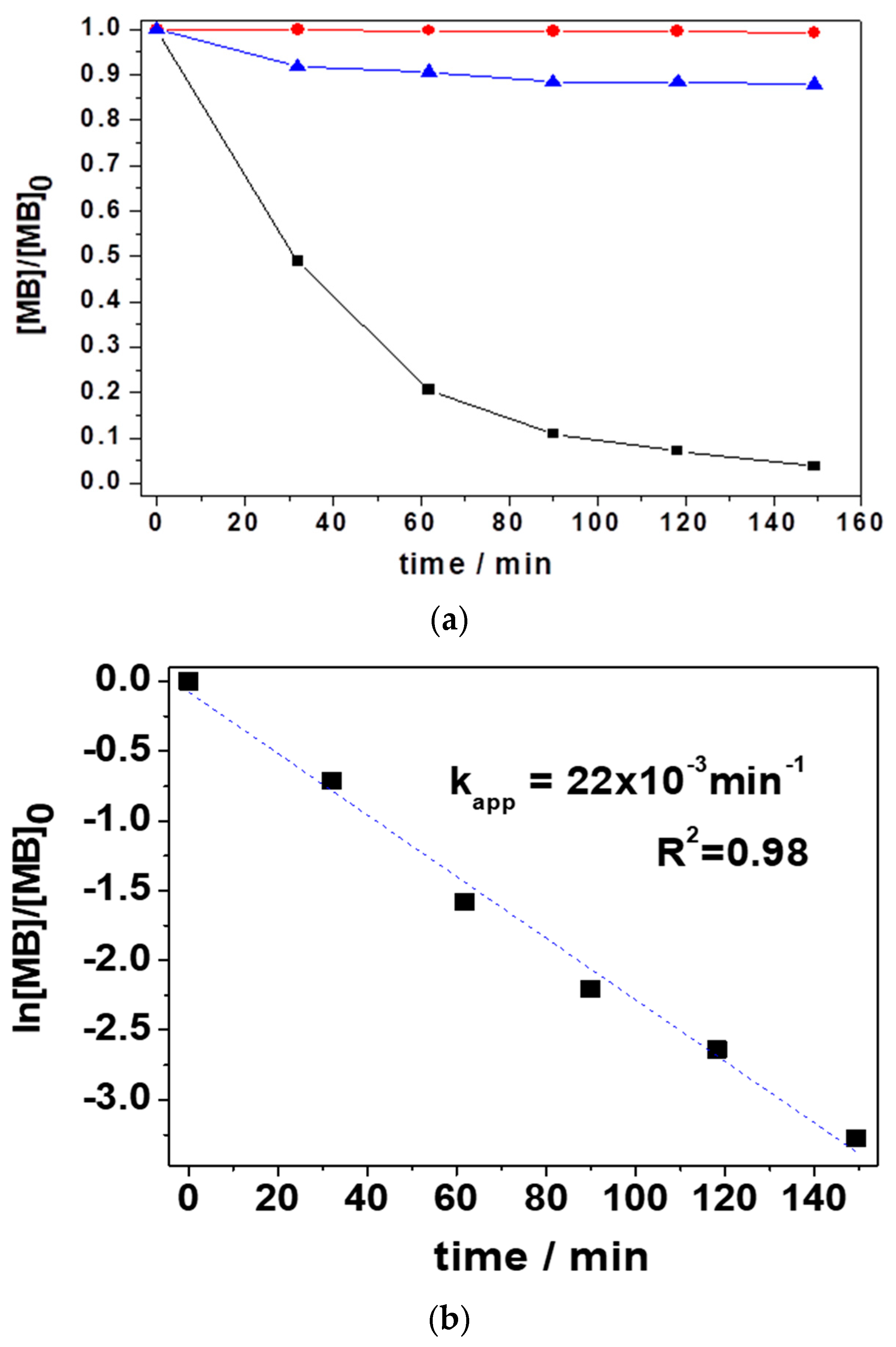

Figure 4. (a) Decolorization of MB solution under different conditions. Only [MB]= 6 ppm (red). [MB]= 6 ppm + [H2O2] = 0.03 M (blue). With LIB-SC (area = 16 cm−2 ~400 mg) + [MB] = 6 ppm + [H2O2] = 0.03 M (black). (b) ln[MB]/[MB]0 versus time.
Figure 4. (a) Decolorization of MB solution under different conditions. Only [MB]= 6 ppm (red). [MB]= 6 ppm + [H2O2] = 0.03 M (blue). With LIB-SC (area = 16 cm−2 ~400 mg) + [MB] = 6 ppm + [H2O2] = 0.03 M (black). (b) ln[MB]/[MB]0 versus time.
Recycling 03 00035 g004

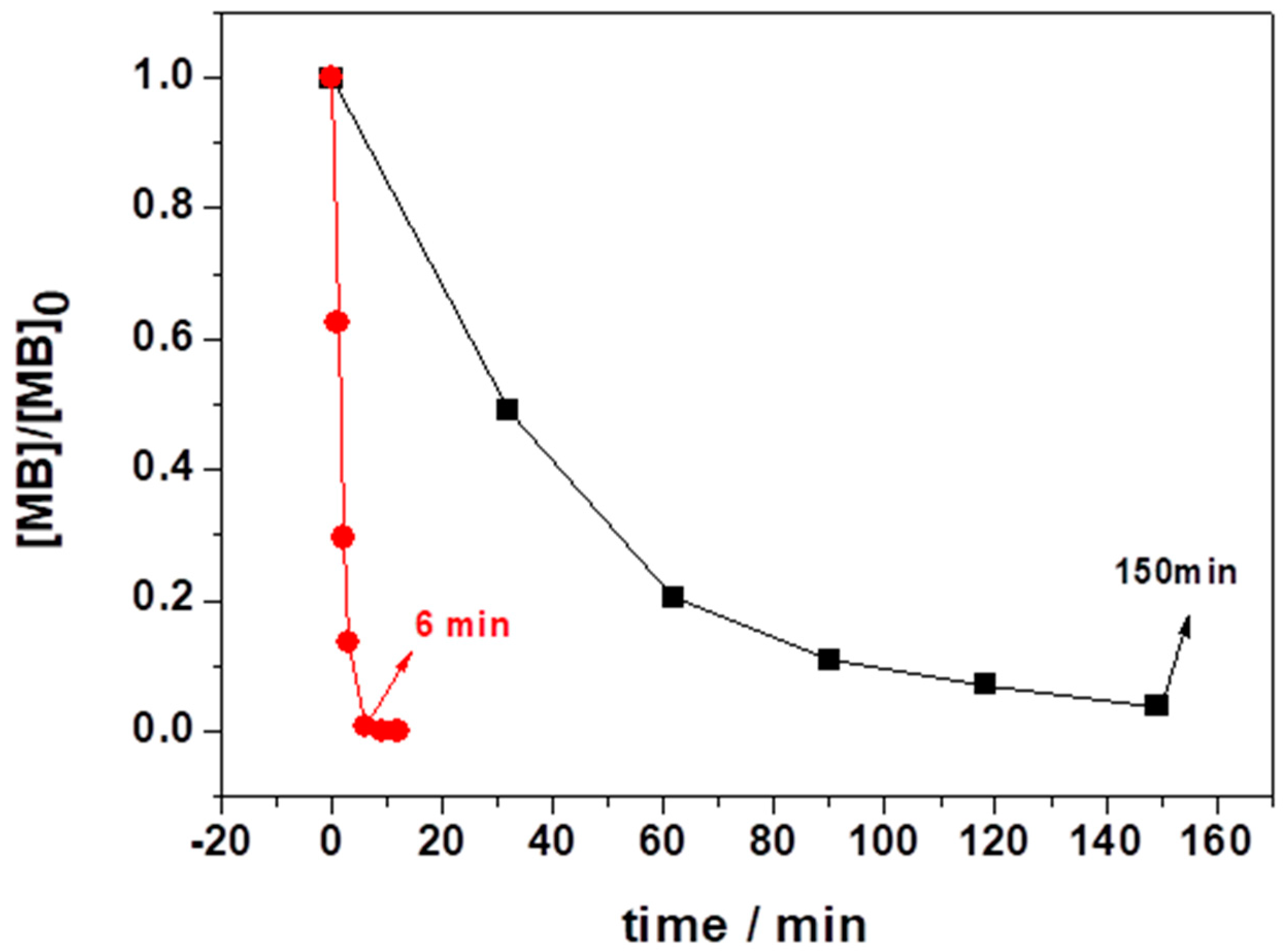

Figure 5. Decolorization of MB solution in different conditions: [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area = 16 cm−2) (Black). [MB] = 6 ppm + H2O2 = 0.03 M+LIB-SC (area = 16 cm−2) + [NaHCO3] = 0.01 M (red).
Figure 5. Decolorization of MB solution in different conditions: [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area = 16 cm−2) (Black). [MB] = 6 ppm + H2O2 = 0.03 M+LIB-SC (area = 16 cm−2) + [NaHCO3] = 0.01 M (red).
Recycling 03 00035 g005

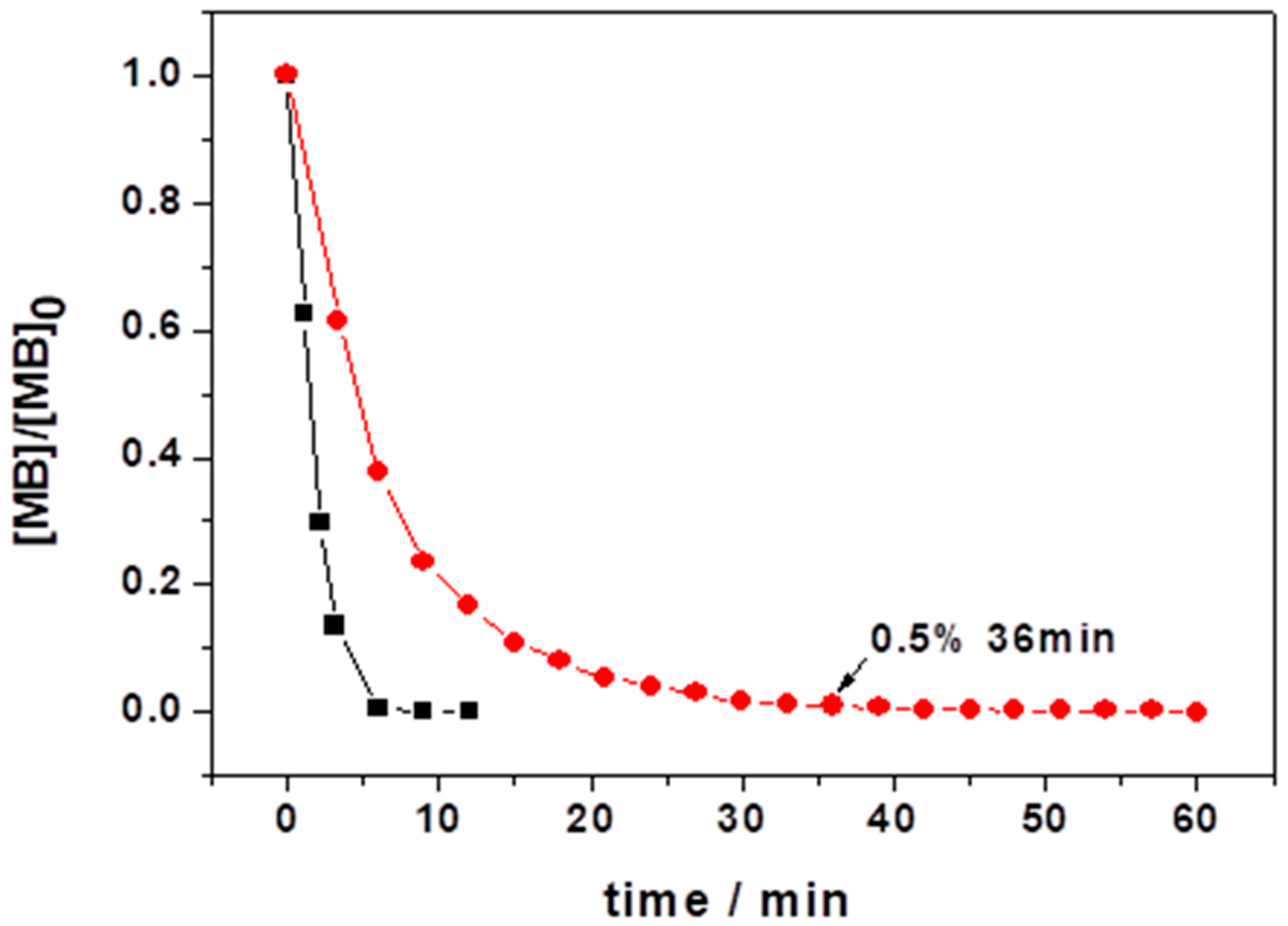

Figure 6. Decolorization of MB solution with two different [MB]0: 6 ppm (black) and 12 ppm (red). In both cases, [H2O2] = 0.03 M + LIB-SC (area = 16 cm−2) + [NaHCO3] = 0.01 M was used.
Figure 6. Decolorization of MB solution with two different [MB]0: 6 ppm (black) and 12 ppm (red). In both cases, [H2O2] = 0.03 M + LIB-SC (area = 16 cm−2) + [NaHCO3] = 0.01 M was used.
Recycling 03 00035 g006

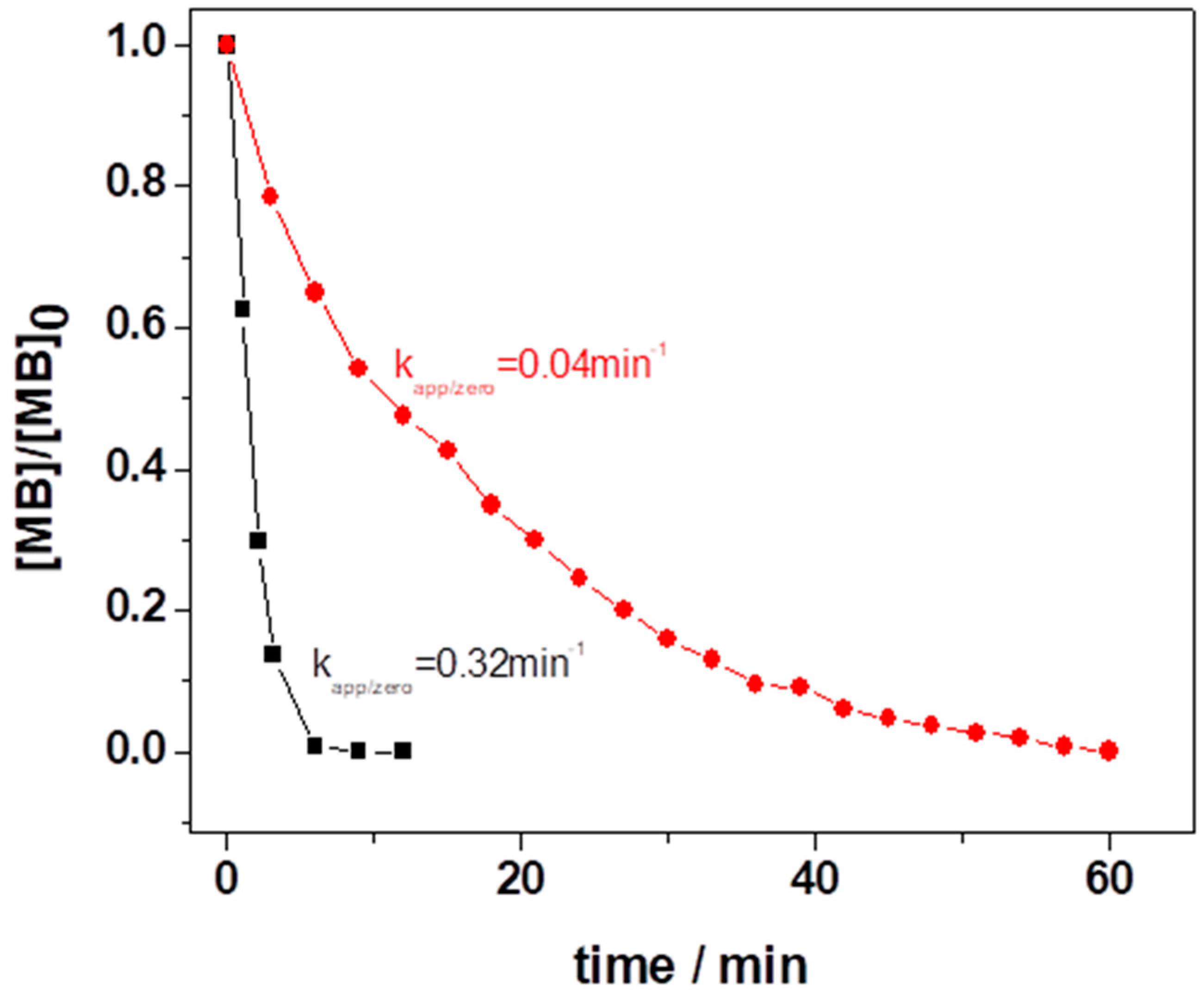

Figure 7. Decolorization of MB solution with two different LIB-SC areas: 16 cm−2 (black) and 1 cm−2 (red). In both cases, [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area=16 cm−2 + [NaHCO3] 0.01 M was used.
Figure 7. Decolorization of MB solution with two different LIB-SC areas: 16 cm−2 (black) and 1 cm−2 (red). In both cases, [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area=16 cm−2 + [NaHCO3] 0.01 M was used.
Recycling 03 00035 g007

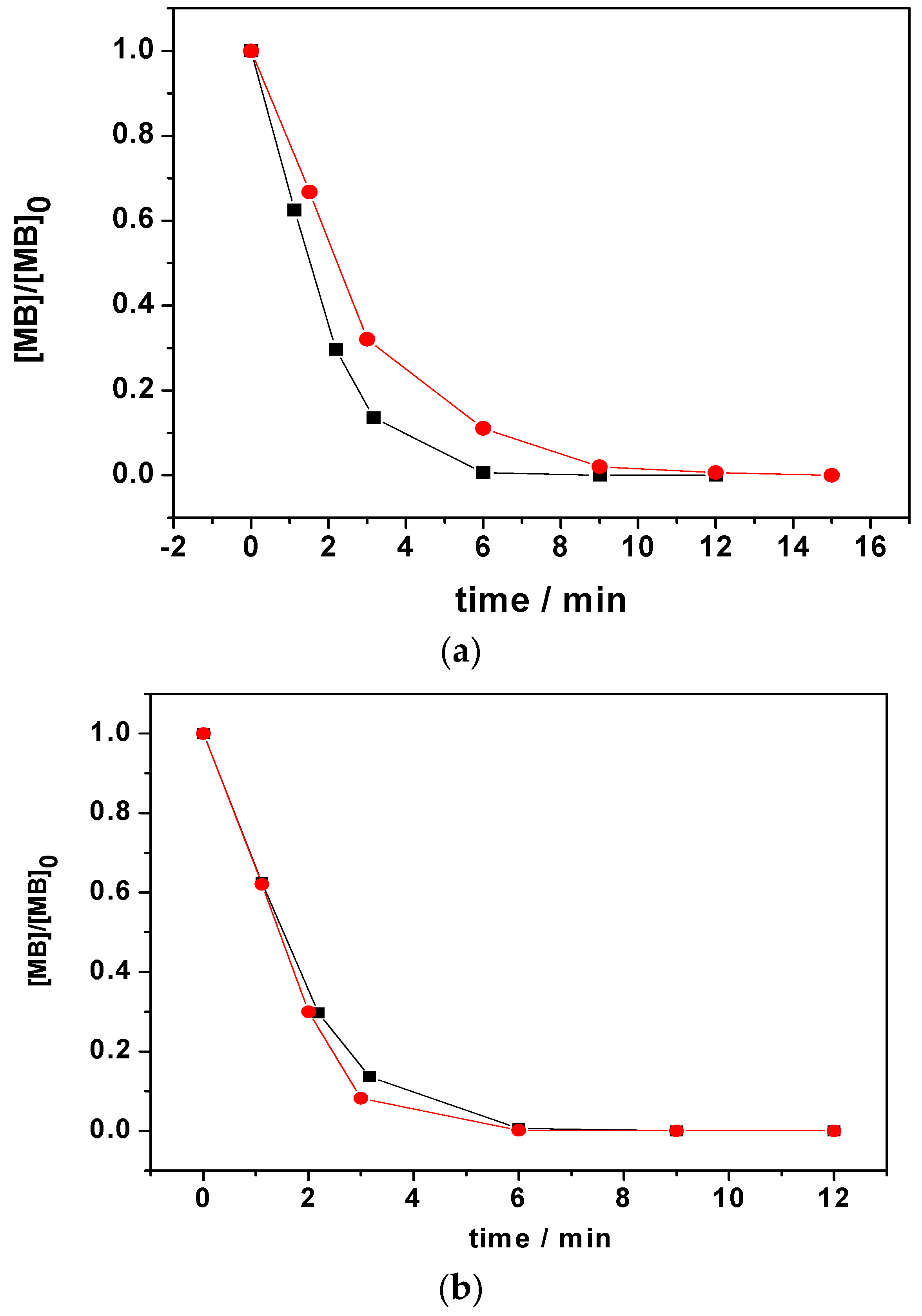

Figure 8. (a) Decolorization of MB solution with two different [NaHCO3]: (black) 0.01 and 0.03 (red). In both cases, [H2O2] = 0.03 M + LIB-SC (area = 16 cm−2) + [MB] = 6 ppm was used. (b) Decolorization of MB solution with two different [H2O2]: (black) 0.03 and 0.01 (red) In both cases, [NaHCO3] = 0.01 M + LIB-SC (area = 16 cm−2) + [MB] = 6 ppm was used.
Figure 8. (a) Decolorization of MB solution with two different [NaHCO3]: (black) 0.01 and 0.03 (red). In both cases, [H2O2] = 0.03 M + LIB-SC (area = 16 cm−2) + [MB] = 6 ppm was used. (b) Decolorization of MB solution with two different [H2O2]: (black) 0.03 and 0.01 (red) In both cases, [NaHCO3] = 0.01 M + LIB-SC (area = 16 cm−2) + [MB] = 6 ppm was used.
Recycling 03 00035 g008

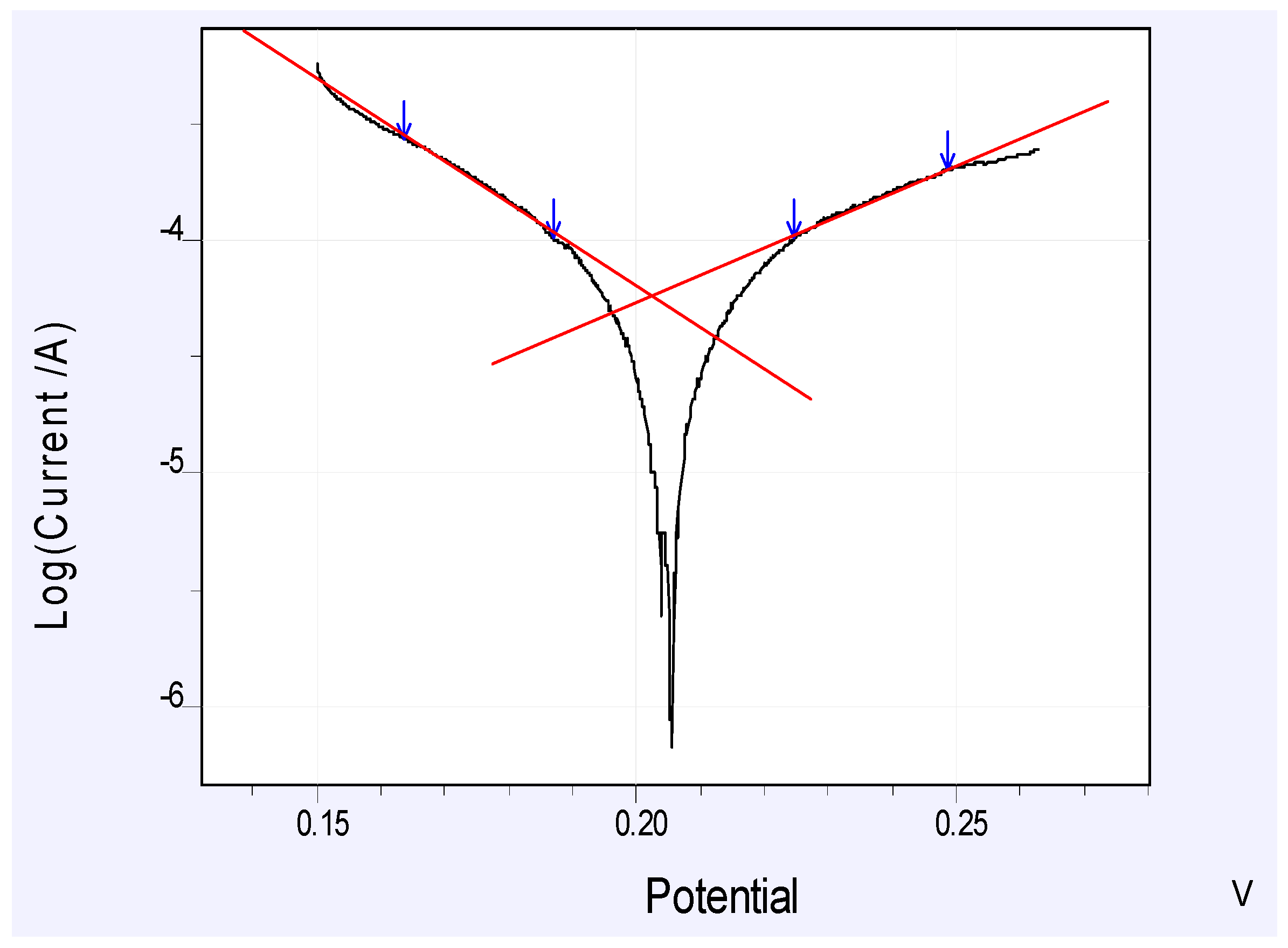

Figure 9. Linear voltammetry of LIB-SC (area = 1 cm−2) in a solution with MB and H2O2/NaHCO3 system (scan rate = 1 mV·s−1).
Figure 9. Linear voltammetry of LIB-SC (area = 1 cm−2) in a solution with MB and H2O2/NaHCO3 system (scan rate = 1 mV·s−1).
Recycling 03 00035 g009

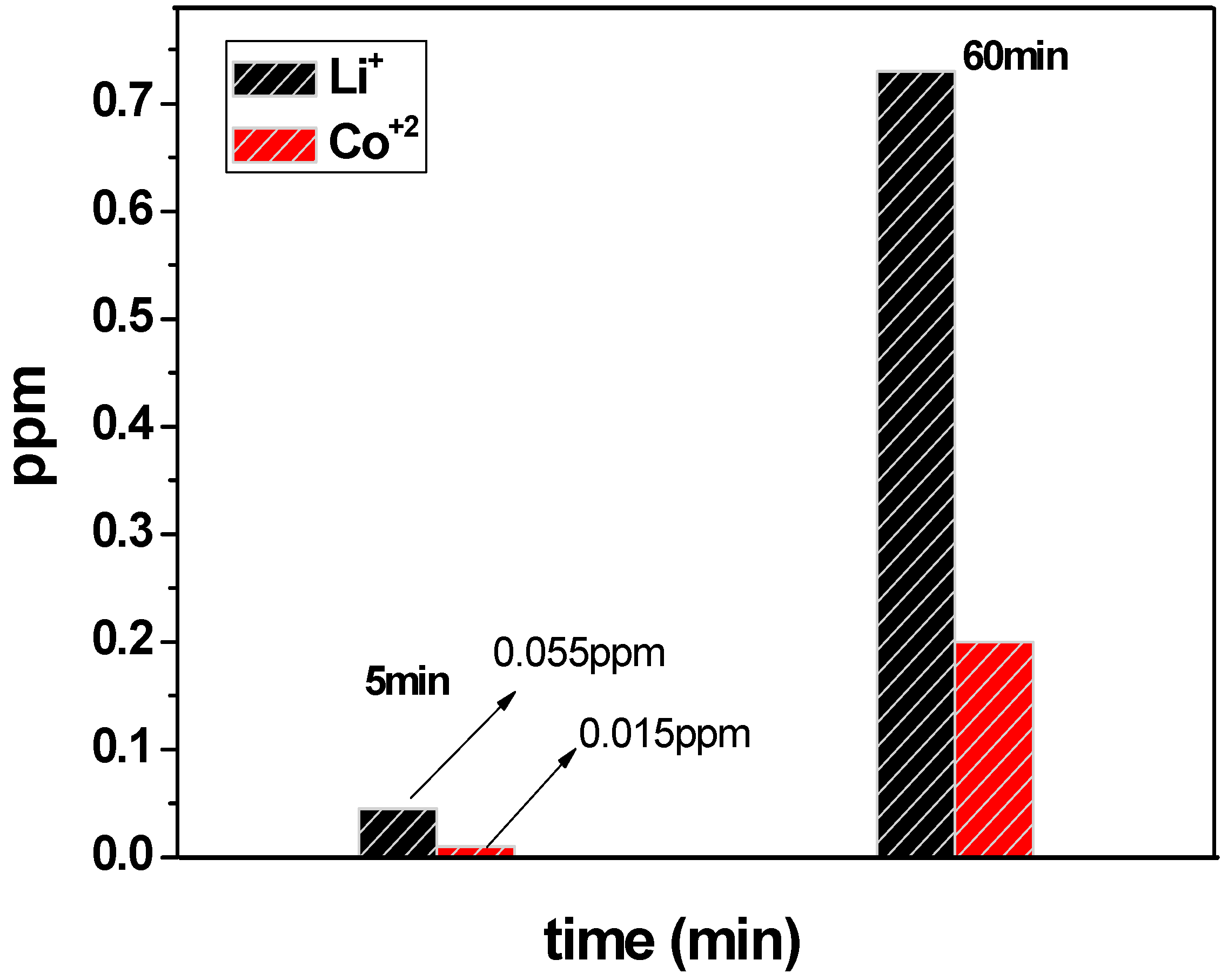

Figure 10. Lithium and cobalt detection using AAS after the discoloration of MB solution using: [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area = 16 cm−2) + [NaHCO3] = 0.01 M.
Figure 10. Lithium and cobalt detection using AAS after the discoloration of MB solution using: [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area = 16 cm−2) + [NaHCO3] = 0.01 M.
Recycling 03 00035 g010

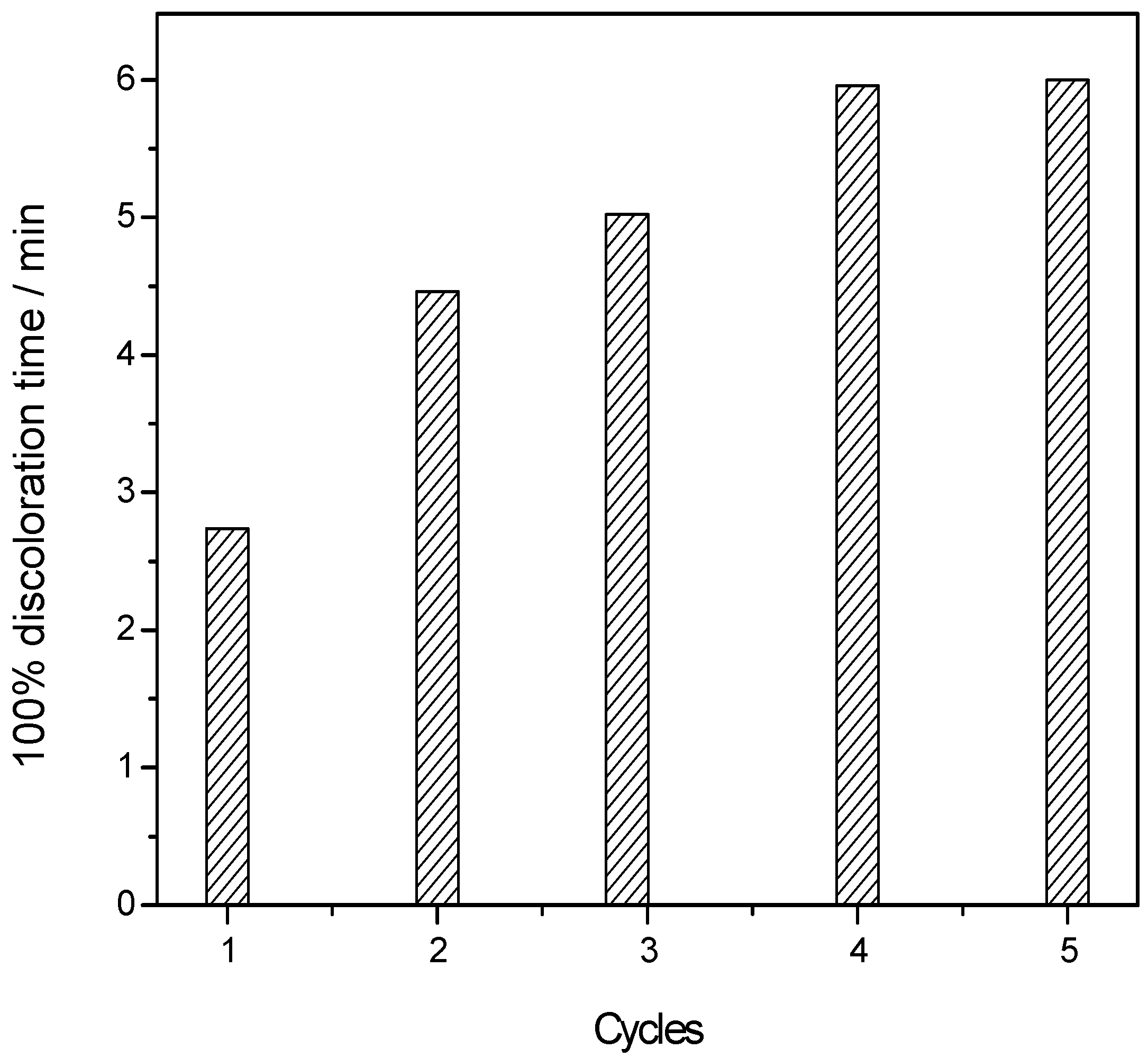

Figure 11. Successive cycles for discoloration of MB solution using: [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area = 16 cm−2) + [NaHCO3] = 0.01 M.
Figure 11. Successive cycles for discoloration of MB solution using: [MB] = 6 ppm + [H2O2] = 0.03 M + LIB spent cathode tape (area = 16 cm−2) + [NaHCO3] = 0.01 M.
Recycling 03 00035 g011
Table 1. Some parameters obtained from linear voltammetry of LIB-SC (area = 1 cm−2) in a solution with MB and H2O2/NaHCO3 system.
Table 1. Some parameters obtained from linear voltammetry of LIB-SC (area = 1 cm−2) in a solution with MB and H2O2/NaHCO3 system.
ParameterValue
E202.4 mV
i56.46 μAcm−2
ba Vdec−10.152
bc Vdec−10.096
