Towards Li-Ion Batteries Operating at 80 °C: Ionic Liquid versus Conventional Liquid Electrolytes

Abstract

Li-ion battery (LIB) full cells comprised of TiO₂-nanotube (TiO₂-nt) and LiFePO₄ (LFP) electrodes and either a conventional organic solvent based liquid electrolyte or an ionic liquid based electrolyte have been cycled at 80 °C. While the cell containing the ionic liquid based electrolyte exhibited good capacity retention and rate capability during 100 cycles, rapid capacity fading was found for the corresponding cell with the organic electrolyte. Results obtained for TiO₂-nt and LFP half-cells indicate an oxidative degradation of the organic electrolyte at 80 °C. In all, ionic liquid based electrolytes can be used to significantly improve the performance of LIBs operating at 80 °C.

1. Introduction

Due to their high energy and power densities, state-of-the-art Li-ion batteries (LIBs) are widely used for portable electronics, as well as for electric and hybrid electric vehicles. The key issues to address to ensure a continuous increase in the use of LIBs for large scale electrical energy storage are safety [1] and sustainability [2]. Since high operating or storage temperatures (i.e., above 50 °C) can give rise to significant fading for most commercial LIBs [3,4], cooling systems are generally required. With LIBs working at elevated temperatures—e.g., between 80 and 100 °C—the thermal management in a hybrid electric vehicle could be significantly simplified by allowing the cooling system for the power electronics to also take care of the cooling of the battery pack, resulting in a significant reduction in the complexity and price [5].

The Li polymer battery employed by Bolloré in Autolib’ vehicles represents an example of a successful battery operating at about 80 °C [6]. However, in the scientific literature the term “high temperature cycling” mainly refers to cycling at temperatures at 60 or 70 °C, with only a few reports of battery cycling at 80 °C or higher [7,8,9,10,11,12,13,14,15,16,17,18,19,20]. The majority of these studies have been carried out with organic carbonate based electrolytes [7,8,9,10,11,12,13,14,15], but ionic liquid (IL) based electrolytes [16,17,18], solid polymer electrolytes [19], and ternary electrolytes (IL + polymer + Li-salt) [20] have also been explored. The extensive work with traditional carbonate electrolytes has aimed at finding suitable electrolyte additives [7], alternative binders [8], and the failure mechanisms for both the negative [9,10] and positive electrodes [11,12,13] as well as full cells [14,15]. Unfortunately, so far there are no promising results for these electrolytes when cycling at temperatures of 80 °C or above.

Work with IL-based electrolytes has, on the other hand, demonstrated promising cycling stabilities for titanium dioxide, TiO₂(B), and LiFePO₄ (LFP) half-cells at temperatures as high as 120 °C [16,17,18]. The cycling of LIBs at elevated temperatures such as 80 °C is associated with increased risks as the kinetics of any side reaction are enhanced, which could lead to the initiation of heat-generating exothermic reactions and eventually thermal runaway [21]. The safety of LIBs operating at these temperatures can therefore be significantly improved if more stable IL electrolytes were used. Pyrrolidinium (Pyr) based ILs have been shown to have wide electrochemical stability windows [16,22]. Moreover, TiO₂ electrodes can be cycled at temperatures as high as 120 °C with an electrolyte composed of 1 M lithium bis(trifluoromethanesulfonyl)imide (LiTFSI) in N-methyl-N-propylpyrrolidinium TFSI (Pyr13TFSI) [16]. It should be mentioned that the previous studies [16,17,18] were carried out in half-cell configurations with Li metal as the anode material. The electrochemical performance of ionic liquid electrolytes at elevated temperature should therefore also be investigated in full cell Li-ion batteries.

In the present work, LIB cells containing TiO₂ nanotube (TiO₂-nt) negative electrodes and LFP positive electrodes are cycled at 80 °C using two different electrolytes: 1 M LiTFSI in propylene carbonate (PC), as an example of a conventional organic solvent based electrolyte, and an IL based electrolyte composed of LiTFSI in Pyr13TFSI (i.e., Li_0.2Pyr13_0.8TFSI). TiO₂ was chosen as the negative electrode material due to its high redox potential (ca. 1.78 V vs. Li⁺/Li [23]), which should result in insignificant formation of any solid electrolyte interphase (SEI) layer. In addition, LFP is known to be a safe material with a high thermal stability [24]. The electrochemical behavior of the cells during 100 cycles is investigated and discussed with special focus on the failing mechanism of the cells containing the conventional organic electrolyte.

2. Results and Discussion

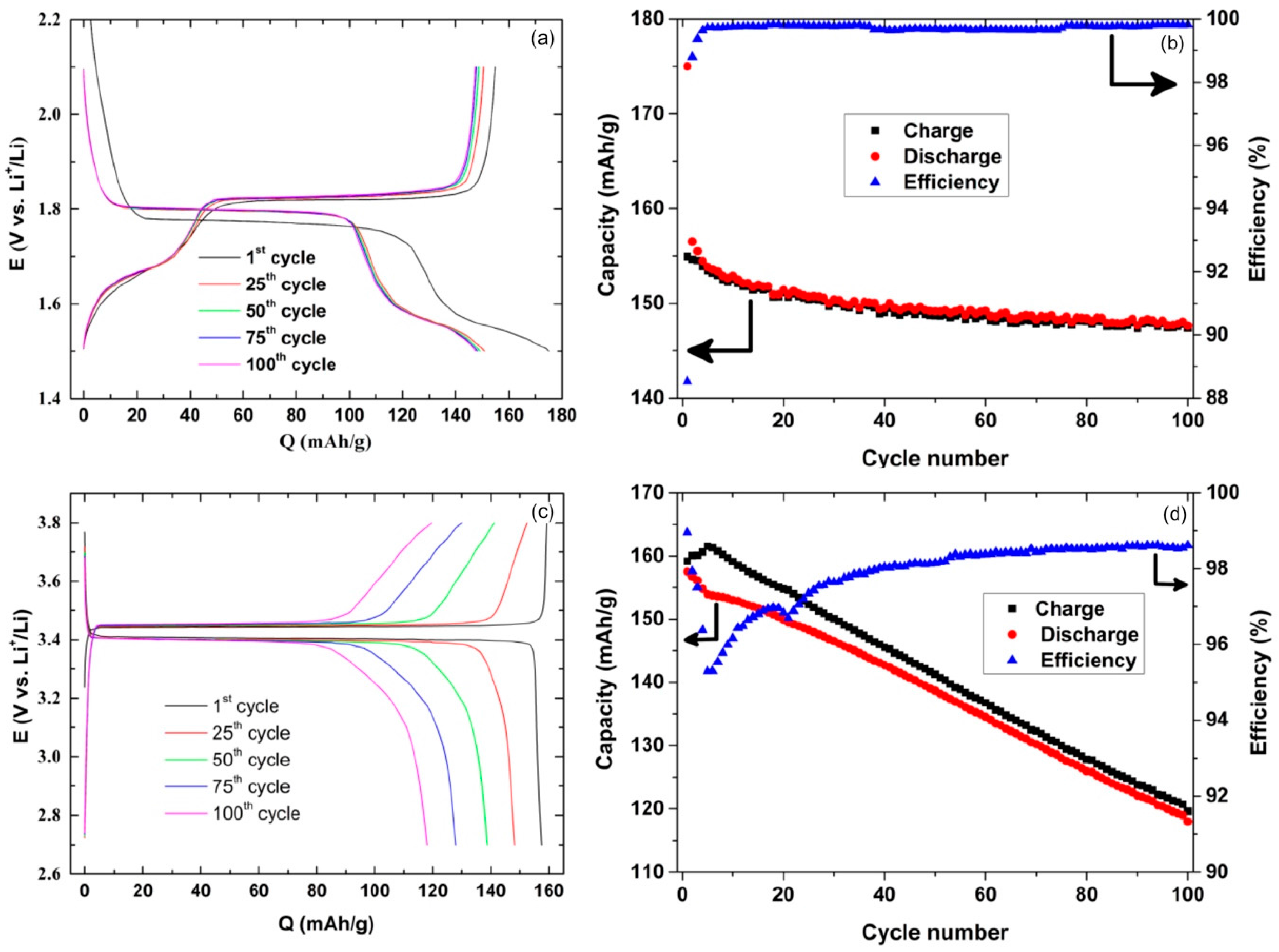

The electrochemical performance of the TiO₂-nt half-cell containing the organic electrolyte indicated a 10% irreversible capacity loss on the first discharge, and a capacity of about 148 mAh/g after 100 cycles (Figure 1a,b). As the capacity decrease was only 5% between the 2nd and the 100th cycle, it is clear that the main decrease took place between the 1st and the 2nd cycles. The coulombic efficiency for the TiO₂-nt half-cell was 88.5% on the first cycle, indicating that not all lithium could be extracted from the TiO₂-nt electrode upon charge. As the electrode already contained some lithium prior to the second cycle lithiation, the discharge plateau was situated at a slightly higher potential, i.e., the lithiation overpotential was lower. Nevertheless, the coulombic efficiency increased to 98.7% on the second cycle and subsequently stabilized at 99.7% (Figure 1b). These results indicate that the TiO₂-nt electrodes readily can be used at 80 °C.

A continuous capacity decrease was, however, observed during the cycling of the LFP based half-cell (Figure 1c,d). The results also indicate the presence of an irreversible oxidation reaction most likely involving the electrolyte, as the charge capacity always was larger than the discharge capacity (Figure 1c). Since the coulombic efficiency decreased dramatically during the first five cycles, only to slowly increase again upon further cycling, it is reasonable to assume that a layer of electrolyte degradation products was formed on the electrode surface mainly during the first five cycles. This behavior is in stark contrast to that seen for LFP electrodes cycled at room temperature, in which case stable cycling and high coulombic efficiency are typically observed [25]. The continuous capacity loss upon cycling, leading to a capacity loss of 25% after 100 cycles is clearly detrimental to the performance of any full cell and thus conventional organic solvent based electrolytes are less suitable for LIBs operated at 80 °C.

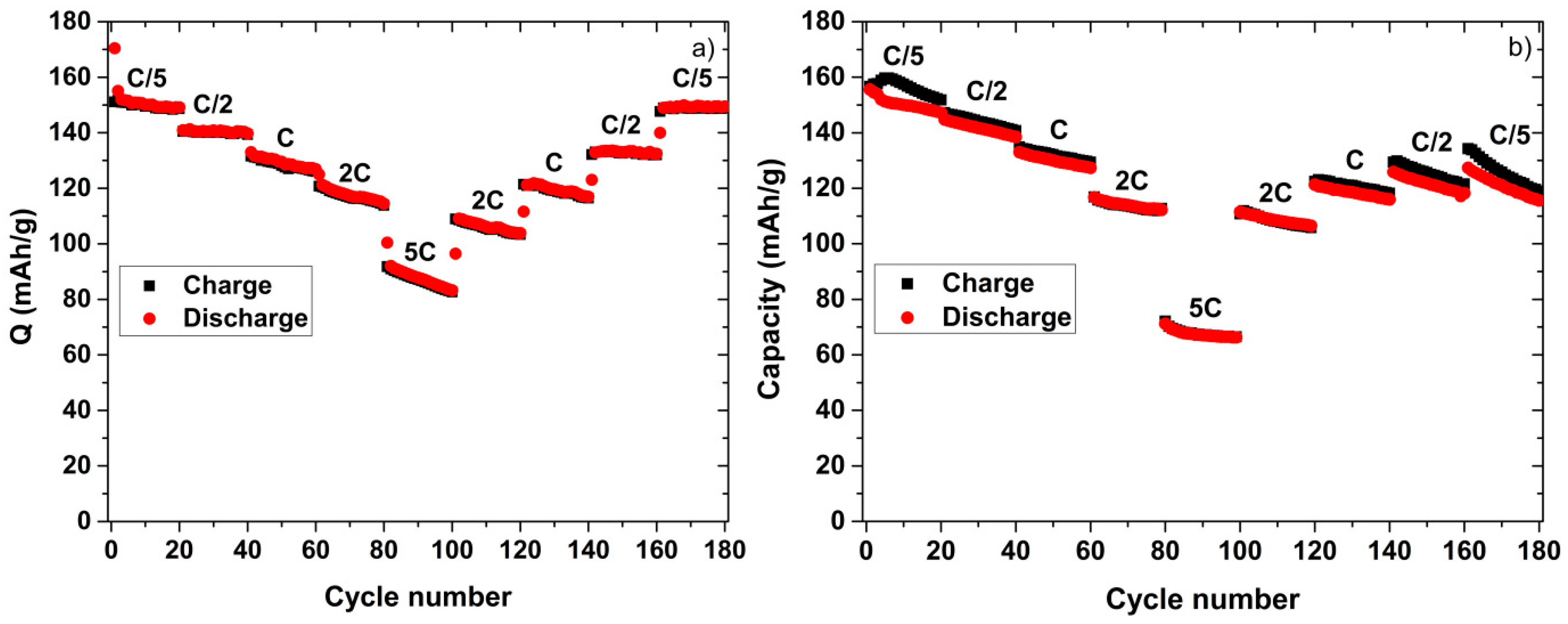

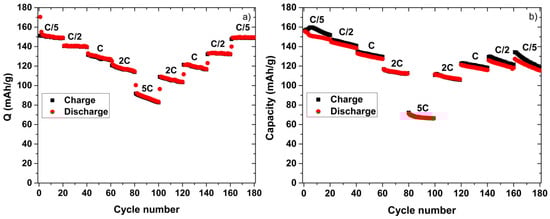

The TiO₂-nt and LFP half-cells were also subject to rate capability tests (Figure 2). For the TiO₂-nt half-cell, the capacity was found to decrease with increasing rate but there was no significant permanent loss of capacity during the cycling, i.e., the same capacity was obtained when the rate was decreased to C/5 again. This behavior can therefore be explained by the increased iR drop at higher cycling rates. The corresponding results for the LFP half-cell (Figure 2b), on the other hand, features a significant capacity decrease upon cycling irrespective of the cycling rate employed which is in good agreement with the poor cycling stability (Figure 1c,d).

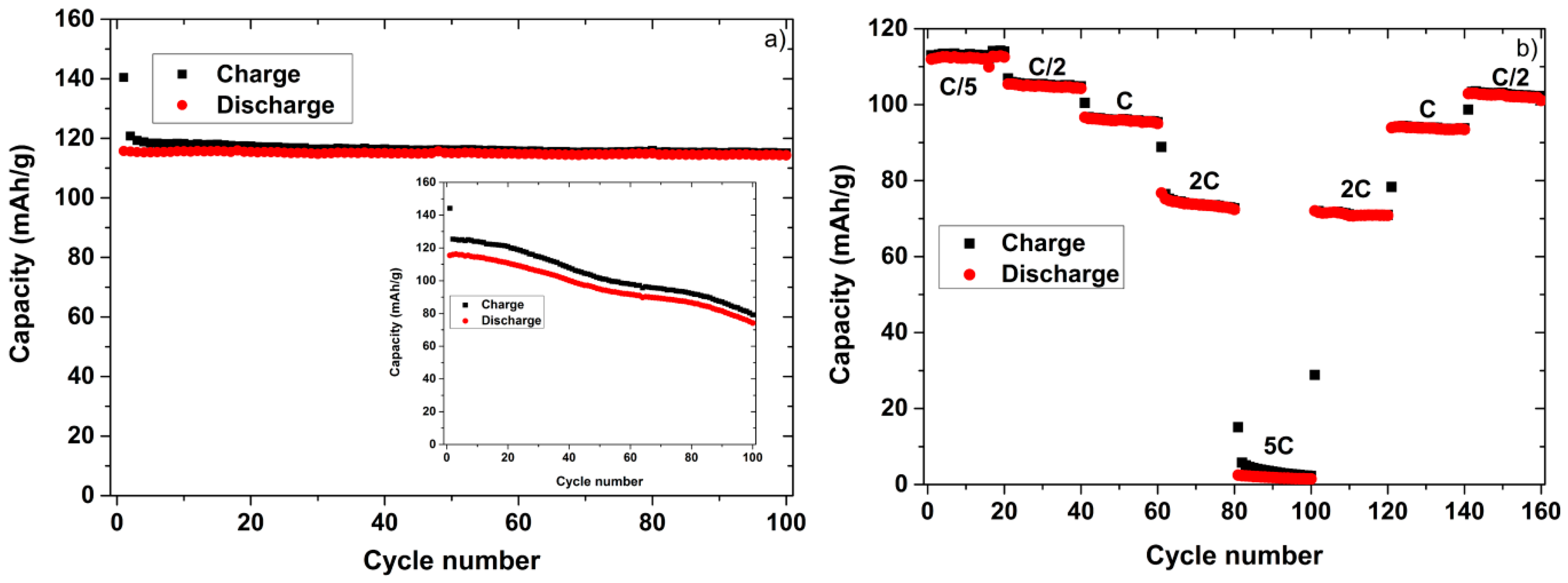

Cycling of full cells containing a TiO₂-nt negative electrode and a LFP positive electrode using the two different electrolytes was also carried out (Figure 3). During 100 cycles, there was almost no capacity fading for the cell containing the IL based electrolyte (Figure 3a), while a significant loss of capacity was obtained for the cell containing the organic electrolyte (insert). This clearly shows that the IL based electrolyte is more stable towards oxidation compared to the conventional organic electrolyte. The capacity obtained at a rate of 2C was about 65% of that found at a rate of C/5 (~110 mAh/g) (Figure 3b). In analogy with the results for the TiO₂-nt half-cell this suggests a loss of capacity at the higher rates mainly due to iR drop effects.

3. Materials and Methods

The TiO₂-nt electrodes were fabricated using a previously described two-step anodization process [26]. The first anodization step was carried out by stepping the potential from 0 to 60 V after which this potential was maintained for around four hours. The obtained nanotube layer was then removed by strong sonication in deionized water (DI) for 20 min to expose the underlying titanium substrate. The second anodization was then performed on this textured substrate for 90 min using the same experimental conditions, after which the sample was rinsed in DI and dried in a flow of nitrogen. The TiO₂-nt electrodes were subsequently thermally annealed in air at 350 °C for five hours. The LFP electrodes were obtained by casting a slurry containing 75 wt % LiFePO₄ (Phostech, P2), 15 wt % PVdF (Solvay, Solef 5130), and 10 wt % conductive carbon (Timcal, Super C 65) on aluminum foil. All electrodes were dried in vacuum at 120 °C for 12 h prior to use in the LIB cells.

The organic carbonate based electrolyte was made by dissolving LiTFSI (99.95%) in PC (BASF, >99.8%) to a concentration of 1 M. The IL electrolyte was prepared by mixing LiTFSI with Pyr13TFSI (99%) to yield a mole fraction of 0.2 i.e., Li_0.2Pyr13_0.8TFSI.

The LIB full cells contained a TiO₂-nt negative electrode separated from the LFP positive electrode by a glass fiber separator impregnated with the selected electrolyte, all vacuum sealed in a polymer coated aluminum pouch cell. The half-cells consisted of a TiO₂-nt or LFP working electrode and a lithium foil serving as a combined counter and reference electrode, separated by a glass fiber separator impregnated with the organic electrolyte. All cells were galvanostatically tested at 80 °C using a Digatron BTS600 galvanostat and the TiO₂-nt half-cells were cycled between 1.5 and 2.1 V vs. Li⁺/Li° whereas the LFP half-cells were cycled between 2.7 and 3.8 V vs. Li⁺/Li°. The TiO₂-nt–LFP full-cells were cycled between 1.4 and 2.1 V.

4. Conclusions

The electrochemical cycling performance of cells composed of TiO₂-nt negative electrodes and LFP positive electrodes at 80 °C critically depends on the choice of the electrolyte. While cells containing a Li_0.2Pyr13_0.8TFSI ionic liquid electrolyte could be cycled without significant loss of capacity for 100 cycles at 80 °C, significant capacity decays were found with a conventional organic liquid electrolyte. The latter was attributed to an oxidative degradation of the organic electrolyte, yielding low coulombic efficiencies. The excellent performance of the ionic liquid based full cells seen for rates up to 2C provide new possibilities for the development of safe, stable, and sustainable LIBs for use at elevated temperatures in, e.g., hybrid electric heavy vehicles.
