Enhanced Sodium Storage Performance of Few-Layer Graphene-Encapsulated Hard Carbon Fiber Composite Electrodes

Abstract

Hard carbon anodes are promising for sodium-ion batteries due to their low cost and high reversible capacity. However, the long-term Na⁺ (de)intercalating process destroys the structure of the two-phase interface between the electrode and electrolyte, impairing cycling stability. In this paper, a few-layer graphene (FLG)-coated hard carbon fiber composite is constructed. A uniform graphene encapsulation is confirmed by synchrotron small-angle X-ray scattering and transmission electron microscopy technologies. Post-cycling observation reveals FLG participation in forming a hybrid solid electrolyte interphase (SEI). At a proper concentration, the FLG with a small specific surface area and pore size characteristics is well matched in the SEI. The FLG-integrated SEI not only mitigates volume expansion but also enhances ion conductivity through its oxygen-rich functional groups. As a result, the composite structure maintains 98.2% capacity retention after 100 cycles and reaches 164 mAh g⁻¹ at 1000 mA g⁻¹, compared to 97 mAh g⁻¹ for the pristine hard carbon. This work demonstrates that FLG coating simultaneously stabilizes the interfacial chemistry and improves the ion transport, offering a practical pathway to advance hard carbon anodes for high-performance sodium-ion batteries.

1. Introduction

Sodium-ion batteries (SIBs) have emerged as a promising alternative energy storage technology in the post-lithium-ion era owing to their abundant resource availability, cost-effectiveness, and comparable electrochemical properties [1,2,3]. Among various anode materials for sodium storage, hard carbon has become the preferred choice due to its wide availability, tunable structure, and superior performance in terms of capacity, rate capability, and initial Coulombic efficiency (ICE) [4,5,6].

In pursuit of further improving the sodium storage properties of hard carbon, extensive research has focused on modifying its intrinsic structure. For instance, closed pore engineering has been employed to improve the low-potential plateau capacity [7,8], while grain size optimization has been demonstrated to enhance the rate performance [9,10]. Although structural modulation is crucial for achieving theoretically optimal performance, the electrode–electrolyte interfacial properties also play a critical role in determining sodium storage behavior [11,12,13]. Specifically, interfacial processes such as desolvation kinetics influence rate capability, whereas the composition and stability of the solid electrolyte interphase (SEI) affect the ICE and long-term cycling stability [14,15,16]. Poor interfacial design can lead to detrimental side reactions, resulting in performance degradation [17]. Interfacial engineering is, therefore, essential for improving cycling stability and suppressing parasitic reactions. Inorganic coatings are a conventional strategy to prevent direct electrode–electrolyte contact by forming a protective barrier, thereby mitigating side reactions [18,19]. However, such coatings do not contribute to sodium storage, inevitably reducing energy density. Carbon-based protective layers can provide additional sodium storage sites while preserving structural integrity. For example, soft carbon coatings have been explored for hard carbon modification [20,21], but their disordered carbon arrangement often leads to non-uniform coverage. Although metal-ion-assisted carbonization can improve graphitization, subsequent metal removal may compromise coating stability [22,23].

This study introduces a few-layer graphene (FLG)-encapsulated hard carbon fiber composite to achieve a compatible interfacial structure. A uniform graphene encapsulation is revealed through synchrotron SAXS and TEM technologies. Post-cycling TEM images reveal FLG participation in forming a hybrid SEI. At a proper concentration, the few-layer graphene with a small specific surface area and pore size characteristics is well matched in the SEI. Under the appropriate concentration, the few-layer graphene is well matched in the SEI and is not easy to exfoliate. Moreover, the disordered stacking morphology after mixing alleviates the volume expansion, which improves the stability of the interfacial structure. Meanwhile, the rate performance is also enhanced due to the oxygen functional groups of the FLG. Based on the compatible coating strategy, the composite structure maintains 98.2% capacity retention after 100 cycles and reaches 164 mAh g⁻¹ at 1000 mA g⁻¹, compared to 97 mAh g⁻¹ for the pristine hard carbon. This work demonstrates that FLG coating simultaneously stabilizes the interfacial chemistry and improves ion transport kinetics.

2. Experiment

2.1. Preparation

In this paper, graphene oxide suspension was obtained out of natural graphite using a redox method [24]. Neutral graphene oxide suspension was obtained by centrifuging the above suspension with deionized water at 8000 rpm and collecting the sediment. The graphene oxide suspension was adjusted to 0.03 mg mL⁻¹ versus 0.1 mg mL⁻¹. Paper towels were fully immersed in the above suspension to adsorb graphene oxide flakes on the surface of the paper towels. After natural air-drying, the tissue paper was pre-oxidized at 250 °C in the air for 1 h, after which it was carbonized in an argon atmosphere tube furnace at 1300 °C for 1 h to obtain graphene-coated hard carbon fiber composites with a few layers.

2.2. Structural Characterization

The crystal structure was analyzed by X-ray diffraction (XRD) with a Bruker diffractometer (D8 ADVANCE, Bruker, Bremen, Germany). The molecular structure is characterized by Raman spectroscopy (R) (inVia Reflex device, 532 nm, Renishaw, Gloucester, UK). Transmission electron microscopy (TEM; Tecnai G2 F20 S-TWIN, 200 kV, FEI, Hillsboro, OR, USA) and scanning electron microscopy (SEM; Hitachi S4800, 15 kV, Hitachi, Tokyo, Japan) were performed for microstructural analysis. In order to avoid damage to the interface structure by the electron beam during the photographing process, the position was moved to photograph the edge structure immediately after adjusting the focus. The element and chemical state information were recognized by X-ray photoelectron spectroscopy (XPS; Thermo ESCALAB 250XI, Thermo Fisher, Waltham, MA, USA). The specific surface area and pore size were tested on the BSD-660 analyzer (Beishide Instrument, Beijing, China). Synchrotron SAXS tests were performed at the Beijing synchrotron radiation 1W2A workstation.

2.3. Electrochemical Testing

The prepared material was a self-supporting structure, which was cut and used directly as electrode material with an area loading of 1.5 mg cm⁻². Coin cell (CR2032) assembly was carried out in a glove box (O₂ and H₂O < 0.1 ppm) with an encapsulation pressure of 70 MPa. Glass fibers (Whatman GF/A) were used as separators and sodium metal foils were used as counter/reference electrodes. The cells used an ether electrolyte (1.0 M NaCF₃SO₃ in DIGLYME) with a 70 µL addition. Charge/discharge tests were performed on a Neware test system (2.0–0.01 V vs. Na⁺/Na). Measurements of cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) were carried out on a CHI660D electrochemical analyzer from CH Instruments.

3. Results and Discussion

Figure 1a presents a comprehensive SEM analysis of the synthesized hard carbon/graphene composites at progressively increasing magnifications. The hard carbon material exhibits a well-defined fibrous architecture, with individual fibers displaying 5–10 μm diameters. This distinctive one-dimensional morphology, characterized by intertwined carbon fiber networks, provides structural integrity and efficient ion transport pathways in the electrode material. At higher magnifications (Figure 1b,c), the fiber surfaces appear relatively smooth with occasional surface irregularities, suggesting the presence of nanoscale porosity and surface defects inherent to the hard carbon structure. The rGO incorporation was maintained at a deliberately low concentration. Consequently, the ultrathin graphene flakes were not directly resolvable in the SEM images due to their low concentration and the limited contrast between carbonaceous materials. Therefore, TEM further observed the nanostructure of the composite.

In Figure 2a–c, the unmodified hard carbon shows a disordered stacking morphology with an amorphous structure at varying magnifications. High-resolution TEM analysis (Figure 2c) reveals an interlayer spacing of 0.41 nm, consistent with the typical turbostratic arrangement of hard carbon materials [6,25]. Following graphene oxide encapsulation, the composite microstructure undergoes significant changes (Figure 2d–f). The hard carbon surface becomes uniformly coated with reduced graphene oxide (rGO) flakes, displaying an ordered layered arrangement with a reduced spacing of 0.37 nm. At a high magnification, the rGO coating is measured to be 4.4 nm thick (Figure 2f), corresponding to approximately six to eight layers, confirming the successful fabrication of an FLG encapsulation. Meanwhile, due to the surface wrinkles of the hard carbon, the TEM images also show that there are voids between the FLG and the hard carbon. To investigate the concentration-dependent effects, a composite with a higher graphene oxide precursor concentration was prepared (Figure 2g–i). While the rGO interlayer spacing remains unchanged at 0.37 nm, the coating thickness increases to 5.6 nm, demonstrating that GO concentration primarily modulates the cladding thickness rather than the structural order of the graphene layers.

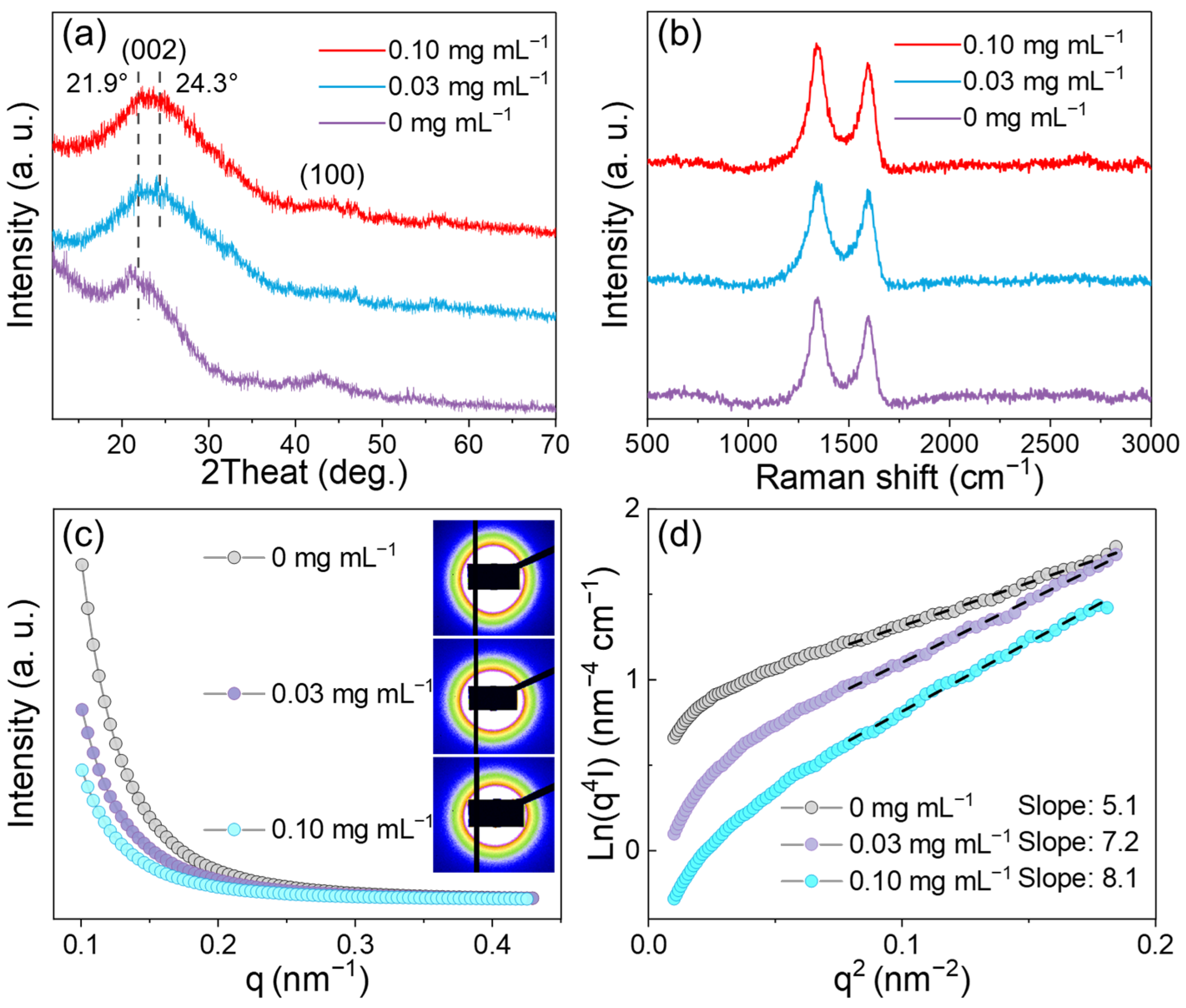

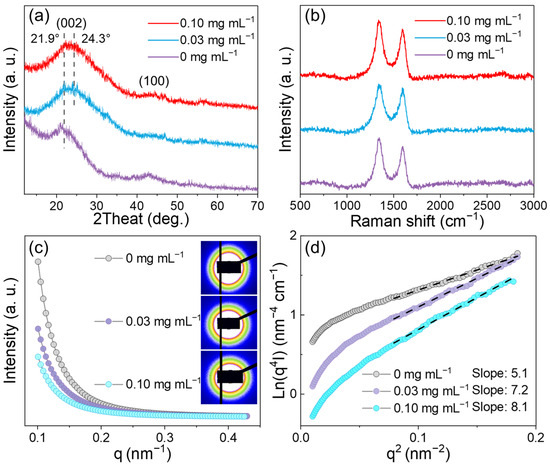

X-ray diffraction analysis (Figure 3a) reveals distinct structural differences between the samples, providing critical insights into the crystallographic evolution induced by rGO incorporation. The pristine hard carbon exhibits characteristic amorphous carbon features [26], as evidenced by a broad (002) diffraction peak centered at 21.7° (d₀₀₂ = 0.41 nm), which is typical for disordered carbon materials with turbostratic stacking of graphene-like layers. This relatively sizeable interlayer spacing suggests the presence of significant structural defects and imperfect stacking arrangements. Upon incorporation of rGO, a remarkable structural transformation occurs, manifested by the (002) peak shifting to higher 2θ values, ultimately reaching 24.3° for the composites, corresponding to a substantially reduced interlayer spacing of 0.37 nm. This systematic peak shift verifies that the crystalline graphene phase affects the composite’s overall crystalline structure. The decreased d-spacing indicates that rGO is a structural template and ordering agent, promoting more regular layer stacking via π-π interactions between graphene sheets and the hard carbon matrix.

Raman spectroscopy (Figure 3b) provides complementary and more detailed insight into the structural ordering at the molecular level. The spectra display two prominent first-order features: the disorder-induced D-band (~1350 cm⁻¹), arising from the breathing modes of sp2 carbon atoms in rings and reflecting structural defects, and the graphitic G-band (~1580 cm⁻¹), corresponding to the in-plane vibrational mode of sp2-bonded carbon atoms [27,28,29]. Quantitative analysis reveals progressively decreasing I_D/I_G ratios (from 1.76 for pristine hard carbon to 1.62 for the composite) with an increasing rGO concentration, demonstrating enhanced structural ordering through graphene incorporation. This trend indicates a reduction in the defect density and the development of more extended graphitic domains, correlating well with the XRD observations of improved crystallinity.

Synchrotron SAXS provides critical insights into the nanoscale morphological evolution induced by graphene coating (Figure 3c). The scattering pattern undergoes a distinct transformation, progressing from an initially elliptical (anisotropic) profile, indicative of oriented, hard carbon fibers with preferential alignment, to a near-circular (isotropic) scattering distribution at high graphene loadings. This transformation indicates that the uniform coating structure of graphene on the whole fiber has been formed. This uniform encapsulation ensures consistent interfacial properties and charge transport pathways throughout the composite.

Further quantitative Porod analysis (Figure 3d) reveals a systematic increase in the slope magnitude in the high-q region with higher graphene concentrations. This enhanced positive deviation from Porod’s law signifies a significant transition in the interfacial structure between the hard carbon and graphene phases [30,31,32]. The observed trend suggests the development of a more defined, smooth boundary with reduced electron density fluctuations, consistent with the formation of a well-organized graphene-hard carbon interface. These spectroscopic and SAXS analyses and TEM observations confirm the successful formation of a stable two-phase interface comprising highly crystalline FLG uniformly coating the low-crystallinity hard carbon matrix.

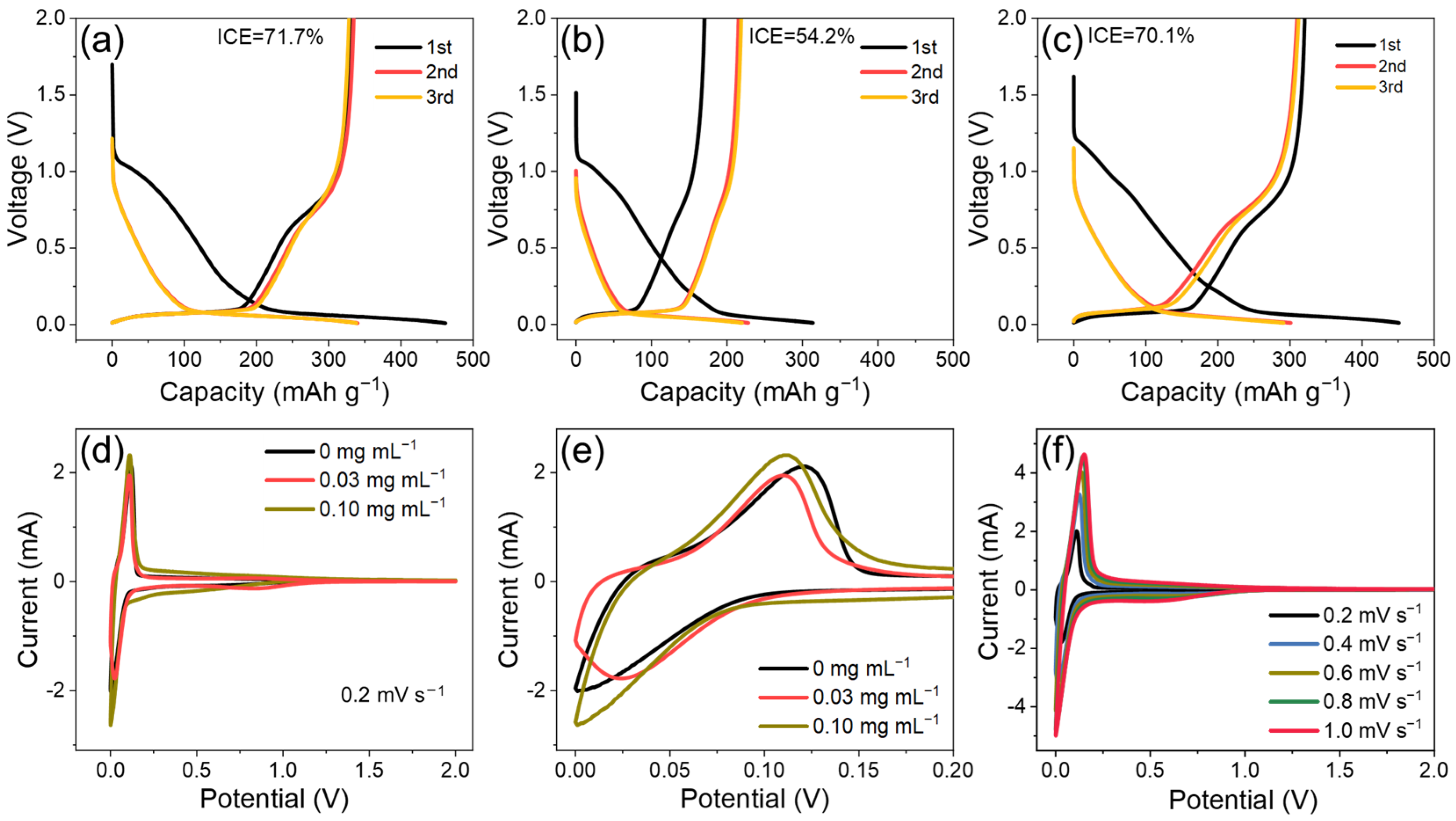

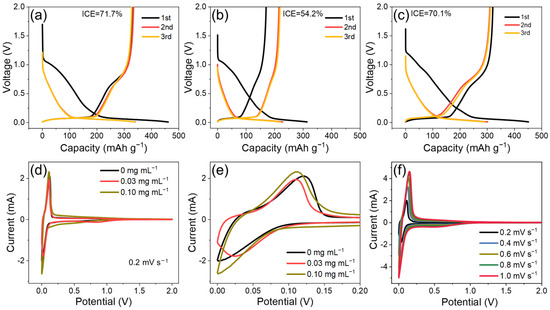

Galvanostatic charge/discharge analysis demonstrates that the 0.03 mg mL⁻¹ composite performs optimally, as shown in Figure 4a–c, delivering 334 mAh g⁻¹ reversible capacity at 30 mA g⁻¹ and 71.7% ICE. The performance deteriorates at a higher concentration (0.1 mg mL⁻¹), showing 12% lower capacity and 8% reduced ICE. The ICE values between the optimal composite and the pristine hard carbon were similar, but the capacity of the composite is enhanced compared to the hard carbon. In order to understand the changes in the ICE and capacity, N₂ adsorption/desorption and XPS analyses were performed on both materials.

For the ICE, there is no major difference in this metric between coated (71.7%) and pristine hard carbon (70.1%). Instead, the high concentration of graphene had an overall negative effect on the electrochemical performance, such as a sharp decrease in the ICE (54.2%). Since the low-concentration samples and the pristine hard carbon have a similar specific surface area and pore structure (as shown in Supplementary Figure S1), the ion loss during SEI formation is similar. However, excessive concentration of graphene leads to its easy exfoliation from the surface of the hard carbon fibers, resulting in an increase in ion loss. Moreover, the introduction of the FLG brings more oxygen doping to the surface (Supplementary Figure S2), so the capacity is improved by about 30 mAh g⁻¹ on the basis that the interfacial structure remains stable.

To evaluate the composites’ electrochemical properties, CV experiments were carried out. Figure 4d reveals that all samples exhibit characteristic redox peaks associated with Na⁺ storage. Notably, the composite with 0.03 mg mL⁻¹ graphene loading demonstrates significant peak broadening in the low-voltage region (0–0.1 V). In contrast, the pristine hard carbon and high-concentration composites maintain nearly identical reduction peak profiles (Figure 4e). This distinct electrochemical response suggests that at optimal graphene loading (0.03 mg mL⁻¹), the FLG primarily facilitates interfacial electrochemical processes rather than serving as dominant Na⁺ storage sites. The excellent CV curve stability across various scan rates (Figure 4f) further confirms the robustness of the graphene-mediated interfacial reactions.

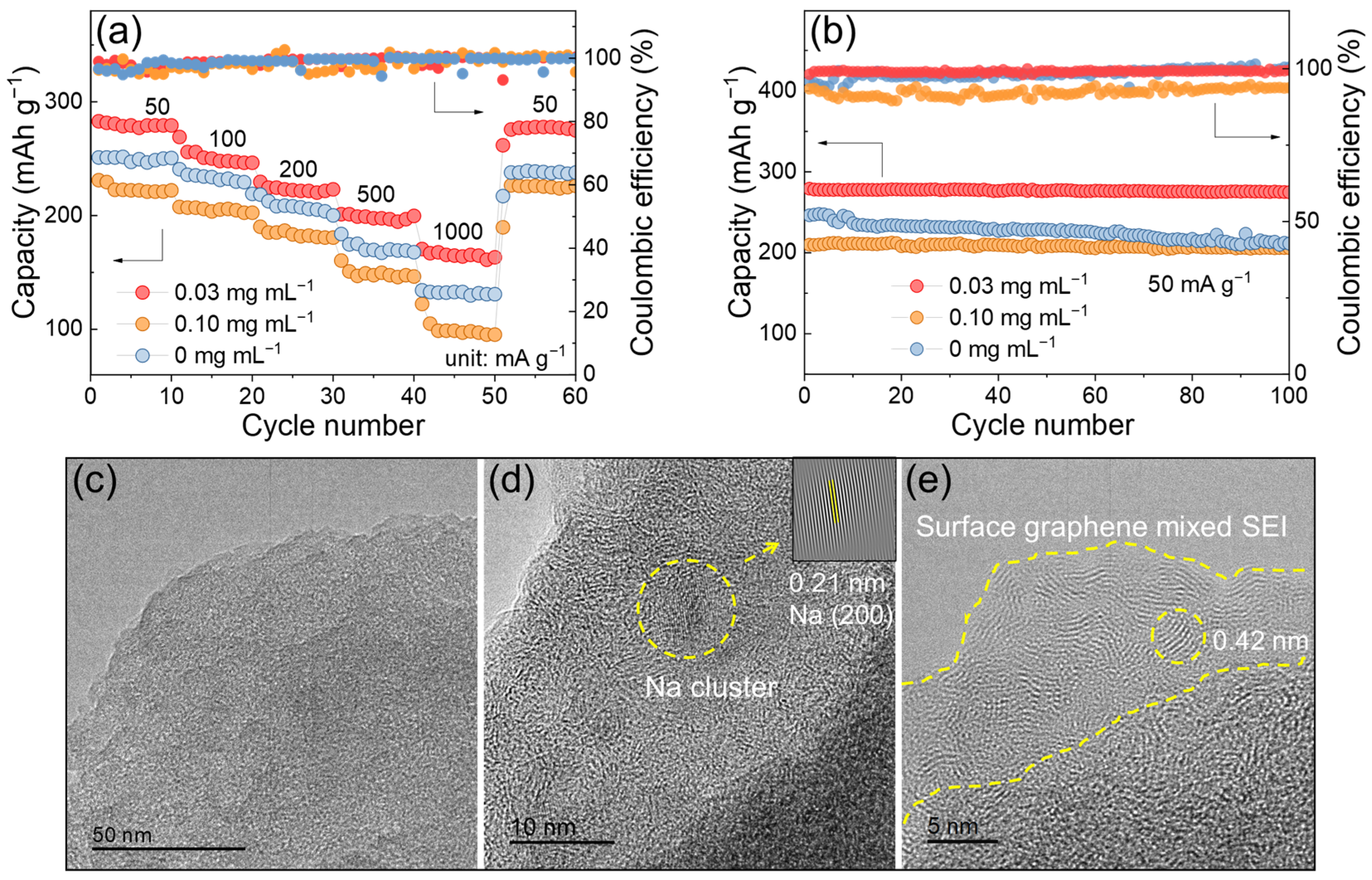

Figure 5a systematically evaluates the rate capability for different samples, revealing that the composite with 0.03 mg mL⁻¹ graphene loading achieves optimal electrochemical performance. This optimized material delivers outstanding specific capacities of 279, 248, 220, 194, and 164 mAh g⁻¹ at progressively increasing current densities from 50 to 1000 mA g⁻¹. In striking contrast, the high-concentration composite (0.10 mg mL⁻¹) exhibits a significantly degraded rate performance, with capacity values approximately 25–35% lower across all tested current densities. The capacity drops and Coulomb efficiency instability at high loadings also indicate the weak bonding state between the surface graphene and the hard carbon fibers. The electrochemical impedance spectra (Supplementary Figure S3) also indicate that the optimal loading case contributes to a reduction in the charge transfer resistance, while if it is too high it has a negative effect. The cycling stability tests (Figure 5b) further highlight the advantages of the optimized graphene loading. The 0.03 mg mL⁻¹ composite shows remarkable capacity retention (98.2% after 100 cycles) and stable Coulombic efficiency (99.2% average) when cycled at 50 mA g⁻¹. These results show that the FLG coating effectively enhances interfacial stability while maintaining efficient ion transport.

The TEM observation of a 0.03 mg mL⁻¹ composite sample discharged to 0.01 V was carried out to investigate the mechanism of the interfacial structure on enhancing sodium storage performance. As displayed in Figure 5c, the composite maintains its lamellar stacking architecture after discharging. Upon further magnification, a clear elliptical highly crystalline region with a long axis of less than 10 nm is shown inside the structure in Figure 5d, which was analyzed to indicate that the lattice fringes in the region belonged to the (200) crystalline plane of sodium metal; this originated from the sodium–metal deposition storage mechanism in the hard carbon material [33,34]. Further magnification of the edge region in the figure shows a transparent solid electrolyte interface layer in Figure 5e, and this interface structure is mixed with a few layers of graphene on the surface, resulting in the rearrangement of graphene on the surface. The thickness of this mixed SEI is roughly 10–20 nm, and the spacing of the graphene layer increases, indicating that Na⁺ undergoes interlayer insertion behavior in it. The above results suggest that the FLG with a small specific surface area and pore size characteristics is well matched in the SEI at a proper concentration. Compared to literature reports [19], the thicker interfacial structure observed with FLG results from the stacking deformation of graphene layers during the SEI formation. Nevertheless, this unique hybrid SEI incorporated with the FLG significantly enhances the interfacial stability to buffer the volume expansion during cycling. Consequently, these synergistic effects lead to remarkable improvements in the composite electrode material’s cycling stability.

Furthermore, related studies have demonstrated that sub-nanoscale structures can facilitate desolvation [35,36,37]. These atomic-scale regions can catalyze the desolvation of solvated ions, thereby reducing the desolvation energy. Accordingly, the pore size analysis results in Figure S1 show that the pore size of the FLG is smaller in comparison, which, combined with the TEM results after discharge in Figure 5e, suggests that some sub-nanoscale structures exist in the hybrid SEI. Meanwhile, the oxygen-rich functional groups in the FLG help to accelerate ion diffusion [38,39]. Therefore, this FLG-hybridized SEI helps to promote the desolvation and ion diffusion processes, and thus the rate performance is improved. Compared to other coating forms, the FLG-encapsulated structure demonstrates a comprehensive advantage (as shown in Supplementary Table S1), showing the potential application value of this strategy.

4. Conclusions

The integration of FLG with hard carbon fibers results in the formation of a graphene-hybridized SEI during the initial discharge process. This FLG-hybridized SEI has good stability and enhanced ion transport kinetics, attributed to the oxygen-rich functional groups in the FLG and is well matched within the SEI matrix. Hence, the composite anode demonstrates markedly enhanced cycling performance and rate capability relative to unmodified hard carbon. The hybrid structure alleviates the structural degradation induced by prolonged Na⁺ (de)intercalation or volume changes. However, excessive graphene thickness can have overall detrimental effects. At the optimal composition, the composite exhibits 98.2% capacity retention over 100 cycles with 99.2% average Coulombic efficiency. It achieves 334 mAh g⁻¹ at 30 mA g⁻¹ and maintains 164 mAh g⁻¹ at 1000 mA g⁻¹, showcasing the potential of the FLG coating strategy for advancing hard carbon material.
