Uniform Illumination Using Single-Surface Lens through Wavefront Engineering

by
Aria Moaven
1,
Hamid Pahlevaninezhad
2,3,
Masoud Pahlevaninezhad
1 and
Majid Pahlevani
1,*
1
Department of Electrical and Computer Engineering, Queen’s University, Kingston, ON K7L 3N6, Canada
2
Massachusetts General Hospital, Harvard Medical School, Boston, MA 02114, USA
3
Harvard John A. Paulson School of Engineering and Applied Sciences, Harvard University, Cambridge, MA 02134, USA
*
Author to whom correspondence should be addressed.
Horticulturae 2022, 8(11), 1019; https://doi.org/10.3390/horticulturae8111019
Submission received: 26 August 2022 / Revised: 24 October 2022 / Accepted: 27 October 2022 / Published: 2 November 2022

Abstract

:
Recent advancements in high power light-emitting diode (LED) technology have presented greenhouse industry with a more efficient and flexible alternative light source for horticulture. However, the light distribution on the plant remains a challenge that has notable implications on the plant growth. A non-uniform light distribution on the canopy with hot spots is well-known to adversely affect the yield. Here, we present a technique to engineer the light wavefront of a solid-state source using a single-surface optics, which yields a highly uniform light distribution across the plant. This technique achieves over 90% illuminance uniformity, preserved at various distances from the source, for a cone of light with an up to 120° angular range. This work aids the paradigm shift towards LEDs as a competitive light source in horticulture.

1. Introduction

Haitz law [1], the analog of Moore’s law in the semiconductor industry, anticipates a twenty-fold increase in the output power and a ten-fold decline in the cost of LEDs every decade. This projection indicates that LEDs are poised to dominate the lighting industry as is already the case in several applications such as indoor lighting, street lighting, and display technology.
The greenhouse industry sorely requires a more efficient and more flexible alternative to high pressure sodium (HPS) light sources which could be met with high-power LEDs [2,3,4,5,6,7,8]. However, achieving an equivalent light intensity on plant canopy necessitates a large number of LEDs, yielding an LED grow-light panel economically not competitive with HPS sources [4,9]. Techniques for more efficient use of optical energy emitted by LEDs would certainly mitigate this challenge. In greenhouses, non-uniform lighting of LEDs results in either inadequate or excessive lighting at certain locations [10]. Increasing light intensity can boost plants’ growth and reproduction, however, excessive light level leads to growth saturation after a threshold point [11,12]. This issue gives rise to a suboptimal design of optical output power to ensure sufficient illumination throughout the plant canopies [12,13,14,15].
Freeform optics often uses one or more refractive surfaces to redirect the emitted light from a source to any desired illumination on the target plane [16,17,18]. The ray-mapping method involves calculating a mapping between the source and the target light distributions and constructing the freeform surface as a result [19]. Ray-mapping is the most straightforward and, in turn, the most common technique for designing freeform optics amongst others [20]. However, there is no implicit constrain in ray-mapping to enforce an integrable freeform surface solution, a condition required for the surface to be practically realizable [19]. Even if ray-mapping solutions yield an integrable solution, they can only achieve uniform illumination for a narrow light cone due to notable numerical errors in surface construction [16,19,21,22,23,24,25,26,27,28,29,30,31,32].
In this work, we present an alternative ray-mapping algorithm to design single surface freeform lenses. This technique yields highly uniform illumination using a physically realizable surface by enforcing integrability. In addition, eliminating construction errors makes this technique applicable to the sources with wide angular emission. Here, we experimentally report 90.4% uniformity for a 120° light cone.

2. Materials and Methods

Similar to all ray-mapping methods, this work relies on the energy conservation principle imposing the preservation of optical power emitted from a fixed light cone on the target plane [30,33]. Ray-mapping techniques determine a diffeomorphism of the source light distribution to a desired light distribution on the target plane (an imaginary far-field plane). A suitable ray-mapping needs to be integrable and outputs a smooth lens surface specially for non-paraxial or off-axis beams as non-smooth free-form lenses are either impossible or costly to fabricate [18,19,22,33]. Here, without loss of generality, we present a specific algorithm to transform a Lambertian point source (e.g., LED) irradiance into a circular uniform distribution.
A ray-mapping method generally entails two main steps: (1) the definition of a mapping, which associates each incident ray with a particular outgoing ray, and (2) the determination of the refracting surface, which yields such ray-mapping.
(1) To find the mapping, we assume a hypothetical plane (principal plane) at which all rays are bent to yield the desired illumination pattern on the plant canopy (target plane). The LED’s irradiance on the principal plane is proportional to the inverse fourth power of the distance each ray travels from the LED to the principal plane (since the LED emits a Lambertian beam perpendicular to the principal plane). Our technique divides the principal plane into N rings, each receiving an equal amount of light power. Due to the lower irradiance that the outer rings receive, their widths are increasingly wider (Figure 1). To make a uniform illumination on the target plane, the rays impinging on the principal plane need to be bent such that they strike the target plane on equally-thick rings (L). Crucially, the rings’ sequence must be preserved on both planes to impose integrability.
(2) Given the incident and outgoing rays’ positions and angles, the corresponding refractive surfaces can be determined at the principal plane. As an intermediate step, the required change in the lateral optical momentum at the principal plane is calculated. This change in lateral momentum alters the incident wavefront (red solid curve in Figure 2a) into the refracted wavefront (blue solid curve in Figure 2a), which differs from that otherwise resulted from free-space propagation (dotted red curve in Figure 2a). This procedure is known as wavefront tailoring. Explicitly, the optical path differences (OPDs) between the rays traversing from the incident wavefront to the refracted wavefront are calculated (purple curve in Figure 2b); then, the corresponding lateral momentum change required at the principal plane is determined (red curve in Figure 2b); finally, the refractive surface is found using Snell’s law.
Using the equation below, each ray’s free-space OPD can be calculated:
OPD = Lchief − Lsp − Lpt,
where Lchief, Lsp and Lpt correspond to chief ray (the shortest), source to principal plane, and principal plane to target optical path lengths, respectively. Figure 2a demonstrates the OPDs of some rays (purple lines).
The lateral momentum change (∆p) corresponds to the required bending of each ray on the principal plane’s cross-section, which can be calculated using the equation as follows:
p = ( OPD ) x
The Figure 2b illustrates the OPD (purple curve) and its corresponding change in lateral momentum (red curve) along the x-axis on the principal plane.
The point-by-point calculation of lens surface given the bending angles is illustrated in Figure 3a. The construction of the lens surface begins from the initial point corresponding to the marginal ray (Figure 2a) which coincides with the principal plane that corresponds to the marginal ray (Figure 2a). The consecutive points are shifted along their incident ray such that the lens surface remains continuous (Figure 3a). The entire lens surface can be determined iteratively using this paradigm. The inner surface of the lens is a hemisphere to preserve the angle of incident rays from the source. This ray-mapping method, which satisfies the integrability yields a smooth manufacturable surface.
The lens material selected for this study was poly(methyl methacrylate) (PMMA), due to its excellent optical properties including low absorption and relatively consistent refractive index in the visible wavelength range. In addition, PMMA has desirable mechanical properties such as high temperature resistance, low thermal expansion, and low humidity absorption making it suitable for greenhouse lighting applications. The prototype lens was manufactured using CNC milling and polishing machine (OPS INGERSOLL (Burbach, Germany) EAGLE V9 5-AXIS), resulting in an arithmetic average roughness (Ra) of 20–30 nm.
The designed lens was computationally verified using ZEMAX (Kirkland, WA, USA) OpticStudio software, considering a specific LED emission profile (OSRAM (Premstätten, Austria) OSLON® Square, GH CSSRM4.24). In this simulation, the target plane is a square-shaped area of 1   m 2 located 25 cm from the source, perpendicular and centered to the optical axis. The detector plane (target plane) resolution is 200 by 200, and the lens refractive index is assumed to be 1.4880 (PMMA @660 nm). Analyzing the results and calculating the uniformity and power in the specified target plane were carried out using MATLAB.
To experimentally demonstrate the lens performance, we utilized a setup comprised of a photo-detector (Thorlabs (Newton, MA, USA) PDA36A) mounted on a 2-dimensional translation stage capable of scanning the entire target plane (Figure 4). The setup continuously scans a 1 m-by-1 m square-shaped target plane using two stepper motors.

3. Results and Discussion

As the simulation results, Figure 5a,b compare the light intensities distribution on the target plane with and without the lens, respectively. Here, the light uniformity index is the ratio of the minimum to the maximum light intensity on the target plane. As illustrated in Figure 5c, the result indicates 95.1% light uniformity for a 120 ° light cone using the refractive lens, significantly higher uniformity than what can be achieved without the lens (11.2%). The power received at the target plane remains the same with and without the refracting surface, verifying the power efficiency of the designed lens.
Experimentally, the dimensions and the position of the target plane match those used in the simulation model. Figure 5d,e illustrate the light intensities on the target plane with and without the lens, respectively. The result indicates 90.6% uniformity, slightly lower than the computational expectation, possibly due to the minor misalignment in the setup, the manufacturing errors, and Fresnel losses. Expectedly, the optical power measured on the target plane was approximately 7% lower than the simulation result due to the absorption of the lens material.
The uniform illumination pattern of a single LED does not necessarily reflect the uniformity of an entire lamp consisting of an array of LEDs. However, due to the smaller distance between the LEDs (~1.5 cm) compared to the distance between the lamp and the target plane (more than 25 cm), the uniformity will remain above 90% for most of the target plane (Figure 6). The simulation and the experimental results for an array of 1 by 25 LEDs located 25 cm away from the target plane are shown in Figure 6a,c, respectively. Increasing distance from the target plane reduces the effect of an LED array’s spatial extension on the target plane illumination uniformity (Figure 6b,d). Figure 5e and Figure 6d (or Figure 5b and Figure 6b) demonstrate similar illumination patterns, supporting our assertion about the light uniformity of a whole lamp when the target plane is far enough.
In greenhouse lighting systems, a high light uniformity translates to the use of fewer LEDs (~3-times) to achieve the same intensity level at the plant periphery. Unlike the-state-of-the-art techniques [23,28,30,34,35,36], the method presented here can be manufactured with standard techniques (injection molding or CNC machining), works for light sources with a wide angular range and different colors, and has no constraint regarding the source-target plane distance.

4. Conclusions

The greenhouse industry demands more uniform lighting systems to maximize the plants’ yield. This work introduces a simple algorithm to design a single refractive surface that uniformly distributes the light intensity emitted by wide angle commercial LEDs. This algorithm enforces the surface integrability, finds the lateral optical momentum change at the principal plane, and determines a refracting surface which realizes the desired mapping. This ray-mapping algorithm is general and can be utilized for designing illumination systems with different shapes and different lens types. Using this method increases of the light distribution uniformity from 11.2% to over 90%, enabling more efficient lighting and potentially higher growth yield.

5. Patents

A.M., H.P. and M.P. (Majid Pahlevani) are inventors on a relevant patent application (A8146800USP).

Author Contributions

Conceptualization, H.P., M.P. (Majid Pahlevani) and A.M.; methodology, A.M. and H.P.; software, A.M.; validation, A.M., H.P. and M.P. (Masoud Pahlevaninezhad); formal analysis, A.M.; investigation, A.M. and H.P.; resources, A.M. and H.P.; data curation, A.M.; writing—original draft preparation, A.M.; writing—review and editing, H.P., M.P. (Majid Pahlevani) and M.P. (Masoud Pahlevaninezhad); visualization, A.M.; supervision, M.P. (Majid Pahlevani) and H.P.; project administration, M.P. (Majid Pahlevani); funding acquisition, M.P. (Majid Pahlevani). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Natural Sciences and Engineering Research Council (NSERC) of Canada, grant number 392075 and MITACS, grant number IT17040.

Data Availability Statement

Upon a reasonable request, the corresponding author can provide you with the data supporting the plots in this article and other findings of the study.

Acknowledgments

M. Pahlevani Thanks Genoptic LED Inc. for providing financial support for this project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Haitz, R.; Tsao, J.Y. Solid-state lighting:‘The case’10 years after and future prospects. Phys. Status Solidi 2011, 208, 17–29. [Google Scholar] [CrossRef]
  2. Gupta, S.D.; Agarwal, A. LED Supplementary Lighting. In Light Emitting Diodes for Agriculture, 1st ed.; Springer: Singapore, 2017; pp. 27–36. [Google Scholar]
  3. Bula, R.J.; Morrow, R.C.; Tibbitts, T.; Barta, D.; Ignatius, R.; Martin, T. Light-emitting diodes as a radiation source for plants. HortScience 1991, 26, 203–205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Nelson, J.A.; Bugbee, B. Economic analysis of greenhouse lighting: Light emitting diodes vs. high intensity discharge fixtures. PLoS ONE 2014, 9, e99010. [Google Scholar] [CrossRef] [Green Version]
  5. Kusuma, P.; Pattison, P.M.; Bugbee, B. From physics to fixtures to food: Current and potential LED efficacy. Hortic. Res. 2020, 7, 56. [Google Scholar] [CrossRef] [Green Version]
  6. Wu, B.-S.; Hitti, Y.; MacPherson, S.; Orsat, V.; Lefsrud, M.G. Comparison and perspective of conventional and LED lighting for photobiology and industry applications. Environ. Exp. Bot. 2020, 171, 103953. [Google Scholar] [CrossRef]
  7. Paucek, I.; Appolloni, E.; Pennisi, G.; Quaini, S.; Gianquinto, G.; Orsini, F. LED lighting systems for horticulture: Business growth and global distribution. Sustainability 2020, 12, 7516. [Google Scholar] [CrossRef]
  8. Katzin, D.; Marcelis, L.F.; van Mourik, S. Energy savings in greenhouses by transition from high-pressure sodium to LED lighting. Appl. Energy 2021, 281, 116019. [Google Scholar] [CrossRef]
  9. Shelford, T.J.; Both, A.-J. On the technical performance characteristics of horticultural lamps. AgriEngineering 2021, 3, 716–727. [Google Scholar] [CrossRef]
  10. Runkle, E. The Importance of Light Uniformity; Michigan State University: East Lansin, MI, USA, 2017. [Google Scholar]
  11. Poorter, H.; Niinemets, Ü.; Ntagkas, N.; Siebenkäs, A.; Mäenpää, M.; Matsubara, S.; Pons, T. A meta-analysis of plant responses to light intensity for 70 traits ranging from molecules to whole plant performance. New Phytol. 2019, 223, 1073–1105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Balázs, L.; Dombi, Z.; Csambalik, L.; Sipos, L. Characterizing the Spatial Uniformity of Light Intensity and Spectrum for Indoor Crop Production. Horticulturae 2022, 8, 644. [Google Scholar] [CrossRef]
  13. Both, A.; Ciolkosz, D.E.; Albright, L. Evaluation of light uniformity underneath supplemental lighting systems. In Proceedings of the IV International ISHS Symposium on Artificial Lighting 580, Québec City, QC, Canada, 7 November 2000; pp. 183–190. [Google Scholar]
  14. Ciolkosz, D.E.; Both, A.J.; Albright, L.D. Selection and placement of greenhouse luminaires for uniformity. Appl. Eng. Agric. 2001, 17, 875. [Google Scholar] [CrossRef]
  15. Pan, J.; Li, Q.; Li, X.; Wen, Y. Spatial light distribution characterization and measurement of LED horticultural lights. In Proceedings of the 29th CIE Session, Washington, DC, USA, 14–16 June 2019; pp. 14–22. [Google Scholar]
  16. Ding, Y.; Liu, X.; Zheng, Z.-r.; Gu, P.-f. Freeform LED lens for uniform illumination. Opt. Express 2008, 16, 12958–12966. [Google Scholar] [CrossRef] [Green Version]
  17. Fang, F.; Zhang, X.; Weckenmann, A.; Zhang, G.; Evans, C. Manufacturing and measurement of freeform optics. CIRP Ann. 2013, 62, 823–846. [Google Scholar] [CrossRef]
  18. Desnijder, K.; Hanselaer, P.; Meuret, Y. Ray mapping method for off-axis and non-paraxial freeform illumination lens design. Opt. Lett. 2019, 44, 771–774. [Google Scholar] [CrossRef]
  19. Bösel, C.; Gross, H. Ray mapping approach for the efficient design of continuous freeform surfaces. Opt. Express 2016, 24, 14271–14282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Feng, Z.; Cheng, D.; Wang, Y. Iterative wavefront tailoring to simplify freeform optical design for prescribed irradiance. Opt. Lett. 2019, 44, 2274–2277. [Google Scholar] [CrossRef]
  21. Bösel, C.; Gross, H. Double freeform illumination design for prescribed wavefronts and irradiances. JOSA A 2018, 35, 236–243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Gannon, C.; Liang, R. Ray mapping with surface information for freeform illumination design. Opt. Express 2017, 25, 9426–9434. [Google Scholar] [CrossRef] [Green Version]
  23. Bruneton, A.; Bäuerle, A.; Wester, R.; Stollenwerk, J.; Loosen, P. High resolution irradiance tailoring using multiple freeform surfaces. Opt. Express 2013, 21, 10563–10571. [Google Scholar] [CrossRef] [PubMed]
  24. Feng, Z.; Huang, L.; Gong, M.; Jin, G. Beam shaping system design using double freeform optical surfaces. Opt. Express 2013, 21, 14728–14735. [Google Scholar] [CrossRef]
  25. Feng, Z.; Cheng, D.; Wang, Y. Iterative freeform lens design for prescribed irradiance on curved target. Opto-Electron. Adv. 2020, 3, 200010-200011–200010-200019. [Google Scholar] [CrossRef]
  26. Romijn, L.B.; ten Thije Boonkkamp, J.H.; IJzerman, W.L. Freeform lens design for a point source and far-field target. JOSA A 2019, 36, 1926–1939. [Google Scholar] [CrossRef]
  27. Byzov, E.V.; Kravchenko, S.V.; Moiseev, M.A.; Bezus, E.A.; Doskolovich, L.L. Optimization method for designing double-surface refractive optical elements for an extended light source. Opt. Express 2020, 28, 24431–24443. [Google Scholar] [CrossRef]
  28. Ma, D.; Feng, Z.; Liang, R. Freeform illumination lens design using composite ray mapping. Appl. Opt. 2015, 54, 498–503. [Google Scholar] [CrossRef]
  29. Bruneton, A.; Bäuerle, A.; Wester, R.; Stollenwerk, J.; Loosen, P. Limitations of the ray mapping approach in freeform optics design. Opt. Lett. 2013, 38, 1945–1947. [Google Scholar] [CrossRef]
  30. Wei, S.; Zhu, Z.; Fan, Z.; Ma, D. Least-squares ray mapping method for freeform illumination optics design. Opt. Express 2020, 28, 3811–3822. [Google Scholar] [CrossRef] [PubMed]
  31. Oliker, V.I.; Rubinstein, J.; Wolansky, G. Ray mapping and illumination control. J. Photonics Energy 2013, 3, 035599. [Google Scholar] [CrossRef]
  32. Ma, D.; Feng, Z.; Liang, R. Tailoring freeform illumination optics in a double-pole coordinate system. Appl. Opt. 2015, 54, 2395–2399. [Google Scholar] [CrossRef]
  33. Wu, R.; Feng, Z.; Zheng, Z.; Liang, R.; Benítez, P.; Miñano, J.C.; Duerr, F. Design of freeform illumination optics. Laser Photonics Rev. 2018, 12, 1700310. [Google Scholar] [CrossRef]
  34. Wang, K.; Liu, S.; Chen, F.; Qin, Z.; Liu, Z.; Luo, X. Freeform LED lens for rectangularly prescribed illumination. J. Opt. A Pure Appl. Opt. 2009, 11, 105501. [Google Scholar] [CrossRef]
  35. Zhenrong, Z.; Xiang, H.; Xu, L. Freeform surface lens for LED uniform illumination. Appl. Opt. 2009, 48, 6627–6634. [Google Scholar] [CrossRef] [PubMed]
  36. Sorgato, S.; Chaves, J.; Thienpont, H.; Duerr, F. Design of illumination optics with extended sources based on wavefront tailoring. Optica 2019, 6, 966–971. [Google Scholar] [CrossRef]

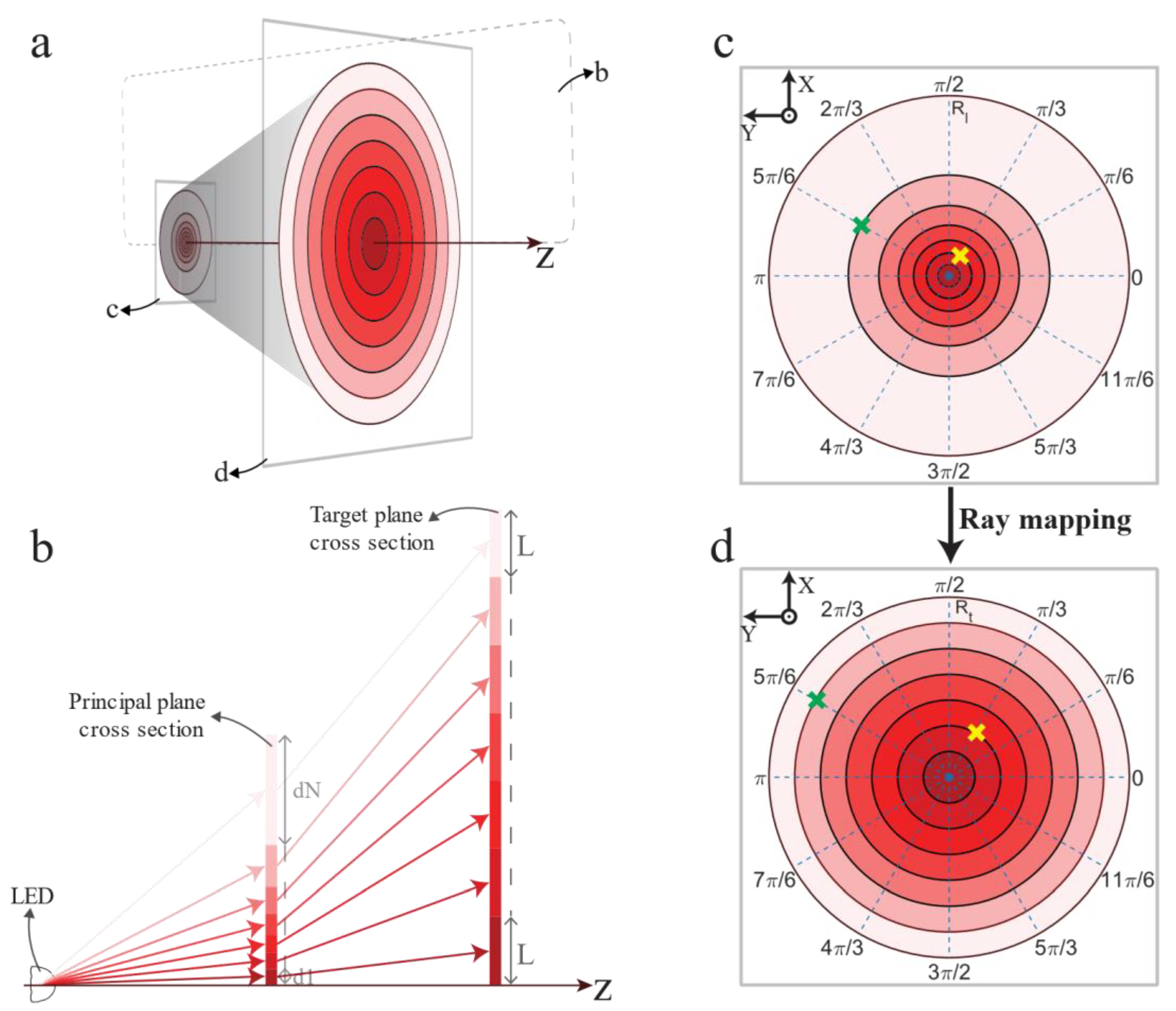

Figure 1. Ray-mapping algorithm demonstration. (a) 3D presentation of the principal plane and target plane. (b) Cross section of the LED, the principal plane, and the target plane. d1 to dN are the widths of each ring on the principal plane, while L is the width of the corresponding rings on the target plane. (c) Principal plane rings and sample points (yellow and green crosses). (d) Corresponding mapped rings and sample points on the target plane.
Figure 1. Ray-mapping algorithm demonstration. (a) 3D presentation of the principal plane and target plane. (b) Cross section of the LED, the principal plane, and the target plane. d1 to dN are the widths of each ring on the principal plane, while L is the width of the corresponding rings on the target plane. (c) Principal plane rings and sample points (yellow and green crosses). (d) Corresponding mapped rings and sample points on the target plane.
Horticulturae 08 01019 g001

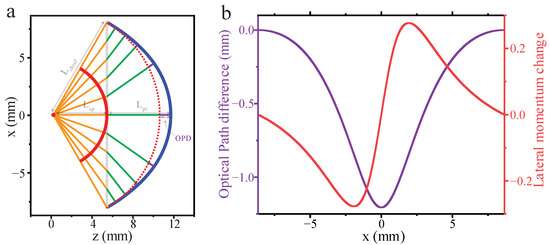

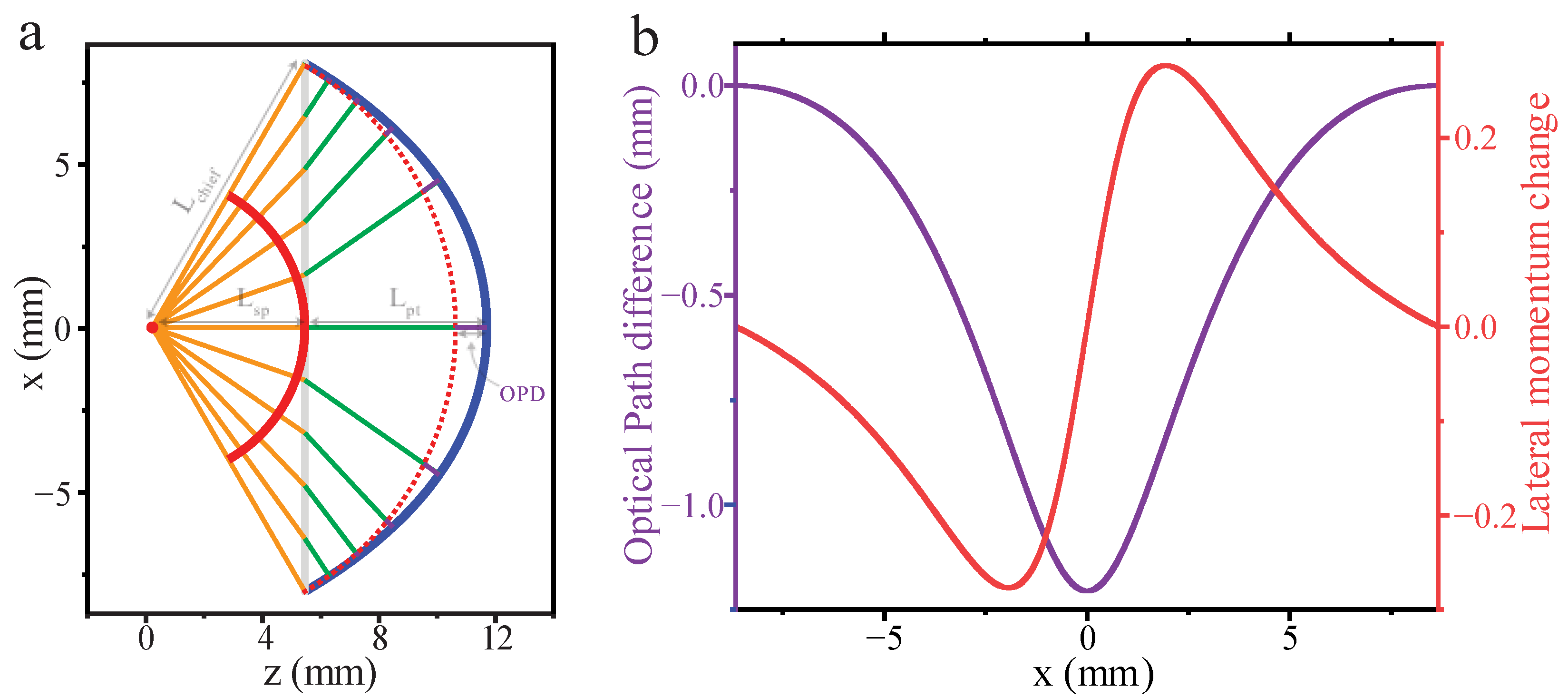

Figure 2. Wavefront tailoring process. (a) cross section of the incident (solid red curve), refracted (blue curve) and free-space propagated (dashed red curve) wavefronts to calculate optical path differences. Lens to principal plane and principal plane target plane rays have been illustrated with orange and green line, respectively. (b) Required OPD based on wavefront tailoring (purple curve) for each point of the principal plane cross section (gray line on (a)) and the corresponding lateral momentum change on the lens cross section (red graph).
Figure 2. Wavefront tailoring process. (a) cross section of the incident (solid red curve), refracted (blue curve) and free-space propagated (dashed red curve) wavefronts to calculate optical path differences. Lens to principal plane and principal plane target plane rays have been illustrated with orange and green line, respectively. (b) Required OPD based on wavefront tailoring (purple curve) for each point of the principal plane cross section (gray line on (a)) and the corresponding lateral momentum change on the lens cross section (red graph).
Horticulturae 08 01019 g002

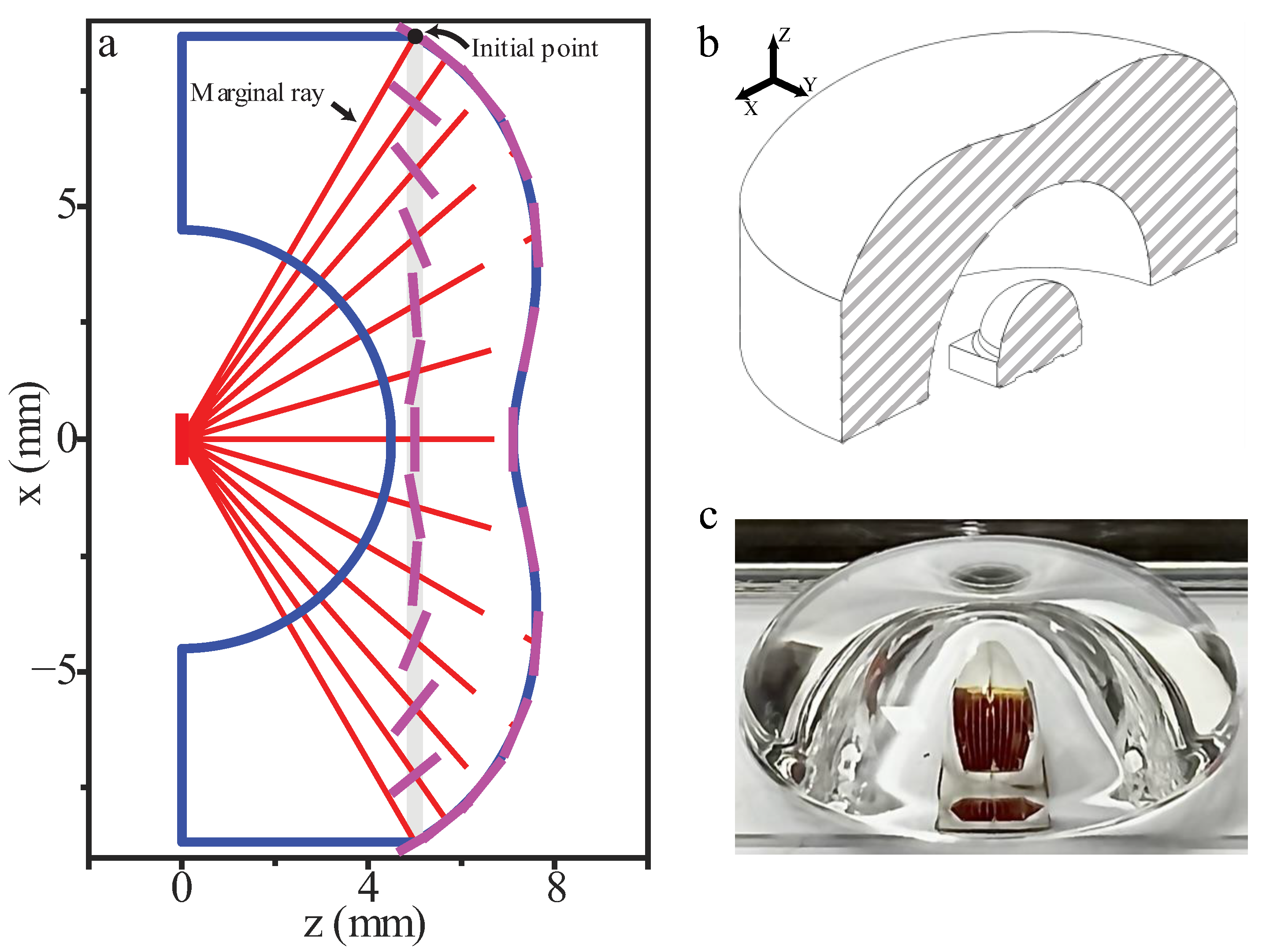

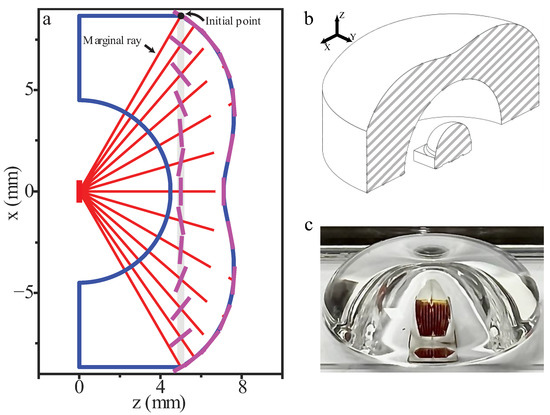

Figure 3. Lens surface construction. (a) 2D presentation of the numerical lens surface calculation by translation of refraction surface (purple lines) on principal plane (gray line) to the lens surface. (b) Final lens design cross-section on xz-plane. (c) manufactured lens and the LED assembly image.
Figure 3. Lens surface construction. (a) 2D presentation of the numerical lens surface calculation by translation of refraction surface (purple lines) on principal plane (gray line) to the lens surface. (b) Final lens design cross-section on xz-plane. (c) manufactured lens and the LED assembly image.
Horticulturae 08 01019 g003

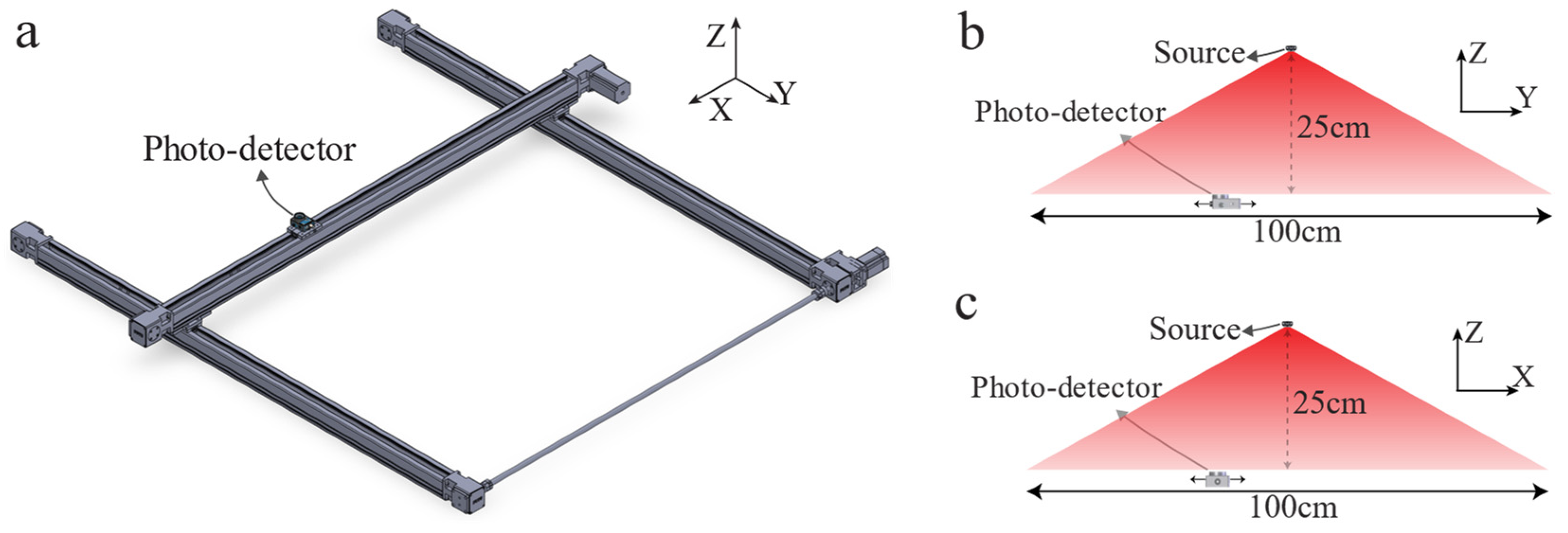

Figure 4. The experimental setup computer-aided design (CAD). (a) Dimetric view of the photodetector and the 2D translation stage, which measures the light intensity and its uniformity. (b) 2D view (yz-plane) of the setup. The source placed 25 cm above the center point of the scanner to obtain experimental results. (c) 2D view (xz-plane) of the setup. The source placed 25 cm above the center point of the scanner to obtain experimental results.
Figure 4. The experimental setup computer-aided design (CAD). (a) Dimetric view of the photodetector and the 2D translation stage, which measures the light intensity and its uniformity. (b) 2D view (yz-plane) of the setup. The source placed 25 cm above the center point of the scanner to obtain experimental results. (c) 2D view (xz-plane) of the setup. The source placed 25 cm above the center point of the scanner to obtain experimental results.
Horticulturae 08 01019 g004

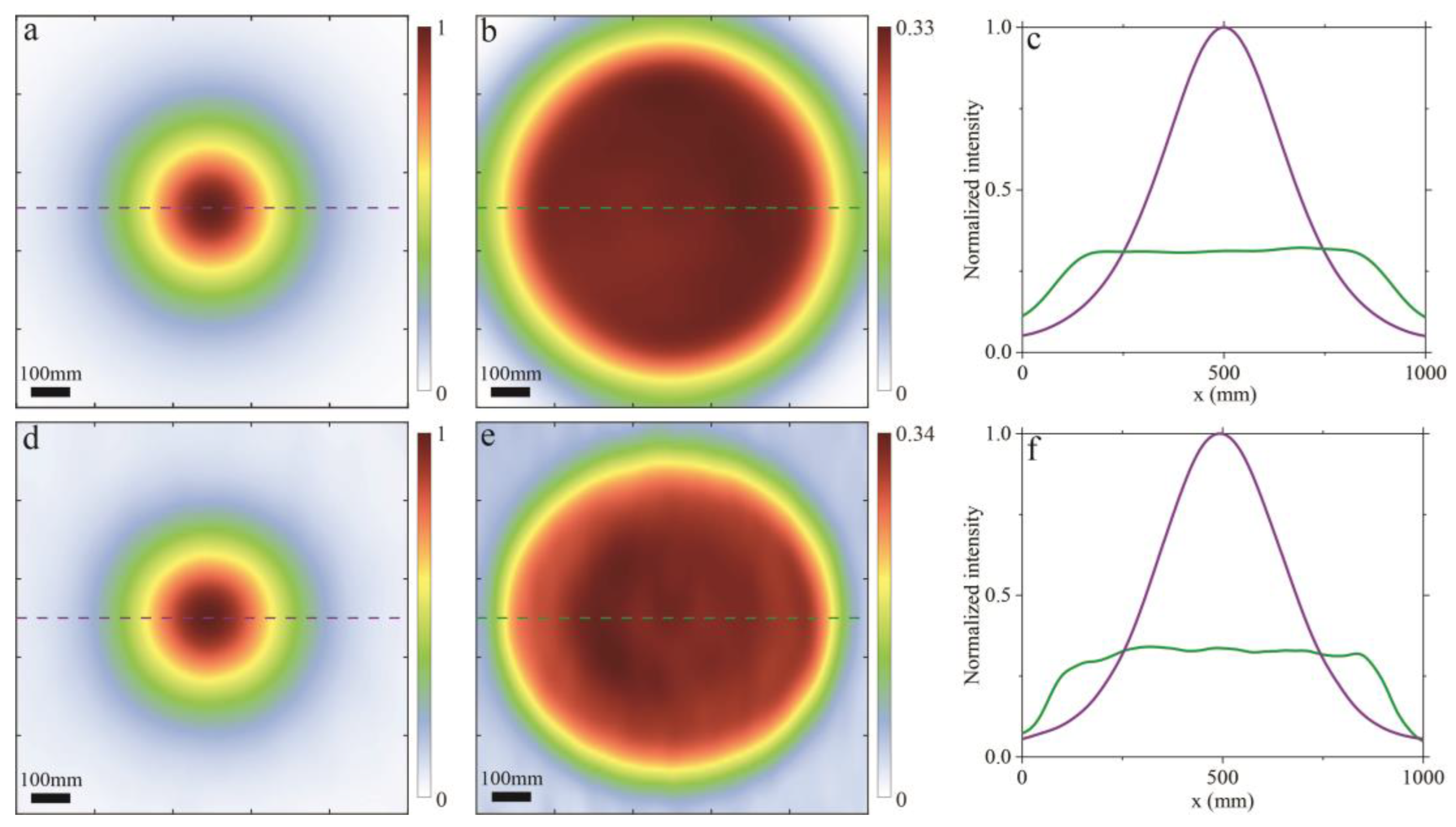

Figure 5. Simulation and experimental results for a target plane located 25 cm away from the source. (a) ZEMAX simulation result for OSRAM LED rayfile without the lens. Dashed purple line indicates the middle row. (b) Simulation result for OSRAM LED rayfile with the lens. (c) Comparing middle rows’ irradiances (dashed horizontal lines on Figure 2a,b) of the simulation result with (green curve) and without (purple curve) the lens. (d) Normalized irradiance for experimental result without the lens. (e) Normalized irradiance for experimental result with the lens. (f) Comparing middle rows’ irradiances of the experimental result with (green line) and without (purple line) the lens.
Figure 5. Simulation and experimental results for a target plane located 25 cm away from the source. (a) ZEMAX simulation result for OSRAM LED rayfile without the lens. Dashed purple line indicates the middle row. (b) Simulation result for OSRAM LED rayfile with the lens. (c) Comparing middle rows’ irradiances (dashed horizontal lines on Figure 2a,b) of the simulation result with (green curve) and without (purple curve) the lens. (d) Normalized irradiance for experimental result without the lens. (e) Normalized irradiance for experimental result with the lens. (f) Comparing middle rows’ irradiances of the experimental result with (green line) and without (purple line) the lens.
Horticulturae 08 01019 g005

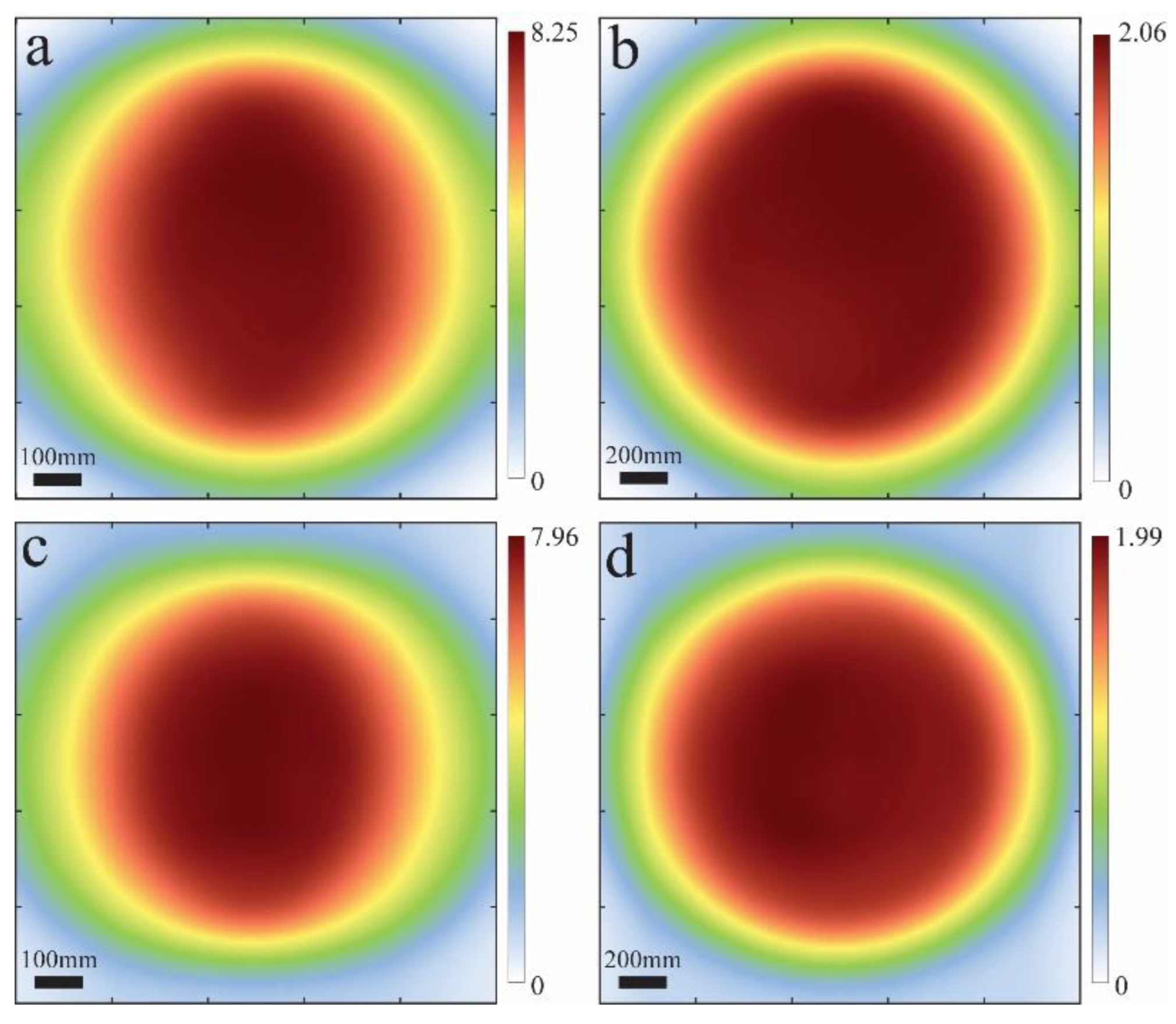

Figure 6. Simulation and experimental results for a 1 by 25 LED array, oriented along the x-axis. (a) Simulation result for a 1 m2 target plane, located 25 cm away from the LED array. (b) Simulation result for a 4 m2 target plane, located 50 cm away from the LED array. (c) Experimental result for a 1 m2 target plane, located 25 cm away from the LED array. (d) Experimental result for a 4 m2 target plane, located 50 cm away from the LED array.
