Article

For a Better Understanding of the Effect of N Form on Growth and Chemical Composition of C3 Vascular Plants under Elevated CO2—A Case Study with the Leafy Vegetable Eruca sativa

1
Vegetable Crops, Hochschule Geisenheim University, Von-Lade-Strasse 1, 65366 Geisenheim, Germany
2
Soil Science and Plant Nutrition, Hochschule Geisenheim University, Von-Lade-Strasse 1, 65366 Geisenheim, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Pietro Santamaria
Horticulturae 2021, 7(8), 251; https://doi.org/10.3390/horticulturae7080251
Received: 8 July 2021 / Revised: 13 August 2021 / Accepted: 13 August 2021 / Published: 17 August 2021
(This article belongs to the Special Issue Managing the Product Quality of Vegetable Crops under Abiotic Stress)

Abstract

Plant responses to elevated atmospheric CO2 (eCO2) are well studied, but the interactions of the carbon and nitrogen metabolism in the process are still not fully revealed. This is especially true for the role of nitrogen forms and their assimilation by plants under eCO2. This study investigated the interacting metabolic processes of atmospheric CO2 levels and N form in the short-term crop arugula. The effects on physiological processes and their consequences for crop growth, yield and nutritional value were elucidated. Two varieties of arugula were grown in climate cabinets under 400 or 800 ppm CO2, respectively. The plants were fertilized with either pure nitrate or ammonium-dominated-N. Photosynthetic CO2 assimilation increased in response to eCO2 regardless of the N form. This did not affect the assimilation of nitrate and consequently had no impact on the biomass of the plants. The extra photosynthates were not invested into the antioxidative compounds but were probably diverted towards the leaf structural compounds, thereby increasing dry mass and “diluting” several mineral elements. The fertilization of arugula with ammonium-dominated N had little benefits in terms of crop yield and nutritional quality. It is therefore not recommended to use ammonium-dominated N for arugula production under future elevated CO2 levels.
Keywords: ammonium; climate change; food quality; photosynthesis; nitrogen source; nitrate; vegetable ammonium; climate change; food quality; photosynthesis; nitrogen source; nitrate; vegetable

1. Introduction

The atmospheric CO2 concentration is predicted to rise from 400 ppm up to 1142 ppm until the end of the 21st century [1]. Elevated CO2 concentrations (eCO2) promote growth for many plants as the water use efficiency is ameliorated and the carbon gain by photosynthetic activities is increased, at least in the short term, compared to ambient CO2 concentrations (aCO2) [2]). The beneficial effect of eCO2 in higher plants, however, is linked to certain conditions, such as (e.g., [3]): i. the plant’s type of photosynthesis (e.g., C3 or C4 pathway), ii. the plant’s growth period and therefore effect duration (short-, medium- or long-term), iii. the presence of other photosynthesis limiting factors (e.g., light, nutrients), and iv. the balance between source activity (net export of photo-assimilates by mature leaves) and sink activity (growth, storage). This complexity highlights that the finely-tuned mechanism of carbon assimilation is the prerequisite for better plant production under future increased carbon dioxide supply. From an agricultural perspective, the physiological processes involved that can be influenced by crop management are of particular interest. The supply of nitrogen and its assimilation in plants represents one such adjusting screw. Nitrogen (N) is incorporated in many organic compounds comprising all amino acids, thus being highly relevant for the biosynthesis of enzymes which are essential for metabolic activities. Plants expend about one quarter of their energy to convert inorganic into organic N [4]. N deficiency of plants induces a shift in the metabolic processes with a reduction of N-based products, such as proteins, resulting in reduced growth [5]. Due to the high vulnerability of crop development to N deficiency, the relationship between eCO2 and nitrogen assimilation deserves special attention.
Nitrogen assimilation in plants is coupled to photosynthesis primarily through Rubisco, the enzyme catalyzing C3 carbon fixation. Rubisco activity determines the availability of electrons for the reduction of inorganic nitrogen, NO3 via NH4+, to organic compounds [6]. The reductants originate from the oxygenation reaction of Rubisco, better known as photorespiration. The carboxylation reaction and photorespiration compete for reductants and the balance between these processes depends largely on the relative concentrations of CO2 and O2, as well on the high specificity of Rubisco for CO2 [7]. At eCO2, photorespiration is initially reduced in favour of stimulated net CO2 assimilation (e.g., [8]). Limited photorespiratory activity provides less reductants for the nitrate reduction in photosynthetic tissue (e.g., [4,9]), which limits the nitrate assimilation under eCO2 conditions [4]. Bloom [4] concludes that the nitrogen form supplied to plants matters for the efficiency of converting inorganic N into organic N and consequently, for the photosynthates- and protein-driven growth response under eCO2. Thus, a reduced assimilation of inorganic N under eCO2 can be attenuated by using other N forms as fertilizers for crops, such as ammonium (NH4+) [6,10]. In fact, NH4+ can be incorporated into organic N compounds independently of photorespiration (see details in [11]). Growing plants with ammonium as the sole N source, however, may exert toxic effects [12]. For ammonium-sensitive plant families, such as the economically relevant Brassicaceae [13], it is therefore recommended to use mixtures of ammonium-N and nitrate-N [14,15] in order to improve plant productivity under eCO2 levels [16].
The effects of eCO2 on nitrate assimilation in the context of N forms and their consequences for plant growth are highly controversial in the literature [4,6,11,17]. The two main criticisms are the CO2 acclimation [18,19,20] and the site of nitrate assimilation [17]. CO2 acclimation is characterized by short-term stimulated net CO2 assimilation, which stabilizes at rates close to those of plants at aCO2 in long-term exposure to eCO2 [3]. This may result from an accumulation of photosynthates that are generated by the initially increased photosynthesis. The imbalance in the source-sink ratio then down-regulates the photosynthetic activity [3]. Under these conditions, photorespiration might not be inhibited to the extent that is necessary to lower nitrate photoreduction. This is supported by observations of increased growth of C3 species under eCO2 with the supply of nitrate as the sole N source [21,22,23]. In addition, nitrate assimilation of C3 plants proceeds at several sites, in leaves as well as in roots. Shifts in the partitioning of NO3 assimilation from leaves to roots under eCO2 have been observed [17,24] and were explained by the increased transport of photosynthates to the root to provide essential reductants [17].
The impacts of eCO2 on the mechanisms of N assimilation in C3 plants are thus not fully understood, especially for short-term crops. Among them, leafy vegetables which play an important role in the human diet have to comply with thresholds of their foliar nitrate content. This is related to the high demand for fertilizer, such as nitrogen (e.g., as a component of chlorophyll), to ensure good yields and qualities. Reducing the N supply is therefore not an option, but reaching high yields and low contents of nitrate in the foliage can be achieved by complete or partial fertilization with other N forms [25,26,27,28,29].
For the model plant Arabidopsis thaliana and several vegetable crops of the Brassicaceae family, the supply of mixtures of ammonium- and nitrate-N was shown to increase the concentrations of secondary compounds [6,25,30], thus further improving the nutritional value and the defensive capacity of the plants [31]. This might become relevant in the future as recent publications suggest an increased occurrence of fungal infections in leafy vegetable crops [32,33] due to altered temperature and humidity in larger and denser canopies developing under eCO2 [34]. However, several studies suggest that plants grown under eCO2 will have increased contents of C-based secondary compounds [35,36,37], which might offer protection against pathogen and pest attack and have beneficial effects for human nutrition at the same time. Nevertheless, the negative effects of eCO2 on the nutritional value of crops have also been observed: for example, larger biomass potentially reduces the concentration of macro- and micronutrients [35,38,39,40].
This is particularly relevant for arugula, a leafy vegetable of growing economic importance. Besides the characteristic aroma and taste, low caloric value, and high content of minerals and vitamin C, arugula offers additional benefits to human health as it contains many phytochemicals, such as carotenoids, phenolics and glucosinolates [41,42]. Arugula plants are often affected by downy mildew and thus the resistance to this biotic stressor is an important target for breeding activities on arugula. A higher defensive capacity can be counterbalanced by yield decreases as the plants are continuously faced by the dilemma to invest their resources into growth or defence-related processes [43], especially under altered environmental conditions.
Against the background of complex und partly unknown interactions between CO2 concentrations and N form, we aimed at elucidating the effects of nitrate-N and ammonium-N nutrition under elevated CO2 on the physiology, morphology and chemical composition of the short-term crop Eruca sativa, differentiated between two varieties.

2. Materials and Methods

2.1. Plant Cultivation

The experiment was conducted in a split-plot design in climatic chambers (HGC 0714, Weiss Technik UK Ltd., Königswinter, Germany). The atmospheric CO2 concentration was the main factor with the arugula variety and N form being the subfactors. Each combination of the factors was repeated 8 times, realized by 8 pots with 30 plants each per factor sub-combination (Figure 1) and climatic chamber. Thus, 1 climatic chamber contained 32 pots in total.
Three sets of experiments (Figure 1) were run (n = 3). The first and second sets were grown in parallel (late August until mid-October 2016), having two climatic chambers each set to the same CO2 conditions. The third set was run after the first two (late October until early December 2016), consisting of one climatic chamber set to 400 ppm CO2 and one climatic chamber set to 800 ppm CO2.
The Eruca sativa varieties ‘Tricia’ and ‘Bellezia’ (both Enza Zaden, Warmenhuizen, The Netherlands) were chosen for the experiment as they showed the highest and lowest incidences of downy mildew in a field trial, respectively [44]. The plants were grown in pots (diameter 10 cm) in clay substrate (325 mL·pot−1; Nullerde fein; Alpenflor Erdenwerke GmbH & Co. KG, Weilheim, Germany) with 30 seeds each. The substrate contained 41.6–49.8 mg total N·L−1. Sowing dates were 29 August 2016 for the first and second set of experiments and 24 October 2016 for the third set. The pots were covered with Styrofoam sheets and placed in trays into the climatic chambers set to the following conditions: 20/18 °C (day/night), no light, 400 ppm CO2. After 4 days, the Styrofoam cover was removed. Another 3 days later, when the cotyledons were unfolded, the pots were arranged to their final position (distances of 11.5 cm × 14 cm). The photosynthetic photon flux density (metal halide lamps) was 1000 μmol·m−2·s−1 at the height of the plants during a photoperiod of 11 h (with dusk and dawn phases of one hour each). The light intensity at plant height was recorded by a quantum sensor (LI190R, LI-COR Environmental, Lincoln, NE, USA) coupled to a data logger (LI1400, LI-COR Environmental) in each climatic chamber separately. The relative humidity was set to 50% and the temperature to 20 °C/18 °C (day/night). Water was applied according to the demands of the single pots in order to fill up to a 90% water holding capacity per pot. The pots were thus weighed every 2 days at the beginning and daily later-on, and water was supplied when the water holding capacity fell below 80%.
Fertilizer was applied 4 times during the cultivation period, separately for N and P + K, yielding 300 mg N, 185 mg P2O5 and 500 mg K2O per pot. N was given on days 6, 20, 27 and 33 after sowing as calcium nitrate (N + P + K = 15.5 + 0 + 0; 100% NO3) in the pure nitrate treatment. On the same days, the ammonium-dominated N treatment received a mixture of 50% ammonium sulphate (N + P + K 21 + 0 + 0) and 50% ammonium nitrate (N + P + K 34,8 + 0 + 0), yielding 75% NH4+ and 25% NO3. P and K was applied on days 13, 25, 29 and 35 after sowing (“Ferty Basisdünger 1” (N + P + K 0 + 14 + 38; Planta Düngemittel GmbH, Regenstauf, Germany). The fertilizer was added into the saucers in portions of 50–75 mL per pot. The plants were cultivated for 44 to 45 days. Harvests were conducted on 11 and 12 October 2016 (first and second set) and on 6 December 2016 (third set), respectively.

2.2. Biomass and Physiological Measurements

At harvest date, the number of inflorescences with at least 1 open flower and the total above-ground fresh mass were assessed from all 8 pots per treatment and climatic chamber (Figure 2). Three pots per treatment and climatic chamber were chosen for the recording of leaf numbers per pot, leaf area (LI 3100, LI-COR Biosciences, Lincoln, NE, USA), and the dry mass of the above-ground plant parts. Three other pots per treatment and climatic chamber were used for the measurement of photosynthetic gas exchange and non-invasive measurements of the N status and pigment indices. The above-ground biomass was dried at 60 °C for 24 h (when dry mass of the leaf material was constant) and then used for elemental analyses. The plants of 3 other pots per treatment and climatic chamber were used for the measurement of photosynthetic gas exchange. The above-ground biomass of all plants of these 3 pots per treatment and climatic chamber was sampled and frozen for later chemical analyses of plant pigments and vitamin C. The above-ground fresh mass in the remaining 2 pots per treatment and climatic chamber were sampled as well for the analysis of vitamin C and pigment content.
The gas exchange was measured with the GFS-3000 device (Heinz Walz GmbH, Effeltrich, Germany) on a single leaf per pot. The following cuvette conditions were used: flow 750 µmol, impeller 5, PAR 1100 µmol·m−2·s−1, relative humidity 50%, measured leaf area 8 cm2, temperature 20 °C. The CO2 supply was either set to 400 ppm or 800 ppm, depending on the respective growing conditions of the plants. Measuring points were recorded when the rates of transpiration and photosynthesis were stable. After 4 measurements, the gas analyzer was calibrated by taking measurements of an empty cuvette.
After the measurements, the leaves were cut at the edge of the cuvette and the edge was subtracted by cutting along a model made of a piece of paper. The remaining leaf part, which represented the actual measured leaf area, was photographed against a piece of paper of a defined size. The measured leaf area was calculated by colour segmentation with the software Fiji [45]. The data on photosynthetic gas exchange were then corrected for the actual measured leaf area.
On the same leaves as used for photosynthetic measurements, indices for the N status and pigments were assessed with the Dualex device (Force-A, Orsay Cedex, France) and the N-Tester (based on the SPAD device, YARA GmbH & Co. KG, Dülmen, Germany).

2.3. Chemical Analyses

For ascorbic acid analyses, the frozen leaf material was homogenized in oxalic acid and an aliquot was taken for quantification by titration with iodide and iodate (TitroLine alpha plus with automatic dispenser TITRONIC universal and sample changer TW alpha plus, all SCHOTT Instruments GmbH, Mainz, Germany). Chlorophylls and carotenoids were extracted from frozen and ground leaves in 100% acetone buffered with NaHCO3 and quantified after photometric readings (modified procedure of [46]). Anthocyanins were analyzed according to [47]. Briefly, the anthocyanins were extracted from 0.5 g of frozen and ground leaf material using 80% methanol, which was acidified with 1% acetic acid. The extracts were measured photometrically at 530 nm and 657 nm and the concentrations of anthocyanins were calculated as equivalents to cyanidine-3-glycoside.
For elemental analysis, dried and ground plant materials were wet-digested in a microwave digester (MLS 1200 mega; MLS GmbH, Leutkirch, Germany). All micro- and macro-nutrients (excluding N & C) were analyzed using inductively coupled plasma optical emission spectrometry (Perkin-Elmer Optima 3000 ICP-OES; Perkin-Elmer Corp., Nerwalk, CT, USA). Total nitrogen was extracted using the Kjeldahl method and measured in a continuous flow apparatus (FIAstar™ 5000 Analyser; FOSS Analytical A/S, Hilleroed, Denmark). The organic C content in the dry material was measured by a colometric assay (Lambda 25 UV/VIS Spectrophotometer; PerkinElmer, Inc., Shelton, CT, USA) after wet oxidation of the organic matter using potassium dichromate [48].
The substrate of the 8 pots of the same treatment and the same climate chamber was combined and mixed before taking an aliquot as a single subsample. In this sample, the pH was recorded (inoLab pH 7310; Xylem Analytics Germany Sales GmbH & Co. KG, Weilheim, Germany). Additionally, the contents of the total N, NO3-N and NH4+-N were determined after Kjeldahl distillation (Vapodest; C. Gerhardt GmbH & Co. KG, Königswinter, Germany) and titration with 0.02 M HCl.

2.4. Statistical Analyses

The averages of the plants per climatic chamber and treatment were used for statistical analyses, yielding n = 3. The data assessed in a split plot design (CO2 as the main factor with variety and N form as subfactors) were analyzed using the R software package [49]. The following model for a nested ANOVA was chosen: CO2*N form*variety + error (climatic chamber/(N form*variety)). Following this, the interactions of the 3 experimental factors CO2 concentration, N form and arugula variety were assessed. When significant impacts were observed, they were further dissected by post hoc F-tests at α = 0.05.

3. Results

3.1. Substrate Composition

The total N remaining in the substrate after 44–45 days of arugula cultivation was neither impacted by CO2 supply, nor by N form, nor by arugula variety (Table 1). The concentrations of ammonium-N and nitrate-N did not vary between the treatments. As well, the pH was not altered by the CO2 supply (Table 1). However, the substrate of the ‘Bellezia’ plants had a slightly higher pH than those of the ‘Tricia’ plants. The N form also impacted the pH: with pure nitrate, the pH was higher when compared to ammonium-dominated N.

3.2. Plant Growth and Yield Parameters

The number of leaves per pot (=30 plants) was not significantly affected by the three experimental factors, albeit tendencies for more leaves in ‘Bellezia’ were obvious (p = 0.1). However, differences in the leaf area were detected, which consequently influenced the total leaf area per pot: The CO2 concentration had no significant effect on the leaf area, albeit ‘Bellezia’ with ammonium-dominated N supply had a lower leaf area under elevated CO2 as compared to ambient CO2 concentrations. Thus, the interactions of N form, variety and CO2 supply were apparent (p = 0.048). In general, plants with ammonium-dominated N supply, as well as those of the variety ‘Bellezia’, had lower leaf areas. The same pattern was found for the total above-ground fresh mass. While the CO2 supply did not affect the fresh mass, there was an increase in the dry mass under elevated CO2. The plants with pure nitrate had a higher dry mass. Concerning the arugula varieties, there were tendencies (p = 0.053) for larger above-ground dry mass in the ‘Tricia’ plants.
Inflorescences with at least one open flower showed up at day 39 after sowing (DAS), independently of CO2 supply, N form and arugula variety (Figure S1). On 43 DAS, significant interactions of the three experimental factors’ CO2 supply, N form and arugula variety were observed (p = 0.035).
When fertilized with ammonium-dominated N, ‘Bellezia’ had less inflorescences than ‘Tricia’ under 400 ppm CO2. This difference between the arugula varieties was not found at 800 ppm CO2 when both ‘Tricia’ and ‘Bellezia’ with ammonium-dominated N supply had significantly more inflorescences than under ambient CO2 concentrations. With pure nitrate, the number of inflorescences was not altered by the CO2 supply in both arugula varieties. In general, no significant effects due to CO2 were observed (p > 0.1, Table 2).
The N form exhibited significant effects on the number of inflorescences. At elevated CO2 conditions, both arugula varieties had more inflorescences when grown with pure nitrate as compared to those with ammonium-dominated N.

3.3. Photosynthetic Gas Exchange

The photosynthetic CO2 assimilation was not affected by N form and arugula variety but increased at eCO2 (Figure 3a). However, eCO2 significantly reduced the stomatal conductance (Figure 3b), thereby decreasing transpiration (data not shown), while increasing the leaf-internal CO2 concentration (Figure 3c). The photosynthetic water use efficiency (WUE = assimilated CO2 per water lost by transpiration) was 1.7 to 2.4 times higher at 800 ppm compared to 400 ppm CO2 (Figure 3d).

3.4. Plant Composition

The eight experimental treatments did not differ in terms of the chlorophyll content of the leaves, as confirmed by non-invasive measurements (Figure S2) and by chemical analyses (Table 3).
The concentrations of total carotenoids, anthocyanins and ascorbic acid were not impacted by the experimental factors CO2 concentration, N form and variety (Table 3). Ascorbic acid concentrations showed significant interactions of N form and variety (Table 3). The concentration of ascorbic acid of ‘Tricia’ increased by almost two-fold when grown with ammonium-dominated N at eCO2 as compared to pure nitrate under aCO2.
The N content of the leaves did not differ between the eight experimental treatments (Table 4). The elevated CO2 concentrations tended to increase the C content of the arugula leaves (p = 0.09). Consequently the C/N ratio was significantly increased exclusively by 100% nitrate N, and in the variety ‘Tricia’ (data not shown).
The concentrations of the mineral elements Ca, Mg, Fe, Mn and Cu did not differ between the eight experimental treatments. The concentration of S was not altered by eCO2, N form or arugula variety, with the exception of a decrease due to eCO2 for ‘Bellezia’ fertilized with pure nitrate-N. Potassium concentrations were not altered by N form, variety and CO2 concentration. However, ‘Tricia’ grown with ammonium-dominated N under aCO2 had significantly larger K concentrations in the leaves as compared to ‘Tricia’ grown under eCO2 with pure nitrate-N. The foliar concentrations of P were neither impacted by CO2 concentration nor arugula variety. When supplied with ammonium-dominated N, the P concentrations increased in the leaves regardless of the CO2 concentration. No effects of variety or CO2 concentration on the Zn content of leaves were observed, except for increased contents in “eTriNH”. For Na, no significant differences between the treatments were observed, albeit ‘Bellezia’ grown with ammonium-dominated N under aCO2 (aBeNH) had larger Na concentrations than ‘Tricia’ grown under eCO2 with pure nitrate-N (eTriNO; Table 4).

4. Discussion

This study is a contribution to the highly controversial debate of whether C3 plants benefit from ammonium as a nitrogen source under elevated atmospheric CO2 concentrations (eCO2). This assumption is based on [50], who stated that nitrate assimilation in plants is reduced under non-CO2-limited conditions, under which photorespiration is reduced in favour of carboxylation. Ammonium-N nutrition, compared to nitrate, would then be expected to increase the efficiency of carbon fixation and N assimilation, both leading to higher net production and product quality. However, Andrews et al. [17] argue against that theory with underestimated nitrate assimilation by roots under eCO2 conditions. Besides the reduced leaf nitrate assimilation, the phenomenon of CO2 acclimation, occurring potentially a few days or weeks after eCO2 exposure [51], may mitigate the changes in the N metabolism and thus, the effect of the ammonium-nutrition of plants. Against this controversial background, we tested the effect of N form under eCO2 on plant performance and leaf chemical composition using the short-term leafy vegetable arugula (Eruca sativa), which as a Brassicaceae highly contributes to human health.
When grown under 800 ppm CO2, arugula plants showed a clear CO2 fertilization effect as ci (Figure 3c), photosynthetic CO2 assimilation (Figure 3a) and dry mass (Table 2) increased in response to eCO2, independently of the N form. These effects were recently confirmed for a close relative of arugula, Arabidopsis thaliana [52]. Characteristically for the CO2 fertilization effect, the water use efficiency of arugula plants was improved (Figure 3d), as shown for several other C3 species at eCO2 [2].
The photosynthetic activity was enhanced, as there were no limitations by light, water supply, N supply or CO2. The same is true for other mineral elements, such as Mg. As there were neither effects of the N form nor the CO2 level on the Mg contents in the leaves (Table 4), we conclude that the carboxylation activity of Rubisco was favoured at the expense of the oxygenation of RuBP (see [4]).
This initially enhanced CO2 assimilation was often shown to decrease under long-term eCO2 exposure due to feedback inhibition by the accumulated carbohydrates in the leaves [53]. The so-called CO2 acclimation effect was not observed for the short-term crop arugula (Figure 3a). Consequently, lower photorespiratory activities in plants under eCO2 might be assumed compared to aCO2, which is the prerequisite for limited nitrate assimilation in leaves [50].
However, our study cannot confirm Bloom’s theory [50]. As nitrate assimilation was not quantified we used other methods, such as nitrate depletion from the growth medium which was considered to indicate altered nitrate assimilation in C3 plants [4]. In fact, the lack of differences in soil nitrate-N and ammonium-N concentrations between all treatments at the end of the experiment suggests that nitrate depletion from the medium was unaffected by the CO2 concentration (Table 1). Moreover, leaf N contents were similar in all N form*CO2 treated plants (Table 4), which would not be expected with reduced leaf nitrate assimilation under eCO2 levels. This further yielded similar fresh mass of the plants grown with ammonium-dominated N compared to pure nitrate-N under eCO2 (Table 2). If nitrate assimilation in leaves was nevertheless reduced—and in fact there are indicators of reduced photorespiration and thus, limited nitrate-photoreduction—it must have been compensated by increased assimilation in other plant organs [17,54]. For Arabidopsis thaliana, it was suggested that root N assimilation is favoured in plants under eCO2 conditions in order to “offset the decline in nitrogen metabolism in the leaves” [54]. A shift in the partitioning of nitrate assimilation consequently results in little alterations of the plant´s N status under eCO2 conditions, which we thus can confirm for arugula.
For future fertilization under elevated CO2, we do not recognize any advantage of ammonium-N nutrition for arugula in context of biomass and N accumulation. In general, using ammonium-dominated N is rather detrimental in arugula production as leaf area and fresh and dry mass may be decreased, regardless of the CO2 level (Table 2). Moreover, smaller diameters and less visible roots [55] indicate overall restricted growth processes in response to ammonium-dominated N, pointing to mild toxicity symptoms [12]. This is especially true for the variety ‘Bellezia’ which probably is more sensitive towards ammonium-N supply than the variety ‘Tricia’.
These negative aspects of ammonium-N nutrition can be counterbalanced by lower numbers of inflorescences at harvest (Table 2), especially under eCO2 conditions, resulting in more marketable plants than with nitrate-N. This implies that senescence processes are not enhanced in response to the mild stress imposed by ammonium. Moreover, there was no increased exposure of plants to oxidative stress due to the lower photorespiratory activity under eCO2 [4], as suggested by several antioxidants in the leaves (carotenoids, anthocyanins, ascorbic acid) that were not altered by CO2 level and N form (Table 3). This is similar to results of other studies [50], but contrasts with reported increases in the contents of ascorbic acid and other antioxidants and their precursors in vegetables under eCO2 [35,36,56,57,58].
Thus, the proposed carbon surplus generated by the increased photosynthetic activity under eCO2 conditions was likely not utilized for increased synthesis of secondary metabolites with antioxidative properties [59]. In addition, C surplus was not increasingly metabolized to soluble carbohydrates in the leaves (as the C content was not significantly affected, Table 4), and thus did not cause feedback limitation of photosynthesis in the long-term (Figure 3a). The option of transporting extra carbon to the root system [59] can be excluded since the visible root growth was not promoted (see [55]). We therefore suggest that the surplus carbon was used for modifications of the leaves´ morphological and anatomical structures, as proposed by Gamage et al. [2]. This hypothesis is fostered by the significantly higher dry mass of the plants under eCO2 levels (Table 2).
This higher dry mass resulted in the “dilution” of the macronutrients P, K and S (Table 4). The phenomenon of reduced concentrations of nitrogen and other mineral elements in plants grown under elevated CO2 concentrations [35,39,40,57,60] is a consequence of accumulated photosynthates and reduced root uptake due to increased CO2 assimilation and decreased transpiration, respectively [61]. In our study, the lower concentrations of relevant macronutrients in the above-ground biomass were apparently not limiting the plant growth processes, but they might lower the nutritional quality of the vegetables in the future [35,40].
This is especially true for the micronutrient Zn, as pointed out by Dong et al. [36] and Soares et al. [39]. However, foliar Zn levels were not affected by the CO2 level in our study but were lower when grown with nitrate as the sole N source (Table 4). This can be regarded as a dilution effect by the larger biomass under pure nitrate fertilization.
To overcome these low contents of Zn in the leaves of arugula, the fertilization with ammonium-dominated N may be beneficial under ambient and elevated CO2 (Table 4). However, this conclusion cannot be drawn for several other minerals (Ca, Mg, Na, Mn, Fe, Cu) for which no significant differences between the CO2*N form treatments were observed (Table 4). The same applies to N (Table 4), which is closely linked to the leaf chlorophyll contents (Table 3). Several studies reported that the total chlorophyll content of leaves is not altered even at very high CO2 levels [32,36,52,57,62], which enables the high photosynthetic capacities and the increased water use efficiency under non-limiting conditions, regardless of N form and arugula variety.

5. Conclusions

A CO2 acclimation does not occur in the short-term leafy vegetable arugula. This crop benefits from elevated CO2 levels in terms of photosynthetic activities and biomass development. The supply of ammonium-dominated N, in contrast to the hypothesis of Bloom [50], does not provide further advantages as the biomass development of arugula is rather impeded by this N form, regardless of the atmospheric CO2 level. The same is true for the nutritional quality of arugula leaves, as pure nitrate supply and ammonium-dominated N fertilization have very similar impacts. It is thus not recommended to use ammonium-dominated N for the production of arugula under future elevated CO2 levels.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/horticulturae7080251/s1, Figure S1: Number of inflorescences with at least one open flower observed from days 18 to 39 after the start of the experiments, Figure S2: Indices for the chlorophyll content of the leaves as observed by non-invasive measurements.

Author Contributions

Conceptualization, L.S. and J.Z.; Methodology, L.S. and J.Z.; Investigation, L.S.; Resources, J.Z.; Data Curation, L.S.; Writing—Original Draft Preparation, L.S. and J.Z.; Writing—Review & Editing, L.S. and J.Z.; Visualization, L.S.; Supervision, J.Z.; Project Administration, J.Z.; Funding Acquisition, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Hessian Ministry of Higher Education, Research, Science and the Arts in the framework “Forschung für die Praxis”.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy.

Acknowledgments

The Alpenflor Erdenwerke GmbH & Co. KG donated the substrate, Enza Zaden donated the seeds. YARA provided the N-tester and the analytical data on the leaf mineral composition.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. IPCC. Global Warming of 1.5 °C: An IPCC Special Report On the Impacts of Global Warming of 1.5 °C Above Pre-Industrial Levels and Related Global Greenhouse Gas Emission Pathways, in the Context of Strengthening the Global Response to the Threat of Climate Change, Sustainable Development, and Efforts to Eradicate Poverty. 2018. Available online: www.ipcc.ch/sr15/ (accessed on 7 July 2021).
  2. Gamage, D.; Thompson, M.; Sutherland, M.; Hirotsu, N.; Makino, A.; Seneweera, S. New insights into the cellular mechanisms of plant growth at elevated atmospheric carbon dioxide concentrations. Plant Cell Environ. 2018, 41, 1233–1246. [Google Scholar] [CrossRef] [PubMed]
  3. Ainsworth, E.A.; Rogers, A. The response of photosynthesis and stomatal conductance to rising CO2: Mechanisms and environmental interactions. Plant Cell Environ. 2007, 30, 258–270. [Google Scholar] [CrossRef] [PubMed]
  4. Bloom, A.J. Photorespiration and nitrate assimilation: A major intersection between plant carbon and nitrogen. Photosynth. Res. 2015, 123, 117–128. [Google Scholar] [CrossRef]
  5. Stefanelli, D.; Goodwin, I.; Jones, R. Minimal nitrogen and water use in horticulture: Effects on quality and content of selected nutrients. Food Res. Int. 2010, 43, 1833–1843. [Google Scholar] [CrossRef]
  6. Rubio-Asensio, J.S.; Bloom, A.J. Inorganic nitrogen form: A major player in wheat and Arabidopsis responses to elevated CO2. J. Exp. Bot. 2017, 68, 2611–2625. [Google Scholar] [CrossRef] [PubMed]
  7. Galmés, J.; Flexas, J.; Keys, A.J.; Cifre, J.; Mitchell, R.A.C.; Madgwick, P.J.; Haslam, R.P.; Medrano, H.; Parry, M.A.J. Rubisco specificity factor tends to be larger in plant species from drier habitats and in species with persistent leaves. Plant Cell Environ. 2005, 28, 571–579. [Google Scholar] [CrossRef]
  8. Körner, C. Plant CO2 responses: An issue of definition, time and resource supply. New Phytol. 2006, 172, 393–411. [Google Scholar] [CrossRef] [PubMed]
  9. Bloom, A.J.; Asensio, J.S.R.; Randall, L.; Rachmilevitch, S.; Cousins, A.B.; Carlisle, E.A. CO2 enrichment inhibits shoot nitrate assimilation in C3 but not C4 plants and slows growth under nitrate in C3 plants. Ecology 2012, 93, 355–367. [Google Scholar] [CrossRef]
  10. Bloom, A.J.; Burger, M.; Rubio Asensio, J.S.; Cousins, A.B. Carbon dioxide enrichment inhibits nitrate assimilation in wheat and Arabidopsis. Science 2010, 328, 899–903. [Google Scholar] [CrossRef]
  11. Andrews, M.; Condron, L.M.; Kemp, P.D.; Topping, J.F.; Lindsey, K.; Hodge, S.; Raven, J.A. Elevated CO2 effects on nitrogen assimilation and growth of C3 vascular plants are similar regardless of N-form assimilated. J. Exp. Bot. 2019, 70, 683–690. [Google Scholar] [CrossRef]
  12. Esteban, R.; Ariz, I.; Cruz, C.; Moran, J.F. Review: Mechanisms of ammonium toxicity and the quest for tolerance. Plant Sci. 2016, 248, 92–101. [Google Scholar] [CrossRef] [PubMed]
  13. Britto, D.T.; Kronzucker, H.J. NH4+ toxicity in higher plants: A critical review. J. Plant Physiol. 2002, 159, 567–584. [Google Scholar] [CrossRef]
  14. Walch-Liu, P.; Neumann, G.; Bangerth, F.; Engels, C. Rapid effects of nitrogen form on leaf morphogenesis in tobacco. J. Exp. Bot. 2000, 51, 227–237. [Google Scholar] [CrossRef]
  15. Hachiya, T.; Watanabe, C.K.; Fujimoto, M.; Ishikawa, T.; Takahara, K.; Kawai-Yamada, M.; Uchimiya, H.; Uesono, Y.; Terashima, I.; Noguchi, K. Nitrate addition alleviates ammonium toxicity without lessening ammonium accumulation, organic acid depletion and inorganic cation depletion in Arabidopsis thaliana shoots. Plant Cell Physiol. 2012, 53, 577–591. [Google Scholar] [CrossRef]
  16. Torralbo, F.; González-Moro, M.B.; Baroja-Fernández, E.; Aranjuelo, I.; González-Murua, C. Differential regulation of stomatal conductance as a strategy to cope with ammonium fertilizer under ambient versus elevated CO2. Front. Plant Sci. 2019, 10, 597. [Google Scholar] [CrossRef] [PubMed]
  17. Andrews, M.; Condron, L.M.; Kemp, P.D.; Topping, J.F.; Lindsey, K.; Hodge, S.; Raven, J.A. Will rising atmospheric CO2 concentration inhibit nitrate assimilation in shoots but enhance it in roots of C3 plants? Physiol. Plant 2020, 170, 40–45. [Google Scholar] [CrossRef]
  18. Rowland-Bamford, A.J.; Baker, J.T.; Allen, L.H.J.; Bowes, G. Acclimation of rice to changing atmospheric carbon dioxide concentration. Plant Cell Environ. 1991, 14, 577–583. [Google Scholar] [CrossRef]
  19. Theobald, J.C.; Mitchell, R.A.C.; Parry, M.A.J.; Lawlor, D.W. Estimating the excess investment in ribulose-1,5-bisphosphate carboxylase/oxygenase in leaves of spring wheat grown under elevated CO2. Plant Physiol. 1998, 118, 945–955. [Google Scholar] [CrossRef]
  20. Moore, B.D.; Cheng, S.H.; Sims, D.; Seemann, J.R. The biochemical and molecular basis for photosynthetic acclimation to elevated atmospheric CO2. Plant Cell Environ. 1999, 22, 567–582. [Google Scholar] [CrossRef]
  21. Geiger, M.; Haake, V.; Ludewig, F.; Sonnewald, U.; Stitt, M. The nitrate and ammonium nitrate supply have a major influence on the response of photosynthesis, carbon metabolism, nitrogen metabolism and growth to elevated carbon dioxide in tobacco. Plant Cell Environ. 1999, 22, 1177–1199. [Google Scholar] [CrossRef]
  22. Matt, P.; Geiger, M.; Walch-Liu, P.; Engels, C.; Krapp, A.; Stitt, M. Elevated carbon dioxide increases nitrate uptake and nitrate reductase activity when tobacco is growing on nitrate, but increases ammonium uptake and inhibits nitrate reductase activity when tobacco is growing on ammonium nitrate. Plant Cell Environ. 2001, 24, 1119–1137. [Google Scholar] [CrossRef]
  23. Dong, J.; Li, X.; Chu, W.; Duan, Z. High nitrate supply promotes nitrate assimilation and alleviates photosynthetic acclimation of cucumber plants under elevated CO2. Sci. Hortic. 2017, 218, 275–283. [Google Scholar] [CrossRef]
  24. Bloom, A.J.; Kasemsap, P.; Rubio-Asensio, J.S. Rising atmospheric CO2 concentration inhibits nitrate assimilation in shoots but enhances it in roots of C3 plants. Physiol. Plant 2020, 168, 963–972. [Google Scholar] [CrossRef]
  25. Kim, S.-J.; Chiami, K.; Ishii, G. Effect of ammonium: Nitrate nutrient ratio on nitrate and glucosinolate contents of hydroponically-grown rocket salad (Eruca sativa Mill.). Soil Sci. Plant Nutr. 2006, 52, 387–393. [Google Scholar] [CrossRef]
  26. Albornoz, F. Crop responses to nitrogen overfertilization: A review. Sci. Hortic. 2016, 205, 79–83. [Google Scholar] [CrossRef]
  27. Shang, H.Q.; Shen, G.M. Effect of ammonium/nitrate ratio on pak choi (Brassica chinensis L.) photosynthetic capacity and biomass accumulation under low light intensity and water deficit. Photosynthetica 2018, 56, 1039–1046. [Google Scholar] [CrossRef]
  28. Santamaria, P.; Elia, A.; Papa, G.; Serio, F. Nitrate and ammonium nutrition in chicory and rocket salad plants. J. Plant Nutr. 1998, 21, 1779–1789. [Google Scholar] [CrossRef]
  29. Santamaria, P.; Elia, A.; Parente, A.; Serio, F. Fertilization strategies for lowering nitrate content in leafy vegetables: Chicory and rocket salad cases. J. Plant Nutr. 1998, 21, 1791–1803. [Google Scholar] [CrossRef]
  30. Zaghdoud, C.; Carvajal, M.; Moreno, D.A.; Ferchichi, A.; Del Carmen Martínez-Ballesta, M. Health-promoting compounds of broccoli (Brassica oleracea L. var. italica) plants as affected by nitrogen fertilisation in projected future climatic change environments. J. Sci. Food Agric. 2016, 96, 392–403. [Google Scholar] [CrossRef]
  31. Marino, D.; Ariz, I.; Lasa, B.; Santamaria, E.; Fernandez-Irigoyen, J.; Gonzalez-Murua, C.; Aparicio Tejo, P.M. Quantitative proteomics reveals the importance of nitrogen source to control glucosinolate metabolism in Arabidopsis thaliana and Brassica oleracea. J. Exp. Bot. 2016, 67, 3313–3323. [Google Scholar] [CrossRef]
  32. Chitarra, W.; Siciliano, I.; Ferrocino, I.; Gullino, M.L.; Garibaldi, A. Effect of elevated atmospheric CO2 and temperature on the disease severity of rocket plants caused by fusarium wilt under phytotron conditions. PLoS ONE 2015, 10, e0140769. [Google Scholar] [CrossRef]
  33. Gilardi, G.; Pugliese, M.; Chitarra, W.; Ramon, I.; Gullino, M.L.; Garibaldi, A. Effect of elevated atmospheric CO2 and temperature increases on the severity of basil downy mildew caused by Peronospora belbahrii under phytotron conditions. J. Phytopathol. 2016, 164, 114–121. [Google Scholar] [CrossRef]
  34. Eastburn, D.M.; McElrone, A.J.; Bilgin, D.D. Influence of atmospheric and climatic change on plant-pathogen interactions. Plant Pathol. 2011, 60, 54–69. [Google Scholar] [CrossRef]
  35. Bisbis, M.B.; Gruda, N.; Blanke, M. Potential impacts of climate change on vegetable production and product quality—A review. J. Clean. Prod. 2018, 170, 1602–1620. [Google Scholar] [CrossRef]
  36. Dong, J.; Gruda, N.; Lam, S.K.; Li, X.; Duan, Z. Effects of elevated CO2 on nutritional quality of vegetables: A review. Front. Plant Sci. 2018, 9, 924. [Google Scholar] [CrossRef] [PubMed]
  37. Muthusamy, M.; Hwang, J.E.; Kim, S.H.; Kim, J.A.; Jeong, M.-J.; Park, H.C.; Lee, S.I. Elevated carbon dioxide significantly improves ascorbic acid content, antioxidative properties and restricted biomass production in cruciferous vegetable seedlings. Plant Biotechnol. Rep. 2019, 13, 293–304. [Google Scholar] [CrossRef]
  38. Jain, V.; Pal, M.; Raj, A.; Khetarpal, S. Photosynthesis and nutrient composition of spinach and fenugreek grown under elevated carbon dioxide concentration. Biol. Plant 2007, 51, 559–562. [Google Scholar] [CrossRef]
  39. Soares, J.C.; Santos, C.S.; Carvalho, S.M.P.; Pintado, M.M.; Vasconcelos, M.W. Preserving the nutritional quality of crop plants under a changing climate: Importance and strategies. Plant Soil 2019, 443, 1–26. [Google Scholar] [CrossRef]
  40. Loladze, I. Hidden shift of the ionome of plants exposed to elevated CO2 depletes minerals at the base of human nutrition. elife 2014, 3, e02245. [Google Scholar] [CrossRef] [PubMed]
  41. Hall, M.; Jobling, J.; Rogers, G. Some perspectives on rocket as a vegetable crop: A review. Veg. Crop. Res. Bull. 2012, 76, 334. [Google Scholar] [CrossRef]
  42. Ramos-Bueno, R.P.; Rincón-Cervera, M.A.; González-Fernández, M.J.; Guil-Guerrero, J.L. Phytochemical composition and antitumor activities of new salad greens: Rucola (Diplotaxis tenuifolia) and corn salad (Valerianella locusta). Plant Foods Hum. Nutr. 2016, 71, 197–203. [Google Scholar] [CrossRef]
  43. Herms, D.A.; Mattson, W.J. The dilemma of plants: To grow or defend. Q. Rev. Biol. 1992, 67, 283–335. [Google Scholar] [CrossRef]
  44. Weinheimer, S.; Naab, B. Deutliche Unterschiede bei Rucola hinsichtlich der Anfälligkeit bei Falschem Mehltau und dem Schossverhalten. In Versuche im Deutschen Gartenbau—Ökologischer Gemüsebau; Verband der Landwirtschaftskammern e.V.: Berlin, Germany, 2014; pp. 230–232. (In German) [Google Scholar]
  45. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. Available online: www.imagej.net/software/fiji/ (accessed on 7 July 2021). [CrossRef] [PubMed]
  46. Ensminger, I.; Xyländer, M.; Hagen, C.; Braune, W. Strategies providing success in a variable habitat: III. Dynamic control of photosynthesis in Cladophora glomerata. Plant Cell Environ. 2001, 24, 769–779. [Google Scholar] [CrossRef]
  47. Mancinelli, A.L. Interaction between light quality and light quantitiy in the photoregulation of anthocyanin production. Plant Physiol. 1990, 92, 1191–1195. [Google Scholar] [CrossRef] [PubMed]
  48. Sims, J.R.; Haby, V.A. Simplified colorimetric determination of soil organic matter. Soil Sci. 1971, 112, 137–141. [Google Scholar] [CrossRef]
  49. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2015; Available online: www.R-project.org (accessed on 7 July 2021).
  50. Bloom, A.J. Rising carbon dioxide concentrations and the future of crop production. J. Sci. Food Agric. 2006, 86, 1289–1291. [Google Scholar] [CrossRef]
  51. Van Oosten, J.J.; Besford, R.T. Acclimation of photosynthesis to elevated CO2 through feedback regulation of gene expression: Climate of opinion. Photosynth. Res. 1996, 48, 353–365. [Google Scholar] [CrossRef] [PubMed]
  52. Dhami, N.; Cazzonelli, C.I. Short photoperiod attenuates CO2 fertilization effect on shoot biomass in Arabidopsis thaliana. Physiol. Mol. Biol. Plants 2021, 27, 825–834. [Google Scholar] [CrossRef]
  53. Tausz-Posch, S.; Tausz, M.; Bourgault, M. Elevated CO2 effects on crops: Advances in understanding acclimation, nitrogen dynamics and interactions with drought and other organisms. Plant Biol. 2020, 22 (Suppl. 1), 38–51. [Google Scholar] [CrossRef]
  54. Jauregui, I.; Aparicio-Tejo, P.M.; Avila, C.; Cañas, R.; Sakalauskiene, S.; Aranjuelo, I. Root-shoot interactions explain the reduction of leaf mineral content in Arabidopsis plants grown under elevated CO2 conditions. Physiol. Plant. 2016, 158, 65–79. [Google Scholar] [CrossRef] [PubMed]
  55. Schmidt, L.; Zinkernagel, J. How to optimize the cultivation of arugula under elevated atmospheric CO2 and different nitrogen forms? DGG Proc. 2018, 8, 1–5. [Google Scholar]
  56. Jin, C.W.; Du, S.T.; Zhang, Y.S.; Tang, C.; Lin, X.Y. Atmospheric nitric oxide stimulates plant growth and improves the quality of spinach (Spinacia oleracea ). Ann. Appl. Biol. 2009, 155, 113–120. [Google Scholar] [CrossRef]
  57. Dong, A.; Armstrong, B.; Rajashekar, C.B. Elevated carbon dioxide level suppresses nutritional quality of lettuce and spinach. Am. J. Plant Sci. 2016, 7, 246–258. [Google Scholar] [CrossRef]
  58. Becker, C.; Kläring, H.-P. CO2 enrichment can produce high red leaf lettuce yield while increasing most flavonoid glycoside and some caffeic acid derivative concentrations. Food Chem. 2016, 199, 736–745. [Google Scholar] [CrossRef] [PubMed]
  59. Prescott, C.E.; Grayston, S.J.; Helmisaari, H.-S.; Kaštovská, E.; Körner, C.; Lambers, H.; Meier, I.C.; Millard, P.; Ostonen, I. Surplus carbon drives allocation and plant-soil interactions. Trends Ecol. Evol. 2020, 35, 1110–1118. [Google Scholar] [CrossRef]
  60. Loladze, I. Rising atmospheric CO2 and human nutrition: Toward globally imbalanced plant stoichiometry? Trends Ecol. Evol. 2002, 17, 457–461. [Google Scholar] [CrossRef]
  61. Taub, D.R.; Wang, X. Why are nitrogen concentrations in plant tissues lower under elevated CO2? A critical examination of the hypotheses. J. Integr. Plant Biol. 2008, 50, 1365–1374. [Google Scholar] [CrossRef]
  62. Sato, S.; Yanagisawa, S. Characterization of metabolic states of Arabidopsis thaliana under diverse carbon and nitrogen nutrient conditions via targeted metabolomic analysis. Plant Cell Physiol. 2014, 55, 306–319. [Google Scholar] [CrossRef]

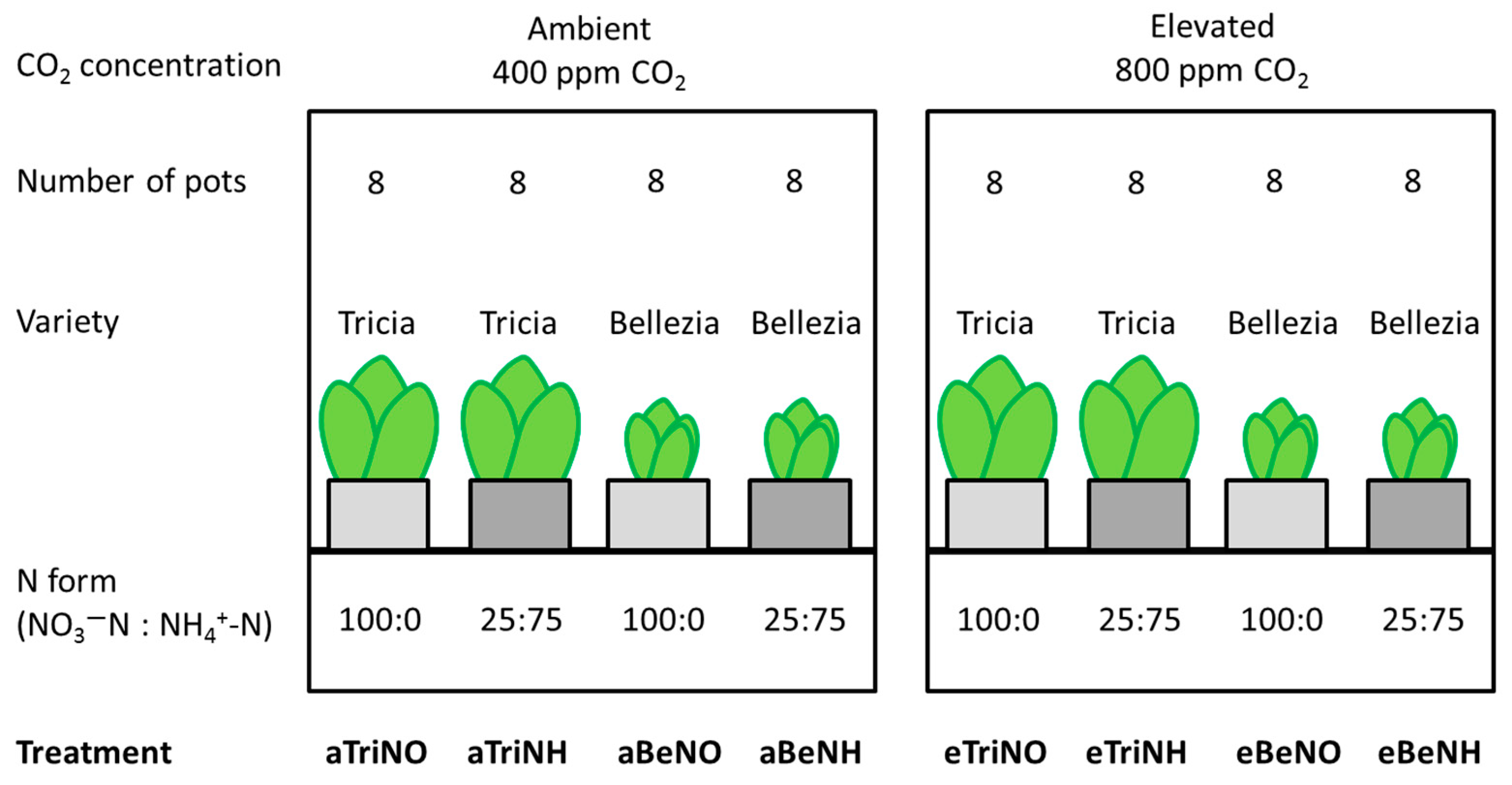

Figure 1. Design of one experimental set. One rectangle represents one climatic chamber. This set-up was repeated three times.
Figure 1. Design of one experimental set. One rectangle represents one climatic chamber. This set-up was repeated three times.
Horticulturae 07 00251 g001

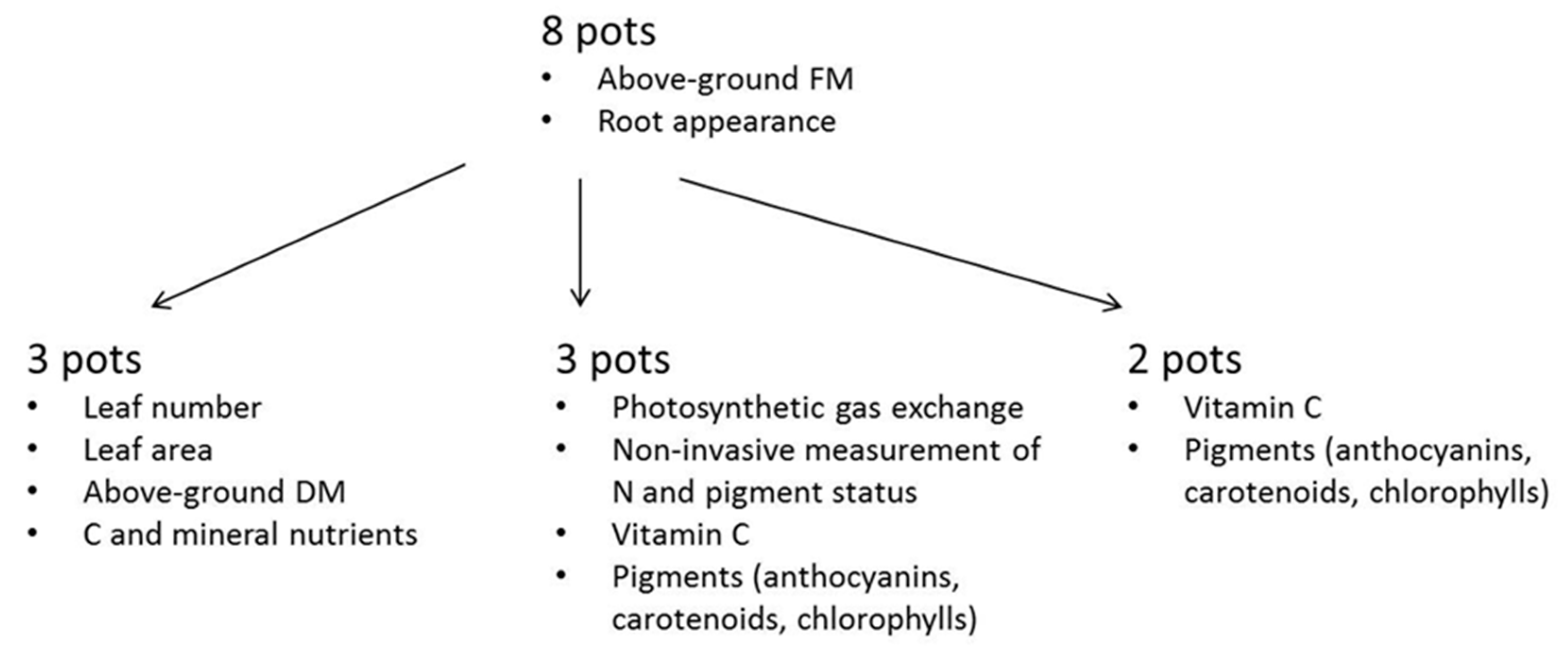

Figure 2. Parameters assessed at harvest of the arugula plants. Each pot contained 30 plants. FM = fresh mass, DM = dry mass.
Figure 2. Parameters assessed at harvest of the arugula plants. Each pot contained 30 plants. FM = fresh mass, DM = dry mass.
Horticulturae 07 00251 g002

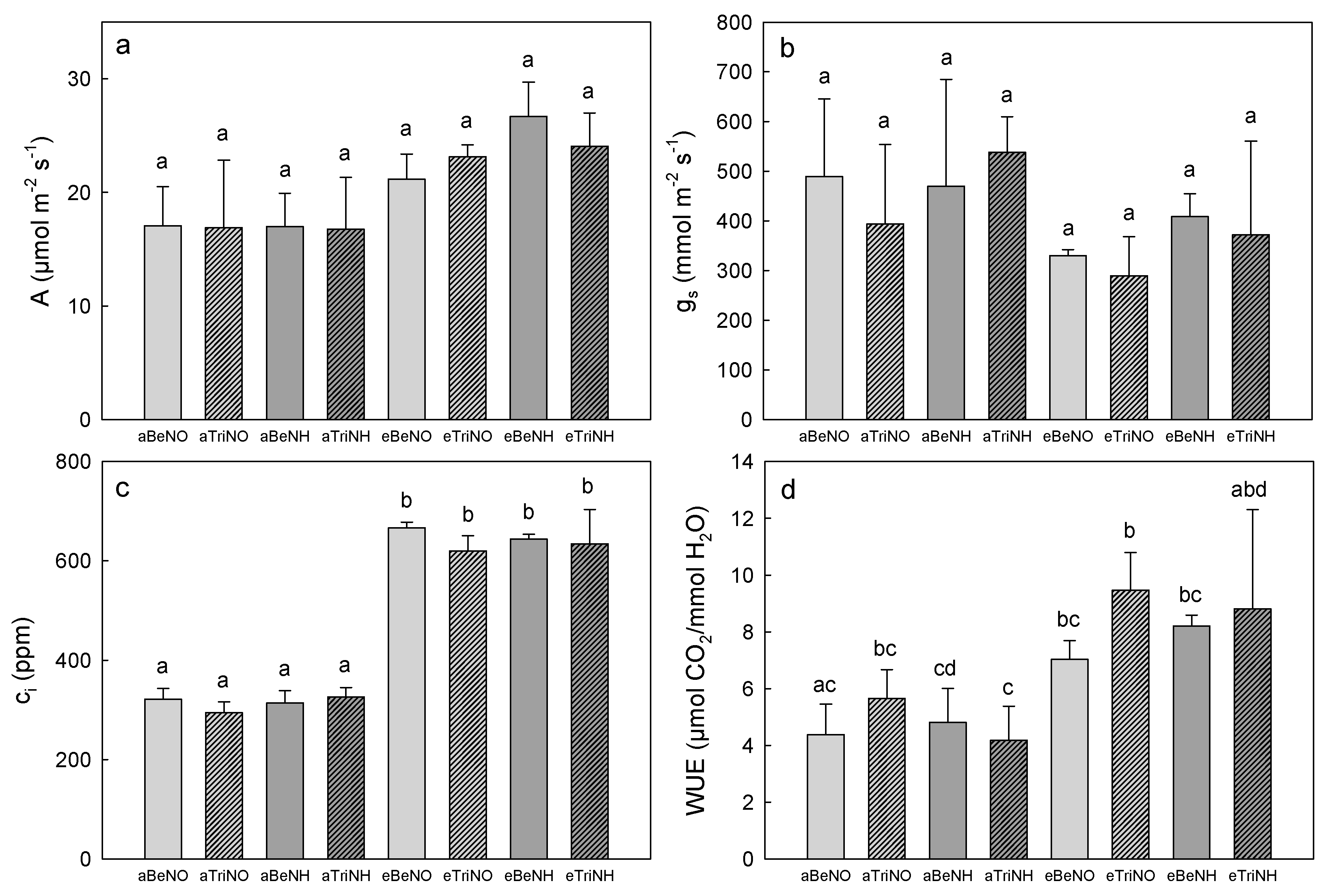

Figure 3. Photosynthetic CO2 assimilation (a), stomatal conductance (b), leaf-internal CO2 concentration (c) and photosynthetic water use efficiency (d) at harvest (45–46 days after sowing). a = ambient CO2, e = elevated CO2, Be = ‘Bellezia’, Tri = ‘Tricia’, NO = pure nitrate, NH = ammonium-dominated N. Data are averages of n = 3. Different letters indicate significant differences between the treatments at α = 0.05.
Figure 3. Photosynthetic CO2 assimilation (a), stomatal conductance (b), leaf-internal CO2 concentration (c) and photosynthetic water use efficiency (d) at harvest (45–46 days after sowing). a = ambient CO2, e = elevated CO2, Be = ‘Bellezia’, Tri = ‘Tricia’, NO = pure nitrate, NH = ammonium-dominated N. Data are averages of n = 3. Different letters indicate significant differences between the treatments at α = 0.05.
Horticulturae 07 00251 g003
Table 1. Chemical parameters of the growth substrate at harvest (44–45 DAS). n = 3.
Table 1. Chemical parameters of the growth substrate at harvest (44–45 DAS). n = 3.
TreatmentTotal N
(mg·L−1)
NH4+-N
(mg·L−1)
NO3-N
(mg·L−1)
pH
aBeNO65.6 a30.1 a35.5 a7.0 a
aTriNO62.6 a15.6 a47.0 a7.0 a
aBeNH83.1 a28.7 a54.4 a6.1 b
aTriNH63.4 a27.7 a35.7 a5.8 c
eBeNO60.1 a23.4 a36.7 a7.1 a
eTriNO67.7 a20.1 a47.5 a7.0 a
eBeNH84.0 a31.4 a52.6 a6.1 b
eTriNH56.1 a24.7 a31.5 a5.6 c
Different letters show differences between the experimental treatments at α = 0.05. a = ambient CO2, e = elevated CO2, Be = ‘Bellezia’, Tri = ‘Tricia’, NO = pure nitrate, NH = ammonium-dominated N.
Table 2. Above-ground biomass parameters at harvest. Data are averages of n = 3.
Table 2. Above-ground biomass parameters at harvest. Data are averages of n = 3.
TreatmentFresh Mass
(g·plant−1)
Dry Mass
(g·plant−1)
Leaf Number
(plant−1)
Total Leaf Area
(cm2·plant−1)
Inflorescences
(Number pot−1)
aBeNO1.53 a0.27 ac8.11 a25.48 ab4.7 c
aTriNO1.64 a0.28 ad7.81 a30.10 c4.1 c
aBeNH1.11 b0.18 b8.09 a21.25 de2.6 d
aTriNH1.28 ce0.22 ab7.70 a25.84 ab3.7 c
eBeNO1.59 ad0.32 cd8.52 a25.66 ab6.5 ac
eTriNO1.66 a0.32 cd8.20 a28.30 ac7.4 ac
eBeNH1.14 bc0.23 ab8.46 a19.04 d5.8 b
eTriNH1.30 e0.26 a8.19 a24.03 be5.9 b
Different letters indicate significant differences between the treatments at α = 0.05. a = ambient CO2, e = elevated CO2, Be = ‘Bellezia’, Tri = ‘Tricia’, NO = pure nitrate, NH = ammonium-dominated N.
Table 3. Pigment and ascorbic acid contents of leaves of two arugula varieties grown with two different N forms and two atmospheric CO2 concentrations. n = 3.
Table 3. Pigment and ascorbic acid contents of leaves of two arugula varieties grown with two different N forms and two atmospheric CO2 concentrations. n = 3.
TreatmentChlorophylls
(mg 100 g−1 FM)
Carotenoids
(mg 100 g−1 FM)
Anthocyanins
(mg 100 g−1 FM)
Ascorbic Acid
(mg 100 g−1 FM)
aBeNO30.5 a0.25 a8.3 a24.5 ab
aTriNO29.8 a0.16 a8.1 a18.1 a
aBeNH37.5 a0.18 a9.4 a18.1 a
aTriNH29.1 a0.15 a6.8 a21.5 ab
eBeNO29.7 a0.49 a5.5 a24.8 ab
eTriNO25.5 a0.40 a6.2 a21.8 ab
eBeNH30.3 a0.25 a5.7 a26.6 ab
eTriNH30.1 a0.32 a6.4 a35.2 b
Different letters indicate significant differences between the treatments at α = 0.05. a = ambient CO2, e = elevated CO2, Be = ‘Bellezia’, Tri = ‘Tricia’, NO = pure nitrate, NH = ammonium-dominated N.
Table 4. Concentration of macro- and micronutrients in above-ground dry mass of arugula. n = 3.
Table 4. Concentration of macro- and micronutrients in above-ground dry mass of arugula. n = 3.
ElementUnitaBeNOaTriNOaBeNHaTriNHeBeNOeTriNOeBeNHeTriNH
C%39.1 a37.8 a38.1 a38.6 a39.2 a39.5 a39.9 a39.6 a
N%2.19 a2.16 a2.97 a2.47 a1.92 a1.85 a2.61 a2.51 a
S%0.96 ab1.12 abc1.31 b1.20 ab0.81 c0.90 c1.02 abc0.94 ac
K%2.91 bc3.18 bc3.17 bc3.30 b2.68 ac2.73 ac2.94 bc3.01 bc
P%0.39 a0.36 a0.71 b0.61 bc0.33 a0.33 a0.63 bc0.57 c
Ca%1.87 a1.97 a1.65 a1.37 a1.73 a1.74 a1.38 a1.33 a
Mg%0.22 a0.24 a0.22 a0.22 a0.21 a0.22 a0.21 a0.21 a
Feppm41.4 a42.7 a60.1 a71.5 a39.4 a39.1 a71.9 a63.6 a
Znppm20.3 a21.0 abd28.3 bc30.9 c20.5 ab20.9 abd31.1 c28.3 cd
Mnppm11.4 a10.7 a12.5 a18.4 a11.0 a9.1 a13.7 a16.7 a
Cuppm6.44 a7.04 a8.09 a6.87 a7.34 a6.47 a7.19 a6.84 a
Nappm0.16 ab0.15 ab0.22 a0.15 ab0.13 ab0.13 b0.15 ab0.13 ab
Different letters indicate significant differences between the treatments at α = 0.05. a = ambient CO2, e = elevated CO2, Be = ‘Bellezia’, Tri = ‘Tricia’, NO = pure nitrate, NH = ammonium-dominated N.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
