Article

Sensitive Voltammetric Detection of Chloroquine Drug by Applying a Boron-Doped Diamond Electrode

by
Geiser Gabriel Oliveira
1,
Déborah Christine Azzi
2,
Tiago Almeida Silva
3,*,
Paulo Roberto de Oliveira
4,
Orlando Fatibello-Filho
2 and
Bruno Campos Janegitz
4,*
1
Chemistry Collegiate, Federal University of Tocantins, 77402-970 Gurupi, Tocantins, Brazil
2
Department of Chemistry, Federal University of São Carlos, 13560-970 São Carlos, São Paulo, Brazil
3
Department of Metallurgy and Chemistry, Federal Center for Technological Education of Minas Gerais, 35180-008 Timóteo, Minas Gerais, Brazil
4
Department of Nature Sciences, Mathematics and Education, Federal University of São Carlos, 13600-970 Araras, São Paulo, Brazil
*
Authors to whom correspondence should be addressed.
Submission received: 30 September 2020 / Revised: 6 November 2020 / Accepted: 8 November 2020 / Published: 11 November 2020
(This article belongs to the Special Issue Carbon Based Electrochemical Devices)

Abstract

:
In this research, a boron-doped diamond (BDD) electrode has been explored to detect the chloroquine drug. The electrochemical performance of BDD electrode towards the irreversible anodic response of chloroquine was investigated by subjecting this electrode to the cathodic (−0.5 A cm−2 by 180 s, generating a predominantly hydrogen-terminated surface) and anodic (+0.5 A cm−2 by 30 s, oxygen-terminated surface) pretreatments. The cathodically pretreated BDD electrode ensured a better-defined anodic peak and higher current intensity. Thus, by applying the cathodically pretreated BDD electrode and square-wave voltammetry (SWV), the analytical curve was linear from 0.01 to 0.25 µmol L−1 (correlation coefficient of 0.994), with sensitivity and limit of detection of 12.2 µA L µmol−1 and 2.0 nmol−1, respectively. This nanomolar limit of detection is the lowest recorded so far with modified and unmodified electrodes.

1. Introduction

Chloroquine is a widely used antimalarial drug, and it is part of the World Health Organization (WHO) model list of essential medicines [1]. This drug belongs to the class of 4-aminoquinolines and acts as a weak base due to the presence of a base side chain in its molecular structure (Figure 1) [2]. This base character seems to be important to justify its biological activity, although the mechanism of action of this molecule has not yet been fully elucidated [2]. Chloroquine is commercialized as a phosphate salt and reaches the peak plasma concentration 4–12 h after an individual dose [3]. It is considered a safe drug, although the margin between the therapeutic and toxic dose is narrow, and the common side effects of this drug include nausea, vomiting, diarrhea, and abdominal discomfort [4]. Furthermore, the most worrying effect of chloroquine administration is the development of retinopathy, i.e., damage of retina with the consequent partial or complete loss of vision [5,6]. Nowadays, although the efficiency is not clear, the use of this drug in treating coronavirus 2019 (COVID-19) has been studied; however, self-medication is strongly not recommended [7,8]. In view of the relevance of chloroquine, high-performance analytical methods are required for its rigid control in pharmaceutical formulations.
Among the analytical techniques, voltammetric analysis is one of the most powerful and versatile, which allows providing qualitative and quantitative information about a given analyte and can be used with different types of sensors. In this context, carbon electrodes are interesting alternatives for electroanalytical chemistry, such as graphite [9], carbon nanotubes [10], graphene [11], carbon black [12], nanodiamonds [13], and boron-doped diamond electrode [14]. Our research group has recently published some revisions about carbon conductive materials to highlight the importance of these materials [15,16,17,18]. They are highly conductive and inert, which can be modified or not [19,20] and can be applied for the determination of different compounds, including for environmental, medical, and food purposes.
An electrode material that has stood out significantly in recent years for applications in the field of electroanalysis is the boron-doped diamond electrode (BDD). The deposition of BDD films as a p-type semiconductor is routinely carried out by chemical vapour deposition methods from mixture gases (hydrocarbon (typically methane)/hydrogen) using different activation sources, for example hot filament, low-pressure direct current plasma, radio frequency plasma, or microwave discharge. A detailed description of the different growth methods of BDD films and their characterization can be found in specialized reviews [21,22,23,24]. This carbon material has a wide range of favourable characteristics, including excellent morphological and microstructural stability at high temperatures, weak adsorption of organic and inorganic compounds (reduced fouling), minimal and stable background current, fast charge-transfer kinetic, and wide potential window in aqueous and nonaqueous solvents [25,26,27,28,29]. Additionally, the anodic and cathodic electrochemical treatments of the BDD surface can generate functional groups that can increase the analytical signal and promote better electron transfer between the interface electrode/bulk solution [25]. As a result, BDD has become promising for the electrochemical detection of different analytes of interest, such as drugs [30,31] and environmental contaminants [14]. Lourencao et al. performed the individual and simultaneous voltammetric determination of paracetamol and caffeine by using a cathodically pretreated BDD electrode. The individual determination of these analytes was carried out by square-wave voltammetry (SWV) and the simultaneous determination by differential pulse voltammetry (DPV). This specific determination by voltammetric tools is critical because of the high oxidation potential of caffeine. However, the stable and low background current of BDD ensured the individual determination of caffeine in the linear range of 0.3 µmol L−1 to 91.0 µmol L−1, with a limit of detection (LOD) of 0.14 µmol L−1. Regarding the simultaneous determination, the following analytical parameters were achieved: linear ranges of 0.5 µmol L−1 to 83.0 µmol L−1 (both paracetamol and caffeine) and LODs of 0.49 µmol L−1 (paracetamol) and 0.035 µmol L−1 (caffeine). When applied to pharmaceutical samples, the DPV method based on the cathodically pretreated BDD provided quantitative data statistically equivalent to those from a high-performance liquid chromatography (HPLC) method. The use of BDD electrodes and pulsed voltammetric techniques is a highly successful combination, with outstanding analytical performance parameters for the detection of compounds of pharmaceutical [32,33], food [34], environmental [14,35], forensic [33,36] interest, etc. Additionally, its robustness as an electrode material was paramount in the establishment of high-frequency analytical methods based on the coupling of flow injection analysis and amperometric detection (especially the multiple pulse amperometry for simultaneous determinations) [37,38,39]. The research group led by Richter and Munoz also proposed many innovative works using batch injection analysis [40,41,42].
Based on the above context, a new voltammetric procedure has been developed to detect the chloroquine drug using a BDD as the electrochemical sensor.

2. Materials and Methods

2.1. Reagents and Solutions

Analytical degree chemical reagents were employed in all the experimental stages, without any additional purification or treatment. Standard of chloroquine (purity > 99%) was purchased from Calendula Pharmacy (São Carlos-SP, Brazil). The electrochemical measurements were performed in aqueous media, and therefore, ultrapure water supplied by a Milli-Q system (Millipore, São Paulo, Brazil) (electrical resistivity > 18 ΩM cm) was used. A standard aqueous solution of 1.0 × 10−3 mol L−1 chloroquine was daily prepared. Addition and recovery experiments were carried out by using manipulated drug obtained from a local drugstore. For this purpose, 1.0 × 10−3 mol L−1 of this drug was prepared at 0.1 mol L−1 Britton-Robinson buffer solution (pH 6.0).

2.2. Instrumentation

The voltammetric analysis (cyclic and square-wave voltammetries) were carried out using an Autolab PGSTAT-30 potentiostat/galvanostat (Metrohm Autolab, Utrecht, The Netherlands) controlled by the GPES 4.9 software. A three-electrode electrochemical cell with a volume of 20 mL was used. Thus, the electrodes system was composed of a BDD working electrode, a Pt wire counter electrode and an Ag/AgCl (3.0 mol L−1 KCl) reference electrode. The BDD film was synthesized on p-silicon wafers and with a boron content of 8000 ppm in the Centre Suisse d’Electronique et de Microtechnique SA (CSEM), Neuchâtel, Switzerland, using the hot filament chemical vapour deposition technique, as described elsewhere [43,44,45]. To enable its use as a working electrode, the as-received BDD plate was fixed on conductive copper support using silver ink (Figure 2). The BDD electrode (0.32 cm2 exposed area) was subjected to a previous electrochemical pretreatment. In this sense, the anodic and cathodic pretreatments were applied and compared. To achieve these pretreatments of the BDD surface, the current density of −0.5 A cm−2 (cathodic) or +0.5 A cm−2 (anodic) in a 0.50 mol L−1 H2SO4 solution was applied by 180 s (cathodic) or 60 s (anodic), respectively. The morphological analysis of BDD was performed using a Supra 35-VP FEG-SEM equipment (Carl Zeiss, Oberkochen, Germany) with electron-beam energy of 20 keV.

3. Results and Discussion

3.1. Working Electrode Characterization

Morphology of BDD film growth on p-Si wafer with a B-doping level of 8000 ppm was evaluated by SEM. The SEM micrographs of the BDD surface are shown in Figure 3a,b. It was registered as a uniform morphology based on a regular pyramidal structure, following previous literature [46]. This regular pyramidal structure morphology refers to the preferential textured growth along the (111) planes direction [45,47,48]. Additionally, the electrochemical quality of the used BDD was investigated by exploring the response of an inorganic redox probe.
Figure 4a shows the cyclic voltammograms recorded for the cathodically pretreated BDD for a 1.0 × 10−3 mol L−1 K3Fe(CN)6 solution. A well-defined pair of anodic and cathodic peaks was observed, related to the oxidation–reduction semi-reactions of Fe3+/2+ redox pair. The peak-to-peak potential separation (ΔEp) was equal to 83 mV, which is a value close to the theoretical value of 59.2 mV, typical for a reversible redox process involving the transfer of one electron. Additionally, the ratio of anodic and cathodic peak currents (Ipa/Ipc), another parameter to evaluate the reversibility of redox processes, was calculated as being 1.04. Once again, the experimental Ipa/Ipc parameter was in concordance with its theoretical value of 1.0 reported to reversible redox reactions [49]. These data served to state the good electron transfer kinetic property of the BDD electrode. Moreover, the electroactive surface area of the employed electrode was predicted by cyclic voltammetry assays carried out in a wide scan rate range (10 to 500 mV s−1) towards the same redox probe. The cyclic voltammograms collected in the mentioned scan rate range are shown in Figure 4b. From them, the plots of Ipa and Ipc versus square root of the scan rate (v1/2) were constructed (Figure 4c). Comparing the slope of the linear Ipa vs. v1/2 curve with the theoretical slope of the Randles–Sevick equation for reversible and diffusion-controlled electrodic reactions, the electroactive surface area was calculated. Considering n = 1 (number of electrons), D = 7.6 × 10−6 cm2 s−1 (diffusion coefficient of Fe(CN)63−) and C = 1.0 × 10−6 mol cm−3 (concentration of Fe(CN)63−), the estimated electroactive area was 0.285 cm2.
Then, the heterogeneous electron transfer rate constant (k0) was also predicted from the data of cyclic voltammetry at different scan rates. In this case, as the redox probe figures a reversible and diffusion-controlled electron transfer, the method reported by Nicholson [50,51] was applied. Nicholson’s equation to calculate k0 in this case is:
Ψ   =   k 0 [ π   D   n   v   F / ( R T ) ] 1 / 2
where Ψ is a kinetic parameter, F is the Faraday’s constant (96,485 C mol−1), R = 8.314 J K−1 mol−1, T = 298.15 K, and the other terms have been previously defined. The kinetic parameter Ψ is dependent on the scan rate, and it was calculated from the ΔEp values verified in the different scan rates using the equations proposed by Lavagnini et al. [52]. Knowing the Ψ values, k0 is directly determined as being the slope of a Ψ vs. 32.79 v1/2 plot (Inset of Figure 4c) [51]. The 32.79 factor is equivalent to the term [πDnF/(RT)]−1/2 of Nicholson’s equation (Equation (1)). Thus, the obtained k0 constant was 0.0056 cm s−1. This constant is comparable or better to the same parameter obtained for traditional carbon-based working electrodes, as glassy carbon [53] and carbon paste electrodes [54].

3.2. Chloroquine Electrochemistry

The electrochemical activity of chloroquine drug was explored by cyclic voltammetry. In this study, the influence of the predominant BDD surface termination on the analyte response, i.e., hydrogenated (for cathodic pretreatment) or oxygenated (for anodic pretreatment), was also accessed. Thus, the cyclic voltammograms collected towards a 1.5 × 10−4 mol L−1 chloroquine solution prepared in 0.1 mol L−1 phosphate buffer solution (pH = 7.0) as the supporting electrolyte using the CPT- and APT-BDD electrodes are available in Figure 5a. The potential scanning was started at +0.8 V and in the anodic direction. During the anodic scanning, in both cases, a well-discriminated peak was recorded. However, after the inversion of the potential scanning direction, no cathodic peaks to form a couple with the previous anodic peak were verified, indicating the property of chloroquine molecule to undergo an irreversible oxidation reaction. This irreversible oxidation reaction has been related to the aminoquinoline moiety [55], in a one-electron oxidation step, as outlined in Figure 5b. Comparatively, it is interesting to notice that the cathodically pretreated BDD provided a better chloroquine response. By using this pretreatment, the anodic peak of chloroquine was better defined and occurred at a less positive potential, which is a contributing factor in reducing possible interferences. This enhanced voltammetric response of chloroquine molecule on the cathodically pretreated BDD is in line with several other studies [14,32,56,57,58,59,60], which was selected for further studies.

3.3. Square-Wave Voltammetry (SWV) Detection of Chloroquine

The optimization for SWV detection of chloroquine was performed by using the parameters and conditions, as presented in Table 1. The selected conditions were 0.1 mol L−1 Britton–Robson buffer (pH = 6.0), frequency of 100 Hz, the amplitude of 50 mV, and potential increment of 5 mV. All these optimum values were recorded from obtaining a well-defined and high-intensity anodic peak as the analytical signal for chloroquine.
Under the optimum experimental conditions, the analytical curve for chloroquine was constructed. For this, different aliquots of a standard chloroquine solution were added to the electrochemical cell, homogenized by stirring, and the SWV reading was performed for the different obtained concentrations. By doing this, the BDD response was linear in the chloroquine concentration range of 0.01 to 0.25 µmol L−1 (Figure 6), in accordance with the following linear regression equation: Ip (µA) = 0.29 µA + 12.32 µA L µmol−1 CChloroquine (µmol L−1), with a correlation coefficient of 0.994 (n = 3). The LOD of 2.0 nmol L−1 was estimated (LOD = 3 σ / m, i.e., three times the standard deviation of ten measurements of blank solution (σ) divided by the analytical sensitivity (m)) [61].
The repeatability study was performed for a 1.7 × 10−7 mol L−1 chloroquine in 0.1 mol L−1 Britton–Robinson buffer solution (pH 6.0) by using SWV in the selected experimental conditions. The value of 4.2% of relative standard deviation was obtained for n = 3. The addition and recovery experiments were also performed for a 1.0 × 10−3 mol L−1 chloroquine (prepared by manipulated drug obtained from a local drugstore) in 0.1 mol L−1 Britton–Robinson buffer solution (pH 6.0). After appropriate dilution, an average value of 102% was obtained for six determinations.
There are few studies in the literature reporting on the quantification of chloroquine by voltammetric analysis. Table 2 shows these works, providing a comparison of the main analytical parameters of the voltammetric procedures [55,62,63]. For the quantification of chloroquine using the rGO@WS2-QDs nanomaterial, it was necessary to prepare reduced graphene oxide (rGO) by Hummer’s method [64] and tungsten disulphide quantum dots (WS2-QDs) by hydrothermal method; both methods taking the time and employing toxic reagents. The electrode modified with biological material, double-stranded DNA (dsDNA) [62], required an accumulation potential of +0.35V for 60 s to perform the voltammetric measurements. In contrast, the proposed method using a BDD electrode, the voltammetric measurements were direct and without any preconcentration step. It is also important to note the LOD of the proposed voltammetric method was 10 times lower than the best LOD previously reported, allowing the detection of chloroquine at nanomolar levels. The analytical parameters obtained by applying the BDD electrode and the SWV technique indicate the great potential applicability of the method for the practical quantification of chloroquine. However, due to the current high demand for chloroquine, the Brazilian Health Regulatory Agency (ANVISA) decided to restrict its sale in pharmacies and ban export. Therefore, it was not possible to carry out studies on commercial pharmaceutical samples.

4. Conclusions

In this work, chloroquine electroactivity on a BDD electrode was investigated for the first time, whereas an irreversible oxidation reaction was diagnosed. Chloroquine is an antimalarial drug that has been presented an irreversible anodic behaviour by using the BDD electrode. The BDD electrode showed once again its efficiency as an electrode material for applications in the voltammetric determination of organic compounds. The influence of the chemical termination of the BDD surface (predominantly in hydrogen in the case of cathodic pretreatment and predominantly in oxygenated groups in the case of anodic pretreatment) was studied, with a more well-defined electrochemical response of chloroquine on the cathodically pretreated BDD. From this observation, the influence of several technical parameters on the anodic response of chloroquine was evaluated (a type of supporting electrolyte, pH, and SWV parameters), and the optimum experimental conditions recorded. Thus, from an analytical point-of-view, promising analytical parameters were registered, including a linear concentration range at submicromolar levels and an LOD at a nanomolar level (2.0 nmol L−1). All these results indicate the capacity of the BDD electrode to quantify chloroquine sensitively, and future studies should be carried out to determine this active principle in real samples.

Author Contributions

Conceptualization, G.G.O., B.C.J. and O.F.-F.; methodology, G.G.O., D.C.A. and P.R.d.O.; validation, G.G.O. and D.C.A.; formal analysis, G.G.O., D.C.A., T.A.S., P.R.d.O. and B.C.J.; investigation, G.G.O., D.C.A. and P.R.d.O.; resources, B.C.J. and O.F.-F.; data curation, T.A.S., B.C.J. and O.F.-F.; writing—original draft preparation, G.G.O. and T.A.S.; writing—review and editing, P.R.d.O., T.A.S., B.C.J. and O.F.-F.; visualization, T.A.S., B.C.J. and O.F.-F.; supervision, B.C.J. and O.F.-F.; project administration, B.C.J. and O.F.-F.; funding acquisition, O.F.-F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by “CONSELHO NACIONAL DE DESENVOLVIMENTO CIENTÍFICO E TECNOLÓGICO (CNPq), grant number 303338/2019-9”, “COORDENAÇÃO DE APERFEIÇOAMENTO DE PESSOAL DE NÍVEL SUPERIOR (CAPES), grant numbers 88887.504861/2020-00 and 001” and FUNDAÇÃO DE AMPARO À PESQUISA DO ESTADO DO SÃO PAULO (FAPESP) grant numbers 2017/21097-3 and 2020/01050-5.

Acknowledgments

The authors thank the CNPq, CAPES and FAPESP for the financial support with the grants cited previously.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Health Organization. World Health Organization Model List of Essential Medicines: 21st List 2019; World Health Organization: Geneva, Switzerland, 2019. [Google Scholar]
  2. Schrezenmeier, E.; Dörner, T. Mechanisms of action of hydroxychloroquine and chloroquine: Implications for rheumatology. Nat. Rev. Rheumatol. 2020, 16, 155–166. [Google Scholar] [CrossRef]
  3. Al-Bari, M.A.A. Chloroquine analogues in drug discovery: New directions of uses, mechanisms of actions and toxic manifestations from malaria to multifarious diseases. J. Antimicrob. Chemother. 2015, 70, 1608–1621. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Srinivasa, A.; Tosounidou, S.; Gordon, C. Increased incidence of gastrointestinal side effects in patients taking hydroxychloroquine: A brand-related issue? J. Rheumatol. 2017, 44, 398. [Google Scholar] [CrossRef] [PubMed]
  5. Marmor, M.F.; Kellner, U.; Lai, T.Y.Y.; Melles, R.B.; Mieler, W.F. Recommendations on Screening for Chloroquine and Hydroxychloroquine Retinopathy (2016 Revision). Ophthalmology 2016, 123, 1386–1394. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Retinopathy: What Is It? Harvard Health Publishing: Boston, MA, USA, 2017.
  7. Touret, F.; de Lamballerie, X. Of chloroquine and COVID-19. Antivir. Res. 2020, 177, 104762. [Google Scholar] [CrossRef] [PubMed]
  8. Cortegiani, A.; Ingoglia, G.; Ippolito, M.; Giarratano, A.; Einav, S. A systematic review on the efficacy and safety of chloroquine for the treatment of COVID-19. J. Crit. Care 2020, 57, 279–283. [Google Scholar] [CrossRef]
  9. de Araujo Andreotti, I.A.; Orzari, L.O.; Camargo, J.R.; Faria, R.C.; Marcolino-Junior, L.H.; Bergamini, M.F.; Gatti, A.; Janegitz, B.C. Disposable and flexible electrochemical sensor made by recyclable material and low cost conductive ink. J. Electroanal. Chem. 2019, 840, 109–116. [Google Scholar] [CrossRef]
  10. Vicentini, F.C.; Figueiredo, L.C.S.; Janegitz, B.C.; Santiago, A.; Pereira, E.R.; Fatibello-Filho, O. Factorial design and response surface: Voltammetric method optimization for the determination of ag(i) employing a carbon nanotubes paste electrode. Quim. Nova 2011, 34, 825–830. [Google Scholar]
  11. Kalinke, C.; Neumsteir, N.V.; de Oliveira Aparecido, G.; de Barros Ferraz, T.V.; Dos Santos, P.L.; Janegitz, B.C.; Bonacin, J.A. Comparison of activation processes for 3D printed PLA-graphene electrodes: Electrochemical properties and application for sensing of dopamine. Analyst 2020, 145, 1207–1218. [Google Scholar] [CrossRef]
  12. Vicentini, F.C.; Raymundo-Pereira, P.A.; Janegitz, B.C.; Machado, S.A.S.; Fatibello, O. Nanostructured carbon black for simultaneous sensing in biological fluids. Sens. Actuator B-Chem. 2016, 227, 610–618. [Google Scholar] [CrossRef]
  13. Camargo, E.R.; Baccarin, M.; Raymundo-Pereira, P.A.; Campos, A.M.; Oliveira, G.G.; Fatibello, O.; Oliveira, O.N.; Janegitz, B.C. Electrochemical biosensor made with tyrosinase immobilized in a matrix of nanodiamonds and potato starch for detecting phenolic compounds. Anal. Chim. Acta 2018, 1034, 137–143. [Google Scholar] [CrossRef] [PubMed]
  14. Silva, T.A.; Pereira, G.F.; Fatibello-Filho, O.; Eguiluz, K.I.B.; Salazar-Banda, G.R. Electroanalytical sensing of indigo carmine dye in water samples using a cathodically pretreated boron-doped diamond electrode. J. Electroanal. Chem. 2016, 769, 28–34. [Google Scholar] [CrossRef]
  15. Janegitz, B.C.; Baccarin, M.; Raymundo-Pereira, P.A.; dos Santos, F.A.; Oliveira, G.G.; Machado, S.A.S.; Lanza, M.R.V.; Fatibello, O.; Zucolotto, V. The use of dihexadecylphosphate in sensing and biosensing. Sens. Actuator B Chem. 2015, 220, 805–813. [Google Scholar] [CrossRef]
  16. Silva, T.A.; Moraes, F.C.; Janegitz, B.C.; Fatibello-Filho, O. Electrochemical Biosensors Based on Nanostructured Carbon Black: A Review. J. Nanomater. 2017, 2017, 14. [Google Scholar] [CrossRef] [Green Version]
  17. Janegitz, B.C.; Silva, T.A.; Wong, A.; Ribovski, L.; Vicentini, F.C.; Taboada Sotomayor, M.D.P.; Fatibello-Filho, O. The application of graphene for in vitro and in vivo electrochemical biosensing. Biosens. Bioelectron. 2017, 89, 224–233. [Google Scholar] [CrossRef] [Green Version]
  18. Wong, A.; Silva, T.; Caetano, F.; Bergamini, M.; Marcolino-Junior, L.; Fatibello-Filho, O.; Janegitz, B. An Overview of Pesticide Monitoring at Environmental Samples Using Carbon Nanotubes-Based Electrochemical Sensors. C—J. Carbon Res. 2017, 3, 8. [Google Scholar] [CrossRef] [Green Version]
  19. Cardoso, R.M.; Kalinke, C.; Rocha, R.G.; dos Santos, P.L.; Rocha, D.P.; Oliveira, P.R.; Janegitz, B.C.; Bonacin, J.A.; Richter, E.M.; Munoz, R.A. Additive-manufactured (3D-printed) electrochemical sensors: A critical review. Anal. Chim. Acta 2020, 1118, 73–91. [Google Scholar] [CrossRef]
  20. Raymundo-Pereira, P.A.; Silva, T.A.; Caetano, F.R.; Riboviski, L.; Zapp, E.; Brondani, D.; Bergamini, M.F.; Marcolino, L.H.; Banks, C.E.; Oliveira, O.N.; et al. Polyphenol oxidase-based electrochemical biosensors: A review. Anal. Chim. Acta 2020. [Google Scholar] [CrossRef]
  21. Luong, J.H.; Male, K.B.; Glennon, J.D. Boron-doped diamond electrode: Synthesis, characterization, functionalization and analytical applications. Analyst 2009, 134, 1965–1979. [Google Scholar] [CrossRef] [Green Version]
  22. Srikanth, V.V.; Sampath Kumar, P.; Kumar, V.B. A brief review on the in situ synthesis of boron-doped diamond thin films. Int. J. Electrochem. 2012, 2012, 1–7. [Google Scholar] [CrossRef] [Green Version]
  23. Xu, J.; Granger, M.C.; Chen, Q.; Strojek, J.W.; Lister, T.E.; Swain, G.M. Peer Reviewed: Boron-Doped Diamond Thin-Film Electrodes. Anal. Chem. 1997, 69, 591A–597A. [Google Scholar] [CrossRef]
  24. Haque, A.; Sumaiya, S. An overview on the formation and processing of nitrogen-vacancy photonic centers in diamond by ion implantation. J. Manuf. Mater. Process. 2017, 1, 6. [Google Scholar] [CrossRef] [Green Version]
  25. Lourencao, B.C.; Brocenschi, R.F.; Medeiros, R.A.; Fatibello-Filho, O.; Rocha-Filho, R.C. Analytical Applications of Electrochemically Pretreated Boron-Doped Diamond Electrodes. ChemElectroChem 2020, 7, 1291–1311. [Google Scholar] [CrossRef]
  26. Teófilo, R.F.; Ceragioli, H.J.; Peterlevitz, A.C.; Da Silva, L.M.; Damos, F.S.; Ferreira, M.M.C.; Baranauskas, V.; Kubota, L.T. Improvement of the electrochemical properties of “as-grown” boron-doped polycrystalline diamond electrodes deposited on tungsten wires using ethanol. J. Solid State Electrochem. 2007, 11, 1449–1457. [Google Scholar] [CrossRef]
  27. Lourencao, B.C.; Silva, T.A.; Zanin, H.; May, P.W.; Corat, E.J.; Fatibello-Filho, O. Promising electrochemical performance of high-surface-area boron-doped diamond/carbon nanotube electroanalytical sensors. J. Solid State Electrochem. 2016, 20, 2403–2409. [Google Scholar] [CrossRef]
  28. Marken, F.; Compton, R.G.; Goeting, C.H.; Foord, J.S.; Bull, S.D.; Davies, S.G. Fast electrochemical triple-interface processes at boron-doped diamond electrodes. J. Solid State Electrochem. 2001, 5, 88–93. [Google Scholar] [CrossRef]
  29. Haque, A.; Sachan, R.; Narayan, J. Synthesis of diamond nanostructures from carbon nanotube and formation of diamond-CNT hybrid structures. Carbon 2019, 150, 388–395. [Google Scholar] [CrossRef]
  30. Deroco, P.B.; Vicentini, F.C.; Oliveira, G.G.; Rocha-Filho, R.C.; Fatibello-Filho, O. Square-wave voltammetric determination of hydroxychloroquine in pharmaceutical and synthetic urine samples using a cathodically pretreated boron-doped diamond electrode. J. Electroanal. Chem. 2014, 719, 19–23. [Google Scholar] [CrossRef]
  31. Guedes, T.d.J.; Alecrim, M.F.; Oliveira, F.M.; Lima, A.B.; Barbosa, S.L.; dos Santos, W.T.P. Determination of prazosin in pharmaceutical samples by flow injection analysis with multiple-pulse amperometric detection using boron-doped diamond electrode. J. Solid State Electrochem. 2016, 20, 2445–2451. [Google Scholar] [CrossRef]
  32. Silva, T.A.; Pereira, G.F.; Fatibello-Filho, O.; Eguiluz, K.I.B.; Salazar-Banda, G.R. Square-wave voltammetric determination of rosuvastatin calcium in pharmaceutical and biological fluid samples using a cathodically pretreated boron-doped diamond electrode. Diam. Relat. Mater. 2015, 58, 103–109. [Google Scholar] [CrossRef]
  33. Santos, A.M.; Vicentini, F.C.; Deroco, P.B.; Rocha-Filho, R.C.; Fatibello-Filho, O. Square-Wave Voltammetric Determination of Paracetamol and Codeine in Pharmaceutical and Human Body Fluid Samples Using a Cathodically Pretreated Boron-Doped Diamond Electrode. J. Braz. Chem. Soc. 2015, 26, 2159–2168. [Google Scholar] [CrossRef]
  34. Medeiros, R.A.; Lourencao, B.C.; Rocha-Filho, R.C.; Fatibello-Filho, O. Simultaneous voltammetric determination of synthetic colorants in food using a cathodically pretreated boron-doped diamond electrode. Talanta 2012, 97, 291–297. [Google Scholar] [CrossRef] [PubMed]
  35. Brocenschi, R.F.; Silva, T.A.; Lourencao, B.C.; Fatibello-Filho, O.; Rocha-Filho, R.C. Use of a boron-doped diamond electrode to assess the electrochemical response of the naphthol isomers and to attain their truly simultaneous electroanalytical determination. Electrochim. Acta 2017, 243, 374–381. [Google Scholar] [CrossRef]
  36. Souza, G.A.; Arantes, L.C.; Guedes, T.J.; de Oliveira, A.C.; Marinho, P.A.; Muñoz, R.A.A.; dos Santos, W.T.P. Voltammetric signatures of 2,5-dimethoxy-N-(2-methoxybenzyl) phenethylamines on boron-doped diamond electrodes: Detection in blotting paper samples. Electrochem. Commun. 2017, 82, 121–124. [Google Scholar] [CrossRef]
  37. Lourencao, B.C.; Medeiros, R.A.; Thomasi, S.S.; Ferreira, A.G.; Rocha-Filho, R.C.; Fatibello-Filho, O. Amperometric flow-injection determination of the anthelmintic drugs ivermectin and levamisole using electrochemically pretreated boron-doped diamond electrodes. Sens. Actuators B 2016, 222, 181–189. [Google Scholar] [CrossRef]
  38. Lourencao, B.C.; Medeiros, R.A.; Fatibello-Filho, O. Simultaneous determination of antihypertensive drugs by flow injection analysis using multiple pulse amperometric detection with a cathodically pretreated boron-doped diamond electrode. J. Electroanal. Chem. 2015, 754, 154–159. [Google Scholar] [CrossRef]
  39. Deroco, P.B.; Medeiros, R.A.; Rocha-Filho, R.C.; Fatibello-Filho, O. Selective and simultaneous determination of indigo carmine and allura red in candy samples at the nano-concentration range by flow injection analysis with multiple pulse amperometric detection. Food Chem. 2018, 247, 66–72. [Google Scholar] [CrossRef]
  40. Silva, W.P.; Silva, L.A.J.; França, C.H.; Sousa, R.M.F.; Muñoz, R.A.A.; Richter, E.M. Square-wave Voltammetric Determination of Propyphenazone, Paracetamol, and Caffeine: Comparative Study between Batch Injection Analysis and Conventional Electrochemical Systems. Electroanalysis 2017, 29, 1860–1866. [Google Scholar] [CrossRef]
  41. Freitas, J.M.; Oliveira, T.d.C.; Gimenes, D.T.; Munoz, R.A.A.; Richter, E.M. Simultaneous determination of three species with a single-injection step using batch injection analysis with multiple pulse amperometric detection. Talanta 2016, 146, 670–675. [Google Scholar] [CrossRef]
  42. Oliveira, T.d.C.; Freitas, J.M.; Abarza Munoz, R.A.; Richter, E.M. A batch injection analysis system with square-wave voltammetric detection for fast and simultaneous determination of naphazoline and zinc. Talanta 2016, 152, 308–313. [Google Scholar] [CrossRef]
  43. Suffredini, H.B.; Pedrosa, V.A.; Codognoto, L.; Machado, S.A.S.; Rocha-Filho, R.C.; Avaca, L.A. Enhanced electrochemical response of boron-doped diamond electrodes brought on by a cathodic surface pre-treatment. Electrochim. Acta 2004, 49, 4021–4026. [Google Scholar] [CrossRef]
  44. Haque, A.; Pant, P.; Narayan, J. Large-area diamond thin film on Q-carbon coated crystalline sapphire by HFCVD. J. Cryst. Growth 2018, 504, 17–25. [Google Scholar] [CrossRef]
  45. Haque, A.; Gupta, S.; Narayan, J. Characteristics of Diamond Deposition on Al2O3, Diamond-like Carbon, and Q-Carbon. ACS Appl. Electron. Mater. 2020, 2, 1323–1334. [Google Scholar] [CrossRef]
  46. Salazar-Banda, G.R.; de Carvalho, A.E.; Andrade, L.S.; Rocha-Filho, R.C.; Avaca, L.A. On the activation and physical degradation of boron-doped diamond surfaces brought on by cathodic pretreatments. J. Appl. Electrochem. 2010, 40, 1817–1827. [Google Scholar] [CrossRef]
  47. Granger, M.C.; Witek, M.; Xu, J.; Wang, J.; Hupert, M.; Hanks, A.; Koppang, M.D.; Butler, J.E.; Lucazeau, G.; Mermoux, M.; et al. Standard Electrochemical Behavior of High-Quality, Boron-Doped Polycrystalline Diamond Thin-Film Electrodes. Anal. Chem. 2000, 72, 3793–3804. [Google Scholar] [CrossRef] [PubMed]
  48. Swain, G.M.; Ramesham, R. The electrochemical activity of boron-doped polycrystalline diamond thin film electrodes. Anal. Chem. 1993, 65, 345–351. [Google Scholar] [CrossRef]
  49. Bard, A.J.; Faulkner, L.R. Electrochemical Methods: Fundamentals and Applications; John Wiley & Sons Inc.: New York, NY, USA, 2001; Volume 2. [Google Scholar]
  50. Nicholson, R.S. Theory and application of cyclic voltammetry for measurement of electrode reaction kinetics. Anal. Chem. 1965, 37, 1351. [Google Scholar] [CrossRef]
  51. Silva, T.A.; Zanin, H.; May, P.W.; Corat, E.J.; Fatibello-Filho, O. Electrochemical Performance of Porous Diamond-like Carbon Electrodes for Sensing Hormones, Neurotransmitters, and Endocrine Disruptors. ACS Appl. Mater. Interfaces 2014, 6, 21086–21092. [Google Scholar] [CrossRef]
  52. Lavagnini, I.; Antiochia, R.; Magno, F. An extended method for the practical evaluation of the standard rate constant from cyclic voltammetric data. Electroanalysis 2004, 16, 505–506. [Google Scholar] [CrossRef]
  53. Simioni, N.B.; Silva, T.A.; Oliveira, G.G.; Fatibello-Filho, O. A nanodiamond-based electrochemical sensor for the determination of pyrazinamide antibiotic. Sens. Actuators B 2017, 250, 315–323. [Google Scholar] [CrossRef]
  54. Wong, A.; Silva, T.A.; Fatibello-Filho, O. Graphite Oxide and Gold Nanoparticles as Alternative Materials in the Design of a Highly Sensitive Electrochemical Sensor for the Simultaneous Determination of Biological Species. Electroanalysis 2017, 29, 2491–2497. [Google Scholar] [CrossRef]
  55. Srivastava, M.; Tiwari, P.; Mall, V.K.; Srivastava, S.K.; Prakash, R. Voltammetric determination of the antimalarial drug chloroquine using a glassy carbon electrode modified with reduced graphene oxide on WS2 quantum dots. Microchim. Acta 2019, 186, 10. [Google Scholar] [CrossRef] [PubMed]
  56. Pereira, G.F.; Deroco, P.B.; Silva, T.A.; Ferreira, H.S.; Fatibello-Filho, O.; Eguiluz, K.I.B.; Salazar-Banda, G.R. Study of electrooxidation and enhanced voltammetric determination of β-blocker pindolol using a boron-doped diamond electrode. Diam. Relat. Mater. 2018, 82, 109–114. [Google Scholar] [CrossRef]
  57. Santos, A.M.; Silva, T.A.; Vicentini, F.C.; Fatibello-Filho, O. Flow injection analysis system with electrochemical detection for the simultaneous determination of nanomolar levels of acetaminophen and codeine. Arab. J. Chem. 2020, 13, 335–345. [Google Scholar] [CrossRef]
  58. Lourencao, B.C.; Baccarin, M.; Medeiros, R.A.; Rocha-Filho, R.C.; Fatibello-Filho, O. Differential pulse voltammetric determination of albendazole in pharmaceutical tablets using a cathodically pretreated boron-doped diamond electrode. J. Electroanal. Chem. 2013, 707, 15–19. [Google Scholar] [CrossRef]
  59. Rodriguesa, G.N.; Silvaa, W.P.; Rochaa, D.P.; Richtera, E.M.; Munoza, R.A.; Batistaa, A.D. Electrochemical determination of 2-naphthylamine in perfume samples using boron-doped diamond electrode. Quim. Nova 2020, 43, 286–290. [Google Scholar]
  60. Oliveira, T.D.C.; Freitas, J.M.; Muñoz, R.A.A.; Richter, E.M. Development of a Novel Versatile Method for Determination of two Antihistamines in Association with Naphazoline Using Cathodically Pretreated Boron-doped Diamond Electrode. Electroanalysis 2018, 30, 868–876. [Google Scholar] [CrossRef]
  61. Miller, J.; Miller, J.C. Statistics and Chemometrics for Analytical Chemistry, 7th ed.; Pearson Education: New York, NY, USA, 2018; p. 312. [Google Scholar]
  62. Radi, A. Accumulation and trace measurement of chloroquine drug at DNA-modified carbon paste electrode. Talanta 2005, 65, 271–275. [Google Scholar] [CrossRef]
  63. Mashhadizadeh, M.H.; Akbarian, M. Voltammetric determination of some anti-malarial drugs using a carbon paste electrode modified with Cu(OH)2 nano-wire. Talanta 2009, 78, 1440–1445. [Google Scholar] [CrossRef]
  64. Zaaba, N.I.; Foo, K.L.; Hashim, U.; Tan, S.J.; Liu, W.-W.; Voon, C.H. Synthesis of Graphene Oxide using Modified Hummers Method: Solvent Influence. Procedia Eng. 2017, 184, 469–477. [Google Scholar] [CrossRef]
Figure 1. Molecular structure of chloroquine.
Figure 1. Molecular structure of chloroquine.
Carbon 06 00075 g001

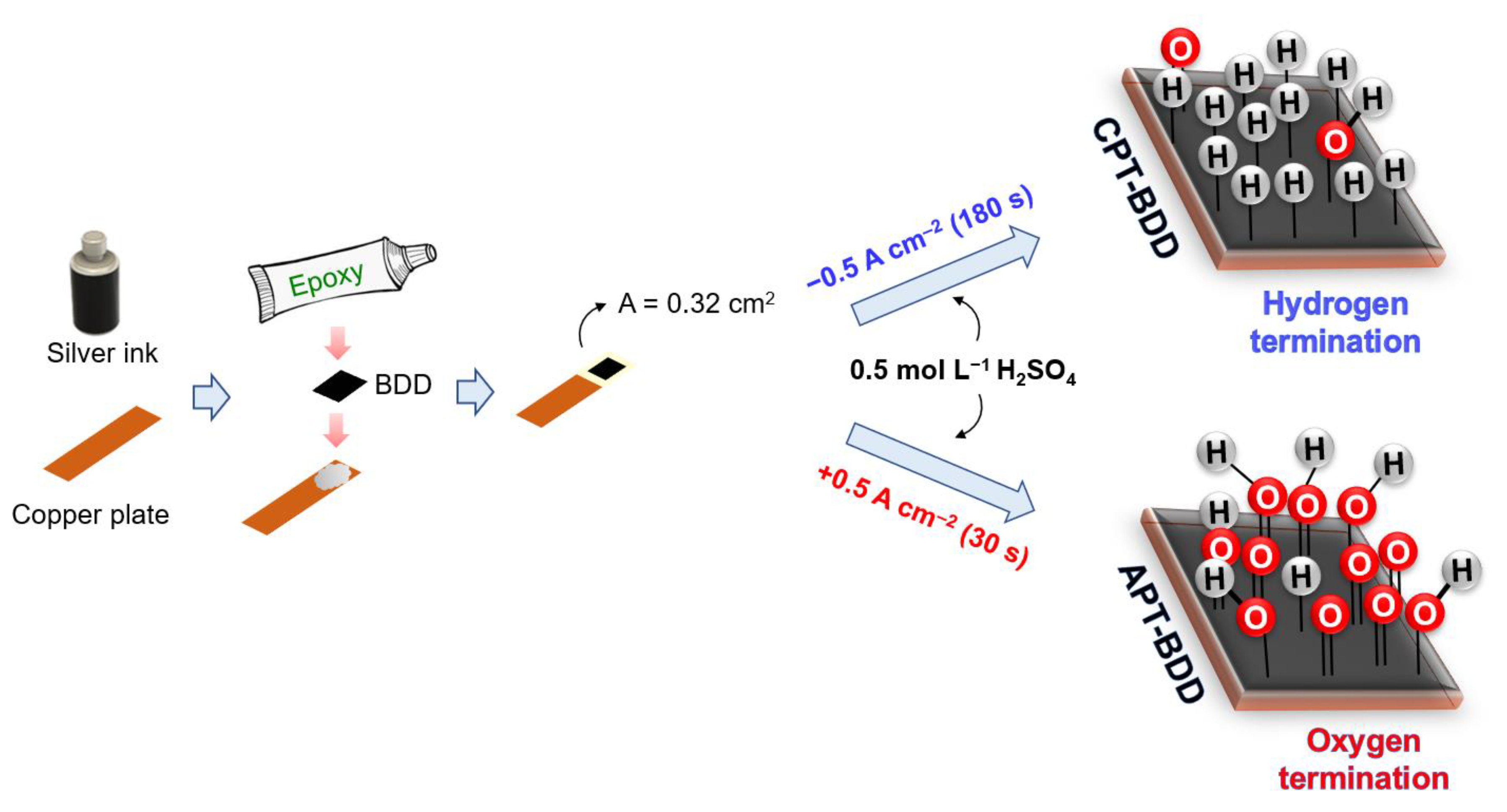

Figure 2. Scheme of boron-doped diamond (BDD) electrode assembly for electrochemical measurements and obtaining of cathodically pretreated (CPT-BDD) and anodically pretreated (APT-BDD) BDD electrodes.
Figure 2. Scheme of boron-doped diamond (BDD) electrode assembly for electrochemical measurements and obtaining of cathodically pretreated (CPT-BDD) and anodically pretreated (APT-BDD) BDD electrodes.
Carbon 06 00075 g002
Figure 3. SEM micrograph recorded for BDD surface at different magnifications: (a) 17,000× and (b) 50,000×.
Figure 3. SEM micrograph recorded for BDD surface at different magnifications: (a) 17,000× and (b) 50,000×.
Carbon 06 00075 g003

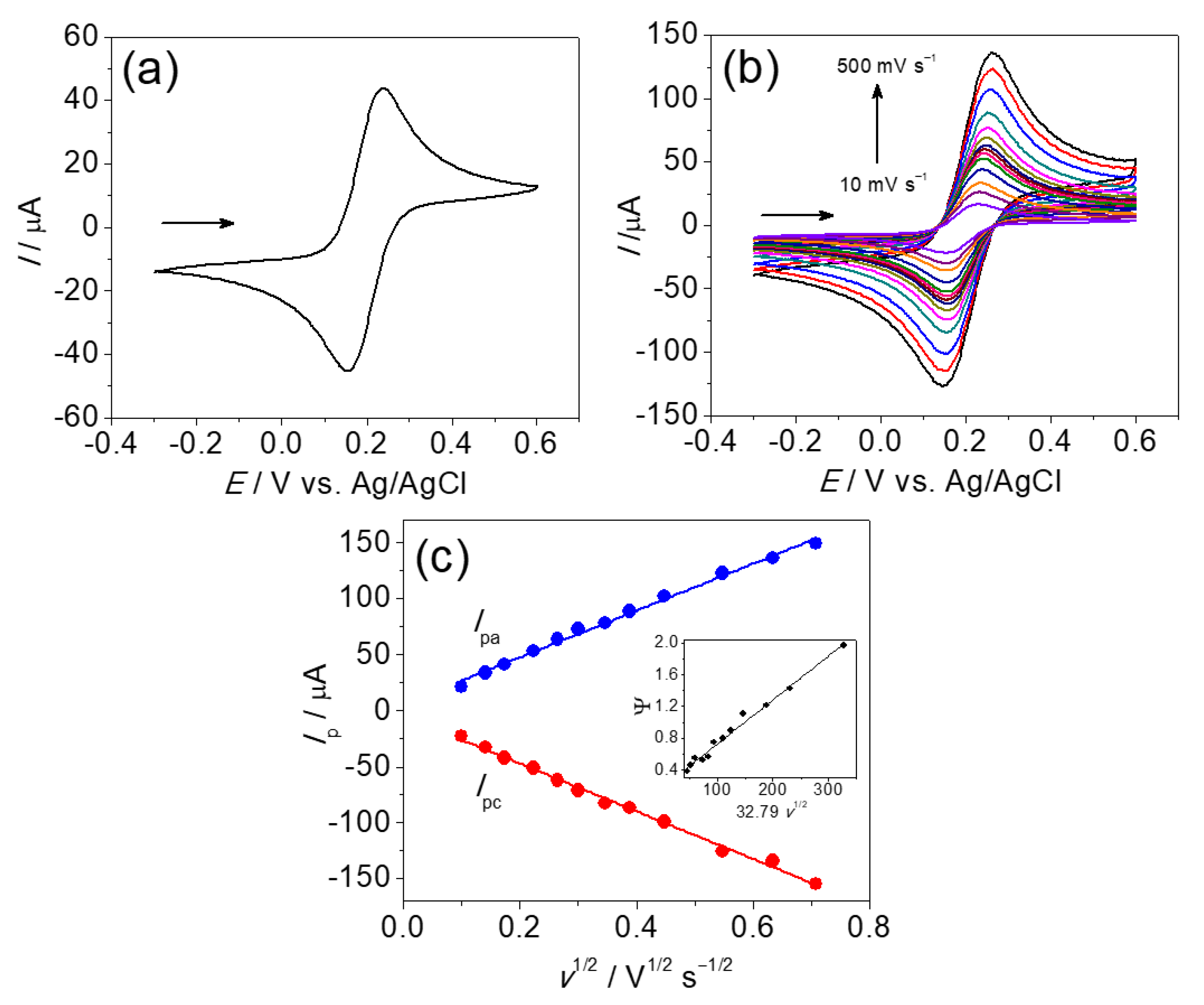

Figure 4. Cyclic voltammogram recorded at (a) 50 mV s−1 and (b) different potential scan rates (10–500 mV s−1) for 1.0 × 10−3 mol L−1 K3Fe(CN)6 in 0.1 mol L−1 KCl solution using the cathodically pretreated BDD electrode. (c) Plot of anodic (Ipa) and cathodic (Ipc) peak currents versus square root of scan rate (v1/2). Inset: plot of ψ vs. 32.79 v1/2.
Figure 4. Cyclic voltammogram recorded at (a) 50 mV s−1 and (b) different potential scan rates (10–500 mV s−1) for 1.0 × 10−3 mol L−1 K3Fe(CN)6 in 0.1 mol L−1 KCl solution using the cathodically pretreated BDD electrode. (c) Plot of anodic (Ipa) and cathodic (Ipc) peak currents versus square root of scan rate (v1/2). Inset: plot of ψ vs. 32.79 v1/2.
Carbon 06 00075 g004

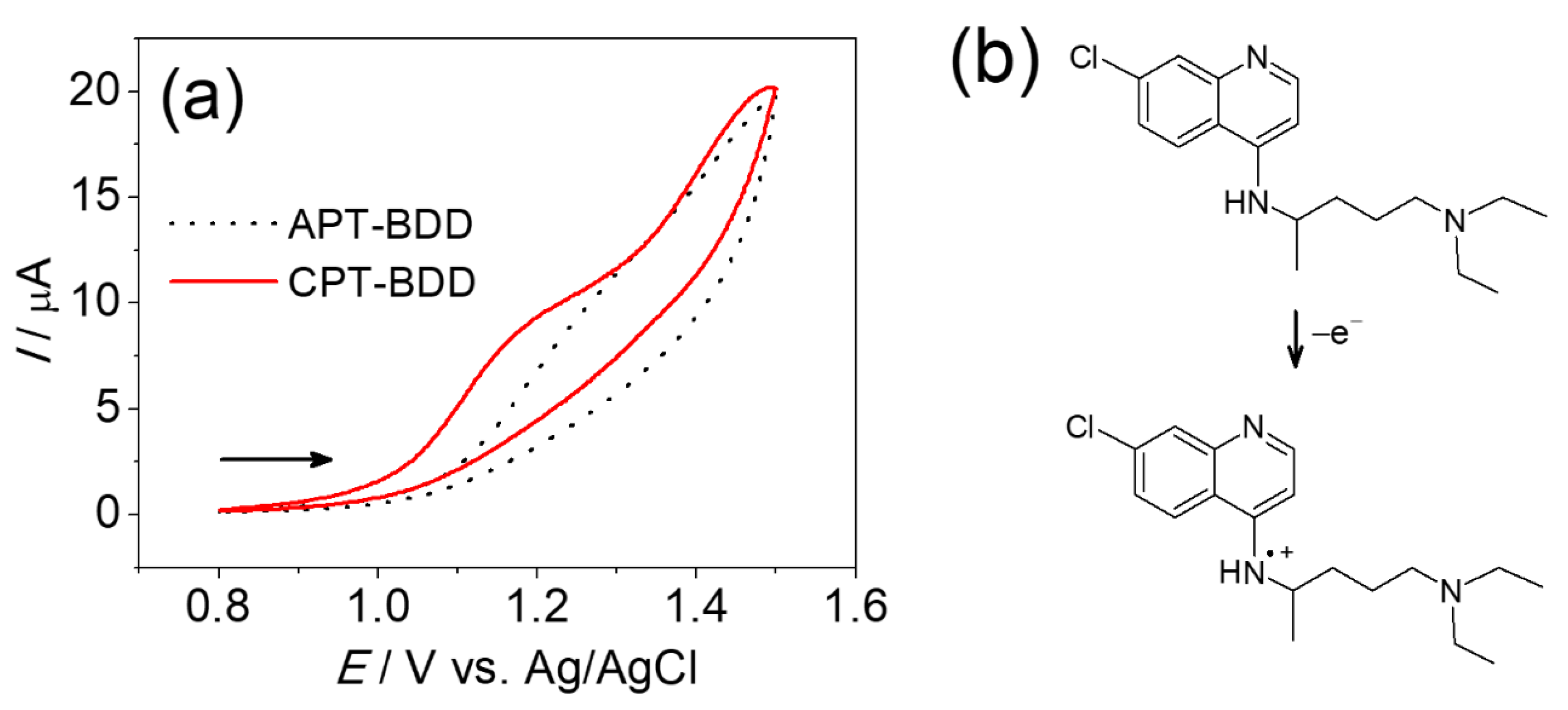

Figure 5. (a) Cyclic voltammograms (v = 50 mV s−1) obtained for 1.5 × 10−4 mol L−1 chloroquine solution in 0.1 mol L−1 phosphate buffer (pH = 7.0) electrolyte after different BDD pretreatments: cathodic (‒‒) and anodic (---). (b) Possible electrooxidation mechanism of chloroquine.
Figure 5. (a) Cyclic voltammograms (v = 50 mV s−1) obtained for 1.5 × 10−4 mol L−1 chloroquine solution in 0.1 mol L−1 phosphate buffer (pH = 7.0) electrolyte after different BDD pretreatments: cathodic (‒‒) and anodic (---). (b) Possible electrooxidation mechanism of chloroquine.
Carbon 06 00075 g005

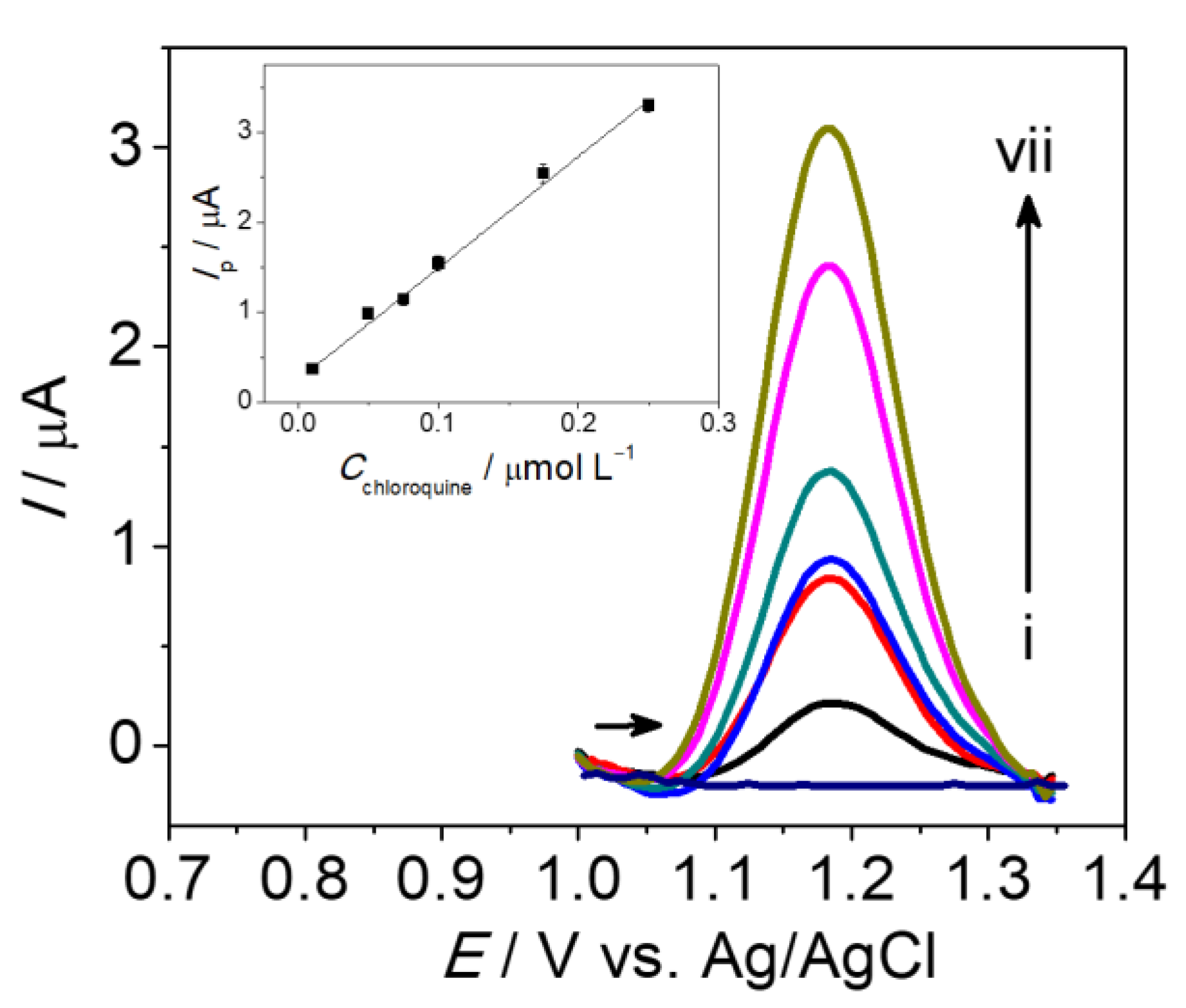

Figure 6. Square-wave voltammograms recorded using a cathodically pretreated BDD electrode for different concentrations of chloroquine in 0.1 mol L−1 Britton–Robinson buffer solution (pH 6.0): (i) blank (purple); (ii) 0.01 (black); (iii) 0.05 (red); (iv) 0.075 (blue); (v) 0.10 (green); (vi) 0.20 (pink); and (vii) 0.25 (yellow) µmol L−1. SWV parameters: f = 100 Hz, A = 50 mV, and ΔE = 5 mV. Inset: Corresponding analytical curve (Ip vs. CChloroquine).
Figure 6. Square-wave voltammograms recorded using a cathodically pretreated BDD electrode for different concentrations of chloroquine in 0.1 mol L−1 Britton–Robinson buffer solution (pH 6.0): (i) blank (purple); (ii) 0.01 (black); (iii) 0.05 (red); (iv) 0.075 (blue); (v) 0.10 (green); (vi) 0.20 (pink); and (vii) 0.25 (yellow) µmol L−1. SWV parameters: f = 100 Hz, A = 50 mV, and ΔE = 5 mV. Inset: Corresponding analytical curve (Ip vs. CChloroquine).
Carbon 06 00075 g006
Table 1. Optimization of experimental conditions for chloroquine detection by square-wave voltammetry (SWV).
Table 1. Optimization of experimental conditions for chloroquine detection by square-wave voltammetry (SWV).
ParameterEvaluated ConditionsOptimum Condition
Supporting electrolyte0.1 mol L−1 H2SO4
0.1 mol L−1 Britton–Robson buffer
0.1 mol L−1 acetate buffer
0.1 mol L−1 Britton–Robson buffer
pH (Britton–Robson buffer)2.0 to 8.06.0
SWV frequency (f)10 to 150 Hz100
SWV amplitude (A)5 to 60 mV50
SWV potential increment (ΔE)1 to 10 mV5
Table 2. Comparison of analytical parameters obtained with the BDD electrode and other modified electrodes from literature for the detection of chloroquine.
Table 2. Comparison of analytical parameters obtained with the BDD electrode and other modified electrodes from literature for the detection of chloroquine.
ElectrodeLinear Range (µmol L−1)LOD (µmol L−1)Reference
rGO@WS2-QDs/ GC0.5–82.40.04[28]
dsDNA/CP0.1–10.00.03[33]
CuNW/CP0.13–13.30.02[34]
BDD0.01–0.250.002This work
rGO@WS2-QDs/GCE: reduced graphene oxide@tungsten disulfide quantum dots/glassy carbon electrode; dsDNA/CP: double-stranded DNA/carbon paste; CuNW/CP: copper nanowires/carbon paste electrode.
