Next Article in Journal
Carbon Gels–Green Graphene Composites as Metal-Free Bifunctional Electro-Fenton Catalysts
Next Article in Special Issue
Bioactive Polyurethane–Poly(ethylene Glycol) Diacrylate Hydrogels for Applications in Tissue Engineering
Previous Article in Journal
Silica Gels Doped with Gold Nanoparticles: Preparation, Structure and Optical Properties
Previous Article in Special Issue
Rheological Considerations of Pharmaceutical Formulations: Focus on Viscoelasticity
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Chitosan Hydrogels for Water Purification Applications

Mariana Chelu
Adina Magdalena Musuc
Monica Popa
Jose M. Calderon Moreno
“Ilie Murgulescu” Institute of Physical Chemistry, 202 Spl. Independentei, 060021 Bucharest, Romania
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Gels 2023, 9(8), 664;
Submission received: 24 July 2023 / Revised: 14 August 2023 / Accepted: 15 August 2023 / Published: 17 August 2023
(This article belongs to the Special Issue Recent Advances in Hydrogel-Based Biomaterials)


Chitosan-based hydrogels have gained significant attention for their potential applications in water treatment and purification due to their remarkable properties such as bioavailability, biocompatibility, biodegradability, environmental friendliness, high pollutants adsorption capacity, and water adsorption capacity. This article comprehensively reviews recent advances in chitosan-based hydrogel materials for water purification applications. The synthesis methods, structural properties, and water purification performance of chitosan-based hydrogels are critically analyzed. The incorporation of various nanomaterials into chitosan-based hydrogels, such as nanoparticles, graphene, and metal-organic frameworks, has been explored to enhance their performance. The mechanisms of water purification, including adsorption, filtration, and antimicrobial activity, are also discussed in detail. The potential of chitosan-based hydrogels for the removal of pollutants, such as heavy metals, organic contaminants, and microorganisms, from water sources is highlighted. Moreover, the challenges and future perspectives of chitosan-based hydrogels in water treatment and water purification applications are also illustrated. Overall, this article provides valuable insights into the current state of the art regarding chitosan-based hydrogels for water purification applications and highlights their potential for addressing global water pollution challenges.

Graphical Abstract

1. Introduction

Life is conditioned by water for which there are no substitutes. Freshwater is a renewable natural resource, vital to the functioning of the Earth system, but present in finite quantities. Humans, plants, and animals need water to survive. Freshwater is used in agriculture, industry, power generation, sanitation, construction, transportation, and virtually in every aspect of human life. There is an imperative demand to protect freshwater ecosystems as much as possible. In addition to adapting human activities to the limits of nature’s capacity, innovative techniques are needed to protect limited water resources from pollution and to ensure the preservation of an adequate supply of good quality freshwater. With the growth of the population (which has reached the threshold of 8 billion people), the evolution of modernization, and the growth of industrialization, water pollution has become an increasingly serious problem worldwide. Various harmful pollutants such as dyes, drugs, heavy metal ions, detergents, and personal care products, derivatives or by-products of various industries (e.g., oil, mining, printers, energy, etc.) are released into the environment. Figure 1 shows the most common pathways of water pollution.
If all these pollutants are discharged into aquatic ecosystems without proper treatment, they will cause water pollution [1,2,3]. A United Nations report shows that worldwide, 2 million tons of sewage and industrial and agricultural waste are discharged every day into the world’s waterways and that 80% of the wastewater generated in developing countries is discharged without treatment into bodies from surface water [4]. A recent report also sounds a loud alarm, stating that water scarcity is becoming endemic as a result of the local impact of physical water stress, along with the acceleration and spread of freshwater pollution [5]. The first consequence of the shortage is the increased use and depletion of groundwater. It is also estimated that the groundwater depletion rate is between 100 and 200 km3/year, representing 15 to 25% of the total groundwater withdrawals [6]. Following the UN conference, the United Nations Water Development Report 2023 highlights how building partnerships and strengthening action across all dimensions of sustainable development are essential to accelerate progress towards the Sustainable Development Goal on Clean Water and Sanitation (SDG 6) and to realize the human rights for drinking water and sanitation [7]. It was also pointed out that a growing number of chemicals threaten the aquatic environment. Once present in water, some of them manage to remain unchanged after treatment and persist in contaminating drinking water sources. It is estimated that in 2023, globally, there are more than 204 million substances registered in the Chemical Abstracts Service (CAS) Registry [8], of which over 350,000 chemicals and chemical mixtures have been authorized for production and use [9]. Therefore, chemicals released into the environment could cause great damage to the ecosystems, and when they reach drinking water, they become a danger to human health. It is therefore extremely imperative to adopt solutions for detecting contaminants in water, estimating risks to public health and the environment, and finding water treatment technologies.
Several technologies have been developed for water treatment, including wastewater purification and recycling, including precipitation [10,11], oxidation [12], membrane filtration [13,14,15], adsorption [16,17,18,19,20,21,22], biological treatments [23,24,25], advanced oxidation processes [26,27,28,29,30,31,32], etc. However, some of these technologies are expensive, complex, have high energy consumption, or even low efficiency. Among them, adsorption treatment is an approach that attracts the attention of scientific research for water remediation due to several attractive properties such as simple operation, low cost, high adsorption capacity, a wide spectrum of pollutants, and favorable effects. Adsorbates such as alumina [33], clays [34,35], activated carbon [36,37,38,39,40], or biomass conversion [41] are currently used in adsorption treatment. In addition, by applying appropriate adsorption–desorption methods as well as suitable adsorbents, some pollutants, such as heavy metal ions, or critical materials (e.g., rare earth elements and lithium) can be recovered [42].
In the last decade, various materials (e.g., mesoporous activated carbon, carbon-based materials, and metal-organic frameworks (MOFs)) and agricultural waste have been prepared and used for wastewater treatment and purification [43,44,45,46,47,48]. Nevertheless, their usage in these kinds of applications is still restricted due to their low performance and high cost of preparation. Natural polysaccharides present, in their structure, higher concentrations of functional groups such as –OH, –COOH, and –NH3 with the ability to attach or fix diverse organic or/and inorganic contaminants [49,50,51]. Recently, natural polysaccharides-based hydrogels, due to their several peculiarities of being abundant in nature, biodegradable, and biocompatible, were used as adsorbent materials for water treatment [52,53,54,55,56,57,58,59] and as flocculants for their application in drinking water purification [60,61,62,63].
Due to their excellent adsorption properties, reversible swelling, biocompatibility, biodegradability, ease of synthesis and use, as well as low price, the application of hydrogels is increasingly being considered as an alternative method in water purification. Hydrogels are hydrophilic three-dimensional (3D) crosslinked polymer networks that can adsorb and retain large amounts of water without dissolving [64,65]. Consequently, these polymer matrices adsorb water and pollutants through diffusion mechanisms and macromolecular relaxation during swelling processes [66,67].
Distinctly, chitosan-based hydrogels are promising matrices for the treatment of polluted waters due to characteristics such as good mechanical and thermal resistance, high chemical stability, and low price and due to the accessibility of recovery—reuse of both hydrogel and pollutants [68,69,70,71]. Also, the mechanical strength of chitosan-based hydrogels can be improved by adding nanoparticles or by crosslinking with synthetic polymers or biopolymers. Due to the presence of large numbers of hydroxyl and amino groups, chitosan can easily adsorb different pollutants (e.g., heavy metals, and dyes) through hydrogen bonding and electrostatic interactions. By combining the hydrogels and chitosan advantages, it can enhance the adsorption capacity and efficiency of chitosan-based hydrogels. A schematic representation of the chitosan-based hydrogel preparation is reproduced in Figure 2 [72].
Presently, the application of polysaccharides in drinking water purification and wastewater treatment has been extensively studied [73,74], but there is still a deficiency of methodically related reviews on chitosan-based hydrogels for wastewater treatment, particularly in their adsorption of contaminants and oil–water separation. The aim of this review is to offer a comprehensive and comparative analysis of recent advancements, from the last decade, of chitosan-based hydrogels used for the adsorption of contaminants from water, providing some practical designs for researchers in solving the problem of water pollution. Also, the purpose of this review is to explore the newly developed chitosan-based hydrogels for their large-scale applications in wastewater treatment and the major features of these types of materials. From the perspective of the global goal of achieving access to quality drinking water for all, the use of chitosan-based hydrogels is an environmentally friendly, modern, and state-of-the-art method of adsorbing hazardous contaminants from wastewater.

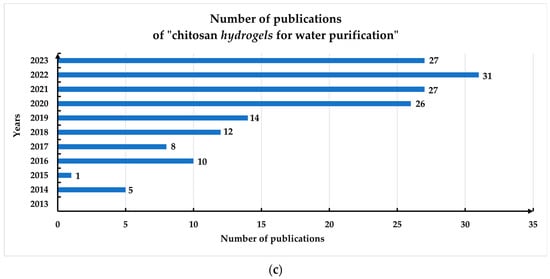

In this regard, a review search was carried out using the Scopus database [75] in order to view the total number of publications for a period of ten years (between 2013 and the present) for bibliometric analysis. The methodological pathway was made according to the following steps: (i) the data collection step and (ii) the data visualization and graphical evaluation steps. Thus, specified keywords (e.g., chitosan, hydrogel, water, and purification) were used. The search was supplementary filtered to include only reviews and articles (in Scopus) with a publication date after 2013. Initially, the terms in all fields, article titles, abstracts, and keywords, were combined (e.g., chitosan, water, and purification) as search words. During this search, 1020 documents (articles and reviews) were found for chitosan for water purification (Figure 3a) in various areas (Figure 3b). In order to refine the search, some areas such as biochemistry, genetics and molecular biology, physics and astronomy, medicine, economics, econometrics and finance, pharmacology, toxicology and pharmaceutics, business, management and accounting, earth and planetary sciences, computer sciences, immunology and microbiology, and social sciences were excluded. Subsequently, to achieve the purpose of this review, the following keywords were combined: chitosan, hydrogel, water, and purification. The search was also filtered to include only reviews and articles published after 2013. Succeeding this research, the record of publications according to the category of “chitosan hydrogel for water purification” examined in this review search are smaller (161 documents) and they are presented in Figure 3c.

2. Adsorption Mechanisms of Chitosan-Based Hydrogels

The knowledge and evaluation of the adsorption mechanism of chitosan-based hydrogels is essential for further design and preparation of adsorption materials in order to increase the adsorption efficiency and capacity. Several adsorption mechanisms exist in the adsorption of pollutants from water using chitosan-based hydrogels such as hydrogen bonding, electrostatic interactions, ion exchanges, π–π interactions, coordination/chelation, and surface complexation (Scheme 1).
In Table 1, the mechanisms of adsorption, their definitions, and several examples are represented.
Due to the fact that the presence of the different functional groups on the hydrogel surface can interact physically or chemically with contaminants following one or more adsorption mechanisms, chitosan-based hydrogels are promising adsorbent materials for wastewater purification and treatment.

3. Categories of Chitosan-Based Hydrogels for Water Purification Applications

Chitosan (CS), a natural polycationic polymer, synthesized from partial deacetylation of chitin, is the second most plentiful natural compound. CS is a heteropolysaccharide made from D-glucosamine and N-acetyl-d-glucosamine which are linked through β-1,4 glycosidic bonds. CS has reactive chemical functional free hydroxyl and amino groups, making it a valuable bio-compound for a wide range of applications. CS is a rigid and crystalline polymer, insoluble in water at neutral pH, but due to the protonation of free amino groups, it can be dissolved in acidic conditions (e.g., acetic acid, formic acid, and citric acid). The average molecular weight of commercially produced CS is between 3800–20,000 Daltons. In addition to its antiviral and antifungal properties, the good antimicrobial activity of CS varies depending on the degree of deacetylation, molecular weight, concentration, solution pH, viscosity, and the target microorganism [82]. Another distinctive advantage of CS is its high pollutant binding capacity. It is also biocompatible and highly abundant, biodegradable and sustainable, non-toxic, and renewable and has an adaptable surface chemistry and a high surface area, and a relatively low production cost. These beneficial characteristics make CS a versatile ecological material, usable in water purification, biofiltration, pollutant removal, and wastewater treatment [83,84,85]. CS is widely used in many other applications such as in biomedicine and pharmaceutics, agriculture, environmental sensing, cosmetics, nutritional enhancement, surface biosensor applications, fabrics and textiles, veterinary medicine, and food processing. Since it is a biocompatible, fairly inexpensive material with excellent characteristics that can be used to make hydrogels with good mechanical strength, CS-based hydrogels have a huge prospect for development.

3.1. CS-Based Composite Hydrogels

3.1.1. Composite Hydrogels Based on CS for Removing Dyes from Water

With a high degree of surface and groundwater pollution, due to dye-laden industrial wastewater, effluents pose an imminent danger to the environment and human health. A recent comprehensive review analyzed dye wastewater, stating that approximately 80% of industrial wastewater is discharged into the environment without treatment, of which 17–20% is dominated by dyes such as methylene blue (MB) and methyl orange (MO) from the textile industry. Only about 5% of textile dye is used in the dyeing process and the rest is thrown away. The study revealed that about 1.84 × 1010 m3 of dye wastewater is produced as waste from various industries such as tanneries, paper and pulp, dyes, textiles, and paints. Among these, the textile industry is considered the biggest water polluter, due to its approximately 100,000 types of dyes and a total annual production of 7 × 105 tons. The same report shows an estimate for the textile industry, which would produce about 15% of the total dye wastewater or about 1000 tons of waste annually, with a concentration of 5–1500 ppm that is discharged into aquatic waters [86]. In this context, for the protection of human health and aquatic ecosystems, the treatment of discharged effluents and compliance with environmental standards require urgent measures to be taken. Since the complex aromatic structures of dyes are quite resistant to conventional biological treatments [87], various alternative methods have been developed and applied. Among them, the adsorption of dyes from wastewater is considered a promising procedure due to its operational simplicity, avoidance of additional chemical intermediates, low price, and absence of unwanted by-products [88].

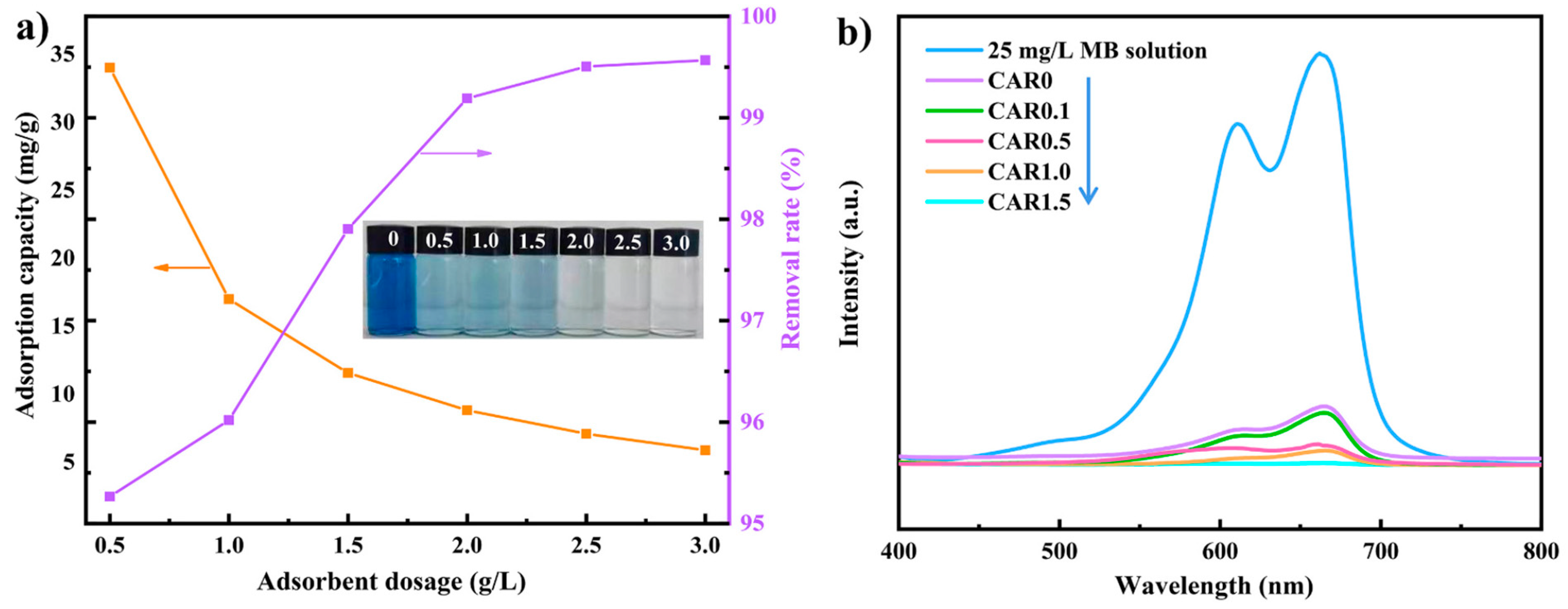

From the multitude of materials proposed as adsorbents for the removal of dyes from water, composite hydrogels based on CS have been intensively studied in various applications. The main characteristics of these composites, among which are the large surface area and abundant functional groups, are favorable to the high affinity of the dye molecules to them and lead to high adsorption efficiencies [89].
MM Perju et al. prepared three cationic composite hydrogels based on CS and poly (N-2-aminoethyl acrylamide) (PAEA) covalently crosslinked with glutaraldehyde (GA) with different molar ratios between the primary amine groups and the crosslinker (GA/NH2 = 5.3 and 12.5), with the same total polycation concentration (CPC = 2 wt%) and two polycation molar ratios (PAEA:CS = 0.25 and 1.2), respectively. The synthesized hydrogels were tested as new adsorbents for two disazo dyes (Congo Red (CR) and Direct Blue 1) from aqueous solutions. Adsorption kinetic data were fitted by the pseudo-second-order equation, which gave the best correlation with the experimental data, for the studied systems. It was also observed that an increase in temperature (from 4 to 40 °C) led to an increase in the color removal efficiency for both dyes [90]. A series of carboxymethyl CS/phytic acid composite hydrogels with different amounts of phytic acid were synthesized to remove methyl orange and CR dyes from an aqueous solution. The composites exhibited high stability and were formed by co-assembly and strong crosslinking interactions of carboxymethyl CS and phytic acid. The experimental test results showed that the hydrogels have a stable porous structure with multiple wrinkles on the surface due to the formation of intermolecular hydrogen bonds between CMCS and PA during the in-situ polymerization process and that they can effectively adsorb MO and CR dyes according to the pseudo-first-order and pseudo-second-order models. By changing the different adsorption factors, namely the molar ratio between the two molecules and the pH of the solution, the optimal adsorption conditions of the composite hydrogels were obtained. Carboxymethyl CS/phytic acid composite hydrogel prepared with a 3:1 molar ratio showed the highest adsorption capacity for methyl orange (13.62 mg/g) and CR (8.49 mg/g) at pH 7 and room temperature. Also, this composite showed high adsorption reusability, stability, and fine swelling capacity [91]. A composite hydrogel was synthesized by introducing CS-crosslinked polyvinyl amine into the N, N′-methylenebisacrylamide crosslinked polyacrylic acid network for dye adsorption from an aqueous medium. The dual crosslinking network gave the hydrogel high mechanical properties, for a maximum tensile stress of up to 1.9 MPa and a strain of 92%. The adsorption capacity of MB was up to 596.14 mg/g. The hydrogel adsorption process was consistent with quasi-second-order kinetics and the Langmuir model, which demonstrated that the dye adsorption was a monolayer chemisorption process. The synthesized hydrogel presented good reusability. The adsorption efficiency for five consecutive cycles is higher than 85%. The adsorption mechanisms for the dye’s chemisorption were drawn as a monolayer, based on the well-fitted Langmuir equation, and followed a pseudo-second-order kinetic. The demonstrated good adsorption capacity is described by an adsorption mechanism based on hydrogen bonds and electrostatic interactions between the functional hydrogel’s groups and dye molecules [92]. In order to strengthen the ability of a hydrogel to remove some organic pollutants by adsorption, a method was devised to obtain it by incorporating natural rectorite into the hydrogel network based on CS-g-poly (2-acrylamido-2-methyl-propane-sulfonic acid) to form a rectorite-in-polymer network structure. Rectorite is a natural clay mineral of the interstratified natural silicate type, and it is used as an ecological adsorbent of pollutants. Figure 4 schematically represents the synthesis process and the structure of the obtained composite hydrogel. The influence of increasing the number of adsorbents on dye-removal efficiency was studied (for a MB concentration of 25 mg/L and pH 10). As the adsorbent dosage increased, the adsorption amount of MB gradually decreased, and the removal rate increased significantly (Figure 5). By introducing a lower dose of rectorite (1.2 wt%) into the hydrogel, it facilitates an improvement of its adsorption capacities towards MB in several types of aqueous media: deionized water, tap water, tap seawater, Yangtze River water, and Yellow River water (Figure 6). By incorporating a higher dose of rectorite (15.8 wt%), an improvement in the removal rate (99.6%) for MB in real waters was obtained. The adsorbent showed high adsorption efficiency in a wide pH range (2–11) and a good degree of reusability (>4 times). It was shown that the good adsorption degree of MB on the composite hydrogel was mainly determined by the driving force of the reaction (originating from the electrostatic attraction, hydrogen bonding interaction, and chemical association of the polymer network) as well as mass transfer action (ion exchange, mainly contributed by natural rectorite) [93].
A composite hydrogel as spheres prepared by encapsulating CS in an organic–inorganic iron and terephthalate ligands which develop a three-dimensional (3D) network structure was used for the adsorption of Congo red (CR) [94]. The obtained hybrid structure shows hydrolytic and good thermal stability. By varying the experimental conditions (e.g., pH, adsorbent dosage, contact time, temperature, and initial concentration), the adsorption properties were studied. The adsorption kinetics were well fitted using the pseudo-first-order model. The adsorption isotherm corresponds to the Liu model. The best adsorption performance was obtained under neutral conditions (pH 7). The adsorption capacity of Congo red has a value of 590.8 mg/g at a temperature of 298 K. The adsorption capacity of the composite hydrogel spheres was 99.97% at the adsorption equilibrium. After three adsorption cycles, the recovery was nearly 85%. The adsorption mechanism is based mainly on ionic interactions and hydrogen bonding. The authors demonstrated that the composite hydrogel spheres show valuable potential in the process of removing CR dye from aqueous media [94]. RD Hingrajiya and MP Patel incorporated magnetic Fe3O4 in CS-grafted acrylamide and N-vinylimidazole composite hydrogels by a water-mediated free radical polymerization technique with ammonium persulfate/tetramethyl ethylenediamine as the initiator as a new type of adsorbent for MB. The prepared magnetic composite hydrogel was characterized morphologically and structurally as well as by the study of the swelling behavior. Experimental adsorption tests showed that the maximum removal of MB (qe = 860 mg/g) was obtained at pH 8, contact time 50 min, room temperature, and an initial concentration of 1000 mg/L of MB. The adsorption kinetics and adsorption isotherm models for the adsorption removal of MB on the composite hydrogel could be satisfactorily described by the second-order kinetics and the Langmuir adsorption isotherm, respectively. The composite hydrogel was proposed as a promising recyclable, durable, robust, and efficient adsorbent for the adsorption of MB from wastewater [95]. A composite hydrogel loaded with ZnO nanoparticles was prepared by grafting acrylamide over CS and gelatin polymer chains in the presence of ammonium persulfate as the initiator and maleic acid as the crosslinker. ZnO nanoparticles embedded in the CS-gelatin hydrogel were synthesized by the free radical mechanism. The nanocomposite hydrogel demonstrated a good swelling capacity, i.e., 545.81% at pH 10. The synthesized material was morpho-structurally characterized. SEM images revealed a crosslinked hydrogel network with a uniform distribution of nanoparticles, and an elemental analysis indicated the composition of elements in the hydrogel. The nanocomposite hydrogel showed good photocatalytic activity towards CR (90.8%) in sunlight and can be used as a potential photocatalyst for the photodegradation of dyes in wastewater for up to four degradation cycles. The CS-gelatin nanocomposite hydrogel showed that it can be employed as an efficient photocatalyst with good degradation capacity towards CR in wastewater [96].

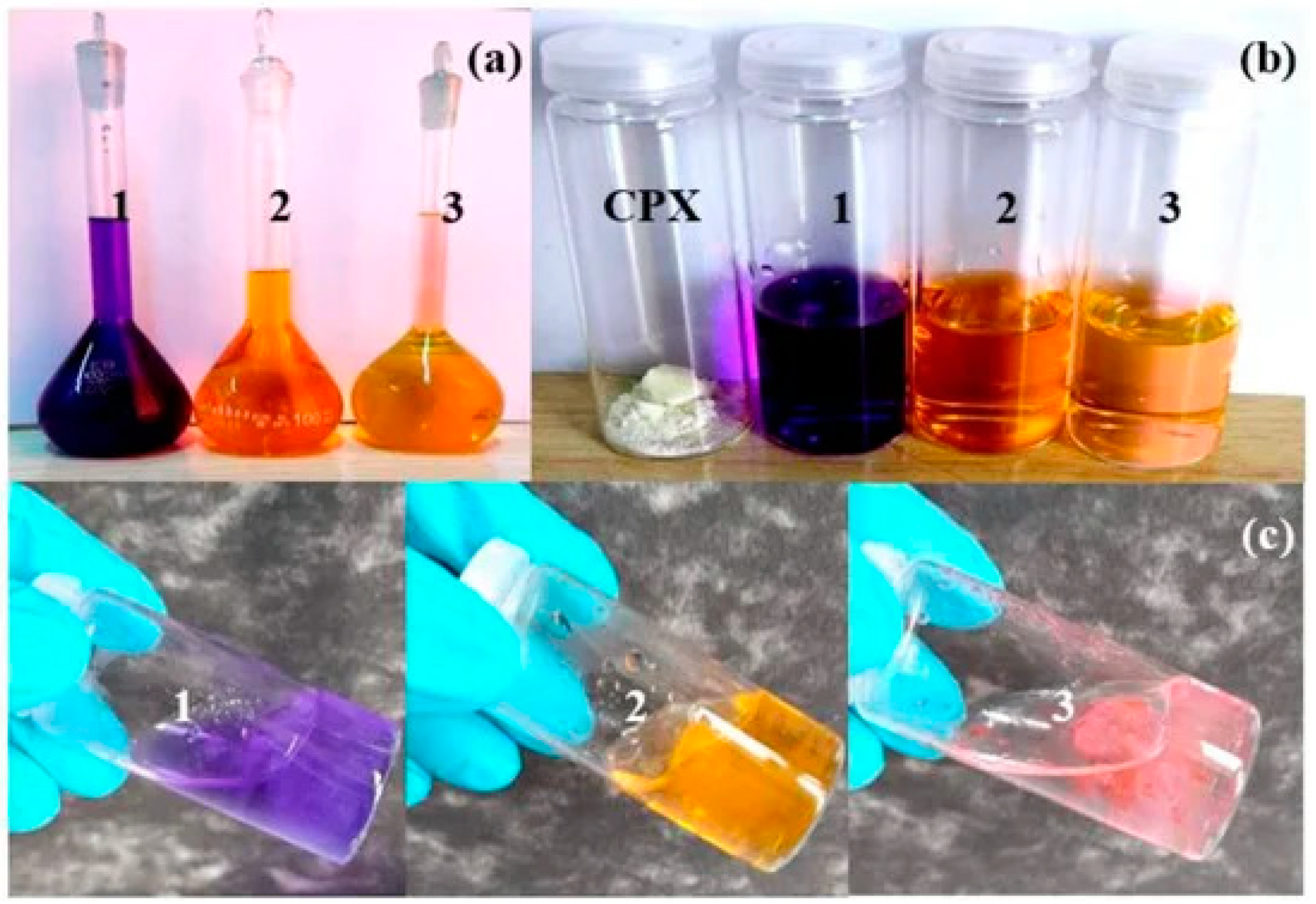

Recently, we used a composite hydrogel (CPX) based on CS, polyethylene glycol, and Xanthan gum for preliminary adsorption tests of some dyes from an aqueous solution (gentian violet, methyl orange, and eosin). Since, after 24 h, the results indicated a good adsorption capacity of the synthesized hydrogel, the tests were subsequently continued with the adsorption of diclofenac sodium (DS). This experiment will be described in Section 3.1.2 (Figure 7) [97].

3.1.2. CS-Based Composite Hydrogels for Pharmaceuticals Adsorption

Novel CS ionic hydrogel beads prepared by the ionic liquid impregnation of CS with tricaprylmethylammonium chloride (TCMA) were tested for the rapid adsorption of tetracycline (TC), as a model pharmaceutical compound, from an aqueous solution. Ionic liquid impregnation with TCMA greatly improved the adsorption behavior of CS toward TC, and a removal efficiency of 90% was achieved in <45 min over a wide pH range of 5–11. Increasing the amount of TCMA enhanced the adsorption efficiency of the hydrogel beads to an optimal amount (22.42 mg/g at 45 °C). The main adsorption interactions in TC adsorption on ionic beads were considered to be due to hydrogen bonds and ion-π and XH/π interactions in TC adsorption on the adsorbent surface [98]. CS/biochar hydrogel beads were explored as economical adsorbents for the removal of ciprofloxacin from aqueous solutions. Biochar was produced from the pyrolysis of yuzu pomace (pomelo peel) waste. The maximum adsorption was >76 mg/g of the adsorbent for an initial concentration of 160 mg/L ciprofloxacin. The adsorption obeyed the second-order mechanism with the main role of intra-particle diffusion and external diffusion. The adsorption capacity decreased from 34.90 mg/g to 15.77 mg/g in the presence of 0.01 N Na3PO4, unaffected by other electrolytes, such as NaCl, Na2SO4, and NaNO3, with the same concentration. The removal of the pollutant was achieved by a mixed mechanism, through π-π electron donor–acceptor interactions (EDAs), hydrogen bonds, and hydrophobic interactions. The adsorption decreased over time but with a slight regeneration after each adsorption cycle. The 6th adsorption was >64 ± 0.68% (25.73 mg/g), proving that the new adsorbent is an advantageous one due to its high efficiency, low cost, and ease of preparation and separation [99]. Mahmoodi et al. synthesized an interesting hydrogel adsorbent based on graphene-CS oxide and graphene-CS oxide amine, without adding chemical crosslinking agents, for the adsorption of diclofenac. Through a simple mechanical mixing method, graphene oxide-CS hydrogel (GO-CS) and amine graphene oxide-CS (AGO-CS) adsorbents were obtained. In this case, GO nanoparticles function as both the adsorbent and crosslinking agents. After a physicochemical characterization, the adsorption parameters were optimized, with the optimal mass ratio of GO to CS being 2:5, pH 5, an initial amount of 100 ppm, and a dosage of 1.5 g/L. A removal rate of approximately 90% and 97% was achieved, respectively. The results suggest that the process is of a homogeneous and monolayer type, and the data could be described by the Langmuir model [100]. HE Ali et al. prepared a nanocomposite hydrogel based on CS, polypropenoic acid, ethylenediamine (CS/PPA/EDA, with different ratios), and magnetite as a filler, using the γ-radiation technique as a crosslinking tool. The source of irradiation was gamma (60Co). The prepared CS/PPA/EDA/Fe3O4-NPs nanocomposite hydrogel exhibited an excellent adsorption capacity for the removal of the hazardous and toxic basic dyes Astrazon blue (AB, 193.21 mg/g) and Lerui Acid Brilliant Blue (LABB, 51.9 mg/g) from contaminated solutions. The kinetic model of the adsorption of AB and LABB dyes on the nanocomposite hydrogel obtained was verified, and it was observed that it is consistent with a second-order reaction of an endothermic nature, and the adsorption process is homogeneous and monolayer, according to the Langmuir model. The authors found that the hydrogel composite could be regenerated while retaining its properties, recommending it for wastewater remediation applications [101]. Luo et al. synthesized a new non-toxic CS-based hydrogel using cellulose nanocrystals (CN) and carbon dots (CD). The newly developed hydrogel was tested in the detection and adsorption of tetracycline (TC) from water (Figure 8). The 3D porous structure of the hydrogel was highly beneficial for TC adsorption and aggregation due to the natural CN backbone and the outstanding fluorescent feature of CDs, which were used as fluorescent probes (Figure 9). Therefore, the synthesized CH had a strong adsorption capacity and a sensitive fluorescent response. The results indicated a maximum adsorption capacity of 541.3 mg/g and a detection limit of 0.12 μg/L over the linear ranges of 0.2–1.0 μg/L and 1–200 mg/L for the selective determination and sensitivity of the antibiotic. This new hydrogel, developed as a multifunctional one, may be useful in applications for both the detection and removal of antibiotics from contaminated waters [72].
In our recent work, we prepared a new composite hydrogel based on CS, polyethylene glycol, and Xanthan gum, named CPX, by a green synthesis as an economical adsorbent for diclofenac sodium (DS) in wastewater (Figure 10) [97]. The SEM analysis revealed an advantageous two-dimensionally ordered structure, which can lead to the improvement of the swelling capacity of the hydrogel by about 83% after 360 min (Figure 11). The swelling analysis demonstrated that it is not dependent on pH. The experiments were made at different pH values (pH 3, pH 7, and pH 9). The results showed that the swelling degree after 4 h is 83%, independent of pH values, in the limit of experimental errors [97]. The hydrogel showed an adsorption capacity (172.41 mg/g) at the highest amount of the adsorbent (200 mg) after 350 min. The adsorption kinetics followed the pseudo-first-order model, while the adsorption mechanism was explained by the Langmuir and Freundlich models. The synthesized hydrogel could be used as a promising, eco-friendly, and cost-effective adsorbent for the removal of DS from wastewater [97].
J Tang et al. performed a very interesting study for the adsorption of norfloxacin (NOR), a broad-spectrum antibiotic that is used as a treatment for both humans and animals [102]. Once in the aquatic ecosystem, through various pathways, even in small amounts, NOR residues can cause the generation of antibiotic-resistant bacteria, endangering public health. For this reason, it is very important to remove NOR from the aquatic environment. Calcium alginate (CA)/CS hydrogel precursor spheres were prepared. Acid-washed spheres (CA/CS-M) demonstrated a much better adsorption of NOR (310.6 mg/g) than the precursor CA/CS spheres. Even though acid washing was expected to remove CS from CA/CS hydrogel spheres to obtain a higher specific surface area, as scanning electron microscopy and a BET assay showed, a small part of CS remained, increasing the structural stability of the material and leading to a more negatively charged surface characterized by Zeta potential. This feature is the main reason for the increase in the fast adsorption capacity of NOR. The maximum NOR adsorption capacity of CA/CS-M hydrogel spheres was 4.5 times higher than that of the untreated hydrogel spheres. It was demonstrated by pH and density functional theory calculations that NOR was adsorbed on the CA/CTS-M hydrogel spheres mainly through electrostatic interactions. The morphology of the adsorbent did not change significantly after 15 adsorption cycles, and the adsorption performance remained very good. The prepared hydrogel spheres have a great potential to be used as eco-friendly and extremely stable adsorbents for pollutants such as norfloxacin in the aqueous environment [102].

3.1.3. CS-Based Composite Hydrogels as Biosorbent of Heavy and Rare Earth Hazardous Metals

Lead is known to be a toxic heavy metal that is very harmful to both humans and the aquatic environment. The development of fast, efficient, inexpensive, and environmentally friendly materials for the treatment of lead-contaminated wastewater is a challenge [103]. RM Vieira et al. investigated the adsorption and removal potential of Pb2+ and Ni2+ ions from aqueous solutions of two prepared hydrogels [104]. A CS-based hydrogel and a CS/acid-activated montmorillonite composite hydrogel were prepared by copolymerizing CS, acrylic acid, and N, N′-methylene bisacryl amide. The adsorption capacities of the dry CS-based hydrogel for Pb2+ and Ni2+ ranged from 41.06 to 30.20 and from 42.38 to 36.45 mg/g in the pH range between 5.5 and 3.5. The adsorption capacities of CS/acid-activated montmorillonite composite hydrogel ranged from 35.22 to 26.11 and from 37.16 to 42.04 mg/g in the pH range between 5.5 and 3.5. The adsorption mechanism of the two pollutant ions was evaluated, and the best kinetic fit for the adsorption of Pb2+ and Ni2+ ions to both hydrogels was observed using the second-order nonlinear kinetic model, indicating that the limiting phase of the adsorption process involves chemical bonding through the sharing of electrons between the adsorbent and the adsorbate [104]. Metal ion-modified hydrogels have been observed to greatly improve their pollutant removal and recovery capacity compared to that of regular hydrogels. In a recent study, H Zhao et al. synthesized a hydrogel based on sodium alginate/CS/copper ion nanofibrillar cellulose (SCC-Cu) by a semi-dissolved acidification sol-gel transition method with an internal gelation method. Also, an SCC-CuMOF composite was prepared by the in situ growth of Cu-based metal-organic frameworks (MOFs) on the surface of the SCC-Cu hydrogel [105]. The obtained materials were used to remove Pb2+ from aqueous solutions. The effects of pH, coexisting ions, contact time, initial ion concentration, as well as temperature on Pb2+ removal were investigated. The prepared composite material showed excellent pollutant ion adsorption performance according to the pseudo-second-order model and the Langmuir model, with the maximum adsorption capacity being 531.38 mg/g. The adsorption thermodynamic study suggested that the adsorption process was spontaneous and endothermic. The authors suggested that Pb2+ could be adsorbed on the composite material through ion exchanges and coordination interactions [105].
Among the multitude of metallic pollutants, chromium is found natively in the environment, as it is a part of the composition of natural minerals. In nature, chromium exists in two forms: trivalent and hexavalent. If Cr(III) can be assimilated as a “beneficial” ion, because it is an essential micronutrient required for the proper functioning of many biological cycles, Cr(VI) is a dangerous element extremely toxic to all biological systems, including humans and animals. Due to bioaccumulation, it can cause genetic mutations along the food chain. Therefore, the Cr content must be strictly monitored, especially in surface and groundwater and in drinking water sources. The maximum permissible limits for total Cr content recommended by the WHO are 50 µg/L, while the European Union (EU) has set a limit value of 100 µg/L for total chromium in drinking water as part of its Drinking Water Directive. For hexavalent chromium in drinking water, the indicative value established by the WHO provisionally is 0.1 µg/L, while the maximum limit for the discharge of hexavalent chromium into the aquatic environment according to the European Union is 0.5 µg/L [106]. PB Vilela developed a hydrogel synthesized by the chemical crosslinking of CS, polyacrylic acid, and N, N′-methylene bisacryl amide as a cost-effective and environmentally friendly alternative adsorbent for the treatment of water and wastewater containing heavy metals [107]. It was tested in adsorption and removal studies of chromium (VI) ions contained in aqueous solutions. The maximum chromium (VI) adsorption capacities of the dry hydrogel were 73.14 and 93.03 mg/g, according to the Langmuir and Sips nonlinear isotherm models, respectively. The best fit for the adsorption of Cr(VI) ions to the CS-based hydrogel was found with the nonlinear Redlich–Peterson isotherm model. The removal percentage of chromium (VI) at pH 4.5 and the initial metal concentration of 100 mg/L was 94.72%, the adsorption mechanism of Cr(VI) being one governed by the simultaneous formation of monolayer and multilayer interactions. The best kinetic fit for the adsorption of Cr(VI) ions to a CS-based hydrogel was found with the pseudo-nth-order non-linear kinetic model [107]. S Wankar et al. fabricated a silver-CS (Ag-CS) nanocomposite hydrogel for the rapid detection and removal of hexavalent chromium from water [108]. It was prepared at a low cost by an in situ reduction of AgNO3 to silver nanoparticles, which were embedded in a highly porous CS-based hydrogel matrix network obtained by crosslinking under ambient conditions. The low-cost hydrogel obtained was used for the rapid detection and removal of hexavalent chromium from water. This method was chosen to ensure a high stability of the AgNPs. The Ag-CS nanocomposite hydrogel acted as a colorimetric sensor for Cr(VI) with a detection limit as low as 0.1 ppb and demonstrated a fairly high removal efficiency of 83% for Cr(VI) within a rapid 30 min interval [108].
S-C Yang et al. developed inexpensive high-performance biosorbents from abundant and renewable natural polymers (cellulose and CS) for water purification and the removal of metal ions from water [109]. The researchers synthesized cellulose-CS composite hydrogels through a co-dissolution and regeneration process using a hydrate molten salt (a 60 wt% LiBr aqueous solution) as a solvent. The addition of CS increased the functionality for metal adsorption and the specific surface area and improved the mechanical strength of the composite hydrogel, compared to the pure cellulose hydrogel. The composite hydrogel with 37% cellulose and 63% CS demonstrated an adsorption capacity of 94.3 mg/g (1.49 mmol/g) towards Cu2+ at 23 °C, pH 5, and an initial metal concentration of 1500 mg/L, which was 10 times higher than the adsorption capacity of pure cellulose hydrogel. The metal adsorption capacity of the hydrogel was pH-dependent and was stable under slightly acidic conditions (pH 3–6) but significantly decreased under strongly acidic conditions (pH < 3) due to the protonation of the amino group and the dissolution of CS. From a mixture of metals in a solution, the cellulose-CS composite hydrogel showed a selective adsorption of metals in the order of Cu2+ > Zn2+ > Co2+ [109].
CB Godiya et al. used CS to develop a new environmentally friendly bilayer amine group embedded microcrystalline cellulose (MCC)/CS hydrogel, synthesized by the integration of polydopamine (PDA) and polyethyleneimine (PEI) (Figure 12) [110]. The hydrogel was investigated for the reliable and efficient extraction of copper (Cu2+), zinc (Zn2+), and nickel ions (Ni2+) in effluents. The MCC-PDA-PEI/CS-PDA-PEI hydrogel exhibited very good Cu2+, Zn2+, and Ni2+ adsorbances of ~434.8, ~277.7, and ~261.8 mg/g, respectively, in a single ion adsorption due to the abundant adsorption sites. The adsorption kinetics and isotherm conformed to pseudo-second-order and Langmuir models, respectively, indicating monolayer chemisorption. In a mixture of several ions in a solution, the hydrogel removes metal cations but with a slightly higher selectivity for Cu2+. In several adsorption/desorption cycles, the hydrogel retained >40% metal ion adsorption and desorption capacities after four consecutive cycles. Furthermore, the in situ reduction of adsorbed Cu2+ formed a hydrogel patterned with Cu nanoparticles that showed excellent catalytic activity in the hydrogenation of 4-nitrophenol (4-NP) to 4-aminophenol. The newly fabricated hydrogel can be described as both a bioadsorbent and an efficient biocatalyst for the extraction of heavy metal ions and the catalytic hydrogenation of 4-NP in contaminated water [110].

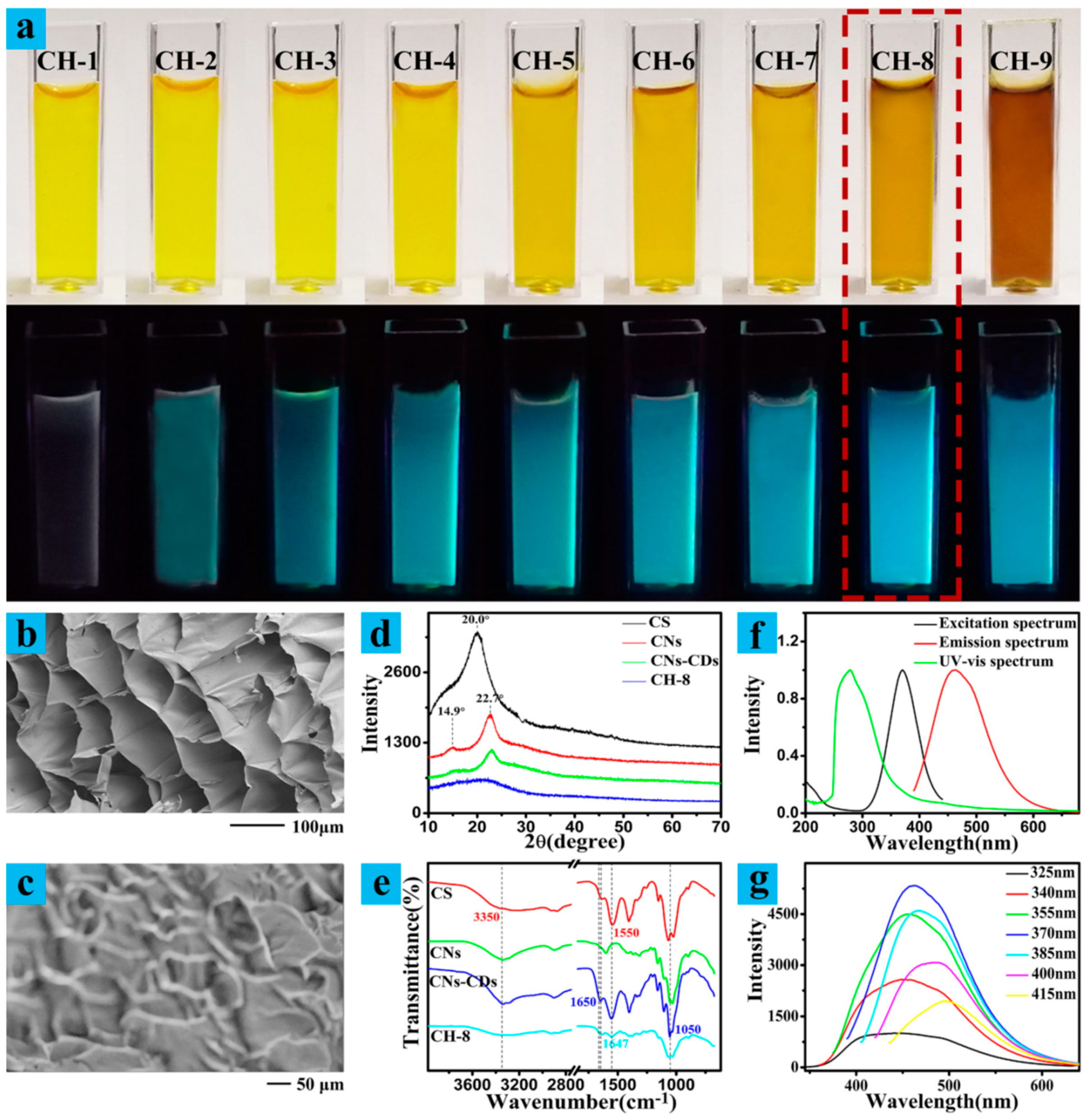

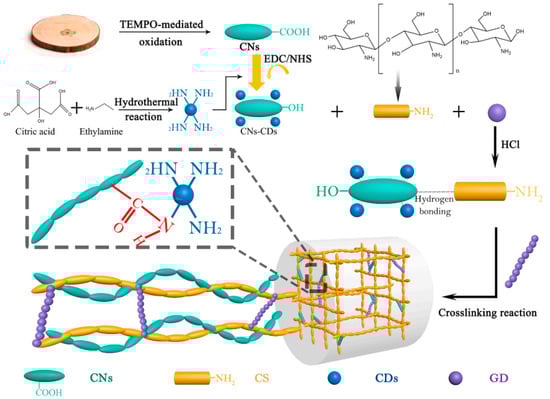

C Li et al. obtained a CS-based fluorescent hydrogel through a three-step synthesis strategy using two dialdehydes [111]. NO2-boron-dipyrrolemethene (BODIPY) was prepared first, and then the -NO2 group was reduced to the -NH2 group. Finally, NH2-BODIPY was introduced into CS via the Schiff base formation reaction via bi-aldehyde. The prepared fluorescent CS hydrogels were used for the selective detection and adsorption of Hg2+/Hg+ in aqueous media. The adsorption capacity of the fluorescent hydrogel is 121 mg/g of mercury ions, almost seven times higher compared to the unmodified hydrogel, with a detection limit of 0.3 μM. The Hg2+/Hg+ elimination isotherm and kinetics follow the Langmuir isotherm and pseudo-second-order kinetics, respectively [111]. DC Mota Ferreira et al. successfully synthesized complex polyelectrolyte granular structures formed by the interaction of CS and carboxymethylcellulose (CMC), namely CS/CMC macro-PECs [112]. They were tested as adsorbents for six pollutants commonly found in wastewater: sunset yellow (SY), MB, CR, safranin (S), cadmium (Cd2+), and lead (Pb2+). The optimum adsorption pH values at 25 °C were determined to be 3.0, 11.0, 2.0, 9.0, 10.0, and 9.0 for SY, MB, CR, S, Cd2+, and Pb2+, respectively. The prepared adsorbent demonstrated an excellent adsorption capacity for the removal of SY, MB, CR, and S dyes, as well as the heavy metal cations Cd2+ and Pb2+ from aqueous media. Adsorption kinetics showed that the processes, depending on the type of adsorbate, followed pseudo-first-order or pseudo-second-order models. The maximum adsorption capacity of CS/CMC macro-PECs for the removal of SY, MB, CR, S, Cd2+, and Pb2+ was 37.81, 36.44, 70.86, 72.50, 75.43, and 74.42 mg/g, respectively (corresponding to 98.91%, 94.71%, 85.73%, 94.66%, 98.46%, and 97.14%). Adsorbent granular structures can be regenerated after adsorption of any of the six studied pollutants and can be reused [112]. A very interesting recent study presented the adsorption of europium ions from water [113]. This rare earth ion is used in the manufacturing of superconductors, fluorescent lamps, and in various commercial uses, and radioactive isotopes of europium are employed in nuclear medicine for radiation therapy and biomedical imaging [114]. It is also involved in the manufacturing of nuclear fuels. Sometimes, relatively small amounts of liquid nuclear waste can reach the environment. The application of adsorbent materials for the treatment of liquid radioactive waste is a feasible and effective procedure due to its high efficiency, low cost, selectivity, and accessibility, adsorption being considered one of the most advantageous methods of radionuclide extraction. The paper presented the creation of a hydrogel obtained by copolymerizing acrylamide and maleic acid on the surface of CS using gamma radiation. The adsorption of Eu ions from an aqueous solution was initially fast, with the hydrogel showing a maximum adsorption capacity of 144.96 mg/g. The adsorption kinetics were described by the pseudo-second-order model, and the adsorption process was spontaneous, exothermic, and favorable at a lower temperature. An efficient desorption of Eu ions was achieved in the presence of 0.1 M HCl and AlCl3 (97.09% and 88.63%, respectively) [113].
Table 2 summarizes the latest developments in CS-based composite adsorbent hydrogels for the removal of pollutants from wastewater.

3.2. CS-Based Beads Hydrogels

Various adsorption mechanisms (electrostatic interactions, complexation, hydrophobic interactions, coordination/chelation, pore filling, ion exchange interactions, and hydrogen bonding) between sorbent and sorbate are involved during the adsorption of different pollutants from wastewater by means of CS beads [135].
There are numerous CS beads used for the removal of pollutants from waters: CS-based composite beads, functionalized CS beads, metal–organic framework-based CS beads, magnetic CS beads, co-polymeric CS beads, and imprinted CS beads. A brief summary of the types of CS beads and their main advantages and disadvantages and the involving mechanisms are presented in Table 3.
Here, the preparation, adsorption mechanisms, and capacities of several CS-based beads’ hydrogels are extensively examined. Recently, it has been shown that CS has an increased capacity to cover alginate beads with an influence on the diffusion rate of the encapsulated compounds or with the proven action of being an excellent additive with the role of modifying the bead structure [160]. Bioadhesive, biodegradable, and biofunctional alginate-CS beads were developed by an ionotropic gelation preparation method using dysprosium (Dy3+) ion as the crosslinker for the effective removal of anionic (Fluorescein) and cationic (Rhodamine B) dyes. Adsorption kinetic studies demonstrated that the adsorption process is controlled by a chemisorption mechanism. Physical, chemical, and rheological analyses confirmed the stable and excellent mechanical properties and demonstrated the potential of the obtained hydrogel to be used for effective wastewater treatment [160]. The newly produced amidoxime-grafted sepiolite-based CS composite beads as an organic–inorganic-hybrid system was used for the removal of dyes and toxic metals from wastewater [161]. CS-amidoxime-grafted sepiolite composite beads were thermally stable, had good mechanical properties and presented an excellent adsorption capacity (99 mg/g for copper ions). The adsorption process is governed by a homogenous mechanism with the formation of a monolayer. A novel polymeric material obtained from CuO nanoparticles synthesized by a green method from Ficus retusa plant extract and embedded in the CS bead matrix was used for the removal of CR and eriochrome black T organic dyes with an adsorption capacity of 119.7 mg/g for CR and 235.7 mg/g for eriochrome black T [162]. The results showed a 97% removal of the dyes in a time interval of 4 h by an adsorption process at equilibrium, characterized by the Freundlich isotherm model. These CS composite beads can be reused for up to five cycles.
A novel imidazolium-functionalized polysulfone/diethylenetriaminepent–acetic acid—CS bifunctional composite bead was successfully created using the phase inversion method [163]. The material was useful for the simultaneous removal of two heavy metal cations (Cr(VI) and Cu(II)) from complex wastewater. The maximum adsorption capacities obtained at pH 5 were 56.72 mg/g for Cr(VI) and 43.05 mg/g for Cu(II). The adsorbent showed good reusability in the removal process. The adsorption isotherms were based on a Sips model which is a hybrid between Freundlich and Langmuir isotherms and which demonstrated that the adsorption process of Cr(IV) and Cu(II) ions is not represented by a simple monolayer adsorption but by a heterogenous one. Removing fluoride from drinking water is a vital process. In this regard, materials with a high degree of selectivity with high porosity and an improved surface area were represented by metal organic frameworks. Organic aluminum frameworks functionalized with 2-aminobenzene-1,4-dicarboxylic acid and incorporated into CS hybrid beads were designed for water defluoridation (Figure 13) [164].
The maximum defluoridation capacity was found to be 4.9 mg/g for a contact time of 20 min and for neutral conditions. The best fit of the fluoride adsorption model was observed for the Langmuir isotherm, leading to an adsorption mechanism based on complexation and electrostatic interactions. The obtained adsorbent can be reused for up to six cycles.
Several studies have demonstrated that CS bead-based magnetic adsorbents have improved stability and the ability to prevent the oxidation process, facilitate adsorbent separation, and lead to a total adsorption of pollutants through electrostatic interactions and complexation mechanisms [165,166]. A cellulose–CS–magnetite–alginate composite hydrogel bead was developed for the treatment of heavy metal industrial effluents [167]. The synthesis of a magnetic iron oxide tethered CS-GO nanocomposite for the removal of cationic MB dye from wastewater was reported. The maximum adsorption capacity at pH 7.4 and a contact time of 300 min was 74.93 mg/g. The adsorption kinetics fit the pseudo-second-order model, and the adsorption capacity at equilibrium was well described by the Freundlich adsorption model. The reuse was evaluated up to four successive cycles at different pH values with a good adsorption capacity [168]. Using a mixture of CS and magnetite in sodium alginate solution, a magnetic hydrogel of CS beads was obtained and used for the removal of Cu(II) ions from wastewater. At a pH value of 5 and a contact time of 24 h, the adsorbent obtained showed the maximum adsorption capacity and a removal efficiency of 56.51% [169]. Reusable and stable hydrogel-based magnetic double-network CS/CA beads were prepared and used for surfactant adsorption and MB dye removal from water [170]. The adsorption capacity of the prepared hydrogel beads (surface area of 0.65 m2/g) was 1.9 mg/g for the removal of cationic hexadecylpyridinium chloride and 1.2 mg/g for anionic sodium dodecyl sulfate, respectively. Adsorption kinetics followed a pseudo-second-order and Freundlich isotherm models. The adsorption process showed an efficiency of 61% in removing MB dye from an aqueous solution.
Few research studies are focused on printing technology to obtain CS-based beads. The detection of target ions using printing technologies is an efficient method due to the memory effect obtained from the preparation method. Ion-imprinted montmorillonite nanosheets/CS gel beads with a porous structure were synthesized using the ion imprinting technique for the selective adsorption of Cu(II) ions [171]. The Redlich–Peterson isotherm adsorption model was found to be suitable to describe the adsorption process. A cation exchange mechanism was found for Cu(II) ion adsorption based on SEM-EDS and XPS studies. Adsorbent performance has an efficient removal and recovery of copper ions from wastewater after five cycles. The synthesis of a new type of ion-imprinted macroporous honeycomb structured as CS-based kaolin clay composite foams using both freeze-drying and ion-imprinting methods was described by Yu et al. [172]. The synthesized ion-imprinted composite foams were used for the selective biosorption of U(VI) from wastewater. FTIR and XPS structural analyses revealed an excellent honeycomb-like structure with abundant accessibility of hydroxyl and amine functional groups. Adsorption isotherm studies indicated a maximum capacity evaluated as 286.85 mg/g for U(VI) at 298 K and pH 5, evaluated for the Langmuir isotherm model and kinetics displayed by a pseudo-second-order model. The reusability of the adsorbent is five cycles. The imprinted CS beads exhibited an outstanding adsorption capacity and superior recognition ability of the target pollutants in wastewater. Nevertheless, further research is needed to understand the interactions and preparation mechanisms for the emerging effective imprinted CS beads. Also, much attention must be paid to the development of efficient and inexpensive preparation procedures to guarantee the physical, mechanical, and chemical stability of CS beads.

3.3. CS Graft Copolymeric-Based Hydrogels

Another advantageous alternative method to functionalize the surface of natural polymers is graft copolymerization, which can be initiated by chemical methods, radiation techniques, or by other methods, such as enzymatic grafting. A molecular design specifically tailored for the targeted adsorption application can be achieved by grafting functional polymers onto the polysaccharide backbone. This is an effective method for structural modifications of hydrogels with desired functional groups and for obtaining materials with superabsorbent potential [173]. By adding functional groups such as amino, sulfur, carboxyl, and alkyl, the adsorption capacity of hydrogels can be improved. The most important parameters influencing the grafting percentage are initiator type, initiator concentration, grafting time, monomer type, monomer concentration, and temperature [174,175,176,177,178]. Other factors that can influence the properties of grafted or functionalized CS are the molecular structure, length, and number of side chains [179]. A chemical grafting requires chemical initiators (e.g., potassium persulfate, ammonium persulfate, ceric benzoyl peroxide ammonium nitrate, potassium thiocarbonate bromate, ferrous ammonium sulphate, etc.) to stimulate the polymer chains, compared to irradiation grafting which employs radiation of high energy (γ-radiation) to obtain a free radical, followed by free radical polymerization [180].
An example of a water-soluble polymer that can be easily grafted is PEI, which exhibits high hydrophilicity, long flexible chains, high charge density [181], and abundant reactive groups (–NH2 and –NH), so that it can easily react with acid, acid chloride, epoxy, and isocyanate to modify the surface. In a recent study, C Zhang et al. successfully grafted L-cysteine (L-Cys), using PEI and CS as the carrier, obtaining two efficient, cheap, and readily available adsorbent materials chemically modified by the covalent bond of the backbone amino acids [182]. They had a good adsorption effect on Hg(II). The maximum Hg(II) adsorption capacities of PEI-Cys and CS-Cys of 231.2 mg/g and 407.4 mg/g were obtained, respectively. The results showed that L-cysteine methyl ester (an amino acid) can selectively adsorb Hg(II) in aqueous solution. The authors analyzed the adsorption behavior of Hg(II) on the two adsorbents, which can be well described by Langmuir isotherms, while the kinetics is pseudo-second order [182]. In another study, the group of NH Yusof et al. prepared CS-PEI balls by graft copolymerization under microwave irradiation and crosslinking with glutaraldehyde [183]. These were tested for the adsorption of Acid Red 27 dye from water. Crosslinking with glutaraldehyde greatly improved the mechanical and chemical properties of the obtained grafted and crosslinked CS granules (CS-PEI-GLA). Adsorption experiments were carried out in a batch system and optimized by varying the adsorbent dose, pH, initial dye concentration, and contact time. The kinetic model was described by the pseudo-second-order model, and the adsorption equilibrium was determined by the Langmuir isotherm model. The synthesized materials showed a maximum adsorption capacity of 48.3 mg/g at 27 °C. The dye adsorption mechanism was realized by electrostatic interactions [183]. For the removal of DS from water, new spherical polymeric adsorbents composed of crosslinked CS beads grafted with PEI were synthesized [184]. The crosslinking reaction improved the mechanical properties of the adsorbent, improving their handling. The presence of PEI polymer increased the number of functional groups and available adsorption sites on the surface of the adsorbent and improved the adsorption capacity for DS. The fabricated epichlorohydrin-PEI (EPCS@PEI) adsorbent demonstrated a maximum adsorption capacity of 253.32 mg/g and a removal efficiency of nearly 100% in the initial solution of 50 mg/L. The adsorption kinetics were described by the pseudo-second-order model, and the adsorption equilibrium was according to the Langmuir isotherm model. The material showed a good adsorption capacity even after recycling five times [184].

4. Different Composite Hydrogels Used for Water Purification

In order to highlight the importance of chitosan-based hydrogels, Table 4 shows some other different composite hydrogels based on natural biopolymers used for water purification.
Based on the data from Table 4 and our review, it can be emphasized that biopolymers, as “green” compounds from natural sources, can be used as a promising alternative for developing more sustainable materials and technologies for the removal of contaminants from wastewater and water purification.

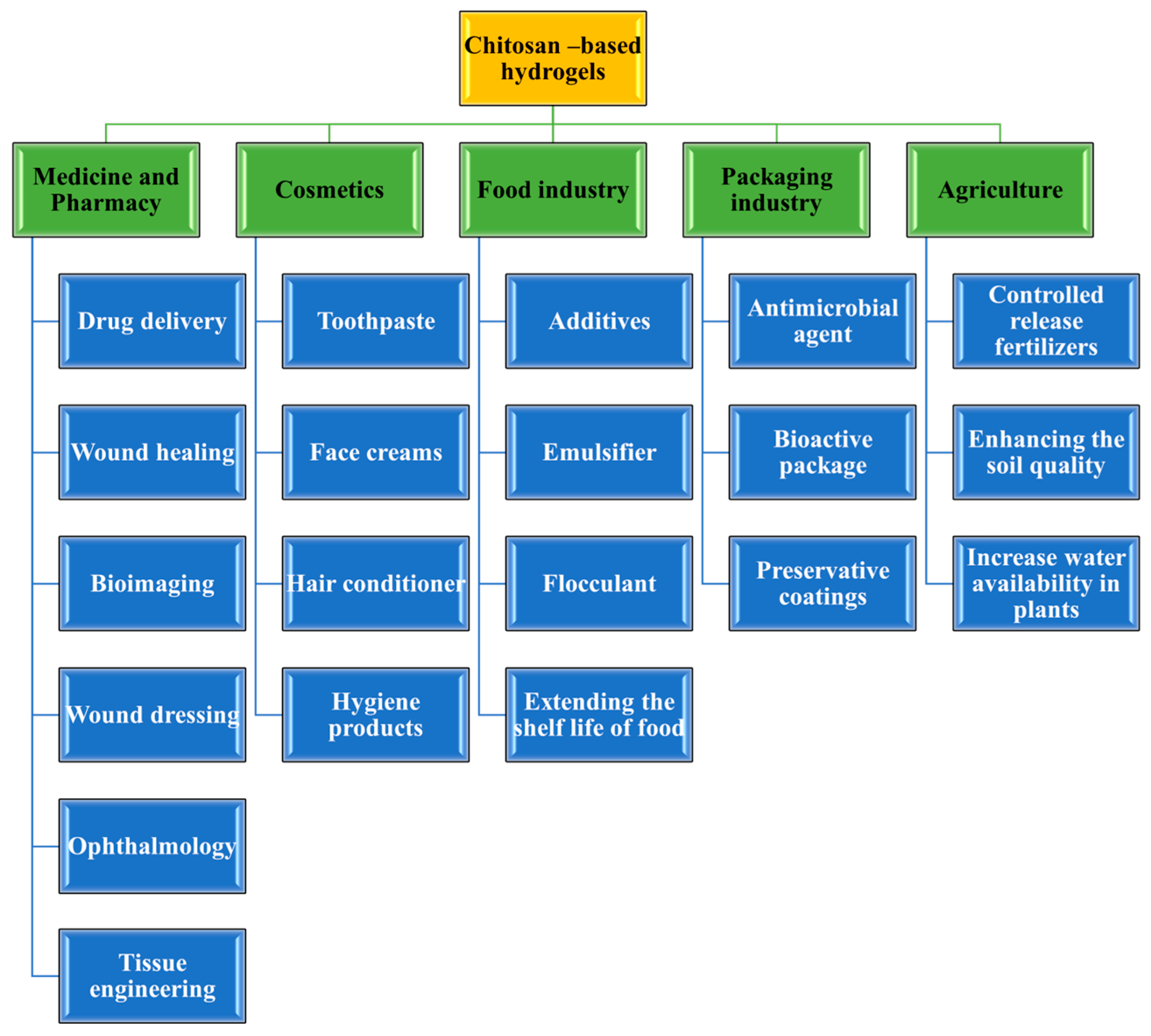

5. CS-Based Hydrogels Used in Various Other Applications

In recent period, CS-based hydrogels have attracted tremendous interest to be used in various applications other than industrial wastewater treatment. Their applications are based on the exceptional physical, mechanical, chemical, and antibacterial properties of CS, such as mucoadhesiveness, swelling ability, low immunogenicity, enzymatic biodegradability, similarity to host tissues, excellent biocompatibility and mechanical strength, pH-sensitivity, and antibacterial effect. CS-based hydrogels are used in several other fields, including medicine and pharmaceuticals, cosmetics, the packaging and food industries, and agriculture (Scheme 2).
Table 5 summarizes some examples of the recent use of CS-based hydrogels in various applications.

6. Conclusions and Prospective Studies

The versatility of CS has broad application prospects, and CS-based hydrogels can be designed and developed with several novel functions for various high-value applications in multiple fields. The use of biodegradable, innovative, and bio-derived resources to design efficient and inexpensive adsorbent materials has increased the potential for new perspectives in wastewater remediation. CS-based hydrogels have a high capacity against various types of water pollutants due to their biodegradability, inexpensiveness, abundance, adsorption performance, and reusability. The 3D network morphology of CS-based hydrogels makes them recyclable and suitable for different viable applications. The main advantages of these types of adsorbents for use in wastewater treatment are their outstanding adsorption capacity, easy reuse and recovery, together with better mechanical, thermal, and chemical stabilities.
The present review critically examined the numerous categories of CS-based hydrogel composites and their adsorption mechanism and efficiency in removing various compounds from wastewater. The extraordinary chemical and physical ability to be used in various ways of those compounds has stimulated scientists to advance new water decontamination technologies. Consequently, it has been suggested that future studies in this area should focus on emerging sustainable resources and encouraging the progress for strong, smart, biodegradable, reusable, and low-cost composites for possible further industrial, agricultural, and medicinal applications and for their commercialization.

Author Contributions

Conceptualization, M.C. and A.M.M.; methodology, A.M.M. and J.M.C.M.; resources, M.P.; data curation, A.M.M. and M.P.; writing—original draft preparation, A.M.M., M.C. and M.P.; writing—review and editing, A.M.M., M.C. and J.M.C.M.; visualization, A.M.M. and M.P.; supervision, A.M.M. and J.M.C.M.; project administration, A.M.M. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Bashir, I.; Lone, F.A.; Bhat, R.A.; Mir, S.A.; Dar, Z.A.; Dar, S.A. Concerns and Threats of Contamination on Aquatic Ecosystems. In Bioremediation and Biotechnology; Springer: Cham, Switzerland, 2020; Volume 27, pp. 1–26. [Google Scholar] [CrossRef]
  2. Chowdhary, P.; Bharagava, R.N.; Mishra, S.; Khan, N. Role of Industries in Water Scarcity and its Adverse Effects on Environment and Human Health. In Environmental Concerns and Sustainable Development; Springer: Berlin/Heidelberg, Germany, 2020; pp. 235–256. [Google Scholar] [CrossRef]
  3. Hampel, M.; Blasco, J.; Segner, H. Molecular and cellular effects of contamination in aquatic ecosystems. Environ. Sci. Pollut. Res. 2015, 22, 17261–17266. [Google Scholar] [CrossRef]
  4. Water and Sustainable Development from Vision to Action. Available online: (accessed on 3 July 2023).
  5. FAO. The State of the World’s Land and Water Resources for Food and Agriculture—Systems at breaking point; Main report; FAO: Rome, Italy, 2022; Available online: (accessed on 3 July 2023).
  6. The United Nations World Water Development Report 2022: Groundwater: Making the Invisible Visible; Executive Summary. Available online: (accessed on 3 August 2023).
  7. The United Nations World Water Development Report 2022: Groundwater: Making the Invisible Visible. Available online: (accessed on 3 July 2023).
  8. Ciccarelli, D.; Braddock, D.C.; Surman, A.J.; Vergara Arenas, B.I.; Salal, T.; Marczylo, T.; Vineis, P.; Barron, L.P. Enhanced selectivity for acidic contaminants in drinking water: From suspect screening to toxicity prediction. J. Hazard. Mater. 2023, 448, 130906. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, Z.; Walker, G.W.; Muir, D.C.; Nagatani-Yoshida, K. Toward a global understanding of chemical pollution: A first comprehensive analysis of national and regional chemical inventories. Environ. Sci. Technol. 2020, 54, 2575–2584. [Google Scholar] [CrossRef] [PubMed]
  10. Zaldivar-Díaz, J.M.; Martínez-Miranda, V.; Castillo-Suárez, L.A.; Linares-Hernández, I.; Solache Ríos, M.J.; Alcántara-Valladolid, A.E. Synergistic electrocoagulation–precipitation process using magnesium electrodes for denim wastewater treatment: Bifunctional support electrolyte effect. J. Water Process Eng. 2023, 51, 103369. [Google Scholar] [CrossRef]
  11. Deng, L.; Dhar, B.R. Phosphorus recovery from wastewater via calcium phosphate precipitation: A critical review of methods, progress, and insights. Chemosphere 2023, 330, 138685. [Google Scholar] [CrossRef]
  12. Chai, T.; Zhang, Y.; Tan, Y.; Li, Z.; Wei, H.; Sun, S.; Jin, H.; Mu, Z.; Ma, L. Life cycle assessment of high concentration organic wastewater treatment by catalytic wet air oxidation. Chin. J. Chem. Eng. 2023, 56, 80–88. [Google Scholar] [CrossRef]
  13. Rikabi, A.A.K.K.; Cuciureanu, A.; Chelu, M.; Miron, A.R.; Orbeci, C.; Popa, A.G.; Craciun, M.E. Proteins ultrafiltration using polysulfone-polyaniline and polysulfone-magnetite nanoparticles composite membranes. Rev. Chim. 2015, 66, 1093–1099. [Google Scholar]
  14. Diaconu, I.; Aboul-Enein, H.Y.; Bunaciu, A.A.; Ruse, E.; Mirea, C.; Nechifor, G. Selective separation of acetaminophene from pharmaceutical formulations through membrane techniques. Rev. Roum. Chim. 2015, 60, 521–525. [Google Scholar]
  15. Rikabi, A.A.K.K.; Chelu Balaban, M.; Mariana; Harabor, I.; Albu, P.C.; Segarceanu, M.; Nechifor, G. Iono-molecular Separation with Composite Membranes I. Preparation and characterization of membranes with polysulfone matrix. Rev. Chim. 2016, 67, 1658–1665. [Google Scholar]
  16. Ramirez Arenas, L.; Le Coustumer, P.; Ramseier Gentile, S.; Zimmermann, S.; Stoll, S. Removal efficiency and adsorption mechanisms of CeO2 nanoparticles onto granular activated carbon used in drinking water treatment plants. Sci. Total Environ. 2023, 856, 159261. [Google Scholar] [CrossRef]
  17. Schumann, P.; Muschket, M.; Dittmann, D.; Rabe, L.; Reemtsma, T.; Jekel, M.; Ruhl, A.S. Is adsorption onto activated carbon a feasible drinking water treatment option for persistent and mobile substances? Water Res. 2023, 235, 119861. [Google Scholar] [CrossRef] [PubMed]
  18. Sim, S.I.; Teow, Y.H. Integrated Membrane-adsorption system as a sustainable development approach for semiconductor-industry wastewater treatment. Mater. Today Proc. 2023; in press. [Google Scholar] [CrossRef]
  19. Sillanpää, M.; Shestakova, M. Chapter 3—Emerging and Combined Electrochemical Methods. In Electrochemical Water Treatment Methods; Sillanpää, M., Shestakova, M., Eds.; Butterworth-Heinemann: Oxford, UK, 2017; pp. 131–225. [Google Scholar] [CrossRef]
  20. Swanckaert, B.; Loccufier, E.; Geltmeyer, J.; Rabaey, K.; De Buysser, K.; Bonin, L.; De Clerck, K. Sulfonated silica-based cation-exchange nanofiber membranes with superior self-cleaning abilities for electrochemical water treatment applications. Sep. Purif. Technol. 2023, 309, 123001. [Google Scholar] [CrossRef]
  21. Martínez-Huitle, C.A.; Rodrigo, M.A.; Sirés, I.; Scialdone, O. A critical review on latest innovations and future challenges of electrochemical technology for the abatement of organics in water. Appl. Catal. B Environ. 2023, 328, 122430. [Google Scholar] [CrossRef]
  22. Alrehaili, O.; Fajardo, A.S.; Garcia-Segura, S.; Westerhoff, P. Microfluidic Flow-By reactors minimize energy requirements of electrochemical water treatment without adding supporting electrolytes. Sep. Purif. Technol. 2023, 310, 123123. [Google Scholar] [CrossRef]
  23. Purnima, M.; Paul, T.; Pakshirajan, K.; Pugazhenthi, G. Onshore oilfield produced water treatment by hybrid microfiltration-biological process using kaolin based ceramic membrane and oleaginous Rhodococcus opacus. Chem. Eng. J. 2023, 453 Pt 2, 139850. [Google Scholar] [CrossRef]
  24. Dos Reis Ferreira, G.M.; Pires, J.F.; Ribeiro, L.S.; Carlier, J.D.; Costa, M.C.; Schwan, R.F.; Silva, C.F. Impact of lead (Pb2+) on the growth and biological activity of Serratia marcescens selected for wastewater treatment and identification of its zntR gene—A metal efflux regulator. World J. Microbiol. Biotechnol. 2023, 39, 91. [Google Scholar] [CrossRef] [PubMed]
  25. Verovšek, T.; Šuštarič, A.; Laimou-Geraniou, M.; Krizman-Matasic, I.; Prosen, H.; Eleršek, T.; Kramarič Zidar, V.; Mislej, V.; Mišmaš, B.; Stražar, M.; et al. Removal of residues of psychoactive substances during wastewater treatment, their occurrence in receiving river waters and environmental risk assessment. Sci. Total Environ. 2023, 866, 161257. [Google Scholar] [CrossRef]
  26. Milanović, Ž.; Dimić, D.; Klein, E.; Biela, M.; Lukeš, V.; Žižić, M.; Avdović, E.; Bešlo, D.; Vojinović, R.; Dimitrić Marković, J.; et al. Degradation Mechanisms of 4,7-Dihydroxycoumarin Derivatives in Advanced Oxidation Processes: Experimental and Kinetic DFT Study. Int. J. Environ. Res. Public Health 2023, 20, 2046. [Google Scholar] [CrossRef]
  27. Marcinowski, P.; Bury, D.; Krupa, M.; Ścieżyńska, D.; Prabhu, P.; Bogacki, J. Magnetite and Hematite in Advanced Oxidation Processes Application for Cosmetic Wastewater Treatment. Processes 2020, 8, 1343. [Google Scholar] [CrossRef]
  28. Manna, M.; Sen, S. Advanced oxidation process: A sustainable technology for treating refractory organic compounds present in industrial wastewater. Environ. Sci. Pollut. Res. 2023, 30, 25477–25505. [Google Scholar] [CrossRef] [PubMed]
  29. Rayaroth, M.P.; Boczkaj, G.; Aubry, O.; Aravind, U.K.; Aravindakumar, C.T. Advanced Oxidation Processes for Degradation of Water Pollutants—Ambivalent Impact of Carbonate Species: A Review. Water 2023, 15, 1615. [Google Scholar] [CrossRef]
  30. Rodríguez-Chueca, J.; Carbajo, J.; García-Muñoz, P. Intensification of Photo-Assisted Advanced Oxidation Processes for Water Treatment: A Critical Review. Catalysts 2023, 13, 401. [Google Scholar] [CrossRef]
  31. Agabo-García, C.; Repetto, G.; Albqmi, M.; Hodaifa, G. Evaluation of the olive mill wastewater treatment based on advanced oxidation processes (AOPs), flocculation, and filtration. J. Environ. Chem. Eng. 2023, 11, 109789. [Google Scholar] [CrossRef]
  32. Saddique, Z.; Imran, M.; Javaid, A.; Latif, S.; Hussain, N.; Kowal, P.; Boczkaj, G. Band engineering of BiOBr based materials for photocatalytic wastewater treatment via advanced oxidation processes (AOPs)—A review. Water Resour. Ind. 2023, 29, 100211. [Google Scholar] [CrossRef]
  33. Ning, K.; Zheng, S.; He, Y.; Hu, Y.; Hao, S.; Cui, Q.; Chen, H. Removal of fluoride from aqueous solutions through Fe(III) modified water treatment residues. J. Clean. Prod. 2023, 382, 135374. [Google Scholar] [CrossRef]
  34. Senanu, L.D.; Kranjac-Berisavljevic, G.; Cobbina, S.J. The use of local materials to remove heavy metals for household-scale drinking water treatment: A review. Environ. Technol. Innov. 2023, 29, 103005. [Google Scholar] [CrossRef]
  35. Otunola, B.O.; Aghoghovwia, M.P.; Thwala, M.; Gómez-Arias, A.; Jordaan, R.; Hernandez, J.C.; Ololade, O.O. Improving capacity for phytore-mediation of Vetiver grass and Indian mustard in heavy metal (Al and Mn) contaminated water through the application of clay minerals. Environ. Sci. Pollut. Res. 2023, 30, 53577–53588. [Google Scholar] [CrossRef]
  36. Riegel, M.; Haist-Gulde, B.; Sacher, F. Sorptive removal of short-chain perfluoroalkyl substances (PFAS) during drinking water treatment using activated carbon and anion exchanger. Environ. Sci. Eur. 2023, 35, 12. [Google Scholar] [CrossRef]
  37. Hamdan, M.A.; Sublaban, E.T.; Al-Asfar, J.J.; Banisaid, M.A. Wastewater treatment using activated carbon produced from oil shale. J. Ecol. Eng. 2023, 24, 131–139. [Google Scholar] [CrossRef]
  38. Saleh, T.S.; Badawi, A.K.; Salama, R.S.; Mostafa, M.M.M. Design and Development of Novel Composites Containing Nickel Ferrites Supported on Activated Carbon Derived from Agricultural Wastes and Its Application in Water Remediation. Materials 2023, 16, 2170. [Google Scholar] [CrossRef] [PubMed]
  39. Muhammad, S.; Yahya, E.B.; Abdul Khalil, H.P.S.; Marwan, M.; Albadn, Y.M. Recent Advances in Carbon and Activated Carbon Nanostructured Aerogels Prepared from Agricultural Wastes for Wastewater Treatment Applications. Agriculture 2023, 13, 208. [Google Scholar] [CrossRef]
  40. Abd El-Ghany, N.A.; Elella, M.H.A.; Abdallah, H.M.; Mostafa, M.S.; Samy, M. Recent Advances in Various Starch Formulation for Wastewater Purification via Adsorption Technique: A Review. J. Polym. Environ. 2023, 31, 2792–2825. [Google Scholar] [CrossRef]
  41. Tran, T.V.; Nguyen, D.T.C.; Nguyen, T.T.T.; Nguyen, D.H.; Alhassan, M.; Jalil, A.A.; Nabgan, W.; Lee, T. A critical review on pineapple (Ananas comosus) wastes for water treatment, challenges and future prospects towards circular economy. Sci. Total Environ. 2023, 856, 158817. [Google Scholar] [CrossRef]
  42. Romal, J.R.A.; Ong, S.K. Marine polysaccharide-based hydrogels for critical materials selective removal and recovery: A review. Coord. Chem. Rev. 2023, 482, 215054. [Google Scholar] [CrossRef]
  43. Mahmoodi, N.M.; Taghizadeh, M.; Taghizadeh, A. Mesoporous activated carbons of low-cost agricultural bio-wastes with high adsorption capacity: Preparation and artificial neural network modelling of dye removal from single and multicomponent (binary and ternary) systems. J. Mol. Liq. 2018, 269, 217–228. [Google Scholar] [CrossRef]
  44. Petrescu, S.; Avramescu, S.; Musuc, A.M.; Neatu, F.; Florea, M.; Ionita, P. Crown-ether functionalized graphene oxide for metal ions sequestration. Mater. Res. Bull. 2020, 122, 110643. [Google Scholar] [CrossRef]
  45. Patrinoiu, G.; Calderon-Moreno, J.M.; Birjega, R.; Culita, D.C.; Somacescu, S.; Musuc, A.M.; Spataru, T.; Carp, O. Sustainable one-pot integration of ZnO nanoparticles into carbon spheres: Manipulation of the morphological, optical and electrochemical properties. Phys. Chem. Chem. Phys. 2016, 18, 30794–30807. [Google Scholar] [CrossRef]
  46. Ahmad, K.; Nazir, M.A.; Qureshi, A.K.; Hussain, E.; Najam, T.; Javed, M.S.; Shah, S.S.A.; Tufail, M.K.; Hussain, S.; Khan, N.A.; et al. Engineering of Zirconium based metal-organic frameworks (Zr-MOFs) as efficient adsorbents. Mater. Sci. Eng. B 2020, 262, 114766. [Google Scholar] [CrossRef]
  47. Bushra, R.; Mohamad, S.; Alias, Y.; Jin, T.; Ahmad, M. Current approaches and methodologies to explore the perceptive adsorption mechanism of dyes on low-cost agricultural waste: A review. Microporous Mesoporous Mater. 2021, 319, 111040. [Google Scholar] [CrossRef]
  48. Mittal, H.; Alhassan, S.M.; Ray, S.S. Efficient organic dye removal from wastewater by magnetic carbonaceous adsorbent prepared from corn starch. J. Environ. Chem. Eng. 2018, 6, 7119–7131. [Google Scholar] [CrossRef]
  49. Mittal, H.; Morajkar, P.P.; Al Alili, A.; Alhassan, S.M. In-situ synthesis of ZnO nanoparticles using gum arabic based hydrogels as a self-template for effective malachite green dye adsorption. J. Polym. Environ. 2020, 28, 1637–1653. [Google Scholar] [CrossRef]
  50. Makhado, E.; Pandey, S.; Ramontja, J. Microwave assisted synthesis of xanthan gum-cl-poly (acrylic acid) based-reduced graphene oxide hydrogel composite for adsorption of methylene blue and methyl violet from aqueous solution. Int. J. Biol. Macromol. 2018, 119, 255–269. [Google Scholar] [CrossRef]
  51. Mittal, H.; Parashar, V.; Mishra, S.B.; Mishra, A.K. Fe3O4 MNPs and gum xanthan-based hydrogels nanocomposites for the efficient capture of malachite green from aqueous solution. Chem. Eng. J. 2014, 255, 471–482. [Google Scholar] [CrossRef]
  52. Ahmaruzzaman, M.; Roy, P.; Bonilla-Petriciolet, A.; Badawi, M.; Ganachari, S.V.; Shetti, N.P.; Aminabhavi, T.M. Polymeric hydrogels-based materials for wastewater treatment. Chemosphere 2023, 331, 138743. [Google Scholar] [CrossRef]
  53. Flores-Valenzuela, L.E.; González-Fernández, J.V.; Carranza-Oropeza, M.V. Hydrogel Applicability for the Industrial Effluent Treatment: A Systematic Review and Bibliometric Analysis. Polymers 2023, 15, 2417. [Google Scholar] [CrossRef]
  54. Resende, J.F.; Paulino, I.M.R.; Bergamasco, R.; Vieira, M.F.; Vieira, A.M.S. Hydrogels produced from natural polymers: A review on its use and employment in water treatment. Braz. J. Chem. Eng. 2023, 40, 23–38. [Google Scholar] [CrossRef]
  55. Xu, X.; Guillomaitre, N.; Christie, K.S.S.; Bay, R.K.N.; Bizmark, N.; Datta, S.S.; Ren, Z.J.; Priestley, R.D. Quick-Release Antifouling Hydrogels for Solar-Driven Water Purification. ACS Cent. Sci. 2023, 8, 177–185. [Google Scholar] [CrossRef]
  56. Ahmad, S.; Tanweer, M.S.; Mir, T.A.; Alam, M.; Ikram, S.; Sheikh, J.N. Antimicrobial gum based hydrogels as adsorbents for the removal of organic and inorganic pollutants. J. Water Process Eng. 2023, 51, 103377. [Google Scholar] [CrossRef]
  57. Batuti, M.E.; Sadik, W.; Eldemerdash, A.G.; Hanafy, E.; Fetouh, H.A. New and innovative micro-wave-assisted technology for synthesis of guar gum-grafted acrylamide hydrogel superabsorbent for the removal of acid red 8 dye from industrial wastewater. Polym. Bull. 2023, 80, 4965–4989. [Google Scholar] [CrossRef]
  58. Alfei, S.; Grasso, F.; Orlandi, V.; Russo, E.; Boggia, R.; Zuccari, G. Cationic Polystyrene-Based Hydrogels as Efficient Adsorbents to Remove Methyl Orange and Fluorescein Dye Pollutants from Industrial Wastewater. Int. J. Mol. Sci. 2023, 24, 2948. [Google Scholar] [CrossRef] [PubMed]
  59. Baigorria, E.; Souza dos Santos, S.; de Moura, M.R.; Fraceto, L.F. Nanocomposite hydrogels 3D printed for application in water remediation. Mater. Today Chem. 2023, 30, 101559. [Google Scholar] [CrossRef]
  60. Liu, C.; Gao, B.; Wang, S.; Guo, K.; Shen, X.; Yue, Q.; Xu, X. Synthesis, characterization and flocculation performance of a novel sodium alginate-based flocculant. Carbohydr. Polym. 2020, 248, 116790. [Google Scholar] [CrossRef] [PubMed]
  61. Liu, S.; Yao, F.; Oderinde, O.; Zhang, Z.; Fu, G. Green synthesis of oriented xanthan gum–graphene oxide hybrid aerogels for water purification. Carbohydr. Polym. 2017, 174, 392–399. [Google Scholar] [CrossRef] [PubMed]
  62. Pandey, S.; Son, N.; Kang, M. Synergistic sorption performance of karaya gum crosslink poly(acrylamide-co-acrylonitrile)@metal nanoparticle for organic pollutants. Int. J. Biol. Macromol. 2022, 210, 300–314. [Google Scholar] [CrossRef]
  63. Mittal, H.; Mishra, S.B.; Mishra, A.K.; Kaith, B.S.; Jindal, R. Flocculation characteristics and biodegradation studies of gum ghatti based hydrogels. Int. J. Biol. Macromol. 2013, 58, 37–46. [Google Scholar] [CrossRef]
  64. El Sayed, M.M. Production of Polymer Hydrogel Composites and Their Applications. J. Polym. Environ. 2023, 31, 2855–2879. [Google Scholar] [CrossRef]
  65. Chelu, M.; Musuc, A.M. Polymer Gels: Classification and Recent Developments in Biomedical Applications. Gels 2023, 9, 161. [Google Scholar] [CrossRef]
  66. Bashir, S.; Hina, M.; Iqbal, J.; Rajpar, A.H.; Mujtaba, M.A.; Alghamdi, N.A.; Wageh, S.; Ramesh, K.; Ramesh, S. Fundamental Concepts of Hydrogels: Synthesis, Properties, and Their Applications. Polymers 2020, 12, 2702. [Google Scholar] [CrossRef]
  67. Krauklis, A.E.; Karl, C.W.; Rocha, I.B.C.M.; Burlakovs, J.; Ozola-Davidane, R.; Gagani, A.I.; Starkova, O. Modelling of Environmental Ageing of Polymers and Polymer Composites-Modular and Multiscale Methods. Polymers 2022, 14, 216. [Google Scholar] [CrossRef]
  68. Gonçalves, J.O.; Esquerdo, V.M.; Sant’Anna Cadaval, T.R.; de Almeida Pinto, L.A. Chitosan-Based Hydrogels. In Sustainable Agriculture Reviews 36; Crini, G., Lichtfouse, E., Eds.; Springer: Cham, Switzerland, 2019. [Google Scholar] [CrossRef]
  69. Thirupathi, K.; Raorane, C.J.; Ramkumar, V.; Ulagesan, S.; Santhamoorthy, M.; Raj, V.; Krishnakumar, G.S.; Phan, T.T.V.; Kim, S.-C. Update on Chitosan-Based Hydrogels: Preparation, Characterization, and Its Antimicrobial and Antibiofilm Applications. Gels 2023, 9, 35. [Google Scholar] [CrossRef] [PubMed]
  70. Carpa, R.; Farkas, A.; Dobrota, C.; Butiuc-Keul, A. Double-Network Chitosan-Based Hydrogels with Improved Mechanical, Conductive, Antimicrobial, and Antibiofouling Properties. Gels 2023, 9, 278. [Google Scholar] [CrossRef] [PubMed]
  71. Li, S.; Hernandez, S.; Salazar, N. Biopolymer-Based Hydrogels for Harvesting Water from Humid Air: A Review. Sustainability 2023, 15, 848. [Google Scholar] [CrossRef]
  72. Luo, Q.; Ren, T.; Lei, Z.; Huang, Y.; Huang, Y.; Xu, D.; Wan, C.; Guo, X.; Wu, Y. Non-toxic chitosan-based hydrogel with strong adsorption and sensitive detection abilities for tetracycline. Chem. Eng. J. 2022, 427, 131738. [Google Scholar] [CrossRef]
  73. Zhang, W.; Xu, Y.; Mu, X.; Li, S.; Liu, X.; Lei, Z. Research Progress of Polysaccharide-Based Natural Polymer Hydrogels in Water Purification. Gels 2023, 9, 249. [Google Scholar] [CrossRef]
  74. Ghiorghita, C.-A.; Dinu, M.V.; Lazar, M.M.; Dragan, E.S. Polysaccharide-Based Composite Hydrogels as Sustainable Materials for Removal of Pollutants from Wastewater. Molecules 2022, 27, 8574. [Google Scholar] [CrossRef]
  75. Scopus. Available online: (accessed on 3 August 2023).
  76. Wang, W.; Ni, J.; Chen, L.; Ai, Z.; Zhao, Y.; Song, S. Synthesis of carboxymethyl cellulose-chitosan-montmorillonite nanosheets composite hydrogel for dye effluent remediation. Int. J. Biol. Macromol. 2020, 165, 1–10. [Google Scholar] [CrossRef]
  77. Wang, W.; Hu, J.; Zhang, R.; Yan, C.; Cui, L.; Zhu, J. A pH-responsive carboxymethyl cellulose/chitosan hydrogel for adsorption and desorption of anionic and cationic dyes. Cellulose 2021, 28, 897–909. [Google Scholar] [CrossRef]
  78. Kaur, K.; Jindal, R. Comparative study on the behaviour of Chitosan-Gelatin based Hydrogel and nanocomposite ion exchanger synthesized under microwave conditions towards photocatalytic removal of cationic dyes. Carbohydr. Polym. 2019, 207, 398–410. [Google Scholar] [CrossRef]
  79. Mittal, H.; Al Alili, A.; Morajkar, P.P.; Alhassan, S.M. GO crosslinked hydrogel nanocomposites of chitosan/carboxymethyl cellulose–A versatile adsorbent for the treatment of dyes contaminated wastewater. Int. J. Biol. Macromol. 2021, 167, 1248–1261. [Google Scholar] [CrossRef]
  80. Chan, K.; Morikawa, K.; Shibata, N.; Zinchenko, A. Adsorptive Removal of Heavy Metal Ions, Organic Dyes, and Pharmaceuticals by DNA-Chitosan Hydrogels. Gels 2021, 6, 112. [Google Scholar] [CrossRef] [PubMed]
  81. Hou, H.; Zhou, R.; Wu, P.; Wu, L. Removal of Congo red dye from aqueous solution with hydroxyapatite/chitosan composite. Chem. Eng. J. 2012, 211, 336–342. [Google Scholar] [CrossRef]
  82. Poznanski, P.; Hameed, A.; Orczyk, W. Chitosan and Chitosan Nanoparticles: Parameters Enhancing Antifungal Activity. Molecules 2023, 28, 2996. [Google Scholar] [CrossRef] [PubMed]
  83. Piekarska, K.; Sikora, M.; Owczarek, M.; Jóźwik-Pruska, J.; Wiśniewska-Wrona, M. Chitin and Chitosan as Polymers of the Future—Obtaining, Modification, Life Cycle Assessment and Main Directions of Application. Polymers 2023, 15, 793. [Google Scholar] [CrossRef] [PubMed]
  84. Chopra, H.; Ruhi, G. Eco friendly chitosan: An efficient material for water purification. Pharma Innov. J. 2016, 5, 92–95. [Google Scholar]
  85. Bhatt, P.; Joshi, S.; Bayram, G.M.U.; Khati, P.; Simsek, H. Developments and application of chitosan-based adsorbents for wastewater treatments. Environ. Res. 2023, 226, 115530. [Google Scholar] [CrossRef]
  86. Zulfiani, U.; Junaidi, A.; Nareswari, C.; Ali, B.T.I.; Jaafar, J.; Widyanto, A.R.; Saiful; Dharma, H.N.C.; Widiastuti, N. Performance of a membrane fabricated from high-density polyethylene waste for dye separation in water. RSC Adv. 2023, 13, 7789–7797. [Google Scholar] [CrossRef]
  87. Collivignarelli, M.C.; Abba, A.; Carnevale Miino, M.; Damiani, S. Treatments for color removal from wastewater: State of the art. J. Environ. Manag. 2019, 236, 727–745. [Google Scholar] [CrossRef]
  88. Hira, N.E.; Lock, S.S.M.; Shoparwe, N.F.; Lock, I.S.M.; Lim, L.G.; Yiin, C.L.; Chan, Y.H.; Hassam, M. Review of Adsorption Studies for Contaminant Removal from Wastewater Using Molecular Simulation. Sustainability 2023, 15, 1510. [Google Scholar] [CrossRef]
  89. Shi, Y.; Chang, Q.; Zhang, T.; Song, G.; Sun, Y.; Ding, G. A review on selective dye adsorption by different mechanisms. J. Environ. Chem. Eng. 2022, 10, 108639. [Google Scholar] [CrossRef]
  90. Perju, M.M.; Dragan, E.S. Removal of azo dyes from aqueous solutions using chitosan based composite hydrogels. Ion Exch. Lett. 2010, 3, 7–11. [Google Scholar]
  91. Han, D.; Zhao, H.; Gao, L.; Qin, Z.; Ma, J.; Han, Y.; Jiao, T. Preparation of carboxymethyl chitosan/phytic acid composite hydrogels for rapid dye adsorption in wastewater treatment. Colloids Surf. A Physicochem. Eng. Asp. 2021, 628, 127355. [Google Scholar] [CrossRef]
  92. Wan, X.; Rong, Z.; Zhu, K.; Wu, Y. Chitosan-based dual network composite hydrogel for efficient adsorption of methylene blue dye. Int. J. Biol. Macromol. 2022, 222, 725–735. [Google Scholar] [CrossRef]
  93. Ma, W.; Liu, X.; Lu, H.; He, Q.; Ding, K.; Wang, X.; Wang, W.; Guo, F. Chitosan-based composite hydrogel with a rigid-in-flexible network structure for pH-universal ultra-efficient removal of dye. Int. J. Biol. Macromol. 2023, 241, 124579. [Google Scholar] [CrossRef]
  94. Jin, Y.; Li, Y.; Du, Q.; Chen, B.; Chen, K.; Zhang, Y.; Wang, M.; Sun, Y.; Zhao, S.; Jing, Z.; et al. Efficient adsorption of Congo red by MIL-53(Fe)/chitosan composite hydrogel spheres. Microporous Mesoporous Mater. 2023, 348, 112404. [Google Scholar] [CrossRef]
  95. Hingrajiya, R.D.; Patel, M.P. Fe3O4 modified chitosan based co-polymeric magnetic composite hydrogel: Synthesis, characterization and evaluation for the removal of methylene blue from aqueous solutions. Int. J. Biol. Macromol. 2023, 244, 125251. [Google Scholar] [CrossRef]
  96. Sethi, S.; Thakur, M.S. Synthesis and characterization of nanocomposite chitosan-gelatin hydrogel loaded with ZnO and its application in photocatalytic dye degradation. Mater. Today Proc. 2023, 78, 815–824. [Google Scholar] [CrossRef]
  97. Chelu, M.; Popa, M.; Calderon Moreno, J.; Leonties, A.R.; Ozon, E.A.; Pandele Cusu, J.; Surdu, V.A.; Aricov, L.; Musuc, A.M. Green Synthesis of Hydrogel-Based Adsorbent Material for the Effective Removal of Diclofenac Sodium from Wastewater. Gels 2023, 9, 454. [Google Scholar] [CrossRef] [PubMed]
  98. Ranjbari, S.; Tanhaei, B.; Ayati, A.; Khadempir, S.; Sillanpää, M. Efficient tetracycline adsorptive removal using tricaprylmethylammonium chloride conjugated chitosan hydrogel beads: Mechanism, kinetic, isotherms and thermodynamic study. Int. J. Biol. Macromol. 2020, 155, 421–429. [Google Scholar] [CrossRef]
  99. Afzal, M.Z.; Sun, X.-F.; Liu, J.; Song, C.; Wang, S.-G.; Javed, A. Enhancement of ciprofloxacin sorption on chitosan/biochar hydrogel beads. Sci. Total Environ. 2018, 639, 560–569. [Google Scholar] [CrossRef]
  100. Mahmoodi, H.; Fattahi, M.; Motevassel, M. Graphene oxide–chitosan hydrogel for adsorptive removal of diclofenac from aqueous solution: Preparation, characterization, kinetic and thermodynamic modelling. RSC Adv. 2021, 11, 36289–36304. [Google Scholar] [CrossRef] [PubMed]
  101. Ali, H.E.; Nasef, S.M.; Gad, Y.H. Remediation of Astrazon blue and Lerui acid brilliant blue dyes from waste solutions using amphoteric superparamagnetic nanocomposite hydrogels based on chitosan prepared by gamma rays. Carbohydr. Polym. 2022, 1, 119149. [Google Scholar] [CrossRef]
  102. Tang, J.; Wang, L.; Qin, W.; Qing, Z.; Du, C.; Xiao, S.; Yan, B. High reusability and adsorption capacity of acid washed calcium alginate/chitosan composite hydrogel spheres in the removal of norfloxacin. Chemosphere 2023, 335, 139048. [Google Scholar] [CrossRef] [PubMed]
  103. Chowdhury, I.R.; Chowdhury, S.; Mazumder, M.A.J.; Al-Ahmed, A. Removal of lead ions (Pb2+) from water and wastewater: A review on the low-cost adsorbents. Appl. Water Sci. 2022, 12, 185. [Google Scholar] [CrossRef] [PubMed]
  104. Vieira, R.M.; Vilela, P.B.; Becegato, V.A.; Paulino, A.T. Chitosan-based hydrogel and chitosan/acid-activated montmorillonite composite hydrogel for the adsorption and removal of Pb+2 and Ni+2 ions accommodated in aqueous solutions. J. Environ. Chem. Eng. 2018, 6, 2713–2723. [Google Scholar] [CrossRef]
  105. Zhao, H.; Sun, J.; Du, Y.; Zhang, M.; Yang, Z.; Su, J.; Peng, X.; Liu, X.; Sun, G.; Cui, Y. In-situ immobilization of CuMOF on sodium algi-nate/chitosan/cellulose nanofibril composite hydrogel for fast and highly efficient re-moval of Pb2+ from aqueous solutions. J. Solid State Chem. 2023, 322, 123928. [Google Scholar] [CrossRef]
  106. Georgaki, M.-N.; Charalambous, M.; Kazakis, N.; Talias, M.A.; Georgakis, C.; Papamitsou, T.; Mytiglaki, C. Chromium in Water and Carcinogenic Human Health Risk. Environments 2023, 10, 33. [Google Scholar] [CrossRef]
  107. Vilela, P.B.; Dalalibera, A.; Duminelli, E.C.; Becegato, V.A.; Paulino, A.T. Adsorption and removal of chromium (VI) contained in aqueous solutions using a chitosan-based hydrogel. Environ. Sci. Pollut. Res. 2019, 26, 28481–28489. [Google Scholar] [CrossRef] [PubMed]
  108. Wankar, S.; Sapre, N.; Gumathannavar, R.; Jadhav, Y.; Kulkarni, A. Silver-chitosan (Ag-CH) nanocomposite hydrogel for remediation of aqueous medium. Mater. Today Proc. 2022; in press. [Google Scholar] [CrossRef]
  109. Yang, S.-C.; Liao, Y.; Karthikeyan, K.G.; Pan, X.J. Mesoporous cellulose-chitosan composite hydrogel fabricated via the co-dissolution-regeneration process as biosorbent of heavy metals. Environ. Pollut. 2021, 286, 117324. [Google Scholar] [CrossRef]
  110. Godiya, C.B.; Revadekar, C.; Kim, J.; Park, B.J. Amine-bilayer-functionalized cellulose-chitosan composite hydrogel for the efficient uptake of hazardous metal cations and catalysis in polluted water. J. Hazard. Mater. 2022, 436, 129112. [Google Scholar] [CrossRef]
  111. Li, C.; Duan, L.; Cheng, X. Facile method to synthesize fluorescent chitosan hydrogels for selective detection and adsorption of Hg2+/Hg. Carbohydr. Polym. 2022, 288, 119417. [Google Scholar] [CrossRef]
  112. Ferreira, D.C.M.; Dos Santos, T.C.; Coimbra, J.S.D.R.; de Oliveira, E.B. Chitosan/carboxymethylcellulose polyelectrolyte complexes (PECs) are an effective material for dye and heavy metal adsorption from water. Carbohydr. Polym. 2023, 315, 120977. [Google Scholar] [CrossRef]
  113. Abdelmonem, I.M.; Elsharma, E.M.; Emara, A.M. Radiation synthesis of chitosan/poly(acrylamide-co-maleic acid) hydrogel for the removal of 152+154Eu (III) ions. Appl. Radiat. Isot. 2023, 197, 110801. [Google Scholar] [CrossRef] [PubMed]
  114. Andronescu, E.; Predoi, D.; Neacsu, I.A.; Paduraru, A.V.; Musuc, A.M.; Trusca, R.; Oprea, O.; Tanasa, E.; Vasile, O.R.; Nicoara, A.I.; et al. Photoluminescent Hydroxylapatite: Eu3+ Doping Effect on Biological Behaviour. Nanomaterials 2019, 9, 1187. [Google Scholar] [CrossRef] [PubMed]
  115. Karthikeyan, P.; Meenakshi, S. Fabrication of hybrid chitosan encapsulated magnetic-kaolin beads for adsorption of phosphate and nitrate ions from aqueous solutions. Int. J. Biol. Macromol. 2020, 168, 750–759. [Google Scholar] [CrossRef]
  116. Ma, L.; Zheng, Q. Selective adsorp-tion behavior of ionimprinted magnetic chitosan beads for removal of Cu(II) ions from aqueous solution. Chin. J. Chem. Eng. 2021, 39, 103–111. [Google Scholar] [CrossRef]
  117. Babakhani, A.; Sartaj, M. Synthesis, characterization, and performance evaluation of ion-imprinted crosslinked chitosan (with sodium tripolyphosphate) for cadmium biosorption. J. Environ. Chem. Eng. 2022, 10, 107147. [Google Scholar] [CrossRef]
  118. Lan, Z.; Lin, Y.; Yang, C. Lanthanum-iron incorporated chitosan beads for adsorption of phosphate and cadmium from aqueous solutions. Chem. Eng. J. 2022, 448, 137519. [Google Scholar] [CrossRef]
  119. Mei, J.; Zhang, H.; Li, Z.; Ou, H. A novel crosslin-ked chitosan oligosaccharide hydrogel for total adsorption of Cr(VI). Carbohydr. Polym. 2019, 224, 115154. [Google Scholar] [CrossRef]
  120. Pavithra, S.; Thandapani, G.; Sugashini, S.; Sudha, P.N.; Alkhamis, H.H.; Alrefaei, A.F.; Almutairi, M.H. Batch adsorption studies on surface tailored chitosan/orange peel hydrogel composite for the removal of Cr (VI) and Cu (II) ions from synthetic wastewater. Chemosphere 2021, 271, 129415. [Google Scholar] [CrossRef]
  121. Tang, S.; Yang, J.; Lin, L.; Peng, K.; Chen, Y.; Jin, S.; Yao, W. Construction of physically cross-linked chitosan/sodium alginate/calcium ion double-network hydrogel and its application to heavy metal ions removal. Chem. Eng. J. 2020, 393, 124728. [Google Scholar] [CrossRef]
  122. Chen, X.; Song, Z.; Yuan, B.; Li, X.; Li, S.; Thang Nguyen, T.; Guo, M.; Guo, Z. Fluorescent carbon dots crosslinked cellulose Nanofibril/Chitosan interpenetrating hydrogel system for sensitive detection and efficient adsorption of Cu(II) and Cr(VI). Chem. Eng. J. 2022, 430, 133154. [Google Scholar] [CrossRef]
  123. Lin, Z.; Yang, Y.; Liang, Z.; Zeng, L.; Zhang, A. Preparation of Chitosan/Calcium Alginate/Bentonite Composite Hydrogel and Its Heavy Metal Ions Adsorption Properties. Polymers 2021, 13, 1891. [Google Scholar] [CrossRef] [PubMed]
  124. Ali, A.; Khan, S.; Garg, U.; Luqman, M.; Bhagwath, S.S.; Azim, Y. Chitosan-based hydrogel system for efficient removal of Cu[II] and sustainable utilization of spent adsorbent as a catalyst for environmental applications. Int. J. Biol. Macromol. 2023, 247, 125805. [Google Scholar] [CrossRef] [PubMed]
  125. Li, C.; Yan, Y.; Zhang, Q.; Zhang, Z.; Huang, L.; Zhang, J.; Xiong, Y.; Tan, S. Adsorption of Cd(2+) and Ni(2+) from Aqueous Single-Metal Solutions on Graphene Oxide-Chitosan-Poly(vinyl alcohol) Hydrogels. Langmuir 2019, 35, 4481–4490. [Google Scholar] [CrossRef]
  126. Kanungo, S.; Gupta, N.; Rawat, R.; Jain, B.; Solanki, A.; Panday, A.; Das, P.; Ganguly, S. Doped Carbon Quantum Dots Reinforced Hydrogels for Sustained Delivery of Molecular Cargo. J. Funct. Biomater. 2023, 14, 166. [Google Scholar] [CrossRef] [PubMed]
  127. Chen, X.; Huang, Z.; Luo, S.-Y.; Zong, M.-H.; Lou, W.-Y. Multi-functional magnetic hydrogels based on Millettia speciosa Champ residue cellulose and Chitosan: Highly efficient and reusable adsorbent for Congo red and Cu2+ removal. Chem. Eng. J. 2021, 423, 130198. [Google Scholar] [CrossRef]
  128. Jamali, M.; Akbari, A. Facile fabrication of magnetic chitosan hydrogel beads and modified by interfacial polymerization method and study of adsorption of cationic/anionic dyes from aqueous solution. J. Environ. Chem. Eng. 2021, 9, 105175. [Google Scholar] [CrossRef]
  129. Mustafa, F.H.A.; Gad ElRab, E.K.M.; Kamel, R.M.; Elshaarawy, R.F.M. Cost-effective removal of toxic methylene blue dye from textile effluents by new integrated crosslinked chitosan/aspartic acid hydrogels. Int. J. Biol. Macromol. 2023, 248, 125986. [Google Scholar] [CrossRef]
  130. Kurczewska, J. Chitosan-montmorillonite hydrogel beads for effective dye adsorption. J. Water Process Eng. 2022, 48, 102928. [Google Scholar] [CrossRef]
  131. Pérez-Calderón, J.; Victoria Santos, M.V.; Zaritzky, N. Synthesis, characterization and application of cross-linked chitosan/oxalic acid hydrogels to improve azo dye (Reactive Red 195) adsorption. React. Funct. Polym. 2020, 155, 104699. [Google Scholar] [CrossRef]
  132. da Silva, R.C.; de Aguiar, S.B.; da Cunha, P.L.R.; de Paula, R.C.M.; Feitosa, J.P.A. Effect of microwave on the synthesis of polyacrylamide-g-chitosan gel for azo dye removal. React. Funct. Polym. 2020, 148, 104491. [Google Scholar] [CrossRef]
  133. Nguyen, H.T.; Phuong, V.N.; Van, T.N.; Thi, P.N.; Lan, P.D.T.; Pham, H.T.; Cao, H.T. Low-cost hydrogel derived from agro-waste for veterinary antibiotic removal: Optimization, kinetics, and toxicity evaluation. Environ. Technol. Innov. 2020, 20, 101098. [Google Scholar] [CrossRef]
  134. Darvishi, R.; Moghadas, H.; Moshkriz, A. Oxidized gum arabic cross-linked pectin/O-carboxymethyl chitosan: An antibiotic adsorbent hydrogel. Korean J. Chem. Eng. 2022, 39, 1350–1360. [Google Scholar] [CrossRef]
  135. Balakrishnan, A.; S Appunni, S.; Chinthala, M.; Jacob, M.M.; Viet, N.; Vo, D.; Reddym, S.S.; Kunne, E.S. Chitosan based beads as sustainable adsorbents for wastewater remediation: A review. Environ. Chem. Lett. 2023, 21, 1881–1905. [Google Scholar] [CrossRef]
  136. Saber-Samandari, S.; Saber-Samandari, S.; Nezafati, N.; Yahya, K. Efficient removal of lead (II) ions and methylene blue from aqueous solution using chitosan/Fe-hydroxyapatite nanocomposite beads. J. Environ. Manag. 2014, 146, 481–490. [Google Scholar] [CrossRef] [PubMed]
  137. Li, L.; Iqbal, J.; Zhu, Y.; Zhang, P.; Chen, W.; Bhatnagar, A.; Du, Y. Chitosan/Ag-hydroxyapatite nanocomposite beads as a potential adsorbent for the efficient removal of toxic aquatic pollutants. Int. J. Biol. Macromol. 2018, 120, 1752–1759. [Google Scholar] [CrossRef]
  138. Dandil, S.; Akin Sahbaz, D.; Acikgoz, C. Adsorption of Cu(II) ions onto crosslinked chitosan/Waste Active Sludge Char (WASC) beads: Kinetic, equilibrium, and thermodynamic study. Int. J. Biol. Macromol. 2019, 136, 668–675. [Google Scholar] [CrossRef]
  139. Wang, G.; Yue, X.; Zhang, S.; Geng, Q.; Zheng, J.; Xu, X.; Li, T.; Pu, Y.; Li, Y.; Jia, Y.; et al. La(III) loaded Fe(III) cross–linked chitosan composites for efficient removal of phosphate from wastewater: Performance and mechanisms. J. Cleaner Prod. 2022, 379, 134833. [Google Scholar] [CrossRef]
  140. Koh, K.Y.; Chen, Z.; Zhang, S.; Chen, J.P. Cost-efective phosphorus removal from aqueous solution by a chitosan/lanthanum hydrogel bead: Material development, characterization of uptake process and investigation of mechanisms. Chemosphere 2022, 286, 131458. [Google Scholar] [CrossRef]
  141. He, W.; Yu, Q.; Wang, N.; Ouyang, X.K. Efficient adsorption of Cu(II) from aqueous solutions by acid-resistant and recyclable ethylenediamine tetraacetic acid-grafted polyvinyl alcohol/chitosan beads. J. Mol. Liq. 2020, 316, 113856. [Google Scholar] [CrossRef]
  142. Kekes, T.; Tzia, C. Adsorption of indigo carmine on functional chitosan and β-cyclodextrin/chitosan beads: Equilibrium, kinetics and mechanism studies. J. Environ. Manag. 2020, 262, 110372. [Google Scholar] [CrossRef] [PubMed]
  143. Zhang, W.; Wang, H.; Hu, X.; Feng, H.; Xiong, W.; Guo, W.; Zhou, J.; Mosa, A.; Peng, Y. Multicavity triethylenetetra-mine-chitosan/alginate composite beads for enhanced Cr(VI) removal. J. Clean. Prod. 2019, 231, 733–745. [Google Scholar] [CrossRef]
  144. Ranjbari, S.; Tanhaei, B.; Ayati, A.; Sillanpää, M. Novel Aliquat-336 impregnated chitosan beads for the adsorptive removal of anionic azo dyes. Int. J. Biol. Macromol. 2019, 125, 989–998. [Google Scholar] [CrossRef]
  145. Vakili, M.; Rafatullah, M.; Ibrahim, M.H.; Ab-dullah, A.Z.; Salamatinia, B.; Gholami, Z. Chitosan hydrogel beads impregnated with hexadecylamine for improved reactive blue adsorption. Carbohydr. Polym. 2016, 137, 139–146. [Google Scholar] [CrossRef]
  146. Sadjadi, S.; Abedian-Dehaghani, N.; Heydari, A.; Heravi, M.M. Chitosan bead containing metal–organic framework encapsulated heteropolyacid as an efficient catalyst for cascade condensation reaction. Sci. Rep. 2023, 13, 2797. [Google Scholar] [CrossRef] [PubMed]
  147. Abdelhameed, R.M.; El-Shahat, M.; Abdel-Gawad, H.; Hegazi, B. Efficient phenolic compounds adsorption by immobilization of copper-based metal-organic framework anchored poly-acrylonitrile/chitosan beads. Int. J. Biol. Macromol. 2023, 240, 124498. [Google Scholar] [CrossRef]
  148. Jansen, C.; Tran-Cong, N.M.; Schlüsener, C.; Schmitz, A.; Proksch, P.; Janiak, C. MOF@chitosan Composites with Potential Antifouling Properties for Open-Environment Applications of Met-al-Organic Frameworks. Solids 2022, 3, 35–54. [Google Scholar] [CrossRef]
  149. Pan, W.; Wang, J.P.; Sun, X.B.; Wang, X.X.; Jiang, J.; Zhang, Z.G.; Li, P.; Qu, C.H.; Long, Y.Z.; Yu, G.F. Ultra uniform metal−organic framework-5 loading along electrospun chitosan/polyethylene oxide membrane fibers for efficient PM2.5 removal. J. Clean. Prod. 2021, 291, 125270. [Google Scholar] [CrossRef]
  150. Jamshidifard, S.; Koushkbaghi, S.; Hosseini, S.; Rezaei, S.; Karamipour, A.; Rad, A.J.; Irani, M. Incorporation of UiO-66-NH2 MOF into the PAN/chitosan nanofibers for adsorption and membrane filtration of Pb (II), Cd (II) and Cr (VI) ions from aqueous solutions. J. Hazard. Mater. 2019, 368, 10. [Google Scholar] [CrossRef]
  151. Elanchezhiyan, S.S.; Karthikeyan, P.; Rathinam, K.; Hasmath Farzana, M.; Park, C.M. Magnetic kaolinite immobilized chitosan beads for the removal of Pb(II) and Cd(II) ions from an aqueous environment. Carbohydr. Polym. 2021, 261, 117892. [Google Scholar] [CrossRef]
  152. Liu, D.M.; Dong, C.; Xu, B. Preparation of magnetic kaolin embedded chitosan beads for efficient removal of hexavalent chromium from aqueous solution. J. Environ. Chem. Eng. 2021, 9, 105438. [Google Scholar] [CrossRef]
  153. Mishra, S.; Tripathi, A. Adsorptive removal of Pb(II) via green route using magnetic iron nanoparticle sprinkled graphene oxide chitosan beads in aqueous medium. Environ. Nanotechnol. Monit. Manag. 2022, 17, 100632. [Google Scholar] [CrossRef]
  154. Zhang, M.; Zhang, Z.; Peng, Y.; Feng, L.; Li, X.; Zhao, C.; Sarfaraz, K. Novel cationic polymer modified magnetic chitosan beads for efficient adsorption of heavy metals and dyes over a wide pH range. Int. J. Biol. Macromol. 2020, 156, 289–301. [Google Scholar] [CrossRef]
  155. Tu, S.-L.; Chen, C.-K.; Shi, S.-C.; Yang, J.H.C. Plasma-Induced Graft Polymerization of Polyethylenimine onto Chitosan/Polycaprolactone Composite Membrane for Heavy Metal Pollutants Treatment in Industrial Wastewater. Coatings 2022, 12, 1966. [Google Scholar] [CrossRef]
  156. Abed, K.; Ahmed, E.; Shehzad, H.; Sharif, A.; Farooqi, Z.H.; Liu, Z.; Zhou, L.; Ouyang, J.; Begum, R.; Irfan, A.; et al. An innovative approach to synthesize graft copolymerized acetylacetone chitosan/surface functionalized alginate/rutile for efficient Ni(II) uptake from aqueous medium. Int. J. Biol. Macromol. 2023, 243, 125327. [Google Scholar] [CrossRef]
  157. Xiao, L.; Shan, H.; Wu, Y. Chitosan cross-linked and grafted with epichlorohydrin and 2,4-dichlorobenzaldehyde as an efficient adsorbent for removal of Pb(II) ions from aqueous solution. Int. J. Biol. Macromol. 2023, 247, 125503. [Google Scholar] [CrossRef] [PubMed]
  158. Xu, C.; Xu, Y.; Zhong, D.; Chang, H.; Mou, J.; Wang, M.H.; Shen, H. Zr4+ and glutaraldehyde cross-linked polyethyleneimine functionalized chitosan composite: Synthesis, characterization, Cr(VI) adsorption performance, mechanism and regeneration. Int. J. Biol. Macromol. 2023, 239, 124266. [Google Scholar] [CrossRef] [PubMed]
  159. Liu, B.; Chen, W.; Peng, X.; Cao, Q.; Wang, Q.; Wang, D.; Meng, X.; Yu, G. Biosorption of lead from aqueous solutions by ion-imprinted tetraethylenepentamine modifed chitosan beads. Int. J. Biol. Macromol. 2016, 86, 562–569. [Google Scholar] [CrossRef]
  160. Malik, S.A.; Dar, A.A.; Banday, J.A. Rheological, morphological and swelling properties of dysprosium-based composite hydrogel beads of alginate and chitosan: A promising material for the effective cationic and anionic dye removal. Colloids Surf. A Physicochem. Eng. Asp. 2023, 663, 131046. [Google Scholar] [CrossRef]
  161. Khan, M.U.; Al-Asbahi, B.A.; Bibi, S.; Taimur, S.; Nawaz, M.; Yasin, T.; Farooq, W.A.; Ali, Z.; Bibi, I.; Begum, S.; et al. Investigations on amidoxime grafted sepiolite based chitosan organic–inorganic nanohybrid composite beads towards wastewater detoxification. J. King Saud Univ. Sci. 2022, 34, 101689. [Google Scholar] [CrossRef]
  162. Srivastava, V.; Choubey, A.K. Investigation of adsorption of organic dyes present in wastewater using chitosan beads immobilized with biofabricated CuO nanoparticles. J. Mol. Struct. 2021, 1242, 130749. [Google Scholar] [CrossRef]
  163. Zhang, X.; Ma, K.; Peng, H.; Gong, Y.; Huang, Y. Imidazolium functionalized polysulfone/DTPA-chitosan composite beads for simultaneous removal of Cr(VI) and Cu(II) from aqueous solutions. Sep. Purif. Technol. 2023, 310, 123145. [Google Scholar] [CrossRef]
  164. Jeyaseelan, A.; Kumar, I.A.; Viswanathan, N.; Naushad, M. Rationally designed and hierarchically structured functionalized aluminium organic frameworks incorporated chitosan hybrid beads for defluoridation of water. Int. J. Biol. Macromol. 2022, 207, 941–951. [Google Scholar] [CrossRef] [PubMed]
  165. Sirajudheen, P.; Raja, M.; Karthikeyan, P.; Meenakshi, S. Perceptive removal of toxic azo dyes from water using magnetic Fe3O4 reinforced graphene oxide–carboxymethyl cellulose recyclable composite: Adsorption investigation of parametric studies and their mechanisms. Surf. Interfaces 2020, 21, 100648. [Google Scholar] [CrossRef]
  166. Tanhaei, B.; Ayati, A.; Iakovleva, E.; Sillanpaa, M. Efficient carbon interlayed magnetic chitosan adsorbent for anionic dye removal: Synthesis, characterization and adsorption study. Int. J. Biol. Macromol. 2020, 164, 3621–3631. [Google Scholar] [CrossRef]
  167. Abdul Rahman, A.S.; Fizal, A.N.S.; Khalil, N.A.; Ahmad Yahaya, A.N.; Hossain, M.S.; Zulkifli, M. Fabrication and Characterization of Magnetic Cellulose–Chitosan–Alginate Composite Hydrogel Bead Bio-Sorbent. Polymers 2023, 15, 2494. [Google Scholar] [CrossRef]
  168. Singh, N.; Riyajuddin, S.; Ghosh, K.; Mehta, S.K.; Dan, A. Chitosan-graphene oxide hydrogels with embedded magnetic Iron oxide nanoparticles for dye removal. Appl. Nano Mater. 2019, 2, 7379–7392. [Google Scholar] [CrossRef]
  169. Khalil, N.A.; Rahman, A.S.A.; Huraira, A.M.A.; Janurin, S.N.D.F.; Fizal, A.N.S.; Ahmad, N.; Zulkifli, M.; Hossain, M.S.; Yahaya, A.N.A. Magnetic chitosan hydrogel beads as adsorbent for copper removal from aqueous solution. Mater. Today Proc. 2023, 74, 499–503. [Google Scholar] [CrossRef]
  170. Demirezen, D.A.; Yılmaz, D.D.; Yıldız, Y.S. Magnetic chitosan/calcium alginate double-network hydrogel beads: Preparation, adsorption of anionic and cationic surfactants, and reuse in the removal of methylene blue. Int. J. Biol. Macromol. 2023, 239, 124311. [Google Scholar] [CrossRef]
  171. Qin, L.; Zhao, Y.; Wang, L.; Zhang, L.; Kang, S.; Wang, W.; Zhang, T.; Song, S. Preparation of ion-imprinted montmorillonite nanosheets/chitosan gel beads for selective recovery of Cu(Ⅱ) from wastewater. Chemosphere 2020, 252, 126560. [Google Scholar] [CrossRef] [PubMed]
  172. Yu, H.; Dai, Y.; Zhou, L.; Ouyang, J.; Tang, X.; Liu, Z.; Adesina, A.A. Selective biosorption of U(VI) from aqueous solution by ionimprinted honeycomb-like chitosan/kaolin clay composite foams. Int. J. Biol. Macromol. 2022, 206, 409–421. [Google Scholar] [CrossRef] [PubMed]
  173. Jayakumar, R.; Prabaharan, M.; Reis, R.L.; Mano, J.F. Graft copolymerized chitosan—Present status and applications. Carbohydr. Polym. 2005, 62, 142–158. [Google Scholar] [CrossRef]
  174. Gürdağ, G.; Sarmad, S. Cellulose Graft Copolymers: Synthesis, Properties, and Applications. In Polysaccharide Based Graft Copolymers; Kalia, S., Sabaa, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2013. [Google Scholar] [CrossRef]
  175. Kalia, S.; Sabaa, M.W.; Kango, S. Polymer Grafting: A Versatile Means to Modify the Polysaccharides. In Polysaccharide Based Graft Copolymers; Kalia, S., Sabaa, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2013. [Google Scholar] [CrossRef]
  176. Michalik, R.; Wandzik, I. A Mini-Review on Chitosan-Based Hydrogels with Potential for Sustainable Agricultural Applications. Polymers 2020, 12, 2425. [Google Scholar] [CrossRef] [PubMed]
  177. Taokaew, S.; Kaewkong, W.; Kriangkrai, W. Recent Development of Functional Chitosan-Based Hydrogels for Pharmaceutical and Biomedical Applications. Gels 2023, 9, 277. [Google Scholar] [CrossRef]
  178. Hama, R.; Ulziibayar, A.; Reinhardt, J.W.; Watanabe, T.; Kelly, J.; Shinoka, T. Recent Developments in Biopolymer-Based Hydrogels for Tissue Engineering Applications. Biomolecules 2023, 13, 280. [Google Scholar] [CrossRef]
  179. Mourya, V.K.; Inamdar, N.N. Chitosan-modifications and applications: Opportunities galore. React. Funct. Polym. 2008, 68, 1013–1051. [Google Scholar] [CrossRef]
  180. Mohammadzadeh Pakdel, P.; Peighambardoust, S.J. Review on recent progress in chitosan-based hydrogels for wastewater treatment application. Carbohydr. Polym. 2018, 201, 264–279. [Google Scholar] [CrossRef]
  181. Xu, J.; Wang, Z.; Wang, J.; Wang, S. Positively charged aromatic polyamide reverse osmosis membrane with high anti-fouling property prepared by polyethylenimine grafting. Desalination 2015, 365, 398–406. [Google Scholar] [CrossRef]
  182. Zhang, C.; Ni, C.; Liu, Z.; Wu, G.; Qin, Y. Polyethyleneimine (PEI) and Chitosan (CS) grafted with L-cysteine were used as effective materials for Hg(II) adsorption. Mater. Lett. 2023, 347, 134614. [Google Scholar] [CrossRef]
  183. Yusof, N.H.; Foo, K.Y.; Wilson, L.D.; Hameed, B.H.; Hussin, M.H.; Sabar, S. Microwave-Assisted Synthesis of Polyethylene-imine Grafted Chitosan Beads for the Adsorption of Acid Red 27. J. Polym. Environ. 2020, 28, 542–552. [Google Scholar] [CrossRef]
  184. Lu, Y.; Wang, Z.; Ouyang, X.K.; Ji, C.; Liu, Y.; Huang, F.; Yang, L. Fabrication of cross-linked chitosan beads grafted by polyethylenimine for efficient adsorption of diclofenac sodium from water. Int. J. Biol. Macromol. 2020, 145, 1180–1188. [Google Scholar] [CrossRef] [PubMed]
  185. Esmaeildoost, F.; Shahrousvand, M.; Goudarzi, A.; Bagherieh-Najjar, M.B. Optimization of Xanthan Gum/Poly(acrylic acid)/Cloisite 15A Semi-IPN Hydrogels for Heavy Metals Removal. J. Polym. Environ. 2022, 30, 4271–4286. [Google Scholar] [CrossRef]
  186. Dragan, E.S.; Apopei Loghin, D.F. Enhanced sorption of methylene blue from aqueous solutions by semi-IPN composite cryogels with anionically modified potato starch entrapped in PAAm matrix. Chem. Eng. J. 2013, 234, 211–222. [Google Scholar] [CrossRef]
  187. Godiya, C.B.; Liang, M.; Sayed, S.M.; Li, D.; Lu, X. Novel Alginate/Polyethyleneimine Hydrogel Adsorbent for Cascaded Removal and Utilization of Cu2+ and Pb2+ ions. J. Environ. Manag. 2019, 232, 829–841. [Google Scholar] [CrossRef]
  188. Majhi, D.; Patra, B.N. Polyaniline and Sodium Alginate Nanocomposite: A pH-Responsive Adsorbent for the Removal of Organic Dyes from Water. RSC Adv. 2020, 10, 43904. [Google Scholar] [CrossRef]
  189. Gohari, R.M.; Safarnia, M.; Koohi, A.D.; Salehi, M.B. Adsorptive Removal of Cationic Dyes by Synthesized Xanthan gum-g p(AMPS-co-AAm) Hydrogel from Aqueous Media: Optimization by RSM-CCD Model. Chem. Eng. Res. Design 2022, 188, 714–728. [Google Scholar] [CrossRef]
  190. Ilgin, P.; Ozay, H.; Ozay, O. The Efficient Removal of Anionic and Cationic Dyes from Aqueous Media Using Hydroxyethyl Starch-Based Hydrogels. Cellulose 2020, 27, 4787–4802. [Google Scholar] [CrossRef]
  191. Qi, X.; Zeng, Q.; Tong, X.; Su, T.; Xie, L.; Yuan, K.; Xu, J.; Shen, J. Polydopamine/montmorillonite-embedded pullulan hydrogels as efficient adsorbents for removing crystal violet. J. Hazard. Mater. 2021, 402, 123359. [Google Scholar] [CrossRef]
  192. Melilli, G.; Yao, J.; Chiappone, A.; Sangermano, M.; Hakkarainen, M. Photocurable “all-lignocellulose” derived hydrogel nanocomposites for adsorption of cationic contaminants. Sustain. Mater. Technol. 2021, 27, e00243. [Google Scholar] [CrossRef]
  193. Veregue, F.R.; de Lima, H.H.C.; Ribeiro, S.C.; Almeida, M.S.; da Silva, C.T.P.; Guilherme, M.R.; Rinaldi, A.W. MCM-41/chondroitin sulfate hybrid hydrogels with remarkable mechanical properties and superabsorption of methylene blue. Carbohydr. Polym. 2020, 247, 116558. [Google Scholar] [CrossRef] [PubMed]
  194. Du, X.; Liu, Y.; Wang, X.; Yan, H.; Wang, L.; Qu, L.; Kong, D.; Qiao, M.; Wang, L. Injectable hydrogel composed of hydrophobically modified chitosan/oxidized-dextran for wound healing. Mater. Sci. Eng. C 2019, 104, 109930. [Google Scholar] [CrossRef] [PubMed]
  195. Zhang, W.; Zhao, L.; Gao, C.; Huang, J.; Li, Q.; Zhang, Z. Highly resilient, biocompatible, and antibacterial carbon nanotube/hydroxybutyl chitosan sponge dressing for rapid and effective hemostasis. J. Mater. Chem. B 2021, 9, 9754–9763. [Google Scholar] [CrossRef] [PubMed]
  196. Peng, W.; Li, D.; Dai, K.; Wang, Y.; Song, P.; Li, H.; Tang, P.; Zhang, Z.; Li, Z.; Zhou, Y.; et al. Recent progress of collagen, chitosan, alginate and other hydrogels in skin repair and wound dressing applications. Int. J. Biol. Macromol. 2022, 298, 400–408. [Google Scholar] [CrossRef]
  197. Thambiliyagodage, C.; Jayanetti, M.; Mendis, A.; Ekanayake, G.; Liyanaarachchi, H.; Vigneswaran, S. Recent Advances in Chitosan-Based Applications—A Review. Materials 2023, 16, 2073. [Google Scholar] [CrossRef]
  198. Wang, X.; Song, R.; Johnson, M.; Shen, P.; Zhang, N.; Lara-Sáez, I.; Xu, Q.; Wang, W. Chitosan-Based Hydrogels for Infected Wound Treatment. Macromol. Biosci. 2023, e2300094. [Google Scholar] [CrossRef]
  199. Chelu, M.; Calderon Moreno, J.; Atkinson, I.; Pandele Cusu, J.; Rusu, A.; Bratan, V.; Aricov, L.; Anastasescu, M.; Seciu-Grama, A.-M.; Musuc, A.M. Green synthesis of bioinspired chitosan-ZnO-based polysaccharide gums hydrogels with propolis extract as novel functional natural biomaterials. Int. J. Biol. Macromol. 2022, 211, 410–424. [Google Scholar] [CrossRef]
  200. Yang, Y.; Feng, G.; Wang, J.; Zhang, R.; Zhong, S.; Wang, J.; Cui, X. Injectable chitosan-based self-healing supramolecular hydrogels with temperature and pH dual-responsivenesses. Int. J. Biol. Macromol. 2023, 227, 1038–1047. [Google Scholar] [CrossRef]
  201. Hamedi, H.; Moradi, S.; Hudson, S.M.; Tonelli, A.E. Chitosan based hydrogels and their applications for drug delivery in wound dressings: A review. Carbohydr. Polym. 2018, 199, 445–460. [Google Scholar] [CrossRef]
  202. Maur Rehman Qureshi, M.A.; Arshad, A.; Rasool, A. Graphene oxide reinforced biopolymeric (chitosan) hydrogels for controlled cephradine release. Int. J. Biol. Macromol. 2023, 242, 124948. [Google Scholar] [CrossRef]
  203. Manna, S.; Seth, A.; Gupta, P.; Nandi, G.; Dutta, R.; Jana, S.; Jana, S. Chitosan Derivatives as Carriers for Drug Delivery and Biomedical Applications. ACS Biomater. Sci. Eng. 2023, 9, 2181–2202. [Google Scholar] [CrossRef]
  204. Lei, L.; Li, X.; Xiong, T.; Yu, J.; Yu, X.; Song, Z.; Li, X. Covalently Cross-Linked Chitosan Hydrogel Sheet for Topical Ophthalmic Delivery of Levofloxacin. J. Biomed. Nanotechnol. 2018, 14, 371–378. [Google Scholar] [CrossRef] [PubMed]
  205. Cho, I.S.; Cho, M.O.; Li, Z.; Nurunnabi, M.; Park, S.Y.; Kang, S.-W.; Huh, K.M. Synthesis and characterization of a new photo-crosslinkable glycol chitosan thermogel for biomedical applications. Carbohydr. Polym. 2016, 144, 59–67. [Google Scholar] [CrossRef]
  206. Wan, Z.; Dong, Q.; Guo, X.; Bai, X.; Zhang, X.; Zhang, P.; Liu, Y.; Lv, L.; Zhou, Y. A dual-responsive polydopamine-modified hydroxybutyl chitosan hydrogel for sequential regulation of bone regeneration. Carbohydr. Polym. 2022, 297, 120027. [Google Scholar] [CrossRef] [PubMed]
  207. Mohan, N.; Mohanan, P.V.; Sabareeswaran, A.; Nair, P. Chitosan-hyaluronic acid hydrogel for cartilage repair. Int. J. Biol. Macromol. 2017, 104, 1936–1945. [Google Scholar] [CrossRef]
  208. Ranjbardamghani, F.; Eslahi, N.; Jahanmardi, R. An injectable chitosan/laponite hydrogel synthesized via hybrid cross-linking system: A smart platform for cartilage regeneration. Polym. Adv. Technol. 2023, 34, 2298–2311. [Google Scholar] [CrossRef]
  209. Hoveizi, E.; Naddaf, H.; Ahmadianfar, S.; Gutmann, J.L. Encapsulation of human endometrial stem cells in chitosan hydrogel containing titanium oxide nanoparticles for dental pulp repair and tissue regeneration in male Wistar rats. J. Biosci. Bioeng. 2023, 1359, 331–340. [Google Scholar] [CrossRef] [PubMed]
  210. Leite, Y.K.d.C.; Oliveira, A.C.d.J.; Quelemes, P.V.; Neto, N.M.A.; Carvalho, C.E.S.d.; Soares Rodrigues, H.W.; Alves, M.M.d.M.; Carvalho, F.A.d.A.; Arcanjo, D.D.R.; Silva-Filho, E.C.d.; et al. Novel Scaffold Based on Chitosan Hydrogels/Phthalated Cashew Gum for Supporting Human Dental Pulp Stem Cells. Pharmaceuticals 2023, 16, 266. [Google Scholar] [CrossRef]
  211. Bhuiyan, M.H.; Clarkson, A.N.; Ali, M.A. Optimization of thermoresponsive chitosan/β-glycerophosphate hydrogels for injectable neural tissue engineering application. Colloids Surf. B Biointerfaces 2023, 224, 113193. [Google Scholar] [CrossRef]
  212. Neuman, K.E.; Kenny, A.; Shi, L.; Koppes, A.N.; Koppes, R.A. Complex Material Properties of Gel-Amin: A Transparent and Ionically Conductive Hydrogel for Neural Tissue Engineering. Cells Tissues Organs 2023, 212, 45–63. [Google Scholar] [CrossRef]
  213. Zanon, M.; Cue-López, R.; Martínez-Campos, E.; Bosch, P.; Versace, D.-L.; Hayek, H.; Garino, N.; Fabrizio Pirri, C.; Sangermano, M.; Chiappone, A. Bioderived dyes-mediated vat photopolymerization 3D printing of chitosan hydrogels for tissue engineering. Addit. Manuf. 2023, 69, 103553. [Google Scholar] [CrossRef]
  214. Kulka, K.; Sionkowska, A. Chitosan Based Materials in Cosmetic Applications: A Review. Molecules 2023, 28, 1817. [Google Scholar] [CrossRef] [PubMed]
  215. Mistry, P.A.; Konar, M.N.; Latha, S.; Chadha, U.; Bhardwaj, P.; Eticha, T.K. Chitosan superabsorbent biopolymers in sanitary and hygiene applications. Int. J. Polym. Sci. 2023, 2023, 4717905. [Google Scholar] [CrossRef]
  216. Cerdá-Bernad, D.; Pitterou, I.; Tzani, A.; Detsi, A.; Frutos, M.J. Novel chitosan/alginate hydrogels as carriers of phenolic-enriched extracts from saffron floral by-products using natural deep eutectic solvents as green extraction media. Curr. Res. Food Sci. 2023, 6, 100469. [Google Scholar] [CrossRef] [PubMed]
  217. Tanwar, M.; Gupta, R.K.; Rani, A. Natural gums and their derivatives based hydrogels: In biomedical, environment, agriculture, and food industry. Crit. Rev. Biotechnol. 2023, 1–27. [Google Scholar] [CrossRef]
  218. De Oliveira, K.Á.R.; da Conceição, M.L.; de Oliveira, S.P.A.; Lima, M.D.S.; de Sousa Galvão, M.; Madruga, M.S.; Magnani, M.; de Souza, E.L. Post-harvest quality improvements in mango cultivar Tommy Atkins by chitosan coating with Mentha piperita L. essential oil. J. Hortic. Sci. Biotechnol. 2020, 95, 260–272. [Google Scholar] [CrossRef]
  219. Kumar, N.; Pratibha; Neeraj; Petkoska, A.T.; Al-Hilifi, S.A.; Fawole, O.A. Effect of chitosan–pullulan composite edible coating functionalized with pomegranate peel extract on the shelf life of mango (Mangifera indica). Coatings 2021, 11, 764. [Google Scholar] [CrossRef]
  220. Chen, Y.; Liu, Y.; Dong, Q.; Xu, C.; Deng, S.; Kang, Y.; Fan, M.; Li, L. Application of functionalized chitosan in food: A review. Int. J. Biol. Macromol. 2023, 235, 123716. [Google Scholar] [CrossRef]
  221. Zeng, X.; Jiang, W.; Li, H.; Li, Q.; Kokini, J.L.; Du, Z.; Xi, Y.; Li, J. Interactions of Mesona chinensis Benth polysaccharides with different polysaccharides to fabricate food hydrogels: A review. Food Hydrocoll. 2023, 139, 108556. [Google Scholar] [CrossRef]
  222. No, H.K.; Meyers, S.P.; Prinyawiwatkul, W.; Xu, Z. Applications of chitosan for improvement of quality and shelf life of foods: A review. J. Food Sci. 2007, 72, 87–100. [Google Scholar] [CrossRef]
  223. Cano Embuena, A.I.; Chafer Nacher, M.; Chiralt Boix, A.; Molina Pons, M.P.; Borras Llopis, M.; Beltran Martinez, M.C.; Gonzalez Martinez, C. Quality of goats milk cheese as affected by coating with edible chitosan-essential oil films. Int. J. Dairy Technol. 2017, 70, 68–76. [Google Scholar] [CrossRef]
  224. Maleki, G.; Woltering, E.J.; Mozafari, M.R. Applications of chitosan-based carrier as an encapsulating agent in food industry. Trends Food Sci. Technol. 2022, 120, 88–99. [Google Scholar] [CrossRef]
  225. Ortiz-Duarte, G.; Eugenia Perez-Cabrera, L.; Artes-Hernandez, F.; Martinez-Hernandez, G.B. Ag-chitosan nanocomposites in edible coatings affect the quality of fresh-cut melon. Postharvest Biol. Technol. 2019, 147, 174–184. [Google Scholar] [CrossRef]
  226. Jose Valera, M.; Sainz, F.; Mas, A.; Jesus Torija, M. Effect of chitosan and SO2 on viability of acetobacter strains in wine. Int. J. Food Microbiol. 2017, 246, 1–4. [Google Scholar] [CrossRef]
  227. Román-Doval, R.; Torres-Arellanes, S.P.; Tenorio-Barajas, A.Y.; Gómez-Sánchez, A.; Valencia-Lazcano, A.A. Chitosan: Properties and Its Application in Agriculture in Context of Molecular Weight. Polymers 2023, 15, 2867. [Google Scholar] [CrossRef]
  228. Ortiz, H.; Benavides Mendoza, A.; Robledo Torres, V.; Cabrera De la Fuente, M. Use of chitosan-PVA hydrogels with copper nanoparticles to improve the growth of grafted watermelon. Molecules 2017, 22, 1031. [Google Scholar]
  229. Choudhary, R.C.; Kumari, S.; Kumaraswamy, R.; Sharma, G.; Kumar, A.; Budhwar, S.; Pal, A.; Raliya, R.; Biswas, P. Chitosan nanomaterials for smart delivery of bioactive compounds in agriculture. In Nanoscale Engineering in Agricultural Management; Raliya, R., Ed.; CRC Press: Boca Raton, FL, USA, 2019; pp. 124–139. [Google Scholar]
  230. Zhang, M.; Yuan, Y.; Jin, J.; Sun, J.; Tian, X. Polyvinyl alcohol composite hydrogels/epoxidized natural rubber composites (CMCS/PVA/CS-ENR) with core-shell structure as biomass coating material for slow-release nitrogen fertilizer. Prog. Org. Coat. 2023, 183, 107744. [Google Scholar] [CrossRef]
  231. Ren, L.; Li, W.; Zhang, D.; Fang, W.; Yan, D.; Wang, Q.; Jin, X.; Li, Y.; Cao, A. Silica modified copper-based alginate/chitosan hybrid hydrogel to control soil fumigant release, reduce emission and enhance bioactivity. Int. J. Biol. Macromol. 2023, 244, 125132. [Google Scholar] [CrossRef]
  232. Santo Pereira, A.E.; Silva, P.M.; Oliveira, J.L.; Oliveira, H.C.; Fraceto, L.F. Chitosan nanoparticles as carrier systems for the plant growth hormone gibberellic acid. Colloids Surf. B Biointerfaces 2017, 150, 141–152. [Google Scholar] [CrossRef]
  233. Dou, Z.; Bini Farias, M.V.; Chen, W.; He, D.; Hu, Y.; Xie, X. Highly Degradable Chitosan-Montmorillonite (MMT) Nano-Composite Hydrogel for Controlled Fertilizer Release. Front. Environ. Sci. Eng. 2023, 17, 53. [Google Scholar] [CrossRef]
  234. El-Mekawy, R.E.; Elhady, H.A.; Al-Shareef, H.F. Highly stretchable, smooth, and biodegradable hydrogel films based on chitosan as safety food packaging. Polym. Polym. Compos. 2021, 29, 563–573. [Google Scholar] [CrossRef]
  235. Rodrigues, C.; de Mello, J.M.M.; Dalcanton, F.; Macuvele, D.L.P.; Padoin, N.; Fiori, M.A.; Soares, C.; Riella, H.G. Mechanical, Thermal and Antimicrobial Properties of Chitosan-Based-Nanocomposite with Potential Applications for Food Packaging. J. Polym. Environ. 2020, 28, 1216–1236. [Google Scholar] [CrossRef]
  236. Zárate-Moreno, J.C.; Escobar-Sierra, D.M.; Ríos-Estepa, R. Development and Evaluation of Chitosan-Based Food Coatings for Exotic Fruit Preservation. BioTech 2023, 12, 20. [Google Scholar] [CrossRef]
  237. Flórez, M.; Guerra-Rodríguez, E.; Cazón, P.; Vázquez, M. Chitosan for food packaging: Recent advances in active and intelligent films. Food Hydrocoll. 2022, 124, 107328. [Google Scholar] [CrossRef]
  238. Yong, H.; Wang, X.; Bai, R.; Miao, Z.; Zhang, X.; Liu, J. Development of Antioxidant and Intelligent PH-Sensing Packaging Films by Incorporating Purple-Fleshed Sweet Potato Extract into Chitosan Matrix. Food Hydrocoll. 2019, 90, 216–224. [Google Scholar] [CrossRef]

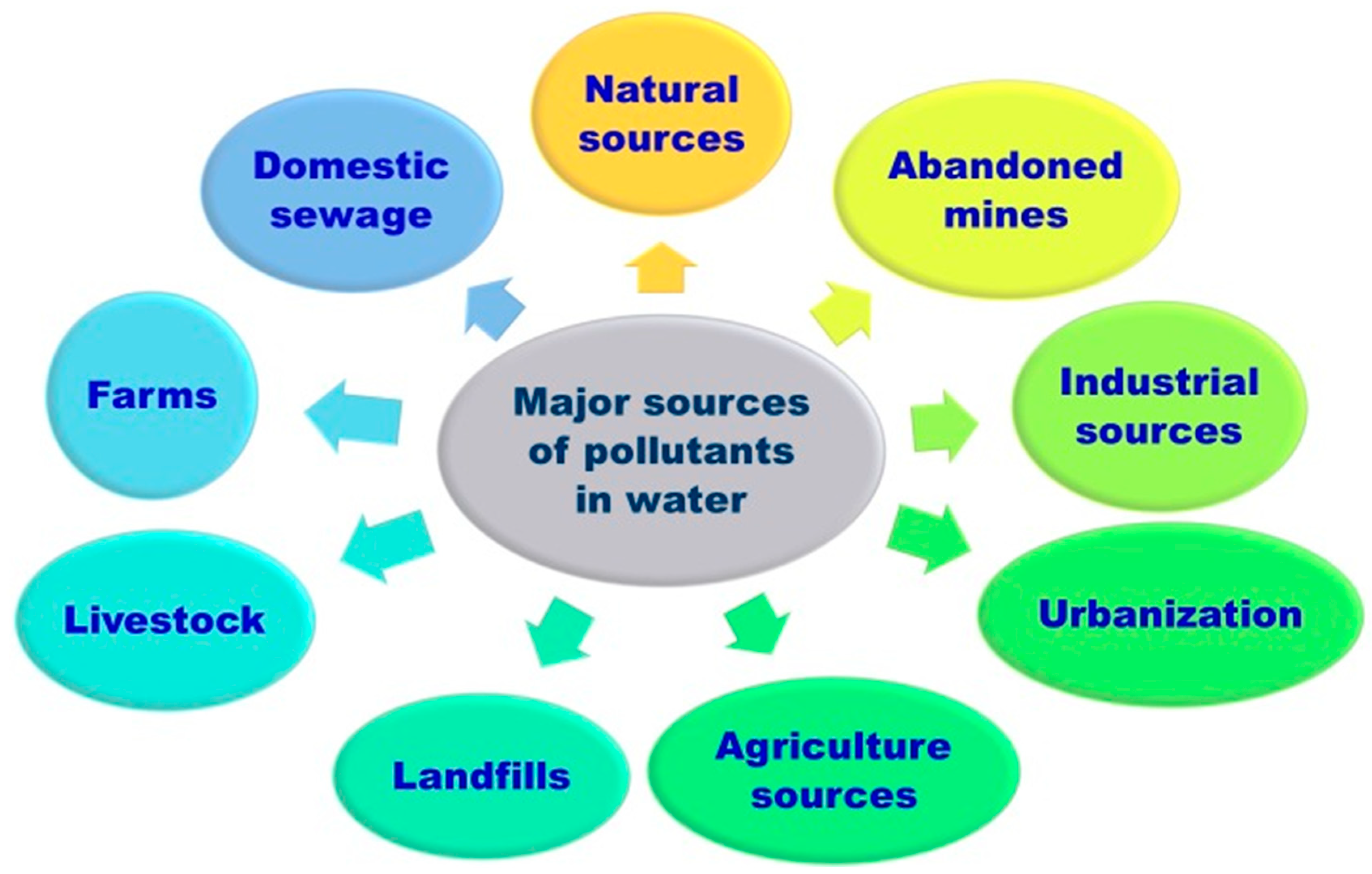

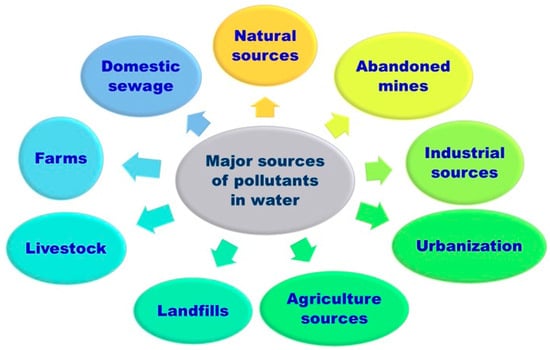

Figure 1. Major sources and common pathways of pollutants in water.
Figure 1. Major sources and common pathways of pollutants in water.
Gels 09 00664 g001

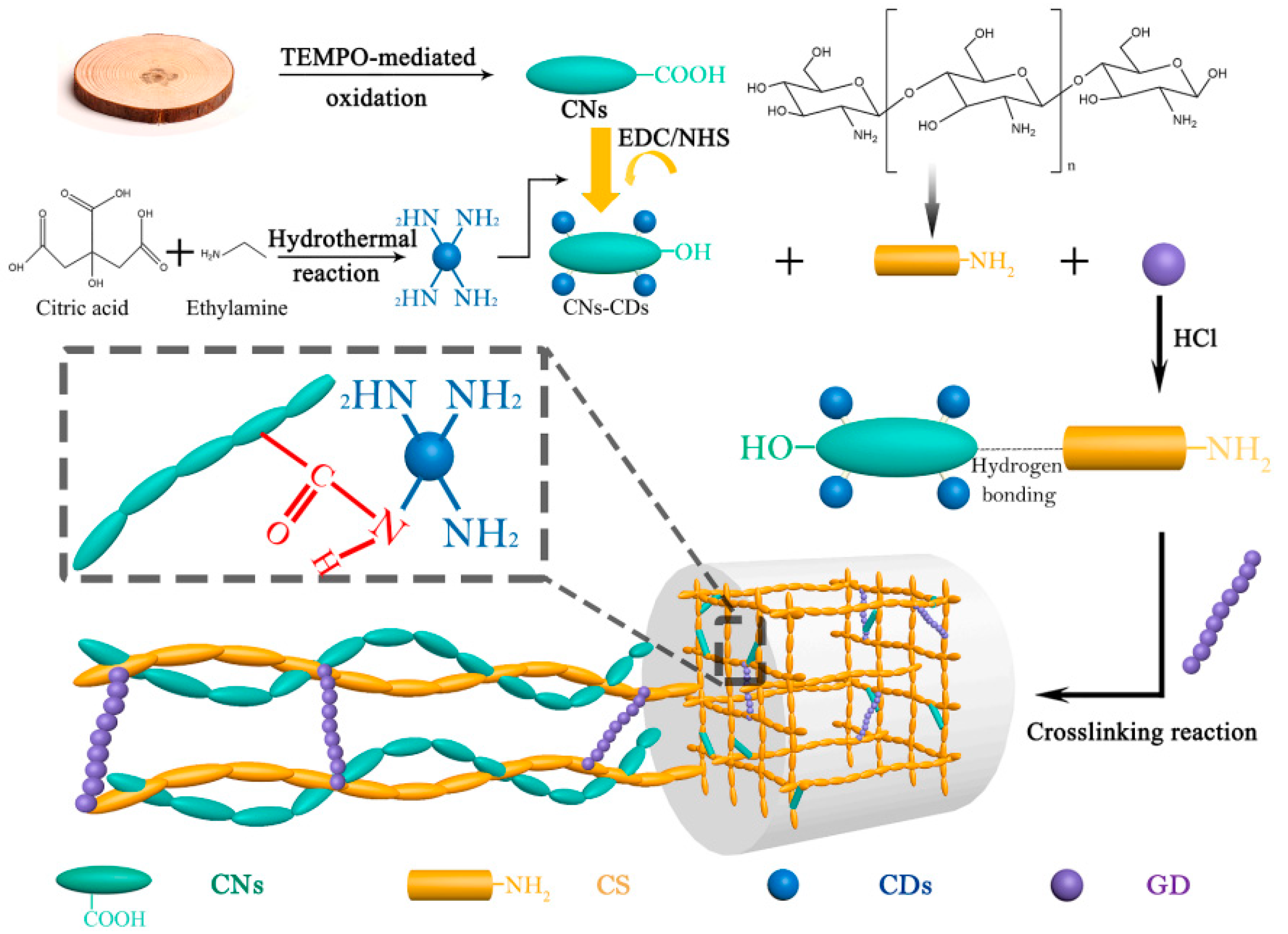

Figure 2. Diagram of the chitosan-based hydrogel preparation method. (Notation: CNs—cellulose nanomaterials; CS—chitosan; CDs—carbon dots; CD—glutaric dialdehyde; EDC—N-(3-dimethylaminopropyl)-N’-ethylcarbodiimide hydrochloride; NHS—N-hydroxysuccinimide). Reprinted with permission from ref. [72] Copyright 2023, Elsevier.
Figure 2. Diagram of the chitosan-based hydrogel preparation method. (Notation: CNs—cellulose nanomaterials; CS—chitosan; CDs—carbon dots; CD—glutaric dialdehyde; EDC—N-(3-dimethylaminopropyl)-N’-ethylcarbodiimide hydrochloride; NHS—N-hydroxysuccinimide). Reprinted with permission from ref. [72] Copyright 2023, Elsevier.
Gels 09 00664 g002

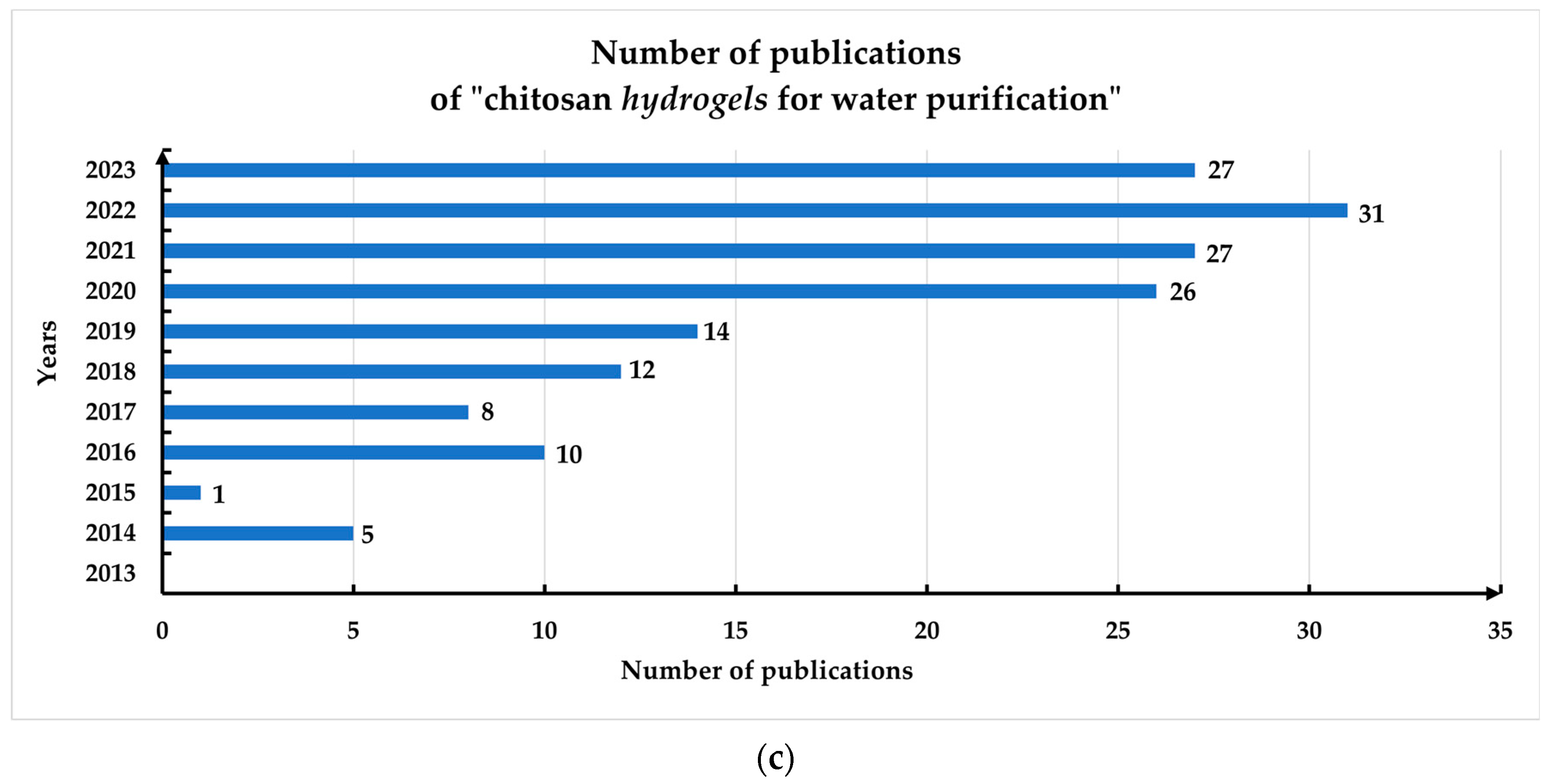

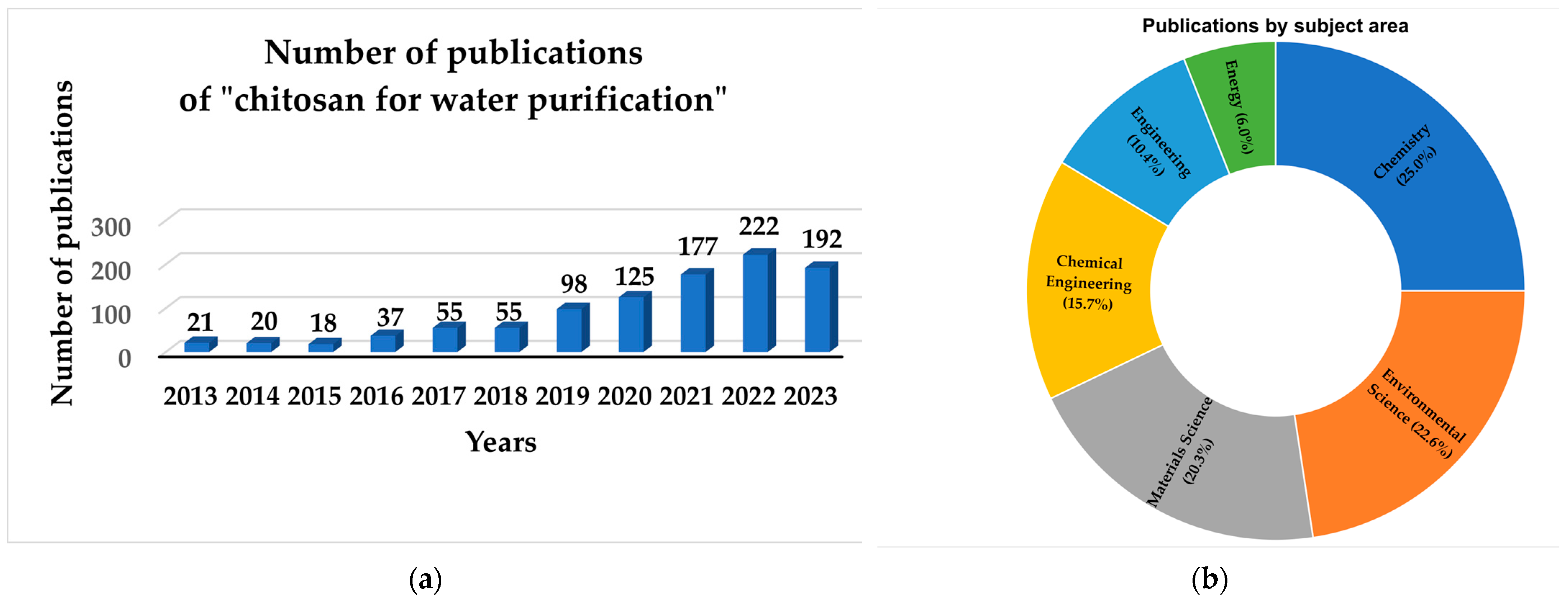

Figure 3. (a) Number of publications (articles and reviews) of chitosan for water purification from 2013 to August 2023; (b) publications by subject area (articles and reviews) of chitosan for water purification from 2013 to August 2023; (c) number of publications (articles and reviews) of chitosan hydrogels for water purification from 2013 to August 2023. Data were collected using the Scopus database [75].
Figure 3. (a) Number of publications (articles and reviews) of chitosan for water purification from 2013 to August 2023; (b) publications by subject area (articles and reviews) of chitosan for water purification from 2013 to August 2023; (c) number of publications (articles and reviews) of chitosan hydrogels for water purification from 2013 to August 2023. Data were collected using the Scopus database [75].
Gels 09 00664 g003aGels 09 00664 g003b

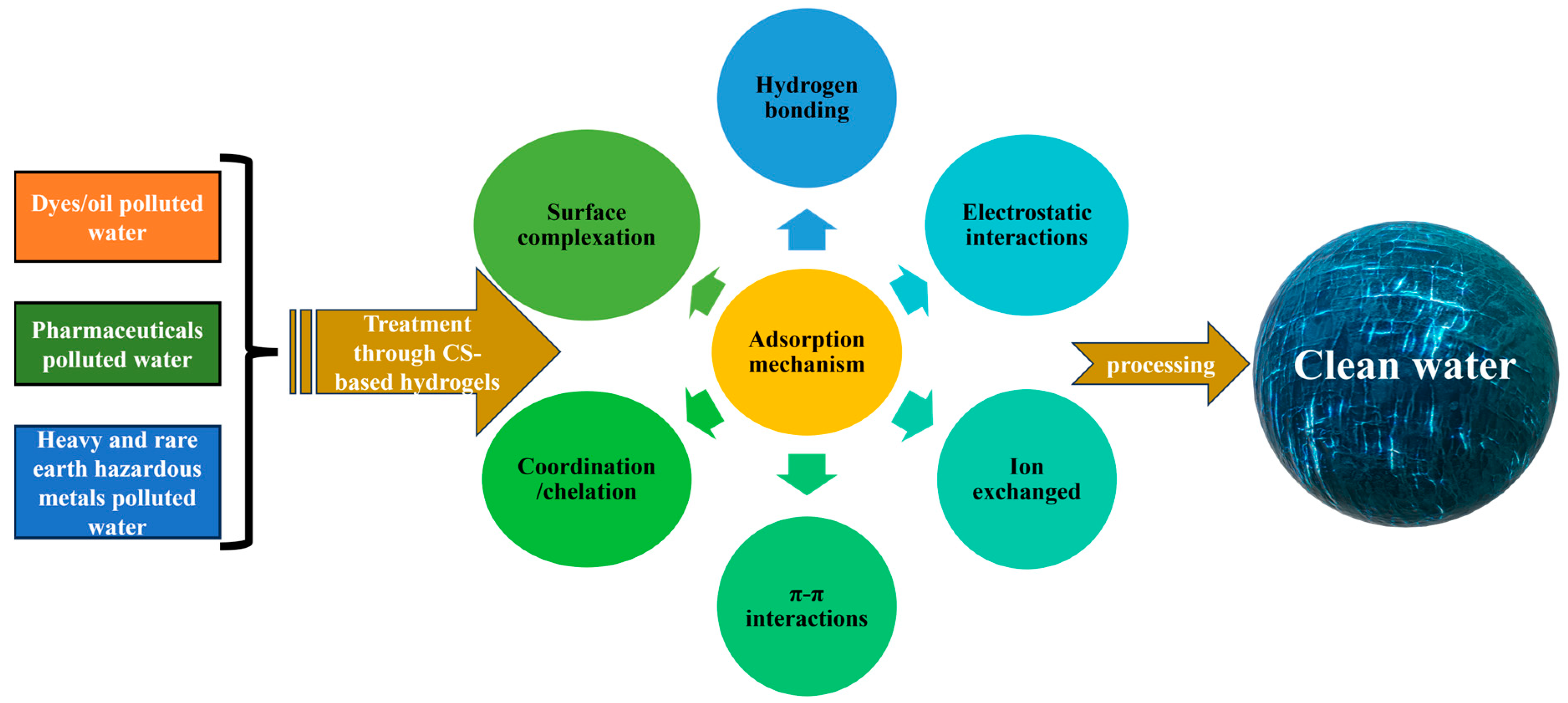

Scheme 1. Adsorption mechanisms of pollutants from water by chitosan-based hydrogels.
Scheme 1. Adsorption mechanisms of pollutants from water by chitosan-based hydrogels.
Gels 09 00664 sch001

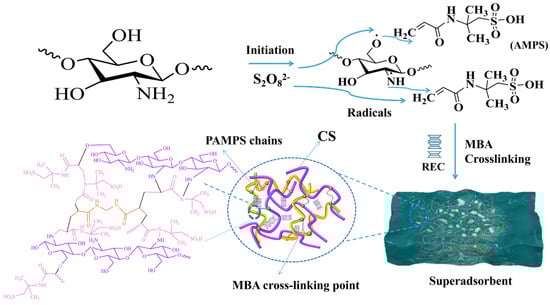

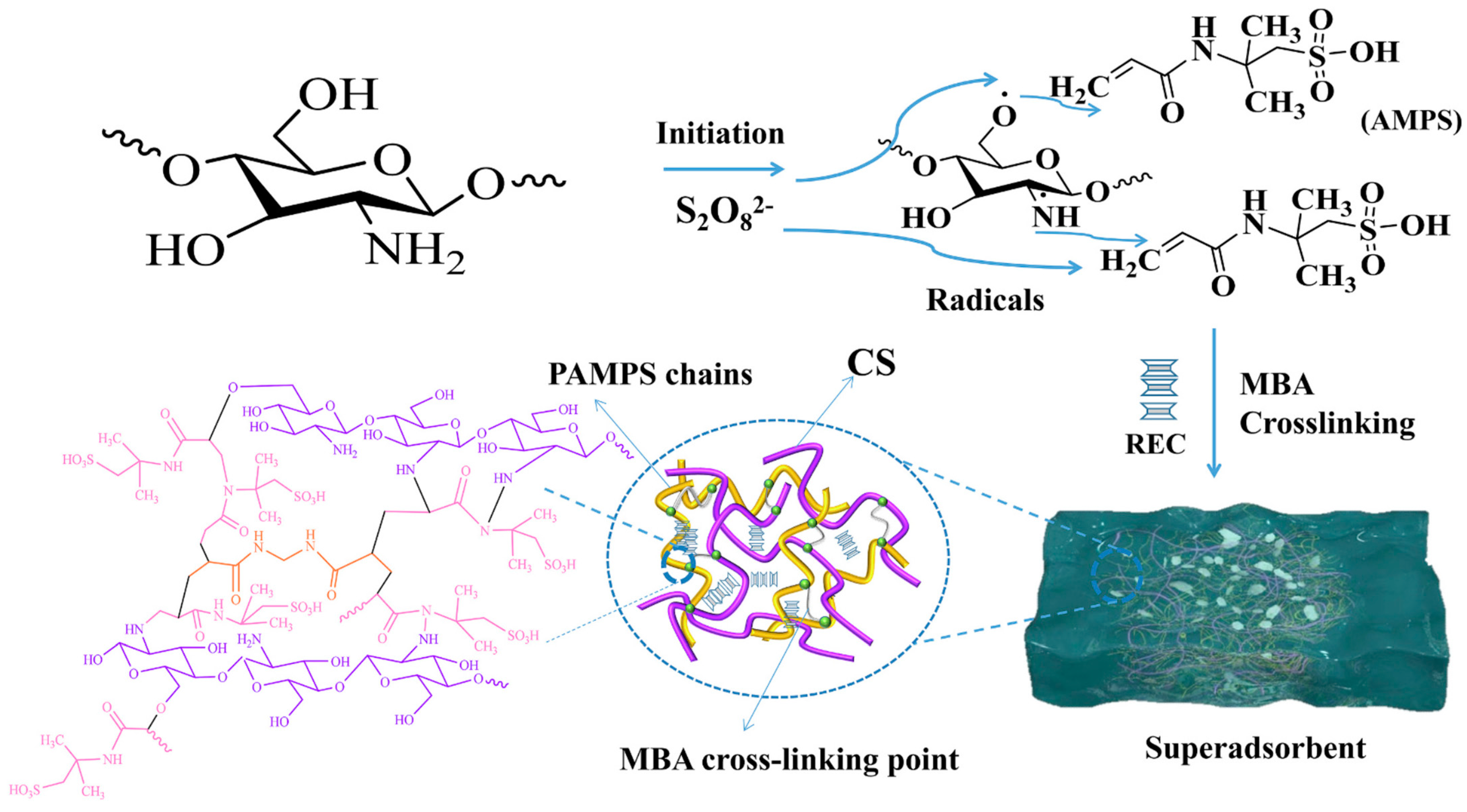

Figure 4. Representation of the synthesis process and the structure of the composite hydrogel. Reprinted with permission from ref. [93] Copyright 2023, Elsevier.
Figure 4. Representation of the synthesis process and the structure of the composite hydrogel. Reprinted with permission from ref. [93] Copyright 2023, Elsevier.
Gels 09 00664 g004
Figure 5. (a) Dependence of the adsorption capacity and adsorbent removal rate on the amount of adsorbent (initial concentration: 25 mg/L; pH 10)—inset is the digital photographs of MB solution with and without treatment with different amounts of adsorbent; (b) UV–Vis spectra of MB solution (25 mg/L) before and after adsorption with 3 g/L of adsorbents. Reprinted with permission from ref. [93] Copyright 2023, Elsevier.
Figure 5. (a) Dependence of the adsorption capacity and adsorbent removal rate on the amount of adsorbent (initial concentration: 25 mg/L; pH 10)—inset is the digital photographs of MB solution with and without treatment with different amounts of adsorbent; (b) UV–Vis spectra of MB solution (25 mg/L) before and after adsorption with 3 g/L of adsorbents. Reprinted with permission from ref. [93] Copyright 2023, Elsevier.
Gels 09 00664 g005

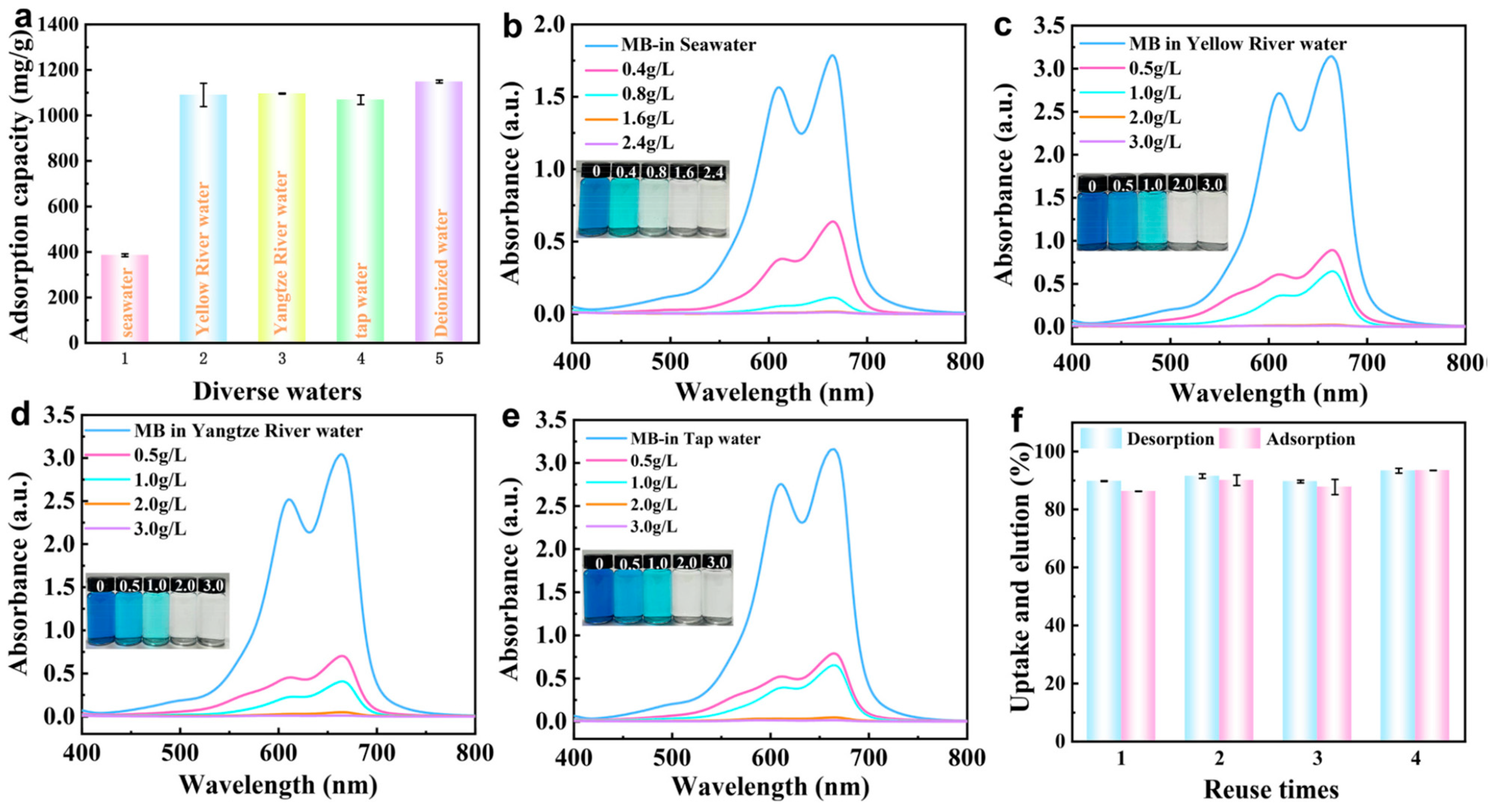

Figure 6. (a) Adsorption capacity for MB in various waters; removal rate toward MB in (b) seawater, (c) Yellow River water, (d) Yangtze River water, (e) tap water; and (f) adsorption capacity at different adsorption/desorption cycles (MB concentration: 500 mg/L; initial pH 10; temperature: 30 °C). Reprinted with permission from ref. [93] Copyright 2023, Elsevier.
Figure 6. (a) Adsorption capacity for MB in various waters; removal rate toward MB in (b) seawater, (c) Yellow River water, (d) Yangtze River water, (e) tap water; and (f) adsorption capacity at different adsorption/desorption cycles (MB concentration: 500 mg/L; initial pH 10; temperature: 30 °C). Reprinted with permission from ref. [93] Copyright 2023, Elsevier.
Gels 09 00664 g006
Figure 7. Adsorption tests of CPX hydrogel: (1) gentian violet; (2) methyl orange; (3) eosin; (a) stock solution; (b) initial time; (c) after 24 h [97].
Figure 7. Adsorption tests of CPX hydrogel: (1) gentian violet; (2) methyl orange; (3) eosin; (a) stock solution; (b) initial time; (c) after 24 h [97].
Gels 09 00664 g007
Figure 8. (a) Photo obtained under daylight and UV light of CHs with different ratios; (b) SEM images; (c) optical microscopy images; (d) XRD spectra; (e) FTIR spectra; (f) UV–Vis and fluorescence spectra; (g) excitation-dependent fluorescence behavior. Reprinted with permission from ref. [72] Copyright 2023, Elsevier.
Figure 8. (a) Photo obtained under daylight and UV light of CHs with different ratios; (b) SEM images; (c) optical microscopy images; (d) XRD spectra; (e) FTIR spectra; (f) UV–Vis and fluorescence spectra; (g) excitation-dependent fluorescence behavior. Reprinted with permission from ref. [72] Copyright 2023, Elsevier.
Gels 09 00664 g008

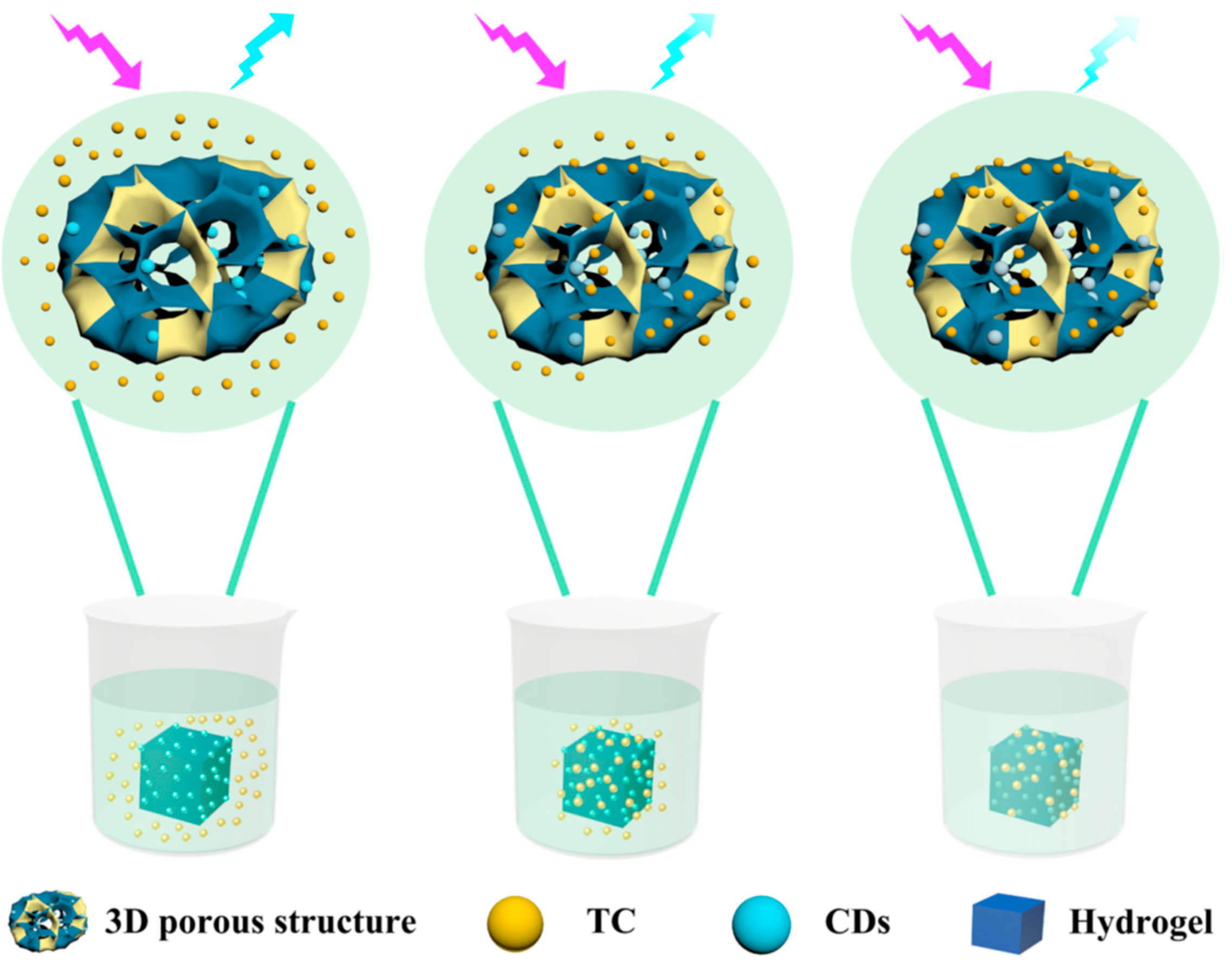

Figure 9. Representation of TC adsorption and detection mechanisms. Reprinted with permission from ref. [72] Copyright 2023, Elsevier.
Figure 9. Representation of TC adsorption and detection mechanisms. Reprinted with permission from ref. [72] Copyright 2023, Elsevier.
Gels 09 00664 g009

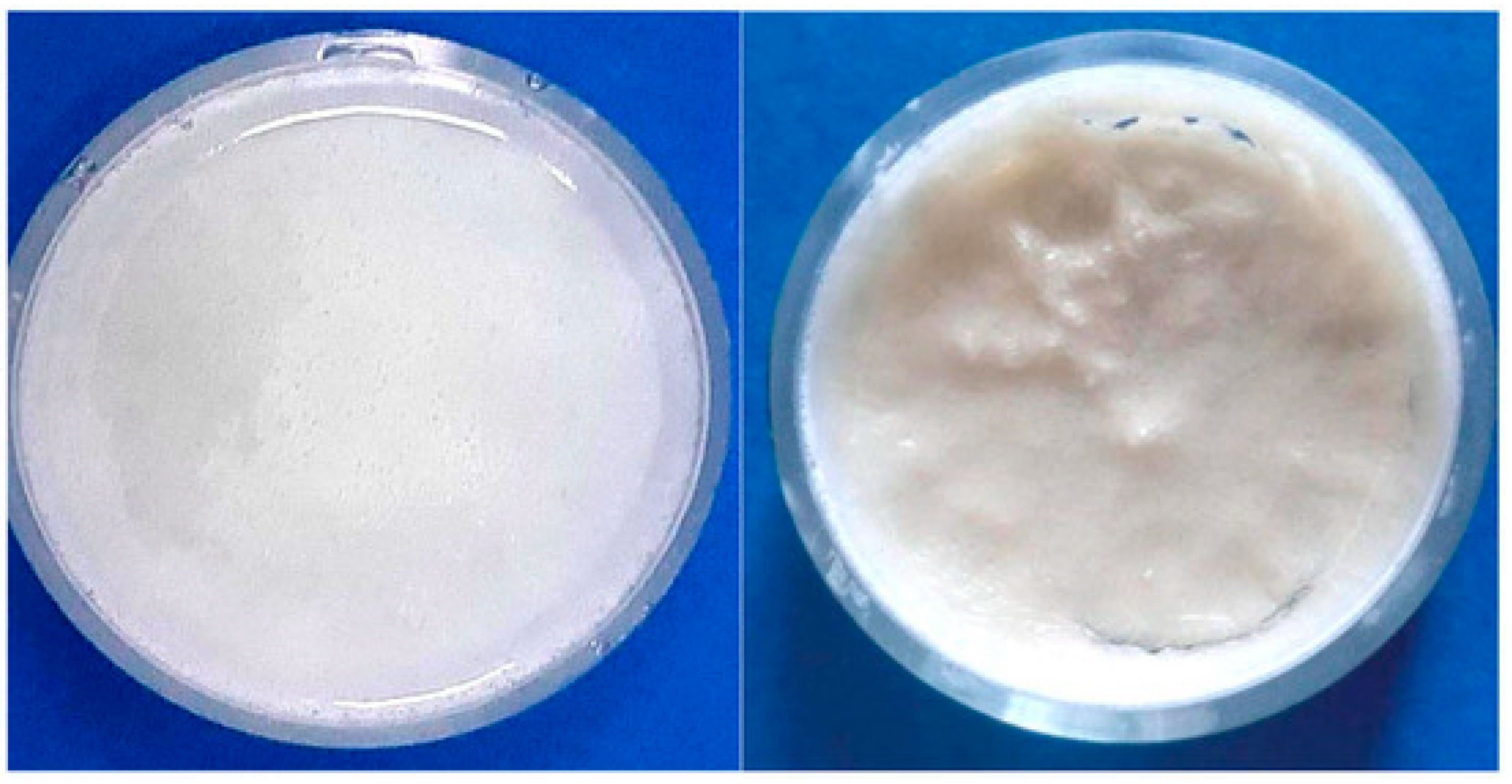

Figure 10. Optical images of CPX hydrogel: wet (left) and dry (right) [97].
Figure 10. Optical images of CPX hydrogel: wet (left) and dry (right) [97].
Gels 09 00664 g010

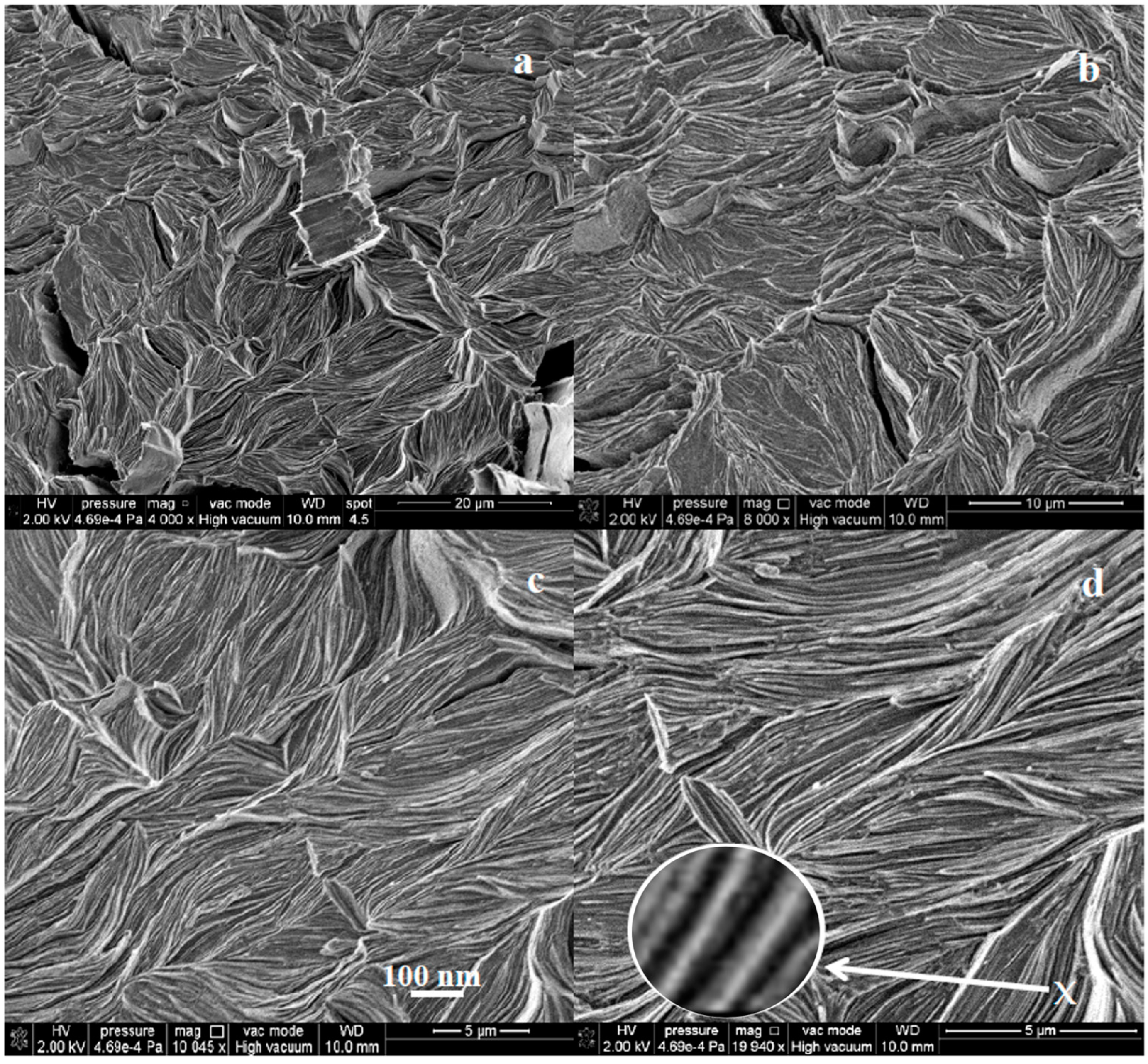

Figure 11. SEM micrographs at different magnifications showing the microstructure of CPX hydrogel; (a,b) bundles of 2D stacked sheet-like structures, (c,d) magnified images (below 100 nm); a magnified image (300,000×), at the position marked with an ‘x’ [97].
Figure 11. SEM micrographs at different magnifications showing the microstructure of CPX hydrogel; (a,b) bundles of 2D stacked sheet-like structures, (c,d) magnified images (below 100 nm); a magnified image (300,000×), at the position marked with an ‘x’ [97].
Gels 09 00664 g011

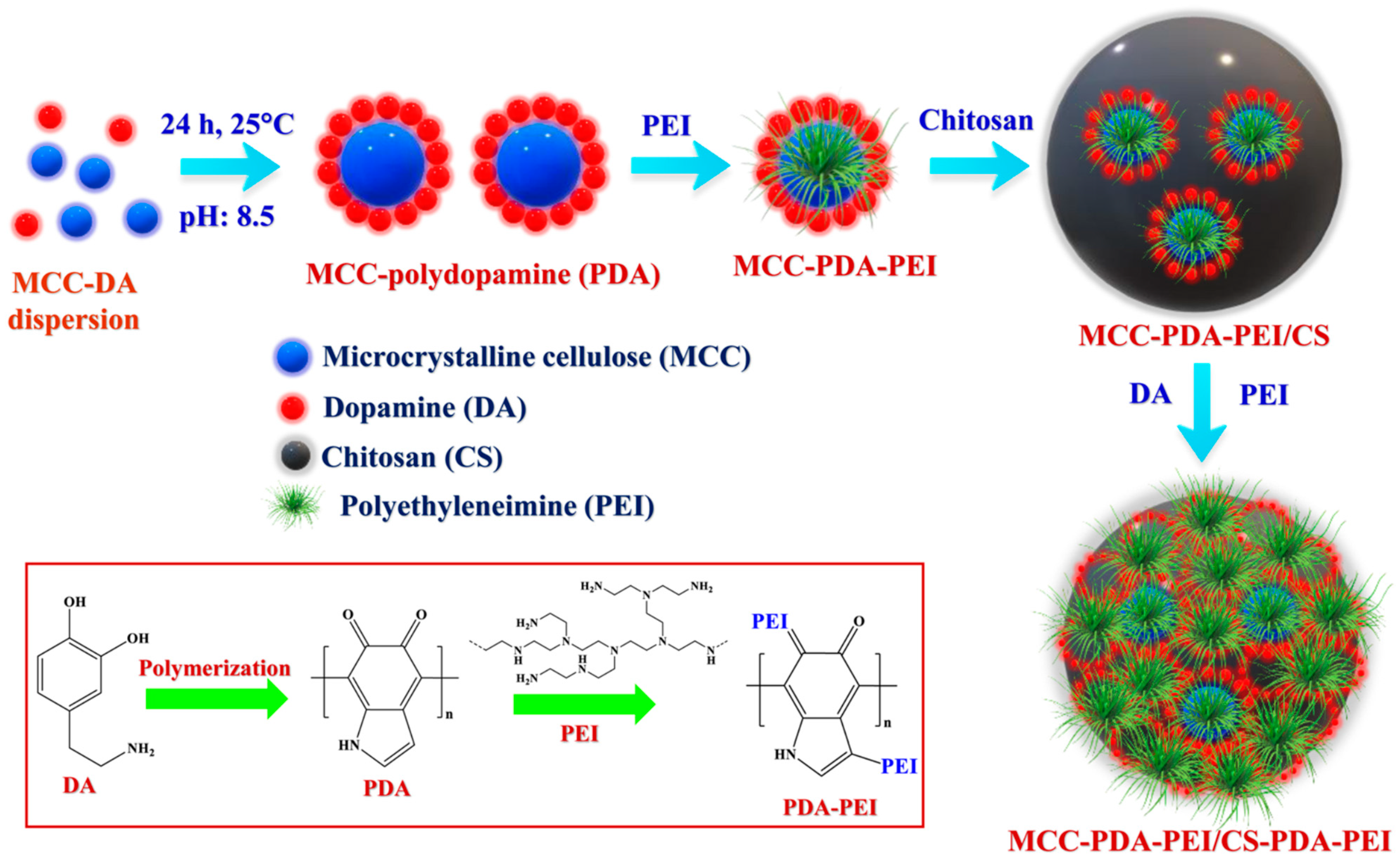

Figure 12. Graphic representation of MCC-PDA-PEI/CS-PDA-PEI hydrogel. Reprinted with permission from ref. [110] Copyright 2023, Elsevier.
Figure 12. Graphic representation of MCC-PDA-PEI/CS-PDA-PEI hydrogel. Reprinted with permission from ref. [110] Copyright 2023, Elsevier.
Gels 09 00664 g012

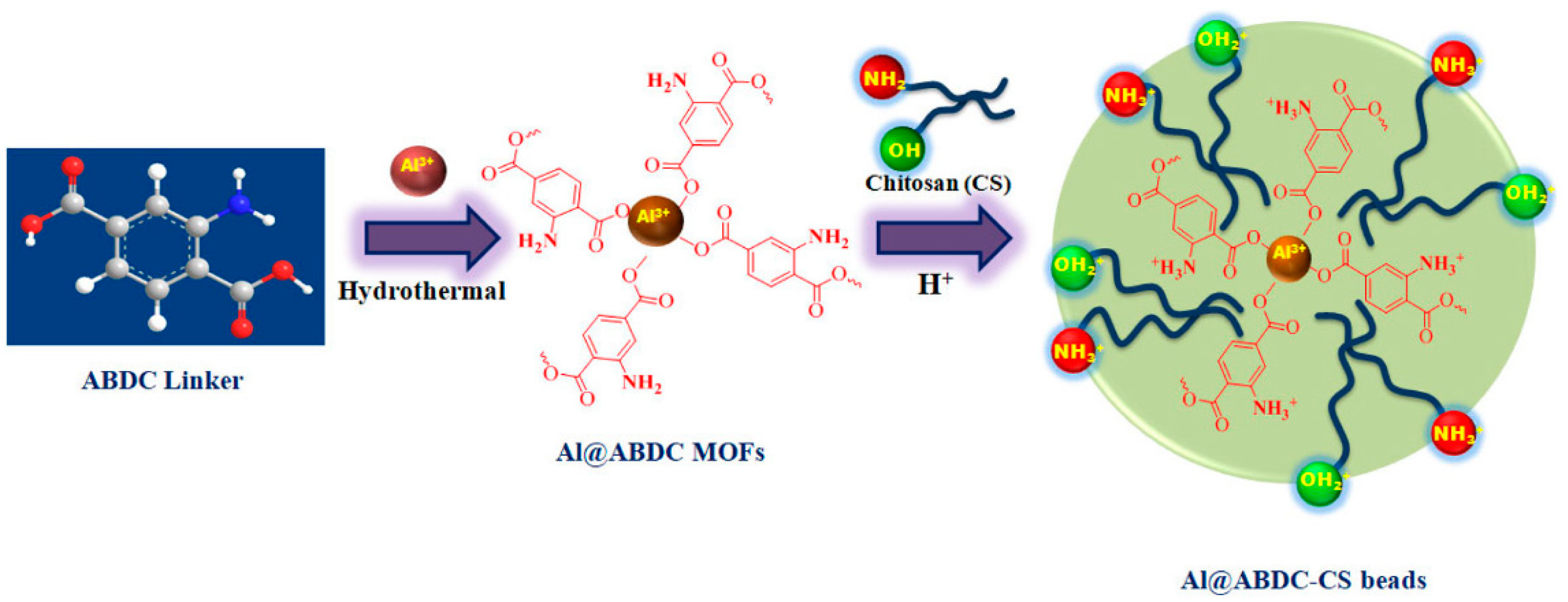

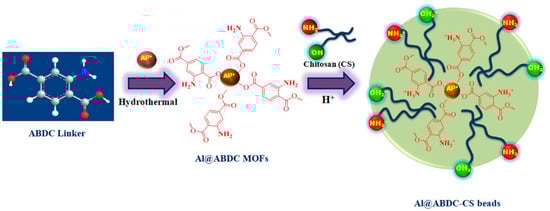

Figure 13. Representation of the formation mechanism of organic aluminum (Al) frameworks functionalized with 2-aminobenzene-1,4-dicarboxylic acid (ABCD) and incorporated into hybrid CS beads. Reprinted with permission from ref. [164] Copyright 2023, Elsevier.
Figure 13. Representation of the formation mechanism of organic aluminum (Al) frameworks functionalized with 2-aminobenzene-1,4-dicarboxylic acid (ABCD) and incorporated into hybrid CS beads. Reprinted with permission from ref. [164] Copyright 2023, Elsevier.
Gels 09 00664 g013
Scheme 2. Schematic representation of chitosan-based hydrogels in various industries.
Scheme 2. Schematic representation of chitosan-based hydrogels in various industries.
Gels 09 00664 sch002
Table 1. Mechanisms of adsorption of chitosan-based hydrogels.
Table 1. Mechanisms of adsorption of chitosan-based hydrogels.
Adsorption MechanismDefinitionExamplesApplicationsReferences
hydrogen bondingan intermolecular or intramolecular interaction with the formation of a pair of electrons–hydrogen bond acceptorcarboxymethyl cellulose-chitosan system (CMC-CS)high removal efficiency of methylene blue (MB)[76]
electrostatic interactionsthe interaction between two oppositely charged molecules or/and atomscarboxymethyl cellulose/chitosan hydrogel (CMC-CS)removal of anionic and cationic dyes (MB and acid orange II)[77]
ion exchangedexchange of free mobile ions of an insoluble solid with different ions of a similar charge from the solution, the reaction being reversiblechitosan–gelatine ion exchanger with the addition of zirconium (IV)an increased selectivity for cationic dyes—removal of MB[78]
π–π interactionsnoncovalent interactions by π-electron interactions between the acceptor and donor moleculeschitosan/carboxymethyl cellulose hydrogel using graphene oxide as chemical crosslinking agentused to treat dyes from contaminated wastewater[79]
coordination/chelationthe connection through a coordination bond of a metal ion with two or more coordination atoms (non-metal) in the same molecule to form a chelate ring structureDNA-chitosan hydrogelthe removal of heavy metal ions, organic dyes, and pharmaceuticals[80]
surface complexationThe interaction between an electron pair donor and electron acceptor in order to form various complexeshydroxyapatite/chitosan composite (HAp-CS)the removal of Congo red (CR)[81]
Table 2. CS-based composite hydrogels for wastewater remediation.
Table 2. CS-based composite hydrogels for wastewater remediation.
AdsorbentPollutantAdsorption Capacity (mg/g)/Adsorption Efficiencies (%)Time/Equilibrium and Best-Fitted Model for AdsorptionReferences
CS magnetic-kaolin beadsNitrate
40 min
Freundlich (pseudo-second-order kinetic model)
Imprinted magnetic CS beadsCu(II)78.1180 min
Langmuir (pseudo-second-order kinetic model)
Ion-imprinted crosslinked CSCd(II)1.10 mmol/g48 h
Langmuir (pseudo-second-order kinetic model)
La-Fe incorporated CS beadsCd(II)
phosphate (calculated in P)
24 h
32 h
Langmuir (pseudo-second-order kinetic model)
CS oligosaccharideCr(VI)148.1100 min
Langmuir (pseudo-second-order kinetic model)
CS/orange peelCr(VI)
240 min
Freundlich (pseudo-second-order kinetic model)
Crosslinked CS/sodium
alginate/calcium ion
8 h
Elovich (pseudo-first-order kinetic model) (pseudo-second-order kinetic model)
Carbon dots crosslinked cellulose Nanofibril/CSCu(II)
4 h
Langmuir (pseudo-second-order kinetic model)
1500 min
Elovich (pseudo-second-order kinetic model)
CSGO (chitosan-graphene oxide)-R@IO (magnetically separable chitosanbased hydrogel system)Cu(II)119.5 at pH 6180 min
Langmuir (pseudo-second-order kinetic model)
Graphene oxide-poly(vinyl alcohol)- chitosan GO-PVA-CSCd(II)
16 h
Langmuir (pseudo-second-order kinetic model)
Nitrogen-doped carbon dots-cellulose nanofibril-chitosan
4 h
Langmuir (pseudo-second-order kinetic model)
Millettia speciosa Champ cellulose-CSCongo red (CR)
288 h, Freundlich (pseudo-second-order kinetic model)
24 h, Freundlich (pseudo-first-order kinetic model)
Graphene oxid-chitosan-Fe3O4
Methylene blue (MB)
Eriochrome Black T (EBT)
300 min
Langmuir (pseudo-second-order kinetic model)
CS/aspartic acid
Methylene blue (MB)99.85%
30–60 min
Freundlich (pseudo-second-order kinetic model)
CS/montmorilloniteMethyl green
303.2124 h
Freundlich (pseudo-second-order kinetic model)
CS/oxalic acidReactive Red 195 RR195110.716 h
Acid Blue 113151.7
60 min, Langmuir (pseudo-second-order kinetic model)
Freundlich (pseudo-second-order kinetic model)
300 and 450 min
Langmuir (pseudo-second-order kinetic model)
Pectin/O-carboxymethyl chitosanLevofloxacin
12 h
SIPs model
Table 3. Advantages and disadvantages of different CS beads and their adsorption mechanisms.
Table 3. Advantages and disadvantages of different CS beads and their adsorption mechanisms.
Type of CS BeadsAdvantagesDisadvantagesType of Adsorbent/PollutantMechanismReferences
CS-based composite beadseasy to prepare, no mass loss, high surface area, and good reusabilityhard selection of low-cost materialsCS/Fe-hydroxyapatite beadschemisorption[136]
CS/Ag-hydroxyapatite nanocomposite beadsion exchange[137]
CS/waste active sludge char beadschelation[138]
La-Fe incorporated CS beadselectrostatic interaction and ligand exchange[139]
CS/lanthanum hydrogel beadselectrostatic attraction and ion exchange[140]
Functionalized CS beadshigh surface area, a multitude of available active sites, and good reusabilityunclear adsorption mechanismethylenediamine tetraacetic acid grafted/polyvinyl alcohol/CS beadschemisorption[141]
functional β-cyclodextrin CS beadselectrostatic interaction[142]
triethylenetetramine-CS/alginate composite beadselectrostatic interaction, hydrogen bonding, redox reaction, chelation, and cation–anion exchange[143]
novel aliquot-336 impregnated CS conjugated beadselectrostatic interaction[144]
CS beads impregnated hexadecyl aminechemisorption[145]
Metal–organic framework-based CS beadshigher porosity and surface arealow stability and low mechanical strengthMIL-101(Fe)-CS-cyclodextrin nanosponge-[146]
copper-benzenetricarboxylate (Cu-BTC), polyacrylonitrile (PAN), and CSphysical adsorption[147]
Al-MOF@CS composites with the MOFs Alfum and MIL-160-[148]
CS/PEO@MOF-5 membrane-[149]
Magnetic CS beadsgood mechanical strength, good stability, good recovery, and higher surface arealower reusabilitymagnetic kaolinite immobilized CS beads-[151]
magnetic kaolin-embedded CS beadsphysical adsorption[152]
magnetic Fe3O4/graphene oxide/CS beads-[153]
magnetic cationic polymer CS beadselectrostatic interaction and ion exchange[154]
Co-polymeric CS beadsa good adsorption capacitylower stabilityPEI-grafted CS beads-[155]
graft copolymerized CS with acetylacetonecomplexation[156]
epichlorohydrin-modified CS-2,4-dichlorobenzaldehyde compositehomogeneous monolayer chemical adsorption[157]
Zr4+ and glutaraldehyde crosslinked PEI functionalized CSelectrostatic action, complexation, and reduction[158]
Imprinted CS beadsgood reusability and greater efficiencyunclear adsorption mechanismion-imprinted crosslinked CSchemisorption[117]
imprinted CS-acrylamidehydrogen bond and electrostatic attraction[156]
imprinted magnetic CS beadsenthalpy controlled process[116]
ion-imprinted tetraethylenepentamine modified CS beadsdiffusion process[159]
Table 4. Composite hydrogels for wastewater remediation.
Table 4. Composite hydrogels for wastewater remediation.
AdsorbentPollutantAdsorption Capacity (mg/g)References
Xanthan gum-poly(acrylic acid-cloisite15A semi-IPN hydrogel
Poly(acrylamide) PAA-g-starch/PAA
semi-IPN cryogels
Methylene blue (MB)667.7[186]
(ALG/PEI) hydrogels
polyaniline/sodium alginate hydrogel
Rhodamine B
Methyl orange
Xanthan gum-2-acrylamido-2-methly propane sulfonic acid-acrylamide
hydroxyethyl starch/p(3-(acrylamidopropyl) trimethyl ammonium chloride (HESt/P(APTMACl)) hydrogel
HESt/PAA hydrogels
hydroxyethyl starch/p(acrylamide)
(HESt/PAAm) hydrogels
Methyl violet
Methyl orange Methyl violet
Methyl orange Methyl violet
Methyl orange
hydrogel composites
Crystal violet112.45[191]
hydrogel nanocomposites based on methacrylated carboxymethyl cellulose (M-CMC) and lignosulfonate-derived carbonaceous products (All-lignocellulose)MB
chondroitin sulfate/MCM-41 (chondroitin sulfate-mesoporous silica) hybrid hydrogelsMB3982 ± 123.6[193]
Table 5. Examples of CS-based hydrogel applications.
Table 5. Examples of CS-based hydrogel applications.
medicine and pharmaceuticstreating skin wounds and accelerated wound healing
injectable hydrogel for dressing wound healing (hydrophobically modified chitosan/oxidized-dextran hydrogel)
sponge dressing as rapid and efficient hemostatic agents (carbon nanotube/hydroxybutyl chitosan)
dressings for infected wound treatment
wound dressing
biosynthesized zinc oxide nanoparticles incorporated into a chitosan hydrogel matrix functionalized with propolis extract
drug delivery
thermoreversible supramolecular hydrogel for applications in the field of gastrointestinal drug release (photo-crosslinkable glycol chitosan thermogel, graphene oxide reinforced chitosan hydrogel)
lens system for eyesrelease of various ophthalmic drugs (4-arm polyethylene glycol with aldehyde end groups (4-arm PEG-CHO) with glycol chitosan (GC))[197,204]
bones and tissues engineering
injectable delivery system and 3D cell culture to fill the irregular shaped gaps and defects of internal tissues without any surgery (chitosan/laponite hydrogel)
sequential delivery of the anti-inflammatory drug aspirin and osteogenic bone morphogenetic protein 2 (BMP-2)
cartilage repairhydrogels for in vivo cartilage regeneration (chitosan-hyaluronic acid hydrogel)[207,208,209,210]
neural tissueinjectable thermoresponsive hydrogels for neural tissue engineering (chitosan/β-glycerophosphate hydrogels)[211,212]
engineering3D materials for tissue engineering applications[213]
cosmeticsskin care products
base for cosmetic masks
deodorizing agent
preventive water loss agent
antibacterial and antioxidant activity—hydrating agent
hair care products
film forming
hair fixing
superabsorbent materials
female hygiene products (hydrogel nanocomposites of silver nanoparticles (AgNPs)/chitosan/polyvinyl alcohol/polyethylene glycol)
food industriesfood preservatives
antifungal coatings
natural food preservatives
as impregnating chitosan solution for purpose preserving and storing food by spreading or spraying
dietary ingredient
additive in food and beverages
flavor enhancer in food
(chitosan and Mentha piperita L. essential oil)
color stabilization in foods
encapsulant for flavor encapsulation
maintain the desired structure and texture
controlling and stabilizing agent
antibacterial agent
stabilizer for food texture
agricultureremoval of pesticides and herbicidesantifungal control[217,227,228,229,230,231,232,233]
plant growth
as nanofertilizers (Chitosan-Montmorillonite (MMT) Nano-Composite Hydrogel)
release plant growth regulators, and vitamins
enhancing the soil qualityfor biologically transmitting active nutrients
packaging industrypackaging for food
food packaging (Incorporating Purple-Fleshed Sweet Potato Extract into Chitosan Matrix)
active/preservative coatings
biofilms coatings for the protection of fruits
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chelu, M.; Musuc, A.M.; Popa, M.; Calderon Moreno, J.M. Chitosan Hydrogels for Water Purification Applications. Gels 2023, 9, 664.

AMA Style

Chelu M, Musuc AM, Popa M, Calderon Moreno JM. Chitosan Hydrogels for Water Purification Applications. Gels. 2023; 9(8):664.

Chicago/Turabian Style

Chelu, Mariana, Adina Magdalena Musuc, Monica Popa, and Jose M. Calderon Moreno. 2023. "Chitosan Hydrogels for Water Purification Applications" Gels 9, no. 8: 664.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
